物联网onenet的token算法

Fang_pi_dai_zhi2026-04-12 9:43

1.Token的组成

version：2018-10-31

res：products/123123/devices/78329710

设备级格式为：products/{产品id}/devices/{设备名字}

et：是时间戳

method：支持md5、sha1、sha256

sign：经过复杂运算

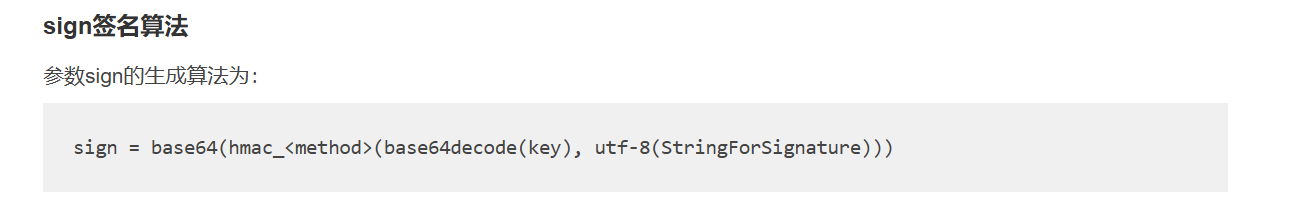

2.sign运算

1、对设备密钥进行base64解码，结果是个密钥；

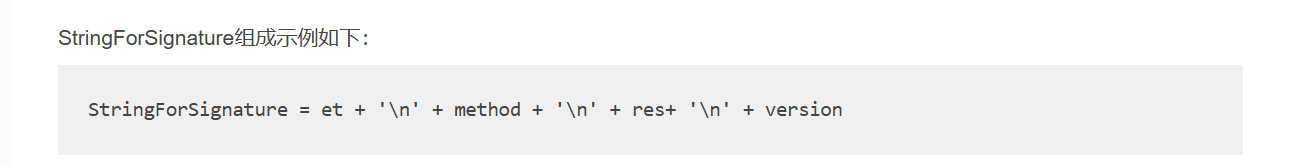

2、进行 StringForSignature字符串的建立，结果作为明文；

3、用第一个步的密钥对第二部的明文，进行签名的加密运算；

4、对第三步的结果进行base64的编码，结果就是sign；

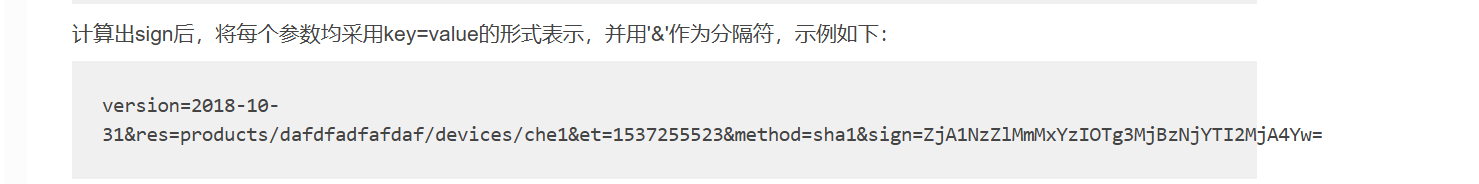

3.进行URL编码

对res和sign进行URL编码；

最终得到token；

4.整体一句话总结

这是一段 生成 OneNet 设备接入 Token 的完整代码 流程 = 拼接参数 → 解码密钥 → HMAC 签名 → Base64 编码 → URL 编码 → 最终 Token

复制代码
#ifndef __ONENET_TOKEN_H__
#define __ONENET_TOKEN_H__

#include <stdint.h>

#ifdef __cplusplus
extern "C" {
#endif

// 签名算法枚举
typedef enum {
    SIG_METHOD_MD5,
    SIG_METHOD_SHA1,
    SIG_METHOD_SHA256
} sig_method_e;

// 对外接口：生成 OneNet Token
int32_t dev_token_generate(char* token,
                          sig_method_e method,
                          uint32_t exp_time,
                          const char* product_id,
                          const char* dev_name,
                          const char* access_key);

#ifdef __cplusplus
}
#endif

#endif

.c

复制代码
#include "onenet_token.h"
#include <stdio.h>
#include <string.h>
#include "mbedtls/md.h"


// 类型别名
typedef uint8_t  byte;
typedef uint32_t word32;

enum Escaped {
    WC_STD_ENC = 0,
    WC_ESC_NL_ENC,
    WC_NO_NL_ENC
};

#define BAD_FUNC_ARG    -1
#define ASN_INPUT_E     -2
#define BUFFER_E        -3
#define LENGTH_ONLY_E   -4



#ifndef osl_sprintf
    #define osl_sprintf     sprintf
    #define osl_sprintf_ex  sprintf // 如果有_ex版本
    #define osl_strlen      strlen
    #define osl_strcat      strcat
    #define osl_memset      memset
    #define osl_memcpy      memcpy
#endif


enum {
    BAD         = 0xFF,  /* invalid encoding */
    PAD         = '=',
    PEM_LINE_SZ = 64
};


static
const byte base64Decode[] = { 62, BAD, BAD, BAD, 63,   /* + starts at 0x2B */
                              52, 53, 54, 55, 56, 57, 58, 59, 60, 61,
                              BAD, BAD, BAD, BAD, BAD, BAD, BAD,
                              0, 1, 2, 3, 4, 5, 6, 7, 8, 9,
                              10, 11, 12, 13, 14, 15, 16, 17, 18, 19,
                              20, 21, 22, 23, 24, 25,
                              BAD, BAD, BAD, BAD, BAD, BAD,
                              26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
                              36, 37, 38, 39, 40, 41, 42, 43, 44, 45,
                              46, 47, 48, 49, 50, 51
                            };

//解码
int Base64_Decode(const byte* in, word32 inLen, byte* out, word32* outLen)
{
    word32 i = 0;
    word32 j = 0;
    word32 plainSz = inLen - ((inLen + (PEM_LINE_SZ - 1)) / PEM_LINE_SZ );
    const byte maxIdx = (byte)sizeof(base64Decode) + 0x2B - 1;

    plainSz = (plainSz * 3 + 3) / 4;
    if (plainSz > *outLen) return BAD_FUNC_ARG;

    while (inLen > 3) {
        byte b1, b2, b3;
        byte e1 = in[j++];
        byte e2 = in[j++];
        byte e3 = in[j++];
        byte e4 = in[j++];

        int pad3 = 0;
        int pad4 = 0;

        if (e1 == 0)            /* end file 0's */
            break;
        if (e3 == PAD)
            pad3 = 1;
        if (e4 == PAD)
            pad4 = 1;

        if (e1 < 0x2B || e2 < 0x2B || e3 < 0x2B || e4 < 0x2B)
         {

            return ASN_INPUT_E;
        }

        if (e1 > maxIdx || e2 > maxIdx || e3 > maxIdx || e4 > maxIdx) {

            return ASN_INPUT_E;
        }

        e1 = base64Decode[e1 - 0x2B];
        e2 = base64Decode[e2 - 0x2B];
        e3 = (e3 == PAD) ? 0 : base64Decode[e3 - 0x2B];
        e4 = (e4 == PAD) ? 0 : base64Decode[e4 - 0x2B];

        b1 = (byte)((e1 << 2) | (e2 >> 4));
        b2 = (byte)(((e2 & 0xF) << 4) | (e3 >> 2));
        b3 = (byte)(((e3 & 0x3) << 6) | e4);

        out[i++] = b1;
        if (!pad3)
            out[i++] = b2;
        if (!pad4)
            out[i++] = b3;
        else
            break;

        inLen -= 4;
        if (inLen && (in[j] == ' ' || in[j] == '\r' || in[j] == '\n')) {
            byte endLine = in[j++];
            inLen--;
            while (inLen && endLine == ' ') {   /* allow trailing whitespace */
                endLine = in[j++];
                inLen--;
            }
            if (endLine == '\r') {
                if (inLen) {
                    endLine = in[j++];
                    inLen--;
                }
            }
            if (endLine != '\n') {

                return ASN_INPUT_E;
            }
        }
    }
    *outLen = i;

    return 0;
}




static
const byte base64Encode[] = { 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'I', 'J',
                              'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R', 'S', 'T',
                              'U', 'V', 'W', 'X', 'Y', 'Z',
                              'a', 'b', 'c', 'd', 'e', 'f', 'g', 'h', 'i', 'j',
                              'k', 'l', 'm', 'n', 'o', 'p', 'q', 'r', 's', 't',
                              'u', 'v', 'w', 'x', 'y', 'z',
                              '0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
                              '+', '/'
                            };


/* make sure *i (idx) won't exceed max, store and possibly escape to out,
 * raw means use e w/o decode,  0 on success */
static int CEscape(int escaped, byte e, byte* out, word32* i, word32 max,
                  int raw, int getSzOnly)
{
    int    doEscape = 0;
    word32 needed = 1;
    word32 idx = *i;

    byte basic;
    byte plus    = 0;
    byte equals  = 0;
    byte newline = 0;

    if (raw)
        basic = e;
    else
        basic = base64Encode[e];

    /* check whether to escape. Only escape for EncodeEsc */
    if (escaped == WC_ESC_NL_ENC) {
        switch ((char)basic) {
            case '+' :
                plus     = 1;
                doEscape = 1;
                needed  += 2;
                break;
            case '=' :
                equals   = 1;
                doEscape = 1;
                needed  += 2;
                break;
            case '\n' :
                newline  = 1;
                doEscape = 1;
                needed  += 2;
                break;
            default:
                /* do nothing */
                break;
        }
    }

    /* check size */
    if ( (idx+needed) > max && !getSzOnly)
    {

        return BUFFER_E;
    }

    /* store it */
    if (doEscape == 0) {
        if(getSzOnly)
            idx++;
        else
            out[idx++] = basic;
    }
    else {
        if(getSzOnly)
            idx+=3;
        else {
            out[idx++] = '%';  /* start escape */

            if (plus) {
                out[idx++] = '2';
                out[idx++] = 'B';
            }
            else if (equals) {
                out[idx++] = '3';
                out[idx++] = 'D';
            }
            else if (newline) {
                out[idx++] = '0';
                out[idx++] = 'A';
            }
        }
    }
    *i = idx;

    return 0;
}


/* internal worker, handles both escaped and normal line endings.
   If out buffer is NULL, will return sz needed in outLen */
static int DoBase64_Encode(const byte* in, word32 inLen, byte* out,
                           word32* outLen, int escaped)
{
    int    ret = 0;
    word32 i = 0,
           j = 0,
           n = 0;   /* new line counter */

    int    getSzOnly = (out == NULL);

    word32 outSz = (inLen + 3 - 1) / 3 * 4;
    word32 addSz = (outSz + PEM_LINE_SZ - 1) / PEM_LINE_SZ;  /* new lines */

    if (escaped == WC_ESC_NL_ENC)
        addSz *= 3;   /* instead of just \n, we're doing %0A triplet */
    else if (escaped == WC_NO_NL_ENC)
        addSz = 0;    /* encode without \n */

    outSz += addSz;

    /* if escaped we can't predetermine size for one pass encoding, but
     * make sure we have enough if no escapes are in input
     * Also need to ensure outLen valid before dereference */
    if (!outLen || (outSz > *outLen && !getSzOnly)) return BAD_FUNC_ARG;

    while (inLen > 2) {
        byte b1 = in[j++];
        byte b2 = in[j++];
        byte b3 = in[j++];

        /* encoded idx */
        byte e1 = b1 >> 2;
        byte e2 = (byte)(((b1 & 0x3) << 4) | (b2 >> 4));
        byte e3 = (byte)(((b2 & 0xF) << 2) | (b3 >> 6));
        byte e4 = b3 & 0x3F;

        /* store */
        ret = CEscape(escaped, e1, out, &i, *outLen, 0, getSzOnly);
        if (ret != 0) break;
        ret = CEscape(escaped, e2, out, &i, *outLen, 0, getSzOnly);
        if (ret != 0) break;
        ret = CEscape(escaped, e3, out, &i, *outLen, 0, getSzOnly);
        if (ret != 0) break;
        ret = CEscape(escaped, e4, out, &i, *outLen, 0, getSzOnly);
        if (ret != 0) break;

        inLen -= 3;

        /* Insert newline after PEM_LINE_SZ, unless no \n requested */
        if (escaped != WC_NO_NL_ENC && (++n % (PEM_LINE_SZ/4)) == 0 && inLen){
            ret = CEscape(escaped, '\n', out, &i, *outLen, 1, getSzOnly);
            if (ret != 0) break;
        }
    }

    /* last integral */
    if (inLen && ret == 0) {
        int twoBytes = (inLen == 2);

        byte b1 = in[j++];
        byte b2 = (twoBytes) ? in[j++] : 0;

        byte e1 = b1 >> 2;
        byte e2 = (byte)(((b1 & 0x3) << 4) | (b2 >> 4));
        byte e3 = (byte)((b2 & 0xF) << 2);

        ret = CEscape(escaped, e1, out, &i, *outLen, 0, getSzOnly);
        if (ret == 0)
            ret = CEscape(escaped, e2, out, &i, *outLen, 0, getSzOnly);
        if (ret == 0) {
            /* third */
            if (twoBytes)
                ret = CEscape(escaped, e3, out, &i, *outLen, 0, getSzOnly);
            else
                ret = CEscape(escaped, '=', out, &i, *outLen, 1, getSzOnly);
        }
        /* fourth always pad */
        if (ret == 0)
            ret = CEscape(escaped, '=', out, &i, *outLen, 1, getSzOnly);
    }

    if (ret == 0 && escaped != WC_NO_NL_ENC)
        ret = CEscape(escaped, '\n', out, &i, *outLen, 1, getSzOnly);

    if (i != outSz && escaped != 1 && ret == 0)
        return ASN_INPUT_E;

    *outLen = i;
    if(ret == 0)
        return getSzOnly ? LENGTH_ONLY_E : 0;
    return ret;
}


/* Base64 Encode, PEM style, with \n line endings */
int Base64_Encode(const byte* in, word32 inLen, byte* out, word32* outLen)
{
    return DoBase64_Encode(in, inLen, out, outLen, WC_STD_ENC);
}


/* Base64 Encode, with %0A escaped line endings instead of \n */
int Base64_EncodeEsc(const byte* in, word32 inLen, byte* out, word32* outLen)
{
    return DoBase64_Encode(in, inLen, out, outLen, WC_ESC_NL_ENC);
}

int Base64_Encode_NoNl(const byte* in, word32 inLen, byte* out, word32* outLen)
{
    return DoBase64_Encode(in, inLen, out, outLen, WC_NO_NL_ENC);
}


// 用 mbedtls 实现 HMAC（正确版）
static void hmac_calc(sig_method_e method, const uint32_t *key, uint32_t key_len,
                      const uint8_t *data, uint32_t data_len, uint8_t *out)
{
    const mbedtls_md_info_t *md_info;
    if (method == SIG_METHOD_MD5)      md_info = mbedtls_md_info_from_type(MBEDTLS_MD_MD5);
    else if (method == SIG_METHOD_SHA1)md_info = mbedtls_md_info_from_type(MBEDTLS_MD_SHA1);
    else                               md_info = mbedtls_md_info_from_type(MBEDTLS_MD_SHA256);

    mbedtls_md_context_t ctx;
    mbedtls_md_init(&ctx);
    mbedtls_md_setup(&ctx, md_info, 1);
    mbedtls_md_hmac_starts(&ctx, key, key_len);
    mbedtls_md_hmac_update(&ctx, data, data_len);
    mbedtls_md_hmac_finish(&ctx, out);
    mbedtls_md_free(&ctx);
}
/*****************************************************************************/
/* Local Definitions ( Constant and Macro )                                  */
/*****************************************************************************/
#define DEV_TOKEN_LEN 256
#define DEV_TOKEN_VERISON_STR "2018-10-31"

#define DEV_TOKEN_SIG_METHOD_MD5 "md5"
#define DEV_TOKEN_SIG_METHOD_SHA1 "sha1"
#define DEV_TOKEN_SIG_METHOD_SHA256 "sha256"




int32_t dev_token_generate(char* token,sig_method_e method,uint32_t exp_time, const char* product_id,const char* dev_name,const char* access_key)
{
    if (token == NULL || product_id == NULL || access_key == NULL)
    {
    return -1; // 或者定义一个 BAD_FUNC_ARG 错误码
    }

    uint8_t  base64_data[128] = { 0 };
    char  str_for_sig[64] = { 0 };
    uint8_t  sign_buf[128]   = { 0 };
    uint32_t base64_data_len = sizeof(base64_data);
    const char* sig_method_str    = NULL;
    uint32_t sign_len        = 0;
    uint32_t i               = 0;
    char* tmp             = NULL;

    // -------------------- 1. 拼接 token 前半段 --------------------
    osl_sprintf(token, (const char*)"version=%s", DEV_TOKEN_VERISON_STR);

    if (dev_name) {
        osl_sprintf(token + osl_strlen(token), (const char*)"&res=products%%2F%s%%2Fdevices%%2F%s", product_id, dev_name);
    } else {
        osl_sprintf(token + osl_strlen(token), (const char*)"&res=products%%2F%s", product_id);
    }

    osl_sprintf(token + osl_strlen(token), (const char*)"&et=%lu", exp_time);

    // -------------------- 2. Base64 解码 access_key --------------------
    Base64_Decode((const byte*)access_key, osl_strlen(access_key), base64_data, &base64_data_len);

    // -------------------- 3. 选择算法 --------------------
    if (SIG_METHOD_MD5 == method)
    {
        sig_method_str = (char*)DEV_TOKEN_SIG_METHOD_MD5;
        sign_len       = 16;
    }
    else if (SIG_METHOD_SHA1 == method)
    {

        sig_method_str = (char*)DEV_TOKEN_SIG_METHOD_SHA1;
        sign_len       = 20;
    }
    else if (SIG_METHOD_SHA256 == method)
    {

        sig_method_str = (char*)DEV_TOKEN_SIG_METHOD_SHA256;
        sign_len       = 32;
    }

    osl_sprintf(token + osl_strlen(token), (const char*)"&method=%s", sig_method_str);
    // -------------------- 4. 拼接 待签名字符串 --------------------
    if (dev_name)
     {
        osl_sprintf(str_for_sig, (const char*)"%lu\n%s\nproducts/%s/devices/%s\n%s", exp_time, sig_method_str, product_id, dev_name, DEV_TOKEN_VERISON_STR);
    }
    else
    {
        osl_sprintf(str_for_sig, (const char*)"%lu\n%s\nproducts/%s\n%s", exp_time, sig_method_str, product_id, DEV_TOKEN_VERISON_STR);
    }

    // -------------------- 5. HMAC 签名 --------------------

    hmac_calc(method, base64_data, base64_data_len, (const uint8_t*)str_for_sig, osl_strlen(str_for_sig), sign_buf);

    // -------------------- 6. Base64 编码签名 --------------------
    osl_memset(base64_data, 0, sizeof(base64_data));
    base64_data_len = sizeof(base64_data);
    Base64_Encode_NoNl(sign_buf, sign_len, base64_data, &base64_data_len);

    // -------------------- 7. 拼接 sign + URL 编码 --------------------
    osl_strcat(token, (const char*)"&sign=");
    tmp = token + osl_strlen(token);

    for (i = 0; i < base64_data_len; i++) {
        switch (base64_data[i]) {
            case '+':
                osl_strcat(tmp, (const char*)"%2B");
                tmp += 3;
                break;
            case ' ':
                osl_strcat(tmp, (const char*)"%20");
                tmp += 3;
                break;
            case '/':
                osl_strcat(tmp, (const char*)"%2F");
                tmp += 3;
                break;
            case '?':
                osl_strcat(tmp, (const char*)"%3F");
                tmp += 3;
                break;
            case '%':
                osl_strcat(tmp, (const char*)"%25");
                tmp += 3;
                break;
            case '#':
                osl_strcat(tmp, (const char*)"%23");
                tmp += 3;
                break;
            case '&':
                osl_strcat(tmp, (const char*)"%26");
                tmp += 3;
                break;
            case '=':
                osl_strcat(tmp, (const char*)"%3D");
                tmp += 3;
                break;
            default:
                *tmp = base64_data[i];
                tmp += 1;
                break;
        }
    }

    return 0;
}
相关推荐
时空自由民.2 小时前
ST7701和ST7701S区别
单片机
余生皆假期-2 小时前
永磁同步电机的星形 (Y) 和三角形 (Δ) 有何不同？
单片机·嵌入式硬件
点灯小铭2 小时前
基于单片机的空气质量检测仪系统设计
单片机·嵌入式硬件·毕业设计·课程设计·期末大作业
狂奔蜗牛(bradley)2 小时前
嵌入式软件中如何用责任链模式重构串口协议栈
网络·单片机·mcu·重构·责任链模式
时空自由民.3 小时前
LCD显示的图像散乱原因
单片机
taxunjishu3 小时前
速冻食品物联网网关应用 DeviceNet转Profinet提升产线协同效率
物联网·网络协议·自动化
想你依然心痛3 小时前
HarmonyOS 5.0 IoT开发实战：构建分布式智能设备控制中枢与边缘计算网关
分布式·物联网·harmonyos
悠哉悠哉愿意3 小时前
【单片机复习笔记】十三届国赛复盘2
笔记·单片机·嵌入式硬件
清风6666663 小时前
基于单片机的矿井温度、烟雾与甲烷检测通风报警系统设计
单片机·嵌入式硬件·毕业设计·课程设计·期末大作业
热门推荐
01GitHub 镜像站点02一周AI热点速览（2026.03.31-04.06）：GPT-6曝光、谷歌开源Gemma 4、资本狂飙与模型军备竞赛03基于 Docker 部署 Hermes Agent 并接入飞书机器人的完整指南04OpenClaw 请求超时 llm request timed out 怎么解决？3 种方案实测，附完整排查流程05VMware Workstation Pro 17 虚拟机完整安装教程（2026最新）06Oh My Codex 快速使用指南07AI 编程效率翻倍：Superpowers Skills 上手清单 + 完整指南08CodeBuddy与WorkBuddy深度对比：腾讯两款AI工具差异及实操指南09AI Weekly | 2026年4月第二周 · GitHub热门项目与AI发展趋势深度解析10实测！Gemma 4 成功跑在安卓手机上：离线 AI 助手终于来了
