学习threejs，实现Transformer架构三维模拟

👨‍⚕️ 主页： gis分享者

👨‍⚕️ 感谢各位大佬点赞👍 收藏⭐ 留言📝 加关注✅!

👨‍⚕️ 收录于专栏：threejs gis工程师

文章目录

一、🍀前言
- [1.1 ☘️THREE.EffectComposer 后期处理](#1.1 ☘️THREE.EffectComposer 后期处理)
- - [1.1.1 ☘️代码示例](#1.1.1 ☘️代码示例)
  - [1.1.2 ☘️构造函数](#1.1.2 ☘️构造函数)
  - [1.1.3 ☘️属性](#1.1.3 ☘️属性)
  - [1.1.4 ☘️方法](#1.1.4 ☘️方法)
- [1.2 ☘️THREE.RenderPass](#1.2 ☘️THREE.RenderPass)
- - [1.2.1 ☘️构造函数](#1.2.1 ☘️构造函数)
  - [1.2.2 ☘️属性](#1.2.2 ☘️属性)
  - [1.2.3 ☘️方法](#1.2.3 ☘️方法)
- [1.3 ☘️THREE.UnrealBloomPass](#1.3 ☘️THREE.UnrealBloomPass)
- - [1.3.1 ☘️构造函数](#1.3.1 ☘️构造函数)
  - [1.3.2 ☘️方法](#1.3.2 ☘️方法)
二、🍀实现Transformer架构三维模拟
- [1. ☘️实现思路](#1. ☘️实现思路)
- [2. ☘️代码样例](#2. ☘️代码样例)

一、🍀前言

本文详细介绍如何基于threejs在三维场景中使用EffectComposer后期处理组合器（采用RenderPass、UnrealBloomPass渲染通道），实现Transformer架构三维模拟效果，亲测可用。希望能帮助到您。一起学习，加油！加油！

1.1 ☘️THREE.EffectComposer 后期处理

THREE.EffectComposer 用于在three.js中实现后期处理效果。该类管理了产生最终视觉效果的后期处理过程链。后期处理过程根据它们添加/插入的顺序来执行，最后一个过程会被自动渲染到屏幕上。

1.1.1 ☘️代码示例

javascript 复制代码

import { EffectComposer } from 'three/examples/jsm/postprocessing/EffectComposer.js';
import { RenderPass } from 'three/examples/jsm/postprocessing/RenderPass.js';
// 初始化 composer
const composer = new EffectComposer(renderer);
// 创建 RenderPass 并添加到 composer
const renderPass = new RenderPass(scene, camera);
composer.addPass(renderPass);
// 添加其他后期处理通道（如模糊）
// composer.addPass(blurPass);
// 在动画循环中渲染
function animate() {
  composer.render();
  requestAnimationFrame(animate);
}

1.1.2 ☘️构造函数

EffectComposer( renderer : WebGLRenderer, renderTarget : WebGLRenderTarget )

renderer -- 用于渲染场景的渲染器。

renderTarget -- （可选）一个预先配置的渲染目标，内部由 EffectComposer 使用。

1.1.3 ☘️属性

.passes : Array

一个用于表示后期处理过程链（包含顺序）的数组。

javascript 复制代码

渲染通道：
BloomPass   该通道会使得明亮区域参入较暗的区域。模拟相机照到过多亮光的情形
DotScreenPass   将一层黑点贴到代表原始图片的屏幕上
FilmPass    通过扫描线和失真模拟电视屏幕
MaskPass    在当前图片上贴一层掩膜，后续通道只会影响被贴的区域
RenderPass  该通道在指定的场景和相机的基础上渲染出一个新的场景
SavePass    执行该通道时，它会将当前渲染步骤的结果复制一份，方便后面使用。这个通道实际应用中作用不大；
ShaderPass  使用该通道你可以传入一个自定义的着色器，用来生成高级的、自定义的后期处理通道
TexturePass 该通道可以将效果组合器的当前状态保存为一个纹理，然后可以在其他EffectCoposer对象中将该纹理作为输入参数

.readBuffer : WebGLRenderTarget

内部读缓冲区的引用。过程一般从该缓冲区读取先前的渲染结果。

.renderer : WebGLRenderer

内部渲染器的引用。

.renderToScreen : Boolean

最终过程是否被渲染到屏幕（默认帧缓冲区）。

.writeBuffer : WebGLRenderTarget

内部写缓冲区的引用。过程常将它们的渲染结果写入该缓冲区。

1.1.4 ☘️方法

.addPass ( pass : Pass ) : undefined

pass -- 将被添加到过程链的过程

将传入的过程添加到过程链。

.dispose () : undefined

释放此实例分配的 GPU 相关资源。每当您的应用程序不再使用此实例时调用此方法。

.insertPass ( pass : Pass, index : Integer ) : undefined

pass -- 将被插入到过程链的过程。

index -- 定义过程链中过程应插入的位置。

将传入的过程插入到过程链中所给定的索引处。

.isLastEnabledPass ( passIndex : Integer ) : Boolean

passIndex -- 被用于检查的过程

如果给定索引的过程在过程链中是最后一个启用的过程，则返回true。由EffectComposer所使用，来决定哪一个过程应当被渲染到屏幕上。

.removePass ( pass : Pass ) : undefined

pass -- 要从传递链中删除的传递。

从传递链中删除给定的传递。

.render ( deltaTime : Float ) : undefined

deltaTime -- 增量时间值。

执行所有启用的后期处理过程，来产生最终的帧，

.reset ( renderTarget : WebGLRenderTarget ) : undefined

renderTarget -- （可选）一个预先配置的渲染目标，内部由 EffectComposer 使用。

重置所有EffectComposer的内部状态。

.setPixelRatio ( pixelRatio : Float ) : undefined

pixelRatio -- 设备像素比

设置设备的像素比。该值通常被用于HiDPI设备，以阻止模糊的输出。因此，该方法语义类似于WebGLRenderer.setPixelRatio()。

.setSize ( width : Integer, height : Integer ) : undefined

width -- EffectComposer的宽度。

height -- EffectComposer的高度。

考虑设备像素比，重新设置内部渲染缓冲和过程的大小为(width, height)。因此，该方法语义类似于WebGLRenderer.setSize()。

.swapBuffers () : undefined

交换内部的读/写缓冲。

1.2 ☘️THREE.RenderPass

THREE.RenderPass用于将场景渲染到中间缓冲区，为后续的后期处理效果（如模糊、色调调整等）提供基础。

1.2.1 ☘️构造函数

RenderPass(scene, camera, overrideMaterial, clearColor, clearAlpha)

scene THREE.Scene 要渲染的 Three.js 场景对象。
camera THREE.Camera 场景对应的相机（如 PerspectiveCamera）。
overrideMaterial THREE.Material (可选) 覆盖场景中所有物体的材质（默认 null）。
clearColor THREE.Color (可选) 渲染前清除画布的颜色（默认不主动清除）。
clearAlpha number (可选) 清除画布的透明度（默认 0）。

1.2.2 ☘️属性

.enabled：boolean

是否启用此通道（默认 true）。设为 false 可跳过渲染。

.clear：boolean

渲染前是否清除画布（默认 true）。若需叠加多个 RenderPass，可设为 false。

.needsSwap：boolean

是否需要在渲染后交换缓冲区（通常保持默认 false）。

1.2.3 ☘️方法

.setSize(width, height)

调整通道的渲染尺寸（通常由 EffectComposer 自动调用）。

width: 画布宽度（像素）。

height: 画布高度（像素）。

1.3 ☘️THREE.UnrealBloomPass

UnrealBloomPass 是 Three.js 中实现高质量泛光效果的后期处理通道，通过模拟类似 Unreal Engine 的泛光效果，为场景中的明亮区域添加柔和的光晕，提升视觉表现力。

1.3.1 ☘️构造函数

new UnrealBloomPass(resolution, strength, radius, threshold)

resolution (Vector2): 泛光效果应用的场景分辨率，需与画布尺寸一致。
示例：new THREE.Vector2(window.innerWidth, window.innerHeight)
strength (Number): 泛光强度，默认值 1.0。值越大，光晕越明显。
radius (Number): 模糊半径，默认值 0.4。值越大，光晕扩散范围越广。
threshold (Number): 泛光阈值，默认值 0.85。仅对亮度高于此值的区域生效。

1.3.2 ☘️方法

renderToScreen: 是否直接渲染到屏幕，默认为 false（需通过 EffectComposer 管理）。
clearColor: 设置背景清除颜色，默认为透明。

二、🍀实现Transformer架构三维模拟

1. ☘️实现思路

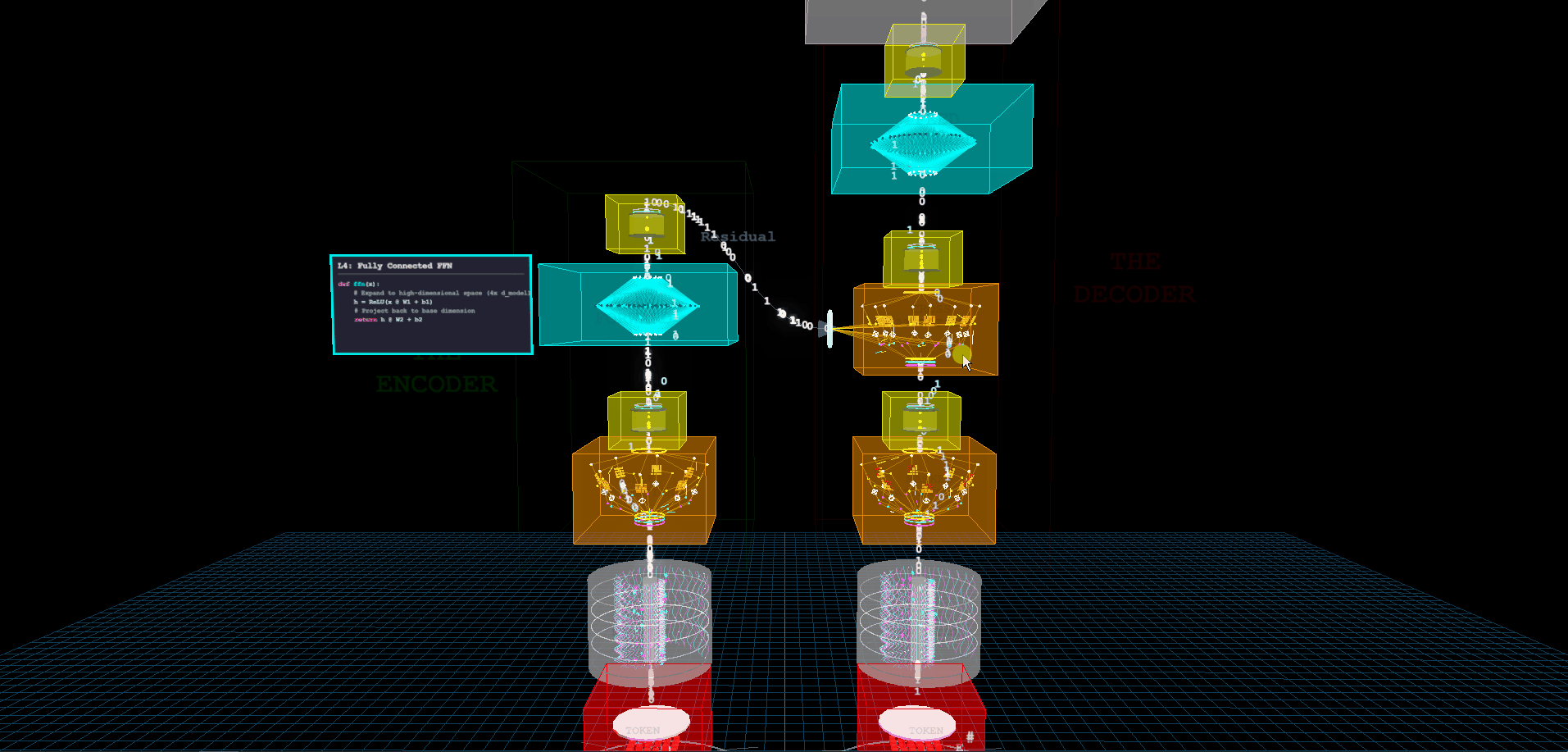

这是一款纯前端实现的 Transformer 架构 3D 交互模拟，作者 Cammakingminds 在 CodePen 上发布了这个作品。打开页面后，你会看到一个沉浸式的暗黑科幻场景：左右两侧分别是 Encoder 和 Decoder 模块，数据以粒子流的形式在模块之间流动，还配有发光效果、Bloom 后处理和伪代码浮窗，视觉冲击力极强。具体代码参考下面代码样例。

2. ☘️代码样例

html 复制代码

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Transformer架构三维模拟</title>

    <!-- Core Three.js -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/three.js/r128/three.min.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/controls/OrbitControls.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/postprocessing/EffectComposer.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/postprocessing/RenderPass.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/postprocessing/ShaderPass.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/shaders/CopyShader.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/shaders/LuminosityHighPassShader.js"></script>
    <script src="https://unpkg.com/three@0.128.0/examples/js/postprocessing/UnrealBloomPass.js"></script>

    <!-- Animation -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.12.2/gsap.min.js"></script>
    <style>
        body {
            margin: 0;
            padding: 0;
            overflow: hidden;
            background-color: #020205;
            font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
            color: #fff;
        }

        canvas {
            display: block;
            width: 100vw;
            height: 100vh;
            touch-action: none;
            outline: none;
        }
    </style>
</head>
<body>
<script>
  // --- Unified Color Schema ---
  const COLORS = {
    attention: 0xff5500,
    feedForward: 0x00ffff,
    ffn: 0x00ffff,
    addNorm: 0xffff00,
    embed: 0xff0000,
    pe: 0xaaaaaa,
    softmax: 0x888888,
    crossAttention: 0xff5500,
    encoderBox: 0x00ff00,
    decoderBox: 0xff0000,

    // Particles and internal wiring
    posSine: 0x00ffff,
    posCosine: 0xff00ff,
    particle: 0xffffff,
    qLine: 0xff0055,
    kLine: 0x00f2ff,
    vLine: 0xffcc00,
    residual: 0x55aaee
  };

  const NUM_BLOCKS = 1;
  const ENCODER_X = -12;
  const DECODER_X = 12;
  const NUM_HEADS = 8;

  let scene, camera, renderer, controls, composer;
  let animatedObjects = [];
  let paths = [];
  let particles = [];
  let volumes = [];
  let particleGeometries;
  let binaryTex = [],
    asciiTex = [],
    idTex = [];

  window.activeSoftmaxAngle = 0;

  function initTextTextures() {
    const createTex = (text) => {
      const canvas = document.createElement("canvas");
      canvas.width = 64;
      canvas.height = 64;
      const ctx = canvas.getContext("2d");
      ctx.fillStyle = "#ffffff";
      ctx.font = 'bold 44px "Courier New", monospace';
      ctx.textAlign = "center";
      ctx.textBaseline = "middle";
      ctx.fillText(text, 32, 32);
      return new THREE.CanvasTexture(canvas);
    };
    binaryTex = [createTex("0"), createTex("1")];
    const chars = [
      "A",
      "B",
      "C",
      "D",
      "E",
      "F",
      "X",
      "Y",
      "Z",
      "@",
      "#",
      "?",
      "*"
    ];
    asciiTex = chars.map((c) => createTex(c));

    const createIdTex = (text) => {
      const canvas = document.createElement("canvas");
      canvas.width = 64;
      canvas.height = 64;
      const ctx = canvas.getContext("2d");
      ctx.fillStyle = "#ffffff";
      ctx.font = 'bold 26px "Courier New", monospace';
      ctx.textAlign = "center";
      ctx.textBaseline = "middle";
      ctx.fillText(text, 32, 32);
      return new THREE.CanvasTexture(canvas);
    };
    for (let i = 0; i < 15; i++)
      idTex.push(createIdTex(Math.floor(Math.random() * 900 + 100).toString()));
  }

  const raycaster = new THREE.Raycaster();
  const mouse = new THREE.Vector2();
  let pointerDownPos = new THREE.Vector2();
  let pointerCurrentPos = new THREE.Vector2();
  let lastTapTime = 0;
  let isPointerDown = false;
  let isHolding = false;
  let pointerDownTimestamp = 0;
  let activePointers = 0;

  const pseudoCodeData = {
    "token-embedding": {
      title: "L0: Token Embedding",
      color: "#ff0000",
      code: `<span class="keyword">def</span> <span class="function">embed</span>(input_ids):\n    <span class="comment"># Map discrete IDs to continuous vectors</span>\n    <span class="keyword">return</span> Embedding(vocab_size, d_model)(input_ids) * sqrt(d_model)`
    },
    "pos-encoding": {
      title: "L0.5: Positional Encoding",
      color: "#aaaaaa",
      code: `<span class="keyword">def</span> <span class="function">pos_encoding</span>(x):\n    <span class="comment"># Inject sequence order via phase shifts</span>\n    pe = generate_sine_cosine(seq_len, d_model)\n    <span class="keyword">return</span> x + pe`
    },
    "self-attention": {
      title: "L1: Multi-Head Self-Attention",
      color: "#ff5500",
      code: `<span class="keyword">def</span> <span class="function">multi_head_attention</span>(x, heads=<span class="keyword">8</span>):\n    Q, K, V = x@Wq, x@Wk, x@Wv\n    Q_h, K_h, V_h = split_heads(Q, K, V, heads)\n    scores = (Q_h @ K_h.T) / sqrt(d_k)\n    weights = softmax(scores, dim=-1)\n    context = weights @ V_h\n    <span class="keyword">return</span> Linear_O(concatenate(context))`
    },
    "masked-attention": {
      title: "L1-M: Masked Multi-Head Attention",
      color: "#ff5500",
      code: `<span class="keyword">def</span> <span class="function">masked_attn</span>(x, heads=<span class="keyword">8</span>):\n    Q, K, V = project_and_split(x)\n    scores = (Q @ K.T) / sqrt(d_k)\n    mask = tril(ones(seq_len, seq_len))\n    scores = scores.masked_fill(mask == <span class="keyword">0</span>, <span class="keyword">-inf</span>)\n    weights = softmax(scores, dim=-1)\n    <span class="keyword">return</span> Linear_O(weights @ V)`
    },
    "cross-attention": {
      title: "L2: Multi-Head Cross-Attention",
      color: "#ff5500",
      code: `<span class="keyword">def</span> <span class="function">cross_attn</span>(decoder_x, encoder_out):\n    Q = decoder_x @ Wq\n    K = encoder_out @ Wk\n    V = encoder_out @ Wv\n    scores = (Q @ K.T) / sqrt(d_k)\n    weights = softmax(scores, dim=-1)\n    <span class="keyword">return</span> Linear_O(weights @ V)`
    },
    "add-norm": {
      title: "L3: Add & Norm (Residual + LayerNorm)",
      color: "#ffff00",
      code: `<span class="keyword">def</span> <span class="function">add_and_norm</span>(x, sublayer_out):\n    summed = x + sublayer_out\n    x_norm = (summed - mean) / sqrt(var + eps)\n    <span class="keyword">return</span> gamma * x_norm + beta`
    },
    ffn: {
      title: "L4: Fully Connected FFN",
      color: "#00ffff",
      code: `<span class="keyword">def</span> <span class="function">ffn</span>(x):\n    <span class="comment"># Expand to high-dimensional space (4x d_model)</span>\n    h = ReLU(x @ W1 + b1)\n    <span class="comment"># Project back to base dimension</span>\n    <span class="keyword">return</span> h @ W2 + b2`
    },
    softmax: {
      title: "L5: Softmax Output",
      color: "#888888",
      code: `<span class="keyword">def</span> <span class="function">softmax_output</span>(x):\n    logits = x @ W_vocab\n    probs = softmax(logits)\n    <span class="keyword">return</span> probs`
    }
  };

  window.onload = () => {
    init();
    buildArchitecture();
    createDataFlow();
    setupInteraction();
    animate();
  };

  function init() {
    scene = new THREE.Scene();
    scene.fog = new THREE.FogExp2(0x020205, 0.006);
    camera = new THREE.PerspectiveCamera(
      45,
      window.innerWidth / window.innerHeight,
      0.1,
      2000
    );
    camera.position.set(0, 25, window.innerWidth < 768 ? 120 : 80);

    renderer = new THREE.WebGLRenderer({
      antialias: true,
      alpha: true,
      powerPreference: "high-performance"
    });
    renderer.setSize(window.innerWidth, window.innerHeight);
    renderer.setPixelRatio(Math.min(window.devicePixelRatio, 2));
    renderer.outputEncoding = THREE.sRGBEncoding;
    document.body.appendChild(renderer.domElement);

    const renderScene = new THREE.RenderPass(scene, camera);
    const bloomPass = new THREE.UnrealBloomPass(
      new THREE.Vector2(window.innerWidth, window.innerHeight),
      2.0,
      0.5,
      0.95
    );

    composer = new THREE.EffectComposer(renderer);
    composer.addPass(renderScene);
    composer.addPass(bloomPass);

    const gridHelper = new THREE.GridHelper(200, 100, 0x004488, 0x001122);
    gridHelper.position.y = -18;
    scene.add(gridHelper);

    scene.add(new THREE.AmbientLight(0x222233, 1.0));
    const dir = new THREE.DirectionalLight(0xffffff, 0.8);
    dir.position.set(20, 50, 30);
    scene.add(dir);
    const coreLight = new THREE.PointLight(0x00ffff, 1.5, 100);
    coreLight.position.set(0, 20, 0);
    scene.add(coreLight);

    controls = new THREE.OrbitControls(camera, renderer.domElement);
    controls.enableDamping = true;
    controls.target.set(0, 20, 0);
    controls.maxDistance = 600;
    controls.autoRotateSpeed = 0.8;

    window.addEventListener("resize", () => {
      camera.aspect = window.innerWidth / window.innerHeight;
      camera.updateProjectionMatrix();
      renderer.setSize(window.innerWidth, window.innerHeight);
      composer.setSize(window.innerWidth, window.innerHeight);
    });

    particleGeometries = {
      cube: new THREE.BoxGeometry(0.3, 0.3, 0.3),
      sphere: new THREE.SphereGeometry(0.18, 8, 8),
      beam: new THREE.CylinderGeometry(0.04, 0.04, 0.8, 6).rotateX(Math.PI / 2),
      icosahedron: new THREE.IcosahedronGeometry(0.25, 0),
      disc: new THREE.CylinderGeometry(0.3, 0.3, 0.05, 12),
      torusKnot: new THREE.TorusKnotGeometry(0.12, 0.04, 64, 8),
      dataDart: new THREE.ConeGeometry(0.12, 0.5, 4).rotateX(Math.PI / 2)
    };
    initTextTextures();
  }

  function createGlass(color, op = 0.5) {
    return new THREE.MeshStandardMaterial({
      color,
      emissive: color,
      emissiveIntensity: 1.5,
      transparent: true,
      opacity: op
    });
  }

  function tag(group, type, volRef) {
    group.traverse((c) => {
      if (c.isMesh) {
        c.userData.blockType = type;
        if (volRef) c.userData.volumeRef = volRef;
      }
    });
  }

  function createCodePlane(type) {
    const data = pseudoCodeData[type];
    if (!data) return null;

    const canvas = document.createElement("canvas");
    canvas.width = 1024;
    canvas.height = 512;
    const ctx = canvas.getContext("2d");

    ctx.fillStyle = "rgba(5, 5, 10, 0.95)";
    ctx.fillRect(0, 0, 1024, 512);

    ctx.strokeStyle = data.color;
    ctx.lineWidth = 12;
    ctx.strokeRect(6, 6, 1012, 500);

    ctx.fillStyle = "#ffffff";
    ctx.font = 'bold 42px "Courier New", monospace';
    ctx.fillText(data.title, 40, 70);

    ctx.beginPath();
    ctx.moveTo(40, 100);
    ctx.lineTo(984, 100);
    ctx.strokeStyle = "rgba(255, 255, 255, 0.2)";
    ctx.lineWidth = 2;
    ctx.stroke();

    ctx.font = 'bold 32px "Courier New", monospace';
    const lines = data.code.split("\n");
    let y = 160;

    lines.forEach((line) => {
      let x = 40;
      const parts = line.split(/(<span class="[^"]+">.*?<\/span>)/g);
      parts.forEach((part) => {
        if (part.startsWith("<span")) {
          const match = part.match(/class="(.*?)"\s*>(.*?)</);
          if (match) {
            const cls = match[1];
            const text = match[2];
            ctx.fillStyle =
              cls === "keyword"
                ? "#ff00ff"
                : cls === "function"
                ? "#00ffff"
                : "#667788";
            ctx.fillText(text, x, y);
            x += ctx.measureText(text).width;
          }
        } else {
          ctx.fillStyle = "#aaccff";
          ctx.fillText(part, x, y);
          x += ctx.measureText(part).width;
        }
      });
      y += 45;
    });

    const tex = new THREE.CanvasTexture(canvas);
    const mat = new THREE.MeshBasicMaterial({
      map: tex,
      transparent: true,
      side: THREE.DoubleSide,
      depthWrite: false
    });
    const mesh = new THREE.Mesh(new THREE.PlaneGeometry(16, 8), mat);
    mesh.renderOrder = 20;
    return mesh;
  }

  function createCrossAttentionBridge(xS, yS, xE, yE) {
    const group = new THREE.Group();

    const curve = new THREE.CubicBezierCurve3(
      new THREE.Vector3(xS, yS, 0),
      new THREE.Vector3(xS + 8, yS, 0),
      new THREE.Vector3(xE - 8, yE, 0),
      new THREE.Vector3(xE, yE, 0)
    );

    const pts = curve.getPoints(40);
    const geo = new THREE.BufferGeometry().setFromPoints(pts);
    const mat = new THREE.LineBasicMaterial({
      color: COLORS.residual,
      linewidth: 3,
      transparent: true,
      depthWrite: false
    });
    const line = new THREE.Line(geo, mat);
    line.renderOrder = 16;
    group.add(line);

    const arrowGeo = new THREE.ConeGeometry(0.8, 2, 8);
    const arrowMat = new THREE.MeshBasicMaterial({
      color: COLORS.residual,
      transparent: true,
      depthWrite: false
    });
    const arrow = new THREE.Mesh(arrowGeo, arrowMat);
    arrow.renderOrder = 16;

    const tangent = curve.getTangent(1).normalize();
    const axis = new THREE.Vector3(0, 1, 0);
    arrow.quaternion.setFromUnitVectors(axis, tangent);
    arrow.position.copy(curve.getPoint(1));
    group.add(arrow);

    const canvas = document.createElement("canvas");
    canvas.width = 256;
    canvas.height = 128;
    const ctx = canvas.getContext("2d");
    ctx.fillStyle = "#" + new THREE.Color(COLORS.residual).getHexString();
    ctx.font = 'bold 44px "Courier New", monospace';
    ctx.textAlign = "center";
    ctx.textBaseline = "middle";
    ctx.fillText("Residual", 128, 64);

    const tex = new THREE.CanvasTexture(canvas);
    const labelMat = new THREE.MeshBasicMaterial({
      map: tex,
      transparent: true,
      depthWrite: false
    });
    const labelPlane = new THREE.Mesh(new THREE.PlaneGeometry(8, 4), labelMat);
    labelPlane.renderOrder = 17;

    const midPt = curve.getPoint(0.5);
    labelPlane.position.copy(midPt);
    labelPlane.position.y += 2.5;
    group.add(labelPlane);

    scene.add(group);

    volumes.push({
      volMesh: arrow,
      wireMesh: line,
      labelPlane: labelPlane,
      worldPosTarget: group,
      baseOp: 1.0,
      edgeOp: 1.0,
      labelOp: 1.0,
      meshFadeStart: 70,
      meshFadeEnd: 150,
      wireFadeStart: 70,
      wireFadeEnd: 150,
      isCodeOpen: false
    });
  }

  function createEnergyCylinder(group, radius, h, colorHex, type, labelText) {
    const geo = new THREE.CylinderGeometry(radius, radius, h, 32);
    const mat = new THREE.MeshBasicMaterial({
      color: colorHex,
      transparent: true,
      opacity: 0.1,
      depthWrite: false,
      side: THREE.DoubleSide
    });
    const volume = new THREE.Mesh(geo, mat);
    volume.renderOrder = 15;

    const canvas = document.createElement("canvas");
    canvas.width = 512;
    canvas.height = 256;
    const ctx = canvas.getContext("2d");
    ctx.fillStyle = "#000000";
    ctx.font = 'bold 52px "Courier New", monospace';
    ctx.textAlign = "center";
    ctx.textBaseline = "middle";

    const lines = labelText.split("\n");
    const startY = 128 - ((lines.length - 1) * 60) / 2;
    lines.forEach((line, i) => ctx.fillText(line, 256, startY + i * 60));

    const tex = new THREE.CanvasTexture(canvas);
    const labelMat = new THREE.MeshBasicMaterial({
      map: tex,
      transparent: true,
      depthWrite: false,
      side: THREE.DoubleSide
    });

    const labelW = radius * 1.8;
    const labelH = labelW * 0.5;
    const labelPlane = new THREE.Mesh(
      new THREE.PlaneGeometry(labelW, labelH),
      labelMat
    );
    labelPlane.renderOrder = 17;
    labelPlane.position.set(0, h / 2 - labelH / 2 - 0.2, radius + 0.05);

    const subGroup = new THREE.Group();
    subGroup.add(volume);
    subGroup.add(labelPlane);

    const volData = {
      volMesh: volume,
      wireMesh: null,
      labelPlane: labelPlane,
      worldPosTarget: group,
      baseOp: 1.0,
      edgeOp: 0.0,
      labelOp: 1.0,
      meshFadeStart: 70,
      meshFadeEnd: 150,
      wireFadeStart: 45,
      wireFadeEnd: 85,
      isCodeOpen: false
    };

    const codeMesh = createCodePlane(type);
    if (codeMesh) {
      const isRight = group.position.x >= 0;
      const edgeX = isRight ? radius + 0.5 : -radius - 0.5;
      codeMesh.geometry.translate(isRight ? 8 : -8, 0, 0);
      codeMesh.position.set(edgeX, 0, radius + 0.1);
      codeMesh.scale.set(0.001, 1, 1);
      codeMesh.visible = false;
      subGroup.add(codeMesh);
      volData.codeMesh = codeMesh;
    }

    tag(subGroup, type, volData);
    group.add(subGroup);
    volumes.push(volData);
    return subGroup;
  }

  function createEnergyVolume(group, w, h, d, colorHex, type, labelText) {
    const geo = new THREE.BoxGeometry(w, h, d);
    const mat = new THREE.MeshBasicMaterial({
      color: colorHex,
      transparent: true,
      opacity: 0.1,
      depthWrite: false,
      side: THREE.DoubleSide
    });
    const volume = new THREE.Mesh(geo, mat);
    volume.renderOrder = 15;

    const edgeMat = new THREE.LineBasicMaterial({
      color: colorHex,
      transparent: true,
      opacity: 1.0,
      depthWrite: false
    });
    const wire = new THREE.LineSegments(new THREE.EdgesGeometry(geo), edgeMat);
    wire.renderOrder = 16;

    const canvas = document.createElement("canvas");
    canvas.width = 512;
    canvas.height = 256;
    const ctx = canvas.getContext("2d");
    ctx.fillStyle = "#000000";
    ctx.font = 'bold 56px "Courier New", monospace';
    ctx.textAlign = "center";
    ctx.textBaseline = "middle";

    const lines = labelText.split("\n");
    const startY = 128 - ((lines.length - 1) * 60) / 2;
    lines.forEach((line, i) => ctx.fillText(line, 256, startY + i * 60));

    const tex = new THREE.CanvasTexture(canvas);
    const labelMat = new THREE.MeshBasicMaterial({
      map: tex,
      transparent: true,
      depthWrite: false,
      side: THREE.DoubleSide
    });

    const labelW = w * 0.9;
    const labelH = labelW * 0.5;
    const labelPlane = new THREE.Mesh(
      new THREE.PlaneGeometry(labelW, labelH),
      labelMat
    );
    labelPlane.renderOrder = 17;
    labelPlane.position.set(0, h / 2 - labelH / 2 - 0.2, d / 2 + 0.05);

    const subGroup = new THREE.Group();
    subGroup.add(volume);
    subGroup.add(wire);
    subGroup.add(labelPlane);

    const volData = {
      volMesh: volume,
      wireMesh: wire,
      labelPlane: labelPlane,
      worldPosTarget: group,
      baseOp: 1.0,
      edgeOp: 1.0,
      labelOp: 1.0,
      meshFadeStart: 70,
      meshFadeEnd: 150,
      wireFadeStart: 45,
      wireFadeEnd: 85,
      isCodeOpen: false
    };

    const codeMesh = createCodePlane(type);
    if (codeMesh) {
      const isRight = group.position.x >= 0;
      const edgeX = isRight ? w / 2 + 0.5 : -w / 2 - 0.5;
      codeMesh.geometry.translate(isRight ? 8 : -8, 0, 0);
      codeMesh.position.set(edgeX, 0, d / 2 + 0.1);
      codeMesh.scale.set(0.001, 1, 1);
      codeMesh.visible = false;
      subGroup.add(codeMesh);
      volData.codeMesh = codeMesh;
    }

    tag(subGroup, type, volData);
    group.add(subGroup);
    volumes.push(volData);
    return subGroup;
  }

  function createEncapsulationBox(
    x,
    y,
    z,
    w,
    h,
    d,
    colorHex,
    labelText,
    alignLeft
  ) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    const geo = new THREE.BoxGeometry(w, h, d);
    const mat = new THREE.MeshBasicMaterial({
      color: colorHex,
      transparent: true,
      opacity: 0.1,
      depthWrite: false,
      side: THREE.DoubleSide
    });
    const volume = new THREE.Mesh(geo, mat);

    const edgeMat = new THREE.LineBasicMaterial({
      color: colorHex,
      transparent: true,
      opacity: 1.0,
      depthWrite: false,
      linewidth: 2
    });
    const wire = new THREE.LineSegments(new THREE.EdgesGeometry(geo), edgeMat);

    const canvas = document.createElement("canvas");
    canvas.width = 512;
    canvas.height = 512;
    const ctx = canvas.getContext("2d");
    ctx.fillStyle = "#" + new THREE.Color(colorHex).getHexString();
    ctx.font = 'bold 80px "Courier New", monospace';
    ctx.textAlign = "center";
    ctx.textBaseline = "middle";

    const lines = labelText.split("\n");
    const startY = 256 - ((lines.length - 1) * 90) / 2;
    lines.forEach((line, i) => ctx.fillText(line, 256, startY + i * 90));

    const tex = new THREE.CanvasTexture(canvas);
    const labelMat = new THREE.MeshBasicMaterial({
      map: tex,
      transparent: true,
      depthWrite: false,
      side: THREE.DoubleSide
    });

    const labelW = w * 0.8;
    const labelH = labelW * 1.0;
    const labelPlane = new THREE.Mesh(
      new THREE.PlaneGeometry(labelW, labelH),
      labelMat
    );

    if (alignLeft)
      labelPlane.position.set(-w / 2 - labelW / 2 + 1, 0, d / 2 + 0.1);
    else labelPlane.position.set(w / 2 + labelW / 2 - 1, 0, d / 2 + 0.1);

    group.add(volume);
    group.add(wire);
    group.add(labelPlane);
    scene.add(group);

    volumes.push({
      volMesh: volume,
      wireMesh: wire,
      labelPlane: labelPlane,
      worldPosTarget: group,
      baseOp: 0.02,
      edgeOp: 1.0,
      labelOp: 1.0,
      meshFadeStart: 80,
      meshFadeEnd: 160,
      wireFadeStart: 80,
      wireFadeEnd: 160,
      isCodeOpen: false
    });
  }

  function toggleCode(vol) {
    if (!vol.codeMesh) return;
    if (vol.isCodeOpen) {
      gsap.to(vol.codeMesh.scale, {
        x: 0.001,
        duration: 0.25,
        ease: "power2.in",
        onComplete: () => {
          vol.codeMesh.visible = false;
        }
      });
      vol.isCodeOpen = false;
    } else {
      volumes.forEach((v) => {
        if (v !== vol && v.isCodeOpen) toggleCode(v);
      });
      vol.codeMesh.visible = true;
      vol.codeMesh.scale.x = 0.001;
      gsap.to(vol.codeMesh.scale, { x: 1, duration: 0.3, ease: "back.out(1.2)" });
      vol.isCodeOpen = true;
    }
  }

  function createTokenEmbedding(x, y, z) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    createEnergyVolume(
      group,
      10,
      8,
      10,
      COLORS.embed,
      "token-embedding",
      "TOKEN\nEMBEDDING"
    );
    const baseRing = new THREE.Mesh(
      new THREE.TorusGeometry(10, 0.08, 16, 64),
      new THREE.MeshBasicMaterial({
        color: 0x4488ff,
        transparent: true,
        opacity: 0.5
      })
    );
    baseRing.position.y = -6;
    baseRing.rotation.x = Math.PI / 2;
    group.add(baseRing);
    const streamGroup = new THREE.Group();
    const funnelColor = new THREE.Color(0x4488ff);
    for (let i = 0; i < 40; i++) {
      const startX = (Math.random() - 0.5) * 20;
      const startZ = (Math.random() - 0.5) * 20;
      const endX = (Math.random() - 0.5) * 4;
      const endZ = (Math.random() - 0.5) * 4;
      const curve = new THREE.CubicBezierCurve3(
        new THREE.Vector3(startX, -6, startZ),
        new THREE.Vector3(startX * 0.5, -4, startZ * 0.5),
        new THREE.Vector3(endX, -3, endZ),
        new THREE.Vector3(endX, -2, endZ)
      );
      const pts = curve.getPoints(20);
      const mat = new THREE.LineBasicMaterial({
        color: funnelColor,
        transparent: true,
        opacity: 0.25,
        blending: THREE.AdditiveBlending
      });
      const line = new THREE.Line(
        new THREE.BufferGeometry().setFromPoints(pts),
        mat
      );
      streamGroup.add(line);
    }
    group.add(streamGroup);
    const matrix = new THREE.Group();
    for (let i = 0; i < 6; i++) {
      for (let j = 0; j < 6; j++) {
        if (Math.random() > 0.2) {
          const mesh = new THREE.Mesh(
            new THREE.BoxGeometry(0.5, 0.5, 0.5),
            new THREE.MeshStandardMaterial({
              color: COLORS.embed,
              emissive: COLORS.embed,
              emissiveIntensity: 2.0 + Math.random() * 2
            })
          );
          mesh.position.set(i * 0.8 - 2.0, -2, j * 0.8 - 2.0);
          matrix.add(mesh);
        }
      }
    }
    group.add(matrix);
    const lookup = new THREE.Mesh(
      new THREE.CylinderGeometry(3.5, 3.5, 0.2, 16),
      new THREE.MeshStandardMaterial({
        color: 0xffffff,
        emissive: COLORS.embed,
        emissiveIntensity: 4.0
      })
    );
    lookup.position.y = 0.5;
    group.add(lookup);
    const webColor = new THREE.Color(COLORS.embed).multiplyScalar(2.0);
    const wireMat = new THREE.LineBasicMaterial({
      color: webColor,
      transparent: true,
      opacity: 0.8,
      depthWrite: false
    });
    const pts = [];
    for (let i = 0; i < 12; i++) {
      pts.push((Math.random() - 0.5) * 4, -2, (Math.random() - 0.5) * 4);
      pts.push((Math.random() - 0.5) * 6, 0.5, (Math.random() - 0.5) * 6);
    }
    const wires = new THREE.LineSegments(
      new THREE.BufferGeometry().setAttribute(
        "position",
        new THREE.Float32BufferAttribute(pts, 3)
      ),
      wireMat
    );
    wires.renderOrder = 10;
    group.add(wires);
    scene.add(group);
  }

  function createPositionalEncoding(x, y, z) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    createEnergyCylinder(
      group,
      5.5,
      8,
      COLORS.pe,
      "pos-encoding",
      "POS\nENCODING"
    );
    const core = new THREE.Mesh(
      new THREE.CylinderGeometry(0.6, 0.6, 7.5, 32),
      new THREE.MeshStandardMaterial({
        color: 0xffffff,
        emissive: 0xaaccff,
        emissiveIntensity: 2.0,
        transparent: true,
        opacity: 0.3
      })
    );
    group.add(core);
    animatedObjects.push({ mesh: core, type: "pulse", speed: 0.05 });
    const numDims = 64;
    for (let i = 0; i < numDims; i++) {
      const isSine = i % 2 === 0;
      const color = isSine ? COLORS.posSine : COLORS.posCosine;
      const dimPair = Math.floor(i / 2);
      const freq = 20.0 / Math.pow(10, dimPair / (numDims / 2));
      const pts = [];
      const baseRadius = 1.0 + (dimPair / (numDims / 2)) * 4.0;
      const angle = (i / numDims) * Math.PI * 2;
      for (let j = 0; j <= 100; j++) {
        const t = j / 100;
        const h = t * 7.5 - 3.75;
        const phaseOffset = isSine ? 0 : Math.PI / 2;
        const waveOffset = Math.sin(h * freq + phaseOffset) * 0.3;
        pts.push(
          Math.cos(angle) * (baseRadius + waveOffset),
          h,
          Math.sin(angle) * (baseRadius + waveOffset)
        );
      }
      const lineMat = new THREE.LineBasicMaterial({
        color: new THREE.Color(color).multiplyScalar(2.0),
        transparent: true,
        opacity: 0.4,
        depthWrite: false,
        blending: THREE.AdditiveBlending
      });
      const line = new THREE.Line(
        new THREE.BufferGeometry().setAttribute(
          "position",
          new THREE.Float32BufferAttribute(pts, 3)
        ),
        lineMat
      );
      line.renderOrder = 10;
      group.add(line);
      const pulse = new THREE.Mesh(
        new THREE.SphereGeometry(0.06, 8, 8),
        new THREE.MeshBasicMaterial({ color: 0xffffff })
      );
      group.add(pulse);
      animatedObjects.push({
        mesh: pulse,
        type: "pe_pulse",
        curvePts: pts,
        speed: 0.15 + freq * 0.05,
        offset: Math.random()
      });
    }
    for (let i = 0; i < 5; i++) {
      const ring = new THREE.Mesh(
        new THREE.TorusGeometry(5.2, 0.04, 16, 64),
        new THREE.MeshBasicMaterial({
          color: 0xffffff,
          transparent: true,
          opacity: 0.8,
          blending: THREE.AdditiveBlending
        })
      );
      ring.rotation.x = Math.PI / 2;
      group.add(ring);
      animatedObjects.push({ mesh: ring, type: "scan_ring", offset: i / 5 });
    }
    scene.add(group);
  }

  function createAddNorm(x, y, z) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    createEnergyVolume(
      group,
      6,
      4.5,
      6,
      COLORS.addNorm,
      "add-norm",
      "ADD &\nNORM"
    );
    const chamber = new THREE.Group();
    group.add(chamber);
    chamber.add(
      new THREE.Mesh(
        new THREE.CylinderGeometry(1.5, 1.5, 1.8, 16, 1, true),
        createGlass(COLORS.addNorm, 0.3)
      )
    );
    const capMat = new THREE.MeshStandardMaterial({
      color: 0x444455,
      metalness: 0.8,
      roughness: 0.2
    });
    const top = new THREE.Mesh(
      new THREE.CylinderGeometry(1.6, 1.6, 0.1, 16),
      capMat
    );
    top.position.y = 0.9;
    chamber.add(top);
    const bot = top.clone();
    bot.position.y = -0.9;
    chamber.add(bot);
    const plasma = new THREE.Mesh(
      new THREE.CylinderGeometry(0.6, 0.6, 1.6, 16),
      new THREE.MeshStandardMaterial({
        color: COLORS.addNorm,
        emissive: COLORS.addNorm,
        emissiveIntensity: 2.0,
        transparent: true,
        opacity: 0.8
      })
    );
    chamber.add(plasma);
    animatedObjects.push({ mesh: plasma, type: "pulse", speed: 0.02 });
    const rGeo = new THREE.TorusGeometry(1.2, 0.04, 8, 32);
    const gR = new THREE.Mesh(
      rGeo,
      new THREE.MeshBasicMaterial({ color: 0x00ffcc })
    );
    gR.position.y = 1.1;
    gR.rotation.x = Math.PI / 2;
    group.add(gR);
    const bR = new THREE.Mesh(
      rGeo,
      new THREE.MeshBasicMaterial({ color: 0xaa88ff })
    );
    bR.position.y = 1.3;
    bR.rotation.x = Math.PI / 2;
    group.add(bR);
    scene.add(group);
  }

  function createAttention(x, y, z, isCross = false, isMasked = false) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    const labelText = isCross
      ? "CROSS\nATTENTION"
      : isMasked
        ? "MASKED\nATTENTION"
        : "SELF\nATTENTION";
    const typeText = isCross
      ? "cross-attention"
      : isMasked
        ? "masked-attention"
        : "self-attention";
    createEnergyVolume(group, 11, 7.5, 11, COLORS.attention, typeText, labelText);
    const baseColor = COLORS.attention;
    const ringGeo = new THREE.TorusGeometry(1.3, 0.06, 12, 48);
    [
      [-3.2, COLORS.qLine],
      [-2.9, COLORS.kLine],
      [-2.6, COLORS.vLine]
    ].forEach((p) => {
      const r = new THREE.Mesh(
        ringGeo,
        new THREE.MeshStandardMaterial({
          color: p[1],
          emissive: p[1],
          emissiveIntensity: 3.0
        })
      );
      r.position.y = p[0];
      r.rotation.x = Math.PI / 2;
      group.add(r);
    });
    if (isCross) {
      const receptor = new THREE.Mesh(
        new THREE.TorusGeometry(1.5, 0.2, 12, 16),
        new THREE.MeshStandardMaterial({
          color: COLORS.residual,
          emissive: COLORS.residual,
          emissiveIntensity: 2.0
        })
      );
      receptor.position.set(-8, 0, 0);
      receptor.rotation.y = Math.PI / 2;
      group.add(receptor);
    }
    const ptsAttn = [];
    for (let h = 0; h < NUM_HEADS; h++) {
      const ha = (h / NUM_HEADS) * Math.PI * 2;
      const hx = 4.2 * Math.cos(ha);
      const hz = 4.2 * Math.sin(ha);
      const head = new THREE.Group();
      head.position.set(hx, 0, hz);
      head.lookAt(0, 2.0, 0);
      const qm = new THREE.Mesh(
        particleGeometries.sphere,
        new THREE.MeshStandardMaterial({
          color: COLORS.qLine,
          emissive: COLORS.qLine,
          emissiveIntensity: 3
        })
      );
      qm.position.set(-0.7, -1.5, 0);
      qm.scale.set(0.6, 0.6, 0.6);
      head.add(qm);
      const km = new THREE.Mesh(
        particleGeometries.sphere,
        new THREE.MeshStandardMaterial({
          color: COLORS.kLine,
          emissive: COLORS.kLine,
          emissiveIntensity: 3
        })
      );
      km.position.set(0.7, -1.5, 0);
      km.scale.set(0.6, 0.6, 0.6);
      head.add(km);
      const vm = new THREE.Mesh(
        particleGeometries.sphere,
        new THREE.MeshStandardMaterial({
          color: COLORS.vLine,
          emissive: COLORS.vLine,
          emissiveIntensity: 3
        })
      );
      vm.position.set(1.5, 0.5, 0);
      vm.scale.set(0.6, 0.6, 0.6);
      head.add(vm);
      const dpNode = new THREE.Mesh(
        new THREE.OctahedronGeometry(0.3, 0),
        new THREE.MeshStandardMaterial({
          color: 0xffffff,
          emissive: 0xffffff,
          emissiveIntensity: 5,
          wireframe: true
        })
      );
      dpNode.position.set(0, -0.5, 0);
      head.add(dpNode);
      animatedObjects.push({ mesh: dpNode, type: "spin", speed: 0.05 });
      const matrix = new THREE.Group();
      matrix.position.set(0, 0.8, 0);
      for (let i = 0; i < 4; i++) {
        for (let j = 0; j < 4; j++) {
          const isMaskedOut = isMasked && j > i;
          const c = isMaskedOut ? 0xff0000 : baseColor;
          const emi = isMaskedOut ? 0.0 : 1.0 + Math.random();
          const op = isMaskedOut ? 0.1 : 0.8;
          const tile = new THREE.Mesh(
            new THREE.BoxGeometry(0.2, 0.2, 0.05),
            new THREE.MeshStandardMaterial({
              color: c,
              emissive: c,
              emissiveIntensity: emi,
              transparent: true,
              opacity: op
            })
          );
          tile.position.set(i * 0.25 - 0.375, j * 0.25 - 0.375, 0);
          matrix.add(tile);
          if (isMaskedOut) {
            const cross = new THREE.LineSegments(
              new THREE.BufferGeometry().setAttribute(
                "position",
                new THREE.Float32BufferAttribute(
                  [
                    -0.06,
                    -0.06,
                    0.03,
                    0.06,
                    0.06,
                    0.03,
                    -0.06,
                    0.06,
                    0.03,
                    0.06,
                    -0.06,
                    0.03
                  ],
                  3
                )
              ),
              new THREE.LineBasicMaterial({ color: 0xff0000 })
            );
            tile.add(cross);
          }
        }
      }
      head.add(matrix);
      const outNode = new THREE.Mesh(
        particleGeometries.sphere,
        new THREE.MeshStandardMaterial({
          color: 0xffffff,
          emissive: baseColor,
          emissiveIntensity: 4
        })
      );
      outNode.position.set(0, 2.2, 0);
      outNode.scale.set(0.8, 0.8, 0.8);
      head.add(outNode);
      head.updateMatrixWorld();
      const localToGroup = (mesh) => {
        const vec = new THREE.Vector3();
        mesh.getWorldPosition(vec);
        group.worldToLocal(vec);
        return vec;
      };
      const qw = localToGroup(qm);
      const kw = localToGroup(km);
      const vw = localToGroup(vm);
      const dw = localToGroup(dpNode);
      const mw = localToGroup(matrix);
      const ow = localToGroup(outNode);
      ptsAttn.push(
        qw.x,
        qw.y,
        qw.z,
        dw.x,
        dw.y,
        dw.z,
        kw.x,
        kw.y,
        kw.z,
        dw.x,
        dw.y,
        dw.z,
        dw.x,
        dw.y,
        dw.z,
        mw.x,
        mw.y,
        mw.z,
        vw.x,
        vw.y,
        vw.z,
        mw.x,
        mw.y,
        mw.z,
        mw.x,
        mw.y,
        mw.z,
        ow.x,
        ow.y,
        ow.z
      );
      ptsAttn.push(0, -3.2, 0, qw.x, qw.y, qw.z);
      if (isCross) {
        ptsAttn.push(-8, 0, 0, kw.x, kw.y, kw.z, -8, 0, 0, vw.x, vw.y, vw.z);
      } else {
        ptsAttn.push(0, -2.9, 0, kw.x, kw.y, kw.z, 0, -2.6, 0, vw.x, vw.y, vw.z);
      }
      ptsAttn.push(ow.x, ow.y, ow.z, 0, 3.2, 0);
      group.add(head);
    }
    const webColor = new THREE.Color(baseColor).multiplyScalar(2.0);
    const qkvMat = new THREE.LineBasicMaterial({
      color: webColor,
      transparent: true,
      opacity: 0.3,
      blending: THREE.AdditiveBlending,
      depthWrite: false
    });
    const qkvWeb = new THREE.LineSegments(
      new THREE.BufferGeometry().setAttribute(
        "position",
        new THREE.Float32BufferAttribute(ptsAttn, 3)
      ),
      qkvMat
    );
    qkvWeb.renderOrder = 10;
    group.add(qkvWeb);
    const woRing = new THREE.Mesh(
      new THREE.TorusGeometry(1.5, 0.08, 16, 48),
      new THREE.MeshStandardMaterial({
        color: baseColor,
        emissive: baseColor,
        emissiveIntensity: 2.0
      })
    );
    woRing.position.y = 3.2;
    woRing.rotation.x = Math.PI / 2;
    group.add(woRing);
    scene.add(group);
  }

  function createFeedForward(x, y, z) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    createEnergyVolume(group, 15, 6.5, 15, COLORS.ffn, "ffn", "FEED\nFORWARD");
    const color = COLORS.ffn;
    const numIn = 16;
    const numHid = 64;
    const rIn = 1.2;
    const rHid = 4.5;
    const inNodes = [];
    for (let i = 0; i < numIn; i++) {
      let a = (i / numIn) * Math.PI * 2;
      let pos = new THREE.Vector3(Math.cos(a) * rIn, -2.5, Math.sin(a) * rIn);
      inNodes.push(pos);
      const m = new THREE.Mesh(
        new THREE.SphereGeometry(0.1, 8, 8),
        new THREE.MeshStandardMaterial({
          color: 0xffffff,
          emissive: 0xffffff,
          emissiveIntensity: 2.0
        })
      );
      m.position.copy(pos);
      group.add(m);
    }
    const outNodes = [];
    for (let i = 0; i < numIn; i++) {
      let a = (i / numIn) * Math.PI * 2;
      let pos = new THREE.Vector3(Math.cos(a) * rIn, 2.5, Math.sin(a) * rIn);
      outNodes.push(pos);
      const m = new THREE.Mesh(
        new THREE.SphereGeometry(0.1, 8, 8),
        new THREE.MeshStandardMaterial({
          color: 0xffffff,
          emissive: 0xffffff,
          emissiveIntensity: 2.0
        })
      );
      m.position.copy(pos);
      group.add(m);
    }
    const hiddenNodes = [];
    for (let i = 0; i < numHid; i++) {
      let a = (i / numHid) * Math.PI * 2;
      let pos = new THREE.Vector3(Math.cos(a) * rHid, 0, Math.sin(a) * rHid);
      hiddenNodes.push(pos);
      const isActive = Math.random() > 0.5;
      const m = new THREE.Mesh(
        new THREE.IcosahedronGeometry(0.12, 0),
        new THREE.MeshStandardMaterial({
          color: isActive ? color : 0x222222,
          emissive: isActive ? color : 0x000000,
          emissiveIntensity: isActive ? 3.0 : 0,
          transparent: true,
          opacity: isActive ? 0.9 : 0.2
        })
      );
      m.position.copy(pos);
      group.add(m);
    }
    const ptsFFN = [];
    for (let i = 0; i < numIn; i++) {
      for (let j = 0; j < numHid; j++) {
        ptsFFN.push(
          inNodes[i].x,
          inNodes[i].y,
          inNodes[i].z,
          hiddenNodes[j].x,
          hiddenNodes[j].y,
          hiddenNodes[j].z
        );
      }
    }
    for (let j = 0; j < numHid; j++) {
      for (let i = 0; i < numIn; i++) {
        ptsFFN.push(
          hiddenNodes[j].x,
          hiddenNodes[j].y,
          hiddenNodes[j].z,
          outNodes[i].x,
          outNodes[i].y,
          outNodes[i].z
        );
      }
    }
    const webColor = new THREE.Color(color).multiplyScalar(1.5);
    const webMat = new THREE.LineBasicMaterial({
      color: webColor,
      transparent: true,
      opacity: 0.05,
      blending: THREE.AdditiveBlending,
      depthWrite: false
    });
    const webFFN = new THREE.LineSegments(
      new THREE.BufferGeometry().setAttribute(
        "position",
        new THREE.Float32BufferAttribute(ptsFFN, 3)
      ),
      webMat
    );
    webFFN.renderOrder = 10;
    group.add(webFFN);
    scene.add(group);
  }

  function createOutputLayer(x, y, z) {
    const group = new THREE.Group();
    group.position.set(x, y, z);
    createEnergyVolume(
      group,
      20,
      13,
      20,
      COLORS.softmax,
      "softmax",
      "LINEAR &\nSOFTMAX"
    );
    const proj = new THREE.Mesh(
      new THREE.CylinderGeometry(8.5, 1.2, 6, 24, 1, true),
      new THREE.MeshBasicMaterial({
        color: 0x44aaff,
        wireframe: true,
        transparent: true,
        opacity: 0.1
      })
    );
    proj.position.y = 3;
    group.add(proj);
    const plate = new THREE.Mesh(
      new THREE.CylinderGeometry(9, 9, 0.2, 48),
      new THREE.MeshStandardMaterial({
        color: 0x0a1020,
        emissive: 0x111122,
        emissiveIntensity: 0.5
      })
    );
    plate.position.y = 6;
    group.add(plate);
    const bars = [];
    for (let i = 0; i < 120; i++) {
      const angle = (i / 120) * Math.PI * 2;
      const bar = new THREE.Mesh(
        new THREE.BoxGeometry(0.15, 1, 0.15),
        new THREE.MeshStandardMaterial({
          color: COLORS.softmax,
          emissive: COLORS.softmax,
          emissiveIntensity: 0.5
        })
      );
      bar.geometry.translate(0, 0.5, 0);
      bar.position.set(Math.cos(angle) * 8.5, 6.1, Math.sin(angle) * 8.5);
      bar.lookAt(0, 6.1, 0);
      group.add(bar);
      bars.push(bar);
    }
    scene.add(group);
    function loop() {
      const w = Math.floor(Math.random() * 120);
      window.activeSoftmaxAngle = (w / 120) * Math.PI * 2;
      bars.forEach((b, i) => {
        let diff = Math.abs(i - w);
        if (diff > 60) diff = 120 - diff;
        const p = Math.exp(-diff * 0.6);
        gsap.to(b.scale, {
          y: 0.1 + p * 18,
          duration: 0.5,
          ease: "back.out(1.5)"
        });
        let baseColor = new THREE.Color(COLORS.softmax);
        let activeColor = new THREE.Color(0xffaa00);
        let targetColor = baseColor.lerp(activeColor, p);
        gsap.to(b.material.color, {
          r: targetColor.r,
          g: targetColor.g,
          b: targetColor.b,
          duration: 0.5
        });
        gsap.to(b.material.emissive, {
          r: targetColor.r,
          g: targetColor.g,
          b: targetColor.b,
          duration: 0.5
        });
        gsap.to(b.material, { emissiveIntensity: 0.5 + p * 10.0, duration: 0.5 });
      });
      setTimeout(loop, 900);
    }
    loop();
  }

  function buildArchitecture() {
    [
      [-12, false],
      [12, true]
    ].forEach((s) => {
      createTokenEmbedding(s[0], -12, 0);
      createPositionalEncoding(s[0], -2, 0);
      for (let i = 0; i < NUM_BLOCKS; i++) {
        let by = 10 + i * 38;
        if (!s[1]) {
          createAttention(-12, by, 0, false, false);
          createAddNorm(-12, by + 6, 0);
          createFeedForward(-12, by + 16, 0);
          createAddNorm(-12, by + 23, 0);
        } else {
          createAttention(12, by, 0, false, true);
          createAddNorm(12, by + 6, 0);
          createAttention(12, by + 14, 0, true, false);
          createAddNorm(12, by + 20, 0);
          createFeedForward(12, by + 30, 0);
          createAddNorm(12, by + 37, 0);
          paths.push({
            curve: new THREE.CubicBezierCurve3(
              new THREE.Vector3(-12, 35, 0),
              new THREE.Vector3(-4, 35, 0),
              new THREE.Vector3(-4, 24, 0),
              new THREE.Vector3(4, 24, 0)
            ),
            targetY: 24
          });
        }
      }
    });
    createOutputLayer(12, 58, 0);
    createEncapsulationBox(
      -12,
      21,
      0,
      18,
      32,
      18,
      COLORS.encoderBox,
      "THE\nENCODER",
      true
    );
    createEncapsulationBox(
      12,
      28,
      0,
      18,
      46,
      18,
      COLORS.decoderBox,
      "THE\nDECODER",
      false
    );
    createCrossAttentionBridge(-12, 35, 4, 24);
  }

  function createDataFlow() {
    const mat = new THREE.MeshStandardMaterial({
      emissiveIntensity: 3.5,
      metalness: 0.2
    });
    for (let i = 0; i < 450; i++) {
      const group = new THREE.Group();
      const m = new THREE.Mesh(particleGeometries.cube, mat.clone());
      const spriteMat = new THREE.SpriteMaterial({
        map: binaryTex[0],
        transparent: true,
        blending: THREE.AdditiveBlending,
        depthWrite: false
      });
      const sprite = new THREE.Sprite(spriteMat);
      sprite.visible = false;
      group.add(m);
      group.add(sprite);
      scene.add(group);
      particles.push({
        group: group,
        mesh: m,
        sprite: sprite,
        type: Math.random() < 0.5 ? "encoder" : "decoder",
        progress: Math.random(),
        speed: 0.002 + Math.random() * 0.002,
        baseAngle: Math.random() * Math.PI * 2,
        isResidual: Math.random() < 0.4,
        qkvRole: ["Q", "K", "V"][Math.floor(Math.random() * 3)],
        headIndex: Math.floor(Math.random() * NUM_HEADS),
        ffnRadius: 4.5,
        ffnAngle: Math.random() * Math.PI * 2,
        reluActive: Math.random() > 0.5,
        currentZone: "",
        targetScale: new THREE.Vector3(1, 1, 1),
        prevPos: new THREE.Vector3(),
        gridX: (Math.random() - 0.5) * 8,
        gridZ: (Math.random() - 0.5) * 8
      });
    }
  }

  function setupInteraction() {
    const can = renderer.domElement;
    can.addEventListener("pointerdown", (e) => {
      activePointers++;
      pointerDownPos.set(e.clientX, e.clientY);
      pointerCurrentPos.set(e.clientX, e.clientY);
      isPointerDown = true;
      isHolding = true;
      pointerDownTimestamp = performance.now();
    });
    can.addEventListener("pointermove", (e) => {
      pointerCurrentPos.set(e.clientX, e.clientY);
      if (isHolding && pointerDownPos.distanceTo(pointerCurrentPos) > 15)
        isHolding = false;
    });
    can.addEventListener("pointerup", (e) => {
      activePointers = Math.max(0, activePointers - 1);
      isPointerDown = false;
      isHolding = false;
      if (
        pointerDownPos.distanceTo(new THREE.Vector2(e.clientX, e.clientY)) < 15
      ) {
        const now = performance.now();
        if (now - lastTapTime < 350) handleDoubleTap(e);
        else handleRaycast(e);
        lastTapTime = now;
      }
    });
    can.addEventListener("pointercancel", (e) => {
      activePointers = Math.max(0, activePointers - 1);
      isPointerDown = false;
      isHolding = false;
    });
    can.addEventListener("pointerleave", (e) => {
      activePointers = Math.max(0, activePointers - 1);
      isPointerDown = false;
      isHolding = false;
    });
  }

  function handleDoubleTap(e) {
    controls.autoRotate = !controls.autoRotate;
    mouse.x = (e.clientX / window.innerWidth) * 2 - 1;
    mouse.y = -(e.clientY / window.innerHeight) * 2 + 1;
    raycaster.setFromCamera(mouse, camera);
    const hit = raycaster
      .intersectObjects(scene.children, true)
      .find((h) => h.object.userData && h.object.userData.blockType);
    if (hit) {
      const tP = new THREE.Vector3().copy(
        hit.object.parent ? hit.object.parent.position : hit.object.position
      );
      gsap.to(controls.target, { x: tP.x, y: tP.y, z: tP.z, duration: 1 });
      gsap.to(camera.position, { y: tP.y + 10, duration: 1 });
    }
  }

  function handleRaycast(e) {
    mouse.x = (e.clientX / window.innerWidth) * 2 - 1;
    mouse.y = -(e.clientY / window.innerHeight) * 2 + 1;
    raycaster.setFromCamera(mouse, camera);
    const hit = raycaster
      .intersectObjects(scene.children, true)
      .find((h) => h.object.userData && h.object.userData.volumeRef);
    if (hit) {
      const vol = hit.object.userData.volumeRef;
      if (vol.codeMesh) toggleCode(vol);
    }
  }

  function routeAttention(x, by, dy, p, role, isC, isM) {
    let t = (dy + 3.2) / 6.4,
      ha = (p.headIndex / NUM_HEADS) * Math.PI * 2,
      hx = 4.2 * Math.cos(ha),
      hz = 4.2 * Math.sin(ha);
    let px = x,
      py = by + dy,
      pz = 0,
      color = COLORS.particle;
    if (isM && isC) {
      if (t < 0.4) {
        let lt = t / 0.4;
        px = x - 8 + (8 + hx) * lt;
        pz = (role === "K" ? hz + 1.8 : hz) * lt;
        color = role === "K" ? COLORS.kLine : COLORS.vLine;
      } else if (t < 0.6) {
        px = x + hx;
        pz = role === "K" ? hz + 1.8 : hz;
        color = 0xffffff;
      } else {
        let lt = (t - 0.6) / 0.4;
        px = (x + hx) * (1 - lt) + x * lt;
        pz = hz * (1 - lt);
        color = COLORS.attention;
      }
    } else {
      if (t < 0.15) {
        color =
          role === "Q"
            ? COLORS.qLine
            : role === "K"
            ? COLORS.kLine
            : COLORS.vLine;
      } else if (t < 0.3) {
        let lt = (t - 0.15) / 0.15;
        px = x + hx * lt;
        pz = role === "V" ? hz * lt : hz * lt + 1.8 * lt;
        color =
          role === "Q"
            ? COLORS.qLine
            : role === "K"
            ? COLORS.kLine
            : COLORS.vLine;
      } else if (t < 0.5) {
        px = x + hx;
        pz = role === "V" ? hz : hz + 1.8;
        color = role === "V" ? COLORS.vLine : 0xffffff;
      } else if (t < 0.8) {
        px = x + hx;
        pz = hz;
        color = COLORS.attention;
      } else {
        let lt = (t - 0.8) / 0.2;
        px = (x + hx) * (1 - lt) + x * lt;
        pz = hz * (1 - lt);
        color = COLORS.attention;
      }
    }
    return { px, py, pz, color, zone: "attention", scale: 1 };
  }

  function routeFFN(x, by, dy, p, time) {
    let t = (dy + 2.5) / 5;
    let numIn = 16,
      numHid = 64;
    let a_in =
      (Math.floor((p.baseAngle / (Math.PI * 2)) * numIn) / numIn) * Math.PI * 2;
    let a_hid =
      (Math.floor((p.ffnAngle / (Math.PI * 2)) * numHid) / numHid) * Math.PI * 2;
    let x_in = x + Math.cos(a_in) * 1.2;
    let z_in = Math.sin(a_in) * 1.2;
    let x_hid = x + Math.cos(a_hid) * 4.5;
    let z_hid = Math.sin(a_hid) * 4.5;
    let px, pz;
    if (t < 0.5) {
      let lt = t / 0.5;
      px = x_in + (x_hid - x_in) * lt;
      pz = z_in + (z_hid - z_in) * lt;
    } else {
      let lt = (t - 0.5) / 0.5;
      px = x_hid + (x_in - x_hid) * lt;
      pz = z_hid + (z_in - z_hid) * lt;
    }
    let py = by + dy;
    let scale = !p.reluActive ? 0.3 : t < 0.5 ? 1 + t * 2 : 2 - (t - 0.5) * 2;
    return {
      px,
      py,
      pz,
      color: !p.reluActive ? 0x111111 : COLORS.ffn,
      zone: "ffn",
      scale
    };
  }

  function routeStack(x, y, isDec, p, time, isMem) {
    if (y < -14) {
      let t = Math.max(0, Math.min(1, (y + 18) / 4));
      let spread = 3.0 * (1 - t) + 0.5 * t;
      return {
        px: x + p.gridX * spread,
        py: y,
        pz: p.gridZ * spread,
        color: 0x88ccff,
        zone: "raw_text",
        scale: 1
      };
    }
    if (y >= -14 && y < -11.5) {
      return {
        px: x + p.gridX * 0.5,
        py: y,
        pz: p.gridZ * 0.5,
        color: COLORS.embed,
        zone: "token_embed",
        scale: 1
      };
    }
    if (y >= -11.5 && y < -6)
      return {
        px: x,
        py: y,
        pz: 0,
        color: COLORS.particle,
        zone: "trunk",
        scale: 1
      };
    if (y >= -6 && y < 2) {
      return {
        px: x + Math.cos(y * 2 + p.baseAngle + time) * 1.5,
        py: y,
        pz: Math.sin(y * 2 + p.baseAngle + time) * 1.5,
        color: Math.sin(y * 4) > 0 ? COLORS.posSine : COLORS.posCosine,
        zone: "pos_encoding",
        scale: 1
      };
    }
    if (y >= 2 && y < 6.8)
      return {
        px: x,
        py: y,
        pz: 0,
        color: COLORS.particle,
        zone: "trunk",
        scale: 1
      };
    if (isDec && y > 58) {
      let dy = y - 58;
      let lt = Math.min(dy / 6, 1);
      let r = 1.2 + (8.5 - 1.2) * Math.pow(lt, 3);
      let startA = p.baseAngle + time * 6.0;
      let targetA = window.activeSoftmaxAngle || 0;
      let diff = targetA - (startA % (Math.PI * 2));
      if (diff > Math.PI) diff -= Math.PI * 2;
      if (diff < -Math.PI) diff += Math.PI * 2;
      let currentA = startA + diff * Math.pow(lt, 5);
      currentA +=
        Math.sin(time * 15 + p.baseAngle * 20) * 0.5 * (1 - Math.pow(lt, 4));
      let rCol = Math.floor(0x00 + 0xff * lt);
      let gCol = Math.floor(0xff - 0x55 * lt);
      let bCol = Math.floor(0xff - 0xff * lt);
      return {
        px: x + Math.cos(currentA) * r,
        py: y,
        pz: Math.sin(currentA) * r,
        color: (rCol << 16) | (gCol << 8) | bCol,
        zone: "softmax",
        scale: 1 + lt
      };
    }
    for (let i = 0; i < NUM_BLOCKS; i++) {
      let by = 10 + i * 38;
      if (p.isResidual && !isMem) {
        const getBezier = (p0, p1, p2, t) => {
          const u = 1 - t;
          return new THREE.Vector3()
            .addScaledVector(p0, u * u)
            .addScaledVector(p1, 2 * u * t)
            .addScaledVector(p2, t * t);
        };
        if (y >= by - 3.2 && y <= by + 5.2) {
          let pt = getBezier(
            new THREE.Vector3(x, by - 3.2, 0),
            new THREE.Vector3(x + (isDec ? 5 : -5), by + 1.0, 0),
            new THREE.Vector3(x, by + 5.2, 0),
            (y - by + 3.2) / 8.4
          );
          return {
            px: pt.x,
            py: y,
            pz: pt.z,
            color: COLORS.residual,
            zone: "residual",
            scale: 1
          };
        }
        if (isDec && y >= by + 6.8 && y <= by + 19.2) {
          let pt = getBezier(
            new THREE.Vector3(x, by + 6.8, 0),
            new THREE.Vector3(x + 5, by + 13, 0),
            new THREE.Vector3(x, by + 19.2, 0),
            (y - by - 6.8) / 12.4
          );
          return {
            px: pt.x,
            py: y,
            pz: pt.z,
            color: COLORS.residual,
            zone: "residual",
            scale: 1
          };
        }
        let fS = isDec ? by + 20.8 : by + 6.8,
          fE = isDec ? by + 36.2 : by + 22.2,
          fO = isDec ? -5 : 5;
        if (y >= fS && y <= fE) {
          let pt = getBezier(
            new THREE.Vector3(x, fS, 0),
            new THREE.Vector3(x + fO, (fS + fE) / 2, 0),
            new THREE.Vector3(x, fE, 0),
            (y - fS) / (fE - fS)
          );
          return {
            px: pt.x,
            py: y,
            pz: pt.z,
            color: COLORS.residual,
            zone: "residual",
            scale: 1
          };
        }
      }
      if (y >= by - 3.2 && y <= by + 3.2)
        return routeAttention(
          x,
          by,
          y - by,
          p,
          isDec ? "Q" : p.qkvRole,
          false,
          false
        );
      if (y > by + 5.2 && y < by + 6.8)
        return {
          px: x,
          py: y,
          pz: 0,
          color: COLORS.addNorm,
          zone: "norm",
          scale: 0.6
        };
      if (!isDec) {
        if (y >= by + 13.5 && y <= by + 18.5)
          return routeFFN(x, by + 16, y - by - 16, p, time);
        if (y >= by + 22.2 && y < by + 23.8)
          return {
            px: x,
            py: y,
            pz: 0,
            color: COLORS.addNorm,
            zone: "norm",
            scale: 0.6
          };
      } else {
        if (y >= by + 11.5 && y <= by + 16.5)
          return routeAttention(
            x,
            by + 14,
            y - by - 14,
            p,
            isMem ? p.qkvRole : "Q",
            true,
            isMem
          );
        if (y >= by + 19.2 && y < by + 20.8)
          return {
            px: x,
            py: y,
            pz: 0,
            color: COLORS.addNorm,
            zone: "norm",
            scale: 0.6
          };
        if (y >= by + 27.5 && y <= by + 32.5)
          return routeFFN(x, by + 30, y - by - 30, p, time);
        if (y >= by + 36.2 && y < by + 37.8)
          return {
            px: x,
            py: y,
            pz: 0,
            color: COLORS.addNorm,
            zone: "norm",
            scale: 0.6
          };
      }
    }
    return {
      px: x,
      py: y,
      pz: 0,
      color: COLORS.particle,
      zone: "trunk",
      scale: 1
    };
  }

  function animate() {
    requestAnimationFrame(animate);
    const t = performance.now() * 0.001;

    if (
      isHolding &&
      activePointers === 1 &&
      performance.now() - pointerDownTimestamp > 1000
    ) {
      camera.position.y += 0.12;
      controls.target.y += 0.12;
    }

    controls.update();
    const camPos = camera.position;
    volumes.forEach((vol) => {
      const worldPos = new THREE.Vector3();
      vol.worldPosTarget.getWorldPosition(worldPos);
      const dist = camPos.distanceTo(worldPos);
      let meshFactor = Math.max(
        0,
        Math.min(
          1,
          (dist - vol.meshFadeStart) / (vol.meshFadeEnd - vol.meshFadeStart)
        )
      );
      let wireFactor = Math.max(
        0,
        Math.min(
          1,
          (dist - vol.wireFadeStart) / (vol.wireFadeEnd - vol.wireFadeStart)
        )
      );
      if (vol.volMesh && vol.volMesh.material)
        vol.volMesh.material.opacity = vol.baseOp * meshFactor;
      if (vol.wireMesh && vol.wireMesh.material)
        vol.wireMesh.material.opacity = vol.edgeOp * wireFactor;
      if (vol.labelPlane && vol.labelPlane.material)
        vol.labelPlane.material.opacity = vol.labelOp * meshFactor;
    });
    animatedObjects.forEach((o) => {
      if (o.type === "spin") o.mesh.rotation.y += o.speed;
      if (o.type === "pulse")
        o.mesh.scale.x = o.mesh.scale.z = 1 + Math.sin(t * 3) * 0.2;
      if (o.type === "wave")
        o.mesh.scale.x = o.mesh.scale.z =
          1 + Math.sin(t * o.freq + o.offset) * 0.15;
      if (o.type === "pe_pulse") {
        let t_curve = (t * o.speed + o.offset) % 1.0;
        let ptIdx = Math.floor(t_curve * (o.curvePts.length / 3 - 1)) * 3;
        if (o.curvePts[ptIdx] !== undefined)
          o.mesh.position.set(
            o.curvePts[ptIdx],
            o.curvePts[ptIdx + 1],
            o.curvePts[ptIdx + 2]
          );
      }
      if (o.type === "scan_ring") {
        let t_scan = (t * 0.2 + o.offset) % 1.0;
        o.mesh.position.y = t_scan * 7.5 - 3.75;
        o.mesh.material.opacity = Math.sin(t_scan * Math.PI) * 0.8;
      }
    });
    particles.forEach((p) => {
      p.progress += p.type === "cross" ? p.speed * 0.5 : p.speed;
      if (p.progress > 1) {
        p.progress = 0;
        p.gridX = (Math.random() - 0.5) * 8;
        p.gridZ = (Math.random() - 0.5) * 8;
        if (Math.random() < 0.15 && paths.length > 0) {
          p.type = "cross";
          p.qkvRole = Math.random() > 0.5 ? "K" : "V";
        } else {
          p.type = Math.random() < 0.575 ? "decoder" : "encoder";
          p.qkvRole = ["Q", "K", "V"][Math.floor(Math.random() * 3)];
        }
        p.reluActive = Math.random() > 0.5;
      }
      let s;
      if (p.type === "cross") {
        const path = paths[Math.floor(p.baseAngle * 10) % paths.length];
        if (p.progress < 0.3)
          s = routeStack(
            ENCODER_X,
            -18 + (p.progress / 0.3) * 53,
            false,
            p,
            t,
            false
          );
        else if (p.progress < 0.6) {
          let pt = path.curve.getPointAt((p.progress - 0.3) / 0.3);
          s = {
            px: pt.x,
            py: pt.y,
            pz: pt.z,
            color: 0xffffff,
            zone: "cross_bridge",
            scale: 1
          };
        } else
          s = routeStack(
            DECODER_X,
            path.targetY -
            3.2 +
            ((p.progress - 0.6) / 0.4) * (64 - (path.targetY - 3.2)),
            true,
            p,
            t,
            true
          );
      } else
        s = routeStack(
          p.type === "decoder" ? DECODER_X : ENCODER_X,
          -18 + p.progress * (p.type === "decoder" ? 82 : 53),
          p.type === "decoder",
          p,
          t,
          false
        );
      p.group.position.set(s.px, s.py, s.pz);
      if (s.zone !== p.currentZone) {
        p.currentZone = s.zone;
        if (
          s.zone === "trunk" ||
          s.zone === "residual" ||
          s.zone === "cross_bridge"
        ) {
          p.mesh.visible = false;
          p.sprite.visible = true;
          p.sprite.material.map =
            binaryTex[Math.floor(Math.random() * binaryTex.length)];
        } else if (s.zone === "raw_text") {
          p.mesh.visible = false;
          p.sprite.visible = true;
          p.sprite.material.map =
            asciiTex[Math.floor(Math.random() * asciiTex.length)];
        } else if (s.zone === "token_embed") {
          p.mesh.visible = false;
          p.sprite.visible = true;
          p.sprite.material.map = idTex[Math.floor(Math.random() * idTex.length)];
        } else if (s.zone === "softmax") {
          p.mesh.visible = false;
          p.sprite.visible = true;
          p.sprite.material.map =
            asciiTex[Math.floor(Math.random() * asciiTex.length)];
        } else {
          p.sprite.visible = false;
          p.mesh.visible = true;
          let geo = particleGeometries.sphere;
          if (s.zone === "pos_encoding") geo = particleGeometries.torusKnot;
          else if (s.zone === "attention") geo = particleGeometries.beam;
          else if (s.zone === "ffn" || s.zone === "softmax")
            geo = particleGeometries.dataDart;
          p.mesh.geometry = geo;
        }
      }
      if (p.sprite.visible) {
        p.sprite.material.color.setHex(s.color).multiplyScalar(2.5);
        p.targetScale.set(s.scale * 1.5, s.scale * 1.5, s.scale * 1.5);
        p.sprite.scale.lerp(p.targetScale, 0.1);
      } else {
        p.mesh.material.color.setHex(s.color);
        p.mesh.material.emissive.setHex(s.color);
        p.mesh.material.emissiveIntensity = 2.5;
        if (s.zone === "softmax") {
          p.targetScale.set(s.scale * 0.5, s.scale * 0.5, s.scale * 3.0);
        } else {
          p.targetScale.set(s.scale, s.scale, s.scale);
        }
        p.mesh.scale.lerp(p.targetScale, 0.1);
        if (s.zone === "attention" || s.zone === "ffn" || s.zone === "softmax") {
          const v = new THREE.Vector3().subVectors(p.group.position, p.prevPos);
          if (v.lengthSq() > 0.0001)
            p.mesh.lookAt(p.group.position.clone().add(v));
          if (s.zone === "ffn") p.mesh.rotation.z += 0.3;
        } else if (s.zone === "pos_encoding") {
          p.mesh.rotation.x += 0.1;
          p.mesh.rotation.y += 0.15;
          p.mesh.rotation.z += 0.05;
        }
      }
      p.prevPos.copy(p.group.position);
    });
    composer.render();
  }

</script>
</body>
</html>

效果如下

体验
