在这个示例中，我们使用音化模块播放音乐谱。这是一个高级演示，展示了更艺术化的音频图表配置方式。该音响化模块也为音乐艺术家设计了功能，使得通过可视化设计复杂的音频体验。
点击沿 Y 轴的乐器开关。
完整代码
javascript
const masterVolume = 0.85;
// ------------------------------------------------------------------------
// Controls
// Mute/unmute an instrument without stopping play
function setInstrumentMute(targetSeriesIx, channels, mute) {
channels.forEach(function (ch) {
if (ch.events[0].relatedPoint.series.index === targetSeriesIx) {
ch.engine.setMasterVolume(mute ? 0 : masterVolume);
}
});
}
// Called on chart render
function onRender() {
const chart = this;
// Chart play button
document.getElementById('play').onclick = function () {
chart.toggleSonify(true, function () {
// Reset crosshair on end since we are animating it
chart.series[0].xAxis.drawCrosshair(
void 0, chart.series[0].points[0]
);
chart.series[0].xAxis.hideCrosshair();
});
};
// Handle checkbox clicks for each instrument
[
'bass-on', 'chimes-on', 'shaker1-on', 'piano-on', 'flute-on',
'synth-on', 'shaker2-on', 'pad-on', 'basspad-on'
].forEach(function (id, seriesIx) {
const series = chart.series[seriesIx];
document.getElementById(id).onclick = function () {
const timeline = chart.sonification.timeline,
muted = !this.checked;
if (timeline) {
if (
series.options.sonification &&
series.options.sonification.enabled === false &&
!muted
) {
// Series was muted before timeline was made, have to do
// update & rebuild
series.update({
sonification: { enabled: true }
});
}
setInstrumentMute(seriesIx, timeline.channels, muted);
} else {
// Timeline not built yet - user interaction needed on page
series.update({
sonification: { enabled: !muted }
}, false);
}
series.setState(muted ? 'inactive' : 'normal');
};
});
// Set plot border radius
chart.plotBackground.attr('r', '9px');
// Expose y axis titles to screen readers directly
chart.yAxis.forEach(function (a) {
a.axisGroup.div.setAttribute('aria-hidden', 'false');
});
}
// ------------------------------------------------------------------------
// Chart
Highcharts.SVGRenderer.prototype.symbols.box = function (x, y, w, h) {
const x2 = w * 2;
return ['M', x, y, 'L', x + x2, y, 'L', x + x2, y + h, 'L', x, y + h, 'z'];
};
// Allow input tags in axis labels
Highcharts.AST.allowedTags.push('input');
Highcharts.AST.allowedTags.push('label');
Highcharts.AST.allowedAttributes.push('checked');
// Convenience function to get y axis options, since we have 9 of them
function buildYAxisOpts(height, top, labelText, checkboxId, iconSrc) {
return {
height: height + '%', // Axis height
top: top + '%', // Axis offset from top
offset: 0,
labels: {
enabled: false
},
accessibility: {
description: labelText
},
gridLineWidth: 0,
title: {
rotation: 0,
offset: 70,
useHTML: true,
style: {
width: 120
},
// Checkbox, icon and axis title combined here
text: '<label class="hc-axis-title"><input id="' + checkboxId +
'" type="checkbox" checked><img alt="" src="' +
iconSrc + '" class="hc-axis-icon"> <span ' +
'class="hc-axis-title-text">' +
labelText + '</span></label>'
}
};
}
Highcharts.chart('container', {
chart: {
type: 'scatter',
marginLeft: 150,
marginBottom: 25,
events: {
render: onRender
},
plotBackgroundColor: '#F7F7F8',
plotShadow: {
color: '#aaa',
opacity: 0.1,
width: 10
},
scrollablePlotArea: {
minWidth: 700,
opacity: 0.94
}
},
title: {
text: 'Musical Chart',
align: 'left',
margin: 25,
style: {
fontSize: '1.4rem'
}
},
subtitle: {
text: 'Using the built-in Highcharts Synthesizer',
align: 'left'
},
sonification: {
duration: 14400,
order: 'simultaneous',
showTooltip: false,
masterVolume: masterVolume,
defaultInstrumentOptions: {
// Only show for one track since we have some delayed tracks
showPlayMarker: false
}
},
accessibility: {
keyboardNavigation: {
enabled: false
},
screenReaderSection: {
beforeChartFormat: '<{headingTagName}>' +
'{chartTitle}</{headingTagName}><div>{typeDescription}</div>' +
'<div>{chartSubtitle}</div><div>{chartLongdesc}</div><div>' +
'{xAxisDescription}</div><div>{yAxisDescription}</div>'
},
landmarkVerbosity: 'one'
},
lang: {
accessibility: {
axis: {
xAxisDescriptionSingular: 'The chart has 1 X axis displaying ' +
'time.'
}
}
},
data: {
csv: document.getElementById('csv').textContent,
complete: function (opts) {
delete opts.xAxis;
// Assign each series to their own y-axes
opts.series.forEach(function (s, ix) {
s.yAxis = ix;
});
}
},
legend: {
enabled: false
},
tooltip: {
enabled: false
},
xAxis: {
crosshair: {
enabled: true,
width: 10,
color: '#609A5E',
className: 'hc-crosshair' // Smoothed with CSS transitions
},
visible: false,
minPadding: 0.02
},
// Each series gets its own y axis
yAxis: [
buildYAxisOpts(
9, 1, 'Bass', 'bass-on',
'https://upload.wikimedia.org/wikipedia/commons/3/37/Papapishu-double-bass-1.svg'
),
buildYAxisOpts(
9, 11, 'Chimes', 'chimes-on',
'https://upload.wikimedia.org/wikipedia/commons/e/ee/Bell_by_hatalar205.svg'
),
buildYAxisOpts(
5, 21, 'Shaker 1', 'shaker1-on',
'https://upload.wikimedia.org/wikipedia/commons/a/a1/Maracas.svg'
),
buildYAxisOpts(
9, 27, 'Piano', 'piano-on',
'https://upload.wikimedia.org/wikipedia/commons/5/50/Piano.svg'
),
Highcharts.merge(
buildYAxisOpts(
26, 37, 'Flute', 'flute-on',
'https://upload.wikimedia.org/wikipedia/commons/c/ce/Quena.svg'
), {
plotBands: [{
from: -10,
to: 20,
color: '#404543'
}],
min: -1,
max: 13
}
),
buildYAxisOpts(
9, 64, 'Synth', 'synth-on',
'https://upload.wikimedia.org/wikipedia/commons/9/99/Nuvola_apps_kcmmidi.svg'
),
buildYAxisOpts(
5, 74, 'Shaker 2', 'shaker2-on',
'https://upload.wikimedia.org/wikipedia/commons/a/a1/Maracas.svg'
),
buildYAxisOpts(
9, 80, 'Pad', 'pad-on',
'https://upload.wikimedia.org/wikipedia/commons/9/99/Nuvola_apps_kcmmidi.svg'
),
buildYAxisOpts(
9, 90, 'Bass Pad', 'basspad-on',
'https://upload.wikimedia.org/wikipedia/commons/9/99/Nuvola_apps_kcmmidi.svg'
)
],
plotOptions: {
series: {
enableMouseTracking: false,
accessibility: {
exposeAsGroupOnly: true
}
}
},
// Sonification mappings for each series
// ----------------------------------------------------------------------
series: [{
// Bass
sonification: {
defaultInstrumentOptions: {
instrument: 'vibraphone',
mapping: {
pitch: {
mapTo: 'y',
min: 'd2',
max: 'd3'
},
pan: 0,
volume: 0.4
}
}
},
color: 'transparent',
marker: {
symbol: 'circle',
radius: 5,
lineColor: '#505F55',
lineWidth: 3
}
}, {
// Chimes
sonification: {
defaultInstrumentOptions: {
instrument: 'vibraphone',
mapping: {
pitch: {
mapTo: 'y',
min: 'd5',
max: 'g6'
},
volume: 0.08,
pan: 0.95
}
},
tracks: [{
// Default
}, {
mapping: {
pitch: {
min: 'd6',
max: 'g7'
},
volume: 0.06,
playDelay: 11
}
}]
},
colorByPoint: true,
colors: ['#c0f090', '#b0c0f0', '#f0c090', '#f0f070'],
marker: {
symbol: 'diamond',
radius: 4,
lineColor: '#608060',
lineWidth: 2
}
}, {
// Shaker 1
sonification: {
defaultInstrumentOptions: {
instrument: 'shaker',
mapping: {
volume: 0.25,
pan: -1
}
},
tracks: [{
// Default
}, {
instrument: 'kick',
mapping: {
pan: 0,
volume: 0.2,
pitch: {
// Map to Y, but always map to the same pitch,
// so we play only when there is a Y value
min: 'd5',
max: 'd5'
}
},
activeWhen: {
prop: 'x',
min: 24
}
}]
},
color: '#204020',
marker: {
symbol: 'box',
radius: 2
}
}, {
// Piano
sonification: {
defaultInstrumentOptions: {
instrument: 'piano',
mapping: {
pitch: {
mapTo: 'y',
min: 'd3',
max: 'e4'
},
highpass: {
frequency: 300
},
lowpass: {
frequency: 6000,
resonance: 9
},
pan: -1,
volume: 0.12
}
},
tracks: [{
// We use this track for play marker since it plays constantly
showPlayMarker: true
}, {
// Delay
mapping: {
volume: 0.05,
playDelay: 169
}
}, {
// Plucked double comes in eventually
instrument: 'plucked',
mapping: {
volume: 0.12,
lowpass: {
frequency: 6000
},
pan: 1,
playDelay: -4
},
// This track comes in when x = 24
activeWhen: {
prop: 'x',
min: 24
}
}, {
// Delay for plucked
instrument: 'plucked',
mapping: {
lowpass: {
frequency: 4000
},
highpass: {
frequency: 300
},
volume: 0.07,
pan: 1,
playDelay: 338
},
activeWhen: {
prop: 'x',
min: 24
}
}]
},
type: 'spline',
color: '#42b862',
marker: {
symbol: 'circle',
radius: 3,
lineColor: '#408050',
lineWidth: 2
}
}, {
// Flute
sonification: {
defaultInstrumentOptions: {
instrument: 'flute',
mapping: {
pitch: {
mapTo: 'y',
min: 'd5',
max: 'd6'
},
pan: 0,
noteDuration: 280,
volume: 0.6,
playDelay: -2
}
},
tracks: [{
// Default
}, {
// Delay 1
mapping: {
volume: 0.2,
playDelay: 169,
pan: -0.3,
highpass: {
frequency: 300
}
}
}, {
// Delay 2
mapping: {
volume: 0.12,
playDelay: 338,
pan: 0.3,
highpass: {
frequency: 600
},
lowpass: {
frequency: 7000
}
}
}, {
// Delay 3
mapping: {
volume: 0.05,
playDelay: 676,
pan: -0.3,
highpass: {
frequency: 800
},
lowpass: {
frequency: 4000
}
}
}]
},
type: 'spline',
dashStyle: 'Solid',
color: '#EAFFEA',
lineWidth: 3,
shadow: {
color: '#cfe',
offsetY: 5,
width: 5
},
marker: {
enabled: false
}
}, {
// Synth
sonification: {
defaultInstrumentOptions: {
instrument: 'sawsynth',
mapping: {
pitch: {
mapTo: 'y',
min: 'd4',
max: 'e5'
},
lowpass: {
frequency: 8000
},
highpass: {
frequency: 800
},
pan: {
mapTo: 'y',
within: 'series',
min: -1,
max: 1
},
volume: {
mapTo: 'y',
within: 'series',
min: 0.05,
max: 0.15
},
playDelay: 4
}
},
tracks: [{
// Default
}, {
// Negative delay
mapping: {
playDelay: -338,
volume: 0.09,
pan: -1,
pitch: {
min: 'd5',
max: 'e6'
}
}
}, {
// Delay
mapping: {
playDelay: 169,
volume: 0.07,
pan: -0.5,
pitch: {
min: 'd5',
max: 'e6'
}
}
}]
},
type: 'spline',
color: '#42b862',
marker: {
symbol: 'circle',
radius: 3,
lineColor: '#408050',
lineWidth: 2
}
}, {
// Shaker 2
sonification: {
tracks: [{
instrument: 'chop',
mapping: {
volume: 0.35,
pan: 1
}
}, {
instrument: 'shaker',
mapping: {
volume: 0.05,
pan: -1
}
}]
},
color: '#204020',
marker: {
symbol: 'box',
radius: 2
}
}, {
// Pad
sonification: {
defaultInstrumentOptions: {
instrument: 'triangle',
mapping: {
pitch: {
mapTo: 'y',
min: 'd3',
max: 'd4'
},
noteDuration: 1350,
lowpass: {
frequency: 1000
},
pan: {
mapTo: 'y',
within: 'series',
min: 0,
max: 1
},
volume: {
mapTo: 'y',
within: 'series',
min: 0.04,
max: 0.1
}
}
},
tracks: [{
// Default
}, {
mapping: {
pitch: {
min: 'd2',
max: 'd3'
},
playDelay: 6,
pan: -1
}
}, {
mapping: {
pitch: {
min: 'd4',
max: 'd5'
},
playDelay: 9
}
}]
},
type: 'spline',
connectNulls: true,
color: '#42b862',
marker: {
symbol: 'circle',
radius: 3,
lineColor: '#408050',
lineWidth: 2
}
}, {
// Bass pad
sonification: {
defaultInstrumentOptions: {
instrument: 'triangle',
mapping: {
pitch: {
mapTo: 'y',
min: 'd1',
max: 'd2'
},
volume: 0.16,
noteDuration: 1300,
lowpass: {
frequency: 500
},
tremolo: {
speed: 0.23,
depth: 0.1
},
pan: 0,
playDelay: 15
}
}
},
type: 'spline',
connectNulls: true,
color: '#327862',
marker: {
symbol: 'square',
radius: 4,
lineColor: '#408050',
lineWidth: 2
}
}]

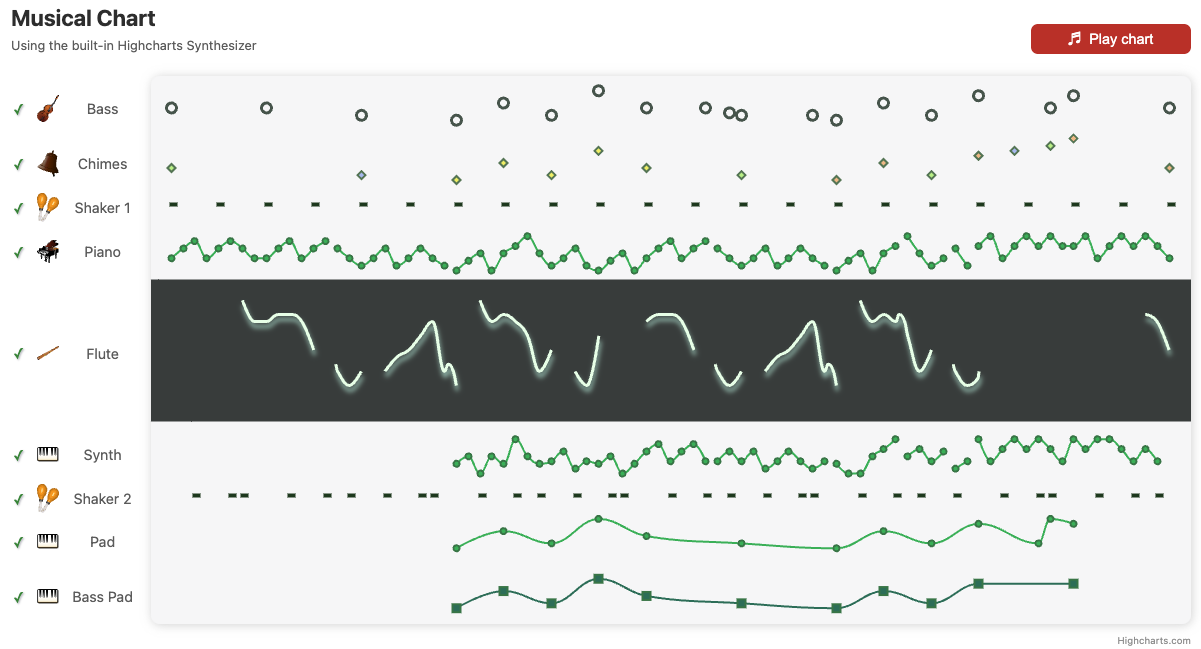

});示列图表功能说明
- 点击 Play Music 播放音乐（自动合成音）
- 左侧 9 个复选框 = 9 种乐器独立开关
- Bass / Chimes / Shaker / Piano / Flute / Synth / Pad / Bass Pad
- 绿色十字线 = 播放进度动画
- 所有声音由 Highcharts 内置合成器生成，无需音频文件
- 自适应屏幕，可滚动查看
