ReactNative 源码分析11——Native View创建流程setChildren和manageChildren

本篇文章继续分析setChildren方法

setChildren
manageChildren
onBatchComplete

setChildren

JS 端 finalizeInitialChildren 发送 UIManager.setChildren(parentTag, [childTag1, childTag2, ...])。它是 manageChildren 的简化版，只在首次挂载时使用，假设子节点按顺序排列。

与 manageChildren 的对比：

	setChildren	manageChildren
调用时机	首次挂载	后续增删移动
支持操作	仅添加	添加 + 移动 + 删除
子节点顺序	按数组顺序	需要指定 index
性能	更快（无需排序）	需要排序和校验

ini 复制代码

public void setChildren(int viewTag, ReadableArray childrenTags) {
  synchronized (uiImplementationThreadLock) {
    ReactShadowNode cssNodeToManage = mShadowNodeRegistry.getNode(viewTag);

    for (int i = 0; i < childrenTags.size(); i++) {
      ReactShadowNode cssNodeToAdd = mShadowNodeRegistry.getNode(childrenTags.getInt(i));
      if (cssNodeToAdd == null) {
        throw new IllegalViewOperationException(
            "Trying to add unknown view tag: " + childrenTags.getInt(i));
      }
      cssNodeToManage.addChildAt(cssNodeToAdd, i);
    }

    mNativeViewHierarchyOptimizer.handleSetChildren(cssNodeToManage, childrenTags);
  }
}

cssNodeToManage标识查找到的父节点
cssNodeToManage.addChildAt建立父子节点关系

objectivec 复制代码

xiao1:ReactNative       (UIManager.createView) tag: 3, class: RCTRawText, props: {"text":"App.tsx"}
xiao1:ReactNative       (UIManager.createView) tag: 5, class: RCTText, props: {"margin":10,"allowFontScaling":true,"textAlign":"center","ellipsizeMode":"tail","fontSize":20,"accessible":false}
xiao1:ReactNative       (UIManager.setChildren) tag: 5, children: [3]

当上面的日志执行完后就会构建出ShadowNode、YogaNode、YGNode节点树：

scss 复制代码

ShadowNode 树（JS 语义）              Yoga 树（布局计算）
┌──────────────┐        ┌──────────────┐
│ View(tag=5)  │                  │ YogaNode(5)  │
│  mChildren:  │                  │  children:   │
│   [3]    │                      │   [yn3]│
└──────────────┘         └──────────────┘
         │                                    │
  ┌───┴───┐                       ┌───┴───┐
  ▼            ▼                       ▼           ▼
Text(3)                                YN(3)

继续看handleSetChildren，这个循环对每个子节点调用 addNodeToNode

ini 复制代码

public void handleSetChildren(ReactShadowNode nodeToManage, ReadableArray childrenTags) {
  for (int i = 0; i < childrenTags.size(); i++) {
    ReactShadowNode nodeToAdd = mShadowNodeRegistry.getNode(childrenTags.getInt(i));
    addNodeToNode(nodeToManage, nodeToAdd, i);
  }
}

addNodeToNode中逻辑比较复杂，但是它最终会调用如下代码

csharp 复制代码

mUIViewOperationQueue.enqueueManageChildren(
    parent.getReactTag(),
    null,
    new ViewAtIndex[] {new ViewAtIndex(child.getReactTag(), index)},
    null);

enqueueManageChildren里面是向mOperations队列添加了一个ManageChildrenOperation
看到这里是不是有点熟悉，在讲setChildren时它最终是向mNonBatchedOperations队列中添加了一个CreateViewOperation

ManageChildrenOperation最终调用mNativeViewHierarchyManager.manageChildren，manageChildren核心作用：负责Native View视图的增删管理

当viewsToAdd不为空时最终是会调用viewManager.addView，本质与常用的addView完全一致

less 复制代码

public synchronized void manageChildren(
    final int tag,
    @Nullable int[] indicesToRemove,
    @Nullable ViewAtIndex[] viewsToAdd,
    @Nullable int[] tagsToDelete) {
  ...
  if (viewsToAdd != null) {
    for (int i = 0; i < viewsToAdd.length; i++) {
      ViewAtIndex viewAtIndex = viewsToAdd[i];
      View viewToAdd = mTagsToViews.get(viewAtIndex.mTag);

      int normalizedIndex = viewAtIndex.mIndex;
      if (!pendingDeletionTags.isEmpty()) {
        normalizedIndex = 0;
        int counter = 0;
        while (normalizedIndex < viewToManage.getChildCount()) {
          if (counter == viewAtIndex.mIndex) {
            break;
          }
          View v = viewToManage.getChildAt(normalizedIndex);
          if (!pendingDeletionTags.contains(v.getId())) {
            counter++;
          }
          normalizedIndex++;
        }
      }
      //添加视图
      viewManager.addView(viewToManage, viewToAdd, normalizedIndex);
    }
  }
}

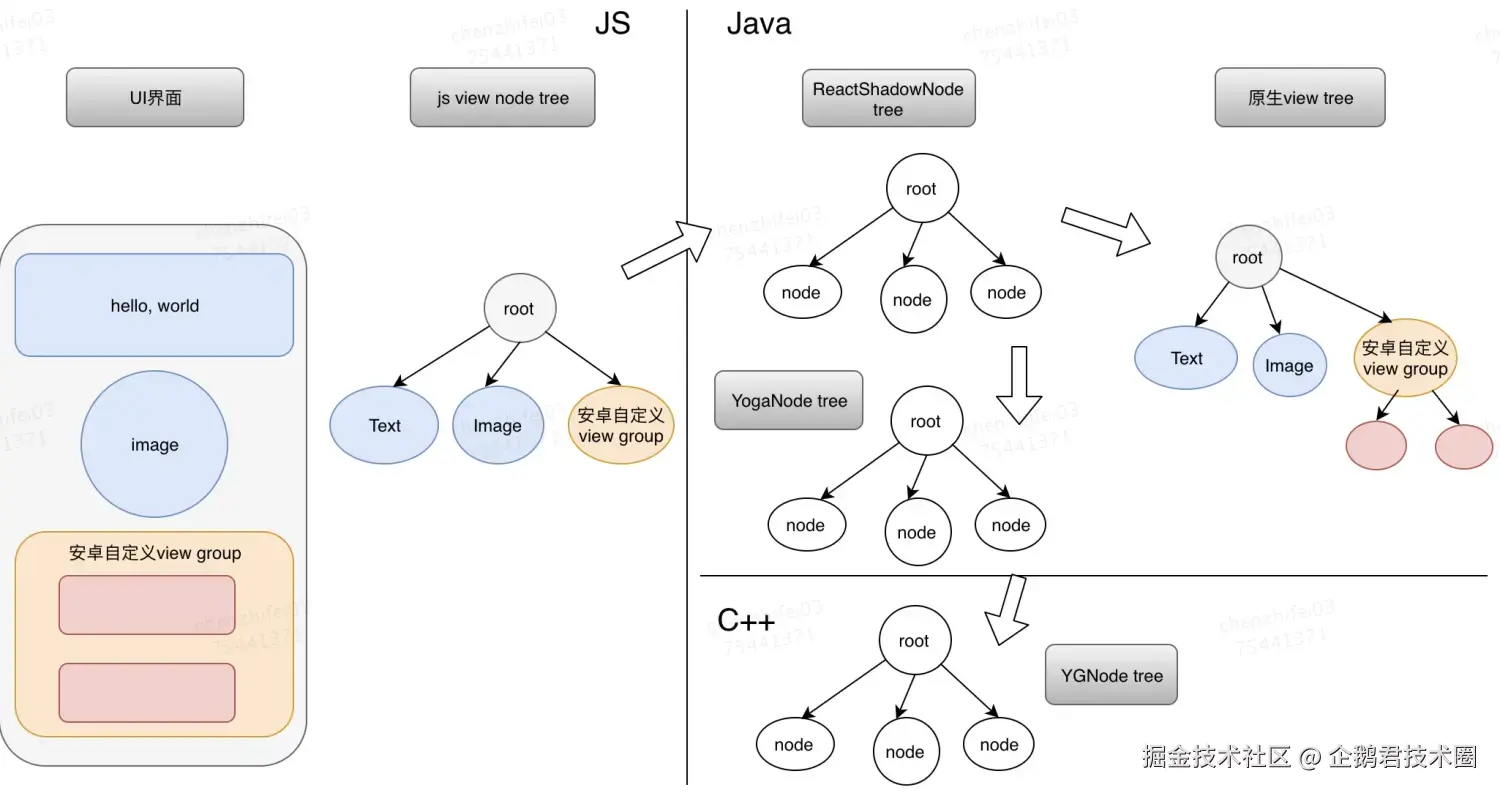

最后总结一下setChildren：它负责关联ShadowNode、YogaNode、YGNode、Native View之间的父子关系，最后形成如下图所示的 4 颗树

【图片原文】

manageChildren

它负责JS视频的增删改，和setChildren分为 2 个核心的：

①部分负责更新ShadowNode、YogaNode、YGNode节点树
②部分负责更新Native View节点树

less 复制代码

public void manageChildren(
    int viewTag,
    @Nullable ReadableArray moveFrom,
    @Nullable ReadableArray moveTo,
    @Nullable ReadableArray addChildTags,
    @Nullable ReadableArray addAtIndices,
    @Nullable ReadableArray removeFrom) {
    //①
    for (int i = 0; i < viewsToAdd.length; i++) {
      ViewAtIndex viewAtIndex = viewsToAdd[i];
      ReactShadowNode cssNodeToAdd = mShadowNodeRegistry.getNode(viewAtIndex.mTag);
      if (cssNodeToAdd == null) {
        throw new IllegalViewOperationException(
            "Trying to add unknown view tag: " + viewAtIndex.mTag);
      }
      cssNodeToManage.addChildAt(cssNodeToAdd, viewAtIndex.mIndex);
    }
    //②
    mNativeViewHierarchyOptimizer.handleManageChildren(
        cssNodeToManage, indicesToRemove, tagsToRemove, viewsToAdd, tagsToDelete);

    for (int i = 0; i < tagsToDelete.length; i++) {
      removeShadowNode(mShadowNodeRegistry.getNode(tagsToDelete[i]));
    }
  }
}

handleManageChildren中针对每个子节点也是调用addNodeToNode，最后还是向mOperations队列添加了一个ManageChildrenOperation。
