溶解shader
CCEffect %{
techniques:
- name: opaque
passes:
- vert: standard-vs
frag: standard-fs
properties: &props
mainTexture: { value: grey, target: albedoMap, editor: { displayName: AlbedoMap } }
mainColor: { value: [1.0, 1.0, 1.0, 1.0], target: albedo, linear: true, editor: { displayName: Albedo, type: color } }
# 溶解核心贴图（扇形渐变或噪点）
dissolveMap: { value: white, editor: { displayName: "溶解进度图(R通道)" } }
# 这里的参数分别对应：x:进度, y:噪点强度, z:边缘宽度, w:未定义
dissolveParams: { value: [0.0, 0.2, 0.05, 0.0], editor: { displayName: "进度(X),噪点强度(Y),边缘宽(Z)" } }
burningColor: { value: [1.0, 0.4, 0.0, 1.0], linear: true, editor: { displayName: "燃烧颜色", type: color } }
albedoScale: { value: [1.0, 1.0, 1.0], target: albedoScaleAndCutoff.xyz }
alphaThreshold: { value: 0.5, target: albedoScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST, slide: true, range: [0, 1.0], step: 0.001 } }
roughness: { value: 0.8, target: pbrParams.y, editor: { slide: true, range: [0, 1.0], step: 0.001 } }
metallic: { value: 0.6, target: pbrParams.z, editor: { slide: true, range: [0, 1.0], step: 0.001 } }
- &forward-add
vert: standard-vs
frag: standard-fs
phase: forward-add
propertyIndex: 0
embeddedMacros: { CC_FORWARD_ADD: true }
depthStencilState:
depthFunc: equal
depthTest: true
depthWrite: false
blendState:
targets:
- blend: true
blendSrc: one
blendDst: one
blendSrcAlpha: zero
blendDstAlpha: one
- &shadow-caster
vert: shadow-caster-vs
frag: shadow-caster-fs
phase: shadow-caster
propertyIndex: 0
rasterizerState:
cullMode: front
properties:
mainColor: { value: [1.0, 1.0, 1.0, 1.0], target: albedo, editor: { displayName: Albedo, type: color } }
albedoScale: { value: [1.0, 1.0, 1.0], target: albedoScaleAndCutoff.xyz }
alphaThreshold: { value: 0.5, target: albedoScaleAndCutoff.w, editor: { parent: USE_ALPHA_TEST } }
mainTexture: { value: grey, target: albedoMap, editor: { displayName: AlbedoMap } }
- name: transparent
passes:
- vert: standard-vs
frag: standard-fs
embeddedMacros: { CC_FORCE_FORWARD_SHADING: true }
depthStencilState:
depthTest: true
depthWrite: false
blendState:
targets:
- blend: true
blendSrc: src_alpha
blendDst: one_minus_src_alpha
blendDstAlpha: one_minus_src_alpha
properties: *props
- *forward-add
- *shadow-caster
}%
CCProgram shared-ubos %{
uniform Constants {
vec4 albedo;
vec4 albedoScaleAndCutoff;
vec4 pbrParams;
vec4 dissolveParams;
vec4 burningColor;
};
}%
CCProgram macro-remapping %{
#pragma define-meta USE_TWOSIDE
#pragma define-meta USE_VERTEX_COLOR
#define CC_SURFACES_USE_TWO_SIDED USE_TWOSIDE
#define CC_SURFACES_USE_VERTEX_COLOR USE_VERTEX_COLOR
}%
CCProgram surface-vertex %{
#define CC_SURFACES_VERTEX_MODIFY_WORLD_POS
vec3 SurfacesVertexModifyWorldPos(in SurfacesStandardVertexIntermediate In)
{
return In.worldPos;
}
#define CC_SURFACES_VERTEX_MODIFY_WORLD_NORMAL
vec3 SurfacesVertexModifyWorldNormal(in SurfacesStandardVertexIntermediate In)
{
return In.worldNormal.xyz;
}
#define CC_SURFACES_VERTEX_MODIFY_UV
void SurfacesVertexModifyUV(inout SurfacesStandardVertexIntermediate In)
{
}
}%
CCProgram surface-fragment %{
#if USE_ALBEDO_MAP
uniform sampler2D albedoMap;
#pragma define-meta ALBEDO_UV options([v_uv, v_uv1])
#endif
uniform sampler2D dissolveMap;
#if USE_ALPHA_TEST
#pragma define-meta ALPHA_TEST_CHANNEL options([a, r])
#endif
#define CC_SURFACES_FRAGMENT_MODIFY_BASECOLOR_AND_TRANSPARENCY
vec4 SurfacesFragmentModifyBaseColorAndTransparency()
{
vec4 baseColor = albedo;
#if USE_ALBEDO_MAP
vec4 texColor = texture(albedoMap, ALBEDO_UV);
texColor.rgb = SRGBToLinear(texColor.rgb);
baseColor *= texColor;
#endif
// --- 溶解核心计算 ---
float threshold = dissolveParams.x;
float mask = texture(dissolveMap, ALBEDO_UV).r;
// 抗锯齿宽度计算：fwidth 能够根据屏幕像素密度自动调整羽化范围
float afwidth = fwidth(mask) * 1.5;
// 基础溶解裁剪：使用 smoothstep 产生极小范围的 Alpha 渐变
float alpha = smoothstep(threshold - afwidth, threshold + afwidth, mask);
baseColor.a *= alpha;
// 只有在 Alpha 极低时才丢弃像素，防止硬切锯齿
if (alpha < 0.1) discard;
baseColor.rgb *= albedoScaleAndCutoff.xyz;
return baseColor;
}
#define CC_SURFACES_FRAGMENT_MODIFY_EMISSIVE
vec3 SurfacesFragmentModifyEmissive()
{
float threshold = dissolveParams.x;
float edgeWidth = dissolveParams.z;
float mask = texture(dissolveMap, ALBEDO_UV).r;
// --- 重点优化：平滑发光边 ---
// 不要用 if 判断，而是用两个 smoothstep 捏合出一道"平滑的火带"
// 这会让发光边缘自带朦胧感，掩盖贴图本身的低分辨率颗粒
float afwidth = fwidth(mask) * 2.0;
// 计算发光权重 (在 threshold 到 threshold + edgeWidth 之间产生 0-1-0 的过渡)
float edgeStart = smoothstep(threshold - afwidth, threshold + afwidth, mask);
float edgeEnd = smoothstep(threshold + edgeWidth - afwidth, threshold + edgeWidth + afwidth, mask);
float edgeWeight = edgeStart * (1.0 - edgeEnd);
// 返回平滑后的发光色，强度可以适当调高
return burningColor.rgb * edgeWeight * 15.0;
}
// 其余函数保持不变
#define CC_SURFACES_FRAGMENT_MODIFY_WORLD_NORMAL
vec3 SurfacesFragmentModifyWorldNormal() { return normalize(FSInput_worldNormal); }
#define CC_SURFACES_FRAGMENT_MODIFY_PBRPARAMS
vec4 SurfacesFragmentModifyPBRParams() { return vec4(1.0, pbrParams.y, pbrParams.z, 0.5); }
}%
CCProgram standard-vs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/common-macros>
#include <surfaces/includes/common-vs>
#include <shared-ubos>
#include <surface-vertex>
#include <surfaces/includes/standard-vs>
#include <shading-entries/main-functions/render-to-scene/vs>
}%
CCProgram shadow-caster-vs %{
precision highp float;
#include <surfaces/effect-macros/render-to-shadowmap>
#include <surfaces/includes/common-vs>
#include <shared-ubos>
#include <surface-vertex>
#include <shading-entries/main-functions/render-to-shadowmap/vs>
}%
CCProgram standard-fs %{
precision highp float;
#include <macro-remapping>
#include <surfaces/effect-macros/common-macros>
#include <surfaces/includes/common-fs>
#include <shared-ubos>
#include <surface-fragment>
#include <lighting-models/includes/standard>
#include <surfaces/includes/standard-fs>
#include <shading-entries/main-functions/render-to-scene/fs>
}%
CCProgram shadow-caster-fs %{
precision highp float;
#include <surfaces/effect-macros/render-to-shadowmap>
#include <surfaces/includes/common-fs>
#include <shared-ubos>
#include <surface-fragment>
#include <shading-entries/main-functions/render-to-shadowmap/fs>
}%1.新建一个shader代码，内容是上述内容
2.新建一个材质球，effect选择刚才新建的shader

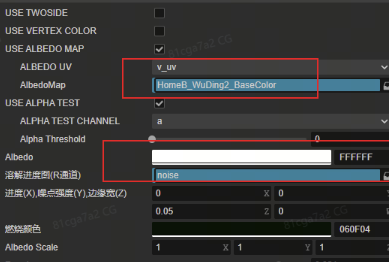

3.选择你要溶解的贴图，还有溶解过程的线性进度噪点图，要勾选ALPHA TEST,因为要设置透明消失
这里选择的进度图是噪点+角落线性渐变图
你要溶解的实际物体贴图也要是线性的，如
4.实际控制的溶解进度是这里，其他参数可以根据需求调整
代码中的动画溶解，操作这个参数
// 2. 获取【实例化】后的材质（使用 getMaterialInstance 确保不污染共享资产）
const _material = this.horseEatRoomDing.sharedMaterials[0];
if (_material) {
const originParams = _material.getProperty('dissolveParams') as Vec4;
if (originParams) {
// 2. 必须克隆一份，防止直接修改引用导致逻辑混乱
const currentParams = originParams.clone();
// 3. 定义一个临时虚拟对象，用于给 tween 做数值插值
// 进度 X 从当前材质的实际进度（currentParams.x）渐变到目标值 1.0
let animObj = { progress: currentParams.x };
const targetProgress = 1.0; // 溶解目标值 (1.0完全溶解/消失，0.0完全恢复)
const duration = 2.0; // 动画持续时间（秒）
tween(animObj)
.to(duration, { progress: targetProgress }, {
easing: 'linear', // 可以根据需要改成 'sineInOut' 等缓动效果
onUpdate: () => {
// 4. 每帧将计算出的 progress 赋值给 Vector4 的 x 分量
currentParams.x = animObj.progress;
// 5. 核心：必须把整个 Vec4 重新 setProperty 回材质，特效才会动
_material.setProperty('dissolveParams', currentParams);
}
})
.call(() => {
})
.start();
}
}最终效果，就是从3d物体的角落开始溶解消失，直到整个物体消失
