Inception v1学习笔记

一、前期准备

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
from torch.utils.data import DataLoader, random_split
import matplotlib.pyplot as plt
import os
import warnings
warnings.filterwarnings("ignore")

# 设置计算设备
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(f"当前使用的计算设备是: {device}")

# 设定数据集路径
data_dir = './data'

# 图像预处理与标准归一化
transform = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.RandomHorizontalFlip(),  # 数据增强：随机水平翻转，防止过拟合
    transforms.ToTensor(),
    transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])
])

# 加载猴痘数据集并划分
try:
    full_ds = datasets.ImageFolder(root=data_dir, transform=transform)
    train_size = int(0.8 * len(full_ds))
    test_size = len(full_ds) - train_size
    train_ds, test_ds = random_split(full_ds, [train_size, test_size])

    train_dl = DataLoader(train_ds, batch_size=16, shuffle=True)
    test_dl = DataLoader(test_ds, batch_size=16, shuffle=False)

    num_classes = len(full_ds.classes)
    print(f"数据加载成功，一共有 {num_classes} 个类别: {full_ds.classes}")
except Exception as e:
    print(f"未能正确加载文件夹 '{data_dir}'，错误信息: {e}")
    exit()

二、 搭建 Inception v1 主干网络

# 基础卷积单元 (Conv + BN + ReLU)
class BasicConv2d(nn.Module):
    def __init__(self, in_channels, out_channels, **kwargs):
        super().__init__()
        self.conv = nn.Conv2d(in_channels, out_channels, bias=False, **kwargs)
        self.bn = nn.BatchNorm2d(out_channels, eps=0.001)
        self.relu = nn.ReLU(inplace=True)

    def forward(self, x):
        return self.relu(self.bn(self.conv(x)))

# 核心多尺度并行特征提取模块 (Inception Block)
class Inception_block(nn.Module):
    def __init__(self, in_channels, out_1x1, red_3x3, out_3x3, red_5x5, out_5x5, out_1x1pool):
        super().__init__()
        # 分支1: 1x1 卷积
        self.branch1 = BasicConv2d(in_channels, out_1x1, kernel_size=1)
        # 分支2: 1x1 降维 -> 3x3 卷积
        self.branch2 = nn.Sequential(
            BasicConv2d(in_channels, red_3x3, kernel_size=1),
            BasicConv2d(red_3x3, out_3x3, kernel_size=3, padding=1)
        )
        # 分支3: 1x1 降维 -> 5x5 卷积
        self.branch3 = nn.Sequential(
            BasicConv2d(in_channels, red_5x5, kernel_size=1),
            BasicConv2d(red_5x5, out_5x5, kernel_size=5, padding=2)
        )
        # 分支4: 3x3 最大池化 -> 1x1 卷积
        self.branch4 = nn.Sequential(
            nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
            BasicConv2d(in_channels, out_1x1pool, kernel_size=1)
        )

    def forward(self, x):
        b1 = self.branch1(x)
        b2 = self.branch2(x)
        b3 = self.branch3(x)
        b4 = self.branch4(x)
        # 在通道维度上进行拼接
        return torch.cat([b1, b2, b3, b4], dim=1)

# 组装完整的 Inception v1 网络结构
class InceptionV1_Classifier(nn.Module):
    def __init__(self, num_classes):
        super().__init__()
        # 浅层特征提取
        self.stem = nn.Sequential(
            BasicConv2d(3, 64, kernel_size=7, stride=2, padding=3),
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1),
            BasicConv2d(64, 64, kernel_size=1),
            BasicConv2d(64, 192, kernel_size=3, padding=1),
            nn.MaxPool2d(kernel_size=3, stride=2, padding=1)
        )

        # Inception 堆叠阶段
        self.inception3a = Inception_block(192, 64, 96, 128, 16, 32, 32)   # 输出通道 256
        self.inception3b = Inception_block(256, 128, 128, 192, 32, 96, 64) # 输出通道 480
        self.maxpool3 = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)

        self.inception4a = Inception_block(480, 192, 96, 208, 16, 48, 64)  # 输出通道 512
        self.inception4b = Inception_block(512, 160, 112, 224, 24, 64, 64) # 输出通道 512
        self.inception4c = Inception_block(512, 128, 128, 256, 24, 64, 64) # 输出通道 512
        self.inception4d = Inception_block(512, 112, 144, 288, 32, 64, 64) # 输出通道 528
        self.inception4e = Inception_block(528, 256, 160, 320, 32, 128, 128)# 输出通道 832
        self.maxpool4 = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)

        self.inception5a = Inception_block(832, 256, 160, 320, 32, 128, 128)# 输出通道 832
        self.inception5b = Inception_block(832, 384, 192, 384, 48, 128, 128)# 输出通道 1024

        # 全局平均池化与最终分类输出
        self.classifier = nn.Sequential(
            nn.AdaptiveAvgPool2d((1, 1)),
            nn.Dropout(0.4),
            nn.Flatten(),
            nn.Linear(1024, num_classes)
        )

    def forward(self, x):
        x = self.stem(x)
        x = self.maxpool3(self.inception3b(self.inception3a(x)))
        x = self.maxpool4(self.inception4e(self.inception4d(self.inception4c(self.inception4b(self.inception4a(x))))))
        x = self.inception5b(self.inception5a(x))
        return self.classifier(x)

# 初始化模型并推送到指定设备
model = InceptionV1_Classifier(num_classes=num_classes).to(device)

三、 模型训练与测试阶段

loss_fn = nn.CrossEntropyLoss()
# 采用 Adam 优化器，并使用较小的学习率进行精细调节
optimizer = optim.Adam(model.parameters(), lr=0.0003)

def train(dataloader, model, loss_fn, optimizer):
    model.train()
    for x, y in dataloader:
        x, y = x.to(device), y.to(device)
        pred = model(x)
        loss = loss_fn(pred, y)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

def test(dataloader, model, loss_fn):
    model.eval()
    test_loss, correct = 0, 0
    with torch.no_grad():
        for x, y in dataloader:
            x, y = x.to(device), y.to(device)
            pred = model(x)
            test_loss += loss_fn(pred, y).item()
            correct += (pred.argmax(1) == y).type(torch.float).sum().item()
    return test_loss / len(dataloader), correct / len(dataloader.dataset)

print("开始训练基于 Inception v1 的猴痘识别模型...")
epochs = 20
train_acc_hist, test_acc_hist = [], []
train_loss_hist, test_loss_hist = [], []

for epoch in range(epochs):
    train(train_dl, model, loss_fn, optimizer)
    train_loss, train_acc = test(train_dl, model, loss_fn)
    test_loss, test_acc = test(test_dl, model, loss_fn)

    train_acc_hist.append(train_acc)
    test_acc_hist.append(test_acc)
    train_loss_hist.append(train_loss)
    test_loss_hist.append(test_loss)

    print(f"Epoch {epoch+1:02d}/{epochs}: Train Acc {train_acc:.1%}, Test Acc {test_acc:.1%}")

print("猴痘识别模型训练完成")

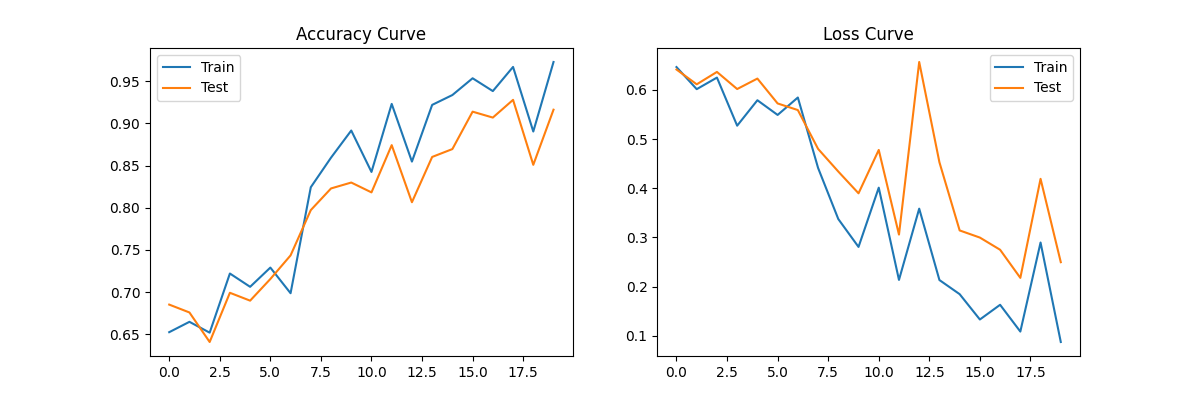

四、结果可视化

plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(train_acc_hist, label='Train')
plt.plot(test_acc_hist, label='Test')
plt.legend()
plt.title('Accuracy Curve')

plt.subplot(1, 2, 2)
plt.plot(train_loss_hist, label='Train')
plt.plot(test_loss_hist, label='Test')
plt.legend()
plt.title('Loss Curve')
plt.show()

五、 本周课程核心知识点总结

5.1 Inception v1 相关知识

如果把传统的神经网络比作一个只能单线程工作、死磕到底的修理工，那Inception v1就是一个拥有不同工具、能同时开工的专家团队。

多尺度并行观测

在这个网络里，最关键的结构叫"Inception模块"。当一张图片传到这个模块时，它不会只用一种眼光去看，而是同时分出四条路：

用 1x1 的小视野去盯像素级的细节；

用 3x3 的中等视野去看局部的纹理；

用 5x5 的大视野去观察整体的轮廓；

再加一个池化层去提取最显眼的特征。

最后，它把这四种不同视野看到的结果拼接在一起（torch.cat）。

1x1 卷积

如果同时开动那么多大视野的观察，普通的电脑是会被庞大的计算量撑爆的。Inception极其聪明地在大视野观察前，加入了一个 1x1 的卷积层。它的作用就像是"压缩包"，在保留关键信息的前提下，把厚厚的数据通道变薄（降维），极大减少了计算量。

5.2 Inception v1在本期猴痘病识别实验中的运用

这周的任务是让 AI 区分出健康的皮肤和感染了猴痘的皮肤。Inception v1 的特性，简直是为这种医学图像量身定制的：

猴痘在皮肤上的表现是非常复杂的。如果用传统的单一网络，很容易顾此失彼（看见了小疹子就忽略了整体泛红，看清了大溃烂就漏掉了边缘的水泡）。而 Inception 模块里 1x1、3x3、5x5 齐上阵的并行结构，让网络能够同时捕捉微小的独立疱疹和成片的大面积感染区，大大提高了诊断的准确率。

在网络的最后，Inception 抛弃了传统臃肿的全连接层，使用了"全局平均池化（Global Average Pooling）"的结构，把前面提取出的所有病理特征浓缩，最后只通过一个极小的分类器（输出维度等于我们数据集中设定的类别数，比如健康/猴痘两类），得出最终的诊断概率。既精准，又不容易因为过度学习某几张图片而产生"死板"的偏见（防止过拟合）。
