物联网实战：Spring Boot MQTT | 模拟器Paho客户端拆解高性能

MqttAsyncClient 非阻塞、高吞吐MQTT 应用

源码(mqtt-simulator-sample02)

https://gitee.com/kcnf-iot/mqtt-simulator

搭载 emqx 公共免费的broker

https://www.emqx.com/zh/mqtt/public-mqtt5-broker

相关依赖

<!-- MQTT Client -->
<dependency>
    <groupId>org.eclipse.paho</groupId>
    <artifactId>org.eclipse.paho.mqttv5.client</artifactId>
    <version>1.2.5</version>
</dependency>

同步 vs 异步

维度	同步 API（MqttClient）	异步 API（MqttAsyncClient）
阻塞性	阻塞等待执行完成	非阻塞，操作完回调通知
线程模型	当前线程等待	底层 IO 线程，不阻塞主线程
高并发性能	低，大量请求会阻塞	极高，适合高吞吐、多设备
适用场景	简单设备、单连接、低频次	网关、高吞吐、消息转发、服务端
核心回调	仅消息回调	IMqttActionListener 监听所有操作结果

基于MqttAsyncClient构建

部分源码

package com.jysemel.iot;

import org.eclipse.paho.mqttv5.client.*;
import org.eclipse.paho.mqttv5.client.persist.MemoryPersistence;
import org.eclipse.paho.mqttv5.common.MqttException;
import org.eclipse.paho.mqttv5.common.MqttMessage;
import org.eclipse.paho.mqttv5.common.packet.MqttProperties;

public class MqttAsyncGateway {

    private MqttAsyncClient upClient;  // 上行：收设备消息
    private MqttAsyncClient downClient;// 下行：转发消息

    // ====================== 频率控制（每秒最多1条，可自己改） ======================
    private static final long PUBLISH_INTERVAL = 2000; // 2秒一条
    private long lastSendTime = 0;

    public static void main(String[] args) {
        new MqttAsyncGateway().start();
    }

    public void start() {
        try {
            // 创建两个异步客户端
            upClient = new MqttAsyncClient(MqttConst.UP_BROKER, MqttConst.UP_CLIENT_ID, new MemoryPersistence());
            downClient = new MqttAsyncClient(MqttConst.DOWN_BROKER, MqttConst.DOWN_CLIENT_ID, new MemoryPersistence());

            MqttConnectionOptions options = new MqttConnectionOptions();
            options.setKeepAliveInterval(10);
            options.setCleanStart(true);

            // 连接上行
            upClient.connect(options, null, new MqttActionListener() {
                @Override
                public void onSuccess(IMqttToken token) {
                    System.out.println("✅ 上行连接成功");
                    subscribeDeviceTopic();
                }

                @Override
                public void onFailure(IMqttToken token, Throwable exception) {
                    System.err.println("❌ 上行连接失败");
                }
            });

            // 连接下行
            downClient.connect(options, null, new MqttActionListener() {
                @Override
                public void onSuccess(IMqttToken token) {
                    System.out.println("✅ 下行连接成功");
                }

                @Override
                public void onFailure(IMqttToken token, Throwable exception) {
                    System.err.println("❌ 下行连接失败");
                }
            });

            // 消息回调
            upClient.setCallback(new MqttCallback() {
                @Override
                public void messageArrived(String topic, MqttMessage message) {
                    String content = new String(message.getPayload()).trim();

                    // ====================== 频率控制核心 ======================
                    long now = System.currentTimeMillis();
                    if (now - lastSendTime < PUBLISH_INTERVAL) {
                        System.out.println("⏱ 频率限制，跳过转发：" + content);
                        return;
                    }
                    lastSendTime = now;

                    System.out.println("\n📥 收到：" + topic + " -> " + content);
                    forwardToDownstream(content); // 转发
                }

                @Override
                public void disconnected(MqttDisconnectResponse disconnectResponse) {}
                @Override
                public void mqttErrorOccurred(MqttException exception) {}
                @Override
                public void deliveryComplete(IMqttToken token) {}
                @Override
                public void connectComplete(boolean reconnect, String serverURI) {}
                @Override
                public void authPacketArrived(int reasonCode, MqttProperties properties) {}
            });

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    // 订阅
    private void subscribeDeviceTopic() {
        try {
            upClient.subscribe(MqttConst.DEVICE_TOPIC, 1, null, new MqttActionListener() {
                @Override
                public void onSuccess(IMqttToken token) {
                    System.out.println("✅ 订阅成功：" + MqttConst.DEVICE_TOPIC);
                }

                @Override
                public void onFailure(IMqttToken token, Throwable exception) {
                    System.err.println("❌ 订阅失败");
                }
            });
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    // 异步转发
    private void forwardToDownstream(String content) {
        try {
            MqttMessage msg = new MqttMessage(content.getBytes());
            msg.setQos(1);

            downClient.publish(MqttConst.FORWARD_TOPIC, msg, null, new MqttActionListener() {
                @Override
                public void onSuccess(IMqttToken token) {
                    System.out.println("📤 转发完成：" + content);
                }

                @Override
                public void onFailure(IMqttToken token, Throwable exception) {
                    System.err.println("❌ 转发失败");
                }
            });
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

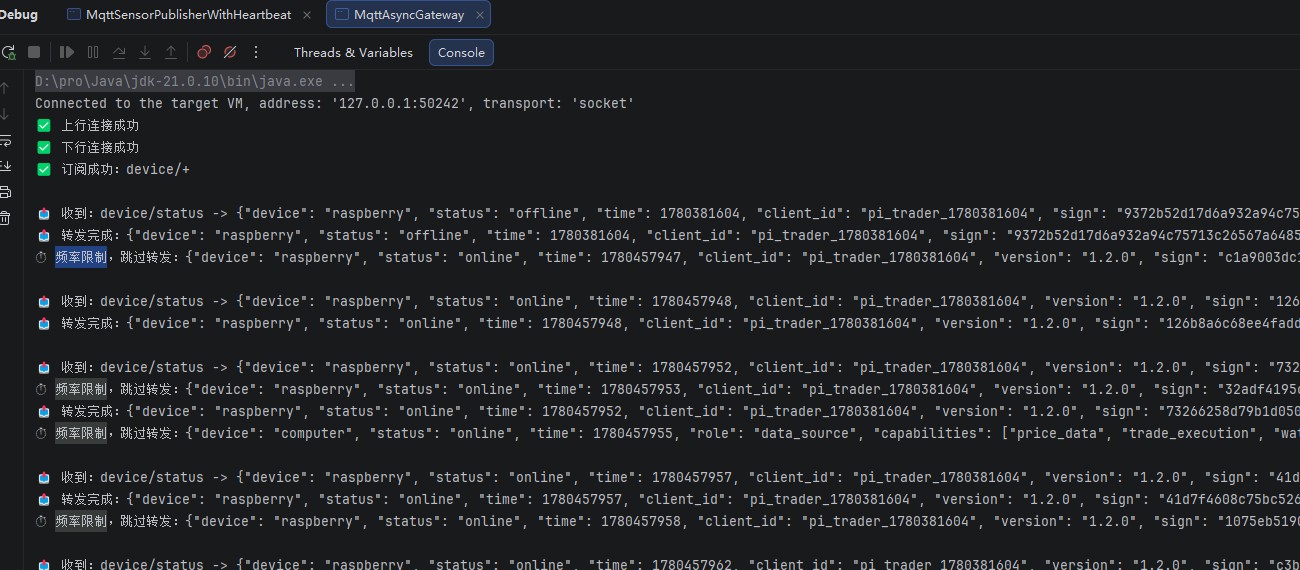

演示结果
