一、前言：嵌入式开发的"构建之痛"

在嵌入式软件开发中，有一句广为流传的"至理名言"："在我的机器上能编译通过"。这句话背后折射出的是嵌入式构建环境的复杂性与脆弱性。与服务器端开发不同，嵌入式项目面临独特的构建挑战：

交叉编译环境复杂：需要安装特定版本的ARM GCC、OpenOCD、J-Link工具，不同项目可能依赖不同版本的工具链
依赖管理困难：第三方库（FreeRTOS、LwIP、mbedTLS）的源码集成、版本锁定、子模块管理耗时费力
多目标平台并行：同一套业务代码需要编译到STM32F4、STM32H7、ESP32、nRF52等多个芯片平台
固件生成链路长 ：从C源码到最终可烧录的.bin/.hex文件，需要经过编译、链接、转换、签名等多个步骤
环境不一致导致"构建漂移"：开发者的本地环境与CI环境、其他开发者的环境存在差异，导致"能跑"与"能构建"成为两回事

持续集成（Continuous Integration, CI） 正是解决这些痛点的系统性方案。通过将构建流程自动化、环境容器化、产物版本化，团队可以实现"一次配置，处处构建"的目标。本文将深入讲解如何使用 GitLab CI 搭建嵌入式持续集成流水线，结合 Docker 容器化交叉编译环境，实现从代码提交到固件生成的全自动化。

二、GitLab CI 嵌入式流水线全景架构

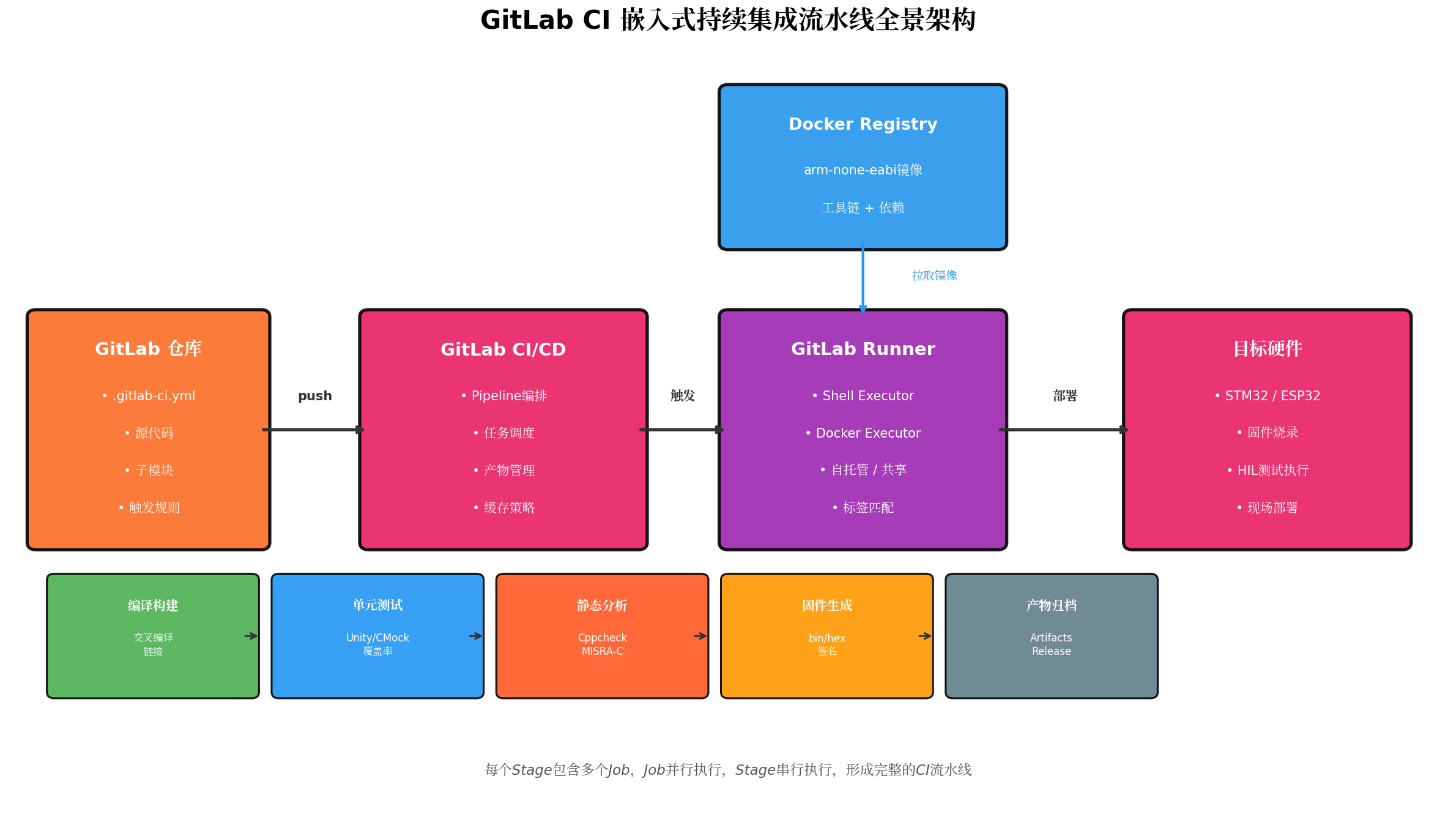

GitLab CI 的核心由三部分组成：GitLab 仓库 （代码与配置）、GitLab Runner （执行构建任务的代理）、Docker Registry（容器镜像仓库）。三者协同工作，形成完整的嵌入式CI流水线。

2.1 流水线阶段（Stage）设计

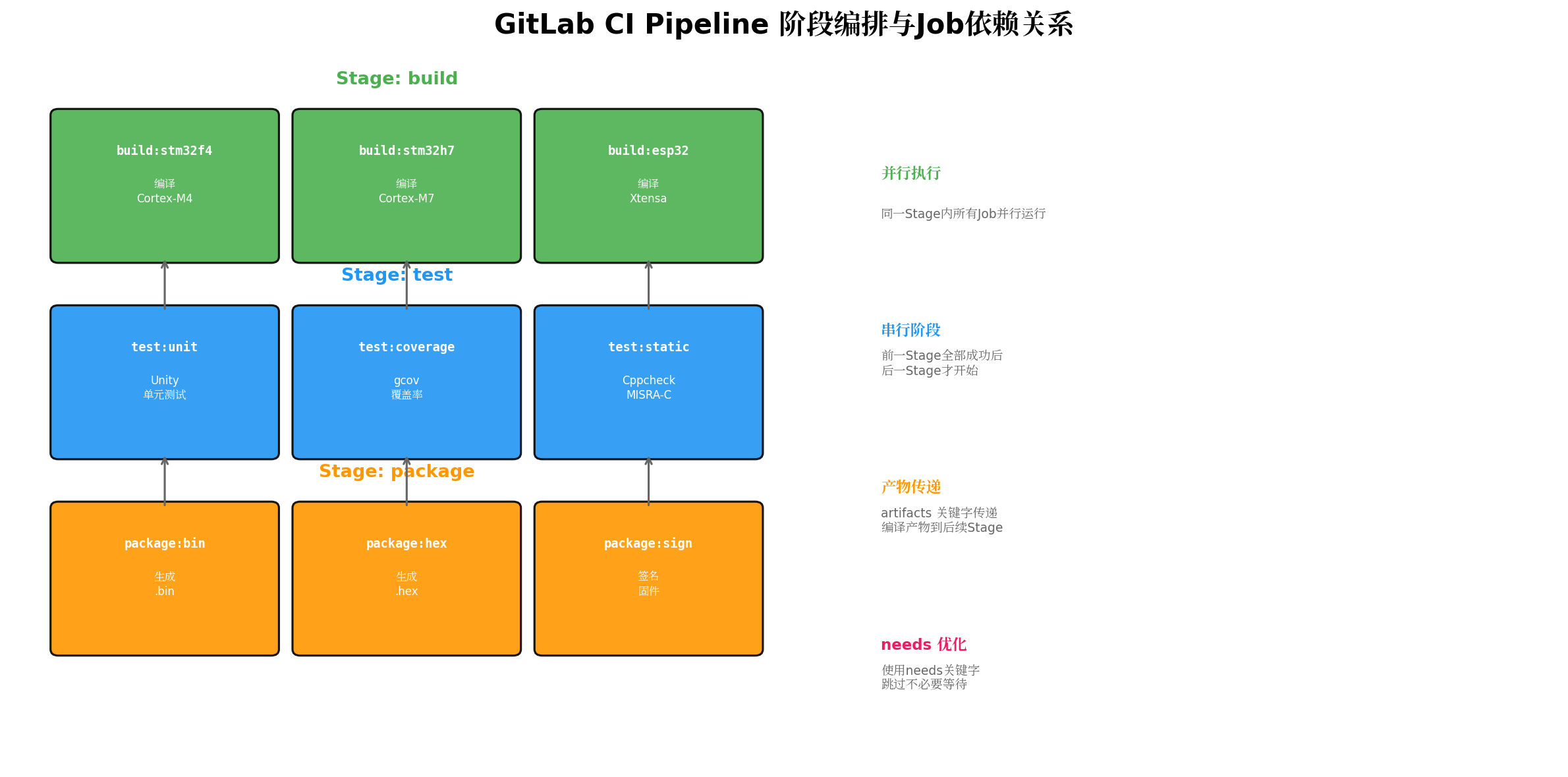

一个典型的嵌入式CI流水线包含以下阶段：

阶段	目的	典型Job	执行环境
build	交叉编译生成目标文件	`build:stm32`、`build:esp32`	Docker容器
test	运行单元测试与静态分析	`test:unit`、`test:coverage`、`test:static`	Docker容器
package	生成可烧录固件并签名	`package:bin`、`package:hex`、`package:sign`	Docker容器
deploy	部署到OTA服务器或硬件	`deploy:ota`、`deploy:hil`	自托管Runner

2.2 GitLab Runner 配置

GitLab Runner 是执行CI任务的"工人"。对于嵌入式开发，推荐使用 Docker Executor，因为它提供了最佳的环境隔离和可复现性。

bash 复制代码

# 在构建服务器上安装 GitLab Runner
sudo curl -L --output /usr/local/bin/gitlab-runner https://gitlab-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-runner-linux-amd64
sudo chmod +x /usr/local/bin/gitlab-runner

# 注册 Runner（需要 GitLab 的注册令牌）
sudo gitlab-runner register \
  --non-interactive \
  --url "https://gitlab.com/" \
  --registration-token "YOUR_REGISTRATION_TOKEN" \
  --executor "docker" \
  --docker-image "ubuntu:22.04" \
  --description "embedded-docker-runner" \
  --tag-list "docker,embedded,arm" \
  --run-untagged="false" \
  --locked="false" \
  --access-level="not_protected"

# 启动 Runner
sudo gitlab-runner start

关键配置说明：

--executor "docker"：使用 Docker 容器执行每个 Job，确保环境隔离
--tag-list "docker,embedded,arm"：为 Runner 打标签，.gitlab-ci.yml 中通过 tags 关键字匹配
--docker-image：默认基础镜像，可在 .gitlab-ci.yml 中覆盖

2.3 自托管 Runner vs 共享 Runner

类型	优势	适用场景
共享 Runner	零运维成本，即开即用	通用编译、单元测试
自托管 Runner	可连接真实硬件（HIL测试）、自定义工具链、数据安全	固件烧录、硬件在环测试、私有工具链

对于需要连接J-Link、ST-Link等调试器的HIL测试阶段，必须使用自托管Runner：

bash 复制代码

# 注册自托管 Shell Runner（用于硬件交互）
sudo gitlab-runner register \
  --non-interactive \
  --url "https://gitlab.com/" \
  --registration-token "YOUR_TOKEN" \
  --executor "shell" \
  --description "embedded-hil-runner" \
  --tag-list "shell,hil,stm32" \
  --run-untagged="false"

三、交叉编译工具链：从x86到ARM的桥梁

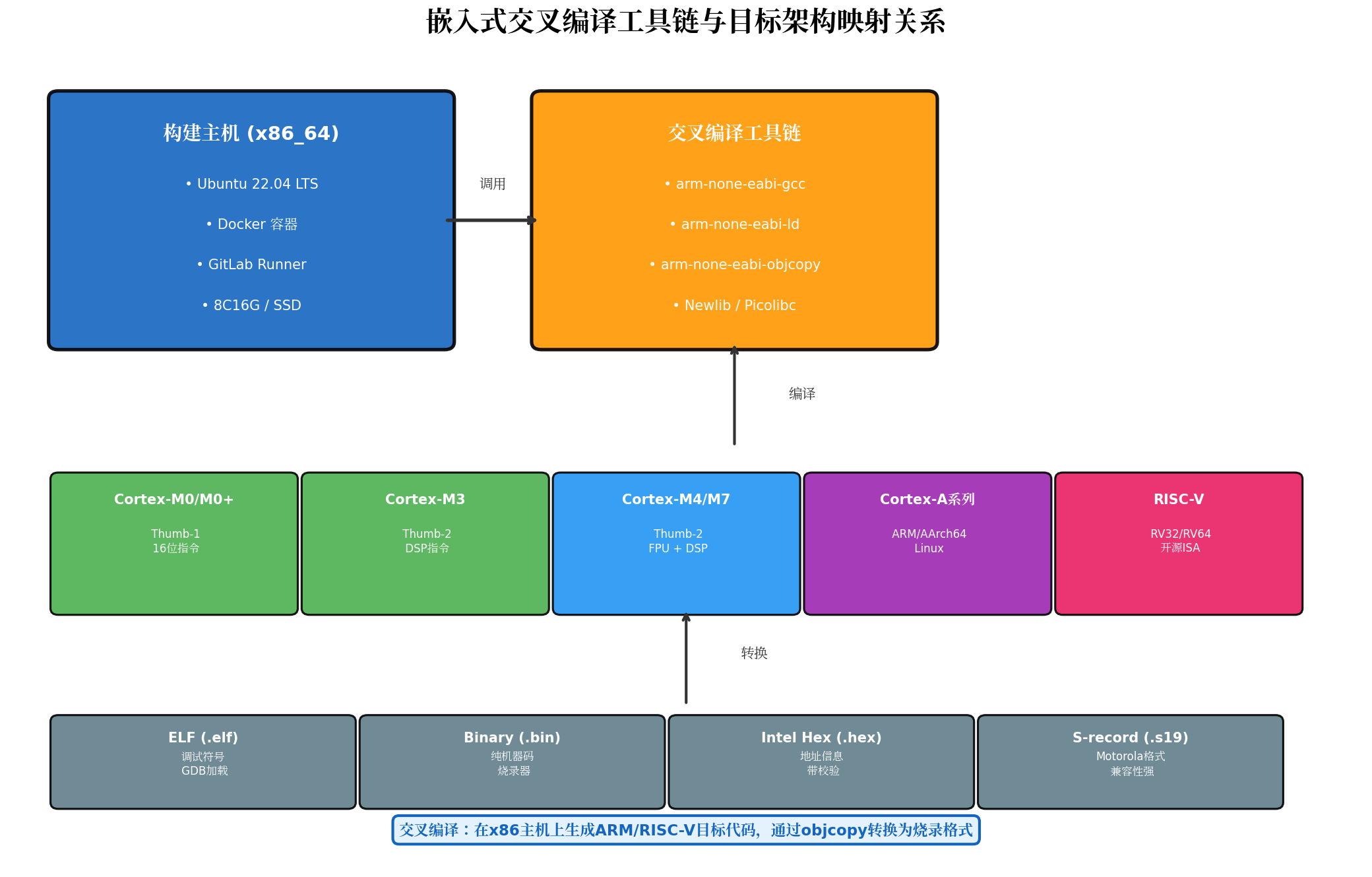

交叉编译是嵌入式CI的核心。在x86_64服务器上生成ARM/RISC-V目标代码，需要完整的工具链支持。

3.1 ARM GCC 工具链选型

工具链	适用场景	特点
arm-none-eabi-gcc	裸机MCU（Cortex-M/A）	无操作系统，Newlib C库
arm-linux-gnueabihf-gcc	Linux嵌入式（Cortex-A）	带Linux系统调用，glibc
aarch64-none-elf-gcc	64位裸机	AArch64架构
riscv64-unknown-elf-gcc	RISC-V MCU	开源ISA，免授权费

3.2 工具链安装与版本管理

dockerfile 复制代码

# Dockerfile.embedded-toolchain
FROM ubuntu:22.04

# 避免交互式配置提示
ENV DEBIAN_FRONTEND=noninteractive

# 安装基础依赖
RUN apt-get update && apt-get install -y \
    build-essential \
    cmake \
    ninja-build \
    git \
    wget \
    curl \
    python3 \
    python3-pip \
    libusb-1.0-0-dev \
    libncurses5-dev \
    && rm -rf /var/lib/apt/lists/*

# 安装 ARM GCC 工具链 (13.2.Rel1)
ARG ARM_GCC_VERSION=13.2.rel1
ARG ARM_GCC_URL=https://developer.arm.com/-/media/Files/downloads/gnu/${ARM_GCC_VERSION}/binrel/arm-gnu-toolchain-${ARM_GCC_VERSION}-x86_64-arm-none-eabi.tar.xz

RUN wget -q ${ARM_GCC_URL} -O /tmp/arm-toolchain.tar.xz \
    && tar -xf /tmp/arm-toolchain.tar.xz -C /opt/ \
    && rm /tmp/arm-toolchain.tar.xz

# 设置环境变量
ENV PATH=/opt/arm-gnu-toolchain-${ARM_GCC_VERSION}-x86_64-arm-none-eabi/bin:${PATH}

# 验证安装
RUN arm-none-eabi-gcc --version

# 安装 OpenOCD (用于烧录和调试)
RUN apt-get update && apt-get install -y openocd \
    && rm -rf /var/lib/apt/lists/*

# 安装 J-Link 工具 (需从Segger官网下载)
# 注意：J-Link软件需遵守Segger许可协议
COPY JLink_Linux_V796a_x86_64.deb /tmp/
RUN dpkg -i /tmp/JLink_Linux_V796a_x86_64.deb || apt-get install -f -y \
    && rm /tmp/JLink_Linux_V796a_x86_64.deb

# 安装 ccache 加速编译
RUN apt-get update && apt-get install -y ccache \
    && rm -rf /var/lib/apt/lists/* \
    && ccache --max-size=5G

# 配置 ccache 作为编译器包装器
ENV CCACHE_DIR=/cache/ccache
RUN mkdir -p ${CCACHE_DIR}

# 安装代码检查工具
RUN apt-get update && apt-get install -y \
    cppcheck \
    clang-format \
    clang-tidy \
    && rm -rf /var/lib/apt/lists/*

# 创建工作目录
WORKDIR /workspace

# 默认命令
CMD ["/bin/bash"]

构建并推送镜像到GitLab Registry：

bash 复制代码

# 登录 GitLab Registry
docker login registry.gitlab.com -u YOUR_USERNAME -p YOUR_TOKEN

# 构建镜像
docker build -f Dockerfile.embedded-toolchain \
  -t registry.gitlab.com/your-group/your-project/embedded-toolchain:v1.0 .

# 推送镜像
docker push registry.gitlab.com/your-group/your-project/embedded-toolchain:v1.0

四、Docker 容器化：构建环境的一致性保障

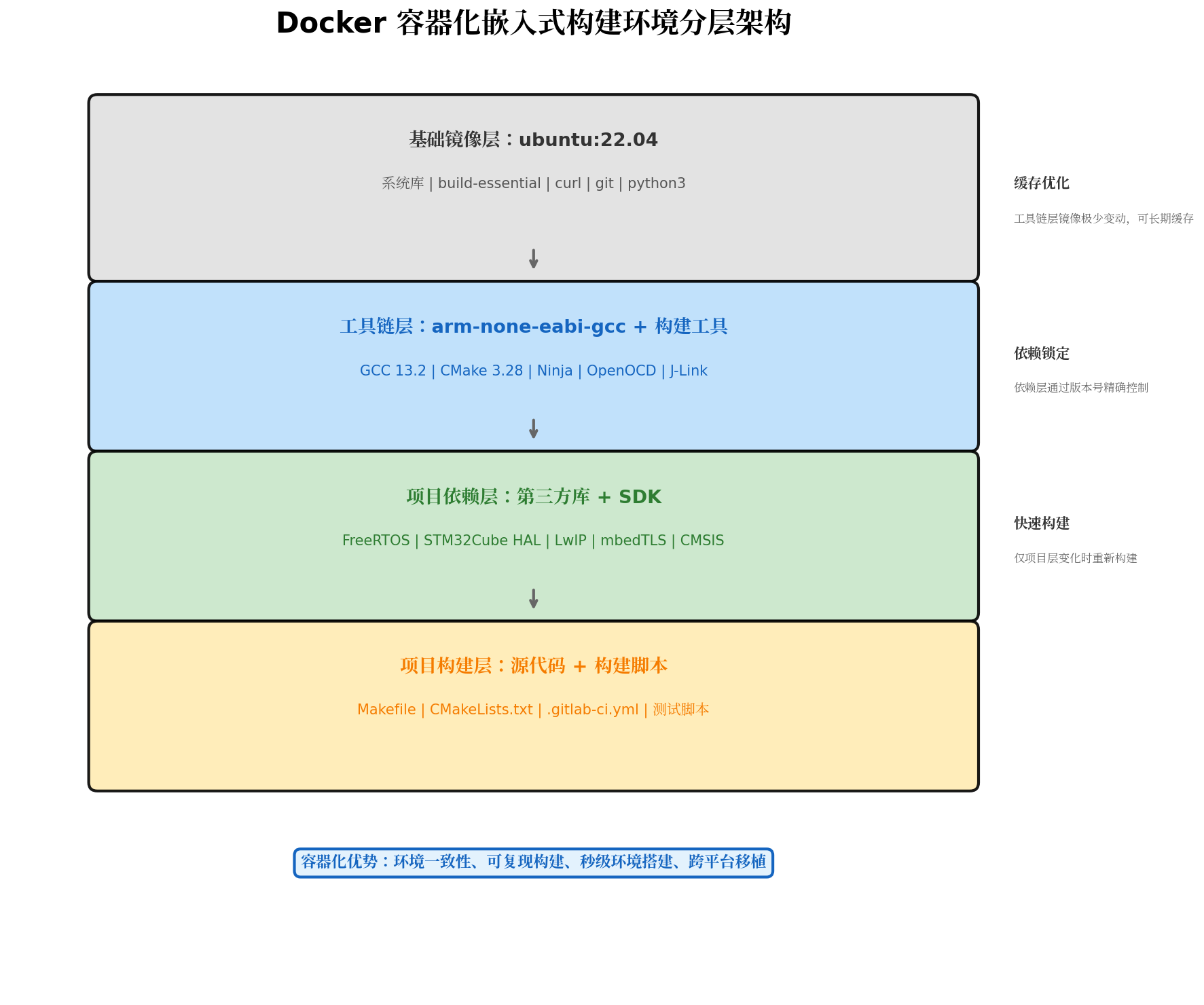

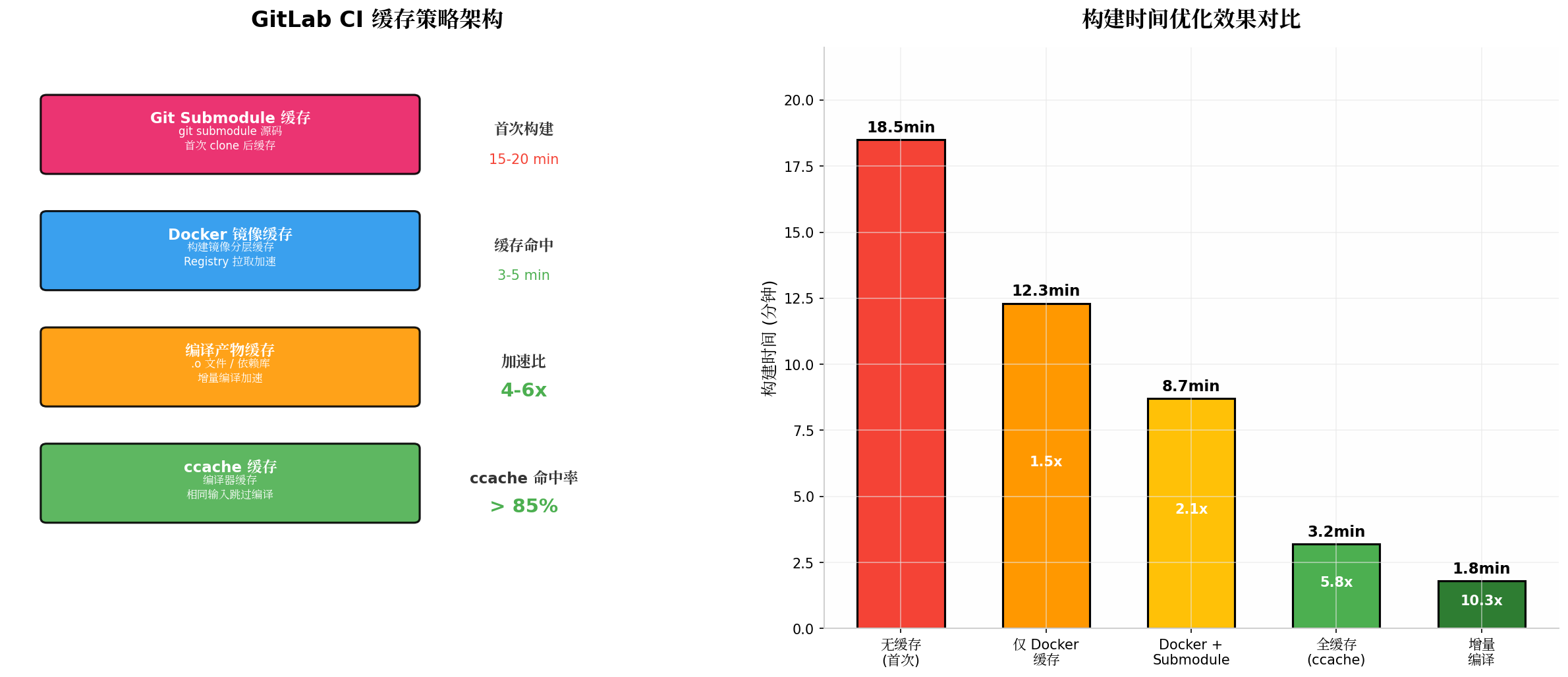

Docker 的分层缓存机制非常适合嵌入式构建场景。通过精心设计镜像层次，可以实现工具链层长期缓存、依赖层版本锁定、项目层快速构建。

4.1 分层镜像策略

dockerfile 复制代码

# === 第一层：基础镜像 (极少变动) ===
FROM ubuntu:22.04 AS base
RUN apt-get update && apt-get install -y build-essential git cmake wget curl \
    && rm -rf /var/lib/apt/lists/*

# === 第二层：工具链镜像 (变动频率：月) ===
FROM base AS toolchain
ARG ARM_GCC_VERSION=13.2.rel1
RUN wget -q https://developer.arm.com/-/media/Files/downloads/gnu/${ARM_GCC_VERSION}/binrel/arm-gnu-toolchain-${ARM_GCC_VERSION}-x86_64-arm-none-eabi.tar.xz \
    && tar -xf /tmp/arm-toolchain.tar.xz -C /opt/ \
    && rm /tmp/arm-toolchain.tar.xz
ENV PATH=/opt/arm-gnu-toolchain-${ARM_GCC_VERSION}-x86_64-arm-none-eabi/bin:${PATH}

# === 第三层：项目依赖镜像 (变动频率：周) ===
FROM toolchain AS dependencies
# 复制并安装项目特定依赖
COPY third_party/ /workspace/third_party/
COPY lib/ /workspace/lib/
WORKDIR /workspace

# === 第四层：项目构建镜像 (变动频率：每次提交) ===
FROM dependencies AS builder
COPY . /workspace/
RUN make clean && make -j$(nproc)

4.2 .gitlab-ci.yml 核心配置

yaml 复制代码

# .gitlab-ci.yml - 嵌入式CI流水线主配置
# =============================================================================
# 全局变量
# =============================================================================
variables:
  # 工具链版本
  ARM_GCC_VERSION: "13.2.rel1"
  # Docker镜像地址
  DOCKER_IMAGE: "$CI_REGISTRY_IMAGE/embedded-toolchain:v1.0"
  # 编译产物目录
  BUILD_DIR: "build"
  # ccache 目录
  CCACHE_DIR: "$CI_PROJECT_DIR/.ccache"
  # Git 子模块策略
  GIT_SUBMODULE_STRATEGY: recursive
  # 子模块深度（加速克隆）
  GIT_DEPTH: 10

# =============================================================================
# 阶段定义
# =============================================================================
stages:
  - build
  - test
  - static-analysis
  - package
  - deploy

# =============================================================================
# 全局默认配置
# =============================================================================
default:
  image: $DOCKER_IMAGE
  tags:
    - docker
    - embedded
  before_script:
    # 配置 ccache
    - mkdir -p $CCACHE_DIR
    - ccache --set-config=cache_dir=$CCACHE_DIR
    - ccache --set-config=max_size=5G
    - ccache -z  # 清零统计
    # 显示工具链版本
    - arm-none-eabi-gcc --version
    - cmake --version
    - ninja --version

# =============================================================================
# 缓存配置
# =============================================================================
# ccache 缓存：跨Pipeline持久化
.ccache_cache:
  cache:
    key: ${CI_JOB_NAME}
    paths:
      - .ccache/
    policy: pull-push

# Git 子模块缓存
.submodule_cache:
  cache:
    key: submodules-${CI_COMMIT_REF_SLUG}
    paths:
      - .git/modules/
    policy: pull-push

# =============================================================================
# Build Stage: 交叉编译
# =============================================================================
build:stm32f4:
  stage: build
  extends: .ccache_cache
  variables:
    TARGET_BOARD: "stm32f4"
    CMAKE_ARGS: >-
      -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/arm-none-eabi.cmake
      -DMCU_FAMILY=STM32F4xx
      -DMCU_MODEL=STM32F407VG
      -DCMAKE_BUILD_TYPE=Release
  script:
    - mkdir -p ${BUILD_DIR}
    - cmake -B ${BUILD_DIR} -G Ninja ${CMAKE_ARGS}
    - cmake --build ${BUILD_DIR} --target all -j$(nproc)
    # 显示编译统计
    - ccache -s
  artifacts:
    paths:
      - ${BUILD_DIR}/*.elf
      - ${BUILD_DIR}/*.map
      - ${BUILD_DIR}/CMakeFiles/**/*.o
    expire_in: 1 week
    reports:
      dotenv: ${BUILD_DIR}/build.env

build:stm32h7:
  stage: build
  extends: .ccache_cache
  variables:
    TARGET_BOARD: "stm32h7"
    CMAKE_ARGS: >-
      -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/arm-none-eabi.cmake
      -DMCU_FAMILY=STM32H7xx
      -DMCU_MODEL=STM32H743ZI
      -DCMAKE_BUILD_TYPE=Release
      -DENABLE_FPU=ON
  script:
    - mkdir -p ${BUILD_DIR}
    - cmake -B ${BUILD_DIR} -G Ninja ${CMAKE_ARGS}
    - cmake --build ${BUILD_DIR} --target all -j$(nproc)
    - ccache -s
  artifacts:
    paths:
      - ${BUILD_DIR}/*.elf
      - ${BUILD_DIR}/*.map
    expire_in: 1 week

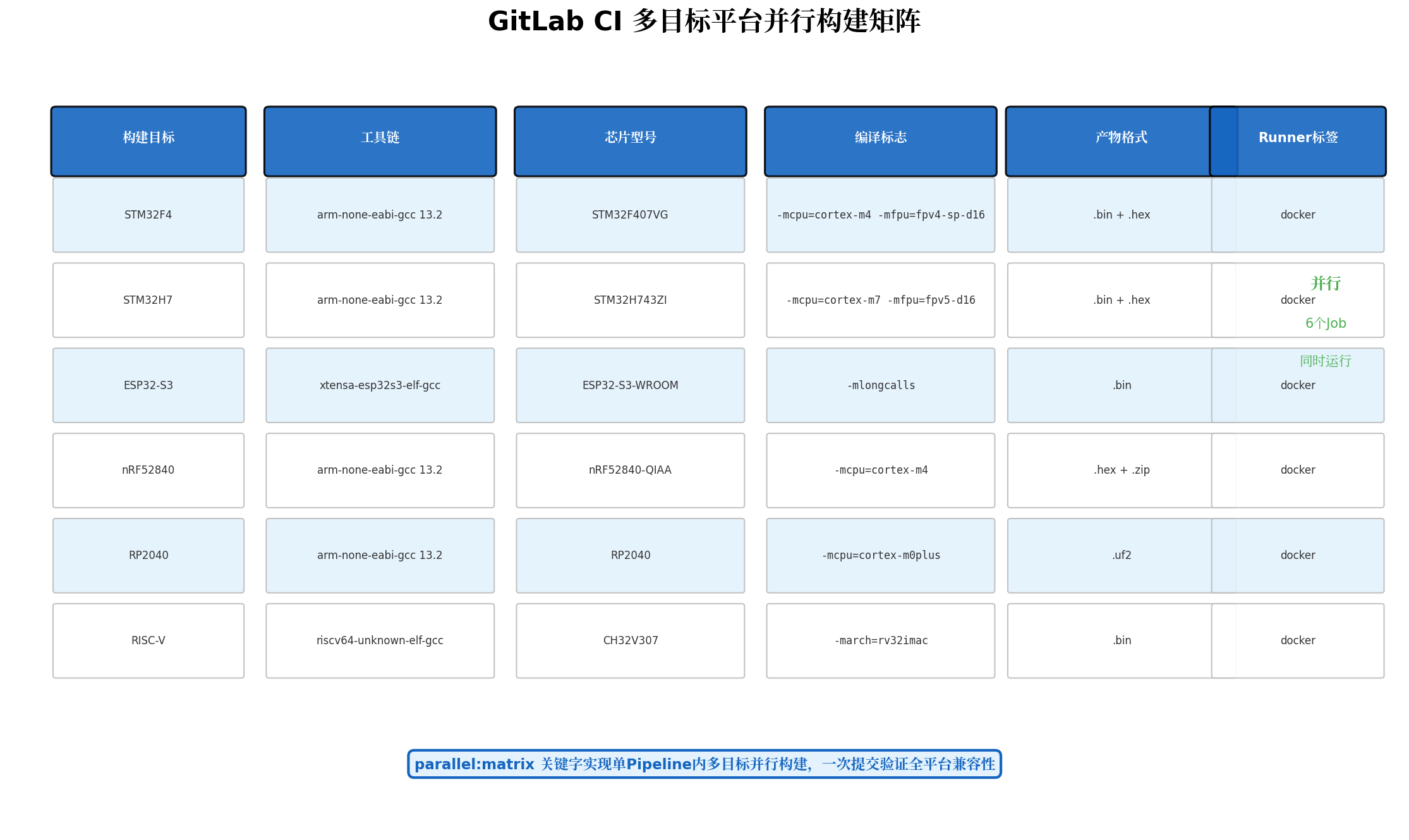

# 使用矩阵构建多目标平台
build:matrix:
  stage: build
  extends: .ccache_cache
  parallel:
    matrix:
      - TARGET_BOARD: [stm32f4, stm32h7, esp32s3, nrf52840]
  script:
    - mkdir -p ${BUILD_DIR}
    - cmake -B ${BUILD_DIR} -G Ninja
        -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/${TARGET_BOARD}.cmake
    - cmake --build ${BUILD_DIR} --target all -j$(nproc)
  artifacts:
    paths:
      - ${BUILD_DIR}/*.elf
    expire_in: 1 week

# =============================================================================
# Test Stage: 单元测试 (在x86上使用模拟器或原生测试)
# =============================================================================
test:unit:
  stage: test
  needs: [build:stm32f4]
  image: $CI_REGISTRY_IMAGE/embedded-toolchain:v1.0
  script:
    # 运行Unity单元测试（使用上一阶段的编译产物）
    - cmake -B ${BUILD_DIR}_test -DENABLE_TESTING=ON
    - cmake --build ${BUILD_DIR}_test --target test_runner
    - ./${BUILD_DIR}_test/test_runner --xml
  artifacts:
    reports:
      junit: ${BUILD_DIR}_test/test_results.xml
    paths:
      - ${BUILD_DIR}_test/test_results.xml
    expire_in: 1 week

test:coverage:
  stage: test
  needs: [build:stm32f4]
  script:
    - cmake -B ${BUILD_DIR}_cov -DENABLE_COVERAGE=ON
    - cmake --build ${BUILD_DIR}_cov --target coverage
    # 生成覆盖率报告
    - gcovr --xml-pretty --exclude-unreachable-branches --print-summary
        -o coverage.xml --root ${CI_PROJECT_DIR}
    - gcovr --html --html-details -o coverage.html --root ${CI_PROJECT_DIR}
  coverage: '/TOTAL.*\s+(\d+%)$/'
  artifacts:
    paths:
      - coverage.xml
      - coverage.html
    reports:
      coverage_report:
        coverage_format: cobertura
        path: coverage.xml
    expire_in: 1 week

# =============================================================================
# Static Analysis Stage: 静态代码分析
# =============================================================================
static-analysis:cppcheck:
  stage: static-analysis
  needs: []
  allow_failure: true  # 不阻塞流水线，但生成报告
  script:
    - cppcheck --enable=all --error-exitcode=0
        --xml --xml-version=2
        --suppress=missingIncludeSystem
        --inline-suppr
        -I include/
        -I third_party/
        src/
        2> cppcheck-report.xml
    # 转换为 GitLab 可读的代码质量报告格式
    - cppcheck-codequality cppcheck-report.xml > gl-codequality-report.json
  artifacts:
    reports:
      codequality: gl-codequality-report.json
    paths:
      - cppcheck-report.xml
    expire_in: 1 week

static-analysis:misra:
  stage: static-analysis
  needs: []
  allow_failure: true
  script:
    # 使用 Cppcheck 的 MISRA 插件
    - cppcheck --addon=misra.json
        --enable=all
        --error-exitcode=0
        -I include/
        src/
        2> misra-report.xml
  artifacts:
    paths:
      - misra-report.xml
    expire_in: 1 week

# =============================================================================
# Package Stage: 固件生成与签名
# =============================================================================
package:firmware:
  stage: package
  needs: [build:stm32f4, build:stm32h7]
  script:
    # 从 ELF 生成二进制文件
    - arm-none-eabi-objcopy -O binary ${BUILD_DIR}/firmware.elf ${BUILD_DIR}/firmware.bin
    - arm-none-eabi-objcopy -O ihex ${BUILD_DIR}/firmware.elf ${BUILD_DIR}/firmware.hex
    # 生成反汇编文件（用于调试）
    - arm-none-eabi-objdump -d ${BUILD_DIR}/firmware.elf > ${BUILD_DIR}/firmware.dump
    # 生成内存使用报告
    - arm-none-eabi-size ${BUILD_DIR}/firmware.elf | tee ${BUILD_DIR}/memory_usage.txt
    # 计算校验和
    - sha256sum ${BUILD_DIR}/firmware.bin | tee ${BUILD_DIR}/firmware.sha256
    # 版本信息注入
    - echo "VERSION=${CI_COMMIT_TAG:-${CI_COMMIT_SHORT_SHA}}" > ${BUILD_DIR}/version.txt
    - echo "BUILD_TIME=$(date -u +%Y-%m-%dT%H:%M:%SZ)" >> ${BUILD_DIR}/version.txt
    - echo "GIT_COMMIT=${CI_COMMIT_SHA}" >> ${BUILD_DIR}/version.txt
  artifacts:
    name: "firmware-${CI_COMMIT_REF_NAME}-${CI_COMMIT_SHORT_SHA}"
    paths:
      - ${BUILD_DIR}/firmware.bin
      - ${BUILD_DIR}/firmware.hex
      - ${BUILD_DIR}/firmware.sha256
      - ${BUILD_DIR}/memory_usage.txt
      - ${BUILD_DIR}/version.txt
      - ${BUILD_DIR}/firmware.dump
    expire_in: 1 month

package:sign:
  stage: package
  needs: [package:firmware]
  # 签名需要访问私钥，使用受保护的Runner
  tags:
    - protected
    - signing
  script:
    # 使用 HSM 或安全密钥进行固件签名
    - openssl dgst -sha256 -sign ${SIGNING_PRIVATE_KEY}
        -out ${BUILD_DIR}/firmware.bin.sig
        ${BUILD_DIR}/firmware.bin
    # 验证签名
    - openssl dgst -sha256 -verify ${SIGNING_PUBLIC_KEY}
        -signature ${BUILD_DIR}/firmware.bin.sig
        ${BUILD_DIR}/firmware.bin
    # 打包为OTA更新包
    - tar -czf ${BUILD_DIR}/firmware-${CI_COMMIT_TAG}.tar.gz
        -C ${BUILD_DIR} firmware.bin firmware.bin.sig version.txt
  artifacts:
    name: "firmware-signed-${CI_COMMIT_TAG}"
    paths:
      - ${BUILD_DIR}/firmware-*.tar.gz
    expire_in: 3 months

# =============================================================================
# Deploy Stage: 部署
# =============================================================================
deploy:gitlab-registry:
  stage: deploy
  needs: [package:sign]
  image: curlimages/curl:latest
  script:
    # 将固件包上传到 GitLab Package Registry
    - 'curl --header "JOB-TOKEN: ${CI_JOB_TOKEN}"
        --upload-file ${BUILD_DIR}/firmware-${CI_COMMIT_TAG}.tar.gz
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/generic/firmware/${CI_COMMIT_TAG}/firmware-${CI_COMMIT_TAG}.tar.gz"'
  only:
    - tags

deploy:hil-test:
  stage: deploy
  needs: [package:firmware]
  # HIL测试需要连接真实硬件，使用自托管Runner
  tags:
    - shell
    - hil
    - stm32
  script:
    # 烧录固件到目标板
    - openocd -f interface/stlink.cfg -f target/stm32f4x.cfg
        -c "program ${BUILD_DIR}/firmware.bin verify reset exit 0x08000000"
    # 等待板子启动
    - sleep 3
    # 运行 HIL 测试脚本
    - python3 tests/hil/run_tests.py --port /dev/ttyUSB0 --baud 115200
  artifacts:
    reports:
      junit: tests/hil/results.xml
    paths:
      - tests/hil/results.xml
      - tests/hil/logs/
    expire_in: 1 week
  allow_failure: true  # HIL测试失败不阻塞部署，但记录结果

# =============================================================================
# 触发规则
# =============================================================================
# 仅在 main 分支和 tag 上运行完整流水线
.workflow:rules:
  rules:
    - if: $CI_COMMIT_TAG
      when: always
    - if: $CI_COMMIT_BRANCH == "main"
      when: always
    - if: $CI_COMMIT_BRANCH == "develop"
      when: always
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
      when: always
    - when: never  # 其他情况不触发

# 应用到所有 Job
default:
  rules:
    - !reference [.workflow:rules, rules]

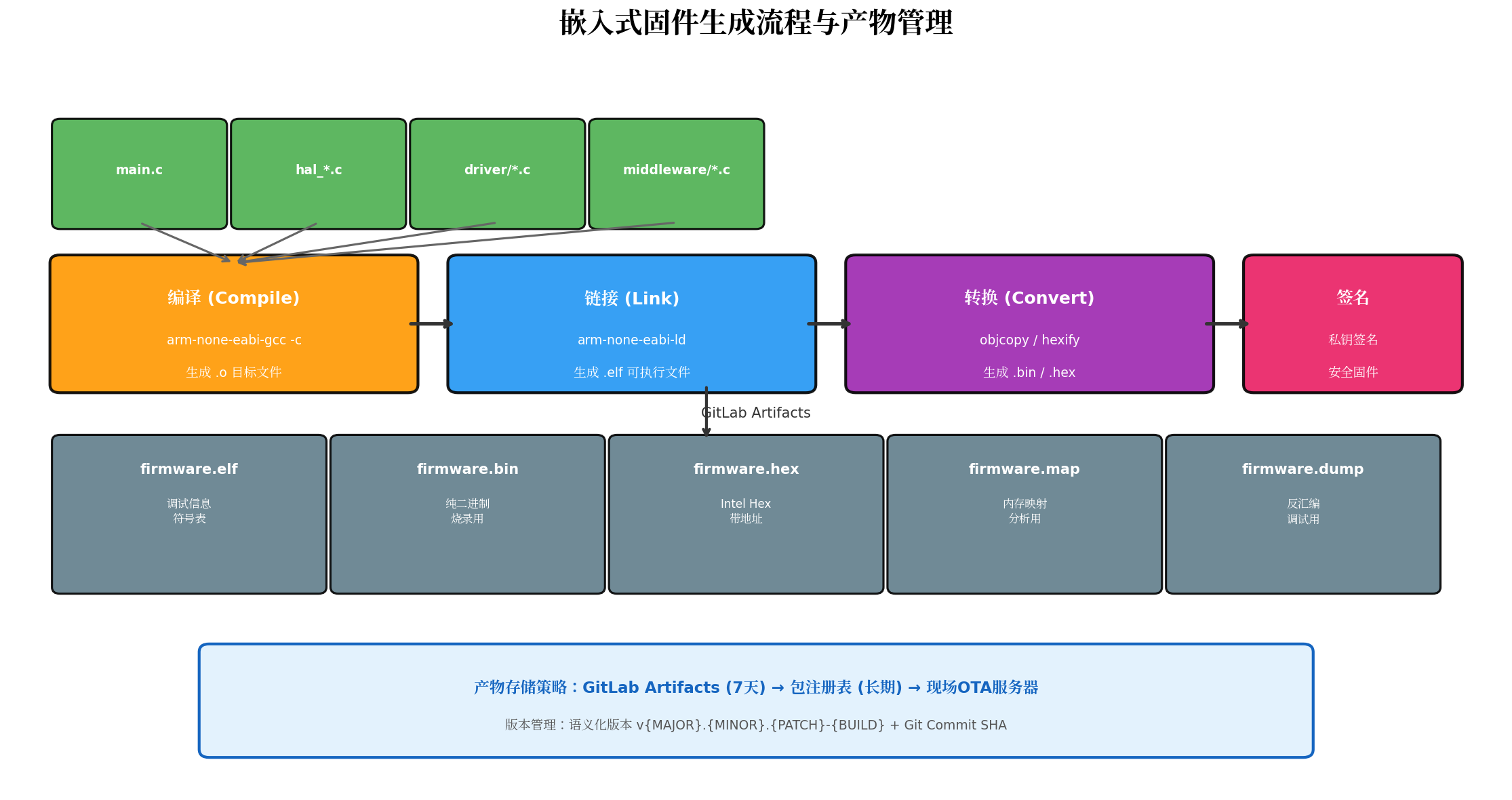

五、固件生成流程：从源码到可烧录文件

嵌入式固件的生成是一个多步骤的精密流程，每一步都需要严格控制。

5.1 编译与链接

cmake 复制代码

# cmake/toolchains/arm-none-eabi.cmake
set(CMAKE_SYSTEM_NAME Generic)
set(CMAKE_SYSTEM_PROCESSOR arm)

# 指定交叉编译器
set(CMAKE_C_COMPILER arm-none-eabi-gcc)
set(CMAKE_CXX_COMPILER arm-none-eabi-g++)
set(CMAKE_ASM_COMPILER arm-none-eabi-gcc)
set(CMAKE_AR arm-none-eabi-ar)
set(CMAKE_OBJCOPY arm-none-eabi-objcopy)
set(CMAKE_OBJDUMP arm-none-eabi-objdump)
set(CMAKE_SIZE arm-none-eabi-size)
set(CMAKE_NM arm-none-eabi-nm)
set(CMAKE_STRIP arm-none-eabi-strip)

# 禁用默认的编译测试（交叉编译器无法在主机上运行）
set(CMAKE_C_COMPILER_WORKS 1)
set(CMAKE_CXX_COMPILER_WORKS 1)

# 编译标志
set(CMAKE_C_FLAGS_INIT "\
    -mcpu=cortex-m4 \
    -mthumb \
    -mfpu=fpv4-sp-d16 \
    -mfloat-abi=hard \
    -O2 \
    -g3 \
    -Wall \
    -Wextra \
    -Werror \
    -ffunction-sections \
    -fdata-sections \
    -fno-exceptions \
    -fno-rtti \
    -nostdlib \
    -nostartfiles \
    ")

set(CMAKE_CXX_FLAGS_INIT "${CMAKE_C_FLAGS_INIT}")

# 链接标志
set(CMAKE_EXE_LINKER_FLAGS_INIT "\
    -T${CMAKE_SOURCE_DIR}/linker/STM32F407VGTx_FLASH.ld \
    -Wl,--gc-sections \
    -Wl,-Map=output.map \
    -specs=nano.specs \
    -specs=nosys.specs \
    -lc -lm -lnosys \
    ")

5.2 固件转换与签名脚本

bash 复制代码

#!/bin/bash
# scripts/generate_firmware.sh - 固件生成脚本

set -euo pipefail

BUILD_DIR="${1:-build}"
OUTPUT_DIR="${2:-firmware_output}"
VERSION="${3:-$(git describe --tags --always --dirty)}"
BUILD_TIME=$(date -u +%Y-%m-%dT%H:%M:%SZ)
GIT_COMMIT=$(git rev-parse HEAD)

mkdir -p "${OUTPUT_DIR}"

echo "=========================================="
echo "固件生成开始"
echo "版本: ${VERSION}"
echo "构建时间: ${BUILD_TIME}"
echo "Git Commit: ${GIT_COMMIT}"
echo "=========================================="

# 1. 从 ELF 生成各种格式
echo "[1/6] 生成二进制格式 (.bin)..."
arm-none-eabi-objcopy -O binary \
    "${BUILD_DIR}/firmware.elf" \
    "${OUTPUT_DIR}/firmware-${VERSION}.bin"

echo "[2/6] 生成 Intel Hex 格式 (.hex)..."
arm-none-eabi-objcopy -O ihex \
    "${BUILD_DIR}/firmware.elf" \
    "${OUTPUT_DIR}/firmware-${VERSION}.hex"

echo "[3/6] 生成反汇编文件..."
arm-none-eabi-objdump -d -S \
    "${BUILD_DIR}/firmware.elf" > \
    "${OUTPUT_DIR}/firmware-${VERSION}.dump"

# 2. 内存使用分析
echo "[4/6] 分析内存使用..."
arm-none-eabi-size -A -x "${BUILD_DIR}/firmware.elf" | tee "${OUTPUT_DIR}/memory-${VERSION}.txt"

# 3. 计算校验和
echo "[5/6] 计算 SHA-256 校验和..."
sha256sum "${OUTPUT_DIR}/firmware-${VERSION}.bin" | tee "${OUTPUT_DIR}/firmware-${VERSION}.sha256"

# 4. 生成版本信息文件
echo "[6/6] 生成版本信息..."
cat > "${OUTPUT_DIR}/version-${VERSION}.json" <<EOF
{
    "version": "${VERSION}",
    "build_time": "${BUILD_TIME}",
    "git_commit": "${GIT_COMMIT}",
    "git_branch": "$(git rev-parse --abbrev-ref HEAD)",
    "build_host": "$(hostname)",
    "compiler": "$(arm-none-eabi-gcc --version | head -n1)",
    "target": "STM32F407VG",
    "checksum_sha256": "$(sha256sum ${OUTPUT_DIR}/firmware-${VERSION}.bin | cut -d' ' -f1)"
}
EOF

# 5. 固件签名（如果配置了私钥）
if [ -n "${SIGNING_KEY:-}" ] && [ -f "${SIGNING_KEY}" ]; then
    echo "[7/6] 签名固件..."
    openssl dgst -sha256 -sign "${SIGNING_KEY}" \
        -out "${OUTPUT_DIR}/firmware-${VERSION}.bin.sig" \
        "${OUTPUT_DIR}/firmware-${VERSION}.bin"

    # 验证签名
    openssl dgst -sha256 -verify "${SIGNING_KEY}.pub" \
        -signature "${OUTPUT_DIR}/firmware-${VERSION}.bin.sig" \
        "${OUTPUT_DIR}/firmware-${VERSION}.bin"

    echo "签名验证通过"
fi

echo "=========================================="
echo "固件生成完成"
echo "输出目录: ${OUTPUT_DIR}"
ls -lh "${OUTPUT_DIR}"
echo "=========================================="

5.3 产物管理策略

yaml 复制代码

# .gitlab-ci.yml 产物管理最佳实践
variables:
  # 产物保留策略
  ARTIFACT_RETENTION_DAYS: "30"

# 使用 GitLab Package Registry 长期存储固件
upload:package-registry:
  stage: deploy
  image: curlimages/curl:latest
  needs: [package:sign]
  script:
    # 上传 .bin 到 Generic Package Registry
    - |
      curl --request PUT \
        --header "JOB-TOKEN: ${CI_JOB_TOKEN}" \
        --upload-file firmware_output/firmware-${CI_COMMIT_TAG}.bin \
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/generic/firmware/${CI_COMMIT_TAG}/firmware.bin"

    # 上传 .hex
    - |
      curl --request PUT \
        --header "JOB-TOKEN: ${CI_JOB_TOKEN}" \
        --upload-file firmware_output/firmware-${CI_COMMIT_TAG}.hex \
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/generic/firmware/${CI_COMMIT_TAG}/firmware.hex"

    # 上传版本信息
    - |
      curl --request PUT \
        --header "JOB-TOKEN: ${CI_JOB_TOKEN}" \
        --upload-file firmware_output/version-${CI_COMMIT_TAG}.json \
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/generic/firmware/${CI_COMMIT_TAG}/version.json"
  only:
    - tags

六、Pipeline 阶段编排与Job依赖关系

6.1 并行与串行的艺术

GitLab CI 的核心编排逻辑是：同一Stage内的Job并行执行，不同Stage之间串行执行。这种设计天然适合嵌入式多平台构建场景。

yaml 复制代码

# 使用 needs 关键字优化依赖关系
build:stm32f4:
  stage: build
  # ...

build:stm32h7:
  stage: build
  # ...

# test:unit 不需要等待 build:stm32h7，只需要 build:stm32f4
test:unit:
  stage: test
  needs: [build:stm32f4]  # 仅依赖特定Job，而非整个Stage
  # ...

# package 需要等待所有 build 完成
package:firmware:
  stage: package
  needs: [build:stm32f4, build:stm32h7]
  # ...

6.2 多目标平台并行构建矩阵

yaml 复制代码

# 使用 parallel:matrix 实现多平台并行构建
build:all-targets:
  stage: build
  extends: .ccache_cache
  parallel:
    matrix:
      - TARGET: stm32f4
        MCU: STM32F407VG
        FPU: fpv4-sp-d16
        TOOLCHAIN: arm-none-eabi
      - TARGET: stm32h7
        MCU: STM32H743ZI
        FPU: fpv5-d16
        TOOLCHAIN: arm-none-eabi
      - TARGET: esp32s3
        MCU: ESP32S3
        FPU: none
        TOOLCHAIN: xtensa-esp32s3-elf
      - TARGET: nrf52840
        MCU: nRF52840
        FPU: fpv4-sp-d16
        TOOLCHAIN: arm-none-eabi
  script:
    - echo "Building for ${TARGET} (${MCU})"
    - cmake -B ${BUILD_DIR}
        -DCMAKE_TOOLCHAIN_FILE=cmake/toolchains/${TOOLCHAIN}.cmake
        -DMCU_MODEL=${MCU}
        -DMCU_FPU=${FPU}
    - cmake --build ${BUILD_DIR} -j$(nproc)
  artifacts:
    paths:
      - ${BUILD_DIR}/firmware.elf
    expire_in: 1 week

七、缓存策略：构建加速的关键

嵌入式项目通常依赖大量第三方库和工具链，合理的缓存策略可以将构建时间从20分钟压缩到3分钟以内。

7.1 四级缓存体系

yaml 复制代码

# .gitlab-ci.yml 完整缓存配置
variables:
  # ccache 配置
  CCACHE_DIR: "${CI_PROJECT_DIR}/.ccache"
  CCACHE_MAXSIZE: "5G"
  CCACHE_CPP2: "true"
  CCACHE_COMPILERCHECK: "content"

# 全局缓存模板
.ccache:
  cache:
    key: "ccache-${CI_JOB_NAME}-${CI_COMMIT_REF_SLUG}"
    paths:
      - .ccache/
    policy: pull-push

.git_submodules:
  cache:
    key: "submodules-${CI_COMMIT_REF_SLUG}"
    paths:
      - .git/modules/
      - third_party/**/  # 缓存已下载的第三方库
    policy: pull-push

.docker_layers:
  cache:
    key: "docker-layers"
    paths:
      - /var/lib/docker/
    policy: pull  # Docker层缓存只拉取不推送

# 在Job中使用
build:stm32f4:
  extends:
    - .ccache
    - .git_submodules
  # ...

7.2 ccache 深度集成

bash 复制代码

# 在 CMake 中集成 ccache
# cmake/ccache.cmake
find_program(CCACHE_PROGRAM ccache)
if(CCACHE_PROGRAM)
    message(STATUS "ccache found: ${CCACHE_PROGRAM}")
    set(CMAKE_C_COMPILER_LAUNCHER ${CCACHE_PROGRAM})
    set(CMAKE_CXX_COMPILER_LAUNCHER ${CCACHE_PROGRAM})
    set(CMAKE_ASM_COMPILER_LAUNCHER ${CCACHE_PROGRAM})

    # 设置 ccache 配置
    execute_process(
        COMMAND ${CCACHE_PROGRAM} --set-config=sloppiness=pch_defines,time_macros,include_file_mtime
    )
else()
    message(WARNING "ccache not found, builds will be slower")
endif()

yaml 复制代码

# GitLab CI 中监控 ccache 命中率
build:stm32f4:
  # ...
  script:
    - cmake --build ${BUILD_DIR} -j$(nproc)
    # 输出 ccache 统计
    - |
      echo "========== ccache 统计 =========="
      ccache -s
      HIT_RATE=$(ccache -s | grep "cache hit rate" | grep -oP '\d+\.\d+' | tail -1)
      echo "ccache 命中率: ${HIT_RATE}%"
      # 如果命中率低于50%，发出警告
      if (( $(echo "$HIT_RATE < 50" | bc -l) )); then
        echo "WARNING: ccache 命中率过低 (${HIT_RATE}%)，请检查缓存配置"
      fi
      echo "=================================="

7.3 Git 子模块加速

yaml 复制代码

# 使用 GIT_DEPTH 和 fetch 策略加速子模块克隆
variables:
  GIT_DEPTH: 10  # 浅克隆，只拉取最近10个提交
  GIT_SUBMODULE_STRATEGY: recursive
  GIT_SUBMODULE_DEPTH: 1  # 子模块也浅克隆

# 或者使用缓存的子模块
build:with-submodule-cache:
  cache:
    key: "submodules-${CI_COMMIT_REF_SLUG}"
    paths:
      - .git/modules/
      - third_party/
  before_script:
    # 如果缓存存在，更新子模块；否则完整克隆
    - |
      if [ -d ".git/modules" ]; then
        git submodule update --init --recursive --depth 1
      else
        git submodule sync --recursive
        git submodule update --init --recursive --depth 1 --jobs 4
      fi

八、CMake 交叉编译工程实战

8.1 完整 CMakeLists.txt 示例

cmake 复制代码

# CMakeLists.txt - 嵌入式交叉编译工程
cmake_minimum_required(VERSION 3.20)
project(EmbeddedFirmware VERSION 1.0.0 LANGUAGES C CXX ASM)

# =============================================================================
# 选项配置
# =============================================================================
option(ENABLE_TESTING "Enable unit testing" OFF)
option(ENABLE_COVERAGE "Enable code coverage" OFF)
option(ENABLE_FPU "Enable hardware FPU" ON)
option(BUILD_EXAMPLES "Build example applications" OFF)

# =============================================================================
# 编译器配置
# =============================================================================
if(NOT CMAKE_CROSSCOMPILING)
    message(FATAL_ERROR "This project must be cross-compiled. Use -DCMAKE_TOOLCHAIN_FILE")
endif()

# 设置 C 标准
set(CMAKE_C_STANDARD 11)
set(CMAKE_C_STANDARD_REQUIRED ON)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)

# 编译标志
set(COMMON_FLAGS
    -mthumb
    -ffunction-sections
    -fdata-sections
    -fno-builtin
    -fno-exceptions
    -Wall
    -Wextra
    -Werror
    -Wshadow
    -Wdouble-promotion
    -Wformat=2
    -Wundef
    -Wconversion
    -Wsign-conversion
)

if(ENABLE_FPU)
    list(APPEND COMMON_FLAGS -mfpu=fpv4-sp-d16 -mfloat-abi=hard)
endif()

# 优化级别
set(CMAKE_C_FLAGS_DEBUG "-O0 -g3 -DDEBUG")
set(CMAKE_C_FLAGS_RELEASE "-O2 -DNDEBUG -flto")
set(CMAKE_C_FLAGS_RELWITHDEBINFO "-O2 -g -DNDEBUG")

# 链接标志
set(CMAKE_EXE_LINKER_FLAGS
    "-Wl,--gc-sections \
     -Wl,--print-memory-usage \
     -Wl,--no-warn-rwx-segments \
     -specs=nano.specs \
     -specs=nosys.specs"
)

# =============================================================================
# 源文件配置
# =============================================================================
set(SOURCES
    src/main.c
    src/system_stm32f4xx.c
    src/startup_stm32f407xx.s
    src/hal/hal_gpio.c
    src/hal/hal_uart.c
    src/hal/hal_timer.c
    src/drivers/motor_driver.c
    src/drivers/sensor_driver.c
    src/app/control_loop.c
    src/app/state_machine.c
    src/utils/crc32.c
    src/utils/ring_buffer.c
)

set(INCLUDE_DIRS
    include
    include/hal
    include/drivers
    include/app
    include/utils
    third_party/CMSIS/Include
    third_party/STM32F4xx_HAL_Driver/Inc
)

# =============================================================================
# 目标配置
# =============================================================================
add_executable(${PROJECT_NAME}.elf ${SOURCES})

target_include_directories(${PROJECT_NAME}.elf PRIVATE ${INCLUDE_DIRS})

target_compile_options(${PROJECT_NAME}.elf PRIVATE ${COMMON_FLAGS})

target_link_options(${PROJECT_NAME}.elf PRIVATE
    -T${CMAKE_SOURCE_DIR}/linker/STM32F407VGTx_FLASH.ld
    ${CMAKE_EXE_LINKER_FLAGS}
)

# 链接库
target_link_libraries(${PROJECT_NAME}.elf PRIVATE
    c
    m
    nosys
)

# =============================================================================
# 固件生成规则
# =============================================================================
# 生成 .bin
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
    COMMAND ${CMAKE_OBJCOPY} -O binary $<TARGET_FILE:${PROJECT_NAME}.elf> ${PROJECT_NAME}.bin
    COMMENT "Generating binary file"
)

# 生成 .hex
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
    COMMAND ${CMAKE_OBJCOPY} -O ihex $<TARGET_FILE:${PROJECT_NAME}.elf> ${PROJECT_NAME}.hex
    COMMENT "Generating hex file"
)

# 生成反汇编
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
    COMMAND ${CMAKE_OBJDUMP} -d -S $<TARGET_FILE:${PROJECT_NAME}.elf> > ${PROJECT_NAME}.dump
    COMMENT "Generating disassembly"
)

# 内存使用报告
add_custom_command(TARGET ${PROJECT_NAME}.elf POST_BUILD
    COMMAND ${CMAKE_SIZE} -A -x $<TARGET_FILE:${PROJECT_NAME}.elf> > memory_usage.txt
    COMMENT "Analyzing memory usage"
)

# =============================================================================
# 测试配置
# =============================================================================
if(ENABLE_TESTING)
    enable_testing()
    add_subdirectory(tests)
endif()

if(ENABLE_COVERAGE)
    set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} --coverage -fprofile-arcs -ftest-coverage")
    set(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} --coverage")
endif()

# =============================================================================
# 安装规则
# =============================================================================
install(FILES
    ${CMAKE_BINARY_DIR}/${PROJECT_NAME}.bin
    ${CMAKE_BINARY_DIR}/${PROJECT_NAME}.hex
    ${CMAKE_BINARY_DIR}/memory_usage.txt
    DESTINATION firmware/${PROJECT_VERSION}
)

8.2 链接器脚本（Linker Script）

ld 复制代码

/* linker/STM32F407VGTx_FLASH.ld */
MEMORY
{
    /* Flash 内存: 1MB */
    FLASH (rx) : ORIGIN = 0x08000000, LENGTH = 1024K

    /* SRAM: 128KB (0x20000000 - 0x2001FFFF) */
    RAM (rwx) : ORIGIN = 0x20000000, LENGTH = 128K

    /* CCM RAM: 64KB (仅CPU访问) */
    CCM (rwx) : ORIGIN = 0x10000000, LENGTH = 64K
}

/* 栈顶初始化值 */
_estack = ORIGIN(RAM) + LENGTH(RAM);

/* 最小栈大小 */
_Min_Heap_Size = 0x200;
_Min_Stack_Size = 0x400;

SECTIONS
{
    /* 中断向量表 */
    .isr_vector :
    {
        . = ALIGN(4);
        KEEP(*(.isr_vector))
        . = ALIGN(4);
    } >FLASH

    /* 代码段 */
    .text :
    {
        . = ALIGN(4);
        *(.text)
        *(.text*)
        *(.glue_7)
        *(.glue_7t)
        *(.eh_frame)

        KEEP (*(.init))
        KEEP (*(.fini))
        . = ALIGN(4);
        _etext = .;
    } >FLASH

    /* 只读数据段 */
    .rodata :
    {
        . = ALIGN(4);
        *(.rodata)
        *(.rodata*)
        . = ALIGN(4);
    } >FLASH

    /* 初始化数据段的加载地址 (LMA) */
    _sidata = LOADADDR(.data);

    /* 初始化数据段 */
    .data :
    {
        . = ALIGN(4);
        _sdata = .;
        *(.data)
        *(.data*)
        . = ALIGN(4);
        _edata = .;
    } >RAM AT> FLASH

    /* 未初始化数据段 (BSS) */
    .bss :
    {
        . = ALIGN(4);
        _sbss = .;
        __bss_start__ = _sbss;
        *(.bss)
        *(.bss*)
        *(COMMON)
        . = ALIGN(4);
        _ebss = .;
        __bss_end__ = _ebss;
    } >RAM

    /* 用户堆栈初始化 */
    __end__ = .;
    end = __end__;
}

九、高级技巧：条件触发、保护分支与回滚

9.1 条件触发规则

yaml 复制代码

# 只在特定条件下触发构建
build:conditional:
  stage: build
  rules:
    # 只在 main 和 develop 分支触发
    - if: $CI_COMMIT_BRANCH == "main" || $CI_COMMIT_BRANCH == "develop"
      when: always
    # 只在 tags 上触发
    - if: $CI_COMMIT_TAG
      when: always
    # Merge Request 时触发
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
      when: always
    # 当源码文件变化时触发（使用 changes 关键字）
    - if: $CI_COMMIT_BRANCH
      changes:
        - src/**/*
        - include/**/*
        - CMakeLists.txt
      when: always
    # 其他情况不触发
    - when: never

9.2 保护分支与部署权限

yaml 复制代码

# 受保护的部署Job
deploy:production:
  stage: deploy
  script:
    - ./scripts/deploy.sh production
  environment:
    name: production
    url: https://ota.example.com
  only:
    - tags  # 只在打 tag 时部署到生产环境
  when: manual  # 需要手动触发
  allow_failure: false  # 失败时阻塞流水线

9.3 固件版本回滚

yaml 复制代码

# 回滚Job
rollback:firmware:
  stage: deploy
  script:
    - |
      # 获取上一个成功的版本
      LAST_SUCCESSFUL=$(curl -s --header "PRIVATE-TOKEN: ${CI_API_TOKEN}" \
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/pipelines?status=success&per_page=2" | \
        jq -r '.[1].sha')

      echo "回滚到版本: ${LAST_SUCCESSFUL}"

      # 从 Package Registry 下载旧版本固件
      curl --header "JOB-TOKEN: ${CI_JOB_TOKEN}" \
        -o firmware-rollback.bin \
        "${CI_API_V4_URL}/projects/${CI_PROJECT_ID}/packages/generic/firmware/${LAST_SUCCESSFUL}/firmware.bin"

      # 执行回滚烧录
      openocd -f interface/stlink.cfg -f target/stm32f4x.cfg \
        -c "program firmware-rollback.bin verify reset exit 0x08000000"
  when: manual  # 手动触发回滚
  allow_failure: false

十、鸿蒙生态（OpenHarmony）中的CI实践

在鸿蒙生态开发中，上述CI技术同样适用。OpenHarmony的编译系统基于GN + Ninja，可以通过以下方式集成到GitLab CI：

yaml 复制代码

# OpenHarmony 项目的 .gitlab-ci.yml
build:openharmony:
  stage: build
  image: $CI_REGISTRY_IMAGE/openharmony-build-env:v1.0  # 预装鸿蒙编译环境
  variables:
    OHOS_ROOT: "/opt/openharmony"
    PRODUCT: "rk3568"  # 瑞芯微RK3568开发板
  script:
    # 设置编译环境
    - source ${OHOS_ROOT}/build.sh --product-name ${PRODUCT}

    # 编译轻内核（LiteOS-M）
    - hb set -root ${OHOS_ROOT}
    - hb build -f

    # 生成烧录镜像
    - ./device/board/rk3568/build_image.sh

    # 打包固件
    - tar -czf openharmony-firmware-${CI_COMMIT_SHORT_SHA}.tar.gz out/
  artifacts:
    paths:
      - openharmony-firmware-*.tar.gz
    expire_in: 1 month

十一、总结与最佳实践清单

实践项	推荐方案	效果
环境一致性	Docker 容器化 + 私有 Registry	消除"在我机器上能跑"
构建加速	ccache + 分层缓存 + 并行Job	构建时间从20min→3min
多平台支持	parallel:matrix + 多工具链	一次提交验证全平台
产物管理	Artifacts + Package Registry	版本可追溯、可回滚
代码质量	Cppcheck + MISRA-C + 覆盖率门禁	缺陷早发现
安全部署	固件签名 + 受保护Runner	防止恶意固件
HIL集成	自托管Runner + OpenOCD	真实硬件自动化验证

持续集成不是一次性配置，而是持续优化的过程。 建议团队从以下步骤开始：

第一周：搭建基础Docker镜像，实现单次手动编译
第二周 ：编写.gitlab-ci.yml，实现push自动触发
第三周：引入ccache和子模块缓存，优化构建时间
第四周：添加单元测试和静态分析，设置覆盖率门禁
第一个月：集成HIL测试，实现从提交到部署的全自动化

当每一次代码提交都能在15分钟内完成编译、测试、分析、打包的全流程验证时，团队就真正迈入了持续交付的门槛。

转载自：https://blog.csdn.net/u014727709/article/details/162584640

欢迎 👍点赞✍评论⭐收藏，欢迎指正
