Citus源码（2）分布式读流程分析与基础概念梳理（shardid、placementid、groupid）

高铭杰2025-04-06 23:29

0 总结

AdaptiveExecutor是citus分布式执行器的入口

  1. TupleStore初始化tuplestore_begin_heap
  2. 事务属性决策，是否需要2pcDecideTransactionPropertiesForTaskList
  3. 分布式执行器创建、启动：初始化分布式执行器CreateDistributedExecution，维护任务列表、连接池。
  4. 任务调度与执行：
    • 决策并行串行ShouldRunTasksSequentially
    • 任务分配AssignTasksToConnectionsOrWorkerPool
      • 找到分片LookupTaskPlacementHostAndPort（groupId=6 → 127.0.0.1:3002）。
      • 连接复用GetConnectionIfPlacementAccessedInXact
      • 加入任务队列workerPool->readyTaskQueue
  5. 动态管理连接池ManageWorkerPool

概念

  1. shardid：逻辑分片，数据通过hash算法对应到一个分片上。

  2. placementid：逻辑分片的存储副本。

    • 一个shardid可能对应多个placementid（由副本数shard_replication_factor决定）
    • shard_replication_factor默认1，表示一个逻辑分片对应一个存储副本。

  3. placementid：每个placementid一定会保存在一个groupid上

  4. groupid：对应一个逻辑节点组，里面包含一个节点或者一个节点的主备。注意不会包含多个主节点。

    postgres=# select * from pg_dist_node;
    +--------+---------+-----------+----------+----------+-------------+----------+----------+-------------+----------------+------------------+
    | nodeid | groupid | nodename | nodeport | noderack | hasmetadata | isactive | noderole | nodecluster | metadatasynced | shouldhaveshards |
    +--------+---------+-----------+----------+----------+-------------+----------+----------+-------------+----------------+------------------+
    | 1 | 0 | 10.0.0.1 | 3002 | default | t | t | primary | default | t | f |
    | 7 | 6 | 127.0.0.1 | 3002 | default | t | t | primary | default | t | t |
    | 8 | 7 | 127.0.0.1 | 3003 | default | t | t | primary | default | t | t |
    +--------+---------+-----------+----------+----------+-------------+----------+----------+-------------+----------------+------------------+
    (3 rows)

    postgres=# select * from pg_dist_placement;
    +-------------+---------+------------+-------------+---------+
    | placementid | shardid | shardstate | shardlength | groupid |
    +-------------+---------+------------+-------------+---------+
    | 650 | 102651 | 1 | 0 | 6 |
    | 651 | 102652 | 1 | 0 | 7 |
    | 652 | 102653 | 1 | 0 | 6 |
    | 653 | 102654 | 1 | 0 | 7 |
    | 654 | 102655 | 1 | 0 | 6 |
    | 655 | 102656 | 1 | 0 | 7 |
    | 656 | 102657 | 1 | 0 | 6 |
    | 657 | 102658 | 1 | 0 | 7 |
    ...
    ...
    ...

1 前言

citus无侵入式扩展做的非常赞，这样以一个插件的形式可以一直跟着内核主干走，不会有分叉的问题。

本篇尝试分析几部分内容：

  1. 插件挂入内核的位置。
  2. 插件中几个主要函数的大体功能总结。
  3. 一个简单的SELECT DQL查询分布式表的执行流程。

2 插件接入位置

2.1 hook

作为一个PG的插件，hook的位置肯定在_PG_init中了，citus的_PG_init如下：

（只保留hook相关）

c 复制代码
void
_PG_init(void)
{
...
...
	/* intercept planner */
	planner_hook = distributed_planner;

	/* register for planner hook */
	set_rel_pathlist_hook = multi_relation_restriction_hook;
	get_relation_info_hook = multi_get_relation_info_hook;
	set_join_pathlist_hook = multi_join_restriction_hook;
	ExecutorStart_hook = CitusExecutorStart;
	ExecutorRun_hook = CitusExecutorRun;
	ExplainOneQuery_hook = CitusExplainOneQuery;
	prev_ExecutorEnd = ExecutorEnd_hook;
	ExecutorEnd_hook = CitusAttributeToEnd;

	/* register hook for error messages */
	original_emit_log_hook = emit_log_hook;
	emit_log_hook = multi_log_hook;


	/*
	 * Register hook for counting client backends that
	 * are successfully authenticated.
	 */
	original_client_auth_hook = ClientAuthentication_hook;
	ClientAuthentication_hook = CitusAuthHook;

	prev_shmem_request_hook = shmem_request_hook;
	shmem_request_hook = citus_shmem_request;

...
...
	PrevObjectAccessHook = object_access_hook;
	object_access_hook = CitusObjectAccessHook;

...
...
}

优化器

  • 分布式planner总入口：distributed_planner
    • 查询优化阶段入口：
      • set_rel_pathlist_hook = multi_relation_restriction_hook;
        • 收集分布式表的一些信息，定制一些分布式的优化逻辑。
      • get_relation_info_hook = multi_get_relation_info_hook;
        • 解决分布式分区表索引兼容性问题。
      • set_join_pathlist_hook = multi_join_restriction_hook;
        • 捕获跨分片join操作的元数据，生成高效的分布式执行计划。

分布式执行器

  • ExecutorStart_hook = CitusExecutorStart;
  • ExecutorRun_hook = CitusExecutorRun;
    • 核心调度逻辑：将分布式计划拆分为子任务，通过异步连接池并行发送到Worker，管理结果合并。
  • ExecutorEnd_hook = CitusAttributeToEnd;
    • 清理执行器资源。
  • ExplainOneQuery_hook = CitusExplainOneQuery;
    • 增强EXPLAIN输出，展示分布式执行计划的物理分片路由、任务并行度等细节。

日志

  • emit_log_hook = multi_log_hook;
    • 覆盖PG日志输出，追加额外信息。

2.2 RegisterCitusCustomScanMethods

插件也注册了四种customscan：

c 复制代码
void
RegisterCitusCustomScanMethods(void)
{
	RegisterCustomScanMethods(&AdaptiveExecutorCustomScanMethods);
	RegisterCustomScanMethods(&NonPushableInsertSelectCustomScanMethods);
	RegisterCustomScanMethods(&NonPushableMergeCommandCustomScanMethods);
}

Citus Adaptive

c 复制代码
CustomScanMethods AdaptiveExecutorCustomScanMethods = {
	"Citus Adaptive",
	AdaptiveExecutorCreateScan
};

static CustomExecMethods AdaptiveExecutorCustomExecMethods = {
	.CustomName = "AdaptiveExecutorScan",
	.BeginCustomScan = CitusBeginScan,
	.ExecCustomScan = CitusExecScan,
	.EndCustomScan = CitusEndScan,
	.ReScanCustomScan = CitusReScan,
	.ExplainCustomScan = CitusExplainScan
};

Citus INSERT ... SELECT

c 复制代码
CustomScanMethods NonPushableInsertSelectCustomScanMethods = {
	"Citus INSERT ... SELECT",
	NonPushableInsertSelectCreateScan
};

static CustomExecMethods NonPushableInsertSelectCustomExecMethods = {
	.CustomName = "NonPushableInsertSelectScan",
	.BeginCustomScan = CitusBeginScan,
	.ExecCustomScan = NonPushableInsertSelectExecScan,
	.EndCustomScan = CitusEndScan,
	.ReScanCustomScan = CitusReScan,
	.ExplainCustomScan = NonPushableInsertSelectExplainScan
};

Citus MERGE INTO ...

c 复制代码
CustomScanMethods NonPushableMergeCommandCustomScanMethods = {
	"Citus MERGE INTO ...",
	NonPushableMergeCommandCreateScan
};

static CustomExecMethods NonPushableMergeCommandCustomExecMethods = {
	.CustomName = "NonPushableMergeCommandScan",
	.BeginCustomScan = CitusBeginScan,
	.ExecCustomScan = NonPushableMergeCommandExecScan,
	.EndCustomScan = CitusEndScan,
	.ReScanCustomScan = CitusReScan,
	.ExplainCustomScan = NonPushableMergeCommandExplainScan
};

3 CitusExecutorRun：分布式点查

复制代码
drop table events;
CREATE TABLE events (
  device_id bigint,
  event_id bigserial,
  event_time timestamptz default now(),
  data jsonb not null,
  PRIMARY KEY (device_id, event_id)
);

SELECT create_distributed_table('events', 'device_id');


INSERT INTO events (device_id, data)
SELECT s % 100, ('{"measurement":'||random()||'}')::jsonb FROM generate_series(1,100000) s;

explain analyze select * from events where device_id in (11,22,33);

计划

复制代码
postgres=# explain analyze select * from events where device_id in (11,22,33);
+----------------------------------------------------------------------------------------------------------------------------------+
|                                                            QUERY PLAN                                                            |
+----------------------------------------------------------------------------------------------------------------------------------+
| Custom Scan (Citus Adaptive)  (cost=0.00..0.00 rows=100000 width=56) (actual time=20.573..20.967 rows=3000 loops=1)              |
|   Task Count: 3                                                                                                                  |
|   Tuple data received from nodes: 177 kB                                                                                         |
|   Tasks Shown: One of 3                                                                                                          |
|   ->  Task                                                                                                                       |
|         Tuple data received from node: 59 kB                                                                                     |
|         Node: host=127.0.0.1 port=3003 dbname=postgres                                                                           |
|         ->  Seq Scan on events_102680 events  (cost=0.00..76.25 rows=1000 width=63) (actual time=0.020..0.977 rows=1000 loops=1) |
|               Filter: (device_id = ANY ('{11,22,33}'::bigint[]))                                                                 |
|               Rows Removed by Filter: 2000                                                                                       |
|             Planning Time: 0.081 ms                                                                                              |
|             Execution Time: 1.161 ms                                                                                             |
| Planning Time: 0.517 ms                                                                                                          |
| Execution Time: 21.575 ms                                                                                                        |
+----------------------------------------------------------------------------------------------------------------------------------+
(14 rows)

3.1 distributed_planner生成的计划

3.2 执行过程

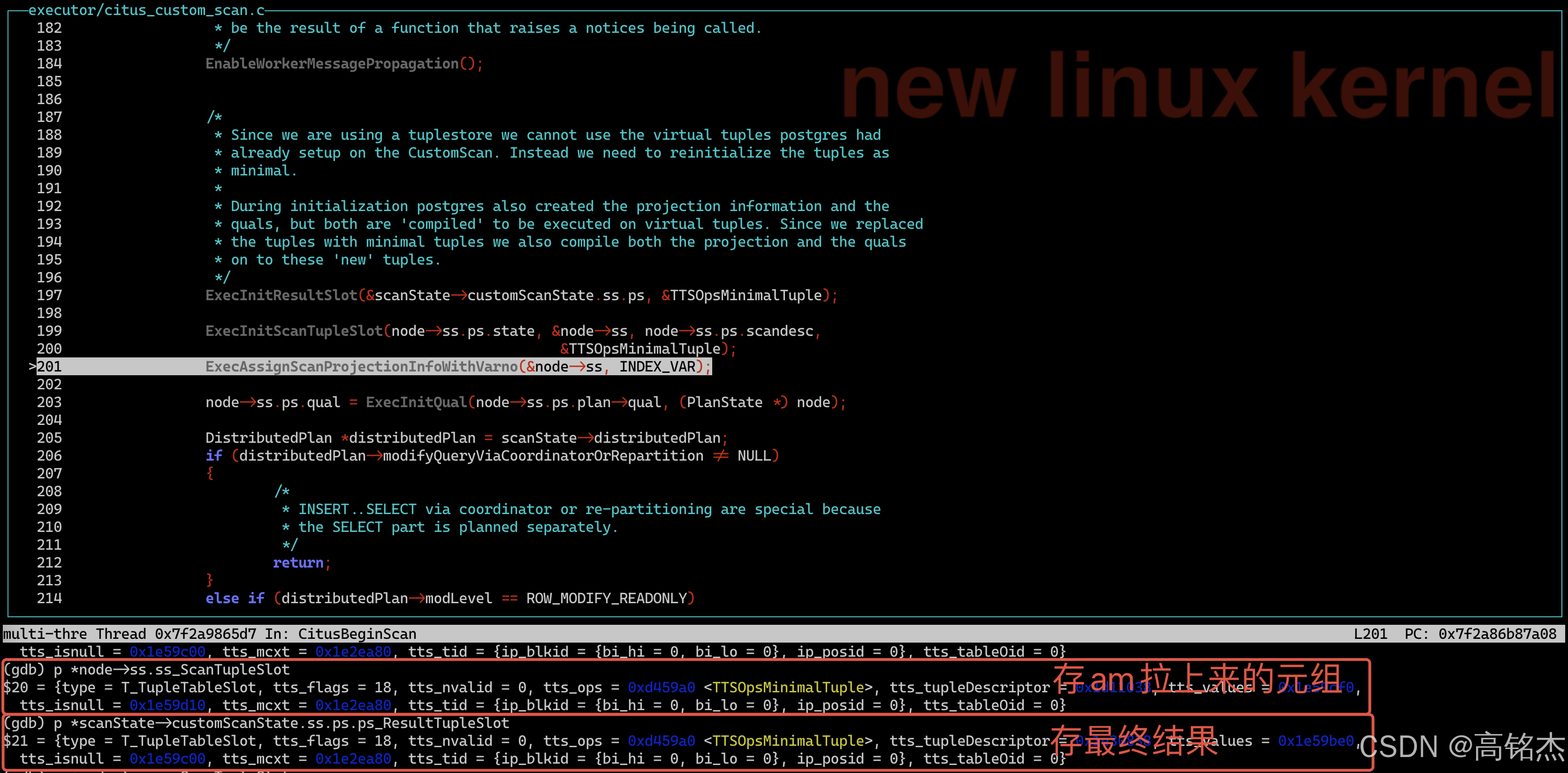

InitPlan阶段 → CitusBeginScan

复制代码
CitusBeginScan
	...
	...
	ExecInitResultSlot(&scanState->customScanState.ss.ps, &TTSOpsMinimalTuple);
	ExecInitScanTupleSlot(node->ss.ps.state, &node->ss, node->ss.ps.scandesc,
						  &TTSOpsMinimalTuple);
	ExecAssignScanProjectionInfoWithVarno(&node->ss, INDEX_VAR);

	...
	...

原来是TTSOpsVirtual重新初始化为minial。

ExecutorRun阶段 → CitusExecScan

  • CitusPreExecScan
    • ExecuteSubPlans
    • standard_ExecutorRun
      • ExecCustomScan
        • CitusExecScan
          • AdaptiveExecutor：citus的自适应执行器
            • tuplestore_begin_heap：创建tts
            • DecideTransactionPropertiesForTaskList：当前执行SQL的事务要求
              • xactProperties= {errorOnAnyFailure = false, useRemoteTransactionBlocks = TRANSACTION_BLOCKS_ALLOWED, requires2PC = false}
            • CreateDistributedExecution：创建分布式执行器
            • StartDistributedExecution：初始化分布式执行器
              • RecordParallelRelationAccessForTaskList：记录分布式下访问的表
              • EnsureTaskExecutionAllowed
            • ShouldRunTasksSequentially：确认是否并行？
            • RunDistributedExecution：开始运行
              • AssignTasksToConnectionsOrWorkerPool：Citus分布式执行引擎的任务调度中枢
                • foreach_ptr(task, taskList)：3个任务需要分配
                  • 初始化ShardCommandExecution结构
                  • taskPlacement放在哪里执行，taskPlacement = {type = {extensible = {type = T_ExtensibleNode, extnodename = 0x7f2a86ca5eca "ShardPlacement"}, citus_tag = T_ShardPlacement}, placementId = 680, shardId = 102681, shardLength = 0, groupId = 6, nodeName = 0x1ebfb38 "127.0.0.1", nodePort = 3002, nodeId = 7, partitionMethod = 104 'h', colocationGroupId = 13, representativeValue = 1879048192}
                  • LookupTaskPlacementHostAndPort：拿到一个连接, LookupNodeForGroup：使用groupId去拿一个worker node（下一篇分析这里）
                  • 初始化TaskPlacementExecution
                  • 任务加入workerPool->readyTaskQueue
              • ManageWorkerPool：根据任务负载动态调整连接池规模（需要展开分析）
              • ProcessWaitEvents：等任务都跑完开始处理（需要展开分析）
            • FinishDistributedExecution：结束执行
          • ReturnTupleFromTuplestore

taskList内容：Citus定义的Task结构

复制代码
(gdb)  tr Task 0x1eb8b98
$41 = {
  type = {
    extensible = {
      type = T_ExtensibleNode,
      extnodename = 0x7f2a86ca5ea1 "Task"
    },
    citus_tag = T_Task
  },
  taskType = READ_TASK,
  jobId = 27142733692931,
  taskId = 1,
  taskQuery = {
    queryType = TASK_QUERY_TEXT,
    data = {
      jobQueryReferenceForLazyDeparsing = 0x1e787e8,
      queryStringLazy = 0x1e787e8 "SELECT device_id, event_id, event_time, data FROM public.events_102681 events WHERE (device_id OPERATOR(pg_catalog.=) ANY ('{11,22,33}'::bigint[]))",
      queryStringList = 0x1e787e8
    }
  },
  queryCount = 1,
  anchorDistributedTableId = 0,
  anchorShardId = 102681,
  taskPlacementList = 0x1ec04b8,
  dependentTaskList = 0x0,
  partitionId = 0,
  upstreamTaskId = 0,
  shardInterval = 0x0,
  assignmentConstrained = false,
  mapJobTargetList = 0x0,
  replicationModel = 105 'i',
  relationRowLockList = 0x0,
  modifyWithSubquery = false,
  relationShardList = 0x1eb8cf8,
  rowValuesLists = 0x0,
  partiallyLocalOrRemote = false,
  parametersInQueryStringResolved = true,
  tupleDest = 0x0,
  totalReceivedTupleData = 0,
  fetchedExplainAnalyzePlan = 0x0,
  fetchedExplainAnalyzePlacementIndex = 0,
  fetchedExplainAnalyzeExecutionDuration = 0,
  isLocalTableModification = false,
  cannotBeExecutedInTransaction = false,
  partitionKeyValue = 0x0,
  colocationId = 0
}

(gdb) tr Task 0x1ebd788
$42 = {
  type = {
    extensible = {
      type = T_ExtensibleNode,
      extnodename = 0x7f2a86ca5ea1 "Task"
    },
    citus_tag = T_Task
  },
  taskType = READ_TASK,
  jobId = 27142733692931,
  taskId = 3,
  taskQuery = {
    queryType = TASK_QUERY_TEXT,
    data = {
      jobQueryReferenceForLazyDeparsing = 0x1ebc6b0,
      queryStringLazy = 0x1ebc6b0 "SELECT device_id, event_id, event_time, data FROM public.events_102654 events WHERE (device_id OPERATOR(pg_catalog.=) ANY ('{11,22,33}'::bigint[]))",
      queryStringList = 0x1ebc6b0
    }
  },
  queryCount = 1,
  anchorDistributedTableId = 0,
  anchorShardId = 102654,
  taskPlacementList = 0x1ec0558,
  dependentTaskList = 0x0,
  partitionId = 0,
  upstreamTaskId = 0,
  shardInterval = 0x0,
  assignmentConstrained = false,
  mapJobTargetList = 0x0,
  replicationModel = 105 'i',
  relationRowLockList = 0x0,
  modifyWithSubquery = false,
  relationShardList = 0x1ebd8e8,
  rowValuesLists = 0x0,
  partiallyLocalOrRemote = false,
  parametersInQueryStringResolved = true,
  tupleDest = 0x0,
  totalReceivedTupleData = 0,
  fetchedExplainAnalyzePlan = 0x0,
  fetchedExplainAnalyzePlacementIndex = 0,
  fetchedExplainAnalyzeExecutionDuration = 0,
  isLocalTableModification = false,
  cannotBeExecutedInTransaction = false,
  partitionKeyValue = 0x0,
  colocationId = 0
}

(gdb) tr Task 0x1ebb1b8
$43 = {
  type = {
    extensible = {
      type = T_ExtensibleNode,
      extnodename = 0x7f2a86ca5ea1 "Task"
    },
    citus_tag = T_Task
  },
  taskType = READ_TASK,
  jobId = 27142733692931,
  taskId = 2,
  taskQuery = {
    queryType = TASK_QUERY_TEXT,
    data = {
      jobQueryReferenceForLazyDeparsing = 0x1eba0e0,
      queryStringLazy = 0x1eba0e0 "SELECT device_id, event_id, event_time, data FROM public.events_102680 events WHERE (device_id OPERATOR(pg_catalog.=) ANY ('{11,22,33}'::bigint[]))",
      queryStringList = 0x1eba0e0
    }
  },
  queryCount = 1,
  anchorDistributedTableId = 0,
  anchorShardId = 102680,
  taskPlacementList = 0x1ec05a8,
  dependentTaskList = 0x0,
  partitionId = 0,
  upstreamTaskId = 0,
  shardInterval = 0x0,
  assignmentConstrained = false,
  mapJobTargetList = 0x0,
  replicationModel = 105 'i',
  relationRowLockList = 0x0,
  modifyWithSubquery = false,
  relationShardList = 0x1ebb318,
  rowValuesLists = 0x0,
  partiallyLocalOrRemote = false,
  parametersInQueryStringResolved = true,
  tupleDest = 0x0,
  totalReceivedTupleData = 0,
  fetchedExplainAnalyzePlan = 0x0,
  fetchedExplainAnalyzePlacementIndex = 0,
  fetchedExplainAnalyzeExecutionDuration = 0,
  isLocalTableModification = false,
  cannotBeExecutedInTransaction = false,
  partitionKeyValue = 0x0,
  colocationId = 0
}
相关推荐
李广坤1 天前
MySQL 大表字段变更实践（改名 + 改类型 + 改长度）
数据库
初次攀爬者2 天前
ZooKeeper 实现分布式锁的两种方式
分布式·后端·zookeeper
爱可生开源社区2 天前
2026 年，优秀的 DBA 需要具备哪些素质？
数据库·人工智能·dba
随逸1773 天前
《从零搭建NestJS项目》
数据库·typescript
加号33 天前
windows系统下mysql多源数据库同步部署
数据库·windows·mysql
シ風箏3 天前
MySQL【部署 04】Docker部署 MySQL8.0.32 版本（网盘镜像及启动命令分享）
数据库·mysql·docker
李慕婉学姐3 天前
Springboot智慧社区系统设计与开发6n99s526（程序+源码+数据库+调试部署+开发环境）带论文文档1万字以上，文末可获取，系统界面在最后面。
数据库·spring boot·后端
百锦再3 天前
Django实现接口token检测的实现方案
数据库·python·django·sqlite·flask·fastapi·pip
tryCbest3 天前
数据库SQL学习
数据库·sql
jnrjian3 天前
ORA-01017 查找机器名 用户名 以及library cache lock 参数含义
数据库·oracle
热门推荐
01GitHub 镜像站点02【OpenClaw 本地实战 Ep.3】突破瓶颈：强制修改 openclaw.json 解锁 32k 上下文记忆03OpenClaw 使用和管理 MCP 完全指南04OpenClaw + 飞书（Feishu）环境搭建指南05Clawdbot部署教程：解决‘gateway token missing’授权问题的完整步骤06OpenClaw优化飞书API 额度已耗尽问题07Window 10部署openclaw报错node.exe : npm error code 12808Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services09OpenClaw 接入阿里云百炼 Coding Plan 指南10OpenClaw大龙虾机器人完整安装教程
