实践004-Gitlab CICD部署应用

木二_2025-05-08 15:34

文章目录

Gitlab CICD部署应用

部署设计

对于前后端服务都基于 Kubernetes 进行部署，有关 Kubernetes 安装可以参考： 附042.Kubernetes_v1.33.0生成环境高可用部署方案 。

后端 java 项目部署三套环境，即一套 CI 持续集成环境，一套测试环境，一套生产环境。

同时将每套环境部署在不同的 namespace 下，总体规划如下：

环境 namespace
CI环境 gitlabci
测试环境 gitlabtest
生产环境 gitlabprod

集成Kubernetes

当前 Gitlab 的 runner 是基于 helm 部署 gitla 的同时配套部署的，即 runner 是运行在 Kubernetes 中的一个 Pod，runner 类型是 Kubernetes ，如下所示：

shell 复制代码
root@master01:~# kubectl -n gitlab exec -ti mygitlab-gitlab-runner-798986f578-h2thf -- bash
camygitlab-gitlab-runner-798986f578-h2thf:/$ cat /home/gitlab-runner/.gitlab-runner/config.toml
#......
[[runners]]
#......
  executor = "kubernetes"

因此该 runner 后续需要直接在 Kubernetes 中部署业务，需要安装 kubectl 命令，以及配置 kubeconfig 上下文。

从而需要提前将 kubeconfig 内容以变量形式引入到 runner Pod 中。

shell 复制代码
root@master01:~# echo $(cat ~/.kube/config | base64) | tr -d " "
YXBpVmVyc2lvbjogdjEKY2x1c3RlcnM6Ci0gY2x1c3RlcjoKICA......

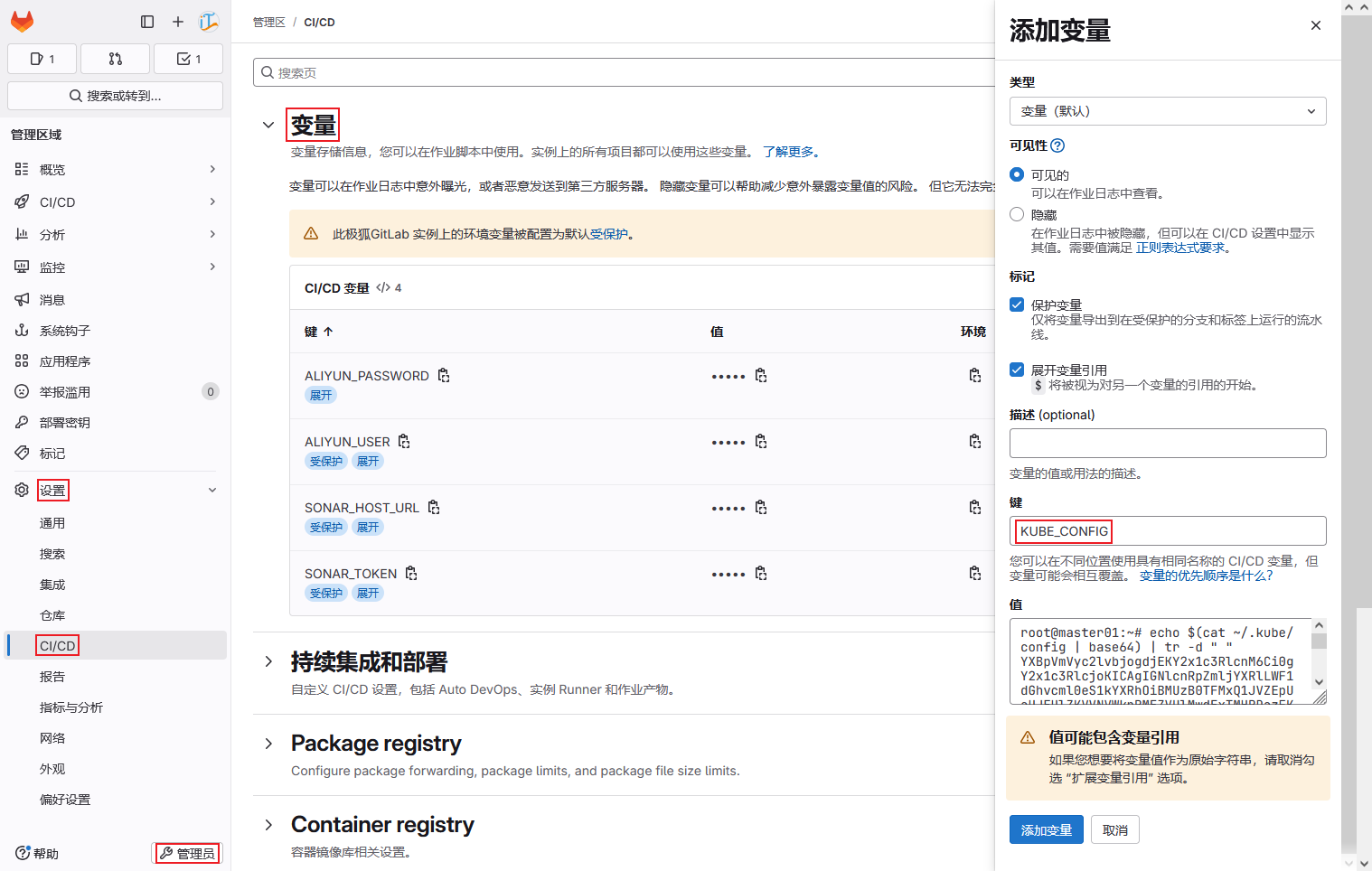

添加变量 KUBE_CONFIG 。

提示：由于后续流水线中作业有 main 和 tag 两种触发方式，因此建议将变量取消受保护。

后端Java项目部署

通过如下 yaml 进行部署。

创建gitlab部署项目

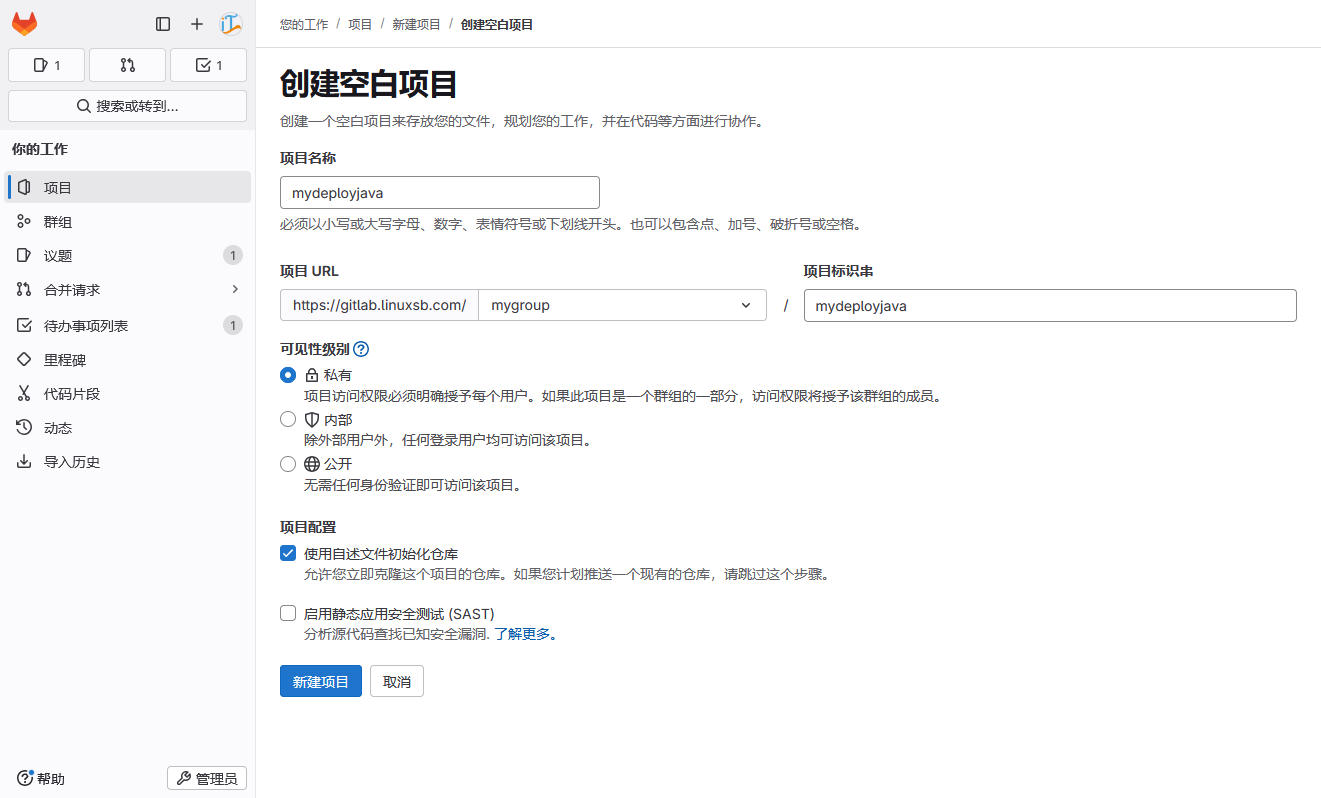

创建部署专用于部署后端 java 应用的 gitlab 项目。

创建部署文件

创建如下 ci 环境部署文件。

bash 复制代码
[root@gitclient ~]# git clone git@gitlab.linuxsb.com:mygroup/mydeployjava.git
[root@gitclient ~]# cd mydeployjava/
[root@gitclient mydeployjava]# vim deployci.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabci

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-apiserver-ci
  namespace: gitlabci
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: apiserver-ci
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: apiserver-ci
    spec:
      containers:
        - name: apiserver-ci
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-apiserver-ci
  namespace: gitlabci
spec:
  ports:
  - nodePort: 32101
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: apiserver-ci
  sessionAffinity: ClientIP
  type: NodePort
  • test部署文件
shell 复制代码
[root@gitclient mydeployjava]# vim deploytest.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabtest

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-apiserver-test
  namespace: gitlabtest
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: apiserver-test
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: apiserver-test
    spec:
      containers:
        - name: apiserver-test
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-apiserver-test
  namespace: gitlabtest
spec:
  ports:
  - nodePort: 32102
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: apiserver-test
  sessionAffinity: ClientIP
  type: NodePort
  • prod部署文件
shell 复制代码
[root@gitclient mydeployjava]# vim deployprod.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabprod

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-apiserver-prod
  namespace: gitlabprod
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: apiserver-prod
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: apiserver-prod
    spec:
      containers:
        - name: apiserver-prod
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /demo/hello
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-apiserver-prod
  namespace: gitlabprod
spec:
  ports:
  - nodePort: 32103
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: apiserver-prod
  sessionAffinity: ClientIP
  type: NodePort
创建流水线

创建如下流水线，基于实践003-Gitlab CICD部署应用 中编译和构建的镜像进行部署。

shell 复制代码
[root@gitclient mydeployjava]# vim .gitlab-ci.yml
stages:
  - deploy
  - check

variables:
  KUBECONFIG: "/.kube/config"

deployciapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - kubectl version
    - mkdir -p /.kube
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/apiservice:${IMAGE_TAG_TO_INSTALL}#g" deployci.yaml
    - kubectl apply -f deployci.yaml || exit 1
  only:
    - main
  tags:
    - study-runner

deploytestapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  when: manual
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/apiservice:${IMAGE_TAG_TO_INSTALL}#g" deploytest.yaml
    - kubectl apply -f deploytest.yaml || exit 1
  only:
    - main
    - tags
  tags:
    - study-runner

deployprodapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/apiservice:${IMAGE_TAG_TO_INSTALL}#g" deployprod.yaml
    - kubectl apply -f deployprod.yaml || exit 1
  only:
    - tags
  tags:
    - study-runner

check_ci_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabci -l app=apiserver-ci --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - main
  needs:
    - deployciapp
  tags:
    - study-runner

check_test_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabtest -l app=apiserver-test --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - main
    - tags
  needs:
    - deploytestapp
  tags:
    - study-runner

check_prod_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabprod -l app=apiserver-prod --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - tags
  needs:
    - deployprodapp
  tags:
    - study-runner
提交流水线
shell 复制代码
[root@gitclient mydeployjava]# git add .
[root@gitclient mydeployjava]# git commit -m  "Deploy java gitlab cici first"
[root@gitclient mydeployjava]# git push origin main

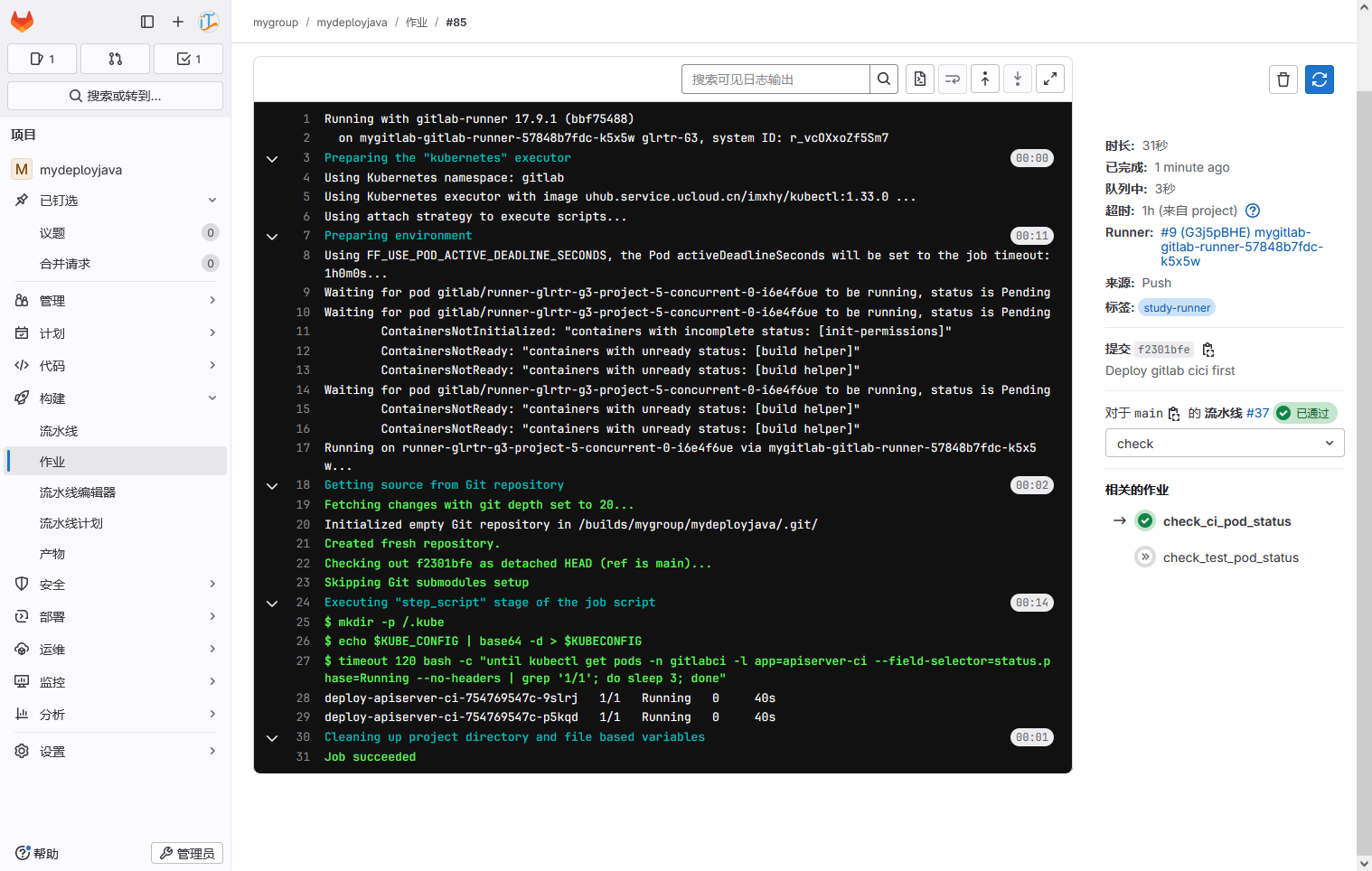

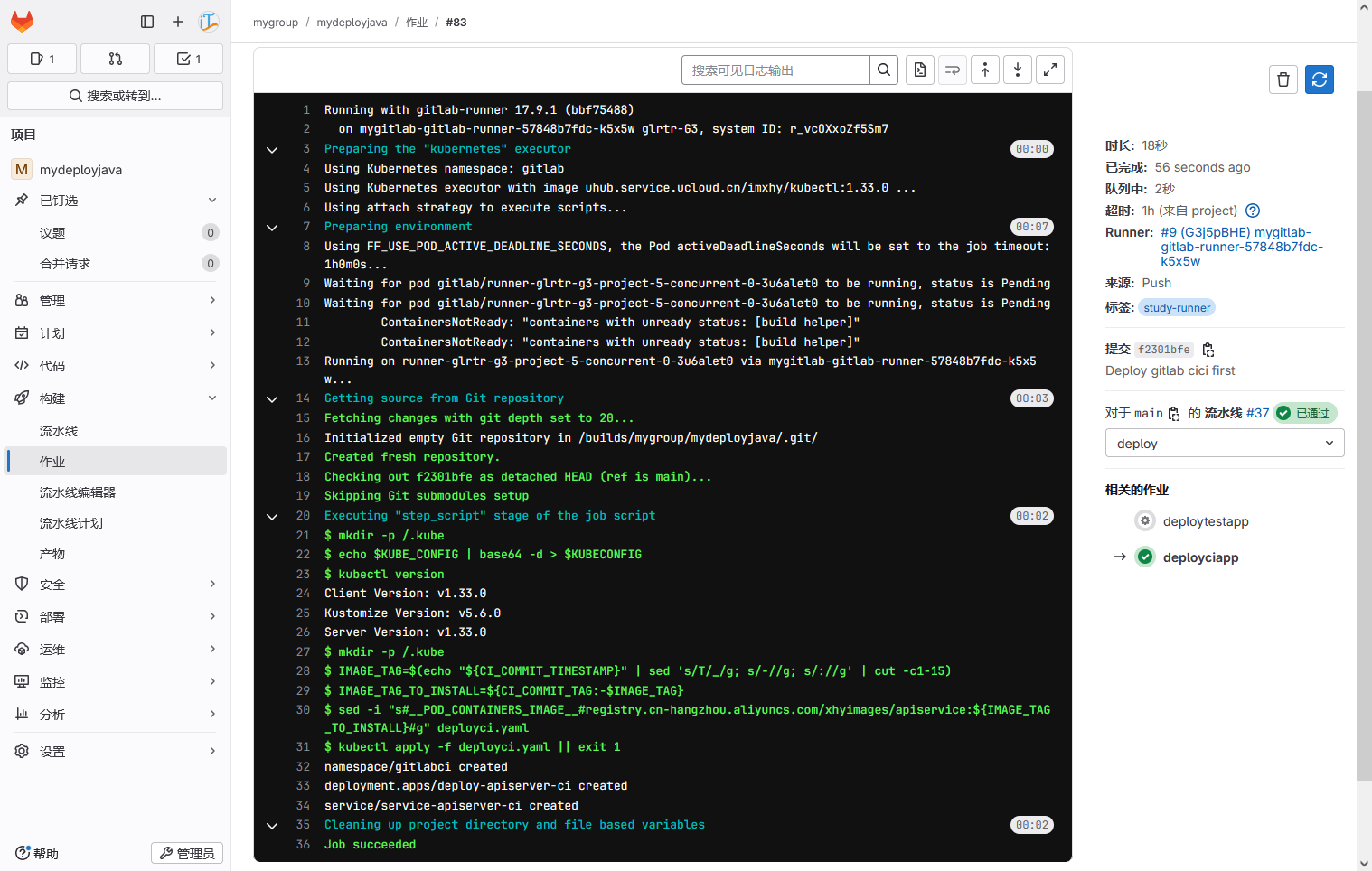

查看流水线。

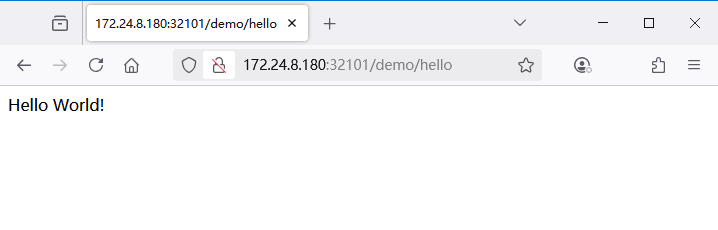

查看部署在 Kubernetes 后的应用，浏览器直接访问： http://172.24.8.180:32101/demo/hello 。

前端Web项目部署

创建gitlab部署项目

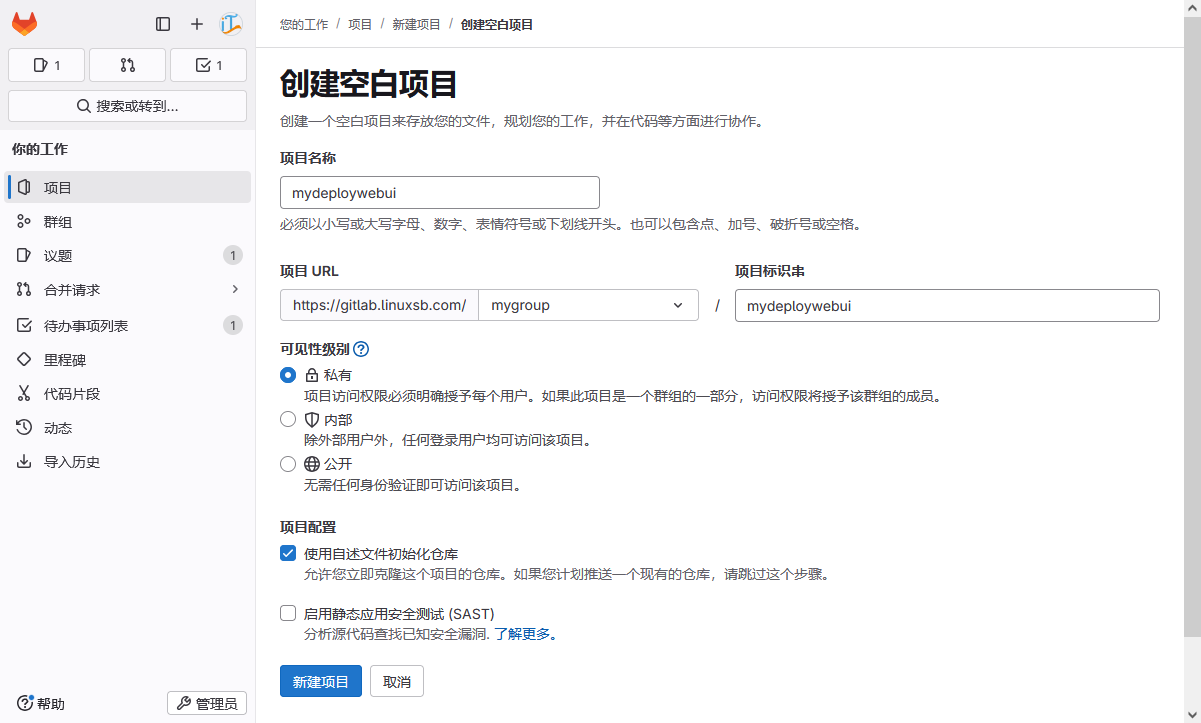

创建部署专用于部署后端 webui 应用的 gitlab 项目。

创建部署文件
bash 复制代码
[root@gitclient ~]# git clone git@gitlab.linuxsb.com:mygroup/mydeploywebui.git
[root@gitclient ~]# cd mydeploywebui/
[root@gitclient mydeploywebui]# vim deployci.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabci

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-webui-ci
  namespace: gitlabci
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: webui-ci
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: webui-ci
    spec:
      containers:
        - name: webui-ci
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-webui-ci
  namespace: gitlabci
spec:
  ports:
  - nodePort: 32111
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: webui-ci
  sessionAffinity: ClientIP
  type: NodePort
  • test部署文件
shell 复制代码
[root@gitclient mydeployjava]# vim deploytest.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabtest

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-webui-test
  namespace: gitlabtest
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: webui-test
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: webui-test
    spec:
      containers:
        - name: webui-test
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-webui-test
  namespace: gitlabtest
spec:
  ports:
  - nodePort: 32112
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: webui-test
  sessionAffinity: ClientIP
  type: NodePort
  • prod部署文件
shell 复制代码
[root@gitclient mydeployjava]# vim deployprod.yaml
---
apiVersion: v1
kind: Namespace
metadata:
  name: gitlabprod

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-webui-prod
  namespace: gitlabprod
spec:
  replicas: 2
  revisionHistoryLimit: 5
  selector:
    matchLabels:
      app: webui-prod
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 25%
      maxSurge: 25%
  template:
    metadata:
      labels:
        app: webui-prod
    spec:
      containers:
        - name: webui-prod
          env:
            - name: TZ
              value: Asia/Shanghai
          image: __POD_CONTAINERS_IMAGE__
          imagePullPolicy: IfNotPresent
          ports:
          - containerPort: 8080
            protocol: TCP
          readinessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: /
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10

---
apiVersion: v1
kind: Service
metadata:
  name: service-webui-prod
  namespace: gitlabprod
spec:
  ports:
  - nodePort: 32113
    port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: webui-prod
  sessionAffinity: ClientIP
  type: NodePort
创建流水线

创建如下流水线。

shell 复制代码
[root@gitclient mydeploywebui]# vim .gitlab-ci.yml
stages:
  - deploy
  - check

variables:
  KUBECONFIG: "/.kube/config"

deployciapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - kubectl version
    - mkdir -p /.kube
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/webui:${IMAGE_TAG_TO_INSTALL}#g" deployci.yaml
    - kubectl apply -f deployci.yaml || exit 1
  only:
    - main
  tags:
    - study-runner

deploytestapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  when: manual
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/webui:${IMAGE_TAG_TO_INSTALL}#g" deploytest.yaml
    - kubectl apply -f deploytest.yaml || exit 1
  only:
    - main
    - tags
  tags:
    - study-runner

deployprodapp:
  stage: deploy
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - IMAGE_TAG=$(echo "${CI_COMMIT_TIMESTAMP}" | sed 's/T/_/g; s/-//g; s/://g' | cut -c1-15)
    - IMAGE_TAG_TO_INSTALL=${CI_COMMIT_TAG:-$IMAGE_TAG}
    - sed -i "s#__POD_CONTAINERS_IMAGE__#registry.cn-hangzhou.aliyuncs.com/xhyimages/webui:${IMAGE_TAG_TO_INSTALL}#g" deployprod.yaml
    - kubectl apply -f deployprod.yaml || exit 1
  only:
    - tags
  tags:
    - study-runner

check_ci_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabci -l app=webui-ci --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - main
  needs:
    - deployciapp
  tags:
    - study-runner

check_test_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabtest -l app=webui-test --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - main
    - tags
  needs:
    - deploytestapp
  tags:
    - study-runner

check_prod_pod_status:
  stage: check
  image: uhub.service.ucloud.cn/imxhy/kubectl:1.33.0
  script:
    - mkdir -p /.kube
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - timeout 120 bash -c "until kubectl get pods -n gitlabprod -l app=webui-prod --field-selector=status.phase=Running --no-headers | grep '1/1'; do sleep 3; done"
  only:
    - tags
  needs:
    - deployprodapp
  tags:
    - study-runner
提交流水线
shell 复制代码
[root@gitclient mydeploywebui]# git add .
[root@gitclient mydeploywebui]# git commit -m  "Deploy webui gitlab cici first"
[root@gitclient mydeploywebui]# git push origin main

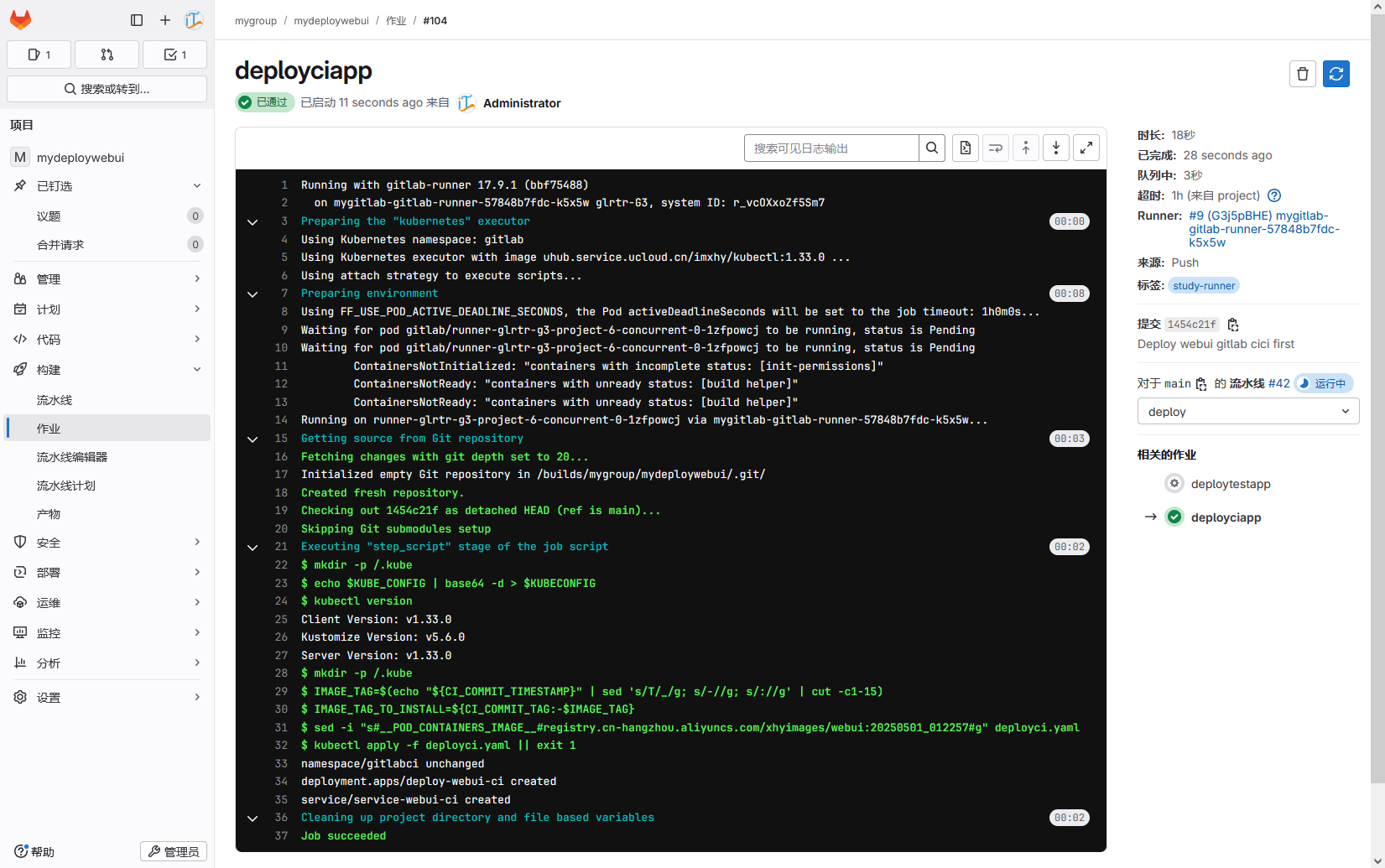

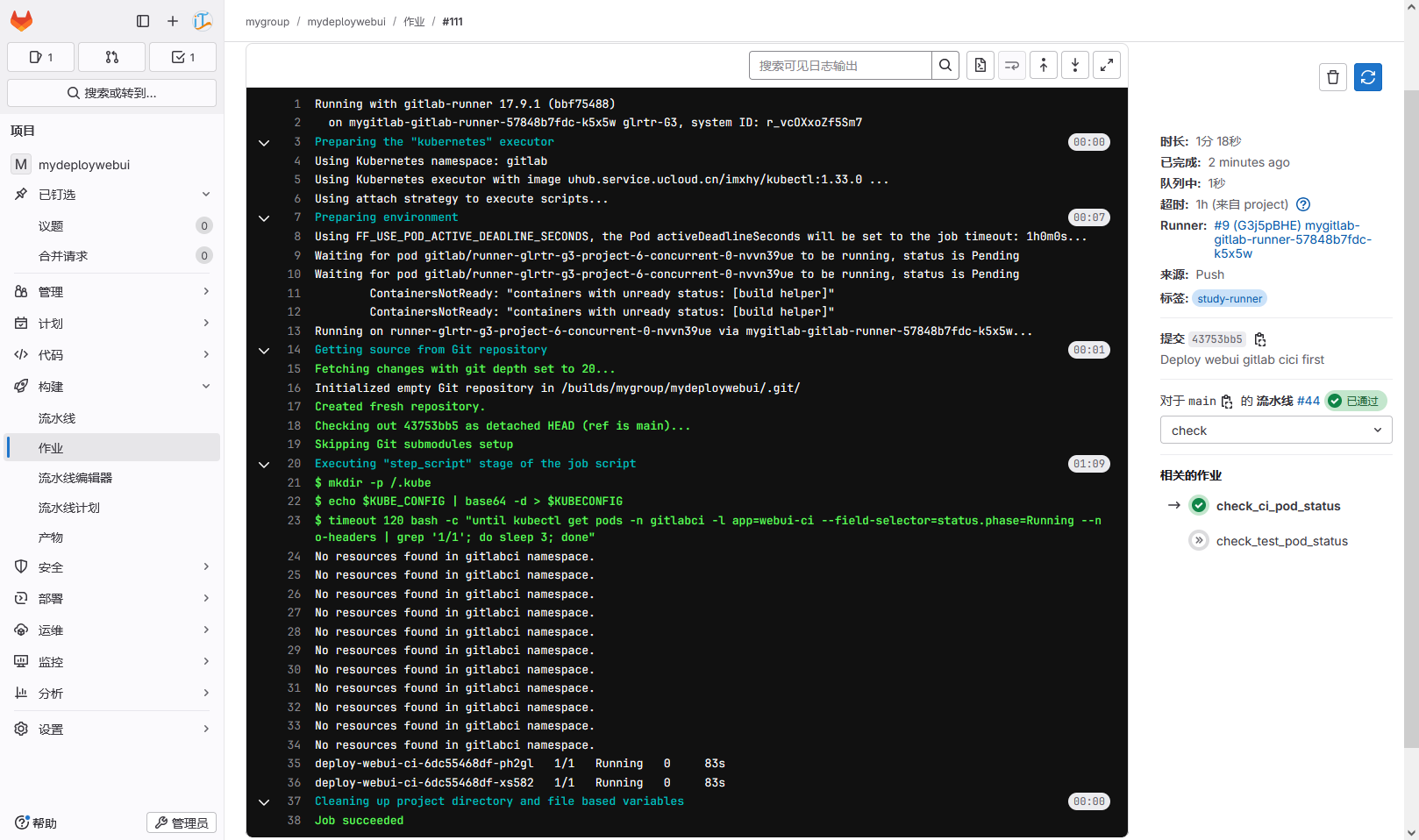

查看流水线。

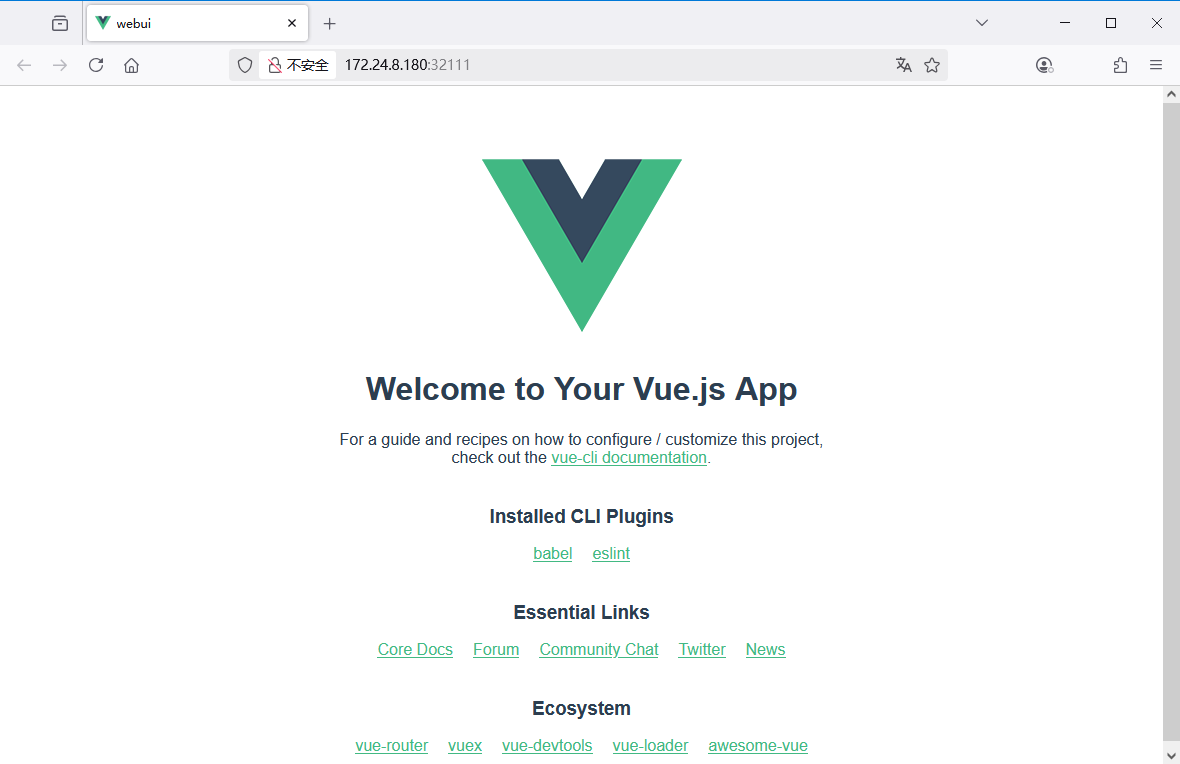

查看部署在 Kubernetes 后的应用，浏览器直接访问： http://172.24.8.180:32111 。

相关推荐
_运维那些事儿15 小时前
VM环境的CI/CD
linux·运维·网络·阿里云·ci/cd·docker·云计算
木童66220 小时前
Ruo-Yi 项目 CI/CD 详细部署文档
ci/cd
明月心95221 小时前
git remote add 用法
gitlab
爬山算法1 天前
Hibernate（85）如何在持续集成/持续部署（CI/CD）中使用Hibernate？
java·ci/cd·hibernate
吹牛不交税1 天前
gitea安装windows并实现CICD持续集成部署
ci/cd·gitea
only_Klein1 天前
jenkins流水线报错：Connection reset by peer
ci/cd·kubernetes·gitlab·jenkins·ssl
_运维那些事儿1 天前
skywalking链路追踪
java·运维·ci/cd·软件构建·skywalking·devops
学嵌入式的小杨同学2 天前
从零打造 Linux 终端 MP3 播放器！用 C 语言实现音乐自由
linux·c语言·开发语言·前端·vscode·ci/cd·vim
小魏小魏我们去那里呀2 天前
Alibaba Cloud DevOps Integration For JetBrains 插件使用指南
ide·阿里云·devops·jetbrains
爬山算法2 天前
Hibernate（84）如何在DevOps流程中使用Hibernate？
oracle·hibernate·devops
热门推荐
01GitHub 镜像站点02Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services03使用 1panel面板 部署 php网站04Vue-skills的中文文档05OpenClaw Chrome扩展使用教程 - 浏览器中继控制06让 Trae IDE 智能体 “读懂”文档 Excel+PDF+DOCX ：mcp-documents-reader 工具使用指南07从零搭建一个 PHP 登录注册系统（含完整源码）08UV安装并设置国内源09Linux下V2Ray安装配置指南10一文了解国产算子编程语言 TileLang，TileLang 对国产开源生态的影响与启示
