前言

SIMT和SIMD

CUDA执行的是SIMT架构(单指令多线程架构),SIMT和SIMD(Single Instruction, Multiple Data)类似,SIMT应该算是SIMD的升级版,更灵活,但效率略低,SIMT是NVIDIA提出的GPU新概念。二者都通过将同样的指令广播给多个执行官单元来实现并行。一个主要的不同就是,SIMD要求所有的vector element在一个统一的同步组里同步的执行,而SIMT允许线程们在一个warp中独立的执行。

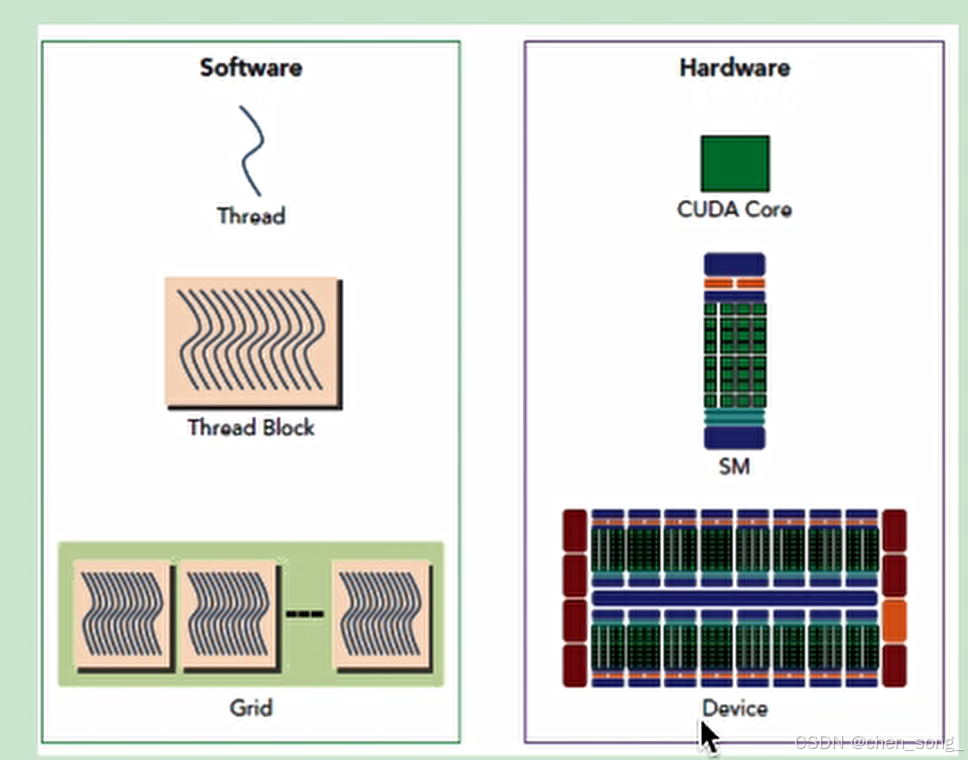

一、介绍CUDA编程的并行原理,了解线程、线程块、网格等概念,了解CUDA的同步机制

基于硬件的支持,通过cuda来实现对底层GPU的调用,关于这部分内容,首先需要熟悉一些关键名词。

thread:一个CUDA的并行程序会被以许多个thread来执行,每个thread都有自己的register 和 local memory 的空间。

block:数个thread会组成一个block,同一个block中的thread可以同步运行,他们通过shared memory来进行通信。

grid:多个block则会再构成grid,每个grid会有自己的global memory、constant memory 和 texture memory。

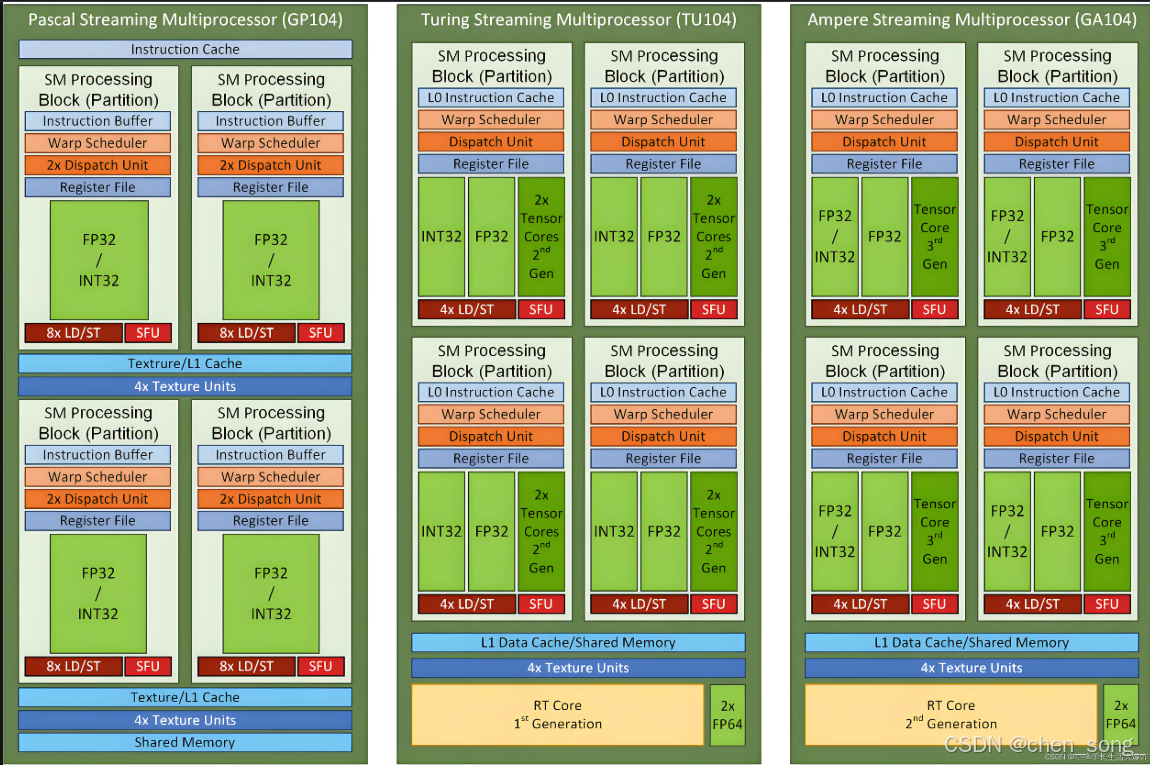

warp:warp是SM的基本执行单元,一个block里面的线程,通过warp进行调用,使用SIMT模式。如A100机器,每个warp可以执行32个thread。

javascript 复制代码
....
// 2D
   int thread = 16;
 	int grid = (numRows()*numCols() + thread - 1)/ (thread * thread);
 	const dim3 blockSize(thread, thread);
 	const dim3 gridSize(grid);
 	rgba_to_greyscale<<<gridSize, blockSize>>>(d_rgbaImage, d_greyImage, numRows(), numCols());
.....

blockSize(线程块尺寸)‌

类型为dim3,表示每个线程块包含的线程数量13

在示例中dim3 blockSize(thread, thread)创建了二维线程块,每块包含thread×thread个线程5

每个线程块最大线程数限制为102457

同一线程块内的线程可通过共享内存通信

gridSize(网格尺寸)‌

类型为dim3,表示网格中包含的线程块数量

在示例中dim3 gridSize(grid)创建了一维网格,包含grid个线程块3

最大网格维度为65535(x/y/z方向)

‌执行配置<<<gridSize, blockSize>>>‌

该语法指定核函数启动时的并行执行结构35

总线程数 = gridSize.x * gridSize.y * gridSize.z * blockSize.x * blockSize.y * blockSize.z13

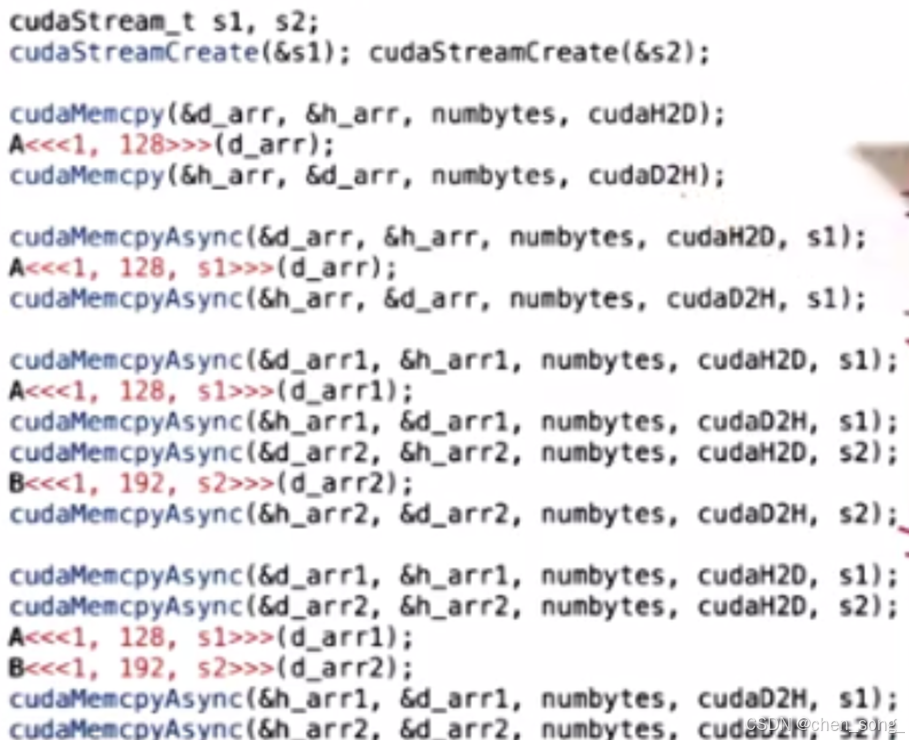

二、CUDA流的应用:CUDASTREAM,CUDA流的使用、同步,用CUDA流完成矩阵运算

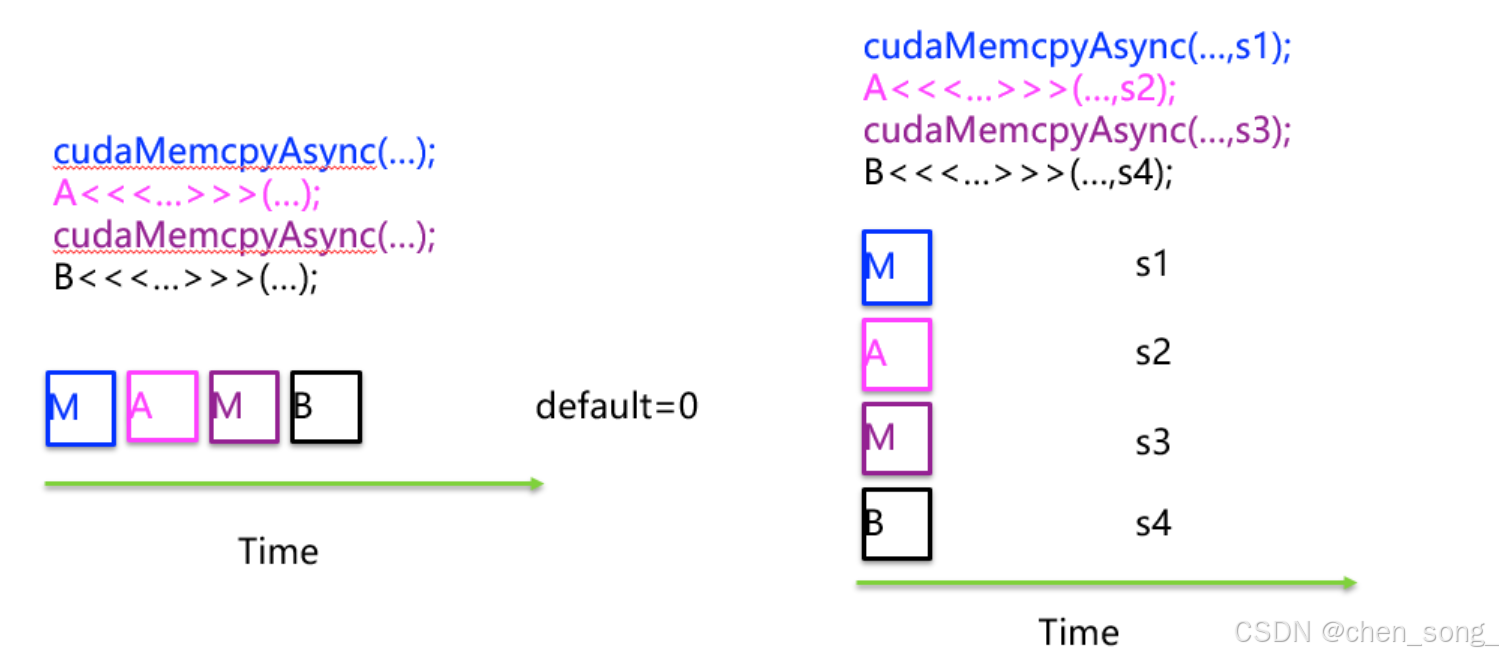

1 流Streams在GPU上按顺序的操作

  1. 定义流
  2. 创建流
  3. 使用流
  4. 销毁流
javascript 复制代码
//1. 定义流
 cudaStream_t s1;
 //2. 创建流
 cudaStreamCreate(&s1);
 //3. 使用流
 cudaMemcpyAsync(...., s1);
 //4. 销毁流
 cudaStreamDestroy(s1);

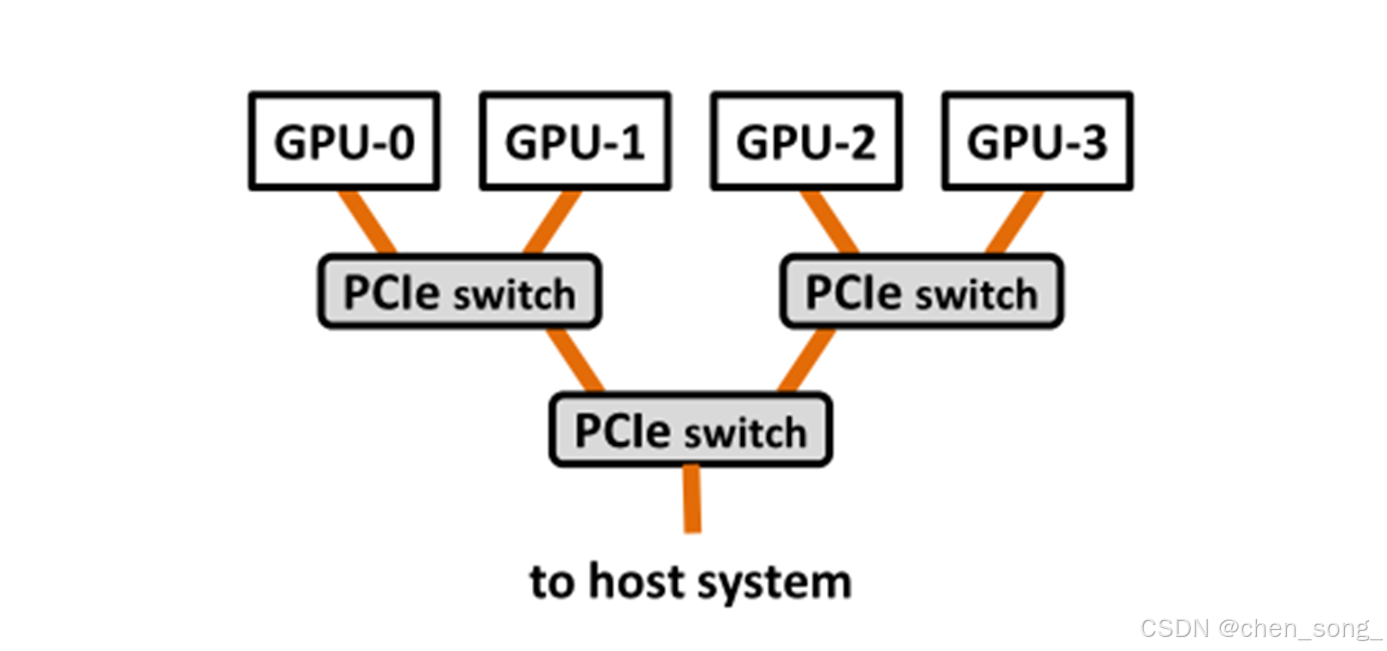

2 多GPU 编码

  • 两个GPU之间数据访问是通过PCIe
javascript 复制代码
  int gpu1 = 0;

 int gpu2 = 1;
 void* d_A = NULL;
 //1. 设置当前使用gpu索引id
 cudaSetDevice(gpu1);
 cudaMalloc(&d_A, 1024);
 int accessible = 0;
 cudaDeviceCanAccessPeer(&accessible, gpu1, gpu2);
 if (accessible)
 {
     cudaSetDevice(gpu2);
     //设置gpu2 可以访问gpu1的内存地址
     cudaDeviceEnablePeerAccess(gpu1, 0);
     // kernel<<<x, y, z>>>核心函数
 }
  • 两个GPU设备之间的数据拷贝函数 字节

cudaMemcpyPeerAsync(void* dst, int dstDevice, const void* src, int srcDevice, size_t count, cudaStream_t stream );

  1. 如果两个设备允许字节在最短的PCIe路径PCIe路径上传输
  2. 如果两个设备不允许CUDA驱动通过CPU驱动通过CPU memory传输
javascript 复制代码
CUDA Device Query (Runtime API) version (CUDART static linking)

Detected 1 CUDA Capable device(s)

Device 0: "NVIDIA GeForce MX150"
  CUDA Driver Version / Runtime Version          12.9 / 12.9
  CUDA Capability Major/Minor version number:    6.1
  Total amount of global memory:                 2048 MBytes (2147352576 bytes)
MapSMtoCores for SM 6.1 is undefined.  Default to use 192 Cores/SM
MapSMtoCores for SM 6.1 is undefined.  Default to use 192 Cores/SM
  ( 3) Multiprocessors x (192) CUDA Cores/MP:    576 CUDA Cores
  GPU Clock rate:                                1532 MHz (1.53 GHz)
  Memory Clock rate:                             3004 Mhz
  Memory Bus Width:                              64-bit
  L2 Cache Size:                                 524288 bytes
  Max Texture Dimension Size (x,y,z)             1D=(131072), 2D=(131072,65536), 3D=(16384,16384,16384)
  Max Layered Texture Size (dim) x layers        1D=(32768) x 2048, 2D=(32768,32768) x 2048
  Total amount of constant memory:               65536 bytes
  Total amount of shared memory per block:       49152 bytes
  Total number of registers available per block: 65536
  Warp size:                                     32
  Maximum number of threads per multiprocessor:  2048
  Maximum number of threads per block:           1024
  Maximum sizes of each dimension of a block:    1024 x 1024 x 64
  Maximum sizes of each dimension of a grid:     2147483647 x 65535 x 65535
  Maximum memory pitch:                          2147483647 bytes
  Texture alignment:                             512 bytes
  Concurrent copy and kernel execution:          Yes with 5 copy engine(s)
  Run time limit on kernels:                     Yes
  Integrated GPU sharing Host Memory:            No
  Support host page-locked memory mapping:       Yes
  Alignment requirement for Surfaces:            Yes
  Device has ECC support:                        Disabled
  Device supports Unified Addressing (UVA):      Yes
  Device PCI Bus ID / PCI location ID:           2 / 0
  Compute Mode:
     < Default (multiple host threads can use ::cudaSetDevice() with device simultaneously) >

deviceQuery, CUDA Driver = CUDART, CUDA Driver Version = 12.9, CUDA Runtime Version = 12.9, NumDevs = 1, Device0 = NVIDIA GeForce MX150

总结

CUDA项目源码地址:https://github.com/chensongpoixs/ccuda
