复习日
**作业：**day43的时候我们安排大家对自己找的数据集用简单cnn训练，现在可以尝试下借助这几天的知识来实现精度的进一步提高
还是继续用上次的街头食物分类数据集，既然已经统一图片尺寸到了140x140，所以这次选用轻量化模型 MobileNetV3 ，问就是这个尺寸的图片可以直接进入这个模型训练，而且轻量化训练参数还更少，多是一件美事啊（
前面预处理和数据加载还是和之前一样的
python
import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
import torchvision.models as models
from torch.utils.data import Dataset, DataLoader, random_split
from PIL import Image
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import os
# 设置中文字体支持
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams['axes.unicode_minus'] = False # 解决负号显示问题
# 检查GPU是否可用
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"使用设备: {device}")
python
# 1. 数据预处理
# 图像尺寸统一成140x140
class PhotoResizer:
def __init__(self, target_size=140, fill_color=114): # target_size: 目标正方形尺寸，fill_color: 填充使用的灰度值
self.target_size = target_size
self.fill_color = fill_color
# 预定义转换方法
self.to_tensor = transforms.ToTensor()
self.normalize = transforms.Normalize(
mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]
)
def __call__(self, img):
"""
智能处理流程：
1. 对小图像进行填充，对大图像进行智能裁剪
2. 保持长宽比的情况下进行保护性处理
"""
w, h = img.size
if w == h == self.target_size: # 情况1：已经是目标尺寸
pass # 无需处理
elif min(w, h) < self.target_size: # 情况2：至少有一个维度小于目标尺寸（需要填充）
img = self.padding_resize(img)
else: # 情况3：两个维度都大于目标尺寸（智能裁剪）
img = self.crop_resize(img)
# 最终统一转换
return self.normalize(self.to_tensor(img))
def padding_resize(self, img): # 等比缩放后居中填充不足部分
w, h = img.size
scale = self.target_size / min(w, h)
new_w, new_h = int(w * scale), int(h * scale)
img = img.resize((new_w, new_h), Image.BILINEAR)
# 等比缩放 + 居中填充
# 计算需要填充的像素数（4个值：左、上、右、下）
pad_left = (self.target_size - new_w) // 2
pad_top = (self.target_size - new_h) // 2
pad_right = self.target_size - new_w - pad_left
pad_bottom = self.target_size - new_h - pad_top
return transforms.functional.pad(img, [pad_left, pad_top, pad_right, pad_bottom], self.fill_color)
def crop_resize(self, img): # 等比缩放后中心裁剪
w, h = img.size
ratio = w / h
# 计算新尺寸（保护长边）
if ratio < 0.9: # 竖图
new_size = (self.target_size, int(h * self.target_size / w))
elif ratio > 1.1: # 横图
new_size = (int(w * self.target_size / h), self.target_size)
else: # 近似正方形
new_size = (self.target_size, self.target_size)
img = img.resize(new_size, Image.BILINEAR)
return transforms.functional.center_crop(img, self.target_size)
# 训练集测试集预处理
train_transform = transforms.Compose([
PhotoResizer(target_size=140), # 自动处理所有情况
transforms.RandomHorizontalFlip(), # 随机水平翻转图像（概率0.5）
transforms.ColorJitter(brightness=0.2, contrast=0.2, saturation=0.2, hue=0.1), # 随机颜色抖动：亮度、对比度、饱和度和色调随机变化
transforms.RandomRotation(15), # 随机旋转图像（最大角度15度）
])
test_transform = transforms.Compose([
PhotoResizer(target_size=140)
])
python
# 2. 创建dataset和dataloader实例
class StreetFoodDataset(Dataset):
def __init__(self, root_dir, transform=None):
self.root_dir = root_dir
self.transform = transform
self.image_paths = []
self.labels = []
self.class_to_idx = {}
# 遍历目录获取类别映射
classes = sorted(entry.name for entry in os.scandir(root_dir) if entry.is_dir())
self.class_to_idx = {cls_name: i for i, cls_name in enumerate(classes)}
# 收集图像路径和标签
for class_name in classes:
class_dir = os.path.join(root_dir, class_name)
for img_name in os.listdir(class_dir):
if img_name.lower().endswith(('.png', '.jpg', '.jpeg')):
self.image_paths.append(os.path.join(class_dir, img_name))
self.labels.append(self.class_to_idx[class_name])
def __len__(self):
return len(self.image_paths)
def __getitem__(self, idx):
img_path = self.image_paths[idx]
image = Image.open(img_path).convert('RGB')
label = self.labels[idx]
if self.transform:
image = self.transform(image)
return image, label
# 数据集路径（Kaggle路径示例）
dataset_path = '/kaggle/input/popular-street-foods/popular_street_foods/dataset'
# 创建数据集实例
# 先创建基础数据集
full_dataset = StreetFoodDataset(root_dir=dataset_path)
# 分割数据集
train_size = int(0.8 * len(full_dataset))
test_size = len(full_dataset) - train_size
train_dataset, test_dataset = random_split(full_dataset, [train_size, test_size])
train_dataset.dataset.transform = train_transform
test_dataset.dataset.transform = test_transform
# 创建数据加载器
train_loader = DataLoader(
train_dataset,
batch_size=32,
shuffle=True,
num_workers=2,
pin_memory=True
)
test_loader = DataLoader(
test_dataset,
batch_size=32,
shuffle=False,
num_workers=2,
pin_memory=True
)CBAM模块定义
python
# 3. CBAM模块定义
# 定义通道注意力
class ChannelAttention(nn.Module):
def __init__(self, in_channels, ratio=16):
"""
通道注意力机制初始化
参数:
in_channels: 输入特征图的通道数
ratio: 降维比例，用于减少参数量
"""
super().__init__()
# 全局平均池化，将每个通道的特征图压缩为1x1，保留通道间的平均值信息
self.avg_pool = nn.AdaptiveAvgPool2d(1)
# 全局最大池化，将每个通道的特征图压缩为1x1，保留通道间的最显著特征
self.max_pool = nn.AdaptiveMaxPool2d(1)
# 共享全连接层，用于学习通道间的关系
# 先降维（除以ratio），再通过ReLU激活，最后升维回原始通道数
self.ratio = max(4, in_channels // ratio) # 确保至少降维到4
self.fc = nn.Sequential(
nn.Linear(in_channels, self.ratio, bias=False), # 降维层
nn.ReLU(), # 非线性激活函数
nn.Linear(self.ratio, in_channels, bias=False) # 升维层
)
# Sigmoid函数将输出映射到0-1之间，作为各通道的权重
self.sigmoid = nn.Sigmoid()
def forward(self, x):
"""
前向传播函数
参数:
x: 输入特征图，形状为 [batch_size, channels, height, width]
返回:
调整后的特征图，通道权重已应用
"""
# 获取输入特征图的维度信息，这是一种元组的解包写法
b, c, h, w = x.shape
# 对平均池化结果进行处理：展平后通过全连接网络
avg_out = self.fc(self.avg_pool(x).view(b, c))
# 对最大池化结果进行处理：展平后通过全连接网络
max_out = self.fc(self.max_pool(x).view(b, c))
# 将平均池化和最大池化的结果相加并通过sigmoid函数得到通道权重
attention = self.sigmoid(avg_out + max_out).view(b, c, 1, 1)
# 将注意力权重与原始特征相乘，增强重要通道，抑制不重要通道
return x * attention #这个运算是pytorch的广播机制
# 空间注意力模块
class SpatialAttention(nn.Module):
def __init__(self, kernel_size=7):
super().__init__()
self.conv = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
# 通道维度池化
avg_out = torch.mean(x, dim=1, keepdim=True) # 平均池化：(B,1,H,W)
max_out, _ = torch.max(x, dim=1, keepdim=True) # 最大池化：(B,1,H,W)
pool_out = torch.cat([avg_out, max_out], dim=1) # 拼接：(B,2,H,W)
attention = self.conv(pool_out) # 卷积提取空间特征
return x * self.sigmoid(attention) # 特征与空间权重相乘
# CBAM模块
class CBAM(nn.Module):
def __init__(self, in_channels, ratio=16, kernel_size=7):
super().__init__()
self.channel_attn = ChannelAttention(in_channels, ratio)
self.spatial_attn = SpatialAttention(kernel_size)
def forward(self, x):
x = self.channel_attn(x)
x = self.spatial_attn(x)
return x在模型修改这一部分，原先构想的是在每一个残差块后面都加入CBAM模块，但是 MobileNetV3 有十五个残差块啊，当时没有想到这样操作铁定会造成过拟合，训练集准确旅奇高但测试集准确率简直一坨
最后是考虑在第3、6、9、12、15个残差块后面插入CBAM模块，情况确实改善了很多
python
# 4. 插入CBAM的MobileNetV3-large模型定义修改
from torchvision.models.mobilenetv3 import InvertedResidual
class MobileNetV3_CBAM(nn.Module):
def __init__(self, num_classes=20, pretrained=True, cbam_ratio=None, cbam_kernel=7):
super().__init__()
# 加载预训练模型
self.backbone = models.mobilenet_v3_large(pretrained=True)
# 首层输入不用改，这个网络本就匹配140x140
# 残差块太多了，在3、6、9、12、15个残差块后面插入CBAM模块
self.cbam_layers = nn.ModuleDict()
self.cbam_positions = [3, 6, 9, 12, 15]
cbam_count = 0
for idx, layer in enumerate(self.backbone.features):
if isinstance(layer, InvertedResidual):
if cbam_count in self.cbam_positions:
# 获取当前层的实际输出通道数
out_channels = layer.block[-1].out_channels # 取最后一个卷积的输出通道
self.cbam_layers[f"cbam_{idx}"] = CBAM(out_channels)
cbam_count += 1
# 修改分类头
self.backbone.classifier = nn.Sequential(
nn.Linear(960, 1280), # MobileNetV3-Large的倒数第二层维度
nn.Hardswish(),
nn.Dropout(0.2),
nn.Linear(1280, num_classes)
)
def forward(self, x):
# 提取特征
cbam_count = 0
for idx, layer in enumerate(self.backbone.features):
x = layer(x)
if isinstance(layer, InvertedResidual):
if cbam_count in self.cbam_positions:
x = self.cbam_layers[f"cbam_{idx}"](x)
cbam_count += 1
# 全局池化和分类
x = torch.mean(x, dim=[2, 3]) # 替代AdaptiveAvgPool2d
x = self.backbone.classifier(x)
return x训练部分依旧采用之前的分段微调和学习率调整
python
import time
# ======================================================================
# 5. 结合了分阶段策略和详细打印的训练函数
# ======================================================================
def set_trainable_layers(model, trainable_parts):
print(f"\n---> 解冻以下部分并设为可训练: {trainable_parts}")
for name, param in model.named_parameters():
param.requires_grad = False
for part in trainable_parts:
if part in name:
param.requires_grad = True
break
def train_staged_finetuning(model, criterion, train_loader, test_loader, device, epochs):
optimizer = None
# 初始化历史记录列表，与你的要求一致
all_iter_losses, iter_indices = [], []
train_acc_history, test_acc_history = [], []
train_loss_history, test_loss_history = [], []
for epoch in range(1, epochs + 1):
epoch_start_time = time.time()
# --- 动态调整学习率和冻结层 ---
if epoch == 1:
print("\n" + "="*50 + "\n **阶段 1：训练注意力模块和分类头**\n" + "="*50)
set_trainable_layers(model, ["cbam_layers", "backbone.classifier"])
optimizer = optim.Adam(filter(lambda p: p.requires_grad, model.parameters()), lr=1e-4, weight_decay=1e-4)
elif epoch == 6:
print("\n" + "="*50 + "\n **阶段 2：解冻高层特征提取层**\n" + "="*50)
set_trainable_layers(model, ["cbam_layers", "backbone.classifier", "backbone.features.16", "backbone.features.17"])
optimizer = optim.Adam(filter(lambda p: p.requires_grad, model.parameters()), lr=5e-5, weight_decay=1e-4)
elif epoch == 21:
print("\n" + "="*50 + "\n **阶段 3：解冻所有层，进行全局微调**\n" + "="*50)
for param in model.parameters(): param.requires_grad = True
optimizer = optim.Adam(model.parameters(), lr=1e-5, weight_decay=1e-4)
# --- 训练循环 ---
model.train()
running_loss, correct, total = 0.0, 0, 0
for batch_idx, (data, target) in enumerate(train_loader):
data, target = data.to(device), target.to(device)
optimizer.zero_grad()
output = model(data)
loss = criterion(output, target)
loss.backward()
optimizer.step()
# 记录每个iteration的损失
iter_loss = loss.item()
all_iter_losses.append(iter_loss)
iter_indices.append((epoch - 1) * len(train_loader) + batch_idx + 1)
running_loss += iter_loss
_, predicted = output.max(1)
total += target.size(0)
correct += predicted.eq(target).sum().item()
# 按你的要求，每100个batch打印一次
if (batch_idx + 1) % 100 == 0:
print(f'Epoch: {epoch}/{epochs} | Batch: {batch_idx+1}/{len(train_loader)} '
f'| 单Batch损失: {iter_loss:.4f} | 累计平均损失: {running_loss/(batch_idx+1):.4f}')
epoch_train_loss = running_loss / len(train_loader)
epoch_train_acc = 100. * correct / total
train_loss_history.append(epoch_train_loss)
train_acc_history.append(epoch_train_acc)
# --- 测试循环 ---
model.eval()
test_loss, correct_test, total_test = 0, 0, 0
with torch.no_grad():
for data, target in test_loader:
data, target = data.to(device), target.to(device)
output = model(data)
test_loss += criterion(output, target).item()
_, predicted = output.max(1)
total_test += target.size(0)
correct_test += predicted.eq(target).sum().item()
epoch_test_loss = test_loss / len(test_loader)
epoch_test_acc = 100. * correct_test / total_test
test_loss_history.append(epoch_test_loss)
test_acc_history.append(epoch_test_acc)
# 打印每个epoch的最终结果
print(f'Epoch {epoch}/{epochs} 完成 | 耗时: {time.time() - epoch_start_time:.2f}s | 训练准确率: {epoch_train_acc:.2f}% | 测试准确率: {epoch_test_acc:.2f}%')
# 训练结束后调用绘图函数
print("\n训练完成! 开始绘制结果图表...")

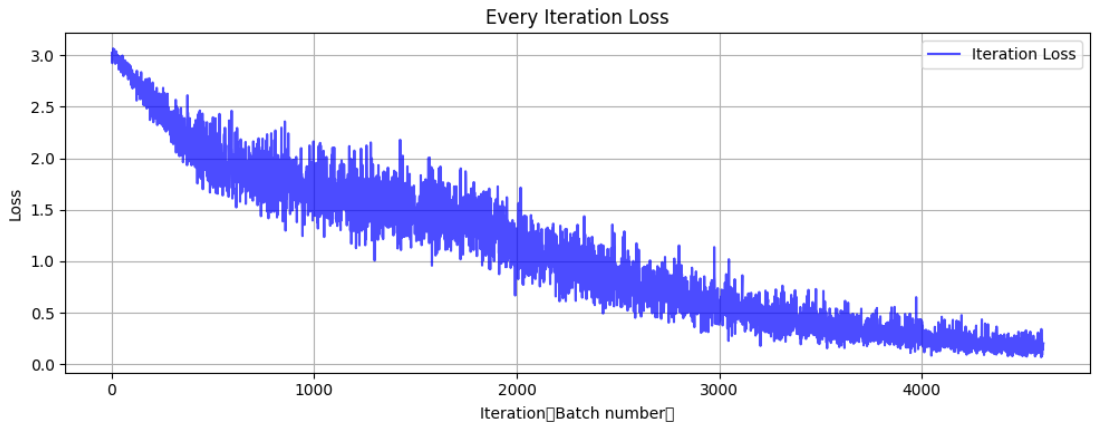

plot_iter_losses(all_iter_losses, iter_indices)

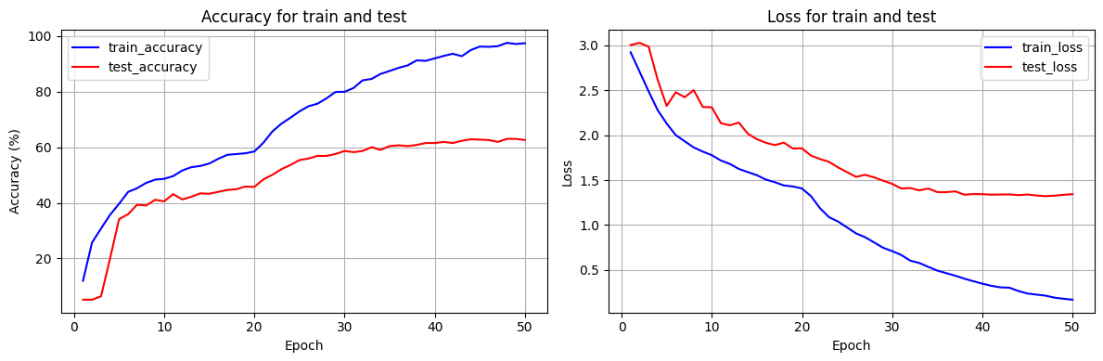

plot_epoch_metrics(train_acc_history, test_acc_history, train_loss_history, test_loss_history)
# 返回最终的测试准确率
return epoch_test_acc
# ======================================================================
# 6. 绘图函数定义
# ======================================================================
def plot_iter_losses(losses, indices):
plt.figure(figsize=(10, 4))
plt.plot(indices, losses, 'b-', alpha=0.7, label='Iteration Loss')
plt.xlabel('Iteration（Batch number）')
plt.ylabel('Loss')
plt.title('Every Iteration Loss')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
def plot_epoch_metrics(train_acc, test_acc, train_loss, test_loss):
epochs = range(1, len(train_acc) + 1)
plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(epochs, train_acc, 'b-', label='train_accuracy')
plt.plot(epochs, test_acc, 'r-', label='test_accuracy')
plt.xlabel('Epoch')
plt.ylabel('Accuracy (%)')
plt.title('Accuracy for train and test')
plt.legend(); plt.grid(True)
plt.subplot(1, 2, 2)
plt.plot(epochs, train_loss, 'b-', label='train_loss')
plt.plot(epochs, test_loss, 'r-', label='test_loss')
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.title('Loss for train and test')
plt.legend(); plt.grid(True)
plt.tight_layout()
plt.show()
# ======================================================================
# 7. 执行训练
# ======================================================================
model = MobileNetV3_CBAM().to(device)
criterion = nn.CrossEntropyLoss()
epochs = 50
print("开始使用带分阶段微调策略的MobileNetV3+CBAM模型进行训练...")
final_accuracy = train_staged_finetuning(model, criterion, train_loader, test_loader, device, epochs)
print(f"训练完成！最终测试准确率: {final_accuracy:.2f}%")结果也还将就吧
python
开始使用带分阶段微调策略的MobileNetV3+CBAM模型进行训练...
==================================================
**阶段 1：训练注意力模块和分类头**
==================================================
---> 解冻以下部分并设为可训练: ['cbam_layers', 'backbone.classifier']
Epoch 1/50 完成 | 耗时: 7.65s | 训练准确率: 11.98% | 测试准确率: 5.17%
Epoch 2/50 完成 | 耗时: 4.51s | 训练准确率: 25.72% | 测试准确率: 5.17%
Epoch 3/50 完成 | 耗时: 4.55s | 训练准确率: 30.76% | 测试准确率: 6.39%
Epoch 4/50 完成 | 耗时: 4.53s | 训练准确率: 35.69% | 测试准确率: 20.00%
Epoch 5/50 完成 | 耗时: 4.56s | 训练准确率: 39.64% | 测试准确率: 34.15%
==================================================
**阶段 2：解冻高层特征提取层**
==================================================
---> 解冻以下部分并设为可训练: ['cbam_layers', 'backbone.classifier', 'backbone.features.16', 'backbone.features.17']
Epoch 6/50 完成 | 耗时: 4.53s | 训练准确率: 43.93% | 测试准确率: 35.92%
Epoch 7/50 完成 | 耗时: 4.49s | 训练准确率: 45.25% | 测试准确率: 39.32%
Epoch 8/50 完成 | 耗时: 4.57s | 训练准确率: 47.16% | 测试准确率: 39.05%
Epoch 9/50 完成 | 耗时: 4.48s | 训练准确率: 48.35% | 测试准确率: 41.09%
Epoch 10/50 完成 | 耗时: 4.59s | 训练准确率: 48.62% | 测试准确率: 40.54%
Epoch 11/50 完成 | 耗时: 4.61s | 训练准确率: 49.61% | 测试准确率: 43.13%
Epoch 12/50 完成 | 耗时: 4.55s | 训练准确率: 51.62% | 测试准确率: 41.22%
Epoch 13/50 完成 | 耗时: 4.59s | 训练准确率: 52.81% | 测试准确率: 42.18%
Epoch 14/50 完成 | 耗时: 4.70s | 训练准确率: 53.25% | 测试准确率: 43.40%
Epoch 15/50 完成 | 耗时: 5.03s | 训练准确率: 54.13% | 测试准确率: 43.27%
Epoch 16/50 完成 | 耗时: 4.64s | 训练准确率: 55.84% | 测试准确率: 43.95%
Epoch 17/50 完成 | 耗时: 4.68s | 训练准确率: 57.26% | 测试准确率: 44.63%
Epoch 18/50 完成 | 耗时: 4.61s | 训练准确率: 57.54% | 测试准确率: 44.90%
Epoch 19/50 完成 | 耗时: 4.41s | 训练准确率: 57.81% | 测试准确率: 45.85%
Epoch 20/50 完成 | 耗时: 4.50s | 训练准确率: 58.46% | 测试准确率: 45.71%
==================================================
**阶段 3：解冻所有层，进行全局微调**
==================================================
Epoch 21/50 完成 | 耗时: 5.95s | 训练准确率: 61.62% | 测试准确率: 48.44%
Epoch 22/50 完成 | 耗时: 6.09s | 训练准确率: 65.67% | 测试准确率: 50.07%
Epoch 23/50 完成 | 耗时: 5.87s | 训练准确率: 68.46% | 测试准确率: 52.11%
Epoch 24/50 完成 | 耗时: 5.92s | 训练准确率: 70.60% | 测试准确率: 53.61%
Epoch 25/50 完成 | 耗时: 5.95s | 训练准确率: 72.88% | 测试准确率: 55.37%
Epoch 26/50 完成 | 耗时: 6.02s | 训练准确率: 74.72% | 测试准确率: 55.92%
Epoch 27/50 完成 | 耗时: 5.94s | 训练准确率: 75.64% | 测试准确率: 56.87%
Epoch 28/50 完成 | 耗时: 5.96s | 训练准确率: 77.58% | 测试准确率: 56.87%
Epoch 29/50 完成 | 耗时: 5.81s | 训练准确率: 79.86% | 测试准确率: 57.55%
Epoch 30/50 完成 | 耗时: 5.89s | 训练准确率: 79.93% | 测试准确率: 58.64%
Epoch 31/50 完成 | 耗时: 5.87s | 训练准确率: 81.29% | 测试准确率: 58.23%
Epoch 32/50 完成 | 耗时: 6.00s | 训练准确率: 84.04% | 测试准确率: 58.64%
Epoch 33/50 完成 | 耗时: 5.88s | 训练准确率: 84.55% | 测试准确率: 60.00%
Epoch 34/50 完成 | 耗时: 5.98s | 训练准确率: 86.36% | 测试准确率: 59.05%
Epoch 35/50 完成 | 耗时: 5.88s | 训练准确率: 87.41% | 测试准确率: 60.41%
Epoch 36/50 完成 | 耗时: 5.93s | 训练准确率: 88.53% | 测试准确率: 60.68%
Epoch 37/50 完成 | 耗时: 6.10s | 训练准确率: 89.42% | 测试准确率: 60.41%
Epoch 38/50 完成 | 耗时: 5.95s | 训练准确率: 91.22% | 测试准确率: 60.82%
Epoch 39/50 完成 | 耗时: 5.87s | 训练准确率: 91.05% | 测试准确率: 61.50%
Epoch 40/50 完成 | 耗时: 6.01s | 训练准确率: 91.94% | 测试准确率: 61.50%
Epoch 41/50 完成 | 耗时: 6.04s | 训练准确率: 92.82% | 测试准确率: 61.90%
Epoch 42/50 完成 | 耗时: 6.04s | 训练准确率: 93.60% | 测试准确率: 61.50%
Epoch 43/50 完成 | 耗时: 6.07s | 训练准确率: 92.72% | 测试准确率: 62.31%
Epoch 44/50 完成 | 耗时: 6.02s | 训练准确率: 94.93% | 测试准确率: 62.86%
Epoch 45/50 完成 | 耗时: 5.89s | 训练准确率: 96.19% | 测试准确率: 62.72%
Epoch 46/50 完成 | 耗时: 6.03s | 训练准确率: 96.09% | 测试准确率: 62.59%
Epoch 47/50 完成 | 耗时: 5.98s | 训练准确率: 96.33% | 测试准确率: 61.90%
Epoch 48/50 完成 | 耗时: 6.08s | 训练准确率: 97.52% | 测试准确率: 62.99%
Epoch 49/50 完成 | 耗时: 5.94s | 训练准确率: 97.11% | 测试准确率: 62.99%
Epoch 50/50 完成 | 耗时: 5.94s | 训练准确率: 97.38% | 测试准确率: 62.59%
训练完成! 开始绘制结果图表...
也不算太高，但至少比之前用自定义CNN网络训练来的效果好（突然想到之前效果不好可能也是网络构造复杂过拟合了，当时没有可视化细看，遗憾）
和之前一样，用Grad-CAM可视化，改了点细节
python
import torch.nn.functional as F
model.eval()
# Grad-CAM实现
class GradCAM:
def __init__(self, model, target_layer):
self.model = model
self.target_layer = target_layer
self.gradients = None
self.activations = None
# 支持直接传入层对象或层名称（字符串）
if isinstance(target_layer, str):
self.target_layer = self._find_layer_by_name(target_layer)
else:
self.target_layer = target_layer # 假设已经是层对象
# 注册钩子，用于获取目标层的前向传播输出和反向传播梯度
self.register_hooks()
def _find_layer_by_name(self, layer_name):
"""根据名称查找层对象"""
for name, layer in self.model.named_modules():
if name == layer_name:
return layer
raise ValueError(f"Target layer '{layer_name}' not found in model.")
def register_hooks(self):
# 前向钩子函数，在目标层前向传播后被调用，保存目标层的输出（激活值）
def forward_hook(module, input, output):
self.activations = output.detach()
# 反向钩子函数，在目标层反向传播后被调用，保存目标层的梯度
def backward_hook(module, grad_input, grad_output):
self.gradients = grad_output[0].detach()
# 在目标层注册前向钩子和反向钩子
self.target_layer.register_forward_hook(forward_hook)
self.target_layer.register_backward_hook(backward_hook)
def generate_cam(self, input_image, target_class=None):
# 前向传播，得到模型输出
model_output = self.model(input_image)
if target_class is None:
# 如果未指定目标类别，则取模型预测概率最大的类别作为目标类别
target_class = torch.argmax(model_output, dim=1).item()
# 清除模型梯度，避免之前的梯度影响
self.model.zero_grad()
# 反向传播，构造one-hot向量，使得目标类别对应的梯度为1，其余为0，然后进行反向传播计算梯度
one_hot = torch.zeros_like(model_output)
one_hot[0, target_class] = 1
model_output.backward(gradient=one_hot)
# 获取之前保存的目标层的梯度和激活值
gradients = self.gradients
activations = self.activations
# 对梯度进行全局平均池化，得到每个通道的权重，用于衡量每个通道的重要性
weights = torch.mean(gradients, dim=(2, 3), keepdim=True)
# 加权激活映射，将权重与激活值相乘并求和，得到类激活映射的初步结果
cam = torch.sum(weights * activations, dim=1, keepdim=True)
# ReLU激活，只保留对目标类别有正贡献的区域，去除负贡献的影响
cam = F.relu(cam)
# 调整大小并归一化，将类激活映射调整为与输入图像相同的尺寸（140x140），并归一化到[0, 1]范围
cam = F.interpolate(cam, size=(140, 140), mode='bilinear', align_corners=False)
cam = cam - cam.min()
cam = cam / cam.max() if cam.max() > 0 else cam
return cam.cpu().squeeze().numpy(), target_class
# 选择一个随机图像
idx = np.random.randint(len(test_dataset))
image, label = test_dataset[idx]
classes = sorted(os.listdir('/kaggle/input/popular-street-foods/popular_street_foods/dataset'))
print(f"选择的图像类别: {classes[label]}")
# 转换图像以便可视化
def tensor_to_np(tensor):
img = tensor.cpu().numpy().transpose(1, 2, 0)
mean = np.array([0.485, 0.456, 0.406])
std = np.array([0.229, 0.224, 0.225])
img = std * img + mean
img = np.clip(img, 0, 1)
return img
# 添加批次维度并移动到设备
input_tensor = image.unsqueeze(0).to(device)
# 初始化Grad-CAM（选择最后一个卷积层）
target_layer_name = "cbam_layers.cbam_13"
grad_cam = GradCAM(model, target_layer_name)
# 生成热力图
heatmap, pred_class = grad_cam.generate_cam(input_tensor)

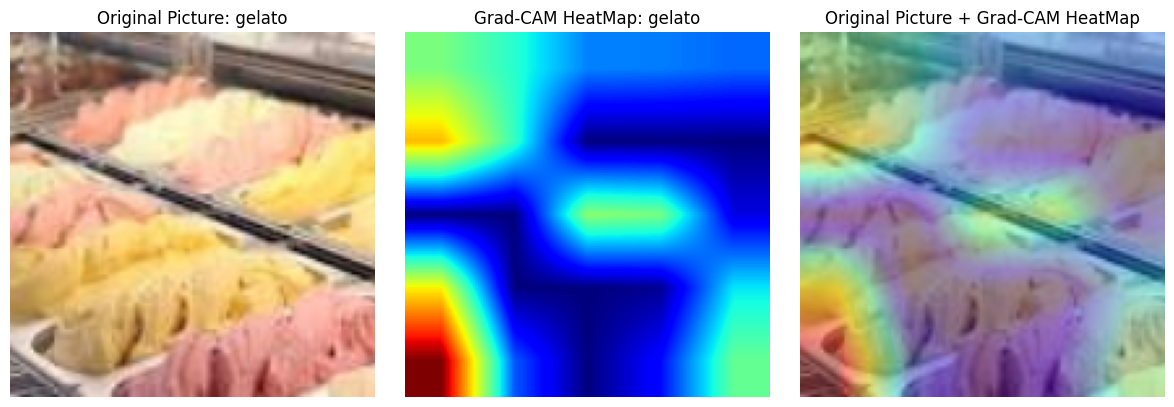

# 可视化
plt.figure(figsize=(12, 4))
# 原始图像
plt.subplot(1, 3, 1)
plt.imshow(tensor_to_np(image))
plt.title(f"Original Picture: {classes[label]}")
plt.axis('off')
# 热力图
plt.subplot(1, 3, 2)
plt.imshow(heatmap, cmap='jet')
plt.title(f"Grad-CAM HeatMap: {classes[pred_class]}")
plt.axis('off')
# 叠加的图像
plt.subplot(1, 3, 3)
img = tensor_to_np(image)
heatmap_resized = np.uint8(255 * heatmap)
heatmap_colored = plt.cm.jet(heatmap_resized)[:, :, :3]
superimposed_img = heatmap_colored * 0.4 + img * 0.6
plt.imshow(superimposed_img)
plt.title("Original Picture + Grad-CAM HeatMap")
plt.axis('off')
plt.tight_layout()
plt.show()
讲实话整个结构改进下来，CBAM和通道数匹配才是最恼火的，最先是直接设定CBAM输入通道，一直报错都快放弃了，最后无脑遍历😈
