Unity_XR控制手部动画

文章目录


手部模型下载链接

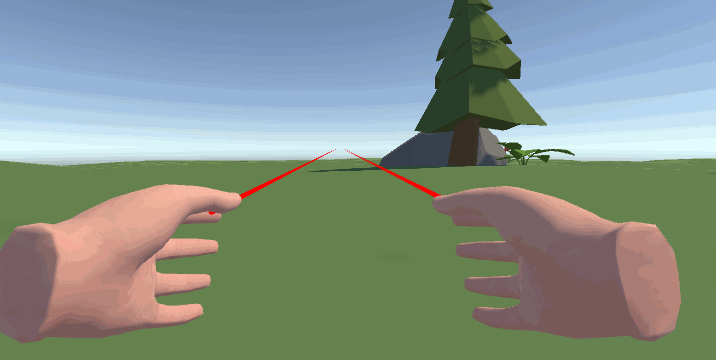

效果展示

一、添加左右手部模型

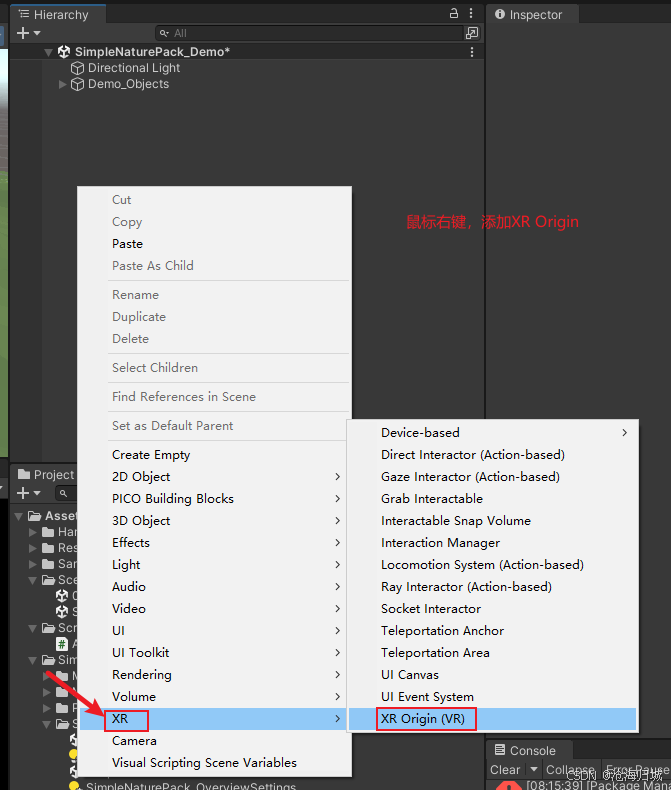

1.添加XR Origin

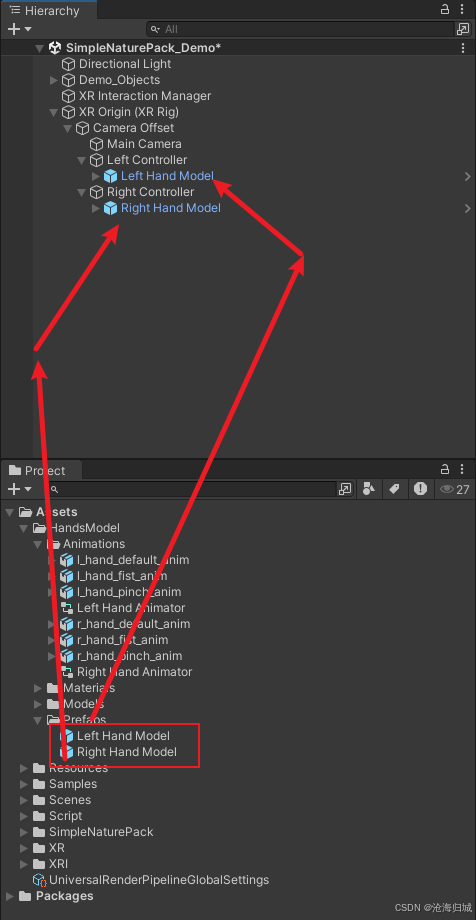

2.添加模型

二、添加控制手部动画脚本

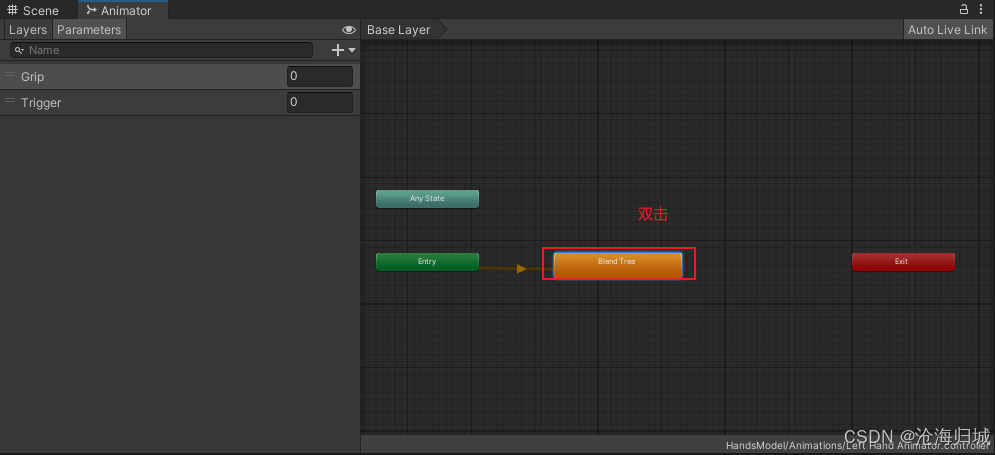

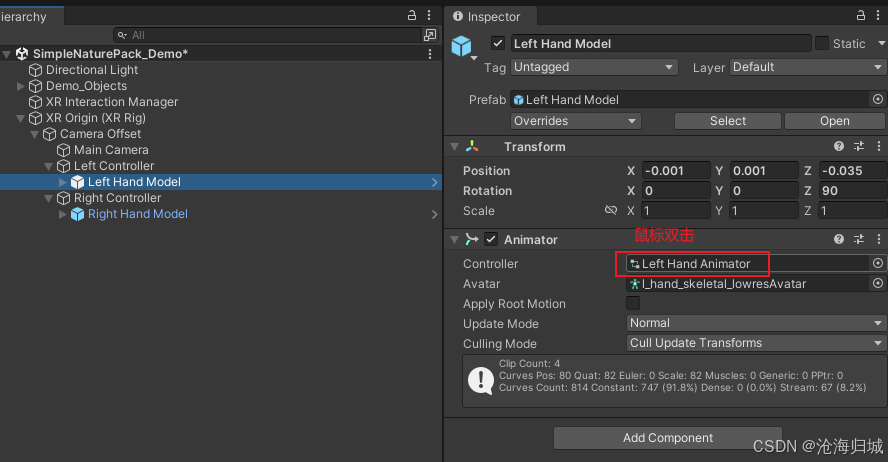

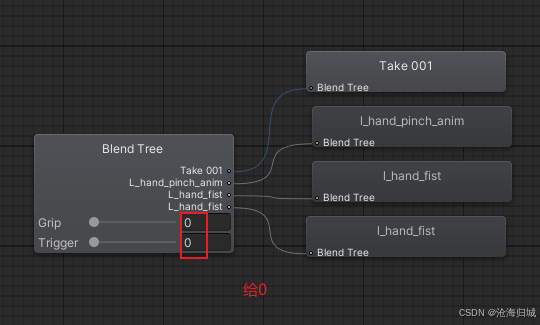

1.查看手部动画



2.编写脚本

csharp 复制代码
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.InputSystem;

public class AnimateHandController : MonoBehaviour
{
    public InputActionProperty pinchActionProperty_Select_value;

    public InputActionProperty gripActionProperty_ActivateValue;

    private InputAction pinchAction;
    private InputAction gripAction;
    private Animator animator;

    // Start is called before the first frame update
    void Start()
    {
        pinchAction = pinchActionProperty_Select_value.action;
        gripAction = gripActionProperty_ActivateValue.action;
        animator = GetComponent<Animator>();
    }

    // Update is called once per frame
    void Update()
    {
        float triggerValue = pinchAction.ReadValue<float>();
        animator.SetFloat("Trigger", triggerValue);

        float gripValue = gripAction.ReadValue<float>();
        animator.SetFloat("Grip",gripValue);
    }
}

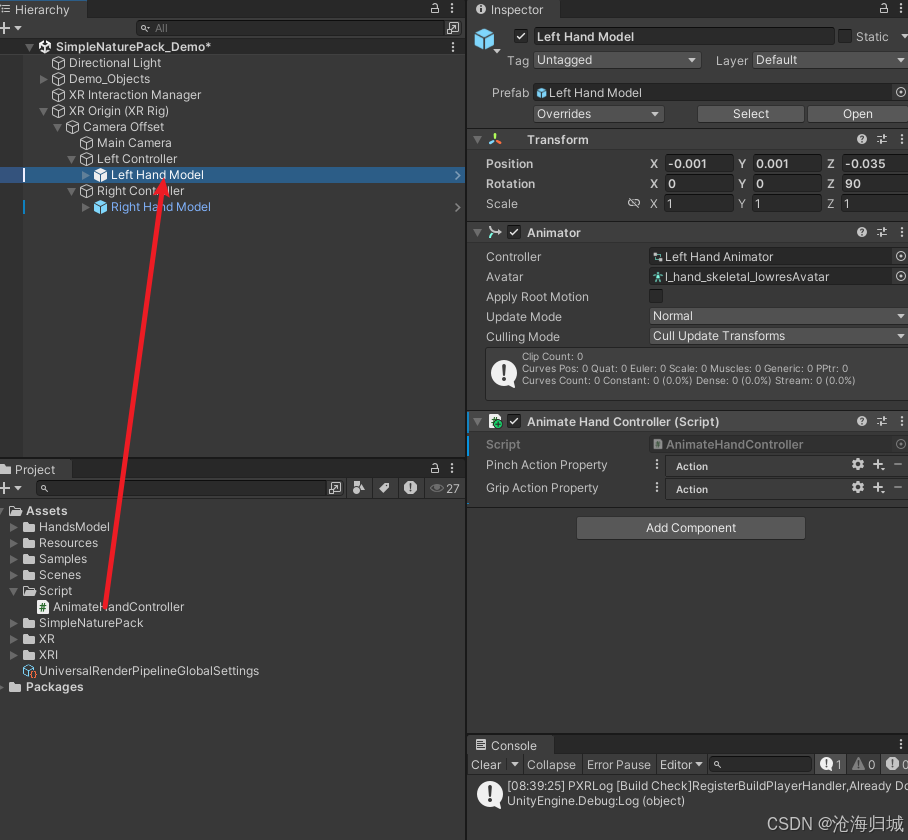

3.添加脚本到有动画的模型上

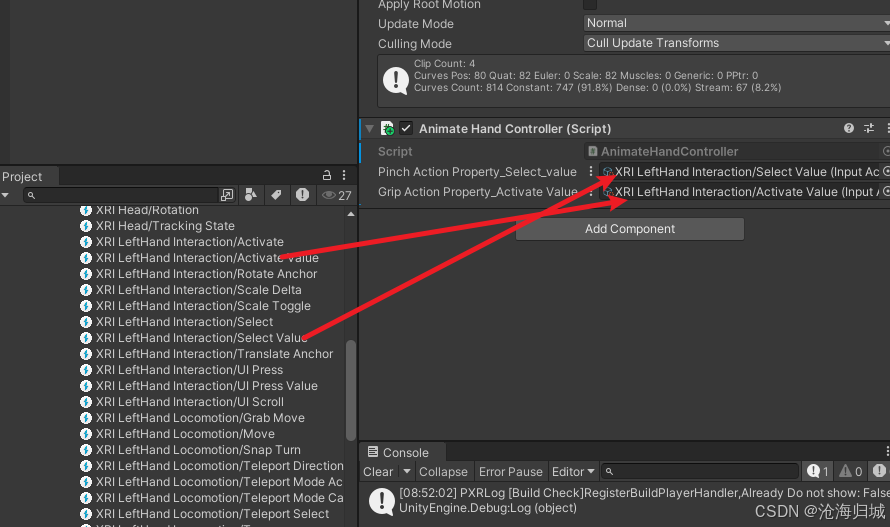

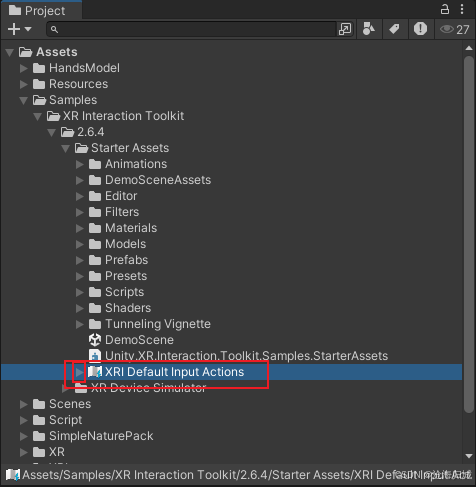

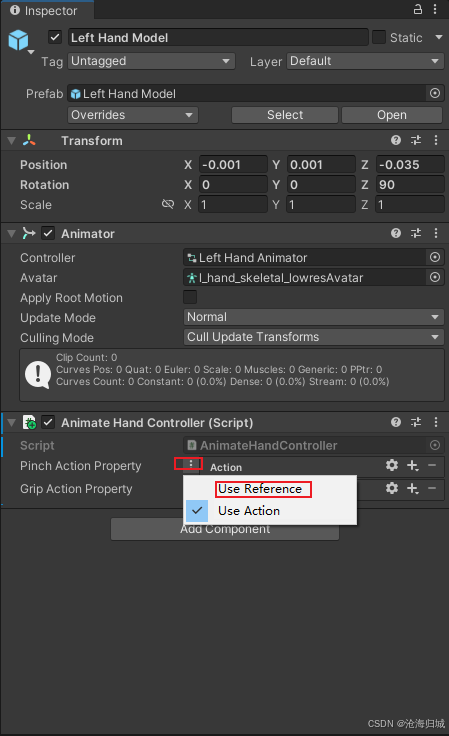

4.设置脚本中的变量


注意找到对应左右 的值拖进去
