实测有效｜用 SeaTunnel 免费实现 MySQL→Oracle 实时同步，步骤超细

要说 MySQL 同步到Oracle的工具，除了传统的 OGG，应该考虑的就是 ST（SeaTunnel）了吧，简直太好用啦 ~

当前生产已稳定运行 4 个月，源端 3 个库，完美支持！推荐给大家试试~

1. SeaTunnel怎么用？来看看帮助信息

复制代码

./bin/seatunnel.sh -h
Usage: seatunnel.sh [options]
  Options:
    --async                         Run the job asynchronously, when the job
                                    is submitted, the client will
exit
                                    (default:
false
)
    -can, --cancel-job              Cancel job by JobId
    --check                         Whether check config (default:
false
)
    -cj, --close-job                Close client the task will also be closed
                                    (default:
true
)
    -cn, --cluster                  The name of cluster
    -c, --config                    Config file
    --decrypt                       Decrypt config file, When both --decrypt
                                    and --encrypt are specified, only
                                    --encrypt will take effect (default:
false
)
    -m, --master, -e, --deploy-mode SeaTunnel job submit master, support
                                    [
local
, cluster] (default: cluster)
    --encrypt                       Encrypt config file, when both --decrypt
                                    and --encrypt are specified, only
                                    --encrypt will take effect (default:
false
)
    --get_running_job_metrics       Gets metrics
for
 running
jobs
 (default:
false
)
    -h, --
help
                      Show the usage message
    -j, --job-id                    Get job status by JobId
    -l, --list                      list job status (default:
false
)
    --metrics                       Get job metrics by JobId
    -n, --name                      SeaTunnel job name (default: SeaTunnel)
    -r, --restore                   restore with savepoint by jobId
    -s, --savepoint                 savepoint job by jobId
    --set-job-id                    Set custom job id
for
 job
    -i, --variable                  Variable substitution, such as -i
                                    city=beijing, or -i date=20190318.We use
','
 as separator, when inside
""
,
','
 are
                                    treated as normal characters instead of
                                    delimiters. For example, -i
                                    city=
"beijing,shanghai"
. If you want to
                                    use dynamic parameters, you can use the
                                    following format: -i date=$(date
                                    +
"%Y%m%d"
). (default: [])

++参考说明：++

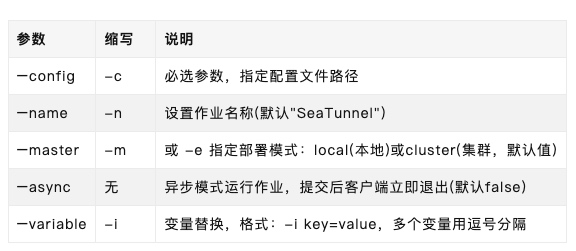

1）作业提交相关参数

2）作业管理相关参数

2. 怎么安装，可以参考之前文章

【数据同步】SeaTunnel初体验，5000字深入浅出带你用上Oracle-CDC

3. 日常运维之任务管理

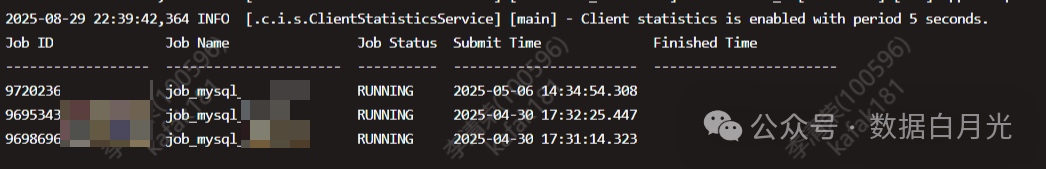

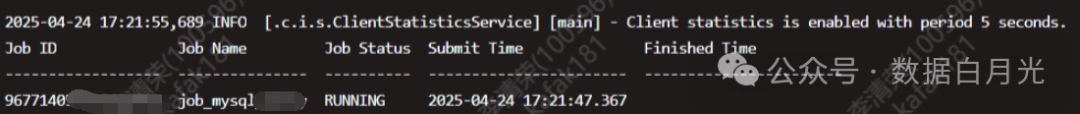

3.1 查看任务：running 表示正在运行的，当然也会看到其他的状态

复制代码

./bin/seatunnel.sh -l

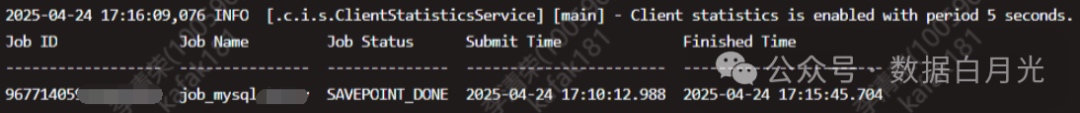

3.2 暂停任务

复制代码

./bin/seatunnel.sh -s 967714059992432641

3.3 再次启动已暂停的任务

复制代码

./bin/seatunnel.sh -r 967714059992432641 -c $SEATUNNEL_HOME/config/mysql_virdb_config

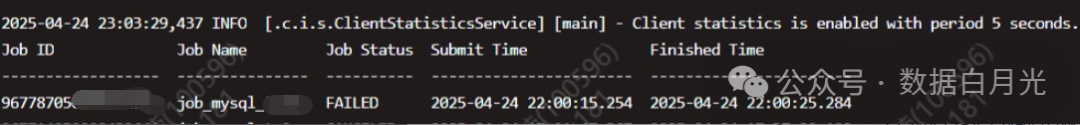

由于恢复的时候未加入后台运行，导致一直前端，直接ctrl+c 退出后，状态为

PS：故恢复时候，一定要加入相关的参数，job命名，是否后台运行等

复制代码

./bin/seatunnel.sh -r 967714059992432641 -c $SEATUNNEL_HOME/config/mysql_virdb_config --async -n job_mysql_virdb

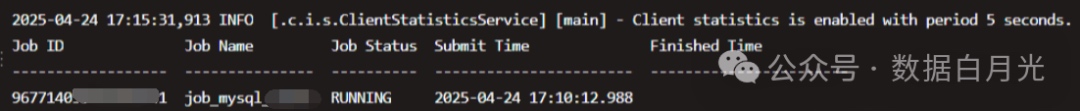

再次查看作业状态，这就是我们期待的样子

3.4 取消任务

该命令会取消指定作业，取消作业后，作业会被停止，作业的状态会变为CANCELED。

支持批量取消作业，可以一次取消多个作业。

被cancel的作业的所有断点信息都将被删除，无法通过seatunnel.sh -r 恢复。

复制代码

./bin/seatunnel.sh -can 967714059992432641

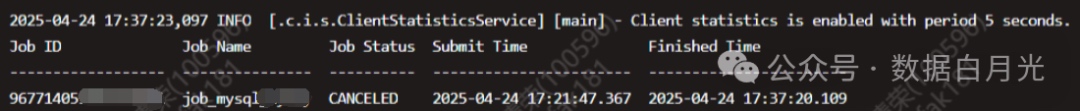

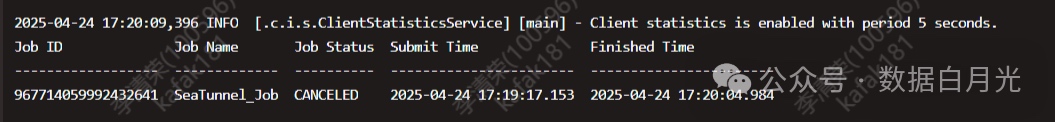

PS：取消后的状态，与直接ctrl+c 退出后竟然的相识，若再启动应该会丢了一部分数据吧

4. SeaTunnel 日志配置

配置文件：$SEATUNNEL_HOME/config/log4j2.properties

4.1 为每个作业单独配置日志文件(重启其中一个job后生效)

如下配置

复制代码

rootLogger.appenderRef.file.ref = fileAppender
appender.file.layout.pattern = [%X{ST-JID}] %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p [%-30.30c{1.}] [%t] - %m%n

更改为如下:

复制代码

rootLogger.appenderRef.file.ref = routingAppender
appender.file.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p [%-30.30c{1.}] [%t] - %m%n

4.2 SeaTunnel 支持定时删除旧日志文件，以避免磁盘空间不足

您可以在 $SEATUNNEL_HOME/config/seatunnel.yaml 配置文件中添加以下配置：

默认配置项如下(时间按分钟计算，比如1440为1440分钟)

复制代码

seatunnel:
engine:
history-job-expire-minutes:1440
telemetry:
logs:
scheduled-deletion-enable:true

++说明：++

history-job-expire-minutes: 设置历史作业和日志的保留时间（单位：分钟）。系统将在指定的时间后自动清除过期的作业信息和日志文件。
scheduled-deletion-enable: 启用定时清理功能，默认为 true。系统将在作业达到 history-job-expire-minutes 设置的过期时间后自动删除相关日志文件。关闭该功能后，日志将永久保留在磁盘上，需要用户自行管理，否则可能影响磁盘占用。建议根据需求合理配置。

5. Web UI 查看任务情况

ps:终于等到了，居然有 Web UI界面监控作业情况了，太棒了吧！！！来来来，看下如何配置及访问

5.1 配置Web UI

配置文件：$SEATUNNEL_HOME/config/seatunnel.yaml，默认配置如下

复制代码

seatunnel:
engine:
http:
enable-http:true
port:8080

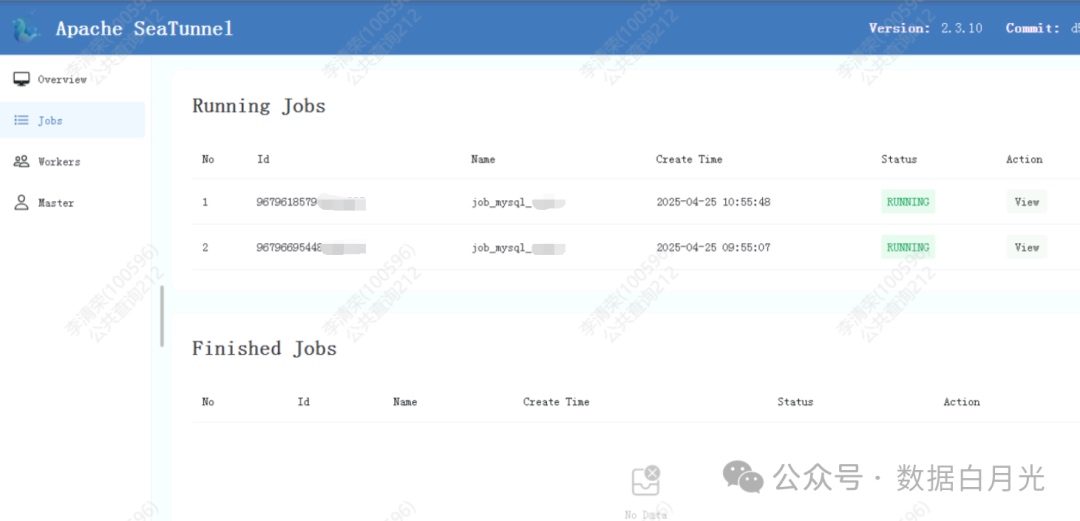

5.2 访问Web UI 页面

打开浏览器，访问 http://ip:8080 即可

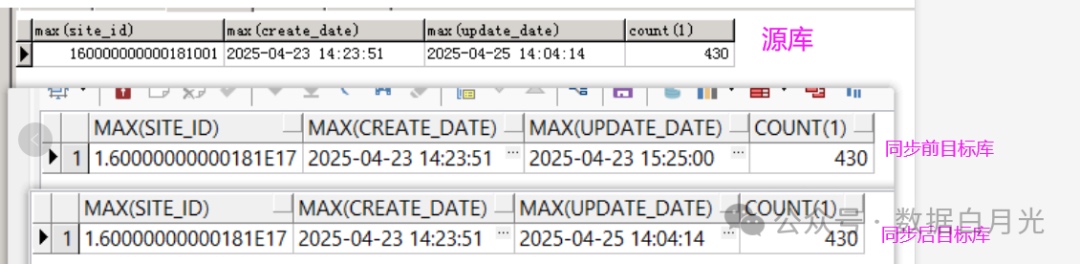

5.3 同步数据比对

通过最新创建时间及更新时间，以及行数进行比对。

6 常见错误

6.1 必须配置数据库名及表名，不然会报错

复制代码

2025-04-24 17:59:42,640 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Fatal Error,
2025-04-24 17:59:42,641 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Please submit bug report
in
 https://github.com/apache/seatunnel/issues
2025-04-24 17:59:42,641 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Reason:SeaTunnel job executed failed
2025-04-24 17:59:42,642 ERROR [o.a.s.c.s.SeaTunnel           ] [main] - Exception StackTrace:org.apache.seatunnel.core.starter.exception.CommandExecuteException: SeaTunnel job executed failed
        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:228)
        at org.apache.seatunnel.core.starter.SeaTunnel.run(SeaTunnel.java:40)
        at org.apache.seatunnel.core.starter.seatunnel.SeaTunnelClient.main(SeaTunnelClient.java:34)
Caused by: org.apache.seatunnel.api.table.factory.FactoryException: ErrorCode:[API-06], ErrorDescription:[Factory initialize failed] - Unable to create a sink
for
 identifier
'jdbc'
.
        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:250)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.createSinkAction(MultipleTableJobConfigParser.java:669)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parseSink(MultipleTableJobConfigParser.java:592)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parse(MultipleTableJobConfigParser.java:240)
        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.getLogicalDag(ClientJobExecutionEnvironment.java:123)
        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.execute(ClientJobExecutionEnvironment.java:191)
        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:165)
        ... 2 more
Caused by: org.apache.seatunnel.api.configuration.util.OptionValidationException: ErrorCode:[API-02], ErrorDescription:[Option item validate failed] - There are unconfigured options, the options(
'database'
) are required because [
'generate_sink_sql'
 ==
true
] is
true
.
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:200)
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:107)
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:47)
        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:239)
        ... 8 more
2025-04-24 17:59:42,642 ERROR [o.a.s.c.s.SeaTunnel           ] [main] -
===============================================================================
Exception
in
 thread
"main"
 org.apache.seatunnel.core.starter.exception.CommandExecuteException: SeaTunnel job executed failed
        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:228)
        at org.apache.seatunnel.core.starter.SeaTunnel.run(SeaTunnel.java:40)
        at org.apache.seatunnel.core.starter.seatunnel.SeaTunnelClient.main(SeaTunnelClient.java:34)
Caused by: org.apache.seatunnel.api.table.factory.FactoryException: ErrorCode:[API-06], ErrorDescription:[Factory initialize failed] - Unable to create a sink
for
 identifier
'jdbc'
.
        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:250)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.createSinkAction(MultipleTableJobConfigParser.java:669)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parseSink(MultipleTableJobConfigParser.java:592)
        at org.apache.seatunnel.engine.core.parse.MultipleTableJobConfigParser.parse(MultipleTableJobConfigParser.java:240)
        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.getLogicalDag(ClientJobExecutionEnvironment.java:123)
        at org.apache.seatunnel.engine.client.job.ClientJobExecutionEnvironment.execute(ClientJobExecutionEnvironment.java:191)
        at org.apache.seatunnel.core.starter.seatunnel.command.ClientExecuteCommand.execute(ClientExecuteCommand.java:165)
        ... 2 more
Caused by: org.apache.seatunnel.api.configuration.util.OptionValidationException: ErrorCode:[API-02], ErrorDescription:[Option item validate failed] - There are unconfigured options, the options(
'database'
) are required because [
'generate_sink_sql'
 ==
true
] is
true
.
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:200)
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:107)
        at org.apache.seatunnel.api.configuration.util.ConfigValidator.validate(ConfigValidator.java:47)
        at org.apache.seatunnel.api.table.factory.FactoryUtil.createAndPrepareSink(FactoryUtil.java:239)
        ... 8 more

6.2 报错2，ID问题

复制代码

[967787050499571713] 2025-04-24 22:00:16,190 ERROR [.s.e.s.c.CheckpointCoordinator] [hz.main.generic-operation.thread-14] - report error from task
org.apache.seatunnel.common.utils.SeaTunnelException: java.lang.IllegalArgumentException: can't find field [ID]
        at org.apache.seatunnel.api.table.type.SeaTunnelRowType.indexOf(SeaTunnelRowType.java:87)
        at org.apache.seatunnel.api.table.type.SeaTunnelRowType.indexOf(SeaTunnelRowType.java:77)
        at org.apache.seatunnel.connectors.seatunnel.jdbc.sink.JdbcSink.createWriter(JdbcSink.java:133)
        at org.apache.seatunnel.connectors.seatunnel.jdbc.sink.JdbcSink.createWriter(JdbcSink.java:66)
        at org.apache.seatunnel.api.sink.multitablesink.MultiTableSink.createWriter(MultiTableSink.java:82)
        at org.apache.seatunnel.engine.server.task.flow.SinkFlowLifeCycle.restoreState(SinkFlowLifeCycle.java:342)
        at org.apache.seatunnel.engine.server.task.SeaTunnelTask.lambda$restoreState$16(SeaTunnelTask.java:426)
        at java.util.stream.ForEachOps$ForEachOp$OfRef.accept(ForEachOps.java:184)
        at java.util.stream.ReferencePipeline$3$1.accept(ReferencePipeline.java:193)
        at java.util.stream.ReferencePipeline$2$1.accept(ReferencePipeline.java:175)
        at java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1384)
        at java.util.stream.AbstractPipeline.copyInto(AbstractPipeline.java:482)
        at java.util.stream.AbstractPipeline.wrapAndCopyInto(AbstractPipeline.java:472)
        at java.util.stream.ForEachOps$ForEachOp.evaluateSequential(ForEachOps.java:151)
        at java.util.stream.ForEachOps$ForEachOp$OfRef.evaluateSequential(ForEachOps.java:174)
        at java.util.stream.AbstractPipeline.evaluate(AbstractPipeline.java:234)
        at java.util.stream.ReferencePipeline.forEach(ReferencePipeline.java:418)
        at org.apache.seatunnel.engine.server.task.SeaTunnelTask.restoreState(SeaTunnelTask.java:423)
        at org.apache.seatunnel.engine.server.checkpoint.operation.NotifyTaskRestoreOperation.lambda$runInternal$0(NotifyTaskRestoreOperation.java:107)
        at java.util.concurrent.CompletableFuture$AsyncRun.run(CompletableFuture.java:1640)
        at org.apache.seatunnel.api.tracing.MDCRunnable.run(MDCRunnable.java:43)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:750)
        at org.apache.seatunnel.engine.server.checkpoint.CheckpointCoordinator.reportCheckpointErrorFromTask(CheckpointCoordinator.java:391) ~[seatunnel-starter.jar:2.3.10]
        at org.apache.seatunnel.engine.server.checkpoint.CheckpointManager.reportCheckpointErrorFromTask(CheckpointManager.java:182) ~[seatunnel-starter.jar:2.3.10]
        at org.apache.seatunnel.engine.server.checkpoint.operation.CheckpointErrorReportOperation.runInternal(CheckpointErrorReportOperation.java:48) ~[seatunnel-starter.jar:2.3.10]
        at org.apache.seatunnel.engine.server.task.operation.TracingOperation.run(TracingOperation.java:42) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationservice.Operation.call(Operation.java:189) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.call(OperationRunnerImpl.java:273) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.run(OperationRunnerImpl.java:248) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationservice.impl.OperationRunnerImpl.run(OperationRunnerImpl.java:213) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.process(OperationThread.java:175) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.process(OperationThread.java:139) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.spi.impl.operationexecutor.impl.OperationThread.executeRun(OperationThread.java:123) ~[seatunnel-starter.jar:2.3.10]
        at com.hazelcast.internal.util.executor.HazelcastManagedThread.run(HazelcastManagedThread.java:102) ~[seatunnel-starter.jar:2.3.10]

6.3 已存在会提示

复制代码

Error Msg = ORA-00955: name is already used by an existing object
        at oracle.jdbc.driver.T4CTTIoer11.processError(T4CTTIoer11.java:530)
        ... 43 more
        at org.apache.seatunnel.engine.server.CoordinatorService.lambda$submitJob$6(CoordinatorService.java:656)
        at org.apache.seatunnel.api.tracing.MDCRunnable.run(MDCRunnable.java:43)
        at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:750)

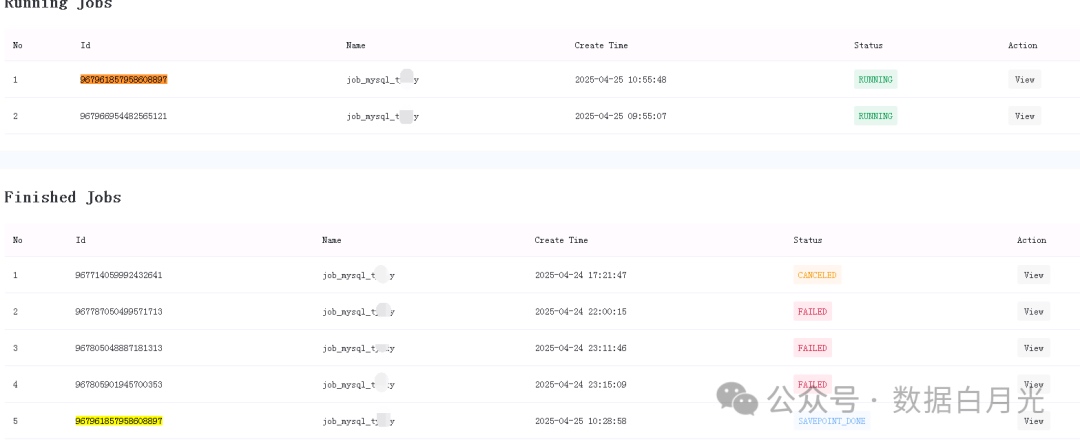

Web UI的任务展示与服务器查询有不一致的地方

jobid：967961857958608897 之前暂停过，再启动后，在web ui存在2条记录

6.4 可能是数据延迟导致，过几天再看的，已经没有

7. 参考文档

下载地址
https://seatunnel.apache.org/download/
source 源端 mysql-cdc配置
https://seatunnel.apache.org/zh-CN/docs/2.3.10/connector-v2/source/MySQL-CDC
sink 目标端 oracle 配置
https://seatunnel.apache.org/zh-CN/docs/2.3.10/connector-v2/sink/Oracle
为每个作业配置单独的配置项
https://seatunnel.apache.org/zh-CN/docs/2.3.10/seatunnel-engine/logging
