缘起：有同事需要给MID的Android13系统的导航栏左右两边增加音量+-按钮。

开干吧！

RK3588/RK3566的Android13，在 最下面的菜单栏 左右 想显示 音量 + - 快捷键。【我司没有 物理音量+-按键】请问如何配置？

Android13 rk sdk默认没有配置的；你这边可以参考网上的一些教程配置

这个是这边之前给客户做过配置，你可以参考一下

你们 PRO-RK3566的buildroot有加入QT？

加入QT之后会增加功耗吗？[疑问]

请问如何关闭QT？[破涕为笑]

默认有加入qt ,是否增加功耗未测试过,可以自行测试 ； 关闭可以看发你的buildroot 配置 搜索QT 配置项修改，注意修改完删除前面output文件中已经编译过的qt

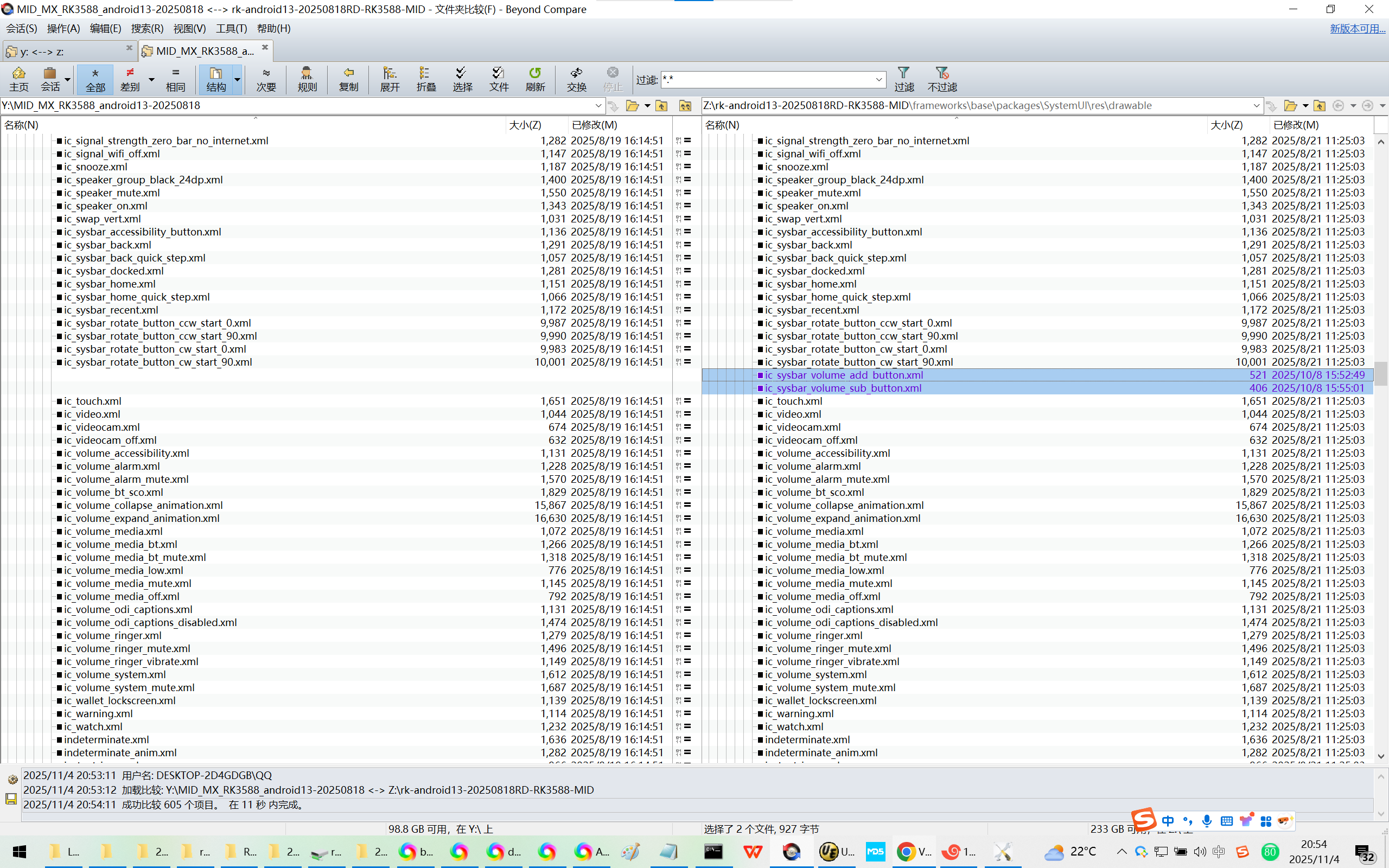

1、增加xml格式音量+-的矢量图标：

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\drawable\ic_sysbar_volume_add_button.xml
<vector xmlns:android="http://schemas.android.com/apk/res/android"
android:width="24dp"
android:height="24dp"
android:viewportWidth="24.0"
android:viewportHeight="24.0">
<path
android:fillColor="?attr/singleToneColor"
android:pathData="M3,9v6h4l5,5L12,4L7,9L3,9zM16.5,12c0,-1.77 -1.02,-3.29 -2.5,-4.03v8.05c1.48,-0.73 2.5,-2.25 2.5,-4.02zM14,3.23v2.06c2.89,0.86 5,3.54 5,6.71s-2.11,5.85 -5,6.71v2.06c4.01,-0.91 7,-4.49 7,-8.77s-2.99,-7.86 -7,-8.77z"/>
</vector>

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\drawable\ic_sysbar_volume_sub_button.xml
<vector xmlns:android="http://schemas.android.com/apk/res/android"
android:width="28dp"
android:height="28dp"
android:viewportWidth="24.0"
android:viewportHeight="24.0">
<path
android:fillColor="?attr/singleToneColor"
android:pathData="M18.5,12c0,-1.77 -1.02,-3.29 -2.5,-4.03v8.05c1.48,-0.73 2.5,-2.25 2.5,-4.02zM5,9v6h4l5,5V4L9,9H5z"/>
</vector>

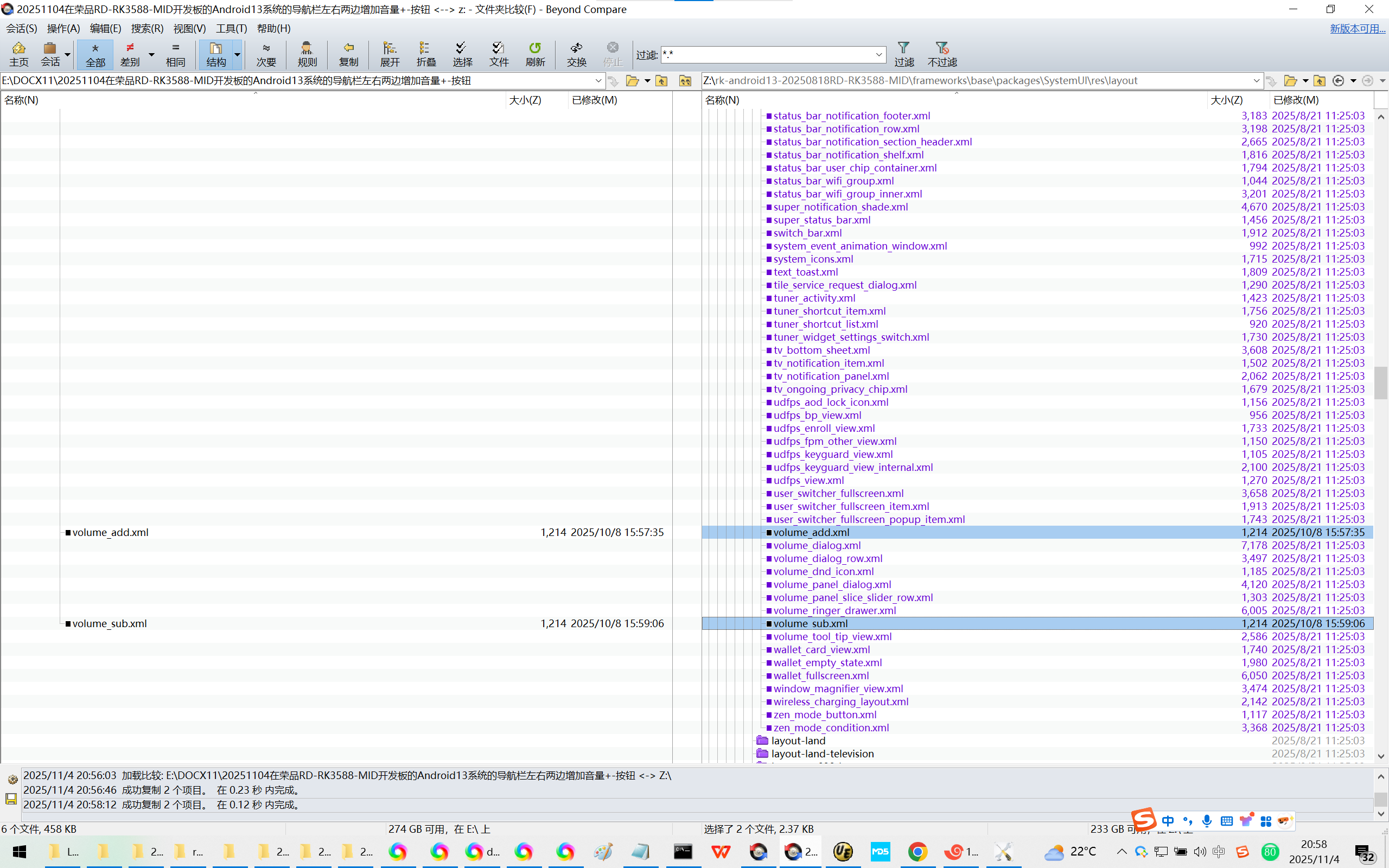

2、音量+-的布局文件：

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\layout\volume_add.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- Copyright (C) 2016 The Android Open Source Project

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
-->
<com.android.systemui.navigationbar.buttons.KeyButtonView
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:systemui="http://schemas.android.com/apk/res-auto"
android:id="@+id/volume_add"
android:layout_width="@dimen/navigation_key_width"
android:layout_height="match_parent"
android:layout_weight="0"
systemui:keyCode="24"
android:scaleType="center"
android:paddingStart="@dimen/navigation_key_padding"
android:paddingEnd="@dimen/navigation_key_padding"
/>

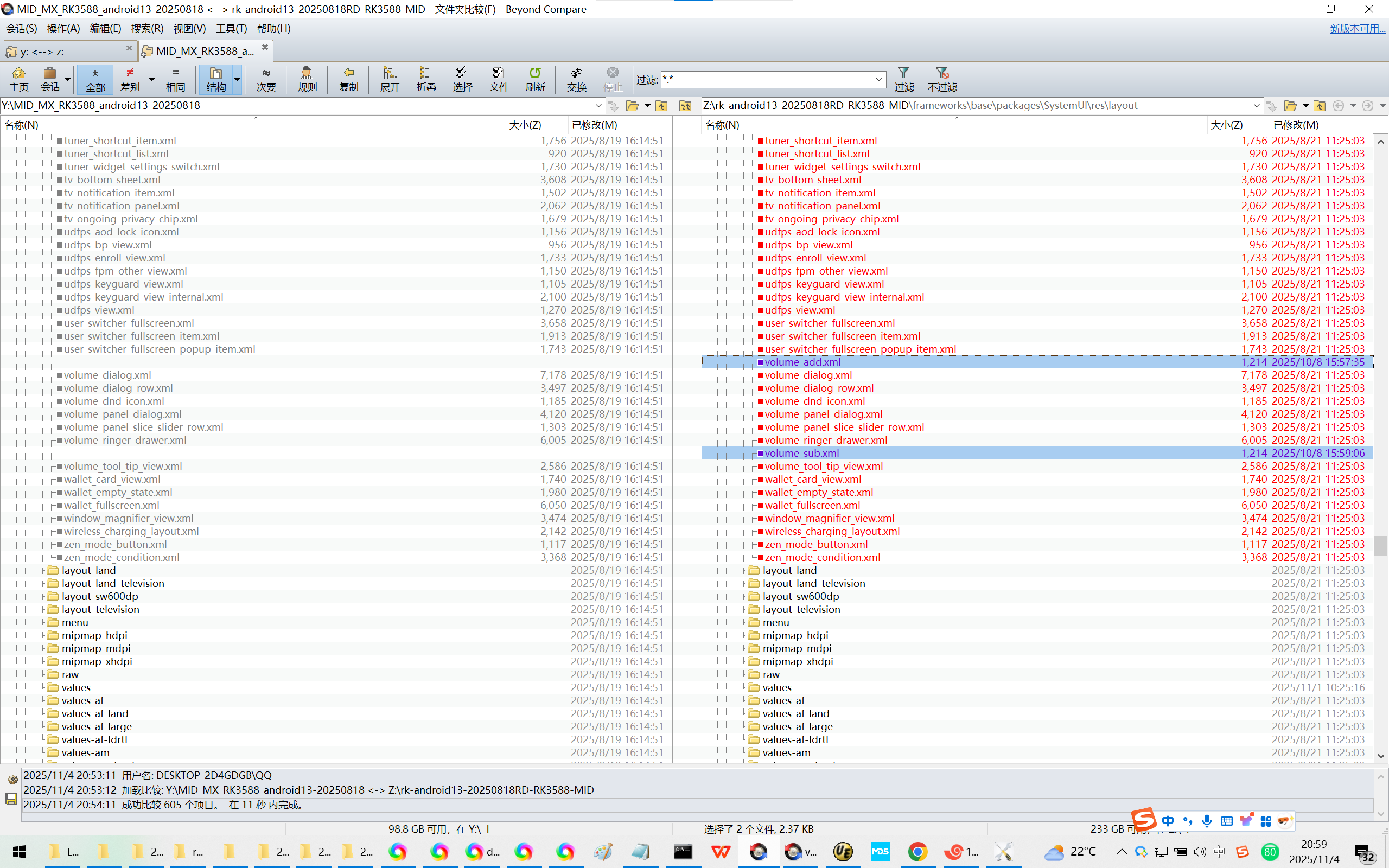

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\layout\volume_sub.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- Copyright (C) 2016 The Android Open Source Project

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.
-->
<com.android.systemui.navigationbar.buttons.KeyButtonView
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:systemui="http://schemas.android.com/apk/res-auto"
android:id="@+id/volume_sub"
android:layout_width="@dimen/navigation_key_width"
android:layout_height="match_parent"
android:layout_weight="0"
systemui:keyCode="25"
android:scaleType="center"
android:paddingStart="@dimen/navigation_key_padding"
android:paddingEnd="@dimen/navigation_key_padding"
/>

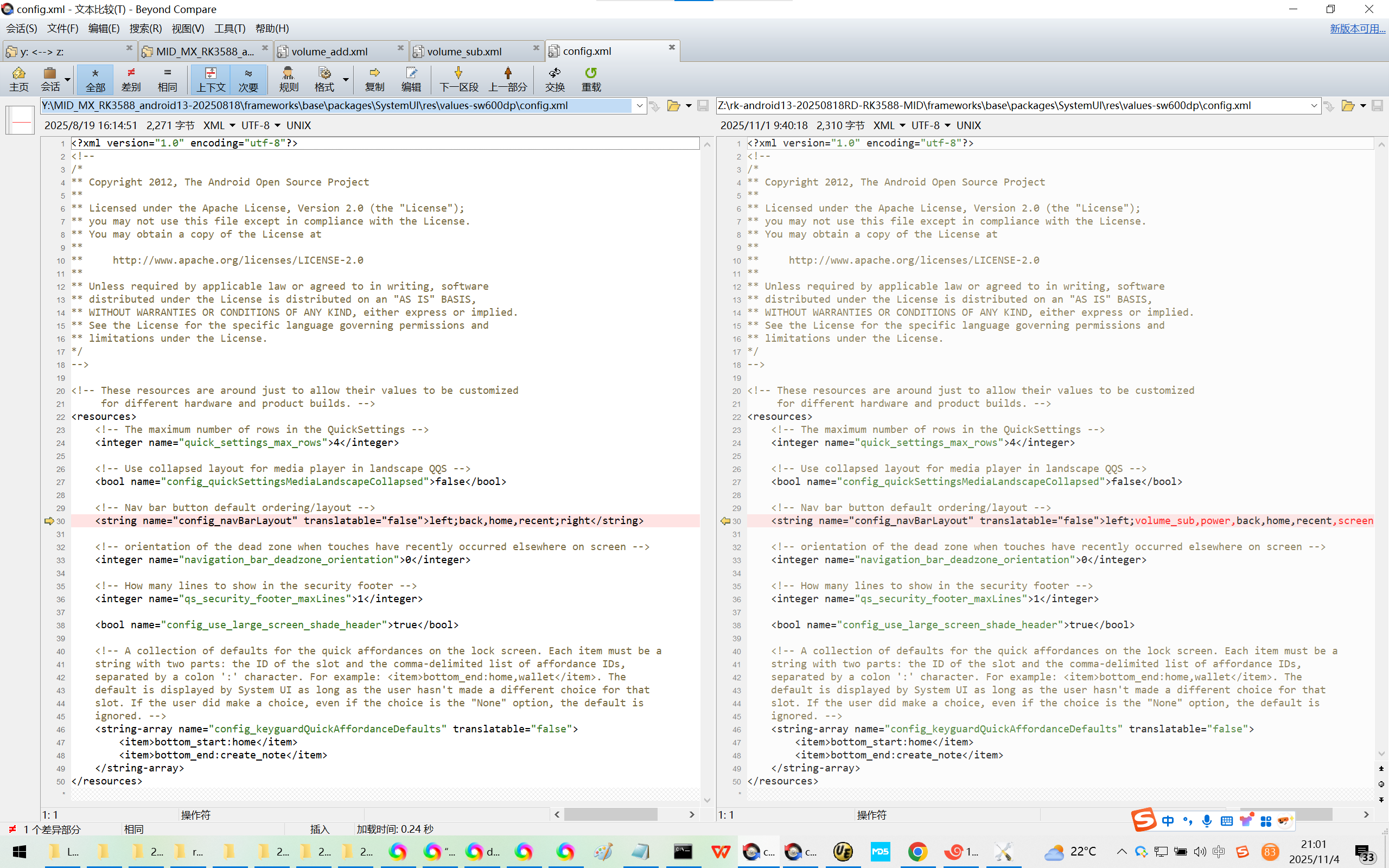

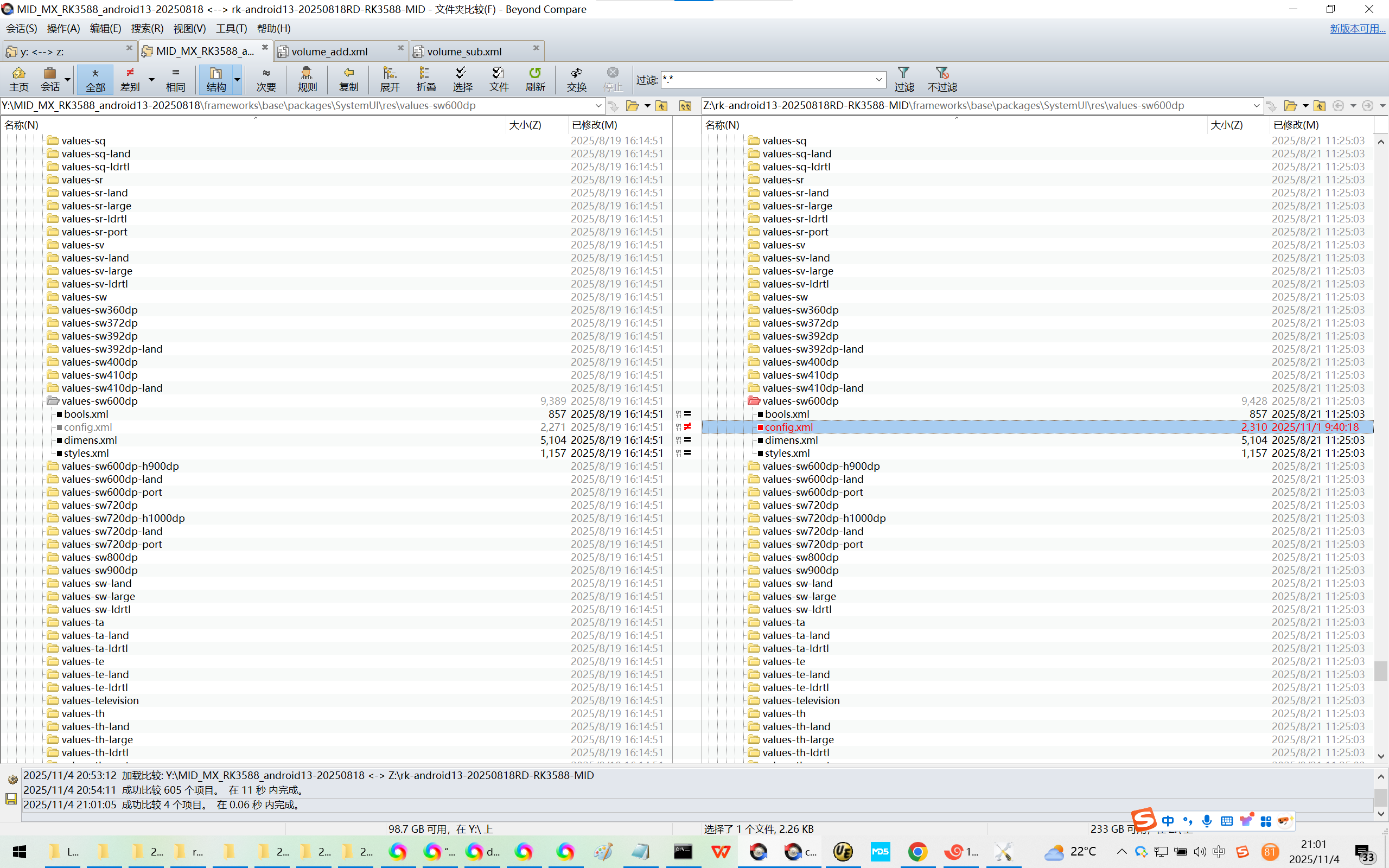

3、在导航栏的左右增加音量+-的图标：

Y:\MID_MX_RK3588_android13-20250818\frameworks\base\packages\SystemUI\res\values-sw600dp\config.xml

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\values-sw600dp\config.xml

<!-- Nav bar button default ordering/layout -->

<string name="config_navBarLayout" translatable="false">left;back,home,recent;right</string>

修改为：
<!-- Nav bar button default ordering/layout -->
<string name="config_navBarLayout" translatable="false">left;volume_sub,power,back,home,recent,screenshot,volume_add;right</string>

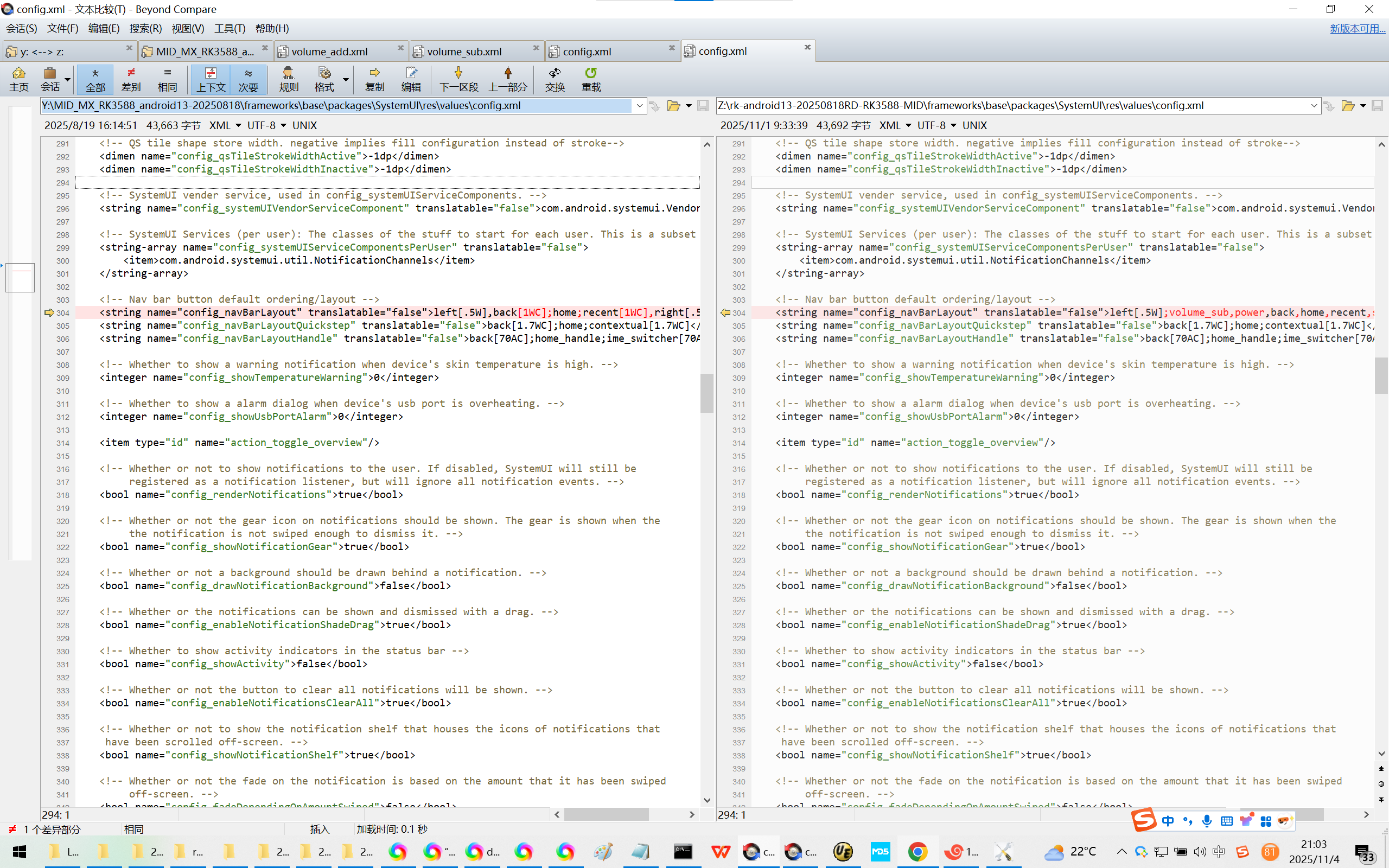

Y:\MID_MX_RK3588_android13-20250818\frameworks\base\packages\SystemUI\res\values\config.xml

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\res\values\config.xml

<!-- Nav bar button default ordering/layout -->

<string name="config_navBarLayout" translatable="false">left[.5W],back[1WC];home;recent[1WC],right[.5W]</string>

<string name="config_navBarLayoutQuickstep" translatable="false">back[1.7WC];home;contextual[1.7WC]</string>

<string name="config_navBarLayoutHandle" translatable="false">back[70AC];home_handle;ime_switcher[70AC]</string>

修改为：

<!-- Nav bar button default ordering/layout -->

<string name="config_navBarLayout" translatable="false">left[.5W];volume_sub,power,back,home,recent,screenshot,volume_add;right[.5W]</string>

<string name="config_navBarLayoutQuickstep" translatable="false">back[1.7WC];home;contextual[1.7WC]</string>

<string name="config_navBarLayoutHandle" translatable="false">back[70AC];home_handle;ime_switcher[70AC]</string>

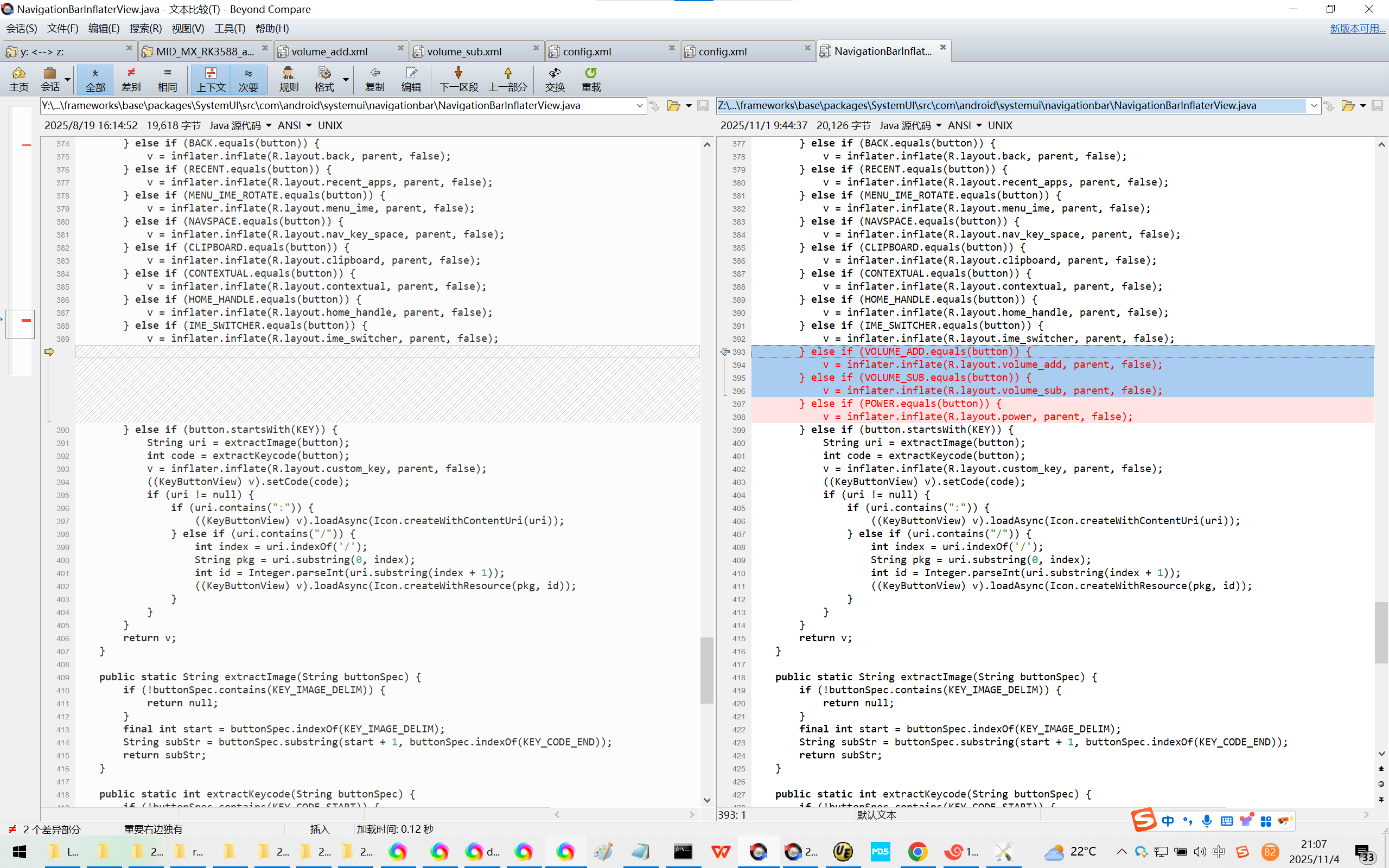

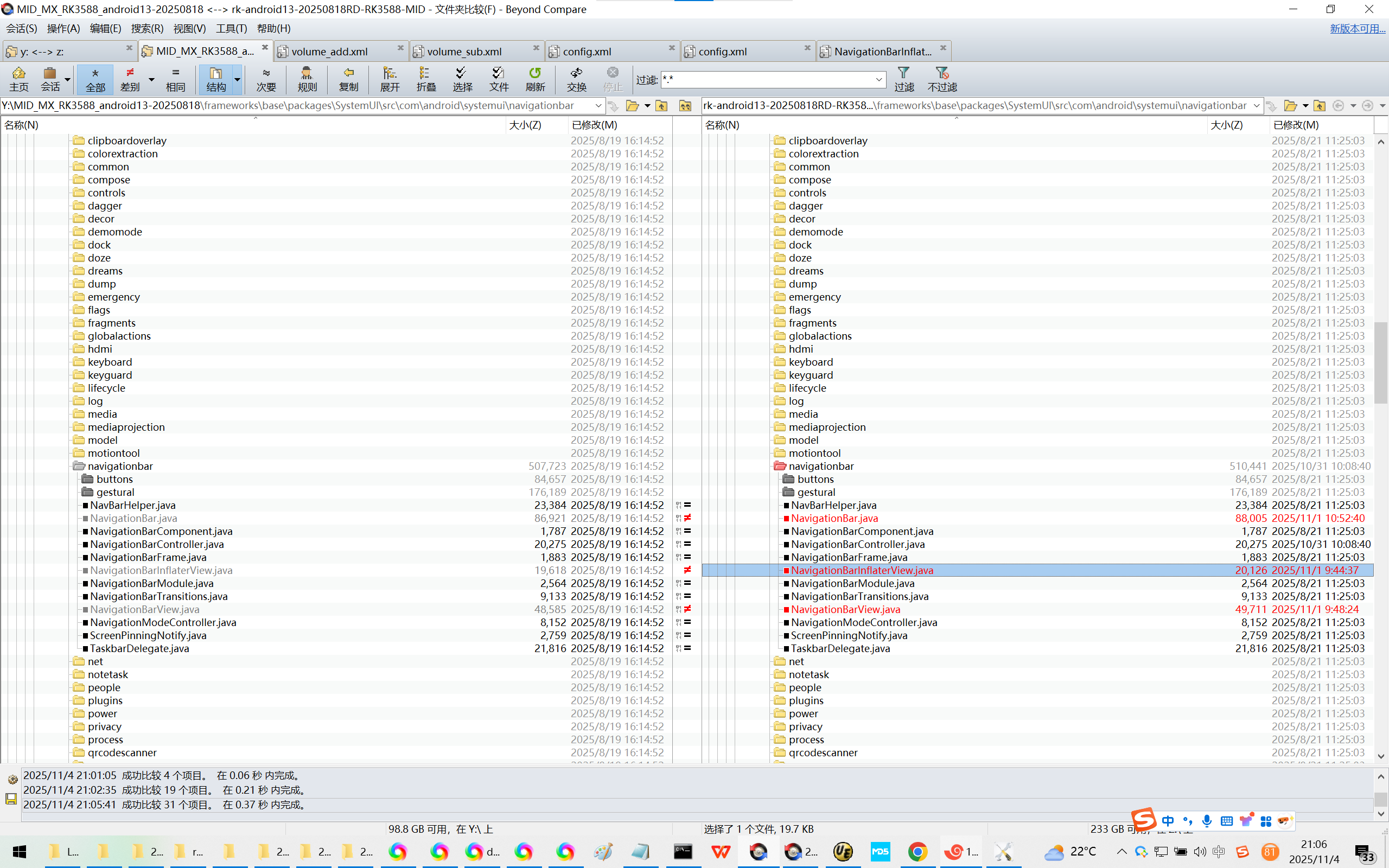

4、响应截图按钮的点击：

Y:\MID_MX_RK3588_android13-20250818\frameworks\base\packages\SystemUI\src\com\android\systemui\navigationbar\NavigationBarInflaterView.java

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\src\com\android\systemui\navigationbar\NavigationBarInflaterView.java

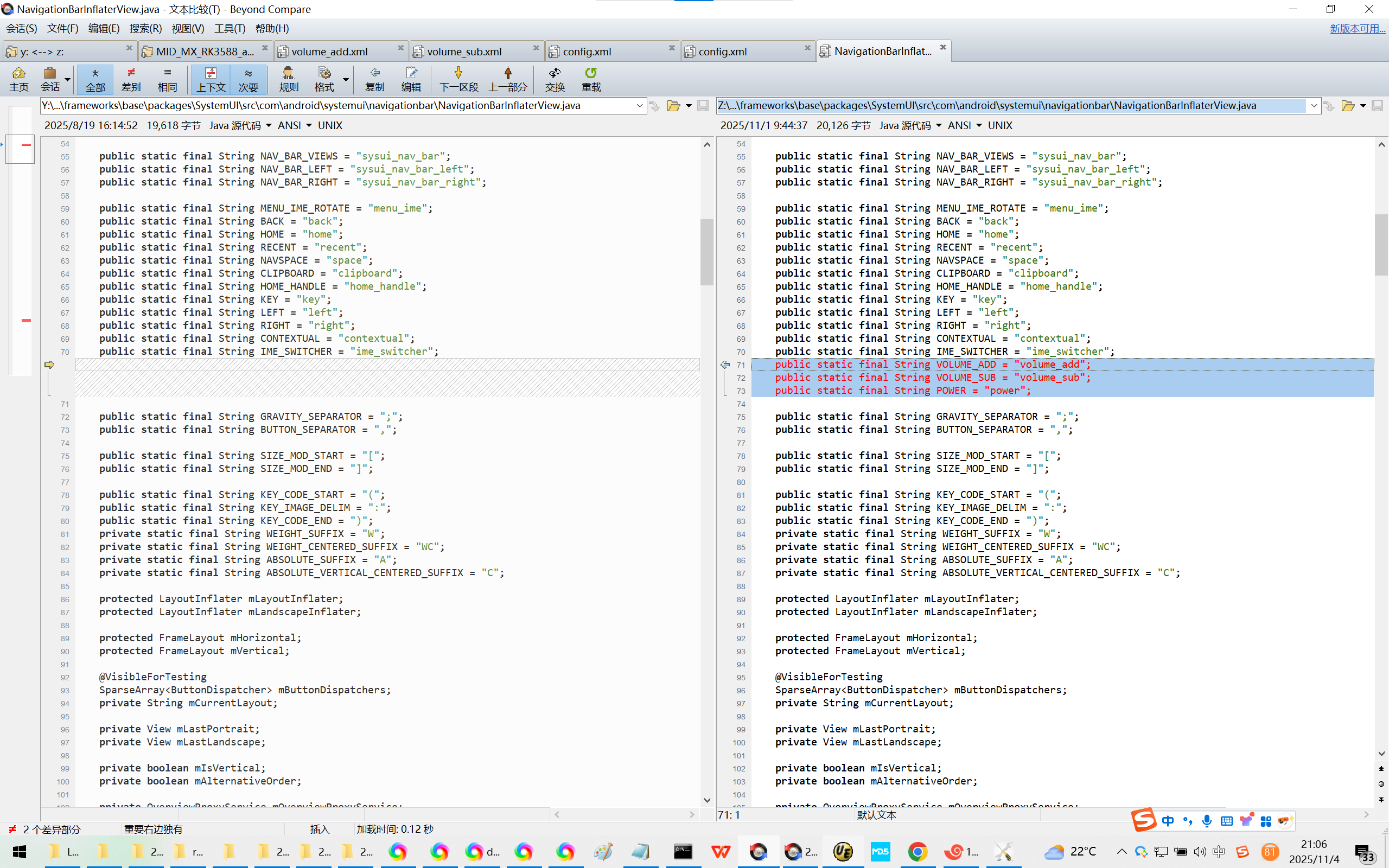

public static final String MENU_IME_ROTATE = "menu_ime";

public static final String BACK = "back";

public static final String HOME = "home";

public static final String RECENT = "recent";

public static final String NAVSPACE = "space";

public static final String CLIPBOARD = "clipboard";

public static final String HOME_HANDLE = "home_handle";

public static final String KEY = "key";

public static final String LEFT = "left";

public static final String RIGHT = "right";

public static final String CONTEXTUAL = "contextual";

public static final String IME_SWITCHER = "ime_switcher";
public static final String VOLUME_ADD = "volume_add";
public static final String VOLUME_SUB = "volume_sub";

public static final String POWER = "power";

View createView(String buttonSpec, ViewGroup parent, LayoutInflater inflater) {

View v = null;

String button = extractButton(buttonSpec);

if (LEFT.equals(button)) {

button = extractButton(NAVSPACE);

} else if (RIGHT.equals(button)) {

button = extractButton(MENU_IME_ROTATE);

}

if (HOME.equals(button)) {

v = inflater.inflate(R.layout.home, parent, false);

} else if (BACK.equals(button)) {

v = inflater.inflate(R.layout.back, parent, false);

} else if (RECENT.equals(button)) {

v = inflater.inflate(R.layout.recent_apps, parent, false);

} else if (MENU_IME_ROTATE.equals(button)) {

v = inflater.inflate(R.layout.menu_ime, parent, false);

} else if (NAVSPACE.equals(button)) {

v = inflater.inflate(R.layout.nav_key_space, parent, false);

} else if (CLIPBOARD.equals(button)) {

v = inflater.inflate(R.layout.clipboard, parent, false);

} else if (CONTEXTUAL.equals(button)) {

v = inflater.inflate(R.layout.contextual, parent, false);

} else if (HOME_HANDLE.equals(button)) {

v = inflater.inflate(R.layout.home_handle, parent, false);

} else if (IME_SWITCHER.equals(button)) {

v = inflater.inflate(R.layout.ime_switcher, parent, false);
} else if (VOLUME_ADD.equals(button)) {
v = inflater.inflate(R.layout.volume_add, parent, false);
} else if (VOLUME_SUB.equals(button)) {
v = inflater.inflate(R.layout.volume_sub, parent, false);

} else if (POWER.equals(button)) {

v = inflater.inflate(R.layout.power, parent, false);

} else if (button.startsWith(KEY)) {

String uri = extractImage(button);

int code = extractKeycode(button);

v = inflater.inflate(R.layout.custom_key, parent, false);

((KeyButtonView) v).setCode(code);

if (uri != null) {

if (uri.contains(":")) {

((KeyButtonView) v).loadAsync(Icon.createWithContentUri(uri));

} else if (uri.contains("/")) {

int index = uri.indexOf('/');

String pkg = uri.substring(0, index);

int id = Integer.parseInt(uri.substring(index + 1));

((KeyButtonView) v).loadAsync(Icon.createWithResource(pkg, id));

}

}

}

return v;

}

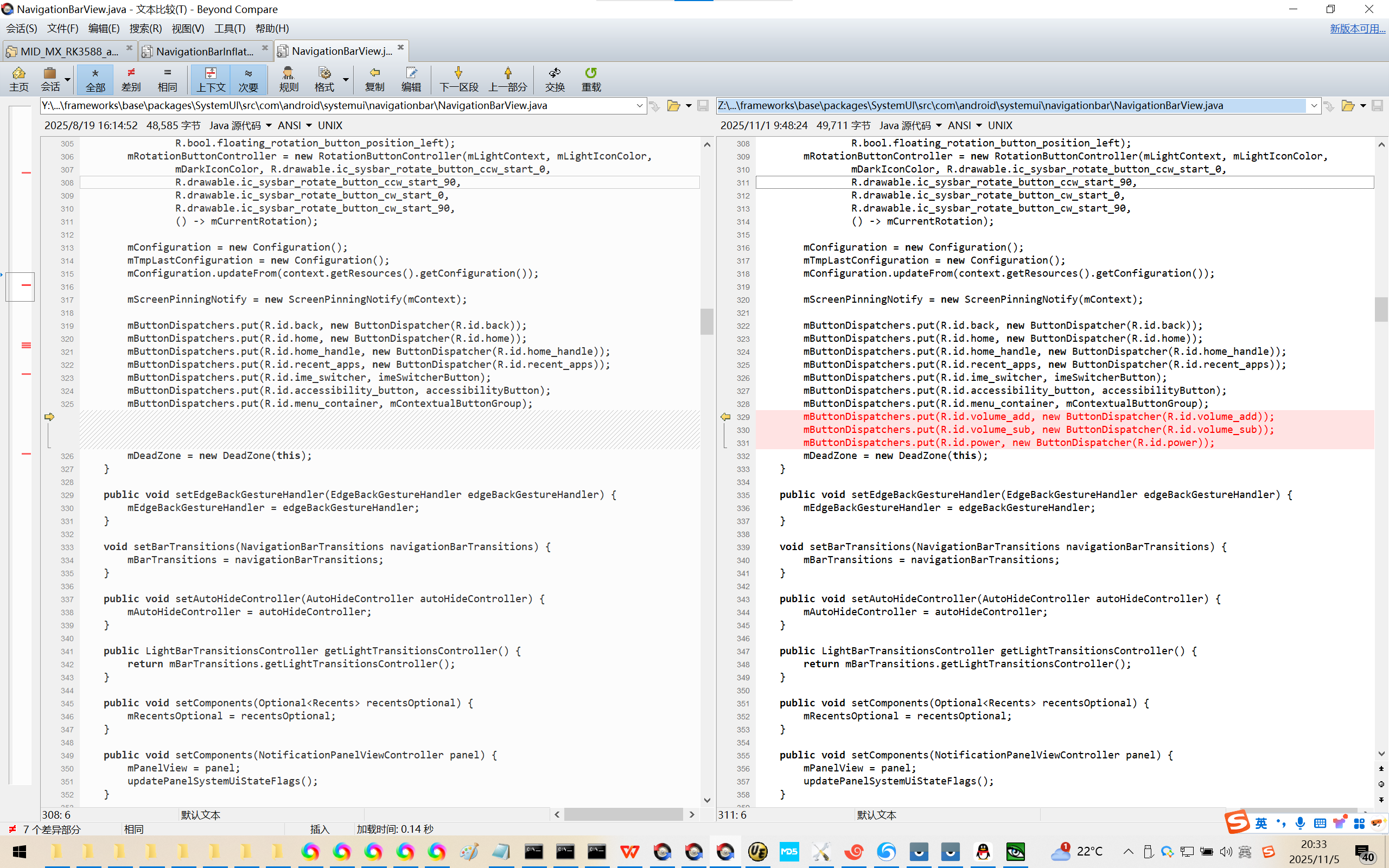

5、响应截图按钮的点击：

Y:\MID_MX_RK3588_android13-20250818\frameworks\base\packages\SystemUI\src\com\android\systemui\navigationbar\NavigationBarView.java

Z:\rk-android13-20250818RD-RK3588-MID\frameworks\base\packages\SystemUI\src\com\android\systemui\navigationbar\NavigationBarView.java

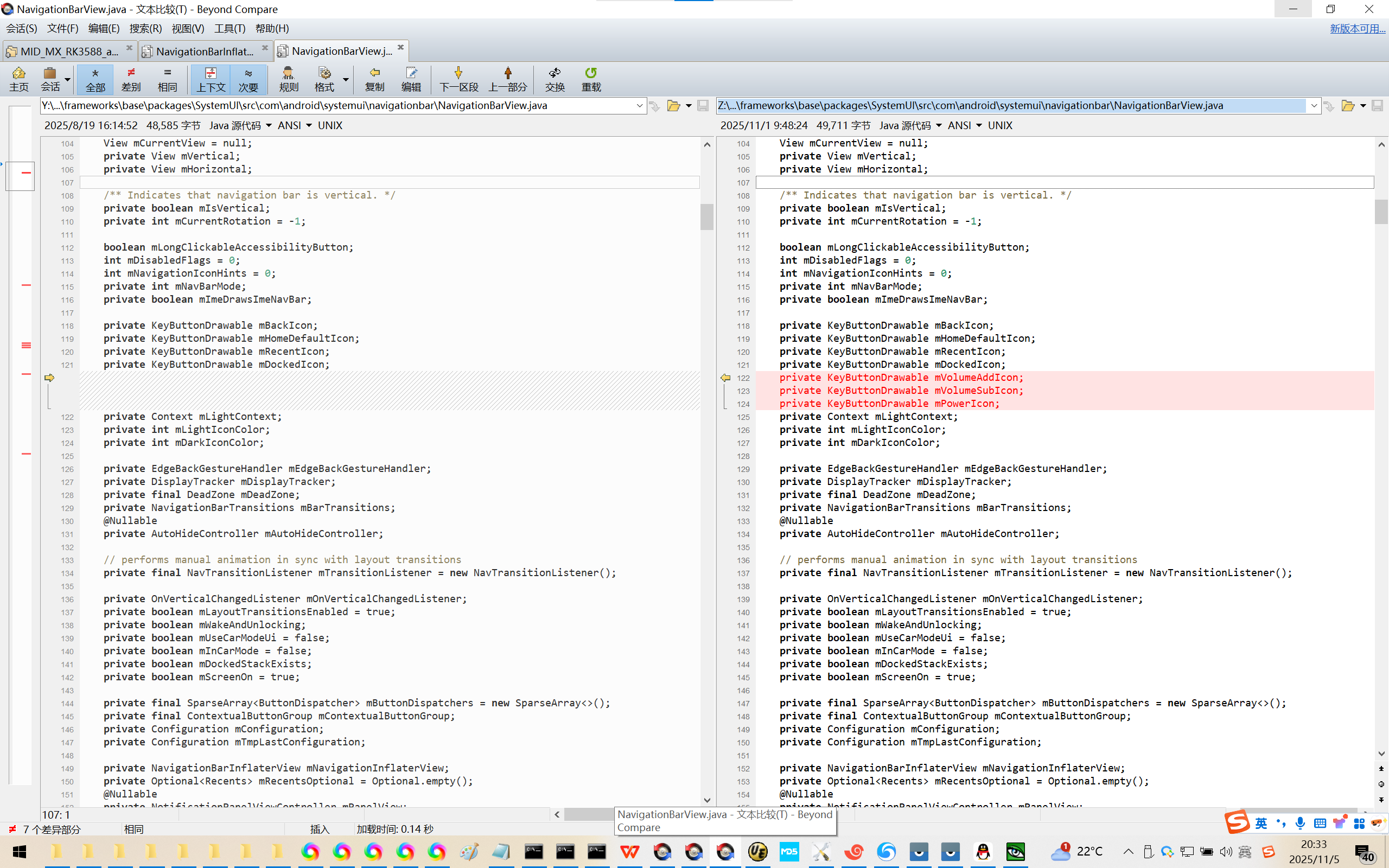

private KeyButtonDrawable mBackIcon;

private KeyButtonDrawable mHomeDefaultIcon;

private KeyButtonDrawable mRecentIcon;

private KeyButtonDrawable mDockedIcon;
private KeyButtonDrawable mVolumeAddIcon;
private KeyButtonDrawable mVolumeSubIcon;

private KeyButtonDrawable mPowerIcon;

private Context mLightContext;

private int mLightIconColor;

private int mDarkIconColor;

public NavigationBarView(Context context, AttributeSet attrs) {

super(context, attrs);

final Context darkContext = new ContextThemeWrapper(context,

Utils.getThemeAttr(context, R.attr.darkIconTheme));

mLightContext = new ContextThemeWrapper(context,

Utils.getThemeAttr(context, R.attr.lightIconTheme));

mLightIconColor = Utils.getColorAttrDefaultColor(mLightContext, R.attr.singleToneColor);

mDarkIconColor = Utils.getColorAttrDefaultColor(darkContext, R.attr.singleToneColor);

mIsVertical = false;

mLongClickableAccessibilityButton = false;

// Set up the context group of buttons

mContextualButtonGroup = new ContextualButtonGroup(R.id.menu_container);

final ContextualButton imeSwitcherButton = new ContextualButton(R.id.ime_switcher,

mLightContext, R.drawable.ic_ime_switcher_default);

final ContextualButton accessibilityButton =

new ContextualButton(R.id.accessibility_button, mLightContext,

R.drawable.ic_sysbar_accessibility_button);

mContextualButtonGroup.addButton(imeSwitcherButton);

mContextualButtonGroup.addButton(accessibilityButton);

mRotationContextButton = new RotationContextButton(R.id.rotate_suggestion,

mLightContext, R.drawable.ic_sysbar_rotate_button_ccw_start_0);

mFloatingRotationButton = new FloatingRotationButton(mContext,

R.string.accessibility_rotate_button,

R.layout.rotate_suggestion,

R.id.rotate_suggestion,

R.dimen.floating_rotation_button_min_margin,

R.dimen.rounded_corner_content_padding,

R.dimen.floating_rotation_button_taskbar_left_margin,

R.dimen.floating_rotation_button_taskbar_bottom_margin,

R.dimen.floating_rotation_button_diameter,

R.dimen.key_button_ripple_max_width,

R.bool.floating_rotation_button_position_left);

mRotationButtonController = new RotationButtonController(mLightContext, mLightIconColor,

mDarkIconColor, R.drawable.ic_sysbar_rotate_button_ccw_start_0,

R.drawable.ic_sysbar_rotate_button_ccw_start_90,

R.drawable.ic_sysbar_rotate_button_cw_start_0,

R.drawable.ic_sysbar_rotate_button_cw_start_90,

() -> mCurrentRotation);

mConfiguration = new Configuration();

mTmpLastConfiguration = new Configuration();

mConfiguration.updateFrom(context.getResources().getConfiguration());

mScreenPinningNotify = new ScreenPinningNotify(mContext);

mButtonDispatchers.put(R.id.back, new ButtonDispatcher(R.id.back));

mButtonDispatchers.put(R.id.home, new ButtonDispatcher(R.id.home));

mButtonDispatchers.put(R.id.home_handle, new ButtonDispatcher(R.id.home_handle));

mButtonDispatchers.put(R.id.recent_apps, new ButtonDispatcher(R.id.recent_apps));

mButtonDispatchers.put(R.id.ime_switcher, imeSwitcherButton);

mButtonDispatchers.put(R.id.accessibility_button, accessibilityButton);

mButtonDispatchers.put(R.id.menu_container, mContextualButtonGroup);
mButtonDispatchers.put(R.id.volume_add, new ButtonDispatcher(R.id.volume_add));
mButtonDispatchers.put(R.id.volume_sub, new ButtonDispatcher(R.id.volume_sub));

mButtonDispatchers.put(R.id.power, new ButtonDispatcher(R.id.power));

mDeadZone = new DeadZone(this);

}

public ButtonDispatcher getAccessibilityButton() {

return mButtonDispatchers.get(R.id.accessibility_button);

}

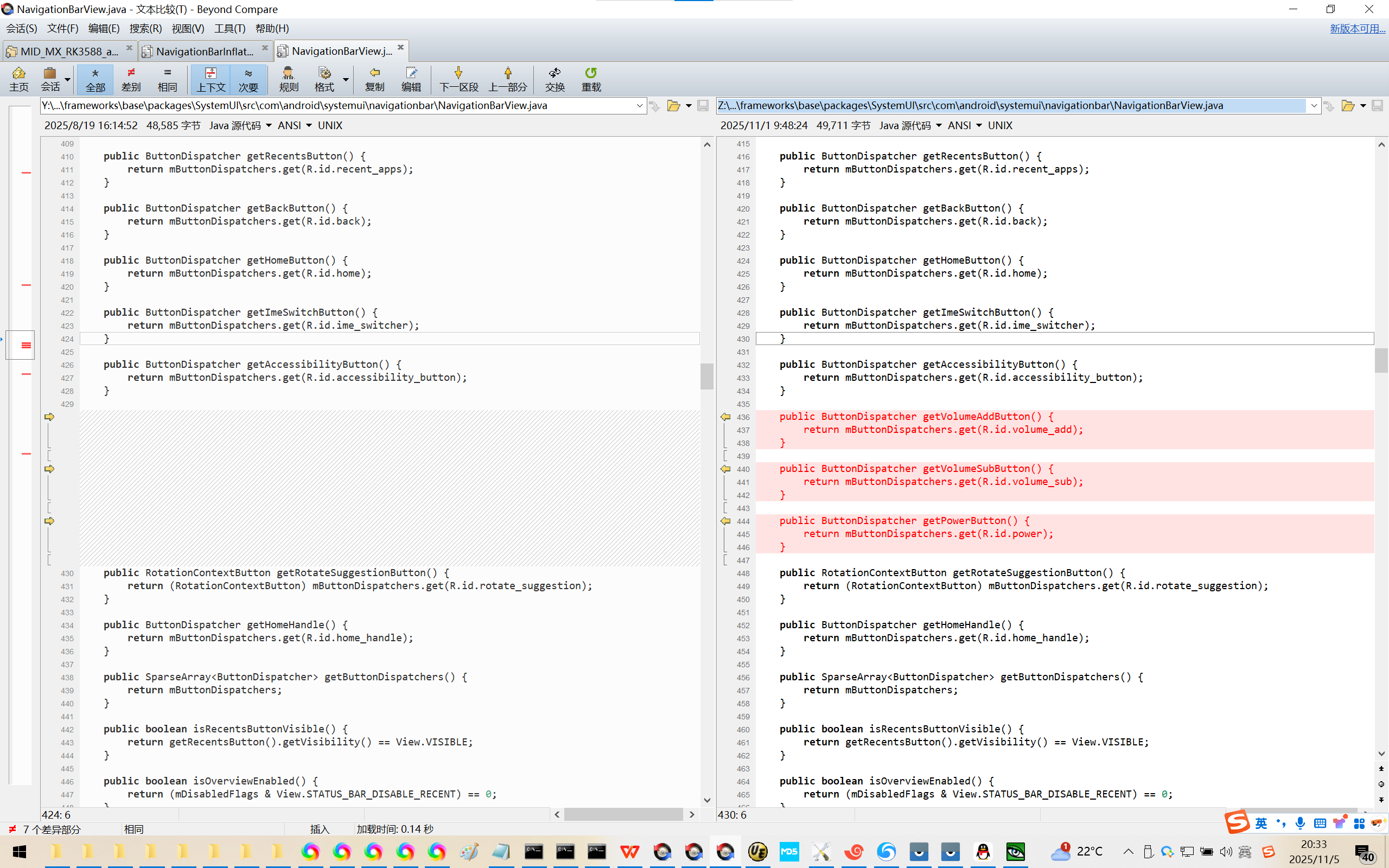

public ButtonDispatcher getVolumeAddButton() {
return mButtonDispatchers.get(R.id.volume_add);
}

public ButtonDispatcher getVolumeSubButton() {
return mButtonDispatchers.get(R.id.volume_sub);
}

public ButtonDispatcher getPowerButton() {

return mButtonDispatchers.get(R.id.power);

}

public RotationContextButton getRotateSuggestionButton() {

return (RotationContextButton) mButtonDispatchers.get(R.id.rotate_suggestion);

}

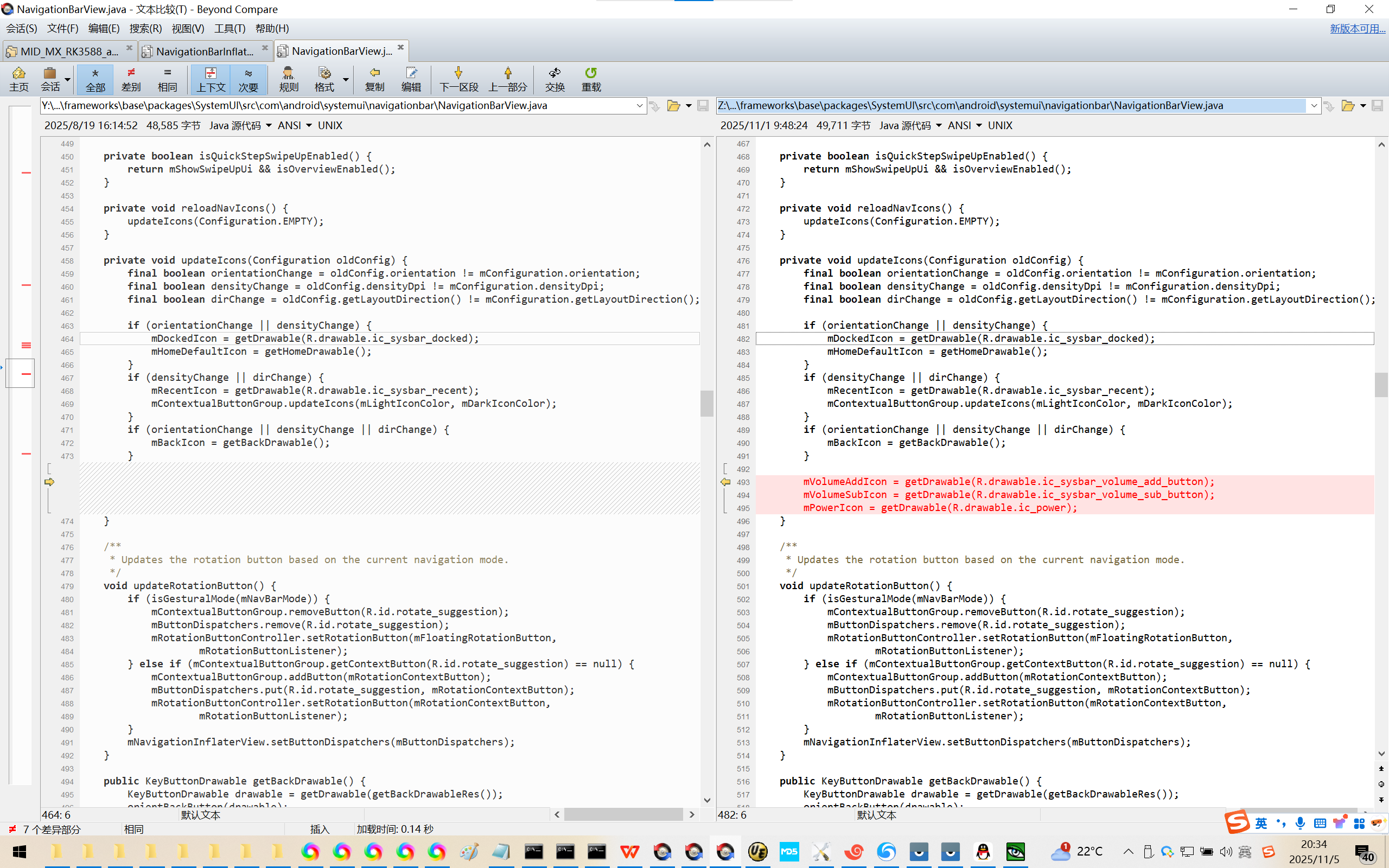

private void updateIcons(Configuration oldConfig) {

final boolean orientationChange = oldConfig.orientation != mConfiguration.orientation;

final boolean densityChange = oldConfig.densityDpi != mConfiguration.densityDpi;

final boolean dirChange = oldConfig.getLayoutDirection() != mConfiguration.getLayoutDirection();

if (orientationChange || densityChange) {

mDockedIcon = getDrawable(R.drawable.ic_sysbar_docked);

mHomeDefaultIcon = getHomeDrawable();

}

if (densityChange || dirChange) {

mRecentIcon = getDrawable(R.drawable.ic_sysbar_recent);

mContextualButtonGroup.updateIcons(mLightIconColor, mDarkIconColor);

}

if (orientationChange || densityChange || dirChange) {

mBackIcon = getBackDrawable();

}

mVolumeAddIcon = getDrawable(R.drawable.ic_sysbar_volume_add_button);
mVolumeSubIcon = getDrawable(R.drawable.ic_sysbar_volume_sub_button);

mPowerIcon = getDrawable(R.drawable.ic_power);

}

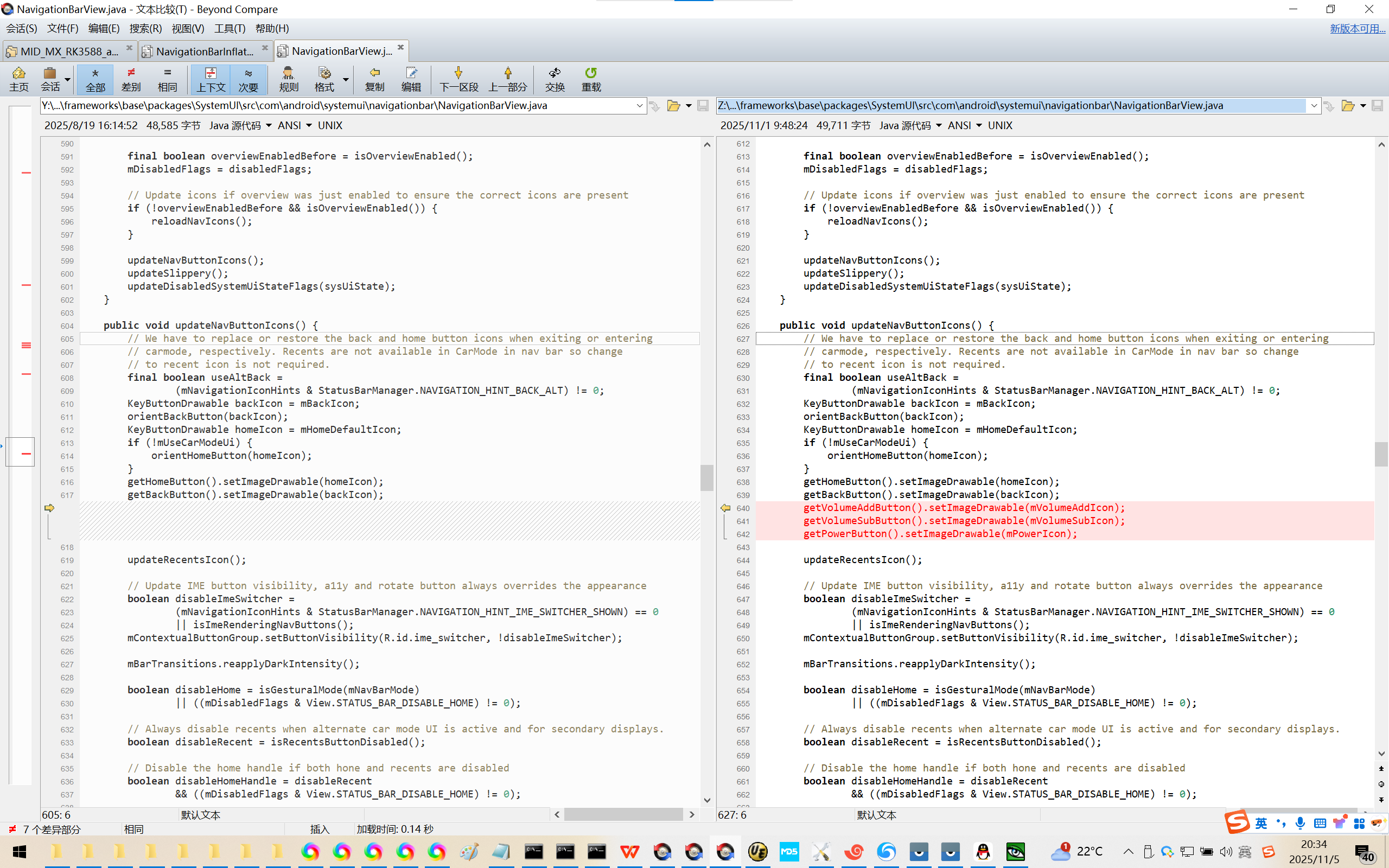

public void updateNavButtonIcons() {

// We have to replace or restore the back and home button icons when exiting or entering

// carmode, respectively. Recents are not available in CarMode in nav bar so change

// to recent icon is not required.

final boolean useAltBack =

(mNavigationIconHints & StatusBarManager.NAVIGATION_HINT_BACK_ALT) != 0;

KeyButtonDrawable backIcon = mBackIcon;

orientBackButton(backIcon);

KeyButtonDrawable homeIcon = mHomeDefaultIcon;

if (!mUseCarModeUi) {

orientHomeButton(homeIcon);

}

getHomeButton().setImageDrawable(homeIcon);

getBackButton().setImageDrawable(backIcon);
getVolumeAddButton().setImageDrawable(mVolumeAddIcon);
getVolumeSubButton().setImageDrawable(mVolumeSubIcon);

getPowerButton().setImageDrawable(mPowerIcon);

updateRecentsIcon();

// Update IME button visibility, a11y and rotate button always overrides the appearance

boolean disableImeSwitcher =

(mNavigationIconHints & StatusBarManager.NAVIGATION_HINT_IME_SWITCHER_SHOWN) == 0

|| isImeRenderingNavButtons();

mContextualButtonGroup.setButtonVisibility(R.id.ime_switcher, !disableImeSwitcher);

mBarTransitions.reapplyDarkIntensity();

boolean disableHome = isGesturalMode(mNavBarMode)

|| ((mDisabledFlags & View.STATUS_BAR_DISABLE_HOME) != 0);

// Always disable recents when alternate car mode UI is active and for secondary displays.

boolean disableRecent = isRecentsButtonDisabled();

// Disable the home handle if both hone and recents are disabled

boolean disableHomeHandle = disableRecent

&& ((mDisabledFlags & View.STATUS_BAR_DISABLE_HOME) != 0);

boolean disableBack = !useAltBack && (mEdgeBackGestureHandler.isHandlingGestures()

|| ((mDisabledFlags & View.STATUS_BAR_DISABLE_BACK) != 0))

|| isImeRenderingNavButtons();

// When screen pinning, don't hide back and home when connected service or back and

// recents buttons when disconnected from launcher service in screen pinning mode,

// as they are used for exiting.

if (mOverviewProxyEnabled) {

// Force disable recents when not in legacy mode

disableRecent |= !QuickStepContract.isLegacyMode(mNavBarMode);

if (mScreenPinningActive && !QuickStepContract.isGesturalMode(mNavBarMode)) {

disableBack = disableHome = false;

}

} else if (mScreenPinningActive) {

disableBack = disableRecent = false;

}

ViewGroup navButtons = getCurrentView().findViewById(R.id.nav_buttons);

if (navButtons != null) {

LayoutTransition lt = navButtons.getLayoutTransition();

if (lt != null) {

if (!lt.getTransitionListeners().contains(mTransitionListener)) {

lt.addTransitionListener(mTransitionListener);

}

}

}

getBackButton().setVisibility(disableBack ? View.INVISIBLE : View.VISIBLE);

getHomeButton().setVisibility(disableHome ? View.INVISIBLE : View.VISIBLE);

getRecentsButton().setVisibility(disableRecent ? View.INVISIBLE : View.VISIBLE);

getHomeHandle().setVisibility(disableHomeHandle ? View.INVISIBLE : View.VISIBLE);

notifyActiveTouchRegions();

}

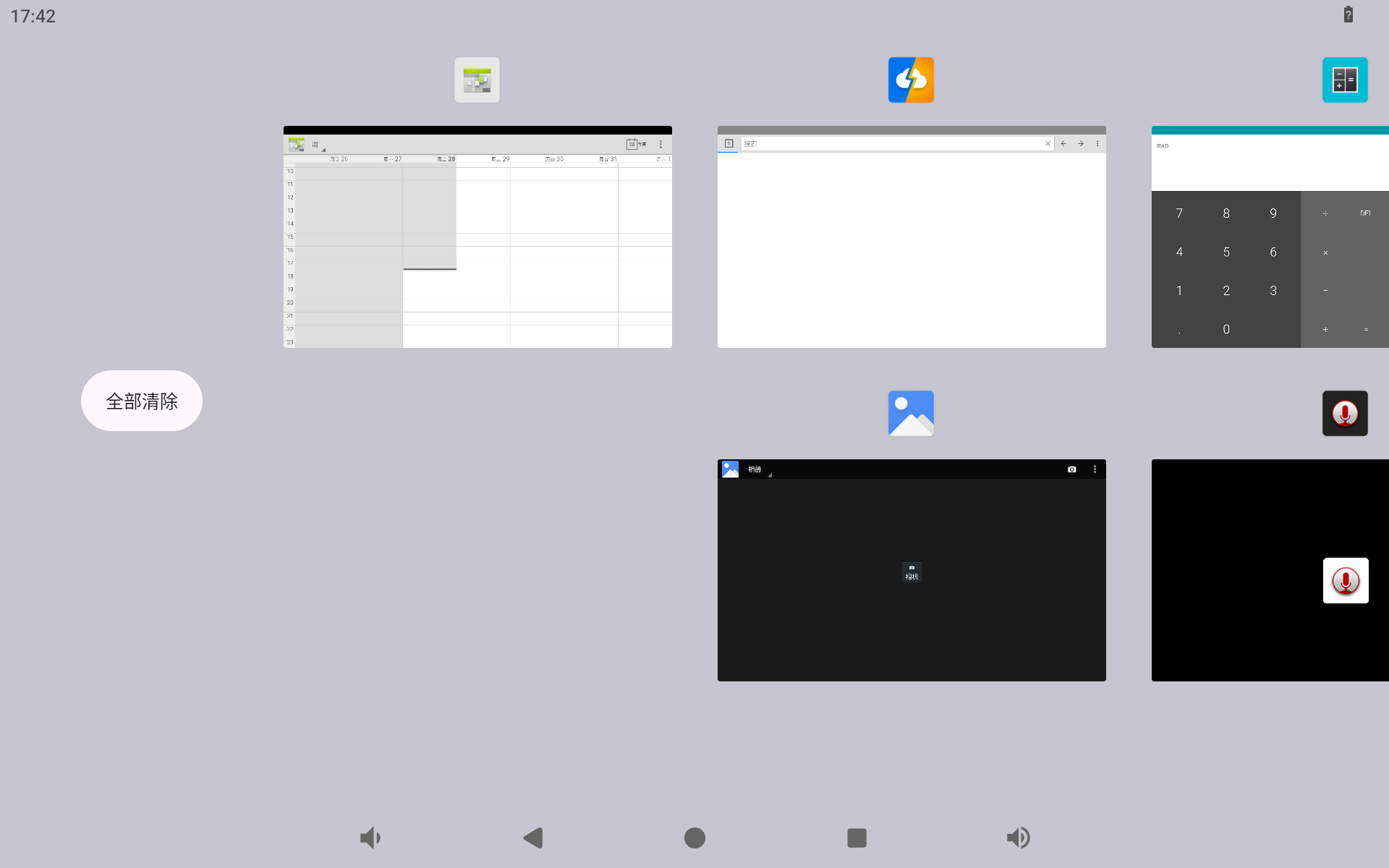

效果图：

参考资料：

【这个会多一点】

https://blog.csdn.net/wzh048503/article/details/140020452

Android13系统导航栏添加音量加减键按钮功能

0001-custom-navigationbar-add-volume-button.patch

From 0b025933ed06b14e6eb5db5fd5183b108cd4d6d6 Mon Sep 17 00:00:00 2001

From: liyj <976704119@qq.com>

Date: Wed, 4 Jun 2025 11:30:17 +0800

Subject: [PATCH 1/2] custom: navigationbar add volume+- button

.../drawable/ic_sysbar_volume_add_button.xml | 9 ++++++

.../drawable/ic_sysbar_volume_sub_button.xml | 9 ++++++

.../SystemUI/res/layout/volume_add.xml | 28 +++++++++++++++++++

.../SystemUI/res/layout/volume_sub.xml | 28 +++++++++++++++++++

.../SystemUI/res/values-sw600dp/config.xml | 2 +-

.../packages/SystemUI/res/values/config.xml | 2 +-

.../NavigationBarInflaterView.java | 6 ++++

.../navigationbar/NavigationBarView.java | 17 +++++++++++

8 files changed, 99 insertions(+), 2 deletions(-)

create mode 100755 frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_add_button.xml

create mode 100755 frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_sub_button.xml

create mode 100755 frameworks/base/packages/SystemUI/res/layout/volume_add.xml

create mode 100755 frameworks/base/packages/SystemUI/res/layout/volume_sub.xml

diff --git a/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_add_button.xml b/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_add_button.xml

new file mode 100755

index 0000000000..76a145eff0

--- /dev/null

+++ b/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_add_button.xml

@@ -0,0 +1,9 @@

+<vector xmlns:android="http://schemas.android.com/apk/res/android"

  • android:width="24dp"

  • android:height="24dp"

  • android:viewportWidth="24.0"

  • android:viewportHeight="24.0">

  • <path

  • android:fillColor="?attr/singleToneColor"

  • android:pathData="M3,9v6h4l5,5L12,4L7,9L3,9zM16.5,12c0,-1.77 -1.02,-3.29 -2.5,-4.03v8.05c1.48,-0.73 2.5,-2.25 2.5,-4.02zM14,3.23v2.06c2.89,0.86 5,3.54 5,6.71s-2.11,5.85 -5,6.71v2.06c4.01,-0.91 7,-4.49 7,-8.77s-2.99,-7.86 -7,-8.77z"/>

+</vector>

diff --git a/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_sub_button.xml b/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_sub_button.xml

new file mode 100755

index 0000000000..69d86071ce

--- /dev/null

+++ b/frameworks/base/packages/SystemUI/res/drawable/ic_sysbar_volume_sub_button.xml

@@ -0,0 +1,9 @@

+<vector xmlns:android="http://schemas.android.com/apk/res/android"

  • android:width="28dp"

  • android:height="28dp"

  • android:viewportWidth="24.0"

  • android:viewportHeight="24.0">

  • <path

  • android:fillColor="?attr/singleToneColor"

  • android:pathData="M18.5,12c0,-1.77 -1.02,-3.29 -2.5,-4.03v8.05c1.48,-0.73 2.5,-2.25 2.5,-4.02zM5,9v6h4l5,5V4L9,9H5z"/>

+</vector>

diff --git a/frameworks/base/packages/SystemUI/res/layout/volume_add.xml b/frameworks/base/packages/SystemUI/res/layout/volume_add.xml

new file mode 100755

index 0000000000..882c855a3a

--- /dev/null

+++ b/frameworks/base/packages/SystemUI/res/layout/volume_add.xml

@@ -0,0 +1,28 @@

+<?xml version="1.0" encoding="utf-8"?>

+<!-- Copyright (C) 2016 The Android Open Source Project

  • Licensed under the Apache License, Version 2.0 (the "License");

  • you may not use this file except in compliance with the License.

  • You may obtain a copy of the License at

  • http://www.apache.org/licenses/LICENSE-2.0

  • Unless required by applicable law or agreed to in writing, software

  • distributed under the License is distributed on an "AS IS" BASIS,

  • WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

  • See the License for the specific language governing permissions and

  • limitations under the License.

+-->

+<com.android.systemui.navigationbar.buttons.KeyButtonView

  • xmlns:android="http://schemas.android.com/apk/res/android"

  • xmlns:systemui="http://schemas.android.com/apk/res-auto"

  • android:id="@+id/volume_add"

  • android:layout_width="@dimen/navigation_key_width"

  • android:layout_height="match_parent"

  • android:layout_weight="0"

  • systemui:keyCode="24"

  • android:scaleType="center"

  • android:paddingStart="@dimen/navigation_key_padding"

  • android:paddingEnd="@dimen/navigation_key_padding"

  • />

diff --git a/frameworks/base/packages/SystemUI/res/layout/volume_sub.xml b/frameworks/base/packages/SystemUI/res/layout/volume_sub.xml

new file mode 100755

index 0000000000..4b687bd520

--- /dev/null

+++ b/frameworks/base/packages/SystemUI/res/layout/volume_sub.xml

@@ -0,0 +1,28 @@

+<?xml version="1.0" encoding="utf-8"?>

+<!-- Copyright (C) 2016 The Android Open Source Project

  • Licensed under the Apache License, Version 2.0 (the "License");

  • you may not use this file except in compliance with the License.

  • You may obtain a copy of the License at

  • http://www.apache.org/licenses/LICENSE-2.0

  • Unless required by applicable law or agreed to in writing, software

  • distributed under the License is distributed on an "AS IS" BASIS,

  • WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

  • See the License for the specific language governing permissions and

  • limitations under the License.

+-->

+<com.android.systemui.navigationbar.buttons.KeyButtonView

  • xmlns:android="http://schemas.android.com/apk/res/android"

  • xmlns:systemui="http://schemas.android.com/apk/res-auto"

  • android:id="@+id/volume_sub"

  • android:layout_width="@dimen/navigation_key_width"

  • android:layout_height="match_parent"

  • android:layout_weight="0"

  • systemui:keyCode="25"

  • android:scaleType="center"

  • android:paddingStart="@dimen/navigation_key_padding"

  • android:paddingEnd="@dimen/navigation_key_padding"

  • />

diff --git a/frameworks/base/packages/SystemUI/res/values-sw600dp/config.xml b/frameworks/base/packages/SystemUI/res/values-sw600dp/config.xml

index ea3c012afc..c07b00f744 100644

--- a/frameworks/base/packages/SystemUI/res/values-sw600dp/config.xml

+++ b/frameworks/base/packages/SystemUI/res/values-sw600dp/config.xml

@@ -27,7 +27,7 @@

<bool name="config_quickSettingsMediaLandscapeCollapsed">false</bool>

<!-- Nav bar button default ordering/layout -->

  • <string name="config_navBarLayout" translatable="false">left;back,home,recent;right</string>
  • <string name="config_navBarLayout" translatable="false">left;volume_sub,back,home,recent,volume_add;right</string>

<!-- orientation of the dead zone when touches have recently occurred elsewhere on screen -->

<integer name="navigation_bar_deadzone_orientation">0</integer>

diff --git a/frameworks/base/packages/SystemUI/res/values/config.xml b/frameworks/base/packages/SystemUI/res/values/config.xml

index 9fae4d3e08..9ab93da3cb 100644

--- a/frameworks/base/packages/SystemUI/res/values/config.xml

+++ b/frameworks/base/packages/SystemUI/res/values/config.xml

@@ -301,7 +301,7 @@

</string-array>

<!-- Nav bar button default ordering/layout -->

  • <string name="config_navBarLayout" translatable="false">left[.5W],back[1WC];home;recent[1WC],right[.5W]</string>
  • <string name="config_navBarLayout" translatable="false">left[.5W];volume_sub,back,home,recent,volume_add;right[.5W]</string>

<string name="config_navBarLayoutQuickstep" translatable="false">back[1.7WC];home;contextual[1.7WC]</string>

<string name="config_navBarLayoutHandle" translatable="false">back[70AC];home_handle;ime_switcher[70AC]</string>

diff --git a/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarInflaterView.java b/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarInflaterView.java

index 59bb2278ed..01480ae42e 100644

--- a/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarInflaterView.java

+++ b/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarInflaterView.java

@@ -68,6 +68,8 @@ public class NavigationBarInflaterView extends FrameLayout

public static final String RIGHT = "right";

public static final String CONTEXTUAL = "contextual";

public static final String IME_SWITCHER = "ime_switcher";

  • public static final String VOLUME_ADD = "volume_add";

  • public static final String VOLUME_SUB = "volume_sub";

public static final String GRAVITY_SEPARATOR = ";";

public static final String BUTTON_SEPARATOR = ",";

@@ -387,6 +389,10 @@ public class NavigationBarInflaterView extends FrameLayout

v = inflater.inflate(R.layout.home_handle, parent, false);

} else if (IME_SWITCHER.equals(button)) {

v = inflater.inflate(R.layout.ime_switcher, parent, false);

  • } else if (VOLUME_ADD.equals(button)) {

  • v = inflater.inflate(R.layout.volume_add, parent, false);

  • } else if (VOLUME_SUB.equals(button)) {

  • v = inflater.inflate(R.layout.volume_sub, parent, false);

} else if (button.startsWith(KEY)) {

String uri = extractImage(button);

int code = extractKeycode(button);

diff --git a/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarView.java b/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarView.java

index 5d598e8dc7..8287f03d6a 100644

--- a/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarView.java

+++ b/frameworks/base/packages/SystemUI/src/com/android/systemui/navigationbar/NavigationBarView.java

@@ -119,6 +119,8 @@ public class NavigationBarView extends FrameLayout {

private KeyButtonDrawable mHomeDefaultIcon;

private KeyButtonDrawable mRecentIcon;

private KeyButtonDrawable mDockedIcon;

  • private KeyButtonDrawable mVolumeAddIcon;

  • private KeyButtonDrawable mVolumeSubIcon;

private Context mLightContext;

private int mLightIconColor;

private int mDarkIconColor;

@@ -323,6 +325,8 @@ public class NavigationBarView extends FrameLayout {

mButtonDispatchers.put(R.id.ime_switcher, imeSwitcherButton);

mButtonDispatchers.put(R.id.accessibility_button, accessibilityButton);

mButtonDispatchers.put(R.id.menu_container, mContextualButtonGroup);

  • mButtonDispatchers.put(R.id.volume_add, new ButtonDispatcher(R.id.volume_add));

  • mButtonDispatchers.put(R.id.volume_sub, new ButtonDispatcher(R.id.volume_sub));

mDeadZone = new DeadZone(this);

}

@@ -427,6 +431,14 @@ public class NavigationBarView extends FrameLayout {

return mButtonDispatchers.get(R.id.accessibility_button);

}

  • public ButtonDispatcher getVolumeAddButton() {

  • return mButtonDispatchers.get(R.id.volume_add);

  • }

  • public ButtonDispatcher getVolumeSubButton() {

  • return mButtonDispatchers.get(R.id.volume_sub);

  • }

public RotationContextButton getRotateSuggestionButton() {

return (RotationContextButton) mButtonDispatchers.get(R.id.rotate_suggestion);

}

@@ -471,6 +483,9 @@ public class NavigationBarView extends FrameLayout {

if (orientationChange || densityChange || dirChange) {

mBackIcon = getBackDrawable();

}

  • mVolumeAddIcon = getDrawable(R.drawable.ic_sysbar_volume_add_button);

  • mVolumeSubIcon = getDrawable(R.drawable.ic_sysbar_volume_sub_button);

}

/**

@@ -615,6 +630,8 @@ public class NavigationBarView extends FrameLayout {

}

getHomeButton().setImageDrawable(homeIcon);

getBackButton().setImageDrawable(backIcon);

  • getVolumeAddButton().setImageDrawable(mVolumeAddIcon);

  • getVolumeSubButton().setImageDrawable(mVolumeSubIcon);

updateRecentsIcon();

--

2.25.1

相关推荐
南棱笑笑生4 天前
20251029在AIO-3576Q38开发板的Android14下使用iperf3测试WIFI模块AP6256的网速【87.8 Mbits/sec】
rockchip
南棱笑笑生6 天前
20251030在AIO-3576Q38开发板的Android14下确认TF卡
rockchip
南棱笑笑生7 天前
20251028在Ubuntu20.04.6上编译AIO-3576Q38开发板的Buildroot系统
大数据·linux·服务器·rockchip
南棱笑笑生7 天前
20251029让AIO-3576Q38开发板适配Rockchip的原厂Android14之后配置为禁止锁屏
rockchip
南棱笑笑生8 天前
20251028在荣品RD-RK3588-MID开发板的Android13系统下解决关机的时候最近打开的应用不关的问题
开发语言·python·rockchip
南棱笑笑生8 天前
20251028解决编译AIO-3576Q38开发板的Android14刷机之后进MASKROM模式的问题
rockchip
南棱笑笑生9 天前
20251027在Ubuntu20.04.6上编译AIO-3576Q38开发板的Buildroot系统解决qt5webengine编译异常的问题
开发语言·qt·rockchip
南棱笑笑生18 天前
20251018在ubuntu24.04下解压缩gz压缩包
rockchip
南棱笑笑生1 个月前
20250931在RK3399的Buildroot【linux-6.1】下关闭camera_engine_rkisp
开发语言·后端·scala·rockchip
热门推荐
01GitHub 镜像站点02综合整理：pdf预览显示：你尝试预览的文件可能对你的计算机有害。如果你信任此文件以及其来源，请打开此文件以看其内容，如何解决以正常预览文件03UV安装并设置国内源04npm使用国内淘宝镜像的方法05Linux下V2Ray安装配置指南06安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）07BongoCat - 跨平台键盘猫动画工具08《大数据技术原理与应用》实验报告三 熟悉HBase常用操作09NVIDIA显卡驱动、CUDA、cuDNN 和 TensorRT 版本匹配指南10GitLab 零基础入门指南：从安装到项目管理全流程
