实战演练——wordpress-k8s集群版

喜欢你，还有大家2025-11-30 16:40

关键要点包括：​

  1. 应用封装与管理：WordPress 和 MySQL 被封装成 Pod，运行所需环境变量保存在 ConfigMap 中，采用"声明式"管理，便于阅读和版本化管理。
  2. MySQL YAML 定义：需定义 MySQL configmap（mysql - cm.yaml），包含 4 个环境变量；还需定义 MySQL Pod（mysql - pod.yaml），并从 configmap 引用环境变量。
  3. WordPress YAML 定义：定义 WordPress Configmap（wp - cm.yaml），包含数据库相关信息；定义 WordPress Pod（wp - pod.yaml），同样从 configmap 引用环境变量。
  4. 部署操作：使用 kubectl apply - f 部署 MySQL 和 WordPress。
  5. 访问 WordPress：通过 kubectl get pods - o wide 查看 Pod IP 地址，使用 kubectl port - forward --address [0.0.0.0](0.0.0.0) wp - pod 8080:80 从外部访问 Pod。
  6. Configmap 引用优化：可使用 envFrom 从 configmap 批量引用环境变量，并对 configmap 的数据结构进行调整。

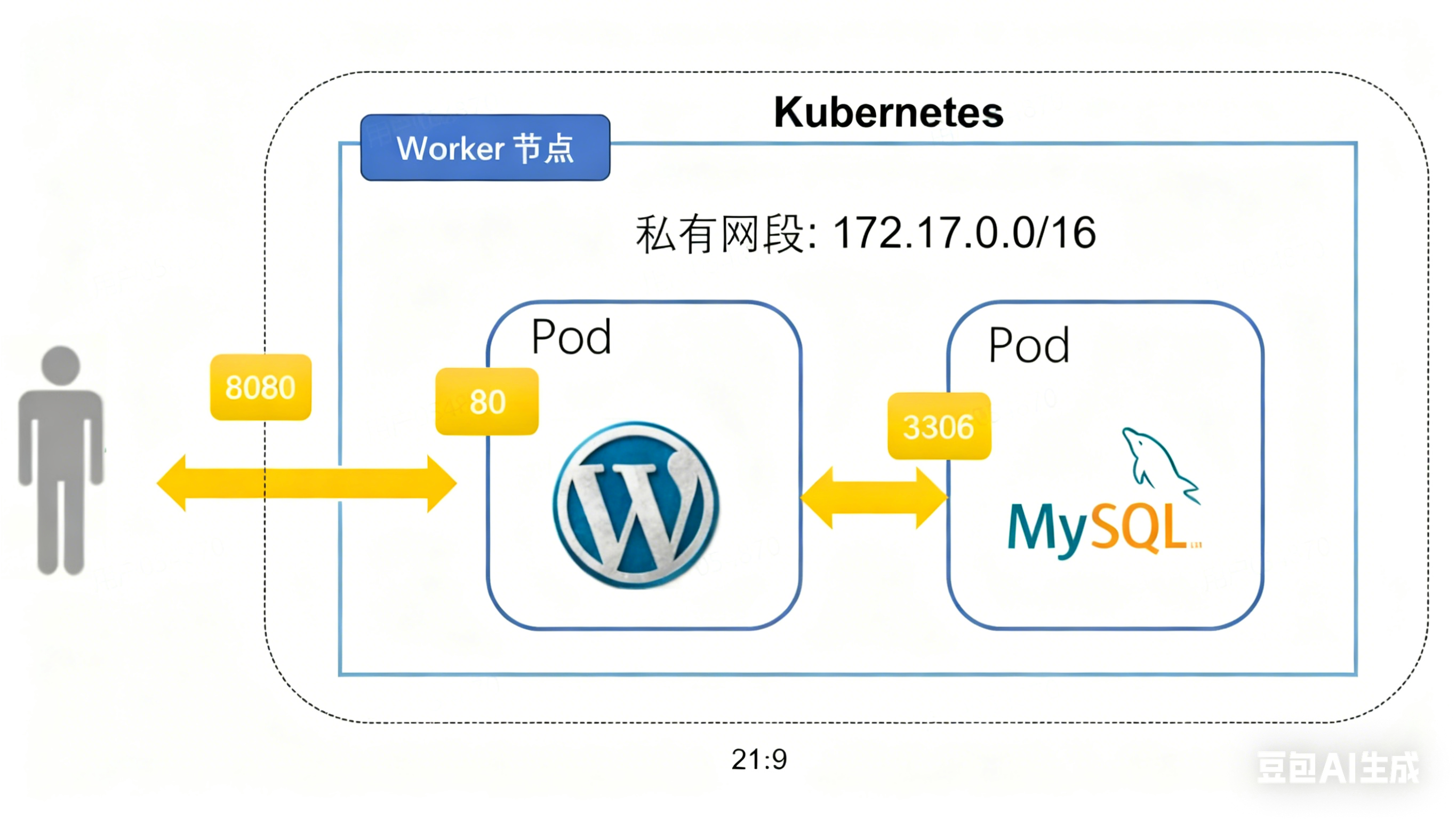

一、WordPress 网站搭建

1.定义MySQL YAML

复制代码
[root@localhost 07-wordpress-deploy]# cat mysql-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mysql-pod
  labels:
    app: wordpress
    role: database
spec:
  containers:
  - name: wp-mysql
    image: registry.cn-beijing.aliyuncs.com/xxhf/mysql:8.0
    ports:
    - containerPort: 3306
    env:
    - name: MYSQL_DATABASE
      value: "db_wordpress"
    - name: MYSQL_USER
      value: "wordpress"
    - name: MYSQL_PASSWORD
      value: "123456"
    - name: MYSQL_ROOT_PASSWORD
      value: "123456"

[root@localhost 07-wordpress-deploy]# kubectl apply -f mysql-pod.yaml
pod/mysql-pod created

[root@localhost 07-wordpress-deploy]# kubectl get pod -o wide
NAME        READY   STATUS    RESTARTS   AGE     IP              NODE     NOMINATED NODE   READINESS GATES
mysql-pod   1/1     Running   0          3m34s   172.17.219.83   master   <none>           <none>

注：mysql容器的ip地址172.17.219.83是要同步给wordpress项目的

2.定义 WordPress YAML

复制代码
[root@localhost 07-wordpress-deploy]# cat wp-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: wp-pod
  labels:
    app: wordpress
    role: website
spec:
  containers:
  - name: wp-pod
    image: registry.cn-beijing.aliyuncs.com/xxhf/wordpress:php7.4
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 80
    env:
      - name: WORDPRESS_DB_HOST
        value: "172.17.219.83"
      - name: WORDPRESS_DB_USER
        value: "wordpress"
      - name: WORDPRESS_DB_PASSWORD
        value: "123456"
      - name: WORDPRESS_DB_NAME
        value: "db_wordpress"
[root@localhost 07-wordpress-deploy]# kubectl apply -f wp-pod.yaml
pod/wp-pod created

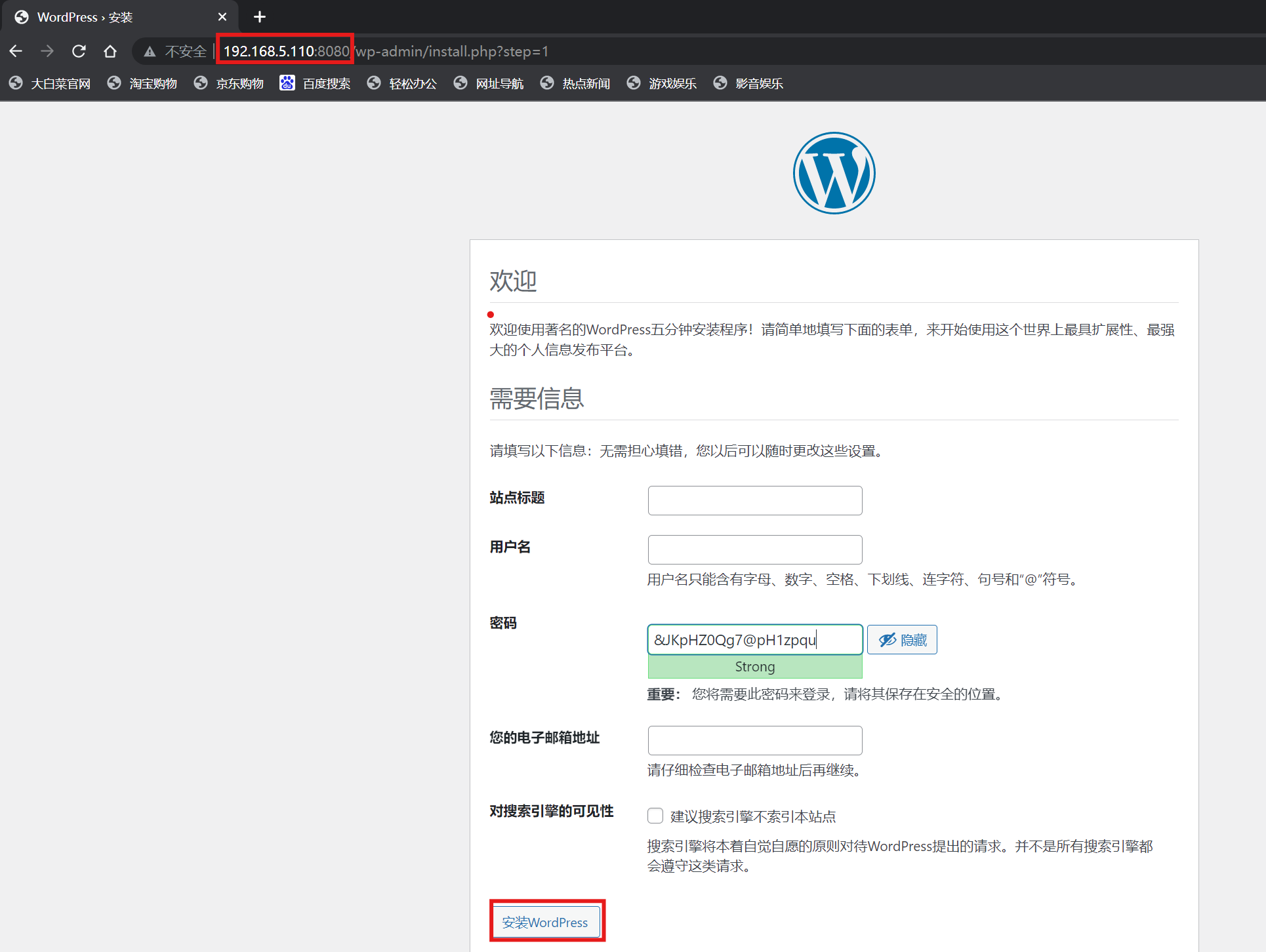

3.访问 WordPress

从外部访问，需要临时开放一个映射端口：

复制代码
[root@localhost 07-wordpress-deploy]# kubectl port-forward --address 0.0.0.0  wp-pod 8080:80

二、ConfigMap 存储数据

1.定义MySQL configmap

复制代码
[root@localhost 07-wordpress-deploy]# cat 01-mysql-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-cm
data:
  MYSQL_DATABASE: 'db_wordpress'
  MYSQL_USER: 'wordpress'
  MYSQL_PASSWORD: '123456'
  MYSQL_ROOT_PASSWORD: '123456'

挂载到mysql-pod容器当中：

复制代码
[root@localhost 07-wordpress-deploy]# cat 01-mysql-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mysql-pod
  labels:
    app: wordpress
    role: database
spec:
  containers:
  - name: wp-mysql
    image: registry.cn-beijing.aliyuncs.com/xxhf/mysql:8.0
      #image: mysql:8.0
      #imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 3306
    env:
      - name: MYSQL_DATABASE
        valueFrom:
          configMapKeyRef:
            name: mysql-cm
            key: MYSQL_DATABASE
      - name: MYSQL_USER
        valueFrom:
          configMapKeyRef:
            name: mysql-cm
            key: MYSQL_USER
      - name: MYSQL_PASSWORD
        valueFrom:
          configMapKeyRef:
            name: mysql-cm
            key: MYSQL_PASSWORD
      - name: MYSQL_ROOT_PASSWORD
        valueFrom:
          configMapKeyRef:
            name: mysql-cm
            key: MYSQL_ROOT_PASSWORD

启动容器服务：

复制代码
[root@localhost 07-wordpress-deploy]# kubectl apply -f 01-mysql-cm.yaml
configmap/mysql-cm unchanged
[root@localhost 07-wordpress-deploy]# kubectl apply -f 01-mysql-pod.yaml
pod/mysql-pod created
[root@localhost 07-wordpress-deploy]# kubectl get pod -o wide
NAME        READY   STATUS    RESTARTS   AGE   IP              NODE     NOMINATED NODE   READINESS GATES
mysql-pod   1/1     Running   0          8s    172.17.219.85   master   <none>           <none>

2.定义 WordPress Configmap

复制代码
[root@localhost 07-wordpress-deploy]# cat 01-wp-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: wp-cm
data:
  WORDPRESS_DB_HOST: '172.17.219.85'
  WORDPRESS_DB_USER: 'wordpress'
  WORDPRESS_DB_PASSWORD: '123456'
  WORDPRESS_DB_NAME: 'db_wordpress'

挂载到wp-pod容器当中：

复制代码
[root@localhost 07-wordpress-deploy]# cat 01-wp-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: wp-pod
  labels:
    app: wordpress
    role: website
spec:
  containers:
  - name: wp-pod
    image: registry.cn-beijing.aliyuncs.com/xxhf/wordpress:php7.4
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 80
    env:
      - name: WORDPRESS_DB_HOST
        valueFrom:
          configMapKeyRef:
            name: wp-cm
            key: WORDPRESS_DB_HOST
      - name: WORDPRESS_DB_USER
        valueFrom:
          configMapKeyRef:
            name: wp-cm
            key: WORDPRESS_DB_USER
      - name: WORDPRESS_DB_PASSWORD
        valueFrom:
          configMapKeyRef:
            name: wp-cm
            key: WORDPRESS_DB_PASSWORD
      - name: WORDPRESS_DB_NAME
        valueFrom:
          configMapKeyRef:
            name: wp-cm
            key: WORDPRESS_DB_NAME

启动容器服务：

复制代码
[root@localhost 07-wordpress-deploy]# kubectl apply -f 01-wp-cm.yaml
configmap/wp-cm configured
[root@localhost 07-wordpress-deploy]# kubectl apply -f 01-wp-pod.yaml
pod/wp-pod created
[root@localhost 07-wordpress-deploy]# kubectl get pod -o wide
NAME        READY   STATUS    RESTARTS   AGE     IP              NODE     NOMINATED NODE   READINESS GATES
mysql-pod   1/1     Running   0          4m42s   172.17.219.85   master   <none>           <none>
wp-pod      1/1     Running   0          51s     172.17.219.86   master   <none>           <none>

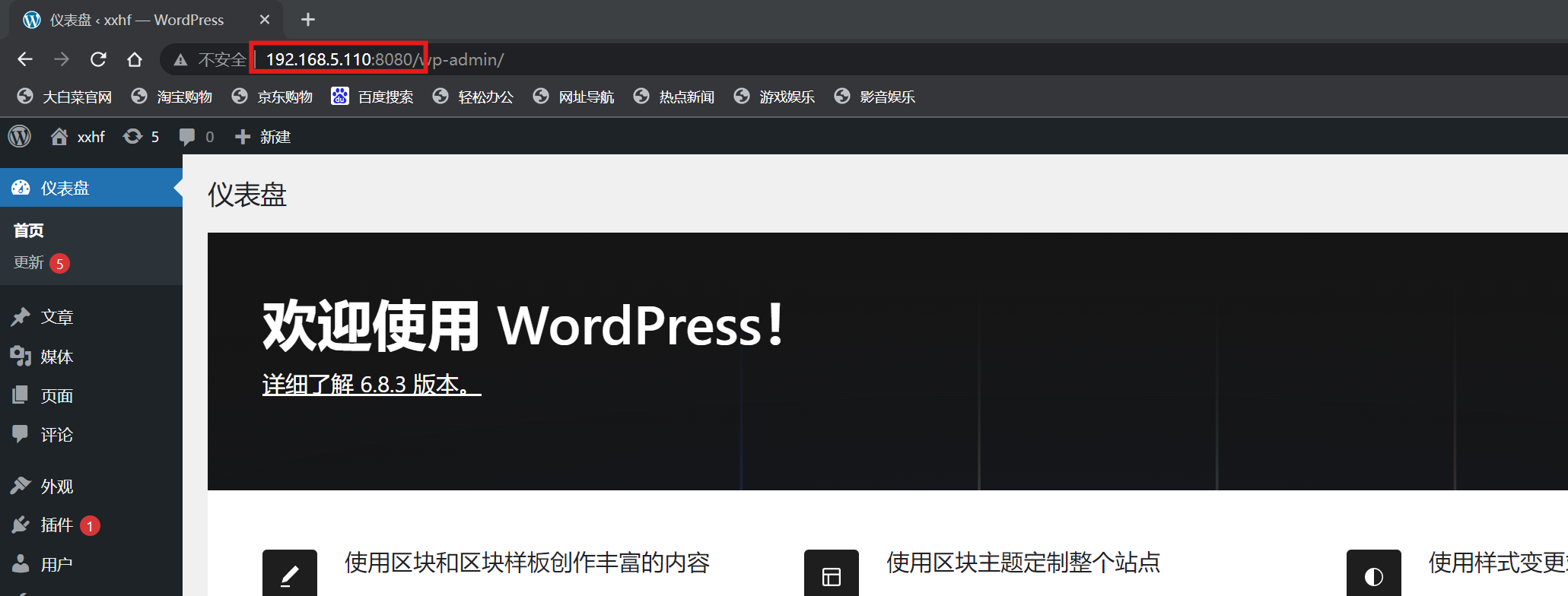

3.访问 WordPress

复制代码
[root@localhost 07-wordpress-deploy]# kubectl port-forward --address 0.0.0.0  wp-pod 8080:80

4.优化 configmap 引用

针对mysql-cm的优化：

复制代码
[root@localhost 07-wordpress-deploy]# cat 02-mysql-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-cm
data:
  DATABASE: 'db_wordpress'
  USER: 'wordpress'
  PASSWORD: '123456'
  ROOT_PASSWORD: '123456'

[root@localhost 07-wordpress-deploy]# cat 02-mysql-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-cm
data:
  DATABASE: 'db_wordpress'
  USER: 'wordpress'
  PASSWORD: '123456'
  ROOT_PASSWORD: '123456'
[root@localhost 07-wordpress-deploy]# cat 02-mysql-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: mysql-pod
  labels:
    app: wordpress
    role: database
spec:
  containers:
  - name: wp-mysql
    image: registry.cn-beijing.aliyuncs.com/xxhf/mysql:8.0
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 3306
    envFrom:
    - prefix: 'MYSQL_'  # 前缀
      configMapRef:
        name: mysql-cm

针对wp-cm的优化：

复制代码
[root@localhost 07-wordpress-deploy]# cat 02-wp-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: wp-cm
data:
  HOST: '10.244.171.6'
  USER: 'wordpress'
  PASSWORD: '123456'
  NAME: 'db_wordpress'
[root@localhost 07-wordpress-deploy]# cat 02-wp-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: wp-pod
  labels:
    app: wordpress
    role: website
spec:
  containers:
  - name: wp-pod
    image: registry.cn-beijing.aliyuncs.com/xxhf/wordpress:php7.4
    imagePullPolicy: IfNotPresent
    ports:
    - containerPort: 80
    envFrom:
    - prefix: 'WORDPRESS_DB_'
      configMapRef:
        name: wp-cm

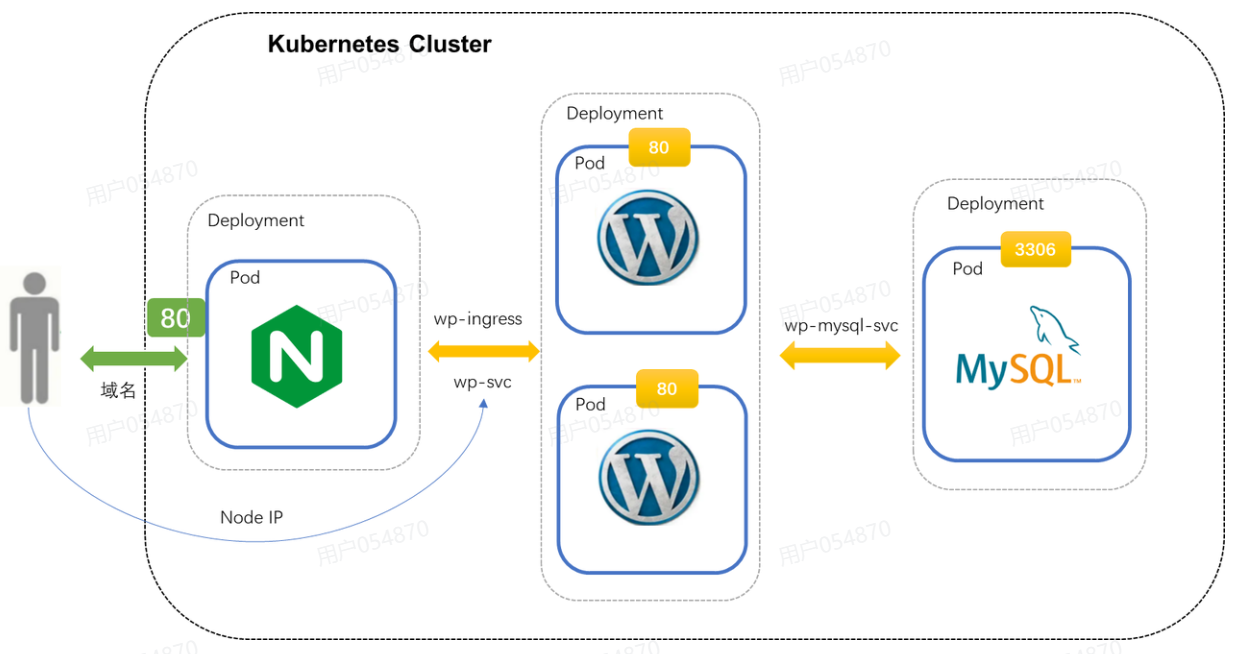

三、部署k8s集群服务

  1. 部署 MySQL：先用 ConfigMap 定义数据库环境变量，再将 MySQL 以 Deployment 方式部署，replicas 设为 1，最后创建 Service 对象映射端口 3306，可将这三个对象写在一个 YAML 文件中一次性创建。
  2. 部署 WordPress：ConfigMap 配置中"HOST"用 MySQL 的 Service 名字，Deployment 的 replicas 设为 2，创建 NodePort 类型的 Service 并指定端口 30080，可在集群各节点访问服务。

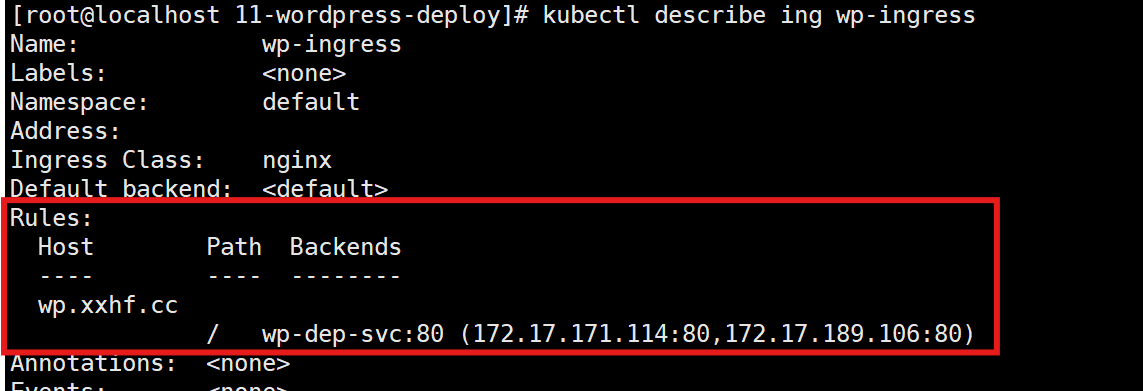

  3. 部署 Ingress Controller：部署 Nginx Ingress Controller，使用课上部署的 nginx ingress controller，为 WordPress 创建 Ingress 对象，给 ingress - nginx - controller deployment 添加 hostNetwork: true 属性让 Pod 使用宿主机网络。

1.部署MySQL

YAML配置文件集合：

复制代码
# 先要用 ConfigMap 定义数据库的环境变量，有 DATABASE、USER、PASSWORD、ROOT_PASSWORD
[root@localhost 11-wordpress-deploy]# cat 01-mysql-dep.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-cm
data:
  DATABASE: 'db_wordpress'
  USER: 'wordpress'
  PASSWORD: '123456'
  ROOT_PASSWORD: '123456'

---
# 把 MySQL 由 Pod 改成 Deployment 的方式，replicas 设置成 1 个，template 里面的 Pod 部分没有任何变化，还是要用 envFrom把配置信息以环境变量的形式注入 Pod
apiVersion: apps/v1
kind: Deployment
metadata:
  name: wp-mysql
  labels:
    app: wordpress
    role: database
spec:
  replicas: 1
  minReadySeconds: 0
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  selector:
    matchLabels:
      app: wp-mysql
  template:
    metadata:
      labels:
        app: wp-mysql
    spec:
      containers:
      - name: wp-mysql
        image: registry.cn-beijing.aliyuncs.com/xxhf/mysql:8.0
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            cpu: 1
            memory: 2048Mi
          requests:
            cpu: 500m
            memory: 500Mi
        startupProbe:
          periodSeconds: 15
          tcpSocket:
            port: 3306
        livenessProbe:
          periodSeconds: 10
          tcpSocket:
            port: 3306
        readinessProbe:
          periodSeconds: 15
          tcpSocket:
            port: 3306
        ports:
        - containerPort: 3306
        envFrom:
        - prefix: 'MYSQL_'
          configMapRef:
            name: mysql-cm

---
# 为 MySQL 定义一个 Service 对象，映射端口 3306，让其他应用不再关心 IP 地址，直接用 Service 对象的名字来访问数据库服务
apiVersion: v1
kind: Service
metadata:
  name: wp-mysql-svc
  labels:
spec:
  selector:
    app: wp-mysql
  ports:
  - port: 3306
    targetPort: 3306
    protocol: TCP
    name: mysql-svc

创建mysql服务：

复制代码
[root@localhost 11-wordpress-deploy]# kubectl apply -f 01-mysql-dep.yaml
configmap/mysql-cm configured
deployment.apps/wp-mysql created
service/wp-mysql-svc created

[root@localhost 11-wordpress-deploy]# kubectl get cm
NAME               DATA   AGE
mysql-cm           4      4d14h

[root@localhost 11-wordpress-deploy]# kubectl get svc
NAME                 TYPE           CLUSTER-IP        EXTERNAL-IP   PORT(S)                      AGE
wp-mysql-svc         ClusterIP      192.168.111.220   <none>        3306/TCP                     28s

[root@localhost 11-wordpress-deploy]# kubectl get deployments.apps
NAME       READY   UP-TO-DATE   AVAILABLE   AGE
wp-mysql   1/1     1            1           46s

[root@localhost 11-wordpress-deploy]# kubectl get pod -o wide
NAME                        READY   STATUS                  RESTARTS       AGE   IP               NODE      NOMINATED NODE   READINESS GATES
wp-mysql-7566f55d5f-kkjgw   1/1     Running                 0              58s   172.17.171.109   worker    <none>           <none>

2.部署 WordPress

YAML配置文件集合：

复制代码
[root@localhost 11-wordpress-deploy]# cat 02-wp-dep.yaml
# 因为刚才创建了 MySQL 的 Service，所以在写 ConfigMap 配置的时候"HOST"就不应该是 IP 地址了，而应该是 DNS 域名，也就是 Service 的名字 wp-mysql-svc
apiVersion: v1
kind: ConfigMap
metadata:
  name: wp-cm
data:
  HOST: 'wp-mysql-svc.default.svc.cluster.local'
  USER: 'wordpress'
  PASSWORD: '123456'
  NAME: 'db_wordpress'

---
# Pod 套一个 Deployment 的"外壳"，replicas 设置成 2 个，用字段"envFrom"配置环境变量
apiVersion: apps/v1
kind: Deployment
metadata:
  name: wp-dep
  labels:
    app: wp-dep
spec:
  replicas: 2
  minReadySeconds: 30
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  selector:
    matchLabels:
      app: wp-dep
  template:
    metadata:
      labels:
        app: wp-dep
    spec:
      containers:
      - name: wordpress
        image: registry.cn-beijing.aliyuncs.com/xxhf/wordpress:php7.4
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            cpu: 1
            memory: 1024Mi
          requests:
            cpu: 200m
            memory: 500Mi
        startupProbe:
          periodSeconds: 5
          tcpSocket:
            port: 80
        livenessProbe:
          periodSeconds: 10
          tcpSocket:
            port: 80
        readinessProbe:
          periodSeconds: 15
          tcpSocket:
            port: 80
        ports:
        - containerPort: 80
        envFrom:
        - prefix: 'WORDPRESS_DB_'
          configMapRef:
            name: wp-cm

---
# 为 WordPress 创建 Service 对象，这里使用了"NodePort"类型，并且手工指定了端口号"30080"（必须在 30000~32767 之间）
apiVersion: v1
kind: Service
metadata:
  name: wp-dep-svc
  labels:
spec:
  selector:
    app: wp-dep
  type: NodePort
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
    nodePort: 30080
    name: http

注：因为 WordPress 的 Service 对象是 NodePort 类型的，我们可以在集群的每个节点上访问 WordPress 服务

创建wordpress服务：

复制代码
[root@localhost 11-wordpress-deploy]# kubectl apply -f 02-wp-dep.yaml
configmap/wp-cm configured
deployment.apps/wp-dep created
service/wp-dep-svc created
[root@localhost 11-wordpress-deploy]# kubectl get cm
NAME               DATA   AGE
mysql-cm           4      4d14h
wp-cm              4      4d14h

[root@localhost 11-wordpress-deploy]# kubectl get svc
NAME           TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)        AGE
wp-dep-svc     NodePort    192.168.111.210   <none>        80:32720/TCP   6s
wp-mysql-svc   ClusterIP   192.168.111.119   <none>        3306/TCP       3m20s

[root@localhost 11-wordpress-deploy]# kubectl get deployments.apps
NAME       READY   UP-TO-DATE   AVAILABLE   AGE
wp-dep     0/1     1            0           18s
wp-mysql   1/1     1            1           8m42s

3.部署 Ingress Controller

注：这里的控制器可以选择之前部署的ingress-nginx-controller，通过这个控制器处理我们接下来要配置的ingress规则

复制代码
[root@localhost 11-wordpress-deploy]# kubectl -n ingress-nginx get deployments.apps
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
ingress-nginx-controller   1/1     1            1           153m

配置ingress规则：

复制代码
[root@localhost 11-wordpress-deploy]# cat 03-wp-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: wp-ingress
spec:
  ingressClassName: nginx
  rules:
  - host: wp.xxhf.cc
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: wp-dep-svc
            port:
              number: 80

[root@localhost 11-wordpress-deploy]# kubectl apply -f 03-wp-ingress.yaml
ingress.networking.k8s.io/wp-ingress created

在本机hosts配置文件中写入：

复制代码
192.168.5.120 wp.xxhf.cc

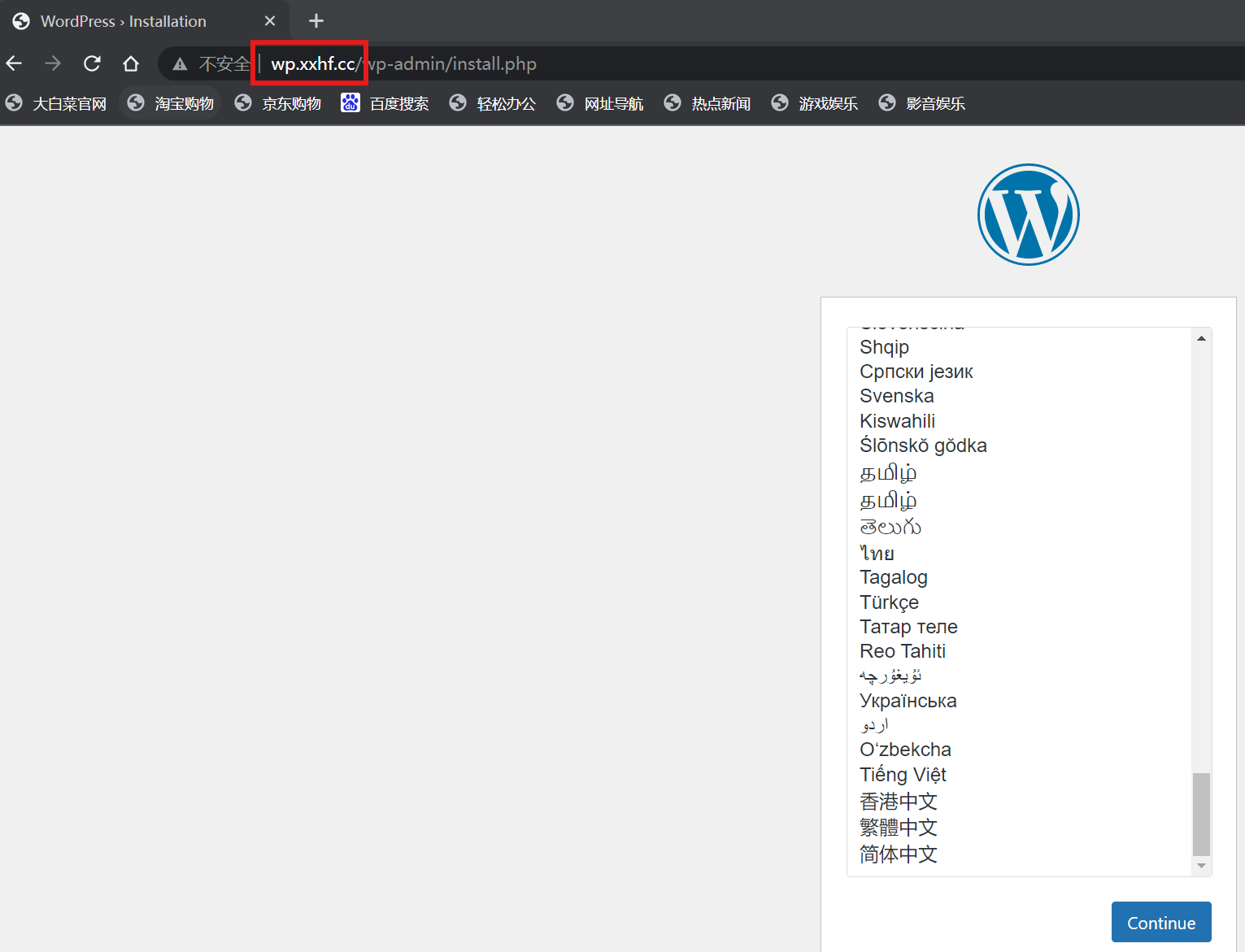

访问浏览器：

注意：给 ingress-nginx-controller deployment 添加 hostNetwork: true 属性，可以让 Pod 能够使用宿主机的网络

四、StatefulSet 数据持久化

1.持久化MySQL存储

（1）部署Provisioner 对象

部署RBAC权限：

复制代码
[root@localhost 14-wordpress-deploy]# cat rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: kube-system
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io

[root@localhost 14-wordpress-deploy]# kubectl apply -f rbac.yaml
serviceaccount/nfs-client-provisioner created
clusterrole.rbac.authorization.k8s.io/nfs-client-provisioner-runner created
clusterrolebinding.rbac.authorization.k8s.io/run-nfs-client-provisioner created
role.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created
rolebinding.rbac.authorization.k8s.io/leader-locking-nfs-client-provisioner created

部署Provisioner 对象：

复制代码
[root@localhost 14-wordpress-deploy]# cat deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
  labels:
    app: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: registry.cn-beijing.aliyuncs.com/xxhf/nfs-subdir-external-provisioner:v4.0.2
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: k8s-sigs.io/nfs-subdir-external-provisioner
            - name: NFS_SERVER
              value: 192.168.5.120  # nfs server address
            - name: NFS_PATH
              value: /data/nfs     # nfs share directory
      volumes:
        - name: nfs-client-root
          nfs:
            server: 192.168.5.120
            path: /data/nfs

[root@localhost 14-wordpress-deploy]# kubectl apply -f deployment.yaml

[root@localhost 14-wordpress-deploy]# kubectl -n kube-system get pod
NAME                                       READY   STATUS    RESTARTS         AGE

nfs-client-provisioner-d7c6585cb-j5tbz     1/1     Running   0                3m

注：接下来部署StorageClass对象，绑定一个 Provisioner 对象，自动管理存储、创建 PV

（2）部署StorageClass对象

复制代码
[root@localhost 14-wordpress-deploy]# cat nfs-client-retained-sc.yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: nfs-client-retained

provisioner: k8s-sigs.io/nfs-subdir-external-provisioner
parameters:
  onDelete: "retain"

[root@localhost 14-wordpress-deploy]# kubectl apply -f nfs-client-retained-sc.yaml
storageclass.storage.k8s.io/nfs-client-retained created

[root@localhost 14-wordpress-deploy]# kubectl get sc
NAME                  PROVISIONER                                   RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
nfs-client-retained   k8s-sigs.io/nfs-subdir-external-provisioner   Delete          Immediate           false                  56s

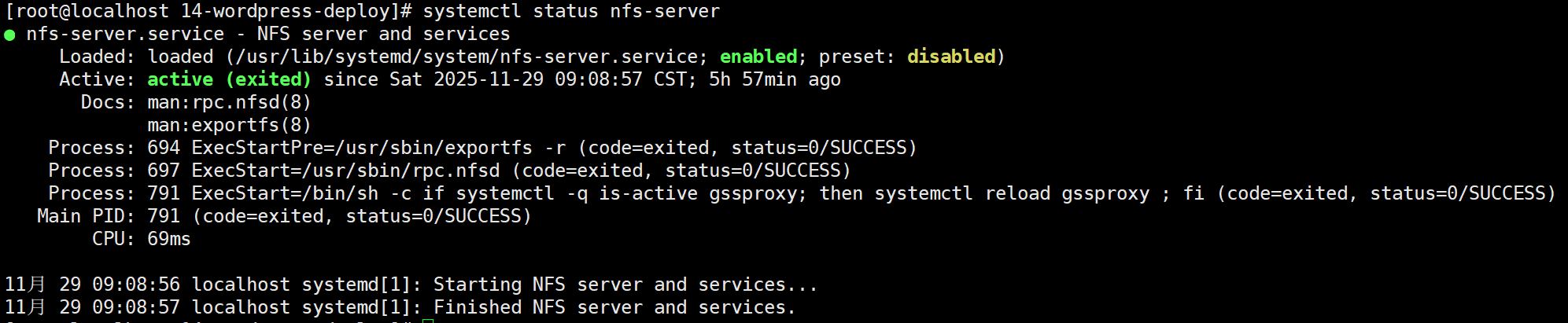

注：这里我用的是网络存储，具体情况可以看我之前的博客持久化存储

（3）部署StatefulSet

注：因为 MySQL 由 Deployment 改成了 StatefulSet，所以我们要修改 YAML，添加"serviceName""volumeClaimTemplates"这两个字段，定义网络标识和 NFS 动态存储卷，然后在容器部分用"volumeMounts"挂载到容器里的数据目录"/var/lib/mysql"

复制代码
[root@localhost 14-wordpress-deploy]# cat mysql-dep.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: mysql-cm
data:
  DATABASE: 'db_wordpress'
  USER: 'wordpress'
  PASSWORD: '123456'
  ROOT_PASSWORD: '123456'

---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: wp-mysql
  labels:
    app: wordpress
    role: database
spec:
  serviceName: wp-mysql-svc
  volumeClaimTemplates:    # 这里可以直接创建pvc
  - metadata:
      name: wp-mysql-pvc
    spec:
      storageClassName: nfs-client-retained     # 指定StorageClass
      accessModes:
        - ReadWriteMany
      resources:
        requests:
          storage: 100Mi
  replicas: 1
  minReadySeconds: 30
  selector:
    matchLabels:
      app: wp-mysql
  template:
    metadata:
      labels:
        app: wp-mysql
    spec:
      containers:
      - name: wp-mysql
        image: registry.cn-beijing.aliyuncs.com/xxhf/mysql:8.0
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            cpu: 1
            memory: 2048Mi
          requests:
            cpu: 500m
            memory: 500Mi
        startupProbe:
          periodSeconds: 15
          tcpSocket:
            port: 3306
        livenessProbe:
          periodSeconds: 10
          tcpSocket:
            port: 3306
        readinessProbe:
          periodSeconds: 15
          tcpSocket:
            port: 3306
        ports:
        - containerPort: 3306
        envFrom:
        - prefix: 'MYSQL_'
          configMapRef:
            name: mysql-cm
        volumeMounts:
        - name: wp-mysql-pvc
          mountPath: /var/lib/mysql
---
apiVersion: v1
kind: Service
metadata:
  name: wp-mysql-svc
  labels:
spec:
  selector:
    app: wp-mysql
  ports:
  - port: 3306
    targetPort: 3306
    protocol: TCP
    name: mysql-svc

[root@localhost 14-wordpress-deploy]# kubectl apply -f mysql-dep.yaml
configmap/mysql-cm created
statefulset.apps/wp-mysql created
service/wp-mysql-svc created

2.部署 WordPress

注：StatefulSet 管理的每个 Pod 都有自己的域名，所以要把 WordPress 的环境变量改成 MySQL 的新名字，也就是"wp-mysql-0.wp-mysql-svc"

复制代码
[root@localhost 14-wordpress-deploy]# cat wp-dep.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: wp-cm
data:
  HOST: 'wp-mysql-0.wp-mysql-svc'
  USER: 'wordpress'
  PASSWORD: '123456'
  NAME: 'db_wordpress'

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: wp-dep
  labels:
    app: wp-dep
spec:
  replicas: 2
  minReadySeconds: 30
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  selector:
    matchLabels:
      app: wp-dep
  template:
    metadata:
      labels:
        app: wp-dep
    spec:
      containers:
      - name: wordpress
        image: registry.cn-beijing.aliyuncs.com/xxhf/wordpress:php7.4
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            cpu: 1
            memory: 1024Mi
          requests:
            cpu: 200m
            memory: 500Mi
        startupProbe:
          periodSeconds: 5
          tcpSocket:
            port: 80
        livenessProbe:
          periodSeconds: 10
          tcpSocket:
            port: 80
        readinessProbe:
          periodSeconds: 15
          tcpSocket:
            port: 80
        ports:
        - containerPort: 80
        envFrom:
        - prefix: 'WORDPRESS_DB_'
          configMapRef:
            name: wp-cm

---
apiVersion: v1
kind: Service
metadata:
  name: wp-dep-svc
  labels:
spec:
  selector:
    app: wp-dep
  type: NodePort
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
    name: http

[root@localhost 14-wordpress-deploy]# kubectl apply -f wp-dep.yaml

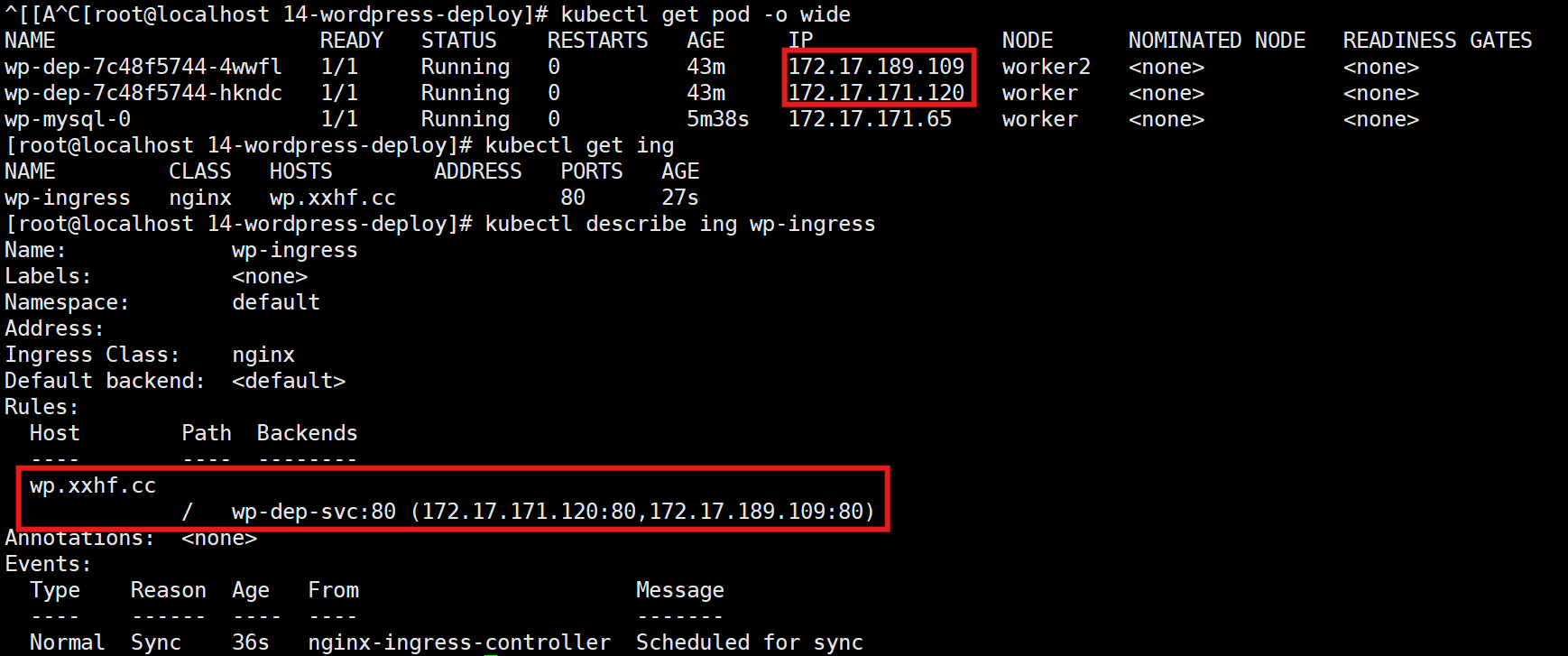

3.访问 WordPress

注：ingress七层负载直接用之前的就好了，因为ingress规则匹配的是svc服务向外暴露的域名wp-dep-svc，这个域名是固定不变的

注：因为启用了两个wordpress容器，svc负责负载均衡调度，如果两个容器（在不同的worker节点）间没有使用使用共享文件存储，则很大可能会出现登录循环的问题

4.容器错误演示

当前启动的容器：

复制代码
[root@localhost 14-wordpress-deploy]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE     IP               NODE      NOMINATED NODE   READINESS GATES
wp-dep-7c48f5744-4wwfl   1/1     Running   0          68m     172.17.189.109   worker2   <none>           <none>
wp-dep-7c48f5744-hkndc   1/1     Running   0          68m     172.17.171.120   worker    <none>           <none>
wp-mysql-0               1/1     Running   0          4m17s   172.17.171.64    worker    <none>           <none>

手动删除mysql容器，等待它再次重建：

复制代码
[root@localhost 14-wordpress-deploy]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE     IP               NODE      NOMINATED NODE   READINESS GATES
wp-dep-7c48f5744-4wwfl   1/1     Running   0          68m     172.17.189.109   worker2   <none>           <none>
wp-dep-7c48f5744-hkndc   1/1     Running   0          68m     172.17.171.120   worker    <none>           <none>
wp-mysql-0               1/1     Running   0          4m17s   172.17.171.64    worker    <none>           <none>
[root@localhost 14-wordpress-deploy]# kubectl delete pod wp-mysql-0
pod "wp-mysql-0" deleted
[root@localhost 14-wordpress-deploy]# kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
wp-dep-7c48f5744-4wwfl   1/1     Running   0          76m
wp-dep-7c48f5744-hkndc   1/1     Running   0          76m
wp-mysql-0               0/1     Running   0          4s

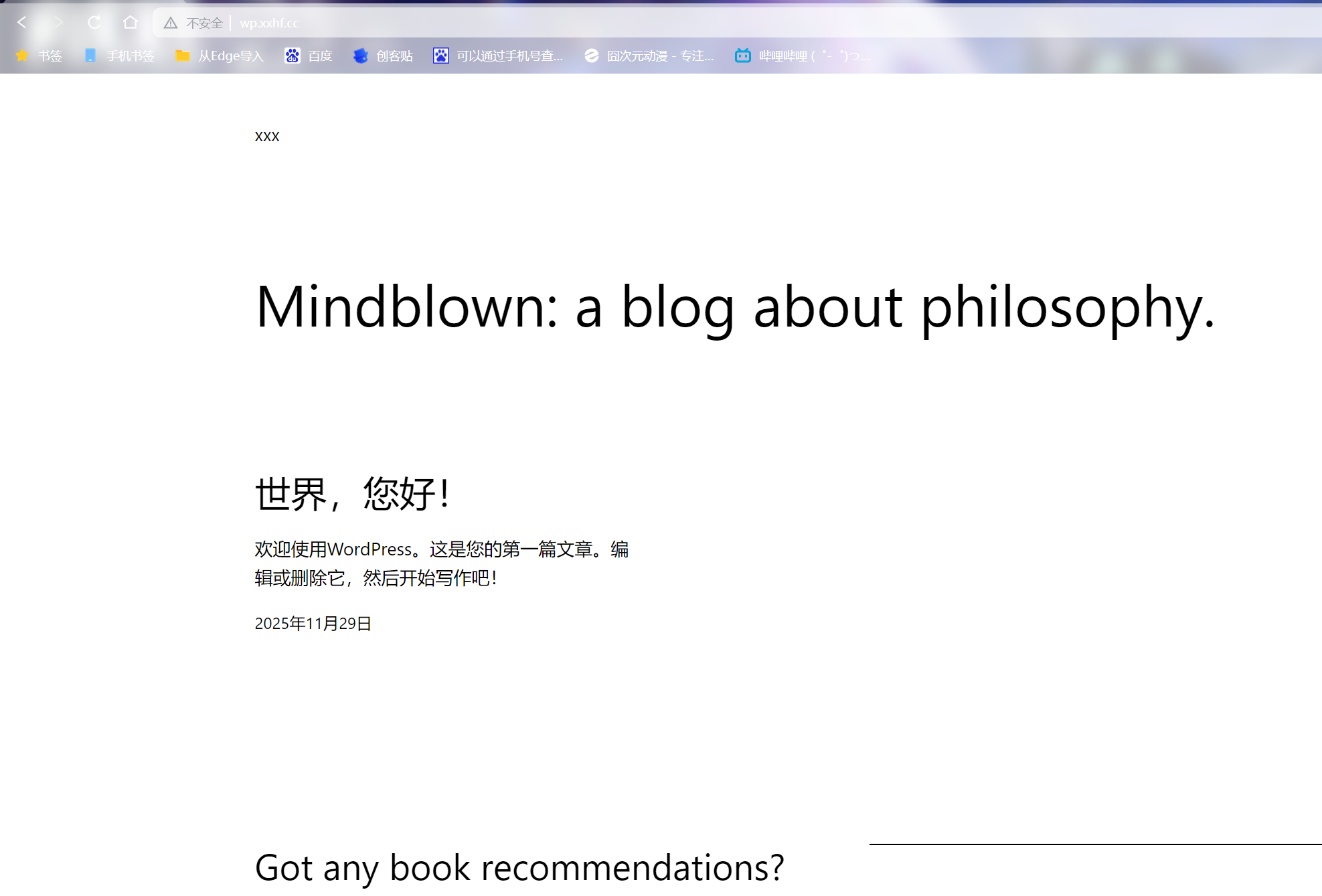

重启之后数据不丢失，依旧可以登录网页：

相关推荐
e***87702 小时前
Node.js 与 Docker 深度整合：轻松部署与管理 Node.js 应用
docker·容器·node.js
csdn_aspnet2 小时前
【探索实战】Kurator入门体验与分布式云原生环境搭建
分布式·云原生·kurator
q***71013 小时前
从零到上线：Node.js 项目的完整部署流程（包含 Docker 和 CICD）
docker·容器·node.js
起风了___4 小时前
Jenkins + Kubernetes 多模块微服务一键流水线：从 Maven 打包到滚动发布完整脚本
kubernetes·jenkins
BD_Marathon5 小时前
【Zookeeper】zk_客户端API_创建节点
分布式·zookeeper·云原生
好奇的菜鸟5 小时前
在 WSL 中安装 Docker
运维·docker·容器
拾忆，想起8 小时前
Dubbo服务超时与重试策略配置指南：构建 resilient 微服务架构
服务器·网络·微服务·云原生·架构·dubbo
杭州杭州杭州8 小时前
实验3 微服务介绍以及开发环境搭建
微服务·云原生·架构
芥子沫9 小时前
日记应用推荐-Docker安装DailyNotes应用
docker·容器·日记
热门推荐
01GitHub 镜像站点02BongoCat - 跨平台键盘猫动画工具03UV安装并设置国内源04【保姆级教程】免费使用Gemini3的5种方法！免翻墙/国内直连05安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）06Linux下V2Ray安装配置指南07全球最强模型Grok4，国内已可免费使用！（附教程）08“我的电脑”图标没了怎么办 4种方法找回09KGG转MP3工具|非KGM文件|解密音频10Gemini 3.0 Pro Preview 实测报告
