前言：为什么需要这样一个工具？
在企业级开发中，文件传输功能几乎是必备需求。无论是内网文件同步、远程数据备份，还是分布式系统间的文件交换，一个稳定高效的文件传输工具都显得至关重要。
今天就有位开发私信我："老师，我需要开发一个文件传输工具，服务端只管接收文件并保存到指定目录，客户端只管发送文件。网上的示例要么功能复杂，要么不够稳定，能否提供一个完整的解决方案？"相信很多朋友都遇到过类似需求。今天我们就来彻底搞定这个问题，用 C# 打造一个功能专一、稳定可靠的网络文件传输工具！
很多现成的文件传输方案要么依赖第三方库，要么集成了太多非核心功能，导致维护困难、部署复杂。而我们追求的是最小可行、专注单一职责的设计哲学------服务端只做接收，客户端只做发送，界面简洁直观，异常处理完善，真正做到"开箱即用"。
正文
需求分析与设计目标
我们的核心目标很明确：
1、职责清晰：服务端专门接收，客户端专门发送
2、界面友好：实时进度、速度显示、状态提示
3、异常处理：网络中断、文件冲突等场景的优雅处理
4、即插即用：最小化配置，开箱即用
架构设计
整体采用经典的分层解耦模式，核心组件包括：
-
FileTransferServer：服务端核心类，负责监听和接收
-
FileTransferClient：客户端核心类，负责连接和发送
-
TransferEventArgs：事件参数类，统一状态通知
-

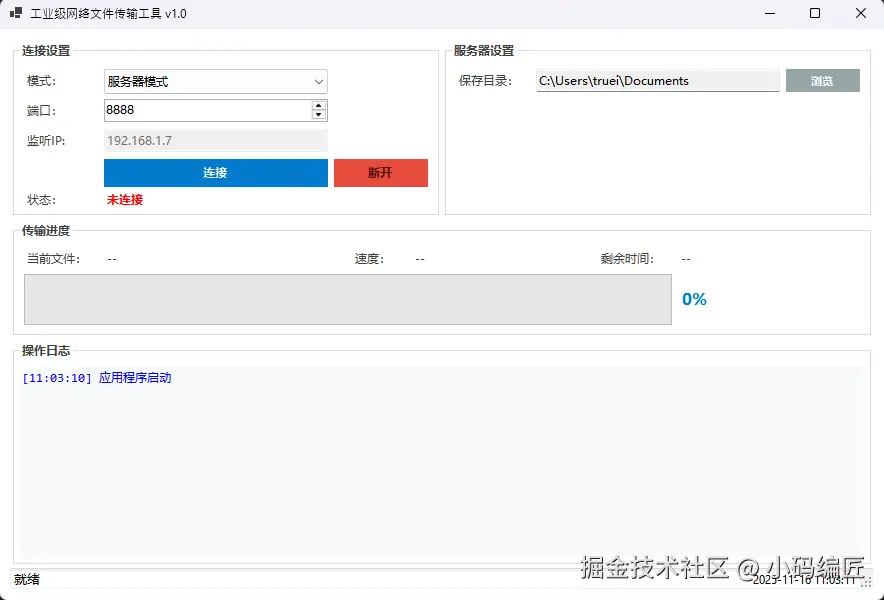

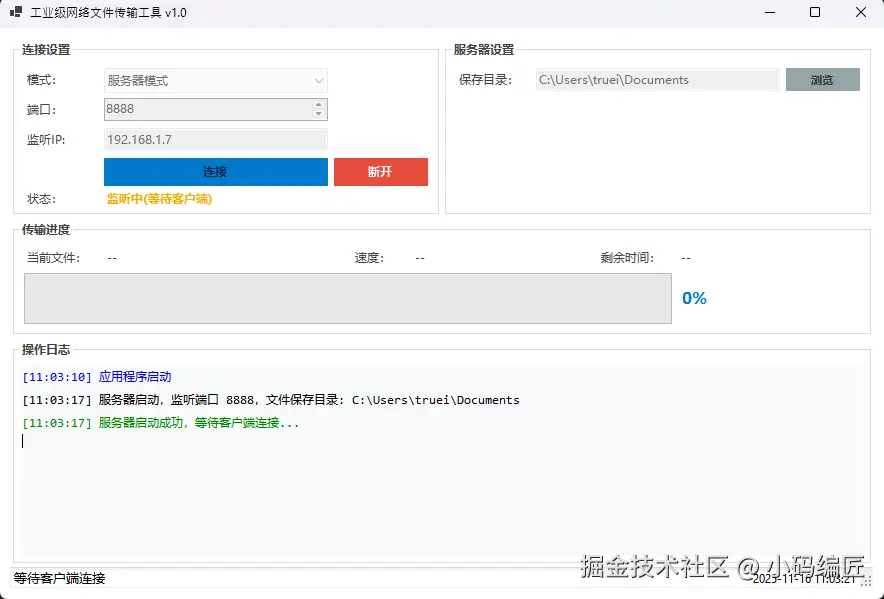

FrmMain：UI主窗体，用户交互界面

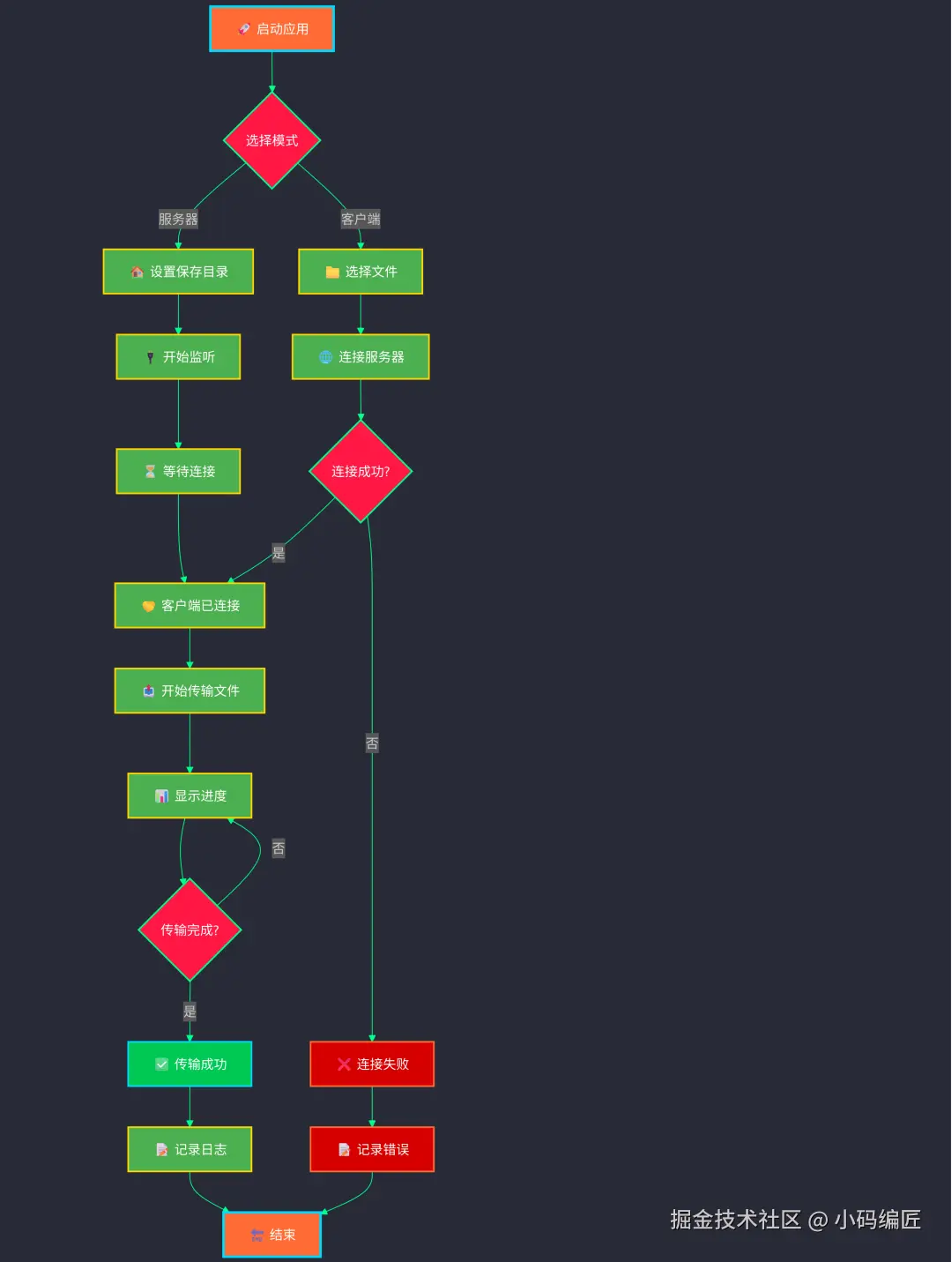

架构图如下
服务端实现：专注接收文件
cs
using System;
using System.IO;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using AppNetworkFileTransfer.Core;
using AppNetworkFileTransfer.Models;
namespace AppNetworkFileTransfer.Core
{
public class FileTransferServer
{
private TcpListener _listener;
private TcpClient _client;
private NetworkStream _stream;
private bool _isRunning = false;
private bool _isClientConnected = false;
private CancellationTokenSource _cancellationTokenSource;
private const int BufferSize = 8192;
private const int HeaderSize = 1024;
// 添加保存目录属性
public string SaveDirectory { get; set; } = Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments);
public event EventHandler<TransferEventArgs> ProgressChanged;
public event EventHandler<TransferEventArgs> StatusChanged;
public event EventHandler<TransferEventArgs> ClientConnected;
public event EventHandler<TransferEventArgs> TransferStarted;
public async Task StartListening(int port)
{
try
{
_listener = new TcpListener(IPAddress.Any, port);
_listener.Start();
_isRunning = true;
_cancellationTokenSource = new CancellationTokenSource();
OnStatusChanged($"服务器启动，监听端口 {port}，文件保存目录: {SaveDirectory}");
// 在后台异步等待客户端连接
_ = Task.Run(async () => await WaitForClientAsync());
}
catch (Exception ex)
{
OnStatusChanged($"服务器启动失败: {ex.Message}", true);
throw;
}
}
private async Task WaitForClientAsync()
{
try
{
while (_isRunning && !_cancellationTokenSource.Token.IsCancellationRequested)
{
_client = await _listener.AcceptTcpClientAsync();
_stream = _client.GetStream();
_isClientConnected = true;
OnStatusChanged($"客户端已连接: {_client.Client.RemoteEndPoint}");
ClientConnected?.Invoke(this, new TransferEventArgs("客户端已连接"));
// 开始处理客户端请求
_ = Task.Run(async () => await HandleClientAsync());
break;
}
}
catch (ObjectDisposedException)
{
// 服务器已停止，正常情况
}
catch (Exception ex)
{
OnStatusChanged($"等待客户端连接时出错: {ex.Message}", true);
}
}
private async Task HandleClientAsync()
{
try
{
while (_isRunning && _isClientConnected && !_cancellationTokenSource.Token.IsCancellationRequested)
{
// 等待接收文件头信息
var headerBuffer = new byte[HeaderSize];
var totalRead = 0;
while (totalRead < HeaderSize)
{
var bytesRead = await _stream.ReadAsync(headerBuffer, totalRead, HeaderSize - totalRead, _cancellationTokenSource.Token);
if (bytesRead == 0)
{
OnStatusChanged("客户端断开连接");
_isClientConnected = false;
return;
}
totalRead += bytesRead;
}
var headerInfo = ParseFileHeader(headerBuffer);
if (headerInfo.Command == "SEND")
{
await ReceiveFileFromClientAsync(headerInfo);
}
else
{
OnStatusChanged($"收到未知命令: {headerInfo.Command}", true);
// 发送错误响应
var errorBytes = Encoding.UTF8.GetBytes("ERR");
await _stream.WriteAsync(errorBytes, 0, errorBytes.Length, _cancellationTokenSource.Token);
}
}
}
catch (Exception ex)
{
OnStatusChanged($"处理客户端请求时出错: {ex.Message}", true);
_isClientConnected = false;
}
}
private async Task ReceiveFileFromClientAsync((string Command, string FileName, long FileSize, DateTime Timestamp) headerInfo)
{
try
{
// 确保保存目录存在
if (!Directory.Exists(SaveDirectory))
{
Directory.CreateDirectory(SaveDirectory);
}
// 构造完整的文件路径
var localFilePath = Path.Combine(SaveDirectory, headerInfo.FileName);
// 如果文件已存在，添加时间戳后缀
if (File.Exists(localFilePath))
{
var fileInfo = new FileInfo(localFilePath);
var nameWithoutExt = Path.GetFileNameWithoutExtension(fileInfo.Name);
var extension = fileInfo.Extension;
var timestamp = DateTime.Now.ToString("yyyyMMdd_HHmmss");
localFilePath = Path.Combine(SaveDirectory, $"{nameWithoutExt}_{timestamp}{extension}");
}
OnStatusChanged($"开始接收文件: {headerInfo.FileName} ({FormatBytes(headerInfo.FileSize)})");
// 发送确认响应
var confirmBytes = Encoding.UTF8.GetBytes("OK");
await _stream.WriteAsync(confirmBytes, 0, confirmBytes.Length, _cancellationTokenSource.Token);
// 在开始接收前触发开始事件，让UI设置开始时间
OnTransferStarted(headerInfo.FileName, headerInfo.FileSize);
// 接收文件内容
using (var fileStream = new FileStream(localFilePath, FileMode.Create, FileAccess.Write))
{
var buffer = new byte[BufferSize];
long totalReceived = 0;
int bytesRead;
while (totalReceived < headerInfo.FileSize)
{
var remainingBytes = headerInfo.FileSize - totalReceived;
var bytesToRead = (int)Math.Min(buffer.Length, remainingBytes);
bytesRead = await _stream.ReadAsync(buffer, 0, bytesToRead, _cancellationTokenSource.Token);
if (bytesRead == 0) break;
await fileStream.WriteAsync(buffer, 0, bytesRead, _cancellationTokenSource.Token);
totalReceived += bytesRead;
OnProgressChanged(totalReceived, headerInfo.FileSize, headerInfo.FileName);
if (_cancellationTokenSource.Token.IsCancellationRequested)
break;
}
}
OnStatusChanged($"文件接收完成: {Path.GetFileName(localFilePath)} -> {localFilePath}");
}
catch (Exception ex)
{
OnStatusChanged($"接收文件失败: {ex.Message}", true);
// 发送错误响应
try
{
var errorBytes = Encoding.UTF8.GetBytes("ERR");
await _stream.WriteAsync(errorBytes, 0, errorBytes.Length, _cancellationTokenSource.Token);
}
catch { }
}
}
public void Stop()
{
try
{
_isRunning = false;
_isClientConnected = false;
_cancellationTokenSource?.Cancel();
_stream?.Close();
_client?.Close();
_listener?.Stop();
OnStatusChanged("服务器已停止");
}
catch (Exception ex)
{
OnStatusChanged($"停止服务器时出错: {ex.Message}", true);
}
}
private (string Command, string FileName, long FileSize, DateTime Timestamp) ParseFileHeader(byte[] header)
{
var headerString = Encoding.UTF8.GetString(header).TrimEnd('\0');
var parts = headerString.Split('|');
if (parts.Length >= 4)
{
return (
Command: parts[0],
FileName: parts[1],
FileSize: long.TryParse(parts[2], out var size) ? size : 0,
Timestamp: DateTime.TryParse(parts[3], out var time) ? time : DateTime.Now
);
}
return ("UNKNOWN", "", 0, DateTime.Now);
}
private void OnTransferStarted(string fileName, long totalBytes)
{
TransferStarted?.Invoke(this, new TransferEventArgs(0, totalBytes, fileName));
}
private void OnProgressChanged(long transferred, long total, string fileName)
{
ProgressChanged?.Invoke(this, new TransferEventArgs(transferred, total, fileName));
}
private void OnStatusChanged(string message, bool isError = false)
{
StatusChanged?.Invoke(this, new TransferEventArgs(message, isError));
}
private string FormatBytes(long bytes)
{
string[] sizes = { "B", "KB", "MB", "GB", "TB" };
double len = bytes;
int order = 0;
while (len >= 1024 && order < sizes.Length - 1)
{
order++;
len = len / 1024;
}
return $"{len:0.##} {sizes[order]}";
}
}
}客户端实现：专注发送文件
cs
using System;
using System.IO;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using AppNetworkFileTransfer.Core;
using AppNetworkFileTransfer.Models;
namespace AppNetworkFileTransfer.Core
{
public class FileTransferClient
{
private TcpClient _client;
private NetworkStream _stream;
private bool _isConnected = false;
private CancellationTokenSource _cancellationTokenSource;
private const int BufferSize = 8192;
private const int HeaderSize = 1024;
public event EventHandler<TransferEventArgs> ProgressChanged;
public event EventHandler<TransferEventArgs> StatusChanged;
public event EventHandler<TransferEventArgs> TransferStarted;
public async Task ConnectAsync(string serverIP, int port)
{
try
{
_client = new TcpClient();
_cancellationTokenSource = new CancellationTokenSource();
await _client.ConnectAsync(serverIP, port);
_stream = _client.GetStream();
_isConnected = true;
OnStatusChanged($"已连接到服务器 {serverIP}:{port}");
}
catch (Exception ex)
{
OnStatusChanged($"连接服务器失败: {ex.Message}", true);
throw;
}
}
public void Disconnect()
{
try
{
_isConnected = false;
_cancellationTokenSource?.Cancel();
_stream?.Close();
_client?.Close();
OnStatusChanged("已断开连接");
}
catch (Exception ex)
{
OnStatusChanged($"断开连接时出错: {ex.Message}", true);
}
}
public async Task SendFileAsync(string localFilePath)
{
if (!_isConnected || _stream == null)
throw new InvalidOperationException("未连接到服务器");
if (!File.Exists(localFilePath))
throw new FileNotFoundException($"文件不存在: {localFilePath}");
try
{
var fileInfo = new FileInfo(localFilePath);
var fileName = fileInfo.Name;
OnStatusChanged($"开始发送文件: {fileName} ({FormatBytes(fileInfo.Length)})");
// 触发传输开始事件
OnTransferStarted(fileName, fileInfo.Length);
// 发送文件头信息
var header = CreateFileHeader("SEND", fileName, fileInfo.Length);
await _stream.WriteAsync(header, 0, header.Length, _cancellationTokenSource.Token);
// 等待服务器确认
var response = new byte[4];
await _stream.ReadAsync(response, 0, 4, _cancellationTokenSource.Token);
var responseStr = Encoding.UTF8.GetString(response).TrimEnd('\0');
if (responseStr != "OK")
{
throw new Exception($"服务器响应错误: {responseStr}");
}
// 发送文件内容
using (var fileStream = new FileStream(localFilePath, FileMode.Open, FileAccess.Read))
{
var buffer = new byte[BufferSize];
long totalSent = 0;
int bytesRead;
while ((bytesRead = await fileStream.ReadAsync(buffer, 0, buffer.Length, _cancellationTokenSource.Token)) > 0)
{
await _stream.WriteAsync(buffer, 0, bytesRead, _cancellationTokenSource.Token);
totalSent += bytesRead;
OnProgressChanged(totalSent, fileInfo.Length, fileName);
if (_cancellationTokenSource.Token.IsCancellationRequested)
break;
}
}
OnStatusChanged($"文件发送完成: {fileName}");
}
catch (Exception ex)
{
OnStatusChanged($"发送文件失败: {ex.Message}", true);
throw;
}
}
private byte[] CreateFileHeader(string command, string fileName, long fileSize)
{
var header = new byte[HeaderSize];
var headerString = $"{command}|{fileName}|{fileSize}|{DateTime.Now:yyyy-MM-dd HH:mm:ss}";
var headerBytes = Encoding.UTF8.GetBytes(headerString);
Array.Copy(headerBytes, 0, header, 0, Math.Min(headerBytes.Length, HeaderSize));
return header;
}
private void OnTransferStarted(string fileName, long totalBytes)
{
TransferStarted?.Invoke(this, new TransferEventArgs(0, totalBytes, fileName));
}
private void OnProgressChanged(long transferred, long total, string fileName)
{
ProgressChanged?.Invoke(this, new TransferEventArgs(transferred, total, fileName));
}
private void OnStatusChanged(string message, bool isError = false)
{
StatusChanged?.Invoke(this, new TransferEventArgs(message, isError));
}
private string FormatBytes(long bytes)
{
string[] sizes = { "B", "KB", "MB", "GB", "TB" };
double len = bytes;
int order = 0;
while (len >= 1024 && order < sizes.Length - 1)
{
order++;
len = len / 1024;
}
return $"{len:0.##} {sizes[order]}";
}
}
}UI设计与常见坑点处理
智能模式切换逻辑：
cs
private void cmbMode_SelectedIndexChanged(object sender, EventArgs e)
{
_isServer = cmbMode.SelectedIndex == 0;
// 动态显示对应功能区域
grpServerSettings.Visible = _isServer;
grpClientSettings.Visible = !_isServer;
// 智能IP设置
if (_isServer)
txtServerIP.Text = GetLocalIPAddress();
else
txtServerIP.Text = "127.0.0.1";
UpdateTransferControls();
}常见坑点提醒：
1、TimeSpan溢出问题
cs
private void OnProgressChanged(object sender, TransferEventArgs e)
{
// 坑点：传输初期速度计算可能导致TimeSpan溢出
var elapsed = DateTime.Now - _transferStartTime;
if (elapsed.TotalSeconds >= 1.0) // 关键：等待足够时间
{
var speed = _transferredBytes / elapsed.TotalSeconds;
var remainingSeconds = remainingBytes / speed;
// 防溢出处理
if (remainingSeconds > 0 && remainingSeconds <= TimeSpan.MaxValue.TotalSeconds)
{
if (remainingSeconds > 3600 * 999) // 限制最大显示时间
lblTimeRemainingValue.Text = "> 999小时";
else
lblTimeRemainingValue.Text = FormatTime(TimeSpan.FromSeconds(remainingSeconds));
}
}
}2、网络异常处理
cs
// 坑点：网络中断时要优雅处理
private async Task HandleClientAsync()
{
try
{
while (_isRunning && _isClientConnected)
{
var headerBuffer = new byte[HeaderSize];
var totalRead = 0;
// 关键：确保完整读取header
while (totalRead < HeaderSize)
{
var bytesRead = await _stream.ReadAsync(headerBuffer, totalRead,
HeaderSize - totalRead, _cancellationTokenSource.Token);
if (bytesRead == 0) // 客户端断开
{
OnStatusChanged("客户端断开连接");
return;
}
totalRead += bytesRead;
}
}
}
catch (Exception ex)
{
OnStatusChanged($"网络异常: {ex.Message}", true);
}
}运行效果如下：
企业内网文件同步
cs
// 批量文件传输示例
foreach (var filePath in Directory.GetFiles(sourceDirectory))
{
await client.SendFileAsync(filePath);
await Task.Delay(100); // 避免网络拥塞
}自动备份系统集成
cs
// 定时备份集成
var timer = new System.Timers.Timer(TimeSpan.FromHours(6).TotalMilliseconds);
timer.Elapsed += async (s, e) =>
{
var backupFiles = GetBackupFiles();
foreach (var file in backupFiles)
{
await client.SendFileAsync(file);
}
};总结
通过本次实战，我们成功打造了一个职责清晰、稳定可靠的网络文件传输工具。整个方案坚持三个关键设计原则：
1、职责分离：服务端专注接收，客户端专注发送，避免功能臃肿
2、异步处理：全程使用async/await，确保UI响应和传输效率
3、异常兜底：TimeSpan溢出、网络中断等边界情况的优雅处理
同时，两个实用技巧也值得借鉴：
- 智能重命名：自动处理文件名冲突，避免覆盖重要数据
- 进度可视化：实时速度计算和剩余时间估算，提升用户体验
这套方案已在多个工业场景中稳定运行，无论是作为独立工具，还是嵌入到更大的系统中，都能胜任文件传输的核心任务。
关键词
C#、文件传输、TCP、服务端、客户端、异步编程、WinForm、工业应用、网络通信、进度显示
最后
如果你觉得这篇文章对你有帮助，不妨点个赞支持一下！你的支持是我继续分享知识的动力。如果有任何疑问或需要进一步的帮助，欢迎随时留言。
也可以加入微信公众号 [DotNet技术匠] 社区，与其他热爱技术的同行一起交流心得，共同成长！
优秀是一种习惯，欢迎大家留言学习！
