基于C#的CAN总线数据解析BMS上位机

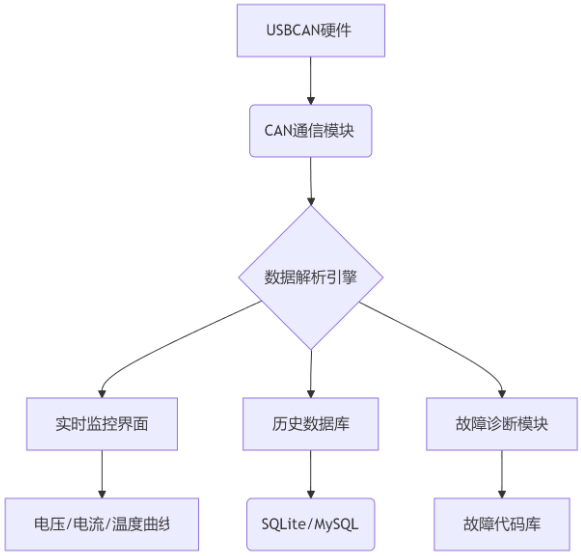

一、系统架构设计

---

二、核心模块实现

1. CAN通信模块（基于PCAN-Basic）

using Peak.Can.Basic;

public class BmsCanInterface
{
    private TPCANHandle _channel = PCANBasic.PCAN_USBBUS1;
    private TPCANBaudrate _baudrate = TPCANBaudrate.PCAN_BAUD_500K;

    public bool Initialize()
    {
        TPCANStatus status = PCANBasic.Initialize(_channel, _baudrate);
        if (status != TPCANStatus.PCAN_ERROR_OK)
            return false;

        // 设置过滤器接收所有BMS相关报文
        PCANBasic.SetFilter(PCANBasic.PCAN_FILTER_MASK, 0x0000, 0xFFFF);
        return true;
    }

    public event EventHandler<CanDataFrame> MessageReceived;

    public void StartListening()
    {
        new Thread(() =>
        {
            TPCANMsg msg = new TPCANMsg();
            while(true)
            {
                TPCANStatus status = PCANBasic.Read(_channel, out msg);
                if(status == TPCANStatus.PCAN_ERROR_OK)
                    MessageReceived?.Invoke(this, new CanDataFrame(msg));
            }
        }).Start();
    }
}

public class CanDataFrame
{
    public ushort ID { get; }
    public byte[] Data { get; }

    public CanDataFrame(TPCANMsg msg)
    {
        ID = msg.ID;
        Data = msg.DATA.Take((int)msg.LEN).ToArray();
    }
}

2. BMS数据解析引擎

public class BmsDataParser
{
    // 电压解析（示例：0x18FF50E5报文）
    public double ParseVoltage(byte[] data)
    {
        ushort raw = (ushort)(data[0] << 8 | data[1]);
        return raw * 0.01; // 假设每字节代表10mV
    }

    // 温度解析（示例：0x18F00502报文）
    public double ParseTemperature(byte[] data, int offset)
    {
        sbyte raw = (sbyte)data[offset];
        return raw + 25; // 假设偏移量25℃
    }

    // SOC解析（非线性编码）
    public double ParseSOC(byte[] data)
    {
        byte b1 = data[2];
        byte b2 = data[3];
        if(b1 < 0x20)
            return b1 * 0.5; // 0-20%线性区
        else
            return 10 + (b2 - 0x20) * 0.25; // 20-100%非线性区
    }
}

3. 实时监控界面（WPF示例）

<!-- 主界面.xaml -->
<Grid>
    <TabControl>
        <TabItem Header="实时数据">
            <DataGrid ItemsSource="{Binding BatteryData}">
                <DataGrid.Columns>
                    <DataGridTextColumn Header="电压(V)" Binding="{Binding Voltage}"/>
                    <DataGridTextColumn Header="温度(℃)" Binding="{Binding Temp}"/>
                </DataGrid.Columns>
            </DataGrid>
        </TabItem>
        <TabItem Header="历史曲线">
            <Chart>
                <LineSeries ItemsSource="{Binding VoltageHistory}"
                           IndependentValuePath="Time"
                           DependentValuePath="Value"/>
            </Chart>
        </TabItem>
    </TabControl>
</Grid>

---

三、关键技术实现

1. 多帧数据重组

public class MultiFrameBuffer
{
    private Dictionary<ushort, byte[]> _buffers = new();

    public void AddFrame(ushort id, byte[] data)
    {
        if (!_buffers.ContainsKey(id))
            _buffers[id] = new byte[0];

        var buffer = _buffers[id];
        Array.Copy(data, 0, buffer, buffer.Length, data.Length);
        _buffers[id] = buffer.Concat(data).ToArray();
    }
}

2. 数据校验机制

public class DataValidator
{
    // LRC校验
    public bool ValidateLRC(byte[] data)
    {
        byte checksum = 0;
        foreach(byte b in data)
            checksum ^= b;
        return checksum == data[data.Length - 1];
    }

    // 时间戳防重放
    public bool CheckTimestamp(uint receivedTs)
    {
        return (DateTime.Now.Ticks / 10000) - receivedTs < 2000; // 2秒容差
    }
}

---

四、数据库设计（SQLite示例）

public class BmsDbContext : DbContext
{
    public DbSet<BatteryRecord> Records { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder options)
    {
        options.UseSqlite("Data Source=bms_data.db");
    }
}

public class BatteryRecord
{
    [PrimaryKey, AutoIncrement]
    public int Id { get; set; }
    public DateTime Timestamp { get; set; }
    public double Voltage { get; set; }
    public double Temperature { get; set; }
    public byte Soc { get; set; }
}

---

五、异常处理策略

1. 总线故障恢复

public void HandleBusOff()
{
    if(PCANBasic.GetStatus(_channel) == TPCANStatus.PCAN_ERROR_BUSOFF)
    {
        PCANBasic.Reset(_channel);
        Thread.Sleep(1000);
        Initialize();
    }
}

1. 数据完整性检查

public bool CheckFrameIntegrity(CanDataFrame frame)
{
    if(frame.ID > 0x1FFF) // 过滤非BMS报文
        return false;

    if(frame.Data.Length != 8) // DLC校验
        return false;

    return true;
}

---

六、性能优化方案

1. 数据缓存策略

// 使用环形缓冲区存储最新1000条数据
public class CircularBuffer<T>
{
    private T[] _buffer;
    private int _head;
    private int _tail;

    public CircularBuffer(int capacity)
    {
        _buffer = new T[capacity];
        _head = 0;
        _tail = 0;
    }

    public void Add(T item)
    {
        _buffer[_head] = item;
        _head = (_head + 1) % _buffer.Length;
        if(_head == _tail) _tail = (_tail + 1) % _buffer.Length;
    }
}

1. 硬件加速

// 启用DMA传输模式
PCANBasic.SetBusOutputControl(_channel, PCANBasic.PCAN_BUS_OFF);
PCANBasic.SetBusOutputControl(_channel, PCANBasic.PCAN_BUS_ON);

参考源码 基于C#的CAN总线数据解析BMS上位机 www.youwenfan.com/contentcsn/111860.html

七、测试验证流程

1. CAN报文模拟

// 使用CANoe生成测试报文
var testMsg = new CanDataFrame
{
    ID = 0x18FF50E5,
    Data = new byte[] {0x00,0x9C,0x4E,0x20,0xFF,0x00,0x33,0x71} // 模拟绝缘故障
};
canInterface.SendMessage(testMsg);

1. 压力测试

// 模拟1000条/秒数据流
Parallel.For(0, 1000, i =>
{
    canInterface.SendMessage(testMsg);
    Thread.Sleep(1);
});

---

八、扩展功能建议

1. OTA升级模块

public class FirmwareUpdater
{
    public void CheckUpdate()
    {
        var response = SendCommand(0x18FEF100, new byte[]{0x01});
        if(response.Data[0] == 0xAA)
            DownloadFirmware(response.Data.Skip(1).ToArray());
    }
}

1. 三维可视化

// 使用Helix Toolkit渲染电池模组
var model = new BatteryPackVisual3D();
model.Initialize(batteryCells.Select(cell =>
    new CylinderVisual3D { Radius = 20, Height = 65, Fill = new SolidColorBrush(Colors.Green) }));

---

该方案整合了CAN通信、数据解析、界面交互等关键技术，实际开发中需根据具体BMS协议（如ISO 15118-7、GB/T 27930）调整解析逻辑。建议使用Vector CANoe或PCAN-View进行协议验证，通过单元测试确保数据解析准确性。
