0. 背景介绍

因数据单向发送，无法测试tcp协议，使用iperf3 发送udp 数据时，因为iperf3 发送udp 数据前，需要先建立一个tcp 连接后，才开始发送udp 数据，所以不适用。

sockperf 发送udp 数据不需要提前建立tcp 连接。

1. 安装

复制代码

1. 下载安装包

2. 解压安装包

[root@idpa tools]# unzip sockperf-sockperf_v2.zip
Archive:  sockperf-sockperf_v2.zip
3c65ad99cd385e18f8a2a655c19826e81a4d17e8
   creating: sockperf-sockperf_v2/
   creating: sockperf-sockperf_v2/.ci/
  inflating: sockperf-sockperf_v2/.ci/Jenkinsfile
  inflating: sockperf-sockperf_v2/.ci/README.md
  inflating: sockperf-sockperf_v2/.ci/artifa
......
......
......


root@idpa sockperf-sockperf_v2]# pwd
/magx/tools/sockperf-sockperf_v2
[root@idpa sockperf-sockperf_v2]#

root@idpa tools]#
[root@idpa tools]# cd sockperf-sockperf_v2/
[root@idpa sockperf-sockperf_v2]# ll
total 44
-rw-r--r-- 1 root root   79 Jul 31 18:28 authors
-rwxr-xr-x 1 root root  552 Jul 31 18:28 autogen.sh
drwxr-xr-x 2 root root   98 Jul 31 18:28 build
drwxr-xr-x 3 root root   16 Jul 31 18:28 config
-rw-r--r-- 1 root root 7073 Jul 31 18:28 configure.ac
drwxr-xr-x 3 root root   50 Jul 31 18:28 contrib
-rw-r--r-- 1 root root 1554 Jul 31 18:28 copying
drwxr-xr-x 4 root root  132 Jul 31 18:28 debian
drwxr-xr-x 2 root root   41 Jul 31 18:28 doc
-rwxr-xr-x 1 root root 1491 Jul 31 18:28 Makefile.am
-rw-r--r-- 1 root root    0 Jul 31 18:28 news
-rw-r--r-- 1 root root 3511 Jul 31 18:28 README.md
-rw-r--r-- 1 root root 1770 Jul 31 18:28 SECURITY.md
-rw-r--r-- 1 root root    5 Jul 31 18:28 sockperf-version
drwxr-xr-x 2 root root 4096 Jul 31 18:28 src
drwxr-xr-x 4 root root 4096 Jul 31 18:28 tests
drwxr-xr-x 2 root root   75 Jul 31 18:28 tools
drwxr-xr-x 3 root root   39 Jul 31 18:28 win
[root@idpa sockperf-sockperf_v2]#
[root@idpa sockperf-sockperf_v2]#


3. 开始安装


root@idpa sockperf-sockperf_v2]# pwd
/magx/tools/sockperf-sockperf_v2
[root@idpa sockperf-sockperf_v2]#
[root@idpa sockperf-sockperf_v2]# ll
total 18360
-rw-r--r-- 1 root root    45872 Dec 11 16:13 aclocal.m4
-rw-r--r-- 1 root root       79 Jul 31 18:28 authors
-rwxr-xr-x 1 root root      552 Jul 31 18:28 autogen.sh
drwxr-xr-x 2 root root      119 Dec 11 16:15 build
drwxr-xr-x 4 root root       27 Dec 11 16:13 config
-rw-r--r-- 1 root root     2898 Dec 11 16:15 config.h
-rw-r--r-- 1 root root     2599 Dec 11 16:13 config.h.in
-rw-r--r-- 1 root root    38577 Dec 11 16:15 config.log
-rwxr-xr-x 1 root root    68822 Dec 11 16:15 config.status
-rwxr-xr-x 1 root root   634482 Dec 11 16:13 configure
-rw-r--r-- 1 root root     7073 Jul 31 18:28 configure.ac
drwxr-xr-x 3 root root       50 Jul 31 18:28 contrib
-rw-r--r-- 1 root root     1554 Jul 31 18:28 copying
drwxr-xr-x 4 root root      132 Jul 31 18:28 debian
drwxr-xr-x 2 root root       57 Dec 11 16:15 doc
-rwxr-xr-x 1 root root   344844 Dec 11 16:15 libtool
-rw-r--r-- 1 root root    42245 Dec 11 16:15 Makefile
-rwxr-xr-x 1 root root     1491 Jul 31 18:28 Makefile.am
-rw-r--r-- 1 root root    43393 Dec 11 16:13 Makefile.in
-rw-r--r-- 1 root root        0 Jul 31 18:28 news
-rw-r--r-- 1 root root     3511 Jul 31 18:28 README.md
-rw-r--r-- 1 root root     1770 Jul 31 18:28 SECURITY.md
-rwxr-xr-x 1 root root 17509272 Dec 11 16:17 sockperf
-rw-r--r-- 1 root root        5 Jul 31 18:28 sockperf-version
drwxr-xr-x 3 root root     4096 Dec 11 16:17 src
-rw-r--r-- 1 root root       23 Dec 11 16:15 stamp-h1
drwxr-xr-x 4 root root     4096 Dec 11 16:15 tests
drwxr-xr-x 2 root root      110 Dec 11 16:15 tools
drwxr-xr-x 3 root root       39 Jul 31 18:28 win
[root@idpa sockperf-sockperf_v2]#


[root@idpa sockperf-sockperf_v2]# ./autogen.sh
......
......

[root@idpa sockperf-sockperf_v2]# ./configure --prefix=/usr/local
......
......
[root@idpa sockperf-sockperf_v2]# make
......
......

[root@idpa sockperf-sockperf_v2]#
[root@idpa sockperf-sockperf_v2]# make install
make[1]: Entering directory '/magx/tools/sockperf-sockperf_v2'
make[2]: Entering directory '/magx/tools/sockperf-sockperf_v2'
 /usr/bin/mkdir -p '/usr/local/bin'
  /bin/sh ./libtool   --mode=install /usr/bin/install -c sockperf '/usr/local/bin'
libtool: install: /usr/bin/install -c sockperf /usr/local/bin/sockperf
 /usr/bin/mkdir -p '/usr/local/share/doc/sockperf'
 /usr/bin/install -c -m 644 README.md authors news sockperf-version copying '/usr/local/share/doc/sockperf'
make[2]: Leaving directory '/magx/tools/sockperf-sockperf_v2'
make[1]: Leaving directory '/magx/tools/sockperf-sockperf_v2'
[root@idpa sockperf-sockperf_v2]#

2 使用说明

2.1 sockperf server

复制代码

sockperf Server:  sockperf server -i <sockserverIP> -p <sockserver Port>


# 192.168.2.90 （sockperf Server）
# 192.168.2.221 （sockperf Client）

#***********************************************
# 192.168.2.90 （sockperf Server）


[root@idpa wangkatool]#

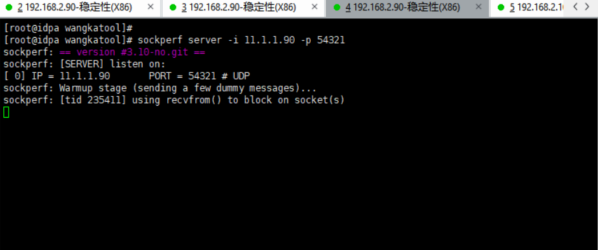

[root@idpa wangkatool]# sockperf server -i 11.1.1.90 -p 54321
s0 ckper千：==Vers10n#3,10-n0,01taa
sockperf:[SERVER]listen on:
【0]IP=11.1,1.90
PORT 54321#UDP
sockperf:Warmup stage (sending a few dummy messages)...
sockperf:[tid 235411]using recvfrom()to block on socket(s)

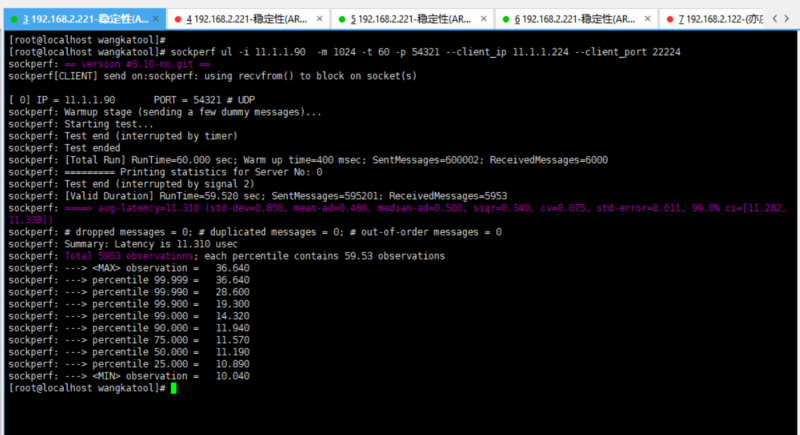

2.2 sockperf client

复制代码

#***********************************************
# 192.168.2.221 （sockperf Client）

# sockperf ul -i <sockperf server IP> -p <sockperf Server Port> -m  XX --client_ip <sockperf Client IP> --client_port <sockperf client port> -t <发送时间>


#注意：
1. 默认发送udp 包


under-load (ul)	sockperf ul	有负载模式，模拟真实流量压力


ul模式特点：

持续发送：客户端持续发送数据包，不等待响应

模拟真实负载：类似于实际应用中的流媒体、监控数据等

测量：单向延迟、丢包率、吞吐量
