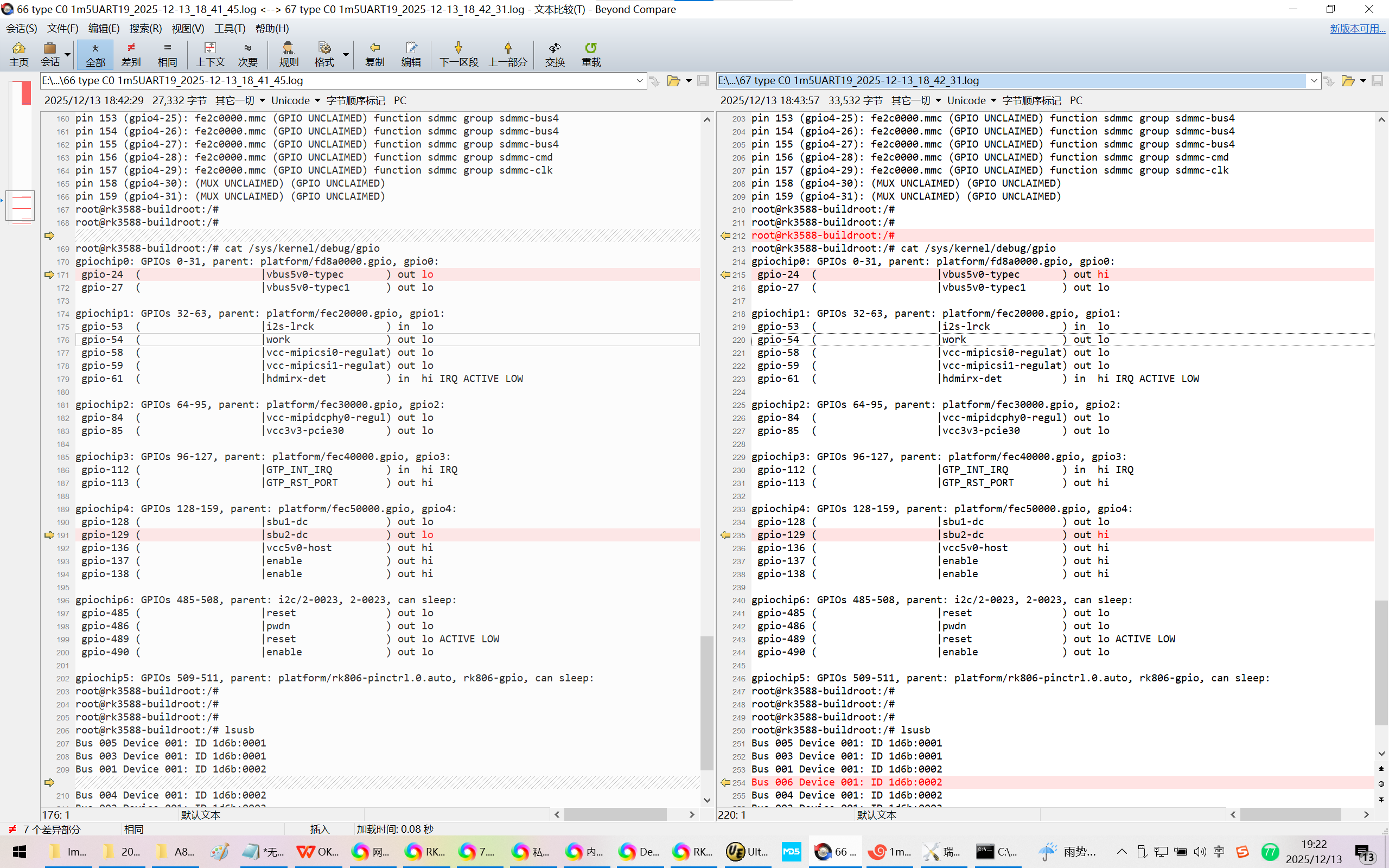

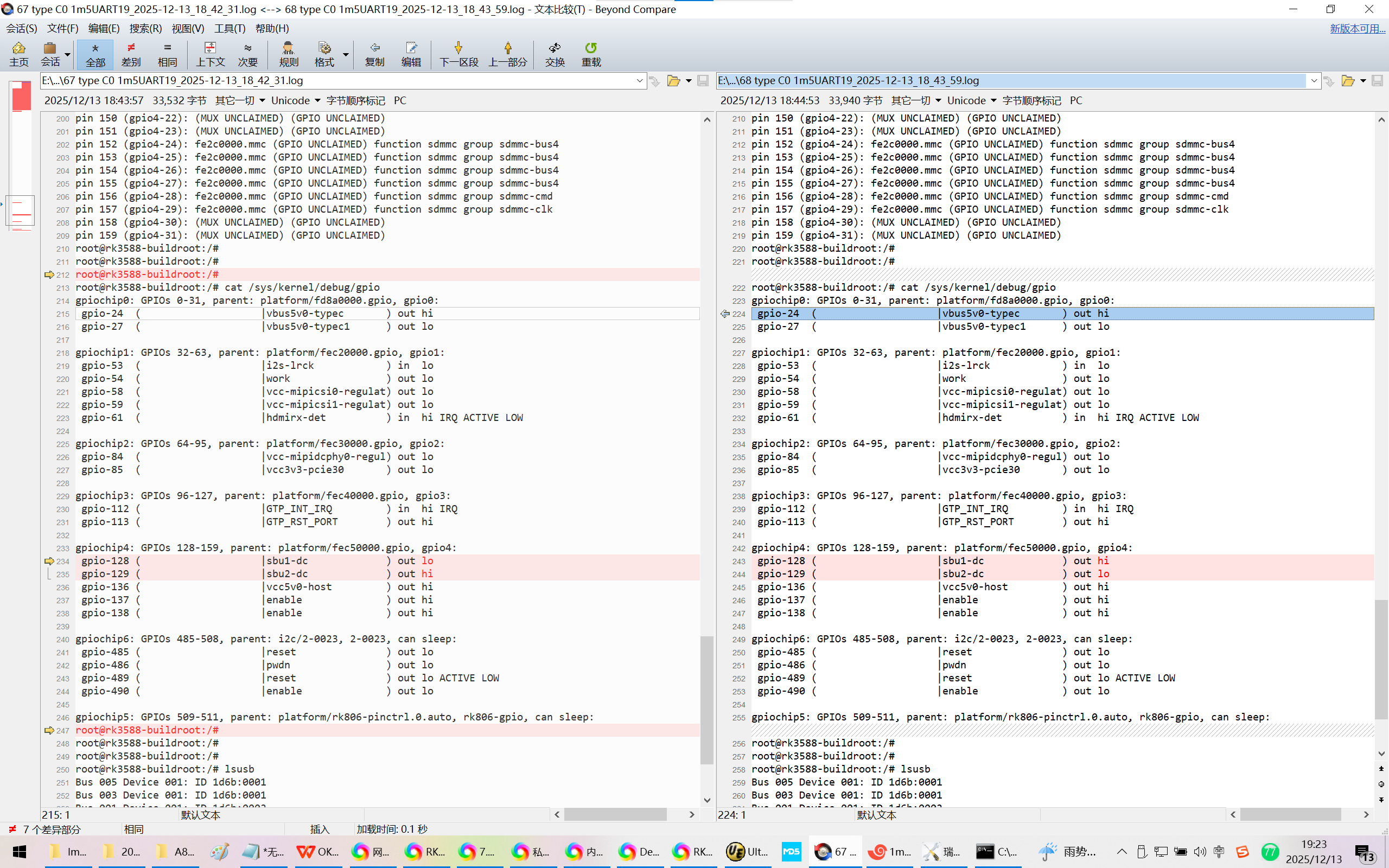

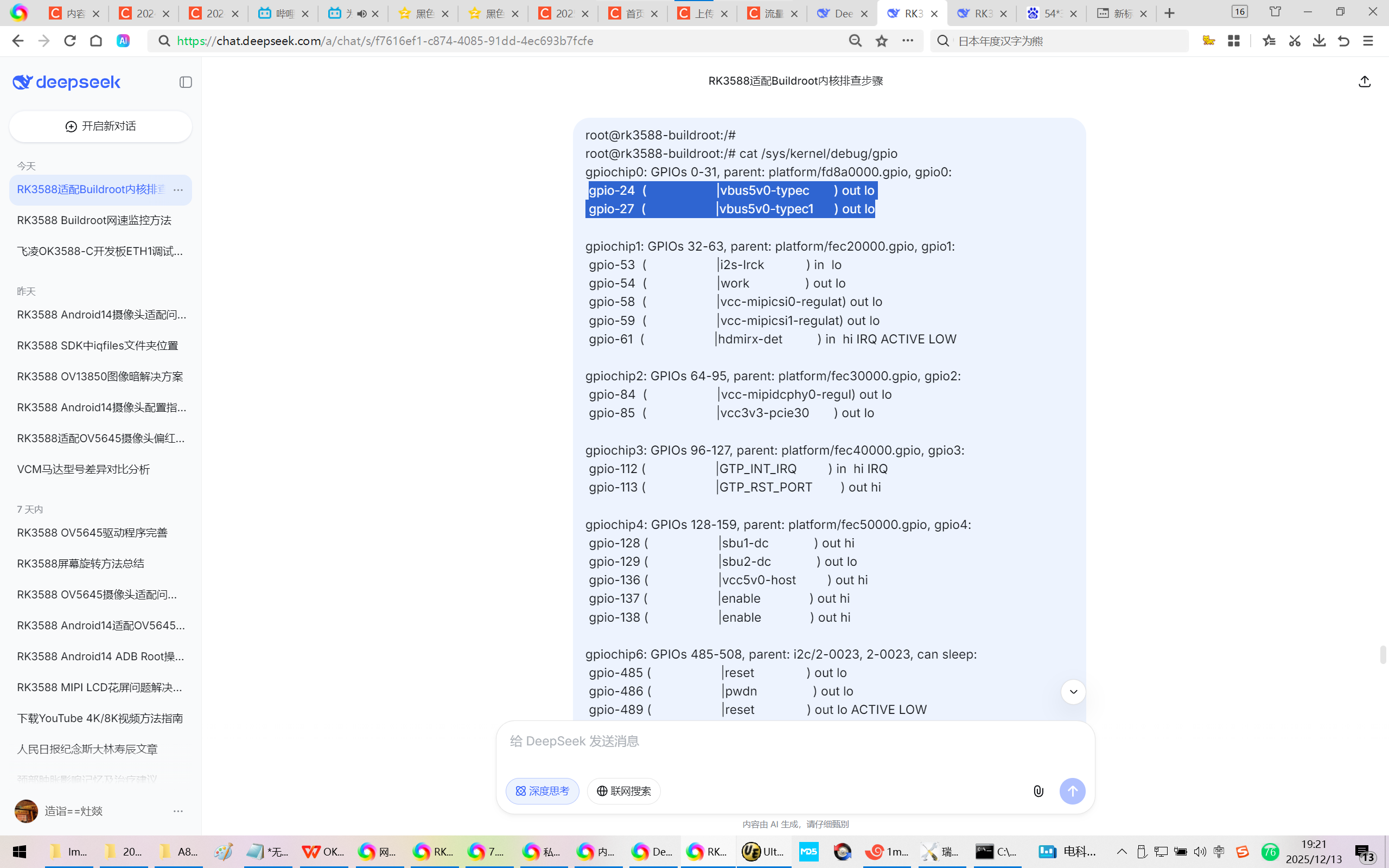

cat /sys/kernel/debug/pinctrl/pinctrl-rockchip-pinctrl/pinmux-pins

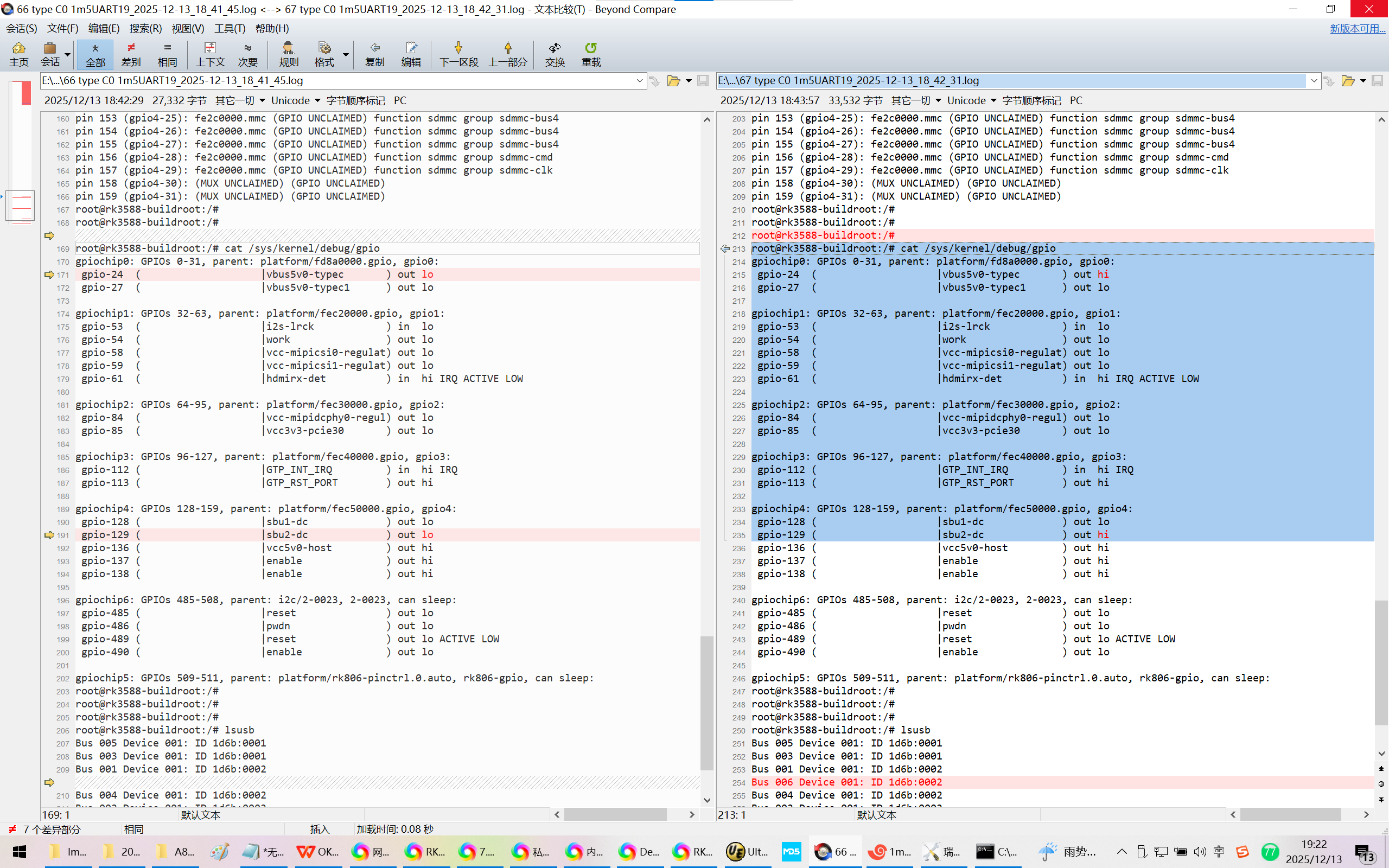

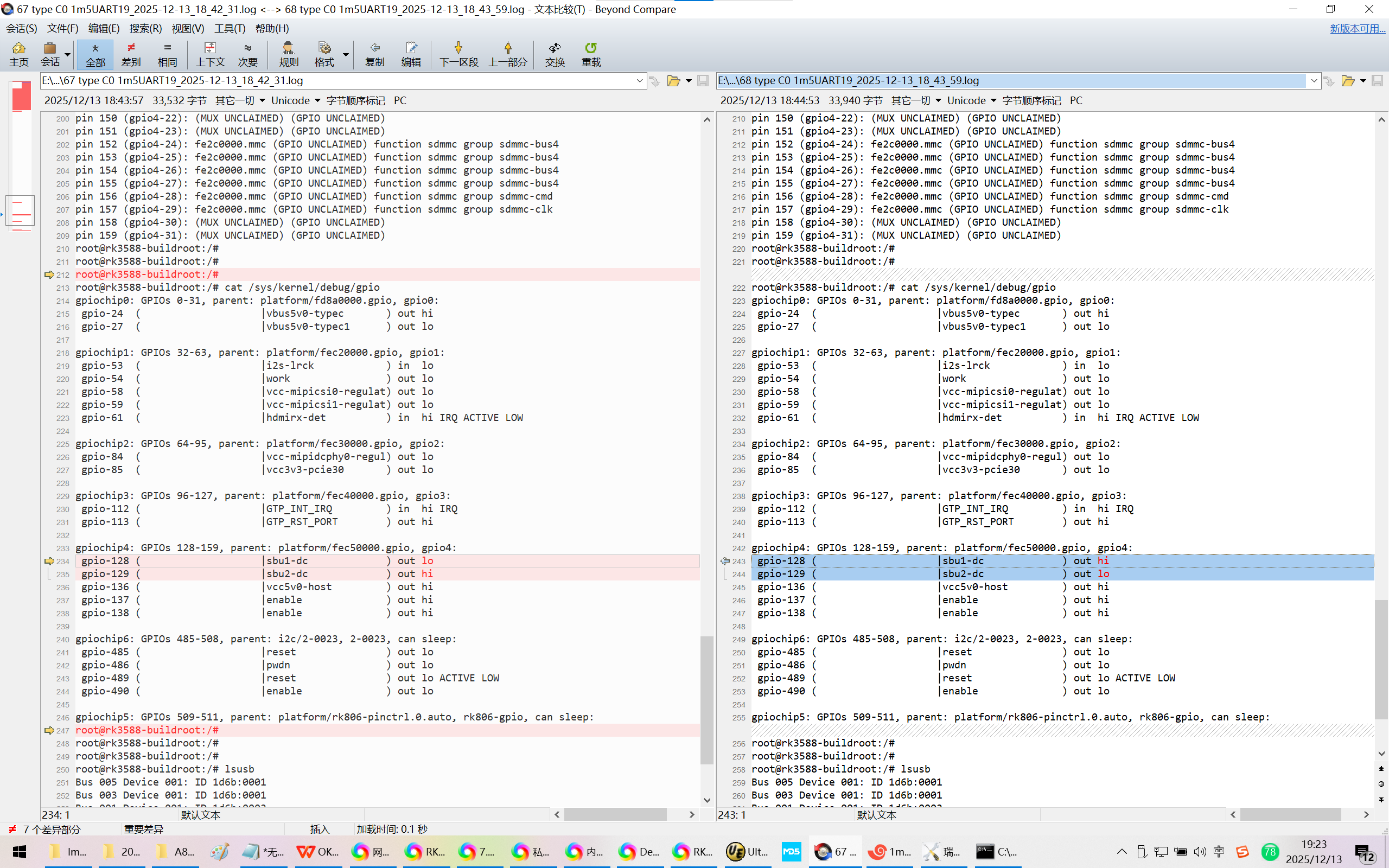

cat /sys/kernel/debug/gpio

20251213给飞凌OK3588-C开发板适配Rockchip原厂的Buildroot【linux-6.1】系统时适配type-C0

2025/12/13 19:03

缘起：飞凌OK3588-C开发板跑Rockchip原厂的Buildroot【linux-6.1】系统时，adb可以用。

但是接USB3.0的U盘异常！

通过OTG接头接鼠标，灯不亮==鼠标不能用！

当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。

当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！

https://chat.deepseek.com/a/chat/s/f7616ef1-c874-4085-91dd-4ec693b7fcfe

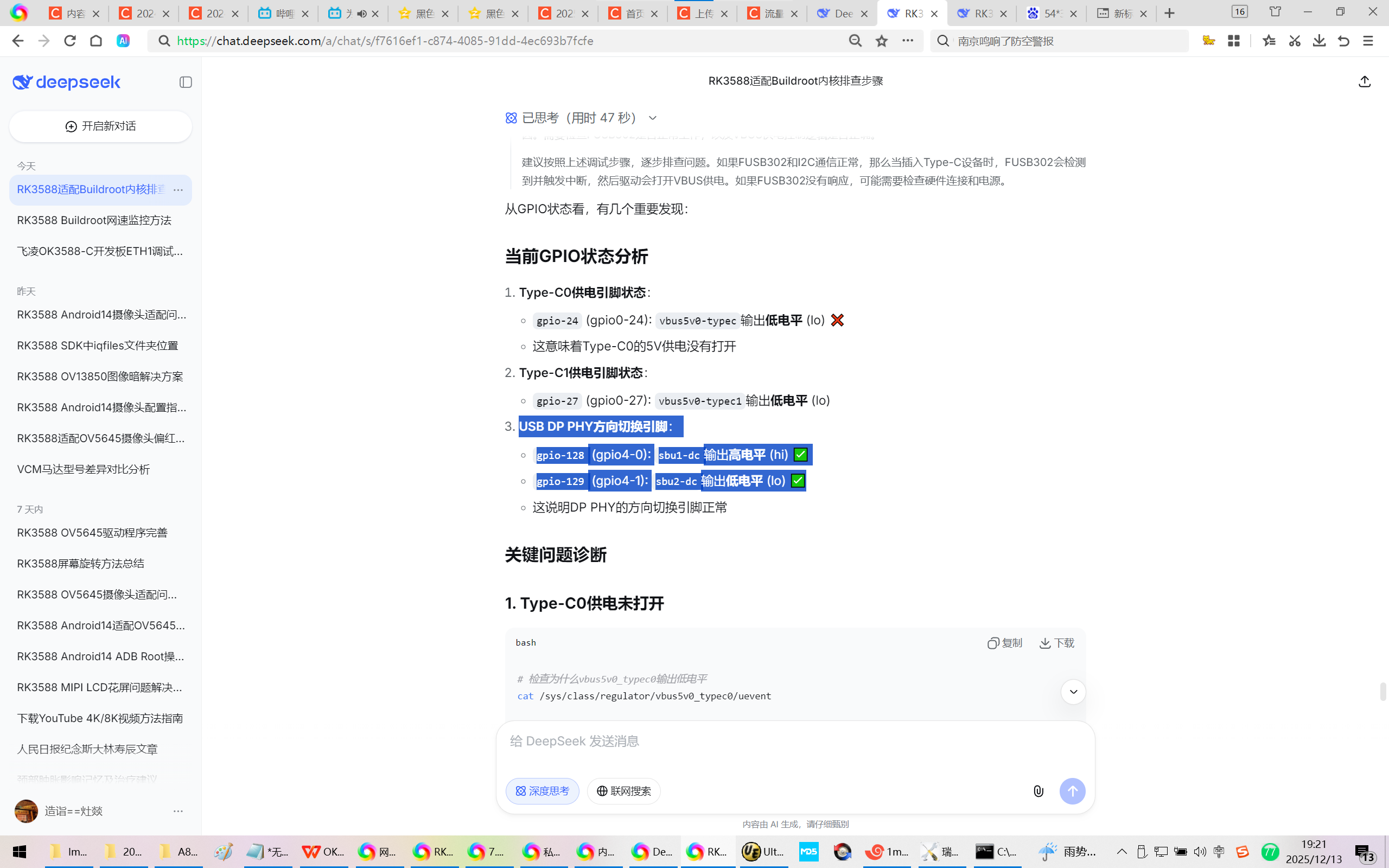

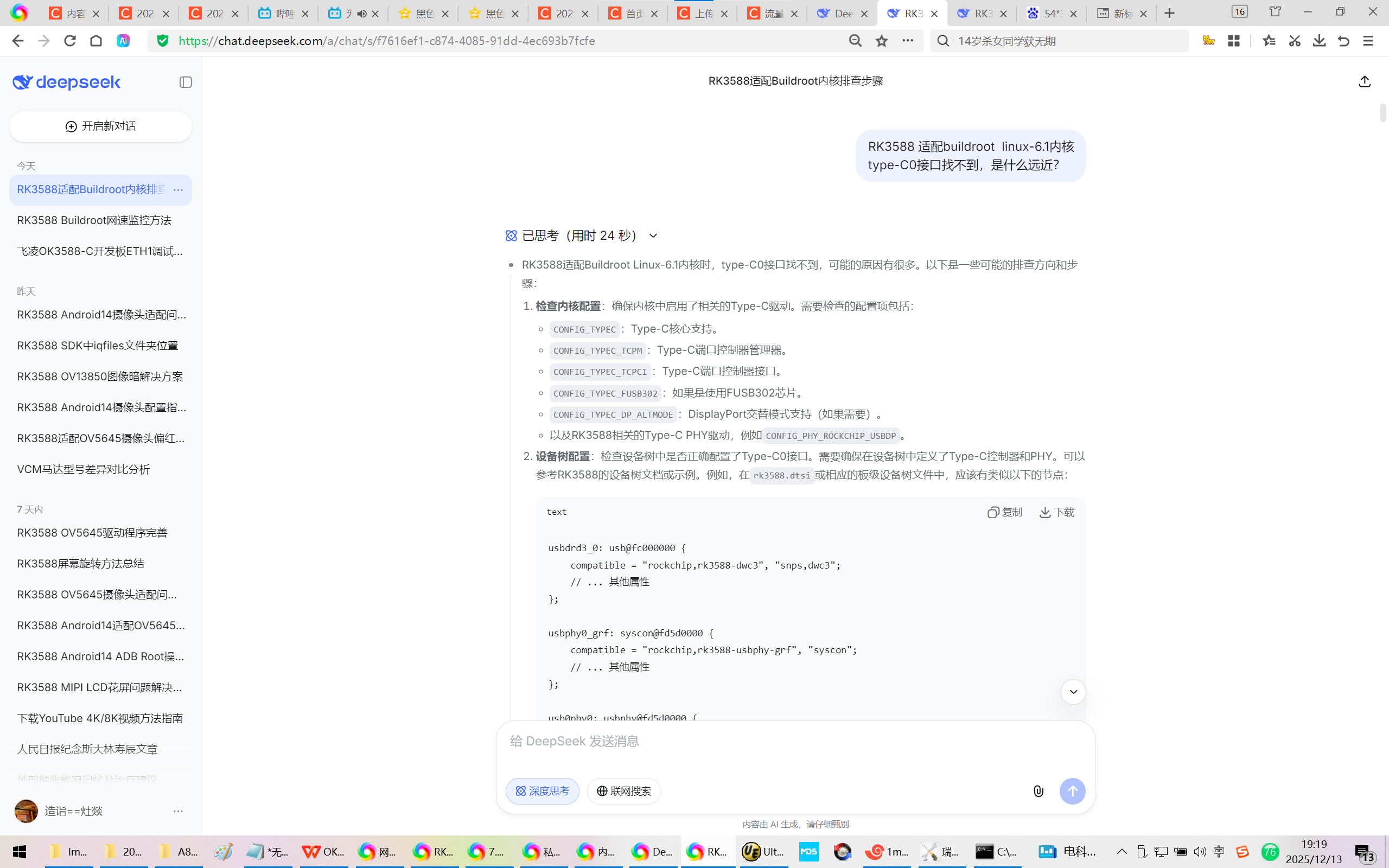

RK3588适配Buildroot内核排查步骤

RK3588 适配buildroot linux-6.1内核

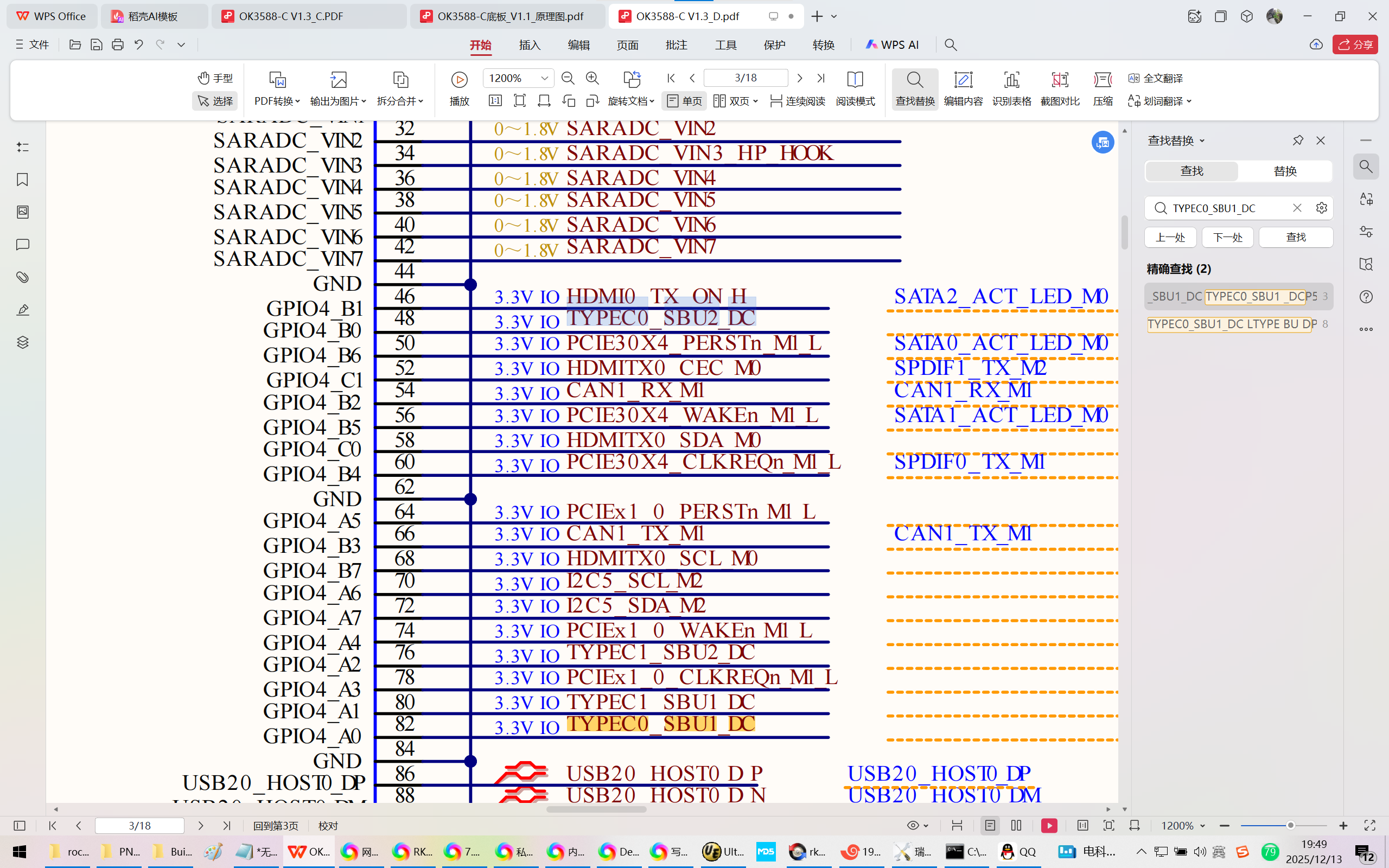

type-C0接口找不到，是什么远近？

1、

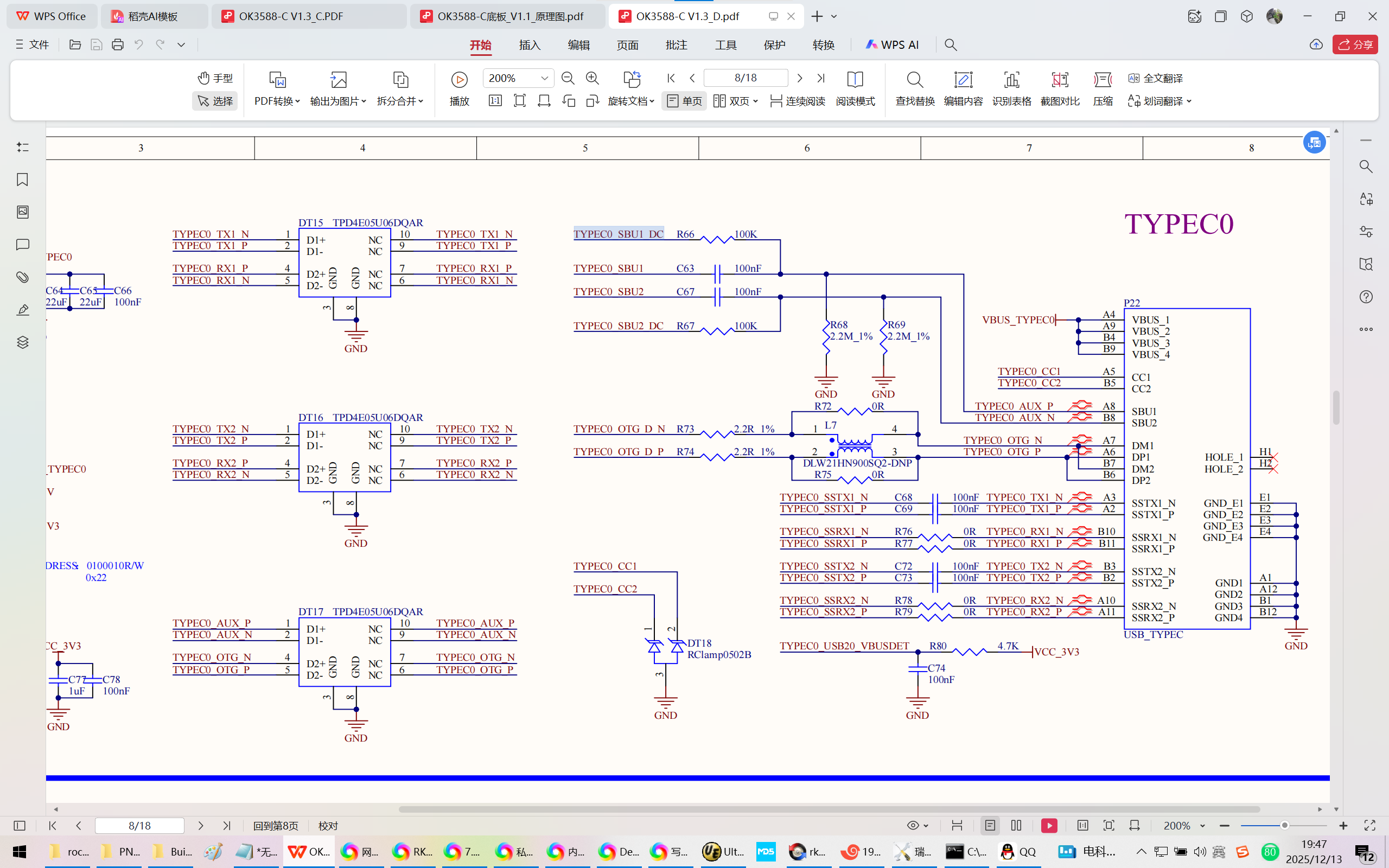

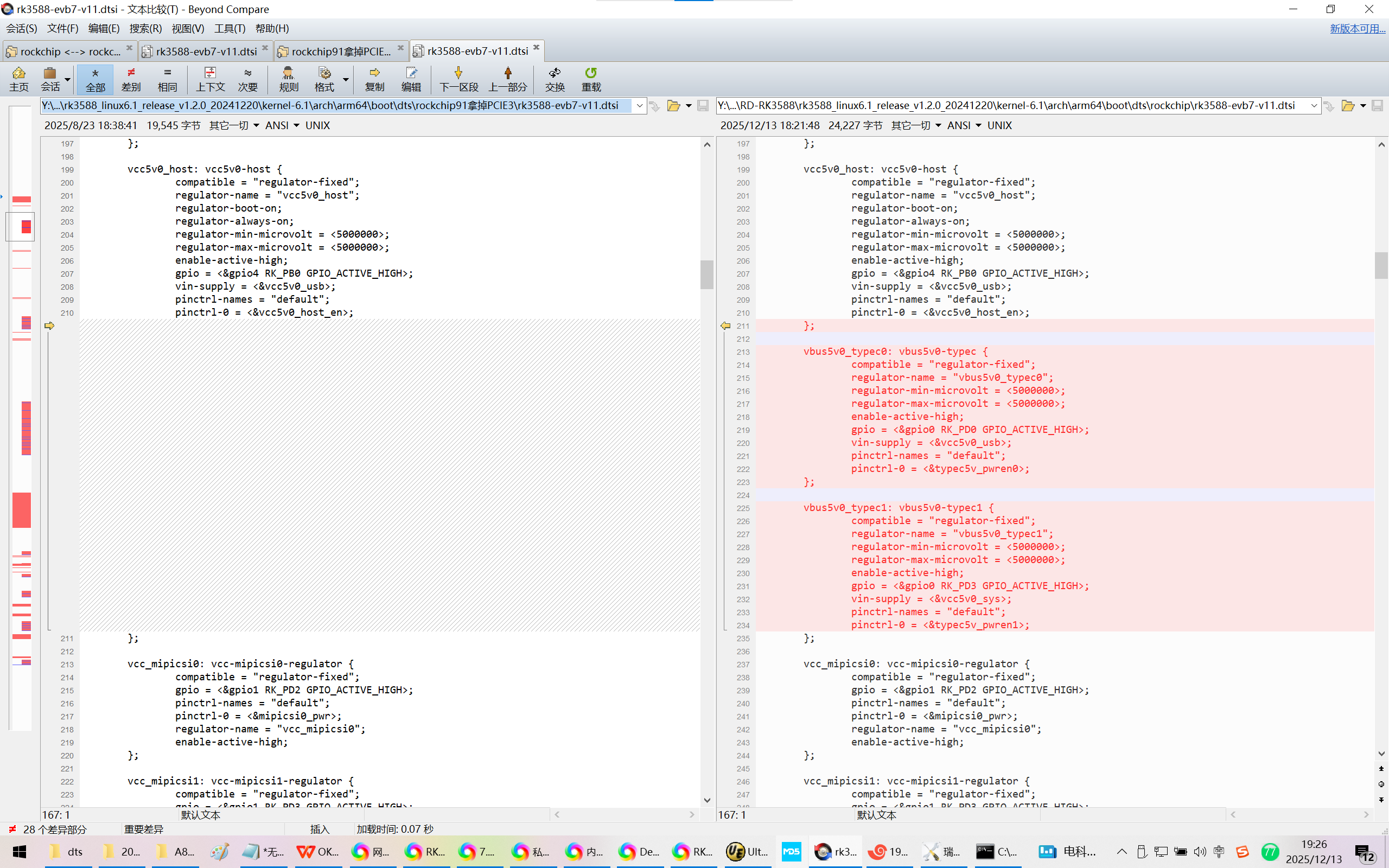

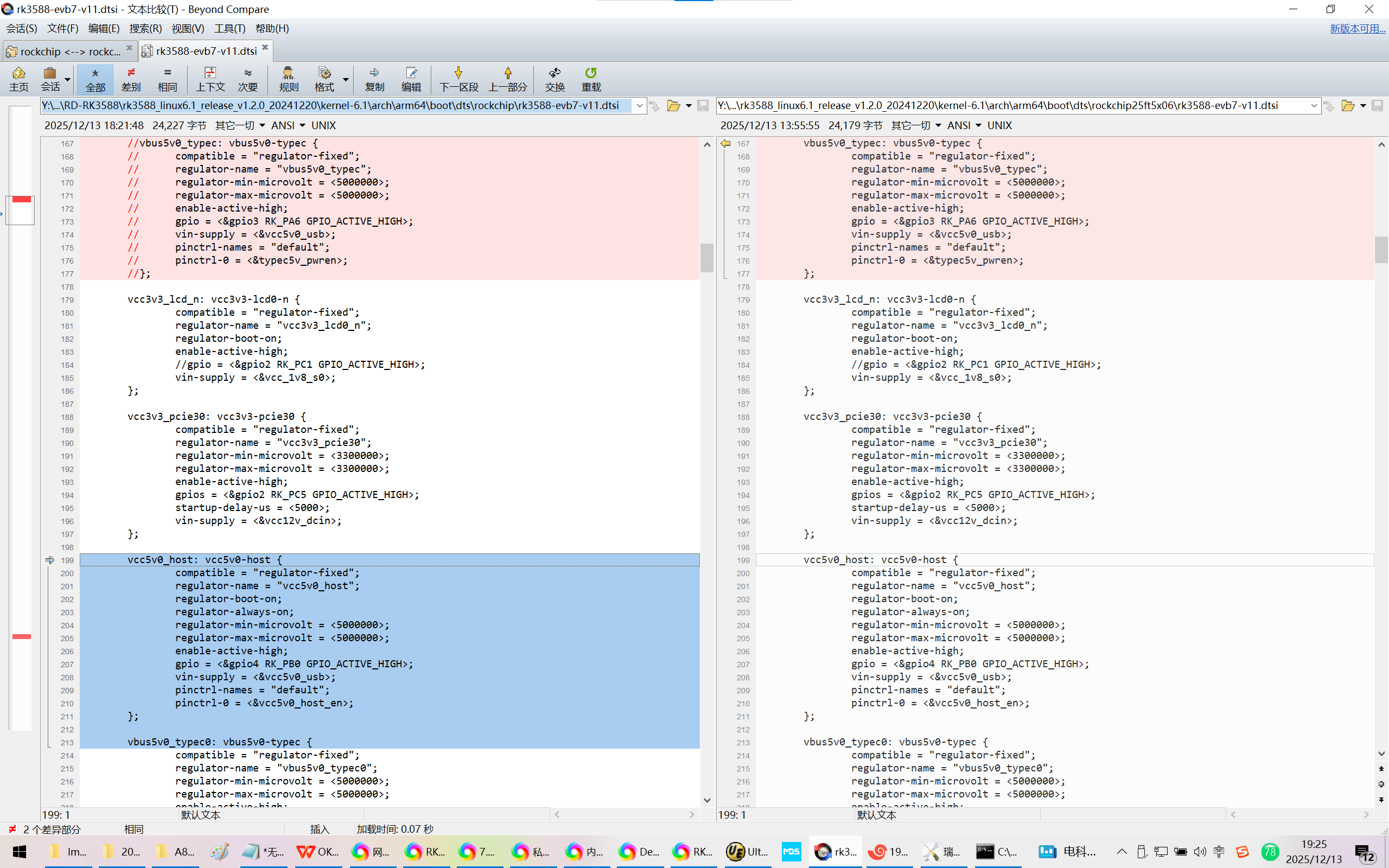

Y:\new_disk_4t\wyb\RD-RK3588\rk3588_linux6.1_release_v1.2.0_20241220\kernel-6.1\arch\arm64\boot\dts\rockchip\rk3588-evb7-v11.dtsi

【本来想尽量少改动，但是以前的EVB7V11里面内置的DTSI搞出问题了！】
//vbus5v0_typec: vbus5v0-typec {
// compatible = "regulator-fixed";
// regulator-name = "vbus5v0_typec";
// regulator-min-microvolt = <5000000>;
// regulator-max-microvolt = <5000000>;
// enable-active-high;
// gpio = <&gpio3 RK_PA6 GPIO_ACTIVE_HIGH>;
// vin-supply = <&vcc5v0_usb>;
// pinctrl-names = "default";
// pinctrl-0 = <&typec5v_pwren>;
//};

vcc3v3_lcd_n: vcc3v3-lcd0-n {

compatible = "regulator-fixed";

regulator-name = "vcc3v3_lcd0_n";

regulator-boot-on;

enable-active-high;

//gpio = <&gpio2 RK_PC1 GPIO_ACTIVE_HIGH>;

vin-supply = <&vcc_1v8_s0>;

};

vcc3v3_pcie30: vcc3v3-pcie30 {

compatible = "regulator-fixed";

regulator-name = "vcc3v3_pcie30";

regulator-min-microvolt = <3300000>;

regulator-max-microvolt = <3300000>;

enable-active-high;

gpios = <&gpio2 RK_PC5 GPIO_ACTIVE_HIGH>;

startup-delay-us = <5000>;

vin-supply = <&vcc12v_dcin>;

};

vcc5v0_host: vcc5v0-host {
compatible = "regulator-fixed";
regulator-name = "vcc5v0_host";
regulator-boot-on;
regulator-always-on;
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
enable-active-high;
gpio = <&gpio4 RK_PB0 GPIO_ACTIVE_HIGH>;
vin-supply = <&vcc5v0_usb>;
pinctrl-names = "default";
pinctrl-0 = <&vcc5v0_host_en>;
};

vbus5v0_typec0: vbus5v0-typec {
compatible = "regulator-fixed";
regulator-name = "vbus5v0_typec0";
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
enable-active-high;
gpio = <&gpio0 RK_PD0 GPIO_ACTIVE_HIGH>;
vin-supply = <&vcc5v0_usb>;
pinctrl-names = "default";
pinctrl-0 = <&typec5v_pwren0>;
};

vbus5v0_typec1: vbus5v0-typec1 {
compatible = "regulator-fixed";
regulator-name = "vbus5v0_typec1";
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
enable-active-high;
gpio = <&gpio0 RK_PD3 GPIO_ACTIVE_HIGH>;
vin-supply = <&vcc5v0_sys>;
pinctrl-names = "default";
pinctrl-0 = <&typec5v_pwren1>;
};

vcc_mipicsi0: vcc-mipicsi0-regulator {

compatible = "regulator-fixed";

gpio = <&gpio1 RK_PD2 GPIO_ACTIVE_HIGH>;

pinctrl-names = "default";

pinctrl-0 = <&mipicsi0_pwr>;

regulator-name = "vcc_mipicsi0";

enable-active-high;

};

2、

Y:\new_disk_4t\wyb\RD-RK3588\rk3588_linux6.1_release_v1.2.0_20241220\kernel-6.1\arch\arm64\boot\dts\rockchip\rk3588-evb7-v11.dtsi

【本来想尽量少改动，但是以前的EVB7V11里面内置的DTSI搞出问题了！】

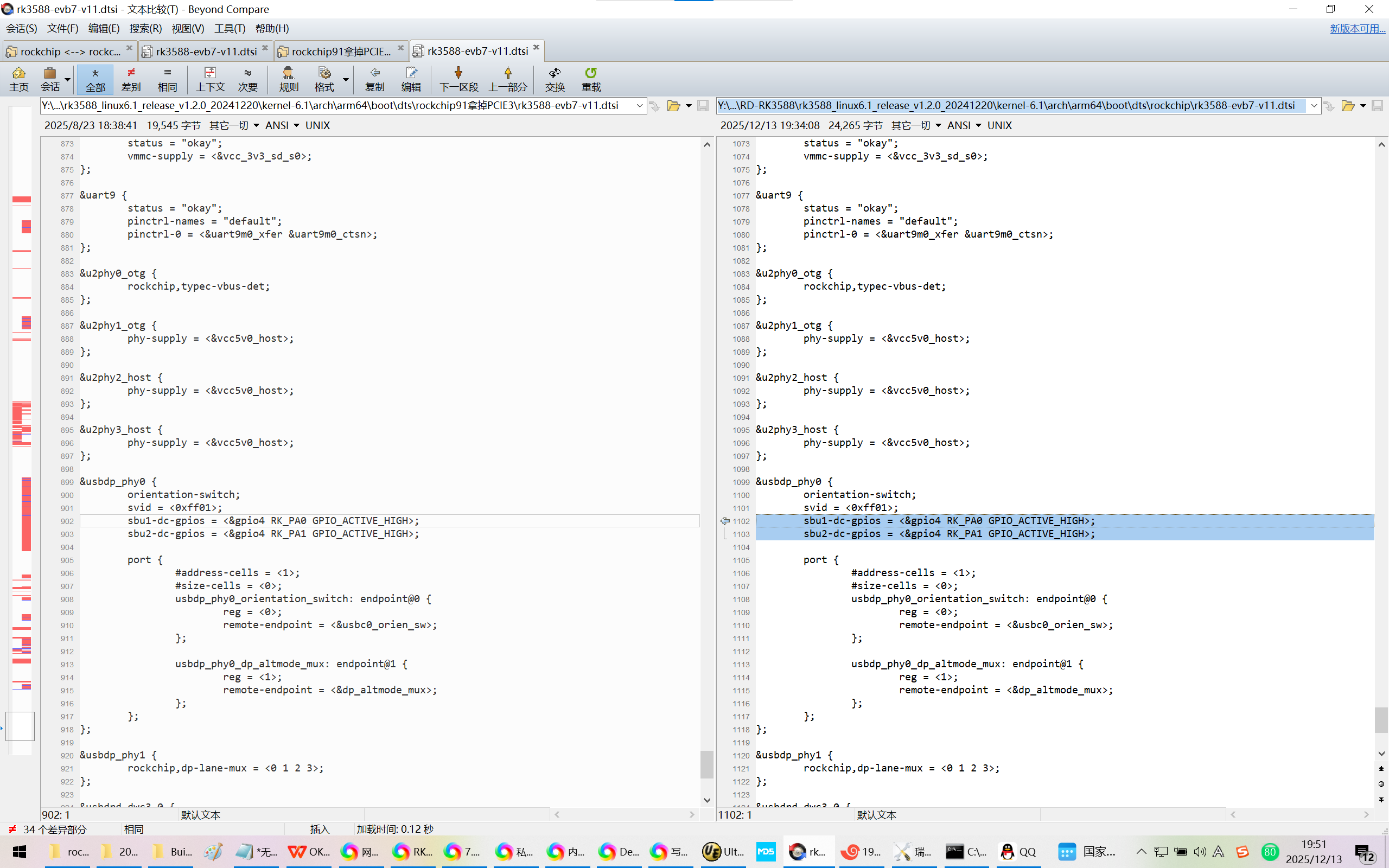

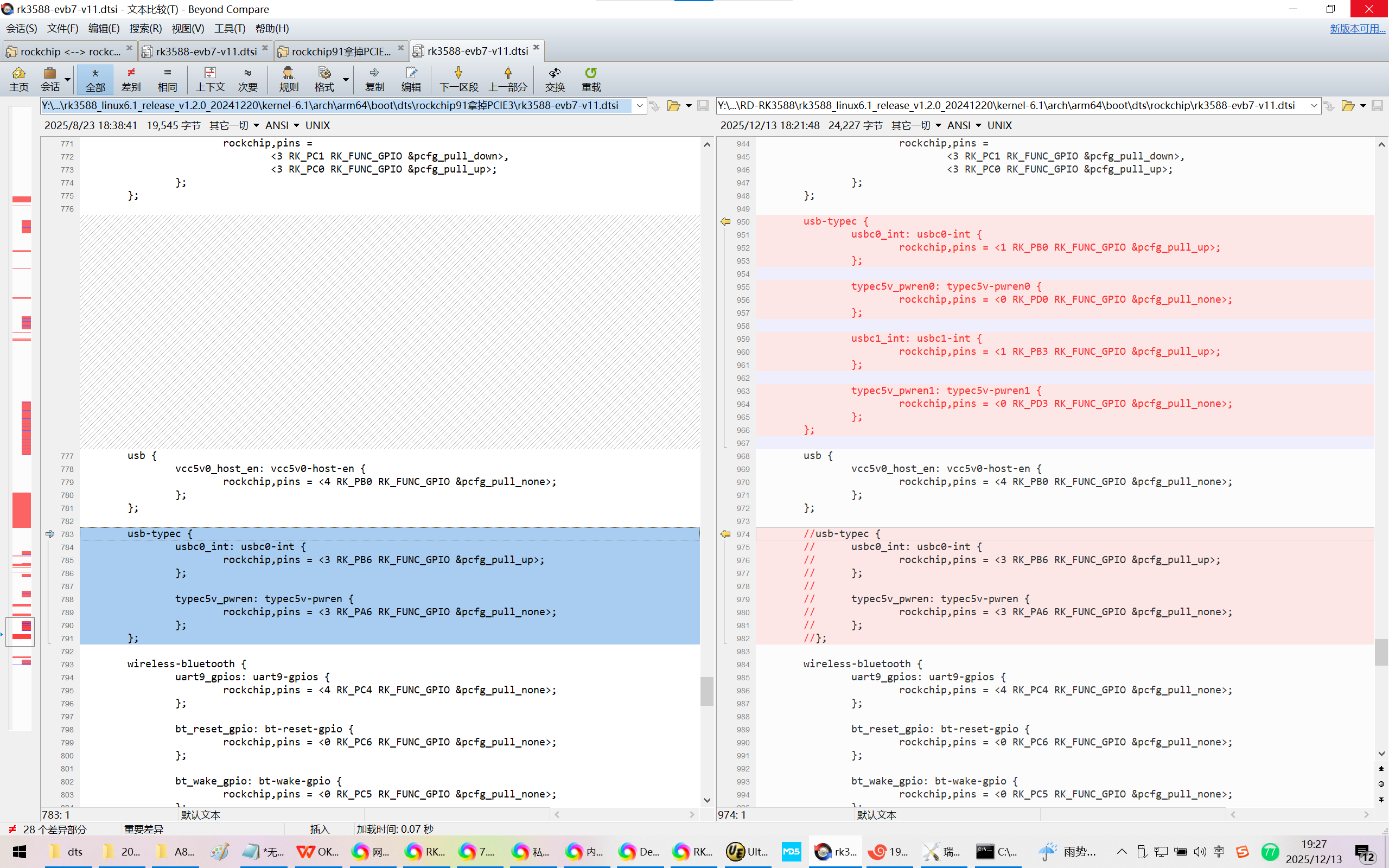

&pinctrl {

touch {

touch_gpio: touch-gpio {

rockchip,pins =

<3 RK_PC1 RK_FUNC_GPIO &pcfg_pull_down>,

<3 RK_PC0 RK_FUNC_GPIO &pcfg_pull_up>;

};

};

usb-typec {
usbc0_int: usbc0-int {
rockchip,pins = <1 RK_PB0 RK_FUNC_GPIO &pcfg_pull_up>;
};

typec5v_pwren0: typec5v-pwren0 {
rockchip,pins = <0 RK_PD0 RK_FUNC_GPIO &pcfg_pull_none>;
};

usbc1_int: usbc1-int {
rockchip,pins = <1 RK_PB3 RK_FUNC_GPIO &pcfg_pull_up>;
};

typec5v_pwren1: typec5v-pwren1 {
rockchip,pins = <0 RK_PD3 RK_FUNC_GPIO &pcfg_pull_none>;
};
};

usb {

vcc5v0_host_en: vcc5v0-host-en {

rockchip,pins = <4 RK_PB0 RK_FUNC_GPIO &pcfg_pull_none>;

};

};

//usb-typec {
// usbc0_int: usbc0-int {
// rockchip,pins = <3 RK_PB6 RK_FUNC_GPIO &pcfg_pull_up>;
// };
//
// typec5v_pwren: typec5v-pwren {
// rockchip,pins = <3 RK_PA6 RK_FUNC_GPIO &pcfg_pull_none>;
// };
//};

wireless-bluetooth {

uart9_gpios: uart9-gpios {

rockchip,pins = <4 RK_PC4 RK_FUNC_GPIO &pcfg_pull_none>;

};

bt_reset_gpio: bt-reset-gpio {

rockchip,pins = <0 RK_PC6 RK_FUNC_GPIO &pcfg_pull_none>;

};

bt_wake_gpio: bt-wake-gpio {

rockchip,pins = <0 RK_PC5 RK_FUNC_GPIO &pcfg_pull_none>;

};

bt_irq_gpio: bt-irq-gpio {

rockchip,pins = <0 RK_PA0 RK_FUNC_GPIO &pcfg_pull_none>;

};

};

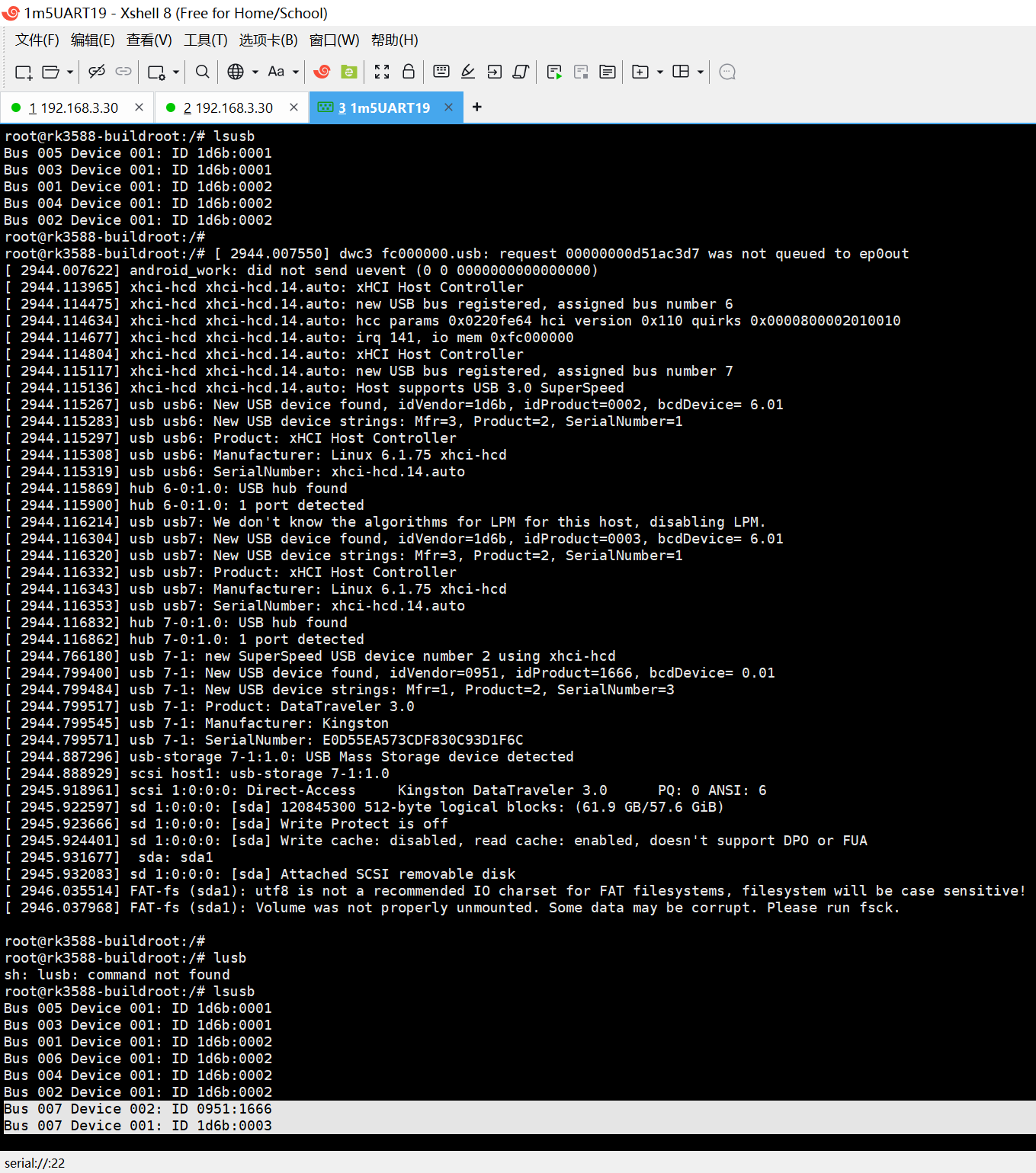

3、核实/确认检测到USB3.0的U盘：

root@rk3588-buildroot:/# lsusb

Bus 005 Device 001: ID 1d6b:0001

Bus 003 Device 001: ID 1d6b:0001

Bus 001 Device 001: ID 1d6b:0002

Bus 004 Device 001: ID 1d6b:0002

Bus 002 Device 001: ID 1d6b:0002

root@rk3588-buildroot:/#

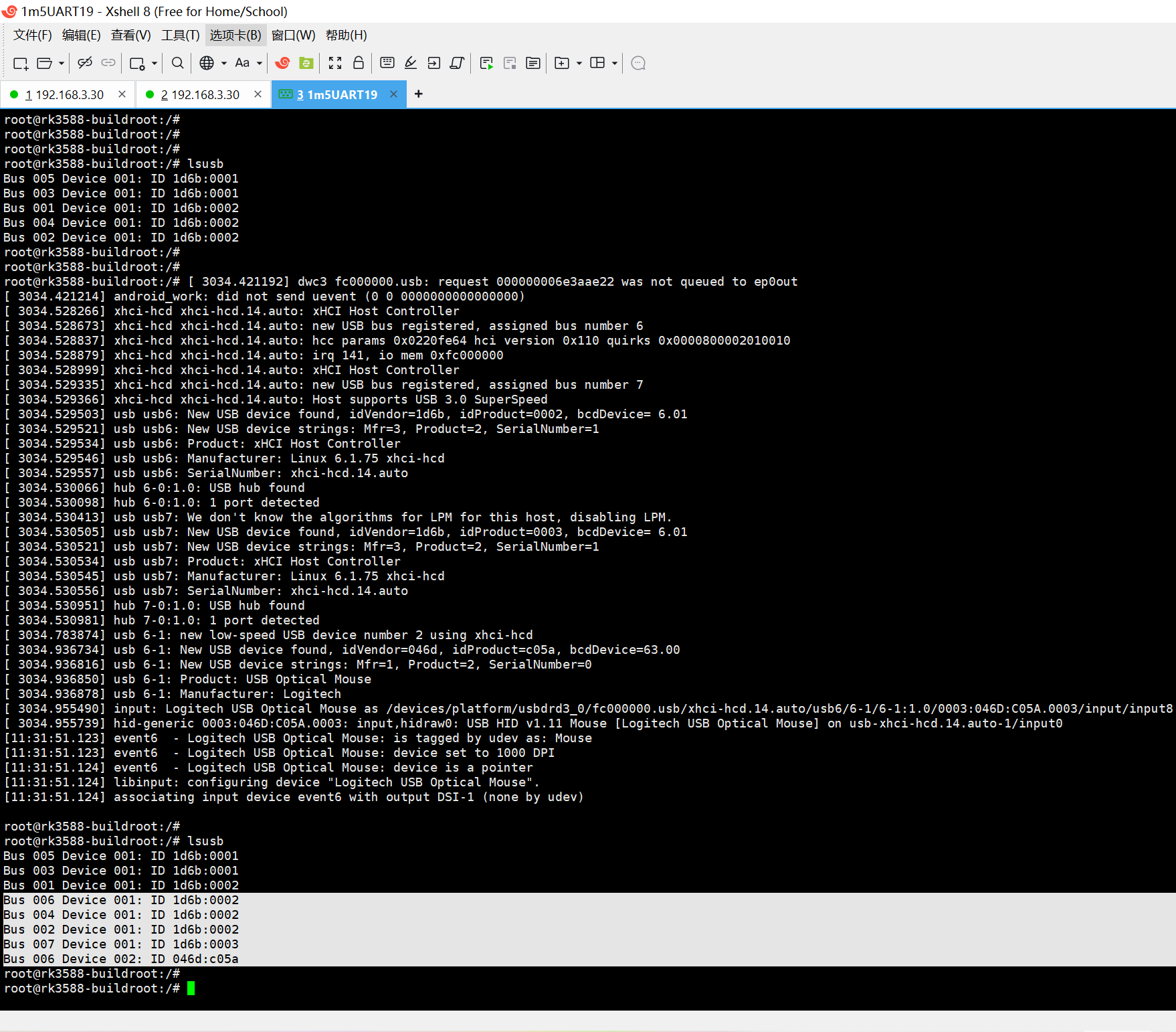

root@rk3588-buildroot:/# [ 2944.007550] dwc3 fc000000.usb: request 00000000d51ac3d7 was not queued to ep0out
