docker部署orion-ops一站式智能运维管理平台

1、orion-ops简介

Orion-ops是一款由国内开发者主导的一站式、轻量级、开源的自动化运维及自动化部署平台。

orion-ops 是基于 Java+Vue 开发、遵循 Apache-2.0 开源协议的一站式自动化运维与部署平台，以多环境管理为核心，集成机器管理、Web 终端、批量操作、监控报警、应用发布流水线等功能，支持 Docker 快速部署，适配各类企业轻量化运维治理场景。

2、核心功能

机器管理与监控：支持 SSH 机器接入、标签分组；提供 CPU / 内存 / 磁盘 / 网络等指标监控与告警，Agent 一键安装升级，保障机器状态可视可控。

Web 终端与文件管理：内置 Web SSH 终端，支持操作日志、录屏回放、管理员强制下线与实时监视；Web SFTP 支持批量上传下载、断点续传、打包传输，带实时速率与进度显示。

批量操作与调度：支持多机器并行执行命令、批量文件分发；基于 Cron 表达式的定时任务，可自动执行命令或文件操作，提升批量运维效率。

应用构建与发布：环境隔离机制确保开发 / 测试 / 生产配置独立；支持自定义 SSH 命令实现构建发布流程，适配任意项目类型；环境变量支持占位符自动替换，兼容 properties/json/yml/xml 等格式。

操作流水线与审计：可视化编排构建 - 测试 - 发布流程，全链路操作日志记录，便于追溯与合规审计。

官方部署地址： `https://visor.orionsec.cn/quickstart/test-image.html`

3、拉取orion-visor镜像

bash 复制代码

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-ui:latest

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-service:latest

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-mysql:latest

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-redis:latest

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-guacd:latest

docker pull registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-adminer:latest

5、拉取代码

bash 复制代码

cd /data

git clone https://github.com/lijiahangmax/orion-ops-pro

或者自行编辑

bash 复制代码

version: '3.3'

# latest = 2.5.6

# 支持以下源
# lijiahangmax/*
# ghcr.io/dromara/*
# registry.cn-hangzhou.aliyuncs.com/orionsec/*

services:
  ui:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-ui:latest
    ports:
      - ${SERVICE_PORT:-1081}:80
    environment:
      NGINX_SERVICE_HOST: ${NGINX_SERVICE_HOST:-service}
      NGINX_SERVICE_PORT: ${NGINX_SERVICE_PORT:-9200}
    restart: unless-stopped
    depends_on:
      service:
        condition: service_healthy
    networks:
      - orion-visor-net

  service:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-service:latest
    privileged: true
    ports:
      - "9200:9200"
    environment:
      SPRING_PROFILES_ACTIVE: ${SPRING_PROFILES_ACTIVE:-prod}
      MYSQL_HOST: ${MYSQL_HOST:-mysql}
      MYSQL_PORT: ${MYSQL_PORT:-3306}
      MYSQL_DATABASE: ${MYSQL_DATABASE:-orion_visor}
      MYSQL_USER: ${MYSQL_USER:-root}
      MYSQL_PASSWORD: ${MYSQL_PASSWORD:-Data@123456}
      REDIS_HOST: ${REDIS_HOST:-redis}
      REDIS_PASSWORD: ${REDIS_PASSWORD:-Data@123456}
      REDIS_DATABASE: ${REDIS_DATABASE:-0}
      REDIS_DATA_VERSION: ${REDIS_DATA_VERSION:-1}
      INFLUXDB_ENABLED: ${INFLUXDB_ENABLED:-true}
      INFLUXDB_HOST: ${INFLUXDB_HOST:-influxdb}
      INFLUXDB_PORT: ${INFLUXDB_PORT:-8086}
      INFLUXDB_ORG: ${INFLUXDB_ORG:-orion-visor}
      INFLUXDB_BUCKET: ${INFLUXDB_BUCKET:-metrics}
      INFLUXDB_TOKEN: ${INFLUXDB_TOKEN:-Data@123456}
      GUACD_HOST: ${GUACD_HOST:-guacd}
      GUACD_PORT: ${GUACD_PORT:-4822}
      GUACD_DRIVE_PATH: ${GUACD_DRIVE_PATH:-/drive}
      SECRET_KEY: ${SECRET_KEY:-uQeacXV8b3isvKLK}
      API_EXPOSE_TOKEN: ${API_EXPOSE_TOKEN:-pmqeHOyZaumHm0Wt}
      API_IP_HEADERS: ${API_IP_HEADERS:-X-Forwarded-For,X-Real-IP}
      API_HOST: ${API_HOST:-0.0.0.0}
      API_CORS: ${API_CORS:-true}
      DEMO_MODE: ${DEMO_MODE:-false}
    volumes:
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/service/root-orion:/root/orion
    ulimits:
      nofile:
        soft: 65536
        hard: 65536
    restart: unless-stopped
    healthcheck:
      test: [ "CMD", "curl", "http://127.0.0.1:9200/orion-visor/api/server/bootstrap/health" ]
      interval: 15s
      timeout: 5s
      retries: 15
      start_period: 30s
    depends_on:
      mysql:
        condition: service_healthy
      redis:
        condition: service_healthy
      influxdb:
        condition: service_healthy
    networks:
      - orion-visor-net

  mysql:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-mysql:latest
    privileged: true
    ports:
      - "3307:3306"
    environment:
      MYSQL_DATABASE: ${MYSQL_DATABASE:-orion_visor}
      MYSQL_USER: ${MYSQL_USER:-orion}
      MYSQL_PASSWORD: ${MYSQL_PASSWORD:-Data@123456}
      MYSQL_ROOT_PASSWORD: ${MYSQL_ROOT_PASSWORD:-Data@123456}
    volumes:
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/mysql/var-lib-mysql:/var/lib/mysql
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/mysql/var-lib-mysql-files:/var/lib/mysql-files
    restart: unless-stopped
    healthcheck:
      test: [ "CMD", "bash", "-c", "cat < /dev/null > /dev/tcp/127.0.0.1/3306" ]
      interval: 15s
      timeout: 5s
      retries: 10
      start_period: 10s
    networks:
      - orion-visor-net

  redis:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-redis:latest
    privileged: true
    ports:
      - "6380:6379"
    environment:
      REDIS_PASSWORD: ${REDIS_PASSWORD:-Data@123456}
    volumes:
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/redis/data:/data
    command: sh -c "redis-server /usr/local/redis.conf --requirepass $${REDIS_PASSWORD}"
    restart: unless-stopped
    healthcheck:
      test: [ "CMD", "redis-cli", "--raw", "incr", "ping" ]
      interval: 15s
      timeout: 5s
      retries: 10
      start_period: 10s
    networks:
      - orion-visor-net

  influxdb:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-influxdb:latest
    privileged: true
    ports:
      - "8086:8086"
    environment:
      DOCKER_INFLUXDB_INIT_MODE: setup
      DOCKER_INFLUXDB_INIT_USERNAME: ${INFLUXDB_ADMIN_USERNAME:-admin}
      DOCKER_INFLUXDB_INIT_PASSWORD: ${INFLUXDB_ADMIN_PASSWORD:-Data@123456}
      DOCKER_INFLUXDB_INIT_ADMIN_TOKEN: ${INFLUXDB_TOKEN:-Data@123456}
      DOCKER_INFLUXDB_INIT_ORG: ${INFLUXDB_ORG:-orion-visor}
      DOCKER_INFLUXDB_INIT_BUCKET: ${INFLUXDB_BUCKET:-metrics}
    volumes:
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/influxdb/data:/var/lib/influxdb2
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/influxdb/config:/etc/influxdb2
    restart: unless-stopped
    healthcheck:
      test: [ "CMD", "bash", "-c", "cat < /dev/null > /dev/tcp/127.0.0.1/8086" ]
      interval: 15s
      timeout: 5s
      retries: 10
      start_period: 10s
    networks:
      - orion-visor-net

  guacd:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-guacd:latest
    ports:
      - "4822:4822"
    environment:
      GUACD_LOG_LEVEL: info
      GUACD_LOG_FILE: /var/log/guacd.log
    volumes:
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/guacd/drive:${GUACD_DRIVE_PATH:-/drive}
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/guacd/var-logs:/var/log
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/guacd/local-guacamole-lib:/usr/local/guacamole/lib
      - ${VOLUME_BASE:-/data/orion-visor-space/docker-volumes}/guacd/local-guacamole-extensions:/usr/local/guacamole/extensions
    restart: unless-stopped
    healthcheck:
      test: [ "CMD", "nc", "-vz", "localhost", "4822" ]
      interval: 15s
      timeout: 5s
      retries: 10
      start_period: 10s
    networks:
      - orion-visor-net

  adminer:
    image: registry.cn-hangzhou.aliyuncs.com/orionsec/orion-visor-adminer:latest
    ports:
      - "8081:8080"
    environment:
      ADMINER_DEFAULT_SERVER: ${MYSQL_HOST:-mysql}
    depends_on:
      mysql:
        condition: service_healthy
    networks:
      - orion-visor-net

networks:
  orion-visor-net:
    driver: bridge

6、启动orion-visor容器

bash 复制代码

cd /data/orion-ops-pro/
docker-compose up -d
docker-compose ps
docker logs -f orion-ops-pro_ui_1

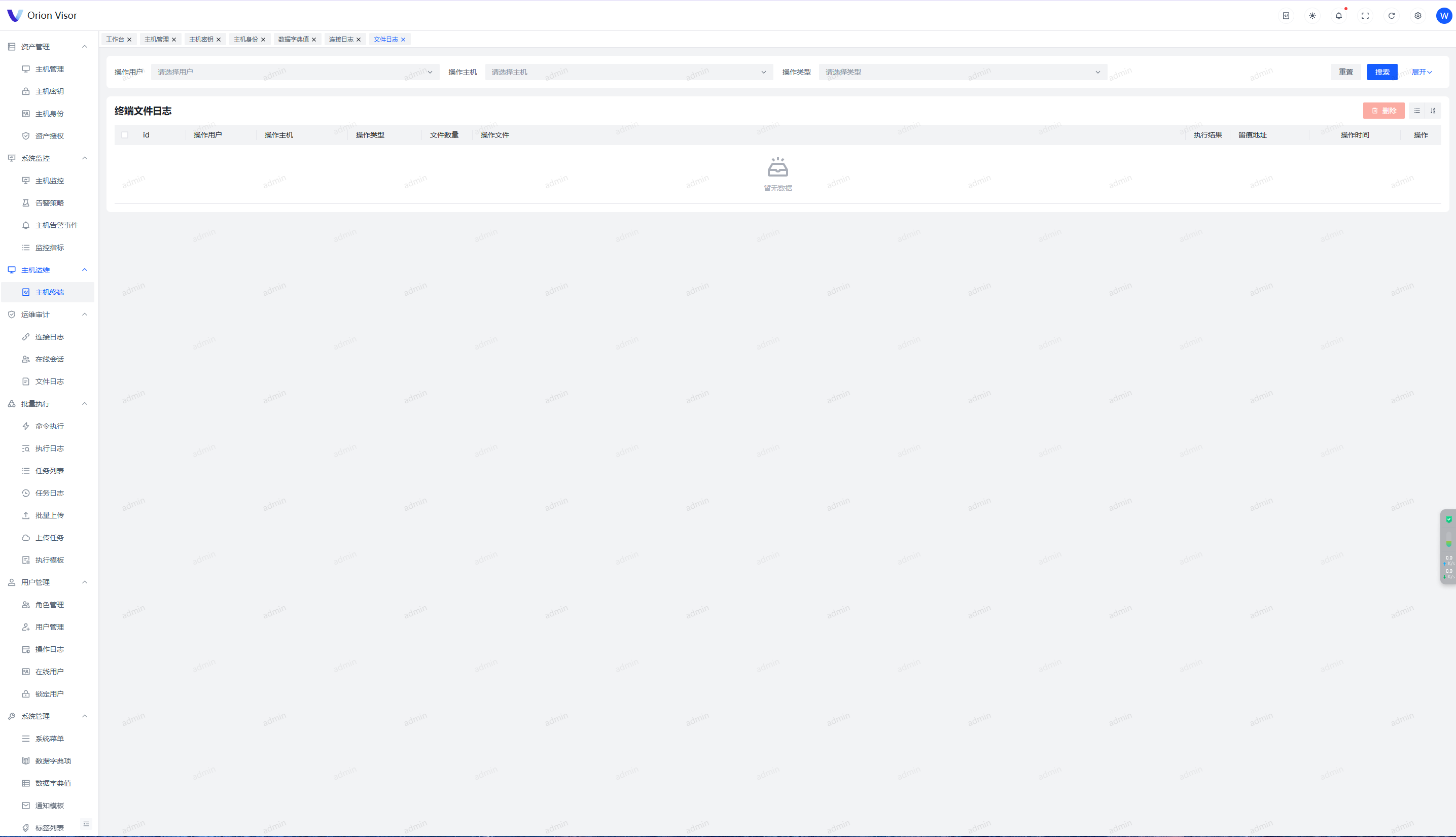

7、访问Orion-Ops服务

浏览器访问: http://172.16.17.201:1081

默认登录账号信息为：账号：admin 密码：admin

🔗 演示地址: https://dv.orionsec.cn/

🔏 演示账号: admin/admin

Orion-ops是一个功能集成度很高的一体化运维平台。与Jenkins这类专注于CI/CD流水线的工具，或Prometheus这类专注监控的系统不同，它的优势在于将主机管理、文件操作、监控、任务调度和基础的应用发布功能整合在一个统一的Web界面中，适合希望用一套系统解决常见运维操作的中小团队。
