Windows系统通过wsl Ubuntu24.04本地安装OpenJiuwen Studio的完整安装教程

概述

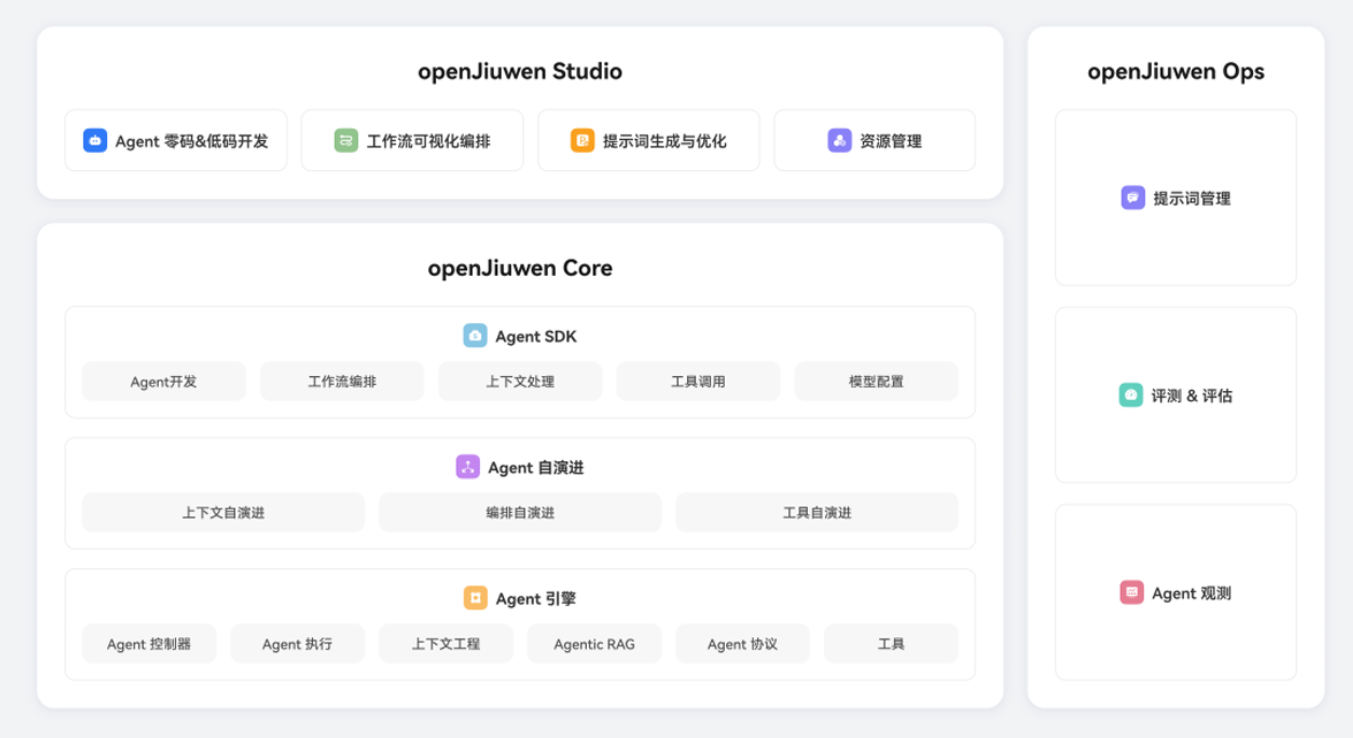

OpenJiuwen 是一个强大的智能代理开发平台，本文将详细介绍如何在 Linux 系统上完整安装 OpenJiuwen。

环境要求

硬件要求

CPU：最低 2 核，推荐 4 核及以上
RAM：最低 4GB，推荐 8GB 及以上

操作系统

Ubuntu：最低 Ubuntu 20.04，推荐 Ubuntu 22.04 (Jammy) 及以上
EulerOS：Huawei Cloud EulerOS 2.0及以上

软件要求

Git 2.40及以上
Node.js 20.0及以上
npm 10.0及以上
Python 3.11及以上
uv 0.5.0及以上
MySQL 8.0及以上
Milvus 2.6.2及以上（可选组件）

安装步骤

1. 检查系统环境

首先，检查您的 Linux 系统信息：

bash 复制代码

uname -a

输出示例：

复制代码

$ uname -a
gyl@L-R913J7WJ-0920:~/openjiuwen$ uname -a
Linux L-R913J7WJ-0920 6.6.87.2-microsoft-standard-WSL2 #1 SMP PREEMPT_DYNAMIC Thu Jun  5 18:30:46 UTC 2025 x86_64 x86_64 x86_64 GNU/Linux

检查系统资源（CPU和内存）：

bash 复制代码

nproc && free -h

输出示例：

复制代码

$ nproc && free -h
gyl@L-R913J7WJ-0920:~/openjiuwen$ nproc && free -h
12
               total        used        free      shared  buff/cache   available
内存：          15Gi       1.0Gi        14Gi       3.6Mi       306Mi        14Gi
交换：         4.0Gi          0B       4.0Gi

检查已安装的软件版本：

bash 复制代码

which git && git --version

输出示例：

复制代码

$ which git && git --version
gyl@L-R913J7WJ-0920:~/openjiuwen$ which git && git --version
/usr/bin/git
git version 2.43.0

bash 复制代码

which node && node --version

输出示例：

复制代码

$ which node && node --version
gyl@L-R913J7WJ-0920:~/openjiuwen$ which node && node --version
/home/gyl/.nvm/versions/node/v22.21.1/bin/node
v22.21.1

bash 复制代码

which npm && npm --version

输出示例：

复制代码

$ which npm && npm --version
gyl@L-R913J7WJ-0920:~/openjiuwen$ which npm && npm --version
/home/gyl/.nvm/versions/node/v22.21.1/bin/npm
10.9.4

bash 复制代码

which python3 && python3 --version

输出示例：

复制代码

$ which python3 && python3 --version
gyl@L-R913J7WJ-0920:~/openjiuwen$ which python3 && python3 --version
/usr/bin/python3
Python 3.12.3

bash 复制代码

which uv

输出示例：

复制代码

$ which uv
gyl@L-R913J7WJ-0920:~/openjiuwen$ which uv
/home/gyl/.local/bin/uv

bash 复制代码

uv --version

输出示例：

复制代码

$ uv --version
gyl@L-R913J7WJ-0920:~/openjiuwen$ uv --version
uv 0.9.16

2. 安装 MySQL

如果您的系统上还没有安装 MySQL，请执行以下命令安装：

bash 复制代码

sudo apt update && sudo apt install -y mysql-server libmysqlclient-dev pkg-config build-essential python3-dev

输出示例：

复制代码

$ sudo apt install -y libmysqlclient-dev pkg-config build-essential
正在读取软件包列表... 完成
正在分析软件包的依赖关系树... 完成
正在读取状态信息... 完成
build-essential 已经是最新版 (12.10ubuntu1)。
下列软件包是自动安装的并且现在不需要了：
  apport-symptoms cloud-guest-utils eatmydata fdisk gdisk libeatmydata1 libllvm19
  python-babel-localedata python3-babel python3-certifi python3-chardet python3-debconf python3-jinja2
  python3-json-pointer python3-jsonpatch python3-jsonschema python3-markupsafe python3-problem-report
  python3-pyrsistent python3-systemd python3-tz
使用'sudo apt autoremove'来卸载它(它们)。
将会同时安装下列软件：
  libmysqlclient-dev libmysqlclient21 libpkgconf3 libssl-dev libzstd-dev pkg-config pkgconf
  pkgconf-bin
建议安装：
  libssl-doc
下列【新】软件包将被安装：
  libmysqlclient-dev libmysqlclient21 libpkgconf3 libssl-dev libzstd-dev pkg-config pkgconf
  pkgconf-bin
升级了 0 个软件包，新安装了 8 个软件包，要卸载 0 个软件包，有 37 个软件包未被升级。
需要下载 5,692 kB 的归档。
解压缩后会消耗 30.8 MB 的额外空间。
获取:1 http://mirrors.aliyun.com/ubuntu noble-updates/main amd64 libmysqlclient21 amd64 8.0.44-0ubuntu0.
24.04.2 [1,254 kB]
获取:2 http://mirrors.aliyun.com/ubuntu noble-security/main amd64 libssl-dev amd64 3.0.13-0ubuntu3.6 [2,
408 kB]
获取:3 http://mirrors.aliyun.com/ubuntu noble-updates/main amd64 libzstd-dev amd64 1.5.5+dfsg2-2build1.1
 [364 kB]
获取:4 http://mirrors.aliyun.com/ubuntu noble-updates/main amd64 libmysqlclient-dev amd64 8.0.44-0ubuntu
0.24.04.2 [1,591 kB]
获取:5 http://mirrors.aliyun.com/ubuntu noble/main amd64 libpkgconf3 amd64 1.8.1-2build1 [30.7 kB]
获取:6 http://mirrors.aliyun.com/ubuntu noble/main amd64 pkgconf-bin amd64 1.8.1-2build1 [20.7 kB]
获取:7 http://mirrors.aliyun.com/ubuntu noble/main amd64 pkgconf amd64 1.8.1-2build1 [16.8 kB]
获取:8 http://mirrors.aliyun.com/ubuntu noble/main amd64 pkg-config amd64 1.8.1-2build1 [7,264 B]
已下载 5,692 kB，耗时 2秒 (3,416 kB/s)
正在选中未选择的软件包 libmysqlclient21:amd64。
(正在读取数据库 ... 系统当前共安装有 54354 个文件和目录。)
准备解压 .../0-libmysqlclient21_8.0.44-0ubuntu0.24.04.2_amd64.deb  ...
正在解压 libmysqlclient21:amd64 (8.0.44-0ubuntu0.24.04.2) ...
正在选中未选择的软件包 libssl-dev:amd64。
准备解压 .../1-libssl-dev_3.0.13-0ubuntu3.6_amd64.deb  ...
正在解压 libssl-dev:amd64 (3.0.13-0ubuntu3.6) ...
正在选中未选择的软件包 libzstd-dev:amd64。
准备解压 .../2-libzstd-dev_1.5.5+dfsg2-2build1.1_amd64.deb  ...
正在解压 libzstd-dev:amd64 (1.5.5+dfsg2-2build1.1) ...
正在选中未选择的软件包 libmysqlclient-dev。
准备解压 .../3-libmysqlclient-dev_8.0.44-0ubuntu0.24.04.2_amd64.deb  ...
正在解压 libmysqlclient-dev (8.0.44-0ubuntu0.24.04.2) ...
正在选中未选择的软件包 libpkgconf3:amd64。
准备解压 .../4-libpkgconf3_1.8.1-2build1_amd64.deb  ...
正在解压 libpkgconf3:amd64 (1.8.1-2build1) ...
正在选中未选择的软件包 pkgconf-bin。
准备解压 .../5-pkgconf-bin_1.8.1-2build1_amd64.deb  ...
正在解压 pkgconf-bin (1.8.1-2build1) ...
正在选中未选择的软件包 pkgconf:amd64。
准备解压 .../6-pkgconf_1.8.1-2build1_amd64.deb  ...
正在解压 pkgconf:amd64 (1.8.1-2build1) ...
正在选中未选择的软件包 pkg-config:amd64。
准备解压 .../7-pkg-config_1.8.1-2build1_amd64.deb  ...
正在解压 pkg-config:amd64 (1.8.1-2build1) ...
正在设置 libmysqlclient21:amd64 (8.0.44-0ubuntu0.24.04.2) ...
正在设置 libzstd-dev:amd64 (1.5.5+dfsg2-2build1.1) ...
正在设置 libpkgconf3:amd64 (1.8.1-2build1) ...
正在设置 libssl-dev:amd64 (3.0.13-0ubuntu3.6) ...
正在设置 pkgconf-bin (1.8.1-2build1) ...
正在设置 libmysqlclient-dev (8.0.44-0ubuntu0.24.04.2) ...
正在设置 pkgconf:amd64 (1.8.1-2build1) ...
正在设置 pkg-config:amd64 (1.8.1-2build1) ...
正在处理用于 man-db (2.12.0-4build2) 的触发器 ...
正在处理用于 libc-bin (2.39-0ubuntu8.6) 的触发器 ...

验证 MySQL 安装：

bash 复制代码

mysql --version

输出示例：

复制代码

$ mysql --version
mysql  Ver 8.0.44-0ubuntu0.24.04.2 for Linux on x86_64 ((Ubuntu))

3. 配置 MySQL 数据库

创建 OpenJiuwen 所需的数据库和用户：

bash 复制代码

sudo mysql -u root -e "CREATE DATABASE openjiuwen_agent; CREATE DATABASE openjiuwen_ops; CREATE USER 'openjiuwen'@'localhost' IDENTIFIED BY 'openjiuwen123'; GRANT ALL PRIVILEGES ON openjiuwen_agent.* TO 'openjiuwen'@'localhost'; GRANT ALL PRIVILEGES ON openjiuwen_ops.* TO 'openjiuwen'@'localhost'; FLUSH PRIVILEGES;"

验证数据库和用户创建成功：

bash 复制代码

sudo mysql -u root -e "SHOW DATABASES LIKE 'openjiuwen%'; SELECT User, Host FROM mysql.user WHERE User='openjiuwen';"

输出示例：

复制代码

$ sudo mysql -u root -e "SHOW DATABASES LIKE 'openjiuwen%'; SELECT User, Host FROM mysql.user WHERE User='openjiuwen';"
+------------------------+
| Database (openjiuwen%) |
+------------------------+
| openjiuwen_agent       |
| openjiuwen_ops         |
+------------------------+
+------------+-----------+
| User       | Host      |
+------------+-----------+
| openjiuwen | localhost |
+------------+-----------+

4. 克隆 OpenJiuwen 源码

bash 复制代码

git clone https://gitcode.com/openJiuwen/agent-studio.git

输出示例：

复制代码

$ git clone https://gitcode.com/openJiuwen/agent-studio.git
正克隆到 'agent-studio'...
remote: Enumerating objects: 2419, done.
remote: Counting objects: 100% (899/899), done.
remote: Compressing objects: 100% (633/633), done.
remote: Total 2419 (delta 586), reused 432 (delta 262), pack-reused 1520 (from 1)
接收对象中: 100% (2419/2419), 20.41 MiB | 10.30 MiB/s, 完成.
处理 delta 中: 100% (856/856), 完成.

查看克隆的目录结构：

bash 复制代码

ls -la agent-studio

输出示例：

复制代码

$ ls -la agent-studio
总计 264
drwxr-xr-x 9 gyl gyl   4096 12月 29 23:50 .
drwxr-xr-x 3 gyl gyl   4096 12月 29 23:50 ..
drwxr-xr-x 5 gyl gyl   4096 12月 29 23:50 backend
drwxr-xr-x 2 gyl gyl   4096 12月 29 23:50 docker
-rw-r--r-- 1 gyl gyl   3715 12月 29 23:50 .env.example
drwxr-xr-x 5 gyl gyl   4096 12月 29 23:50 frontend
drwxr-xr-x 8 gyl gyl   4096 12月 29 23:51 .git
-rw-r--r-- 1 gyl gyl    936 12月 29 23:50 .gitignore
-rw-r--r-- 1 gyl gyl  10947 12月 29 23:50 LICENSE
drwxr-xr-x 3 gyl gyl   4096 12月 29 23:50 plugin_server
-rw-r--r-- 1 gyl gyl   3083 12月 29 23:50 README.md
drwxr-xr-x 5 gyl gyl   4096 12月 29 23:50 sandbox_server
drwxr-xr-x 3 gyl gyl   4096 12月 29 23:50 scripts
-rw-r--r-- 1 gyl gyl 206061 12月 29 23:50 Third_Party_Open_Source_Software_Notice.txt

5. 配置环境变量

复制示例环境配置文件：

bash 复制代码

cd agent-studio && cp .env.example .env

编辑环境配置文件，设置数据库信息：

bash 复制代码

# 编辑 .env 文件，将 DB_USER 和 DB_PASSWORD 设置为之前创建的用户和密码

6. 安装并启动后端服务

安装后端依赖

bash 复制代码

cd /home/gyl/openjiuwen/agent-studio/backend

安装 Python 虚拟环境：

bash 复制代码

python3 -m venv .venv

输出示例：

复制代码

$ python3 -m venv .venv
The virtual environment was not created successfully because ensurepip is not
available.  On Debian/Ubuntu systems, you need to install the python3-venv
package using the following command.

    apt install python3.12-venv

You may need to use sudo with that command.  After installing the python3-venv
package, recreate your virtual environment.

Failing command: /home/gyl/openjiuwen/agent-studio/backend/.venv/bin/python3

安装 Python 虚拟环境包：

bash 复制代码

sudo apt install -y python3.12-venv

再次创建虚拟环境：

bash 复制代码

python3 -m venv .venv

安装项目依赖：

bash 复制代码

uv pip install uvicorn fastapi python-dotenv pyyaml pydantic-settings sqlalchemy mysqlclient openjiuwen "pydantic[email]" pyjwt pymysql networkx

输出示例：

复制代码

$ uv pip install uvicorn fastapi python-dotenv pyyaml pydantic-settings sqlalchemy mysqlclient openjiuwen "pydantic[email]" pyjwt pymysql networkx
Resolved 70 packages in 738ms
Prepared 22 packages in 23.21s
Uninstalled 3 packages in 8ms
Installed 57 packages in 125ms
 + aiohappyeyeballs==2.6.1
 + aiohttp==3.11.12
 + aiosignal==1.4.0
 + attrs==25.4.0
 + cacheout==0.16.0
 + certifi==2025.11.12
 + charset-normalizer==3.4.4
 + distro==1.9.0
 + docx2txt==0.8
 + filelock==3.20.1
 + frozenlist==1.8.0
 + fsspec==2025.12.0
 + grpcio==1.76.0
 + hf-xet==1.2.0
 + httpcore==1.0.9
 + httpx==0.27.0
 + httpx-sse==0.4.3
 + huggingface-hub==0.36.0
 + jiter==0.12.0
 + jsonschema==4.25.1
 + jsonschema-specifications==2025.9.1
 + mcp==1.12.2
 + mermaid-py==0.8.0
 + milvus-lite==2.5.1
 + multidict==6.7.0
 + numpy==2.4.0
 + openai==1.108.0
 + openjiuwen==0.1.1
 + packaging==25.0
 + pandas==2.3.3
 + portalocker==3.2.0
 + propcache==0.4.1
 + protobuf==6.33.2
 + pycryptodome==3.23.0
 - pydantic==2.12.5
 + pydantic==2.11.5
 - pydantic-core==2.41.5
 + pydantic-core==2.33.2
 + pymilvus==2.6.2
 + python-dateutil==2.9.0.post0
 + python-multipart==0.0.21
 + pytz==2025.2
 + referencing==0.37.0
 + regex==2025.11.3
 + requests==2.32.3
 + rpds-py==0.30.0
 + safetensors==0.7.0
 + setuptools==80.9.0
 + six==1.17.0
 + sniffio==1.3.1
 - sqlalchemy==2.0.45
 + sqlalchemy==2.0.41
 + sse-starlette==3.1.1
 + tokenizers==0.21.4
 + tqdm==4.67.1
 + transformers==4.52.4
 + tzdata==2025.3
 + ujson==5.11.0
 + urllib3==2.6.2
 + yarl==1.22.0

安装项目本身：

bash 复制代码

uv pip install -e .

输出示例：

复制代码

$ uv pip install -e .
Resolved 125 packages in 3.86s
      Built openjiuwen-studio-server @ file:///home/gyl/openjiuwen/agent
Prepared 12 packages in 4.27s
Uninstalled 10 packages in 22ms
Installed 58 packages in 71ms
 + aiomysql==0.2.0
 + aiosqlite==0.21.0
 + alembic==1.15.2
 + amqp==5.3.1
 + bcrypt==5.0.0
 + billiard==4.2.4
 + celery==5.3.6
 + cffi==2.0.0
 + click-didyoumean==0.3.1
 + click-plugins==1.1.1.2
 + click-repl==0.3.0
 + clickhouse-connect==0.6.23
 + cryptography==46.0.3
 + dbutils==3.1.0
 + ecdsa==0.19.1
 - fastapi==0.128.0
 + fastapi==0.115.11
 + googleapis-common-protos==1.72.0
 + httptools==0.7.1
 + importlib-metadata==8.7.1
 + jinja2==3.1.6
 + kombu==5.6.1
 + lz4==4.4.5
 + mako==1.3.10
 + markupsafe==3.0.3
 + mpmath==1.3.0
 - networkx==3.6.1
 + networkx==3.4.2
 + openjiuwen-studio-server==0.1.1 (from file:///home/gyl/openjiuwen/age
nt-studio/backend)
 + opentelemetry-api==1.37.0
 + opentelemetry-exporter-otlp==1.37.0
 + opentelemetry-exporter-otlp-proto-common==1.37.0
 + opentelemetry-exporter-otlp-proto-grpc==1.37.0
 + opentelemetry-exporter-otlp-proto-http==1.37.0
 + opentelemetry-proto==1.37.0
 + opentelemetry-sdk==1.37.0
 + opentelemetry-semantic-conventions==0.58b0
 + passlib==1.7.4
 + prompt-toolkit==3.0.52
 - protobuf==6.33.2
 + protobuf==6.32.0
 + pyasn1==0.6.1
 + pycparser==2.23
 - pydantic-settings==2.12.0
 + pydantic-settings==2.5.2
 - pymysql==1.1.2
 + pymysql==1.1.1
 - python-dotenv==1.2.1
 + python-dotenv==1.1.1
 + python-jose==3.3.0
 - python-multipart==0.0.21
 + python-multipart==0.0.9
 + redis==5.2.1
 + rsa==4.9.1
 - sse-starlette==3.1.1
 + sse-starlette==3.0.3
 - starlette==0.50.0
 + starlette==0.46.2
 + sympy==1.14.0
 - uvicorn==0.40.0
 + uvicorn==0.34.0
 + uvloop==0.22.1
 + vine==5.1.0
 + watchfiles==1.1.1
 + wcwidth==0.2.14
 + websockets==15.0.1
 + zipp==3.23.0
 + zstandard==0.25.0

创建日志目录：

bash 复制代码

mkdir -p logs/run

启动后端服务：

bash 复制代码

uv run python main.py

输出示例：

复制代码

$ uv run python main.py
/home/gyl/openjiuwen/agent-studio/backend/.venv/lib/python3.11/site-packages/pydantic/_internal/_fields.py:198: UserWarning: Field name "schema" in "WorkflowSave" shadows an attribute in parent "WorkflowId"
  warnings.warn(
/home/gyl/openjiuwen/agent-studio/backend/.venv/lib/python3.11/site-packages/pydantic/_internal/_fields.py:198: UserWarning: Field name "schema" in "BaseValue" shadows an attribute in parent "BaseType"
  warnings.warn(
/home/gyl/openjiuwen/agent-studio/backend/.venv/lib/python3.11/site-packages/pydantic/_internal/_fields.py:198: UserWarning: Field name "schema" in "WorkflowBaseDB" shadows an attribute in parent "BaseModel"
  warnings.warn(
/home/gyl/openjiuwen/agent-studio/backend/.venv/lib/python3.11/site-packages/pydantic/_internal/_fields.py:198: UserWarning: Field name "schema" in "WorkflowPublishDB" shadows an attribute in parent "BaseModel"
  warnings.warn(
2025-12-30 00:21:18 | common | main.py | 144 | main |  | INFO | 🚀 Starting Jiuwen Agent Studio Backend in development mode...
INFO:common:🚀 Starting Jiuwen Agent Studio Backend in development mode...
2025-12-30 00:21:19 | common | main.py | 145 | main |  | INFO | 📍 Server will be available at: http://0.0.0.0:8000
INFO:common:📍 Server will be available at: http://0.0.0.0:8000
2025-12-30 00:21:19 | common | main.py | 146 | main |  | INFO | 📚 API Documentation: http://0.0.0.0:8000/api/docs
INFO:common:📚 API Documentation: http://0.0.0.0:8000/api/docs
2025-12-30 00:21:19 | common | main.py | 147 | main |  | INFO | 🔍 Health Check: http://0.0.0.0:8000/api/health
INFO:common:🔍 Health Check: http://0.0.0.0:8000/api/health
2025-12-30 00:21:19 | common | main.py | 148 | main |  | INFO | 🔄 Auto-reload enabled for development
INFO:common:🔄 Auto-reload enabled for development
2025-12-30 00:21:19 | common | main.py | 149 | main |  | INFO | ⏹️  Press Ctrl+C to stop the server
INFO:common:⏹️  Press Ctrl+C to stop the server
2025-12-30 00:21:19 | common | main.py | 150 | main |  | INFO | ------------------------------------------------------------
INFO:common:------------------------------------------------------------
INFO:     Started server process [23105]
INFO:     Waiting for application startup.
2025-12-30 00:21:19 | common | main.py | 40 | lifespan_func |  | INFO | 🚀 Starting Jiuwen Agent Studio Backend...
INFO:common:🚀 Starting Jiuwen Agent Studio Backend...
2025-12-30 00:21:21 | common | memory_engine_start.py | 74 | init |  | INFO | ✅ Memory engine created
INFO:common:✅ Memory engine created

后端服务成功启动，现在可以在 http://0.0.0.0:8000 访问。

7. 安装并启动前端服务

打开新终端，进入前端目录：

bash 复制代码

cd /home/gyl/openjiuwen/agent-studio/frontend

安装前端依赖：

bash 复制代码

npm install

输出示例：

复制代码

$ npm install
npm warn deprecated node-domexception@1.0.0: Use your platform's native DOMException instead
npm warn deprecated rimraf@3.0.2: Rimraf versions prior to v4 are no longer supported
npm warn deprecated inflight@1.0.6: This module is not supported, and leaks memory. Do not use it. Check
 out lru-cache if you want a good and tested way to coalesce async requests by a key value, which is muc
h more comprehensive and powerful.
npm warn deprecated glob@7.2.3: Glob versions prior to v9 are no longer supported
npm warn deprecated eslint@8.57.1: This version is no longer supported. Please see https://eslint.org/ve
rsion-support for other options.
npm warn deprecated @humanwhocodes/object-schema@2.0.3: Use @eslint/object-schema instead
npm warn deprecated @humanwhocodes/config-array@0.13.0: Use @eslint/config-array instead

added 1313 packages, and audited 1317 packages in 1m

466 packages are looking for funding
  run `npm fund` for details

3 vulnerabilities (2 moderate, 1 high)

To address all issues possible (including breaking changes), run:
  npm audit fix --force

Some issues need review, and may require choosing
a different dependency.

Run `npm audit` for details.

启动前端服务：

bash 复制代码

npm run dev

输出示例：

复制代码

$ npm run dev
> jiuwen-agent-studio@0.1.1 dev
> vite
  VITE v6.4.1  ready in 231 ms
  ➜  Local:   http://localhost:3000/
  ➜  Network: http://172.23.142.129:3000/
  ➜  press h + enter to show help

前端服务成功启动，现在可以在 http://localhost:3000 访问。

总结

成功安装并启动了 OpenJiuwen。现在可以：

通过前端界面（http://localhost:3000）使用 OpenJiuwen
通过 API 文档（http://0.0.0.0:8000/api/docs）了解后端接口
开始创建和管理您的智能代理

如需进一步了解 OpenJiuwen 的功能和使用方法，请参考官方文档。

OpenJiuwen项目地址：https://atomgit.com/openJiuwen?utm_source=csdn

OpenJiuwen官网：https://www.openjiuwen.com?utm_source=csdn
