一、多会议室甘特视图管理系统
在现代企业办公环境中，会议室资源的有效管理是提升工作效率的重要环节。本文将详细介绍一个基于 HTML、CSS 和 JavaScript 实现的多会议室甘特视图管理系统，帮助用户直观地查看和管理会议室预订情况。
二、效果演示

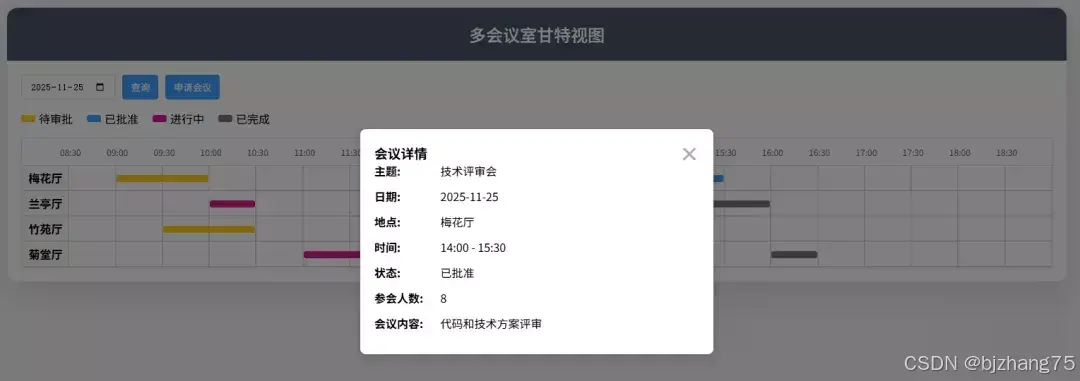

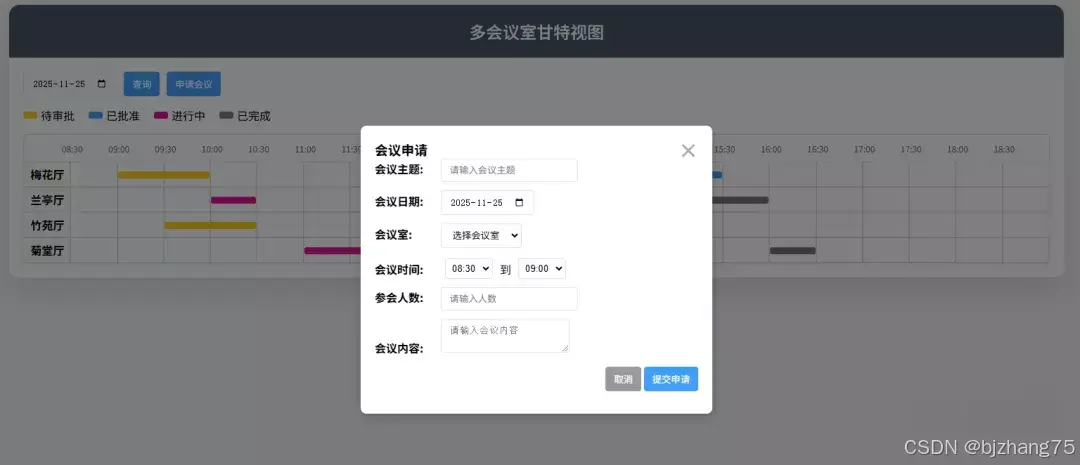

该系统通过甘特图形式展示多个会议室在一天内的使用情况，用户可以选择不同日期查看会议室预订状态，并能申请新的会议。系统提供了清晰的时间轴和颜色编码来区分不同状态的会议。用户可以方便地查看会议室占用情况，并通过简单的界面提交新的会议室预订申请。
三、系统分析
1、页面结构
系统主要包含以下几个功能区域：
1.1 控制面板区域
控制面板位于页面顶部，提供日期选择和基本操作按钮。这个区域允许用户选择查看的日期，并提供了申请会议的按钮。
html
<div class="controls">
<input type="date" id="dateInp">
<button onclick="search()">查询</button>
<button onclick="openApplyModal()">申请会议</button>
</div>1.2 图例说明区域
为了让用户更好理解不同颜色代表的含义，系统提供了图例说明。
html
<div class="legend">
<div class="legend-item">
<div class="legend-color yellow"></div>
<span>待审批</span>
</div>
<!-- 其他状态图例 -->
</div>1.3 甘特图展示区域
这是系统的核心展示区域，以表格形式呈现各会议室在不同时段的使用情况。
html
<div class="gantt-container">
<div id="gantt" class="gantt"></div>
</div>1.4 弹窗区域
系统包含两个主要弹窗：会议申请弹窗和会议详情弹窗，分别用于创建新会议和查看详情。
html
<div id="applyModal" class="modal">...</div>
<div id="meetingModal" class="modal">...</div>2、核心功能实现
2.1 数据模型设计
系统首先定义了基础数据结构，包括会议室列表、时间片数组和状态映射。
javascript
var rooms = ['梅花厅','兰亭厅','竹苑厅','菊堂厅'];
var timeArr = ['08:30','09:00','09:30','10:00','10:30','11:00','11:30','12:00','12:30','13:00','13:30','14:00','14:30','15:00','15:30','16:00','16:30','17:00','17:30','18:00','18:30'];
var statusMap = {
1: '待审批',
3: '已批准',
4: '进行中',
5: '已完成'
};2.2 甘特图渲染机制
甘特图渲染是系统最核心的功能，通过 renderGantt 函数实现：
- 首先创建时间标题行，显示各个时间点
- 然后为每个会议室创建一行，显示该会议室在各个时间段的状态
- 最后为每个会议条目绑定点击事件，用于显示详细信息
javascript
function renderGantt(meetingsData) {
var box = document.getElementById('gantt');
box.innerHTML = '';
// 创建时间标题行
var hRow = document.createElement('div');
hRow.className = 'row';
hRow.innerHTML = '<div class="cell-time"></div>' +
timeArr.map(t => `<div class="cell-time">${t}</div>`).join('');
box.appendChild(hRow);
// 渲染每行会议室
rooms.forEach(room => {
var row = document.createElement('div');
row.className = 'row';
var html = `<div class="cell room">${room}</div>`;
var roomMeetings = meetingsData.filter(m => m.room === room)[0]?.map || {};
timeArr.forEach(time => {
if (roomMeetings[time]) {
var [len, color, meeting] = roomMeetings[time];
html += `<div class="cell">
<div class="meeting ${color}"
style="width:calc(${len*100}% + ${(len-1)*2}px)"
data-meeting='${JSON.stringify(meeting)}'>
</div>
</div>`;
} else {
html += '<div class="cell"></div>';
}
});
row.innerHTML = html;
box.appendChild(row);
});
// 绑定点击事件
document.querySelectorAll('.meeting').forEach(el => {
el.addEventListener('click', () => {
var meetingData = JSON.parse(el.getAttribute('data-meeting'));
showMeetingDetail(meetingData);
});
});
}2.3 会议申请与冲突检测
系统支持用户提交新的申请，并具备冲突检测功能：
- 用户填写会议信息，包括主题、日期、会议室、时间等
- 系统检查所选时间段是否与现有会议冲突
- 如果没有冲突，则将新会议添加到用户会议列表中
javascript
function submitMeeting() {
// ... 获取用户填写信息
var conflictingMeetings = getMeetingsByDate(date).filter(m =>
m.room === room && m.date === date && isTimeOverlap(startTime, duration, m.start, m.time)
);
if (conflictingMeetings.length > 0) {
alert('该时间段已有会议，请选择其他时间');
return;
}
userMeetings.push({
room,
date,
start: startTime,
time: duration,
status: 1,
isCreator: 'true',
title,
content,
attendeeCount: parseInt(attendeeCount)
});
alert('会议申请已提交');
closeApplyModal();
// 清空表单
['modalMeetingTitle', 'modalMeetingContent', 'modalAttendeeCount'].forEach(id => {
document.getElementById(id).value = '';
});
search();
}2.4 时间选择联动
为了提高用户体验，系统的会议时间选择具有联动效果。当用户选择开始时间后，结束时间选项会自动更新，只显示晚于开始时间的选项。
javascript
function updateEndTimeOptions() {
var startTimeSelect = document.getElementById('startTimeSelect');
var endTimeSelect = document.getElementById('endTimeSelect');
var selectedStartTime = startTimeSelect.value;
endTimeSelect.innerHTML = '';
var startIndex = timeArr.indexOf(selectedStartTime);
for (var i = startIndex + 1; i < timeArr.length; i++) {
var option = document.createElement('option');
option.value = timeArr[i];
option.textContent = timeArr[i];
endTimeSelect.appendChild(option);
}
}四、扩展建议
- 权限管理系统：增加用户角色管理，区分普通用户、管理员等不同权限，允许管理员审批会议申请。
- 导入导出功能：支持将会议室预订情况导出为Excel或PDF格式，便于统计和汇报。
- 会议室资源配置：为每个会议室添加容量、设备等详细信息，帮助用户选择合适的会议室。
- 重复会议功能：支持创建周期性会议，如每周例会等。
- 人员选择功能：支持直接选择参会人员，方便每个人参看自己要参与的会议。
五、完整代码
git地址：https://gitee.com/ironpro/hjdemo/blob/master/meeting-gantt/index.html
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>多会议室甘特视图</title>
<style>
* {
margin: 0;
padding: 0;
box-sizing: border-box;
}
body {
background-color: #f5f5f5;
min-height: 100vh;
padding: 20px;
}
.container {
max-width: 1500px;
margin: 0 auto;
background: white;
border-radius: 15px;
box-shadow: 0 20px 40px rgba(0,0,0,0.1);
overflow: hidden;
}
.header {
background: #4a5568;
color: white;
padding: 20px;
text-align: center;
}
.header h1 {
font-size: 24px;
font-weight: 500;
}
.main {
padding: 20px;
}
.controls {
display: flex;
gap: 10px;
margin-bottom: 10px;
flex-wrap: wrap;
}
select, button, input, textarea {
padding: 8px 12px;
border: 1px solid #e0e0e0;
border-radius: 4px;
}
button {
background: #409EFF;
color: white;
border: none;
cursor: pointer;
transition: background 0.3s;
}
button:hover {
opacity: 0.9;
}
.gantt-container {
background: white;
border: 1px solid #e0e0e0;
border-radius: 4px;
overflow: hidden;
box-shadow: 0 2px 5px rgba(0,0,0,0.05);
}
.gantt {
width: 100%;
display: table;
table-layout: fixed;
}
.row {
display: table-row;
}
.cell {
display: table-cell;
border: 1px solid #e0e0e0;
text-align: center;
vertical-align: middle;
height: 36px;
width: 4.2%;
position: relative;
}
.cell.room {
width: 11.8%;
font-weight: bold;
background: #fafafa;
}
.cell-time {
width: 4.2%;
height: 38px;
font-size: 12px;
color: #666;
display: table-cell;
text-align: center;
vertical-align: middle;
position: relative;
left: -2.1%;
}
.cell-time:first-child {
left: 0;
}
.meeting {
height: 10px;
border-radius: 3px;
position: absolute;
left: 0;
top: 13px;
z-index: 999;
cursor: pointer;
}
.yellow { background: #FFCE1A; }
.blue { background: #409EFF; }
.pink { background: #DE1794; }
.gray { background: #777; }
.pagination {
text-align: right;
margin-top: 10px;
}
.legend {
margin: 15px 0;
display: flex;
align-items: center;
gap: 20px;
flex-wrap: wrap;
}
.legend-item {
display: flex;
align-items: center;
gap: 5px;
}
.legend-color {
width: 20px;
height: 10px;
border-radius: 3px;
}
.apply-form {
margin: 20px 0;
padding: 15px;
border: 1px solid #e0e0e0;
background: #fff;
border-radius: 4px;
}
.apply-form input,
.apply-form textarea,
.apply-form select {
margin-right: 10px;
margin-bottom: 10px;
}
.modal {
display: none;
position: fixed;
z-index: 1000;
left: 0;
top: 0;
width: 100%;
height: 100%;
background-color: rgba(0,0,0,0.5);
}
.modal-content {
background-color: #fff;
margin: 10% auto;
padding: 20px;
border: none;
width: 90%;
max-width: 500px;
border-radius: 8px;
box-shadow: 0 4px 15px rgba(0,0,0,0.2);
}
.close {
color: #aaa;
float: right;
font-size: 28px;
font-weight: bold;
cursor: pointer;
line-height: 1;
}
.close:hover {
color: #000;
}
.meeting-detail div {
margin-bottom: 12px;
}
.meeting-detail label {
font-weight: bold;
margin-right: 10px;
display: inline-block;
width: 80px;
}
.time-selection {
display: flex;
align-items: center;
gap: 10px;
margin: 15px 0;
}
.time-selection select {
padding: 5px;
}
</style>
</head>
<body>
<div class="container">
<div class="header">
<h1>多会议室甘特视图</h1>
</div>
<div class="main">
<div class="controls">
<input type="date" id="dateInp">
<button onclick="search()">查询</button>
<button onclick="openApplyModal()">申请会议</button>
</div>
<div class="legend">
<div class="legend-item">
<div class="legend-color yellow"></div>
<span>待审批</span>
</div>
<div class="legend-item">
<div class="legend-color blue"></div>
<span>已批准</span>
</div>
<div class="legend-item">
<div class="legend-color pink"></div>
<span>进行中</span>
</div>
<div class="legend-item">
<div class="legend-color gray"></div>
<span>已完成</span>
</div>
</div>
<div class="gantt-container">
<div id="gantt" class="gantt"></div>
</div>
</div>
</div>
<!-- 会议申请弹窗 -->
<div id="applyModal" class="modal">
<div class="modal-content">
<span class="close" onclick="closeApplyModal()">×</span>
<h3>会议申请</h3>
<div class="meeting-detail">
<div>
<label>会议主题:</label>
<input type="text" id="modalMeetingTitle" placeholder="请输入会议主题">
</div>
<div>
<label>会议日期:</label>
<input type="date" id="modalApplyDate">
</div>
<div>
<label>会议室:</label>
<select id="modalApplyRoom">
<option value="">选择会议室</option>
</select>
</div>
<div class="time-selection">
<label>会议时间:</label>
<select id="startTimeSelect"></select>
<span>到</span>
<select id="endTimeSelect"></select>
</div>
<div>
<label>参会人数:</label>
<input type="number" id="modalAttendeeCount" min="1" placeholder="请输入人数">
</div>
<div>
<label>会议内容:</label>
<textarea id="modalMeetingContent" placeholder="请输入会议内容"></textarea>
</div>
<div style="text-align: right; margin-top: 15px;">
<button onclick="closeApplyModal()" style="background:#999">取消</button>
<button onclick="submitMeeting()">提交申请</button>
</div>
</div>
</div>
</div>
<!-- 会议详情弹窗 -->
<div id="meetingModal" class="modal">
<div class="modal-content">
<span class="close" onclick="closeMeetingModal()">×</span>
<h3>会议详情</h3>
<div class="meeting-detail" id="meetingDetailContent"></div>
</div>
</div>
<script>
// 数据和配置
var rooms = ['梅花厅','兰亭厅','竹苑厅','菊堂厅'];
var timeArr = ['08:30','09:00','09:30','10:00','10:30','11:00','11:30','12:00','12:30','13:00','13:30','14:00','14:30','15:00','15:30','16:00','16:30','17:00','17:30','18:00','18:30'];
var statusMap = {
1: '待审批',
3: '已批准',
4: '进行中',
5: '已完成'
};
// 固定的模拟数据
var mockDataByDate = {
'2025-11-25': {
'梅花厅': [
{start: '09:00', time: 2, status: 1, title: '项目启动会', content: '讨论新项目启动相关事宜', attendeeCount: 15},
{start: '14:00', time: 3, status: 3, title: '技术评审会', content: '代码和技术方案评审', attendeeCount: 8}
],
'兰亭厅': [
{start: '10:00', time: 1, status: 4, title: '客户洽谈会', content: '重要客户合作洽谈', attendeeCount: 5},
{start: '15:00', time: 2, status: 5, title: '培训会', content: '新员工技能培训', attendeeCount: 20}
],
'竹苑厅': [
{start: '09:30', time: 2, status: 1, title: '部门例会', content: '部门日常工作安排', attendeeCount: 5},
{start: '14:30', time: 1, status: 3, title: '预算审批会', content: '部门预算审批讨论', attendeeCount: 6}
],
'菊堂厅': [
{start: '11:00', time: 2, status: 4, title: '合作伙伴会', content: '合作伙伴关系维护', attendeeCount: 10},
{start: '16:00', time: 1, status: 5, title: '安全培训会', content: '安全知识培训', attendeeCount: 25}
]
},
// 其他日期数据
};
var userMeetings = [];
var dayjs = (d) => {
var date = new Date(d);
return {
format(fmt) {
return fmt.replace('YYYY', date.getFullYear())
.replace('MM', String(date.getMonth() + 1).padStart(2, '0'))
.replace('DD', String(date.getDate()).padStart(2, '0'));
}
};
};
// 检查时间重叠
var isTimeOverlap = (start1, duration1, start2, duration2) => {
var startIndex1 = timeArr.indexOf(start1);
var endIndex1 = startIndex1 + duration1;
var startIndex2 = timeArr.indexOf(start2);
var endIndex2 = startIndex2 + duration2;
return (startIndex1 < endIndex2) && (startIndex2 < endIndex1);
};
// 获取指定日期的会议数据
var getMeetingsByDate = (date) => {
var meetings = [];
rooms.forEach(room => {
var dateData = mockDataByDate[date] || {};
var roomMeetings = dateData[room] || [];
roomMeetings.forEach(meeting => {
meetings.push({
room,
date,
start: meeting.start,
time: meeting.time,
status: meeting.status,
isCreator: Math.random() > 0.5 ? 'true' : 'false',
title: meeting.title,
content: meeting.content,
attendeeCount: meeting.attendeeCount
});
});
});
meetings.push(...userMeetings.filter(m => m.date === date));
return meetings;
};
// 渲染甘特图
function renderGantt(meetingsData) {
var box = document.getElementById('gantt');
box.innerHTML = '';
// 创建时间标题行
var hRow = document.createElement('div');
hRow.className = 'row';
hRow.innerHTML = '<div class="cell-time"></div>' +
timeArr.map(t => `<div class="cell-time">${t}</div>`).join('');
box.appendChild(hRow);
// 渲染每行会议室
rooms.forEach(room => {
var row = document.createElement('div');
row.className = 'row';
var html = `<div class="cell room">${room}</div>`;
var roomMeetings = meetingsData.filter(m => m.room === room)[0]?.map || {};
timeArr.forEach(time => {
if (roomMeetings[time]) {
var [len, color, meeting] = roomMeetings[time];
html += `<div class="cell">
<div class="meeting ${color}"
style="width:calc(${len*100}% + ${(len-1)*2}px)"
data-meeting='${JSON.stringify(meeting)}'>
</div>
</div>`;
} else {
html += '<div class="cell"></div>';
}
});
row.innerHTML = html;
box.appendChild(row);
});
// 绑定点击事件
document.querySelectorAll('.meeting').forEach(el => {
el.addEventListener('click', () => {
var meetingData = JSON.parse(el.getAttribute('data-meeting'));
showMeetingDetail(meetingData);
});
});
}
// 查询功能
function search() {
var date = document.getElementById('dateInp').value;
if (!date) date = dayjs(new Date()).format('YYYY-MM-DD');
else date = dayjs(date).format('YYYY-MM-DD');
var list = getMeetingsByDate(date);
// 按会议室分组
var groupedData = rooms.map(room => ({
room,
name: room,
map: {}
}));
list.forEach(meeting => {
var color = {1:'yellow', 3:'blue', 4:'pink', 5:'gray'}[meeting.status];
var roomData = groupedData.find(r => r.room === meeting.room);
if (roomData) {
roomData.map[meeting.start] = [meeting.time, color, meeting];
}
});
renderGantt(groupedData);
}
// 弹窗相关函数
function openApplyModal() {
var modal = document.getElementById('applyModal');
document.getElementById('modalApplyDate').value = dayjs(new Date()).format('YYYY-MM-DD');
var roomSelect = document.getElementById('modalApplyRoom');
roomSelect.innerHTML = '<option value="">选择会议室</option>';
rooms.forEach(room => {
var option = document.createElement('option');
option.value = room;
option.textContent = room;
roomSelect.appendChild(option);
});
initTimeSelectors();
modal.style.display = 'block';
}
function closeApplyModal() {
document.getElementById('applyModal').style.display = 'none';
}
function initTimeSelectors() {
var startTimeSelect = document.getElementById('startTimeSelect');
var endTimeSelect = document.getElementById('endTimeSelect');
startTimeSelect.innerHTML = '';
endTimeSelect.innerHTML = '';
timeArr.slice(0, -1).forEach(time => {
var option = document.createElement('option');
option.value = time;
option.textContent = time;
startTimeSelect.appendChild(option);
});
timeArr.slice(1).forEach(time => {
var option = document.createElement('option');
option.value = time;
option.textContent = time;
endTimeSelect.appendChild(option);
});
startTimeSelect.selectedIndex = 0;
endTimeSelect.selectedIndex = 0;
startTimeSelect.onchange = updateEndTimeOptions;
}
function updateEndTimeOptions() {
var startTimeSelect = document.getElementById('startTimeSelect');
var endTimeSelect = document.getElementById('endTimeSelect');
var selectedStartTime = startTimeSelect.value;
var currentEndTime = endTimeSelect.value;
endTimeSelect.innerHTML = '';
var startIndex = timeArr.indexOf(selectedStartTime);
for (var i = startIndex + 1; i < timeArr.length; i++) {
var option = document.createElement('option');
option.value = timeArr[i];
option.textContent = timeArr[i];
endTimeSelect.appendChild(option);
}
if (timeArr.indexOf(currentEndTime) > startIndex) {
endTimeSelect.value = currentEndTime;
} else {
endTimeSelect.selectedIndex = 0;
}
}
function submitMeeting() {
var title = document.getElementById('modalMeetingTitle').value;
var content = document.getElementById('modalMeetingContent').value;
var date = document.getElementById('modalApplyDate').value;
var room = document.getElementById('modalApplyRoom').value;
var attendeeCount = document.getElementById('modalAttendeeCount').value;
var startTime = document.getElementById('startTimeSelect').value;
var endTime = document.getElementById('endTimeSelect').value;
if (!title || !date || !room || !attendeeCount || !startTime || !endTime) {
alert('请填写完整信息');
return;
}
var startIndex = timeArr.indexOf(startTime);
var endIndex = timeArr.indexOf(endTime);
if (startIndex >= endIndex) {
alert('结束时间必须晚于开始时间');
return;
}
var duration = endIndex - startIndex;
var conflictingMeetings = getMeetingsByDate(date).filter(m =>
m.room === room && m.date === date && isTimeOverlap(startTime, duration, m.start, m.time)
);
if (conflictingMeetings.length > 0) {
alert('该时间段已有会议，请选择其他时间');
return;
}
userMeetings.push({
room,
date,
start: startTime,
time: duration,
status: 1,
isCreator: 'true',
title,
content,
attendeeCount: parseInt(attendeeCount)
});
alert('会议申请已提交');
closeApplyModal();
// 清空表单
['modalMeetingTitle', 'modalMeetingContent', 'modalAttendeeCount'].forEach(id => {
document.getElementById(id).value = '';
});
search();
}
function showMeetingDetail(meeting) {
var modal = document.getElementById('meetingModal');
var detailContent = document.getElementById('meetingDetailContent');
var startTimeIndex = timeArr.indexOf(meeting.start);
var endTimeIndex = startTimeIndex + meeting.time;
var endTime = endTimeIndex < timeArr.length ? timeArr[endTimeIndex] : '结束';
var statusText = statusMap[meeting.status] || '未知';
detailContent.innerHTML = `
<div><label>主题:</label> ${meeting.title}</div>
<div><label>日期:</label> ${meeting.date}</div>
<div><label>地点:</label> ${meeting.room}</div>
<div><label>时间:</label> ${meeting.start} - ${endTime}</div>
<div><label>状态:</label> ${statusText}</div>
<div><label>参会人数:</label> ${meeting.attendeeCount || 'N/A'}</div>
<div><label>会议内容:</label> ${meeting.content || '无'}</div>
`;
modal.style.display = 'block';
}
function closeMeetingModal() {
document.getElementById('meetingModal').style.display = 'none';
}
// 页面初始化
window.onload = function() {
document.getElementById('dateInp').value = dayjs(new Date()).format('YYYY-MM-DD');
search();
window.onclick = function(event) {
var applyModal = document.getElementById('applyModal');
var meetingModal = document.getElementById('meetingModal');
if (event.target === applyModal) closeApplyModal();
if (event.target === meetingModal) closeMeetingModal();
};
};
</script>
</body>
</html>
