HAProxy安装
为了更好的快速掌握 HAProxy 的安装和使用，我们以一个案例来进行讲解。首先根据以下要求进行虚拟机的克隆。
| 编号 | 主机 | IP | 软件 | 系统 |
|---|---|---|---|---|
| 1 | lb01 | 192.168.72.100 | haproxy | redhat 9.7 |
| 2 | web1 | 192.168.72.10 | nginx | redhat 9.7 |
| 3 | web2 | 192.168.72.20 | nginx | redhat 9.7 |
1.1 搭建Web1

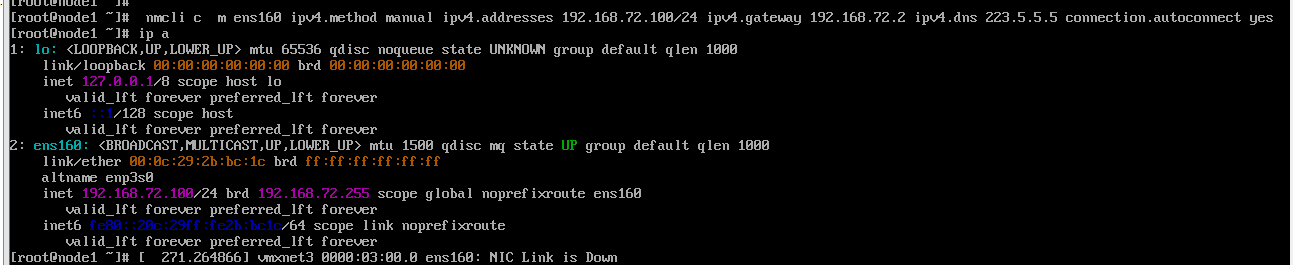

1、克隆一台虚拟机，初始化虚拟机（ip ，主机名，关闭防火墙，selinux）
root@node1 \~\]# hostnamectl set-hostname web1\&\&bash \[root@web1 \~\]# systemctl disable firewalld.service Removed "/etc/systemd/system/multi-user.target.wants/firewalld.service". Removed "/etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service". \[root@web1 \~\]# setenforce 0 \[root@web1 \~\]# sed -i "s/SELINUX=enforcing/SELINUX=permissive/" /etc/selinux/config
下载nginx
root@web1 \~\]# dnf install nginx -y Updating Subscription Management repositories. Unable to read consumer identity This system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register. BaseOS 2.7 MB/s \| 2.7 kB 00:00 AppStream 3.1 MB/s \| 3.2 kB 00:00 Package nginx-2:1.20.1-22.el9.x86_64 is already installed. Dependencies resolved. Nothing to do. Complete!
修改欢迎页
root@web1 \~\]# echo "$(hostname) $(hostname -I)" \> /usr/share/nginx/html/index.html \[root@web1 \~\]# echo "health" \> /usr/share/nginx/html/test.html
启动nginx并测试
root@web1 \~\]# systemctl start nginx \[root@web1 \~\]# curl localhost web1 192.168.72.10 \[root@web1 \~\]# curl 192.168.72.10 web1 192.168.72.10 \[root@web1 \~\]#
1.2 搭建Web2

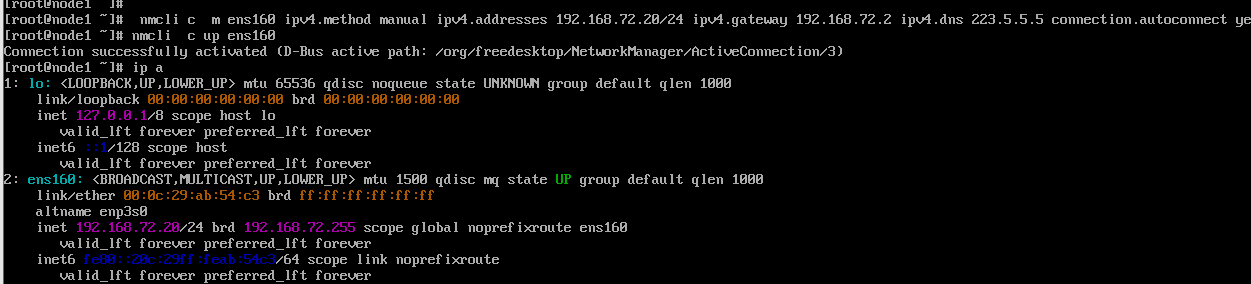

1、克隆一台虚拟机，初始化虚拟机（ip ，主机名，关闭防火墙，selinux）
root@node1 \~\]# hostnamectl set-hostname web2\&\&bash \[root@web2 \~\]# systemctl disable firewalld.service Removed "/etc/systemd/system/multi-user.target.wants/firewalld.service". Removed "/etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service". \[root@web2 \~\]# setenforce 0 \[root@web2 \~\]# sed -i "s/SELINUX=enforcing/SELINUX=permissive/" /etc/selinux/config
下载nginx
root@web2 \~\]# dnf install nginx -y Updating Subscription Management repositories. Unable to read consumer identity This system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register. BaseOS 2.7 MB/s \| 2.7 kB 00:00 AppStream 3.1 MB/s \| 3.2 kB 00:00 Package nginx-2:1.20.1-22.el9.x86_64 is already installed. Dependencies resolved. Nothing to do. Complete! \[root@web2 \~\]#
root@web2\~\]# echo "$(hostname) $(hostname -I)" \> /usr/share/nginx/html/index.html \[root@web2 \~\]# echo "health" \> /usr/share/nginx/html/test.html
启动nginx并测试
root@web2 \~\]# systemctl start nginx \[root@web2\~\]# curl localhost web1 192.168.72.20 \[root@web2\~\]# curl 192.168.72.20 web1 192.168.72.20 \[root@web2 \~\]#
1.3 搭建HAProxy
1、克隆一台虚拟机，初始化虚拟机（ip ，主机名，关闭防火墙，selinux）
root@node1 \~\]# hostnamectl set-hostname lb1\&\&bash \[root@lb1 \~\]# systemctl disable firewalld.service Removed "/etc/systemd/system/multi-user.target.wants/firewalld.service". Removed "/etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service". \[root@lb1 \~\]# setenforce 0 \[root@lb1 \~\]# sed -i "s/SELINUX=enforcing/SELINUX=permissive/" /etc/selinux/config
root@lb1 \~\]# dnf install haproxy -y Updating Subscription Management repositories. Unable to read consumer identity This system is not registered with an entitlement server. You can use "rhc" or "subscription-manager" to register. BaseOS 2.7 MB/s \| 2.7 kB 00:00 AppStream 3.1 MB/s \| 3.2 kB 00:00 Dependencies resolved. ============================================================================================================================ Package Architecture Version Repository Size ============================================================================================================================ Installing: haproxy x86_64 2.4.22-4.el9 AppStream 2.2 M Transaction Summary ============================================================================================================================ Install 1 Package Total size: 2.2 M Installed size: 6.6 M Downloading Packages: Running transaction check Transaction check succeeded. Running transaction test Transaction test succeeded. Running transaction Preparing : 1/1 Running scriptlet: haproxy-2.4.22-4.el9.x86_64 1/1 Installing : haproxy-2.4.22-4.el9.x86_64 1/1 Running scriptlet: haproxy-2.4.22-4.el9.x86_64 1/1 Verifying : haproxy-2.4.22-4.el9.x86_64 1/1 Installed products updated. Installed: haproxy-2.4.22-4.el9.x86_64 Complete!
root@lb1 \~\]# haproxy -v HAProxy version 2.4.22-f8e3218 2023/02/14 - https://haproxy.org/ Status: long-term supported branch - will stop receiving fixes around Q2 2026. Known bugs: http://www.haproxy.org/bugs/bugs-2.4.22.html Running on: Linux 5.14.0-570.12.1.el9_6.x86_64 #1 SMP PREEMPT_DYNAMIC Fri Apr 4 10:41:31 EDT 2025 x86_64
查看配置文件路径
root@lb1 \~\]# rpm -qc haproxy /etc/haproxy/haproxy.cfg # 核心配置文件路径 /etc/logrotate.d/haproxy /etc/sysconfig/haproxy # 启动选项所在文件
修改配置文件
root@lb1 \~\]# cp /etc/haproxy/haproxy.cfg{,.bak} \[root@lb1 \~\]# vim /etc/haproxy/haproxy.cfg \[root@lb1 \~\]# cat /etc/haproxy/haproxy.cfg #--------------------------------------------------------------------- # Example configuration for a possible web application. See the # full configuration options online. # # https://www.haproxy.org/download/1.8/doc/configuration.txt # #--------------------------------------------------------------------- #--------------------------------------------------------------------- # Global settings #--------------------------------------------------------------------- global # to have these messages end up in /var/log/haproxy.log you will # need to: log 127.0.0.1 local2 chroot /var/lib/haproxy pidfile /var/run/haproxy.pid maxconn 4000 user haproxy group haproxy daemon stats socket /var/lib/haproxy/stats ssl-default-bind-ciphers PROFILE=SYSTEM ssl-default-server-ciphers PROFILE=SYSTEM defaults mode http log global option httplog option dontlognull option http-server-close option forwardfor except 127.0.0.0/8 option redispatch retries 3 timeout http-request 10s timeout queue 1m timeout connect 10s timeout client 1m timeout server 1m timeout http-keep-alive 10s timeout check 10s maxconn 3000 frontend main bind \*:80 default_backend webcluster backend webcluster balance roundrobin option httpchk GET /test.html server web1 192.168.72.10:80 check inter 2000 rise 2 fall 2 weight 2 server web2 192.168.72.20:80 check inter 2000 rise 2 fall 2 weight 2 listen admin_status bind \*:9129 stats refresh 30s stats uri /admin stats auth admin:admin123 stats hide-version stats admin if TRUE
启动haproxy

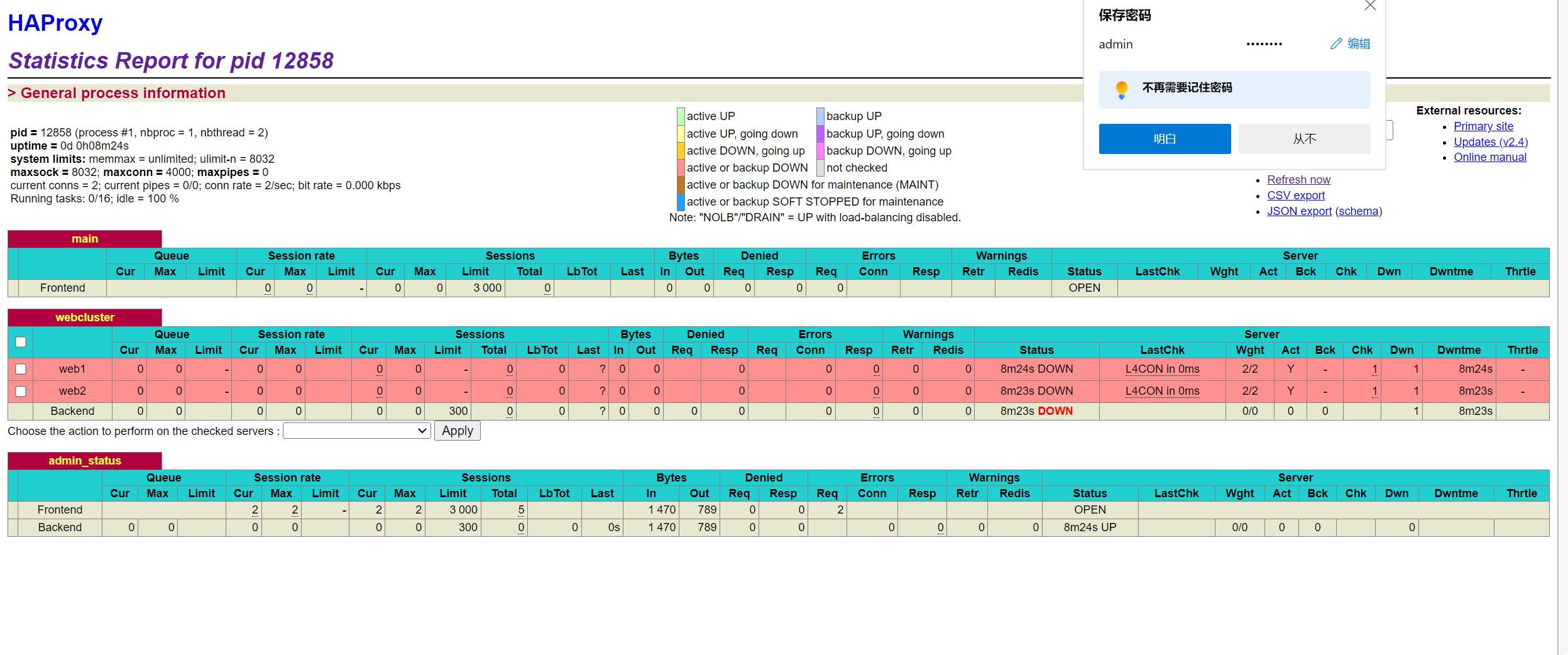

root@lb1 \~\]# systemctl start haproxy \[root@lb1 \~\]# systemctl stop firewalld 打开浏览器访问 [http://192.168.72.100:9129/admin](http://192.168.72.100:9129/admin "http://192.168.72.100:9129/admin") 输出后，会弹出输入用户名和密码的窗口，我们输入在配置文件中配置的用户名（admin）和密码（admin123）后就可以登录成功。登录成功后就可以看到如下的界面了。
