使用二进制方式部署k8s(6)

使用二进制文件方式部署k8s(6)

kube-controller-manager部署

签发证书

master1节点执行

bash 复制代码

cd /opt/kubernetes/ssl

创建证书请求文件

json 复制代码

cat > manager-csr.json << EOF
{
  "CN": "system:kube-controller-manager",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-controller-manager",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

生成证书

bash 复制代码

cfssl gencert \
   -ca=/opt/kubernetes/ssl/ca.pem \
   -ca-key=/opt/kubernetes/ssl/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   manager-csr.json | cfssljson -bare /opt/kubernetes/ssl/controller-manager

将证书拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
for FILE in controller-manager.pem controller-manager-key.pem; \
do \
scp /opt/kubernetes/ssl/${FILE} $NODE:/opt/kubernetes/ssl/${FILE};\
done \
done

生成kubeconfig文件

master1节点执行

bash 复制代码

KUBE_CONFIG="/opt/kubernetes/cfg/controller-manager.kubeconfig" #配置文件存放路径

bash 复制代码

KUBE_APISERVER="https://192.168.153.200:16443" #kube-apiserver地址，这里用vip自动实现负载均衡

设置集群项

bash 复制代码

kubectl config set-cluster kubernetes \
     --certificate-authority=/opt/kubernetes/ssl/ca.pem \
     --embed-certs=true \
     --server=${KUBE_APISERVER} \
     --kubeconfig=${KUBE_CONFIG}

定义一个名为kubernetes的集群配置
--certificate-authority: 指定CA根证书，用于验证apiserver的证书
--embed-certs=true: 将证书内容直接嵌入kubeconfig文件（而不是引用文件路径）
--server: 指定apiserver的访问地址
--kubeconfig: 指定写入的配置文件路径

设置用户项

bash 复制代码

kubectl config set-credentials system:kube-controller-manager \
     --client-certificate=/opt//kubernetes/ssl/controller-manager.pem \
     --client-key=/opt/kubernetes/ssl/controller-manager-key.pem \
     --embed-certs=true \
     --kubeconfig=${KUBE_CONFIG}

定义一个名为system:kube-controller-manager的用户（对应ServiceAccount）
--client-certificate: controller-manager的客户端证书
--client-key: controller-manager的私钥
这些证书由CA签发，用于向apiserver证明身份

设置环境项

bash 复制代码

kubectl config set-context system:kube-controller-manager@kubernetes \
    --cluster=kubernetes \
    --user=system:kube-controller-manager \
    --kubeconfig=${KUBE_CONFIG}

创建名为system:kube-controller-manager@kubernetes的上下文
将集群(kubernetes)和用户(system:kube-controller-manager)关联起来
上下文定义了"使用哪个用户访问哪个集群"

设置默认环境

bash 复制代码

kubectl config use-context system:kube-controller-manager@kubernetes \
     --kubeconfig=${KUBE_CONFIG}

将上面创建的上下文设置为默认使用
当使用此kubeconfig文件时，自动使用该上下文配置

拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
scp /opt/kubernetes/cfg/controller-manager.kubeconfig $NODE:/opt/kubernetes/cfg;\
done

创建配置文件

bash 复制代码

cat > /opt/kubernetes/cfg/kube-controller-manager.conf << EOF
KUBE_CONTROLLER_MANAGER_OPTS="--v=2 \\
      --bind-address=127.0.0.1 \\
      --root-ca-file=/opt/kubernetes/ssl/ca.pem \\
      --cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \\
      --cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem \\
      --service-account-private-key-file=/opt/kubernetes/ssl/sa.key \\
      --kubeconfig=/opt/kubernetes/cfg/controller-manager.kubeconfig \\
      --leader-elect=true \\
      --use-service-account-credentials=true \\
      --node-monitor-grace-period=40s \\
      --node-monitor-period=5s \\
      --pod-eviction-timeout=2m0s \\
      --controllers=*,bootstrapsigner,tokencleaner \\
      --allocate-node-cidrs=true \\
      --service-cluster-ip-range=10.96.0.0/12 \\
      --cluster-cidr=172.16.0.0/12 \\
      --node-cidr-mask-size-ipv4=24 \\
      --requestheader-client-ca-file=/opt/kubernetes/ssl/front-proxy-ca.pem"
EOF

其中部分项意思如下

bash 复制代码

KUBE_CONTROLLER_MANAGER_OPTS="--v=2 \\
      --bind-address=127.0.0.1 \\                     # 只监听本地回环地址，通常由kube-apiserver代理访问
      --root-ca-file=/opt/kubernetes/ssl/ca.pem \\     # CA根证书，用于验证kube-apiserver的证书
      --cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \\      # 用于签发集群证书的CA证书
      --cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem \\   # 用于签发集群证书的CA私钥
      --service-account-private-key-file=/opt/kubernetes/ssl/sa.key \\  # ServiceAccount签名私钥
      --kubeconfig=/opt/kubernetes/cfg/controller-manager.kubeconfig \\ # kubeconfig配置文件路径
      --leader-elect=true \\
      --use-service-account-credentials=true \\        # 使用ServiceAccount凭证而不是默认凭证
      --node-monitor-grace-period=40s \\               # 节点不可用判定宽限期
      --node-monitor-period=5s \\                      # 节点状态检查周期
      --pod-eviction-timeout=2m0s \\                   # Pod驱逐超时时间
      --controllers=*,bootstrapsigner,tokencleaner \\
      --allocate-node-cidrs=true \\
      --service-cluster-ip-range=10.96.0.0/12 \\       # Service ClusterIP地址范围
      --cluster-cidr=172.16.0.0/12 \\                  # 集群Pod网络CIDR范围
      --node-cidr-mask-size-ipv4=24 \\                 # 每个节点分配的Pod子网掩码大小（/24）
      --requestheader-client-ca-file=/opt/kubernetes/ssl/front-proxy-ca.pem"  # 代理客户端CA证书

设置启动配置

bash 复制代码

cat > /usr/lib/systemd/system/kube-controller-manager.service << EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target
[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-controller-manager.conf
ExecStart=/opt/kubernetes/bin/kube-controller-manager \$KUBE_CONTROLLER_MANAGER_OPTS
Restart=always		# 服务退出时总是重启
RestartSec=10s		# 重启间隔时间：10秒
[Install]
WantedBy=multi-user.target
EOF

拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
scp /opt/kubernetes/cfg/kube-controller-manager.conf $NODE:/opt/kubernetes/cfg;\
scp /usr/lib/systemd/system/kube-controller-manager.service $NODE:/usr/lib/systemd/system/;\
done

启动

bash 复制代码

systemctl daemon-reload && systemctl enable --now kube-controller-manager

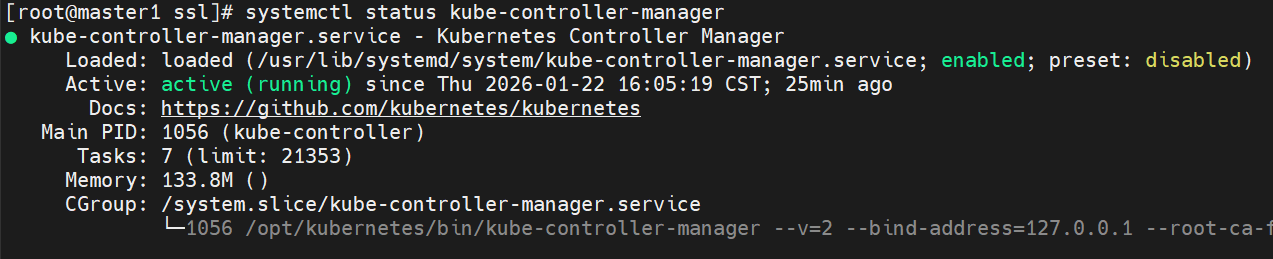

验证

bash 复制代码

systemctl status kube-controller-manager

kube-scheduler部署

签发证书

master1节点执行

bash 复制代码

cd /opt/kubernetes/ssl

创建证书请求文件

json 复制代码

cat > scheduler-csr.json << EOF
{
  "CN": "system:kube-scheduler",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-scheduler",
      "OU": "Kubernetes-manual"
    }
  ]
}
EOF

生成证书

bash 复制代码

cfssl gencert \
   -ca=/opt/kubernetes/ssl/ca.pem \
   -ca-key=/opt/kubernetes/ssl/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   scheduler-csr.json | cfssljson -bare /opt/kubernetes/ssl/scheduler

将证书拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
for FILE in scheduler.pem scheduler-key.pem; \
do \
scp /opt/kubernetes/ssl/${FILE} $NODE:/opt/kubernetes/ssl/${FILE};\
done \
done

生成kubeconfig文件

master1节点执行

bash 复制代码

KUBE_CONFIG="/opt/kubernetes/cfg/scheduler.kubeconfig"

KUBE_APISERVER="https://192.168.153.200:16443"

kubectl config set-cluster kubernetes \
     --certificate-authority=/opt/kubernetes/ssl/ca.pem \
     --embed-certs=true \
     --server=${KUBE_APISERVER} \
     --kubeconfig=${KUBE_CONFIG}

kubectl config set-credentials system:kube-scheduler \
     --client-certificate=/opt/kubernetes/ssl/scheduler.pem \
     --client-key=/opt/kubernetes/ssl/scheduler-key.pem \
     --embed-certs=true \
     --kubeconfig=${KUBE_CONFIG}

kubectl config set-context system:kube-scheduler@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-scheduler \
     --kubeconfig=${KUBE_CONFIG}

kubectl config use-context system:kube-scheduler@kubernetes \
     --kubeconfig=${KUBE_CONFIG}

拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
scp /opt/kubernetes/cfg/scheduler.kubeconfig $NODE:/opt/kubernetes/cfg;\
done

创建配置文件

bash 复制代码

cat > /opt/kubernetes/cfg/kube-scheduler.conf << EOF
KUBE_SCHEDULER_OPTS=" --v=2 \\
      --bind-address=127.0.0.1 \\
      --leader-elect=true \\
      --kubeconfig=/opt/kubernetes/cfg/scheduler.kubeconfig"
EOF

设置启动配置

bash 复制代码

cat > /usr/lib/systemd/system/kube-scheduler.service << EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target


[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-scheduler.conf
ExecStart=/opt/kubernetes/bin/kube-scheduler \$KUBE_SCHEDULER_OPTS
Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target
EOF

拷贝到其他master节点

bash 复制代码

NODES='master2 master3'; \
for NODE in $NODES; \
do \
scp /opt/kubernetes/cfg/kube-scheduler.conf $NODE:/opt/kubernetes/cfg;\
scp /usr/lib/systemd/system/kube-scheduler.service $NODE:/usr/lib/systemd/system/;\
done

启动

bash 复制代码

systemctl daemon-reload && systemctl enable --now kube-scheduler
