一、Web 服务基础

1 Apache 三大工作模型

Apache 是经典 Web 服务端，分 1.X/2.X 版本，核心有 3 种工作模型，适用于不同并发场景

  • prefork 预派生多进程，单进程单线程，select 模型 ，稳定性极高 ，内存占用大，并发低（最大 1024）， 低访问量、对稳定性要求高的场景
  • worker 多进程多线程混合，poll 模型，内存占用低，并发高于 prefork ，keepalive 长连接会占用线程，高并发易无可用线程，中低并发场景
  • event 事件驱动（epoll），2.4.X 正式支持，解决 keepalive 线程占用问题，高并发表现优秀，内存占用最低，无线程安全控制，高并发生产环境

2 Nginx 基础介绍

起源与发展：由伊戈尔・赛索耶夫开发，2004 年首次发布，2019 年被 F5 以 6.7 亿美元收购，核心代码约 19.8 万行。

核心优势：解决 C10K 问题，高性能、低内存消耗，支持静态资源快速响应、反向代理、负载均衡等。

主流应用：天猫、淘宝、京东等一线互联网公司，支持二次开发（Tengine、OpenResty）。

核心特性：模块化设计、热部署、事件驱动、零拷贝（mmap/sendfile）、低内存占用（10000 个 keep-alive 连接仅需 2.5M 内存）。

二、服务器 I/O 核心知识

1 I/O 基本概念

I/O：内核空间与用户空间的数据交换，分为磁盘 I/O（读写磁盘文件）和网络 I/O（读写 socket 文件）。

IOPS：每秒输入输出量，衡量磁盘性能的核心指标。

I/O 两个阶段：① 数据从文件加载到内核缓冲区（准备阶段，耗时久）；② 数据从内核缓冲区复制到用户进程内存（拷贝阶段，耗时短）。

2 同步 / 异步、阻塞 / 非阻塞

同步 / 异步：关注结果通知机制

  • 同步：调用者主动询问处理结果，无主动通知；
  • 异步：被调用者通过状态 / 回调主动通知调用者结果。

阻塞 / 非阻塞：关注等待结果时的状态

  • 阻塞：IO 操作完成前，调用者被挂起，无法执行其他操作；
  • 非阻塞：IO 操作调用后立即返回状态，调用者可执行其他操作。

3 五种网络 I/O 模型

阻塞 I/O：系统调用后全程阻塞，直到数据拷贝完成

非阻塞 I/O：轮询调用系统调用，无数据则立即返回错误

信号驱动 I/O：注册信号回调，内核数据就绪后发送 SIGIO 信号

多路复用 I/O：单个线程通过 select/poll/epoll 监控多个 socket，数据就绪后通知

异步 I/O：系统调用后立即返回，内核完成数据准备 + 拷贝后主动通知

5 零拷贝技术

1.传统 I/O 问题

传统 Linux I/O 存在两次拷贝 + 两次态切换，内核态与用户态的拷贝消耗 57.1% 的数据包处理时间，CPU 占用高。

2零拷贝核心方案

零拷贝并非无拷贝，而是减少用户态与内核态的拷贝，核心技术：

  1. mmap：将磁盘文件映射到进程虚拟内存，减少一次内核到用户的拷贝，适合大文件传输；

  2. sendfile：直接在内核缓冲区与 socket 缓冲区传输数据，全程无用户态参与，Nginx 默认启用。

三、Nginx 架构与安装

1 Nginx 进程架构

Nginx 采用Master-Worker 多进程模型，进程分工明确，支持热部署和平滑升级：

  • Master 主进程：读取配置、验证配置、管理 Worker 进程、监控进程状态、接收外部指令（重启 / 升级 / 停止），不处理实际请求；
  • Worker 工作进程：平等竞争处理网络请求，数量一般设为CPU 核心数（充分利用 CPU，减少上下文切换），实际处理请求、与后端通信、返回响应。

2 进程间通信

  • Master 与 Worker：通过单向管道+信号机制通信，Master 将指令通过管道发送给 Worker；
  • Worker 之间：通过共享内存通信（如 upstream zone、limit_req），由 Master 协助建立管道。

3 Nginx的源码编译

bash 复制代码
#下载软件
[root@Nginx ~]# wget https://nginx.org/download/nginx-1.28.1.tar.gz
#解压
[root@Nginx ~]# tar zxf nginx-1.28.1.tar.gz
[root@Nginx ~]# cd nginx-1.28.1/
[root@Nginx nginx-1.28.1]# ls
auto     CHANGES.ru          conf       contrib          html     man        SECURITY.md
CHANGES  CODE_OF_CONDUCT.md  configure  CONTRIBUTING.md  LICENSE  README.md  src

#检测环境
#安装依赖性
[root@Nginx ~]# dnf install gcc openssl-devel.x86_64 pcre2-devel.x86_64 zlib-devel -y

[root@Nginx nginx-1.28.1]# ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

#编译
[root@Nginx nginx-1.28.1]# make
[root@Nginx nginx-1.28.1]# make install

#nginx启动
#设定环境变量
[root@Nginx sbin]# vim  ~/.bash_profile
export PATH=$PATH:/usr/local/nginx/sbin

[root@Nginx sbin]# source   ~/.bash_profile


[root@Nginx logs]# useradd  -s /sbin/nologin -M nginx
[root@Nginx logs]# nginx
[root@Nginx logs]# ps aux | grep nginx
root       44012  0.0  0.1  14688  2356 ?        Ss   17:01   0:00 nginx: master process nginx
nginx      44013  0.0  0.2  14888  3892 ?        S    17:01   0:00 nginx: worker process
root       44015  0.0  0.1   6636  2176 pts/0    S+   17:01   0:00 grep --color=auto nginx


#测试
[root@Nginx logs]# echo timinglee > /usr/local/nginx/html/index.html

[root@Nginx logs]# curl  172.25.254.100
timinglee

#编写启动文件
[root@Nginx ~]# vim /lib/systemd/system/nginx.service
[Unit]
Description=The NGINX HTTP and reverse proxy server
After=syslog.target network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target

[Service]
Type=forking
ExecStartPre=/usr/local/nginx/sbin/nginx -t
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/usr/local/nginx/sbin/nginx -s reload
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true

[Install]
WantedBy=multi-user.target

[root@Nginx ~]# systemctl daemon-reload

#验证
[root@Nginx ~]# systemctl status nginx.service
○ nginx.service - The NGINX HTTP and reverse proxy server
     Loaded: loaded (/usr/lib/systemd/system/nginx.service; disabled; preset: disabled)
     Active: inactive (dead)

[root@Nginx ~]# systemctl enable --now nginx
[root@Nginx ~]# ps aux | grep nginx
root        1839  0.0  0.1  14688  2356 ?        Ss   09:53   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1840  0.0  0.2  14888  3828 ?        S    09:53   0:00 nginx: worker process

[root@Nginx ~]# reboot
[root@Nginx ~]# systemctl status nginx.service

4.Nginx的平滑升级及回滚

bash 复制代码
#1.下载高版本的软件
[root@Nginx ~]# wget https://nginx.org/download/nginx-1.29.4.tar.gz


#2.对于新版本的软件进行源码编译并进行平滑升级
#编译nginx隐藏版本
[root@Nginx ~]# tar zxf nginx-1.29.4.tar.gz
[root@Nginx ~]# cd nginx-1.29.4/src/core/
[root@Nginx core]# vim nginx.h
#define nginx_version      1029004
#define NGINX_VERSION      ""
#define NGINX_VER          "TIMINGLEE/" NGINX_VERSION
#文件编辑完成后进行源码编译即可

[root@Nginx core]# cd ../../
[root@Nginx nginx-1.29.4]# ./configure   --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

[root@Nginx nginx-1.29.4]# make
[root@Nginx nginx-1.29.4]# cd objs/
[root@Nginx objs]# ls
autoconf.err  nginx    ngx_auto_config.h   ngx_modules.c  src
Makefile      nginx.8  ngx_auto_headers.h  ngx_modules.o


[root@Nginx objs]# cd /usr/local/nginx/sbin/
[root@Nginx sbin]# ls
nginx

[root@Nginx sbin]# \cp -f /root/nginx-1.29.4/objs/nginx  /usr/local/nginx/sbin/nginx

[root@Nginx sbin]# ls /usr/local/nginx/logs/
access.log  error.log  nginx.pid


[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2360 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1644  0.0  0.2  14888  3896 ?        S    09:55   0:00 nginx: worker process

[root@Nginx sbin]# kill -USR2 1643   #nginx master进程id

[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1644  0.0  0.2  14888  3896 ?        S    09:55   0:00 nginx: worker process
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process
root        4923  0.0  0.1   6636  2176 pts/0    S+   10:25   0:00 grep --color=auto nginx

[root@Nginx sbin]# ls /usr/local/nginx/logs/
access.log  error.log  nginx.pid  nginx.pid.oldbin

#测试效果
[root@Nginx sbin]# nginx -V
nginx version: TIMINGLEE/
built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)
built with OpenSSL 3.2.2 4 Jun 2024
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module


#回收旧版本子进程
[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       1644  0.0  0.2  14888  3896 ?        S    09:55   0:00 nginx: worker process
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process
root        4929  0.0  0.1   6636  2176 pts/0    S+   10:27   0:00 grep --color=auto nginx
[root@Nginx sbin]# kill -WINCH 1643
[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process
root        4932  0.0  0.1   6636  2176 pts/0    S+   10:28   0:00 grep --color=auto nginx



#3.版本回退|版本回滚
[root@Nginx sbin]# cd /usr/local/nginx/sbin/
[root@Nginx sbin]# cp nginx nginx.new -p
[root@Nginx sbin]# \cp nginx.old  nginx -pf
[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process

[root@Nginx sbin]# kill -HUP 1643
[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4921  0.0  0.2  14916  4156 ?        S    10:24   0:00 nginx: worker process
nginx       4963  0.0  0.2  14888  3896 ?        S    10:32   0:00 nginx: worker process
root        4965  0.0  0.1   6636  2176 pts/0    S+   10:32   0:00 grep --color=auto nginx
[root@Nginx sbin]# nginx -V
nginx version: nginx/1.28.1
built by gcc 11.5.0 20240719 (Red Hat 11.5.0-5) (GCC)
built with OpenSSL 3.2.2 4 Jun 2024
TLS SNI support enabled
configure arguments: --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module

#回收新版本进程
[root@Nginx sbin]# kill -WINCH 4919
[root@Nginx sbin]# ps aux | grep nginx
root        1643  0.0  0.1  14688  2744 ?        Ss   09:55   0:00 nginx: master process /usr/local/nginx/sbin/nginx
root        4919  0.0  0.4  14716  7936 ?        S    10:24   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       4963  0.0  0.2  14888  3896 ?        S    10:32   0:00 nginx: worker process
root        4969  0.0  0.1   6636  2176 pts/0    S+   10:34   0:00 grep --color=auto nginx

5.Nginx配置文件的管理及优化参数

bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
user  nginx;

[root@Nginx ~]# nginx  -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful

[root@Nginx ~]# nginx -s reload

[root@Nginx ~]# ps aux | grep nginx
root        5506  0.0  0.2  14564  3912 ?        Ss   14:40   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       5511  0.0  0.2  14996  4032 ?        S    14:41   0:00 nginx: worker process
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
worker_processes  2;
[root@Nginx ~]# nginx -s reload
[root@Nginx ~]# ps aux | grep nginx
root        5506  0.0  0.2  14796  4040 ?        Ss   14:40   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx       5516  0.0  0.2  15012  4048 ?        S    14:42   0:00 nginx: worker process
nginx       5517  0.0  0.2  15012  4048 ?        S    14:42   0:00 nginx: worker process

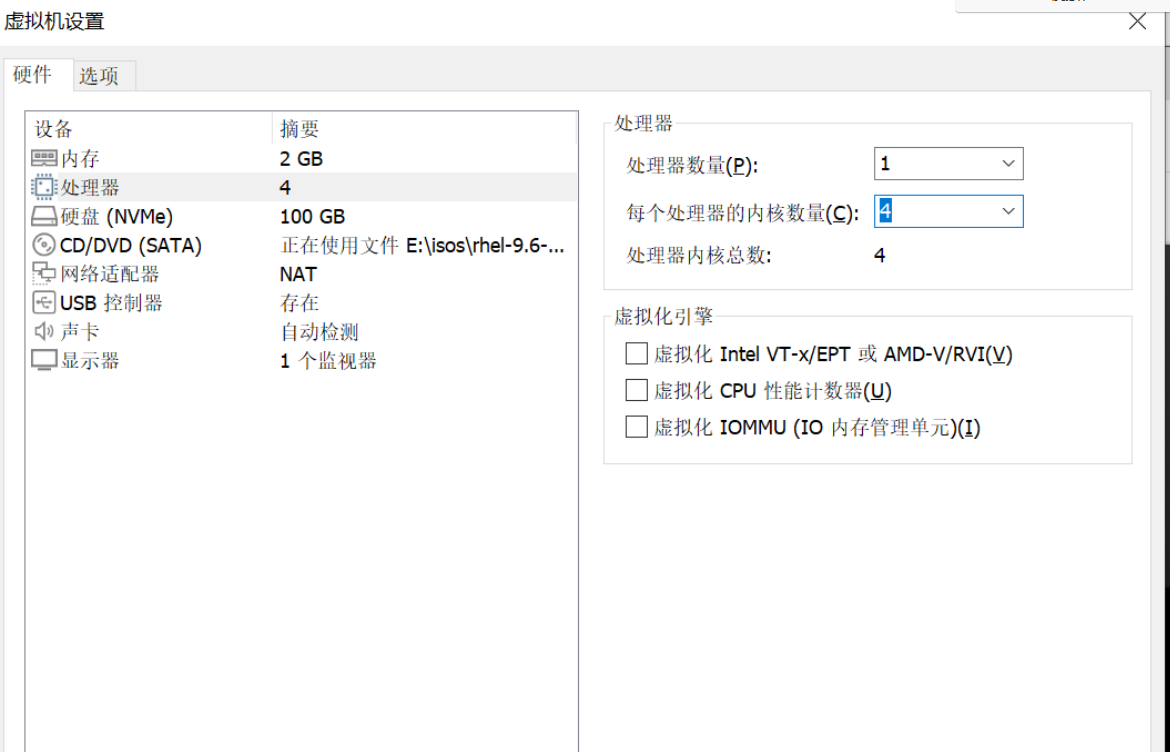

#在vmware中更改硬件cpu核心个数，然后重启

[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
worker_processes  auto;
worker_cpu_affinity 0001 0010 0100 1000;

[root@Nginx ~]# ps aux | grep nginx
root         887  0.0  0.1  14564  2212 ?        Ss   14:51   0:00 nginx: master process /usr/local/nginx/sbin/nginx
nginx        889  0.0  0.2  14964  3748 ?        S    14:51   0:00 nginx: worker process
nginx        890  0.0  0.2  14964  3748 ?        S    14:51   0:00 nginx: worker process
nginx        891  0.0  0.2  14964  3748 ?        S    14:51   0:00 nginx: worker process
nginx        892  0.0  0.2  14964  3748 ?        S    14:51   0:00 nginx: worker process


[root@Nginx ~]# ps axo pid,cmd,psr | grep nginx
    887 nginx: master process /usr/   3
   1635 nginx: worker process         0
   1636 nginx: worker process         1
   1637 nginx: worker process         2
   1638 nginx: worker process         3
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
events {
    worker_connections  10000;
    use epoll;
    accept_mutex on;
    multi_accept on;
}

[root@Nginx ~]# nginx -s reload

#测试并发
[root@Nginx ~]# dnf install httpd-tools -y
[root@Nginx ~]# ab  -n 100000 -c5000 http://172.25.254.100/index.html
This is ApacheBench, Version 2.3 <$Revision: 1913912 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)
socket: Too many open files (24)				#并发数量过多导致访问失败


#处理本地文件系统的并发文件数量
[root@Nginx ~]# vim /etc/security/limits.conf
*               -       nofile          100000
*               -       noproc          100000
root			-		nofile			100000
[root@Nginx ~]# sudo -u nginx ulimit -n
100000
[root@Nginx ~]# ulimit  -n 10000
100000

#测试
[root@Nginx ~]# ab  -n 100000 -c10000 http://172.25.254.100/index.html
This is ApacheBench, Version 2.3 <$Revision: 1913912 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking 172.25.254.100 (be patient)
Completed 10000 requests
Completed 20000 requests
Completed 30000 requests
Completed 40000 requests
Completed 50000 requests

四、实验

Nginx 核心配置

1.Nginx下构建PC站点

(1)location中的root
bash 复制代码
[root@Nginx conf]# cd /usr/local/nginx/conf/
[root@Nginx conf]# mkdir  conf.d
[root@Nginx conf]# vim nginx.conf
82     include "/usr/local/nginx/conf/conf.d/*.conf";

[root@Nginx conf]# nginx -s reload
[root@Nginx conf]# cd conf.d/

[root@Nginx ~]# mkdir  -p /webdata/nginx/timinglee.org/lee/html
[root@Nginx ~]# echo lee.timinglee.org > /webdata/nginx/timinglee.org/lee/html/index.html

[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        root /webdata/nginx/timinglee.org/lee/html;
    }
}

root@Nginx conf.d]# systemctl restart nginx.service

#测试
[root@Nginx conf.d]# vim /etc/hosts
172.25.254.100     Nginx www.timinglee.org lee.timinglee.org

[root@Nginx conf.d]# curl  www.timinglee.org
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org
lee.timinglee.org



#local示例需要访问lee.timinglee.org/lee/目录
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        root /webdata/nginx/timinglee.org/lee/html;
    }
    location /lee {			#lee标识location中的root值+location 后面指定的值代表目录的路径
        root /webdata/nginx/timinglee.org/lee/html;
    }

}

[root@Nginx conf.d]# systemctl restart nginx.service
[root@Nginx conf.d]# mkdir  -p /webdata/nginx/timinglee.org/lee/html/lee
[root@Nginx conf.d]# echo lee > /webdata/nginx/timinglee.org/lee/html/lee/index.html
[root@Nginx conf.d]# curl  lee.timinglee.org/lee/
lee
(2)location中的alias
bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;

    location /passwd {				#标识文件
        alias /etc/passwd;
    }


    location /passwd/ {				#表示目录
        alias /mnt/;
    }

}

[root@Nginx conf.d]# nginx -s reload
[root@Nginx conf.d]# echo passwd > /mnt/index.html

#测试
[root@Nginx conf.d]# curl  lee.timinglee.org/passwd/
passwd
[root@Nginx conf.d]# curl  lee.timinglee.org/passwd
root:x:0:0:root:/root:/bin/bash
bin:x:1:1:bin:/bin:/sbin/nologin
daemon:x:2:2:daemon:/sbin:/sbin/nologin

2.KeepAlived长链接优化

(1)设定长链接时间
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
keepalive_timeout   5;
[root@Nginx ~]# nginx -s reload

#测试
[root@Nginx ~]# dnf install telnet -y
[root@Nginx ~]# telnet www.timinglee.org 80
Trying 172.25.254.100...
Connected to www.timinglee.org.
Escape character is '^]'.
GET / HTTP/1.1     <<<<
Host: www.timinglee.org    <<<<
							<<<
HTTP/1.1 200 OK
Server: nginx/1.28.1
Date: Sat, 31 Jan 2026 08:27:02 GMT
Content-Type: text/html
Content-Length: 10
Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT
Connection: keep-alive
ETag: "697b2217-a"
Accept-Ranges: bytes
timinglee    显示的页面出现后根据设定的长链接时间会等待，超过时间后会自动退出
Connection closed by foreign host.
(2)设定长链接次数
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
keepalive_timeout   5;
[root@Nginx ~]# nginx -s reload

#测试
[root@Nginx ~]# dnf install telnet -y
[root@Nginx ~]# telnet www.timinglee.org 80
Trying 172.25.254.100...
Connected to www.timinglee.org.
Escape character is '^]'.
GET / HTTP/1.1     <<<<
Host: www.timinglee.org    <<<<
							<<<
HTTP/1.1 200 OK
Server: nginx/1.28.1
Date: Sat, 31 Jan 2026 08:27:02 GMT
Content-Type: text/html
Content-Length: 10
Last-Modified: Thu, 29 Jan 2026 09:02:15 GMT
Connection: keep-alive
ETag: "697b2217-a"
Accept-Ranges: bytes
timinglee    显示的页面出现后根据设定的长链接时间会等待，超过时间后会自动退出
Connection closed by foreign host.

3.Location 字符匹配详解

(1)Location后什么都不带直接指定目录

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "/null-1";
    }
}

[root@Nginx conf.d]# curl lee.timinglee.org/null/
/null-1

[root@Nginx conf.d]# curl lee.timinglee.org/NULL/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl lee.timinglee.org/test/null
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>

(2)location 后用 =

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "null-1";
    }

    location = /null {				#精确匹配到此结束
        return 200 "null-2";
    }

    location ~ /null {
        return 200 "null-3";
    }

}

[root@Nginx conf.d]# nginx -s reload
[root@Nginx conf.d]# curl lee.timinglee.org/null
null-2

(3)location 后用"^~"

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "null-1";
    }

    location = /null {
        return 200 "null-2";
    }

    location ~ /null {
        return 200 "null-3";
    }

    location ^~ /lee {
        return 200 "lee";
    }

}
[root@Nginx conf.d]# nginx -s reload
lee
[root@Nginx conf.d]# curl  lee.timinglee.org/lee
lee
[root@Nginx conf.d]# curl  lee.timinglee.org/test/lee
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl  lee.timinglee.org/lee/test
lee
[root@Nginx conf.d]# curl  lee.timinglee.org/aleea/test
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl  lee.timinglee.org/leeab/test
lee

(4)location 后用"~"

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "null-1";
    }

    location = /null {
        return 200 "null-2";
    }

    location ~ /null {
        return 200 "null-3";
    }

    location ^~ /lee {
        return 200 "lee";
    }

    location ~ /timing/ {
        return 200 "timing";
    }
}

[root@Nginx conf.d]# nginx -s reload

[root@Nginx conf.d]# curl  lee.timinglee.org/timinga/
timing
[root@Nginx conf.d]# curl  lee.timinglee.org/timing/
timing
[root@Nginx conf.d]# curl  lee.timinglee.org/a/timing/
timing
[root@Nginx conf.d]# curl  lee.timinglee.org/a/timinga/
timing
[root@Nginx conf.d]# curl  lee.timinglee.org/a/atiming/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl  lee.timinglee.org/aTiminga/a/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl  lee.timinglee.org/Timinga/a/
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>

(5)location 后用"~*"

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "null-1";
    }

    location = /null {
        return 200 "null-2";
    }

    location ~ /null {
        return 200 "null-3";
    }

    location ^~ /lee {
        return 200 "lee";
    }

    location ~ /timing/ {
        return 200 "timing";
    }

    location ~* /timinglee {
        return 200 "timinglee";
    }

}

[root@Nginx conf.d]# nginx -s reload

[root@Nginx conf.d]# curl  lee.timinglee.org/Timinglee/
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org/timinglee/
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org/timinglee/a
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org/a/timinglee/a
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org/a/atiminglee/a
<html>
<head><title>404 Not Found</title></head>
<body>
<center><h1>404 Not Found</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx conf.d]# curl  lee.timinglee.org/a/timingleea/a
timinglee
[root@Nginx conf.d]# curl  lee.timinglee.org/a/Timinglee/a
timinglee

(6)location 后用"\"

bash 复制代码
[root@Nginx conf.d]# vim vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /null {
        return 200 "null-1";
    }

    location = /null {
        return 200 "null-2";
    }

    location ~ /null {
        return 200 "null-3";
    }

    location ^~ /lee {
        return 200 "lee";
    }

    location ~ /timing/ {
        return 200 "timing";
    }

    location ~* /timinglee {
        return 200 "timinglee";
    }

    location ~* \.(img|php|jsp)$ {
        return 200 "app";
    }

}

[root@Nginx conf.d]# nginx -s reload
[root@Nginx conf.d]# curl  lee.timinglee.org/test.php
app
[root@Nginx conf.d]# curl  lee.timinglee.org/test.jsp
app

4.服务访问的用户认证

bash 复制代码
[root@Nginx ~]# htpasswd  -cmb /usr/local/nginx/conf/.htpasswd admin  lee
Adding password for user admin

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location /admin {
        root /usr/local/nginx/html;
        auth_basic "login passwd";
        auth_basic_user_file "/usr/local/nginx/conf/.htpasswd";
    }
}

[root@Nginx ~]# systemctl restart nginx.service

#测试：
root@Nginx ~]# curl  lee.timinglee.org/admin/
<html>
<head><title>401 Authorization Required</title></head>
<body>
<center><h1>401 Authorization Required</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>


[root@Nginx ~]# curl  -uadmin:lee http://lee.timinglee.org/admin/
admin

5.自定义错误页面

bash 复制代码
[root@Nginx ~]# mkdir  /usr/local/nginx/errorpage
[root@Nginx ~]# echo "太不巧了，你要访问的页面辞职了！！" > /usr/local/nginx/errorpage/errormessage
[root@Nginx ~]# cat /usr/local/nginx/errorpage/errormessage
太不巧了，你要访问的页面辞职了！！


[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }
}


[root@Nginx ~]# curl  lee.timinglee.org/lee/
太不巧了，你要访问的页面辞职了！！

6.自定义错误日志

bash 复制代码
[root@Nginx ~]# mkdir  -p /usr/local/nginx/logs/timinglee.org/
	[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
	server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }
}

[root@Nginx ~]# systemctl restart nginx.service

#测试
[root@Nginx ~]# cd  /usr/local/nginx/logs/timinglee.org/
[root@Nginx timinglee.org]# ls
lee.error
[root@Nginx timinglee.org]# cat lee.error
[root@Nginx timinglee.org]# curl  lee.timinglee.org/lee/
太不巧了，你要访问的页面辞职了！！
[root@Nginx timinglee.org]# cat lee.error
2026/02/01 11:10:57 [error] 2467#0: *1 "/usr/local/nginx/html/lee/index.html" is not found (2: No such file or directory), client: 172.25.254.100, server: lee.timinglee.org, request: "GET /lee/ HTTP/1.1", host: "lee.timinglee.org"

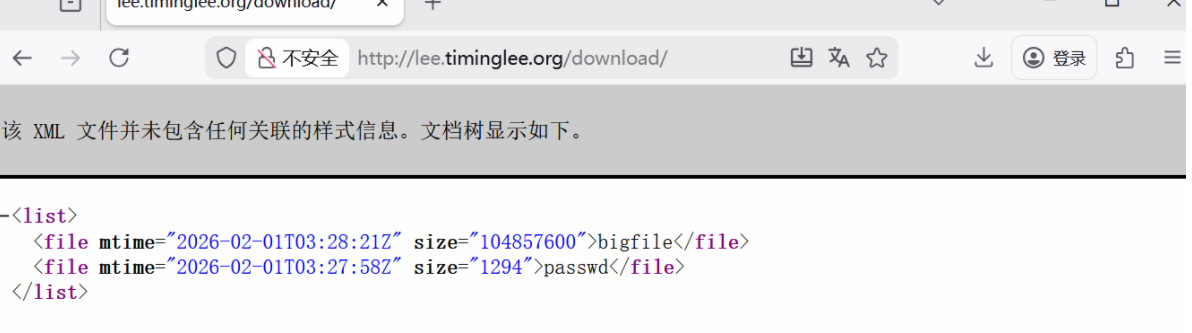

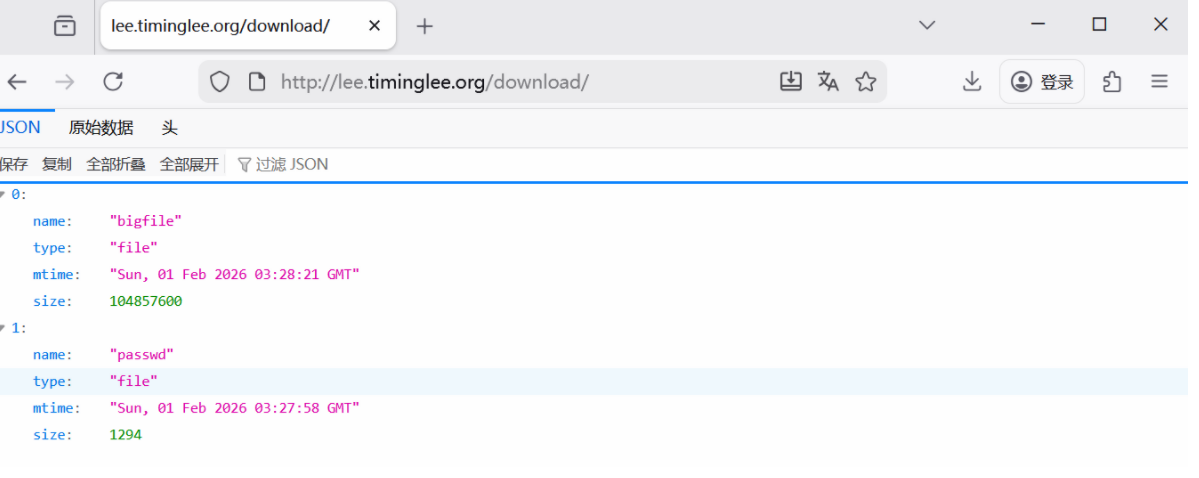

7.Nginx中建立下载服务器

bash 复制代码
[root@Nginx ~]# mkdir  -p /usr/local/nginx/download
[root@Nginx ~]# cp /etc/passwd  /usr/local/nginx/download/
[root@Nginx ~]# dd if=/dev/zero of=/usr/local/nginx/download/bigfile bs=1M count=100
记录了100+0 的读入
记录了100+0 的写出
104857600字节（105 MB，100 MiB）已复制，0.152409 s，688 MB/s

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
    }
}
[root@Nginx ~]# nginx -s reload

访问

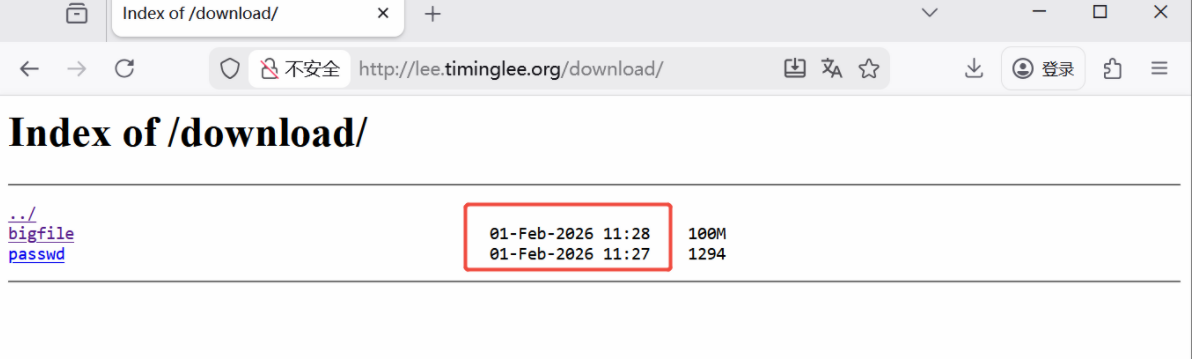

(1)启用列表功能
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
        autoindex on;
    }
}
[root@Nginx ~]# nginx -s reload
(2)下载控速
bash 复制代码
[root@Nginx ~]# wget http://lee.timinglee.org/download/bigfile
--2026-02-01 11:37:52--  http://lee.timinglee.org/download/bigfile
正在解析主机 lee.timinglee.org (lee.timinglee.org)... 172.25.254.100
正在连接 lee.timinglee.org (lee.timinglee.org)|172.25.254.100|:80... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：104857600 (100M) [application/octet-stream]
正在保存至: "bigfile"

bigfile                  100%[=================================>] 100.00M   232MB/s  用时 0.4s

2026-02-01 11:37:52 (232 MB/s) - 已保存 "bigfile" [104857600/104857600])

[root@Nginx ~]# rm -fr bigfile

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
        autoindex on;
        limit_rate 1024k;
    }
}
[root@Nginx ~]# nginx -s reload

[root@Nginx ~]# wget http://lee.timinglee.org/download/bigfile
--2026-02-01 11:39:09--  http://lee.timinglee.org/download/bigfile
正在解析主机 lee.timinglee.org (lee.timinglee.org)... 172.25.254.100
正在连接 lee.timinglee.org (lee.timinglee.org)|172.25.254.100|:80... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：104857600 (100M) [application/octet-stream]
正在保存至: "bigfile"

bigfile                   12%[===>                              ]  12.00M  1.00MB/s  剩余 88s
(3)显示文件大小优化
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
        autoindex on;
        limit_rate 1024k;
        autoindex_exact_size off;
    }
}
[root@Nginx ~]# nginx -s reload

效果

bash 复制代码
[root@Nginx ~]# curl  lee.timinglee.org/download
<html>
<head><title>301 Moved Permanently</title></head>
<body>
<center><h1>301 Moved Permanently</h1></center>
<hr><center>nginx/1.28.1</center>
</body>
</html>
[root@Nginx ~]# curl  lee.timinglee.org/download/
<html>
<head><title>Index of /download/</title></head>
<body>
<h1>Index of /download/</h1><hr><pre><a href="../">../</a>
<a href="bigfile">bigfile</a>                                            01-Feb-2026 03:28    100M
<a href="passwd">passwd</a>                                             01-Feb-2026 03:27    1294
</pre><hr></body>
</html>
(4)时间显示调整
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
        autoindex on;
        limit_rate 1024k;
        autoindex_exact_size off;
        autoindex_localtime on;
        autoindex_format html | xml | json | jsonp;
    }
}
[root@Nginx ~]# nginx -s reload
(5)设定页面风格
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    location /lee {
        root /usr/local/nginx/html;
    }

    location /error {
        alias /usr/local/nginx/errorpage/errormessage;
    }


    location /download {
        root /usr/local/nginx;
        autoindex on;
        limit_rate 1024k;
        autoindex_exact_size off;
        autoindex_localtime on;
        autoindex_format html | xml | json | jsonp;
    }
}
[root@Nginx ~]# nginx -s reload

xml风格

json风格

Nginx 高级

1.Nginx的文件检测

bash 复制代码
[root@Nginx ~]# echo default > /usr/local/nginx/errorpage/default.html
[root@Nginx ~]# cat /usr/local/nginx/errorpage/default.html
default


[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    error_page 404 405 503 502 /error;
    error_log logs/timinglee.org/lee.error error;
    root /usr/local/nginx/errorpage;
    try_files $uri $uri.html $uri/index.html /default.html;
}

[root@Nginx ~]# nginx -s reload

#测试：
[root@Nginx ~]# curl -v  lee.timinglee.org/aaaaaaaaaa/
*   Trying 172.25.254.100:80...
* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)
> GET /aaaaaaaaaa/ HTTP/1.1
> Host: lee.timinglee.org
> User-Agent: curl/7.76.1
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Server: nginx/1.28.1
< Date: Sun, 01 Feb 2026 06:25:45 GMT
< Content-Type: text/html
< Content-Length: 8
< Last-Modified: Sun, 01 Feb 2026 06:17:57 GMT
< Connection: keep-alive
< Keep-Alive: timeout=100
< ETag: "697ef015-8"
< Accept-Ranges: bytes
<
default
* Connection #0 to host lee.timinglee.org left intact

2.Nginx的状态页

bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;

    location /nginx_status{
        stub_status;
        auth_basic "auth login";
        auth_basic_user_file /usr/local/nginx/conf/.htpasswd;
        allow 172.25.254.0/24;
        deny all;
    }
}

[root@Nginx ~]# nginx -s reload

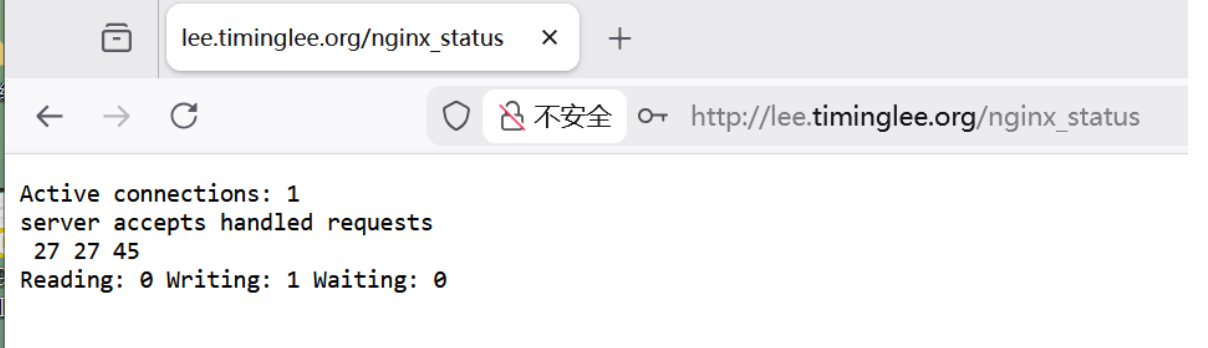

访问效果

3.Nginx的压缩功能

bash 复制代码
[root@Nginx ~]# mkdir  /usr/local/nginx/timinglee.org/lee/html -p
[root@Nginx ~]# echo  hello lee > /usr/local/nginx/timinglee.org/lee/html/index.html
[root@Nginx html]# cp /usr/local/nginx/logs/access.log /usr/local/nginx/timinglee.org/lee/html/bigfile.txt



[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
    gzip  on;
    gzip_comp_level 4;
    gzip_disable "MSIE [1-6]\.";
    gzip_min_length 1024k;
    gzip_buffers 32 1024k
    gzip_types text/plain application/javascript application/x-javascript text/css  application/xml text/javascript application/x-httpd-php image/gif image/png;
    gzip_vary on;
    gzip_static on;


[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /nginx_status{
        stub_status;
        auth_basic "auth login";
        auth_basic_user_file /usr/local/nginx/conf/.htpasswd;
        allow 172.25.254.0/24;
        deny all;
    }
}

[root@Nginx ~]# nginx -s reload


#测试
[root@Nginx html]# curl  --head --compressed  lee.timinglee.org/bigfile.txt
HTTP/1.1 200 OK
Server: nginx/1.28.1
Date: Sun, 01 Feb 2026 07:32:10 GMT
Content-Type: text/plain
Last-Modified: Sun, 01 Feb 2026 07:29:53 GMT
Connection: keep-alive
Keep-Alive: timeout=100
Vary: Accept-Encoding
ETag: W/"697f00f1-2ca84bd"
Content-Encoding: gzip

[root@Nginx html]# curl  --head --compressed  lee.timinglee.org/index.html
HTTP/1.1 200 OK
Server: nginx/1.28.1
Date: Sun, 01 Feb 2026 07:32:19 GMT
Content-Type: text/html
Content-Length: 10
Last-Modified: Sun, 01 Feb 2026 07:19:59 GMT
Connection: keep-alive
Keep-Alive: timeout=100
ETag: "697efe9f-a"
Accept-Ranges: bytes

4.Nginx 变量

(1)升级Nginx支持echo
bash 复制代码
[root@Nginx ~]# systemctl stop nginx.service
[root@Nginx ~]# ps aux | grep nginx
root        5193  0.0  0.1   6636  2176 pts/1    S+   16:08   0:00 grep --color=auto nginx


[root@Nginx ~]# tar zxf echo-nginx-module-0.64.tar.gz
[root@Nginx ~]# cd nginx-1.28.1/

[root@Nginx nginx-1.28.1]# make clean

[root@Nginx nginx-1.28.1]# ./configure  --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module  --add-module=/root/echo-nginx-module-0.64

[root@Nginx nginx-1.28.1]# make
[root@Nginx nginx-1.28.1]# rm -rf /usr/local/nginx/sbin/nginx
[root@Nginx nginx-1.28.1]# cp objs/nginx /usr/local/nginx/sbin/ -p

#测试
[root@Nginx nginx-1.28.1]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $remote_addr;
    }
}

[root@Nginx nginx-1.28.1]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful


[root@Nginx nginx-1.28.1]# systemctl start nginx.service
(2)理解内建变量
bash 复制代码
[root@Nginx nginx-1.28.1]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $remote_addr;
    }
}

[root@Nginx nginx-1.28.1]# nginx -s reload
[root@Nginx nginx-1.28.1]# curl  lee.timinglee.org/vars/
172.25.254.100
bash 复制代码
[root@Nginx nginx-1.28.1]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $args;
    }
}

[root@Nginx nginx-1.28.1]# nginx -s reload
[root@Nginx nginx-1.28.1]# curl "http://lee.timinglee.org/vars?key=lee&id=11"
key=lee&id=11
bash 复制代码
[root@Nginx nginx-1.28.1]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $args;
       	echo $is_args;
    }
}

[root@Nginx nginx-1.28.1]# nginx -s reload
[root@Nginx nginx-1.28.1]# curl "http://lee.timinglee.org/vars?key=lee&id=11"
172.25.254.100
key=lee&id=11
?
[root@Nginx nginx-1.28.1]# curl "http://lee.timinglee.org/vars"
172.25.254.100
bash 复制代码
[root@Nginx nginx-1.28.1]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $remote_addr;
        echo $args;
        echo $is_args;
        echo $document_root;
        echo $document_uri;
        echo $host;
        echo $remote_port;
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
        echo $server_protocol;
        echo $server_addr;
        echo $server_name;
        echo $server_port;
        echo $http_user_agent;
        echo $cookie_key2;
        echo $http_user_agent;
        echo $sent_http_content_type;
    }
}

[root@Nginx nginx-1.28.1]# nginx -s reload
[root@Nginx nginx-1.28.1]# curl -b "key1=hello,key2=timinglee" -A "haha" -ulee:lee "http://lee.timinglee.org/vars?key=lee&id=11"
172.25.254.100
key=lee&id=11
?
/usr/local/nginx/timinglee.org/lee/html
/vars
lee.timinglee.org
45156
lee
GET
/usr/local/nginx/timinglee.org/lee/html/vars
/vars?key=lee&id=11
http
HTTP/1.1
172.25.254.100
lee.timinglee.org
80
haha
timinglee
haha
text/html

5.自定义变量

bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /usr/local/nginx/timinglee.org/lee/html;
    location /vars {
        default_type text/html;
        echo $remote_addr;
        echo $args;
        echo $is_args;
        echo $document_root;
        echo $document_uri;
        echo $host;
        echo $remote_port;
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
        echo $server_protocol;
        echo $server_addr;
        echo $server_name;
        echo $server_port;
        echo $http_user_agent;
        echo $cookie_key2;
        echo $http_user_agent;
        echo $sent_http_content_type;
        set $test lee;					#手动设定变量值
     	echo $test;
        set $web_port $server_port;		#变量个传递
        echo $web_port;
    }
}

[root@Nginx ~]# nginx -s reload
[root@Nginx ~]# curl  lee.timinglee.org/vars/
172.25.254.100


/usr/local/nginx/timinglee.org/lee/html
/vars/
lee.timinglee.org
42538

GET
/usr/local/nginx/timinglee.org/lee/html/vars/
/vars/
http
HTTP/1.1
172.25.254.100
lee.timinglee.org
80
curl/7.76.1

curl/7.76.1
text/html
lee
80

Nginx Rewrite 相关功能

1.网页从写

(1)网页重写中的指令

bash 复制代码
#if
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        if ( $http_user_agent ~* firefox ) {
            return 200 "test if messages";
        }
    }
}

[root@Nginx ~]# nginx -s reload
[root@Nginx ~]# curl  lee.timinglee.org
lee page

[root@Nginx ~]# curl  -A "firefox" lee.timinglee.org
test if messages[root@Nginx ~]#
bash 复制代码
#set
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        set $testname timinglee;
        echo $testname;
    }
}

[root@Nginx ~]# nginx -s reload

[root@Nginx ~]# curl  lee.timinglee.org
timinglee
bash 复制代码
#return
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        return 200 "hello world";
    }
}
[root@Nginx ~]# nginx -s reload
[root@Nginx ~]# curl  lee.timinglee.org
hello world
bash 复制代码
#break
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        set $test1 lee1;
        set $test2 lee2;
        if ($http_user_agent = firefox){
            break;
        }
        set $test3 lee3;
        echo $test1 $test2 $test3;
    }
}
[root@Nginx ~]# nginx -s reload

[root@Nginx ~]# curl  lee.timinglee.org
lee1 lee2 lee3
[root@Nginx ~]# curl -A "firefox" lee.timinglee.org
lee1 lee2

(2)flag

bash 复制代码
#redirect;
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        rewrite / http://www.baidu.com redirect;
    }
}
[root@Nginx ~]# nginx -s reload

[root@Nginx ~]# curl -I lee.timinglee.org
HTTP/1.1 302 Moved Temporarily			#定向方式返回值
Server: nginx/1.28.1
Date: Tue, 03 Feb 2026 02:43:47 GMT
Content-Type: text/html
Content-Length: 145
Connection: keep-alive
Keep-Alive: timeout=100
Location: http://www.baidu.com			#定向效果
bash 复制代码
#permanent
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location / {
        rewrite / http://www.baidu.com permanent;
    }
}
[root@Nginx ~]# nginx -s reload


[root@Nginx ~]# curl  -I lee.timinglee.org
HTTP/1.1 301 Moved Permanently
Server: nginx/1.28.1
Date: Tue, 03 Feb 2026 02:45:38 GMT
Content-Type: text/html
Content-Length: 169
Connection: keep-alive
Keep-Alive: timeout=100
Location: http://www.baidu.com
bash 复制代码
#break 和 last
[root@Nginx ~]# mkdir  /webdir/timinglee.org/lee/html/{break,last,test1,test2}
[root@Nginx ~]# echo break > /webdir/timinglee.org/lee/html/break/index.html
[root@Nginx ~]# echo last > /webdir/timinglee.org/lee/html/last/index.html
[root@Nginx ~]# echo test1 > /webdir/timinglee.org/lee/html/test1/index.html
[root@Nginx ~]# echo test2 > /webdir/timinglee.org/lee/html/test2/index.html

#break
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location /break {
        rewrite /break/(.*) /test1/$1 break;
        rewrite /test1 /test2;
    }
    location /test1 {
        return 200 "test1 end page";
    }
    location /test2 {
        return 200 "TEST2 END PAGE";
    }

}

root@Nginx ~]# nginx -s reload
[root@Nginx ~]# curl  -L lee.timinglee.org/break/index.html
test1


#last
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location /vars {
        echo $remote_user;
        echo $request_method;
        echo $request_filename;
        echo $request_uri;
        echo $scheme;
    }

    location /break {
        rewrite /break/(.*) /test1/$1 last;
        rewrite /test1 /test2;
    }
    location /test1 {
        return 200 "test1 end page";
    }
    location /test2 {
        return 200 "TEST2 END PAGE";
    }

}

root@Nginx ~]# nginx -s reload
[root@Nginx ~]# curl  -L lee.timinglee.org/break/index.html
test1 end page

2.Nginx利用网页重写实现全站加密

bash 复制代码
#制作key
[root@Nginx ~]# openssl req -newkey rsa:2048 -nodes  -sha256  -keyout  /usr/local/nginx/certs/timinglee.org.key -x509 -days 365 -out /usr/local/nginx/certs/timinglee.org.crt

#编辑加密配置文件
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    listen 443 ssl;
    ssl_certificate /usr/local/nginx/certs/timinglee.org.crt;
    ssl_certificate_key /usr/local/nginx/certs/timinglee.org.key;
    ssl_session_cache shared:sslcache:20m;
    ssl_session_timeout 10m;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location / {
        if ($scheme = http ){
            rewrite /(.*) https://$host/$1 redirect;
        }
    }

}

[root@Nginx ~]# systemctl restart nginx.service

#测试
[root@Nginx ~]# curl  -I  http://lee.timinglee.org/test1/
HTTP/1.1 302 Moved Temporarily
Server: nginx/1.28.1
Date: Tue, 03 Feb 2026 03:21:22 GMT
Content-Type: text/html
Content-Length: 145
Connection: keep-alive
Keep-Alive: timeout=100
Location: https://lee.timinglee.org/test1/

3.防盗链

bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf

server {
    listen 80;
    server_name lee.timinglee.org;
    root /webdir/timinglee.org/lee/html;
    location / {
        valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;
        if ($invalid_referer){
            return 404;
        }
    }
    location /img {
        valid_referers none blocked server_names *.timinglee.org ~/.baidu/.;
        if ($invalid_referer){
            rewrite ^/ http://lee.timinglee.org/daolian/daolian.png;
        }
    }

}

[root@Nginx ~]# nginx -s reload

测试:

bash 复制代码
#另外的web服务器
[root@RS1 ~]# vim /var/www/html/index.html
<html>

  <head>
    <meta http-equiv=Content-Type content="text/html;charset=utf-8">
    <title>盗链</title>
</head>

  <body>
    <img src="http://lee.timinglee.org/img/lee.png" >
    <h1 style="color:red">欢迎大家</h1>
    <p><a href=http://lee.timinglee.org>狂点老李</a>出门见喜</p>
  </body>

</html>


#在浏览器中访问看效果

Nginx 反向代理功能

1.Nginx反向代理

(1)实验环境

bash 复制代码
#172.25.254.10 RS1	172.25.254.20 RS2


[root@RSX ~]# dnf install httpd -y
[root@RSX ~]# systemctl enable --now httpd
[root@RSX ~]# echo 172.25.254.20 > /var/www/html/index.html


#测试 在Nginx主机中
[root@Nginx ~]# curl  172.25.254.10
172.25.254.10
[root@Nginx ~]# curl  172.25.254.20
172.25.254.20

(2)简单的代理方法

bash 复制代码
[root@RS2 ~]# mkdir  /var/www/html/web
[root@RS2 ~]# echo 172.25.254.20 web > /var/www/html/web/index.html


[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.10:80;
    }

    location /web {
        proxy_pass http://172.25.254.20:80;
    }

}


[root@Nginx ~]# nginx -s reload

#测试
[root@Nginx ~]# curl  172.25.254.20/web/
172.25.254.20 web
[root@Nginx ~]# curl  172.25.254.10
172.25.254.10

(3)proxy_hide_header filed

bash 复制代码
[Administrator.DESKTOP-VJ307M3] ➤ curl -v lee.timinglee.org
*   Trying 172.25.254.100:80...
* TCP_NODELAY set
* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)
> GET / HTTP/1.1
> Host: lee.timinglee.org
> User-Agent: curl/7.65.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Server: nginx/1.28.1
< Date: Tue, 03 Feb 2026 06:31:03 GMT
< Content-Type: text/html; charset=UTF-8
< Content-Length: 14
< Connection: keep-alive
< Keep-Alive: timeout=100
< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT
< ETag: "e-649e570e8a49f"					#可以看到ETAG信息
< Accept-Ranges: bytes
<
172.25.254.10
* Connection #0 to host lee.timinglee.org left intact

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.10:80;
        proxy_hide_header ETag;
    }

    location /web {
        proxy_pass http://172.25.254.20:80;
    }

}
[root@Nginx ~]# nginx -s reload

#测试
[Administrator.DESKTOP-VJ307M3] ➤ curl -v lee.timinglee.org
*   Trying 172.25.254.100:80...
* TCP_NODELAY set
* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)
> GET / HTTP/1.1
> Host: lee.timinglee.org
> User-Agent: curl/7.65.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Server: nginx/1.28.1
< Date: Tue, 03 Feb 2026 06:33:11 GMT
< Content-Type: text/html; charset=UTF-8
< Content-Length: 14
< Connection: keep-alive
< Keep-Alive: timeout=100
< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT
< Accept-Ranges: bytes
<
172.25.254.10

(4)proxy_pass_header

bash 复制代码
[Administrator.DESKTOP-VJ307M3] ➤ curl -v lee.timinglee.org
*   Trying 172.25.254.100:80...
* TCP_NODELAY set
* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)
> GET / HTTP/1.1
> Host: lee.timinglee.org
> User-Agent: curl/7.65.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Server: nginx/1.28.1						#默认访问不透传server信息
< Date: Tue, 03 Feb 2026 06:35:35 GMT
< Content-Type: text/html; charset=UTF-8
< Content-Length: 14
< Connection: keep-alive
< Keep-Alive: timeout=100
< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT
< Accept-Ranges: bytes
<
172.25.254.10
* Connection #0 to host lee.timinglee.org left intact

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.10:80;
        proxy_pass_header Server;
    }

    location /web {
        proxy_pass http://172.25.254.20:80;
    }

}

[root@Nginx ~]# nginx -s reload
Administrator.DESKTOP-VJ307M3] ➤ curl -v lee.timinglee.org
*   Trying 172.25.254.100:80...
* TCP_NODELAY set
* Connected to lee.timinglee.org (172.25.254.100) port 80 (#0)
> GET / HTTP/1.1
> Host: lee.timinglee.org
> User-Agent: curl/7.65.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Date: Tue, 03 Feb 2026 06:37:25 GMT
< Content-Type: text/html; charset=UTF-8
< Content-Length: 14
< Connection: keep-alive
< Keep-Alive: timeout=100
< Server: Apache/2.4.62 (Red Hat Enterprise Linux)			#透传结果
< Last-Modified: Tue, 03 Feb 2026 06:20:50 GMT
< Accept-Ranges: bytes
<
172.25.254.10
* Connection #0 to host lee.timinglee.org left intact

(5)透传信息

bash 复制代码
[root@RS1 ~]# vim /etc/httpd/conf/httpd.conf
    LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\" \"%{X-Forwarded-For}i\"" combined


[root@RS1 ~]# systemctl restart httpd

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.10:80;
        proxy_set_header X-Forwarded-For $remote_addr;

    }

    location /web {
        proxy_pass http://172.25.254.20:80;
    }

[root@Nginx ~]# nginx -s reload

[Administrator.DESKTOP-VJ307M3] ➤ curl  lee.timinglee.org
172.25.254.10


[root@RS1 ~]# cat /etc/httpd/logs/access_log
172.25.254.100 - - [03/Feb/2026:14:47:37 +0800] "GET / HTTP/1.0" 200 14 "-" "curl/7.65.0" "172.25.254.1"

2.利用反向代理实现动静分离

(1)试验机环境
bash 复制代码
#在10中
[root@RS1 ~]# dnf install php -y
[root@RS1 ~]# systemctl restart httpd

[root@RS1 ~]# vim /var/www/html/index.php
<?php
    echo "<h2>172.25.254.10</h2>";
    phpinfo();
?>
(2)动静分离的实现
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.20:80;

    }

    location ~* \.(php|js)$ {
        proxy_pass http://172.25.254.10:80;
    }

}
[root@Nginx ~]# nginx -s reload

测试

3.缓存加速

(1)当未启用缓存时进行压测
bash 复制代码
[Administrator.DESKTOP-VJ307M3] ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php
This is ApacheBench, Version 2.3 <$Revision: 1807734 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)
Completed 1000 requests
Completed 2000 requests
Completed 3000 requests
Completed 4000 requests
Completed 5000 requests
Completed 6000 requests
Completed 7000 requests
Completed 8000 requests
Completed 9000 requests
Completed 10000 requests
Finished 10000 requests


Server Software:        nginx/1.28.1
Server Hostname:        lee.timinglee.org
Server Port:            80

Document Path:          /index.php
Document Length:        72921 bytes

Concurrency Level:      50
Time taken for tests:   13.678 seconds
Complete requests:      10000
Failed requests:        9963				#失败的
   (Connect: 0, Receive: 0, Length: 9963, Exceptions: 0)
Total transferred:      731097819 bytes
HTML transferred:       729237819 bytes
Requests per second:    731.10 [#/sec] (mean)
Time per request:       68.390 [ms] (mean)
Time per request:       1.368 [ms] (mean, across all concurrent requests)
Transfer rate:          52197.72 [Kbytes/sec] received

Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    7   4.0      6      26
Processing:     4   61 168.8     44    3405
Waiting:        2   38 129.9     26    3316
Total:          5   68 168.7     51    3405

Percentage of the requests served within a certain time (ms)
  50%     51
  66%     61
  75%     68
  80%     71
  90%     83
  95%     92
  98%    105
  99%    506
 100%   3405 (longest request)
(2)设定缓存加速
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
proxy_cache_path /usr/local/nginx/proxy_cache levels=1:2:2 keys_zone=proxycache:20m inactive=120s max_size=1g;

server {
    listen 80;
    server_name lee.timinglee.org;
    location / {
        proxy_pass http://172.25.254.20:80;

    }

    location ~* \.(php|js)$ {
        proxy_pass http://172.25.254.10:80;
        proxy_cache proxycache;
        proxy_cache_key $request_uri;
        proxy_cache_valid 200 302 301 10m;
        proxy_cache_valid any 1m;
    }

}


[root@Nginx ~]# systemctl restart nginx.service
[root@Nginx ~]# tree  /usr/local/nginx/proxy_cache/
/usr/local/nginx/proxy_cache/

0 directories, 0 files

#测试
[Administrator.DESKTOP-VJ307M3] ➤ ab -n 10000 -c 50 lee.timinglee.org/index.php
This is ApacheBench, Version 2.3 <$Revision: 1807734 $>
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking lee.timinglee.org (be patient)
Completed 1000 requests
Completed 2000 requests
Completed 3000 requests
Completed 4000 requests
Completed 5000 requests
Completed 6000 requests
Completed 7000 requests
Completed 8000 requests
Completed 9000 requests
Completed 10000 requests
Finished 10000 requests


Server Software:        nginx/1.28.1
Server Hostname:        lee.timinglee.org
Server Port:            80

Document Path:          /index.php
Document Length:        72925 bytes

Concurrency Level:      50
Time taken for tests:   4.365 seconds
Complete requests:      10000
Failed requests:        0
Total transferred:      731110000 bytes
HTML transferred:       729250000 bytes
Requests per second:    2290.76 [#/sec] (mean)
Time per request:       21.827 [ms] (mean)
Time per request:       0.437 [ms] (mean, across all concurrent requests)
Transfer rate:          163554.31 [Kbytes/sec] received

Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    4   1.8      4      11
Processing:     4   18  31.3     15     734
Waiting:        1    9  30.7      5     726
Total:          6   22  31.2     20     734

Percentage of the requests served within a certain time (ms)
  50%     20
  66%     21
  75%     21
  80%     22
  90%     27
  95%     32
  98%     41
  99%     46
 100%    734 (longest request)


[root@Nginx ~]# tree  /usr/local/nginx/proxy_cache/
/usr/local/nginx/proxy_cache/
└── 1
    └── af
        └── 15
            └── e251273eb74a8ee3f661a7af00915af1

3 directories, 1 file

4.反向代理负载均衡

(1)实验环境
bash 复制代码
172.25.254.100  #Nginx 代理服务器
172.25.254.10  #后端web A，Apache部署
172.25.254.20  #后端web B，Apache部署
(2)实现负载均衡
bash 复制代码
[root@Nginx ~]# mkdir  /usr/local/nginx/conf/upstream/
[root@Nginx ~]# vim /usr/local/nginx/conf/nginx.conf
events {
    worker_connections  10000;
    use epoll;
    accept_mutex on;
    multi_accept on;
}

http {
    include       mime.types;
    default_type  application/octet-stream;
	include "/usr/local/nginx/conf/upstream/*.conf";		#子配置目录


[root@Nginx ~]# vim /usr/local/nginx/conf/upstream/loadbalance.conf
upstream webserver {
    server 172.25.254.10:80 weight=1 fail_timeout=15s max_fails=3;
    server 172.25.254.20:80 weight=1 fail_timeout=15s max_fails=3;
    server 172.25.254.100:8888 backup;

}
server {
    listen 80;
    server_name www.timinglee.org;

    location ~ / {
        proxy_pass http://webserver;
    }
}



[root@Nginx ~]# mkdir  /webdir/timinglee.org/error/html -p
[root@Nginx ~]# echo error > /webdir/timinglee.org/error/html/index.html

[root@Nginx ~]# vim /usr/local/nginx/conf/conf.d/vhosts.conf
server {
    listen 8888;
    root /webdir/timinglee.org/error/html;
}


#测试：
[root@Nginx ~]# curl www.timinglee.org
172.25.254.10
[root@Nginx ~]# curl www.timinglee.org
172.25.254.20
[root@Nginx ~]# curl www.timinglee.org
172.25.254.10
[root@Nginx ~]# curl www.timinglee.org
172.25.254.20
[root@Nginx ~]# curl www.timinglee.org
172.25.254.20
[root@Nginx ~]# curl www.timinglee.org
172.25.254.20


[root@RS1+2 ~]# systemctl stop httpd

[root@Nginx ~]# curl www.timinglee.org
error

5.Nginx负载均衡算法

bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/upstream/loadbalance.conf
upstream webserver {
    #ip_hash;
    #hash $request_uri consistent;
    #least_conn;
    hash $cookie_lee;
    server 172.25.254.10:80 weight=1 fail_timeout=15s max_fails=3;
    server 172.25.254.20:80 weight=1 fail_timeout=15s max_fails=3;
    #server 172.25.254.100:8888 backup;

}
server {
    listen 80;
    server_name www.timinglee.org;

    location ~ / {
        proxy_pass http://webserver;
    }
}



#
[root@Nginx ~]# curl  -b lee=20 www.timinglee.org
[root@Nginx ~]# curl   www.timinglee.org/web1/index.html
[root@Nginx ~]# curl   www.timinglee.org/

Nginx 与 PHP-FPM 集成

1.PHP的源码编译

bash 复制代码
1.下载源码包
[root@Nginx ~]# wget https://www.php.net/distributions/php-8.3.30.tar.gz
[root@Nginx ~]# wget https://mirrors.aliyun.com/rockylinux/9.7/devel/x86_64/os/Packages/o/oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm     #依赖


2.解压
[root@Nginx ~]# tar zxf php-8.3.30.tar.gz
[root@Nginx ~]# ls
anaconda-ks.cfg                lee.png              nginx-1.29.4.tar.gz  test.c
daolian.png                    nginx-1.28.1         php-8.3.30
echo-nginx-module-0.64         nginx-1.28.1.tar.gz  php-8.3.30.tar.gz
echo-nginx-module-0.64.tar.gz  nginx-1.29.4         test
[root@Nginx ~]# cd php-8.3.30


3.源码编译

[root@Nginx ~]# dnf install gcc systemd-devel-252-51.el9.x86_64 libxml2-devel.x86_64 sqlite-devel.x86_64  libcurl-devel.x86_64  libpng-devel.x86_64 oniguruma-devel-6.9.6-1.el9.6.x86_64.rpm -y

[root@Nginx ~]# cd php-8.3.30/
[root@Nginx php-8.3.30]# ./configure \
--prefix=/usr/local/php \		#安装路径
--with-config-file-path=/usr/local/php/etc \	#指定配置路径
--enable-fpm  \			#用cgi方式启动程序
--with-fpm-user=nginx \	#指定运行用户身份
--with-fpm-group=nginx \
--with-curl \			#打开curl浏览器支持
--with-iconv \			#启用iconv函数，转换字符编码
--with-mhash \			#mhash加密方式扩展库
--with-zlib \			#支持zlib库，用于压缩http压缩传输
--with-openssl \		#支持ssl加密
--enable-mysqlnd \		#mysql数据库
--with-mysqli \
--with-pdo-mysql \
--disable-debug \		#关闭debug功能
--enable-sockets \		#支持套接字访问
--enable-soap \			#支持soap扩展协议
--enable-xml \			#支持xml
--enable-ftp \			#支持ftp
--enable-gd \			#支持gd库
--enable-exif \			#支持图片元数据
--enable-mbstring \		#支持多字节字符串
--enable-bcmath \		#打开图片大小调整,用到zabbix监控的时候用到了这个模块
--with-fpm-systemd		#支持systemctl 管理cgi

[root@Nginx php-8.3.30]# make && make instsall




4.配置PHP

[root@Nginx php-8.3.30]# cd /usr/local/php/etc
[root@Nginx etc]# cp -p php-fpm.conf.default  php-fpm.conf

[root@Nginx etc]# vim php-fpm.conf
[global]
; Pid file
; Note: the default prefix is /usr/local/php/var
; Default Value: none
pid = run/php-fpm.pid


[root@Nginx etc]# cd php-fpm.d/
[root@Nginx php-fpm.d]# cp www.conf.default www.conf
[root@Nginx php-fpm.d]# vim www.conf
41 listen = 0.0.0.0:9000

[root@Nginx php-fpm.d]# cp /root/php-8.3.30/php.ini-production  /usr/local/php/etc/php.ini

[root@Nginx php-fpm.d]# vim /usr/local/php/etc/php.ini
989 date.timezone = Asia/Shangha

[root@Nginx ~]# cp /root/php-8.3.30/sapi/fpm/php-fpm.service /lib/systemd/system/
[root@Nginx ~]# vim /lib/systemd/system/php-fpm.service

# Mounts the /usr, /boot, and /etc directories read-only for processes invoked by this unit.
#ProtectSystem=full		#注释此参数
[root@Nginx ~]# systemctl daemon-reload
[root@Nginx ~]# systemctl enable --now php-fpm

[root@Nginx ~]# netstat -antlupe | grep php
tcp        0      0 0.0.0.0:9000            0.0.0.0:*               LISTEN      0          329917     165562/php-fpm: mas



5.为php设定环境变量
[root@Nginx ~]# vim ~/.bash_profile
export PATH=$PATH:/usr/local/nginx/sbin:/usr/local/php/sbin:/usr/local/php/bin

[root@Nginx ~]# source   ~/.bash_profile
[root@Nginx ~]# php -m

2.Nginx整合PHP

bash 复制代码
[root@Nginx conf.d]# mkdir  /webdir/timinglee.org/php/html -p
[root@Nginx conf.d]# vim /webdir/timinglee.org/php/html/index.html
php.timinglee.org

[root@Nginx conf.d]# vim /webdir/timinglee.org/php/html/index.php
<?php
  phpinfo();
?>


[root@Nginx ~]# cd /usr/local/nginx/conf/conf.d/
[root@Nginx conf.d]# vim php.conf
server {
  listen 80;
  server_name php.timinglee.org;
  root /webdir/timinglee.org/php/html;
  location ~ \.php$ {
    fastcgi_pass 127.0.0.1:9000;
    fastcgi_index index.php;
    include fastcgi.conf;
  }
}

[root@Nginx conf.d]# nginx -s reload

#测试
http://php.timinglee.org

http://php.timinglee.org/index.php

3.利用memcache实现php的缓存加速

bash 复制代码
(1)安装memcache

[root@Nginx ~]# dnf install memcached.x86_64 -y



(2)配置memcache

[root@Nginx ~]# vim /etc/sysconfig/memcached
PORT="11211"
USER="memcached"
MAXCONN="1024"
CACHESIZE="64"
OPTIONS="-l 0.0.0.0,::1"

[root@Nginx ~]# systemctl enable --now memcached.service

[root@Nginx ~]# netstat -antlupe | grep memcache
tcp        0      0 0.0.0.0:11211           0.0.0.0:*               LISTEN      991        437305     166169/memcached
tcp6       0      0 ::1:11211               :::*                    LISTEN      991        437306     166169/memcached


(3)升级php对于memcache的支持

[root@Nginx ~]# php -m	#查看php支持的插件

[root@Nginx ~]# tar zxf memcache-8.2.tgz
[root@Nginx ~]# cd memcache-8.2/
[root@Nginx memcache-8.2]# dnf install autoconf -y
[root@Nginx memcache-8.2]# phpize
[root@Nginx memcache-8.2]# ./configure  && make && make install

[root@Nginx memcache-8.2]# ls /usr/local/php/lib/php/extensions/no-debug-non-zts-20230831/
memcache.so  opcache.so

[root@Nginx memcache-8.2]# vim /usr/local/php/etc/php.ini
939  extension=memcache

[root@Nginx memcache-8.2]# systemctl restart php-fpm.service
[root@Nginx memcache-8.2]# php -m  | grep memcache
memcache





(4)测试性能

[root@Nginx memcache-8.2]# vim memcache.php
define('ADMIN_USERNAME','admin');   // Admin Username
define('ADMIN_PASSWORD','lee');     // Admin Password
$MEMCACHE_SERVERS[] = '172.25.254.100:11211'; // add more as an array
#$MEMCACHE_SERVERS[] = 'mymemcache-server2:11211'; // add more as an array

[root@Nginx memcache-8.2]# cp -p memcache.php  /webdir/timinglee.org/php/html/
[root@Nginx memcache-8.2]# cp -p example.php /webdir/timinglee.org/php/html/

#测试
http://php.timinglee.org/memcache.php			#数据页面，在浏览器中可以直接访问
[root@Nginx memcache-8.2]# ab -n 1000 -c 300  php.timinglee.org/example.php

4.nginx+memcache实现高速缓存解

bash 复制代码
1.重新编译nginx
[root@Nginx ~]# systemctl stop nginx.service
[root@Nginx ~]# cp /usr/local/nginx/conf/    /mnt/ -r
[root@Nginx ~]# rm -fr /usr/local/nginx/

[root@Nginx ~]# rm -rf nginx-1.29.4 nginx-1.28.1

[root@Nginx ~]# tar zxf nginx-1.28.1.tar.gz
[root@Nginx ~]# cd nginx-1.28.1/

[root@Nginx ~]# tar zxf srcache-nginx-module-0.33.tar.gz
[root@Nginx ~]# tar zxf memc-nginx-module-0.20.tar.gz

[root@Nginx ~]# cd nginx-1.28.1/
[root@Nginx nginx-1.28.1]# ./configure  --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_ssl_module --with-http_v2_module --with-http_realip_module --with-http_stub_status_module --with-http_gzip_static_module --with-pcre --with-stream --with-stream_ssl_module --with-stream_realip_module --add-module=/root/echo-nginx-module-0.64  --add-module=/root/memc-nginx-module-0.20 --add-module=/root/srcache-nginx-module-0.33
[root@Nginx nginx-1.28.1]# make && make install

[root@Nginx ~]# cd /usr/local/nginx/conf
[root@Nginx conf]# rm -fr nginx.conf
[root@Nginx conf]# cp /mnt/conf/nginx.conf /mnt/conf/conf.d/ . -r
[root@Nginx conf]# systemctl start nginx.service


2.整合memcache

[root@Nginx conf]# vim /usr/local/nginx/conf/conf.d/php.conf
upstream memcache {
   server 127.0.0.1:11211;
   keepalive 512;
}
server {
    listen 80;
    server_name php.timinglee.org;
    root /webdir/timinglee.org/php/html;
    index index.php index.html;

    location /memc {
        internal;
        memc_connect_timeout 100ms;
        memc_send_timeout 100ms;
        memc_read_timeout 100ms;
        set $memc_key $query_string;
        set $memc_exptime 300;
        memc_pass memcache;
    }
    location ~ \.php$ {
        set $key $uri$args;
        srcache_fetch GET /memc $key;
        srcache_store PUT /memc $key;
        fastcgi_pass 127.0.0.1:9000;
        fastcgi_index index.php;
        include fastcgi.conf;
  }
}

[root@Nginx conf]# nginx  -s reload
#测试
[root@Nginx conf]# ab -n 10000 -c500 http://php.timinglee.org/example.php

5.Nginx的四层负载均衡代理

(1)实验环境（Mysql）
bash 复制代码
[root@RS1 ~]# dnf install mariadb-server -y
[root@RS2 ~]#  dnf install mariadb-server -y

[root@RS1 ~]# vim /etc/my.cnf.d/mariadb-server.cnf
server-id=10

[root@RS2 ~]# vim /etc/my.cnf.d/mariadb-server.cnf
server-id=20
[root@RS1 ~]# systemctl enable --now mariadb
[root@RS2 ~]# systemctl enable --now mariadb

[root@RS1 ~]# mysql
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 10.5.27-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> CREATE USER lee@'%' IDENTIFIED BY 'lee';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> GRANT ALL ON *.* TO lee@'%';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]>

[root@RS2 ~]# mysql
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 3
Server version: 10.5.27-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>  CREATE USER lee@'%' IDENTIFIED BY 'lee';
Query OK, 0 rows affected (0.001 sec)

MariaDB [(none)]> GRANT ALL ON *.* TO lee@'%';
Query OK, 0 rows affected (0.001 sec)
(2)实验环境（dns）
bash 复制代码
[root@RS1 ~]# dnf install bind -y
[root@RS2 ~]# dnf install bind -y

[root@RS1 ~]# vim /etc/named.conf
[root@RS2 ~]# vim /etc/named.conf

options {
//      listen-on port 53 { 127.0.0.1; };
//      listen-on-v6 port 53 { ::1; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
        secroots-file   "/var/named/data/named.secroots";
        recursing-file  "/var/named/data/named.recursing";
//      allow-query     { localhost; };
        dnssec-validation no;

[root@RS1 ~]# vim /etc/named.rfc1912.zones
[root@RS2 ~]# vim /etc/named.rfc1912.zones

zone "timinglee.org" IN {
        type master;
        file "timinglee.org.zone";
        allow-update { none; };
};

[root@RS1 ~]# cd /var/named/
[root@RS2 ~]# cd /var/named/
[root@RS1 named]# cp -p named.localhost  timinglee.org.zone
[root@RS2 named]# cp -p named.localhost  timinglee.org.zone


[root@RS1 named]# vim timinglee.org.zone
$TTL 1D
@       IN SOA  dns.timingle.org. rname.invalid. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
        NS      dns.timinglee.org.
dns     A       172.25.254.10

[root@RS2 named]# vim timinglee.org.zone
$TTL 1D
@       IN SOA  dns.timingle.org. rname.invalid. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
        NS      dns.timinglee.org.
dns     A       172.25.254.20


[root@RS2 named]# systemctl enable --now named

#测试
[root@RS1 named]# dig dns.timinglee.org @172.25.254.10

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.10
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 24486
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 4bb88849cac36aa4010000006982fef4676bf81574ab80b7 (good)
;; QUESTION SECTION:
;dns.timinglee.org.             IN      A
;; ANSWER SECTION:
dns.timinglee.org.      86400   IN      A       172.25.254.10
;; Query time: 3 msec
;; SERVER: 172.25.254.10#53(172.25.254.10)
;; WHEN: Wed Feb 04 16:10:28 CST 2026
;; MSG SIZE  rcvd: 90
[root@RS1 named]# dig dns.timinglee.org @172.25.254.20
; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.20
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 42456
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 7c088d4822b8f1c1010000006982fef9047f3812bdaf7c0e (good)
;; QUESTION SECTION:
;dns.timinglee.org.             IN      A

;; ANSWER SECTION:
dns.timinglee.org.      86400   IN      A       172.25.254.20

;; Query time: 1 msec
;; SERVER: 172.25.254.20#53(172.25.254.20)
;; WHEN: Wed Feb 04 16:10:33 CST 2026
;; MSG SIZE  rcvd: 90
(3)tcp四层负载
bash 复制代码
[root@Nginx conf]# mkdir  /usr/local/nginx/conf/tcp -p
[root@Nginx conf]# mkdir  /usr/local/nginx/conf/udp -p
[root@Nginx conf]# vim /usr/local/nginx/conf/nginx.conf
include "/usr/local/nginx/conf/tcp/*.conf";

[root@Nginx conf]# vim /usr/local/nginx/conf/tcp/mariadb.conf
stream {
  upstream mysql_server {
    server 172.25.254.10:3306  max_fails=3 fail_timeout=30s;
    server 172.25.254.20:3306  max_fails=3 fail_timeout=30s;
  }

  server {
    listen 172.25.254.100:3306;
    proxy_pass mysql_server;
    proxy_connect_timeout 30s;
    proxy_timeout 300s;
  }

}
[root@Nginx conf]# nginx  -s reload

#检测
[root@Nginx ~]#dnf install mariadb
[root@Nginx ~]# mysql -ulee -plee -h172.25.254.100
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 4
Server version: 10.5.27-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> SELECT @@server_id;
+-------------+
| @@server_id |
+-------------+
|          10 |
+-------------+
1 row in set (0.001 sec)

MariaDB [(none)]> quit
Bye
[root@Nginx ~]# mysql -ulee -plee -h172.25.254.100
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 4
Server version: 10.5.27-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]> SELECT @@server_id;
+-------------+
| @@server_id |
+-------------+
|          20 |
+-------------+
1 row in set (0.001 sec)
(4)udp四层负载
bash 复制代码
[root@Nginx ~]# vim /usr/local/nginx/conf/tcp/mariadb.conf
stream {
  upstream mysql_server {
    server 172.25.254.10:3306  max_fails=3 fail_timeout=30s;
    server 172.25.254.20:3306  max_fails=3 fail_timeout=30s;
  }

  upstream dns_server{
    server 172.25.254.10:53 max_fails=3 fail_timeout=30s;
    server 172.25.254.20:53 max_fails=3 fail_timeout=30s;
  }

  server {
    listen 172.25.254.100:3306;
    proxy_pass mysql_server;
    proxy_connect_timeout 30s;
    proxy_timeout 300s;
  }

  server {
        listen 172.25.254.100:53 udp;
        proxy_pass dns_server;
        proxy_timeout 1s;
        proxy_responses 1;
        error_log logs/dns.log;
    }
}
[root@Nginx ~]# nginx  -s reload


#测试

[root@Nginx ~]# dig dns.timinglee.org @172.25.254.100

; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.100
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 32224
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1
;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 9ac742ccc566d4450100000069830452db8dce1f1b224c9f (good)
;; QUESTION SECTION:
;dns.timinglee.org.             IN      A
;; ANSWER SECTION:
dns.timinglee.org.      86400   IN      A       172.25.254.10
;; Query time: 2 msec
;; SERVER: 172.25.254.100#53(172.25.254.100)
;; WHEN: Wed Feb 04 16:33:22 CST 2026
;; MSG SIZE  rcvd: 90
[root@Nginx ~]# dig dns.timinglee.org @172.25.254.100
; <<>> DiG 9.16.23-RH <<>> dns.timinglee.org @172.25.254.100
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 2259
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 1232
; COOKIE: 7f9ffa4884c0b685010000006983045565fd892fc72c5514 (good)
;; QUESTION SECTION:
;dns.timinglee.org.             IN      A

;; ANSWER SECTION:
dns.timinglee.org.      86400   IN      A       172.25.254.20

;; Query time: 2 msec
;; SERVER: 172.25.254.100#53(172.25.254.100)
;; WHEN: Wed Feb 04 16:33:25 CST 2026
;; MSG SIZE  rcvd: 90

编译安装 openresty

bash 复制代码
[root@Nginx src]#wget https://openresty.org/download/openresty-1.27.1.2.tar.gz
[root@Nginx ~]#dnf -yq install gcc pcre-devel openssl-devel perl zlib-devel
[root@Nginx ~]#useradd -r -s /sbin/nologin nginx
[root@Nginx ~]#tar zxf openresty-1.27.1.2
[root@webserver ~]# cd openresty-1.27.1.2/
[root@Nginx openresty-1.17.8.2]#./configure \
--prefix=/usr/local/openresty \
--user=nginx --group=nginx \
--with-http_ssl_module \
--with-http_v2_module \
--with-http_stub_status_module \
--with-http_gzip_static_module
--with-pcre --with-stream \
--with-stream_ssl_module \
--with-stream_realip_module

[root@Nginx openresty-1.17.8.2]#gmake && gmake install
[root@webserver openresty-1.27.1.2]# cd /usr/local/openresty/
[root@webserver openresty]# ls
bin  COPYRIGHT  luajit  lualib  nginx  pod  resty.index  site
[root@webserver openresty]# vim ~/.bash_profile
export PATH=$PATH:/usr/local/openresty/bin

source  ~/.bash_profile


[root@Nginx openresty-1.17.8.2]#openresty -v
nginx version: openresty/1.17.8.2

[root@Nginx openresty-1.17.8.2]#openresty

[root@Nginx openresty-1.17.8.2]#ps -ef |grep nginx

[root@webserver openresty]# echo hello test > /usr/local/openresty/nginx/html/index.html
[root@webserver openresty]# curl  172.25.254.200
hello test
相关推荐
lldhsds2 小时前
kvm虚拟化安装deepin desktop 25 磁盘空间过小弹窗显示为黑屏
linux
txzz88882 小时前
CentOS-Stream-10 Secure Shell服务器sshd_config配置文件
linux·centos·sshd_config·ssh配置
这波不该贪内存的2 小时前
Linux文件编程：流与操作全解析
java·服务器·前端
梅孔立2 小时前
Ansible 100 台服务器一键管控实战 进阶版
服务器·git·ansible
-Try hard-2 小时前
线程间通信 | 避免资源竞争、实现同步通信
linux·开发语言·信息与通信
归叶再无青2 小时前
企业级web服务（Tomcat开源web应用服务器）
运维·前端·开源·tomcat·bash
Trouvaille ~2 小时前
【项目篇】从零手写高并发服务器（一）：项目介绍与开发环境搭建
linux·运维·服务器·网络·c++·高并发·muduo库
!沧海@一粟!2 小时前
Kylin/Linux 服务器健康一键巡检工具
linux·服务器·kylin
China_Yanhy2 小时前
入职 Web3 运维日记 · 第 14 日：铸造无形钥匙 —— OIDC 与 CI/CD 施工实录
运维·web3
热门推荐
01GitHub 镜像站点02【OpenClaw 本地实战 Ep.3】突破瓶颈：强制修改 openclaw.json 解锁 32k 上下文记忆03Claude Code + GLM4.7 避坑指南：解决 Unable to connect to Anthropic services04AI Agent 平台横评：ZeroClaw vs OpenClaw vs Nanobot05OpenClaw 使用和管理 MCP 完全指南06Clawdbot部署教程：解决‘gateway token missing’授权问题的完整步骤07AI 规范驱动开发“三剑客”深度对比：Spec-Kit、Kiro 与 OpenSpec 实战指南08AI agent：介绍 ZeroClaw 安装，使用09OpenClaw 安装之（三）DeepSeek模型接入配置和详细配置参数10EvoMap 是什么？
