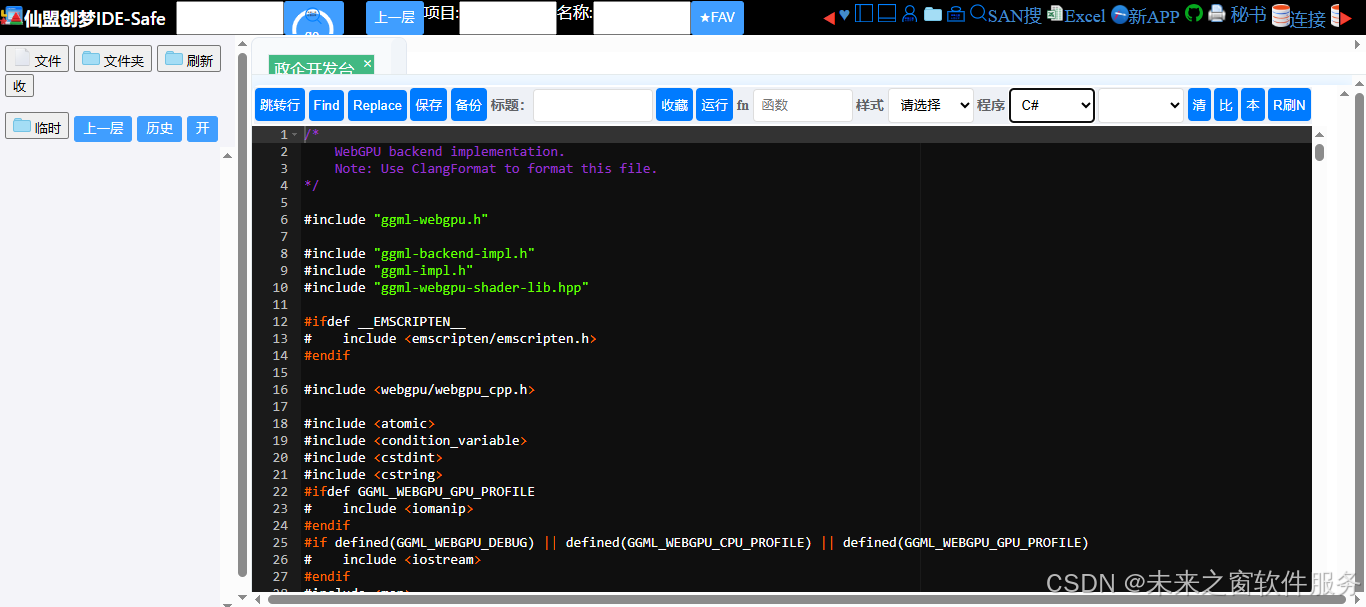

WebGPU backend implementation.
Note: Use ClangFormat to format this file.
*/
#include "ggml-webgpu.h"
#include "ggml-backend-impl.h"
#include "ggml-impl.h"
#include "ggml-webgpu-shader-lib.hpp"
#ifdef __EMSCRIPTEN__
# include <emscripten/emscripten.h>
#endif
#include <webgpu/webgpu_cpp.h>
#include <atomic>
#include <condition_variable>
#include <cstdint>
#include <cstring>
#ifdef GGML_WEBGPU_GPU_PROFILE
# include <iomanip>
#endif
#if defined(GGML_WEBGPU_DEBUG) || defined(GGML_WEBGPU_CPU_PROFILE) || defined(GGML_WEBGPU_GPU_PROFILE)
# include <iostream>
#endif
#include <map>
#include <memory>
#include <mutex>
#include <optional>
#include <string>
#include <utility>
#include <vector>
#define ROUNDUP_POW2(x, pow2) (((x) + ((pow2) - 1)) & ~((pow2) - 1))
#define CEIL_DIV(M, N) (((M) + (N) - 1) / (N))
// Return a rectangular grid of workgroups with minimal over-provisioned workgroups.
// Assumes that the total number of workgroups does not exceed max_per_dim^2.
static inline void compute_2d_workgroups(uint32_t total_wg, uint32_t max_per_dim, uint32_t & wg_x, uint32_t & wg_y) {
wg_y = std::max(1u, CEIL_DIV(total_wg, max_per_dim));
wg_x = CEIL_DIV(total_wg, wg_y);
}
#ifdef GGML_WEBGPU_DEBUG
# define WEBGPU_LOG_DEBUG(msg) std::cout << msg << std::endl
# define WEBGPU_DEBUG_BUF_ELEMS 512
#else
# define WEBGPU_LOG_DEBUG(msg) ((void) 0)
#endif // GGML_WEBGPU_DEBUG
#ifdef GGML_WEBGPU_CPU_PROFILE
// total timing (aggregated)
# define WEBGPU_CPU_PROFILE_TOTAL_START(id) auto cpu_total_start_##id = std::chrono::high_resolution_clock::now();
# define WEBGPU_CPU_PROFILE_TOTAL_END(id, ctx) \
auto cpu_total_end_##id = std::chrono::high_resolution_clock::now(); \
double cpu_total_time_##id = \
std::chrono::duration<double, std::milli>(cpu_total_end_##id - cpu_total_start_##id).count(); \
(ctx)->cpu_time_ms[#id] += cpu_total_time_##id;
// fine-grained timing (not included in totals)
# define WEBGPU_CPU_PROFILE_DETAIL_START(id) auto cpu_detail_start_##id = std::chrono::high_resolution_clock::now();
# define WEBGPU_CPU_PROFILE_DETAIL_END(id, ctx) \
auto cpu_detail_end_##id = std::chrono::high_resolution_clock::now(); \
double cpu_detail_time_##id = \
std::chrono::duration<double, std::milli>(cpu_detail_end_##id - cpu_detail_start_##id).count(); \
(ctx)->cpu_detail_ms[#id] += cpu_detail_time_##id;
#else
# define WEBGPU_CPU_PROFILE_TOTAL_START(id)
# define WEBGPU_CPU_PROFILE_TOTAL_END(id, ctx)
# define WEBGPU_CPU_PROFILE_DETAIL_START(id)
# define WEBGPU_CPU_PROFILE_DETAIL_END(id, ctx)
#endif // GGML_WEBGPU_CPU_PROFILE
#ifdef GGML_WEBGPU_GPU_PROFILE
# define WEBGPU_NUM_TIMESTAMP_QUERY_BUFS 32
# define WEBGPU_TIMESTAMP_QUERY_BUF_SIZE_BYTES 16 // e.g. enough for two timestamps
#endif
/* Constants */
#define WEBGPU_NUM_PARAM_BUFS 96u
#define WEBGPU_COMMAND_SUBMIT_BATCH_SIZE 32u
#define WEBGPU_WAIT_ANY_TIMEOUT_MS 0
// Maximum number of in-flight submissions per-thread, to avoid exhausting the
// parameter buffer pool
#define WEBGPU_MAX_INFLIGHT_SUBS_PER_THREAD (WEBGPU_NUM_PARAM_BUFS / WEBGPU_COMMAND_SUBMIT_BATCH_SIZE)
#define WEBGPU_PARAMS_BUF_SIZE_BYTES 128 // enough for 32 parameters
#define WEBGPU_SET_ROWS_ERROR_BUF_SIZE_BYTES 4
#define WEBGPU_STORAGE_BUF_BINDING_MULT 4 // a storage buffer binding size must be a multiple of 4
// For operations which process a row in parallel, this seems like a reasonable
// default
#define WEBGPU_ROW_SPLIT_WG_SIZE 64
// Track https://github.com/gpuweb/gpuweb/issues/5315 for fixes to
// implementations so this can be removed, necessary only for get_rows right now
#define WEBGPU_MAX_WG_SIZE 288
/* End Constants */
// This is a "fake" base pointer, since WebGPU buffers do not have pointers to
// their locations.
static void * const webgpu_ptr_base = (void *) (uintptr_t) 0x1000; // NOLINT
// Always returns the base offset of a tensor, regardless of views.
static uint64_t webgpu_tensor_offset(const ggml_tensor * tensor) {
if (tensor->view_src) {
return (uint8_t *) tensor->view_src->data - (uint8_t *) webgpu_ptr_base;
}
return (uint8_t *) tensor->data - (uint8_t *) webgpu_ptr_base;
}
/* Struct definitions */
// Forward reference
static void ggml_webgpu_create_buffer(wgpu::Device & device,
wgpu::Buffer & buffer,
size_t size,
wgpu::BufferUsage usage,
const char * label);
// Holds a pool of parameter buffers for WebGPU operations
struct webgpu_buf_pool {
std::vector<wgpu::Buffer> free;
// The pool must be synchronized because
// 1. The memset pool is shared globally by every ggml buffer,
// since allocating a pool per ggml buffer would consume too much memory.
// 2. For the per-thread buffer pools in webgpu_context,
// buffers are allocated and freed in Dawn callbacks,
// which can run on a different thread than the calling thread.
std::mutex mutex;
std::condition_variable cv;
size_t cur_pool_size;
size_t max_pool_size;
wgpu::Device device;
wgpu::BufferUsage dev_buf_usage;
size_t buf_size;
bool should_grow;
void init(wgpu::Device device,
int num_bufs,
size_t buf_size,
wgpu::BufferUsage dev_buf_usage,
bool should_grow = false,
size_t max_pool_size = WEBGPU_NUM_PARAM_BUFS * 2) {
this->max_pool_size = max_pool_size;
this->cur_pool_size = num_bufs;
this->device = device;
this->dev_buf_usage = dev_buf_usage;
this->buf_size = buf_size;
this->should_grow = should_grow;
for (int i = 0; i < num_bufs; i++) {
wgpu::Buffer dev_buf;
ggml_webgpu_create_buffer(device, dev_buf, buf_size, dev_buf_usage, "ggml_webgpu_dev_pool_buf");
free.push_back(dev_buf);
}
}
wgpu::Buffer alloc_bufs() {
std::unique_lock<std::mutex> lock(mutex);
if (!free.empty()) {
wgpu::Buffer buf = free.back();
free.pop_back();
return buf;
}
// Try growing the pool if no free buffers
if (free.empty() && cur_pool_size < max_pool_size && should_grow) {
cur_pool_size++;
wgpu::Buffer dev_buf;
ggml_webgpu_create_buffer(device, dev_buf, buf_size, dev_buf_usage, "ggml_webgpu_dev_pool_buf");
if (!dev_buf) {
GGML_ABORT("webgpu_buf_pool: failed to allocate buffers");
}
return dev_buf;
}
cv.wait(lock, [this] { return !free.empty(); });
wgpu::Buffer buf = free.back();
free.pop_back();
return buf;
}
void free_bufs(std::vector<wgpu::Buffer> bufs) {
std::lock_guard<std::mutex> lock(mutex);
free.insert(free.end(), bufs.begin(), bufs.end());
cv.notify_all();
}
void cleanup() {
std::lock_guard<std::mutex> lock(mutex);
for (auto & buf : free) {
if (buf) {
buf.Destroy();
}
}
free.clear();
}
~webgpu_buf_pool() { this->cleanup(); }
};
#ifdef GGML_WEBGPU_GPU_PROFILE
struct webgpu_gpu_profile_bufs {
wgpu::Buffer host_buf;
wgpu::Buffer dev_buf;
wgpu::QuerySet query_set;
};
// Holds a pool of parameter buffers for WebGPU operations
struct webgpu_gpu_profile_buf_pool {
std::vector<webgpu_gpu_profile_bufs> free;
std::mutex mutex;
std::condition_variable cv;
void init(wgpu::Device device,
int num_bufs,
size_t buf_size,
wgpu::BufferUsage dev_buf_usage,
wgpu::BufferUsage host_buf_usage) {
for (int i = 0; i < num_bufs; i++) {
wgpu::Buffer host_buf;
wgpu::Buffer dev_buf;
ggml_webgpu_create_buffer(device, host_buf, buf_size, host_buf_usage, "ggml_webgpu_host_profile_buf");
ggml_webgpu_create_buffer(device, dev_buf, buf_size, dev_buf_usage, "ggml_webgpu_dev_profile_buf");
// Create a query set for 2 timestamps
wgpu::QuerySetDescriptor ts_query_set_desc = {};
ts_query_set_desc.type = wgpu::QueryType::Timestamp;
ts_query_set_desc.count = 2;
wgpu::QuerySet ts_query_set = device.CreateQuerySet(&ts_query_set_desc);
free.push_back({ host_buf, dev_buf, ts_query_set });
}
}
webgpu_gpu_profile_bufs alloc_bufs() {
std::unique_lock<std::mutex> lock(mutex);
cv.wait(lock, [this] { return !free.empty(); });
webgpu_gpu_profile_bufs bufs = free.back();
free.pop_back();
return bufs;
}
void free_bufs(std::vector<webgpu_gpu_profile_bufs> bufs) {
std::lock_guard<std::mutex> lock(mutex);
free.insert(free.end(), bufs.begin(), bufs.end());
cv.notify_all();
}
void cleanup() {
std::lock_guard<std::mutex> lock(mutex);
for (auto & bufs : free) {
bufs.host_buf.Destroy();
bufs.dev_buf.Destroy();
bufs.query_set.Destroy();
}
free.clear();
}
~webgpu_gpu_profile_buf_pool() { this->cleanup(); }
};
#endif
struct webgpu_command {
uint32_t num_kernels;
wgpu::CommandBuffer commands;
std::vector<wgpu::Buffer> params_bufs;
#ifdef GGML_WEBGPU_GPU_PROFILE
webgpu_gpu_profile_bufs timestamp_query_bufs;
std::string pipeline_name;
#endif
};
struct webgpu_capabilities {
wgpu::Limits limits;
bool supports_subgroup_matrix = false;
uint32_t sg_mat_m = 0;
uint32_t sg_mat_n = 0;
uint32_t sg_mat_k = 0;
uint32_t subgroup_size = 0;
uint32_t max_subgroup_size = 0;
size_t memset_bytes_per_thread;
};
// Stores global webgpu members
struct webgpu_global_context_struct {
wgpu::Instance instance;
wgpu::Adapter adapter;
wgpu::Device device;
wgpu::Queue queue;
webgpu_capabilities capabilities;
// Shared buffer to move data from device to host
wgpu::Buffer get_tensor_staging_buf;
// Global mutex for pipeline and staging buffer, will be refactored to exclude pipeline caches.
std::recursive_mutex mutex;
webgpu_buf_pool memset_buf_pool;
std::map<int, webgpu_pipeline> memset_pipelines; // variant or type index
#ifdef GGML_WEBGPU_CPU_PROFILE
// Profiling: labeled CPU time in ms (total)
std::unordered_map<std::string, double> cpu_time_ms;
// Profiling: detailed CPU time in ms
std::unordered_map<std::string, double> cpu_detail_ms;
#endif
#ifdef GGML_WEBGPU_GPU_PROFILE
// Profiling: per-shader GPU time in ms
std::unordered_map<std::string, double> shader_gpu_time_ms;
// Profiling: pool of timestamp query buffers (one per operation)
webgpu_gpu_profile_buf_pool timestamp_query_buf_pool;
#endif
#ifdef GGML_WEBGPU_DEBUG
wgpu::Buffer debug_host_buf;
wgpu::Buffer debug_dev_buf;
#endif
~webgpu_global_context_struct() {
if (this->get_tensor_staging_buf) {
this->get_tensor_staging_buf.Destroy();
this->get_tensor_staging_buf = nullptr;
}
#ifdef GGML_WEBGPU_DEBUG
if (this->debug_host_buf) {
this->debug_host_buf.Destroy();
this->debug_host_buf = nullptr;
}
if (this->debug_dev_buf) {
this->debug_dev_buf.Destroy();
this->debug_dev_buf = nullptr;
}
#endif
}
};
typedef std::shared_ptr<webgpu_global_context_struct> webgpu_global_context;
struct webgpu_submission {
wgpu::FutureWaitInfo submit_done;
#ifdef GGML_WEBGPU_GPU_PROFILE
std::vector<wgpu::FutureWaitInfo> profile_futures;
#endif
};
// All the base objects needed to run operations on a WebGPU device
struct webgpu_context_struct {
// Points to global instances owned by ggml_backend_webgpu_reg_context
webgpu_global_context global_ctx;
std::unique_ptr<ggml_webgpu_shader_lib> shader_lib;
webgpu_buf_pool param_buf_pool;
wgpu::Buffer set_rows_dev_error_buf;
wgpu::Buffer set_rows_host_error_buf;
std::map<int, std::map<int, webgpu_pipeline>> cpy_pipelines; // src_type, dst_type
std::map<int, webgpu_pipeline> rms_norm_pipelines; // inplace
std::map<int, std::map<int, std::map<int, webgpu_pipeline>>> rope_pipelines; // type, ff, inplace
std::map<int, std::map<int, std::map<int, webgpu_pipeline>>> glu_pipelines; // glu_op, type, split
std::map<int, std::map<int, std::map<int, webgpu_pipeline>>> soft_max_pipelines; // mask_type, has_sink, inplace
size_t memset_bytes_per_thread;
};
typedef std::shared_ptr<webgpu_context_struct> webgpu_context;
// Metadata required for the ggml backend registration/discovery interface
struct ggml_backend_webgpu_reg_context {
// Since the Instance is a global entrypoint into the WebGPU API, it lives here
webgpu_global_context webgpu_global_ctx;
size_t device_count;
const char * name;
};
// Per-device struct for the global logical device interface
struct ggml_backend_webgpu_device_context {
webgpu_global_context webgpu_global_ctx;
std::string device_name;
std::string device_desc;
};
// Per-thread data required to actually run WebGPU operations in a backend instance
struct ggml_backend_webgpu_context {
webgpu_context webgpu_ctx;
std::string name;
};
// Per-thread data related to buffers
struct ggml_backend_webgpu_buffer_context {
wgpu::Buffer buffer;
std::string label;
webgpu_global_context global_ctx;
ggml_backend_webgpu_buffer_context(wgpu::Buffer buf, std::string lbl, webgpu_global_context global_ctx_) :
buffer(std::move(buf)),
label(std::move(lbl)),
global_ctx(std::move(global_ctx_)) {}
};
/* WebGPU object initializations */
static webgpu_pipeline ggml_webgpu_create_pipeline(wgpu::Device & device,
const char * shader_code,
const char * label,
const std::vector<wgpu::ConstantEntry> & constants = {}) {
wgpu::ShaderSourceWGSL shader_source;
shader_source.code = shader_code;
wgpu::ShaderModuleDescriptor shader_desc;
shader_desc.nextInChain = &shader_source;
wgpu::ShaderModule shader_module = device.CreateShaderModule(&shader_desc);
wgpu::ComputePipelineDescriptor pipeline_desc;
pipeline_desc.label = label;
pipeline_desc.compute.module = shader_module;
pipeline_desc.compute.entryPoint = "main"; // Entry point in the WGSL code
pipeline_desc.layout = nullptr; // nullptr means auto layout
if (constants.size() > 0) {
pipeline_desc.compute.constants = constants.data();
pipeline_desc.compute.constantCount = constants.size();
}
return { device.CreateComputePipeline(&pipeline_desc), label };
}
static void ggml_webgpu_create_buffer(wgpu::Device & device,
wgpu::Buffer & buffer,
size_t size,
wgpu::BufferUsage usage,
const char * label) {
wgpu::BufferDescriptor buffer_desc;
buffer_desc.size = size;
buffer_desc.usage = usage;
buffer_desc.label = label;
buffer_desc.mappedAtCreation = false;
// TODO: error handling
buffer = device.CreateBuffer(&buffer_desc);
}
/** End WebGPU object initializations */
/** WebGPU Actions */
static bool ggml_backend_webgpu_handle_wait_status(wgpu::WaitStatus status, bool allow_timeout = false) {
switch (status) {
case wgpu::WaitStatus::Success:
return true;
case wgpu::WaitStatus::TimedOut:
if (allow_timeout) {
return false;
}
GGML_LOG_ERROR("ggml_webgpu: WaitAny timed out unexpectedly\n");
return false;
case wgpu::WaitStatus::Error:
GGML_LOG_ERROR("ggml_webgpu: WaitAny returned an error\n");
return false;
default:
GGML_LOG_ERROR("ggml_webgpu: WaitAny returned an unknown status\n");
return false;
}
}
#ifdef GGML_WEBGPU_GPU_PROFILE
static void ggml_backend_webgpu_erase_completed_futures(std::vector<wgpu::FutureWaitInfo> & futures) {
futures.erase(std::remove_if(futures.begin(), futures.end(),
[](const wgpu::FutureWaitInfo & info) { return info.completed; }),
futures.end());
}
static void ggml_backend_webgpu_wait_profile_futures(webgpu_global_context & ctx,
std::vector<wgpu::FutureWaitInfo> & futures,
bool block) {
if (futures.empty()) {
return;
}
uint64_t timeout_ms = block ? UINT64_MAX : 0;
if (block) {
while (!futures.empty()) {
auto waitStatus = ctx->instance.WaitAny(futures.size(), futures.data(), timeout_ms);
if (ggml_backend_webgpu_handle_wait_status(waitStatus)) {
ggml_backend_webgpu_erase_completed_futures(futures);
}
}
} else {
auto waitStatus = ctx->instance.WaitAny(futures.size(), futures.data(), timeout_ms);
if (ggml_backend_webgpu_handle_wait_status(waitStatus, true)) {
ggml_backend_webgpu_erase_completed_futures(futures);
}
}
}
#endif
// Wait for the queue to finish processing all submitted work
static void ggml_backend_webgpu_wait(webgpu_global_context & ctx,
std::vector<webgpu_submission> & subs,
bool block = true) {
// If we have too many in-flight submissions, wait on the oldest one first.
if (subs.empty()) {
return;
}
while (subs.size() >= WEBGPU_MAX_INFLIGHT_SUBS_PER_THREAD) {
auto waitStatus = ctx->instance.WaitAny(1, &subs[0].submit_done, UINT64_MAX);
if (ggml_backend_webgpu_handle_wait_status(waitStatus)) {
#ifdef GGML_WEBGPU_GPU_PROFILE
ggml_backend_webgpu_wait_profile_futures(ctx, subs[0].profile_futures, true);
#endif
subs.erase(subs.begin());
}
}
if (subs.empty()) {
return;
}
if (block) {
for (auto & sub : subs) {
while (!sub.submit_done.completed) {
auto waitStatus = ctx->instance.WaitAny(1, &sub.submit_done, UINT64_MAX);
ggml_backend_webgpu_handle_wait_status(waitStatus);
}
#ifdef GGML_WEBGPU_GPU_PROFILE
ggml_backend_webgpu_wait_profile_futures(ctx, sub.profile_futures, true);
#endif
}
subs.clear();
} else {
// Poll each submit future once and remove completed submissions.
for (auto sub = subs.begin(); sub != subs.end();) {
auto waitStatus = ctx->instance.WaitAny(1, &sub->submit_done, 0);
ggml_backend_webgpu_handle_wait_status(waitStatus, true);
#ifdef GGML_WEBGPU_GPU_PROFILE
ggml_backend_webgpu_wait_profile_futures(ctx, sub->profile_futures, false);
if (sub->submit_done.completed && sub->profile_futures.empty()) {
#else
if (sub->submit_done.completed) {
#endif
sub = subs.erase(sub);
} else {
++sub;
}
}
}
}
static void ggml_backend_webgpu_map_buffer(webgpu_global_context & ctx,
wgpu::Buffer & buffer,
wgpu::MapMode mode,
size_t offset,
size_t size) {
ctx->instance.WaitAny(buffer.MapAsync(mode, offset, size, wgpu::CallbackMode::AllowSpontaneous,
[](wgpu::MapAsyncStatus status, wgpu::StringView message) {
if (status != wgpu::MapAsyncStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to map buffer: %s\n",
message.data);
}
}),
UINT64_MAX);
}
#ifdef GGML_WEBGPU_DEBUG
// This function adds debugging information to shaders, as WebGPU does not support printing directly.
// To use, add a bind group entry to the setup for the shader you are debugging, add the buffer and
// debug statements in the shader, and then call this function after encoding the commands and submitting them.
static void ggml_backend_webgpu_debug(webgpu_global_context & ctx) {
wgpu::CommandEncoder encoder = ctx->device.CreateCommandEncoder();
encoder.CopyBufferToBuffer(ctx->debug_dev_buf, 0, ctx->debug_host_buf, 0, ctx->debug_host_buf.GetSize());
wgpu::CommandBuffer commands = encoder.Finish();
ctx->queue.Submit(1, &commands);
ggml_backend_webgpu_map_buffer(ctx, ctx->debug_host_buf, wgpu::MapMode::Read, 0, ctx->debug_host_buf.GetSize());
const float * debug_data = (const float *) ctx->debug_host_buf.GetConstMappedRange();
std::cout << "debug[0]: " << debug_data[0] << "\n";
ctx->debug_host_buf.Unmap();
}
#endif
static webgpu_submission ggml_backend_webgpu_submit(webgpu_global_context & ctx,
std::vector<webgpu_command> & commands,
webgpu_buf_pool & param_buf_pool) {
std::vector<wgpu::CommandBuffer> command_buffers;
std::vector<wgpu::Buffer> params_bufs;
webgpu_submission submission;
#ifdef GGML_WEBGPU_GPU_PROFILE
std::vector<std::pair<std::string, webgpu_gpu_profile_bufs>> pipeline_name_and_ts_bufs;
#endif
for (const auto & command : commands) {
command_buffers.push_back(command.commands);
params_bufs.insert(params_bufs.end(), command.params_bufs.begin(), command.params_bufs.end());
}
ctx->queue.Submit(command_buffers.size(), command_buffers.data());
wgpu::Future p_f = ctx->queue.OnSubmittedWorkDone(
wgpu::CallbackMode::AllowSpontaneous,
[¶m_buf_pool, params_bufs](wgpu::QueueWorkDoneStatus status, wgpu::StringView message) {
if (status != wgpu::QueueWorkDoneStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to submit commands: %s\n", std::string(message).c_str());
}
// Free the staged buffers
param_buf_pool.free_bufs(params_bufs);
});
submission.submit_done = { p_f };
#ifdef GGML_WEBGPU_GPU_PROFILE
for (const auto & command : commands) {
auto label = command.pipeline_name;
auto ts_bufs = command.timestamp_query_bufs;
wgpu::Future f = ts_bufs.host_buf.MapAsync(
wgpu::MapMode::Read, 0, ts_bufs.host_buf.GetSize(), wgpu::CallbackMode::AllowSpontaneous,
[ctx, ts_bufs, label](wgpu::MapAsyncStatus status, wgpu::StringView message) {
if (status != wgpu::MapAsyncStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to map timestamp buffer: %s\n", std::string(message).c_str());
} else {
const uint64_t * ts_data = (const uint64_t *) ts_bufs.host_buf.GetConstMappedRange();
// WebGPU timestamps are in ns; convert to ms
double elapsed_ms = double(ts_data[1] - ts_data[0]) * 1e-6;
ctx->shader_gpu_time_ms[label] += elapsed_ms;
}
// We can't unmap in here due to WebGPU reentrancy limitations.
ctx->timestamp_query_buf_pool.free_bufs({ ts_bufs });
});
submission.profile_futures.push_back({ f });
}
#endif
return submission;
}
static webgpu_command ggml_backend_webgpu_build_multi(
webgpu_global_context & ctx,
webgpu_buf_pool & param_buf_pool,
const std::vector<webgpu_pipeline> & pipelines,
const std::vector<std::vector<uint32_t>> & params_list,
const std::vector<std::vector<wgpu::BindGroupEntry>> & bind_group_entries_list,
const std::vector<std::pair<uint32_t, uint32_t>> & workgroups_list) {
GGML_ASSERT(pipelines.size() == params_list.size());
GGML_ASSERT(pipelines.size() == bind_group_entries_list.size());
GGML_ASSERT(pipelines.size() == workgroups_list.size());
std::vector<wgpu::Buffer> params_bufs_list;
std::vector<wgpu::BindGroup> bind_groups;
for (size_t i = 0; i < pipelines.size(); i++) {
wgpu::Buffer params_bufs = param_buf_pool.alloc_bufs();
std::vector<wgpu::BindGroupEntry> entries = bind_group_entries_list[i];
uint32_t params_binding_num = entries.size();
entries.push_back(
{ .binding = params_binding_num, .buffer = params_bufs, .offset = 0, .size = params_bufs.GetSize() });
wgpu::BindGroupDescriptor bind_group_desc;
bind_group_desc.layout = pipelines[i].pipeline.GetBindGroupLayout(0);
bind_group_desc.entryCount = entries.size();
bind_group_desc.entries = entries.data();
bind_group_desc.label = pipelines[i].name.c_str();
bind_groups.push_back(ctx->device.CreateBindGroup(&bind_group_desc));
params_bufs_list.push_back(params_bufs);
}
wgpu::CommandEncoder encoder = ctx->device.CreateCommandEncoder();
for (size_t i = 0; i < params_bufs_list.size(); i++) {
ctx->queue.WriteBuffer(params_bufs_list[i], 0, params_list[i].data(), params_list[i].size() * sizeof(uint32_t));
}
#ifdef GGML_WEBGPU_GPU_PROFILE
webgpu_gpu_profile_bufs ts_bufs = ctx->timestamp_query_buf_pool.alloc_bufs();
if (ts_bufs.host_buf.GetMapState() == wgpu::BufferMapState::Mapped) {
ts_bufs.host_buf.Unmap();
}
wgpu::PassTimestampWrites ts_writes = { .querySet = ts_bufs.query_set,
.beginningOfPassWriteIndex = 0,
.endOfPassWriteIndex = 1 };
wgpu::ComputePassDescriptor pass_desc = { .timestampWrites = &ts_writes };
wgpu::ComputePassEncoder pass = encoder.BeginComputePass(&pass_desc);
#else
wgpu::ComputePassEncoder pass = encoder.BeginComputePass();
#endif
for (size_t i = 0; i < pipelines.size(); i++) {
pass.SetPipeline(pipelines[i].pipeline);
pass.SetBindGroup(0, bind_groups[i]);
pass.DispatchWorkgroups(workgroups_list[i].first, workgroups_list[i].second, 1);
}
pass.End();
#ifdef GGML_WEBGPU_GPU_PROFILE
encoder.ResolveQuerySet(ts_bufs.query_set, 0, 2, ts_bufs.dev_buf, 0);
encoder.CopyBufferToBuffer(ts_bufs.dev_buf, 0, ts_bufs.host_buf, 0, ts_bufs.host_buf.GetSize());
#endif
wgpu::CommandBuffer commands = encoder.Finish();
webgpu_command result = {};
result.commands = commands;
result.params_bufs = params_bufs_list;
result.num_kernels = pipelines.size();
#ifdef GGML_WEBGPU_GPU_PROFILE
result.timestamp_query_bufs = ts_bufs;
// TODO: handle multiple pipeline names
result.pipeline_name = pipelines.front().name;
#endif
return result;
}
static webgpu_command ggml_backend_webgpu_build(webgpu_global_context & ctx,
webgpu_buf_pool & param_buf_pool,
webgpu_pipeline & pipeline,
std::vector<uint32_t> params,
std::vector<wgpu::BindGroupEntry> bind_group_entries,
uint32_t wg_x,
uint32_t wg_y = 1) {
return ggml_backend_webgpu_build_multi(ctx, param_buf_pool,
{
pipeline
},
{ std::move(params) }, { std::move(bind_group_entries) },
{ { wg_x, wg_y } });
}
static void ggml_backend_webgpu_buffer_memset(webgpu_global_context & ctx,
wgpu::Buffer & buf,
uint32_t value,
size_t offset,
size_t size) {
std::vector<uint32_t> params = { (uint32_t) offset, (uint32_t) size, value };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0, .buffer = buf, .offset = 0, .size = buf.GetSize() }
};
size_t bytes_per_wg = WEBGPU_MAX_WG_SIZE * ctx->capabilities.memset_bytes_per_thread;
uint32_t wg_x = CEIL_DIV(size + 3, bytes_per_wg);
webgpu_command command =
ggml_backend_webgpu_build(ctx, ctx->memset_buf_pool, ctx->memset_pipelines[0], params, entries, wg_x);
std::vector<webgpu_command> commands = { command };
std::vector<webgpu_submission> sub = { ggml_backend_webgpu_submit(ctx, commands, ctx->memset_buf_pool) };
ggml_backend_webgpu_wait(ctx, sub);
}
/** End WebGPU Actions */
/** GGML Backend Interface */
static const char * ggml_backend_webgpu_name(ggml_backend_t backend) {
ggml_backend_webgpu_context * ctx = (ggml_backend_webgpu_context *) backend->context;
return ctx->name.c_str();
}
static void ggml_backend_webgpu_free(ggml_backend_t backend) {
ggml_backend_webgpu_context * ctx = (ggml_backend_webgpu_context *) backend->context;
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_free(" << ctx->name << ")");
#ifdef GGML_WEBGPU_CPU_PROFILE
std::cout << "\n[ggml_webgpu cpu profiling summary]\n";
double total_cpu = 0.0;
for (const auto & kv : ctx->webgpu_ctx->global_ctx->cpu_time_ms) {
total_cpu += kv.second;
}
std::cout << "ggml_webgpu: total cpu time: " << total_cpu << " ms\n";
std::cout << "ggml_webgpu: cpu breakdown:\n";
for (const auto & kv : ctx->webgpu_ctx->global_ctx->cpu_time_ms) {
double pct = (total_cpu > 0.0) ? (kv.second / total_cpu * 100.0) : 0.0;
std::cout << "ggml_webgpu: " << kv.first << ": " << kv.second << " ms (" << pct << "%)\n";
}
if (ctx->webgpu_ctx->global_ctx->cpu_detail_ms.size() > 0) {
std::cout << "ggml_webgpu: cpu detailed breakdown:\n";
}
for (const auto & kv : ctx->webgpu_ctx->global_ctx->cpu_detail_ms) {
double pct = (total_cpu > 0.0) ? (kv.second / total_cpu * 100.0) : 0.0;
std::cout << "ggml_webgpu: " << kv.first << ": " << kv.second << " ms (" << pct << "%)\n";
}
#endif
#ifdef GGML_WEBGPU_GPU_PROFILE
std::cout << "\n[ggml_webgpu gpu profiling summary]\n";
double total_gpu = 0.0;
for (const auto & kv : ctx->webgpu_ctx->global_ctx->shader_gpu_time_ms) {
total_gpu += kv.second;
}
std::cout << "ggml_webgpu: total gpu time (all shaders): " << total_gpu << " ms\n";
std::cout << "\nggml_webgpu: gpu breakdown:\n";
for (const auto & kv : ctx->webgpu_ctx->global_ctx->shader_gpu_time_ms) {
double pct = (total_gpu > 0.0) ? (kv.second / total_gpu * 100.0) : 0.0;
std::cout << "ggml_webgpu: " << kv.first << ": " << kv.second << " ms (" << std::fixed << std::setprecision(2)
<< pct << "%)\n";
}
#endif
#if defined(GGML_WEBGPU_CPU_PROFILE) && defined(GGML_WEBGPU_GPU_PROFILE)
std::cout << "ggml_webgpu: gpu/cpu ratio: " << (total_cpu > 0.0 ? total_gpu / total_cpu : 0.0) << "\n";
#endif
delete ctx;
delete backend;
}
static size_t ggml_webgpu_tensor_offset(const ggml_tensor * tensor) {
return webgpu_tensor_offset(tensor) + tensor->view_offs;
}
static wgpu::Buffer ggml_webgpu_tensor_buf(const ggml_tensor * tensor) {
ggml_backend_webgpu_buffer_context * ctx = (ggml_backend_webgpu_buffer_context *) tensor->buffer->context;
return ctx->buffer;
}
static size_t ggml_webgpu_tensor_misalignment(webgpu_context & ctx, const ggml_tensor * t) {
size_t offset = ggml_webgpu_tensor_offset(t);
return offset & (ctx->global_ctx->capabilities.limits.minStorageBufferOffsetAlignment - 1);
}
static size_t ggml_webgpu_tensor_align_offset(webgpu_context & ctx, const ggml_tensor * t) {
size_t offset = ggml_webgpu_tensor_offset(t);
return offset & ~(ctx->global_ctx->capabilities.limits.minStorageBufferOffsetAlignment - 1);
}
static size_t ggml_webgpu_tensor_binding_size(webgpu_context & ctx, ggml_tensor * t) {
return ROUNDUP_POW2(ggml_nbytes(t) + ggml_webgpu_tensor_misalignment(ctx, t), WEBGPU_STORAGE_BUF_BINDING_MULT);
}
// Used to determine if two tensors are the same for in-place operations
static bool ggml_webgpu_tensor_equal(ggml_tensor * a, ggml_tensor * b) {
return (ggml_webgpu_tensor_buf(a).Get() == ggml_webgpu_tensor_buf(b).Get()) &&
(ggml_webgpu_tensor_offset(a) == ggml_webgpu_tensor_offset(b));
}
// Used to determine if two tensors share the same buffer and their byte ranges overlap,
static bool ggml_webgpu_tensor_overlap(ggml_tensor * a, ggml_tensor * b) {
return (ggml_webgpu_tensor_buf(a).Get() == ggml_webgpu_tensor_buf(b).Get()) &&
ggml_webgpu_tensor_offset(a) < (ggml_webgpu_tensor_offset(b) + ggml_nbytes(b)) &&
ggml_webgpu_tensor_offset(b) < (ggml_webgpu_tensor_offset(a) + ggml_nbytes(a));
}
struct binary_overlap_flags {
bool inplace; // src0 == dst
bool overlap; // src1 == dst
bool src_overlap;
};
static binary_overlap_flags ggml_webgpu_detect_binary_overlap(ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * dst) {
binary_overlap_flags flags = {};
flags.inplace = ggml_webgpu_tensor_equal(src0, dst);
flags.overlap = ggml_webgpu_tensor_overlap(src1, dst);
flags.src_overlap = ggml_webgpu_tensor_overlap(src0, src1);
return flags;
}
static webgpu_command ggml_webgpu_cpy(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
uint32_t ne = (uint32_t) ggml_nelements(dst);
std::vector<uint32_t> params = {
ne, (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
// Convert byte-strides to element-strides
(uint32_t) (src->nb[0] / ggml_type_size(src->type)), (uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)), (uint32_t) (src->nb[3] / ggml_type_size(src->type)),
(uint32_t) (dst->nb[0] / ggml_type_size(dst->type)), (uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)), (uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
// Logical shapes
(uint32_t) src->ne[0], (uint32_t) src->ne[1], (uint32_t) src->ne[2], (uint32_t) dst->ne[0],
(uint32_t) dst->ne[1], (uint32_t) dst->ne[2]
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
uint32_t wg_x = CEIL_DIV(ne, WEBGPU_MAX_WG_SIZE);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, ctx->cpy_pipelines[src->type][dst->type],
params, entries, wg_x);
}
static webgpu_command ggml_webgpu_pad(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src, .dst = dst, .max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup
};
webgpu_pipeline pipeline = ctx->shader_lib->get_pad_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
const uint32_t ne = (uint32_t) ggml_nelements(dst);
std::vector<uint32_t> params = {
ne,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
// Strides (in elements)
(uint32_t) (src->nb[0] / ggml_type_size(src->type)),
(uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)),
// Shapes
(uint32_t) src->ne[0],
(uint32_t) src->ne[1],
(uint32_t) src->ne[2],
(uint32_t) src->ne[3],
(uint32_t) dst->ne[0],
(uint32_t) dst->ne[1],
(uint32_t) dst->ne[2],
(uint32_t) dst->ne[3],
// Pad sizes
(uint32_t) ggml_get_op_params_i32(dst, 0),
(uint32_t) ggml_get_op_params_i32(dst, 1),
(uint32_t) ggml_get_op_params_i32(dst, 2),
(uint32_t) ggml_get_op_params_i32(dst, 3),
(uint32_t) ggml_get_op_params_i32(dst, 4),
(uint32_t) ggml_get_op_params_i32(dst, 5),
(uint32_t) ggml_get_op_params_i32(dst, 6),
(uint32_t) ggml_get_op_params_i32(dst, 7),
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
uint32_t wg_x = CEIL_DIV(ne, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static std::optional<webgpu_command> ggml_webgpu_set_rows(webgpu_context & ctx,
ggml_tensor * src,
ggml_tensor * idx,
ggml_tensor * dst) {
// For set rows specifically, we need to check if src and idx are empty
// tensors.
if (ggml_is_empty(src) || ggml_is_empty(idx)) {
return std::nullopt;
}
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = idx,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup
};
webgpu_pipeline pipeline = ctx->shader_lib->get_set_rows_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_set_rows_shader_decisions *>(pipeline.context.get());
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, idx) / ggml_type_size(idx->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
// Convert byte-strides to element-strides
(uint32_t) (src->nb[1] / ggml_type_size(src->type)), (uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)), (uint32_t) (idx->nb[0] / ggml_type_size(idx->type)),
(uint32_t) (idx->nb[1] / ggml_type_size(idx->type)), (uint32_t) (idx->nb[2] / ggml_type_size(idx->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)), (uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
// Shape of src
(uint32_t) src->ne[0], (uint32_t) src->ne[1], (uint32_t) src->ne[2], (uint32_t) src->ne[3],
// Shape of idx
(uint32_t) (idx->ne[1]), (uint32_t) (idx->ne[2])
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(idx),
.offset = ggml_webgpu_tensor_align_offset(ctx, idx),
.size = ggml_webgpu_tensor_binding_size(ctx, idx) },
{ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
if (decisions->i64_idx) {
entries.push_back({ .binding = 3,
.buffer = ctx->set_rows_dev_error_buf,
.offset = 0,
.size = ctx->set_rows_dev_error_buf.GetSize() });
}
uint32_t threads;
if (decisions->vec4) {
threads = (src->ne[1] * src->ne[2] * src->ne[3]) * (src->ne[0] / 4);
} else {
threads = src->ne[0] * src->ne[1] * src->ne[2] * src->ne[3];
}
uint32_t wg_x = CEIL_DIV(threads, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x, 1);
}
// Workgroup size is a common constant
static std::vector<wgpu::ConstantEntry> ggml_webgpu_wg_size_entry(uint32_t wg_size) {
std::vector<wgpu::ConstantEntry> constants(1);
constants[0].key = "wg_size";
constants[0].value = wg_size;
return constants;
}
static webgpu_command ggml_webgpu_get_rows(webgpu_context & ctx,
ggml_tensor * src,
ggml_tensor * idx,
ggml_tensor * dst) {
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = nullptr,
.dst = dst,
.max_wg_size = WEBGPU_MAX_WG_SIZE,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_get_rows_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
std::vector<uint32_t> params = { (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, idx) / ggml_type_size(idx->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)),
(uint32_t) (idx->nb[0] / ggml_type_size(idx->type)),
(uint32_t) (idx->nb[1] / ggml_type_size(idx->type)),
(uint32_t) (idx->nb[2] / ggml_type_size(idx->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) dst->ne[0],
(uint32_t) dst->ne[1],
(uint32_t) dst->ne[2],
(uint32_t) dst->ne[3],
(uint32_t) (idx->ne[1]),
(uint32_t) (idx->ne[2]) };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(idx),
.offset = ggml_webgpu_tensor_align_offset(ctx, idx),
.size = ggml_webgpu_tensor_binding_size(ctx, idx) },
{ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
uint32_t wg_x = CEIL_DIV(dst->ne[1] * dst->ne[2] * dst->ne[3], decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_mul_mat(webgpu_context & ctx,
ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * dst) {
// Determine if this is a mat-vec operation
bool is_vec = (dst->ne[1] == 1);
// Determine if we should use fast path
bool use_fast = false;
switch (src1->type) {
case GGML_TYPE_F16:
use_fast = (src0->type == GGML_TYPE_F16);
break;
case GGML_TYPE_F32:
// TODO: implement better mat-mat for k-quants, mat-vec for all k-quants except q6_K
switch (src0->type) {
case GGML_TYPE_F32:
case GGML_TYPE_F16:
case GGML_TYPE_Q4_0:
case GGML_TYPE_Q4_1:
case GGML_TYPE_Q5_0:
case GGML_TYPE_Q5_1:
case GGML_TYPE_Q8_0:
case GGML_TYPE_Q8_1:
case GGML_TYPE_Q6_K:
use_fast = true;
break;
case GGML_TYPE_Q2_K:
case GGML_TYPE_Q3_K:
case GGML_TYPE_Q4_K:
case GGML_TYPE_Q5_K:
// we don't have fast mat-vec for these types, but we do have (semi) fast mat-mat
use_fast = !is_vec;
break;
default:
break;
}
break;
default:
break;
}
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src0,
.src1 = src1,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.supports_subgroup_matrix = ctx->global_ctx->capabilities.supports_subgroup_matrix,
.sg_mat_m = ctx->global_ctx->capabilities.sg_mat_m,
.sg_mat_n = ctx->global_ctx->capabilities.sg_mat_n,
.sg_mat_k = ctx->global_ctx->capabilities.sg_mat_k,
.max_subgroup_size = ctx->global_ctx->capabilities.max_subgroup_size,
};
// Get or create pipeline
webgpu_pipeline pipeline;
if (use_fast && is_vec) {
pipeline = ctx->shader_lib->get_mul_mat_vec_pipeline(shader_lib_ctx);
} else if (use_fast) {
pipeline = ctx->shader_lib->get_mul_mat_fast_pipeline(shader_lib_ctx);
} else {
pipeline = ctx->shader_lib->get_mul_mat_legacy_pipeline(shader_lib_ctx);
}
// Build params
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) dst->ne[0],
(uint32_t) dst->ne[1],
(uint32_t) src0->ne[0],
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src1->nb[1] / ggml_type_size(src1->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src1->nb[2] / ggml_type_size(src1->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (src1->nb[3] / ggml_type_size(src1->type)),
(uint32_t) src0->ne[2],
(uint32_t) src0->ne[3],
(uint32_t) (src1->ne[2] / src0->ne[2]),
(uint32_t) (src1->ne[3] / src0->ne[3])
};
// Build bind group entries
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = ggml_webgpu_tensor_align_offset(ctx, src1),
.size = ggml_webgpu_tensor_binding_size(ctx, src1) },
{ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) },
};
// Calculate workgroup dimensions
uint32_t wg_x = 1;
uint32_t wg_y = 1;
const uint32_t max_wg_per_dim = ctx->global_ctx->capabilities.limits.maxComputeWorkgroupsPerDimension;
if (use_fast && is_vec) {
auto * decisions = static_cast<ggml_webgpu_mul_mat_vec_shader_decisions *>(pipeline.context.get());
uint32_t batches = dst->ne[2] * dst->ne[3];
uint32_t output_groups = CEIL_DIV(dst->ne[0], decisions->outputs_per_wg);
uint32_t total_wg = output_groups * batches;
compute_2d_workgroups(total_wg, max_wg_per_dim, wg_x, wg_y);
} else if (use_fast) {
auto * decisions = static_cast<ggml_webgpu_mul_mat_shader_decisions *>(pipeline.context.get());
// Fast-path tiled/subgroup calculations
uint32_t wg_m;
uint32_t wg_n;
if (decisions->use_subgroup_matrix) {
uint32_t wg_m_sg_tile =
decisions->subgroup_m * decisions->subgroup_matrix_m * ctx->global_ctx->capabilities.sg_mat_m;
wg_m = CEIL_DIV(dst->ne[0], wg_m_sg_tile);
uint32_t wg_n_sg_tile =
decisions->subgroup_n * decisions->subgroup_matrix_n * ctx->global_ctx->capabilities.sg_mat_n;
wg_n = CEIL_DIV(dst->ne[1], wg_n_sg_tile);
} else {
uint32_t tile_m_s = decisions->tile_m * decisions->wg_size_m;
uint32_t tile_n_s = decisions->tile_n * decisions->wg_size_n;
wg_m = CEIL_DIV(dst->ne[0], tile_m_s);
wg_n = CEIL_DIV(dst->ne[1], tile_n_s);
}
uint32_t total_wg = wg_m * wg_n * dst->ne[2] * dst->ne[3];
compute_2d_workgroups(total_wg, max_wg_per_dim, wg_x, wg_y);
} else { // legacy
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
uint32_t wg_size = decisions->wg_size;
uint32_t total_wg = CEIL_DIV(dst->ne[0] * dst->ne[1] * dst->ne[2] * dst->ne[3], wg_size);
compute_2d_workgroups(total_wg, max_wg_per_dim, wg_x, wg_y);
}
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x, wg_y);
}
#ifndef __EMSCRIPTEN__
static webgpu_command ggml_webgpu_flash_attn(webgpu_context & ctx,
ggml_tensor * Q,
ggml_tensor * K,
ggml_tensor * V,
ggml_tensor * mask,
ggml_tensor * sinks,
ggml_tensor * dst) {
float scale = *(float *) dst->op_params;
float max_bias;
memcpy(&max_bias, (float *) dst->op_params + 1, sizeof(float));
float logit_softcap;
memcpy(&logit_softcap, (float *) dst->op_params + 2, sizeof(float));
if (logit_softcap != 0.0f) {
scale /= logit_softcap;
}
float n_head_log2 = float(1u << (uint32_t) floor(log2(Q->ne[2])));
float m0 = powf(2.0f, -(max_bias) / n_head_log2);
float m1 = powf(2.0f, -(max_bias / 2.0f) / n_head_log2);
const int has_mask = (mask != nullptr);
const int has_sinks = (sinks != nullptr);
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, Q) / ggml_type_size(Q->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, K) / ggml_type_size(K->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, V) / ggml_type_size(V->type)),
has_mask ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, mask) / ggml_type_size(mask->type)) : 0,
has_sinks ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, sinks) / ggml_type_size(sinks->type)) : 0,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) Q->ne[2], // number of heads
(uint32_t) Q->ne[1], // sequence length (Q)
(uint32_t) K->ne[1], // sequence length (K/V)
(uint32_t) (Q->nb[1] / ggml_type_size(Q->type)), // stride (elements/blocks) of Q in dimension 1
(uint32_t) (Q->nb[2] / ggml_type_size(Q->type)), // stride (elements/blocks) of Q in dimension 2
(uint32_t) (Q->nb[3] / ggml_type_size(Q->type)), // stride (elements/blocks) of Q in dimension 3
(uint32_t) (K->nb[1] / ggml_type_size(K->type)), // stride (elements/blocks) of K in dimension 1
(uint32_t) (K->nb[2] / ggml_type_size(K->type)), // stride (elements/blocks) of K in dimension 2
(uint32_t) (K->nb[3] / ggml_type_size(K->type)), // stride (elements/blocks) of K in dimension 3
(uint32_t) (V->nb[1] / ggml_type_size(V->type)), // stride (elements/blocks) of V in dimension 1
(uint32_t) (V->nb[2] / ggml_type_size(V->type)), // stride (elements/blocks) of V in dimension 2
(uint32_t) (V->nb[3] / ggml_type_size(V->type)), // stride (elements/blocks) of V in dimension 3
has_mask ? (uint32_t) (mask->nb[3] / ggml_type_size(mask->type)) : 0, // stride of mask dim 3
(uint32_t) (Q->ne[2] / K->ne[2]), // repeat factor for K/V in dim 2 (MHA/MQA/GQA)
*(uint32_t *) &scale, // scale (possibly adjusted for logit softcap)
*(uint32_t *) &max_bias,
*(uint32_t *) &logit_softcap,
*(uint32_t *) &n_head_log2,
*(uint32_t *) &m0,
*(uint32_t *) &m1
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(Q),
.offset = ggml_webgpu_tensor_align_offset(ctx, Q),
.size = ggml_webgpu_tensor_binding_size(ctx, Q) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(K),
.offset = ggml_webgpu_tensor_align_offset(ctx, K),
.size = ggml_webgpu_tensor_binding_size(ctx, K) },
{ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(V),
.offset = ggml_webgpu_tensor_align_offset(ctx, V),
.size = ggml_webgpu_tensor_binding_size(ctx, V) }
};
uint32_t binding_index = 3;
if (has_mask) {
entries.push_back({ .binding = binding_index++,
.buffer = ggml_webgpu_tensor_buf(mask),
.offset = ggml_webgpu_tensor_align_offset(ctx, mask),
.size = ggml_webgpu_tensor_binding_size(ctx, mask) });
}
if (has_sinks) {
entries.push_back({ .binding = binding_index++,
.buffer = ggml_webgpu_tensor_buf(sinks),
.offset = ggml_webgpu_tensor_align_offset(ctx, sinks),
.size = ggml_webgpu_tensor_binding_size(ctx, sinks) });
}
entries.push_back({ .binding = binding_index++,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = Q,
.src1 = K,
.src2 = V,
.src3 = mask,
.src4 = sinks,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.wg_mem_limit_bytes = ctx->global_ctx->capabilities.limits.maxComputeWorkgroupStorageSize,
.sg_mat_m = ctx->global_ctx->capabilities.sg_mat_m,
.sg_mat_n = ctx->global_ctx->capabilities.sg_mat_n,
.sg_mat_k = ctx->global_ctx->capabilities.sg_mat_k,
.max_subgroup_size = ctx->global_ctx->capabilities.max_subgroup_size,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_flash_attn_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_flash_attn_shader_decisions *>(pipeline.context.get());
uint32_t wg_per_head = CEIL_DIV(Q->ne[1], decisions->q_tile);
uint32_t wg_x = wg_per_head * Q->ne[2] * Q->ne[3]; // wg per head * number of heads * number of batches
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
#endif
static webgpu_command ggml_webgpu_unary_op(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
bool is_unary = dst->op == GGML_OP_UNARY;
bool inplace = ggml_webgpu_tensor_equal(src, dst) || (dst->op == GGML_OP_FILL);
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = nullptr,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.inplace = inplace,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_unary_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
uint32_t ne = (uint32_t) ggml_nelements(dst);
std::vector<uint32_t> params = { ne,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src->nb[0] / ggml_type_size(src->type)),
(uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)),
(uint32_t) src->ne[0],
(uint32_t) src->ne[1],
(uint32_t) src->ne[2] };
ggml_tensor * effective_src = src;
if (is_unary) {
ggml_unary_op unary_op = ggml_get_unary_op(dst);
switch (unary_op) {
case GGML_UNARY_OP_XIELU:
{
// Get float parameters and reinterpret their bit patterns as uint32_t
// for passing through the params buffer
float alpha_n = ggml_get_op_params_f32(dst, 1);
float alpha_p = ggml_get_op_params_f32(dst, 2);
float beta = ggml_get_op_params_f32(dst, 3);
float eps = ggml_get_op_params_f32(dst, 4);
params.push_back(*reinterpret_cast<const uint32_t *>(&alpha_n));
params.push_back(*reinterpret_cast<const uint32_t *>(&alpha_p));
params.push_back(*reinterpret_cast<const uint32_t *>(&beta));
params.push_back(*reinterpret_cast<const uint32_t *>(&eps));
break;
}
default:
break;
}
} else if (dst->op == GGML_OP_CLAMP) {
float clamp_min = ggml_get_op_params_f32(dst, 0);
float clamp_max = ggml_get_op_params_f32(dst, 1);
params.push_back(*reinterpret_cast<const uint32_t *>(&clamp_min));
params.push_back(*reinterpret_cast<const uint32_t *>(&clamp_max));
} else if (dst->op == GGML_OP_FILL) {
float fill_val = ggml_get_op_params_f32(dst, 0);
params.push_back(*reinterpret_cast<const uint32_t *>(&fill_val));
effective_src = dst; // fill simply fills dst
}
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(effective_src),
.offset = ggml_webgpu_tensor_align_offset(ctx, effective_src),
.size = ggml_webgpu_tensor_binding_size(ctx, effective_src) },
};
if (!inplace) {
entries.push_back({ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
}
uint32_t wg_x = CEIL_DIV(ne, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_binary_op(webgpu_context & ctx,
ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * dst) {
binary_overlap_flags flags = ggml_webgpu_detect_binary_overlap(src0, src1, dst);
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src0,
.src1 = src1,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.inplace = flags.inplace,
.overlap = flags.overlap,
.src_overlap = flags.src_overlap,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_binary_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
uint32_t ne = (uint32_t) ggml_nelements(dst);
size_t src0_webgpu_tensor_align_offset = ggml_webgpu_tensor_align_offset(ctx, src0);
size_t src1_webgpu_tensor_align_offset = ggml_webgpu_tensor_align_offset(ctx, src1);
uint32_t offset_merged_src0 = 0;
uint32_t offset_merged_src1 = 0;
if (flags.src_overlap) {
size_t min_off = std::min(src0_webgpu_tensor_align_offset, src1_webgpu_tensor_align_offset);
offset_merged_src0 = (uint32_t) ((src0_webgpu_tensor_align_offset - min_off) / ggml_type_size(src0->type));
offset_merged_src1 = (uint32_t) ((src1_webgpu_tensor_align_offset - min_off) / ggml_type_size(src0->type));
}
std::vector<uint32_t> params = {
ne,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
offset_merged_src0,
offset_merged_src1,
(uint32_t) (src0->nb[0] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (src1->nb[0] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[1] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[2] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[3] / ggml_type_size(src1->type)),
(uint32_t) src0->ne[0],
(uint32_t) src0->ne[1],
(uint32_t) src0->ne[2],
(uint32_t) src1->ne[0],
(uint32_t) src1->ne[1],
(uint32_t) src1->ne[2],
(uint32_t) src1->ne[3],
};
std::vector<wgpu::BindGroupEntry> entries;
if (flags.src_overlap) {
size_t merged_offset = std::min(src0_webgpu_tensor_align_offset, src1_webgpu_tensor_align_offset);
size_t merged_end = std::max(src0_webgpu_tensor_align_offset + ggml_webgpu_tensor_binding_size(ctx, src0),
src1_webgpu_tensor_align_offset + ggml_webgpu_tensor_binding_size(ctx, src1));
entries.push_back({
.binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = merged_offset,
.size = merged_end - merged_offset,
});
entries.push_back({
.binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst),
});
} else {
entries.push_back({
.binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = src0_webgpu_tensor_align_offset,
.size = ggml_webgpu_tensor_binding_size(ctx, src0),
});
entries.push_back({
.binding = 1,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = src1_webgpu_tensor_align_offset,
.size = ggml_webgpu_tensor_binding_size(ctx, src1),
});
if (!flags.inplace && !flags.overlap) {
entries.push_back({
.binding = 2,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst),
});
}
}
uint32_t wg_x = CEIL_DIV(ne, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_concat(webgpu_context & ctx,
ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * dst) {
uint32_t ne = (uint32_t) ggml_nelements(dst);
uint32_t dim = (uint32_t) dst->op_params[0];
std::vector<uint32_t> params = {
ne,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src0->nb[0] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (src1->nb[0] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[1] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[2] / ggml_type_size(src1->type)),
(uint32_t) (src1->nb[3] / ggml_type_size(src1->type)),
(uint32_t) dst->ne[0],
(uint32_t) dst->ne[1],
(uint32_t) dst->ne[2],
(uint32_t) dst->ne[3],
dim,
(uint32_t) src0->ne[dim]
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = ggml_webgpu_tensor_align_offset(ctx, src1),
.size = ggml_webgpu_tensor_binding_size(ctx, src1) },
{ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src0,
.src1 = src1,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_concat_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
uint32_t wg_x = CEIL_DIV(ne, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_repeat(webgpu_context & ctx, ggml_tensor * src0, ggml_tensor * dst) {
uint32_t ne = (uint32_t) ggml_nelements(dst);
std::vector<uint32_t> params = { ne,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) /
ggml_type_size(src0->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src0->nb[0] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (src0->ne[0]),
(uint32_t) (src0->ne[1]),
(uint32_t) (src0->ne[2]),
(uint32_t) (src0->ne[3]),
(uint32_t) (dst->ne[0]),
(uint32_t) (dst->ne[1]),
(uint32_t) (dst->ne[2]) };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src0,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_repeat_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
uint32_t wg_x = CEIL_DIV(ne, decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_rms_norm(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
int inplace = ggml_webgpu_tensor_equal(src, dst);
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) src->ne[0],
(uint32_t) src->ne[1],
(uint32_t) src->ne[2],
(uint32_t) src->ne[3],
*(uint32_t *) dst->op_params // epsilon, treated as f32 in the shader
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) }
};
if (!inplace) {
entries.push_back({ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
}
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, ctx->rms_norm_pipelines[inplace], params,
entries, ggml_nrows(src));
}
static webgpu_command ggml_webgpu_rope(webgpu_context & ctx,
ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * src2,
ggml_tensor * dst) {
const int inplace = ggml_webgpu_tensor_equal(src0, dst);
const int has_freq_factor = (src2 != nullptr);
const int n_dims = ((int32_t *) dst->op_params)[1];
const int mode = ((int32_t *) dst->op_params)[2];
const int n_ctx_orig = ((int32_t *) dst->op_params)[4];
float freq_base;
float freq_scale;
float ext_factor;
float attn_factor;
float beta_fast;
float beta_slow;
memcpy(&freq_base, (int32_t *) dst->op_params + 5, sizeof(float));
memcpy(&freq_scale, (int32_t *) dst->op_params + 6, sizeof(float));
memcpy(&ext_factor, (int32_t *) dst->op_params + 7, sizeof(float));
memcpy(&attn_factor, (int32_t *) dst->op_params + 8, sizeof(float));
memcpy(&beta_fast, (int32_t *) dst->op_params + 9, sizeof(float));
memcpy(&beta_slow, (int32_t *) dst->op_params + 10, sizeof(float));
int sections[4];
memcpy(sections, (int32_t *) dst->op_params + 11, 4 * sizeof(int));
float theta_scale = powf(freq_base, -2.0f / n_dims);
float corr_dims[2];
ggml_rope_yarn_corr_dims(n_dims, n_ctx_orig, freq_base, beta_fast, beta_slow, corr_dims);
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)),
src2 != nullptr ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src2) / ggml_type_size(src2->type)) : 0,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) ggml_nelements(src0) / 2,
(uint32_t) src0->ne[0],
(uint32_t) src0->ne[1],
(uint32_t) src0->ne[2],
(uint32_t) n_dims,
(uint32_t) mode,
*(uint32_t *) &theta_scale,
*(uint32_t *) &attn_factor,
*(uint32_t *) &freq_scale,
*(uint32_t *) &ext_factor,
*(uint32_t *) &corr_dims[0],
*(uint32_t *) &corr_dims[1],
(uint32_t) sections[0],
(uint32_t) sections[1],
(uint32_t) sections[2],
(uint32_t) sections[3]
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = ggml_webgpu_tensor_align_offset(ctx, src1),
.size = ggml_webgpu_tensor_binding_size(ctx, src1) }
};
uint32_t dst_binding = 2;
if (has_freq_factor) {
dst_binding = 3;
entries.push_back({ .binding = 2,
.buffer = ggml_webgpu_tensor_buf(src2),
.offset = ggml_webgpu_tensor_align_offset(ctx, src2),
.size = ggml_webgpu_tensor_binding_size(ctx, src2) });
}
if (!inplace) {
entries.push_back({ .binding = dst_binding,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
}
webgpu_pipeline pipeline = ctx->rope_pipelines[dst->type][has_freq_factor][inplace];
uint32_t wg_x = CEIL_DIV(ggml_nelements(dst), WEBGPU_MAX_WG_SIZE);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_glu(webgpu_context & ctx, ggml_tensor * src0, ggml_tensor * src1, ggml_tensor * dst) {
const int split = (src1 != nullptr);
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
src1 != nullptr ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)) : 0,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
src1 != nullptr ? (uint32_t) (src1->nb[1] / ggml_type_size(src1->type)) :
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
src1 != nullptr ? (uint32_t) (src1->nb[2] / ggml_type_size(src1->type)) :
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
src1 != nullptr ? (uint32_t) (src1->nb[3] / ggml_type_size(src1->type)) :
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) ggml_nelements(dst),
(uint32_t) dst->ne[0],
(uint32_t) dst->ne[1],
(uint32_t) dst->ne[2],
(uint32_t) ((int32_t *) dst->op_params)[1], // swapped
*(uint32_t *) &dst->op_params[2], // alpha, for swiglu_oai
*(uint32_t *) &dst->op_params[3], // limit, for swiglu_oai
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) },
};
uint32_t dst_binding = 1;
if (split) {
dst_binding = 2;
entries.push_back({ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = ggml_webgpu_tensor_align_offset(ctx, src1),
.size = ggml_webgpu_tensor_binding_size(ctx, src1) });
}
entries.push_back({ .binding = dst_binding,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
webgpu_pipeline pipeline = ctx->glu_pipelines[ggml_get_glu_op(dst)][dst->type][split];
uint32_t wg_x = CEIL_DIV(ggml_nelements(dst), WEBGPU_MAX_WG_SIZE);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_scale(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
bool inplace = ggml_webgpu_tensor_equal(src, dst);
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = nullptr,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.inplace = inplace,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_scale_pipeline(shader_lib_ctx);
auto * decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(pipeline.context.get());
// params unchanged
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src->nb[1] / ggml_type_size(src->type)),
(uint32_t) (src->nb[2] / ggml_type_size(src->type)),
(uint32_t) (src->nb[3] / ggml_type_size(src->type)),
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) ggml_nelements(dst),
(uint32_t) src->ne[0],
(uint32_t) src->ne[1],
(uint32_t) src->ne[2],
*(uint32_t *) dst->op_params, // scale
*(uint32_t *) &dst->op_params[1] // bias
};
// bindgroups unchanged
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) }
};
if (!inplace) {
entries.push_back({ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
}
uint32_t wg_x = CEIL_DIV(ggml_nelements(dst), decisions->wg_size);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_soft_max(webgpu_context & ctx,
ggml_tensor * src0,
ggml_tensor * src1,
ggml_tensor * src2,
ggml_tensor * dst) {
const int inplace = ggml_webgpu_tensor_equal(src0, dst);
const int mask_type = (src1 != nullptr) ? src1->type : 2; // use 2 for no mask here
const int has_sink = (src2 != nullptr);
float max_bias;
memcpy(&max_bias, (float *) dst->op_params + 1, sizeof(float));
float n_head_log2 = float(1u << (uint32_t) floor(log2(src0->ne[2])));
float m0 = powf(2.0f, -(max_bias) / n_head_log2);
float m1 = powf(2.0f, -(max_bias / 2.0f) / n_head_log2);
std::vector<uint32_t> params = {
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src0) / ggml_type_size(src0->type)),
mask_type < 2 ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src1) / ggml_type_size(src1->type)) : 0,
has_sink ? (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src2) / ggml_type_size(src2->type)) : 0,
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) (src0->nb[1] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[2] / ggml_type_size(src0->type)),
(uint32_t) (src0->nb[3] / ggml_type_size(src0->type)),
mask_type < 2 ? (uint32_t) (src1->nb[1] / ggml_type_size(src1->type)) : 0,
mask_type < 2 ? (uint32_t) (src1->nb[2] / ggml_type_size(src1->type)) : 0,
mask_type < 2 ? (uint32_t) (src1->nb[3] / ggml_type_size(src1->type)) : 0,
(uint32_t) (dst->nb[1] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[2] / ggml_type_size(dst->type)),
(uint32_t) (dst->nb[3] / ggml_type_size(dst->type)),
(uint32_t) ggml_nelements(dst),
(uint32_t) src0->ne[0],
(uint32_t) src0->ne[1],
(uint32_t) src0->ne[2],
mask_type < 2 ? (uint32_t) src1->ne[2] : 0,
mask_type < 2 ? (uint32_t) src1->ne[3] : 0,
*(uint32_t *) dst->op_params, // scale
*(uint32_t *) &max_bias,
*(uint32_t *) &n_head_log2,
*(uint32_t *) &m0,
*(uint32_t *) &m1
};
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src0),
.offset = ggml_webgpu_tensor_align_offset(ctx, src0),
.size = ggml_webgpu_tensor_binding_size(ctx, src0) }
};
uint32_t binding_num = 1;
if (mask_type < 2) {
entries.push_back({ .binding = binding_num,
.buffer = ggml_webgpu_tensor_buf(src1),
.offset = ggml_webgpu_tensor_align_offset(ctx, src1),
.size = ggml_webgpu_tensor_binding_size(ctx, src1) });
binding_num++;
}
if (has_sink) {
entries.push_back({ .binding = binding_num,
.buffer = ggml_webgpu_tensor_buf(src2),
.offset = ggml_webgpu_tensor_align_offset(ctx, src2),
.size = ggml_webgpu_tensor_binding_size(ctx, src2) });
binding_num++;
}
if (!inplace) {
entries.push_back({ .binding = binding_num,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) });
}
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool,
ctx->soft_max_pipelines[mask_type][has_sink][inplace], params, entries,
ggml_nrows(dst));
}
static webgpu_command ggml_webgpu_argmax(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
std::vector<uint32_t> params = { (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) src->ne[0] };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src, .dst = dst, .max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup
};
webgpu_pipeline pipeline = ctx->shader_lib->get_argmax_pipeline(shader_lib_ctx);
uint32_t wg_x = ggml_nelements(dst);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_argsort(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
bool is_top_k = dst->op == GGML_OP_TOP_K;
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = nullptr,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
.wg_mem_limit_bytes = ctx->global_ctx->capabilities.limits.maxComputeWorkgroupStorageSize,
};
webgpu_pipeline argsort_pipeline = ctx->shader_lib->get_argsort_pipeline(shader_lib_ctx);
auto * argsort_decisions = static_cast<ggml_webgpu_generic_shader_decisions *>(argsort_pipeline.context.get());
webgpu_pipeline argsort_merge_pipeline = ctx->shader_lib->get_argsort_merge_pipeline(shader_lib_ctx);
const uint32_t src_ne0 = (uint32_t) src->ne[0];
const uint32_t nrows = (uint32_t) ggml_nrows(src);
const uint32_t npr = CEIL_DIV(src_ne0, argsort_decisions->wg_size);
const uint32_t block_size =
is_top_k ? std::min(argsort_decisions->wg_size, (uint32_t) dst->ne[0]) : argsort_decisions->wg_size;
uint32_t out_ne0 = src_ne0;
if (is_top_k) {
if (npr > 1) {
const uint32_t last_tile = src_ne0 - (npr - 1) * argsort_decisions->wg_size;
out_ne0 = (npr - 1) * block_size + std::min(last_tile, block_size);
} else {
out_ne0 = block_size;
}
}
uint32_t merge_len = block_size;
uint32_t merge_passes = 0;
while (merge_len < out_ne0) {
merge_len <<= 1;
merge_passes++;
}
const bool start_in_tmp = (merge_passes % 2) == 1;
const size_t dst_offset = ggml_webgpu_tensor_offset(dst);
const size_t idx_nbytes = out_ne0 * ggml_nrows(dst) * sizeof(int32_t);
const size_t tmp_offset =
ROUNDUP_POW2(dst_offset + idx_nbytes, ctx->global_ctx->capabilities.limits.minStorageBufferOffsetAlignment);
const size_t tmp_binding_size = ROUNDUP_POW2(idx_nbytes, WEBGPU_STORAGE_BUF_BINDING_MULT);
const size_t dst_binding_size =
ROUNDUP_POW2(idx_nbytes + ggml_webgpu_tensor_misalignment(ctx, dst), WEBGPU_STORAGE_BUF_BINDING_MULT);
const uint32_t offset_src = (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type));
const uint32_t offset_dst = (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type));
const uint32_t offset_tmp = 0;
const uint32_t stride_src1 = (uint32_t) (src->nb[1] / ggml_type_size(src->type));
const uint32_t stride_src2 = (uint32_t) (src->nb[2] / ggml_type_size(src->type));
const uint32_t stride_src3 = (uint32_t) (src->nb[3] / ggml_type_size(src->type));
const uint32_t stride_idx1 = out_ne0;
const uint32_t stride_idx2 = out_ne0 * (uint32_t) dst->ne[1];
const uint32_t stride_idx3 = stride_idx2 * (uint32_t) dst->ne[2];
std::vector<webgpu_pipeline> pipelines;
std::vector<std::vector<uint32_t>> params_list;
std::vector<std::vector<wgpu::BindGroupEntry>> entries_list;
std::vector<std::pair<uint32_t, uint32_t>> workgroups_list;
const uint32_t init_offset = start_in_tmp ? offset_tmp : offset_dst;
const size_t init_align_offset = start_in_tmp ? tmp_offset : ggml_webgpu_tensor_align_offset(ctx, dst);
const size_t init_binding_size = start_in_tmp ? tmp_binding_size : dst_binding_size;
std::vector<uint32_t> init_params = {
offset_src, init_offset, stride_src1, stride_src2, stride_src3, stride_idx1,
stride_idx2, stride_idx3, src_ne0, (uint32_t) src->ne[1], (uint32_t) src->ne[2], out_ne0,
block_size, npr, nrows
};
const uint32_t total_wg_init = npr * nrows;
const uint32_t max_wg = ctx->global_ctx->capabilities.limits.maxComputeWorkgroupsPerDimension;
const uint32_t wg_x_init = std::min(total_wg_init, max_wg);
const uint32_t wg_y_init = CEIL_DIV(total_wg_init, wg_x_init);
std::vector<wgpu::BindGroupEntry> init_entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1, .buffer = ggml_webgpu_tensor_buf(dst), .offset = init_align_offset, .size = init_binding_size }
};
pipelines.push_back(argsort_pipeline);
params_list.push_back(std::move(init_params));
entries_list.push_back(std::move(init_entries));
workgroups_list.push_back({ wg_x_init, wg_y_init });
if (merge_passes == 0) {
return ggml_backend_webgpu_build_multi(ctx->global_ctx, ctx->param_buf_pool, pipelines, params_list,
entries_list, workgroups_list);
}
bool in_is_tmp = start_in_tmp;
uint32_t len = block_size;
while (len < out_ne0) {
const uint32_t nm = CEIL_DIV(out_ne0, 2 * len);
const bool out_is_tmp = !in_is_tmp;
const uint32_t offset_in = in_is_tmp ? offset_tmp : offset_dst;
const uint32_t offset_out = out_is_tmp ? offset_tmp : offset_dst;
const size_t align_in = in_is_tmp ? tmp_offset : ggml_webgpu_tensor_align_offset(ctx, dst);
const size_t align_out = out_is_tmp ? tmp_offset : ggml_webgpu_tensor_align_offset(ctx, dst);
const size_t size_in = in_is_tmp ? tmp_binding_size : dst_binding_size;
const size_t size_out = out_is_tmp ? tmp_binding_size : dst_binding_size;
const uint32_t top_k_out = (is_top_k && nm == 1) ? (uint32_t) dst->ne[0] : out_ne0;
const uint32_t stride_out1 = top_k_out;
const uint32_t stride_out2 = top_k_out * (uint32_t) dst->ne[1];
const uint32_t stride_out3 = stride_out2 * (uint32_t) dst->ne[2];
std::vector<uint32_t> merge_params = { offset_src,
offset_in,
offset_out,
stride_src1,
stride_src2,
stride_src3,
stride_idx1,
stride_idx2,
stride_idx3,
stride_out1,
stride_out2,
stride_out3,
out_ne0,
(uint32_t) src->ne[1],
(uint32_t) src->ne[2],
top_k_out,
len,
nm,
nrows };
std::vector<wgpu::BindGroupEntry> merge_entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1, .buffer = ggml_webgpu_tensor_buf(dst), .offset = align_in, .size = size_in },
{ .binding = 2, .buffer = ggml_webgpu_tensor_buf(dst), .offset = align_out, .size = size_out }
};
const uint32_t total_wg_merge = nm * nrows;
const uint32_t wg_x_merge = std::min(total_wg_merge, max_wg);
const uint32_t wg_y_merge = CEIL_DIV(total_wg_merge, wg_x_merge);
workgroups_list.push_back({ wg_x_merge, wg_y_merge });
pipelines.push_back(argsort_merge_pipeline);
params_list.push_back(std::move(merge_params));
entries_list.push_back(std::move(merge_entries));
len <<= 1;
in_is_tmp = !in_is_tmp;
}
return ggml_backend_webgpu_build_multi(ctx->global_ctx, ctx->param_buf_pool, pipelines, params_list, entries_list,
workgroups_list);
}
static webgpu_command ggml_webgpu_cumsum(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
std::vector<uint32_t> params = { (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
(uint32_t) src->ne[0] };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src,
.src1 = nullptr,
.dst = dst,
.max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup,
};
webgpu_pipeline pipeline = ctx->shader_lib->get_cumsum_pipeline(shader_lib_ctx);
uint32_t wg_x = ggml_nrows(dst);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
static webgpu_command ggml_webgpu_sum_rows(webgpu_context & ctx, ggml_tensor * src, ggml_tensor * dst) {
bool total_sum = dst->op == GGML_OP_SUM;
std::vector<uint32_t> params = { (uint32_t) (ggml_webgpu_tensor_misalignment(ctx, src) / ggml_type_size(src->type)),
(uint32_t) (ggml_webgpu_tensor_misalignment(ctx, dst) / ggml_type_size(dst->type)),
total_sum ? 0 : (uint32_t) (src->nb[1] / ggml_type_size(src->type)),
total_sum ? 0 : (uint32_t) (src->nb[2] / ggml_type_size(src->type)),
total_sum ? 0 : (uint32_t) (src->nb[3] / ggml_type_size(src->type)),
total_sum ? static_cast<uint32_t>(ggml_nelements(src)) : (uint32_t) src->ne[0],
total_sum ? 1 : (uint32_t) src->ne[1],
total_sum ? 1 : (uint32_t) src->ne[2] };
std::vector<wgpu::BindGroupEntry> entries = {
{ .binding = 0,
.buffer = ggml_webgpu_tensor_buf(src),
.offset = ggml_webgpu_tensor_align_offset(ctx, src),
.size = ggml_webgpu_tensor_binding_size(ctx, src) },
{ .binding = 1,
.buffer = ggml_webgpu_tensor_buf(dst),
.offset = ggml_webgpu_tensor_align_offset(ctx, dst),
.size = ggml_webgpu_tensor_binding_size(ctx, dst) }
};
ggml_webgpu_shader_lib_context shader_lib_ctx = {
.src0 = src, .dst = dst, .max_wg_size = ctx->global_ctx->capabilities.limits.maxComputeInvocationsPerWorkgroup
};
webgpu_pipeline pipeline = ctx->shader_lib->get_sum_rows_pipeline(shader_lib_ctx);
uint32_t wg_x = total_sum ? 1 : ggml_nrows(dst);
return ggml_backend_webgpu_build(ctx->global_ctx, ctx->param_buf_pool, pipeline, params, entries, wg_x);
}
// Returns the encoded command, or std::nullopt if the operation is a no-op
static std::optional<webgpu_command> ggml_webgpu_encode_node(webgpu_context ctx, ggml_tensor * node) {
if (ggml_is_empty(node)) {
return std::nullopt;
}
if ((node->flags & GGML_TENSOR_FLAG_COMPUTE) == 0) {
return std::nullopt;
}
WEBGPU_LOG_DEBUG("ggml_webgpu_encode_node(" << node << ", " << ggml_op_name(node->op) << ")");
ggml_tensor * src0 = node->src[0];
ggml_tensor * src1 = node->src[1];
ggml_tensor * src2 = node->src[2];
switch (node->op) {
// no-ops
case GGML_OP_NONE:
case GGML_OP_VIEW:
case GGML_OP_PERMUTE:
case GGML_OP_TRANSPOSE:
case GGML_OP_RESHAPE:
return std::nullopt;
case GGML_OP_CPY:
case GGML_OP_CONT:
return ggml_webgpu_cpy(ctx, src0, node);
case GGML_OP_SET_ROWS:
return ggml_webgpu_set_rows(ctx, src0, src1, node);
case GGML_OP_GET_ROWS:
return ggml_webgpu_get_rows(ctx, src0, src1, node);
case GGML_OP_MUL_MAT:
return ggml_webgpu_mul_mat(ctx, src0, src1, node);
case GGML_OP_FLASH_ATTN_EXT:
#ifndef __EMSCRIPTEN__
return ggml_webgpu_flash_attn(ctx, src0, src1, src2, node->src[3], node->src[4], node);
#else
return std::nullopt;
#endif
case GGML_OP_ADD:
case GGML_OP_SUB:
case GGML_OP_MUL:
case GGML_OP_DIV:
return ggml_webgpu_binary_op(ctx, src0, src1, node);
case GGML_OP_CONCAT:
return ggml_webgpu_concat(ctx, src0, src1, node);
case GGML_OP_REPEAT:
return ggml_webgpu_repeat(ctx, src0, node);
case GGML_OP_RMS_NORM:
return ggml_webgpu_rms_norm(ctx, src0, node);
case GGML_OP_ROPE:
return ggml_webgpu_rope(ctx, src0, src1, src2, node);
case GGML_OP_GLU:
return ggml_webgpu_glu(ctx, src0, src1, node);
case GGML_OP_SCALE:
return ggml_webgpu_scale(ctx, src0, node);
case GGML_OP_SOFT_MAX:
return ggml_webgpu_soft_max(ctx, src0, src1, src2, node);
case GGML_OP_UNARY:
case GGML_OP_CLAMP:
case GGML_OP_FILL:
case GGML_OP_LOG:
case GGML_OP_SQR:
case GGML_OP_SQRT:
case GGML_OP_SIN:
case GGML_OP_COS:
return ggml_webgpu_unary_op(ctx, src0, node);
case GGML_OP_PAD:
return ggml_webgpu_pad(ctx, src0, node);
case GGML_OP_ARGMAX:
return ggml_webgpu_argmax(ctx, src0, node);
case GGML_OP_ARGSORT:
case GGML_OP_TOP_K:
// we reuse the same argsort implementation for top_k
return ggml_webgpu_argsort(ctx, src0, node);
case GGML_OP_CUMSUM:
return ggml_webgpu_cumsum(ctx, src0, node);
case GGML_OP_SUM:
case GGML_OP_SUM_ROWS:
return ggml_webgpu_sum_rows(ctx, src0, node);
default:
return std::nullopt;
}
}
static ggml_status ggml_backend_webgpu_graph_compute(ggml_backend_t backend, struct ggml_cgraph * cgraph) {
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_graph_compute(" << cgraph->n_nodes << " nodes)");
ggml_backend_webgpu_context * backend_ctx = (ggml_backend_webgpu_context *) backend->context;
webgpu_context ctx = backend_ctx->webgpu_ctx;
WEBGPU_CPU_PROFILE_TOTAL_START(graph_compute);
std::vector<webgpu_command> commands;
std::vector<webgpu_submission> subs;
uint32_t num_batched_kernels = 0;
bool contains_set_rows = false;
for (int i = 0; i < cgraph->n_nodes; i++) {
if (cgraph->nodes[i]->op == GGML_OP_SET_ROWS) {
contains_set_rows = true;
}
if (auto cmd = ggml_webgpu_encode_node(ctx, cgraph->nodes[i])) {
commands.push_back(*cmd);
num_batched_kernels += cmd.value().num_kernels;
}
if (num_batched_kernels >= WEBGPU_COMMAND_SUBMIT_BATCH_SIZE) {
num_batched_kernels = 0;
subs.push_back(ggml_backend_webgpu_submit(ctx->global_ctx, commands, ctx->param_buf_pool));
// Process events and check for completed submissions
ctx->global_ctx->instance.ProcessEvents();
ggml_backend_webgpu_wait(ctx->global_ctx, subs, false);
commands.clear();
}
}
if (!commands.empty()) {
subs.push_back(ggml_backend_webgpu_submit(ctx->global_ctx, commands, ctx->param_buf_pool));
commands.clear();
}
// If there are SET_ROWS operations in this graph, copy the error buffers to the host for checking.
if (contains_set_rows) {
wgpu::CommandEncoder encoder = ctx->global_ctx->device.CreateCommandEncoder();
encoder.CopyBufferToBuffer(ctx->set_rows_dev_error_buf, 0, ctx->set_rows_host_error_buf, 0,
ctx->set_rows_host_error_buf.GetSize());
wgpu::CommandBuffer set_rows_commands = encoder.Finish();
ctx->global_ctx->queue.Submit(1, &set_rows_commands);
ggml_backend_webgpu_map_buffer(ctx->global_ctx, ctx->set_rows_host_error_buf, wgpu::MapMode::Read, 0,
ctx->set_rows_host_error_buf.GetSize());
const uint32_t * error_data = (const uint32_t *) ctx->set_rows_host_error_buf.GetConstMappedRange();
if (*error_data) {
GGML_ABORT("ggml_webgpu: SET_ROWS index > 2^32, unsupported.");
}
ctx->set_rows_host_error_buf.Unmap();
}
ggml_backend_webgpu_wait(ctx->global_ctx, subs);
WEBGPU_CPU_PROFILE_TOTAL_END(graph_compute, ctx->global_ctx);
return GGML_STATUS_SUCCESS;
}
static ggml_backend_i ggml_backend_webgpu_i = {
/* .get_name = */ ggml_backend_webgpu_name,
/* .free = */ ggml_backend_webgpu_free,
/* .set_tensor_async = */ NULL,
/* .get_tensor_async = */ NULL,
/* .cpy_tensor_async = */ NULL,
/* .synchronize = */ NULL,
/* .graph_plan_create = */ NULL,
/* .graph_plan_free = */ NULL,
/* .graph_plan_update = */ NULL,
/* .graph_plan_compute = */ NULL,
/* .graph_compute = */ ggml_backend_webgpu_graph_compute,
/* .event_record = */ NULL,
/* .event_wait = */ NULL,
/* .graph_optimize = */ NULL,
};
/* End GGML Backend Interface */
/* GGML Backend Buffer Interface */
static void ggml_backend_webgpu_buffer_free_buffer(ggml_backend_buffer_t buffer) {
ggml_backend_webgpu_buffer_context * ctx = static_cast<ggml_backend_webgpu_buffer_context *>(buffer->context);
if (ctx != nullptr && ctx->buffer != nullptr) {
ctx->buffer.Destroy();
delete ctx;
}
}
// Returns the "fake" base pointer.
static void * ggml_backend_webgpu_buffer_get_base(ggml_backend_buffer_t buffer) {
GGML_UNUSED(buffer);
return webgpu_ptr_base;
}
static void ggml_backend_webgpu_buffer_memset_tensor(ggml_backend_buffer_t buffer,
ggml_tensor * tensor,
uint8_t value,
size_t offset,
size_t size) {
if (size == 0) {
WEBGPU_LOG_DEBUG(
"ggml_backend_webgpu_buffer_memset_tensor: size is zero, "
"nothing to do.");
return;
}
WEBGPU_CPU_PROFILE_TOTAL_START(memset_tensor);
ggml_backend_webgpu_buffer_context * buf_ctx = (ggml_backend_webgpu_buffer_context *) buffer->context;
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_buffer_memset_tensor(" << buf_ctx->label << ", " << tensor << ", " << value
<< ", " << offset << ", " << size << ")");
size_t total_offset = webgpu_tensor_offset(tensor) + tensor->view_offs + offset;
// This is a trick to set all bytes of a u32 to the same 1 byte value.
uint32_t val32 = (uint32_t) value * 0x01010101;
ggml_backend_webgpu_buffer_memset(buf_ctx->global_ctx, buf_ctx->buffer, val32, total_offset, size);
WEBGPU_CPU_PROFILE_TOTAL_END(memset_tensor, buf_ctx->global_ctx);
}
static void ggml_backend_webgpu_buffer_set_tensor(ggml_backend_buffer_t buffer,
ggml_tensor * tensor,
const void * data,
size_t offset,
size_t size) {
WEBGPU_CPU_PROFILE_TOTAL_START(set_tensor);
ggml_backend_webgpu_buffer_context * buf_ctx = (ggml_backend_webgpu_buffer_context *) buffer->context;
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_buffer_set_tensor(" << buf_ctx->label << ", " << tensor << ", " << data
<< ", " << offset << ", " << size << ")");
size_t total_offset = webgpu_tensor_offset(tensor) + tensor->view_offs + offset;
buf_ctx->global_ctx->queue.WriteBuffer(buf_ctx->buffer, total_offset, data, (size / 4) * 4);
if (size % 4 != 0) {
// If size is not a multiple of 4, we need to memset the remaining bytes
size_t remaining_size = size % 4;
// pack the remaining bytes into a uint32_t
uint32_t val32 = 0;
for (size_t i = 0; i < remaining_size; i++) {
((uint8_t *) &val32)[i] = ((const uint8_t *) data)[size - remaining_size + i];
}
// memset the remaining bytes
ggml_backend_webgpu_buffer_memset(buf_ctx->global_ctx, buf_ctx->buffer, val32,
total_offset + (size - remaining_size), remaining_size);
} else {
// wait for WriteBuffer to complete
buf_ctx->global_ctx->instance.WaitAny(buf_ctx->global_ctx->queue.OnSubmittedWorkDone(
wgpu::CallbackMode::AllowSpontaneous,
[](wgpu::QueueWorkDoneStatus status, wgpu::StringView message) {
if (status != wgpu::QueueWorkDoneStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to submit commands: %s\n",
std::string(message).c_str());
}
}),
UINT64_MAX);
}
WEBGPU_CPU_PROFILE_TOTAL_END(set_tensor, buf_ctx->global_ctx);
}
static void ggml_backend_webgpu_buffer_get_tensor(ggml_backend_buffer_t buffer,
const ggml_tensor * tensor,
void * data,
size_t offset,
size_t size) {
WEBGPU_CPU_PROFILE_TOTAL_START(get_tensor);
ggml_backend_webgpu_buffer_context * buf_ctx = (ggml_backend_webgpu_buffer_context *) buffer->context;
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_buffer_get_tensor(" << buf_ctx->label << ", " << tensor << ", " << data
<< ", " << offset << ", " << size << ")");
wgpu::Device device = buf_ctx->global_ctx->device;
size_t total_offset = webgpu_tensor_offset(tensor) + tensor->view_offs + offset;
size_t final_size = size;
if (size % 4 != 0) {
// If size is not a multiple of 4, we need to round it up to the next
// multiple of 4
final_size = size + (4 - (size % 4));
}
std::lock_guard<std::recursive_mutex> lock(buf_ctx->global_ctx->mutex);
if (buf_ctx->global_ctx->get_tensor_staging_buf == nullptr ||
buf_ctx->global_ctx->get_tensor_staging_buf.GetSize() < final_size) {
// Create a new staging buffer if it doesn't exist or is too small
if (buf_ctx->global_ctx->get_tensor_staging_buf) {
buf_ctx->global_ctx->get_tensor_staging_buf.Destroy();
}
ggml_webgpu_create_buffer(device, buf_ctx->global_ctx->get_tensor_staging_buf, final_size,
wgpu::BufferUsage::CopyDst | wgpu::BufferUsage::MapRead, "get_tensor_staging_buf");
}
// Copy the data from the buffer to the staging buffer
wgpu::CommandEncoder encoder = device.CreateCommandEncoder();
encoder.CopyBufferToBuffer(buf_ctx->buffer, total_offset, buf_ctx->global_ctx->get_tensor_staging_buf, 0,
final_size);
wgpu::CommandBuffer commands = encoder.Finish();
// Submit the command buffer to the queue
buf_ctx->global_ctx->queue.Submit(1, &commands);
// Map the staging buffer to read the data
ggml_backend_webgpu_map_buffer(buf_ctx->global_ctx, buf_ctx->global_ctx->get_tensor_staging_buf,
wgpu::MapMode::Read, 0, final_size);
// Must specify size here since the staging buffer might be larger than the tensor size
const void * mapped_range = buf_ctx->global_ctx->get_tensor_staging_buf.GetConstMappedRange(0, final_size);
// Copy the data from the mapped range to the output buffer
std::memcpy(data, mapped_range, size);
buf_ctx->global_ctx->get_tensor_staging_buf.Unmap();
WEBGPU_CPU_PROFILE_TOTAL_END(get_tensor, buf_ctx->global_ctx);
}
static void ggml_backend_webgpu_buffer_clear(ggml_backend_buffer_t buffer, uint8_t value) {
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_buffer_clear(" << buffer << ", " << (uint32_t) value << ")");
WEBGPU_CPU_PROFILE_TOTAL_START(clear);
ggml_backend_webgpu_buffer_context * buf_ctx = (ggml_backend_webgpu_buffer_context *) buffer->context;
ggml_backend_webgpu_buffer_memset(buf_ctx->global_ctx, buf_ctx->buffer, value, 0, buffer->size);
WEBGPU_CPU_PROFILE_TOTAL_END(clear, buf_ctx->global_ctx);
}
static ggml_backend_buffer_i ggml_backend_webgpu_buffer_interface = {
/* .free_buffer = */ ggml_backend_webgpu_buffer_free_buffer,
/* .get_base = */ ggml_backend_webgpu_buffer_get_base,
/* .init_tensor = */ NULL, // TODO: optional, needed?
/* .memset_tensor = */ ggml_backend_webgpu_buffer_memset_tensor,
/* .set_tensor = */ ggml_backend_webgpu_buffer_set_tensor,
/* .get_tensor = */ ggml_backend_webgpu_buffer_get_tensor,
/* .cpy_tensor = */ NULL, // TODO: optional, implement this
/* .clear = */ ggml_backend_webgpu_buffer_clear,
/* .reset = */ NULL, // TODO: optional, think it coordinates with
// .init_tensor
};
/* End GGML Backend Buffer Interface */
/* GGML Backend Buffer Type Interface */
static const char * ggml_backend_webgpu_buffer_type_get_name(ggml_backend_buffer_type_t buft) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(buft->device->context);
return ctx->device_name.c_str();
}
static ggml_backend_buffer_t ggml_backend_webgpu_buffer_type_alloc_buffer(ggml_backend_buffer_type_t buft,
size_t size) {
static std::atomic<int> buffer_count;
int buffer_id = buffer_count++;
std::string buf_name = "tensor_buf" + std::to_string(buffer_id);
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_buffer_type_alloc_buffer_" << buffer_id << ": " << size << " bytes");
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(buft->device->context);
wgpu::Buffer buf;
ggml_webgpu_create_buffer(ctx->webgpu_global_ctx->device, buf, ROUNDUP_POW2(size, WEBGPU_STORAGE_BUF_BINDING_MULT),
wgpu::BufferUsage::Storage | wgpu::BufferUsage::CopySrc | wgpu::BufferUsage::CopyDst,
buf_name.c_str());
ggml_backend_webgpu_buffer_context * buf_ctx =
new ggml_backend_webgpu_buffer_context(buf, buf_name, ctx->webgpu_global_ctx);
return ggml_backend_buffer_init(buft, ggml_backend_webgpu_buffer_interface, buf_ctx, size);
}
static size_t ggml_backend_webgpu_buffer_type_get_alignment(ggml_backend_buffer_type_t buft) {
ggml_backend_webgpu_device_context * dev_ctx =
static_cast<ggml_backend_webgpu_device_context *>(buft->device->context);
return dev_ctx->webgpu_global_ctx->capabilities.limits.minStorageBufferOffsetAlignment;
}
// maxBufferSize might be larger, but you can't bind more than
// maxStorageBufferBindingSize to a single binding.
static size_t ggml_backend_webgpu_buffer_type_get_max_size(ggml_backend_buffer_type_t buft) {
ggml_backend_webgpu_device_context * dev_ctx =
static_cast<ggml_backend_webgpu_device_context *>(buft->device->context);
return dev_ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize;
}
static size_t ggml_backend_webgpu_buffer_type_get_alloc_size(ggml_backend_buffer_type_t buft,
const ggml_tensor * tensor) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(buft->device->context);
size_t res = ggml_nbytes(tensor);
switch (tensor->op) {
case GGML_OP_ARGSORT:
res = ROUNDUP_POW2(res * 2 + ctx->webgpu_global_ctx->capabilities.limits.minStorageBufferOffsetAlignment,
WEBGPU_STORAGE_BUF_BINDING_MULT);
break;
case GGML_OP_TOP_K:
{
const ggml_tensor * src0 = tensor->src[0];
if (src0) {
const size_t full = sizeof(int32_t) * ggml_nelements(src0);
res = ROUNDUP_POW2(
full * 2 + ctx->webgpu_global_ctx->capabilities.limits.minStorageBufferOffsetAlignment,
WEBGPU_STORAGE_BUF_BINDING_MULT);
}
}
break;
default:
break;
}
return res;
}
/* End GGML Backend Buffer Type Interface */
/* GGML Backend Device Interface */
static const char * ggml_backend_webgpu_device_get_name(ggml_backend_dev_t dev) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(dev->context);
return ctx->device_name.c_str();
}
static const char * ggml_backend_webgpu_device_get_description(ggml_backend_dev_t dev) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(dev->context);
return ctx->device_desc.c_str();
}
static void ggml_backend_webgpu_device_get_memory(ggml_backend_dev_t dev, size_t * free, size_t * total) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(dev->context);
// TODO: for now, return maxBufferSize as both free and total memory
// Track https://github.com/gpuweb/gpuweb/issues/5505 for updates.
uint64_t max_buffer_size = ctx->webgpu_global_ctx->capabilities.limits.maxBufferSize;
// If we're on a 32-bit system, clamp to UINTPTR_MAX
#if UINTPTR_MAX < UINT64_MAX
uint64_t max_ptr_size = static_cast<uint64_t>(UINTPTR_MAX);
if (max_buffer_size > max_ptr_size) {
max_buffer_size = max_ptr_size;
}
#endif
*free = static_cast<size_t>(max_buffer_size);
*total = static_cast<size_t>(max_buffer_size);
}
static enum ggml_backend_dev_type ggml_backend_webgpu_device_get_type(ggml_backend_dev_t dev) {
GGML_UNUSED(dev);
return GGML_BACKEND_DEVICE_TYPE_GPU;
}
static void ggml_backend_webgpu_device_get_props(ggml_backend_dev_t dev, struct ggml_backend_dev_props * props) {
props->name = ggml_backend_webgpu_device_get_name(dev);
props->description = ggml_backend_webgpu_device_get_description(dev);
props->type = ggml_backend_webgpu_device_get_type(dev);
ggml_backend_webgpu_device_get_memory(dev, &props->memory_free, &props->memory_total);
props->caps = {
/* .async = */ false,
/* .host_buffer = */ false,
/* .buffer_from_host_ptr = */ false,
/* .events = */ false,
};
}
static ggml_guid_t ggml_backend_webgpu_guid(void) {
static const char * guid_str = "__ggml_webgpu :)";
return reinterpret_cast<ggml_guid_t>((void *) guid_str);
}
static void ggml_webgpu_init_memset_pipeline(webgpu_global_context & ctx) {
// we use the maximum workgroup size for the memset pipeline
size_t max_threads = WEBGPU_MAX_WG_SIZE * ctx->capabilities.limits.maxComputeWorkgroupsPerDimension;
// Size the bytes_per_thread so that the largest buffer size can be handled
ctx->capabilities.memset_bytes_per_thread =
CEIL_DIV(ctx->capabilities.limits.maxStorageBufferBindingSize, max_threads);
std::vector<wgpu::ConstantEntry> constants(2);
constants[0].key = "wg_size";
constants[0].value = WEBGPU_MAX_WG_SIZE;
constants[1].key = "bytes_per_thread";
constants[1].value = ctx->capabilities.memset_bytes_per_thread;
ctx->memset_pipelines[0] = ggml_webgpu_create_pipeline(ctx->device, wgsl_memset, "memset", constants);
}
static void ggml_webgpu_init_cpy_pipeline(webgpu_context & webgpu_ctx) {
std::vector<wgpu::ConstantEntry> constants = ggml_webgpu_wg_size_entry(WEBGPU_MAX_WG_SIZE);
webgpu_ctx->cpy_pipelines[GGML_TYPE_F32][GGML_TYPE_F32] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_cpy_f32_f32, "cpy_f32_f32", constants);
webgpu_ctx->cpy_pipelines[GGML_TYPE_F32][GGML_TYPE_I32] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_cpy_f32_i32, "cpy_f32_i32", constants);
webgpu_ctx->cpy_pipelines[GGML_TYPE_F32][GGML_TYPE_F16] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_cpy_f32_f16, "cpy_f32_f16", constants);
webgpu_ctx->cpy_pipelines[GGML_TYPE_F16][GGML_TYPE_F32] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_cpy_f16_f32, "cpy_f16_f32", constants);
webgpu_ctx->cpy_pipelines[GGML_TYPE_F16][GGML_TYPE_F16] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_cpy_f16_f16, "cpy_f16_f16", constants);
}
static void ggml_webgpu_init_rms_norm_pipeline(webgpu_context & webgpu_ctx) {
std::vector<wgpu::ConstantEntry> constants = ggml_webgpu_wg_size_entry(WEBGPU_ROW_SPLIT_WG_SIZE);
webgpu_ctx->rms_norm_pipelines[0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_rms_norm, "rms_norm", constants);
webgpu_ctx->rms_norm_pipelines[1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_rms_norm_inplace, "rms_norm_inplace", constants);
}
static void ggml_webgpu_init_rope_pipeline(webgpu_context & webgpu_ctx) {
std::vector<wgpu::ConstantEntry> constants = ggml_webgpu_wg_size_entry(WEBGPU_MAX_WG_SIZE);
webgpu_ctx->rope_pipelines[GGML_TYPE_F32][0][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_rope_f32, "rope_f32", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F32][0][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_rope_f32_inplace, "rope_f32_inplace", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F32][1][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_rope_f32_ff, "rope_f32_ff", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F32][1][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_rope_f32_ff_inplace, "rope_f32_ff_inplace", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F16][0][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_rope_f16, "rope_f16", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F16][0][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_rope_f16_inplace, "rope_f16_inplace", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F16][1][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_rope_f16_ff, "rope_f16_ff", constants);
webgpu_ctx->rope_pipelines[GGML_TYPE_F16][1][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_rope_f16_ff_inplace, "rope_f16_ff_inplace", constants);
}
static void ggml_webgpu_init_glu_pipeline(webgpu_context & webgpu_ctx) {
std::vector<wgpu::ConstantEntry> constants = ggml_webgpu_wg_size_entry(WEBGPU_MAX_WG_SIZE);
// REGLU
webgpu_ctx->glu_pipelines[GGML_GLU_OP_REGLU][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_reglu_f32, "reglu_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_REGLU][GGML_TYPE_F16][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_reglu_f16, "reglu_f16", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_REGLU][GGML_TYPE_F32][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_reglu_f32_split, "reglu_f32_split", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_REGLU][GGML_TYPE_F16][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_reglu_f16_split, "reglu_f16_split", constants);
// GEGLU
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_f32, "geglu_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU][GGML_TYPE_F16][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_f16, "geglu_f16", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU][GGML_TYPE_F32][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_f32_split, "geglu_f32_split", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU][GGML_TYPE_F16][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_f16_split, "geglu_f16_split", constants);
// SWIGLU
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_swiglu_f32, "swiglu_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU][GGML_TYPE_F16][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_swiglu_f16, "swiglu_f16", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU][GGML_TYPE_F32][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_swiglu_f32_split, "swiglu_f32_split", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU][GGML_TYPE_F16][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_swiglu_f16_split, "swiglu_f16_split", constants);
// SWIGLU_OAI
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU_OAI][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_swiglu_oai_f32, "swiglu_oai_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_SWIGLU_OAI][GGML_TYPE_F32][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_swiglu_oai_f32_split, "swiglu_oai_f32_split", constants);
// GEGLU_ERF
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_ERF][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_erf_f32, "geglu_erf_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_ERF][GGML_TYPE_F16][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_erf_f16, "geglu_erf_f16", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_ERF][GGML_TYPE_F32][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_geglu_erf_f32_split, "geglu_erf_f32_split", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_ERF][GGML_TYPE_F16][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_geglu_erf_f16_split, "geglu_erf_f16_split", constants);
// GEGLU_QUICK
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_QUICK][GGML_TYPE_F32][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_quick_f32, "geglu_quick_f32", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_QUICK][GGML_TYPE_F16][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_geglu_quick_f16, "geglu_quick_f16", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_QUICK][GGML_TYPE_F32][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_geglu_quick_f32_split, "geglu_quick_f32_split", constants);
webgpu_ctx->glu_pipelines[GGML_GLU_OP_GEGLU_QUICK][GGML_TYPE_F16][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_geglu_quick_f16_split, "geglu_quick_f16_split", constants);
}
static void ggml_webgpu_init_soft_max_pipeline(webgpu_context & webgpu_ctx) {
std::vector<wgpu::ConstantEntry> constants = ggml_webgpu_wg_size_entry(WEBGPU_ROW_SPLIT_WG_SIZE);
// f32 (no mask)
webgpu_ctx->soft_max_pipelines[2][0][0] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_soft_max_f32, "soft_max_f32", constants);
webgpu_ctx->soft_max_pipelines[2][0][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_inplace, "soft_max_f32_inplace", constants);
webgpu_ctx->soft_max_pipelines[2][1][0] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_sink, "soft_max_f32_sink", constants);
webgpu_ctx->soft_max_pipelines[2][1][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_sink_inplace, "soft_max_f32_sink_inplace", constants);
// f32 mask (mask_type = 0)
webgpu_ctx->soft_max_pipelines[0][0][0] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f32, "soft_max_f32_mask_f32", constants);
webgpu_ctx->soft_max_pipelines[0][0][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f32_inplace, "soft_max_f32_mask_f32_inplace", constants);
webgpu_ctx->soft_max_pipelines[0][1][0] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f32_sink, "soft_max_f32_mask_f32_sink", constants);
webgpu_ctx->soft_max_pipelines[0][1][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f32_sink_inplace,
"soft_max_f32_mask_f32_sink_inplace", constants);
// f16 mask (mask_type = 1)
webgpu_ctx->soft_max_pipelines[1][0][0] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f16, "soft_max_f32_mask_f16", constants);
webgpu_ctx->soft_max_pipelines[1][0][1] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f16_inplace, "soft_max_f32_mask_f16_inplace", constants);
webgpu_ctx->soft_max_pipelines[1][1][0] = ggml_webgpu_create_pipeline(
webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f16_sink, "soft_max_f32_mask_f16_sink", constants);
webgpu_ctx->soft_max_pipelines[1][1][1] =
ggml_webgpu_create_pipeline(webgpu_ctx->global_ctx->device, wgsl_soft_max_f32_mask_f16_sink_inplace,
"soft_max_f32_mask_f16_sink_inplace", constants);
}
static bool create_webgpu_device(ggml_backend_webgpu_reg_context * ctx) {
wgpu::RequestAdapterOptions options = {};
#ifndef __EMSCRIPTEN__
// TODO: track need for these toggles: https://issues.chromium.org/issues/42251215
const char * const adapterEnabledToggles[] = { "vulkan_enable_f16_on_nvidia", "use_vulkan_memory_model" };
wgpu::DawnTogglesDescriptor adapterTogglesDesc;
adapterTogglesDesc.enabledToggles = adapterEnabledToggles;
adapterTogglesDesc.enabledToggleCount = 2;
options.nextInChain = &adapterTogglesDesc;
#endif
ctx->webgpu_global_ctx->instance.WaitAny(
ctx->webgpu_global_ctx->instance.RequestAdapter(
&options, wgpu::CallbackMode::AllowSpontaneous,
[&ctx](wgpu::RequestAdapterStatus status, wgpu::Adapter adapter, const char * message) {
if (status != wgpu::RequestAdapterStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to get an adapter: %s\n", message);
return;
}
ctx->webgpu_global_ctx->adapter = std::move(adapter);
}),
UINT64_MAX);
GGML_ASSERT(ctx->webgpu_global_ctx->adapter != nullptr);
ctx->webgpu_global_ctx->adapter.GetLimits(&ctx->webgpu_global_ctx->capabilities.limits);
wgpu::AdapterInfo info{};
#ifndef __EMSCRIPTEN__
wgpu::AdapterPropertiesSubgroupMatrixConfigs subgroup_matrix_configs{};
if (ctx->webgpu_global_ctx->adapter.HasFeature(wgpu::FeatureName::ChromiumExperimentalSubgroupMatrix)) {
info.nextInChain = &subgroup_matrix_configs;
}
#endif
ctx->webgpu_global_ctx->adapter.GetInfo(&info);
wgpu::SupportedFeatures features;
ctx->webgpu_global_ctx->adapter.GetFeatures(&features);
// we require f16 support
GGML_ASSERT(ctx->webgpu_global_ctx->adapter.HasFeature(wgpu::FeatureName::ShaderF16));
#ifndef __EMSCRIPTEN__
// Only support square f16 matrices of size 8 or 16 for now
bool valid_subgroup_matrix_config = false;
if (ctx->webgpu_global_ctx->adapter.HasFeature(wgpu::FeatureName::ChromiumExperimentalSubgroupMatrix)) {
for (size_t i = 0; i < subgroup_matrix_configs.configCount; i++) {
const wgpu::SubgroupMatrixConfig config = subgroup_matrix_configs.configs[i];
if (config.M == config.N && config.N == config.K && (config.K == 8 || config.K == 16) &&
config.componentType == wgpu::SubgroupMatrixComponentType::F16 &&
config.resultComponentType == wgpu::SubgroupMatrixComponentType::F16) {
ctx->webgpu_global_ctx->capabilities.sg_mat_m = config.M;
ctx->webgpu_global_ctx->capabilities.sg_mat_n = config.N;
ctx->webgpu_global_ctx->capabilities.sg_mat_k = config.K;
valid_subgroup_matrix_config = true;
break;
}
}
}
ctx->webgpu_global_ctx->capabilities.supports_subgroup_matrix = valid_subgroup_matrix_config;
#endif
// For subgroup matrix code to be the most efficient, we would like the subgroup size to be consistent and accurate.
// Unfortunately, that is not possible, so we use the maximum subgroup size reported by the adapter.
ctx->webgpu_global_ctx->capabilities.max_subgroup_size = info.subgroupMaxSize;
// Initialize device
std::vector<wgpu::FeatureName> required_features = { wgpu::FeatureName::ShaderF16 };
#ifndef __EMSCRIPTEN__
required_features.push_back(wgpu::FeatureName::ImplicitDeviceSynchronization);
if (ctx->webgpu_global_ctx->capabilities.supports_subgroup_matrix) {
required_features.push_back(wgpu::FeatureName::Subgroups);
required_features.push_back(wgpu::FeatureName::ChromiumExperimentalSubgroupMatrix);
}
#endif
#ifdef GGML_WEBGPU_GPU_PROFILE
required_features.push_back(wgpu::FeatureName::TimestampQuery);
#endif
wgpu::DeviceDescriptor dev_desc;
dev_desc.requiredLimits = &ctx->webgpu_global_ctx->capabilities.limits;
dev_desc.requiredFeatures = required_features.data();
dev_desc.requiredFeatureCount = required_features.size();
dev_desc.SetDeviceLostCallback(
wgpu::CallbackMode::AllowSpontaneous,
[](const wgpu::Device & device, wgpu::DeviceLostReason reason, wgpu::StringView message) {
if (reason == wgpu::DeviceLostReason::Destroyed) {
return;
}
GGML_UNUSED(device);
GGML_LOG_ERROR("ggml_webgpu: Device lost! Reason: %d, Message: %s\n", static_cast<int>(reason),
std::string(message).c_str());
});
dev_desc.SetUncapturedErrorCallback(
[](const wgpu::Device & device, wgpu::ErrorType reason, wgpu::StringView message) {
GGML_UNUSED(device);
GGML_ABORT("ggml_webgpu: Device error! Reason: %d, Message: %s\n", static_cast<int>(reason),
std::string(message).c_str());
});
#ifndef __EMSCRIPTEN__
// Enable Dawn-specific toggles to increase native performance
// TODO: Maybe WebGPU needs a "fast" mode where you can request compilers skip adding checks like these,
// only for native performance?
const char * const deviceEnabledToggles[] = { "skip_validation", "disable_robustness", "disable_workgroup_init",
"disable_polyfills_on_integer_div_and_mod" };
const char * const deviceDisabledToggles[] = { "timestamp_quantization" };
wgpu::DawnTogglesDescriptor deviceTogglesDesc;
deviceTogglesDesc.enabledToggles = deviceEnabledToggles;
deviceTogglesDesc.enabledToggleCount = 4;
deviceTogglesDesc.disabledToggles = deviceDisabledToggles;
deviceTogglesDesc.disabledToggleCount = 1;
dev_desc.nextInChain = &deviceTogglesDesc;
#endif
ctx->webgpu_global_ctx->instance.WaitAny(
ctx->webgpu_global_ctx->adapter.RequestDevice(
&dev_desc, wgpu::CallbackMode::AllowSpontaneous,
[ctx](wgpu::RequestDeviceStatus status, wgpu::Device device, wgpu::StringView message) {
if (status != wgpu::RequestDeviceStatus::Success) {
GGML_LOG_ERROR("ggml_webgpu: Failed to get a device: %s\n", std::string(message).c_str());
return;
}
ctx->webgpu_global_ctx->device = std::move(device);
}),
UINT64_MAX);
GGML_ASSERT(ctx->webgpu_global_ctx->device != nullptr);
ggml_webgpu_init_memset_pipeline(ctx->webgpu_global_ctx);
ctx->webgpu_global_ctx->memset_buf_pool.init(ctx->webgpu_global_ctx->device, 1, WEBGPU_PARAMS_BUF_SIZE_BYTES,
wgpu::BufferUsage::CopyDst | wgpu::BufferUsage::Uniform,
wgpu::BufferUsage::CopySrc | wgpu::BufferUsage::MapWrite);
ctx->webgpu_global_ctx->queue = ctx->webgpu_global_ctx->device.GetQueue();
#ifdef GGML_WEBGPU_GPU_PROFILE
// Initialize buffer pool for timestamp queries, used for profiling
ctx->webgpu_global_ctx->timestamp_query_buf_pool.init(
ctx->webgpu_global_ctx->device, WEBGPU_NUM_TIMESTAMP_QUERY_BUFS, WEBGPU_TIMESTAMP_QUERY_BUF_SIZE_BYTES,
wgpu::BufferUsage::QueryResolve | wgpu::BufferUsage::CopySrc,
wgpu::BufferUsage::MapRead | wgpu::BufferUsage::CopyDst);
#endif
GGML_LOG_INFO(
"ggml_webgpu: adapter_info: vendor_id: %u | vendor: %s | architecture: %s | device_id: %u | name: %s | "
"device_desc: %s\n",
info.vendorID, std::string(info.vendor).c_str(), std::string(info.architecture).c_str(), info.deviceID,
std::string(info.device).c_str(), std::string(info.description).c_str());
return true;
}
static webgpu_context initialize_webgpu_context(ggml_backend_dev_t dev) {
ggml_backend_webgpu_device_context * dev_ctx = (ggml_backend_webgpu_device_context *) dev->context;
webgpu_context webgpu_ctx = std::make_shared<webgpu_context_struct>();
webgpu_ctx->global_ctx = dev_ctx->webgpu_global_ctx;
webgpu_ctx->shader_lib = std::make_unique<ggml_webgpu_shader_lib>(dev_ctx->webgpu_global_ctx->device);
webgpu_ctx->param_buf_pool.init(webgpu_ctx->global_ctx->device, WEBGPU_NUM_PARAM_BUFS, WEBGPU_PARAMS_BUF_SIZE_BYTES,
wgpu::BufferUsage::CopyDst | wgpu::BufferUsage::Uniform,
wgpu::BufferUsage::CopySrc | wgpu::BufferUsage::MapWrite, true);
ggml_webgpu_create_buffer(webgpu_ctx->global_ctx->device, webgpu_ctx->set_rows_dev_error_buf,
WEBGPU_SET_ROWS_ERROR_BUF_SIZE_BYTES,
wgpu::BufferUsage::Storage | wgpu::BufferUsage::CopySrc, "set_rows_dev_error_buf");
ggml_webgpu_create_buffer(webgpu_ctx->global_ctx->device, webgpu_ctx->set_rows_host_error_buf,
WEBGPU_SET_ROWS_ERROR_BUF_SIZE_BYTES,
wgpu::BufferUsage::CopyDst | wgpu::BufferUsage::MapRead, "set_rows_host_error_buf");
ggml_webgpu_init_cpy_pipeline(webgpu_ctx);
ggml_webgpu_init_rms_norm_pipeline(webgpu_ctx);
ggml_webgpu_init_rope_pipeline(webgpu_ctx);
ggml_webgpu_init_glu_pipeline(webgpu_ctx);
ggml_webgpu_init_soft_max_pipeline(webgpu_ctx);
#ifdef GGML_WEBGPU_DEBUG
// Initialize debug buffers
ggml_webgpu_create_buffer(webgpu_ctx->global_ctx->device, webgpu_ctx->global_ctx->debug_host_buf,
WEBGPU_DEBUG_BUF_ELEMS * sizeof(uint32_t),
wgpu::BufferUsage::CopyDst | wgpu::BufferUsage::MapRead, "debug_host_buf");
ggml_webgpu_create_buffer(webgpu_ctx->global_ctx->device, webgpu_ctx->global_ctx->debug_dev_buf,
WEBGPU_DEBUG_BUF_ELEMS * sizeof(uint32_t),
wgpu::BufferUsage::Storage | wgpu::BufferUsage::CopySrc, "debug_dev_buf");
#endif
return webgpu_ctx;
}
static ggml_backend_t ggml_backend_webgpu_backend_init(ggml_backend_dev_t dev, const char * params) {
GGML_UNUSED(params);
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_backend_init()");
ggml_backend_webgpu_device_context * dev_ctx = static_cast<ggml_backend_webgpu_device_context *>(dev->context);
auto * backend_ctx = new ggml_backend_webgpu_context();
backend_ctx->name = GGML_WEBGPU_NAME + std::string(": ") + dev_ctx->device_name;
backend_ctx->webgpu_ctx = initialize_webgpu_context(dev);
// See GGML Backend Interface section
auto * backend = new ggml_backend();
*backend = {
/* .guid = */ ggml_backend_webgpu_guid(),
/* .interface = */ ggml_backend_webgpu_i,
/* .device = */ dev,
/* .context = */ backend_ctx,
};
return backend;
}
static ggml_backend_buffer_type_t ggml_backend_webgpu_device_get_buffer_type(ggml_backend_dev_t dev) {
// See GGML Backend Buffer Type Interface section
static struct ggml_backend_buffer_type ggml_backend_webgpu_buffer_type = {
/* .iface = */ {
/* .get_name = */ ggml_backend_webgpu_buffer_type_get_name,
/* .alloc_buffer = */
ggml_backend_webgpu_buffer_type_alloc_buffer, /* .get_alignment = */
ggml_backend_webgpu_buffer_type_get_alignment, /* .get_max_size = */
ggml_backend_webgpu_buffer_type_get_max_size, /* .get_alloc_size = */
ggml_backend_webgpu_buffer_type_get_alloc_size, /* .is_host = */ NULL, // defaults to false
},
/* .device = */
dev,
/* .context = */
NULL
};
return &ggml_backend_webgpu_buffer_type;
}
static bool ggml_backend_webgpu_device_supports_buft(ggml_backend_dev_t dev, ggml_backend_buffer_type_t buft) {
GGML_UNUSED(dev);
return buft->iface.get_name == ggml_backend_webgpu_buffer_type_get_name;
}
static bool ggml_webgpu_supported_qtype(ggml_type type) {
switch (type) {
case GGML_TYPE_Q4_0:
case GGML_TYPE_Q4_1:
case GGML_TYPE_Q5_0:
case GGML_TYPE_Q5_1:
case GGML_TYPE_Q8_0:
case GGML_TYPE_Q2_K:
case GGML_TYPE_Q3_K:
case GGML_TYPE_Q4_K:
case GGML_TYPE_Q5_K:
case GGML_TYPE_Q6_K:
case GGML_TYPE_IQ2_XXS:
case GGML_TYPE_IQ2_XS:
case GGML_TYPE_IQ2_S:
case GGML_TYPE_IQ3_XXS:
case GGML_TYPE_IQ3_S:
case GGML_TYPE_IQ1_S:
case GGML_TYPE_IQ1_M:
case GGML_TYPE_IQ4_NL:
case GGML_TYPE_IQ4_XS:
return true;
default:
return false;
}
}
static bool ggml_backend_webgpu_device_supports_op(ggml_backend_dev_t dev, const ggml_tensor * op) {
ggml_backend_webgpu_device_context * ctx = static_cast<ggml_backend_webgpu_device_context *>(dev->context);
ggml_tensor * src0 = op->src[0];
ggml_tensor * src1 = op->src[1];
ggml_tensor * src2 = op->src[2];
// on smaller devices (or CI), tensors may be larger than the max storage buffer size
if (ggml_nbytes(op) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize ||
(src0 != nullptr &&
ggml_nbytes(src0) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize) ||
(src1 != nullptr &&
ggml_nbytes(src1) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize)) {
return false;
}
bool supports_op = false;
switch (op->op) {
case GGML_OP_NONE:
case GGML_OP_VIEW:
case GGML_OP_PERMUTE:
case GGML_OP_TRANSPOSE:
case GGML_OP_RESHAPE:
supports_op = true;
break;
case GGML_OP_ADD:
case GGML_OP_SUB:
case GGML_OP_MUL:
case GGML_OP_DIV:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type) &&
(src1->type == op->type);
break;
case GGML_OP_CONCAT:
supports_op = (src0->type == GGML_TYPE_F32 || src0->type == GGML_TYPE_I32);
break;
case GGML_OP_REPEAT:
supports_op = (src0->type == GGML_TYPE_F32 || src0->type == GGML_TYPE_I32 || src0->type == GGML_TYPE_I16);
break;
case GGML_OP_CPY:
case GGML_OP_CONT:
supports_op = ((op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) &&
(src0->type == GGML_TYPE_F32 || src0->type == GGML_TYPE_F16)) ||
(op->type == GGML_TYPE_I32 && src0->type == GGML_TYPE_F32);
break;
case GGML_OP_SET_ROWS:
supports_op = ((op->type == GGML_TYPE_F16 || op->type == GGML_TYPE_F32) && src0->type == GGML_TYPE_F32 &&
(src1->type == GGML_TYPE_I64 || src1->type == GGML_TYPE_I32));
break;
case GGML_OP_GET_ROWS:
if (src0->type == GGML_TYPE_F32 || src0->type == GGML_TYPE_F16 || ggml_webgpu_supported_qtype(src0->type)) {
supports_op = (op->type == GGML_TYPE_F32);
} else if (src0->type == GGML_TYPE_I32) {
supports_op = op->type == GGML_TYPE_I32;
}
break;
case GGML_OP_MUL_MAT:
{
switch (src1->type) {
case GGML_TYPE_F16:
supports_op |= (src0->type == GGML_TYPE_F16);
break;
case GGML_TYPE_F32:
switch (src0->type) {
case GGML_TYPE_F32:
case GGML_TYPE_F16:
case GGML_TYPE_Q4_0:
case GGML_TYPE_Q4_1:
case GGML_TYPE_Q5_0:
case GGML_TYPE_Q5_1:
case GGML_TYPE_Q8_0:
case GGML_TYPE_Q2_K:
case GGML_TYPE_Q3_K:
case GGML_TYPE_Q4_K:
case GGML_TYPE_Q5_K:
case GGML_TYPE_Q6_K:
case GGML_TYPE_IQ2_XXS:
case GGML_TYPE_IQ2_XS:
case GGML_TYPE_IQ2_S:
case GGML_TYPE_IQ3_XXS:
case GGML_TYPE_IQ3_S:
case GGML_TYPE_IQ1_S:
case GGML_TYPE_IQ1_M:
case GGML_TYPE_IQ4_NL:
case GGML_TYPE_IQ4_XS:
supports_op = true;
break;
default:
break;
}
default:
break;
}
break;
}
case GGML_OP_FLASH_ATTN_EXT:
{
#ifndef __EMSCRIPTEN__
if (!ctx->webgpu_global_ctx->capabilities.supports_subgroup_matrix) {
break;
}
// Head dimensions must fit in workgroup memory with minimum tile sizes
size_t limit_bytes = ctx->webgpu_global_ctx->capabilities.limits.maxComputeWorkgroupStorageSize;
const bool has_mask = op->src[3] != nullptr;
const bool kv_direct = src1->type == GGML_TYPE_F16 &&
(src0->ne[0] % ctx->webgpu_global_ctx->capabilities.sg_mat_k) == 0 &&
(src1->ne[1] % GGML_WEBGPU_KV_SEQ_PAD) == 0;
const size_t min_bytes = ggml_webgpu_flash_attn_wg_mem_bytes(
ctx->webgpu_global_ctx->capabilities.sg_mat_m, ctx->webgpu_global_ctx->capabilities.sg_mat_n,
(uint32_t) src0->ne[0], (uint32_t) src2->ne[0], has_mask, kv_direct);
if (min_bytes > limit_bytes) {
break;
}
supports_op = src0->type == GGML_TYPE_F32 &&
(src1->type == GGML_TYPE_F32 || src1->type == GGML_TYPE_F16 ||
src1->type == GGML_TYPE_Q4_0 || src1->type == GGML_TYPE_Q8_0) &&
src2->type == src1->type && op->type == GGML_TYPE_F32;
#endif
break;
}
case GGML_OP_RMS_NORM:
supports_op = op->type == GGML_TYPE_F32 && src0->type == GGML_TYPE_F32;
break;
case GGML_OP_ROPE:
supports_op = op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16;
break;
case GGML_OP_GLU:
switch (ggml_get_glu_op(op)) {
case GGML_GLU_OP_REGLU:
case GGML_GLU_OP_GEGLU:
case GGML_GLU_OP_SWIGLU:
case GGML_GLU_OP_GEGLU_ERF:
case GGML_GLU_OP_GEGLU_QUICK:
supports_op = op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16;
break;
case GGML_GLU_OP_SWIGLU_OAI:
supports_op = op->type == GGML_TYPE_F32;
break;
default:
break;
}
break;
case GGML_OP_SCALE:
supports_op = op->type == GGML_TYPE_F32;
break;
case GGML_OP_SOFT_MAX:
supports_op = op->type == GGML_TYPE_F32;
break;
case GGML_OP_UNARY:
{
const ggml_unary_op UNARY_OP = ggml_get_unary_op(op);
switch (UNARY_OP) {
case GGML_UNARY_OP_ABS:
case GGML_UNARY_OP_SGN:
case GGML_UNARY_OP_NEG:
case GGML_UNARY_OP_STEP:
case GGML_UNARY_OP_TANH:
case GGML_UNARY_OP_ELU:
case GGML_UNARY_OP_RELU:
case GGML_UNARY_OP_SIGMOID:
case GGML_UNARY_OP_GELU:
case GGML_UNARY_OP_GELU_QUICK:
case GGML_UNARY_OP_SILU:
case GGML_UNARY_OP_HARDSWISH:
case GGML_UNARY_OP_HARDSIGMOID:
case GGML_UNARY_OP_EXP:
case GGML_UNARY_OP_GELU_ERF:
case GGML_UNARY_OP_SOFTPLUS:
case GGML_UNARY_OP_EXPM1:
case GGML_UNARY_OP_FLOOR:
case GGML_UNARY_OP_CEIL:
case GGML_UNARY_OP_ROUND:
case GGML_UNARY_OP_TRUNC:
case GGML_UNARY_OP_XIELU:
supports_op =
(op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
default:
break;
}
}
break;
case GGML_OP_CLAMP:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_FILL:
supports_op = op->type == GGML_TYPE_F32 && src0->type == GGML_TYPE_F32;
break;
case GGML_OP_LOG:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_SQR:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_SQRT:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_SIN:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_COS:
supports_op = (op->type == GGML_TYPE_F32 || op->type == GGML_TYPE_F16) && (src0->type == op->type);
break;
case GGML_OP_PAD:
supports_op = op->type == GGML_TYPE_F32 && src0->type == GGML_TYPE_F32;
break;
case GGML_OP_ARGMAX:
supports_op = op->type == GGML_TYPE_I32 && src0->type == GGML_TYPE_F32;
break;
case GGML_OP_ARGSORT:
supports_op = op->type == GGML_TYPE_I32 && src0->type == GGML_TYPE_F32 && ggml_is_contiguous_rows(src0);
break;
case GGML_OP_TOP_K:
supports_op = op->type == GGML_TYPE_I32 && src0->type == GGML_TYPE_F32 && ggml_is_contiguous_rows(src0);
break;
case GGML_OP_CUMSUM:
supports_op = op->type == GGML_TYPE_F32 && src0->type == op->type;
break;
case GGML_OP_SUM:
case GGML_OP_SUM_ROWS:
supports_op = op->type == GGML_TYPE_F32 && src0->type == op->type && ggml_is_contiguous_rows(src0);
break;
default:
break;
}
if (ggml_nbytes(op) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize ||
(src0 != nullptr &&
ggml_nbytes(src0) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize) ||
(src1 != nullptr &&
ggml_nbytes(src1) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize) ||
(src2 != nullptr &&
ggml_nbytes(src2) > ctx->webgpu_global_ctx->capabilities.limits.maxStorageBufferBindingSize)) {
supports_op = false;
WEBGPU_LOG_DEBUG("ggml_webgpu op not supported due to size: ");
}
if (!supports_op) {
WEBGPU_LOG_DEBUG("ggml_webgpu op not supported: "
<< ggml_op_name(op->op) << " with types dst: " << ggml_type_name(op->type)
<< ", src0: " << (op->src[0] ? ggml_type_name(op->src[0]->type) : "null")
<< ", src1: " << (op->src[1] ? ggml_type_name(op->src[1]->type) : "null"));
} else {
WEBGPU_LOG_DEBUG("ggml_webgpu op supported: "
<< ggml_op_name(op->op) << " with types dst: " << ggml_type_name(op->type)
<< ", src0: " << (op->src[0] ? ggml_type_name(op->src[0]->type) : "null")
<< ", src1: " << (op->src[1] ? ggml_type_name(op->src[1]->type) : "null"));
}
return supports_op;
}
static struct ggml_backend_device_i ggml_backend_webgpu_device_i = {
/* .get_name = */ ggml_backend_webgpu_device_get_name,
/* .get_description = */ ggml_backend_webgpu_device_get_description,
/* .get_memory = */ ggml_backend_webgpu_device_get_memory,
/* .get_type = */ ggml_backend_webgpu_device_get_type,
/* .get_props = */ ggml_backend_webgpu_device_get_props,
/* .init_backend = */ ggml_backend_webgpu_backend_init,
/* .get_buffer_type = */ ggml_backend_webgpu_device_get_buffer_type,
/* .get_host_buffer_type = */ NULL,
/* .buffer_from_host_ptr = */ NULL,
/* .supports_op = */ ggml_backend_webgpu_device_supports_op,
/* .supports_buft = */ ggml_backend_webgpu_device_supports_buft,
/* .offload_op = */ NULL,
/* .event_new = */ NULL,
/* .event_free = */ NULL,
/* .event_synchronize = */ NULL,
};
/* End GGML Backend Device Interface */
/* GGML Backend Registration Interface */
static const char * ggml_backend_webgpu_reg_get_name(ggml_backend_reg_t reg) {
ggml_backend_webgpu_reg_context * ctx = static_cast<ggml_backend_webgpu_reg_context *>(reg->context);
return ctx->name;
}
static size_t ggml_backend_webgpu_reg_get_device_count(ggml_backend_reg_t reg) {
ggml_backend_webgpu_reg_context * ctx = static_cast<ggml_backend_webgpu_reg_context *>(reg->context);
return ctx->device_count;
}
// Only one device is supported for now
static ggml_backend_dev_t ggml_backend_webgpu_reg_get_device(ggml_backend_reg_t reg, size_t index) {
GGML_ASSERT(index == 0);
WEBGPU_LOG_DEBUG("ggml_backend_reg_get_device()");
WEBGPU_CPU_PROFILE_TOTAL_START(reg_get_device);
ggml_backend_webgpu_reg_context * reg_ctx = static_cast<ggml_backend_webgpu_reg_context *>(reg->context);
create_webgpu_device(reg_ctx);
static ggml_backend_webgpu_device_context device_ctx;
device_ctx.device_name = GGML_WEBGPU_NAME;
device_ctx.device_desc = GGML_WEBGPU_NAME;
device_ctx.webgpu_global_ctx = reg_ctx->webgpu_global_ctx;
// See GGML Backend Device Interface section
static ggml_backend_device device = {
/* .iface = */ ggml_backend_webgpu_device_i,
/* .reg = */ reg,
/* .context = */ &device_ctx,
};
WEBGPU_CPU_PROFILE_TOTAL_END(reg_get_device, reg_ctx->webgpu_global_ctx);
return &device;
}
static const struct ggml_backend_reg_i ggml_backend_webgpu_reg_i = {
/* .get_name = */ ggml_backend_webgpu_reg_get_name,
/* .get_device_count = */ ggml_backend_webgpu_reg_get_device_count,
/* .get_device = */ ggml_backend_webgpu_reg_get_device,
/* .get_proc_address = */ NULL,
};
/* End GGML Backend Registration Interface */
ggml_backend_reg_t ggml_backend_webgpu_reg() {
WEBGPU_LOG_DEBUG("ggml_backend_webgpu_reg()");
static ggml_backend_webgpu_reg_context ctx;
ctx.name = GGML_WEBGPU_NAME;
ctx.device_count = 1;
wgpu::InstanceDescriptor instance_descriptor{};
std::vector<wgpu::InstanceFeatureName> instance_features = { wgpu::InstanceFeatureName::TimedWaitAny };
instance_descriptor.requiredFeatures = instance_features.data();
instance_descriptor.requiredFeatureCount = instance_features.size();
#ifndef __EMSCRIPTEN__
const char * const instanceEnabledToggles[] = { "allow_unsafe_apis" };
wgpu::DawnTogglesDescriptor instanceTogglesDesc;
instanceTogglesDesc.enabledToggles = instanceEnabledToggles;
instanceTogglesDesc.enabledToggleCount = 1;
instance_descriptor.nextInChain = &instanceTogglesDesc;
#endif
wgpu::Instance inst = wgpu::CreateInstance(&instance_descriptor);
ctx.webgpu_global_ctx = webgpu_global_context(new webgpu_global_context_struct());
ctx.webgpu_global_ctx->instance = std::move(inst);
#ifdef __EMSCRIPTEN__
if (ctx.webgpu_global_ctx->instance == nullptr) {
GGML_LOG_ERROR("ggml_webgpu: Failed to create WebGPU instance. Make sure either -sASYNCIFY or -sJSPI is set\n");
return nullptr;
}
#endif
GGML_ASSERT(ctx.webgpu_global_ctx->instance != nullptr);
static ggml_backend_reg reg = {
/* .api_version = */ GGML_BACKEND_API_VERSION,
/* .iface = */ ggml_backend_webgpu_reg_i,
/* .context = */ &ctx,
};
return ®
}
ggml_backend_t ggml_backend_webgpu_init(void) {
ggml_backend_dev_t dev = ggml_backend_reg_dev_get(ggml_backend_webgpu_reg(), 0);
return ggml_backend_webgpu_backend_init(dev, nullptr);
}
GGML_BACKEND_DL_IMPL(ggml_backend_webgpu_reg)核心功能概述
-
WebGPU 环境与设备管理初始化 WebGPU 实例、适配器、逻辑设备，查询 GPU 能力（算力限制、F16 支持、子组矩阵等），管理全局上下文和设备资源，兼容浏览器（Emscripten）和原生环境。
-
GPU 内存与缓冲区管理实现 WebGPU 存储缓冲区的分配、释放、内存池复用，处理主机（CPU）与设备（GPU）之间的数据拷贝、内存对齐、 memset 初始化，支持张量数据的上传 / 下载。
-
计算管线与着色器调度预编译 / 动态生成各类计算着色器管线（拷贝、归一化、注意力、矩阵乘等），管理着色器常量、绑定组、参数缓冲区，调度计算工作组，批量提交 GPU 命令优化执行效率。
-
GGML 算子全量实现对接 GGML 核心算子，在 GPU 上执行：
- 基础算子：张量拷贝、拼接、重复、填充、一元 / 二元运算（加减乘除、激活函数）
- 大模型核心算子：矩阵乘法（mul_mat）、Flash Attention、RMS 归一化、ROPE 位置编码、GLU 门控、Softmax
- 辅助算子：取值 / 设行、排序、求和、累积和、极值查找
-
性能与调试支持内置 CPU/GPU 性能剖析、调试日志、错误捕获，支持命令批处理、异步提交 / 等待，最大化 GPU 利用率。
-
GGML 后端接口适配完整实现 GGML 后端规范，对接计算图执行、张量管理、设备查询、算子支持性校验，让上层框架无感知使用 WebGPU 加速。
人人皆为创造者，共创方能共成长
每个人都是使用者，也是创造者；是数字世界的消费者，更是价值的生产者与分享者。在智能时代的浪潮里，单打独斗的发展模式早已落幕，唯有开放连接、创意共创、利益共享，才能让个体价值汇聚成生态合力，让技术与创意双向奔赴，实现平台与伙伴的快速成长、共赢致远。
原创永久分成，共赴星辰大海
原创创意共创、永久收益分成，是东方仙盟始终坚守的核心理念。我们坚信，每一份原创智慧都值得被尊重与回馈，以永久分成锚定共创初心，让创意者长期享有价值红利，携手万千伙伴向着科技星辰大海笃定前行，拥抱硅基 生命与数字智能交融的未来，共筑跨越时代的数字文明共同体。
东方仙盟：拥抱知识开源，共筑数字新生态
在全球化与数字化浪潮中，东方仙盟始终秉持开放协作、知识共享的理念，积极拥抱开源技术与开放标准。我们相信，唯有打破技术壁垒、汇聚全球智慧，才能真正推动行业的可持续发展。
开源赋能中小商户：通过将前端异常检测、跨系统数据互联等核心能力开源化，东方仙盟为全球中小商户提供了低成本、高可靠的技术解决方案，让更多商家能够平等享受数字转型的红利。
共建行业标准：我们积极参与国际技术社区，与全球开发者、合作伙伴共同制定开放协议 与技术规范，推动跨境零售、文旅、餐饮等多业态的系统互联互通，构建更加公平、高效的数字生态。
知识普惠，共促发展：通过开源社区 、技术文档与培训体系，东方仙盟致力于将前沿技术转化为可落地的行业实践，赋能全球合作伙伴，共同培育创新人才，推动数字经济 的普惠式增长
阿雪技术观
在科技发展浪潮中，我们不妨积极投身技术共享。不满足于做受益者，更要主动担当贡献者。无论是分享代码、撰写技术博客，还是参与开源项目 维护改进，每一个微小举动都可能蕴含推动技术进步的巨大能量。东方仙盟是汇聚力量的天地，我们携手在此探索硅基 生命，为科技进步添砖加瓦。
Hey folks, in this wild tech - driven world, why not dive headfirst into the whole tech - sharing scene? Don't just be the one reaping all the benefits; step up and be a contributor too. Whether you're tossing out your code snippets , hammering out some tech blogs, or getting your hands dirty with maintaining and sprucing up open - source projects, every little thing you do might just end up being a massive force that pushes tech forward. And guess what? The Eastern FairyAlliance is this awesome place where we all come together. We're gonna team up and explore the whole silicon - based life thing, and in the process, we'll be fueling the growth of technology
