【Jack实战】如何用 Core Vision Kit 给旅行票据做端侧 OCR 识别

大家好，我是鸿蒙Jack。本期以我的《时光旅记》APP 为例，聊一下我怎么用 @kit.CoreVisionKit 的通用文字识别能力，把旅行票据图片自动识别成可编辑的行程信息。

《时光旅记》的旅行模块里有一个"旅行票夹"。用户可以把火车票、飞机票、酒店确认单、门票等凭证集中收纳到某个旅行计划下面。这里真正麻烦的地方不是"保存一条票据记录"，而是用户手动填写成本太高：车次、航班号、出发到达、日期、座位、酒店地址，字段很多，而且大多数信息已经在截图或照片里。

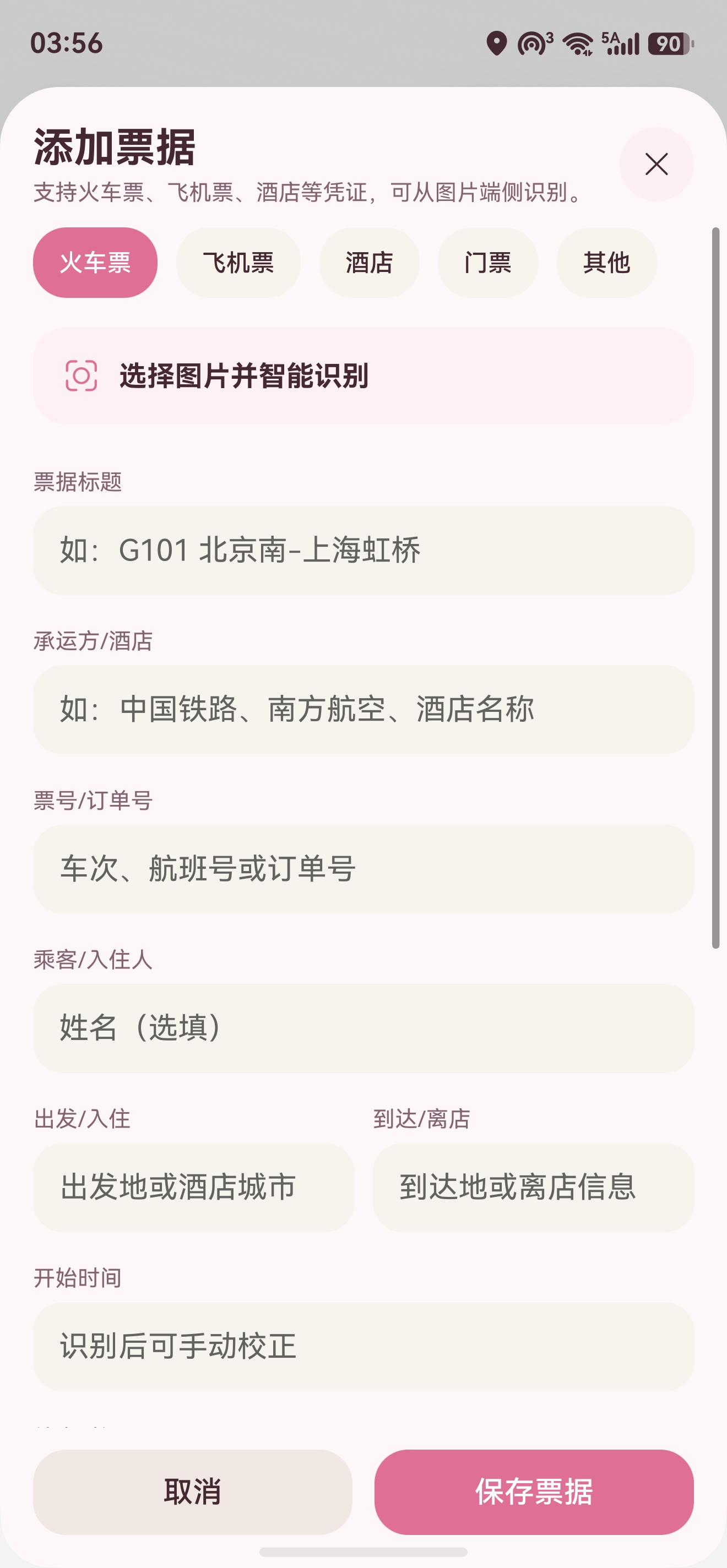

所以我在票据编辑面板里加了一个入口：选择图片并智能识别。用户从相册选择一张票据图片后，APP 在端侧把图片解码成 PixelMap，调用 Core Vision Kit 的 textRecognition.recognizeText()，拿到整段 OCR 文本，再结合《时光旅记》的票据模型做字段解析和回填。

官方文档入口是：textRecognition（文字识别）。

我在《时光旅记》里的使用场景

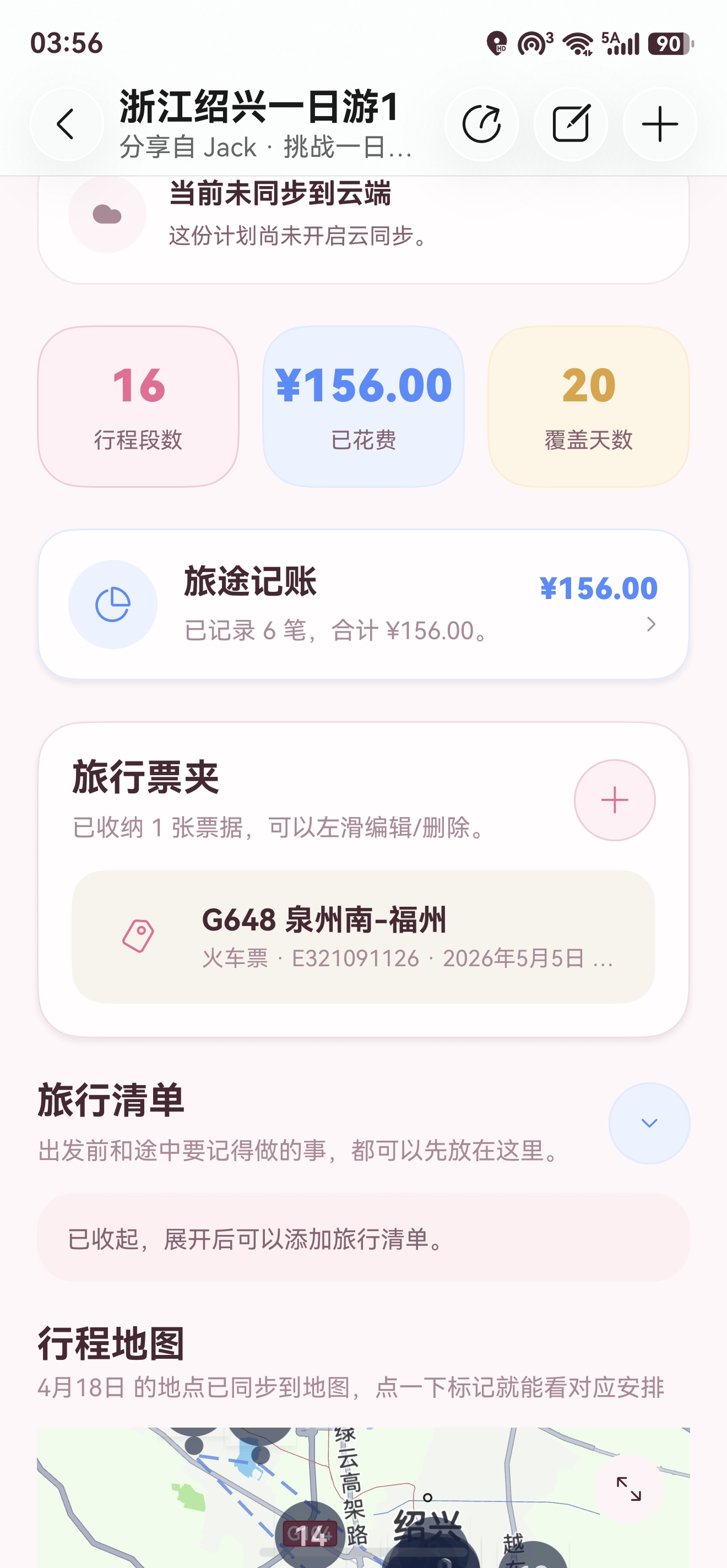

旅行详情页里有一个"旅行票夹"卡片。没有票据时，我会提示"添加票据图片后，可用端侧 OCR 自动识别关键信息"。用户点加号进入票据编辑面板，面板顶部有"选择图片并智能识别"按钮。

整个业务流是这样：
旅行详情页
旅行票夹
添加或编辑票据
选择图片并智能识别
PhotoViewPicker 选择相册图片
CoreFileKit 打开 URI
ImageKit 解码 PixelMap
CoreVisionKit textRecognition.recognizeText
获得 OCR 原始文本
按业务规则解析票据字段
回填票据草稿
用户检查并保存
TravelTicketItem 持久化

我这里没有把 OCR 结果直接保存。原因很简单：OCR 可能把 G101 识别成 G1O1，也可能因为图片角度或压缩质量漏掉座位号。我的设计是"先识别，后检查，再保存"。识别结果会进入草稿字段，用户确认后才写入 TravelTicketItem。

Core Vision Kit OCR 的最小链路

通用文字识别的链路很清楚。

先导入模块：

import { textRecognition } from '@kit.CoreVisionKit';

页面出现时初始化 OCR 服务，页面消失时释放：

await textRecognition.init();
await textRecognition.release();

真正识别时，需要把图片变成 PixelMap。我的票据图片来自相册选择器，所以流程是：
票据解析逻辑 textRecognition ImageKit CoreFileKit PhotoViewPicker TravelPlanDetailPage 用户 票据解析逻辑 textRecognition ImageKit CoreFileKit PhotoViewPicker TravelPlanDetailPage 用户 点击选择图片并智能识别 select({ IMAGE_TYPE, maxSelectNumber: 1 }) 返回 photoUris[0] open(uri, READ_ONLY) 返回 fd createImageSource(fd) ImageSource createPixelMap() PixelMap recognizeText({ pixelMap }, config) TextRecognitionResult.value applyTicketOcrText(rawText) 回填草稿字段 release PixelMap close file

TextRecognitionConfiguration 里我打开了朝向检测：

let configuration: textRecognition.TextRecognitionConfiguration = {
  isDirectionDetectionSupported: true
};

票据照片经常不是规整扫描图，可能是手机拍屏、聊天截图、横竖方向不一致的订单图。打开朝向检测会更稳。如果你的业务能保证图片一定是正向的，可以设成 false 换一点性能。

字段解析要贴着业务写

OCR 只能告诉我"图里有哪些文字"，它并不知道《时光旅记》里的票据模型。项目里的 TravelTicketItem 包含这些字段：类型、标题、承运方或酒店、票号或订单号、乘客、出发到达、开始结束时间、座位、地址、备注和 ocrText。

所以我把识别分成两层：

第一层是通用 OCR，只负责把图片变成文本。

第二层是旅行票据解析，只负责把文本变成业务草稿。比如看到"乘车日期""检票口""车厢座位"时偏向火车票；看到航班号、登机口、座位号时偏向飞机票；看到"酒店""入住""地址"时偏向酒店确认单。

这里不要追求一次解析百分百正确。票据 OCR 的产品体验重点是减少输入量，不是替用户绕过确认。我的处理规则是：只在草稿字段为空时自动填充，用户已经手填的内容不会被 OCR 覆盖。

完整代码

下面这份代码把《时光旅记》里的 OCR 主链路整理成一个可复用版本。如果要在多个页面复用，可以按这个结构抽成工具类。

JackTravelTicketOcr.ets

import { Context } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { fileIo as fs } from '@kit.CoreFileKit';
import { image } from '@kit.ImageKit';
import { photoAccessHelper } from '@kit.MediaLibraryKit';
import { textRecognition } from '@kit.CoreVisionKit';

export class TravelTicketDraft {
  type: string = '火车票';
  title: string = '';
  provider: string = '';
  identifier: string = '';
  passengerName: string = '';
  departure: string = '';
  arrival: string = '';
  startTime: string = '';
  endTime: string = '';
  seatInfo: string = '';
  address: string = '';
  note: string = '';
  ocrText: string = '';
}

export class JackTravelTicketOcr {
  async init(): Promise<void> {
    try {
      await textRecognition.init();
    } catch (error) {
      console.error(`Failed to init travel ticket OCR: ${JSON.stringify(error)}`);
    }
  }

  async release(): Promise<void> {
    try {
      await textRecognition.release();
    } catch (error) {
      console.error(`Failed to release travel ticket OCR: ${JSON.stringify(error)}`);
    }
  }

  async selectImageAndRecognize(_context: Context): Promise<string> {
    let picker: photoAccessHelper.PhotoViewPicker = new photoAccessHelper.PhotoViewPicker();
    let result: photoAccessHelper.PhotoSelectResult = await picker.select({
      MIMEType: photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE,
      maxSelectNumber: 1
    });
    if (result.photoUris.length === 0) {
      return '';
    }
    return await this.recognizeTextFromUri(result.photoUris[0]);
  }

  async recognizeTextFromUri(uri: string): Promise<string> {
    let file = await fs.open(uri, fs.OpenMode.READ_ONLY);
    let imageSource: image.ImageSource | undefined = undefined;
    let pixelMap: image.PixelMap | undefined = undefined;
    try {
      imageSource = image.createImageSource(file.fd);
      pixelMap = await imageSource.createPixelMap();
      let visionInfo: textRecognition.VisionInfo = { pixelMap: pixelMap };
      let configuration: textRecognition.TextRecognitionConfiguration = {
        isDirectionDetectionSupported: true
      };
      let result: textRecognition.TextRecognitionResult =
        await textRecognition.recognizeText(visionInfo, configuration);
      return result.value;
    } finally {
      if (pixelMap !== undefined) {
        pixelMap.release();
      }
      if (imageSource !== undefined) {
        imageSource.release();
      }
      await fs.close(file);
    }
  }

  applyTextToDraft(rawText: string, draft: TravelTicketDraft): TravelTicketDraft {
    let text: string = rawText.trim();
    draft.ocrText = text;
    if (text.length === 0) {
      return draft;
    }

    let lines: Array<string> = this.normalizeLines(text);
    let compactText: string = text.replace(/\s+/g, ' ');
    draft.type = this.inferTicketTypeFromText(text);

    let trainNo: string = this.extractTrainNumber(compactText, lines);
    let flightNo: string = draft.type === '飞机票' ? this.extractFlightNumber(compactText, lines) : '';
    let identifier: string = this.matchFirstText(/订单号[:：]?\s*([A-Z0-9]{6,24})/, compactText);
    if (identifier.length === 0 && draft.type === '火车票') {
      identifier = trainNo;
    } else if (identifier.length === 0 && draft.type === '飞机票') {
      identifier = flightNo;
    } else if (identifier.length === 0) {
      identifier = this.matchFirstText(/([A-Z]{1,3}\d{2,12})/, compactText);
    }
    this.fillIfEmpty(draft, 'identifier', identifier);

    let dateText: string = this.matchFirstText(
      /(\d{4}[-/.年]\d{1,2}[-/.月]\d{1,2}[日]?\s*\d{1,2}:\d{2})/,
      compactText
    );
    if (dateText.length === 0 && draft.type === '火车票') {
      dateText = this.combineDateAndTime(
        this.matchFirstText(/乘车日期[:：]?\s*(\d{4}年\d{1,2}月\d{1,2}日)/, compactText),
        this.extractTrainDepartureTimeFromTimeBlocks(lines)
      );
    } else if (dateText.length === 0 && draft.type === '飞机票') {
      dateText = this.combineDateAndTime(
        this.extractFlightDateText(compactText, lines),
        this.extractFlightBoardingTime(lines)
      );
    }
    this.fillIfEmpty(draft, 'startTime', dateText);

    let provider: string = this.extractTicketProvider(draft.type, compactText, lines);
    if (provider.length === 0 && draft.type === '飞机票') {
      provider = this.getAirlineProviderFromFlightNumber(flightNo);
    }
    this.fillIfEmpty(draft, 'provider', provider);

    if (draft.type === '飞机票') {
      this.fillIfEmpty(draft, 'passengerName', this.extractFlightPassengerName(lines, compactText));
    }

    let route: Array<string> = draft.type === '飞机票'
      ? [this.extractFlightDeparture(lines), this.extractFlightArrival(compactText, lines)]
      : this.extractTicketRoute(compactText, lines);
    if (route[0].length === 0 && draft.type === '火车票') {
      route = this.extractTrainRouteFromTimeBlocks(lines);
    }
    this.fillIfEmpty(draft, 'departure', route[0]);
    this.fillIfEmpty(draft, 'arrival', route[1]);

    let seatInfo: string = draft.type === '飞机票'
      ? this.buildFlightSeatSummary(this.extractFlightGateInfo(lines), this.extractFlightSeatNumber(lines, compactText))
      : this.extractTicketSeatInfo(compactText);
    this.fillIfEmpty(draft, 'seatInfo', seatInfo);

    this.fillIfEmpty(draft, 'address', this.findLine(lines, ['地址', '集合地点']));

    if (draft.title.trim().length === 0) {
      if (draft.type === '飞机票' && flightNo.length > 0 && draft.departure.length > 0 && draft.arrival.length > 0) {
        draft.title = `${flightNo} ${draft.departure}-${draft.arrival}`;
      } else if (trainNo.length > 0 && draft.departure.length > 0 && draft.arrival.length > 0) {
        draft.title = `${trainNo} ${draft.departure}-${draft.arrival}`;
      } else {
        draft.title = this.buildTicketTitleFromDraft(draft);
      }
    }

    if (draft.note.trim().length === 0) {
      draft.note = text.length > 220 ? text.substring(0, 220) : text;
    }

    return draft;
  }

  private fillIfEmpty(draft: TravelTicketDraft, key: string, value: string): void {
    let normalizedValue: string = value.trim();
    if (normalizedValue.length === 0) {
      return;
    }
    if (key === 'identifier' && draft.identifier.trim().length === 0) {
      draft.identifier = normalizedValue;
    } else if (key === 'startTime' && draft.startTime.trim().length === 0) {
      draft.startTime = normalizedValue;
    } else if (key === 'provider' && draft.provider.trim().length === 0) {
      draft.provider = normalizedValue;
    } else if (key === 'passengerName' && draft.passengerName.trim().length === 0) {
      draft.passengerName = normalizedValue;
    } else if (key === 'departure' && draft.departure.trim().length === 0) {
      draft.departure = normalizedValue;
    } else if (key === 'arrival' && draft.arrival.trim().length === 0) {
      draft.arrival = normalizedValue;
    } else if (key === 'seatInfo' && draft.seatInfo.trim().length === 0) {
      draft.seatInfo = normalizedValue;
    } else if (key === 'address' && draft.address.trim().length === 0) {
      draft.address = normalizedValue;
    }
  }

  private inferTicketTypeFromText(text: string): string {
    let compactText: string = text.replace(/\s+/g, ' ');
    if (/登机口|航班|BOARDING|GATE|Flight|航站楼|机票/.test(compactText)) {
      return '飞机票';
    }
    if (/车次|检票口|候车|乘车日期|火车票|高铁|动车/.test(compactText)) {
      return '火车票';
    }
    if (/酒店|入住|离店|房型|住宿|前台/.test(compactText)) {
      return '酒店';
    }
    if (/门票|景区|入园|游客|预约/.test(compactText)) {
      return '门票';
    }
    return '其他';
  }

  private normalizeLines(text: string): Array<string> {
    let sourceLines: Array<string> = text.split(/\r?\n/);
    let lines: Array<string> = [];
    for (let i: number = 0; i < sourceLines.length; i++) {
      let line: string = sourceLines[i].replace(/\s+/g, ' ').trim();
      if (line.length > 0) {
        lines.push(line);
      }
    }
    return lines;
  }

  private matchFirstText(pattern: RegExp, text: string): string {
    let match: RegExpMatchArray | null = text.match(pattern);
    if (match === null || match.length < 2) {
      return '';
    }
    return match[1].trim();
  }

  private extractTrainNumber(text: string, lines: Array<string>): string {
    let trainNo: string = this.matchFirstText(/\b([GCDZTKSY]\d{1,5})\b/, text);
    if (trainNo.length > 0) {
      return trainNo;
    }
    for (let i: number = 0; i < lines.length; i++) {
      trainNo = this.matchFirstText(/车次[:：]?\s*([A-Z]\d{1,5})/, lines[i]);
      if (trainNo.length > 0) {
        return trainNo;
      }
    }
    return '';
  }

  private extractFlightNumber(text: string, lines: Array<string>): string {
    let flightNo: string = this.matchFirstText(/\b([A-Z]{2}\d{3,4})\b/, text);
    if (flightNo.length > 0) {
      return flightNo;
    }
    for (let i: number = 0; i < lines.length; i++) {
      flightNo = this.matchFirstText(/航班号?[:：]?\s*([A-Z0-9]{2,8})/, lines[i]);
      if (flightNo.length > 0) {
        return flightNo;
      }
    }
    return '';
  }

  private extractTicketProvider(type: string, text: string, lines: Array<string>): string {
    if (type === '火车票') {
      if (/中国铁路|铁路12306|12306/.test(text)) {
        return '中国铁路';
      }
      return '';
    }
    if (type === '飞机票') {
      let provider: string = this.findLine(lines, ['航空', 'AIRLINES']);
      return provider.length > 30 ? '' : provider;
    }
    if (type === '酒店') {
      let hotel: string = this.findLine(lines, ['酒店', '宾馆', '民宿']);
      return hotel.length > 40 ? '' : hotel;
    }
    return '';
  }

  private getAirlineProviderFromFlightNumber(flightNo: string): string {
    if (flightNo.length < 2) {
      return '';
    }
    let prefix: string = flightNo.substring(0, 2);
    if (prefix === 'CZ') {
      return '南方航空';
    }
    if (prefix === 'MU') {
      return '东方航空';
    }
    if (prefix === 'CA') {
      return '中国国航';
    }
    if (prefix === 'HU') {
      return '海南航空';
    }
    if (prefix === 'MF') {
      return '厦门航空';
    }
    return '';
  }

  private extractTicketRoute(text: string, lines: Array<string>): Array<string> {
    let routeText: string = this.matchFirstText(/([\u4e00-\u9fa5A-Za-z]{2,20})\s*[----→至到]\s*([\u4e00-\u9fa5A-Za-z]{2,20})/, text);
    if (routeText.length > 0) {
      let routeMatch: RegExpMatchArray | null =
        text.match(/([\u4e00-\u9fa5A-Za-z]{2,20})\s*[----→至到]\s*([\u4e00-\u9fa5A-Za-z]{2,20})/);
      if (routeMatch !== null && routeMatch.length >= 3) {
        return [routeMatch[1].trim(), routeMatch[2].trim()];
      }
    }
    let from: string = this.findLine(lines, ['出发', '始发']);
    let to: string = this.findLine(lines, ['到达', '终到']);
    return [this.removeLabel(from), this.removeLabel(to)];
  }

  private extractTrainRouteFromTimeBlocks(lines: Array<string>): Array<string> {
    let stationLines: Array<string> = [];
    for (let i: number = 0; i < lines.length; i++) {
      if (this.isLikelyTrainStationLine(lines[i])) {
        stationLines.push(lines[i]);
      }
    }
    if (stationLines.length >= 2) {
      return [stationLines[0], stationLines[1]];
    }
    return ['', ''];
  }

  private isLikelyTrainStationLine(line: string): boolean {
    return /^[\u4e00-\u9fa5]{2,12}(站|东|西|南|北)?$/.test(line) && !/乘车|检票|候车|座位/.test(line);
  }

  private extractTrainDepartureTimeFromTimeBlocks(lines: Array<string>): string {
    for (let i: number = 0; i < lines.length - 1; i++) {
      if (!/^\d{1,2}:\d{2}$/.test(lines[i])) {
        continue;
      }
      for (let j: number = i + 1; j < lines.length && j <= i + 3; j++) {
        if (this.isLikelyTrainStationLine(lines[j])) {
          return lines[i];
        }
      }
    }
    return '';
  }

  private combineDateAndTime(dateText: string, timeText: string): string {
    if (dateText.length === 0 || timeText.length === 0) {
      return dateText.length > 0 ? dateText : timeText;
    }
    return `${dateText} ${timeText}`;
  }

  private extractTicketSeatInfo(text: string): string {
    let seat: string = this.matchFirstText(/([0-9A-Z]{1,4}车\s*[0-9A-Z]{1,6}号?)/, text);
    if (seat.length > 0) {
      return seat;
    }
    seat = this.matchFirstText(/(座位[:：]?\s*[0-9A-Z\-]+号?)/, text);
    if (seat.length > 0) {
      return seat;
    }
    return this.matchFirstText(/(登机口[:：]?\s*[0-9A-Z\-]+)/, text);
  }

  private extractFlightDateText(text: string, _lines: Array<string>): string {
    let dateText: string = this.matchFirstText(/日期[:：]?\s*(\d{4}[-/.年]\d{1,2}[-/.月]\d{1,2}[日]?)/, text);
    if (dateText.length > 0) {
      return dateText;
    }
    return this.matchFirstText(/(\d{1,2}月\d{1,2}日)/, text);
  }

  private extractFlightBoardingTime(lines: Array<string>): string {
    for (let i: number = 0; i < lines.length; i++) {
      let time: string = this.matchFirstText(/(?:登机|起飞|时间)[:：]?\s*(\d{1,2}:\d{2})/, lines[i]);
      if (time.length > 0) {
        return time;
      }
    }
    return '';
  }

  private extractFlightDeparture(lines: Array<string>): string {
    let value: string = this.findLine(lines, ['出发', 'FROM']);
    return this.removeLabel(value);
  }

  private extractFlightArrival(text: string, lines: Array<string>): string {
    let value: string = this.findLine(lines, ['到达', 'TO']);
    if (value.length > 0) {
      return this.removeLabel(value);
    }
    return this.matchFirstText(/到达[:：]?\s*([\u4e00-\u9fa5A-Za-z]{2,20})/, text);
  }

  private extractFlightPassengerName(lines: Array<string>, text: string): string {
    let name: string = this.matchFirstText(/(?:姓名|旅客|乘客|PASSENGER)[:：]?\s*([\u4e00-\u9fa5A-Za-z ]{2,30})/, text);
    if (name.length > 0) {
      return name;
    }
    for (let i: number = 0; i < lines.length; i++) {
      if (/旅客|乘客|PASSENGER/.test(lines[i]) && i + 1 < lines.length) {
        return lines[i + 1].trim();
      }
    }
    return '';
  }

  private extractFlightGateInfo(lines: Array<string>): string {
    for (let i: number = 0; i < lines.length; i++) {
      let gate: string = this.matchFirstText(/(?:登机口|GATE)[:：]?\s*([A-Z0-9\-]+)/, lines[i]);
      if (gate.length > 0) {
        return `登机口 ${gate}`;
      }
    }
    return '';
  }

  private extractFlightSeatNumber(lines: Array<string>, text: string): string {
    let seat: string = this.matchFirstText(/(?:座位|SEAT)[:：]?\s*([0-9A-Z\-]+)/, text);
    if (seat.length > 0) {
      return `座位 ${seat}`;
    }
    for (let i: number = 0; i < lines.length; i++) {
      seat = this.matchFirstText(/([0-9]{1,2}[A-F])/, lines[i]);
      if (seat.length > 0) {
        return `座位 ${seat}`;
      }
    }
    return '';
  }

  private buildFlightSeatSummary(gate: string, seat: string): string {
    if (gate.length > 0 && seat.length > 0) {
      return `${gate} ${seat}`;
    }
    return gate.length > 0 ? gate : seat;
  }

  private findLine(lines: Array<string>, keywords: Array<string>): string {
    for (let i: number = 0; i < lines.length; i++) {
      for (let j: number = 0; j < keywords.length; j++) {
        if (lines[i].indexOf(keywords[j]) >= 0) {
          return lines[i];
        }
      }
    }
    return '';
  }

  private removeLabel(value: string): string {
    return value
      .replace(/^(出发|始发|到达|终到|FROM|TO|地址|集合地点)[:：]?\s*/i, '')
      .trim();
  }

  private buildTicketTitleFromDraft(draft: TravelTicketDraft): string {
    if (draft.departure.trim().length > 0 && draft.arrival.trim().length > 0) {
      return `${draft.departure.trim()} - ${draft.arrival.trim()}`;
    }
    if (draft.provider.trim().length > 0) {
      return `${draft.provider.trim()} ${draft.type}`;
    }
    return draft.type;
  }
}

页面接入代码

页面里只需要维护一个 OCR 实例、一个忙碌状态和一份票据草稿。下面是和《时光旅记》当前页面一致的接入方式。

import { Context } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { promptAction } from '@kit.ArkUI';
import { JackTravelTicketOcr, TravelTicketDraft } from './JackTravelTicketOcr';

@Component
export struct TravelTicketEditorDemo {
  @State private isTicketOcrBusy: boolean = false;
  @State private ticketDraft: TravelTicketDraft = new TravelTicketDraft();
  private readonly ticketOcr: JackTravelTicketOcr = new JackTravelTicketOcr();

  aboutToAppear(): void {
    void this.ticketOcr.init();
  }

  aboutToDisappear(): void {
    void this.ticketOcr.release();
  }

  build(): void {
    Column({ space: 16 }) {
      Button() {
        Row({ space: 10 }) {
          if (this.isTicketOcrBusy) {
            LoadingProgress()
              .width(20)
              .height(20)
          } else {
            SymbolGlyph($r('sys.symbol.circle_viewfinder'))
              .fontSize(20)
          }
          Text('选择图片并智能识别')
            .fontSize(15)
            .fontWeight(FontWeight.Bold)
            .layoutWeight(1)
        }
        .width('100%')
      }
      .width('100%')
      .height(52)
      .padding({ left: 16, right: 16 })
      .borderRadius(18)
      .enabled(!this.isTicketOcrBusy)
      .onClick(() => {
        void this.selectTicketImageAndRecognize();
      })

      TextInput({ text: this.ticketDraft.title, placeholder: '票据标题' })
        .onChange((value: string) => {
          this.ticketDraft.title = value;
        })

      TextInput({ text: this.ticketDraft.identifier, placeholder: '车次、航班号或订单号' })
        .onChange((value: string) => {
          this.ticketDraft.identifier = value;
        })

      TextInput({ text: this.ticketDraft.departure, placeholder: '出发/入住' })
        .onChange((value: string) => {
          this.ticketDraft.departure = value;
        })

      TextInput({ text: this.ticketDraft.arrival, placeholder: '到达/离店' })
        .onChange((value: string) => {
          this.ticketDraft.arrival = value;
        })

      TextArea({ text: this.ticketDraft.ocrText, placeholder: 'OCR 原文' })
        .height(120)
        .onChange((value: string) => {
          this.ticketDraft.ocrText = value;
        })
    }
    .width('100%')
    .padding(20)
  }

  private async selectTicketImageAndRecognize(): Promise<void> {
    if (this.isTicketOcrBusy) {
      return;
    }
    let hostContext: Context | undefined = this.getUIContext().getHostContext() as Context | undefined;
    if (hostContext === undefined) {
      this.showToast('无法访问当前页面上下文');
      return;
    }
    this.isTicketOcrBusy = true;
    try {
      let rawText: string = await this.ticketOcr.selectImageAndRecognize(hostContext);
      this.ticketDraft = this.ticketOcr.applyTextToDraft(rawText, this.ticketDraft);
      this.showToast(rawText.trim().length > 0 ? '已识别票据信息，请检查后保存' : '未识别到文字，可手动填写');
    } catch (error) {
      let businessError: BusinessError = error as BusinessError;
      this.showToast(
        businessError.message && businessError.message.length > 0 ? businessError.message : '票据识别失败'
      );
    } finally {
      this.isTicketOcrBusy = false;
    }
  }

  private showToast(message: string): void {
    promptAction.showToast({
      message: message,
      duration: 1600
    });
  }
}

保存到旅行票夹

识别只是填草稿，保存时再把草稿转成业务模型。项目里的 TravelTicketItem 有一个 ocrText 字段，我会把 OCR 原文一起存下来，方便用户后面回看，也方便后续优化解析规则。

private saveTicketDraft(): void {
  let nextItem: TravelTicketItem = new TravelTicketItem();
  nextItem.type = this.ticketDraft.type;
  nextItem.title = this.ticketDraft.title.trim().length > 0 ? this.ticketDraft.title.trim() : this.ticketDraft.type;
  nextItem.provider = this.ticketDraft.provider.trim();
  nextItem.identifier = this.ticketDraft.identifier.trim();
  nextItem.passengerName = this.ticketDraft.passengerName.trim();
  nextItem.departure = this.ticketDraft.departure.trim();
  nextItem.arrival = this.ticketDraft.arrival.trim();
  nextItem.startTime = this.ticketDraft.startTime.trim();
  nextItem.endTime = this.ticketDraft.endTime.trim();
  nextItem.seatInfo = this.ticketDraft.seatInfo.trim();
  nextItem.address = this.ticketDraft.address.trim();
  nextItem.note = this.ticketDraft.note.trim();
  nextItem.ocrText = this.ticketDraft.ocrText.trim();
  nextItem.updatedAt = new Date().toISOString();

  // 这里接你的持久化逻辑。我的项目里会写入 travel_ticket_items 表，
  // 并同步更新当前 TravelPlan 的 ticketItems。
}

接入时要注意的细节

PhotoViewPicker 返回的是 URI，不是图片字节。要先用 CoreFileKit 打开，再交给 ImageKit 创建 ImageSource 和 PixelMap。

VisionInfo 当前传的是 PixelMap。OCR 结束后要释放 PixelMap，文件句柄也要关闭。这个逻辑建议放在 finally，不要只写在成功分支。

textRecognition.init() 和 release() 不要每识别一张图就反复调用。我的处理是进入旅行详情页时初始化，离开页面时释放。票据识别按钮只负责选择图片和识别。

OCR 原文建议保存。解析规则后续一定会迭代，有原文就能重新分析为什么某张票没填出字段。

小结

这套能力落到旅行票夹里，核心价值不是"识别出一段文字"，而是把用户要填的字段提前补上。Core Vision Kit 负责端侧 OCR，业务层负责票据语义解析，最后让用户检查再保存。这样既能减少输入，又不会把 OCR 的不确定性直接写进用户数据。
