spring-cloud微服务部署-feign服务间调用

1 准备工作

需要安装并启动nacos,作为服务注册中心。地址:https://nacos.io/

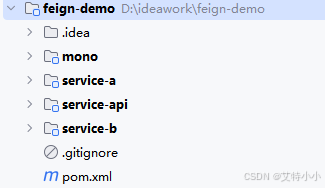

2 项目结构

parent的pom.xml声明依赖:

xml 复制代码
<dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>3.2.12</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>2023.0.6</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2023.0.1.0</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
</dependencyManagement>

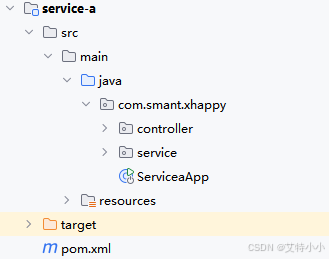

2.1 服务service-a

在pom.xml中引入依赖:

xml 复制代码
<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.smant.xhappy</groupId>
            <artifactId>service-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
</dependencies>

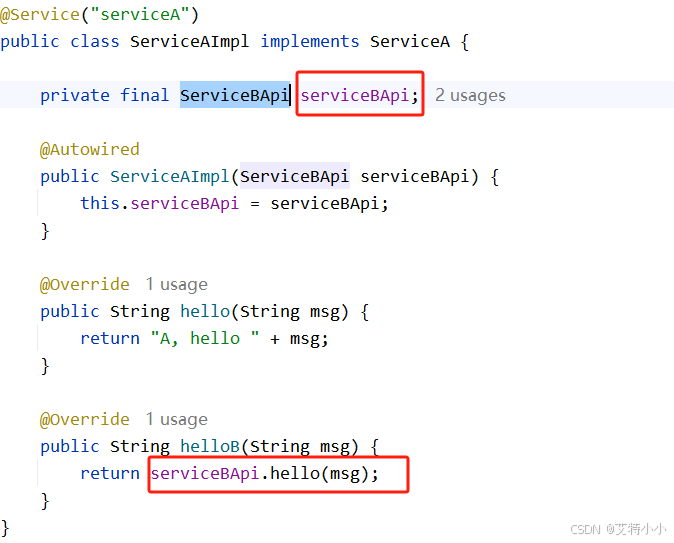

在service-a中通过feign调用service-b的hello方法:

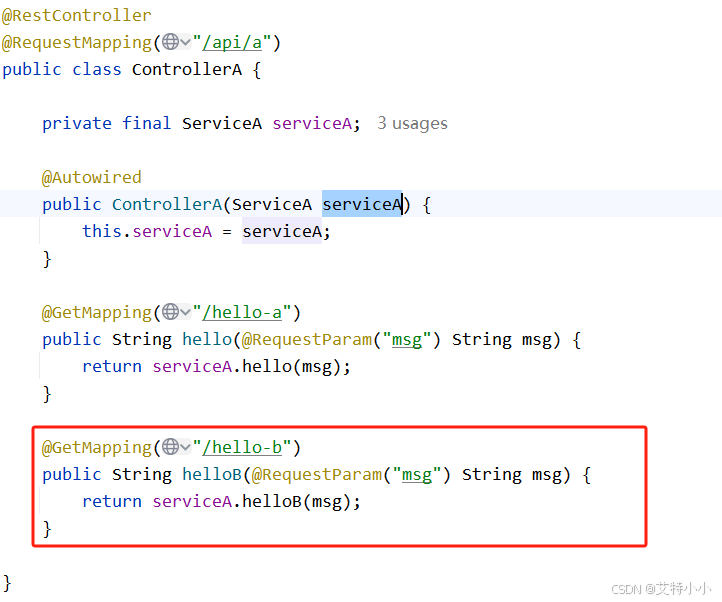

在controller中定义调用service-b中hello方法的接口:

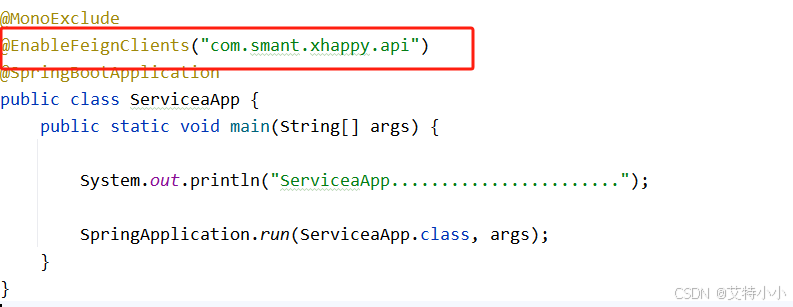

在启动类上开启feign接口扫描:service-a需要调用service-b的接口,要在service-a的启动类上加@EnableFeignClients 注解,也就是服务调用方要加上@EnableFeignClients注解。

在application.yml中配置nacos地址:

bash 复制代码
server:
  port: 7515
spring:
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
  application:
    name: service-a

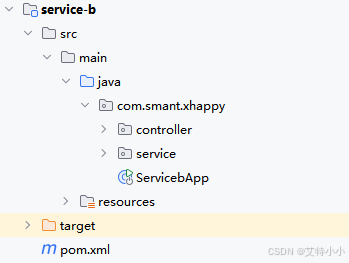

2.2 服务service-b

和service-a的结构代码都差不多,不在赘述。

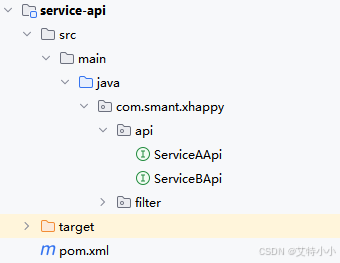

2.2 feign接口

在pom.xml引入依赖:

xml 复制代码
<dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-loadbalancer</artifactId>
        </dependency>
</dependencies>

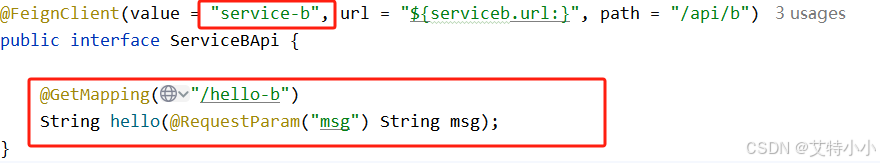

声明service-b的hello方法,给别的服务调用。

3 启动测试

启动service-a和service-b,然后请求地址:

http://localhost:7515/api/a/hello-a?msg=world

响应:A, hello world

http://localhost:7515/api/a/hello-b?msg=world

响应:B, hello world

这样一个简单的通过feign进行服务间调用的流程的就通了!!!
