20250726让荣品的PRO-RK3566开发板使用TF卡启动
2025/7/26 8:58
缘起：需要升级 荣品的PRO-RK3566核心板的 底板上的FPGA程序。
由于没有使用RK809的电量计功能，板子一上电就会被关机！^_
于是给生产线制作了一张TF卡/启动卡，插到底板上。
上电的时候就会进Buildroot/Linux系统，而不是关机！

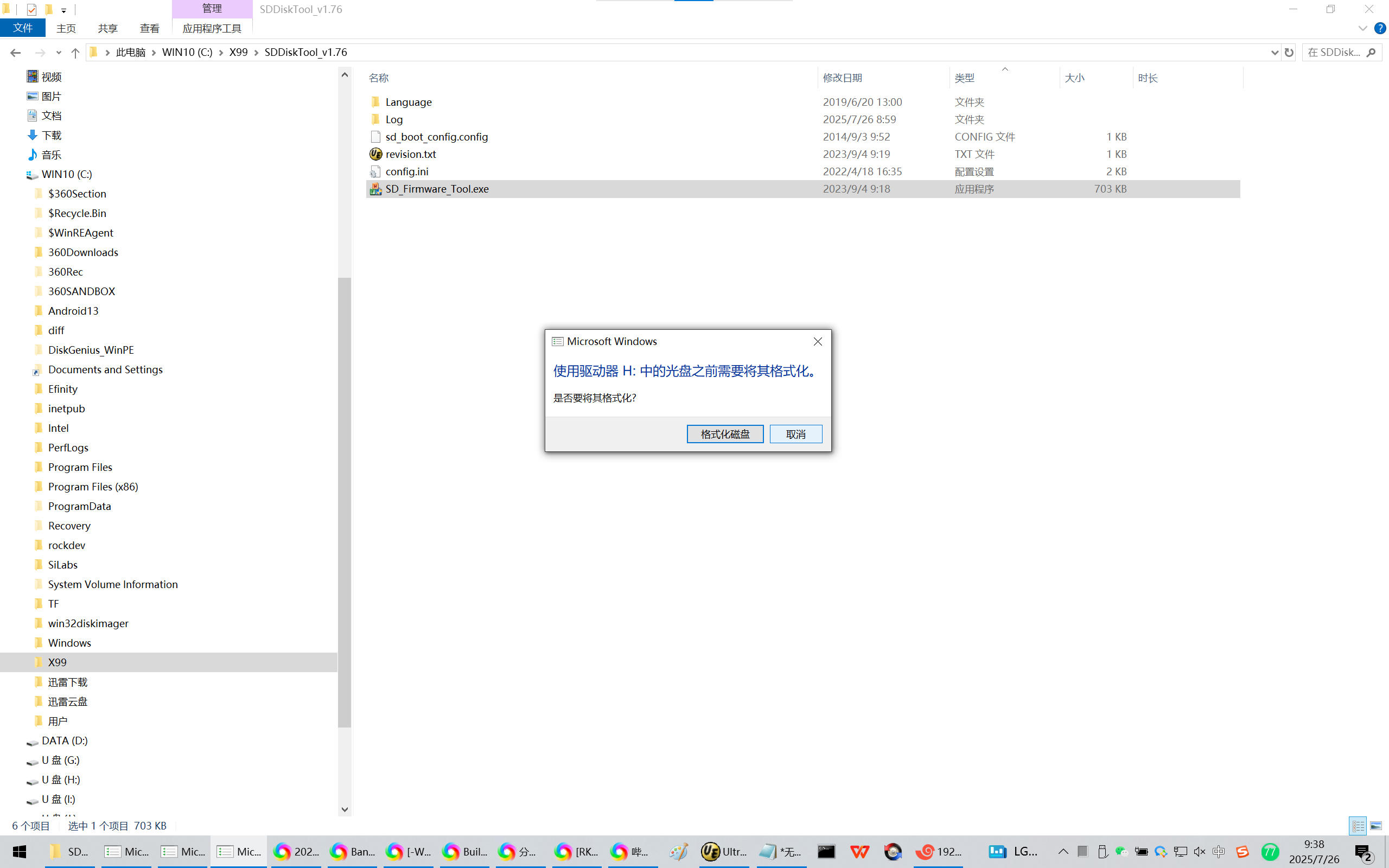

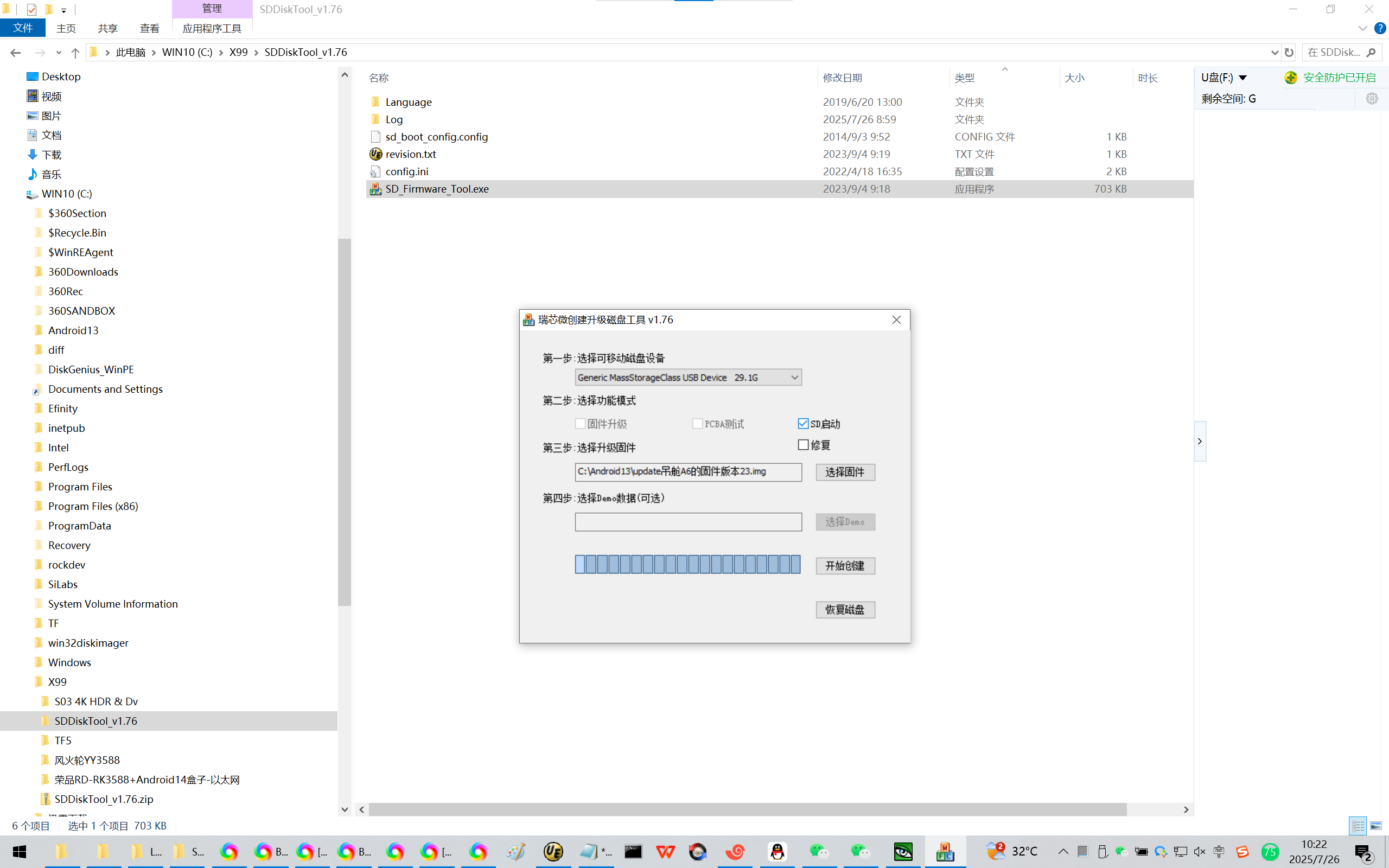

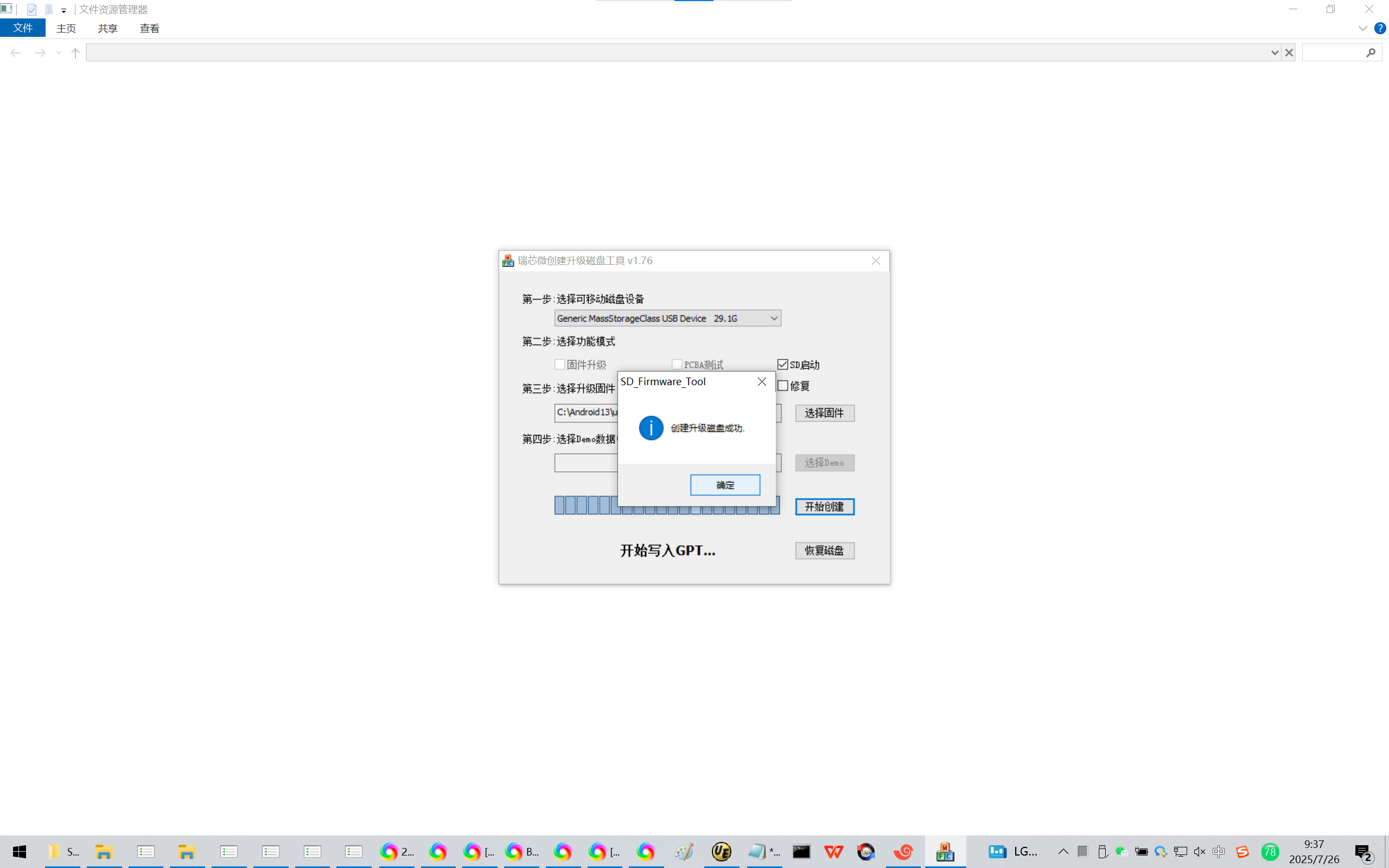

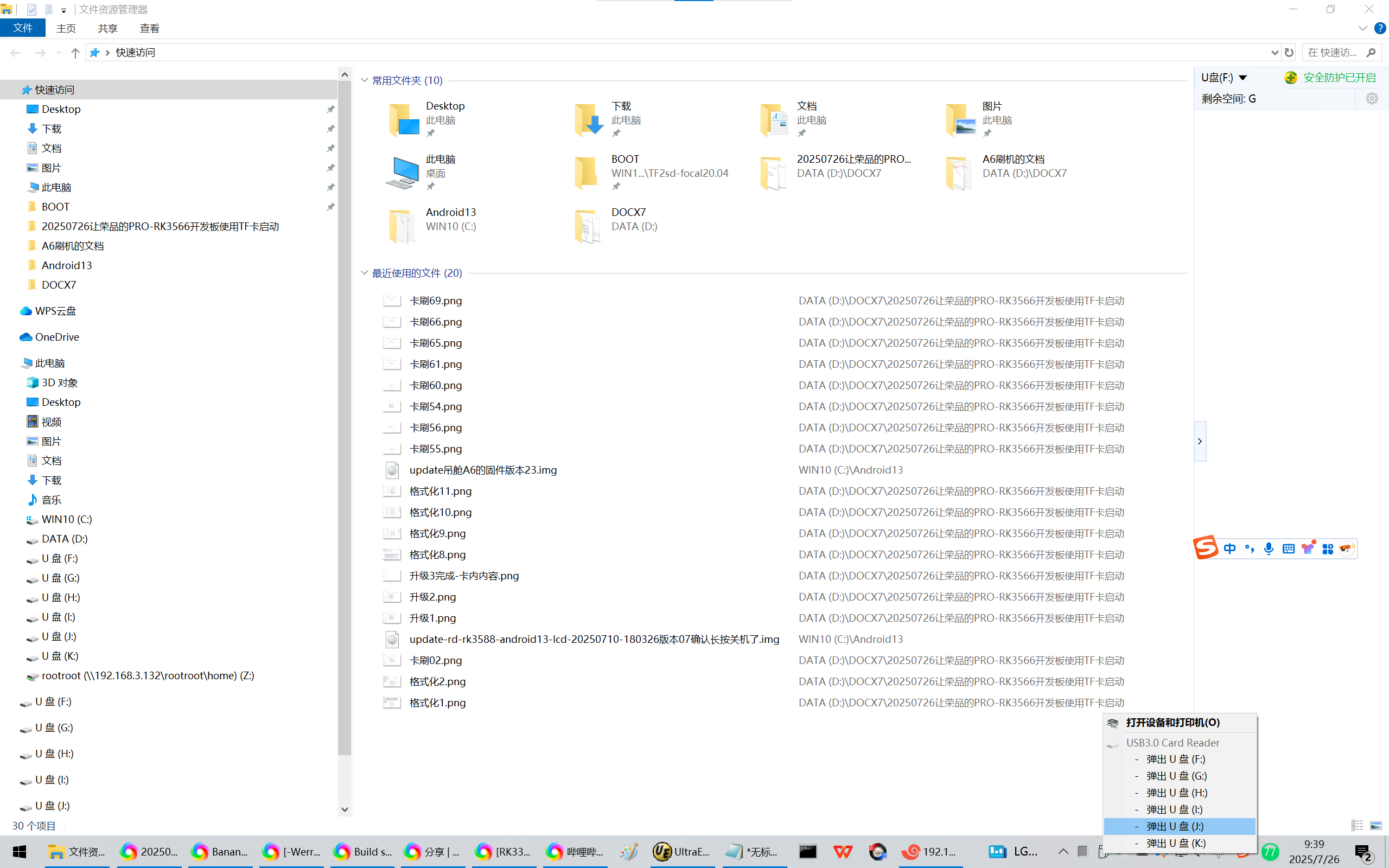

写卡工具使用的是SDK自带的：SDDiskTool_v1.76.zip
Z:\source\tools\windows\SDDiskTool_v1.76.zip

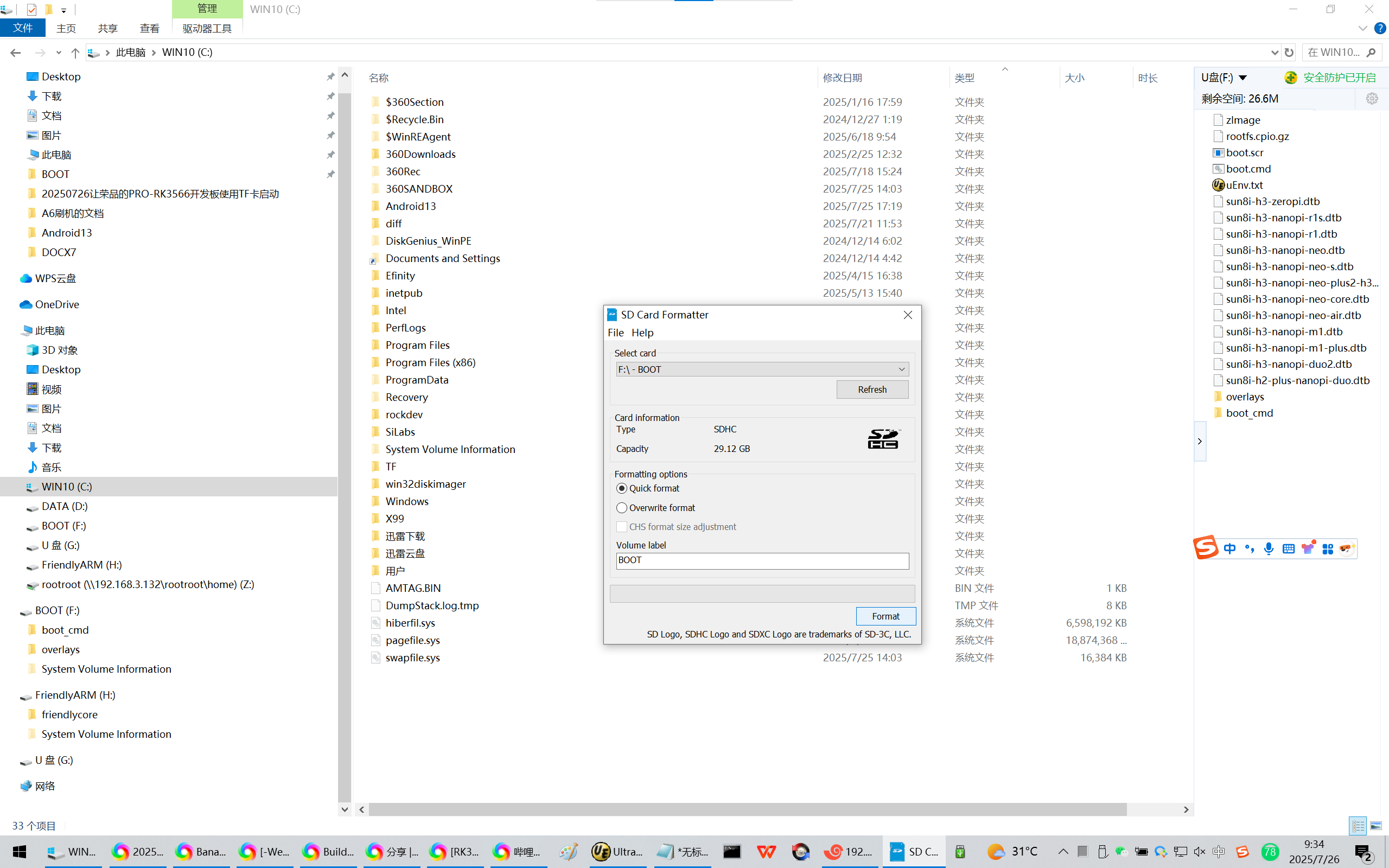

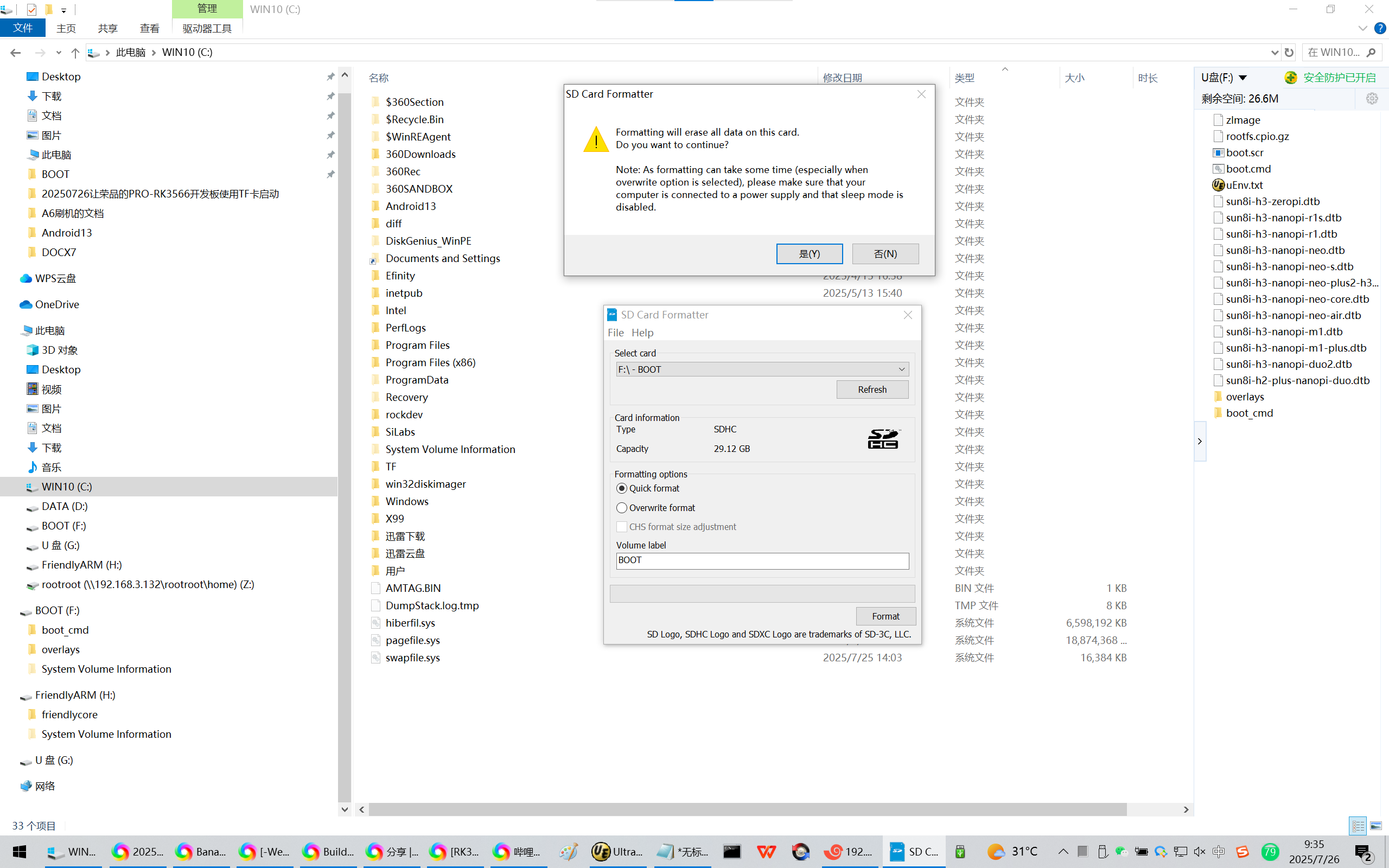

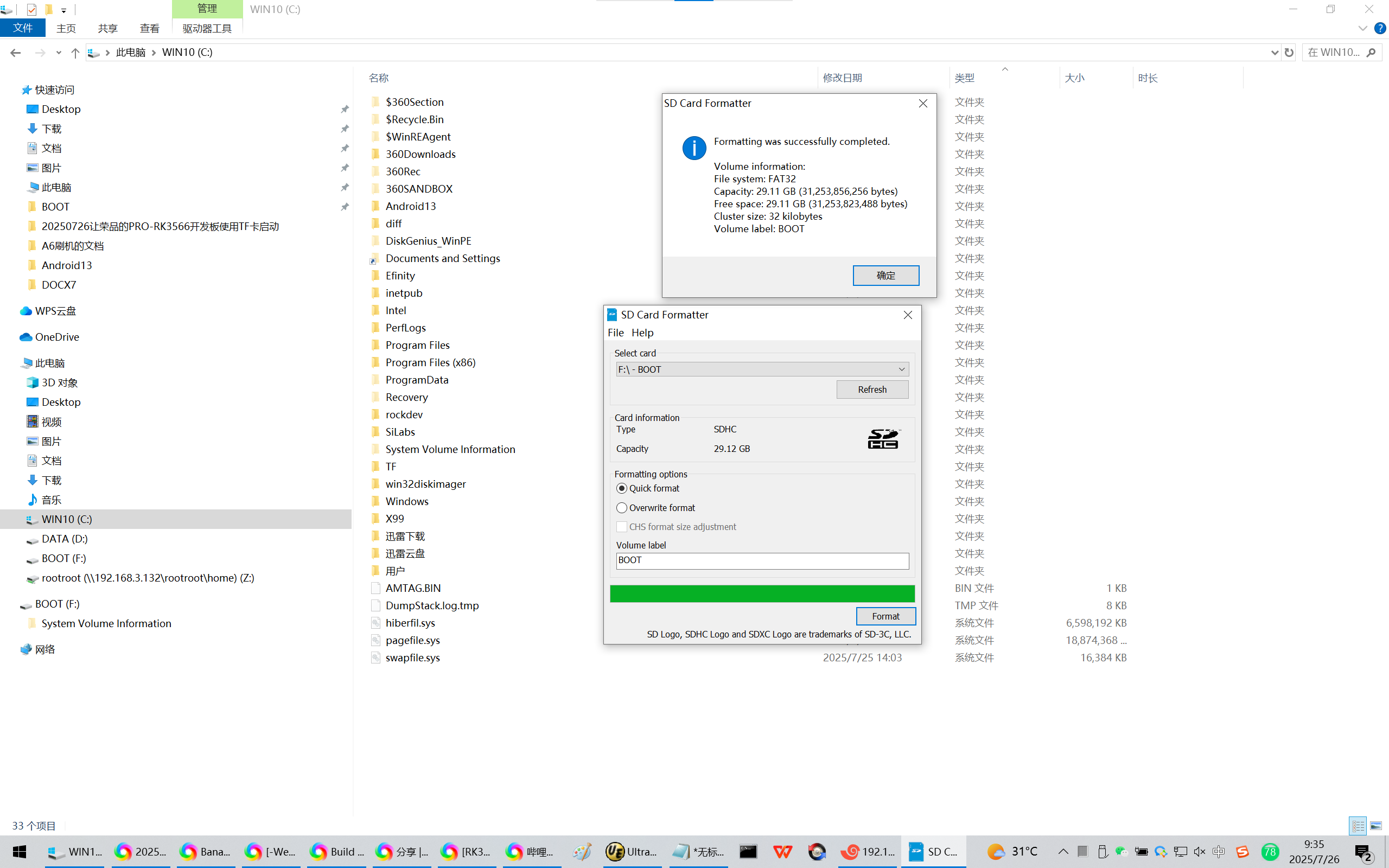

写卡之前，可以使用 SD Card Formatter 重新格式化一下TF卡。
如果你的TF卡以前制作过各种启动卡，使用 SD Card Formatter 可以完美的格式化/还原。
是SD协会官方出品，性能可靠/稳定看得见！^_

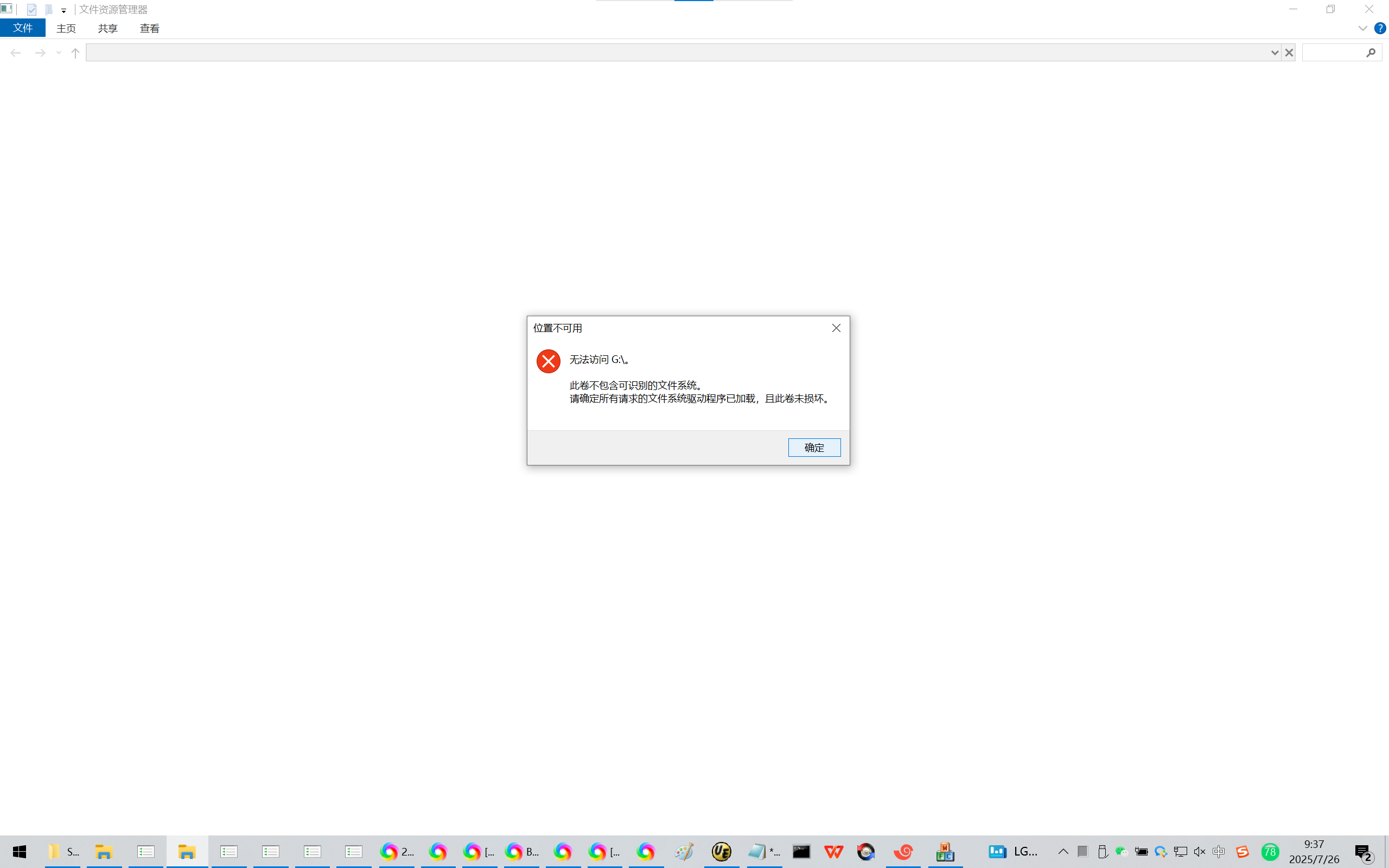

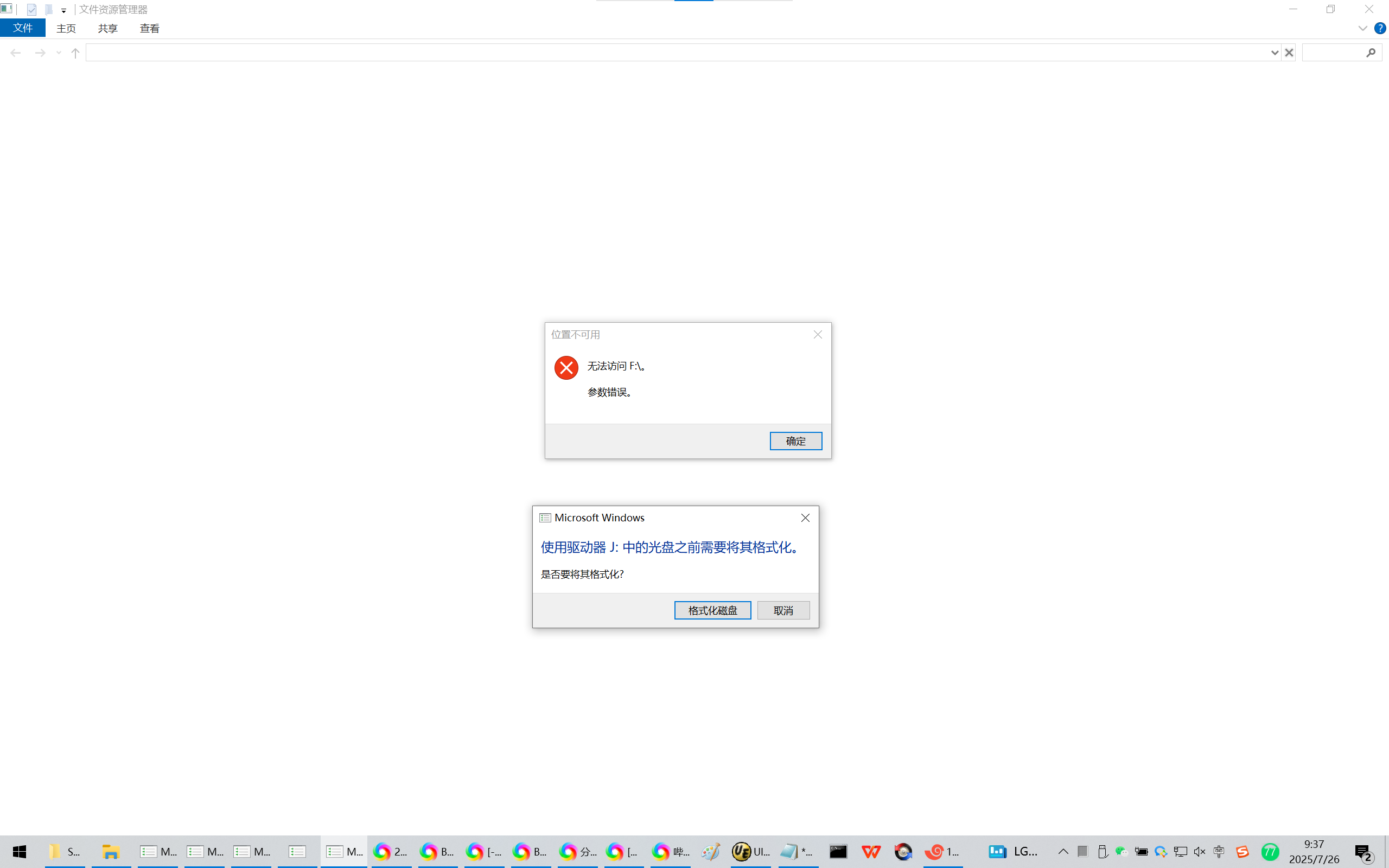

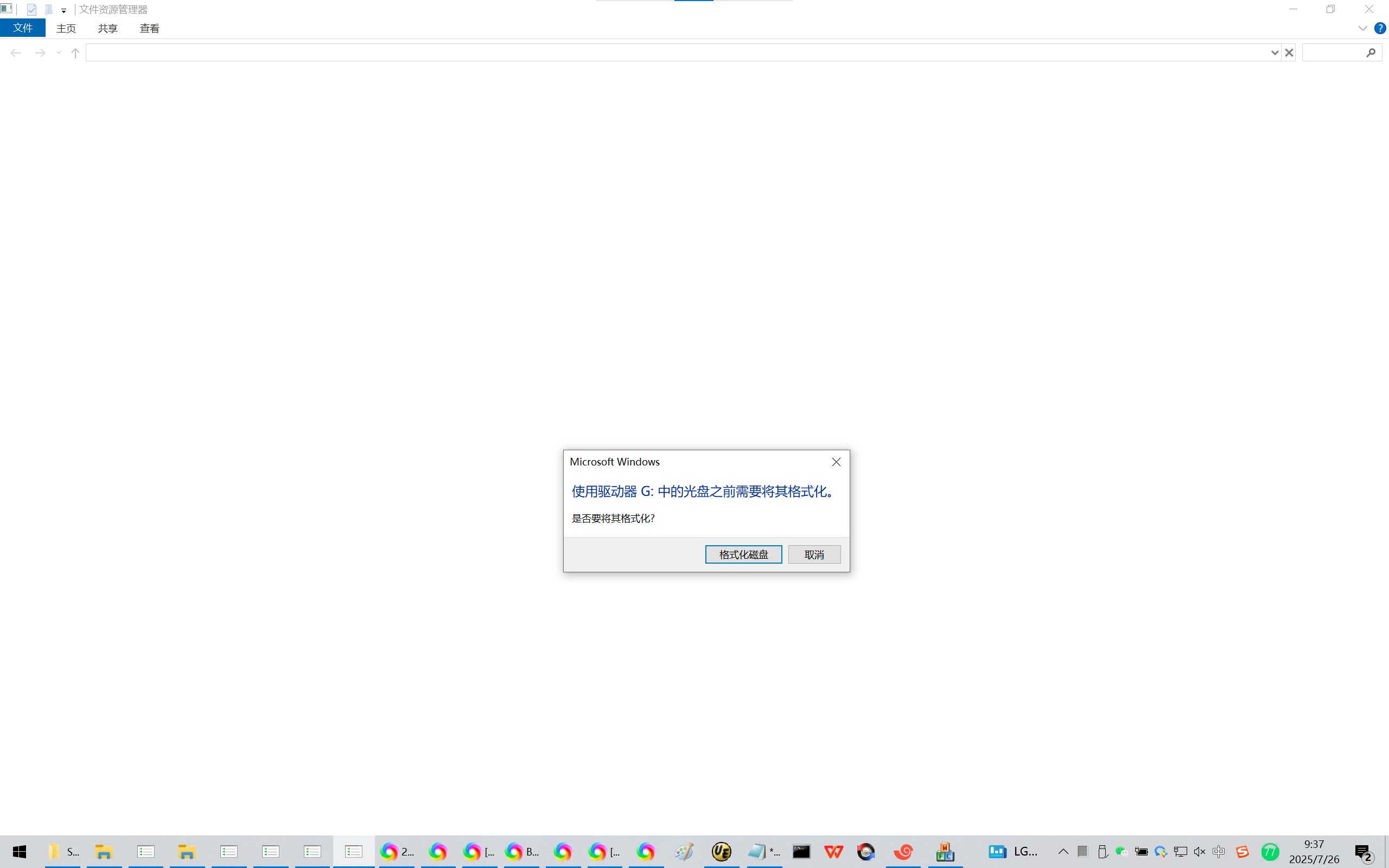

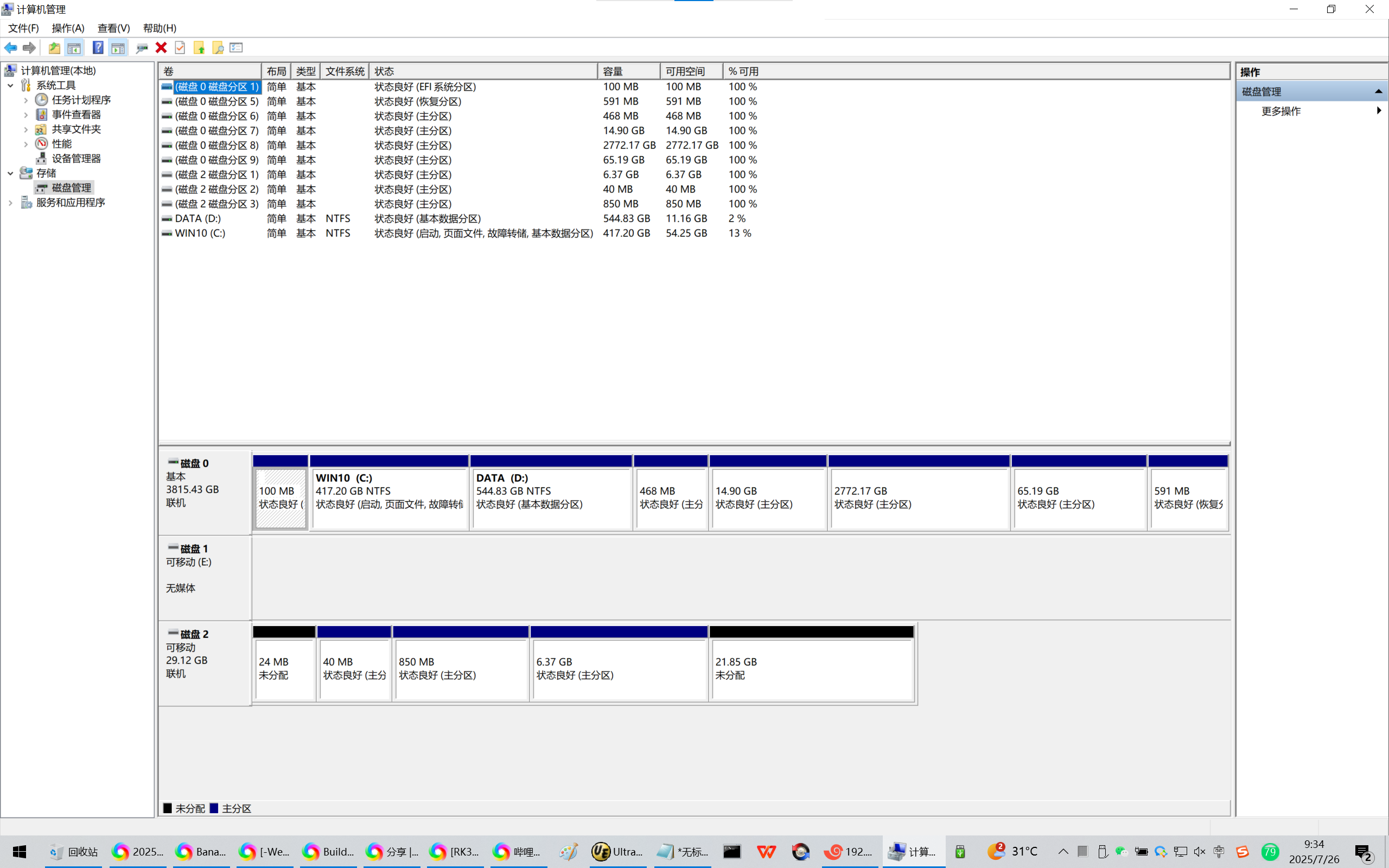

制作卡启动的TF卡制作完成之后，你会发现很多打不开的磁盘。
这是正常现象。因为是LINUX分区：比如ext4格式/swap格式等。
在WIN10/WIN11下打不开是正常现象。
启动的完整LOG：
BEGIN 2025/7/26 9:40:24
DDR V1.14 b1f29a2a6f typ 22/09/02-16:40:04
ln
ddrconfig:0
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=17 CS=1 Die BW=16 Size=4096MB
tdqss: cs0 dqs0: -24ps, dqs1: -96ps, dqs2: -72ps, dqs3: -120ps,
change to: 324MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x62
change to: 528MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58
change to: 780MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58
change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
clk skew:0x2c
cs 0:
the read training result:
DQS0:0x37, DQS1:0x39, DQS2:0x35, DQS3:0x39,
min : 0x7 0x5 0x3 0x3 0x3 0x3 0x1 0x1 , 0x3 0x5 0x9 0x4 0x1 0x3 0x6 0x2 ,
0x8 0x7 0x6 0x4 0x3 0x4 0x4 0x2 , 0xa 0x6 0x8 0x5 0x6 0x5 0x7 0x1 ,
mid :0x25 0x21 0x20 0x20 0x21 0x20 0x1f 0x1e ,0x21 0x23 0x27 0x22 0x1f 0x22 0x23 0x1f ,
0x26 0x24 0x22 0x21 0x20 0x21 0x20 0x1e ,0x27 0x22 0x24 0x22 0x22 0x21 0x24 0x1e ,
max :0x44 0x3d 0x3e 0x3e 0x3f 0x3d 0x3e 0x3c ,0x3f 0x41 0x45 0x40 0x3e 0x41 0x41 0x3c ,
0x45 0x42 0x3e 0x3e 0x3d 0x3e 0x3d 0x3b ,0x44 0x3f 0x41 0x40 0x3f 0x3e 0x41 0x3c ,
range:0x3d 0x38 0x3b 0x3b 0x3c 0x3a 0x3d 0x3b ,0x3c 0x3c 0x3c 0x3c 0x3d 0x3e 0x3b 0x3a ,
0x3d 0x3b 0x38 0x3a 0x3a 0x3a 0x39 0x39 ,0x3a 0x39 0x39 0x3b 0x39 0x39 0x3a 0x3b ,
the write training result:
DQS0:0x29, DQS1:0x20, DQS2:0x23, DQS3:0x1c,
min :0x4f 0x4f 0x4f 0x50 0x4e 0x4e 0x4d 0x50 0x4f ,0x43 0x45 0x4a 0x46 0x43 0x47 0x48 0x47 0x45 ,
0x4c 0x4b 0x4a 0x4a 0x49 0x49 0x4b 0x4b 0x4b ,0x46 0x43 0x45 0x45 0x45 0x43 0x46 0x45 0x42 ,
mid :0x6c 0x6b 0x6b 0x6c 0x69 0x6a 0x68 0x6b 0x6b ,0x5f 0x60 0x66 0x61 0x5e 0x61 0x62 0x63 0x60 ,
0x68 0x67 0x65 0x65 0x64 0x64 0x65 0x64 0x67 ,0x60 0x5d 0x5f 0x5e 0x5e 0x5d 0x60 0x5e 0x5d ,
max :0x89 0x87 0x88 0x88 0x85 0x86 0x84 0x86 0x87 ,0x7c 0x7b 0x83 0x7d 0x7a 0x7c 0x7d 0x80 0x7c ,
0x84 0x83 0x81 0x81 0x80 0x80 0x80 0x7d 0x83 ,0x7b 0x77 0x7a 0x78 0x77 0x78 0x7b 0x78 0x78 ,
range:0x3a 0x38 0x39 0x38 0x37 0x38 0x37 0x36 0x38 ,0x39 0x36 0x39 0x37 0x37 0x35 0x35 0x39 0x37 ,
0x38 0x38 0x37 0x37 0x37 0x37 0x35 0x32 0x38 ,0x35 0x34 0x35 0x33 0x32 0x35 0x35 0x33 0x36 ,
CA Training result:
cs:0 min :0x44 0x43 0x3b 0x38 0x3b 0x37 0x3d ,0x44 0x3f 0x3b 0x37 0x3a 0x32 0x3a ,
cs:0 mid :0x82 0x82 0x78 0x78 0x78 0x76 0x6c ,0x82 0x7f 0x77 0x77 0x78 0x73 0x68 ,
cs:0 max :0xc0 0xc2 0xb5 0xb9 0xb5 0xb6 0x9b ,0xc0 0xc0 0xb4 0xb7 0xb6 0xb5 0x97 ,
cs:0 range:0x7c 0x7f 0x7a 0x81 0x7a 0x7f 0x5e ,0x7c 0x81 0x79 0x80 0x7c 0x83 0x5d ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-gaaca6ffec1-211203 #zzz (Dec 03 2021 - 18:42:16)
unknown raw ID phN
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Magic is incorrect.
Error validating A/B metadata from disk. Resetting and writing new A/B metadata to disk.
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
Verified-boot: 0
Checking atf-1 0x00040000 ... sha256(b5946ac63d...) + OK
Checking uboot 0x00a00000 ... sha256(6be14b813a...) + OK
Checking fdt 0x00b47c68 ... sha256(036cca5880...) + OK
Checking atf-2 0xfdcc1000 ... sha256(b8dca786b4...) + OK
Checking atf-3 0x0006b000 ... sha256(2f91089eb7...) + OK
Checking atf-4 0xfdcce000 ... sha256(86ef885748...) + OK
Checking atf-5 0xfdcd0000 ... sha256(0b2b146c60...) + OK
Checking atf-6 0x00069000 ... sha256(a9a1e63bef...) + OK
Checking optee 0x08400000 ... sha256(6c92ef6a0e...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 401.661 ms
INFO: Preloader serial: 2
NOTICE: BL31: v2.3():v2.3-645-g8cea6ab0b:cl, fwver: v1.44
NOTICE: BL31: Built : 16:36:43, Sep 19 2023
INFO: GICv3 without legacy support detected.
INFO: ARM GICv3 driver initialized in EL3
INFO: pmu v1 is valid 220114
INFO: l3 cache partition cfg-0
INFO: dfs DDR fsp_param0.freq_mhz= 1056MHz
INFO: dfs DDR fsp_param1.freq_mhz= 324MHz
INFO: dfs DDR fsp_param2.freq_mhz= 528MHz
INFO: dfs DDR fsp_param3.freq_mhz= 780MHz
INFO: Using opteed sec cpu_context!
INFO: boot cpu mask: 0
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-743-gb5340fd65 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #5 Mon Aug 28 15:15:17 CST 2023 aarch64
I/TC: Primary CPU initializing
E/TC:0 0 hal_algo_version_init:296 CRYPTO_CRYPTO_VERSION_NEW no support. Skip all algo mode check.
I/TC: Primary CPU switching to normal world boot
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0xa00000
INFO: SPSR = 0x3c9
U-Boot 2017.09 (Jul 11 2025 - 10:58:04 +0800)
Model: Rockchip RK3568 Evaluation Board
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM: 3.7 GiB
Sysmem: init
Relocation Offset: ed217000
Relocation fdt: eb9f8948 - eb9fece0
CR: M/C/I
Using default environment
optee api revision: 2.0
no mmc device at slot 1
Repair the backup gpt table OK!
dwmmc@fe2b0000: 1 (SD), dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 1
MMC1: Legacy, 52Mhz
PartType: EFI
TEEC: Waring: Could not find security partition
DM: v1
boot mode: None
RESC: 'boot', blk@0x0001c65d
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
I2c0 speed: 100000Hz
PMIC: RK8090 (on=0x40, off=0x00)
vdd_logic init 950000 uV
vdd_gpu init 900000 uV
vdd_npu init 900000 uV
vsel-gpios- not found! Error: -2
vdd_cpu init 1000000 uV
io-domain: OK
INFO: ddr dmc_fsp already initialized in loader.
Could not find baseparameter partition
Model: pro-rk3566
MPIDR: 0x81000000
ethaddr = b2:52:ef:7c:52:a8
eth1addr = b2:e1:71:d7:7c:8c
eth2addr = 02:f8:69:4b:03:18
eth3addr = 46:66:c5:50:26:68
rp_power not have children !
rp_power have node!
rp_power: pwr_5v_3v3 gpio set output
rp_power: led gpio function is 3, not realize!
rp_power: usb_pwr gpio set output
rp_power: otg_pwr gpio set output
rp_power: usb_rst gpio set output
rp_power: spk_en gpio function get error, set gpio default dir to output
rp_power: spk_en gpio get error
rp_power: spk_mute gpio set output
rp_power: usb_mode gpio set output
rp_power: Equipment_EN gpio set output
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 1 active VP
vp0 have layer nr:60 2 4 1 3 5 , primary plane: 4
vp1 have layer nr:0\[\], primary plane: 0
vp2 have layer nr:0\[\], primary plane: 0
hdmi@fe0a0000 disconnected
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
apll 1104000 KHz
dpll 528000 KHz
gpll 1188000 KHz
cpll 1000000 KHz
npll 1200000 KHz
vpll 24000 KHz
hpll 24000 KHz
ppll 200000 KHz
armclk 1104000 KHz
aclk_bus 150000 KHz
pclk_bus 100000 KHz
aclk_top_high 500000 KHz
aclk_top_low 400000 KHz
hclk_top 150000 KHz
pclk_top 100000 KHz
aclk_perimid 300000 KHz
hclk_perimid 150000 KHz
pclk_pmu 100000 KHz
Net: eth1: ethernet@fe010000
Hit key to stop autoboot('CTRL+C'): 0
ANDROID: reboot reason: "(none)"
Not AVB images, AVB skip
No valid android hdr
Android image load failed
Android boot failed, error -1.
Booting FIT Image at 0xe8f2bf00 with size 0x028cba00
Fdt Ramdisk skip relocation
Loading kernel from FIT Image at e8f2bf00 ...
Using 'conf' configuration
Verified-boot: 0
Trying 'kernel' kernel subimage
Description: unavailable
Type: Kernel Image
Compression: uncompressed
Data Start: 0xe8f55f00
Data Size: 42605056 Bytes = 40.6 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x00280000
Entry Point: 0x00280000
Hash algo: sha256
Hash value: e80143e08e6530852192e34c9832cc35cbf815029b09e1d027a621a851767513
Verifying Hash Integrity ... sha256+ OK
Loading fdt from FIT Image at e8f2bf00 ...
Using 'conf' configuration
Trying 'fdt' fdt subimage
Description: unavailable
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0xe8f2c700
Data Size: 169955 Bytes = 166 KiB
Architecture: AArch64
Load Address: 0x08300000
Hash algo: sha256
Hash value: aa03975c23e9ca53e194f3eaa8cf4f5c8980d2baebbd1e73626a72c309d954ca
Verifying Hash Integrity ... sha256+ OK
Loading fdt from 0x08300000 to 0x08300000
Booting using the fdt blob at 0x08300000
Loading Kernel Image from 0xe8f55f00 to 0x00280000 ... OK
kernel loaded at 0x00280000, end = 0x02b21a00
Using Device Tree in place at 0000000008300000, end 000000000832c7e2
vp0, plane_mask:0x3f, primary-id:4, curser-id:-1
vp1, plane_mask:0x0, primary-id:0, curser-id:-1
vp2, plane_mask:0x0, primary-id:0, curser-id:-1
WARNING: could not set reg FDT_ERR_BADOFFSET.
reserved-memory:
drm-logo@00000000: addr=edf00000 size=106000
drm-cubic-lut@00000000: addr=eff00000 size=8000
ramoops@110000: addr=110000 size=f0000
Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)
Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)
== DO RELOCATE == Kernel from 0x00280000 to 0x00200000
Total: 4661.372/4795.550 ms
Starting kernel ...
4.805968\] Booting Linux on physical CPU 0x0000000000 \[0x412fd050
4.805997 Linux version 5.10.198 (rootroot@rootroot-X99-Turbo) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #1 SMP Tue Jul 8 09:38:35 CST 2025
4.807836 random: crng init done
4.811917 Machine model: pro-rk3566
4.855626 earlycon: uart8250 at MMIO32 0x00000000fe660000 (options '')
4.907805 printk: bootconsole uart8250 enabled
4.914229 efi: UEFI not found.
4.974998 Zone ranges:
4.977783\] DMA \[mem 0x0000000000200000-0x00000000efffffff
4.984563 DMA32 empty
4.987715 Normal empty
4.990866 Movable zone start for each node
4.995542 Early memory node ranges
4.999456\] node 0: \[mem 0x0000000000200000-0x00000000083fffff
5.006326\] node 0: \[mem 0x0000000009400000-0x00000000efffffff
5.013200\] Initmem setup node 0 \[mem 0x0000000000200000-0x00000000efffffff
5.050797 cma: Reserved 16 MiB at 0x00000000ee400000
5.056520 psci: probing for conduit method from DT.
5.062066 psci: PSCIv1.1 detected in firmware.
5.067124 psci: Using standard PSCI v0.2 function IDs
5.072854 psci: Trusted OS migration not required
5.078200 psci: SMC Calling Convention v1.2
5.083380 percpu: Embedded 31 pages/cpu s88344 r8192 d30440 u126976
5.090554 Detected VIPT I-cache on CPU0
5.094990 CPU features: detected: GIC system register CPU interface
5.102051 CPU features: detected: Virtualization Host Extensions
5.108831 CPU features: detected: ARM errata 1165522, 1319367, or 1530923
5.116486 alternatives: patching kernel code
5.123571 Built 1 zonelists, mobility grouping on. Total pages: 963080
5.131021 Kernel command line: storagemedia=sd androidboot.storagemedia=sd androidboot.mode=normal androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfe660000 console=ttyFIQ0 root=PARTUUID=614e0000-0000 androidboot.fwver=bl31-v1.44,uboot-07/11/2025
5.159097 Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
5.168273 Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
5.176766 mem auto-init: stack:off, heap alloc:off, heap free:off
5.235935 Memory: 3777056K/3913728K available (22208K kernel code, 3846K rwdata, 7876K rodata, 7552K init, 878K bss, 120288K reserved, 16384K cma-reserved)
5.251515 SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
5.258711 ftrace: allocating 67078 entries in 263 pages
5.353835 ftrace: allocated 263 pages with 4 groups
5.359733 rcu: Hierarchical RCU implementation.
5.364896 rcu: RCU event tracing is enabled.
5.369860 rcu: RCU dyntick-idle grace-period acceleration is enabled.
5.377205 rcu: RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
5.384362 Rude variant of Tasks RCU enabled.
5.389324 Tracing variant of Tasks RCU enabled.
5.394572 rcu: RCU calculated value of scheduler-enlistment delay is 30 jiffies.
5.402871 rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
5.415220 NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
5.422861 GICv3: GIC: Using split EOI/Deactivate mode
5.428601 GICv3: 320 SPIs implemented
5.432801 GICv3: 0 Extended SPIs implemented
5.437703 GICv3: Distributor has no Range Selector support
5.443913 GICv3: 16 PPIs implemented
5.448055 GICv3: CPU0: found redistributor 0 region 0:0x00000000fd460000
5.455702\] ITS \[mem 0xfd440000-0xfd45ffff
5.460352 ITS@0x00000000fd440000: allocated 8192 Devices @2e00000 (indirect, esz 8, psz 64K, shr 0)
5.470495 ITS@0x00000000fd440000: allocated 32768 Interrupt Collections @2e10000 (flat, esz 2, psz 64K, shr 0)
5.481658 ITS: using cache flushing for cmd queue
5.487407 GICv3: using LPI property table @0x0000000002e20000
5.494013 GIC: using cache flushing for LPI property table
5.500221 GICv3: CPU0: using allocated LPI pending table @0x0000000002e30000
5.508202 rcu: Offload RCU callbacks from CPUs: (none).
5.543225 arch_timer: cp15 timer(s) running at 24.00MHz (phys).
5.549922 clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
5.561758 sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
5.571622 Console: colour dummy device 80x25
5.576544 Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=80000)
5.587818 pid_max: default: 32768 minimum: 301
5.592979 LSM: Security Framework initializing
5.598107 Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
5.606238 Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
5.616400 rcu: Hierarchical SRCU implementation.
5.622490 Platform MSI: interrupt-controller@fd440000 domain created
5.630149 PCI/MSI: /interrupt-controller@fd400000/interrupt-controller@fd440000 domain created
5.640147 EFI services will not be available.
5.645459 smp: Bringing up secondary CPUs ...
I/TC: Secondary CPU 1 initializing
I/TC: Secondary CPU 1 switching to normal world boot
I/TC: Secondary CPU 2 initializing
I/TC: Secondary CPU 2 switching to normal world boot
I/TC: Secondary CPU 3 initializing
I/TC: Secondary CPU 3 switching to normal world boot
5.658771 Detected VIPT I-cache on CPU1
5.658802 GICv3: CPU1: found redistributor 100 region 0:0x00000000fd480000
5.658823 GICv3: CPU1: using allocated LPI pending table @0x0000000002e40000
5.658878\] CPU1: Booted secondary processor 0x0000000100 \[0x412fd050
5.667233 Detected VIPT I-cache on CPU2
5.667259 GICv3: CPU2: found redistributor 200 region 0:0x00000000fd4a0000
5.667279 GICv3: CPU2: using allocated LPI pending table @0x0000000002e50000
5.667318\] CPU2: Booted secondary processor 0x0000000200 \[0x412fd050
5.675620 Detected VIPT I-cache on CPU3
5.675645 GICv3: CPU3: found redistributor 300 region 0:0x00000000fd4c0000
5.675662 GICv3: CPU3: using allocated LPI pending table @0x0000000002e60000
5.675700\] CPU3: Booted secondary processor 0x0000000300 \[0x412fd050
5.675794 smp: Brought up 1 node, 4 CPUs
5.761905 SMP: Total of 4 processors activated.
5.767067 CPU features: detected: Privileged Access Never
5.773178 CPU features: detected: LSE atomic instructions
5.779291 CPU features: detected: User Access Override
5.785117 CPU features: detected: 32-bit EL0 Support
5.790753 CPU features: detected: Common not Private translations
5.797627 CPU features: detected: RAS Extension Support
5.803549 CPU features: detected: Data cache clean to the PoU not required for I/D coherence
5.812999 CPU features: detected: CRC32 instructions
5.818634 CPU features: detected: Speculative Store Bypassing Safe (SSBS)
5.826272 CPU features: detected: RCpc load-acquire (LDAPR)
5.867196 CPU: All CPU(s) started at EL2
5.873313 devtmpfs: initialized
5.899332 Registered cp15_barrier emulation handler
5.904913 Registered setend emulation handler
5.910068 clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6370867519511994 ns
5.920777 futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
5.928905 pinctrl core: initialized pinctrl subsystem
5.935196 DMI not present or invalid.
5.939698 NET: Registered protocol family 16
5.946207 DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations
5.954128 DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
5.962737 audit: initializing netlink subsys (disabled)
5.968843 audit: type=2000 audit(0.249:1): state=initialized audit_enabled=0 res=1
5.970942 Registered FIQ tty driver
5.981769 thermal_sys: Registered thermal governor 'fair_share'
5.981773 thermal_sys: Registered thermal governor 'step_wise'
5.988467 thermal_sys: Registered thermal governor 'user_space'
5.995057 thermal_sys: Registered thermal governor 'power_allocator'
6.002059 thermal thermal_zone1: power_allocator: sustainable_power will be estimated
6.018074 cpuidle: using governor menu
6.022684 hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
6.030250 ASID allocator initialised with 65536 entries
6.038498 ramoops: dmesg-0 0x20000@0x0000000000110000
6.044271 ramoops: console 0x80000@0x0000000000130000
6.050019 ramoops: pmsg 0x50000@0x00000000001b0000
6.055825 printk: console ramoops-1 enabled
6.060799 pstore: Registered ramoops as persistent store backend
6.067582 ramoops: using 0xf0000@0x110000, ecc: 0
6.109563 rockchip-gpio fdd60000.gpio0: probed /pinctrl/gpio0@fdd60000
6.117429 rockchip-gpio fe740000.gpio1: probed /pinctrl/gpio1@fe740000
6.125220 rockchip-gpio fe750000.gpio2: probed /pinctrl/gpio2@fe750000
6.133082 rockchip-gpio fe760000.gpio3: probed /pinctrl/gpio3@fe760000
6.140893 rockchip-gpio fe770000.gpio4: probed /pinctrl/gpio4@fe770000
6.148371 rockchip-pinctrl pinctrl: probed pinctrl
6.231055 raid6: neonx8 gen() 2449 MB/s
6.291135 raid6: neonx8 xor() 1944 MB/s
6.351216 raid6: neonx4 gen() 2509 MB/s
6.411291 raid6: neonx4 xor() 1926 MB/s
6.471380 raid6: neonx2 gen() 2279 MB/s
6.531452 raid6: neonx2 xor() 1762 MB/s
6.591532 raid6: neonx1 gen() 1858 MB/s
6.651614 raid6: neonx1 xor() 1418 MB/s
6.711692 raid6: int64x8 gen() 1662 MB/s
6.771779 raid6: int64x8 xor() 897 MB/s
6.831858 raid6: int64x4 gen() 1798 MB/s
6.891936 raid6: int64x4 xor() 966 MB/s
6.952020 raid6: int64x2 gen() 1602 MB/s
7.012094 raid6: int64x2 xor() 864 MB/s
7.072174 raid6: int64x1 gen() 1161 MB/s
7.132239 raid6: int64x1 xor() 586 MB/s
7.136925 raid6: using algorithm neonx4 gen() 2509 MB/s
7.142849 raid6: .... xor() 1926 MB/s, rmw enabled
7.148296 raid6: using neon recovery algorithm
7.154975 fiq_debugger fiq_debugger.0: IRQ fiq not found
7.161133 fiq_debugger fiq_debugger.0: IRQ wakeup not found
7.167451 fiq_debugger_probe: could not install nmi irq handler
\[ 7.174228 printk: console ttyFIQ0 enabled
7.174228] printk: console ttyFIQ0 enabled
7.183355 printk: bootconsole \[ 7.183355 printk: bootconsole uart8250 disabled
uart8250] disabled
7.193774 Registered fiq debugger ttyFIQ0
7.194504 vcc3v3_sys: supplied by dc_12v
7.194797 vcc5v0_sys: supplied by dc_12v
7.195323 vcc3v3_lcd0_n: supplied by vcc3v3_sys
7.195610 vcc3v3_lcd1_n: supplied by vcc3v3_sys
7.196519 iommu: Default domain type: Translated
7.200002 SCSI subsystem initialized
7.200275 usbcore: registered new interface driver usbfs
7.200329 usbcore: registered new interface driver hub
7.200371 usbcore: registered new device driver usb
7.200460 mc: Linux media interface: v0.10
7.200489 videodev: Linux video capture interface: v2.00
7.200574 pps_core: LinuxPPS API ver. 1 registered
7.200583 pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
7.200600 PTP clock support registered
7.200641 EDAC MC: Ver: 3.0.0
7.201575 arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.
7.201647 arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
7.203794 Advanced Linux Sound Architecture Driver Initialized.
7.204282 Bluetooth: Core ver 2.22
7.204324 NET: Registered protocol family 31
7.204332 Bluetooth: HCI device and connection manager initialized
7.204345 Bluetooth: HCI socket layer initialized
7.204355 Bluetooth: L2CAP socket layer initialized
7.204374 Bluetooth: SCO socket layer initialized
7.204729 rockchip-cpuinfo cpuinfo: SoC : 35662000
7.204741 rockchip-cpuinfo cpuinfo: Serial : ba7f186fecbfe667
7.205494 clocksource: Switched to clocksource arch_sys_counter
7.647102 NET: Registered protocol family 2
7.647386 IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
7.649236 tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
7.649299 TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
7.649458 TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear)
7.649905 TCP: Hash tables configured (established 32768 bind 32768)
7.650073 UDP hash table entries: 2048 (order: 4, 65536 bytes, linear)
7.650134 UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear)
7.650341 NET: Registered protocol family 1
7.650916 RPC: Registered named UNIX socket transport module.
7.650926 RPC: Registered udp transport module.
7.650932 RPC: Registered tcp transport module.
7.650938 RPC: Registered tcp NFSv4.1 backchannel transport module.
7.651879 PCI: CLS 0 bytes, default 64
7.654337 rockchip-thermal fe710000.tsadc: tsadc is probed successfully!
7.655310 hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available
7.659536 Initialise system trusted keyrings
7.659694 workingset: timestamp_bits=46 max_order=20 bucket_order=0
7.664684 squashfs: version 4.0 (2009/01/31) Phillip Lougher
7.665434 NFS: Registering the id_resolver key type
7.665469 Key type id_resolver registered
7.665500 Key type id_legacy registered
7.665544 ntfs: driver 2.1.32 Flags: R/O.
7.665693 jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
7.665921 fuse: init (API version 7.32)
7.666296 SGI XFS with security attributes, no debug enabled
7.698166 NET: Registered protocol family 38
7.698193 xor: measuring software checksum speed
7.701809 8regs : 2751 MB/sec
7.704763 32regs : 3354 MB/sec
7.708021 arm64_neon : 3041 MB/sec
7.708029 xor: using function: 32regs (3354 MB/sec)
7.708046 Key type asymmetric registered
7.708054 Asymmetric key parser 'x509' registered
7.708115 Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
7.708242 io scheduler mq-deadline registered
7.708258 io scheduler kyber registered
7.709036 rockchip-csi2-dphy-hw fe870000.csi2-dphy-hw: csi2 dphy hw probe successfully!
7.709716 rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!
7.719425 pwm-backlight backlight: supply power not found, using dummy regulator
7.719926 iep: Module initialized.
7.719988 mpp_service mpp-srv:
7.719998 mpp_service mpp-srv: probe start
7.721725 mpp_vdpu2 fdea0400.vdpu: Adding to iommu group 1
7.721924 mpp_vdpu2 fdea0400.vdpu: probe device
7.722493 mpp_vdpu2 fdea0400.vdpu: probing finish
7.722993 mpp_vepu2 fdee0000.vepu: Adding to iommu group 3
7.723183 mpp_vepu2 fdee0000.vepu: probing start
7.723620 mpp_vepu2 fdee0000.vepu: probing finish
7.724183 mpp-iep2 fdef0000.iep: Adding to iommu group 4
7.724364 mpp-iep2 fdef0000.iep: probe device
7.724638 mpp-iep2 fdef0000.iep: allocate roi buffer failed
7.724846 mpp-iep2 fdef0000.iep: probing finish
7.725321 mpp_jpgdec fded0000.jpegd: Adding to iommu group 2
7.725523 mpp_jpgdec fded0000.jpegd: probe device
7.725993 mpp_jpgdec fded0000.jpegd: probing finish
7.727266 mpp_service mpp-srv: probe success
7.732022 dma-pl330 fe530000.dmac: Loaded driver for PL330 DMAC-241330
7.732046 dma-pl330 fe530000.dmac: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
7.733948 dma-pl330 fe550000.dmac: Loaded driver for PL330 DMAC-241330
7.733963 dma-pl330 fe550000.dmac: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
7.734697 rockchip-pvtm fde00000.pvtm: pvtm@0 probed
7.734827 rockchip-pvtm fde80000.pvtm: pvtm@1 probed
7.734937 rockchip-pvtm fde90000.pvtm: pvtm@2 probed
7.735508 rockchip-system-monitor rockchip-system-monitor: system monitor probe
7.736124 arm-scmi firmware:scmi: Failed. SCMI protocol 22 not active.
7.736415 Serial: 8250/16550 driver, 10 ports, IRQ sharing disabled
7.737219 fe650000.serial: ttyS1 at MMIO 0xfe650000 (irq = 65, base_baud = 1500000) is a 16550A
7.737810 fe670000.serial: ttyS3 at MMIO 0xfe670000 (irq = 66, base_baud = 1500000) is a 16550A
7.738281 fe6a0000.serial: ttyS6 at MMIO 0xfe6a0000 (irq = 67, base_baud = 1500000) is a 16550A
7.738751 fe6b0000.serial: ttyS7 at MMIO 0xfe6b0000 (irq = 68, base_baud = 1500000) is a 16550A
7.739293 fe6d0000.serial: ttyS9 at MMIO 0xfe6d0000 (irq = 69, base_baud = 1500000) is a 16550A
7.742327 rockchip-vop2 fe040000.vop: Adding to iommu group 8
7.748679 rockchip-vop2 fe040000.vop: drm:vop2_bind vp0 assign plane mask: 0x3f, primary plane phy id: 4
7.748706 rockchip-vop2 fe040000.vop: drm:vop2_bind vp1 assign plane mask: 0x0, primary plane phy id: -1
7.748717 rockchip-vop2 fe040000.vop: drm:vop2_bind vp2 assign plane mask: 0x0, primary plane phy id: -1
7.748877 rockchip-vop2 fe040000.vop: drm:vop2_bind VP1 plane_mask is zero, so ignore register crtc
7.748891 rockchip-vop2 fe040000.vop: drm:vop2_bind VP2 plane_mask is zero, so ignore register crtc
7.748962 drm failed to init overlay plane Cluster0-win1
7.749049 rockchip-drm display-subsystem: bound fe040000.vop (ops 0xffffffc0096e8f58)
7.749350 dwhdmi-rockchip fe0a0000.hdmi: Detected HDMI TX controller v2.11a with HDCP (DWC HDMI 2.0 TX PHY)
7.749949 dwhdmi-rockchip fe0a0000.hdmi: registered DesignWare HDMI I2C bus driver
7.750199 dwhdmi-rockchip fe0a0000.hdmi: IRQ index 1 not found
7.750592 rockchip-drm display-subsystem: bound fe0a0000.hdmi (ops 0xffffffc0096f7ae8)
7.750920 rockchip-drm display-subsystem: route-hdmi: failed to get logo,offset
7.750934 rockchip-drm display-subsystem: can't not find any logo display
7.750946 rockchip-drm display-subsystem: failed to show kernel logo
7.751041 rockchip-drm display-subsystem: drm Cannot find any crtc or sizes
7.751113 rockchip-drm display-subsystem: drm Cannot find any crtc or sizes
7.751789 drm Initialized rockchip 3.0.0 20140818 for display-subsystem on minor 0
7.758983 input: hdmi_cec_key as /devices/platform/fe0a0000.hdmi/dw-hdmi-cec.1.auto/input/input0
7.760003 cacheinfo: Unable to detect cache hierarchy for CPU 0
7.760724 brd: module loaded
7.765989 loop: module loaded
7.766417 zram: Added device: zram0
7.766681 lkdtm: No crash points registered, enable through debugfs
7.769557 ahci fc800000.sata: supply ahci not found, using dummy regulator
7.769718 ahci fc800000.sata: supply phy not found, using dummy regulator
7.769846 ahci fc800000.sata: supply target not found, using dummy regulator
7.769981 ahci fc800000.sata: forcing port_map 0x0 -> 0x1
7.770028 ahci fc800000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode
7.770042 ahci fc800000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst
7.770060 ahci fc800000.sata: port 0 is not capable of FBS
7.771110 scsi host0: ahci
7.771406 ata1: SATA max UDMA/133 mmio mem 0xfc800000-0xfc800fff port 0x100 irq 19
7.774197 rockchip-spi fe620000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
7.775479 rockchip-spi fe630000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0
7.777215 register spi return v = :0
7.778480 CAN device driver interface
7.780404 rk_gmac-dwmac fe010000.ethernet: IRQ eth_lpi not found
7.780629 rk_gmac-dwmac fe010000.ethernet: supply phy not found, using dummy regulator
7.780771 rk_gmac-dwmac fe010000.ethernet: clock input or output? (input).
7.780784 rk_gmac-dwmac fe010000.ethernet: TX delay(0x38).
7.780793 rk_gmac-dwmac fe010000.ethernet: RX delay(0x34).
7.780809 rk_gmac-dwmac fe010000.ethernet: integrated PHY? (no).
7.780847 rk_gmac-dwmac fe010000.ethernet: clock input from PHY
7.781109 rk_gmac-dwmac fe010000.ethernet: init for RGMII
7.781373 rk_gmac-dwmac fe010000.ethernet: User ID: 0x30, Synopsys ID: 0x51
7.781387 rk_gmac-dwmac fe010000.ethernet: DWMAC4/5
7.781398 rk_gmac-dwmac fe010000.ethernet: DMA HW capability register supported
7.781406 rk_gmac-dwmac fe010000.ethernet: RX Checksum Offload Engine supported
7.781412 rk_gmac-dwmac fe010000.ethernet: TX Checksum insertion supported
7.781418 rk_gmac-dwmac fe010000.ethernet: Wake-Up On Lan supported
7.781487 rk_gmac-dwmac fe010000.ethernet: TSO supported
7.781496 rk_gmac-dwmac fe010000.ethernet: Enable RX Mitigation via HW Watchdog Timer
7.781505 rk_gmac-dwmac fe010000.ethernet: TSO feature enabled
7.781513 rk_gmac-dwmac fe010000.ethernet: Using 32 bits DMA width
7.915047 PPP generic driver version 2.4.2
7.915271 PPP BSD Compression module registered
7.915282 PPP Deflate Compression module registered
7.915308 PPP MPPE Compression module registered
7.915322 NET: Registered protocol family 24
7.915523 usbcore: registered new interface driver rtl8150
7.915628 usbcore: registered new interface driver r8152
7.915668 usbcore: registered new interface driver asix
7.915715 usbcore: registered new interface driver ax88179_178a
7.915753 usbcore: registered new interface driver cdc_ether
7.915799 usbcore: registered new interface driver net1080
7.915839 usbcore: registered new interface driver cdc_subset
7.915876 usbcore: registered new interface driver zaurus
7.915926 usbcore: registered new interface driver cdc_ncm
7.915967 usbcore: registered new interface driver qmi_wwan_q
7.926168 ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
7.926217 ehci-pci: EHCI PCI platform driver
7.926319 ehci-platform: EHCI generic platform driver
7.926783 phy phy-fe8b0000.usb2-phy.3: illegal mode
7.928833 ehci-platform fd800000.usb: EHCI Host Controller
7.929065 ehci-platform fd800000.usb: new USB bus registered, assigned bus number 1
7.929196 ehci-platform fd800000.usb: irq 20, io mem 0xfd800000
7.942171 ehci-platform fd800000.usb: USB 2.0 started, EHCI 1.00
7.942344 usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
7.942356 usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
7.942365 usb usb1: Product: EHCI Host Controller
7.942371 usb usb1: Manufacturer: Linux 5.10.198 ehci_hcd
7.942378 usb usb1: SerialNumber: fd800000.usb
7.942824 hub 1-0:1.0: USB hub found
7.942861 hub 1-0:1.0: 1 port detected
7.945526 ehci-platform fd880000.usb: EHCI Host Controller
7.945693 ehci-platform fd880000.usb: new USB bus registered, assigned bus number 2
7.945811 ehci-platform fd880000.usb: irq 22, io mem 0xfd880000
7.958876 ehci-platform fd880000.usb: USB 2.0 started, EHCI 1.00
7.959068 usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
7.959080 usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
7.959088 usb usb2: Product: EHCI Host Controller
7.959096 usb usb2: Manufacturer: Linux 5.10.198 ehci_hcd
7.959102 usb usb2: SerialNumber: fd880000.usb
7.959528 hub 2-0:1.0: USB hub found
7.959565 hub 2-0:1.0: 1 port detected
7.960247 ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
7.960279 ohci-platform: OHCI generic platform driver
7.960607 phy phy-fe8b0000.usb2-phy.3: illegal mode
7.960620 ohci-platform fd840000.usb: Generic Platform OHCI controller
7.960790 ohci-platform fd840000.usb: new USB bus registered, assigned bus number 3
7.960907 ohci-platform fd840000.usb: irq 21, io mem 0xfd840000
8.019648 usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
8.019660 usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
8.019668 usb usb3: Product: Generic Platform OHCI controller
8.019675 usb usb3: Manufacturer: Linux 5.10.198 ohci_hcd
8.019682 usb usb3: SerialNumber: fd840000.usb
8.020094 hub 3-0:1.0: USB hub found
8.020129 hub 3-0:1.0: 1 port detected
8.020656 ohci-platform fd8c0000.usb: Generic Platform OHCI controller
8.020814 ohci-platform fd8c0000.usb: new USB bus registered, assigned bus number 4
8.020922 ohci-platform fd8c0000.usb: irq 23, io mem 0xfd8c0000
8.079660 usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.10
8.079673 usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
8.079681 usb usb4: Product: Generic Platform OHCI controller
8.079688 usb usb4: Manufacturer: Linux 5.10.198 ohci_hcd
8.079695 usb usb4: SerialNumber: fd8c0000.usb
8.080105 hub 4-0:1.0: USB hub found
8.080140 hub 4-0:1.0: 1 port detected
8.081417 xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
8.081635 xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
8.081772 xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010
8.081836 xhci-hcd xhci-hcd.4.auto: irq 83, io mem 0xfd000000
8.081967 xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
8.082126 xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
8.082174 xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
8.082314 usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10
8.082326 usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
8.082333 usb usb5: Product: xHCI Host Controller
8.082340 usb usb5: Manufacturer: Linux 5.10.198 xhci-hcd
8.082347 usb usb5: SerialNumber: xhci-hcd.4.auto
8.082765 hub 5-0:1.0: USB hub found
8.082802 hub 5-0:1.0: 1 port detected
8.083152 usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
8.083245 usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10
8.083256 usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
8.083264 usb usb6: Product: xHCI Host Controller
8.083271 usb usb6: Manufacturer: Linux 5.10.198 xhci-hcd
8.083278 usb usb6: SerialNumber: xhci-hcd.4.auto
8.083661 hub 6-0:1.0: USB hub found
8.083694 hub 6-0:1.0: 1 port detected
8.084138 usbcore: registered new interface driver cdc_acm
8.084149 cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
8.084216 usbcore: registered new interface driver usblp
8.084265 usbcore: registered new interface driver cdc_wdm
8.084540 usbcore: registered new interface driver uas
8.084625 usbcore: registered new interface driver usb-storage
8.084719 usbcore: registered new interface driver usbserial_generic
8.084745 usbserial: USB Serial support registered for generic
8.084790 usbcore: registered new interface driver ch341
8.084811 usbserial: USB Serial support registered for ch341-uart
8.084855 usbcore: registered new interface driver cp210x
8.084876 usbserial: USB Serial support registered for cp210x
8.084941 usbcore: registered new interface driver ftdi_sio
8.084963 usbserial: USB Serial support registered for FTDI USB Serial Device
8.085087 usbcore: registered new interface driver keyspan
8.085112 usbserial: USB Serial support registered for Keyspan - (without firmware)
8.085134 usbserial: USB Serial support registered for Keyspan 1 port adapter
8.085155 usbserial: USB Serial support registered for Keyspan 2 port adapter
8.085176 usbserial: USB Serial support registered for Keyspan 4 port adapter
8.085205 ata1: SATA link down (SStatus 0 SControl 300)
8.085225 usbcore: registered new interface driver option
8.085249 usbserial: USB Serial support registered for GSM modem (1-port)
8.085402 usbcore: registered new interface driver oti6858
8.085424 usbserial: USB Serial support registered for oti6858
8.085473 usbcore: registered new interface driver pl2303
8.085540 usbserial: USB Serial support registered for pl2303
8.085594 usbcore: registered new interface driver qcserial
8.085617 usbserial: USB Serial support registered for Qualcomm USB modem
8.085679 usbcore: registered new interface driver sierra
8.085703 usbserial: USB Serial support registered for Sierra USB modem
8.087146 usbcore: registered new interface driver xpad
8.087227 <<-GTP-INFO->> GTP driver installing...
8.087516 usbcore: registered new interface driver usbtouchscreen
8.088071 i2c /dev entries driver
8.091253 rk808 0-0020: chip id: 0x8090
8.091311 rk808 0-0020: No cache defaults, reading back from HW
8.115018 rk808 0-0020: source: on=0x40, off=0x00
8.115036 rk808 0-0020: support dcdc3 fb mode:-22, 1
8.115047 rk808 0-0020: support pmic reset mode:0,0
8.120530 rk808-regulator rk808-regulator: there is no dvs0 gpio
8.120566 rk808-regulator rk808-regulator: there is no dvs1 gpio
8.120991 vdd_logic: supplied by vcc3v3_sys
8.121999 vdd_gpu: supplied by vcc3v3_sys
8.122592 vcc_ddr: supplied by vcc3v3_sys
8.123178 vdd_npu: supplied by vcc3v3_sys
8.124105 vcc_1v8: supplied by vcc3v3_sys
8.124680 vdda0v9_image: supplied by vcc3v3_sys
8.126117 vdda_0v9: supplied by vcc3v3_sys
8.127197 vdda0v9_pmu: supplied by vcc3v3_sys
8.128295 vccio_acodec: supplied by vcc3v3_sys
8.129736 vccio_sd: supplied by vcc3v3_sys
8.130817 vcc3v3_pmu: supplied by vcc3v3_sys
8.132252 vcca_1v8: supplied by vcc3v3_sys
8.133351 vcca1v8_pmu: supplied by vcc3v3_sys
8.134430 vcca1v8_image: supplied by vcc3v3_sys
8.135902 vcc_3v3: supplied by vcc3v3_sys
8.136805 vcc3v3_sd: supplied by vcc3v3_sys
8.137381\] rk817-charger: Failed to locate of_node \[id: -1
8.137554 rk817-charger rk817-charger: Failed to find matching dt id
8.140735 input: rk805 pwrkey as /devices/platform/fdd40000.i2c/i2c-0/0-0020/rk805-pwrkey/input/input1
8.142977 fan53555 test 0x1c succes
8.143916 fan53555-regulator 0-001c: FAN53555 Option12 Rev15 Detected!
8.145883 vdd_cpu: supplied by vcc5v0_sys
8.352183 rk3x-i2c fe5d0000.i2c: timeout, ipd: 0x11, state: 2
8.352216 rtc-hym8563 4-0051: could not init device, -110
8.352239 rtc-hym8563: probe of 4-0051 failed with error -110
8.435990 ov5645 1-003c: OV5645 detected at address 0x3c
8.436025 ov5645_probe, 1742: zhangpeng enter
8.437289 rkcifhw fdfe0000.rkcif: Adding to iommu group 7
8.437791\] rkcifhw fdfe0000.rkcif: can't request region for resource \[mem 0xfdfe0000-0xfdfe7fff
8.437878 rkcifhw fdfe0000.rkcif: No reserved memory region assign to CIF
8.438065 rkcif rkcif_mipi_lvds: rkcif driver version: v00.02.00
8.438197 rkcif rkcif_mipi_lvds: attach to cif hw node
8.438208 rkcif rkcif_mipi_lvds: rkcif wait line 0
8.438219 : terminal subdev does not exist
8.438227 : terminal subdev does not exist
8.438233 : terminal subdev does not exist
8.438239 : terminal subdev does not exist
8.439686 rkcif rkcif_mipi_lvds: No memory-region-thunderboot specified
8.440822 rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: enter mipi csi2 hw probe!
8.440991 rockchip-mipi-csi2-hw fdfb0000.mipi-csi2-hw: probe success, v4l2_dev:mipi-csi2-hw!
8.441393 rockchip-mipi-csi2 mipi-csi2: attach to csi2 hw node
8.441508 rkcif rkcif_mipi_lvds: Entity type for entity rockchip-mipi-csi2 was not initialized!
8.441524 rockchip-mipi-csi2: Async registered subdev
8.441548 rockchip-csi2-dphy csi2-dphy0: dphy0 matches m00_b_ov5645 1-003c:bus type 5
8.442012 rkcif_mipi_lvds: Async subdev notifier completed
8.442023 rockchip-mipi-csi2: probe success, v4l2_dev:rkcif_mipi_lvds!
8.443936 usbcore: registered new interface driver uvcvideo
8.443950 USB Video Class driver (1.1.1)
8.445825 device-mapper: ioctl: 4.44.0-ioctl (2021-02-01) initialised: dm-devel@redhat.com
8.446251 Bluetooth: HCI UART driver ver 2.3
8.446266 Bluetooth: HCI UART protocol H4 registered
8.446273 Bluetooth: HCI UART protocol ATH3K registered
8.446353 usbcore: registered new interface driver bfusb
8.446406 usbcore: registered new interface driver btusb
8.447456 cpu cpu0: bin=0
8.447522 cpu cpu0: leakage=29
8.447564 cpu cpu0: pvtm = 87430, from nvmem
8.447580 cpu cpu0: pvtm-volt-sel=2
8.447643 cpu cpu0: soc version=0, speed=2
8.449359 cpu cpu0: avs=0
8.449631 cpu cpu0: EM: created perf domain
8.449693 cpu cpu0: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
8.455814 sdhci: Secure Digital Host Controller Interface driver
8.455838 sdhci: Copyright(c) Pierre Ossman
8.455846 Synopsys Designware Multimedia Card Interface Driver
8.456841 sdhci-pltfm: SDHCI platform and OF driver helper
8.457372 dwmmc_rockchip fe000000.dwmmc: No normal pinctrl state
8.457394 dwmmc_rockchip fe000000.dwmmc: No idle pinctrl state
8.457524 dwmmc_rockchip fe000000.dwmmc: IDMAC supports 32-bit address mode.
8.457540 dwmmc_rockchip fe2b0000.dwmmc: No normal pinctrl state
8.457552 dwmmc_rockchip fe2b0000.dwmmc: No idle pinctrl state
8.457558 dwmmc_rockchip fe000000.dwmmc: Using internal DMA controller.
8.457568 dwmmc_rockchip fe000000.dwmmc: Version ID is 270a
8.457628 dwmmc_rockchip fe000000.dwmmc: DW MMC controller at irq 49,32 bit host data width,256 deep fifo
8.457658 dwmmc_rockchip fe2b0000.dwmmc: IDMAC supports 32-bit address mode.
8.457681 dwmmc_rockchip fe2b0000.dwmmc: Using internal DMA controller.
8.457694 dwmmc_rockchip fe2b0000.dwmmc: Version ID is 270a
8.457730 dwmmc_rockchip fe2b0000.dwmmc: DW MMC controller at irq 50,32 bit host data width,256 deep fifo
8.458035 dwmmc_rockchip fe000000.dwmmc: allocated mmc-pwrseq
8.458051 mmc_host mmc3: card is non-removable.
8.458679 arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.
8.458782 SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
mount: /oem: can't find PARTLABEL=oem.
8.459729 cryptodev: driver 1.12 loaded.
mount: /userdata: wrong fs type, bad option, bad superblock on /dev/mmcblk0p14, missing codepage or helper program, or other error.
8.459811 hid: raw HID events driver (C) Jiri Kosina
dmesg(1) may have more information after failed mount system call.
8.460198 usbcore: registered new interface driver usbhid
8.460210 usbhid: USB HID core driver
8.461318 rockchip,bus bus-npu: bin=0
8.461337 rockchip,bus bus-npu: Failed to get leakage
8.461391 rockchip,bus bus-npu: pvtm = 87430, from nvmem
8.461406 rockchip,bus bus-npu: pvtm-volt-sel=1
8.461626 rockchip,bus bus-npu: avs=0
8.465854 rp_power prepare build 9 gpio
8.466015 rp_power request pwr_5v_3v3
8.466042 success request gpio75 out
8.466059 rp_power request led
8.466073 success request gpio114 flash
8.466087 rp_power request usb_pwr
8.466100 success request gpio6 out
8.466116 rp_power request otg_pwr
8.466127 success request gpio5 out
8.466141 rp_power request usb_rst
8.466152 success request gpio8 out
8.466176 rp_power: probe of rp_power failed with error -1
8.466435 rp_gpio prepare build 9 gpio
8.466554 rp_gpio request gpio1d0
8.466570 success request gpio56 out
8.466587 rp_gpio request gpio1d1
8.466598 success request gpio57 out
8.466613 rp_gpio request gpio1d2
8.466624 success request gpio58 out
8.466637 rp_gpio request gpio1d3
8.466649 success request gpio59 out
8.466662 rp_gpio request gpio1d4
8.466673 success request gpio60 out
8.466732 rp_gpio request gpio4a0
8.466746 success request gpio128 out
8.466762 rp_gpio request gpio4a1
Start mounting all internal partitions in /etc/fstab
8.466772 success request gpio129 out
Log saved to /var/log/mount-all.log
8.466787 rp_gpio request gpio1a4
Note: Will skip fsck, remove /.skip_fsck to enable
8.466798 success request gpio36 out
8.466815 rp_gpio request gpio3c1
8.466827 success request gpio113 out
8.467240 mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.1
8.467452 sprd_pci_ep_dev_init Quectel_Linux&Android_SPRD_PCIE_Driver_V1.1.8
8.467982 sipc: name=sprd,sipc
8.467989 sipc: type=1
8.467993 sipc: dst =1
8.467997 sipc: ep_dev=0
2: Handling /dev/mmcblk0p14 /userdata ext4 defaults 2
8.468001 sipc: smem_type = 0
0: Handling /dev/mmcblk1p6 / ext4 rw,noauto 1
8.468502 sipc: smem_base=0x5400000, dst_smem_base=0x5400000, smem_size=0x300000
8.468507 sipc: high_offset=0x0n
8.468510 smsg_ipc_create: sprd,sipc
8.468869 smem_init: pool addr = 0x5400000, size = 0x300000 added.
8.468884 smsg_ipc_smem_init: ring_base = 0x5400000, ring_size = 0x1000
8.469156 mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
2: Mounting /dev/mmcblk0p14(ext4) on /userdata with -o defaults
8.469688 spipe_probe!
mount: /userdata: wrong fs type, bad option, bad superblock on /dev/mmcblk0p14, missing codepage or helper program, or other error.
8.469697 spipe: after parse device tree, name=spipe_nr, dst=1, channel=4, ringnr=15, rxbuf_size=0x1000, txbuf_size=0x1000
dmesg(1) may have more information after failed mount system call.
8.469708 sbuf_host_init: channel 1-4, offset = 0x0!
0: Resizing /dev/mmcblk1p6(ext4)
8.470103 smsg_ch_open: channel 1-4 send open msg!
resize2fs 1.46.5 (30-Dec-2021)
8.471355 spipe_probe!
8.471365 spipe: after parse device tree, name=sdiag_nr, dst=1, channel=21, ringnr=1, rxbuf_size=0x8000, txbuf_size=0x40000
8.471375 sbuf_host_init: channel 1-21, offset = 0x0!
8.471608 smsg_ch_open: channel 1-21 send open msg!
8.471667 spipe_probe!
8.471675 spipe: after parse device tree, name=stty_nr, dst=1, channel=6, ringnr=32, rxbuf_size=0x800, txbuf_size=0x800
8.471683 sbuf_host_init: channel 1-6, offset = 0x0!
8.471963 smsg_ch_open: channel 1-6 send open msg!
8.473993 spipe_probe!
8.474008 spipe: after parse device tree, name=snv_nr, dst=1, channel=40, ringnr=1, rxbuf_size=0x1000, txbuf_size=0x40400
8.474023 sbuf_host_init: channel 1-40, offset = 0x0!
8.474271 smsg_ch_open: channel 1-40 send open msg!
8.474816 spool: name=slog_nr, dst=1, channel=5, pre_cfg=0
8.474826 spool: tx_num=0, tx_size=0, rx_num=32, rx_size=65536
8.475144 smsg_ch_open: channel 1-5 send open msg!
8.475728 usbcore: registered new interface driver snd-usb-audio
8.477854 rk817-codec rk817-codec: DMA mask not set
8.483002 rk-multicodecs rk809-sound: Failed to get ADC channel
8.483137 rk-multicodecs rk809-sound: ASoC: Property 'rockchip,audio-routing' does not exist or its length is not even
8.484271 rk817-codec rk817-codec: rk817_probe: chip_name:0x80, chip_ver:0x95
8.488201 mmc0: SDHCI controller on fe310000.sdhci fe310000.sdhci using ADMA
8.488655 rk-multicodecs rk809-sound: Don't need to map headset detect gpio to irq
8.491248 IPVS: Registered protocols (TCP, UDP)
8.491299 IPVS: Connection hash table configured (size=4096, memory=32Kbytes)
8.491410 IPVS: ipvs loaded.
8.491420 IPVS: rr scheduler registered.
8.491650 Initializing XFRM netlink socket
8.491965 NET: Registered protocol family 10
8.492622 Segment Routing with IPv6
8.492690 NET: Registered protocol family 17
8.492710 NET: Registered protocol family 15
8.492764 Bridge firewalling registered
8.492771 can: controller area network core
8.492804 NET: Registered protocol family 29
8.492810 can: raw protocol
8.492818 can: broadcast manager protocol
8.492828 can: netlink gateway - max_hops=1
8.493007 Bluetooth: RFCOMM socket layer initialized
8.493039 Bluetooth: RFCOMM ver 1.11
8.493080 Bluetooth: HIDP (Human Interface Emulation) ver 1.2
8.493090 Bluetooth: HIDP socket layer initialized
8.493419 NET: Registered protocol family 41
8.493591 8021q: 802.1Q VLAN Support v1.8
8.493625 BT_RFKILL: Enter rfkill_rk_init
8.493631 WLAN_RFKILL: Enter rfkill_wlan_init
8.494540 WLAN_RFKILL: Enter rfkill_wlan_probe
8.494590 WLAN_RFKILL: wlan_platdata_parse_dt: wifi_chip_type = ap6398s
8.494596 WLAN_RFKILL: wlan_platdata_parse_dt: enable wifi power control.
8.494602 WLAN_RFKILL: wlan_platdata_parse_dt: wifi power controled by gpio.
8.494632 WLAN_RFKILL: wlan_platdata_parse_dt: WIFI,host_wake_irq = 124, flags = 0.
8.494641 WLAN_RFKILL: wlan_platdata_parse_dt: The ref_wifi_clk not found !
8.494647 WLAN_RFKILL: rfkill_wlan_probe: init gpio
8.494654 WLAN_RFKILL: rfkill_set_wifi_bt_power: 1
8.494660 WLAN_RFKILL: Exit rfkill_wlan_probe
8.495703 BT_RFKILL: bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 142.
8.495734 BT_RFKILL: bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 133.
8.495745 BT_RFKILL: bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 134.
8.495755 BT_RFKILL: bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 137.
8.495816 BT_RFKILL: Request irq for bt wakeup host
8.495901 BT_RFKILL: ** disable irq
8.496064 BT_RFKILL: bt_default device registered.
8.496200 Key type dns_resolver registered
8.497971 Loading compiled-in X.509 certificates
8.500381 Btrfs loaded, crc32c=crc32c-generic
8.500637 pstore: Using crash dump compression: deflate
8.501564 rga: rga2, irq = 31, match scheduler
8.502001 rga: rga2 hardware loaded successfully, hw_version:3.2.63318.
8.502028 rga: rga2 probe successfully
8.502328\] rga_iommu: IOMMU binding successfully, default mapping core\[0x4
8.502584 rga: Module initialized. v1.3.1
8.531712 mmc0: Host Software Queue enabled
8.531747 mmc0: new HS200 MMC card at address 0001
8.532439 mmc_host mmc1: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
8.532442 mmcblk0: mmc0:0001 ARJ11X 29.1 GiB
8.532730 mmcblk0boot0: mmc0:0001 ARJ11X partition 1 4.00 MiB
8.533047 mmcblk0boot1: mmc0:0001 ARJ11X partition 2 4.00 MiB
8.533241 mmcblk0rpmb: mmc0:0001 ARJ11X partition 3 4.00 MiB, chardev (236:0)
8.533619 dwmmc_rockchip fe2b0000.dwmmc: All phases bad!
8.533654 mmc1: tuning execution failed: -5
8.533687 mmc1: error -5 whilst initialising SD card
8.536225 mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14
8.545572 mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
8.607176 vendor storage:20190527 ret = 0
8.607203 mmc_host mmc1: Bus speed (slot 0) = 148500000Hz (slot req 150000000Hz, actual 148500000HZ div = 0)
8.608113 dwmmc_rockchip fe2b0000.dwmmc: All phases bad!
8.608125 mmc1: tuning execution failed: -5
8.623774 mmc_host mmc1: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
8.667757 mmc_host mmc1: Bus speed (slot 0) = 50000000Hz (slot req 50000000Hz, actual 50000000HZ div = 0)
8.668085 mmc1: new high speed SDHC card at address 0001
8.670249 mmcblk1: mmc1:0001 SD16G 29.1 GiB
8.675935 mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 400000Hz, actual 375000HZ div = 0)
8.678408 mmcblk1: p1 p2 p3 p4 p5 p6
8.690037 mpp_rkvenc fdf40000.rkvenc: Adding to iommu group 5
8.690352 mpp_rkvenc fdf40000.rkvenc: probing start
8.691188 mpp_rkvenc fdf40000.rkvenc: bin=0
8.691230 mpp_rkvenc fdf40000.rkvenc: Failed to get leakage
8.691298 mpp_rkvenc fdf40000.rkvenc: pvtm = 87430, from nvmem
8.691320 mpp_rkvenc fdf40000.rkvenc: pvtm-volt-sel=1
8.691655 mpp_rkvenc fdf40000.rkvenc: avs=0
8.691909 mpp_rkvenc fdf40000.rkvenc: failed to find power_model node
8.691927 mpp_rkvenc fdf40000.rkvenc: failed to initialize power model
8.691940 mpp_rkvenc fdf40000.rkvenc: failed to get dynamic-coefficient
Filesystem at /dev/mmcblk1p6 is mounted on /; on-line resizing required
8.692909 mpp_rkvenc fdf40000.rkvenc: probing finish
old_desc_blocks = 1, new_desc_blocks = 2
8.693561 mpp_rkvdec2 fdf80200.rkvdec: Adding to iommu group 6
The filesystem on /dev/mmcblk1p6 is now 7571963 (4k) blocks long.
8.693913 mpp_rkvdec2 fdf80200.rkvdec: rkvdec, probing start
8.694446 mpp_rkvdec2 fdf80200.rkvdec: shared_niu_a is not found!
8.694464 rkvdec2_init:1022: No niu aclk reset resource define
8.694480 mpp_rkvdec2 fdf80200.rkvdec: shared_niu_h is not found!
8.694490 rkvdec2_init:1025: No niu hclk reset resource define
8.694810 mpp_rkvdec2 fdf80200.rkvdec: bin=0
8.694955 mpp_rkvdec2 fdf80200.rkvdec: leakage=54
/etc/init.d/S01boot-complete.sh: line 17: /proc/rp_system_flag/rp_boot_completed: No such file or directory
8.694978 mpp_rkvdec2 fdf80200.rkvdec: leakage-volt-sel=0
Starting syslogd: 8.695029 mpp_rkvdec2 fdf80200.rkvdec: pvtm = 87430, from nvmem
OK
8.695049 mpp_rkvdec2 fdf80200.rkvdec: pvtm-volt-sel=1
8.695315 mpp_rkvdec2 fdf80200.rkvdec: avs=0
8.695560 mpp_rkvdec2 fdf80200.rkvdec: failed to find power_model node
Starting klogd: OK
8.695579 mpp_rkvdec2 fdf80200.rkvdec: failed to initialize power model
8.695592 mpp_rkvdec2 fdf80200.rkvdec: failed to get dynamic-coefficient
Running sysctl: 8.695778 mpp_rkvdec2 fdf80200.rkvdec: sram_start 0x00000000fdcc0000
OK
8.695794 mpp_rkvdec2 fdf80200.rkvdec: rcb_iova 0x0000000010000000
8.695805 mpp_rkvdec2 fdf80200.rkvdec: sram_size 45056
8.695816 mpp_rkvdec2 fdf80200.rkvdec: rcb_size 65536
Populating /dev using udev: 8.695829 mpp_rkvdec2 fdf80200.rkvdec: min_width 512
8.695912 mpp_rkvdec2 fdf80200.rkvdec: link mode probe finish
8.696019 mpp_rkvdec2 fdf80200.rkvdec: probing finish
8.697372 rockchip-iodomain fdc20000.syscon:io-domains: pmuio2(3300000 uV) supplied by vcc3v3_pmu
8.697584 mali fde60000.gpu: Kernel DDK version g18p0-01eac0
8.697615 rockchip-iodomain fdc20000.syscon:io-domains: vccio1(3000000 uV) supplied by vccio_acodec
8.697823 rockchip-iodomain fdc20000.syscon:io-domains: vccio3(3300000 uV) supplied by vccio_sd
8.698036 rockchip-iodomain fdc20000.syscon:io-domains: vccio4(3300000 uV) supplied by vcc_3v3
8.698199 rockchip-iodomain fdc20000.syscon:io-domains: vccio5(3300000 uV) supplied by vcc_3v3
8.698237 mali fde60000.gpu: bin=0
8.698310 mali fde60000.gpu: leakage=8
8.698363 mali fde60000.gpu: pvtm = 87430, from nvmem
8.698391 mali fde60000.gpu: pvtm-volt-sel=2
8.698406 rockchip-iodomain fdc20000.syscon:io-domains: vccio6(1800000 uV) supplied by vcc_1v8
8.698417 mali fde60000.gpu: soc version=0, speed=2
8.698541 rockchip-iodomain fdc20000.syscon:io-domains: vccio7(3300000 uV) supplied by vcc_3v3
8.699439 mali fde60000.gpu: avs=0
8.699485 W : File : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; Line : 143; Func : kbase_platform_rk_init(); power-off-delay-ms not available.
8.699552 input: adc-keys as /devices/platform/adc-keys/input/input2
8.700220 mali fde60000.gpu: GPU identified as 0x2 arch 7.4.0 r1p0 status 0
8.700350 mali fde60000.gpu: No priority control manager is configured
8.700848 mali fde60000.gpu: No memory group manager is configured
8.703460 mali fde60000.gpu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
8.705040 mali fde60000.gpu: Probed as mali0
8.715833 rk808-rtc rk808-rtc: registered as rtc0
8.717857 rk808-rtc rk808-rtc: setting system clock to 2017-08-04T09:00:09 UTC (1501837209)
8.717928 rkcif rkcif_mipi_lvds: clear unready subdev num: 0
8.719064 rockchip_headset rk-headset: Can not read property hook_gpio
8.719089 rockchip_headset rk-headset: have not set adc chan
8.719096 rockchip_headset rk-headset: headset have no hook mode
8.719275 input: rk-headset as /devices/platform/rk-headset/input/input3
8.720065 RKNPU fde40000.npu: Adding to iommu group 0
8.720474 RKNPU fde40000.npu: RKNPU: rknpu iommu is enabled, using iommu mode
8.720702\] RKNPU fde40000.npu: can't request region for resource \[mem 0xfde40000-0xfde4ffff
8.721300 drm Initialized rknpu 0.9.3 20231121 for fde40000.npu on minor 1
8.724248 RKNPU fde40000.npu: bin=0
8.724313 RKNPU fde40000.npu: leakage=4
8.724351 RKNPU fde40000.npu: pvtm = 87430, from nvmem
8.724368 RKNPU fde40000.npu: pvtm-volt-sel=2
8.724383 RKNPU fde40000.npu: soc version=0, speed=2
8.724929 RKNPU fde40000.npu: avs=0
8.725130 RKNPU fde40000.npu: l=0 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0
8.725722 RKNPU fde40000.npu: failed to find power_model node
8.725734 RKNPU fde40000.npu: RKNPU: failed to initialize power model
8.725741 RKNPU fde40000.npu: RKNPU: failed to get dynamic-coefficient
8.727207 cfg80211: Loading compiled-in X.509 certificates for regulatory database
8.729046 cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
8.730035 rockchip-pm rockchip-suspend: not set pwm-regulator-config
8.730592 rockchip-suspend not set sleep-mode-config for mem-lite
8.730601 rockchip-suspend not set wakeup-config for mem-lite
8.730609 rockchip-suspend not set sleep-mode-config for mem-ultra
8.730614 rockchip-suspend not set wakeup-config for mem-ultra
8.731613 I : File : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; Line : 406; Func : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '09:41:21', on 'Jul 8 2025'.
8.731997 Mali:
8.732000 Mali device driver loaded
8.732388 ALSA device list:
8.732401 #0: rockchip-rk809
8.732407 #1: rockchip,hdmi
8.733061 platform regulatory.0: Direct firmware load for regulatory.db failed with error -2
8.733080 cfg80211: failed to load regulatory.db
8.746523 EXT4-fs (mmcblk1p6): mounted filesystem with ordered data mode. Opts: (null)
8.746609 VFS: Mounted root (ext4 filesystem) on device 179:102.
8.747691 devtmpfs: mounted
8.756292 Freeing unused kernel memory: 7552K
8.795775 Run /sbin/init as init process
8.928900 mmc_host mmc3: Bus speed (slot 0) = 375000Hz (slot req 375000Hz, actual 375000HZ div = 0)
9.041718 EXT4-fs (mmcblk1p6): re-mounted. Opts: (null)
9.222191 ---headsetobserve_work---
9.332244 old_status == headset_info->headset_status
9.629913 EXT4-fs (mmcblk0p14): VFS: Can't find ext4 filesystem
9.899479 EXT4-fs (mmcblk0p14): VFS: Can't find ext4 filesystem
9.949638 EXT4-fs (mmcblk1p6): resizing filesystem from 249344 to 7571963 blocks
10.356684 EXT4-fs (mmcblk1p6): resized filesystem to 7571963
10.734238 udevd324: starting version 3.2.10
10.797754 udevd328: starting eudev-3.2.10
11.096932 stream_cif_mipi_id0: open video, entity use_countt 1
11.096999 stream_cif_mipi_id1: open video, entity use_countt 1
11.097127 stream_cif_mipi_id0: close video, entity use_count 0
11.097157 stream_cif_mipi_id1: close video, entity use_count 0
11.105172 stream_cif_mipi_id2: open video, entity use_countt 1
11.105779 stream_cif_mipi_id2: close video, entity use_count 0
11.123256 stream_cif_mipi_id3: open video, entity use_countt 1
11.123489 stream_cif_mipi_id3: close video, entity use_count 0
done
Starting irqbalance: OK
Saving random seed: OK
Starting system message bus: done
Starting iptables: OK
Starting bluetoothd: OK
Starting network: Failed to detect Wi-Fi/BT chip!
ln: failed to create symbolic link '': No such file or directory
OK
Starting dhcpcd...
dhcpcd-9.4.1 starting
dev: loaded udev
no interfaces have a carrier
forked to background, child pid 533
Starting ntpd: 12.335641 rk_gmac-dwmac fe010000.ethernet eth0: PHY stmmac-1:00 driver RTL8211F Gigabit Ethernet (irq=POLL)
12.338188 dwmac4: Master AXI performs any burst length
12.338230 rk_gmac-dwmac fe010000.ethernet eth0: No Safety Features support found
12.338261 rk_gmac-dwmac fe010000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported
12.338586 rk_gmac-dwmac fe010000.ethernet eth0: registered PTP clock
12.339078 rk_gmac-dwmac fe010000.ethernet eth0: configuring for phy/rgmii link mode
OK
starting weston... done.
Starting dropbear sshd: OK
Starting pulseaudio: OK
Starting dnsmasq: OK
/bin/list-iodomain.sh version: V1.0.1
Get CHIP ID: rk356x
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXX PLEASE CHECK IO-DOMAIN !!!!!!!!!!!!!!!
XXXXXXXXXX 请务必检查IO电源域配置 !!!!!!!!!!!!!!!
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
Get IO DOMAIN VALUE:
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
注意事项：PMUIO1/PMUIO2 固定不可配
VCCIO2电平由硬件FLASH_VOL_SEL决定:
当VCCIo2供电是1.8V,则FLASH_VOL_SEL管脚必须保持为高电平;
当VCCIO2供电是3.3V,则FLASH_VOL_SEL管脚必须保持为低电平;
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
pmuio2_vsel: 3.3V
vccio7_vsel: 3.3V
vccio6_vsel: 1.8V
vccio5_vsel: 3.3V
vccio4_vsel: 3.3V
vccio3_vsel: 3.3V
vccio2_vsel: 3.3V
vccio1_vsel: 3.3V
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
The camera soft link is automatically createdOK
W: pulseaudio main.c: This program is not intended to be run as root (unless --system is specified).
W: pulseaudio main.c: Compiled with DEPRECATED libsamplerate support!
14.031853 file system registered
14.258982 read descriptors
14.259037 read strings
14.484803 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
14.485727 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Starting mobilenet: 14.641965 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
OK
14.642489 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
Starting input-event-daemon: done
root@rk3566-buildroot:/# W: pulseaudio authkey.c: Failed to open cookie file '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: pulseaudio authkey.c: Failed to load authentication key '/userdata/.pulse/.config/pulse/cookie': No such file or directory
W: pulseaudio authkey.c: Failed to open cookie file '/userdata/.pulse/.pulse-cookie': No such file or directory
W: pulseaudio authkey.c: Failed to load authentication key '/userdata/.pulse/.pulse-cookie': No such file or directory
E: pulseaudio module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.
Date: 2017-08-04 CST
17:00:15.680 weston 13.0.0
https://wayland.freedesktop.org
Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/
Build: linux5.10-rkr7.1(v1.4.0_20231220)-395-gad3330a33b+
17:00:15.684 Command line: /usr/bin/weston
17:00:15.684 OS: Linux, 5.10.198, #1 SMP Tue Jul 8 09:38:35 CST 2025, aarch64
17:00:15.684 Flight recorder: enabled
17:00:15.684 warning: XDG_RUNTIME_DIR "/var/run" is not configured
correctly. Unix access mode must be 0700 (current mode is 0755),
and must be owned by the user UID 0 (current owner is UID 0).
Refer to your distribution on how to get it, or
http://www.freedesktop.org/wiki/Specifications/basedir-spec
on how to implement it.
/etc/xdg/weston/weston.ini.d/02-desktop.ini: "shell/locking" from "false" to "true"
17:00:15.780 Using config file '/etc/xdg/weston/weston.ini'
17:00:15.782 Output repaint window is -1 ms maximum.
17:00:15.786 Loading module '/usr/lib/libweston-13/drm-backend.so'
E: pulseaudio module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files
E: pulseaudio module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.
17:00:15.798 initializing drm backend
17:00:15.798 Entering mirror mode.
17:00:15.798 Trying direct launcher...
17:00:15.804 using /dev/dri/card0
17:00:15.804 DRM: does not support atomic modesetting
17:00:15.804 DRM: does not support GBM modifiers
17:00:15.804 DRM: does not support async page flipping
17:00:15.804 DRM: supports picture aspect ratio
W: pulseaudio server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
W: pulseaudio main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead
17:00:15.815 Loading module '/usr/lib/libweston-13/gl-renderer.so'
arm_release_ver: g13p0-01eac0, rk_so_ver: 10
17:00:15.994 EGL version: 1.4 Bifrost-"g13p0-01eac0"
17:00:15.994 EGL vendor: ARM
17:00:15.994 EGL client APIs: OpenGL_ES
17:00:15.994 EGL features:
EGL Wayland extension: yes
context priority: yes
buffer age: no
partial update: yes
swap buffers with damage: no
configless context: yes
surfaceless context: yes
dmabuf support: modifiers
17:00:16.029 GL version: OpenGL ES 3.2 v1.g13p0-01eac0.98c5dad4e3309b873e3189000b74ea36
17:00:16.029 GLSL version: OpenGL ES GLSL ES 3.20
17:00:16.029 GL vendor: ARM
17:00:16.029 GL renderer: Mali-G52
17:00:17.505 GL ES 3.2 - renderer features:
read-back format: ARGB8888
glReadPixels supports y-flip: no
wl_shm 10 bpc formats: yes
wl_shm 16 bpc formats: no
wl_shm half-float formats: no
internal R and RG formats: yes
OES_EGL_image_external: yes
wl_shm sub-image to texture: yes
17:00:17.506 Using GL renderer
17:00:17.637 event2 - adc-keys: is tagged by udev as: Keyboard
17:00:17.637 event2 - adc-keys: device is a keyboard
17:00:17.639 event1 - rk805 pwrkey: is tagged by udev as: Keyboard
17:00:17.639 event1 - rk805 pwrkey: device is a keyboard
17:00:17.640 event0 - hdmi_cec_key: is tagged by udev as: Keyboard
17:00:17.640 event0 - hdmi_cec_key: device is a keyboard
17:00:17.642 event3 - rk-headset: is tagged by udev as: Keyboard
17:00:17.642 event3 - rk-headset: device is a keyboard
17:00:17.806 libinput: configuring device "adc-keys".
17:00:17.806 libinput: configuring device "rk805 pwrkey".
17:00:17.806 libinput: configuring device "hdmi_cec_key".
17:00:17.806 libinput: configuring device "rk-headset".
17:00:17.807 Registered plugin API 'weston_drm_output_api_v1' of size 40
17:00:17.807 Color manager: no-op
17:00:17.807 Compositor capabilities:
arbitrary surface rotation: yes
screen capture uses y-flip: yes
cursor planes: yes
arbitrary resolutions: no
view mask clipping: yes
explicit sync: yes
color operations: no
presentation clock: CLOCK_MONOTONIC, id 1
presentation clock resolution: 0.000000001 s
17:00:17.809 Loading module '/usr/lib/weston/desktop-shell.so'
17:00:17.816 DRM: head 'HDMI-A-1' found, connector 114 is disconnected.
17:00:17.816 Output 'DUMMY' attempts EOTF mode: SDR
17:00:17.816 Output 'DUMMY' using color profile: stock sRGB color profile
17:00:17.817 Chosen EGL config details: id: 9 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)
17:00:17.817 Output 'DUMMY' enabled with head(s) DUMMY
17:00:17.817 launching '/usr/libexec/weston-keyboard'
17:00:17.821 launching '/usr/libexec/weston-desktop-shell'
Failed to process Wayland connection: Broken pipe
Failed to process Wayland connection: Broken pipe
failed to create display: Broken pipe
failed to create display: Broken pipe
39.489184 vcc3v3_lcd0_n: disabling
39.489273 vcc3v3_lcd1_n: disabling
44.125790 rockchip-drm display-subsystem: drm fb0: rockchipdrmfb frame buffer device
root@rk3566-buildroot:/#
root@rk3566-buildroot:/#
root@rk3566-buildroot:/# poweroff
root@rk3566-buildroot:/# Stopping input-event-daemon: done
Starting mobilenet:OK
alsa-lib main.c:1541:(snd_use_case_mgr_open) error: failed to import hw:1 use case configuration -2
-i use default asound.conf
Not stop quntionstop auto-reboot finished
Stopping dnsmasq: OK
Stopping pulseaudio: E: pulseaudio main.c: Failed to kill daemon: No such process
OK
Stopping dropbear sshd: OK
stoping weston... killall: weston: no process killed
done.
Stopping ntpd: OK
Stopping dhcpcd...
no /sbin/dhcpcd found; none killed
killall: rkaiq_3A_server: no process killed
Stopping network: OK
Stopping bluetoothd: OK
Stopping Wi-Fi/BT...
Stopping iptables: OK
Stopping system message bus: done
Saving random seed: 56.058934 dwc3 fcc00000.dwc3: request 000000009965b507 was not queued to ep0out
56.059091 android_work: did not send uevent (0 0 0000000000000000)
OK
Stopping irqbalance: OK
Stopping klogd: OK
Stopping syslogd: OK
no stop function
56.175856 ffs_data_put(): freeing
umount: /var/log: target is busy.
umount: /run: target is busy.
56.254365 EXT4-fs (mmcblk1p6): re-mounted. Opts: (null)
The system is going down NOW!
Sent SIGTERM to all processes
56.273198 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
56.274134 dwhdmi-rockchip fe0a0000.hdmi: Rate 0 missing; compute N dynamically
W: pulseaudio pid.c: Failed to open PID file '/tmp/pulse-emf4iocctq8s/pid': Read-only file system
W: pulseaudio pid.c: Failed to open PID file '/tmp/pulse-emf4iocctq8s/pid': Read-only file system
Sent SIGKILL to all processes
Requesting system poweroff
58.275205 rk808 0-0020: reboot: not restore POWER_EN
58.306245 mpp_rkvdec2 fdf80200.rkvdec: shutdown device
58.311595 mpp_rkvdec2 fdf80200.rkvdec: shutdown success
58.317032 mpp_rkvenc fdf40000.rkvenc: shutdown device
58.322280 mpp_rkvenc fdf40000.rkvenc: shutdown success
58.329237 Set signal voltage to initial state
58.335831 fan53555-regulator 0-001c: fan53555..... reset
58.342319 fan53555-regulator 0-001c: reset: force fan53555_reset ok!
58.357616 WLAN_RFKILL: Enter rfkill_wlan_shutdown
58.362713 WLAN_RFKILL: rockchip_wifi_power: 0
58.367433 WLAN_RFKILL: rockchip_wifi_power: toggle = false
58.373284 WLAN_RFKILL: rockchip_wifi_power: toggle = false
58.379132\] \[WLAN_RFKILL\]: wifi shut off power \[GPIO-1-1
58.384545 WLAN_RFKILL: rfkill_set_wifi_bt_power: 0
58.390605 mpp-iep2 fdef0000.iep: shutdown device
58.395430 mpp-iep2 fdef0000.iep: shutdown success
58.400371 mpp_vepu2 fdee0000.vepu: shutdown device
58.405359 mpp_vepu2 fdee0000.vepu: shutdown success
58.410542 mpp_jpgdec fded0000.jpegd: shutdown device
58.415702 mpp_jpgdec fded0000.jpegd: shutdown success
58.420999 mpp_vdpu2 fdea0400.vdpu: shutdown device
58.425986 mpp_vdpu2 fdea0400.vdpu: shutdown success
58.431389 xhci-hcd xhci-hcd.4.auto: remove, state 4
58.436476 usb usb6: USB disconnect, device number 1
58.442487 xhci-hcd xhci-hcd.4.auto: USB bus 6 deregistered
58.448499 xhci-hcd xhci-hcd.4.auto: remove, state 4
58.453609 usb usb5: USB disconnect, device number 1
58.459838 xhci-hcd xhci-hcd.4.auto: USB bus 5 deregistered
58.473325 reboot: Power down
END 2025/7/26 9:41:48
