缘起：经过反复测试，终于把 荣品RD-RK3588开发板 自带的8寸屏的CTP触摸屏调试通了。

Android13的内核linux-5.10

Android13的内核linux-6.1。版本升级之后，

终于把全部的USB接口都点亮USB接口的鼠标了！

当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。

当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！

结论：荣品的FAE工程师是真的很忙。

代码写的非常写意/潇洒！

【整个DTS，TAB和空格按键都是混用的！^有些时候看着很难受的！^】

DTS中的代码排版真的让人看得很难受！

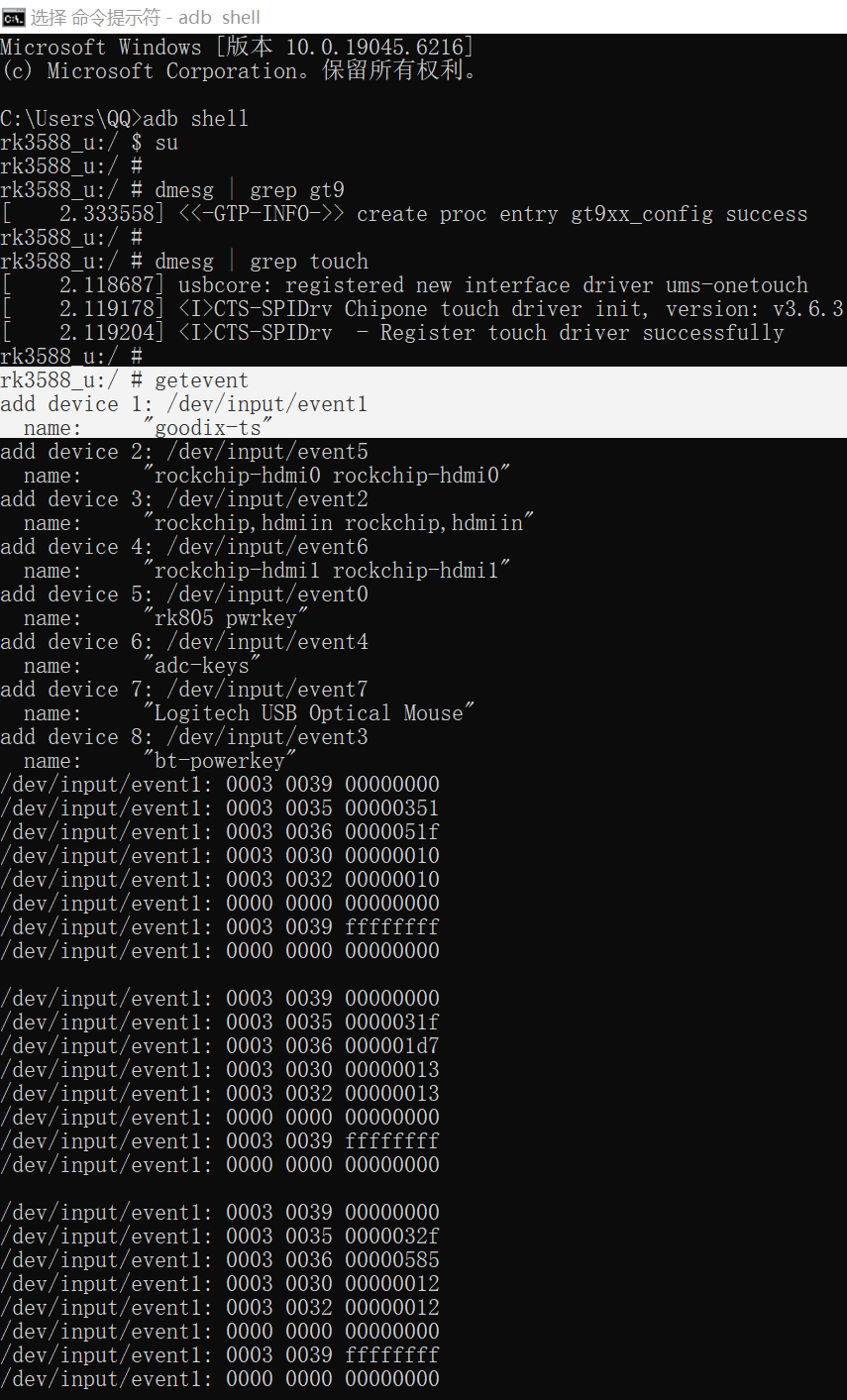

0、默认编译的Android14是找不到CTP的！在内核dmesg信息中甚至没有出错信息！

Microsoft Windows [版本 10.0.19045.6216]

(c) Microsoft Corporation。保留所有权利。

C:\Users\QQ>adb shell

rk3588_u:/ $ su

rk3588_u:/ #
rk3588_u:/ # getevent

add device 1: /dev/input/event4

name: "rockchip-hdmi0 rockchip-hdmi0"

add device 2: /dev/input/event6

name: "Logitech USB Optical Mouse"

add device 3: /dev/input/event0

name: "rk805 pwrkey"

add device 4: /dev/input/event1

name: "rockchip,hdmiin rockchip,hdmiin"

add device 5: /dev/input/event2

name: "bt-powerkey"

add device 6: /dev/input/event3

name: "adc-keys"

add device 7: /dev/input/event5

name: "rockchip-hdmi1 rockchip-hdmi1"

^C

130|rk3588_u:/ #

Microsoft Windows [版本 10.0.19045.6216]

(c) Microsoft Corporation。保留所有权利。

C:\Users\QQ>adb shell

rk3588_u:/ $ su

rk3588_u:/ #

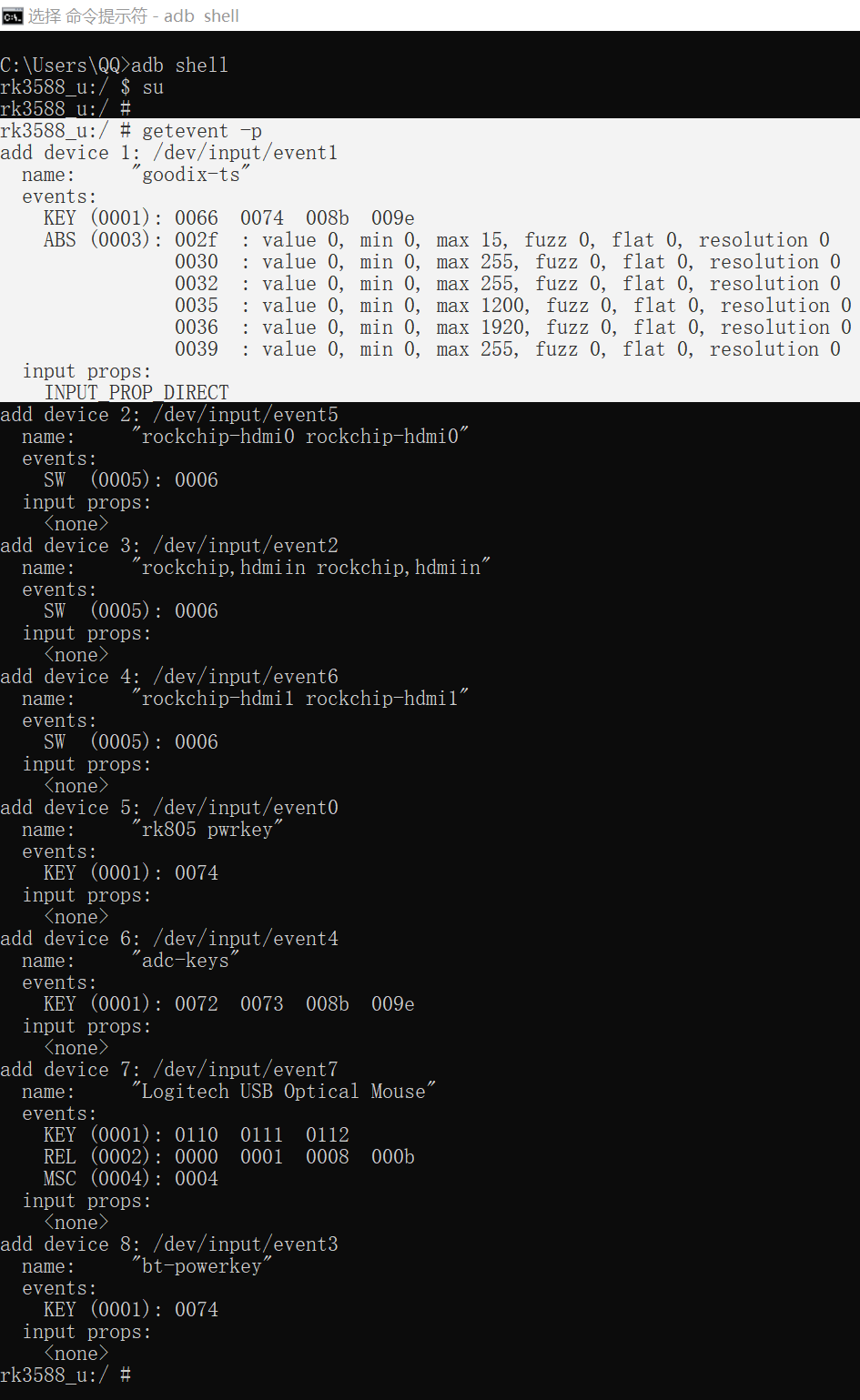

rk3588_u:/ # getevent -p

add device 1: /dev/input/event4

name: "rockchip-hdmi0 rockchip-hdmi0"

events:

SW (0005): 0006

input props:

<none>

add device 2: /dev/input/event6

name: "Logitech USB Optical Mouse"

events:

KEY (0001): 0110 0111 0112

REL (0002): 0000 0001 0008 000b

MSC (0004): 0004

input props:

<none>

add device 3: /dev/input/event0

name: "rk805 pwrkey"

events:

KEY (0001): 0074

input props:

<none>

add device 4: /dev/input/event1

name: "rockchip,hdmiin rockchip,hdmiin"

events:

SW (0005): 0006

input props:

<none>

add device 5: /dev/input/event2

name: "bt-powerkey"

events:

KEY (0001): 0074

input props:

<none>

add device 6: /dev/input/event3

name: "adc-keys"

events:

KEY (0001): 0072 0073 008b 009e

input props:

<none>

add device 7: /dev/input/event5

name: "rockchip-hdmi1 rockchip-hdmi1"

events:

SW (0005): 0006

input props:

<none>

rk3588_u:/ #
rk3588_u:/ # getevent

add device 1: /dev/input/event4

name: "rockchip-hdmi0 rockchip-hdmi0"

add device 2: /dev/input/event6

name: "Logitech USB Optical Mouse"

add device 3: /dev/input/event0

name: "rk805 pwrkey"

add device 4: /dev/input/event1

name: "rockchip,hdmiin rockchip,hdmiin"

add device 5: /dev/input/event2

name: "bt-powerkey"

add device 6: /dev/input/event3

name: "adc-keys"

add device 7: /dev/input/event5

name: "rockchip-hdmi1 rockchip-hdmi1"

1|rk3588_u:/ #
1|rk3588_u:/ # dmesg | grep gt9

1|rk3588_u:/ #

1|rk3588_u:/ #

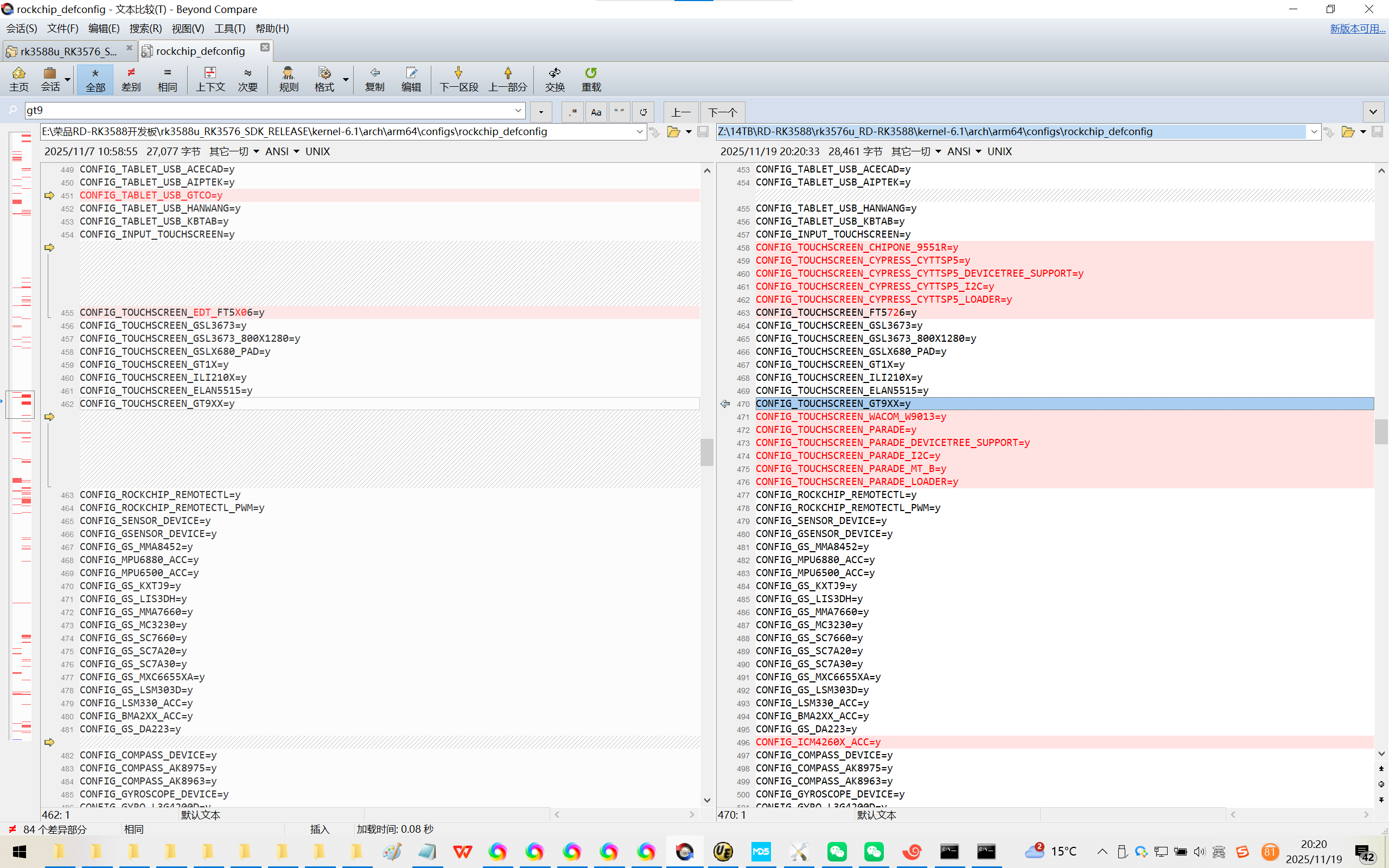

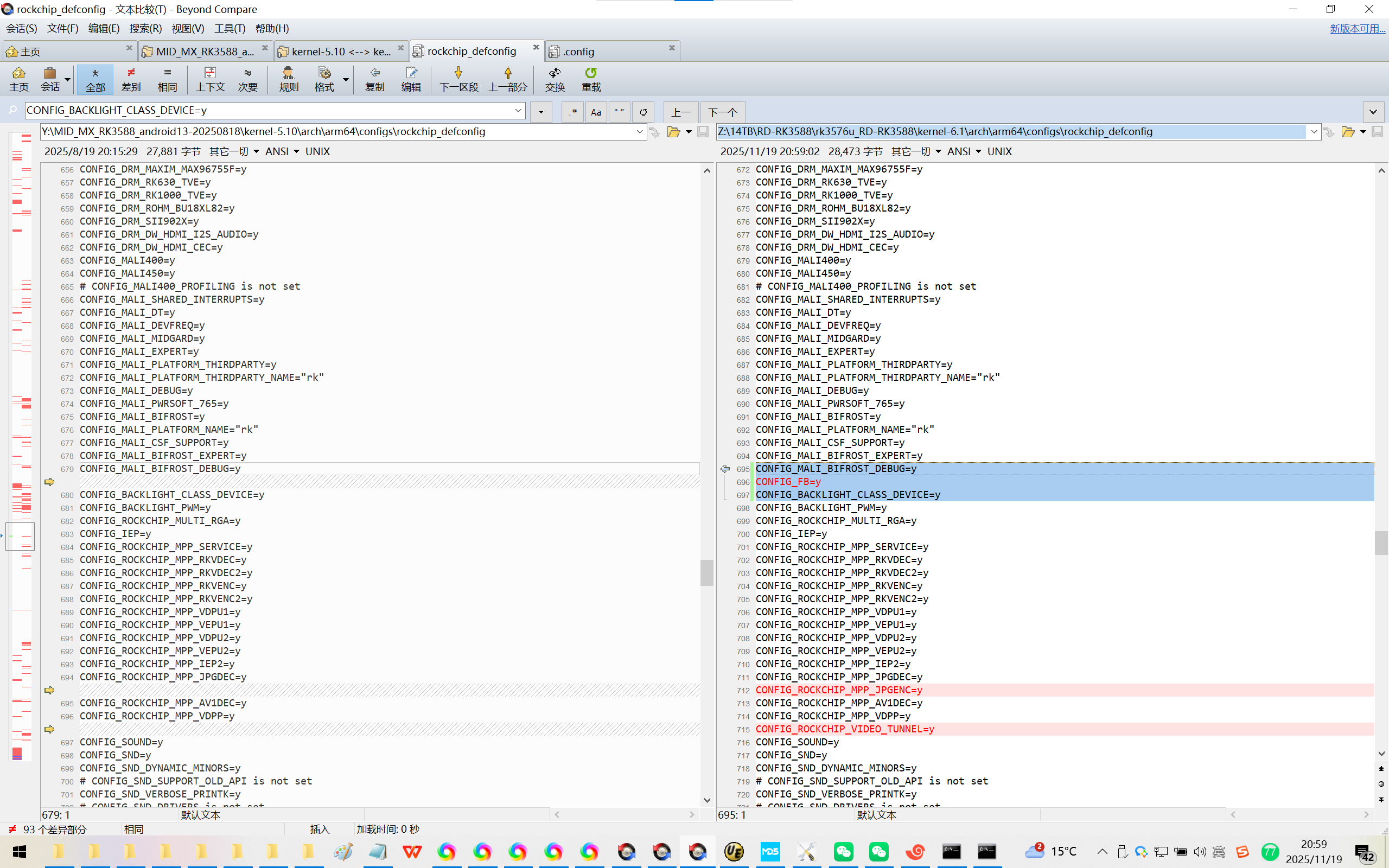

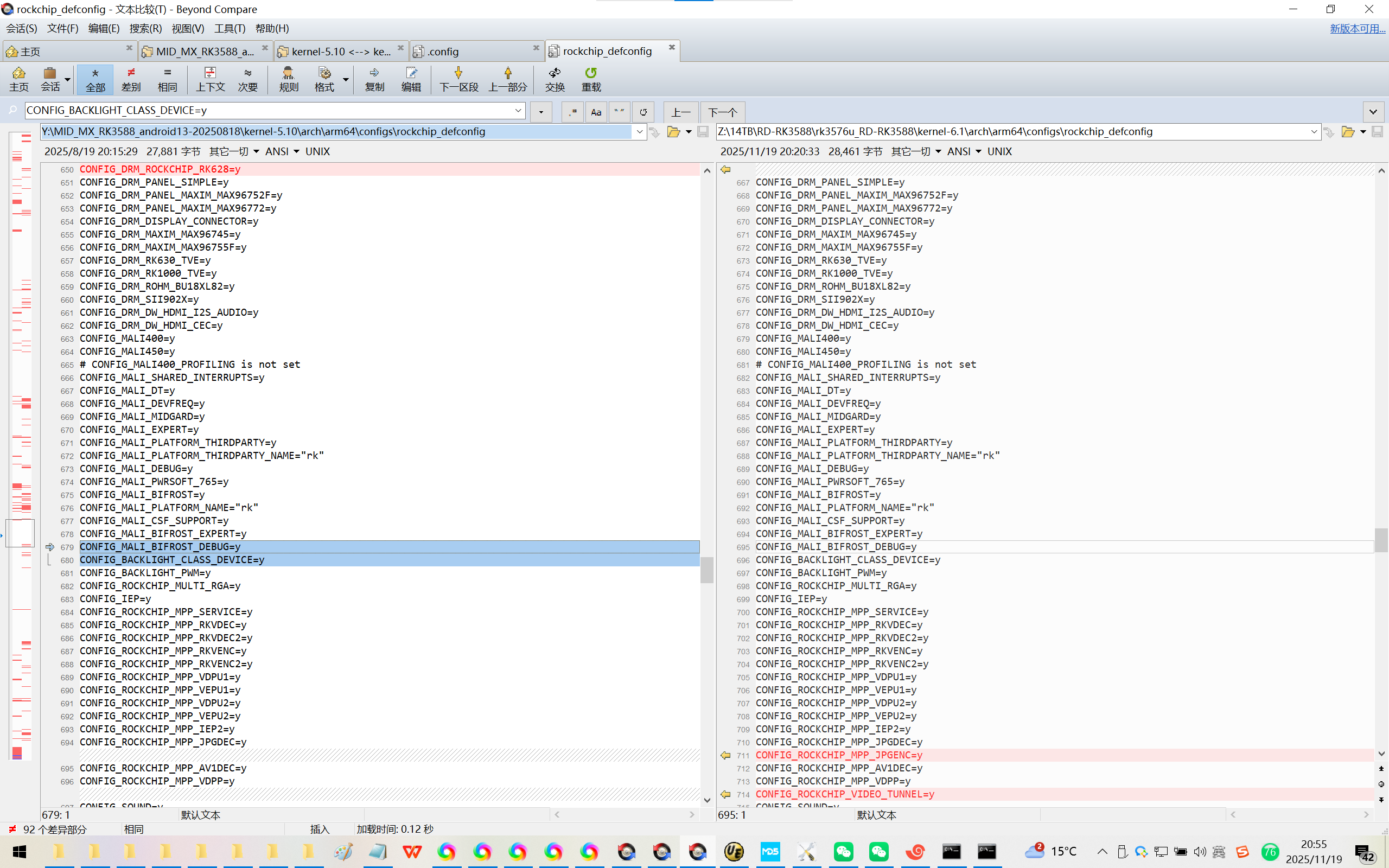

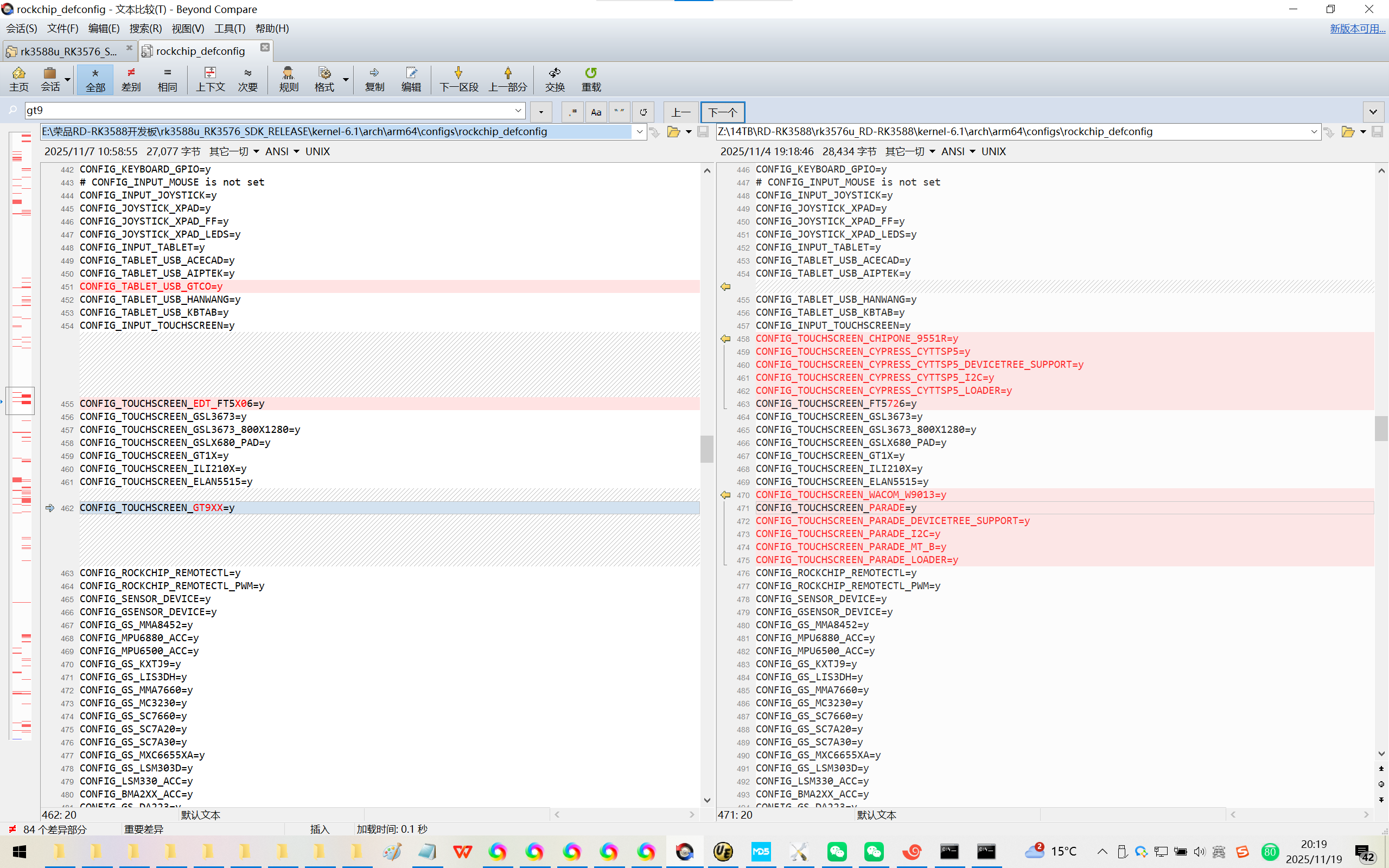

2、配置config文件：

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\arch\arm64\configs\rockchip_defconfig

CONFIG_TOUCHSCREEN_GSL3673=y

CONFIG_TOUCHSCREEN_GSL3673_800X1280=y

CONFIG_TOUCHSCREEN_GSLX680_PAD=y

CONFIG_TOUCHSCREEN_GT1X=y

CONFIG_TOUCHSCREEN_ILI210X=y

CONFIG_TOUCHSCREEN_ELAN5515=y
CONFIG_TOUCHSCREEN_GT9XX=y

CONFIG_TOUCHSCREEN_WACOM_W9013=y

CONFIG_TOUCHSCREEN_PARADE=y

CONFIG_TOUCHSCREEN_PARADE_DEVICETREE_SUPPORT=y

CONFIG_TOUCHSCREEN_PARADE_I2C=y

CONFIG_TOUCHSCREEN_PARADE_MT_B=y

CONFIG_TOUCHSCREEN_PARADE_LOADER=y

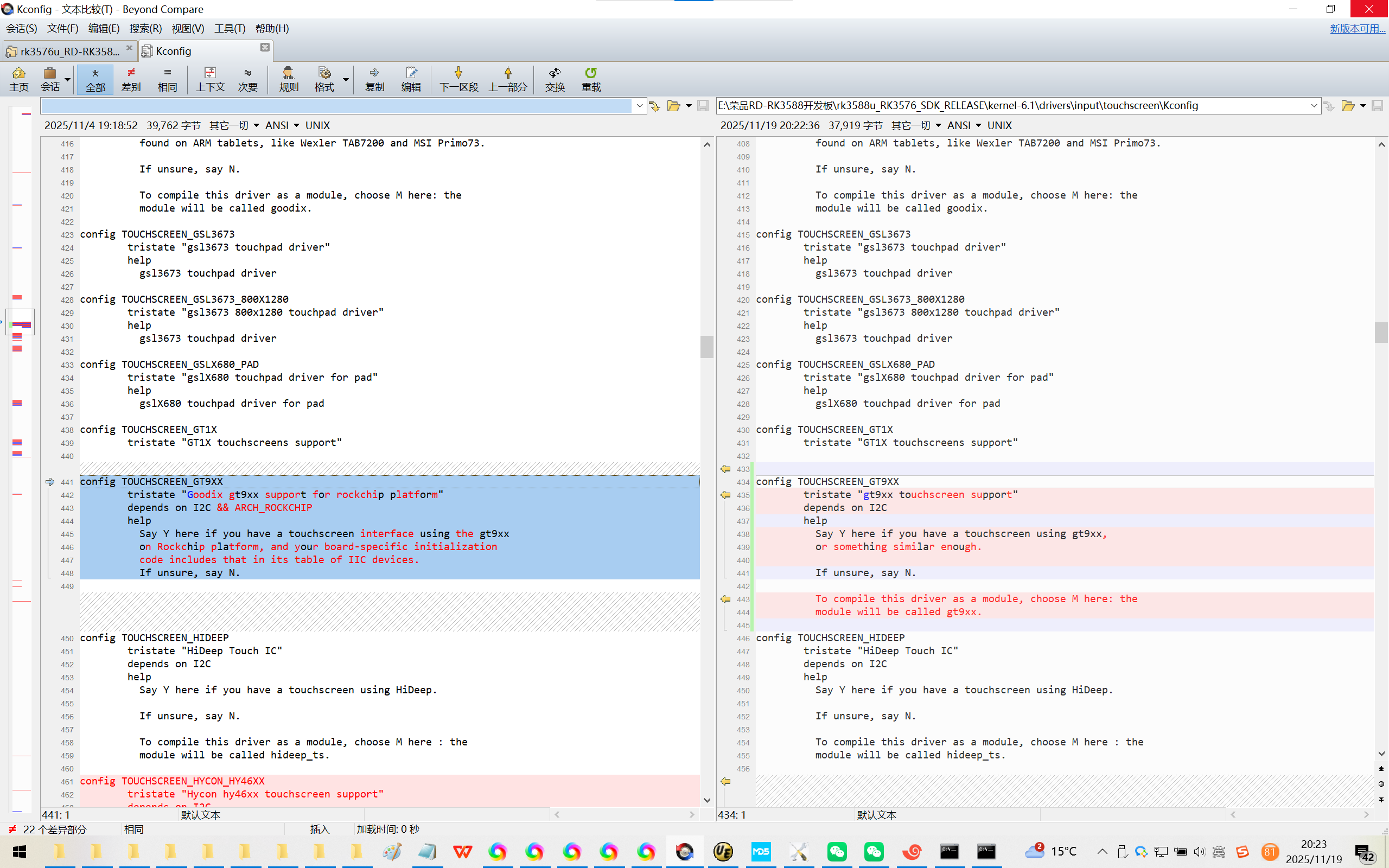

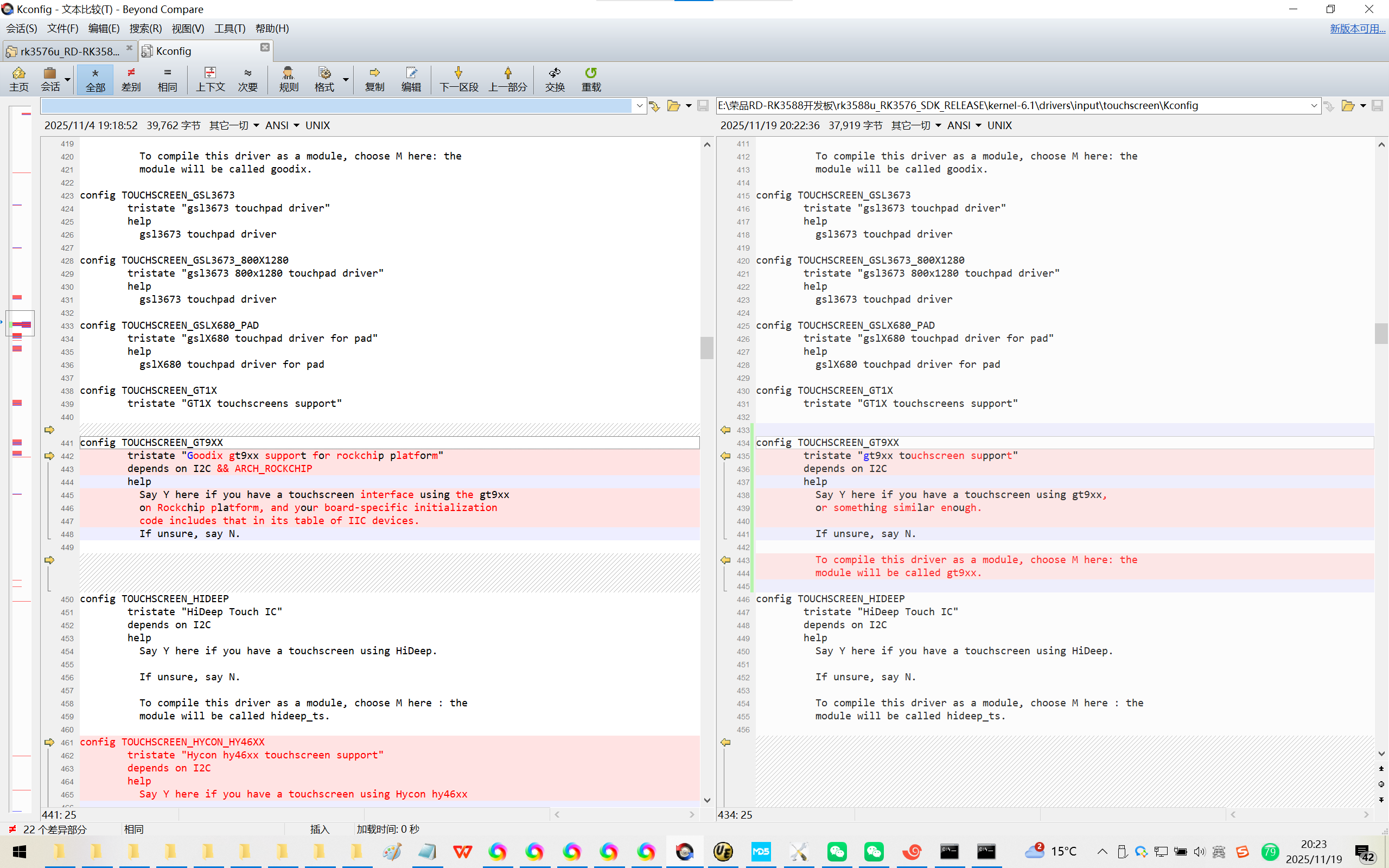

3、

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\Kconfig

Android13：
config TOUCHSCREEN_GT9XX
tristate "gt9xx touchscreen support"
depends on I2C
help
Say Y here if you have a touchscreen using gt9xx,
or something similar enough.

If unsure, say N.

To compile this driver as a module, choose M here: the
module will be called gt9xx.

Android14自带：【可以不用修改的】

config TOUCHSCREEN_GT9XX
tristate "Goodix gt9xx support for rockchip platform"
depends on I2C && ARCH_ROCKCHIP
help
Say Y here if you have a touchscreen interface using the gt9xx
on Rockchip platform, and your board-specific initialization
code includes that in its table of IIC devices.
If unsure, say N.

4、

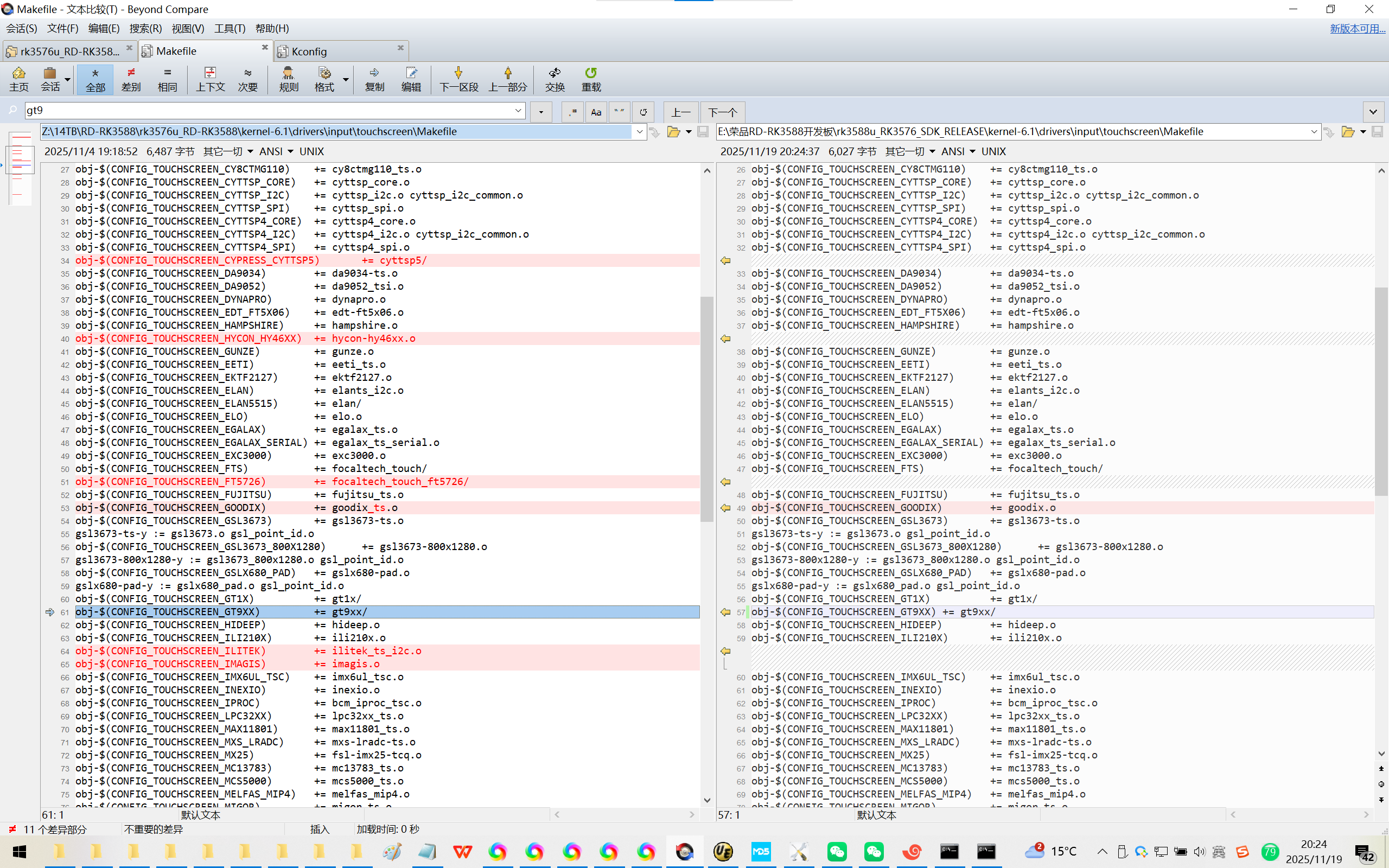

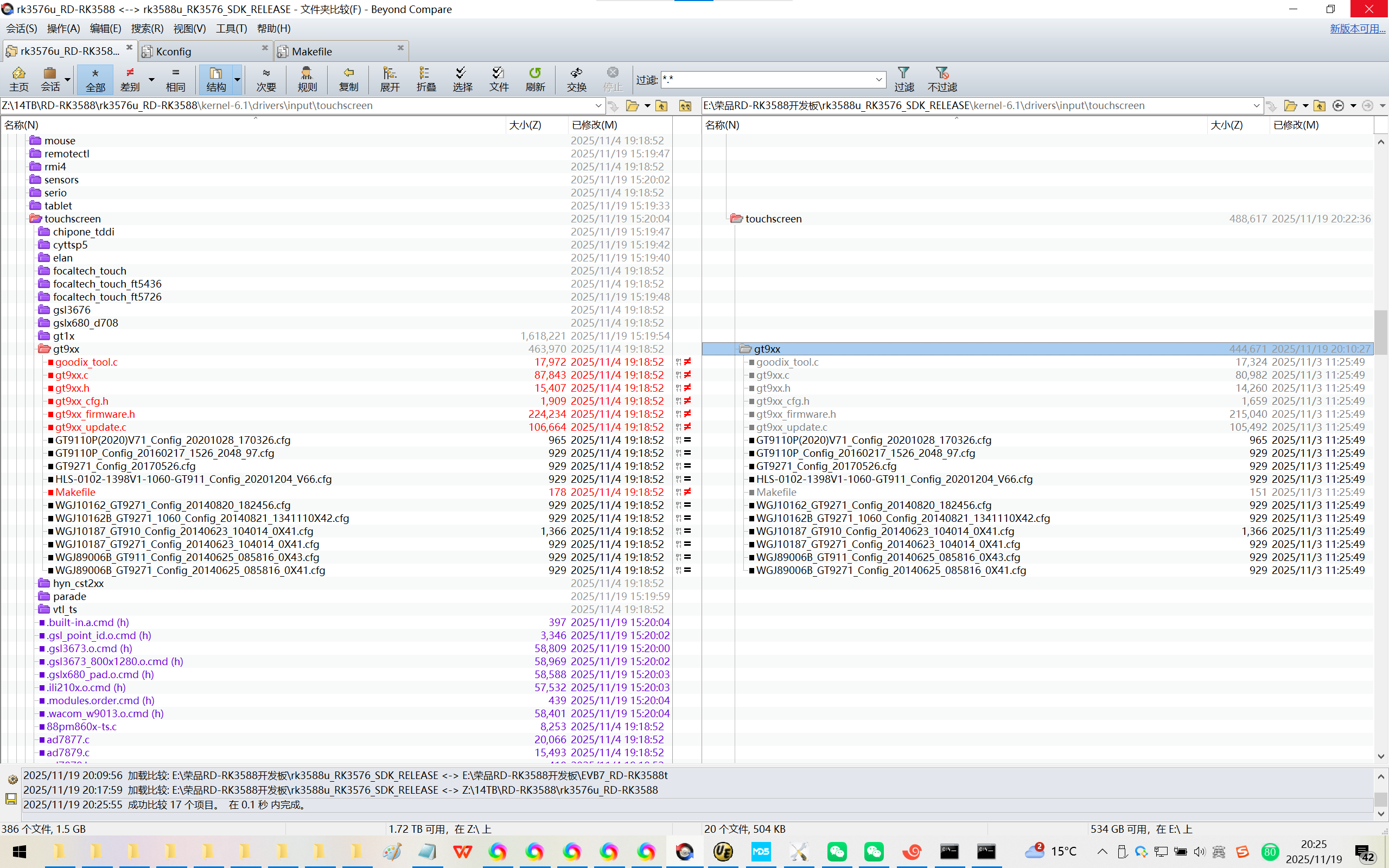

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\Makefile

obj-(CONFIG_TOUCHSCREEN_GT1X) += gt1x/ obj-(CONFIG_TOUCHSCREEN_GT9XX) += gt9xx/

obj-$(CONFIG_TOUCHSCREEN_HIDEEP) += hideep.o

5、

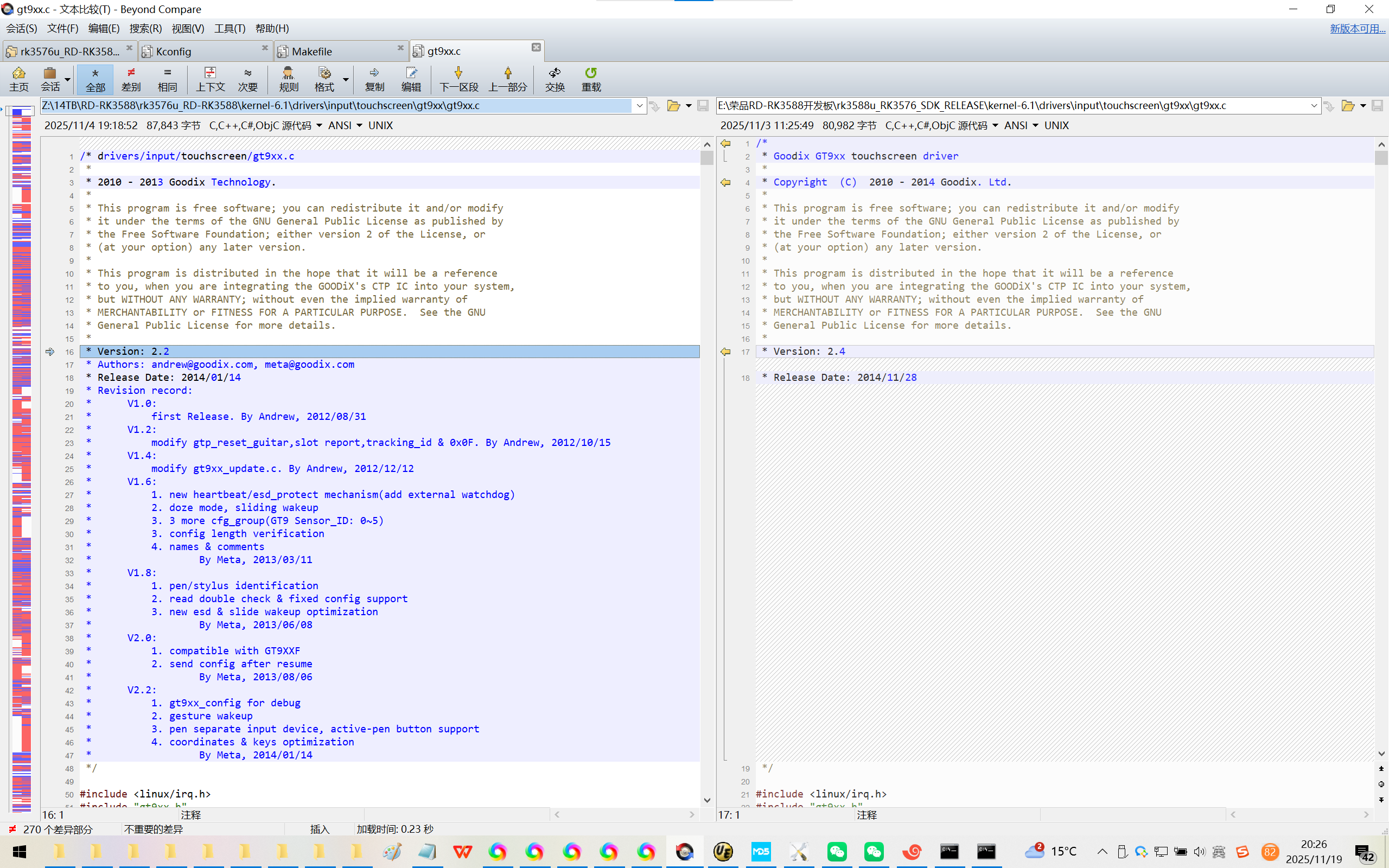

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\gt9xx\gt9xx.c

6、

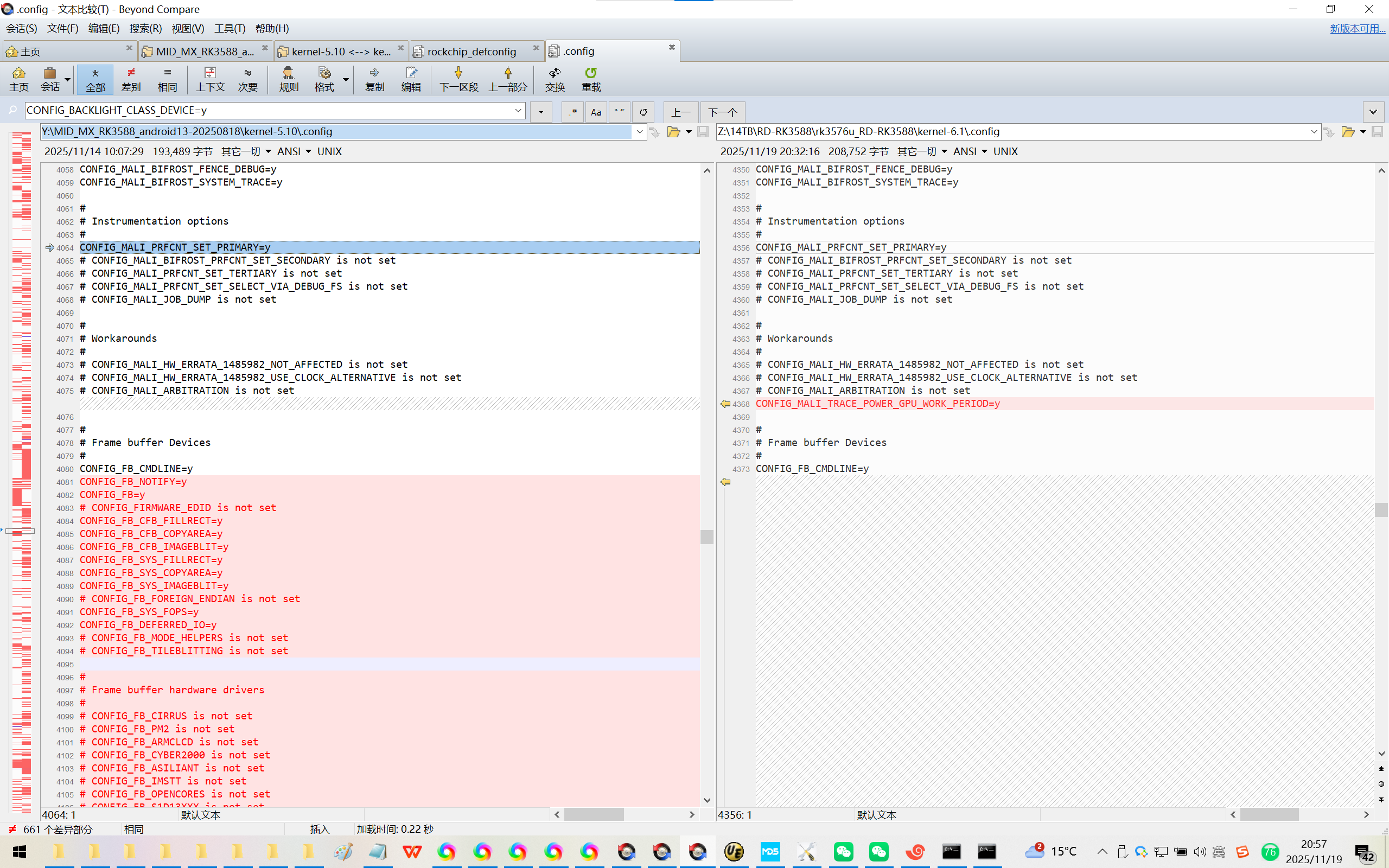

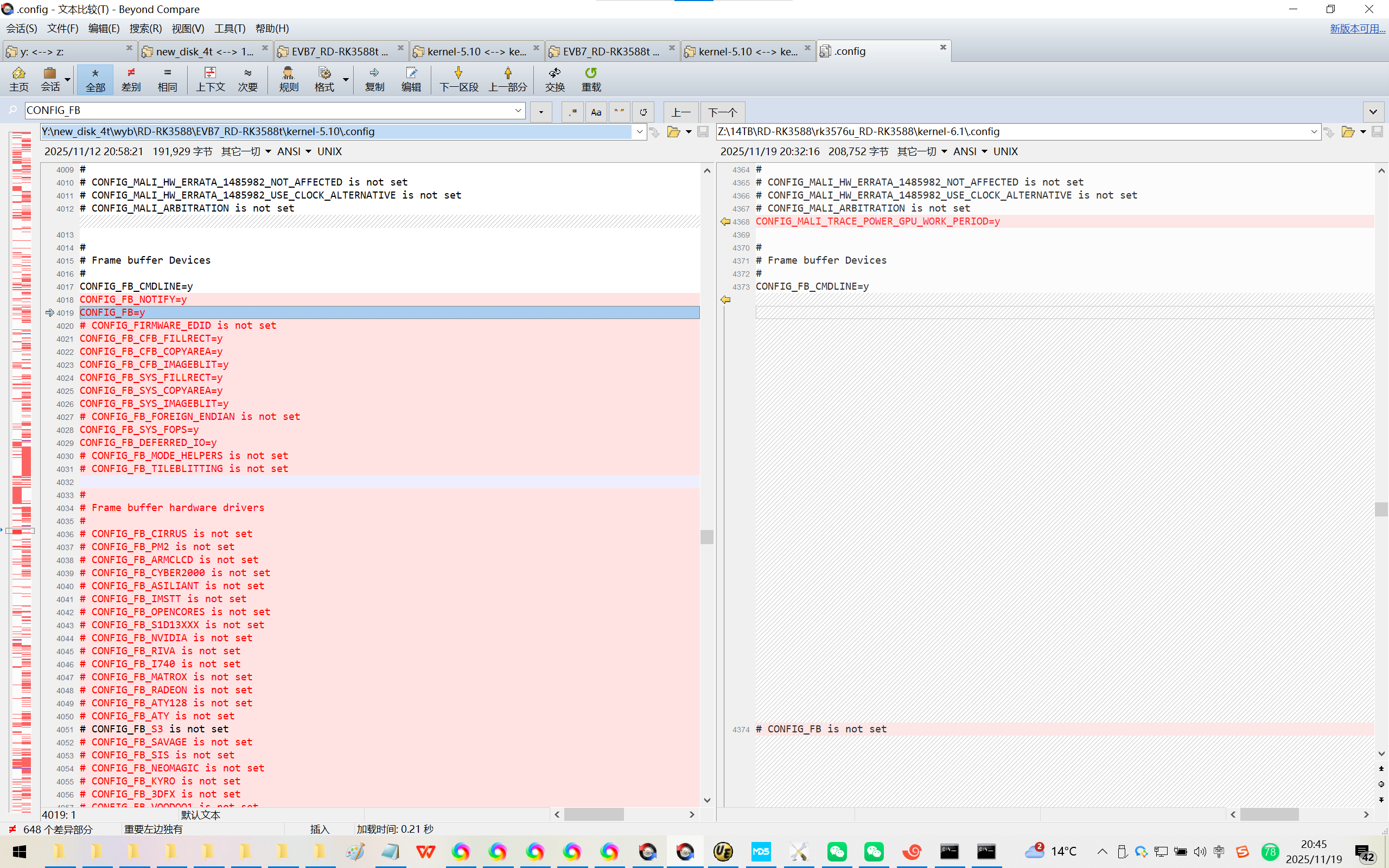

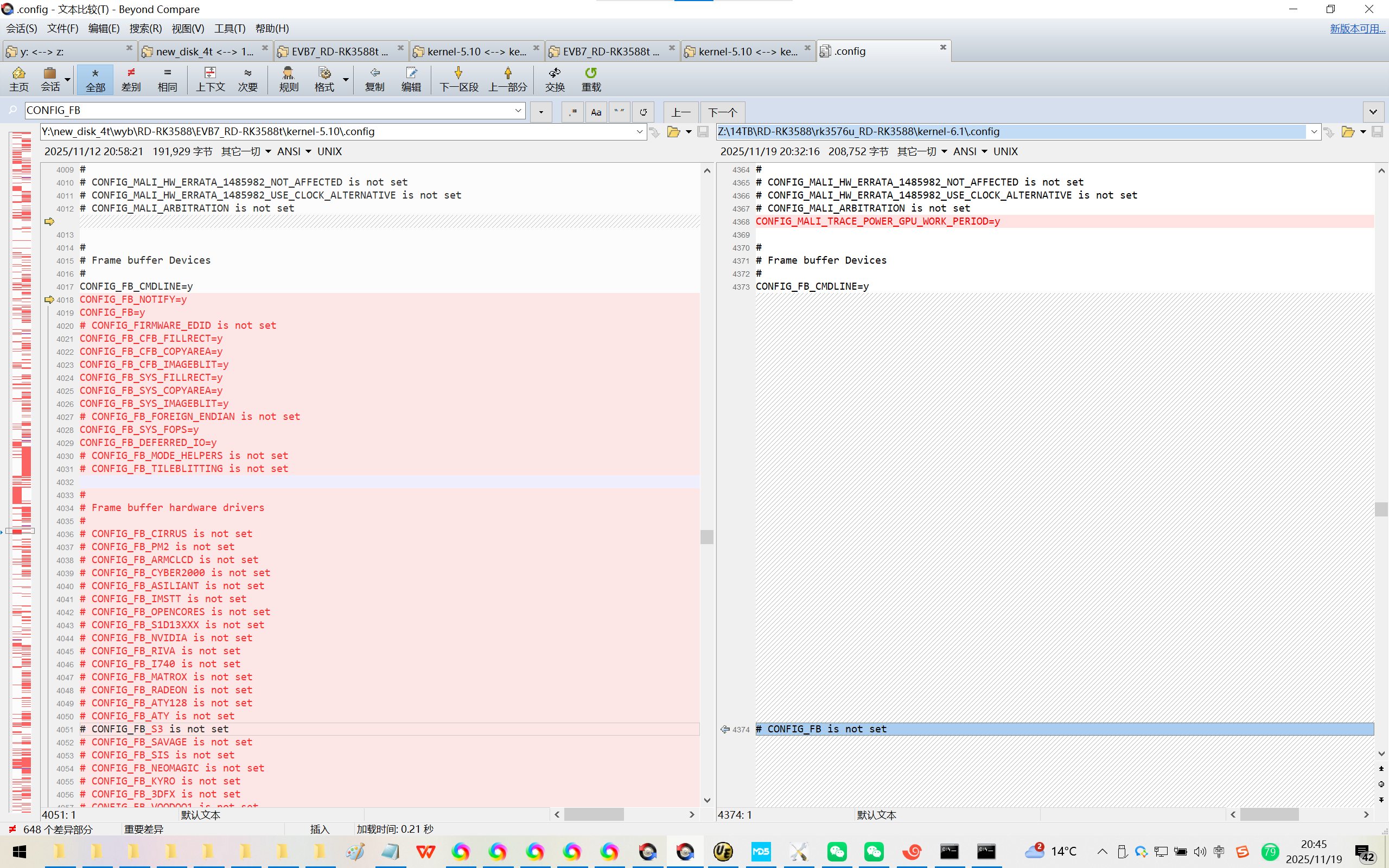

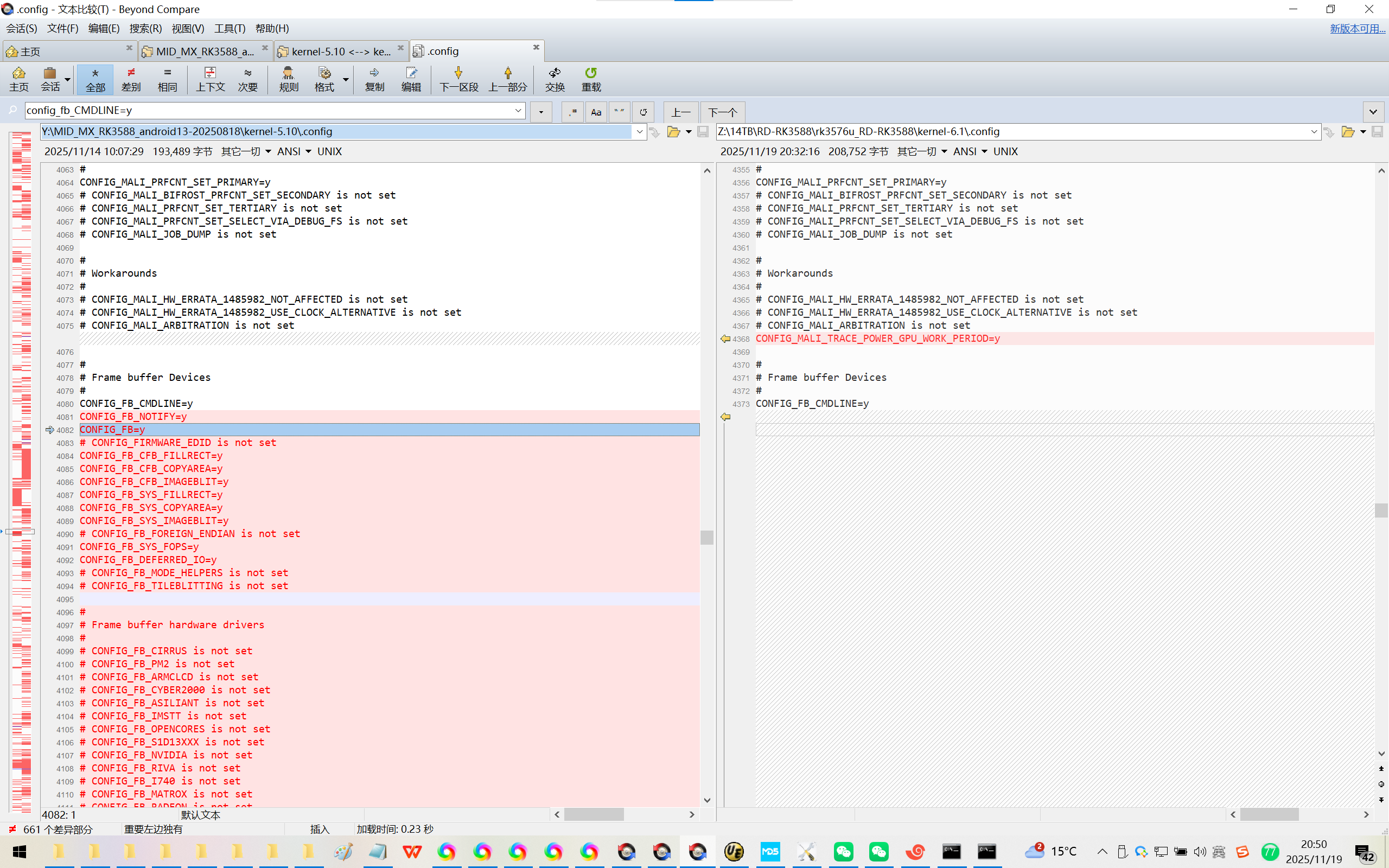

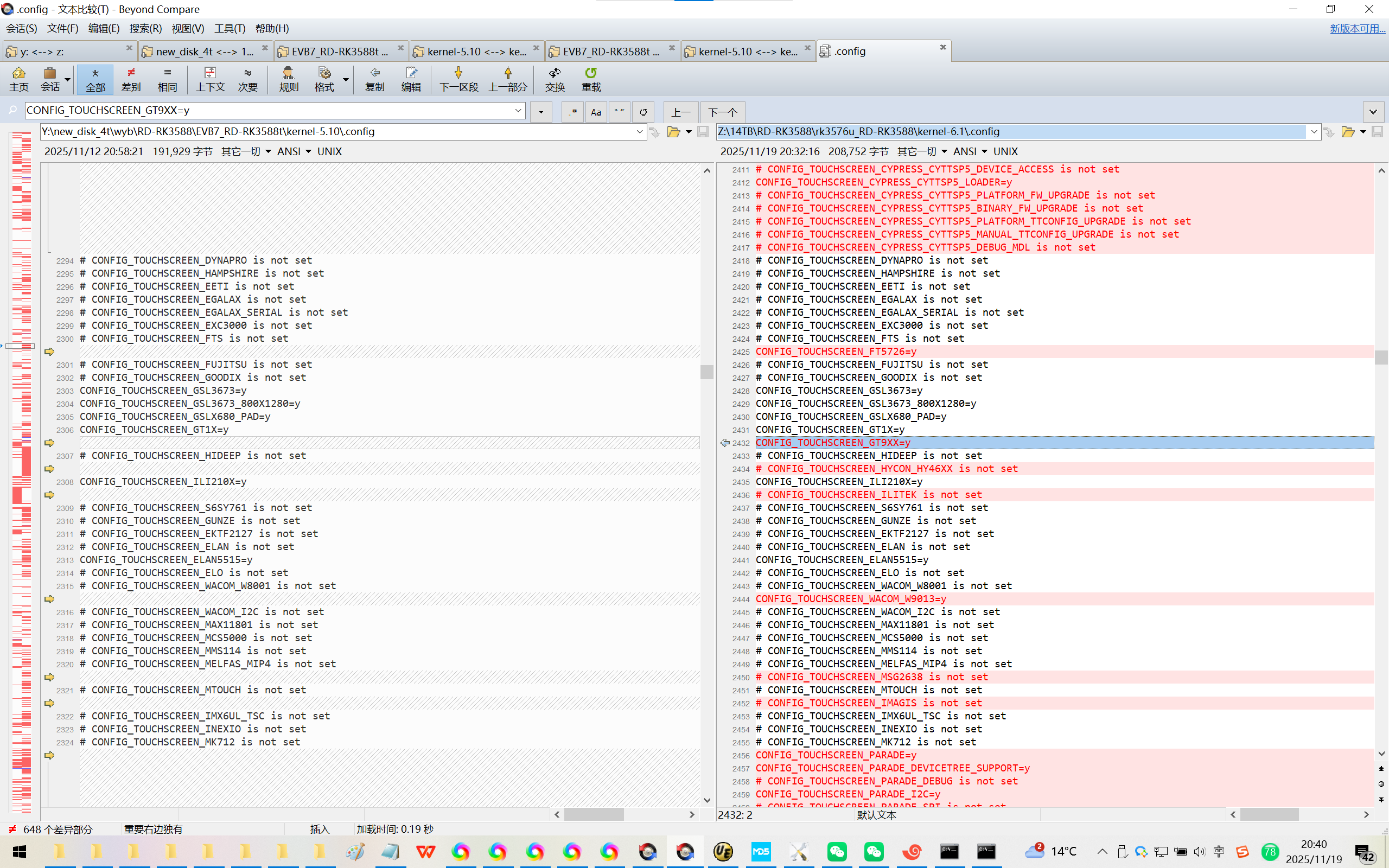

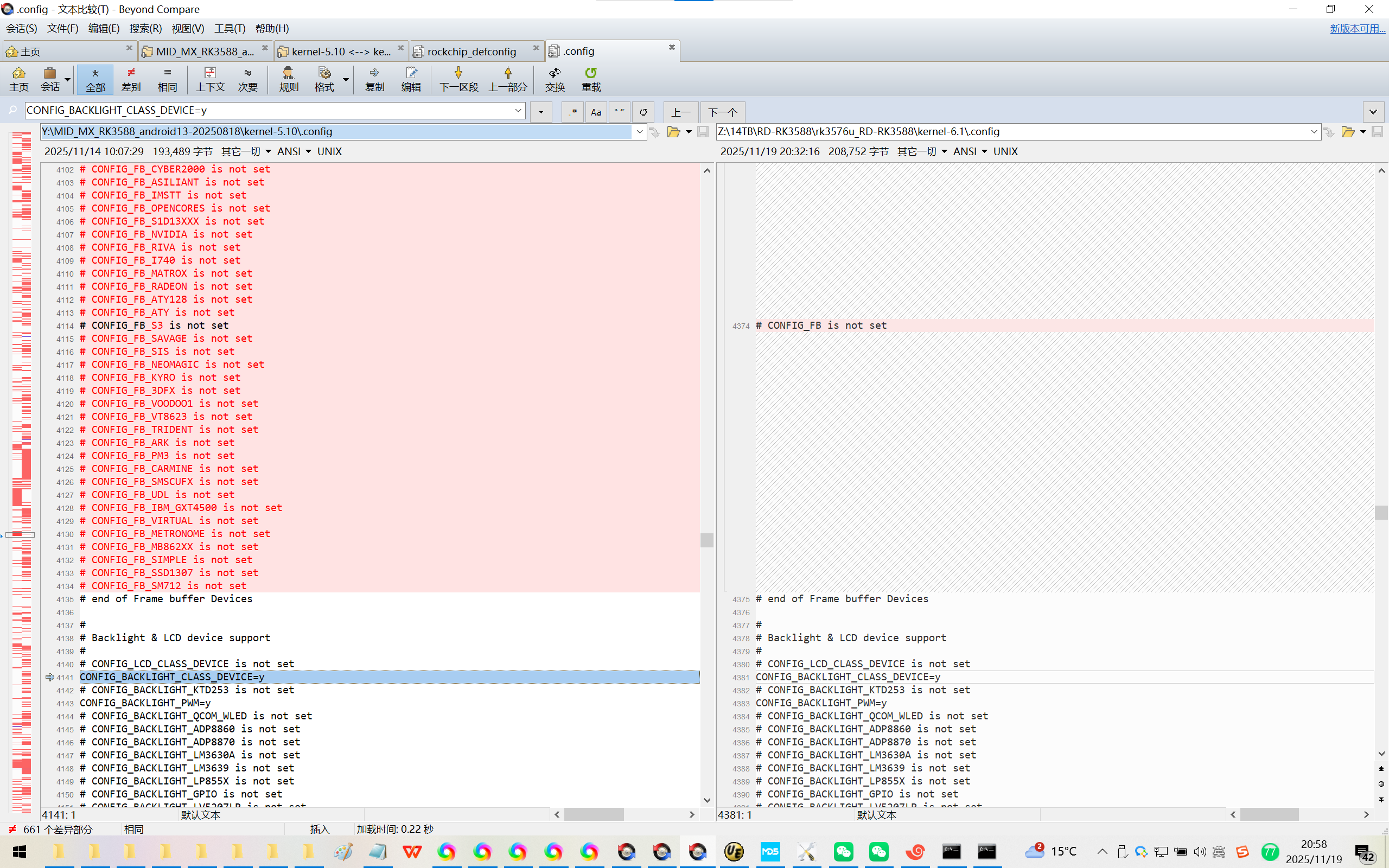

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\.config

CONFIG_TOUCHSCREEN_FT5726=y

CONFIG_TOUCHSCREEN_FUJITSU is not set

CONFIG_TOUCHSCREEN_GOODIX is not set

CONFIG_TOUCHSCREEN_GSL3673=y

CONFIG_TOUCHSCREEN_GSL3673_800X1280=y

CONFIG_TOUCHSCREEN_GSLX680_PAD=y

CONFIG_TOUCHSCREEN_GT1X=y
CONFIG_TOUCHSCREEN_GT9XX=y

CONFIG_TOUCHSCREEN_HIDEEP is not set

CONFIG_TOUCHSCREEN_HYCON_HY46XX is not set

CC drivers/input/sensors/gyro/l3g4200d.o

CC drivers/input/sensors/gyro/l3g20d.o

CC drivers/input/sensors/gyro/ewtsa.o

CC drivers/usb/gadget/udc/core.o

AR drivers/usb/serial/built-in.a

CC drivers/net/usb/cdc_subset.o

AR drivers/usb/host/built-in.a

CC drivers/net/usb/zaurus.o

CC net/mac80211/eht.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_custom_gpio.o

CC drivers/usb/typec/altmodes/displayport.o

CC drivers/gpu/drm/drm_crtc_helper.o

CC drivers/gpu/arm/bifrost/backend/gpu/mali_kbase_pm_policy.o

CC drivers/usb/typec/tcpm/tcpm.o

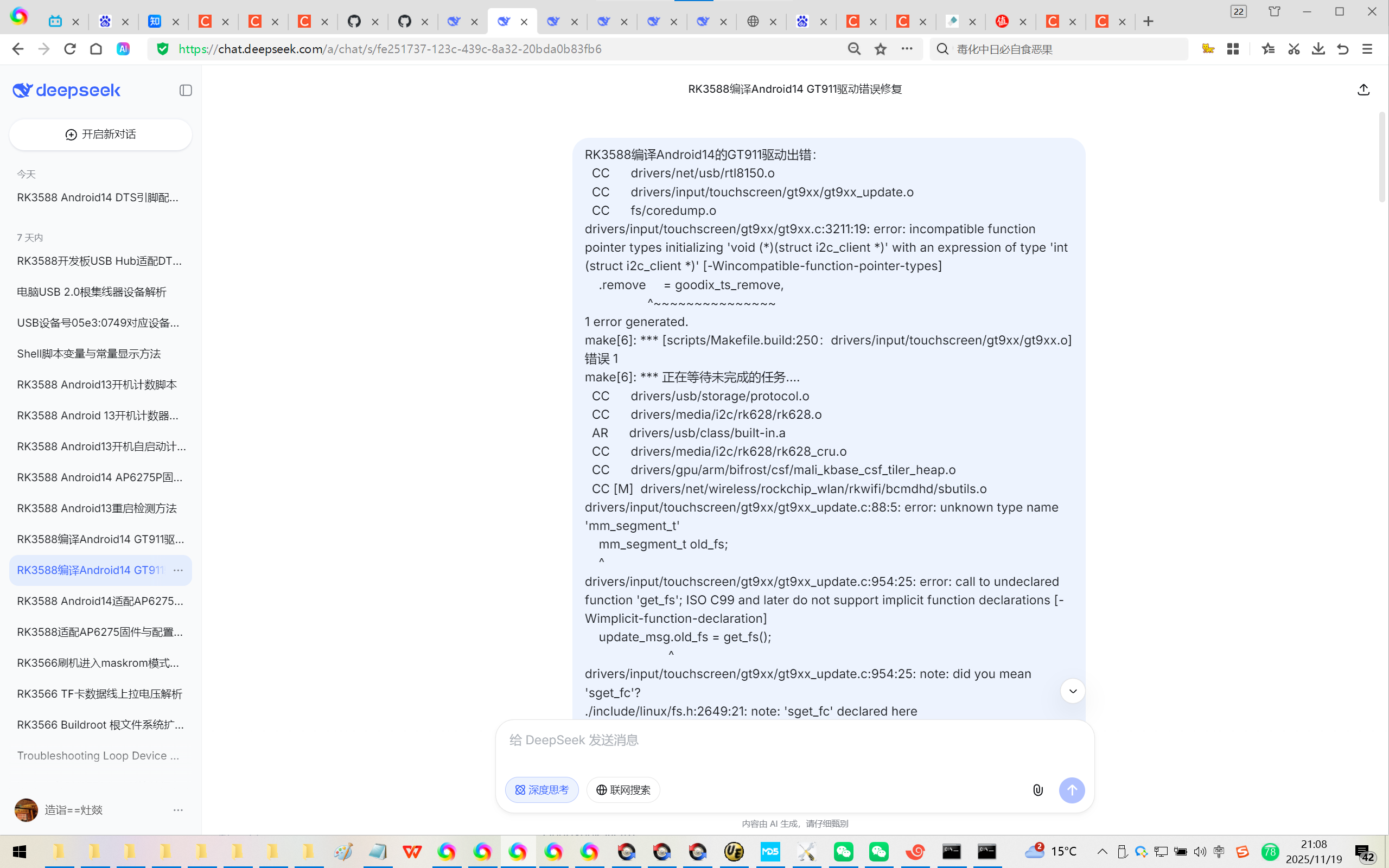

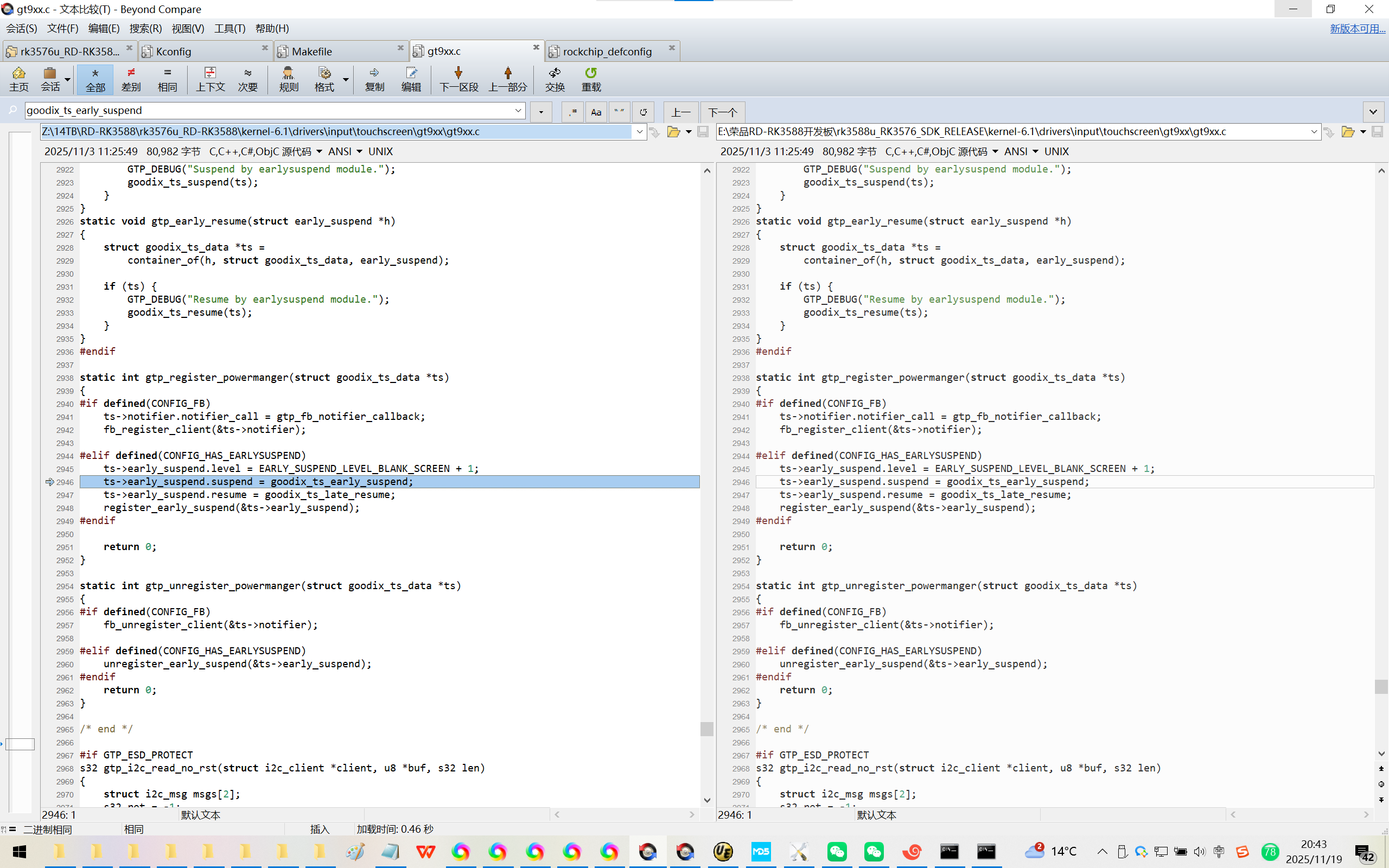

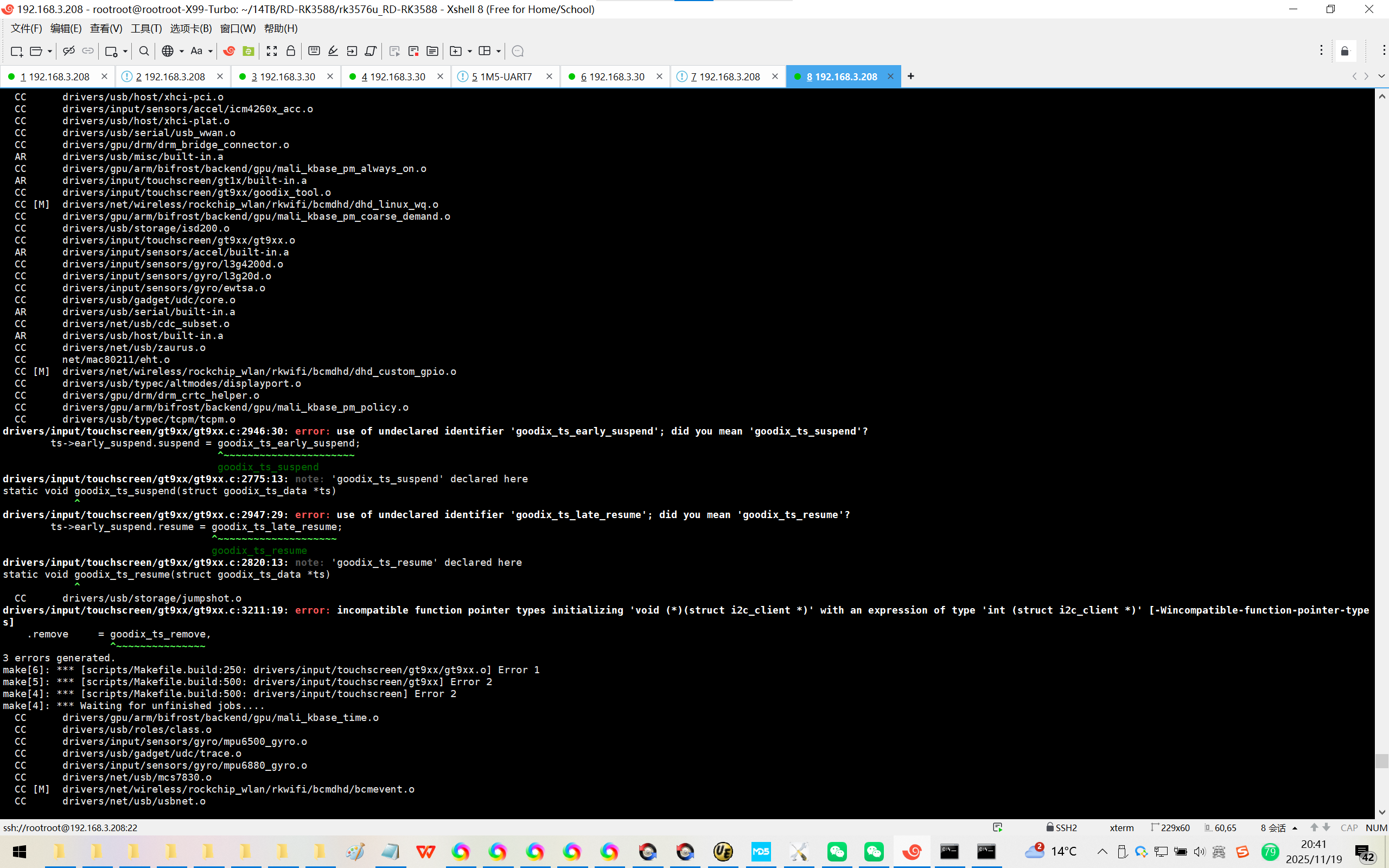

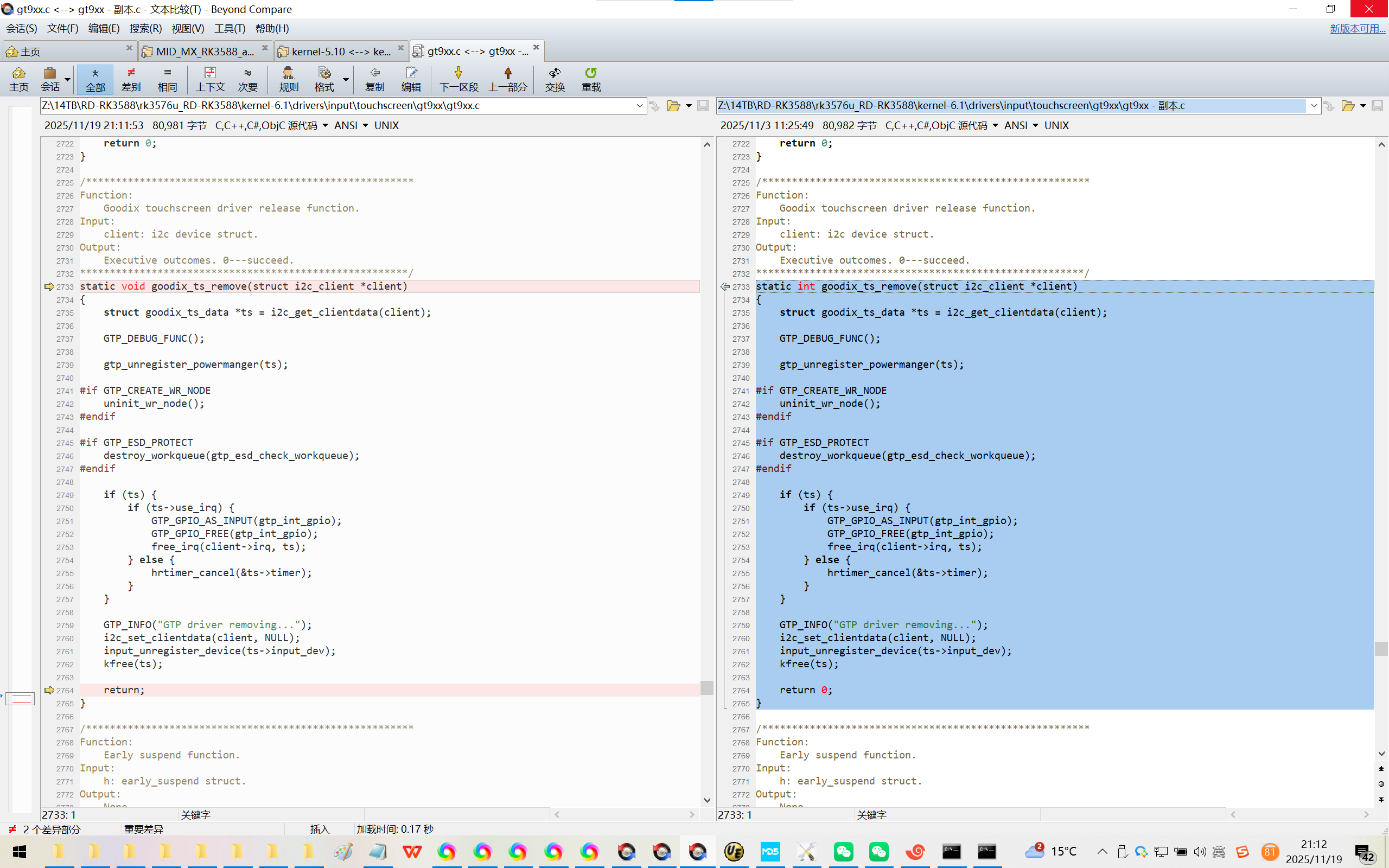

drivers/input/touchscreen/gt9xx/gt9xx.c:2946:30: error: use of undeclared identifier 'goodix_ts_early_suspend'; did you mean 'goodix_ts_suspend'?
ts->early_suspend.suspend = goodix_ts_early_suspend;
^~~~~~~~~~~~~~~~~~~~~~~
goodix_ts_suspend
drivers/input/touchscreen/gt9xx/gt9xx.c:2775:13: note: 'goodix_ts_suspend' declared here
static void goodix_ts_suspend(struct goodix_ts_data *ts)
^
drivers/input/touchscreen/gt9xx/gt9xx.c:2947:29: error: use of undeclared identifier 'goodix_ts_late_resume'; did you mean 'goodix_ts_resume'?
ts->early_suspend.resume = goodix_ts_late_resume;
^~~~~~~~~~~~~~~~~~~~~
goodix_ts_resume
drivers/input/touchscreen/gt9xx/gt9xx.c:2820:13: note: 'goodix_ts_resume' declared here
static void goodix_ts_resume(struct goodix_ts_data *ts)
^
CC drivers/usb/storage/jumpshot.o

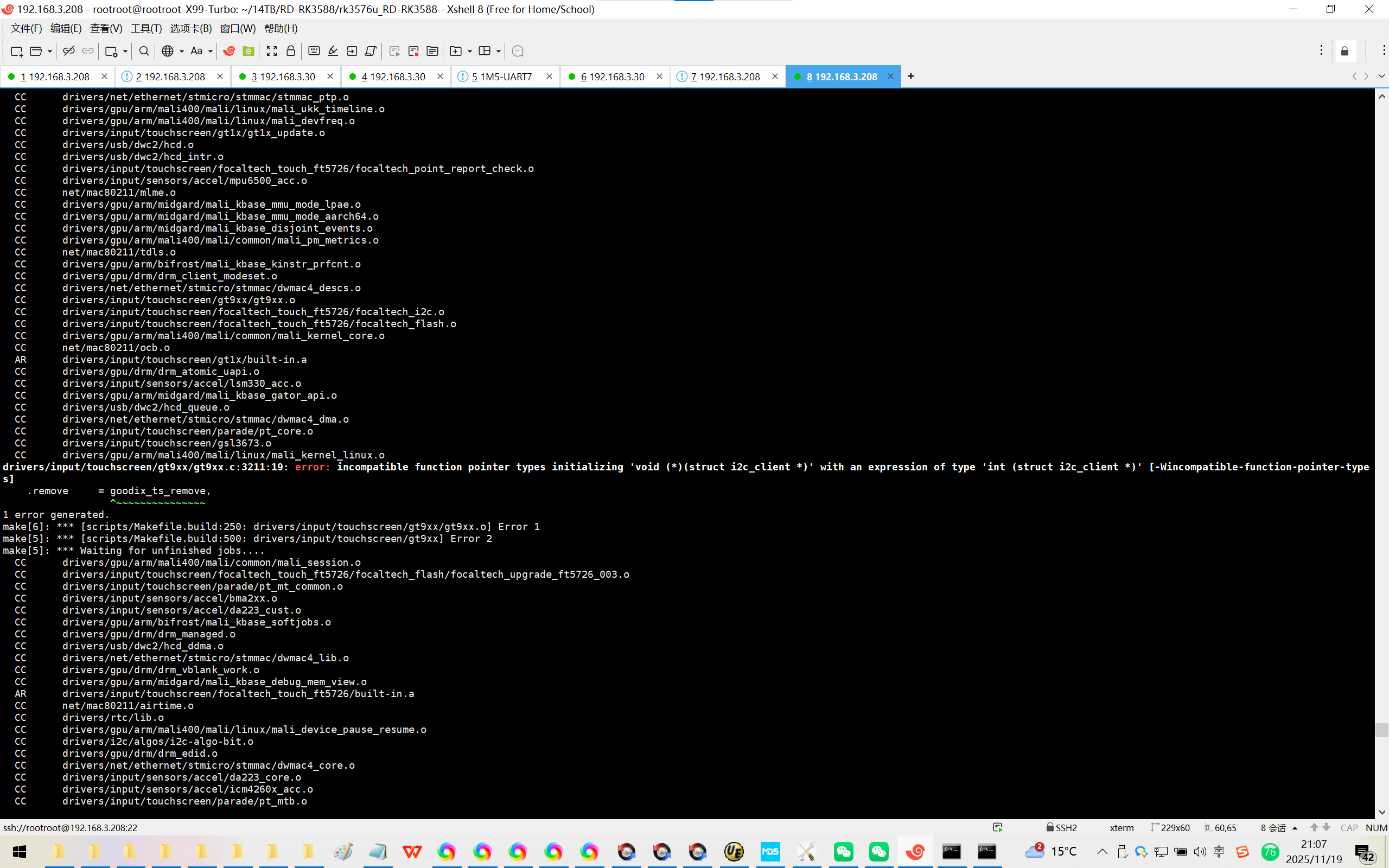

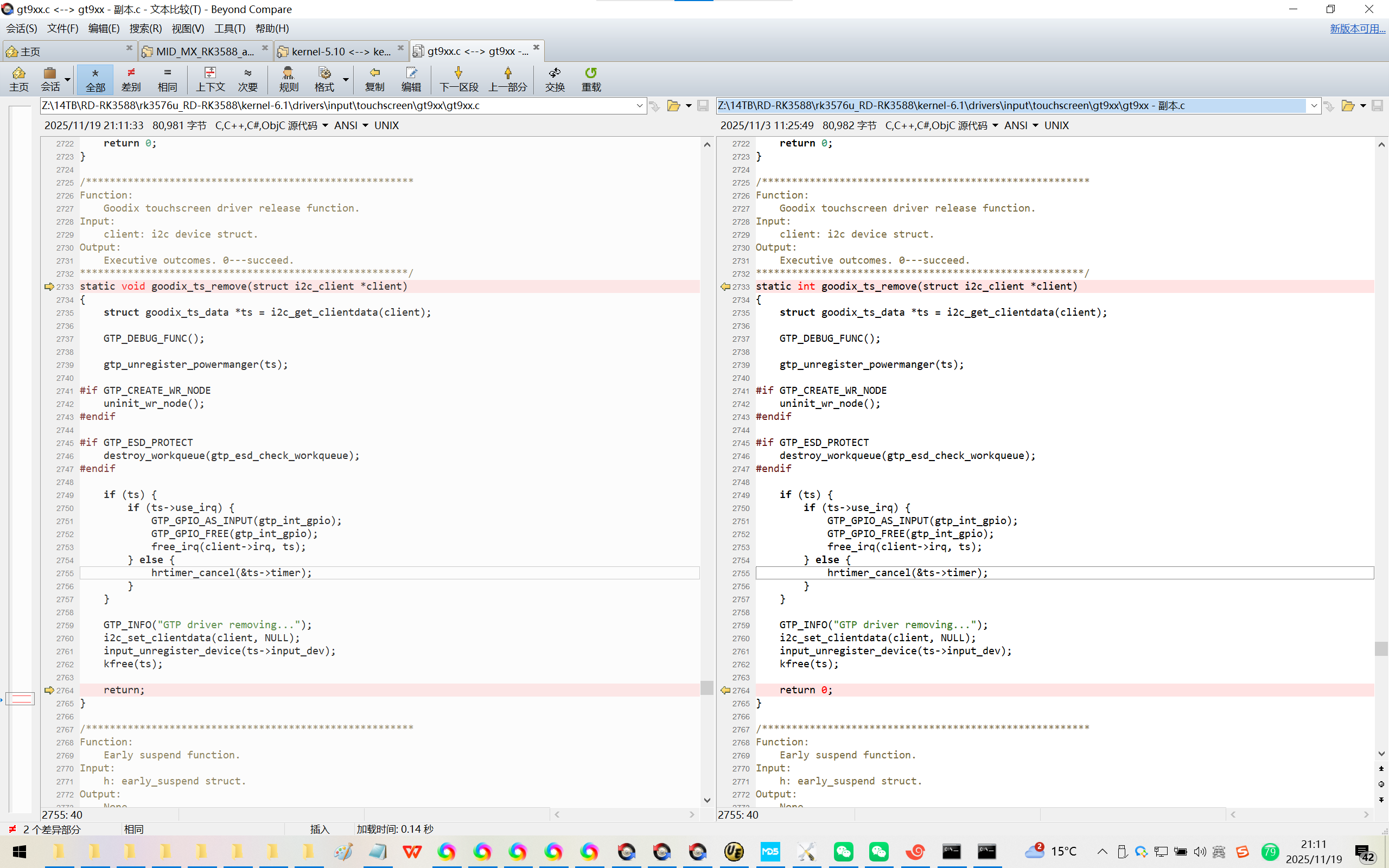

drivers/input/touchscreen/gt9xx/gt9xx.c:3211:19: error: incompatible function pointer types initializing 'void (*)(struct i2c_client *)' with an expression of type 'int (struct i2c_client *)' [-Wincompatible-function-pointer-types]
.remove = goodix_ts_remove,
^~~~~~~~~~~~~~~~
3 errors generated.

make[6]: *** [scripts/Makefile.build:250: drivers/input/touchscreen/gt9xx/gt9xx.o] Error 1

make[5]: *** [scripts/Makefile.build:500: drivers/input/touchscreen/gt9xx] Error 2

make[4]: *** [scripts/Makefile.build:500: drivers/input/touchscreen] Error 2

make[4]: *** Waiting for unfinished jobs....

CC drivers/gpu/arm/bifrost/backend/gpu/mali_kbase_time.o

CC drivers/usb/roles/class.o

CC drivers/input/sensors/gyro/mpu6500_gyro.o

CC drivers/usb/gadget/udc/trace.o

CC drivers/input/sensors/gyro/mpu6880_gyro.o

CC drivers/net/usb/mcs7830.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/bcmevent.o

CC drivers/net/usb/usbnet.o

CC drivers/input/sensors/gyro/lsm330_gyro.o

AR drivers/usb/typec/altmodes/built-in.a

CC drivers/usb/storage/karma.o

CC drivers/usb/storage/onetouch.o

CC net/mac80211/pm.o

AR drivers/usb/roles/built-in.a

CC drivers/input/sensors/gyro/icm4260x_gyro.o

CC drivers/gpu/arm/bifrost/backend/gpu/mali_kbase_l2_mmu_config.o

AR drivers/usb/gadget/udc/built-in.a

CC drivers/usb/gadget/function/f_acm.o

CC drivers/gpu/drm/drm_encoder_slave.o

CC net/mac80211/rc80211_minstrel_ht.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/hndpmu.o

CC drivers/usb/gadget/function/u_serial.o

CC drivers/gpu/arm/bifrost/backend/gpu/mali_kbase_clk_rate_trace_mgr.o

CC drivers/usb/typec/tcpm/fusb302.o

CC drivers/usb/typec/tcpm/tcpci.o

CC drivers/usb/typec/tcpm/tcpci_husb311.o

CC drivers/usb/storage/sddr09.o

CC drivers/net/usb/int51x1.o

AR drivers/input/sensors/gyro/built-in.a

CC drivers/input/sensors/lsensor/cm3217.o

CC drivers/input/sensors/lsensor/cm3218.o

CC drivers/gpu/drm/drm_flip_work.o

CC drivers/usb/gadget/function/u_ether.o

CC drivers/gpu/arm/bifrost/backend/gpu/mali_kbase_devfreq.o

CC drivers/input/sensors/lsensor/ls_ucs14620.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/linux_osl.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wldev_common.o

CC drivers/input/sensors/lsensor/ls_stk3410.o

CC drivers/input/sensors/psensor/ps_stk3410.o

CC drivers/net/usb/kalmia.o

CC drivers/net/usb/ipheth.o

CC drivers/usb/storage/sddr55.o

CC drivers/gpu/drm/drm_probe_helper.o

CC drivers/usb/storage/shuttle_usbat.o

AR drivers/usb/typec/tcpm/built-in.a

AR drivers/usb/typec/mux/built-in.a

CC drivers/usb/typec/class.o

CC drivers/gpu/arm/bifrost/mmu/mali_kbase_mmu.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_android.o

CC drivers/input/sensors/psensor/ps_ucs14620.o

CC drivers/usb/gadget/function/f_ncm.o

CC drivers/net/usb/sierra_net.o

CC drivers/usb/gadget/function/f_rndis.o

CC drivers/usb/typec/mux.o

CC drivers/usb/gadget/function/rndis.o

AR drivers/input/sensors/lsensor/built-in.a

CC drivers/usb/gadget/function/f_mass_storage.o

CC drivers/input/sensors/hall/mh248.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_debug_linux.o

CC drivers/gpu/arm/bifrost/mmu/mali_kbase_mmu_hw_direct.o

AR net/mac80211/built-in.a

AR net/built-in.a

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_debug.o

CC drivers/usb/gadget/function/storage_common.o

AR drivers/usb/storage/built-in.a

CC drivers/usb/gadget/function/f_fs.o

AR drivers/input/sensors/psensor/built-in.a

CC drivers/usb/gadget/function/f_uvc.o

CC drivers/gpu/drm/drm_plane_helper.o

AR drivers/input/sensors/hall/built-in.a

CC drivers/input/sensors/sensor-i2c.o

CC drivers/usb/typec/bus.o

CC drivers/net/usb/cx82310_eth.o

CC drivers/usb/typec/pd.o

CC drivers/usb/typec/retimer.o

CC drivers/input/sensors/sensor-dev.o

CC drivers/gpu/drm/drm_atomic_helper.o

CC drivers/gpu/drm/drm_kms_helper_common.o

AR drivers/usb/gadget/legacy/built-in.a

CC drivers/usb/gadget/function/uvc_queue.o

CC drivers/usb/gadget/function/uvc_v4l2.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_mschdbg.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_dbg_ring.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/hnd_pktq.o

CC drivers/usb/gadget/usbstring.o

CC drivers/usb/gadget/config.o

CC drivers/usb/gadget/epautoconf.o

CC drivers/gpu/arm/bifrost/mmu/mali_kbase_mmu_mode_aarch64.o

CC drivers/net/usb/cdc_ncm.o

AR drivers/usb/typec/built-in.a

CC drivers/net/usb/qmi_wwan.o

CC drivers/net/usb/cdc_mbim.o

CC drivers/net/usb/r8153_ecm.o

CC drivers/gpu/drm/drm_simple_kms_helper.o

CC drivers/usb/gadget/composite.o

CC drivers/usb/gadget/functions.o

CC drivers/gpu/drm/drm_modeset_helper.o

CC drivers/gpu/drm/drm_gem_atomic_helper.o

CC drivers/usb/gadget/function/uvc_video.o

CC drivers/gpu/drm/drm_gem_framebuffer_helper.o

CC drivers/rtc/lib.o

CC drivers/gpu/arm/bifrost/mmu/backend/mali_kbase_mmu_csf.o

CC drivers/usb/gadget/configfs.o

CC drivers/rtc/class.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/hnd_pktpool.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/linux_pkt.o

AR drivers/input/sensors/built-in.a

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/frag.o

make[3]: *** [scripts/Makefile.build:500: drivers/input] Error 2

make[3]: *** Waiting for unfinished jobs....

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_linux_exportfs.o

CC drivers/usb/gadget/function/uvc_configfs.o

CC drivers/rtc/interface.o

AR drivers/net/usb/built-in.a

CC drivers/gpu/drm/drm_atomic_state_helper.o

CC drivers/gpu/drm/drm_damage_helper.o

CC drivers/usb/gadget/function/f_midi.o

CC drivers/usb/gadget/function/f_accessory.o

CC drivers/usb/gadget/function/f_audio_source.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_linux_pktdump.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/linuxerrmap.o

CC drivers/gpu/arm/bifrost/tl/mali_kbase_timeline.o

CC drivers/rtc/nvmem.o

CC drivers/gpu/arm/bifrost/tl/mali_kbase_timeline_io.o

CC drivers/gpu/arm/bifrost/tl/mali_kbase_tlstream.o

CC drivers/gpu/drm/drm_format_helper.o

CC drivers/rtc/dev.o

CC drivers/rtc/proc.o

CC drivers/usb/gadget/u_f.o

CC drivers/gpu/drm/drm_self_refresh_helper.o

CC drivers/rtc/sysfs.o

CC drivers/rtc/rtc-hym8563.o

CC drivers/gpu/drm/drm_rect.o

CC drivers/rtc/rtc-rk808.o

CC drivers/gpu/drm/bridge/panel.o

CC drivers/gpu/drm/drm_mipi_dsi.o

CC drivers/gpu/arm/bifrost/tl/mali_kbase_tracepoints.o

AR drivers/usb/gadget/function/built-in.a

CC drivers/gpu/arm/bifrost/tl/backend/mali_kbase_timeline_csf.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_linux_tx.o

CC drivers/gpu/arm/bifrost/hwcnt/mali_kbase_hwcnt.o

AR drivers/usb/gadget/built-in.a

AR drivers/usb/built-in.a

CC drivers/gpu/arm/bifrost/hwcnt/mali_kbase_hwcnt_gpu.o

CC drivers/gpu/arm/bifrost/hwcnt/mali_kbase_hwcnt_types.o

CC drivers/gpu/arm/bifrost/hwcnt/mali_kbase_hwcnt_virtualizer.o

CC drivers/gpu/arm/bifrost/hwcnt/mali_kbase_hwcnt_watchdog_if_timer.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_linux_rx.o

CC drivers/gpu/arm/bifrost/hwcnt/backend/mali_kbase_hwcnt_backend_csf.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/fwpkg_utils.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_config.o

AR drivers/rtc/built-in.a

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_ccode.o

CC drivers/gpu/arm/bifrost/hwcnt/backend/mali_kbase_hwcnt_backend_csf_if_fw.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_event.o

AR drivers/gpu/drm/built-in.a

CC drivers/gpu/arm/bifrost/gpu/mali_kbase_gpu.o

CC drivers/gpu/arm/bifrost/gpu/backend/mali_kbase_gpu_fault_csf.o

CC drivers/gpu/arm/bifrost/hw_access/mali_kbase_hw_access.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_android_ext.o

CC drivers/gpu/arm/bifrost/hw_access/regmap/mali_kbase_regmap_csf.o

CC drivers/gpu/arm/bifrost/hw_access/backend/mali_kbase_hw_access_real_hw.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_iapsta.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_escan.o

CC drivers/gpu/arm/bifrost/thirdparty/mali_kbase_mmap.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_timer.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_iw.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfg80211.o

CC drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfgscan.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfgp2p.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_linux_mon.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfg_btcoex.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_util.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_firmware_cfg.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_trace_buffer.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfgvendor.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_cfg80211.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_scheduler.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_cfgvif.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_kcpu.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_tiler_heap.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/wl_roam.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_pcie.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_pcie_linux.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_timeout.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_tl_reader.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_heap_context_alloc.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/pcie_core.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_reset_gpu.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_csg.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_csg_debugfs.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_flowring.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_msgbuf.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_kcpu_debugfs.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_sync.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_sync_debugfs.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_linux_lb.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_kcpu_fence_debugfs.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_protected_memory.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_tiler_heap_debugfs.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_cpu_queue.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_rtt.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_log_dump.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_pktlog.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_gpio.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_static_buf.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_cpu_queue_debugfs.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_event.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_firmware_log.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_firmware_core_dump.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_tiler_heap_reclaim.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_mcu_shared_reg.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_csf_firmware.o

CC drivers/gpu/arm/bifrost/csf/mali_kbase_debug_csf_fault.o

CC drivers/gpu/arm/bifrost/csf/ipa_control/mali_kbase_csf_ipa_control.o

CC drivers/gpu/arm/bifrost/ipa/mali_kbase_ipa_simple.o

CC drivers/gpu/arm/bifrost/ipa/mali_kbase_ipa.o

CC drivers/gpu/arm/bifrost/ipa/mali_kbase_ipa_debugfs.o

CC drivers/gpu/arm/bifrost/ipa/backend/mali_kbase_ipa_counter_csf.o

CC drivers/gpu/arm/bifrost/ipa/backend/mali_kbase_ipa_counter_common_csf.o

LD [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/bcmdhd.o

AR drivers/net/wireless/rockchip_wlan/built-in.a

AR drivers/net/wireless/built-in.a

AR drivers/net/built-in.a

AR drivers/gpu/arm/bifrost/built-in.a

AR drivers/gpu/arm/built-in.a

AR drivers/gpu/built-in.a

make[2]: *** [scripts/Makefile.build:500: drivers] Error 2

make[1]: *** [Makefile:2058: .] Error 2

make: *** [arch/arm64/Makefile:240: rk3588-evb7-v11.img] Error 2

failed to build some targets (05:06 (mm:ss))

Build kernel failed!

rootroot@rootroot-X99-Turbo:~/14TB/RD-RK3588/rk3576u_RD-RK3588$

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\gt9xx\gt9xx.c

static int gtp_register_powermanger(struct goodix_ts_data *ts)

{
#if defined(CONFIG_FB)

ts->notifier.notifier_call = gtp_fb_notifier_callback;

fb_register_client(&ts->notifier);

#elif defined(CONFIG_HAS_EARLYSUSPEND)

ts->early_suspend.level = EARLY_SUSPEND_LEVEL_BLANK_SCREEN + 1;

ts->early_suspend.suspend = goodix_ts_early_suspend;

ts->early_suspend.resume = goodix_ts_late_resume;

register_early_suspend(&ts->early_suspend);

#endif

return 0;

}

7、

由于在linux-5.10内核【Android13】下没有报错，根据程序的含义/代码走向，感觉需要打开：CONFIG_FB！！！！

Y:\MID_MX_RK3588_android13-20250818\kernel-5.10\.config

Frame buffer Devices

CONFIG_FB_CMDLINE=y

CONFIG_FB_NOTIFY=y
CONFIG_FB=y

CONFIG_FIRMWARE_EDID is not set

CONFIG_FB_CFB_FILLRECT=y

CONFIG_FB_CFB_COPYAREA=y

CONFIG_FB_CFB_IMAGEBLIT=y

CONFIG_FB_SYS_FILLRECT=y

CONFIG_FB_SYS_COPYAREA=y

CONFIG_FB_SYS_IMAGEBLIT=y

CONFIG_FB_FOREIGN_ENDIAN is not set

CONFIG_FB_SYS_FOPS=y

CONFIG_FB_DEFERRED_IO=y

CONFIG_FB_MODE_HELPERS is not set

CONFIG_FB_TILEBLITTING is not set

Y:\MID_MX_RK3588_android13-20250818\kernel-5.10\.config

Debug options

CONFIG_MALI_BIFROST_DEBUG=y

CONFIG_MALI_BIFROST_FENCE_DEBUG=y

CONFIG_MALI_BIFROST_SYSTEM_TRACE=y

Instrumentation options

CONFIG_MALI_PRFCNT_SET_PRIMARY=y

CONFIG_MALI_BIFROST_PRFCNT_SET_SECONDARY is not set

CONFIG_MALI_PRFCNT_SET_TERTIARY is not set

CONFIG_MALI_PRFCNT_SET_SELECT_VIA_DEBUG_FS is not set

CONFIG_MALI_JOB_DUMP is not set

Workarounds

CONFIG_MALI_HW_ERRATA_1485982_NOT_AFFECTED is not set

CONFIG_MALI_HW_ERRATA_1485982_USE_CLOCK_ALTERNATIVE is not set

CONFIG_MALI_ARBITRATION is not set

Frame buffer Devices

CONFIG_FB_CMDLINE=y

CONFIG_FB_NOTIFY=y
CONFIG_FB=y

CONFIG_FIRMWARE_EDID is not set

CONFIG_FB_CFB_FILLRECT=y
CONFIG_FB_CFB_COPYAREA=y
CONFIG_FB_CFB_IMAGEBLIT=y
CONFIG_FB_SYS_FILLRECT=y
CONFIG_FB_SYS_COPYAREA=y
CONFIG_FB_SYS_IMAGEBLIT=y

CONFIG_FB_FOREIGN_ENDIAN is not set

CONFIG_FB_SYS_FOPS=y
CONFIG_FB_DEFERRED_IO=y

CONFIG_FB_MODE_HELPERS is not set

CONFIG_FB_TILEBLITTING is not set

Frame buffer hardware drivers

CONFIG_FB_CIRRUS is not set

CONFIG_FB_PM2 is not set

CONFIG_FB_ARMCLCD is not set

CONFIG_FB_CYBER2000 is not set

CONFIG_FB_ASILIANT is not set

CONFIG_FB_IMSTT is not set

CONFIG_FB_OPENCORES is not set

CONFIG_FB_S1D13XXX is not set

CONFIG_FB_NVIDIA is not set

CONFIG_FB_RIVA is not set

CONFIG_FB_I740 is not set

CONFIG_FB_MATROX is not set

CONFIG_FB_RADEON is not set

CONFIG_FB_ATY128 is not set

CONFIG_FB_ATY is not set

CONFIG_FB_S3 is not set

CONFIG_FB_SAVAGE is not set

CONFIG_FB_SIS is not set

CONFIG_FB_NEOMAGIC is not set

CONFIG_FB_KYRO is not set

CONFIG_FB_3DFX is not set

CONFIG_FB_VOODOO1 is not set

CONFIG_FB_VT8623 is not set

CONFIG_FB_TRIDENT is not set

CONFIG_FB_ARK is not set

CONFIG_FB_PM3 is not set

CONFIG_FB_CARMINE is not set

CONFIG_FB_SMSCUFX is not set

CONFIG_FB_UDL is not set

CONFIG_FB_IBM_GXT4500 is not set

CONFIG_FB_VIRTUAL is not set

CONFIG_FB_METRONOME is not set

CONFIG_FB_MB862XX is not set

CONFIG_FB_SIMPLE is not set

CONFIG_FB_SSD1307 is not set

CONFIG_FB_SM712 is not set

end of Frame buffer Devices

Backlight & LCD device support

CONFIG_LCD_CLASS_DEVICE is not set

CONFIG_BACKLIGHT_CLASS_DEVICE=y

CONFIG_BACKLIGHT_KTD253 is not set

CONFIG_BACKLIGHT_PWM=y

CONFIG_BACKLIGHT_QCOM_WLED is not set

CONFIG_BACKLIGHT_ADP8860 is not set

CONFIG_BACKLIGHT_ADP8870 is not set

CONFIG_BACKLIGHT_LM3630A is not set

CONFIG_BACKLIGHT_LM3639 is not set

CONFIG_BACKLIGHT_LP855X is not set

CONFIG_BACKLIGHT_GPIO is not set

CONFIG_BACKLIGHT_LV5207LP is not set

CONFIG_BACKLIGHT_BD6107 is not set

CONFIG_BACKLIGHT_ARCXCNN is not set

CONFIG_BACKLIGHT_LED is not set

end of Backlight & LCD device support

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\arch\arm64\configs\rockchip_defconfig

CONFIG_MALI_BIFROST_DEBUG=y
CONFIG_FB=y

CONFIG_BACKLIGHT_CLASS_DEVICE=y

8、

CC drivers/input/touchscreen/focaltech_touch_ft5726/focaltech_flash.o

CC drivers/gpu/arm/mali400/mali/common/mali_kernel_core.o

CC net/mac80211/ocb.o

AR drivers/input/touchscreen/gt1x/built-in.a

CC drivers/gpu/drm/drm_atomic_uapi.o

CC drivers/input/sensors/accel/lsm330_acc.o

CC drivers/gpu/arm/midgard/mali_kbase_gator_api.o

CC drivers/usb/dwc2/hcd_queue.o

CC drivers/net/ethernet/stmicro/stmmac/dwmac4_dma.o

CC drivers/input/touchscreen/parade/pt_core.o

CC drivers/input/touchscreen/gsl3673.o

CC drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.o
drivers/input/touchscreen/gt9xx/gt9xx.c:3211:19: error: incompatible function pointer types initializing 'void (*)(struct i2c_client *)' with an expression of type 'int (struct i2c_client *)' [-Wincompatible-function-pointer-types]
.remove = goodix_ts_remove,
^~~~~~~~~~~~~~~~
1 error generated.

make[6]: *** [scripts/Makefile.build:250: drivers/input/touchscreen/gt9xx/gt9xx.o] Error 1

make[5]: *** [scripts/Makefile.build:500: drivers/input/touchscreen/gt9xx] Error 2

make[5]: *** Waiting for unfinished jobs....

CC drivers/gpu/arm/mali400/mali/common/mali_session.o

CC drivers/input/touchscreen/focaltech_touch_ft5726/focaltech_flash/focaltech_upgrade_ft5726_003.o

CC drivers/input/touchscreen/parade/pt_mt_common.o

CC drivers/input/sensors/accel/bma2xx.o

CC drivers/input/sensors/accel/da223_cust.o

CC drivers/gpu/arm/bifrost/mali_kbase_softjobs.o

CC drivers/gpu/drm/drm_managed.o

CC drivers/usb/dwc2/hcd_ddma.o

CC drivers/net/ethernet/stmicro/stmmac/dwmac4_lib.o

CC drivers/gpu/drm/drm_vblank_work.o

CC drivers/gpu/arm/midgard/mali_kbase_debug_mem_view.o

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\gt9xx\gt9xx.c

/*******************************************************

Function:

Goodix touchscreen driver release function.

Input:

client: i2c device struct.

Output:

Executive outcomes. 0---succeed.

*******************************************************/
static int goodix_ts_remove(struct i2c_client *client)

{

struct goodix_ts_data *ts = i2c_get_clientdata(client);

GTP_DEBUG_FUNC();

gtp_unregister_powermanger(ts);

#if GTP_CREATE_WR_NODE

uninit_wr_node();

#endif

#if GTP_ESD_PROTECT

destroy_workqueue(gtp_esd_check_workqueue);

#endif

if (ts) {

if (ts->use_irq) {

GTP_GPIO_AS_INPUT(gtp_int_gpio);

GTP_GPIO_FREE(gtp_int_gpio);

free_irq(client->irq, ts);

} else {

hrtimer_cancel(&ts->timer);

}

}

GTP_INFO("GTP driver removing...");

i2c_set_clientdata(client, NULL);

input_unregister_device(ts->input_dev);

kfree(ts);

return 0;

}

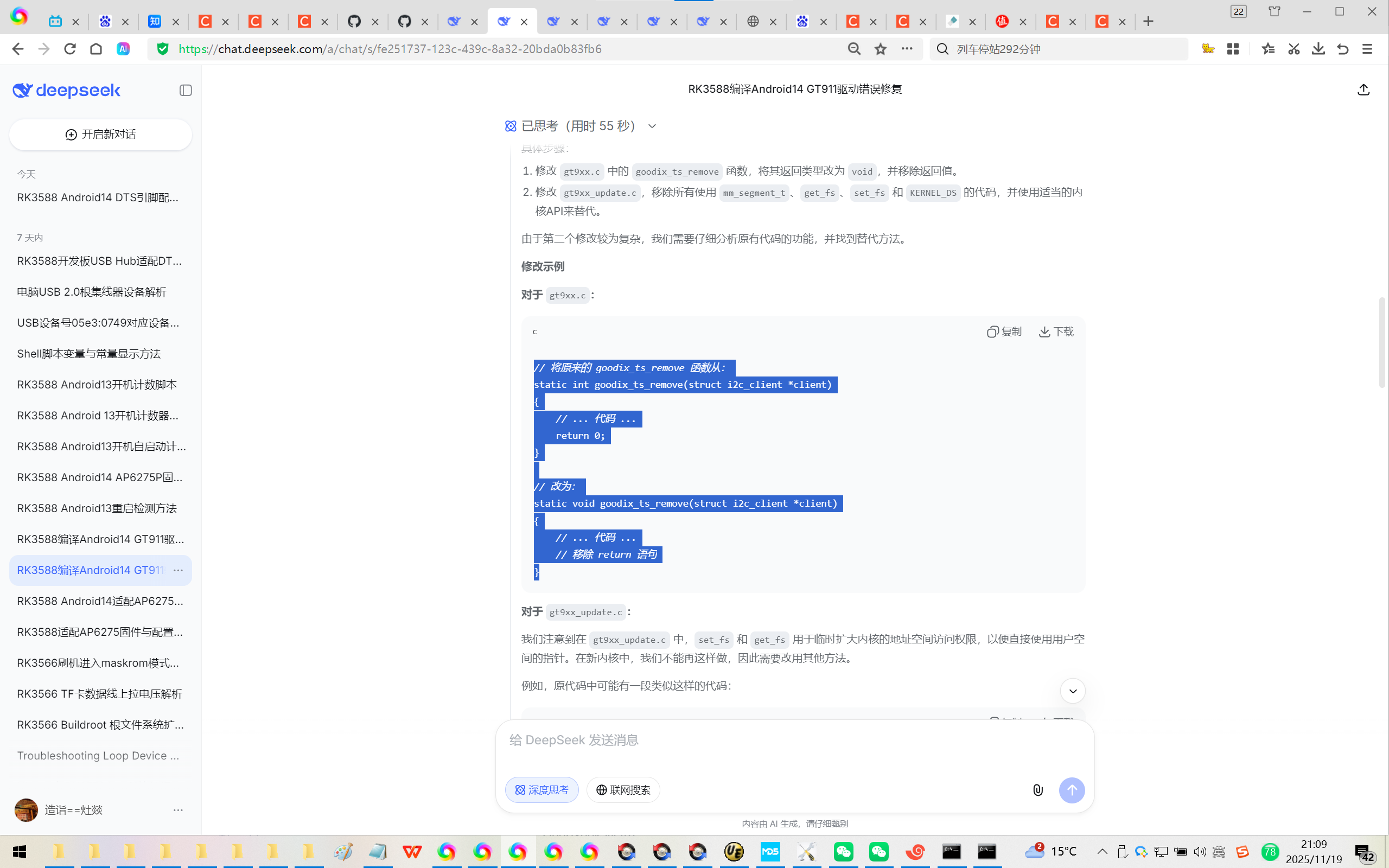

修改为：

/*******************************************************

Function:

Goodix touchscreen driver release function.

Input:

client: i2c device struct.

Output:

Executive outcomes. 0---succeed.

*******************************************************/
static void goodix_ts_remove(struct i2c_client *client)

{

struct goodix_ts_data *ts = i2c_get_clientdata(client);

GTP_DEBUG_FUNC();

gtp_unregister_powermanger(ts);

#if GTP_CREATE_WR_NODE

uninit_wr_node();

#endif

#if GTP_ESD_PROTECT

destroy_workqueue(gtp_esd_check_workqueue);

#endif

if (ts) {

if (ts->use_irq) {

GTP_GPIO_AS_INPUT(gtp_int_gpio);

GTP_GPIO_FREE(gtp_int_gpio);

free_irq(client->irq, ts);

} else {

hrtimer_cancel(&ts->timer);

}

}

GTP_INFO("GTP driver removing...");

i2c_set_clientdata(client, NULL);

input_unregister_device(ts->input_dev);

kfree(ts);

return;

}

9、

CC drivers/usb/class/cdc-acm.o

CC drivers/input/touchscreen/gt1x/gt1x_tools.o

CC drivers/net/ethernet/stmicro/stmmac/dwxgmac2_core.o

CC drivers/net/ethernet/stmicro/stmmac/dwxgmac2_dma.o

CC drivers/usb/host/ehci-hcd.o

CC drivers/i2c/i2c-core-base.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_debug_linux.o

CC drivers/usb/core/of.o

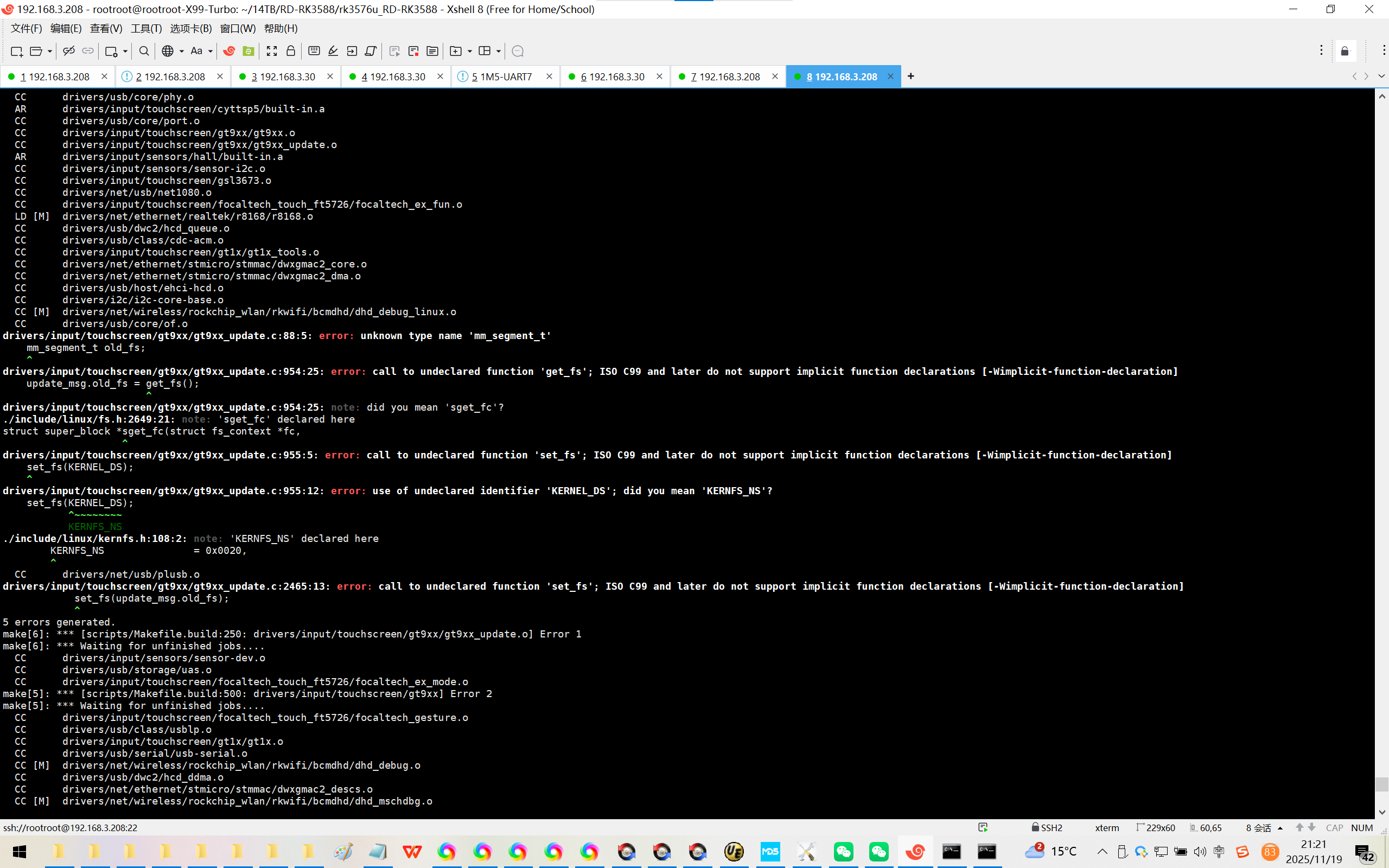

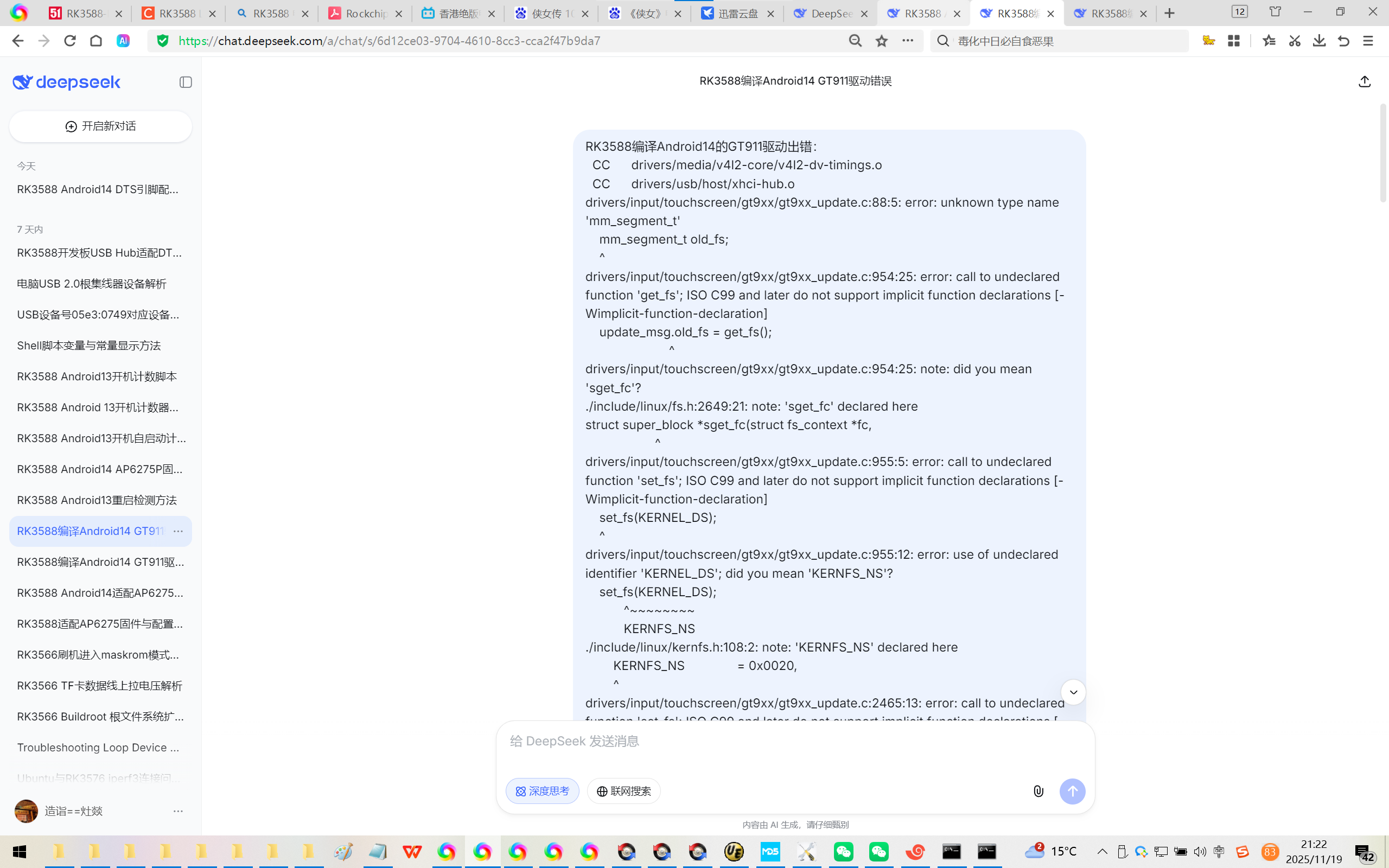

drivers/input/touchscreen/gt9xx/gt9xx_update.c:88:5: error: unknown type name 'mm_segment_t'
mm_segment_t old_fs;
^
drivers/input/touchscreen/gt9xx/gt9xx_update.c:954:25: error: call to undeclared function 'get_fs'; ISO C99 and later do not support implicit function declarations [-Wimplicit-function-declaration]
update_msg.old_fs = get_fs();
^
drivers/input/touchscreen/gt9xx/gt9xx_update.c:954:25: note: did you mean 'sget_fc'?
./include/linux/fs.h:2649:21: note: 'sget_fc' declared here
struct super_block *sget_fc(struct fs_context *fc,
^
drivers/input/touchscreen/gt9xx/gt9xx_update.c:955:5: error: call to undeclared function 'set_fs'; ISO C99 and later do not support implicit function declarations [-Wimplicit-function-declaration]
set_fs(KERNEL_DS);
^
drivers/input/touchscreen/gt9xx/gt9xx_update.c:955:12: error: use of undeclared identifier 'KERNEL_DS'; did you mean 'KERNFS_NS'?
set_fs(KERNEL_DS);
^~~~~~~~~
KERNFS_NS
./include/linux/kernfs.h:108:2: note: 'KERNFS_NS' declared here
KERNFS_NS = 0x0020,
^
CC drivers/net/usb/plusb.o
drivers/input/touchscreen/gt9xx/gt9xx_update.c:2465:13: error: call to undeclared function 'set_fs'; ISO C99 and later do not support implicit function declarations [-Wimplicit-function-declaration]
set_fs(update_msg.old_fs);
^
5 errors generated.

make[6]: *** [scripts/Makefile.build:250: drivers/input/touchscreen/gt9xx/gt9xx_update.o] Error 1

make[6]: *** Waiting for unfinished jobs....

CC drivers/input/sensors/sensor-dev.o

CC drivers/usb/storage/uas.o

CC drivers/input/touchscreen/focaltech_touch_ft5726/focaltech_ex_mode.o

make[5]: *** [scripts/Makefile.build:500: drivers/input/touchscreen/gt9xx] Error 2

make[5]: *** Waiting for unfinished jobs....

CC drivers/input/touchscreen/focaltech_touch_ft5726/focaltech_gesture.o

CC drivers/usb/class/usblp.o

CC drivers/input/touchscreen/gt1x/gt1x.o

CC drivers/usb/serial/usb-serial.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_debug.o

CC drivers/usb/dwc2/hcd_ddma.o

CC drivers/net/ethernet/stmicro/stmmac/dwxgmac2_descs.o

CC [M] drivers/net/wireless/rockchip_wlan/rkwifi/bcmdhd/dhd_mschdbg.o

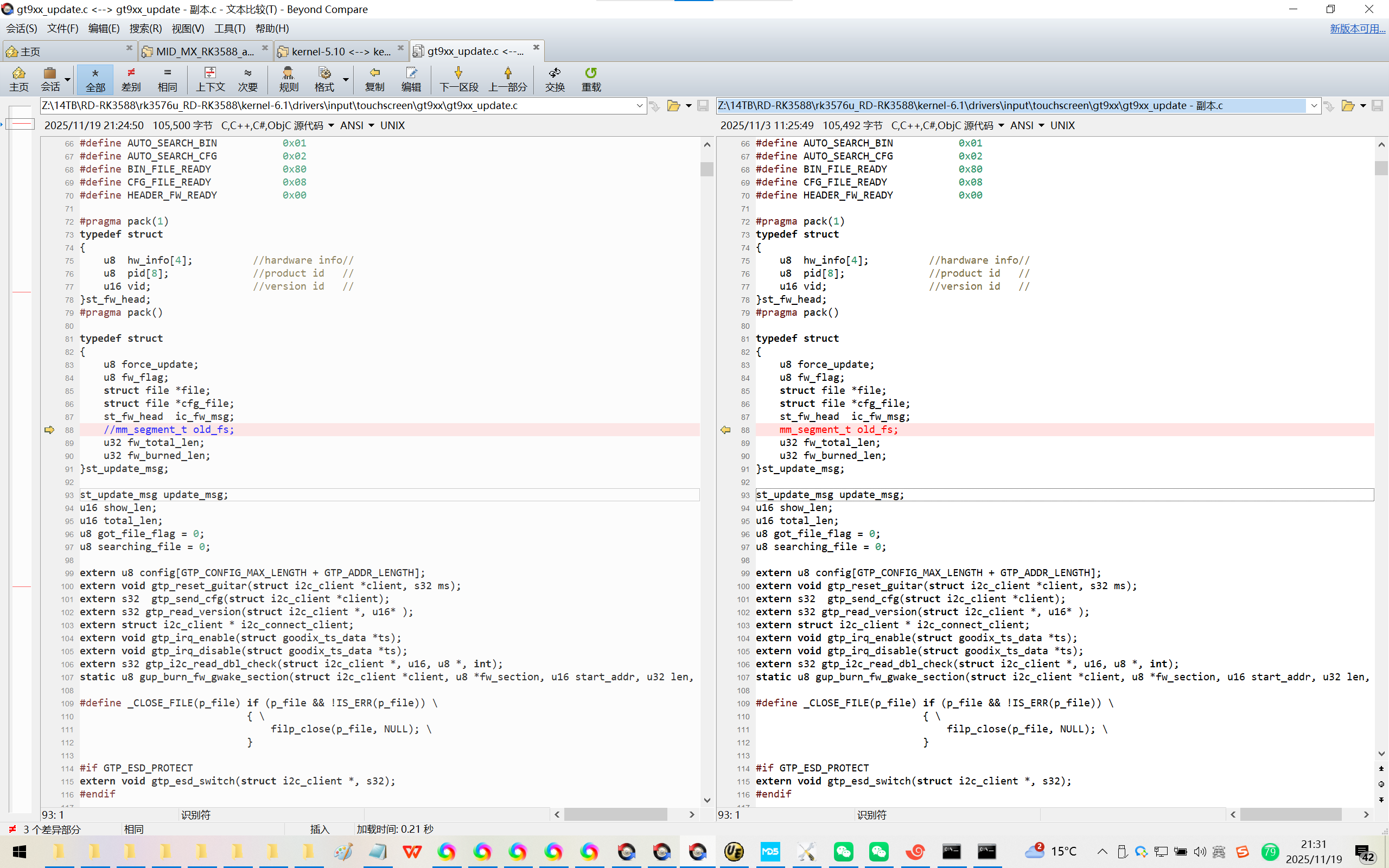

Z:\14TB\RD-RK3588\rk3576u_RD-RK3588\kernel-6.1\drivers\input\touchscreen\gt9xx\gt9xx_update.c

typedef struct

{

u8 force_update;

u8 fw_flag;

struct file *file;

struct file *cfg_file;

st_fw_head ic_fw_msg;
//mm_segment_t old_fs;

u32 fw_total_len;

u32 fw_burned_len;

}st_update_msg;

#else

{

GTP_ERROR("NULL file for firmware update");

return FAIL;

}

#endif

}

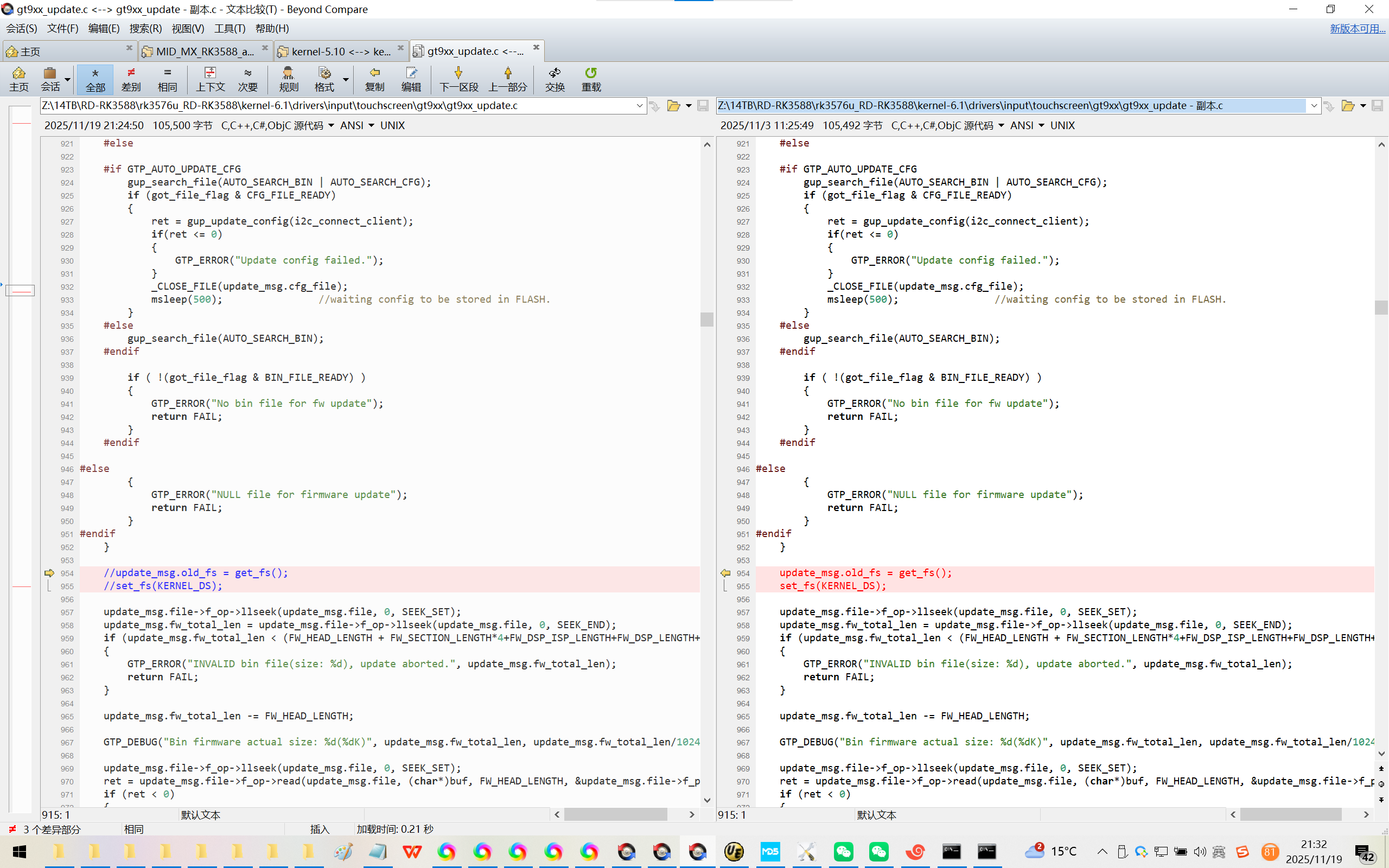

//update_msg.old_fs = get_fs();
//set_fs(KERNEL_DS);

update_msg.file->f_op->llseek(update_msg.file, 0, SEEK_SET);

update_msg.fw_total_len = update_msg.file->f_op->llseek(update_msg.file, 0, SEEK_END);

if (update_msg.fw_total_len < (FW_HEAD_LENGTH + FW_SECTION_LENGTH*4+FW_DSP_ISP_LENGTH+FW_DSP_LENGTH+FW_BOOT_LENGTH))

{

GTP_ERROR("INVALID bin file(size: %d), update aborted.", update_msg.fw_total_len);

return FAIL;

}

update_msg.fw_total_len -= FW_HEAD_LENGTH;

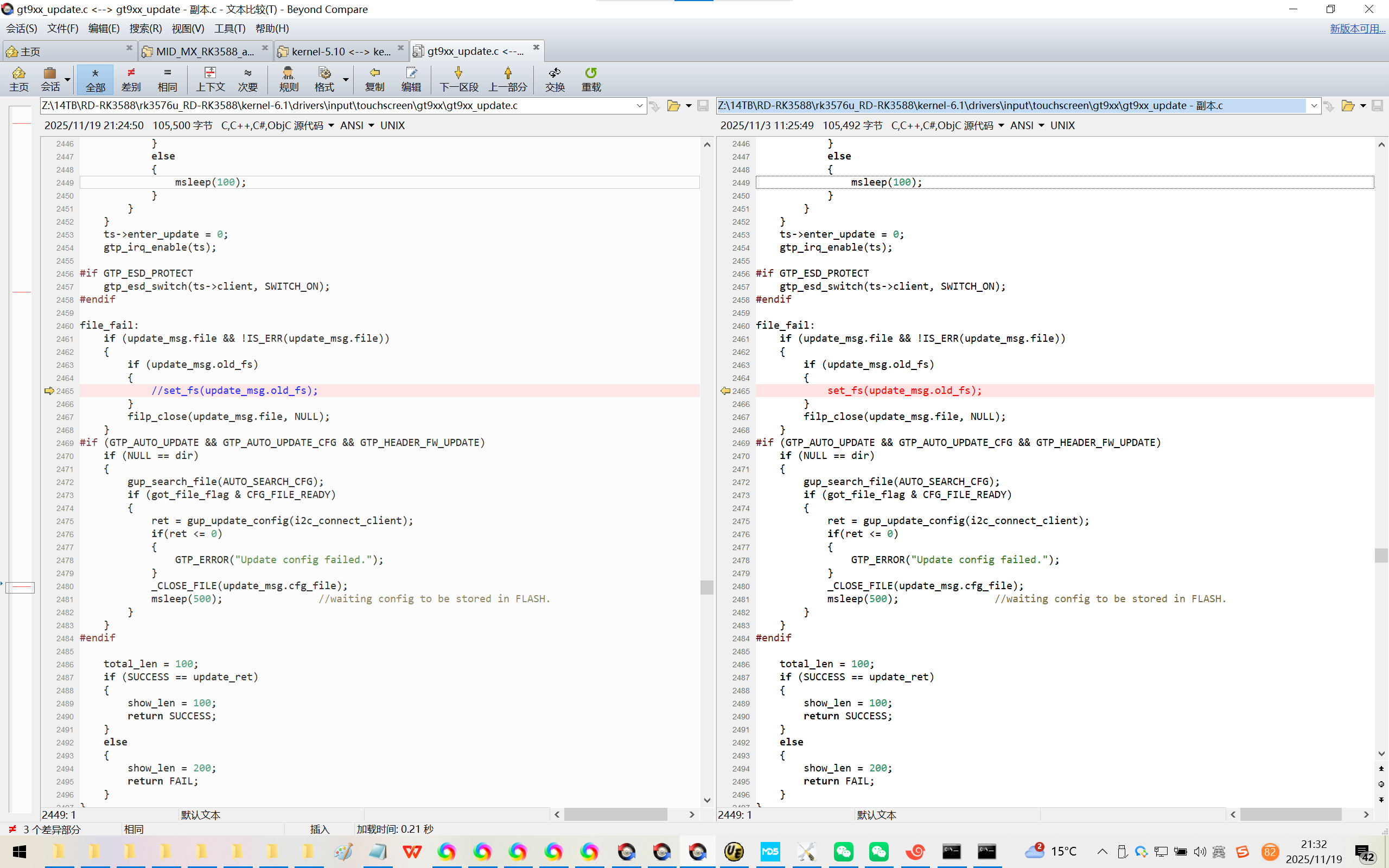

file_fail:

if (update_msg.file && !IS_ERR(update_msg.file))

{

if (update_msg.old_fs)

{
//set_fs(update_msg.old_fs);

}

filp_close(update_msg.file, NULL);

}

CC drivers/net/usb/r8152.o

CC drivers/media/i2c/aw8601.o

CC drivers/usb/dwc2/hcd_ddma.o

CC drivers/usb/host/ohci-hcd.o

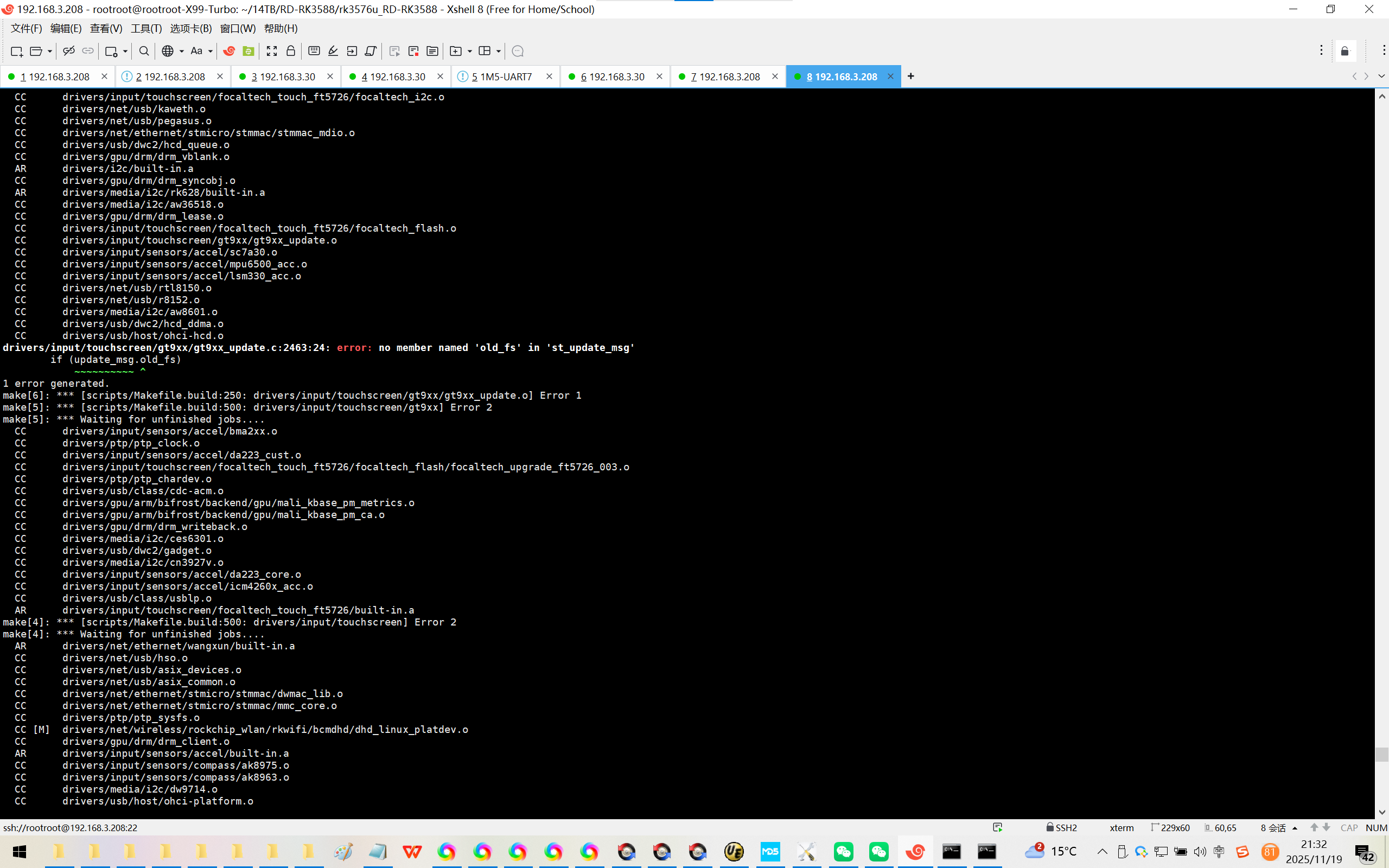

drivers/input/touchscreen/gt9xx/gt9xx_update.c:2463:24: error: no member named 'old_fs' in 'st_update_msg'

if (update_msg.old_fs)

~~~~~~~~~~ ^

1 error generated.

make[6]: *** [scripts/Makefile.build:250: drivers/input/touchscreen/gt9xx/gt9xx_update.o] Error 1

make[5]: *** [scripts/Makefile.build:500: drivers/input/touchscreen/gt9xx] Error 2

make[5]: *** Waiting for unfinished jobs....

CC drivers/input/sensors/accel/bma2xx.o

CC drivers/ptp/ptp_clock.o

CC drivers/input/sensors/accel/da223_cust.o

CC drivers/input/touchscreen/focaltech_touch_ft5726/focaltech_flash/focaltech_upgrade_ft5726_003.o

CC drivers/ptp/ptp_chardev.o

CC drivers/usb/class/cdc-acm.o

10、确认CTP正常了！

重新编译之后。

我这里了是重新加，完整编译的结果：

Microsoft Windows [版本 10.0.19045.6216]

(c) Microsoft Corporation。保留所有权利。

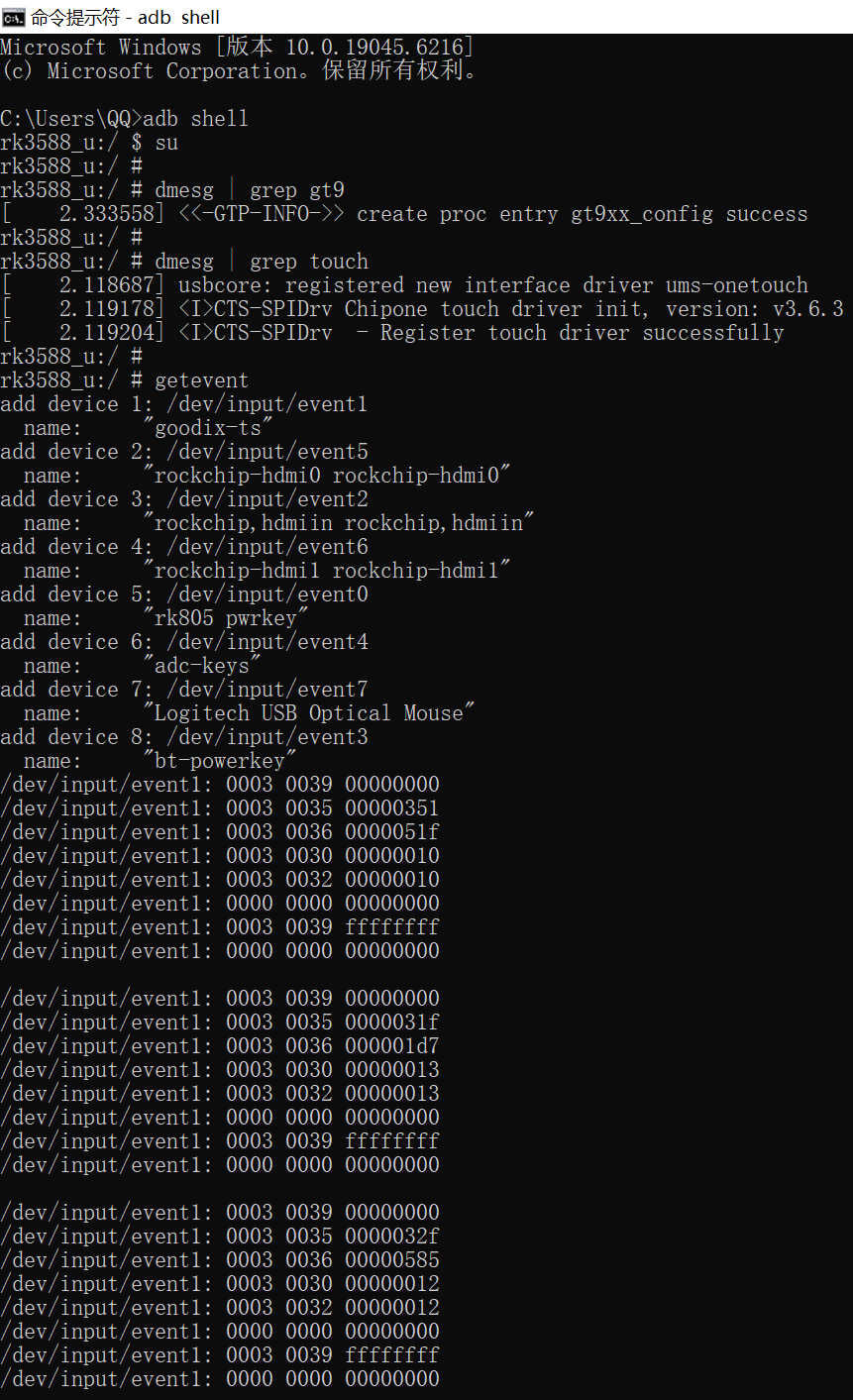

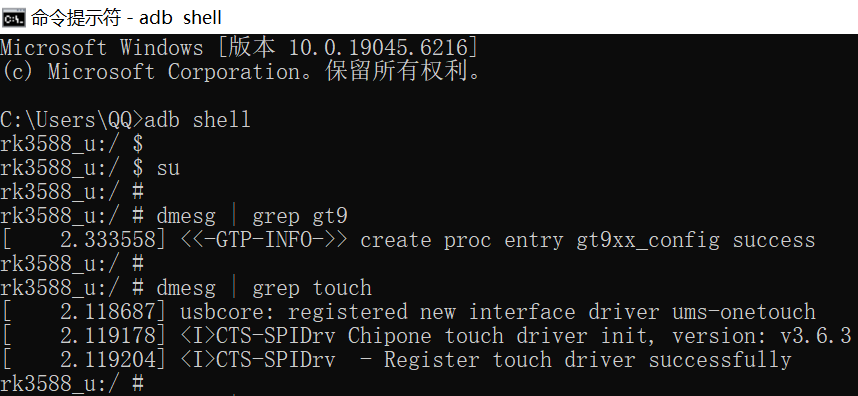

C:\Users\QQ>adb shell
rk3588_u:/ $ su
rk3588_u:/ #
rk3588_u:/ # dmesg | grep gt9

2.333558\] \<\<-GTP-INFO-\>\> create proc entry gt9xx_config success rk3588_u:/ # rk3588_u:/ # dmesg \| grep touch \[ 2.118687\] usbcore: registered new interface driver ums-onetouch \[ 2.119178\] \CTS-SPIDrv Chipone touch driver init, version: v3.6.3 \[ 2.119204\] \CTS-SPIDrv - Register touch driver successfully rk3588_u:/ # rk3588_u:/ # getevent add device 1: /dev/input/event1 name: "goodix-ts" add device 2: /dev/input/event5 name: "rockchip-hdmi0 rockchip-hdmi0" add device 3: /dev/input/event2 name: "rockchip,hdmiin rockchip,hdmiin" add device 4: /dev/input/event6 name: "rockchip-hdmi1 rockchip-hdmi1" add device 5: /dev/input/event0 name: "rk805 pwrkey" add device 6: /dev/input/event4 name: "adc-keys" add device 7: /dev/input/event7 name: "Logitech USB Optical Mouse" add device 8: /dev/input/event3 name: "bt-powerkey" /dev/input/event1: 0003 0039 00000000 /dev/input/event1: 0003 0035 00000351 /dev/input/event1: 0003 0036 0000051f /dev/input/event1: 0003 0030 00000010 /dev/input/event1: 0003 0032 00000010 /dev/input/event1: 0000 0000 00000000 /dev/input/event1: 0003 0039 ffffffff /dev/input/event1: 0000 0000 00000000 /dev/input/event1: 0003 0039 00000000 /dev/input/event1: 0003 0035 0000031f /dev/input/event1: 0003 0036 000001d7 /dev/input/event1: 0003 0030 00000013 /dev/input/event1: 0003 0032 00000013 /dev/input/event1: 0000 0000 00000000 /dev/input/event1: 0003 0039 ffffffff /dev/input/event1: 0000 0000 00000000 /dev/input/event1: 0003 0039 00000000 /dev/input/event1: 0003 0035 0000032f /dev/input/event1: 0003 0036 00000585 /dev/input/event1: 0003 0030 00000012 /dev/input/event1: 0003 0032 00000012 /dev/input/event1: 0000 0000 00000000 /dev/input/event1: 0003 0039 ffffffff /dev/input/event1: 0000 0000 00000000 \^C 130\|rk3588_u:/ # \^C 130\|rk3588_u:/ #   Microsoft Windows \[版本 10.0.19045.6216

(c) Microsoft Corporation。保留所有权利。

C:\Users\QQ>adb shell
rk3588_u:/ $ su
rk3588_u:/ #
rk3588_u:/ # getevent -p
add device 1: /dev/input/event1
name: "goodix-ts"
events:
KEY (0001): 0066 0074 008b 009e
ABS (0003): 002f : value 0, min 0, max 15, fuzz 0, flat 0, resolution 0
0030 : value 0, min 0, max 255, fuzz 0, flat 0, resolution 0
0032 : value 0, min 0, max 255, fuzz 0, flat 0, resolution 0
0035 : value 0, min 0, max 1200, fuzz 0, flat 0, resolution 0
0036 : value 0, min 0, max 1920, fuzz 0, flat 0, resolution 0
0039 : value 0, min 0, max 255, fuzz 0, flat 0, resolution 0
input props:
INPUT_PROP_DIRECT

add device 2: /dev/input/event5

name: "rockchip-hdmi0 rockchip-hdmi0"

events:

SW (0005): 0006

input props:

<none>

add device 3: /dev/input/event2

name: "rockchip,hdmiin rockchip,hdmiin"

events:

SW (0005): 0006

input props:

<none>

add device 4: /dev/input/event6

name: "rockchip-hdmi1 rockchip-hdmi1"

events:

SW (0005): 0006

input props:

<none>

add device 5: /dev/input/event0

name: "rk805 pwrkey"

events:

KEY (0001): 0074

input props:

<none>

add device 6: /dev/input/event4

name: "adc-keys"

events:

KEY (0001): 0072 0073 008b 009e

input props:

<none>

add device 7: /dev/input/event7

name: "Logitech USB Optical Mouse"

events:

KEY (0001): 0110 0111 0112

REL (0002): 0000 0001 0008 000b

MSC (0004): 0004

input props:

<none>

add device 8: /dev/input/event3

name: "bt-powerkey"

events:

KEY (0001): 0074

input props:

<none>

rk3588_u:/ #
