20251129给荣品RD-RK3588开发板跑Rockchip的原厂Buildroot【linux-6.1】系统时适配AP6275P的蓝牙BLE

2025/11/29 9:24

缘起：给荣品RD-RK3588开发板跑Rockchip的原厂Buildroot【linux-5.10】系统时使用，可以evtest命令查看/监控荣品8寸屏【1200x1920竖屏】的CTP触摸屏的点击信息！

Rockchip的原厂Buildroot【linux-6.1】系统默认只有iperf2，还是比较喜欢iperf3。

iperf2的服务器端不会显示实时网速！^_

经过反复测试，终于把荣品RD-RK3588开发板自带的8寸屏的CTP触摸屏调试通了。

Android13的内核linux-5.10

Android13的内核linux-6.1。版本升级之后，

终于把全部的USB接口都点亮USB接口的鼠标了！

当你把荣品RD-RK3588开发板重新适配一把，就相当于从头做了一个项目：【荣品RD-RK3588开发板】。

当然，开发板的功能都是好的，你免除了调试的过程，也就没有解决相关硬件出错的经验/机会了！

结论：荣品的FAE工程师是真的很忙。

代码写的非常写意/潇洒！

【整个DTS，TAB和空格按键都是混用的！^有些时候看着很难受的！^】

DTS中的代码排版真的让人看得很难受！

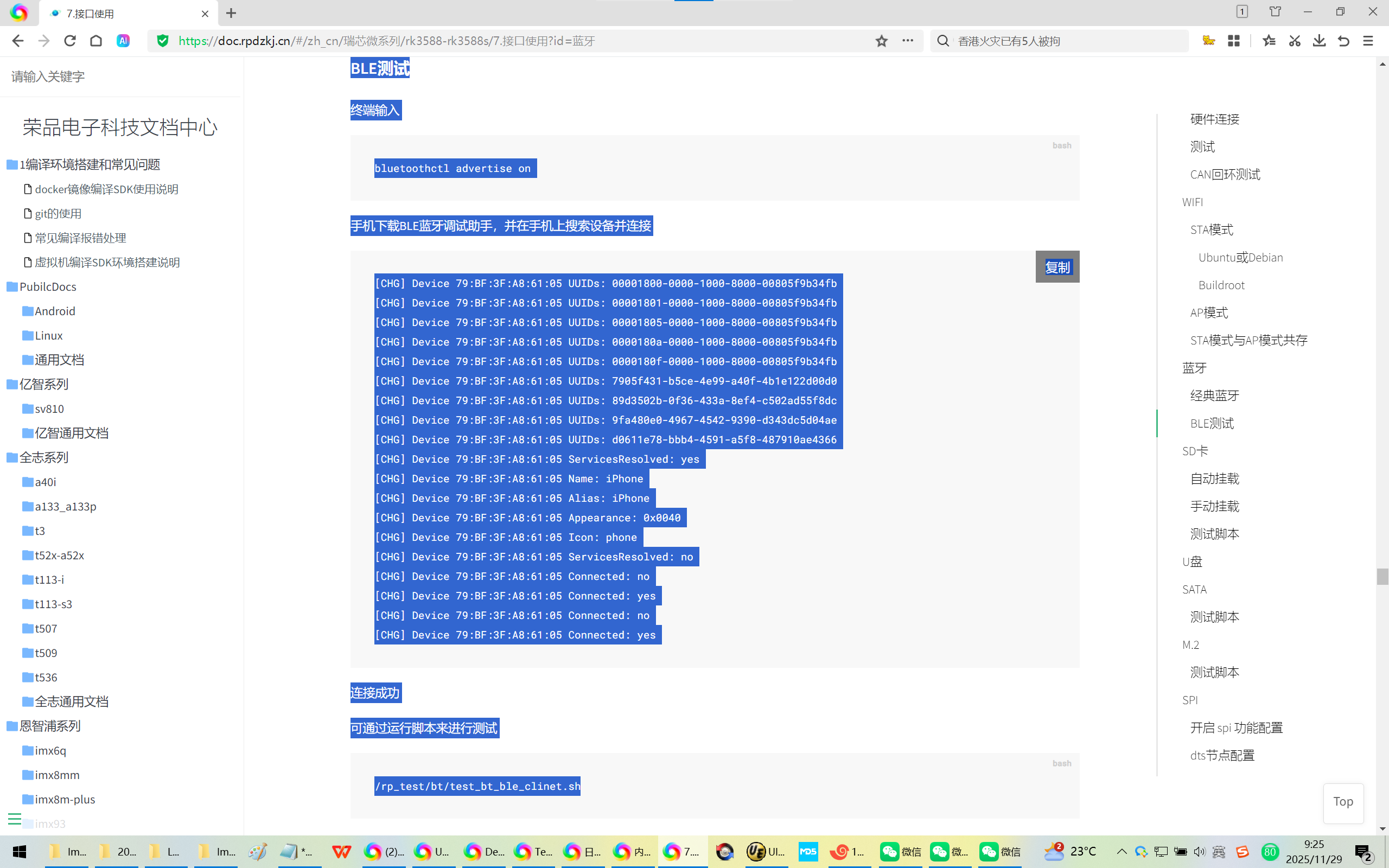

https://doc.rpdzkj.cn/#/zh_cn/瑞芯微系列/rk3588-rk3588s/7.接口使用?id=蓝牙

蓝牙

经典蓝牙

打开蓝牙

hciconfig hci0 up

复制Error已复制

设置蓝牙可被扫描

hciconfig hci0 piscan

复制Error已复制

扫描蓝牙

hcitool -i hci0 scan

复制Error已复制

连接蓝牙

进入bluetoothctl

bluetoothctl

复制Error已复制

查找设备

scan on

复制Error已复制

配对这一步需要在手机确认

pair MACaddress //(刚刚查找的配对设备的mac地址)

复制Error已复制

连接

connect MACaddress //(刚刚查找的配对设备的mac地址)

复制Error已复制

信任设备

trust MACaddress //(刚刚查找的配对设备的mac地址)

复制Error已复制

连接完成

可通过运行根目录下/rp_test/bt/下的脚本来进行测试

/rp_test/bt/test_bt_clinet.sh

复制Error已复制

BLE测试

终端输入

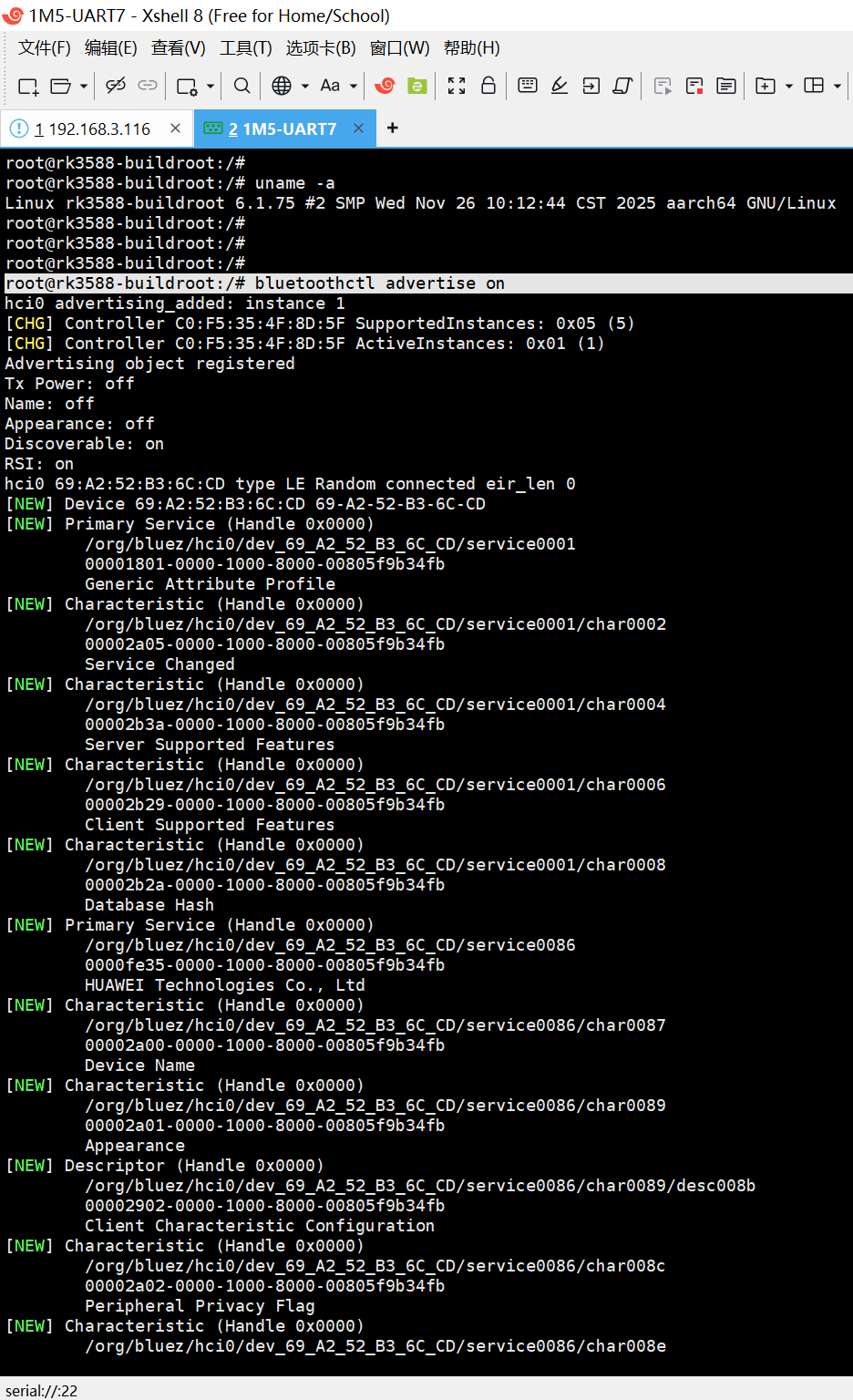

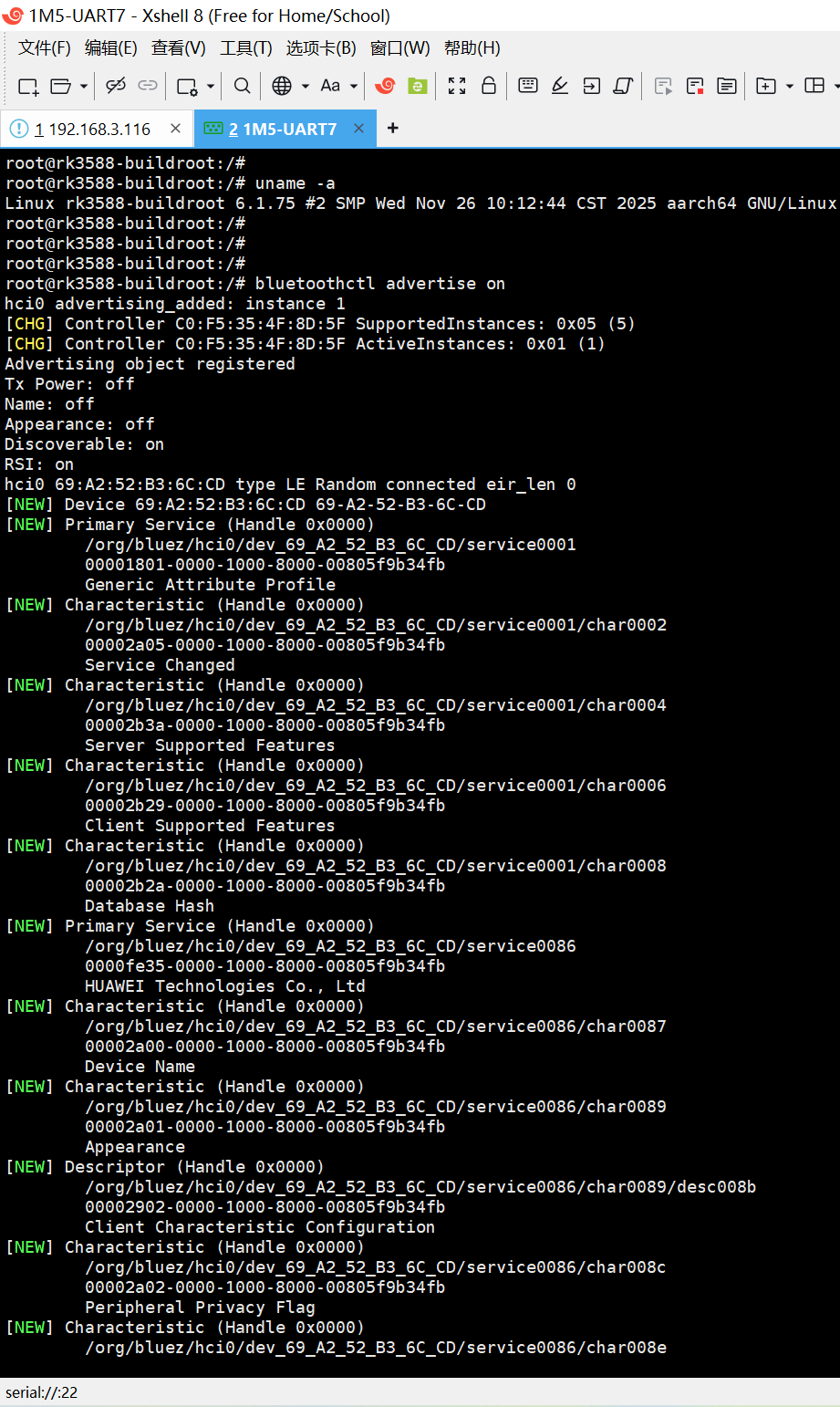

bluetoothctl advertise on

复制Error已复制

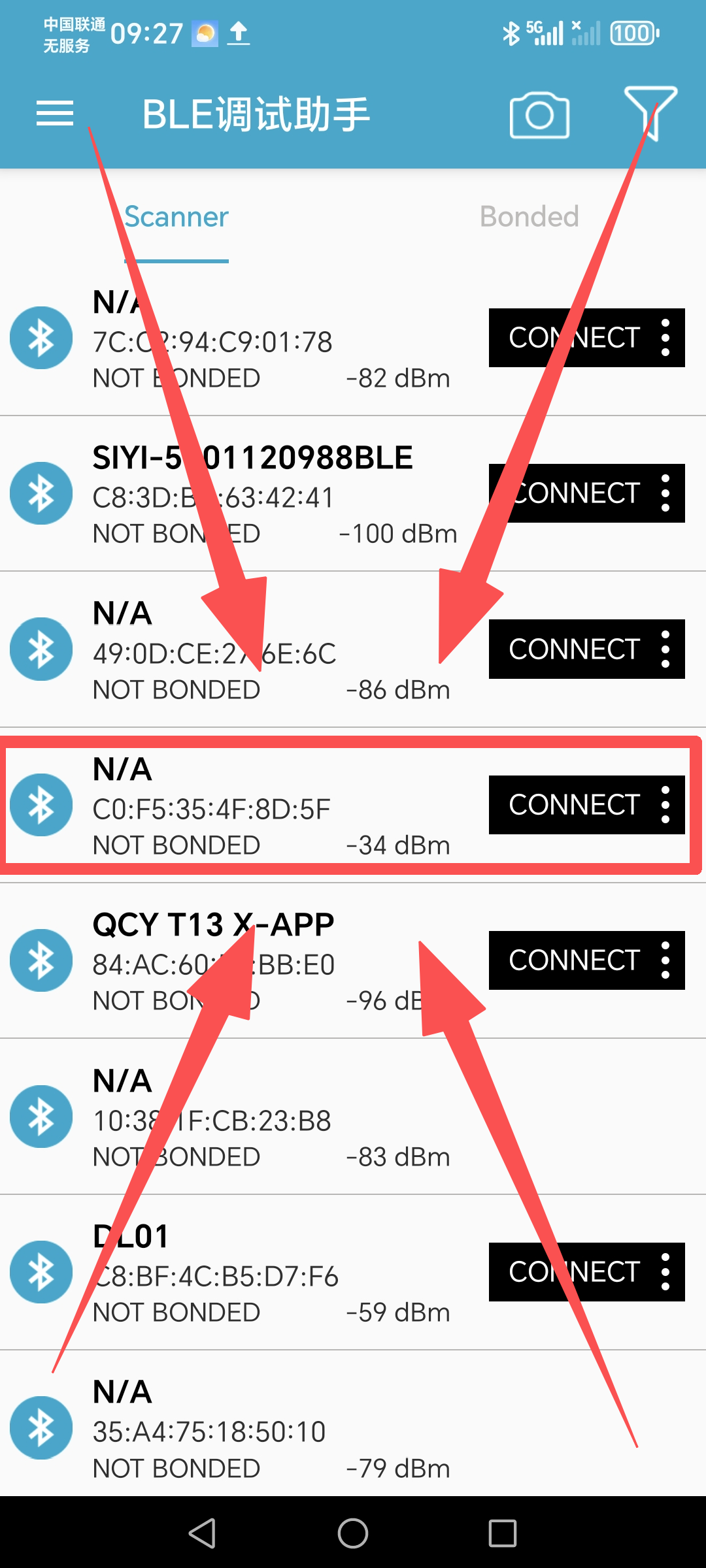

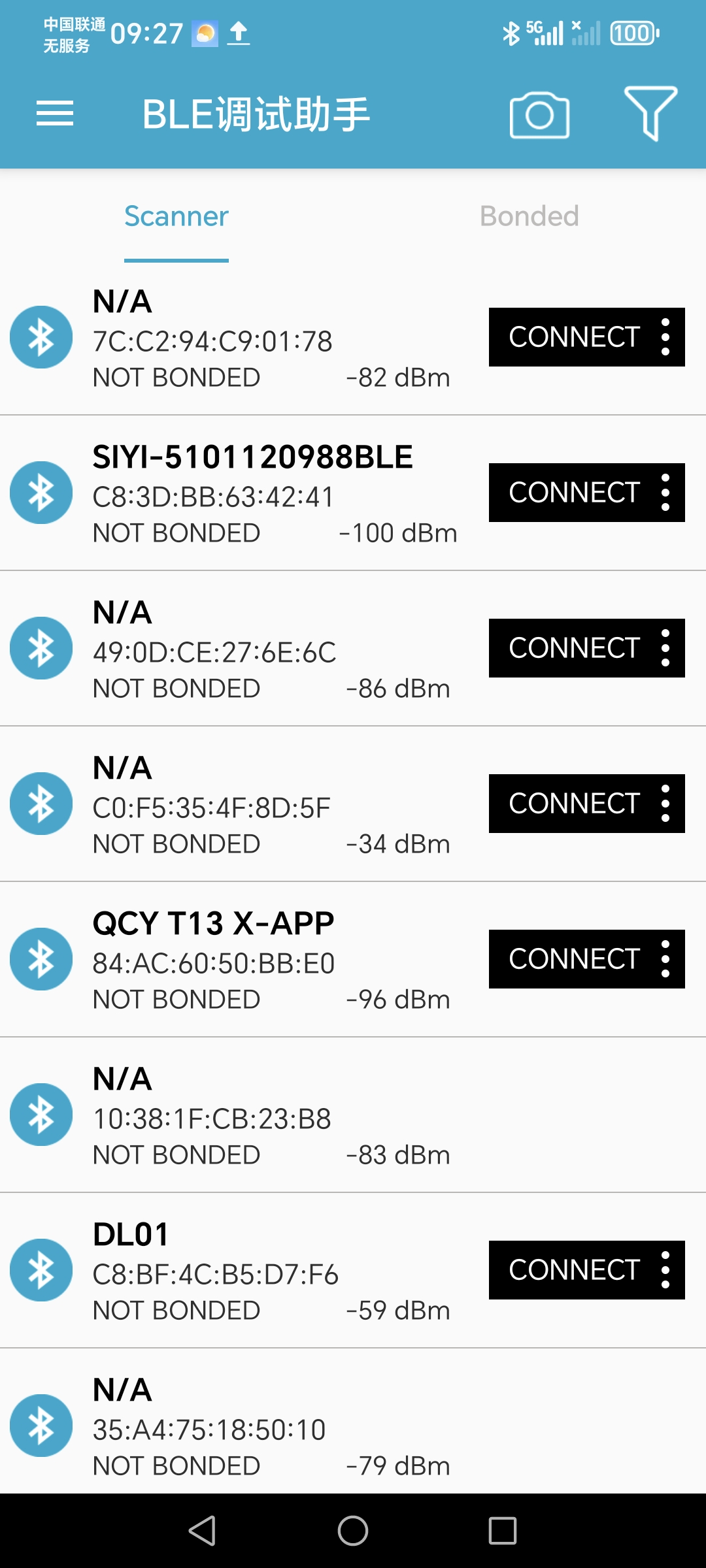

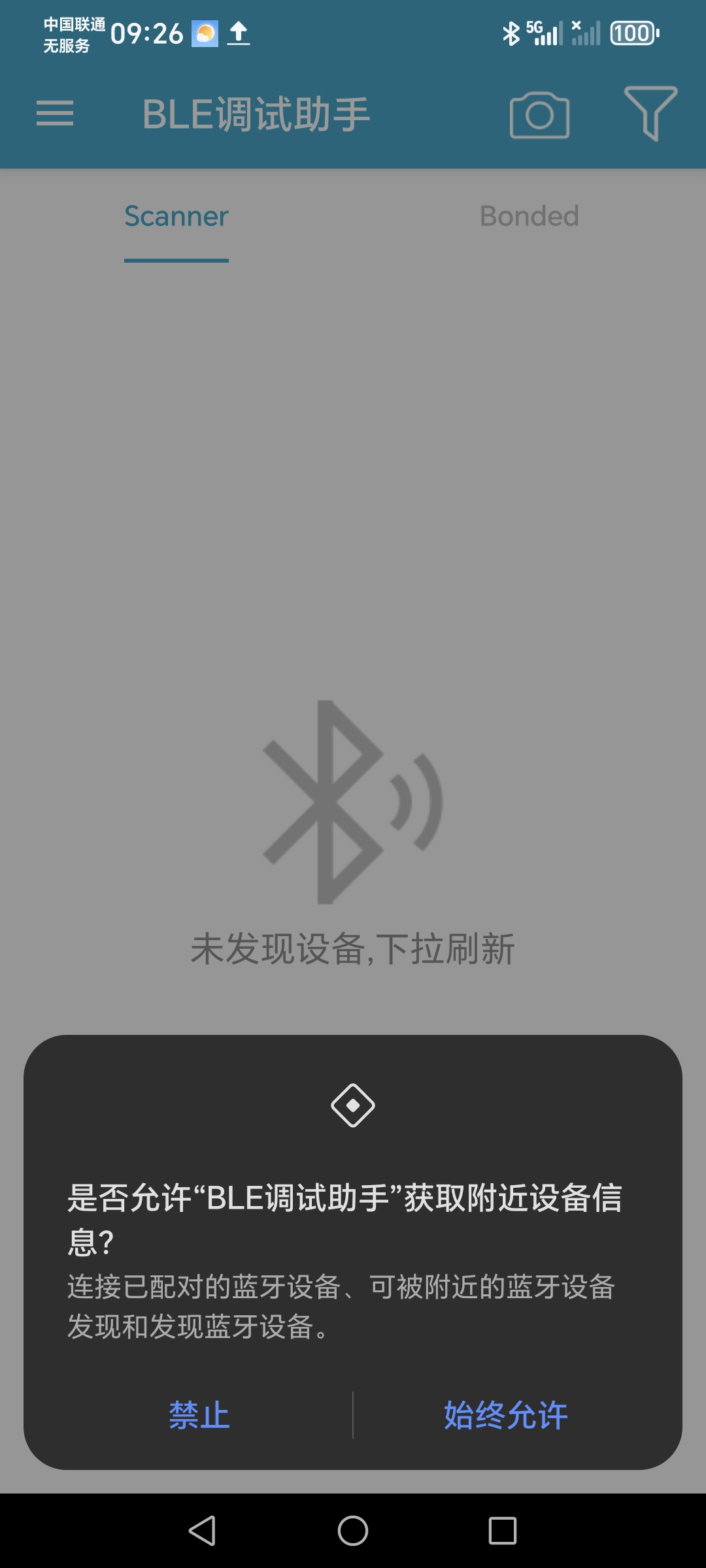

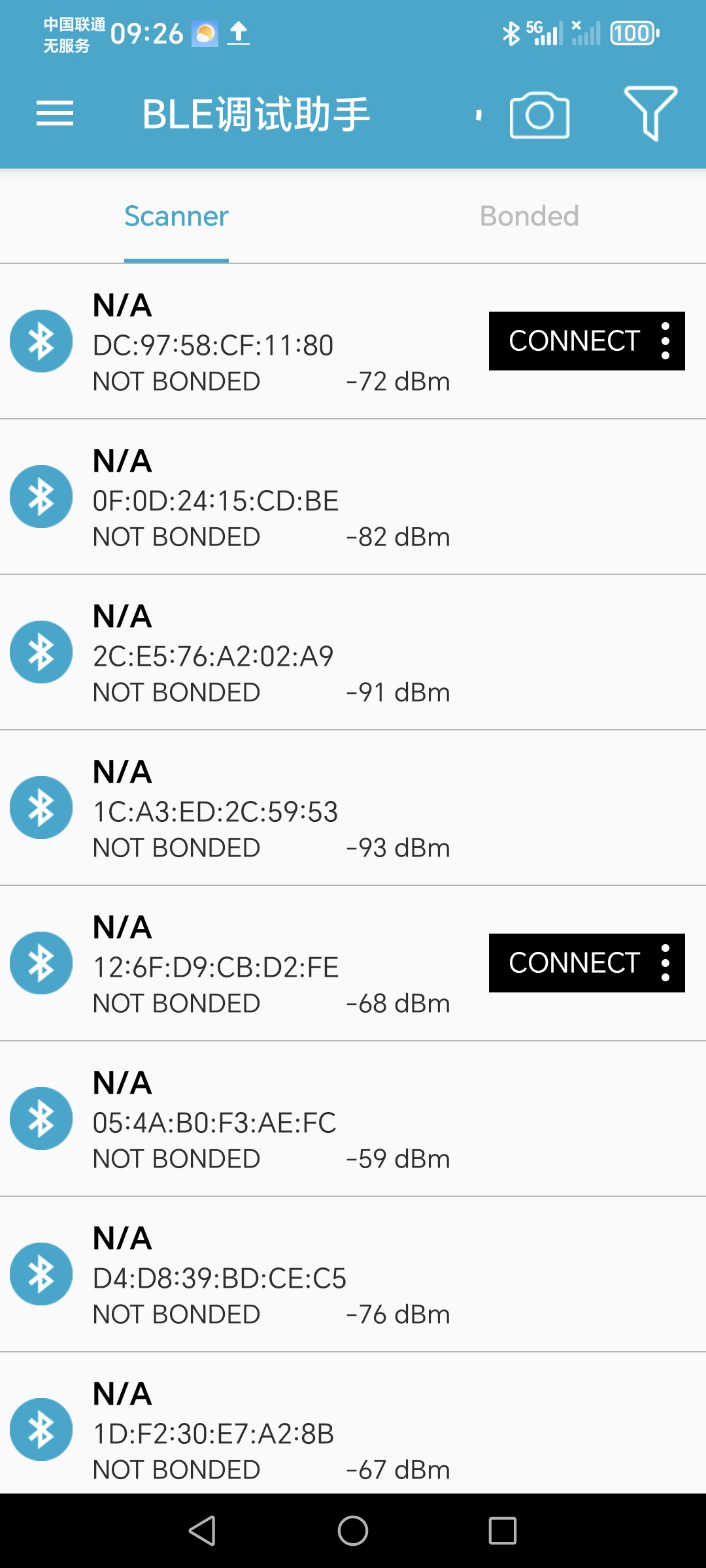

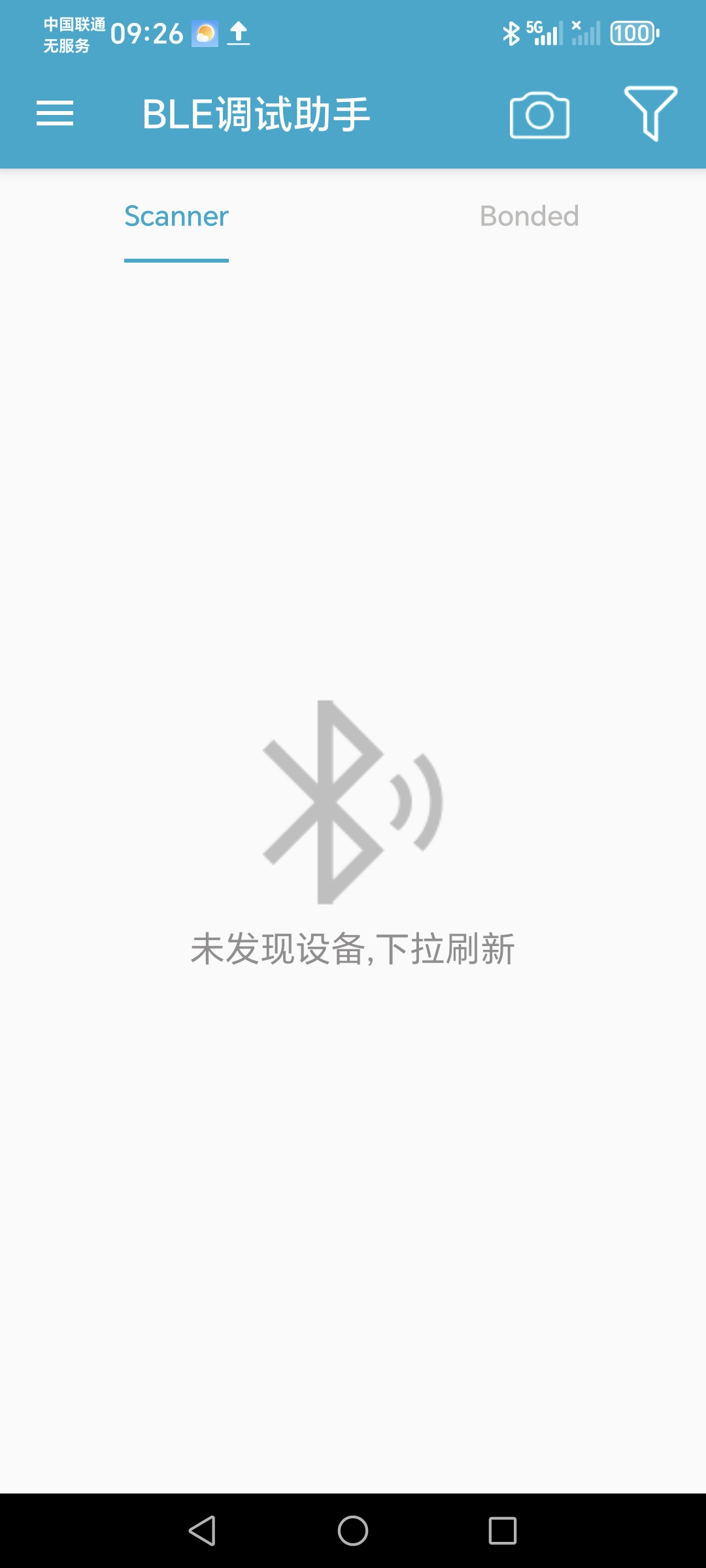

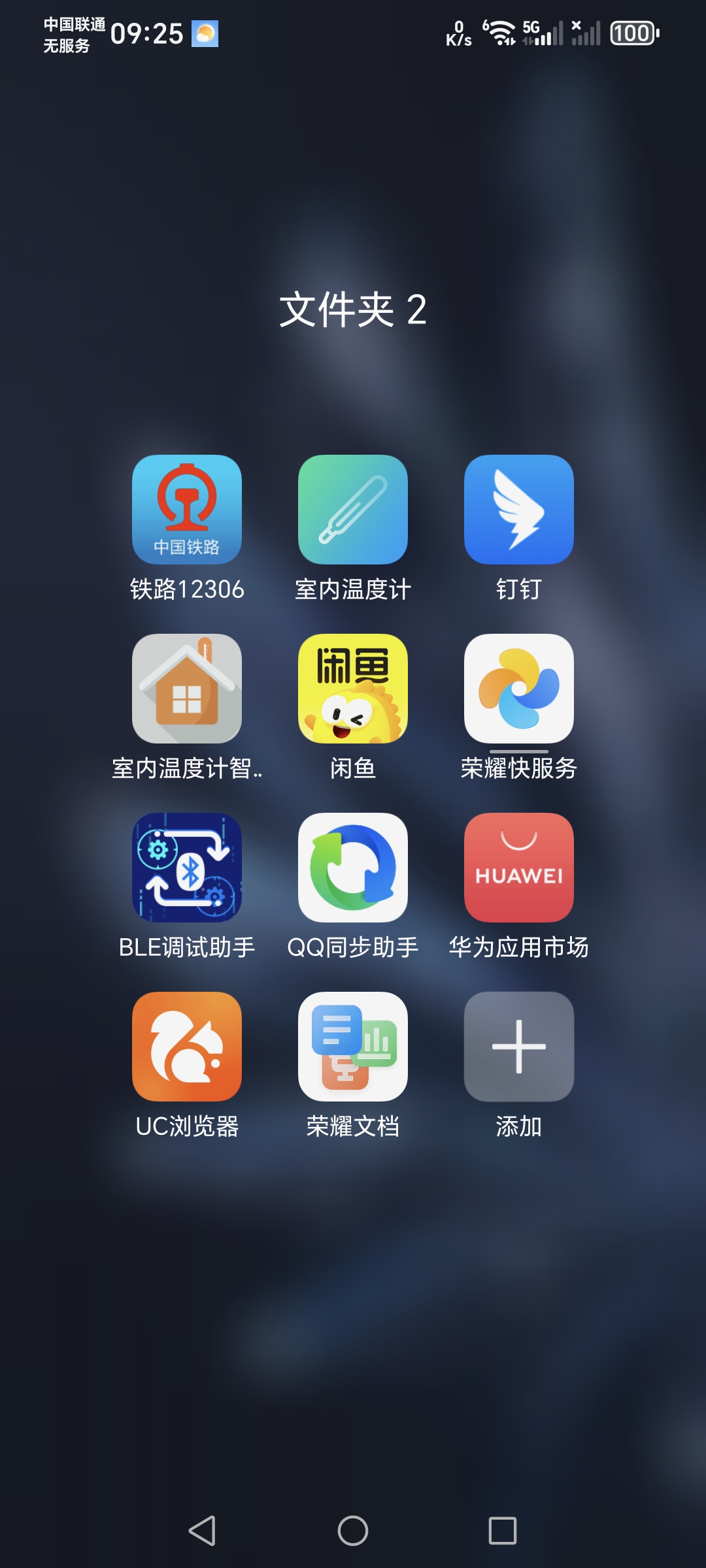

手机下载BLE蓝牙调试助手，并在手机上搜索设备并连接

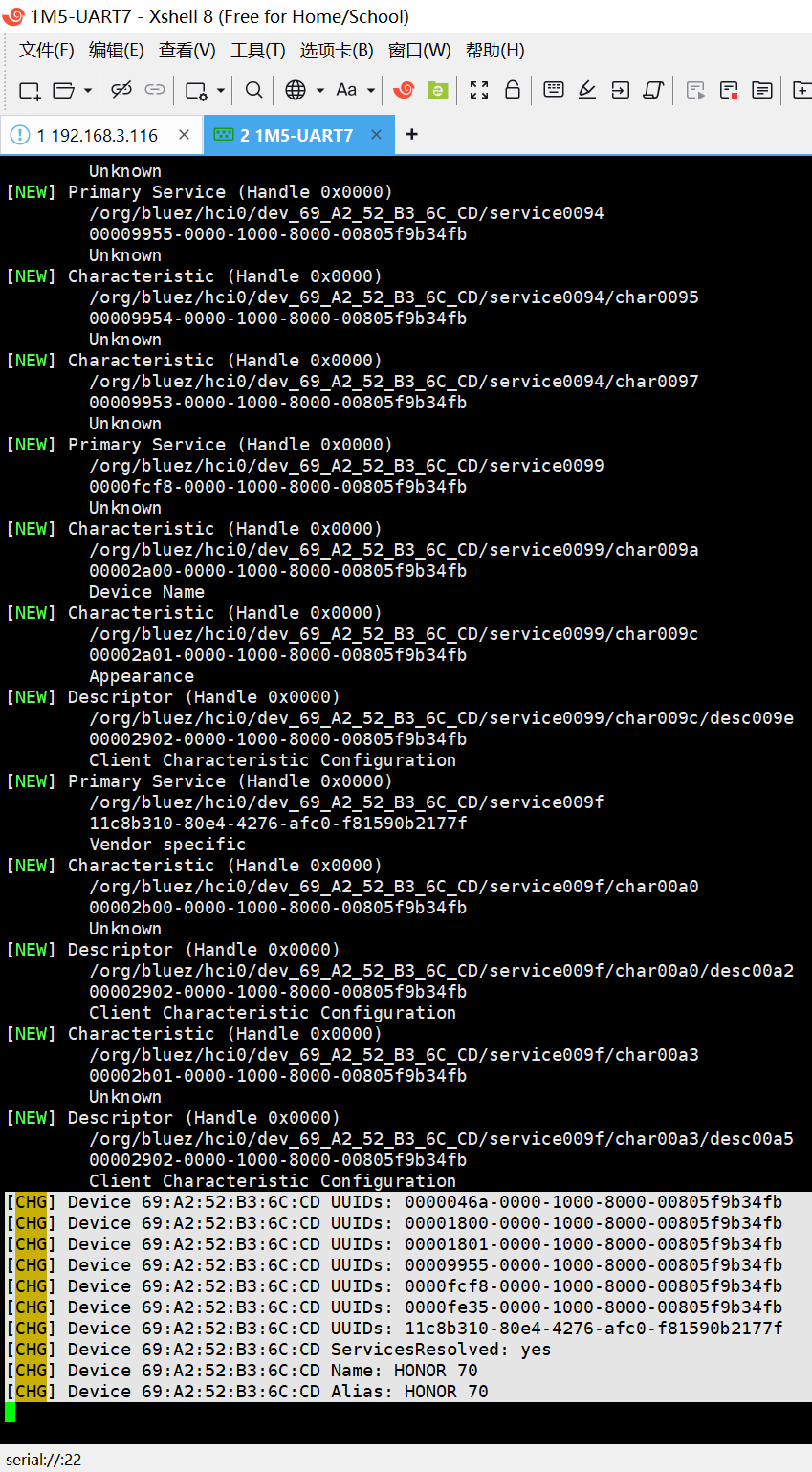

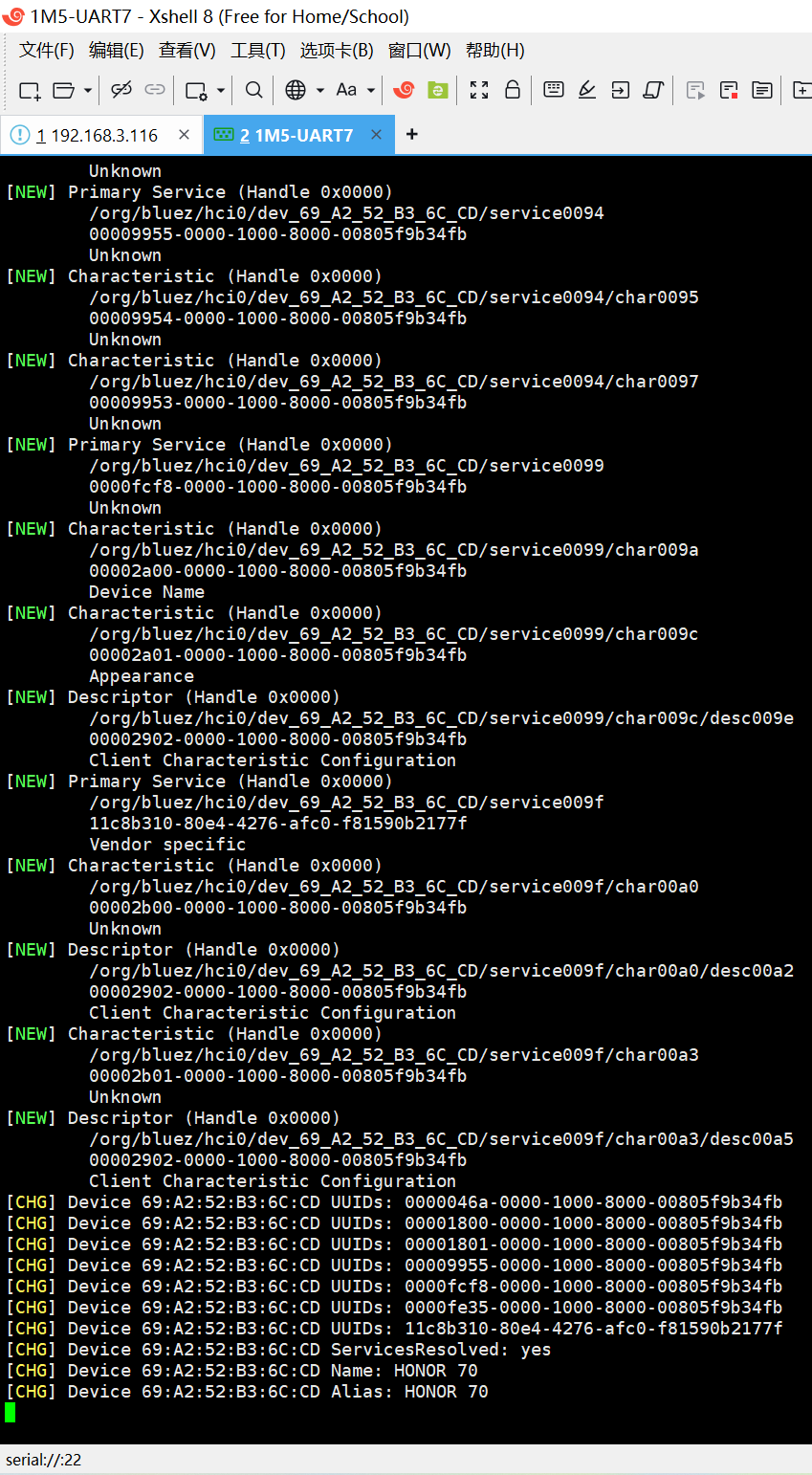

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 00001800-0000-1000-8000-00805f9b34fb

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 00001801-0000-1000-8000-00805f9b34fb

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 00001805-0000-1000-8000-00805f9b34fb

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 0000180a-0000-1000-8000-00805f9b34fb

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 0000180f-0000-1000-8000-00805f9b34fb

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 7905f431-b5ce-4e99-a40f-4b1e122d00d0

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 89d3502b-0f36-433a-8ef4-c502ad55f8dc

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: 9fa480e0-4967-4542-9390-d343dc5d04ae

$CHG$ Device 79:BF:3F:A8:61:05 UUIDs: d0611e78-bbb4-4591-a5f8-487910ae4366

$CHG$ Device 79:BF:3F:A8:61:05 ServicesResolved: yes

$CHG$ Device 79:BF:3F:A8:61:05 Name: iPhone

$CHG$ Device 79:BF:3F:A8:61:05 Alias: iPhone

$CHG$ Device 79:BF:3F:A8:61:05 Appearance: 0x0040

$CHG$ Device 79:BF:3F:A8:61:05 Icon: phone

$CHG$ Device 79:BF:3F:A8:61:05 ServicesResolved: no

$CHG$ Device 79:BF:3F:A8:61:05 Connected: no

$CHG$ Device 79:BF:3F:A8:61:05 Connected: yes

$CHG$ Device 79:BF:3F:A8:61:05 Connected: no

$CHG$ Device 79:BF:3F:A8:61:05 Connected: yes

复制Error已复制

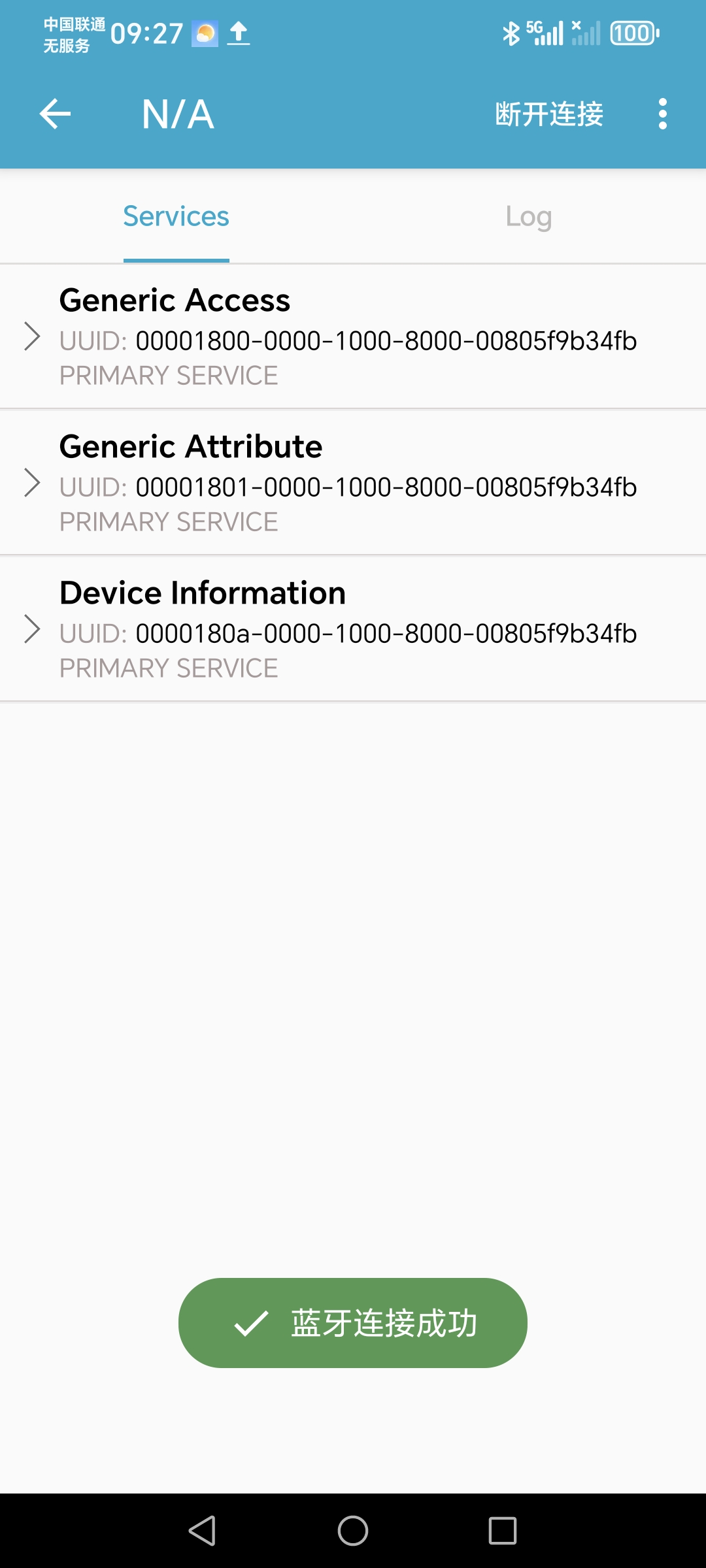

连接成功

可通过运行脚本来进行测试

/rp_test/bt/test_bt_ble_clinet.sh

详细的LOG：

$BEGIN$ 2025/11/29 9:23:13

@@󿾑@ᾄDR 3488111f83 cym 24/04/12-12:49:26,fwver: v1.17

LPDDR4X, 2112MHz

channel $0$ BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB

channel $1$ BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB

channel $2$ BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB

channel $3$ BW=16 Col=10 Bk=8 CS0 Row=16 CS1 Row=16 CS=2 Die BW=16 Size=2048MB

Manufacturer ID:0x13

CH0 RX Vref:28.5%, TX Vref:23.8%,25.8%DQ rds:

h0 l0, h0 l0, h0 l1, h4 l0, h0 l0, h2 l0, h0 l0, h0 l0,

h0 l0, h2 l0, h0 l0, h0 l1, h3 l0, h0 l0, h1 l0, h1 l0,

CH1 RX Vref:28.3%, TX Vref:24.8%,26.8%DQ rds:

h1 l0, h3 l0, h3 l0, h0 l0, h5 l0, h2 l0, h2 l0, h0 l1,

h0 l1, h1 l0, h1 l0, h1 l0, h0 l0, h3 l0, h1 l0, h5 l0,

CH2 RX Vref:29.7%, TX Vref:25.8%,27.8%DQ rds:

h1 l0, h0 l0, h0 l0, h0 l1, h0 l0, h0 l0, h2 l0, h0 l0,

h2 l0, h0 l0, h4 l0, h2 l0, h3 l0, h1 l0, h0 l0, h3 l0,

CH3 RX Vref:28.9%, TX Vref:24.8%,24.8%DQ rds:

h0 l0, h2 l0, h2 l0, h0 l0, h1 l0, h0 l0, h4 l0, h0 l0,

h0 l0, h0 l0, h1 l0, h1 l0, h1 l0, h0 l0, h0 l0, h1 l0,

stride=0x2, ddr_config=0x4

hash ch_mask0-1 0x20 0x40, bank_mask0-3 0xa00 0x1400 0x2800 0x0, rank_mask0 0x401000

change to F1: 528MHz

change to F2: 1068MHz

change to F3: 1560MHz

change to F0: 2112MHz

out

U-Boot SPL board init

U-Boot SPL 2017.09-ge4e124926e-230922 #lxh (Sep 25 2023 - 10:58:38), fwver: v1.13

unknown raw ID 0 0 0

unrecognized JEDEC id bytes: 00, 00, 00

Trying to boot from MMC2

MMC: no card present

mmc_init: -123, time 1

spl: mmc init failed with error: -123

Trying to boot from MMC1

SPL: A/B-slot: _a, successful: 0, tries-remain: 7

Trying fit image at 0x4000 sector

Verified-boot: 0

Checking atf-1 0x00040000 (gzip @0x00240000) ... sha256(1e426f92e3...) + sha256(64122e141b...) + OK

Checking uboot 0x00200000 (gzip @0x00400000) ... sha256(a358771c80...) + sha256(f927a08b0a...) + OK

Checking fdt 0x00348348 ... sha256(a434b1c4fe...) + OK

Checking atf-2 0xff100000 ... sha256(ce8968e34f...) + OK

Checking atf-3 0x000f0000 ... sha256(ce48b69fdd...) + OK

Checking optee 0x08400000 (gzip @0x08600000) ... sha256(e1ef4db9af...) + sha256(b866e4e4a1...) + OK

Jumping to U-Boot(0x00200000) via ARM Trusted Firmware(0x00040000)

Total: 94.108/302.743 ms

INFO: Preloader serial: 2

NOTICE: BL31: v2.3():v2.3-765-g588059758:derrick.huang, fwver: v1.46

NOTICE: BL31: Built : 18:13:16, Apr 29 2024

INFO: spec: 0x1

INFO: code: 0x88

INFO: ext 32k is not valid

INFO: ddr: stride-en 4CH

INFO: GICv3 without legacy support detected.

INFO: ARM GICv3 driver initialized in EL3

INFO: valid_cpu_msk=0xff bcore0_rst = 0x0, bcore1_rst = 0x0

INFO: l3 cache partition cfg-0

INFO: system boots from cpu-hwid-0

INFO: bypass memory repair

INFO: idle_st=0x21fff, pd_st=0x11fff9, repair_st=0xfff70001

INFO: dfs DDR fsp_params $0$ .freq_mhz= 2112MHz

INFO: dfs DDR fsp_params $1$ .freq_mhz= 528MHz

INFO: dfs DDR fsp_params $2$ .freq_mhz= 1068MHz

INFO: dfs DDR fsp_params $3$ .freq_mhz= 1560MHz

INFO: BL31: Initialising Exception Handling Framework

INFO: BL31: Initializing runtime services

INFO: BL31: Initializing BL32

I/TC:

I/TC: OP-TEE version: 3.13.0-791-g185dc3c92 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Tue Apr 16 11:16:18 CST 2024 aarch64, fwver: v1.16

I/TC: OP-TEE memory: TEEOS 0x200000 TA 0xc00000 SHM 0x200000

I/TC: Primary CPU initializing

I/TC: Primary CPU switching to normal world boot

INFO: BL31: Preparing for EL3 exit to normal world

INFO: Entry point address = 0x200000

INFO: SPSR = 0x3c9

U-Boot 2017.09 (Nov 26 2025 - 21:35:26 +0800)

Model: Rockchip RK3588 Evaluation Board

MPIDR: 0x0

PreSerial: 2, raw, 0xfeb50000

DRAM: 8 GiB

Sysmem: init

Relocation Offset: eda15000

Relocation fdt: eb9fa020 - eb9fecd8

CR: M/C/I

Using default environment

optee api revision: 2.0

mmc@fe2c0000: 1, mmc@fe2e0000: 0

Bootdev(atags): mmc 0

MMC0: HS400 Enhanced Strobe, 200Mhz

PartType: EFI

TEEC: Waring: Could not find security partition

DM: v2

boot mode: None

RESC: 'boot', blk@0x0001b0d0

resource: sha256+

FIT: no signed, no conf required

DTB: rk-kernel.dtb

HASH(c): OK

usb dr_mode not found

I2c0 speed: 100000Hz

vsel-gpios- not found!

en-gpios- not found!

vdd_cpu_big0_s0 800000 uV

vsel-gpios- not found!

en-gpios- not found!

vdd_cpu_big1_s0 800000 uV

I2c1 speed: 100000Hz

vsel-gpios- not found!

en-gpios- not found!

vdd_npu_s0 800000 uV

spi2: RK806: 2

ON=0x80, OFF=0x00

vdd_gpu_s0 750000 uV

vdd_cpu_lit_s0 init 800000 uV

vdd_log_s0 750000 uV

vdd_vdenc_s0 init 750000 uV

vdd_ddr_s0 850000 uV

Device 'gpio@fd8a0000': seq 0 is in use by 'gpio@fd8a0000'

get vp0 plane mask:0x5, primary id:2, cursor_plane:-1, from dts

get vp1 plane mask:0xa, primary id:3, cursor_plane:-1, from dts

get vp2 plane mask:0x140, primary id:8, cursor_plane:-1, from dts

get vp3 plane mask:0x280, primary id:9, cursor_plane:-1, from dts

Could not find baseparameter partition

Model: Rockchip RK3588 EVB7 V11 Board

Minidump: init...

Rockchip UBOOT DRM driver version: v1.0.1

vp0 have layer nr:2 $0 2$ , primary plane: 2

vp1 have layer nr:2 $1 3$ , primary plane: 3

vp2 have layer nr:2 $6 8$ , primary plane: 8

vp3 have layer nr:2 $7 9$ , primary plane: 9

Using display timing dts

dsi@fde20000: detailed mode clock 148000 kHz, flags $a$

H: 1200 1280 1290 1350

V: 1920 1936 1938 1963

bus_format: 100e

VOP update mode to: 1200x1920p56, type: MIPI0 for VP3

VP3 set crtc_clock to 136364KHz

Unsupported bt709f at 10bit csc depth, use bt601f instead

VOP VP3 enable Esmart3 $654x270-\>654x270@273x825$ fmt $0$ addr $0xedf00000$

final DSI-Link bandwidth: 909093 Kbps x 4

hdmi@fde80000 disconnected

hdmi@fdea0000 disconnected

CLK: (sync kernel. arm: enter 1008000 KHz, init 1008000 KHz, kernel 0N/A)

b0pll 24000 KHz

b1pll 24000 KHz

lpll 24000 KHz

v0pll 24000 KHz

aupll 786431 KHz

cpll 1500000 KHz

gpll 1188000 KHz

npll 850000 KHz

ppll 1100000 KHz

aclk_center_root 702000 KHz

pclk_center_root 100000 KHz

hclk_center_root 396000 KHz

aclk_center_low_root 500000 KHz

aclk_top_root 750000 KHz

pclk_top_root 100000 KHz

aclk_low_top_root 396000 KHz

Net: Device 'gpio@fec40000': seq 3 is in use by 'gpio@fd8a0000'

eth1: ethernet@fe1c0000

Hit key to stop autoboot('CTRL+C'): 0

ANDROID: reboot reason: "(none)"

Not AVB images, AVB skip

No valid android hdr

Android image load failed

Android boot failed, error -1.

Booting FIT Image at 0xe91df000 with size 0x0261a000

Fdt Ramdisk skip relocation

Loading kernel from FIT Image at e91df000 ...

Using 'conf' configuration

Verified-boot: 0

Trying 'kernel' kernel subimage

Description: unavailable

Type: Kernel Image

Compression: uncompressed

Data Start: 0xe9225600

Data Size: 39664128 Bytes = 37.8 MiB

Architecture: AArch64

OS: Linux

Load Address: 0x00400000

Entry Point: 0x00400000

Hash algo: sha256

Hash value: 95581ab84102409a1b053e25686cb75e7167a876dd4246c226f29d250bb15fc8

Verifying Hash Integrity ... sha256+ OK

Loading fdt from FIT Image at e91df000 ...

Using 'conf' configuration

Trying 'fdt' fdt subimage

Description: unavailable

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0xe91df800

Data Size: 285831 Bytes = 279.1 KiB

Architecture: AArch64

Load Address: 0x08300000

Hash algo: sha256

Hash value: 4b2928b2d5410ba6d83c1bf87eb407b182a65596a83d1dfcdaf5ea90673fc9c1

Verifying Hash Integrity ... sha256+ OK

Loading fdt from 0x08300000 to 0x08300000

Booting using the fdt blob at 0x08300000

Loading Kernel Image from 0xe9225600 to 0x00400000 ... OK

kernel loaded at 0x00400000, end = 0x029d3a00

Using Device Tree in place at 0000000008300000, end 0000000008348c86

reserved-memory:

cma: addr=10000000 size=10000000

drm-logo@0: addr=edf00000 size=15a000

ramoops@110000: addr=110000 size=e0000

Adding bank: 0x00200000 - 0x08400000 (size: 0x08200000)

Adding bank: 0x09400000 - 0xf0000000 (size: 0xe6c00000)

Adding bank: 0x100000000 - 0x200000000 (size: 0x100000000)

Adding bank: 0x2f0000000 - 0x300000000 (size: 0x10000000)

Total: 816.862/1195.38 ms

Starting kernel ...

1.199902\] Booting Linux on physical CPU 0x0000000000 \[0x412fd050

$1.199922$ Linux version 6.1.75 (jinhualong@jinhualong-LEGION-REN7000K-26IRX) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 10.3.1 20210621, GNU ld (GNU Toolchain for the A-profile Architecture 10.3-2021.07 (arm-10.29)) 2.36.1.20210621) #2 SMP Wed Nov 26 10:12:44 CST 2025

$1.202754$ random: crng init done

$1.207359$ Machine model: Rockchip RK3588 EVB7 V11 Board

$1.218536$ earlycon: uart8250 at MMIO32 0x00000000feb50000 (options '')

$1.223119$ printk: bootconsole $uart8250$ enabled

$1.225753$ efi: UEFI not found.

$1.228172$ OF: fdt: Reserved memory: failed to reserve memory for node 'drm-cubic-lut@0': base 0x0000000000000000, size 0 MiB

$1.229255$ Reserved memory: created CMA memory pool at 0x0000000010000000, size 256 MiB

$1.229990$ OF: reserved mem: initialized node cma, compatible id shared-dma-pool

$1.343088$ Zone ranges:

1.343326\] DMA \[mem 0x0000000000200000-0x00000000ffffffff

$1.343892$ DMA32 empty

1.344156\] Normal \[mem 0x0000000100000000-0x00000002ffffffff

$1.344720$ Movable zone start for each node

$1.345107$ Early memory node ranges

1.345432\] node 0: \[mem 0x0000000000200000-0x00000000083fffff

1.346003\] node 0: \[mem 0x0000000009400000-0x00000000efffffff

1.346574\] node 0: \[mem 0x0000000100000000-0x00000001ffffffff

1.347145\] node 0: \[mem 0x00000002f0000000-0x00000002ffffffff

1.347715\] Initmem setup node 0 \[mem 0x0000000000200000-0x00000002ffffffff

$1.349022$ On node 0, zone DMA: 512 pages in unavailable ranges

$1.367437$ On node 0, zone DMA: 4096 pages in unavailable ranges

$1.389693$ psci: probing for conduit method from DT.

$1.390710$ psci: PSCIv1.1 detected in firmware.

$1.391132$ psci: Using standard PSCI v0.2 function IDs

$1.391609$ psci: Trusted OS migration not required

$1.392088$ psci: SMC Calling Convention v1.2

$1.392771$ percpu: Embedded 26 pages/cpu s68968 r8192 d29336 u106496

$1.393529$ Detected VIPT I-cache on CPU0

$1.393927$ CPU features: detected: GIC system register CPU interface

$1.394513$ CPU features: detected: Virtualization Host Extensions

$1.395079$ CPU features: detected: ARM errata 1165522, 1319367, or 1530923

$1.395713$ alternatives: applying boot alternatives

$1.397892$ Built 1 zonelists, mobility grouping on. Total pages: 2059848

$1.398524$ Kernel command line: storagemedia=emmc androidboot.storagemedia=emmc androidboot.mode=normal androidboot.verifiedbootstate=orange rw rootwait earlycon=uart8250,mmio32,0xfeb50000 console=ttyFIQ0 irqchip.gicv3_pseudo_nmi=0 root=PARTUUID=614e0000-0000 rcupdate.rcu_expedited=1 rcu_nocbs=all androidboot.fwver=ddr-v1.17-3488111f83,spl-v1.13,bl31-v1.46,bl32-v1.16,uboot-11/26/2025

$1.401803$ Unknown kernel command line parameters "storagemedia=emmc", will be passed to user space.

$1.403360$ Dentry cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)

$1.404442$ Inode-cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)

$1.405157$ mem auto-init: stack:off, heap alloc:off, heap free:off

$1.405728$ software IO TLB: area num 8.

$1.417332$ software IO TLB: mapped $mem 0x00000000e9f00000-0x00000000edf00000$ (64MB)

$1.469883$ Memory: 7838732K/8370176K available (20160K kernel code, 3726K rwdata, 7204K rodata, 7488K init, 658K bss, 269300K reserved, 262144K cma-reserved)

$1.471264$ SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1

$1.471883$ ftrace: allocating 61706 entries in 242 pages

$1.548677$ ftrace: allocated 242 pages with 5 groups

$1.549209$ trace event string verifier disabled

$1.549780$ rcu: Hierarchical RCU implementation.

$1.550210$ rcu: RCU event tracing is enabled.

$1.550622$ All grace periods are expedited (rcu_expedited).

$1.551143$ Rude variant of Tasks RCU enabled.

$1.551554$ rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.

$1.558695$ NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

$1.561557$ GICv3: GIC: Using split EOI/Deactivate mode

$1.562035$ GICv3: 480 SPIs implemented

$1.562385$ GICv3: 0 Extended SPIs implemented

$1.562808$ Root IRQ handler: gic_handle_irq

$1.563207$ GICv3: GICv3 features: 16 PPIs

$1.563977$ GICv3: CPU0: found redistributor 0 region 0:0x00000000fe680000

1.564867\] ITS \[mem 0xfe640000-0xfe65ffff

$1.565290$ ITS@0x00000000fe640000: allocated 8192 Devices @100210000 (indirect, esz 8, psz 64K, shr 0)

$1.566162$ ITS@0x00000000fe640000: allocated 32768 Interrupt Collections @100220000 (flat, esz 2, psz 64K, shr 0)

$1.567107$ ITS: using cache flushing for cmd queue

1.567570\] ITS \[mem 0xfe660000-0xfe67ffff

$1.567984$ ITS@0x00000000fe660000: allocated 8192 Devices @100240000 (indirect, esz 8, psz 64K, shr 0)

$1.568854$ ITS@0x00000000fe660000: allocated 32768 Interrupt Collections @100250000 (flat, esz 2, psz 64K, shr 0)

$1.569798$ ITS: using cache flushing for cmd queue

$1.570425$ GICv3: using LPI property table @0x0000000100260000

$1.571064$ GIC: using cache flushing for LPI property table

$1.571581$ GICv3: CPU0: using allocated LPI pending table @0x0000000100270000

$1.572274$ rcu: Offload RCU callbacks from CPUs: 0-7.

$1.572757$ rcu: srcu_init: Setting srcu_struct sizes based on contention.

$1.675161$ arch_timer: cp15 timer(s) running at 24.00MHz (phys).

$1.675730$ clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

$1.676724$ sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

$1.678572$ Console: colour dummy device 80x25

$1.679036$ Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)

$1.679983$ pid_max: default: 32768 minimum: 301

$1.680529$ Mount-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)

$1.681241$ Mountpoint-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)

$1.682999$ cblist_init_generic: Setting adjustable number of callback queues.

$1.683678$ cblist_init_generic: Setting shift to 3 and lim to 1.

$1.684351$ rcu: Hierarchical SRCU implementation.

$1.684793$ rcu: Max phase no-delay instances is 1000.

$1.686004$ Platform MSI: msi-controller@fe640000 domain created

$1.686567$ Platform MSI: msi-controller@fe660000 domain created

$1.687434$ PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe640000 domain created

$1.688206$ PCI/MSI: /interrupt-controller@fe600000/msi-controller@fe660000 domain created

$1.689125$ EFI services will not be available.

$1.689745$ smp: Bringing up secondary CPUs ...

I/TC: Secondary CPU 1 initializing

I/TC: Secondary CPU 1 switching to normal world boot

I/TC: Secondary CPU 2 initializing

I/TC: Secondary CPU 2 switching to normal world boot

I/TC: Secondary CPU 3 initializing

I/TC: Secondary CPU 3 switching to normal world boot

I/TC: Secondary CPU 4 initializing

I/TC: Secondary CPU 4 switching to normal world boot

I/TC: Secondary CPU 5 initializing

I/TC: Secondary CPU 5 switching to normal world boot

I/TC: Secondary CPU 6 initializing

I/TC: Secondary CPU 6 switching to normal world boot

I/TC: Secondary CPU 7 initializing

I/TC: Secondary CPU 7 switching to normal world boot

$1.691238$ Detected VIPT I-cache on CPU1

$1.691300$ GICv3: CPU1: found redistributor 100 region 0:0x00000000fe6a0000

$1.691317$ GICv3: CPU1: using allocated LPI pending table @0x0000000100280000

1.691350\] CPU1: Booted secondary processor 0x0000000100 \[0x412fd050

$1.692448$ Detected VIPT I-cache on CPU2

$1.692508$ GICv3: CPU2: found redistributor 200 region 0:0x00000000fe6c0000

$1.692523$ GICv3: CPU2: using allocated LPI pending table @0x0000000100290000

1.692553\] CPU2: Booted secondary processor 0x0000000200 \[0x412fd050

$1.693644$ Detected VIPT I-cache on CPU3

$1.693699$ GICv3: CPU3: found redistributor 300 region 0:0x00000000fe6e0000

$1.693714$ GICv3: CPU3: using allocated LPI pending table @0x00000001002a0000

1.693741\] CPU3: Booted secondary processor 0x0000000300 \[0x412fd050

$1.694847$ CPU features: detected: Spectre-v4

$1.694850$ CPU features: detected: Spectre-BHB

$1.694853$ Detected PIPT I-cache on CPU4

$1.694891$ GICv3: CPU4: found redistributor 400 region 0:0x00000000fe700000

$1.694899$ GICv3: CPU4: using allocated LPI pending table @0x00000001002b0000

1.694919\] CPU4: Booted secondary processor 0x0000000400 \[0x414fd0b0

$1.695984$ Detected PIPT I-cache on CPU5

$1.696025$ GICv3: CPU5: found redistributor 500 region 0:0x00000000fe720000

$1.696034$ GICv3: CPU5: using allocated LPI pending table @0x00000001002c0000

1.696054\] CPU5: Booted secondary processor 0x0000000500 \[0x414fd0b0

$1.697103$ Detected PIPT I-cache on CPU6

$1.697144$ GICv3: CPU6: found redistributor 600 region 0:0x00000000fe740000

$1.697153$ GICv3: CPU6: using allocated LPI pending table @0x00000001002d0000

1.697173\] CPU6: Booted secondary processor 0x0000000600 \[0x414fd0b0

$1.698226$ Detected PIPT I-cache on CPU7

$1.698270$ GICv3: CPU7: found redistributor 700 region 0:0x00000000fe760000

$1.698279$ GICv3: CPU7: using allocated LPI pending table @0x00000001002e0000

1.698298\] CPU7: Booted secondary processor 0x0000000700 \[0x414fd0b0

$1.698342$ smp: Brought up 1 node, 8 CPUs

$1.715427$ SMP: Total of 8 processors activated.

$1.715862$ CPU features: detected: 32-bit EL0 Support

$1.716333$ CPU features: detected: Data cache clean to the PoU not required for I/D coherence

$1.717127$ CPU features: detected: Common not Private translations

$1.717703$ CPU features: detected: CRC32 instructions

$1.718175$ CPU features: detected: RCpc load-acquire (LDAPR)

$1.718703$ CPU features: detected: LSE atomic instructions

$1.719215$ CPU features: detected: Privileged Access Never

$1.719726$ CPU features: detected: RAS Extension Support

$1.720223$ CPU features: detected: Speculative Store Bypassing Safe (SSBS)

$1.720948$ CPU: All CPU(s) started at EL2

$1.721335$ alternatives: applying system-wide alternatives

$1.726800$ devtmpfs: initialized

$1.736851$ Registered cp15_barrier emulation handler

$1.737315$ Registered setend emulation handler

$1.737782$ clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns

$1.738668$ futex hash table entries: 2048 (order: 5, 131072 bytes, linear)

$1.740699$ pinctrl core: initialized pinctrl subsystem

$1.741339$ DMI not present or invalid.

$1.741786$ NET: Registered PF_NETLINK/PF_ROUTE protocol family

$1.742766$ DMA: preallocated 1024 KiB GFP_KERNEL pool for atomic allocations

$1.743546$ DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations

$1.744360$ DMA: preallocated 1024 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations

$1.745487$ Registered FIQ tty driver

$1.745914$ thermal_sys: Registered thermal governor 'fair_share'

$1.745916$ thermal_sys: Registered thermal governor 'step_wise'

$1.746467$ thermal_sys: Registered thermal governor 'user_space'

$1.747011$ thermal_sys: Registered thermal governor 'power_allocator'

$1.747572$ cpuidle: using governor menu

$1.748611$ hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

$1.749297$ ASID allocator initialised with 65536 entries

$1.751320$ ramoops: dmesg-0 0x18000@0x0000000000110000

$1.751796$ ramoops: dmesg-1 0x18000@0x0000000000128000

$1.752280$ ramoops: console 0x80000@0x0000000000140000

$1.752758$ ramoops: pmsg 0x30000@0x00000000001c0000

$1.753404$ printk: console $ramoops-1$ enabled

$1.753816$ pstore: Registered ramoops as persistent store backend

$1.754382$ ramoops: using 0xe0000@0x110000, ecc: 0

$1.771186$ platform mipi2-csi2: Fixed dependency cycle(s) with /csi2-dphy0/ports/port@1/endpoint@0

$1.772099$ platform rkcif-mipi-lvds2: Fixed dependency cycle(s) with /mipi2-csi2/ports/port@1/endpoint@0

$1.773039$ platform rkisp0-vir0: Fixed dependency cycle(s) with /rkcif-mipi-lvds2-sditf/port/endpoint

$1.781113$ platform fde20000.dsi: Fixed dependency cycle(s) with /dsi@fde20000/panel@0/ports/port@0/endpoint

$1.782020$ platform fde20000.dsi: Fixed dependency cycle(s) with /vop@fdd90000/ports/port@3/endpoint@0

$1.782994$ platform fde50000.dp: Fixed dependency cycle(s) with /vop@fdd90000/ports/port@2/endpoint@0

$1.784035$ platform fde80000.hdmi: Fixed dependency cycle(s) with /vop@fdd90000/ports/port@0/endpoint@2

$1.793233$ rockchip-gpio fd8a0000.gpio: probed /pinctrl/gpio@fd8a0000

$1.793984$ rockchip-gpio fec20000.gpio: probed /pinctrl/gpio@fec20000

$1.794701$ rockchip-gpio fec30000.gpio: probed /pinctrl/gpio@fec30000

$1.795443$ rockchip-gpio fec40000.gpio: probed /pinctrl/gpio@fec40000

$1.796210$ rockchip-gpio fec50000.gpio: probed /pinctrl/gpio@fec50000

$1.796830$ rockchip-pinctrl pinctrl: probed pinctrl

$1.798192$ platform fde60000.dp: Fixed dependency cycle(s) with /vop@fdd90000/ports/port@2/endpoint@5

$1.799277$ platform fdea0000.hdmi: Fixed dependency cycle(s) with /vop@fdd90000/ports/port@1/endpoint@5

$1.806674$ fiq_debugger fiq_debugger.0: error -ENXIO: IRQ fiq not found

$1.807288$ fiq_debugger fiq_debugger.0: error -ENXIO: IRQ wakeup not found

$1.807922$ fiq_debugger_probe: could not install nmi irq handler

$\[ 1.808512$ printk: console $ttyFIQ0$ enabled

1.808512] printk: console $ttyFIQ0$ enabled

$1.809286$ printk: bootconsole $uart8250$ disabled

$1.809779$ Registered fiq debugger ttyFIQ0

$1.810920$ iommu: Default domain type: Translated

$1.810926$ iommu: DMA domain TLB invalidation policy: strict mode

$1.811026$ SCSI subsystem initialized

$1.811078$ usbcore: registered new interface driver usbfs

$1.811090$ usbcore: registered new interface driver hub

$1.811100$ usbcore: registered new device driver usb

$1.811140$ mc: Linux media interface: v0.10

$1.811150$ videodev: Linux video capture interface: v2.00

$1.811169$ pps_core: LinuxPPS API ver. 1 registered

$1.811179$ PTP clock support registered

$1.811192$ EDAC MC: Ver: 3.0.0

$1.811407$ arm-scmi firmware:scmi: Enabled polling mode TX channel - prot_id:16

$1.811443$ arm-scmi firmware:scmi: SCMI Notifications - Core Enabled.

$1.811467$ arm-scmi firmware:scmi: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0

$1.812413$ Advanced Linux Sound Architecture Driver Initialized.

$1.812549$ Bluetooth: Core ver 2.22

$1.812559$ NET: Registered PF_BLUETOOTH protocol family

$1.812563$ Bluetooth: HCI device and connection manager initialized

$1.812567$ Bluetooth: HCI socket layer initialized

$1.812571$ Bluetooth: L2CAP socket layer initialized

$1.812577$ Bluetooth: SCO socket layer initialized

$1.813819$ rockchip-cpuinfo cpuinfo: SoC : 35881000

$1.813825$ rockchip-cpuinfo cpuinfo: Serial : 7f4af88b63ded61f

$1.814318$ clocksource: Switched to clocksource arch_sys_counter

$1.817032$ NET: Registered PF_INET protocol family

$1.817122$ IP idents hash table entries: 131072 (order: 8, 1048576 bytes, linear)

$1.819958$ tcp_listen_portaddr_hash hash table entries: 4096 (order: 4, 65536 bytes, linear)

$1.820005$ Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)

$1.820012$ TCP established hash table entries: 65536 (order: 7, 524288 bytes, linear)

$1.820354$ TCP bind hash table entries: 65536 (order: 9, 2097152 bytes, linear)

$1.821604$ TCP: Hash tables configured (established 65536 bind 65536)

$1.821635$ UDP hash table entries: 4096 (order: 5, 131072 bytes, linear)

$1.821757$ UDP-Lite hash table entries: 4096 (order: 5, 131072 bytes, linear)

$1.821914$ NET: Registered PF_UNIX/PF_LOCAL protocol family

$1.822057$ RPC: Registered named UNIX socket transport module.

$1.822061$ RPC: Registered udp transport module.

$1.822064$ RPC: Registered tcp transport module.

$1.822067$ RPC: Registered tcp NFSv4.1 backchannel transport module.

$1.822338$ PCI: CLS 0 bytes, default 64

$1.822850$ rockchip-thermal fec00000.tsadc: Missing rockchip,grf property

$1.823003$ thermal thermal_zone1: power_allocator: sustainable_power will be estimated

$1.823052$ thermal thermal_zone2: power_allocator: sustainable_power will be estimated

$1.823098$ thermal thermal_zone3: power_allocator: sustainable_power will be estimated

$1.823143$ thermal thermal_zone4: power_allocator: sustainable_power will be estimated

$1.823189$ thermal thermal_zone5: power_allocator: sustainable_power will be estimated

$1.823236$ thermal thermal_zone6: power_allocator: sustainable_power will be estimated

$1.823411$ rockchip-thermal fec00000.tsadc: tsadc is probed successfully!

$1.824257$ hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available

$2.105565$ Initialise system trusted keyrings

$2.105637$ workingset: timestamp_bits=62 max_order=21 bucket_order=0

$2.106952$ squashfs: version 4.0 (2009/01/31) Phillip Lougher

$2.107138$ NFS: Registering the id_resolver key type

$2.107147$ Key type id_resolver registered

$2.107151$ Key type id_legacy registered

$2.107162$ ntfs: driver 2.1.32 $Flags: R/O$ .

$2.107270$ fuse: init (API version 7.37)

$2.107372$ SGI XFS with security attributes, no debug enabled

$2.127578$ NET: Registered PF_ALG protocol family

$2.127586$ Key type asymmetric registered

$2.127589$ Asymmetric key parser 'x509' registered

$2.127607$ Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)

$2.127611$ io scheduler mq-deadline registered

$2.127615$ io scheduler kyber registered

$2.128422$ rockchip-csi2-dphy-hw fedc0000.csi2-dphy0-hw: csi2 dphy hw probe successfully!

$2.128479$ rockchip-csi2-dphy-hw fedc8000.csi2-dphy1-hw: csi2 dphy hw probe successfully!

$2.134801$ rockchip-hdptx-phy-hdmi fed60000.hdmiphy: hdptx phy init success

$2.135316$ rockchip-hdptx-phy-hdmi fed70000.hdmiphy: hdptx phy init success

$2.136969$ rk-pcie fe190000.pcie: invalid prsnt-gpios property in node

$2.137104$ rk-pcie fe170000.pcie: invalid prsnt-gpios property in node

$2.142289$ pwm-backlight backlight: supply power not found, using dummy regulator

$2.142531$ iep: Module initialized.

$2.142555$ mpp_service mpp-srv: unknown mpp version for missing VCS info

$2.142560$ mpp_service mpp-srv: probe start

$2.142562$ rk-pcie fe170000.pcie: host bridge /pcie@fe170000 ranges:

$2.142575$ rk-pcie fe170000.pcie: IO 0x00f2100000..0x00f21fffff -> 0x00f2100000

$2.142584$ rk-pcie fe170000.pcie: MEM 0x00f2200000..0x00f2ffffff -> 0x00f2200000

$2.142590$ rk-pcie fe170000.pcie: MEM 0x0980000000..0x09bfffffff -> 0x0980000000

$2.142620$ rk-pcie fe190000.pcie: host bridge /pcie@fe190000 ranges:

$2.142625$ rk-pcie fe170000.pcie: iATU unroll: enabled

$2.142632$ rk-pcie fe170000.pcie: iATU regions: 8 ob, 8 ib, align 64K, limit 8G

$2.142637$ rk-pcie fe190000.pcie: IO 0x00f4100000..0x00f41fffff -> 0x00f4100000

$2.142658$ rk-pcie fe190000.pcie: MEM 0x00f4200000..0x00f4ffffff -> 0x00f4200000

$2.142672$ rk-pcie fe190000.pcie: MEM 0x0a00000000..0x0a3fffffff -> 0x0a00000000

$2.142717$ rk-pcie fe190000.pcie: iATU unroll: enabled

$2.142725$ rk-pcie fe190000.pcie: iATU regions: 8 ob, 8 ib, align 64K, limit 8G

$2.143715$ mpp_vepu2 jpege-ccu: probing start

$2.143722$ mpp_vepu2 jpege-ccu: probing finish

$2.144368$ mpp_rkvdec2 fdc30000.rkvdec-ccu: rkvdec-ccu, probing start

$2.144413$ mpp_rkvdec2 fdc30000.rkvdec-ccu: ccu-mode: 1

$2.144418$ mpp_rkvdec2 fdc30000.rkvdec-ccu: probing finish

$2.144672$ mpp_rkvenc2 rkvenc-ccu: probing start

$2.144677$ mpp_rkvenc2 rkvenc-ccu: probing finish

$2.144975$ mpp_service mpp-srv: probe success

$2.152216$ dma-pl330 fea10000.dma-controller: Loaded driver for PL330 DMAC-241330

$2.152224$ dma-pl330 fea10000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16

$2.152779$ dma-pl330 fea30000.dma-controller: Loaded driver for PL330 DMAC-241330

$2.152786$ dma-pl330 fea30000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16

$2.153329$ dma-pl330 fed10000.dma-controller: Loaded driver for PL330 DMAC-241330

$2.153336$ dma-pl330 fed10000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16

$2.153777$ rockchip-pvtm fda40000.pvtm: pvtm@0 probed

$2.153819$ rockchip-pvtm fda50000.pvtm: pvtm@1 probed

$2.153855$ rockchip-pvtm fda60000.pvtm: pvtm@2 probed

$2.153887$ rockchip-pvtm fdaf0000.pvtm: pvtm@3 probed

$2.153919$ rockchip-pvtm fdb30000.pvtm: pvtm@4 probed

$2.154307$ rockchip-system-monitor rockchip-system-monitor: system monitor probe

$2.154914$ Serial: 8250/16550 driver, 15 ports, IRQ sharing disabled

$2.155296$ febc0000.serial: ttyS9 at MMIO 0xfebc0000 (irq = 38, base_baud = 1500000) is a 16550A

$2.159755$ rk_iommu fdca0000.iommu: av1d iommu enabled

$2.163143$ mipi-dsi fde20000.dsi.0: Fixed dependency cycle(s) with /dsi@fde20000/ports/port@1/endpoint

$2.172022$ brd: module loaded

$2.173799$ loop: module loaded

$2.173928$ zram: Added device: zram0

$2.174027$ lkdtm: No crash points registered, enable through debugfs

$2.174929$ ahci fe210000.sata: supply ahci not found, using dummy regulator

$2.174974$ ahci fe210000.sata: supply phy not found, using dummy regulator

$2.174995$ naneng-combphy fee00000.phy: phy type select 1 overwriting type 2

$2.175021$ ahci fe210000.sata: supply target not found, using dummy regulator

$2.175068$ ahci fe210000.sata: forcing port_map 0x0 -> 0x1

$2.175086$ ahci fe210000.sata: AHCI 0001.0300 32 slots 1 ports 6 Gbps 0x1 impl platform mode

$2.175095$ ahci fe210000.sata: flags: ncq sntf pm led clo only pmp fbs pio slum part ccc apst

$2.175106$ ahci fe210000.sata: port 0 can do FBS, forcing FBSCP

$2.175464$ scsi host0: ahci

$2.175554$ ata1: SATA max UDMA/133 mmio $mem 0xfe210000-0xfe210fff$ port 0x100 irq 63

$2.176324$ rockchip-spi feb20000.spi: no high_speed pinctrl state

$2.176578$ spi spi2.0: Fixed dependency cycle(s) with /spi@feb20000/rk806single@0/regulators/DCDC_REG7

$2.176604$ spi spi2.0: Fixed dependency cycle(s) with /spi@feb20000/rk806single@0/pinctrl_rk806/rk806_dvs1_pwrdn

$2.176612$ spi spi2.0: Fixed dependency cycle(s) with /spi@feb20000/rk806single@0/pinctrl_rk806/rk806_dvs3_null

$2.176620$ spi spi2.0: Fixed dependency cycle(s) with /spi@feb20000/rk806single@0/pinctrl_rk806/rk806_dvs2_null

$2.176628$ spi spi2.0: Fixed dependency cycle(s) with /spi@feb20000/rk806single@0/pinctrl_rk806/rk806_dvs1_null

$2.177063$ rk806 spi2.0: chip id: RK806,ver:0x2, 0x1

$2.177184$ rk806 spi2.0: ON: 0x80 OFF:0x0

$2.188279$ rk806 spi2.0: no sleep-setting state

$2.188289$ rk806 spi2.0: no reset-setting pinctrl state

$2.188294$ rk806 spi2.0: no dvs-setting pinctrl state

$2.189795$ rockchip-spi feb20000.spi: probed, poll=0, rsd=0, cs-inactive=0, ready=0

$2.190525$ CAN device driver interface

$2.191188$ rk_gmac-dwmac fe1c0000.ethernet: IRQ eth_lpi not found

$2.191311$ rk_gmac-dwmac fe1c0000.ethernet: supply phy not found, using dummy regulator

$2.191351$ rk_gmac-dwmac fe1c0000.ethernet: clock input or output? (input).

$2.191357$ rk_gmac-dwmac fe1c0000.ethernet: TX delay(0x44).

$2.191363$ rk_gmac-dwmac fe1c0000.ethernet: Can not read property: rx_delay.

$2.191367$ rk_gmac-dwmac fe1c0000.ethernet: set rx_delay to 0xffffffff

$2.191382$ rk_gmac-dwmac fe1c0000.ethernet: integrated PHY? (no).

$2.191389$ rk_gmac-dwmac fe1c0000.ethernet: cannot get clock mac_clk_rx

$2.191394$ rk_gmac-dwmac fe1c0000.ethernet: cannot get clock mac_clk_tx

$2.191405$ rk_gmac-dwmac fe1c0000.ethernet: cannot get clock clk_mac_speed

$2.191410$ rk_gmac-dwmac fe1c0000.ethernet: clock input from PHY

$2.191627$ rk_gmac-dwmac fe1c0000.ethernet: init for RGMII_RXID

$2.191713$ rk_gmac-dwmac fe1c0000.ethernet: User ID: 0x30, Synopsys ID: 0x51

$2.191720$ rk_gmac-dwmac fe1c0000.ethernet: DWMAC4/5

$2.191726$ rk_gmac-dwmac fe1c0000.ethernet: DMA HW capability register supported

$2.191731$ rk_gmac-dwmac fe1c0000.ethernet: RX Checksum Offload Engine supported

$2.191735$ rk_gmac-dwmac fe1c0000.ethernet: TX Checksum insertion supported

$2.191740$ rk_gmac-dwmac fe1c0000.ethernet: Wake-Up On Lan supported

$2.191764$ rk_gmac-dwmac fe1c0000.ethernet: TSO supported

$2.191768$ rk_gmac-dwmac fe1c0000.ethernet: Enable RX Mitigation via HW Watchdog Timer

$2.191773$ rk_gmac-dwmac fe1c0000.ethernet: Enabled L3L4 Flow TC (entries=2)

$2.191778$ rk_gmac-dwmac fe1c0000.ethernet: Enabled RFS Flow TC (entries=10)

$2.191783$ rk_gmac-dwmac fe1c0000.ethernet: TSO feature enabled

$2.191788$ rk_gmac-dwmac fe1c0000.ethernet: Using 32/32 bits DMA host/device width

$2.329333$ usbcore: registered new interface driver rtl8150

$2.329346$ usbcore: registered new device driver r8152-cfgselector

$2.329361$ usbcore: registered new interface driver r8152

$2.335561$ phy phy-fd5d4000.syscon:usb2-phy@4000.3: illegal mode

$2.335573$ xhci-hcd xhci-hcd.3.auto: xHCI Host Controller

$2.335651$ xhci-hcd xhci-hcd.3.auto: new USB bus registered, assigned bus number 1

$2.335725$ xhci-hcd xhci-hcd.3.auto: USB3 root hub has no ports

$2.335731$ xhci-hcd xhci-hcd.3.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000800002010010

$2.335752$ xhci-hcd xhci-hcd.3.auto: irq 71, io mem 0xfc400000

$2.335851$ usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01

$2.335859$ usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1

$2.335865$ usb usb1: Product: xHCI Host Controller

$2.335870$ usb usb1: Manufacturer: Linux 6.1.75 xhci-hcd

$2.335875$ usb usb1: SerialNumber: xhci-hcd.3.auto

$2.336053$ hub 1-0:1.0: USB hub found

$2.336065$ hub 1-0:1.0: 1 port detected

$2.336191$ usbcore: registered new interface driver cdc_acm

$2.336196$ cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

$2.336277$ usbcore: registered new interface driver uas

$2.336299$ usbcore: registered new interface driver usb-storage

$2.336323$ usbcore: registered new interface driver usbserial_generic

$2.336332$ usbserial: USB Serial support registered for generic

$2.336343$ usbcore: registered new interface driver cp210x

$2.336351$ usbserial: USB Serial support registered for cp210x

$2.336364$ usbcore: registered new interface driver ftdi_sio

$2.336372$ usbserial: USB Serial support registered for FTDI USB Serial Device

$2.336392$ usbcore: registered new interface driver keyspan

$2.336400$ usbserial: USB Serial support registered for Keyspan - (without firmware)

$2.336408$ usbserial: USB Serial support registered for Keyspan 1 port adapter

$2.336415$ usbserial: USB Serial support registered for Keyspan 2 port adapter

$2.336423$ usbserial: USB Serial support registered for Keyspan 4 port adapter

$2.336436$ usbcore: registered new interface driver option

$2.336443$ usbserial: USB Serial support registered for GSM modem (1-port)

$2.336467$ usbcore: registered new interface driver oti6858

$2.336475$ usbserial: USB Serial support registered for oti6858

$2.336487$ usbcore: registered new interface driver pl2303

$2.336495$ usbserial: USB Serial support registered for pl2303

$2.336507$ usbcore: registered new interface driver qcserial

$2.336514$ usbserial: USB Serial support registered for Qualcomm USB modem

$2.336527$ usbcore: registered new interface driver sierra

$2.336535$ usbserial: USB Serial support registered for Sierra USB modem

$2.336849$ <<-GTP-INFO->> GTP driver installing...

$2.336941$ usbcore: registered new interface driver usbtouchscreen

$2.337197$ ehci-platform fc800000.usb: EHCI Host Controller

$2.337203$ ohci-platform fc840000.usb: Generic Platform OHCI controller

$2.337275$ ohci-platform fc840000.usb: new USB bus registered, assigned bus number 3

$2.337287$ ehci-platform fc800000.usb: new USB bus registered, assigned bus number 2

$2.337317$ ohci-platform fc840000.usb: irq 74, io mem 0xfc840000

$2.337339$ ehci-platform fc800000.usb: irq 72, io mem 0xfc800000

$2.337366$ ehci-platform fc880000.usb: EHCI Host Controller

$2.337370$ ohci-platform fc8c0000.usb: Generic Platform OHCI controller

$2.337455$ ohci-platform fc8c0000.usb: new USB bus registered, assigned bus number 4

$2.337487$ ohci-platform fc8c0000.usb: irq 75, io mem 0xfc8c0000

$2.337512$ ehci-platform fc880000.usb: new USB bus registered, assigned bus number 5

$2.337616$ ehci-platform fc880000.usb: irq 73, io mem 0xfc880000

$2.337828$ input: rk805 pwrkey as /devices/platform/feb20000.spi/spi_master/spi2/spi2.0/rk805-pwrkey.1.auto/input/input0

$2.338031$ i2c_dev: i2c /dev entries driver

$2.350328$ ehci-platform fc800000.usb: USB 2.0 started, EHCI 1.00

$2.350434$ usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01

$2.350445$ usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1

$2.350450$ usb usb2: Product: EHCI Host Controller

$2.350455$ usb usb2: Manufacturer: Linux 6.1.75 ehci_hcd

$2.350460$ usb usb2: SerialNumber: fc800000.usb

$2.350646$ hub 2-0:1.0: USB hub found

$2.350664$ hub 2-0:1.0: 1 port detected

$2.351455$ rk-pcie fe190000.pcie: PCIe Linking... LTSSM is 0x3

$2.360151$ i2c 3-001a: Fixed dependency cycle(s) with /csi2-dphy0/ports/port@0/endpoint@1

$2.360638$ i2c i2c-4: 1 i2c clients have been registered at 0x68

$2.362359$ rtc-hym8563 4-0051: rtc information is invalid

$2.366342$ ehci-platform fc880000.usb: USB 2.0 started, EHCI 1.00

$2.366593$ usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.01

$2.366612$ usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1

$2.366625$ usb usb5: Product: EHCI Host Controller

$2.366636$ usb usb5: Manufacturer: Linux 6.1.75 ehci_hcd

$2.366647$ usb usb5: SerialNumber: fc880000.usb

$2.367011$ hub 5-0:1.0: USB hub found

$2.367059$ hub 5-0:1.0: 1 port detected

$2.371125$ rtc-hym8563 4-0051: registered as rtc0

$2.372183$ rtc-hym8563 4-0051: setting system clock to 2021-01-01T12:00:00 UTC (1609502400)

$2.372603$ <<-GTP-INFO->> GTP Driver Version: V2.4<2014/11/28>

$2.372609$ <<-GTP-INFO->> GTP I2C Address: 0x5d

$2.372648$ <<-GTP-INFO->> Guitar reset

$2.398374$ usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01

$2.398385$ usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1

$2.398391$ usb usb4: Product: Generic Platform OHCI controller

$2.398396$ usb usb4: Manufacturer: Linux 6.1.75 ohci_hcd

$2.398401$ usb usb4: SerialNumber: fc8c0000.usb

$2.398564$ hub 4-0:1.0: USB hub found

$2.398576$ hub 4-0:1.0: 1 port detected

$2.398702$ usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 6.01

$2.398711$ usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1

$2.398717$ usb usb3: Product: Generic Platform OHCI controller

$2.398722$ usb usb3: Manufacturer: Linux 6.1.75 ohci_hcd

$2.398727$ usb usb3: SerialNumber: fc840000.usb

$2.398886$ hub 3-0:1.0: USB hub found

$2.398899$ hub 3-0:1.0: 1 port detected

$2.410319$ rk-pcie fe170000.pcie: PCIe Link up, LTSSM is 0x30011

$2.410330$ rk-pcie fe170000.pcie: PCIe Gen.1 x1 link up

$2.410381$ rk-pcie fe170000.pcie: PCI host bridge to bus 0002:20

2.410387\] pci_bus 0002:20: root bus resource \[bus 20-2f

$2.410395$ pci_bus 0002:20: root bus resource $io 0x0000-0xfffff$ (bus address $0xf2100000-0xf21fffff$ )

2.410401\] pci_bus 0002:20: root bus resource \[mem 0xf2200000-0xf2ffffff

2.410406\] pci_bus 0002:20: root bus resource \[mem 0x980000000-0x9bfffffff pref

$2.410425$ pci 0002:20:00.0: $1d87:3588$ type 01 class 0x060400

2.410443\] pci 0002:20:00.0: reg 0x38: \[mem 0x00000000-0x0000ffff pref

$2.410486$ pci 0002:20:00.0: supports D1 D2

$2.410491$ pci 0002:20:00.0: PME# supported from D0 D1 D3hot

$2.415811$ pci 0002:20:00.0: Primary bus is hard wired to 0

$2.415817$ pci 0002:20:00.0: bridge configuration invalid ( $bus 01-ff$ ), reconfiguring

$2.415946$ pci 0002:21:00.0: $14e4:449d$ type 00 class 0x028000

2.416034\] pci 0002:21:00.0: reg 0x10: \[mem 0x00000000-0x0000ffff 64bit

2.416088\] pci 0002:21:00.0: reg 0x18: \[mem 0x00000000-0x003fffff 64bit

$2.416605$ pci 0002:21:00.0: supports D1 D2

$2.416610$ pci 0002:21:00.0: PME# supported from D0 D1 D2 D3hot D3cold

$2.426367$ pci_bus 0002:21: busn_res: $bus 21-2f$ end is updated to 21

2.426383\] pci 0002:20:00.0: BAR 8: assigned \[mem 0xf2200000-0xf27fffff

2.426391\] pci 0002:20:00.0: BAR 6: assigned \[mem 0xf2800000-0xf280ffff pref

2.426399\] pci 0002:21:00.0: BAR 2: assigned \[mem 0xf2400000-0xf27fffff 64bit

2.426443\] pci 0002:21:00.0: BAR 0: assigned \[mem 0xf2200000-0xf220ffff 64bit

2.426486\] pci 0002:20:00.0: PCI bridge to \[bus 21

2.426492\] pci 0002:20:00.0: bridge window \[mem 0xf2200000-0xf27fffff

$2.427478$ pcieport 0002:20:00.0: PME: Signaling with IRQ 91

$2.438336$ rk-pcie fe190000.pcie: PCIe Link up, LTSSM is 0x30011

$2.438360$ rk-pcie fe190000.pcie: PCIe Gen.1 x1 link up

$2.438475$ rk-pcie fe190000.pcie: PCI host bridge to bus 0004:40

2.438491\] pci_bus 0004:40: root bus resource \[bus 40-4f

$2.438505$ pci_bus 0004:40: root bus resource $io 0x100000-0x1fffff$ (bus address $0xf4100000-0xf41fffff$ )

2.438518\] pci_bus 0004:40: root bus resource \[mem 0xf4200000-0xf4ffffff

2.438531\] pci_bus 0004:40: root bus resource \[mem 0xa00000000-0xa3fffffff pref

$2.438563$ pci 0004:40:00.0: $1d87:3588$ type 01 class 0x060400

2.438592\] pci 0004:40:00.0: reg 0x38: \[mem 0x00000000-0x0000ffff pref

$2.438653$ pci 0004:40:00.0: supports D1 D2

$2.438665$ pci 0004:40:00.0: PME# supported from D0 D1 D3hot

$2.448880$ pci 0004:40:00.0: Primary bus is hard wired to 0

$2.448900$ pci 0004:40:00.0: bridge configuration invalid ( $bus 01-ff$ ), reconfiguring

$2.449078$ pci 0004:41:00.0: $10ec:8168$ type 00 class 0x020000

2.449158\] pci 0004:41:00.0: reg 0x10: \[io 0x0000-0x00ff

2.449252\] pci 0004:41:00.0: reg 0x18: \[mem 0x00000000-0x00000fff 64bit

2.449316\] pci 0004:41:00.0: reg 0x20: \[mem 0x00000000-0x00003fff 64bit

$2.449749$ pci 0004:41:00.0: supports D1 D2

$2.449761$ pci 0004:41:00.0: PME# supported from D0 D1 D2 D3hot D3cold

$2.458400$ pci_bus 0004:41: busn_res: $bus 41-4f$ end is updated to 41

2.458434\] pci 0004:40:00.0: BAR 8: assigned \[mem 0xf4200000-0xf42fffff

2.458450\] pci 0004:40:00.0: BAR 6: assigned \[mem 0xf4300000-0xf430ffff pref

2.458465\] pci 0004:40:00.0: BAR 7: assigned \[io 0x100000-0x100fff

2.458481\] pci 0004:41:00.0: BAR 4: assigned \[mem 0xf4200000-0xf4203fff 64bit

2.458537\] pci 0004:41:00.0: BAR 2: assigned \[mem 0xf4204000-0xf4204fff 64bit

2.458591\] pci 0004:41:00.0: BAR 0: assigned \[io 0x100000-0x1000ff

2.458616\] pci 0004:40:00.0: PCI bridge to \[bus 41

2.458629\] pci 0004:40:00.0: bridge window \[io 0x100000-0x100fff

2.458642\] pci 0004:40:00.0: bridge window \[mem 0xf4200000-0xf42fffff

$2.460683$ pcieport 0004:40:00.0: PME: Signaling with IRQ 101

$2.460882$ r8168 Gigabit Ethernet driver 8.051.02-NAPI loaded

$2.460928$ r8168 0004:41:00.0: enabling device (0000 -> 0003)

$2.476671$ r8168 0004:41:00.0 (unnamed net_device) (uninitialized): Invalid ether addr 00:00:00:00:00:00

$2.476696$ r8168 0004:41:00.0 (unnamed net_device) (uninitialized): Random ether addr f6:68:84:99:9d:7e

$2.477066$ r8168: This product is covered by one or more of the following patents: US6,570,884, US6,115,776, and US6,327,625.

$2.479144$ This program comes with ABSOLUTELY NO WARRANTY; for details, please see <http://www.gnu.org/licenses/\>.

$2.479144$ This is free software, and you are welcome to redistribute it under certain conditions; see <http://www.gnu.org/licenses/\>.

$2.487876$ <<-GTP-INFO->> IC Version: 911_1060

$2.488569$ ata1: SATA link down (SStatus 0 SControl 300)

$2.512389$ <<-GTP-INFO->> Sensor_ID: 2

$2.512405$ sensor_id = 2

$2.512415$ <<-GTP-INFO->> get goodix,cfg-group2

$2.512426$ <<-GTP-INFO->> Config group2 used,length: 186

$2.513512$ <<-GTP-INFO->> Driver send config.

$2.535739$ <<-GTP-INFO->> X_MAX: 1200, Y_MAX: 1920, TRIGGER: 0x01

$2.554349$ <<-GTP-INFO->> create proc entry gt9xx_config success

$2.554415$ input: goodix-ts as /devices/virtual/input/input1

$2.554496$ <<-GTP-INFO->> GTP works in interrupt mode.

$2.554501$ <<-GTP-INFO->> Applied memory size:2562.

$2.554505$ <<-GTP-INFO->> I2C function: without pre and end cmd!

$2.554511$ <<-GTP-INFO->> Create proc entry success!

$2.554590$ i2c 6-004e: Fixed dependency cycle(s) with /usbdrd3_0/usb@fc000000/port/endpoint@0

$2.554918$ husb311 6-004e: fail to read Vendor id(-6)

$2.554925$ husb311 6-004e: check vid/pid fail(-6)

$2.555922$ rkcifhw fdce0000.rkcif: Adding to iommu group 16

$2.556720$ rkcifhw fdce0000.rkcif: No reserved memory region assign to CIF

$2.556808$ rkcif rkcif-mipi-lvds2: Adding to iommu group 16

$2.556821$ rkcif rkcif-mipi-lvds2: rkcif driver version: v00.02.00

$2.556874$ rkcif rkcif-mipi-lvds2: attach to cif hw node

$2.556879$ rkcif rkcif-mipi-lvds2: rkcif wait line 0

$2.556884$ rkcif rkcif-mipi-lvds2: rkcif fastboot reserve bufs num 3

$2.556891$ : terminal subdev does not exist

$2.556897$ : terminal subdev does not exist

$2.556902$ : terminal subdev does not exist

$2.556906$ : terminal subdev does not exist

$2.556911$ : get_remote_sensor: video pad $0$ is null

$2.556915$ : rkcif_update_sensor_info: stream $0$ get remote sensor_sd failed!

$2.556921$ : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)

$2.556927$ : get_remote_sensor: video pad $0$ is null

$2.556931$ : rkcif_update_sensor_info: stream $0$ get remote sensor_sd failed!

$2.556935$ : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)

$2.556941$ : get_remote_sensor: video pad $0$ is null

$2.556945$ : rkcif_update_sensor_info: stream $0$ get remote sensor_sd failed!

$2.556949$ : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)

$2.556954$ : get_remote_sensor: video pad $0$ is null

$2.556958$ : rkcif_update_sensor_info: stream $0$ get remote sensor_sd failed!

$2.556962$ : rkcif_scale_set_fmt: req(40, 30) src out(0, 0)

$2.557570$ rkcif rkcif-mipi-lvds2: No memory-region-thunderboot specified

$2.558287$ rockchip-mipi-csi2-hw fdd10000.mipi0-csi2-hw: enter mipi csi2 hw probe!

$2.558372$ rockchip-mipi-csi2-hw fdd10000.mipi0-csi2-hw: probe success, v4l2_dev:mipi0-csi2-hw!

$2.558401$ rockchip-mipi-csi2-hw fdd20000.mipi1-csi2-hw: enter mipi csi2 hw probe!

$2.558453$ rockchip-mipi-csi2-hw fdd20000.mipi1-csi2-hw: probe success, v4l2_dev:mipi1-csi2-hw!

$2.558476$ rockchip-mipi-csi2-hw fdd30000.mipi2-csi2-hw: enter mipi csi2 hw probe!

$2.558527$ rockchip-mipi-csi2-hw fdd30000.mipi2-csi2-hw: probe success, v4l2_dev:mipi2-csi2-hw!

$2.558550$ rockchip-mipi-csi2-hw fdd40000.mipi3-csi2-hw: enter mipi csi2 hw probe!

$2.558599$ rockchip-mipi-csi2-hw fdd40000.mipi3-csi2-hw: probe success, v4l2_dev:mipi3-csi2-hw!

$2.558621$ rockchip-mipi-csi2-hw fdd50000.mipi4-csi2-hw: enter mipi csi2 hw probe!

$2.558668$ rockchip-mipi-csi2-hw fdd50000.mipi4-csi2-hw: probe success, v4l2_dev:mipi4-csi2-hw!

$2.558690$ rockchip-mipi-csi2-hw fdd60000.mipi5-csi2-hw: enter mipi csi2 hw probe!

$2.558738$ rockchip-mipi-csi2-hw fdd60000.mipi5-csi2-hw: probe success, v4l2_dev:mipi5-csi2-hw!

$2.559088$ rockchip-mipi-csi2 mipi2-csi2: attach to csi2 hw node

$2.559106$ rkcif rkcif-mipi-lvds2: Entity type for entity rockchip-mipi-csi2 was not initialized!

$2.559113$ rockchip-mipi-csi2: Async registered subdev

$2.559117$ rockchip-mipi-csi2: probe success, v4l2_dev:rkcif-mipi-lvds2!

$2.559871$ rkisp_hw fdcb0000.rkisp: Adding to iommu group 15

$2.559981$ rkisp_hw fdcb0000.rkisp: is_thunderboot: 0

$2.559987$ rkisp_hw fdcb0000.rkisp: Missing rockchip,grf property

$2.560001$ rkisp_hw fdcb0000.rkisp: max input:0x0@0fps

$2.560076$ rkisp_hw fdcb0000.rkisp: no find phandle sram

$2.560276$ rkisp rkisp0-vir0: rkisp driver version: v02.06.00

$2.560336$ rkisp rkisp0-vir0: No memory-region-thunderboot specified

$2.560396$ rkisp rkisp0-vir0: Entity type for entity rkisp-isp-subdev was not initialized!

$2.561710$ rk_hdmirx fdee0000.hdmirx-controller: No reserved memory for HDMIRX, use default CMA

$2.561728$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_get_phy_cpuid_func: mpidr: 0x0000000500, phy_cpuid:0x5

$2.561739$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_probe: cpu_aff:0x500, Bound_cpu:5, wdt_cfg_bound_cpu:2, phy_cpuid:5

$2.562220$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_interrupts_setup: 0

$2.562815$ rk_hdmirx fdee0000.hdmirx-controller: rk_hdmirx_hdcp_register success

$2.562831$ rk_hdmirx fdee0000.hdmirx-controller: fdee0000.hdmirx-controller driver probe ok!

$2.563225$ usbcore: registered new interface driver uvcvideo

$2.563803$ Bluetooth: HCI UART driver ver 2.3

$2.563810$ Bluetooth: HCI UART protocol H4 registered

$2.563814$ Bluetooth: HCI UART protocol ATH3K registered

$2.563834$ usbcore: registered new interface driver bfusb

$2.563854$ usbcore: registered new interface driver btusb

$2.564544$ cpu cpu0: bin=0

$2.564722$ cpu cpu0: leakage=10

$2.566174$ cpu cpu0: pvtm=1437

$2.566346$ cpu cpu0: pvtm-volt-sel=2

$2.568226$ cpu cpu4: bin=0

$2.568401$ cpu cpu4: leakage=9

$2.574924$ cpu cpu4: pvtm=1663

$2.578920$ cpu cpu4: pvtm-volt-sel=3

$2.581558$ cpu cpu6: bin=0

$2.581732$ cpu cpu6: leakage=9

$2.588268$ cpu cpu6: pvtm=1648

$2.592280$ cpu cpu6: pvtm-volt-sel=3

$2.594066$ cpu cpu0: avs=0

$2.595126$ cpu cpu4: avs=0

$2.596013$ cpu cpu6: avs=0

$2.596089$ cpu cpu0: l=15000 h=85000 hyst=5000 l_limit=0 h_limit=1608000000 h_table=0

$2.596522$ cpu cpu0: EM: created perf domain

$2.596982$ cpu cpu4: l=15000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0

$2.605171$ cpu cpu4: EM: created perf domain

$2.605819$ cpu cpu6: l=15000 h=85000 hyst=5000 l_limit=0 h_limit=2208000000 h_table=0

$2.606327$ usb 2-1: new high-speed USB device number 2 using ehci-platform

$2.618397$ cpu cpu6: EM: created perf domain

$2.619291$ sdhci: Secure Digital Host Controller Interface driver

$2.619302$ sdhci: Copyright(c) Pierre Ossman

$2.619306$ Synopsys Designware Multimedia Card Interface Driver

$2.619635$ sdhci-pltfm: SDHCI platform and OF driver helper

$2.620338$ dwmmc_rockchip fe2c0000.mmc: No normal pinctrl state

$2.620355$ dwmmc_rockchip fe2c0000.mmc: No idle pinctrl state

$2.620423$ dwmmc_rockchip fe2c0000.mmc: IDMAC supports 32-bit address mode.

$2.620461$ dwmmc_rockchip fe2c0000.mmc: Using internal DMA controller.

$2.620476$ dwmmc_rockchip fe2c0000.mmc: Version ID is 270a

$2.620509$ mmc0: CQHCI version 5.10

$2.620518$ dwmmc_rockchip fe2c0000.mmc: DW MMC controller at irq 124,32 bit host data width,256 deep fifo

$2.620673$ arm-scmi firmware:scmi: Failed. SCMI protocol 17 not active.

$2.620702$ SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....

$2.621155$ cryptodev: driver 1.12 loaded.

$2.621203$ hid: raw HID events driver (C) Jiri Kosina

$2.621433$ usbcore: registered new interface driver usbhid

$2.621446$ usbhid: USB HID core driver

$2.625533$ dwmmc_rockchip fe2c0000.mmc: Failed getting OCR mask: -22

$2.629586$ dwmmc_rockchip fe2c0000.mmc: could not set regulator OCR (-22)

$2.629610$ dwmmc_rockchip fe2c0000.mmc: failed to enable vmmc regulator

$2.636488$ optee: probing for conduit method.

$2.636527$ optee: revision 3.13 (185dc3c9)

$2.636724$ optee: dynamic shared memory is enabled

$2.636889$ optee: initialized driver

$2.637480$ usbcore: registered new interface driver snd-usb-audio

$2.639067$ ES8323 7-0011: i2c recv Failed

$2.642776$ rockchip-i2s-tdm fddf0000.i2s: CLK-ALWAYS-ON: mclk: 12288000, bclk: 3072000, fsync: 48000

$2.643590$ rockchip-i2s-tdm fe470000.i2s: Register PCM for TRCM mode

$2.644194$ rockchip-i2s-tdm fddf4000.i2s: CLK-ALWAYS-ON: mclk: 12288000, bclk: 3072000, fsync: 48000

$2.649645$ mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0)

$2.650336$ mmc0: SDHCI controller on fe2e0000.mmc $fe2e0000.mmc$ using ADMA

$2.658707$ debugfs: File 'Capture' in directory 'dapm' already present!

$2.659568$ input: rockchip,hdmiin rockchip,hdmiin as /devices/platform/hdmiin-sound/sound/card0/input2

$2.661061$ Initializing XFRM netlink socket

$2.661454$ NET: Registered PF_INET6 protocol family

$2.662437$ Segment Routing with IPv6

$2.662473$ In-situ OAM (IOAM) with IPv6

$2.662527$ NET: Registered PF_PACKET protocol family

$2.662542$ NET: Registered PF_KEY protocol family

$2.662552$ can: controller area network core

$2.662589$ NET: Registered PF_CAN protocol family

$2.662602$ can: raw protocol

$2.662614$ can: broadcast manager protocol

$2.662627$ can: netlink gateway - max_hops=1

$2.662904$ Bluetooth: RFCOMM socket layer initialized

$2.662927$ Bluetooth: RFCOMM ver 1.11

$2.662952$ Bluetooth: HIDP (Human Interface Emulation) ver 1.2

$2.662966$ Bluetooth: HIDP socket layer initialized

$2.663004$ $BT_RFKILL$ : Enter rfkill_rk_init

$2.663014$ $WLAN_RFKILL$ : Enter rfkill_wlan_init

$2.663448$ rockchip-pinctrl pinctrl: unable to find group for node wifi-poweren-gpio

$2.664231$ $BT_RFKILL$ : bluetooth_platdata_parse_dt: get property: uart_rts_gpios = 148.

$2.664264$ $BT_RFKILL$ : bluetooth_platdata_parse_dt: get property: BT,reset_gpio = 0.

$2.664320$ $BT_RFKILL$ : bluetooth_platdata_parse_dt: get property: BT,wake_gpio = 75.

$2.664339$ $BT_RFKILL$ : bluetooth_platdata_parse_dt: get property: BT,wake_host_irq = 72.

$2.664423$ $BT_RFKILL$ : Request irq for bt wakeup host

$2.664705$ $BT_RFKILL$ : ** disable irq

$2.664810$ $BT_RFKILL$ : bt_default device registered.

$2.664918$ input: bt-powerkey as /devices/platform/wireless-bluetooth/input/input3

$2.665213$ Key type dns_resolver registered

$2.666033$ imx415 3-001a: driver version: 00.01.08

$2.666056$ imx415 3-001a: Get hdr mode failed! no hdr default

$2.666076$ imx415 3-001a: detect imx415 lane 4

$2.666109$ imx415 3-001a: Failed to get reset-gpios

$2.666132$ imx415 3-001a: Failed to get power-gpios

$2.666144$ imx415 3-001a: could not get default pinstate

$2.666154$ imx415 3-001a: could not get sleep pinstate

$2.667001$ imx415 3-001a: supply dvdd not found, using dummy regulator

$2.671774$ imx415 3-001a: supply dovdd not found, using dummy regulator

$2.726466$ mmc0: Command Queue Engine enabled

$2.726487$ mmc0: new HS400 Enhanced strobe MMC card at address 0001

$2.726765$ mmcblk0: mmc0:0001 SPeMMC 58.2 GiB

$2.731093$ mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8

$2.732051$ mmcblk0boot0: mmc0:0001 SPeMMC 4.00 MiB

$2.732562$ mmcblk0boot1: mmc0:0001 SPeMMC 4.00 MiB

$2.733020$ mmcblk0rpmb: mmc0:0001 SPeMMC 4.00 MiB, chardev (235:0)

$2.745691$ imx415 3-001a: Unexpected sensor id(000000), ret(-5)

$2.746722$ Loading compiled-in X.509 certificates

$2.747946$ pstore: Using crash dump compression: deflate

$2.753343$ rga3 fdb60000.rga: Adding to iommu group 2

$2.753760$ rga3 fdb60000.rga: probe successfully, irq = 43, hw_version:3.0.76831

$2.753871$ rga3 fdb70000.rga: Adding to iommu group 3

$2.754132$ rga3 fdb70000.rga: probe successfully, irq = 44, hw_version:3.0.76831

$2.754967$ rga2 fdb80000.rga: probe successfully, irq = 132, hw_version:3.2.63318

2.755124\] rga_iommu: IOMMU binding successfully, default mapping core\[0x1

$2.755274$ rga: Module initialized. v1.3.4

$2.763612$ usb 2-1: New USB device found, idVendor=1a40, idProduct=0201, bcdDevice= 1.00

$2.763644$ usb 2-1: New USB device strings: Mfr=0, Product=1, SerialNumber=0

2.763659\] usb 2-1: Product: USB 2.0 Hub \[MTT

$2.764359$ hub 2-1:1.0: USB hub found

$2.764494$ hub 2-1:1.0: 7 ports detected

$2.774373$ vendor storage:20190527 ret = 0

$2.789444$ rockchip-csi2-dphy csi2-dphy0: csi2 dphy0 probe successfully!

$2.790200$ mpp_vdpu1 fdb51000.avsd-plus: Adding to iommu group 1

$2.790520$ mpp_vdpu1 fdb51000.avsd-plus: probe device

$2.790688$ mpp_vdpu1 fdb51000.avsd-plus: reset_group->rw_sem_on=0

$2.790702$ mpp_vdpu1 fdb51000.avsd-plus: reset_group->rw_sem_on=0

$2.790755$ mpp_vdpu1 fdb51000.avsd-plus: probing finish

$2.790908$ mpp_vdpu2 fdb50400.vdpu: Adding to iommu group 1

$2.790958$ mpp_vdpu2 fdb50400.vdpu: probe device

$2.791058$ mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0

$2.791067$ mpp_vdpu2 fdb50400.vdpu: reset_group->rw_sem_on=0

$2.791085$ mpp_vdpu2 fdb50400.vdpu: probing finish

$2.791229$ mpp_vepu2 fdb50000.vepu: Adding to iommu group 1

$2.791274$ mpp_vepu2 fdb50000.vepu: probing start

$2.791396$ mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0

$2.791406$ mpp_vepu2 fdb50000.vepu: reset_group->rw_sem_on=0

$2.791431$ mpp_vepu2 fdb50000.vepu: probing finish

$2.791578$ mpp_vepu2 fdba0000.jpege-core: Adding to iommu group 5

$2.791656$ mpp_vepu2 fdba0000.jpege-core: probing start

$2.791801$ mpp_vepu2 fdba0000.jpege-core: attach ccu success

$2.791831$ mpp_vepu2 fdba0000.jpege-core: probing finish

$2.791963$ mpp_vepu2 fdba4000.jpege-core: Adding to iommu group 6

$2.792041$ mpp_vepu2 fdba4000.jpege-core: probing start

$2.792175$ mpp_vepu2 fdba4000.jpege-core: attach ccu success

$2.792205$ mpp_vepu2 fdba4000.jpege-core: probing finish

$2.792349$ mpp_vepu2 fdba8000.jpege-core: Adding to iommu group 7

$2.792426$ mpp_vepu2 fdba8000.jpege-core: probing start

$2.792561$ mpp_vepu2 fdba8000.jpege-core: attach ccu success

$2.792589$ mpp_vepu2 fdba8000.jpege-core: probing finish

$2.792732$ mpp_vepu2 fdbac000.jpege-core: Adding to iommu group 8

$2.792819$ mpp_vepu2 fdbac000.jpege-core: probing start

$2.792959$ mpp_vepu2 fdbac000.jpege-core: attach ccu success

$2.792987$ mpp_vepu2 fdbac000.jpege-core: probing finish

$2.793133$ mpp-iep2 fdbb0000.iep: Adding to iommu group 9

$2.793212$ mpp-iep2 fdbb0000.iep: probe device

$2.793348$ mpp-iep2 fdbb0000.iep: allocate roi buffer failed

$2.793366$ mpp-iep2 fdbb0000.iep: probing finish

$2.793499$ mpp_jpgdec fdb90000.jpegd: Adding to iommu group 4

$2.793716$ mpp_jpgdec fdb90000.jpegd: probe device

$2.793876$ mpp_jpgdec fdb90000.jpegd: probing finish

$2.794031$ mpp_rkvdec2 fdc38100.rkvdec-core: Adding to iommu group 12

$2.794353$ mpp_rkvdec2 fdc38100.rkvdec-core: rkvdec-core, probing start

$2.794501$ mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_a is not found!

$2.794509$ rkvdec2_init:1197: No niu aclk reset resource define

$2.794517$ mpp_rkvdec2 fdc38100.rkvdec-core: shared_niu_h is not found!

$2.794522$ rkvdec2_init:1200: No niu hclk reset resource define

$2.794549$ mpp_rkvdec2 fdc38100.rkvdec-core: no regulator, devfreq is disabled

$2.794614$ mpp_rkvdec2 fdc38100.rkvdec-core: core_mask=00010001

$2.794622$ mpp_rkvdec2 fdc38100.rkvdec-core: attach ccu as core 0

$2.794769$ mpp_rkvdec2 fdc38100.rkvdec-core: sram_start 0x00000000ff001000

$2.794778$ mpp_rkvdec2 fdc38100.rkvdec-core: rcb_iova 0x00000000fff00000

$2.794784$ mpp_rkvdec2 fdc38100.rkvdec-core: sram_size 491520

$2.794790$ mpp_rkvdec2 fdc38100.rkvdec-core: rcb_size 1048576

$2.794797$ mpp_rkvdec2 fdc38100.rkvdec-core: min_width 512

$2.794804$ mpp_rkvdec2 fdc38100.rkvdec-core: rcb_info_count 20

2.794811\] mpp_rkvdec2 fdc38100.rkvdec-core: \[136, 24576

2.794817\] mpp_rkvdec2 fdc38100.rkvdec-core: \[137, 49152

2.794823\] mpp_rkvdec2 fdc38100.rkvdec-core: \[141, 90112

2.794829\] mpp_rkvdec2 fdc38100.rkvdec-core: \[140, 49152

2.794835\] mpp_rkvdec2 fdc38100.rkvdec-core: \[139, 180224

2.794841\] mpp_rkvdec2 fdc38100.rkvdec-core: \[133, 49152

2.794847\] mpp_rkvdec2 fdc38100.rkvdec-core: \[134, 8192

2.794853\] mpp_rkvdec2 fdc38100.rkvdec-core: \[135, 4352

2.794859\] mpp_rkvdec2 fdc38100.rkvdec-core: \[138, 13056

2.794865\] mpp_rkvdec2 fdc38100.rkvdec-core: \[142, 291584

$2.794902$ mpp_rkvdec2 fdc38100.rkvdec-core: probing finish

$2.795058$ mpp_rkvdec2 fdc48100.rkvdec-core: Adding to iommu group 13

$2.795301$ mpp_rkvdec2 fdc48100.rkvdec-core: rkvdec-core, probing start

$2.795449$ mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_a is not found!

$2.795457$ rkvdec2_init:1197: No niu aclk reset resource define

$2.795465$ mpp_rkvdec2 fdc48100.rkvdec-core: shared_niu_h is not found!

$2.795471$ rkvdec2_init:1200: No niu hclk reset resource define

$2.795496$ mpp_rkvdec2 fdc48100.rkvdec-core: no regulator, devfreq is disabled

$2.795546$ mpp_rkvdec2 fdc48100.rkvdec-core: core_mask=00020002

$2.795565$ mpp_rkvdec2 fdc48100.rkvdec-core: attach ccu as core 1

$2.795732$ mpp_rkvdec2 fdc48100.rkvdec-core: sram_start 0x00000000ff079000

$2.795741$ mpp_rkvdec2 fdc48100.rkvdec-core: rcb_iova 0x00000000ffe00000

$2.795748$ mpp_rkvdec2 fdc48100.rkvdec-core: sram_size 487424

$2.795754$ mpp_rkvdec2 fdc48100.rkvdec-core: rcb_size 1048576

$2.795761$ mpp_rkvdec2 fdc48100.rkvdec-core: min_width 512

$2.795768$ mpp_rkvdec2 fdc48100.rkvdec-core: rcb_info_count 20

2.795774\] mpp_rkvdec2 fdc48100.rkvdec-core: \[136, 24576

2.795781\] mpp_rkvdec2 fdc48100.rkvdec-core: \[137, 49152

2.795786\] mpp_rkvdec2 fdc48100.rkvdec-core: \[141, 90112

2.795793\] mpp_rkvdec2 fdc48100.rkvdec-core: \[140, 49152

2.795799\] mpp_rkvdec2 fdc48100.rkvdec-core: \[139, 180224

2.795805\] mpp_rkvdec2 fdc48100.rkvdec-core: \[133, 49152

2.795811\] mpp_rkvdec2 fdc48100.rkvdec-core: \[134, 8192

2.795817\] mpp_rkvdec2 fdc48100.rkvdec-core: \[135, 4352

2.795823\] mpp_rkvdec2 fdc48100.rkvdec-core: \[138, 13056

2.795829\] mpp_rkvdec2 fdc48100.rkvdec-core: \[142, 291584

$2.795863$ mpp_rkvdec2 fdc48100.rkvdec-core: probing finish

$2.796023$ mpp_rkvenc2 fdbd0000.rkvenc-core: Adding to iommu group 10

$2.796185$ mpp_rkvenc2 fdbd0000.rkvenc-core: probing start

$2.796745$ mpp_rkvenc2 fdbd0000.rkvenc-core: bin=0

$2.797031$ mpp_rkvenc2 fdbd0000.rkvenc-core: leakage=12

$2.797063$ mpp_rkvenc2 fdbd0000.rkvenc-core: leakage-volt-sel=0

$2.798294$ mpp_rkvenc2 fdbd0000.rkvenc-core: avs=0

$2.798348$ mpp_rkvenc2 fdbd0000.rkvenc-core: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0

$2.799194$ mpp_rkvenc2 fdbd0000.rkvenc-core: attach ccu as core 0

$2.799265$ mpp_rkvenc2 fdbd0000.rkvenc-core: probing finish

$2.799574$ mpp_rkvenc2 fdbe0000.rkvenc-core: Adding to iommu group 11

$2.799857$ mpp_rkvenc2 fdbe0000.rkvenc-core: probing start

$2.800778$ mpp_rkvenc2 fdbe0000.rkvenc-core: bin=0

$2.800980$ mpp_rkvenc2 fdbe0000.rkvenc-core: leakage=12

$2.801005$ mpp_rkvenc2 fdbe0000.rkvenc-core: leakage-volt-sel=0

$2.802295$ mpp_rkvenc2 fdbe0000.rkvenc-core: avs=0

$2.802347$ mpp_rkvenc2 fdbe0000.rkvenc-core: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0

$2.803225$ mpp_rkvenc2 fdbe0000.rkvenc-core: attach ccu as core 1

$2.803290$ mpp_rkvenc2 fdbe0000.rkvenc-core: probing finish

$2.803593$ mpp_av1dec fdc70000.av1d: Adding to iommu group 14

$2.803967$ mpp_av1dec fdc70000.av1d: probing start

$2.804300$ mpp_av1dec fdc70000.av1d: probing finish

$2.804636$ rockchip-vop2 fdd90000.vop: Adding to iommu group 17

$2.810568$ panel-simple-dsi fde20000.dsi.0: Expected bpc in {6,8} but got: 0

2.811599\] rockchip-vop2 fdd90000.vop: \[drm:vop2_bind\] vp0 assign plane mask: Cluster0 \| Esmart0\[0x5\], primary plane phy id: Esmart0\[2

2.811639\] rockchip-vop2 fdd90000.vop: \[drm:vop2_bind\] vp1 assign plane mask: Cluster1 \| Esmart1\[0xa\], primary plane phy id: Esmart1\[3

2.811665\] rockchip-vop2 fdd90000.vop: \[drm:vop2_bind\] vp2 assign plane mask: Cluster2 \| Esmart2\[0x140\], primary plane phy id: Esmart2\[8

2.811690\] rockchip-vop2 fdd90000.vop: \[drm:vop2_bind\] vp3 assign plane mask: Cluster3 \| Esmart3\[0x280\], primary plane phy id: Esmart3\[9

$2.812078$ $drm$ failed to init overlay plane Cluster0-win1

$2.812138$ $drm$ failed to init overlay plane Cluster1-win1

$2.812190$ $drm$ failed to init overlay plane Cluster2-win1

$2.812242$ $drm$ failed to init overlay plane Cluster3-win1

$2.822453$ rockchip-vop2 fdd90000.vop: bin=0

$2.822636$ rockchip-vop2 fdd90000.vop: leakage=35

$2.822641$ rockchip-vop2 fdd90000.vop: leakage-volt-sel=1

$2.824458$ rockchip-vop2 fdd90000.vop: avs=0

$2.824577$ rockchip-vop2 fdd90000.vop: l=-2147483648 h=2147483647 hyst=0 l_limit=0 h_limit=0 h_table=0

$2.831475$ rockchip-vop2 fdd90000.vop: Supported VOP aclk dvfs, normal mode:500000000, reset mode:0, advanced mode:750000000

$2.831516$ rockchip-drm display-subsystem: bound fdd90000.vop (ops 0xffffffc0094c9d50)

$2.837289$ dwhdmi-rockchip fde80000.hdmi: registered ddc I2C bus driver

$2.837801$ rockchip-drm display-subsystem: bound fde80000.hdmi (ops 0xffffffc0094e2c30)

$2.838491$ dwhdmi-rockchip fdea0000.hdmi: registered ddc I2C bus driver

$2.839464$ rockchip-drm display-subsystem: bound fdea0000.hdmi (ops 0xffffffc0094e2c30)

$2.839512$ rockchip-drm display-subsystem: bound fde20000.dsi (ops 0xffffffc0094e5a28)

$2.839656$ rockchip-drm display-subsystem: bound fde50000.dp (ops 0xffffffc0094e6080)

$2.839770$ rockchip-drm display-subsystem: bound fde60000.dp (ops 0xffffffc0094e6080)

$2.840773$ rockchip-drm display-subsystem: route-hdmi0: failed to get logo,offset

$2.840783$ rockchip-drm display-subsystem: route-hdmi1: failed to get logo,offset

$2.856581$ dw-hdmi-qp-hdcp dw-hdmi-qp-hdcp.7.auto: dw_hdcp_qp_hdcp_probe success

$2.856913$ dw-hdmi-qp-hdcp dw-hdmi-qp-hdcp.10.auto: dw_hdcp_qp_hdcp_probe success

$2.857220$ $drm$ Initialized rockchip 4.0.0 20140818 for display-subsystem on minor 0

$2.857659$ mali fb000000.gpu: Kernel DDK version g21p0-01eac0

$2.857771$ mali fb000000.gpu: GPU metrics tracepoint support enabled

$2.859455$ mali fb000000.gpu: bin=0

$2.859629$ mali fb000000.gpu: leakage=15

$2.859647$ debugfs: Directory 'fb000000.gpu-mali' with parent 'vdd_gpu_s0' already present!

$2.861375$ mali fb000000.gpu: pvtm=866

$2.861525$ mali fb000000.gpu: pvtm-volt-sel=3

$2.861592$ debugfs: Directory 'fb000000.gpu-mali' with parent 'vdd_gpu_s0' already present!

$2.862957$ mali fb000000.gpu: avs=0

$2.862987$ W : $File$ : drivers/gpu/arm/bifrost/platform/rk/mali_kbase_config_rk.c; $Line$ : 144; $Func$ : kbase_platform_rk_init(); power-off-delay-ms not available.

$2.863292$ mali fb000000.gpu: Register LUT 000a0800 initialized for GPU arch 0x000a0806

$2.863319$ mali fb000000.gpu: r0p0 status 5 not found in HW issues table;

$2.863330$ mali fb000000.gpu: falling back to closest match: r0p0 status 0

$2.863340$ mali fb000000.gpu: Execution proceeding normally with fallback match

$2.863349$ mali fb000000.gpu: GPU identified as 0x7 arch 10.8.6 r0p0 status 0

$2.863458$ mali fb000000.gpu: No priority control manager is configured

$2.863470$ mali fb000000.gpu: Large page allocation set to false after hardware feature check

$2.863720$ mali fb000000.gpu: No memory group manager is configured

$2.863750$ mali fb000000.gpu: Protected memory allocator not available

$2.864484$ input: adc-keys as /devices/platform/adc-keys/input/input4

$2.864775$ mali fb000000.gpu: EM: created perf domain

$2.865250$ mali fb000000.gpu: l=15000 h=85000 hyst=5000 l_limit=0 h_limit=800000000 h_table=0

$2.865699$ rockchip-dmc dmc: bin=0

$2.865887$ rockchip-dmc dmc: leakage=35

$2.865901$ mali fb000000.gpu: * MALI kbase_mmap_min_addr compiled to CONFIG_DEFAULT_MMAP_MIN_ADDR, no runtime update possible! *

$2.865902$ rockchip-dmc dmc: leakage-volt-sel=1

$2.865907$ mali fb000000.gpu: Probed as mali0

$2.865925$ rockchip-dmc dmc: soc version=0, speed=1

$2.867431$ rockchip-dmc dmc: avs=0

$2.867452$ rockchip-dmc dmc: current ATF version 0x100

$2.867672$ rockchip-dmc dmc: normal_rate = 1560000000

$2.867684$ rockchip-dmc dmc: reboot_rate = 2112000000

$2.867694$ rockchip-dmc dmc: suspend_rate = 528000000

$2.867703$ rockchip-dmc dmc: video_4k_rate = 1560000000

$2.867713$ rockchip-dmc dmc: video_4k_10b_rate = 1560000000

$2.867722$ rockchip-dmc dmc: video_svep_rate = 1560000000

$2.867731$ rockchip-dmc dmc: boost_rate = 2112000000

$2.867740$ rockchip-dmc dmc: fixed_rate(isp|cif0|cif1|dualview) = 2112000000

$2.867749$ rockchip-dmc dmc: performance_rate = 2112000000

$2.867759$ rockchip-dmc dmc: hdmirx_rate = 2112000000

$2.867768$ rockchip-dmc dmc: deep_suspend_rate = 2112000000

$2.867781$ rockchip-dmc dmc: failed to get vop bandwidth to dmc rate

$2.867789$ rockchip-dmc dmc: failed to get vop pn to msch rl

$2.868249$ rockchip-dmc dmc: l=15000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0

$2.878266$ input: rockchip-hdmi0 rockchip-hdmi0 as /devices/platform/hdmi0-sound/sound/card1/input5

$2.880287$ input: rockchip-hdmi1 rockchip-hdmi1 as /devices/platform/hdmi1-sound/sound/card2/input6

$2.884427$ rkcif rkcif-mipi-lvds2: clear unready subdev num: 1

$2.884764$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$2.884791$ rkcif-mipi-lvds2: Async subdev notifier completed

$2.884810$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$2.884820$ rkcif-mipi-lvds2: There is not terminal subdev, not synchronized with ISP

$2.884880$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$2.884891$ rkcif-mipi-lvds2: There is not terminal subdev, not synchronized with ISP

$2.885614$ RKNPU fdab0000.npu: Adding to iommu group 0

$2.885786$ RKNPU fdab0000.npu: RKNPU: rknpu iommu is enabled, using iommu mode

2.887084\] RKNPU fdab0000.npu: can't request region for resource \[mem 0xfdab0000-0xfdabffff

2.887121\] RKNPU fdab0000.npu: can't request region for resource \[mem 0xfdac0000-0xfdacffff

2.887142\] RKNPU fdab0000.npu: can't request region for resource \[mem 0xfdad0000-0xfdadffff

$2.887450$ $drm$ Initialized rknpu 0.9.7 20240424 for fdab0000.npu on minor 1

$2.889880$ RKNPU fdab0000.npu: RKNPU: bin=0

$2.890074$ RKNPU fdab0000.npu: leakage=8

$2.890120$ debugfs: Directory 'fdab0000.npu-rknpu' with parent 'vdd_npu_s0' already present!

$2.904665$ RKNPU fdab0000.npu: pvtm=867

$2.909431$ RKNPU fdab0000.npu: pvtm-volt-sel=3

$2.909525$ debugfs: Directory 'fdab0000.npu-rknpu' with parent 'vdd_npu_s0' already present!

$2.912126$ RKNPU fdab0000.npu: avs=0

$2.912298$ RKNPU fdab0000.npu: l=15000 h=85000 hyst=5000 l_limit=0 h_limit=800000000 h_table=0

$2.925370$ cfg80211: Loading compiled-in X.509 certificates for regulatory database

$2.927562$ cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'

$2.928249$ cfg80211: Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'

$2.928325$ platform regulatory.0: Direct firmware load for regulatory.db failed with error -2

$2.928341$ cfg80211: failed to load regulatory.db

$2.930121$ rockchip-pm rockchip-suspend: not set pwm-regulator-config

$2.930817$ rockchip-suspend not set sleep-mode-config for mem-lite

$2.930827$ rockchip-suspend not set wakeup-config for mem-lite

$2.930837$ rockchip-suspend not set sleep-mode-config for mem-ultra

$2.930844$ rockchip-suspend not set wakeup-config for mem-ultra

$2.931951$ I : $File$ : drivers/gpu/arm/mali400/mali/linux/mali_kernel_linux.c; $Line$ : 407; $Func$ : mali_module_init(); svn_rev_string_from_arm of this mali_ko is '', rk_ko_ver is '5', built at '09:18:38', on 'Aug 23 2025'.

$2.932280$ Mali:

$2.932283$ Mali device driver loaded

$2.932301$ rkisp rkisp0-vir0: clear unready subdev num: 1

$2.932480$ rkisp0-vir0: Async subdev notifier completed

$2.932495$ ALSA device list:

$2.932504$ #0: rockchip,hdmiin

$2.932511$ #1: rockchip-hdmi0

$2.932520$ #2: rockchip-hdmi1

$3.008011$ EXT4-fs (mmcblk0p6): recovery complete

$3.008471$ EXT4-fs (mmcblk0p6): mounted filesystem with ordered data mode. Quota mode: disabled.

$3.008552$ VFS: Mounted root (ext4 filesystem) on device 179:6.

$3.009461$ devtmpfs: mounted

$3.013472$ Freeing unused kernel memory: 7488K

$3.014775$ Run /sbin/init as init process

$3.088142$ EXT4-fs (mmcblk0p6): re-mounted. Quota mode: disabled.

$3.265880$ EXT4-fs (mmcblk0p7): recovery complete

$3.266279$ EXT4-fs (mmcblk0p7): mounted filesystem with ordered data mode. Quota mode: disabled.

$3.270152$ EXT4-fs (mmcblk0p8): warning: mounting unchecked fs, running e2fsck is recommended

$3.271804$ EXT4-fs (mmcblk0p8): mounted filesystem without journal. Quota mode: disabled.

Start mounting all internal partitions in /etc/fstab

Log saved to /var/log/mount-all.log

Note: Will skip fsck, remove /.skip_fsck to enable

$2$ : Handling /dev/mmcblk0p8 /userdata ext4 defaults 2

$1$ : Handling /dev/mmcblk0p7 /oem ext4 defaults 2

$0$ : Handling /dev/mmcblk0p6 / ext4 rw,noauto 1

$1$ : Already resized /dev/mmcblk0p7(ext4)

$2$ : Already resized /dev/mmcblk0p8(ext4)

$0$ : Already resized /dev/mmcblk0p6(ext4)

Seeding 256 bits and crediting

Saving 256 bits of creditable seed for next boot

log-guardian: $WARN$ Not a dir: "/var/log/,/tmp/"

log-guardian: Guarding logs in: "/var/log/,/tmp/"...

Starting syslogd: OK

Starting klogd: OK

Running sysctl: OK

Populating /dev using udev: $3.462953$ udevd $399$ : starting version 3.2.14

$3.479371$ udevd $399$ : invalid KERNEL operation

$3.479415$ udevd $399$ : invalid rule '/usr/lib/udev/rules.d/61-persistent-internal-storage.rules:19'

$3.490489$ udevd $408$ : starting eudev-3.2.14

$3.597714$ r8168 0004:41:00.0 enP4p65s0: renamed from eth1

$3.605997$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $1$ get remote terminal sensor failed!

$3.606040$ rkcif_scale_ch1: update sensor info failed -19

$3.606460$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $2$ get remote terminal sensor failed!

$3.606473$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $2$ get remote terminal sensor failed!

$3.606483$ stream_cif_mipi_id2: update sensor info failed -19

$3.606494$ rkcif_tools_id2: update sensor info failed -19

$3.606756$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $1$ get remote terminal sensor failed!

$3.606772$ stream_cif_mipi_id1: update sensor info failed -19

$3.608330$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$3.608345$ rkcif_tools_id0: update sensor info failed -19

$3.608515$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $3$ get remote terminal sensor failed!

$3.608527$ stream_cif_mipi_id3: update sensor info failed -19

$3.610876$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$3.610939$ stream_cif_mipi_id0: update sensor info failed -19

$3.611786$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $0$ get remote terminal sensor failed!

$3.611815$ rkcif_scale_ch0: update sensor info failed -19

$3.612003$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $2$ get remote terminal sensor failed!

$3.612015$ rkcif_scale_ch2: update sensor info failed -19

$3.614525$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $1$ get remote terminal sensor failed!

$3.614568$ rkcif_tools_id1: update sensor info failed -19

$3.617254$ rkcif-mipi-lvds2: rkcif_update_sensor_info: stream $3$ get remote terminal sensor failed!

$3.617282$ rkcif_scale_ch3: update sensor info failed -19

done

Starting irqbalance: OK

Starting system message bus: done

Starting bluetoothd: OK

Starting network: OK

Starting dhcpcd...

dhcpcd-10.0.5 starting

dev: loaded udev

DUID 00:01:00:01:27:81:cb:95:c0:f5:35:4f:8d:5e

$3.943778$ rk_gmac-dwmac fe1c0000.ethernet eth0: Register MEM_TYPE_PAGE_POOL RxQ-0

Starting chrony: OK

starting weston... done.

Starting dropbear sshd: $4.034338$ rk_gmac-dwmac fe1c0000.ethernet eth0: PHY $stmmac-1:01$ driver $RTL8211F Gigabit Ethernet$ (irq=POLL)

$4.034875$ dwmac4: Master AXI performs any burst length

$4.034885$ rk_gmac-dwmac fe1c0000.ethernet eth0: No Safety Features support found

$4.034897$ rk_gmac-dwmac fe1c0000.ethernet eth0: IEEE 1588-2008 Advanced Timestamp supported

$4.035145$ rk_gmac-dwmac fe1c0000.ethernet eth0: registered PTP clock

$4.036435$ rk_gmac-dwmac fe1c0000.ethernet eth0: FPE workqueue start

$4.036449$ rk_gmac-dwmac fe1c0000.ethernet eth0: configuring for phy/rgmii-rxid link mode

$4.065520$ enP4p65s0: 0xffffffc00b211000, f6:68:84:99:9d:7e, IRQ 102

Starting pulseaudio: OK

Starting dnsmasq: OK

fstrim: Starting fstrim process (812)...

Starting input-event-daemon: W: $pulseaudio$ main.c: This program is not intended to be run as root (unless --system is specified).

W: $pulseaudio$ main.c: Compiled with DEPRECATED libsamplerate support!

Handling start for Wi-Fi/BT chip:

Broadcom AP6275P pci 14e4:449d bcmdhd_pcie.ko

Starting Wi-Fi/BT...

Wi-Fi/BT module: bcmdhd_pcie.ko

Installing bcmdhd_pcie.ko ...

done

$4.234942$ bcmdhd_pcie: loading out-of-tree module taints kernel.

Date: 2021-01-01 UTC

$12:00:02.356$ weston 13.0.1

https://wayland.freedesktop.org

Bug reports to: https://gitlab.freedesktop.org/wayland/weston/issues/

Build: 13.0.1

$12:00:02.363$ Command line: /usr/bin/weston

$12:00:02.363$ OS: Linux, 6.1.75, #2 SMP Wed Nov 26 10:12:44 CST 2025, aarch64

$12:00:02.363$ Flight recorder: enabled

$12:00:02.363$ warning: XDG_RUNTIME_DIR "/var/run" is not configured

correctly. Unix access mode must be 0700 (current mode is 0755),

and must be owned by the user UID 0 (current owner is UID 0).

Refer to your distribution on how to get it, or

http://www.freedesktop.org/wiki/Specifications/basedir-spec

on how to implement it.

root@rk3588-buildroot:/# $4.246639$ $dhd$ _dhd_module_init: in Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)

$4.246639$ /home/jinhualong/new_disk_4t/wyb/RD-RK3588/rk3588_linux6.1_release_v1.2.0_20241220/external/rkwifibt/drivers/bcmdhd compiled on Nov 26 2025 at 21:35:58

4.246639

$4.246684$ $dhd$ STATIC-MSG) dhd_static_buf_init : 101.10.361.36 (wlan=r892223-20231107-1)

$4.246946$ $dhd$ STATIC-MSG) dhd_init_wlan_mem : prealloc ok for index 0: 2371584(2316K)

$4.246961$ $WLAN_RFKILL$ : rockchip_wifi_get_oob_irq: Enter

$4.246969$ $WLAN_RFKILL$ : rockchip_wifi_get_oob_irq: rfkill-wlan driver has not Successful initialized

$4.246983$ dhd_wlan_init_gpio: unknown oob irqflags !

$4.246990$ $dhd$ dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=-1, oob_irq_flags=0x0

$4.246997$ $dhd$ dhd_wlan_init_gpio: WL_REG_ON=-1

$4.247002$ $dhd$ dhd_wifi_platform_load: Enter

$4.247010$ $dhd$ wifi_platform_bus_enumerate device present 1

$4.247015$ $dhd$ ======== Card detection to detect PCIE card! ========

$4.247245$ $dhd$ dhdpcie_pci_probe : no mutex held

$4.247261$ $dhd$ dhdpcie_pci_probe : set mutex lock

$4.247268$ $dhd$ PCI_PROBE: bus 0x21, slot 0x0,vendor 0x14E4, device 0x449D(good PCI location)

$4.247279$ $dhd$ dhdpcie_init: found adapter info 'DHD generic adapter'

$4.247286$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 3, size 139264

$12:00:02.386$ Using config file '/etc/xdg/weston/weston.ini'

$4.247307$ $dhd$ succeed to alloc static buf

$4.247313$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 4, size 0

$4.247325$ $dhd$ dhdpcie_init: Host OOB irq is not defined

$12:00:02.389$ Output repaint window is -1 ms maximum.

$4.247381$ pcieh 0002:21:00.0: enabling device (0000 -> 0002)

$4.247813$ $dhd$ Disable CTO

$4.248675$ $dhd$ DHD: dongle ram size is set to 1310720(orig 1310720) at 0x170000

$4.248684$ $dhd$ dhdpcie_bar1_window_switch_enab: bar1_switch_enab=0 ramstart=0x170000 ramend=0x2affff bar1_size=0x0

$4.248724$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 7, size 43776

$4.248746$ $dhd$ dhd_conf_set_chiprev : devid=0x449d, chip=0xaae8, chiprev=2, svid=0x14e4, ssid=0xaae8

$4.249203$ $dhd$ dhd_check_htput_chip: htput_support:1

$4.249219$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 0, size 5152

$4.260271$ $dhd$ dhd_ioctl_entry_local invalid parameter net 0000000000000000 dev_priv 00000000878cdb95

$4.260308$ $dhd$ CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -22

$12:00:02.395$ Loading module '/usr/lib/libweston-13/drm-backend.so'

$4.260586$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 5, size 65536

$4.260814$ $dhd$ CFG80211-ERROR) wl_is_fils_supported : FILS NOT supported, err -19

$4.260881$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 19, size 65688

$4.260980$ $dhd$ dhd_attach(): thread:dhd_watchdog_thread:379 started

$4.260994$ $dhd$ dhd_deferred_work_init: work queue initialized

$4.261000$ $dhd$ dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -> mode 3

$4.261006$ $dhd$ dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40

$4.261022$ $dhd$ dhd_cpumasks_init CPU masks primary(big)=0xf0 secondary(little)=0xe

$4.261234$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261264$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261290$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261456$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261478$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261497$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261510$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261595$ $dhd$ dhd_cpu_startup_callback(): LB data is not initialized yet.

$4.261643$ $dhd$ dhdpcie_bus_attach: making DHD_BUS_DOWN

$4.261653$ $dhd$ dhdpcie_init: rc_dev from dev->bus->self (1d87:3588) is 0000000086ccaba8

$4.261765$ $dhd$ dhdpcie_init: rc_ep_aspm_cap: 1 rc_ep_l1ss_cap: 1

$4.261778$ $dhd$ dhdpcie_request_irq: INTx enabled, irq=82

$4.261812$ $dhd$ dhdpcie_bar1_window_switch_enab: bar1_switch_enab=0 ramstart=0x170000 ramend=0x2affff bar1_size=0x400000

$4.261824$ $dhd$ dhd_bus_download_firmware: firmware path=/vendor/etc/firmware/fw_bcmdhd.bin, nvram path=/vendor/etc/firmware/nvram.txt

$4.261842$ $dhd$ dhd_conf_set_path_params : Final fw_path=/vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin

$4.261847$ $dhd$ dhd_conf_set_path_params : Final nv_path=/vendor/etc/firmware/nvram_ap6275p.txt

$4.261851$ $dhd$ dhd_conf_set_path_params : Final clm_path=/vendor/etc/firmware/clm_bcm43752a2_pcie_ag.blob

$4.261856$ $dhd$ dhd_conf_set_path_params : Final conf_path=/vendor/etc/firmware/config.txt

$4.272305$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/config.txt (240 bytes) open success

$4.279325$ $dhd$ dhd_conf_read_pm_params : PM = 0

$4.279332$ $dhd$ dhd_conf_read_pm_params : pm_in_suspend = 2

$4.279337$ $dhd$ dhd_conf_read_others : keep_alive_period = 120000

$4.279341$ $dhd$ dhd_conf_read_others : garp = 1

$4.279344$ $dhd$ dhd_conf_read_pm_params : suspend_bcn_li_dtim = 10

$4.279349$ $dhd$ dhd_conf_read_others : wl_preinit = pm2_sleep_ret=20

$4.279354$ $dhd$ dhd_conf_read_pkt_filter : pkt_filter_del id = 100 102 103 104 105 107

$4.279364$ $dhd$ dhd_conf_read_pkt_filter : pkt_filter_add $0$ \[\] = 142 0 0 77 0xffffffffffffffffffffffffffffff 0x2F6465766963652F77616B6575702F

$4.279371$ $dhd$ d2h_intr_method -> PCIE_INTX(0); d2h_intr_control -> D2H_INTMASK(0)

$4.279475$ $dhd$ dhdpcie_download_code_file: dhd_tcm_test_enable 0, dhd_tcm_test_status 0

$4.279479$ $dhd$ dhdpcie_download_code_file: download firmware /vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin

$4.279521$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin (936074 bytes) open success

$12:00:02.421$ initializing drm backend

$4.282932$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin (936074 bytes) open success

$12:00:02.421$ Entering mirror mode.

$4.282938$ $dhd$ dhdpcie_download_code_file Using SINGLE image (size 936074)

$12:00:02.421$ Trying direct launcher...

$12:00:02.423$ using /dev/dri/card0

$12:00:02.423$ DRM: does not support atomic modesetting

$12:00:02.423$ DRM: does not support GBM modifiers

$12:00:02.423$ DRM: does not support async page flipping

$12:00:02.423$ DRM: supports picture aspect ratio

$12:00:02.430$ Loading module '/usr/lib/libweston-13/gl-renderer.so'

$4.332105$ mali fb000000.gpu: Loading Mali firmware 0x1010000

$4.334956$ mali fb000000.gpu: Mali firmware git_sha: 221d2b3e5f4cf47df6227ccb24c82c4e4baa986e

$12:00:02.499$ EGL version: 1.4 Valhall-"g13p0-01eac0"

$12:00:02.499$ EGL vendor: ARM

$12:00:02.499$ EGL client APIs: OpenGL_ES

$12:00:02.499$ EGL features:

EGL Wayland extension: yes

context priority: yes

buffer age: no

partial update: yes

swap buffers with damage: no

configless context: yes

surfaceless context: yes

dmabuf support: modifiers

$4.385922$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/nvram_ap6275p.txt (7458 bytes) open success

$4.386946$ $dhd$ dhdpcie_download_nvram: dhd_get_download_buffer len 7458

$4.386963$ $dhd$ # AP6275P_NVRAM_V1.2_20210918A

$4.386993$ $dhd$ dhdpcie_download_nvram: process_nvram_vars len 6036

$4.395992$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off

$4.396006$ hdmi-audio-codec hdmi-audio-codec.4.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19

$4.396028$ rockchip,hdmiin: ASoC: error at __soc_pcm_open on rockchip,hdmiin: -19

$4.405270$ $dhd$ dhdpcie_bus_write_vars: Download, Upload and compare of NVRAM succeeded.

$4.405278$ $dhd$ dhdpcie_bus_write_vars: New varsize is 6040, length token(nvram_csm)=0xfa1905e6

$4.405791$ $dhd$ Download and compare of TLV 0xfeedc0de succeeded (size 128, addr 2ae7dc).

$4.405927$ $dhd$ dhdpcie_bus_download_state: Took ARM out of Reset

$4.405971$ $dhd$ dhd_bus_aer_config: Configure AER registers for EP

$4.406012$ $dhd$ dhd_bus_aer_config: Configure AER registers for RC

$4.407448$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off

$12:00:02.537$ GL version: OpenGL ES 3.2 v1.g13p0-01eac0.11addb9882ee8209dc0912af75110af7

$4.407474$ hdmi-audio-codec hdmi-audio-codec.4.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19

$12:00:02.537$ GLSL version: OpenGL ES GLSL ES 3.20

$4.407513$ rockchip,hdmiin: ASoC: error at __soc_pcm_open on rockchip,hdmiin: -19

$12:00:02.537$ GL vendor: ARM

$12:00:02.537$ GL renderer: Mali-G610

$4.419468$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_audio_startup: device is no connected or audio is off

$4.419517$ hdmi-audio-codec hdmi-audio-codec.4.auto: ASoC: error at snd_soc_dai_startup on i2s-hifi: -19

$4.419550$ rockchip,hdmiin: ASoC: error at __soc_pcm_open on rockchip,hdmiin: -19

E: $pulseaudio$ module-alsa-card.c: Failed to find a working profile.

E: $pulseaudio$ module.c: Failed to load module "module-alsa-card" (argument: "device_id="0" name="0" card_name="alsa_card.0" namereg_fail=false tsched=no fixed_latency_range=no ignore_dB=no deferred_volume=yes use_ucm=yes avoid_resampling=no card_properties="module-udev-detect.discovered=1""): initialization failed.

E: $pulseaudio$ module-rescue-streams.c: module-rescue-stream is obsolete and should no longer be loaded. Please remove it from your configuration.

E: $pulseaudio$ module-console-kit.c: GetSessionsForUnixUser() call failed: org.freedesktop.DBus.Error.ServiceUnknown: The name org.freedesktop.ConsoleKit was not provided by any .service files

E: $pulseaudio$ module.c: Failed to load module "module-console-kit" (argument: ""): initialization failed.

$4.498396$ $dhd$ dhdpcie_readshared: addr=0x20a584 nvram_csm=0xfa1905e6

$4.498430$ $dhd$ ### Total time ARM OOR to Readshared pass took 92558 usec ###

W: $pulseaudio$ server-lookup.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead

$4.498435$ $dhd$ dhdpcie_readshared: PCIe shared addr (0x0020a584) read took 90000 usec before dongle is ready

W: $pulseaudio$ main.c: Unable to contact D-Bus: org.freedesktop.DBus.Error.NotSupported: Using X11 for dbus-daemon autolaunch was disabled at compile time, set your DBUS_SESSION_BUS_ADDRESS instead

$4.498817$ $dhd$ FW supports DAR ? N

$4.498985$ $dhd$ H2D DMA WR INDX : array size 172 = 4 * 43

$4.498994$ $dhd$ D2H DMA RD INDX : array size 16 = 4 * 4

$4.499002$ $dhd$ D2H DMA WR INDX : array size 16 = 4 * 4

$4.499009$ $dhd$ H2D DMA RD INDX : array size 172 = 4 * 43

$4.499013$ $dhd$ dhdpcie_readshared: max H2D queues 40

$4.499018$ $dhd$ FW supports debug buf dest ? N

$4.499022$ $dhd$ FW supports MD ring ? N

$4.499165$ $dhd$ dhd_bus_init: Enabling bus->intr_enabled

$4.499189$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 9, size 32896

$4.499200$ $dhd$ dhd_prot_init:4146: h2d_max_txpost = 512

$4.499205$ $dhd$ dhd_prot_init:4152: h2d_htput_max_txpost = 2048

$4.499331$ $dhd$ dhd_prot_init: max_rxbufpost:511 rx_buf_burst:64 rx_bufpost_threshold:64

$4.499337$ $dhd$ ENABLING DW:0

$4.499340$ $dhd$ IDMA inited

$4.499343$ $dhd$ IFRM not enabled in FW !!

$4.499347$ $dhd$ DAR not enabled in FW !!

$4.499350$ $dhd$ Enable hostcap: EXTD TXS in txcpl

$4.499376$ $dhd$ dhd_prot_d2h_sync_init(): D2H sync mechanism is NONE

$4.499391$ $dhd$ dhd_bus_hostready : Read PCICMD Reg: 0x00100006

$4.499409$ $dhd$ dhd_bus_hostready: Ring Hostready:1

$4.499412$ $dhd$ Attach flowrings pool for 40 rings

$4.499435$ $dhd$ iDMA not enabled yet,waiting 1 ms c=1 IDMAControl = 00000000

$4.500556$ $dhd$ iDMA enabled PCIEControl = 00000001

$4.502765$ $dhd$ trying to send create d2h info ring: id 46

$4.502782$ $dhd$ dhd_send_d2h_ringcreate ringid: 3 idx: 46 max_h2d: 43

$4.502789$ $dhd$ trying to send create h2d info ring id 45

$4.502997$ $dhd$ dhd_prot_process_d2h_ring_create_complete ring create Response status = 0 ring 3, id 0xfffc

$4.503031$ $dhd$ info buffer post after ring create

$4.505030$ $dhd$ wlc_ver_major 12, wlc_ver_minor 1

$4.506441$ $dhd$ dhd_sync_with_dongle: GET_REVINFO device 0x449d, vendor 0x14e4, chipnum 0xaae8

$4.507877$ $dhd$ dhd_sync_with_dongle: RxBuf Post : 2048

$4.507895$ $dhd$ dhd_sync_with_dongle: RxBuf Post Alloc : 2048

$4.513399$ $dhd$ dhd_preinit_ioctls: preinit_status IOVAR not supported, use legacy preinit

$4.513445$ $dhd$ dhd_tcpack_suppress_set 378: already set to 3

$4.516560$ $dhd$ dhd_legacy_preinit_ioctls: hostwake_oob enabled

$4.518987$ $dhd$ dhd_legacy_preinit_ioctls: use firmware generated mac_address c0:f5:35:4f:8d:5e

$4.519104$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/clm_bcm43752a2_pcie_ag.blob (30993 bytes) open success

$4.521735$ $dhd$ dhd_check_current_clm_data: ----- This FW is not included CLM data -----

$4.536600$ file system registered

$4.587445$ $dhd$ dhd_apply_default_clm: CLM download succeeded

$4.590200$ $dhd$ dhd_check_current_clm_data: ----- This FW is included CLM data -----

$4.597719$ rk_hdmirx fdee0000.hdmirx-controller: hdmirx_cancel_cpu_limit_freq freq qos nod add

$4.598125$ $dhd$ Firmware up: op_mode=0x0005, MAC=c0:f5:35:4f:8d:5e

$4.617077$ $dhd$ dhd_legacy_preinit_ioctls: event_log_max_sets: 26 ret: 0

$4.631527$ $dhd$ arp_enable:1 arp_ol:0

$4.631577$ $dhd$ dhd_conf_add_pkt_filter : 142 0 0 77 0xffffffffffffffffffffffffffffff 0x2F6465766963652F77616B6575702F

$4.637810$ read descriptors

$4.637825$ read strings

$4.643187$ $dhd$ Driver: 101.10.591.52.27 (20240409-1)(20240411-2)

$4.643187$ $dhd$ Firmware: wl0: Jul 12 2022 18:54:54 version 18.35.387.23.146 (g412cc5ec) FWID 01-93c53be6

$4.643187$ $dhd$ CLM: 9.9.12_SS (2021-10-12 17:03:28)

$12:00:02.792$ GL ES 3.2 - renderer features:

read-back format: ARGB8888

glReadPixels supports y-flip: no

wl_shm 10 bpc formats: yes

wl_shm 16 bpc formats: no

wl_shm half-float formats: yes

internal R and RG formats: yes

OES_EGL_image_external: yes

wl_shm sub-image to texture: yes

$12:00:02.793$ Using GL renderer

$4.693380$ $dhd$ dhd_ecounter_autoconfig Ecounter autoconfig in FW not supported

$4.697013$ $dhd$ dhd_legacy_preinit_ioctls: d3_hostwake_delay IOVAR not present, proceed

$4.728053$ $dhd$ dhd_update_interface_flow_info: ifindex:0 previous role:0 new role:0

$4.728119$ $dhd$ dhd_rx_frame: net device is NOT registered. drop event packet

$12:00:02.857$ event4 - adc-keys: is tagged by udev as: Keyboard

$12:00:02.857$ event4 - adc-keys: device is a keyboard

$4.731262$ $dhd$ dhd_conf_set_country : set country CN, revision 0

$12:00:02.859$ event0 - rk805 pwrkey: is tagged by udev as: Keyboard

$12:00:02.859$ event0 - rk805 pwrkey: device is a keyboard

$12:00:02.860$ event5 - rockchip-hdmi0 rockchip-hdmi0: is tagged by udev as: Switch

$12:00:02.860$ event5 - not using input device '/dev/input/event5'

$12:00:02.861$ event6 - rockchip-hdmi1 rockchip-hdmi1: is tagged by udev as: Switch

$12:00:02.862$ event6 - not using input device '/dev/input/event6'

$12:00:02.862$ event2 - rockchip,hdmiin rockchip,hdmiin: is tagged by udev as: Switch

$12:00:02.863$ event2 - not using input device '/dev/input/event2'

$12:00:02.863$ event3 - bt-powerkey: is tagged by udev as: Keyboard

$4.736737$ $dhd$ dhd_conf_set_country : Country code: CN (CN/0)

$12:00:02.863$ event3 - bt-powerkey: device is a keyboard

$12:00:02.864$ event1 - goodix-ts: is tagged by udev as: Keyboard Touchscreen

$12:00:02.864$ event1 - goodix-ts: device is a keyboard

$12:00:02.864$ event1 - goodix-ts: device is a touch device

$4.753246$ $dhd$ Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)

$4.753246$ /home/jinhualong/new_disk_4t/wyb/RD-RK3588/rk3588_linux6.1_release_v1.2.0_20241220/external/rkwifibt/drivers/bcmdhd compiled on Nov 26 2025 at 21:35:58

4.753246

$4.757702$ $dhd$ Register interface $wlan0$ MAC: c0:f5:35:4f:8d:5e

4.757702

$4.757798$ $dhd$ dhd_tcpack_suppress_set: TCP ACK Suppress mode 3 -> mode 0

$4.757811$ $dhd$ dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40

$4.757829$ $dhd$ $wlan0$ wl_android_wifi_off : g_wifi_on=1 force_off=1

$4.757841$ $dhd$ dhd_bus_devreset: == Power OFF ==

$4.757851$ $dhd$ dhdpcie_advertise_bus_cleanup: DB7 Not sent!!!

$4.757863$ $dhd$ dhd_bus_stop: making DHD_BUS_DOWN

$4.758012$ $dhd$ dhd_dpc_kill: tasklet disabled

$4.761316$ $dhd$ dhd_bus_devreset: making DHD_BUS_DOWN

$4.761338$ $dhd$ dhd_bus_devreset: WLAN OFF Done

$4.761349$ $dhd$ wifi_platform_set_power = 0, delay: 10 msec

$4.761361$ $dhd$ ======== PULL WL_REG_ON(-1) LOW! ========

$4.761371$ $WLAN_RFKILL$ : rockchip_wifi_power: 0

$4.761380$ $WLAN_RFKILL$ : rockchip_wifi_power: rfkill-wlan driver has not Successful initialized

$4.772404$ $dhd$ wifi_platform_set_power = 0, sleep done: 10 msec

$4.772428$ $dhd$ $wlan0$ wl_android_wifi_off : out

$4.773637$ $dhd$ Register interface $wlan1$ MAC: c2:f5:35:4f:8d:5e

4.773637

$4.773656$ $dhd$ wl_android_post_init: 0

$4.773664$ $dhd$ dhdpcie_pci_probe : mutex is released.

$4.773836$ $dhd$ _dhd_module_init: Exit err=0

Successfully init Wi-Fi for AP6275P!

$4.791425$ $dhd$ dhd_pri_open : no mutex held

$4.791479$ $dhd$ dhd_pri_open : set mutex lock

$4.791489$ $dhd$ $wlan0$ dhd_open : Enter

$4.791497$ $dhd$ Dongle Host Driver, version 101.10.591.52.27 (20240409-1)(20240411-2)(d83d8d7)

$4.791497$ /home/jinhualong/new_disk_4t/wyb/RD-RK3588/rk3588_linux6.1_release_v1.2.0_20241220/external/rkwifibt/drivers/bcmdhd compiled on Nov 26 2025 at 21:35:58

4.791497

$4.791512$ $dhd$ dhd_open: ######### called for ifidx=0 #########

$4.791530$ $dhd$ $wlan0$ wl_android_wifi_on : in g_wifi_on=0

$4.791540$ $dhd$ wifi_platform_set_power = 1, delay: 200 msec

$4.791550$ $dhd$ ======== PULL WL_REG_ON(-1) HIGH! ========

$4.791559$ $WLAN_RFKILL$ : rockchip_wifi_power: 1

$4.791567$ $WLAN_RFKILL$ : rockchip_wifi_power: rfkill-wlan driver has not Successful initialized

$12:00:02.930$ libinput: configuring device "adc-keys".

$12:00:02.930$ libinput: configuring device "rk805 pwrkey".

$12:00:02.930$ libinput: configuring device "bt-powerkey".

$12:00:02.930$ Touchscreen - goodix-ts - /sys/devices/virtual/input/input1/event1

$12:00:02.930$ libinput: configuring device "goodix-ts".

$12:00:02.930$ input device event1 has no enabled output associated (none named), skipping calibration for now.

$12:00:02.930$ Registered plugin API 'weston_drm_output_api_v1' of size 40

$12:00:02.930$ Color manager: no-op

$12:00:02.930$ Compositor capabilities:

arbitrary surface rotation: yes

screen capture uses y-flip: yes

cursor planes: yes

arbitrary resolutions: no

view mask clipping: yes

explicit sync: yes

color operations: yes

presentation clock: CLOCK_MONOTONIC, id 1

presentation clock resolution: 0.000000001 s

$12:00:02.931$ Loading module '/usr/lib/weston/desktop-shell.so'

$12:00:02.934$ DRM: head 'HDMI-A-1' found, connector 223 is disconnected.

$12:00:02.935$ DRM: head 'HDMI-A-2' found, connector 239 is disconnected.

$12:00:02.935$ DRM: head 'DSI-1' found, connector 253 is connected, EDID make 'unknown', model 'unknown', serial ''

Supported EOTF modes: SDR

$12:00:02.935$ DRM: head 'DP-1' found, connector 255 is disconnected.

$12:00:02.935$ DRM: head 'DP-2' found, connector 263 is disconnected.

$12:00:02.936$ launching '/usr/libexec/weston-keyboard'

$12:00:02.938$ launching '/usr/libexec/weston-desktop-shell'

$12:00:02.940$ DSI-1 using at least 2 buffers

$12:00:02.940$ Output 'DSI-1' attempts EOTF mode: SDR

$12:00:02.940$ Output 'DSI-1' using color profile: stock sRGB color profile

$12:00:02.940$ Chosen EGL config details: id: 9 rgba: 8 8 8 0 buf: 24 dep: 0 stcl: 0 int: 0-1 type: win|pbf|swap_preserved vis_id: XRGB8888 (0x34325258)

$12:00:02.940$ Output DSI-1 (crtc 144) video modes:

1200x1920@55.8, preferred, current, 148.0 MHz

$12:00:02.940$ associating input device event4 with output DSI-1 (none by udev)

$12:00:02.940$ associating input device event0 with output DSI-1 (none by udev)

$12:00:02.940$ associating input device event3 with output DSI-1 (none by udev)

$12:00:02.941$ associating input device event1 with output DSI-1 (none by udev)

$12:00:02.941$ Output 'DSI-1' enabled with head(s) DSI-1

$4.828452$ android_work: did not send uevent (0 0 0000000000000000)

Successfully initialized wpa_supplicant

could not load cursor 'dnd-move'

could not load cursor 'dnd-copy'

could not load cursor 'dnd-none'

$4.998352$ $dhd$ wifi_platform_set_power = 1, sleep done: 200 msec

$4.998418$ $dhd$ dhd_bus_devreset: == Power ON ==

$4.998431$ $dhd$ dhd_bus_devreset: dhdpcie_bus_start_host_dev OK

$4.999067$ $dhd$ ******** Perform FLR ********

$4.999211$ $dhd$ config space 0x88 is 0x8080

$4.999223$ $dhd$ ******** device not in FLR ********

$4.999574$ $dhd$ ******** device force FLR only not set ********

$4.999583$ $dhd$ Delay of 70 msec

$5.078546$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.078764$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.078943$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079000$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079171$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079228$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079399$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079454$ $dhd$ read_config: reg=0x88 read val=0xb080

$5.079624$ $dhd$ read_config: reg=0x88 read val=0x8080

$5.080092$ $dhd$ ******** FLR Succedeed ********

$5.080118$ $dhd$ Disable CTO

$5.080868$ $dhd$ dhd_dump_pcie_slave_wrapper_regs pcie slave wrapper base not populated

$5.081015$ $dhd$ DHD: dongle ram size is set to 1310720(orig 1310720) at 0x170000

$5.081029$ $dhd$ dhdpcie_bar1_window_switch_enab: bar1_switch_enab=0 ramstart=0x170000 ramend=0x2affff bar1_size=0x400000

$5.081065$ $dhd$ dhdpcie_request_irq: INTx enabled, irq=82

$5.081117$ $dhd$ dhd_bus_download_firmware: firmware path=/vendor/etc/firmware/fw_bcmdhd.bin, nvram path=/vendor/etc/firmware/nvram.txt

$5.081152$ $dhd$ dhd_conf_set_path_params : Final fw_path=/vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin

$5.081163$ $dhd$ dhd_conf_set_path_params : Final nv_path=/vendor/etc/firmware/nvram_ap6275p.txt

$5.081174$ $dhd$ dhd_conf_set_path_params : Final clm_path=/vendor/etc/firmware/clm_bcm43752a2_pcie_ag.blob

$5.081184$ $dhd$ dhd_conf_set_path_params : Final conf_path=/vendor/etc/firmware/config.txt

$5.081257$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/config.txt (240 bytes) open success

$5.081311$ $dhd$ dhd_conf_read_pm_params : PM = 0

$5.081327$ $dhd$ dhd_conf_read_pm_params : pm_in_suspend = 2

$5.081342$ $dhd$ dhd_conf_read_others : keep_alive_period = 120000

$5.081355$ $dhd$ dhd_conf_read_others : garp = 1

$5.081368$ $dhd$ dhd_conf_read_pm_params : suspend_bcn_li_dtim = 10

$5.081385$ $dhd$ dhd_conf_read_others : wl_preinit = pm2_sleep_ret=20

$5.081400$ $dhd$ dhd_conf_read_pkt_filter : pkt_filter_del id = 100 102 103 104 105 107

$5.081440$ $dhd$ dhd_conf_read_pkt_filter : pkt_filter_add $0$ \[\] = 142 0 0 77 0xffffffffffffffffffffffffffffff 0x2F6465766963652F77616B6575702F

$5.081455$ $dhd$ d2h_intr_method -> PCIE_INTX(0); d2h_intr_control -> D2H_INTMASK(0)

$5.081674$ $dhd$ dhdpcie_download_code_file: dhd_tcm_test_enable 0, dhd_tcm_test_status 0

$5.081687$ $dhd$ dhdpcie_download_code_file: download firmware /vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin

$5.081712$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/fw_bcm43752a2_pcie_ag.bin (936074 bytes) open success

$5.081725$ $dhd$ dhdpcie_download_code_file Using SINGLE image (size 936074)

$5.179360$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/nvram_ap6275p.txt (7458 bytes) open success

$5.179398$ $dhd$ dhdpcie_download_nvram: dhd_get_download_buffer len 7458

$5.179405$ $dhd$ # AP6275P_NVRAM_V1.2_20210918A

$5.179450$ $dhd$ dhdpcie_download_nvram: process_nvram_vars len 6036

$5.197925$ $dhd$ dhdpcie_bus_write_vars: Download, Upload and compare of NVRAM succeeded.

$5.197932$ $dhd$ dhdpcie_bus_write_vars: New varsize is 6040, length token(nvram_csm)=0xfa1905e6

$5.198350$ $dhd$ Download and compare of TLV 0xfeedc0de succeeded (size 128, addr 2ae7dc).

$5.198445$ $dhd$ dhdpcie_bus_download_state: Took ARM out of Reset

$5.198468$ $dhd$ dhd_bus_aer_config: Configure AER registers for EP

$5.198492$ $dhd$ dhd_bus_aer_config: Configure AER registers for RC

$5.291480$ $dhd$ dhdpcie_readshared: addr=0x20a584 nvram_csm=0xfa1905e6

$5.291509$ $dhd$ ### Total time ARM OOR to Readshared pass took 93098 usec ###

$5.291514$ $dhd$ dhdpcie_readshared: PCIe shared addr (0x0020a584) read took 90000 usec before dongle is ready

$5.291780$ $dhd$ FW supports DAR ? N

$5.291808$ $dhd$ H2D DMA WR INDX : array size 172 = 4 * 43

$5.291814$ $dhd$ D2H DMA RD INDX : array size 16 = 4 * 4

$5.291819$ $dhd$ D2H DMA WR INDX : array size 16 = 4 * 4

$5.291824$ $dhd$ H2D DMA RD INDX : array size 172 = 4 * 43

$5.291829$ $dhd$ dhdpcie_readshared: max H2D queues 40

$5.291834$ $dhd$ FW supports debug buf dest ? N

$5.291839$ $dhd$ FW supports MD ring ? N

$5.291869$ $dhd$ dhd_bus_init: Enabling bus->intr_enabled

$5.291899$ $dhd$ STATIC-MSG) dhd_wlan_mem_prealloc : section 9, size 32896

$5.291911$ $dhd$ dhd_prot_init:4146: h2d_max_txpost = 512

$5.291917$ $dhd$ dhd_prot_init:4152: h2d_htput_max_txpost = 2048

$5.291925$ $dhd$ dhd_prot_init: max_rxbufpost:511 rx_buf_burst:64 rx_bufpost_threshold:64

$5.291931$ $dhd$ ENABLING DW:0

$5.291936$ $dhd$ IDMA inited

$5.291940$ $dhd$ IFRM not enabled in FW !!

$5.291944$ $dhd$ DAR not enabled in FW !!

$5.291948$ $dhd$ Enable hostcap: EXTD TXS in txcpl

$5.292010$ $dhd$ dhd_prot_d2h_sync_init(): D2H sync mechanism is NONE

$5.292025$ $dhd$ dhd_bus_hostready : Read PCICMD Reg: 0x00100006

$5.292044$ $dhd$ dhd_bus_hostready: Ring Hostready:1

$5.292051$ $dhd$ iDMA not enabled yet,waiting 1 ms c=1 IDMAControl = 00000000

$5.293173$ $dhd$ iDMA enabled PCIEControl = 00000001

$5.294845$ $dhd$ trying to send create d2h info ring: id 46

$5.294867$ $dhd$ dhd_send_d2h_ringcreate ringid: 3 idx: 46 max_h2d: 43

$5.294878$ $dhd$ trying to send create h2d info ring id 45

$5.295289$ $dhd$ dhd_prot_process_d2h_ring_create_complete ring create Response status = 0 ring 3, id 0xfffc

$5.295303$ $dhd$ info buffer post after ring create

$5.297415$ $dhd$ wlc_ver_major 12, wlc_ver_minor 1

$5.298958$ $dhd$ dhd_sync_with_dongle: GET_REVINFO device 0x449d, vendor 0x14e4, chipnum 0xaae8

$5.300273$ $dhd$ dhd_sync_with_dongle: RxBuf Post : 2048

$5.300284$ $dhd$ dhd_sync_with_dongle: RxBuf Post Alloc : 2048

$5.305492$ $dhd$ dhd_preinit_ioctls: preinit_status IOVAR not supported, use legacy preinit

$5.305514$ $dhd$ dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -> mode 3

$5.305525$ $dhd$ dhd_tcpack_suppress_set: TCPACK_INFO_MAXNUM=40, TCPDATA_INFO_MAXNUM=40

$5.308616$ $dhd$ dhd_legacy_preinit_ioctls: hostwake_oob enabled

$5.310017$ $dhd$ dhd_legacy_preinit_ioctls: use firmware generated mac_address c0:f5:35:4f:8d:5e

$5.310123$ $dhd$ dhd_os_open_image1: /vendor/etc/firmware/clm_bcm43752a2_pcie_ag.blob (30993 bytes) open success

$5.312699$ $dhd$ dhd_check_current_clm_data: ----- This FW is not included CLM data -----

$5.366631$ $dhd$ dhd_apply_default_clm: CLM download succeeded

$5.369143$ $dhd$ dhd_check_current_clm_data: ----- This FW is included CLM data -----

$5.380260$ $dhd$ Firmware up: op_mode=0x0005, MAC=c0:f5:35:4f:8d:5e

$5.419285$ $dhd$ dhd_legacy_preinit_ioctls: event_log_max_sets: 26 ret: 0

$5.424620$ $dhd$ arp_enable:1 arp_ol:0

$5.424660$ $dhd$ dhd_conf_add_pkt_filter : 142 0 0 77 0xffffffffffffffffffffffffffffff 0x2F6465766963652F77616B6575702F

$5.430833$ $dhd$ Driver: 101.10.591.52.27 (20240409-1)(20240411-2)

$5.430833$ $dhd$ Firmware: wl0: Jul 12 2022 18:54:54 version 18.35.387.23.146 (g412cc5ec) FWID 01-93c53be6

$5.430833$ $dhd$ CLM: 9.9.12_SS (2021-10-12 17:03:28)

$5.462487$ $dhd$ dhd_ecounter_autoconfig Ecounter autoconfig in FW not supported

$5.465148$ $dhd$ dhd_legacy_preinit_ioctls: d3_hostwake_delay IOVAR not present, proceed

$5.467079$ $dhd$ dhd_update_interface_flow_info: ifindex:0 previous role:0 new role:0

$5.467130$ $dhd$ dhd_rx_frame: net device is NOT registered. drop event packet

$5.468868$ $dhd$ dhd_conf_same_country : country code = CN/0 is already configured

$5.479236$ $dhd$ dhd_bus_devreset: WLAN Power On Done

$5.479254$ $dhd$ $wlan0$ wl_android_wifi_on : Success

$5.510466$ $dhd$ dhd_update_interface_flow_info: ifindex:0 previous role:0 new role:0

$5.510513$ $dhd$ dhd_rx_frame: net device is NOT registered. drop event packet

$5.529329$ $dhd$ $wlan0$ wl_cfg80211_up : Roam channel cache enabled

$5.532674$ $dhd$ $wlan0$ dhd_open : Exit ret=0

$5.532697$ $dhd$ $wlan0$ dhd_pri_open : tx queue started

$5.532748$ $dhd$ $wlan0$ custom_xps_map_set : Done. mapping cpu

$5.532756$ $dhd$ dhd_pri_open : mutex is released.

$5.574140$ $BT_RFKILL$ : bt shut off power

$5.584496$ $dhd$ P2P interface registered

$5.587624$ $dhd$ dhd_static_if_open : no mutex held

$5.587665$ $dhd$ dhd_static_if_open : set mutex lock

$5.587676$ $dhd$ $wlan1$ dhd_static_if_open : Enter

$5.587687$ $dhd$ $wlan0$ dhd_open : Primary net_device is already up

$5.587704$ $dhd$ CFG80211-ERROR) wl_cfg80211_deinit_p2p_discovery : Disabling P2P Discovery Interface

$5.587718$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_disable_discovery : do nothing, not initialized

$5.590923$ $dhd$ dhd_update_interface_flow_info: ifindex:1 previous role:0 new role:0

xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")

could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose

$5.605636$ $dhd$ dhd_clear_del_in_progress

$5.605675$ $dhd$ $wlan1$ dhd_static_if_open : Exit ret=0

$5.605690$ $dhd$ dhd_static_if_open : mutex is released.

nl80211: kernel reports: Registration to specific type not supported

$5.618251$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_set_discovery : p2p_disc 1 error -16

$5.618304$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_init_discovery : set discover error

$5.634767$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_enable_discovery : init discovery error -16

$5.634808$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_disable_discovery : do nothing, not initialized

$5.649533$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_start_p2p_device : P2P enable discovery failed, ret=-16

nl80211: Could not set interface 'p2p-dev-wlan0' UP

$5.650485$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_disable_discovery : do nothing, not initialized

nl80211: deinit ifname=p2p-dev-wlan0 disabled_11b_rates=0

$5.652116$ $dhd$ CFGP2P-ERROR) wl_cfgp2p_del_p2p_disc_if : P2P interface unregistered

p2p-dev-wlan0: Failed to initialize driver interface

p2p-dev-wlan0: CTRL-EVENT-DSCP-POLICY clear_all

P2P: Failed to enable P2P Device interface

xkbcommon: ERROR: couldn't find a Compose file for locale "en_US.UTF-8" (mapped to "en_US.UTF-8")

could not create XKB compose table for locale 'en_US.UTF-8'. Disabiling compose

$6.083513$ $BT_RFKILL$ : rfkill_rk_set_power: set bt wake_host high!

$6.138460$ $BT_RFKILL$ : rfkill_rk_set_power: set bt wake_host input!

$6.138511$ $BT_RFKILL$ : ENABLE UART_RTS

$6.246728$ $BT_RFKILL$ : DISABLE UART_RTS

$6.246797$ $BT_RFKILL$ : bt turn on power

$6.247107$ $BT_RFKILL$ : Request irq for bt wakeup host

$6.248040$ $BT_RFKILL$ : ** disable irq

###AMPAK FW Auto detection patch version = $v1.1 20161117$ ###

FW folder path = /lib/firmware

$6.775108$ of_dma_request_slave_channel: dma-names property of node '/serial@febc0000' missing or empty

proc_reset $6.775161$ dw-apb-uart febc0000.serial: failed to request DMA, use interrupt mode

chip id = BCM4362A2

FW path = /lib/firmware/BCM4362A2.hcd

$6.858721$ Freeing drm_logo memory: 1384K

send hci_download_minidriverproc_resetDone setting line discpline

$8.619039$ Bluetooth: MGMT ver 1.22

Successfully init BT for AP6275P!

Done

$14.958725$ platform dp0-sound: deferred probe pending

$14.958825$ platform es8388-sound: deferred probe pending

$14.958853$ platform mtd_vendor_storage: deferred probe pending

root@rk3588-buildroot:/#

root@rk3588-buildroot:/# ll

sh: ll: command not found

root@rk3588-buildroot:/#

root@rk3588-buildroot:/# uname -a

Linux rk3588-buildroot 6.1.75 #2 SMP Wed Nov 26 10:12:44 CST 2025 aarch64 GNU/Linux

root@rk3588-buildroot:/#

root@rk3588-buildroot:/# bluetoothctl advertise on

hci0 advertising_added: instance 1

$CHG$ Controller C0:F5:35:4F:8D:5F SupportedInstances: 0x05 (5)

$CHG$ Controller C0:F5:35:4F:8D:5F ActiveInstances: 0x01 (1)

Advertising object registered

Tx Power: off

Name: off

Appearance: off

Discoverable: on

RSI: on

hci0 69:A2:52:B3:6C:CD type LE Random connected eir_len 0

$NEW$ Device 69:A2:52:B3:6C:CD 69-A2-52-B3-6C-CD

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0001

00001801-0000-1000-8000-00805f9b34fb

Generic Attribute Profile

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0001/char0002

00002a05-0000-1000-8000-00805f9b34fb

Service Changed

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0001/char0004

00002b3a-0000-1000-8000-00805f9b34fb

Server Supported Features

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0001/char0006

00002b29-0000-1000-8000-00805f9b34fb

Client Supported Features

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0001/char0008

00002b2a-0000-1000-8000-00805f9b34fb

Database Hash

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086

0000fe35-0000-1000-8000-00805f9b34fb

HUAWEI Technologies Co., Ltd

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char0087

00002a00-0000-1000-8000-00805f9b34fb

Device Name

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char0089

00002a01-0000-1000-8000-00805f9b34fb

Appearance

$NEW$ Descriptor (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char0089/desc008b

00002902-0000-1000-8000-00805f9b34fb

Client Characteristic Configuration

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char008c

00002a02-0000-1000-8000-00805f9b34fb

Peripheral Privacy Flag

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char008e

00002a03-0000-1000-8000-00805f9b34fb

Reconnection Address

$NEW$ Descriptor (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0086/char008e/desc0090

00002902-0000-1000-8000-00805f9b34fb

Client Characteristic Configuration

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0091

0000046a-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0091/char0092

0000046c-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0094

00009955-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0094/char0095

00009954-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0094/char0097

00009953-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0099

0000fcf8-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0099/char009a

00002a00-0000-1000-8000-00805f9b34fb

Device Name

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0099/char009c

00002a01-0000-1000-8000-00805f9b34fb

Appearance

$NEW$ Descriptor (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service0099/char009c/desc009e

00002902-0000-1000-8000-00805f9b34fb

Client Characteristic Configuration

$NEW$ Primary Service (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service009f

11c8b310-80e4-4276-afc0-f81590b2177f

Vendor specific

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service009f/char00a0

00002b00-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Descriptor (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service009f/char00a0/desc00a2

00002902-0000-1000-8000-00805f9b34fb

Client Characteristic Configuration

$NEW$ Characteristic (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service009f/char00a3

00002b01-0000-1000-8000-00805f9b34fb

Unknown

$NEW$ Descriptor (Handle 0x0000)

/org/bluez/hci0/dev_69_A2_52_B3_6C_CD/service009f/char00a3/desc00a5

00002902-0000-1000-8000-00805f9b34fb

Client Characteristic Configuration

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 0000046a-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 00001800-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 00001801-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 00009955-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 0000fcf8-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 0000fe35-0000-1000-8000-00805f9b34fb

$CHG$ Device 69:A2:52:B3:6C:CD UUIDs: 11c8b310-80e4-4276-afc0-f81590b2177f

$CHG$ Device 69:A2:52:B3:6C:CD ServicesResolved: yes

$CHG$ Device 69:A2:52:B3:6C:CD Name: HONOR 70

$CHG$ Device 69:A2:52:B3:6C:CD Alias: HONOR 70

$END$ 2025/11/29 9:29:03
