Docker部署OneTerm堡垒机

1、OneTerm简介

OneTerm 是一款由国内运维团队"维易（VeOps）"开发的开源企业级堡垒机。它基于 4A（认证、授权、账号、审计）理念设计，旨在为企业提供一个统一、安全、可审计的运维入口。

2、核心功能与特色

OneTerm 的设计强调"简单、轻量、灵活"，其主要功能亮点如下：

广泛的多协议支持：支持通过 Web 方式管理多种资产，覆盖了绝大多数运维场景。

核心运维协议：SSH、RDP、VNC、Telnet。

数据库协议：MySQL、PostgreSQL、Redis、MongoDB。

Web 协议：HTTP/HTTPS。

强大的安全审计：这是堡垒机的核心价值，所有通过 OneTerm 的操作都会被记录，并提供会话录像和命令历史回放，实现操作过程100%可追溯。

灵活的权限管理：通过独立的 ACL 模块，可以从节点、资产、账号三个维度，结合时间模版、命令模版、IP白名单等策略，精细控制用户"连接、分享、上传、下载、复制、粘贴"等操作权限。

便捷的用户体验：提供现代化的 Web 工作台，内置上百种终端主题，并支持批量命令执行、可视化文件传输、资产快捷分享等实用功能，提升运维效率。

3、拉取oneterm镜像

bash 复制代码

docker pull registry.cn-hangzhou.aliyuncs.com/veops/oneterm-api:24.3
docker pull registry.cn-hangzhou.aliyuncs.com/veops/oneterm-ssh:24.3.1
docker pull registry.cn-hangzhou.aliyuncs.com/veops/oneterm-guacd:24.3
docker pull registry.cn-hangzhou.aliyuncs.com/qiluo-images/mysql:8.4.5
docker pull registry.cn-hangzhou.aliyuncs.com/qiluo-images/redis:latest
docker pull registry.cn-hangzhou.aliyuncs.com/veops/oneterm-ui:24.3
docker pull registry.cn-hangzhou.aliyuncs.com/veops/acl-api:1.1

4、部署oneterm服务

bash 复制代码

cd /data
git clone https://github.com/veops/oneterm.git
cd oneterm/deploy
cat docker-compose.yaml

bash 复制代码

version: "3.0"

services:
  oneterm-api:
    image: registry.cn-hangzhou.aliyuncs.com/veops/oneterm-api:v25.2.1
    container_name: oneterm-api
    volumes:
      - ./volume/replay:/replay
      - ./config.yaml:/oneterm/config.yaml
    depends_on:
      - mysql
      - redis
      - oneterm-guacd
    restart: always
    networks:
      new:
        aliases:
          - oneterm-api
    tty: true
    ports:
      - "2222:2222"

  oneterm-guacd:
    image: registry.cn-hangzhou.aliyuncs.com/veops/oneterm-guacd:latest
    container_name: oneterm-guacd
    user: root
    restart: always
    volumes:
      - ./volume/replay:/replay
    networks:
      new:
        aliases:
          - oneterm-guacd

  mysql:
    image: registry.cn-hangzhou.aliyuncs.com/qiluo-images/mysql:8.4.5
    container_name: oneterm-mysql
    environment:
      TZ: Asia/Shanghai
      MYSQL_ROOT_PASSWORD: '123456'
      MYSQL_DATABASE: 'oneterm'
    volumes:
      - ./volume/mysql:/var/lib/mysql
      - ./mysqld.cnf:/etc/mysql/conf.d/mysqld.cnf
      - ./acl.sql:/docker-entrypoint-initdb.d/2-acl.sql
      - ./create-users.sql:/docker-entrypoint-initdb.d/1-create-users.sql
    command: --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
    restart: always
    networks:
      new:
        aliases:
          - mysql

  redis:
    image:  registry.cn-hangzhou.aliyuncs.com/qiluo-images/redis:latest
    container_name: oneterm-redis
    restart: always
    environment:
      TZ: Asia/Shanghai
    networks:
      new:
        aliases:
          - redis

  oneterm-ui:
    image: registry.cn-hangzhou.aliyuncs.com/veops/oneterm-ui:v25.2.1
    container_name: oneterm-ui
    depends_on:
      - oneterm-api
    environment:
      TZ: Asia/Shanghai
      ONETERM_API_HOST: oneterm-api:8888
      ACL_API_HOST: acl-api:5000
      NGINX_PORT: 80
    volumes:
      - ./nginx.oneterm.conf.example:/etc/nginx/conf.d/nginx.oneterm.conf.example
    restart: always
    command:
      - /bin/sh
      - -c
      - |
        envsubst '$$ONETERM_API_HOST  $$ACL_API_HOST $$NGINX_PORT' < /etc/nginx/conf.d/nginx.oneterm.conf.example > /etc/nginx/conf.d/oneterm.conf
        nginx -g  'daemon off;'
        nginx -s reload
    networks:
      - new
    ports:
      - "8666:80"

  acl-api:
    image: registry.cn-hangzhou.aliyuncs.com/veops/acl-api:latest
    container_name: oneterm-acl-api
    environment:
      TZ: Asia/Shanghai
      WAIT_HOSTS: mysql:3306, redis:6379
    volumes:
      - ./.env:/data/apps/acl/.env
    restart: always
    command:
      - /bin/sh
      - -c
      - |
        sleep 2
        flask db-setup
        flask common-check-new-columns
        flask init-acl
        flask init-department
        gunicorn --workers=3 autoapp:app -b 0.0.0.0:5000 -D --access-logfile logs/access.log --error-logfile logs/error.log
        celery -A celery_worker.celery worker -E -Q acl_async --logfile=one_acl_async.log --autoscale=2,1
    depends_on:
      - mysql
      - redis
    networks:
      new:
        aliases:
          - acl-api

networks:
  new:
    driver: bridge
    name: oneterm_network
    ipam:
      config:
        - subnet: 172.30.0.0/24

5、启动oneterm容器

bash 复制代码

docker-compose up -d
docker-compose ps
docker logs -f oneterm-ui

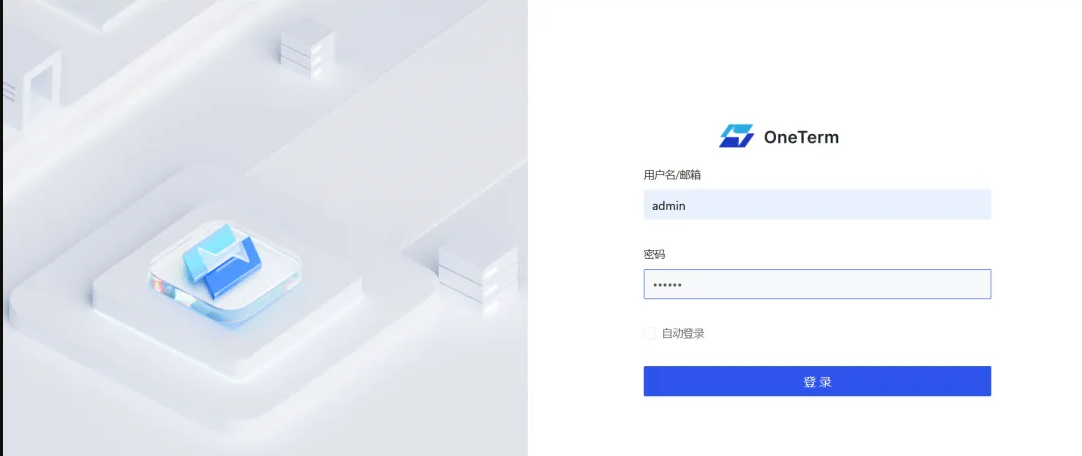

6、访问oneterm服务

浏览器访问: http://192.168.152.115:8666

帐号密码：admin/123456
