Linux pcie【9】基于GIC-V3 ITS实现pcie msi中断

在前面的文章我们介绍了GIC-V3 ITS驱动，本篇我们介绍怎么基于ITS驱动实现pcie msi功能。kernel版本为6.6。

我们前面文章中介绍到kernel 创建了一个MSI/MSIX domain。这部分代码在irq-gic-v3-its-pci-msi.c中实现的。执行流程如下：

its_pci_msi_init

->its_pci_of_msi_init

->its_pci_msi_init_one

->pci_msi_create_irq_domain

->msi_create_irq_domain

->__msi_create_irq_domain

可以看到__msi_create_irq_domain创建了一个hierarchy类型的domain，bus_token为DOMAIN_BUS_PCI_MSI。我们不过多的介绍代码了，实现比较简单，下面从一个PCIE devcie驱动的角度看一下，如何申请并使用MSI中断的。

 808 static struct irq_domain *__msi_create_irq_domain(struct fwnode_handle *fwnode,
 809                           struct msi_domain_info *info,
 810                           unsigned int flags,
 811                           struct irq_domain *parent)
 812 {
 813     struct irq_domain *domain;
 814
 815     if (info->hwsize > MSI_XA_DOMAIN_SIZE)
 816         return NULL;
 817
 818     /*
 819      * Hardware size 0 is valid for backwards compatibility and for
 820      * domains which are not backed by a hardware table. Grant the
 821      * maximum index space.
 822      */
 823     if (!info->hwsize)
 824         info->hwsize = MSI_XA_DOMAIN_SIZE;
 825
 826     msi_domain_update_dom_ops(info);
 827     if (info->flags & MSI_FLAG_USE_DEF_CHIP_OPS)
 828         msi_domain_update_chip_ops(info);
 829
 830     domain = irq_domain_create_hierarchy(parent, flags | IRQ_DOMAIN_FLAG_MSI, 0,
 831                          fwnode, &msi_domain_ops, info);
 832
 833     if (domain)
 834         irq_domain_update_bus_token(domain, info->bus_token);
 835
 836     return domain;
 837 }

PCIE device是通过pci_alloc_irq_vectors申请msi vector的。执行流程如下：

pci_alloc_irq_vectors

->pci_alloc_irq_vectors_affinity

->__pci_enable_msi_range

->pci_setup_msi_context

->msi_setup_device_data

->msi_capability_init

->pci_msi_setup_msi_irqs

->msi_domain_alloc_irqs_all_locked

->msi_domain_alloc_locked

->__msi_domain_alloc_locked

先看一下msi_setup_device_data，319行这个dev->msi.domain是在设备的创建过程中添加的（pci_device_add->pci_set_msi_domain），就是我们在《Linux pcie【8】GIC-V3 ITS驱动》介绍的MSI/MSIX domain，而且不是一个msi parent。320-323行会把给个domain作为device的MSI_DEFAULT_DOMAIN使用。

 282 /**
 283  * msi_setup_device_data - Setup MSI device data
 284  * @dev:    Device for which MSI device data should be set up
 285  *
 286  * Return: 0 on success, appropriate error code otherwise
 287  *
 288  * This can be called more than once for @dev. If the MSI device data is
 289  * already allocated the call succeeds. The allocated memory is
 290  * automatically released when the device is destroyed.
 291  */
 292 int msi_setup_device_data(struct device *dev)
 293 {
 294     struct msi_device_data *md;
 295     int ret, i;
 296
 297     if (dev->msi.data)
 298         return 0;
 299
 300     md = devres_alloc(msi_device_data_release, sizeof(*md), GFP_KERNEL);
 301     if (!md)
 302         return -ENOMEM;
 303
 304     ret = msi_sysfs_create_group(dev);
 305     if (ret) {
 306         devres_free(md);
 307         return ret;
 308     }
 309
 310     for (i = 0; i < MSI_MAX_DEVICE_IRQDOMAINS; i++)
 311         xa_init_flags(&md->__domains[i].store, XA_FLAGS_ALLOC);
 312
 313     /*
 314      * If @dev::msi::domain is set and is a global MSI domain, copy the
 315      * pointer into the domain array so all code can operate on domain
 316      * ids. The NULL pointer check is required to keep the legacy
 317      * architecture specific PCI/MSI support working.
 318      */
 319     if (dev->msi.domain && !irq_domain_is_msi_parent(dev->msi.domain))
 320         md->__domains[MSI_DEFAULT_DOMAIN].domain = dev->msi.domain;
 321
 322     mutex_init(&md->mutex);
 323     dev->msi.data = md;
 324     devres_add(dev, md);
 325     return 0;
 326 }

接着看__msi_domain_alloc_locked，1334行获取的domain就是我们前面赋值的MSI_DEFAULT_DOMAIN。 1340行申请一个msi_descs，这里先不管。1ops->domain_alloc_irqs没有配置，所以会走1348行__msi_domain_alloc_irqs。

1324 static int __msi_domain_alloc_locked(struct device *dev, struct msi_ctrl *ctrl)
1325 {
1326     struct msi_domain_info *info;
1327     struct msi_domain_ops *ops;
1328     struct irq_domain *domain;
1329     int ret;
1330
1331     if (!msi_ctrl_valid(dev, ctrl))
1332         return -EINVAL;
1333
1334     domain = msi_get_device_domain(dev, ctrl->domid);
1335     if (!domain)
1336         return -ENODEV;
1337
1338     info = domain->host_data;
1339
1340     ret = msi_domain_alloc_simple_msi_descs(dev, info, ctrl);
1341     if (ret)
1342         return ret;
1343
1344     ops = info->ops;
1345     if (ops->domain_alloc_irqs)
1346         return ops->domain_alloc_irqs(domain, dev, ctrl->nirqs);
1347
1348     return __msi_domain_alloc_irqs(dev, domain, ctrl);
1349 }

我们再看一下__msi_domain_alloc_irqs的调用流程：

__msi_domain_alloc_irqs

->msi_domain_prepare_irqs

->__irq_domain_alloc_irqs

->irq_domain_alloc_irqs_locked

->irq_domain_alloc_irqs_hierarchy

首先msi_domain_prepare_irqs最终会调用到its_pci_msi_prepare。主要是81行，会计算pci_device的requrestId，requestId是以EP的busId+devId+fucId为输入通过msi-map得到的。

然后赋值给info->scratchpad[0].ul。94行，继续调用上一级的msi_prepare，即its_msi_prepare。

 53 static int its_pci_msi_prepare(struct irq_domain *domain, struct device *dev,
 54                    int nvec, msi_alloc_info_t *info)
 55 {
 56     struct pci_dev *pdev, *alias_dev;
 57     struct msi_domain_info *msi_info;
 58     int alias_count = 0, minnvec = 1;
 59
 60     if (!dev_is_pci(dev))
 61         return -EINVAL;
 62
 63     msi_info = msi_get_domain_info(domain->parent);
 64
 65     pdev = to_pci_dev(dev);
 66     /*
 67      * If pdev is downstream of any aliasing bridges, take an upper
 68      * bound of how many other vectors could map to the same DevID.
 69      * Also tell the ITS that the signalling will come from a proxy
 70      * device, and that special allocation rules apply.
 71      */
 72     pci_for_each_dma_alias(pdev, its_get_pci_alias, &alias_dev);
 73     if (alias_dev != pdev) {
 74         if (alias_dev->subordinate)
 75             pci_walk_bus(alias_dev->subordinate,
 76                      its_pci_msi_vec_count, &alias_count);
 77         info->flags |= MSI_ALLOC_FLAGS_PROXY_DEVICE;
 78     }
 79
 80     /* ITS specific DeviceID, as the core ITS ignores dev. */
 81     info->scratchpad[0].ul = pci_msi_domain_get_msi_rid(domain, pdev);
 82
 83     /*
 84      * Always allocate a power of 2, and special case device 0 for
 85      * broken systems where the DevID is not wired (and all devices
 86      * appear as DevID 0). For that reason, we generously allocate a
 87      * minimum of 32 MSIs for DevID 0. If you want more because all
 88      * your devices are aliasing to DevID 0, consider fixing your HW.
 89      */
 90     nvec = max(nvec, alias_count);
 91     if (!info->scratchpad[0].ul)
 92         minnvec = 32;
 93     nvec = max_t(int, minnvec, roundup_pow_of_two(nvec));
 94     return msi_info->ops->msi_prepare(domain->parent, dev, nvec, info);
 95 }

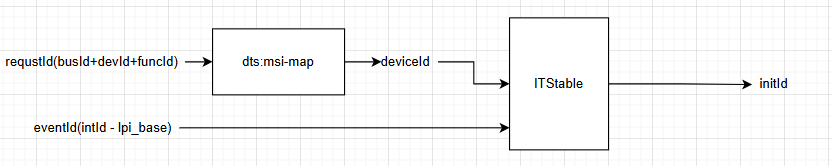

再看its_msi_prepare，3057行-3539行，会基于前面生成的requsetId查找或者新创建一个its_device。3547行，将its_device赋值给info->scratchpad[0].ptr。

3492 static int its_msi_prepare(struct irq_domain *domain, struct device *dev,
3493                int nvec, msi_alloc_info_t *info)
3494 {
3495     struct its_node *its;
3496     struct its_device *its_dev;
3497     struct msi_domain_info *msi_info;
3498     u32 dev_id;
3499     int err = 0;
3500
3501     /*
3502      * We ignore "dev" entirely, and rely on the dev_id that has
3503      * been passed via the scratchpad. This limits this domain's
3504      * usefulness to upper layers that definitely know that they
3505      * are built on top of the ITS.
3506      */
3507     dev_id = info->scratchpad[0].ul;
3508
3509     msi_info = msi_get_domain_info(domain);
3510     its = msi_info->data;
3511
3512     if (!gic_rdists->has_direct_lpi &&
3513         vpe_proxy.dev &&
3514         vpe_proxy.dev->its == its &&
3515         dev_id == vpe_proxy.dev->device_id) {
3516         /* Bad luck. Get yourself a better implementation */
3517         WARN_ONCE(1, "DevId %x clashes with GICv4 VPE proxy device\n",
3518               dev_id);
3519         return -EINVAL;
3520     }
3521
3522     mutex_lock(&its->dev_alloc_lock);
3523     its_dev = its_find_device(its, dev_id);
3524     if (its_dev) {
3525         /*
3526          * We already have seen this ID, probably through
3527          * another alias (PCI bridge of some sort). No need to
3528          * create the device.
3529          */
3530         its_dev->shared = true;
3531         pr_debug("Reusing ITT for devID %x\n", dev_id);
3532         goto out;
3533     }
3534
3535     its_dev = its_create_device(its, dev_id, nvec, true);
3536     if (!its_dev) {
3537         err = -ENOMEM;
3538         goto out;
3539     }
3540
3541     if (info->flags & MSI_ALLOC_FLAGS_PROXY_DEVICE)
3542         its_dev->shared = true;
3543
3544     pr_debug("ITT %d entries, %d bits\n", nvec, ilog2(nvec));
3545 out:
3546     mutex_unlock(&its->dev_alloc_lock);
3547     info->scratchpad[0].ptr = its_dev;
3548     return err;
3549 }
3550
3551 static struct msi_domain_ops its_msi_domain_ops = {
3552     .msi_prepare    = its_msi_prepare,
3553 };

我们仔细看一下its_create_device，3407行为requestId分配一个its device table。3423行，分配lpi_base和lpi_map。3421行分配一块itt空间。3459行建立requestId和itt的map。

3394 static struct its_device *its_create_device(struct its_node *its, u32 dev_id,
3395                         int nvecs, bool alloc_lpis)
3396 {
3397     struct its_device *dev;
3398     unsigned long *lpi_map = NULL;
3399     unsigned long flags;
3400     u16 *col_map = NULL;
3401     void *itt;
3402     int lpi_base;
3403     int nr_lpis;
3404     int nr_ites;
3405     int sz;
3406
3407     if (!its_alloc_device_table(its, dev_id))
3408         return NULL;
3409
3410     if (WARN_ON(!is_power_of_2(nvecs)))
3411         nvecs = roundup_pow_of_two(nvecs);
3412
3413     dev = kzalloc(sizeof(*dev), GFP_KERNEL);
3414     /*
3415      * Even if the device wants a single LPI, the ITT must be
3416      * sized as a power of two (and you need at least one bit...).
3417      */
3418     nr_ites = max(2, nvecs);
3419     sz = nr_ites * (FIELD_GET(GITS_TYPER_ITT_ENTRY_SIZE, its->typer) + 1);
3420     sz = max(sz, ITS_ITT_ALIGN) + ITS_ITT_ALIGN - 1;
3421     itt = kzalloc_node(sz, GFP_KERNEL, its->numa_node);
3422     if (alloc_lpis) {
3423         lpi_map = its_lpi_alloc(nvecs, &lpi_base, &nr_lpis);
3424         if (lpi_map)
3425             col_map = kcalloc(nr_lpis, sizeof(*col_map),
3426                       GFP_KERNEL);
3427     } else {
3428         col_map = kcalloc(nr_ites, sizeof(*col_map), GFP_KERNEL);
3429         nr_lpis = 0;
3430         lpi_base = 0;
3431     }
3432
3433     if (!dev || !itt ||  !col_map || (!lpi_map && alloc_lpis)) {
3434         kfree(dev);
3435         kfree(itt);
3436         bitmap_free(lpi_map);
3437         kfree(col_map);
3438         return NULL;
3439     }
3440
3441     gic_flush_dcache_to_poc(itt, sz);
3442
3443     dev->its = its;
3444     dev->itt = itt;
3445     dev->nr_ites = nr_ites;
3446     dev->event_map.lpi_map = lpi_map;
3447     dev->event_map.col_map = col_map;
3448     dev->event_map.lpi_base = lpi_base;
3449     dev->event_map.nr_lpis = nr_lpis;
3450     raw_spin_lock_init(&dev->event_map.vlpi_lock);
3451     dev->device_id = dev_id;
3452     INIT_LIST_HEAD(&dev->entry);
3453
3454     raw_spin_lock_irqsave(&its->lock, flags);
3455     list_add(&dev->entry, &its->its_device_list);
3456     raw_spin_unlock_irqrestore(&its->lock, flags);
3457
3458     /* Map device to its ITT */
3459     its_send_mapd(dev, 1);
3460
3461     return dev;
3462 }

继续看irq alloc这一路。irq_domain_alloc_irqs_hierarchy最终调用domain的回调函数来分配virq，回调函数为msi_domain_alloc。696行会一路调用parent domain的alloc。所以最终调用的是its驱动里的its_irq_domain_alloc。

 684 static int msi_domain_alloc(struct irq_domain *domain, unsigned int virq,
 685                 unsigned int nr_irqs, void *arg)
 686 {
 687     struct msi_domain_info *info = domain->host_data;
 688     struct msi_domain_ops *ops = info->ops;
 689     irq_hw_number_t hwirq = ops->get_hwirq(info, arg);
 690     int i, ret;
 691
 692     if (irq_find_mapping(domain, hwirq) > 0)
 693         return -EEXIST;
 694
 695     if (domain->parent) {
 696         ret = irq_domain_alloc_irqs_parent(domain, virq, nr_irqs, arg);
 697         if (ret < 0)
 698             return ret;
 699     }
 700
 701     for (i = 0; i < nr_irqs; i++) {
 702         ret = ops->msi_init(domain, info, virq + i, hwirq + i, arg);
 703         if (ret < 0) {
 704             if (ops->msi_free) {
 705                 for (i--; i > 0; i--)
 706                     ops->msi_free(domain, info, virq + i);
 707             }
 708             irq_domain_free_irqs_top(domain, virq, nr_irqs);
 709             return ret;
 710         }
 711     }
 712
 713     return 0;
 714 }

我们再看下its_irq_domain_alloc，3590行获取hwirq，3599行通过调用gic domain的alloc 建立映射。

3579 static int its_irq_domain_alloc(struct irq_domain *domain, unsigned int virq,
3580                 unsigned int nr_irqs, void *args)
3581 {
3582     msi_alloc_info_t *info = args;
3583     struct its_device *its_dev = info->scratchpad[0].ptr;
3584     struct its_node *its = its_dev->its;
3585     struct irq_data *irqd;
3586     irq_hw_number_t hwirq;
3587     int err;
3588     int i;
3589
3590     err = its_alloc_device_irq(its_dev, nr_irqs, &hwirq);
3591     if (err)
3592         return err;
3593
3594     err = iommu_dma_prepare_msi(info->desc, its->get_msi_base(its_dev));
3595     if (err)
3596         return err;
3597
3598     for (i = 0; i < nr_irqs; i++) {
3599         err = its_irq_gic_domain_alloc(domain, virq + i, hwirq + i);
3600         if (err)
3601             return err;
3602
3603         irq_domain_set_hwirq_and_chip(domain, virq + i,
3604                           hwirq + i, &its_irq_chip, its_dev);
3605         irqd = irq_get_irq_data(virq + i);
3606         irqd_set_single_target(irqd);
3607         irqd_set_affinity_on_activate(irqd);
3608         irqd_set_resend_when_in_progress(irqd);
3609         pr_debug("ID:%d pID:%d vID:%d\n",
3610              (int)(hwirq + i - its_dev->event_map.lpi_base),
3611              (int)(hwirq + i), virq + i);
3612     }
3613
3614     return 0;
3615 }

再看一下hwirq的获取过程its_alloc_device_irq。就是从its_device分配一个idx，然后加上分配给这个设备的lpi base。

3476 static int its_alloc_device_irq(struct its_device *dev, int nvecs, irq_hw_number_t *hwirq)
3477 {
3478     int idx;
3479
3480     /* Find a free LPI region in lpi_map and allocate them. */
3481     idx = bitmap_find_free_region(dev->event_map.lpi_map,
3482                       dev->event_map.nr_lpis,
3483                       get_count_order(nvecs));
3484     if (idx < 0)
3485         return -ENOSPC;
3486
3487     *hwirq = dev->event_map.lpi_base + idx;
3488
3489     return 0;
3490 }

我们看一先requestId eventId和initId的关系，对于pcie来说requtestId是固定的，我们会通过RC dts节点里的msi-map将他map成一个deviceId,一般都是一一映射，然后用deviceId和eventId在ITS table里创建一个到InitId的映射，这个initId就是GIV-V3的LPI中断。我们给设备分配eventId时会配置成initId - lpi_base。lpi_base是分配给设备专用的。这样设备发出一个msi就会由一个对应initId由ITS发给GIV-V3的redistributor。
