Spring Cloud —— SkyWalking（五）

11. 告警机制

skywalking 除了前文的链路展示，性能剖析，日志管理外，还提供告警功能。程序出现异常时，能自动触发通知，帮助程序员防患于未然。

11.1 告警规则

skywalking 预先定义了一些规则，在 config/alarm-settings.yml 中，我们可以添加或更改规则。

默认的规则如下：

yml 复制代码

# Licensed to the Apache Software Foundation (ASF) under one
# or more contributor license agreements.  See the NOTICE file
# distributed with this work for additional information
# regarding copyright ownership.  The ASF licenses this file
# to you under the Apache License, Version 2.0 (the
# "License"); you may not use this file except in compliance
# with the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Sample alarm rules.
rules:
  # Rule unique name, must be ended with `_rule`.
  service_resp_time_rule:
    # A MQE expression, the result type must be `SINGLE_VALUE` and the root operation of the expression must be a Compare Operation
    # which provides `1`(true) or `0`(false) result. When the result is `1`(true), the alarm will be triggered.
    expression: sum(service_resp_time > 1000) >= 3
    period: 10
    silence-period: 5
    message: Response time of service {name} is more than 1000ms in 3 minutes of last 10 minutes.
#  service_resp_time_rule:
#    expression: avg(service_resp_time) > 1000
#    period: 10
#    silence-period: 5
#    message: Avg response time of service {name} is more than 1000ms in last 10 minutes.
  service_sla_rule:
    expression: sum(service_sla < 8000) >= 2
    # The length of time to evaluate the metrics
    period: 10
    # How many times of checks, the alarm keeps silence after alarm triggered, default as same as period.
    silence-period: 3
    message: Successful rate of service {name} is lower than 80% in 2 minutes of last 10 minutes
  service_resp_time_percentile_rule:
    expression: sum(service_percentile{p='50,75,90,95,99'} > 1000) >= 3
    period: 10
    silence-period: 5
    message: Percentile response time of service {name} alarm in 3 minutes of last 10 minutes, due to more than one condition of p50 > 1000, p75 > 1000, p90 > 1000, p95 > 1000, p99 > 1000
  service_instance_resp_time_rule:
    expression: sum(service_instance_resp_time > 1000) >= 2
    period: 10
    silence-period: 5
    message: Response time of service instance {name} is more than 1000ms in 2 minutes of last 10 minutes
  database_access_resp_time_rule:
    expression: sum(database_access_resp_time > 1000) >= 2
    period: 10
    message: Response time of database access {name} is more than 1000ms in 2 minutes of last 10 minutes
  endpoint_relation_resp_time_rule:
    expression: sum(endpoint_relation_resp_time > 1000) >= 2
    period: 10
    message: Response time of endpoint relation {name} is more than 1000ms in 2 minutes of last 10 minutes
#  Active endpoint related metrics alarm will cost more memory than service and service instance metrics alarm.
#  Because the number of endpoint is much more than service and instance.
#
#  endpoint_resp_time_rule:
#    expression: sum(endpoint_resp_time > 1000) >= 2
#    period: 10
#    silence-period: 5
#    message: Response time of endpoint {name} is more than 1000ms in 2 minutes of last 10 minutes

#hooks:
#  webhook:
#    default:
#      is-default: true
#      urls:
#        - http://127.0.0.1/notify/
#        - http://127.0.0.1/go-wechat/

字段解析：

**_rule ：规则名，必需以此结尾
expression ：告警表达式，结果为 1，报警
period ：告警周期，评估性能等指标的间隔
silence-period ：静默时长，触发一次该告警后，多长时长才能触发
message：告警信息

这些规则为：

过去3min 内服务平均响应时长超 1s
最近 2min 服务成功率低于 80%
过去 3min 内超 1s 的服务响应百分数
服务实例过去 2min 内平均响应时长超 1s，且实例名与正则表达式匹配
终端节点过去 2min 内平均响应时间超 1s
过去 2min 内数据库访问平均响应时间超 1s
终端节点关系过去 2min 内平响超 1s

11.2 WebHook

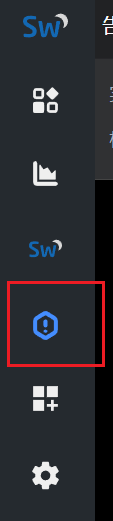

告警信息默认显示在这里，但是人又不可能一直盯着它，这就需要它主动通知我们

11.2.1 webhook了解

webhook 是允许应用程序 向外部系统 实时推送事件或数据的机制，常通过 HTTP 回调实现，从而实现跨系统自动化的消息传递

核心特点：

事件驱动：只有触发预先条件，才向目标 URL 发送 HTTP 请求（一般为 POST）
轻量级：接收方只需提供一个可访问的 HTTP 端点接受数据即可，无需自己轮询
灵活扩展：适用于告警通知，流程触发，数据同步等场景

11.2.2 skywalking 中 webhook 实现

skywalking 中提供了 webhook 方式：

yml 复制代码

#hooks:
#  webhook:
#    default:
#      is-default: true
#      urls:
#        - http://127.0.0.1/notify/
#        - http://127.0.0.1/go-wechat/

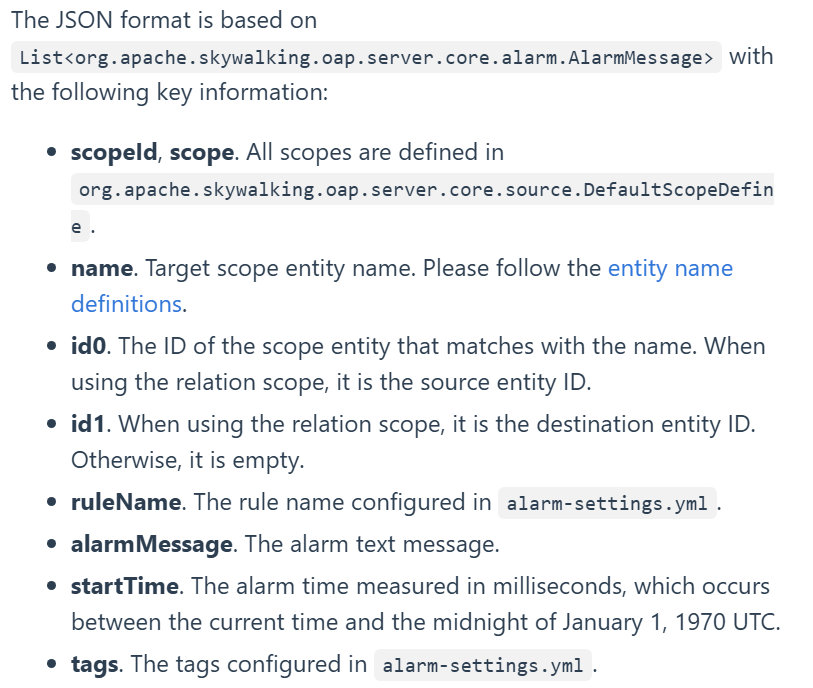

官网相关资料

触发告警时，skywalking 会生成告警事件，并将告警信息封装为 JSON 格式，通过 HTTP 发送到预设地址

此JSON 相关信息：

JSON 格式定义参考：List<org.apache.skywalking.oap.server.core.alarm.AlarmMessage> (其官方 github 仓库中的对应代码）

scopeId，scope：告警目标的监控范围，仓库中org.apache.skywalking.oap.server.core.source.DefaultScopeDefine 中定义
name：告警目标的名字，如服务名，端点名等
id0：目标实体的主要ID，通常是数据库中主键
id1：次要ID（可选），用于更精确的标识
ruleName：触发的告警规则名
alarmMessage：告警信息内容
startTime：告警触发时间戳（ms）
tags：标签列表，包含与告警相关信息

将 alarm-settings.yml 的注释掉的 webhook 部分取消注释

yml 复制代码

hooks:
 webhook:
   default:
     is-default: true
     urls:
       - http://127.0.0.1/notify/
       - http://127.0.0.1/go-wechat/

urls：消息推送地址

应用场景：

集成第三方系统：将告警推送到企业微信，飞书，邮箱等协作工具
自动化运维：触发运维脚本（如自动扩容）或联动故障管理系统
数据聚合分析：将告警事件转发至大数据平台进行统计分析
