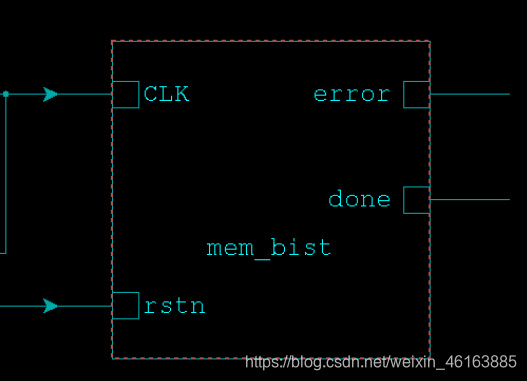

SRAM BIST 顶层

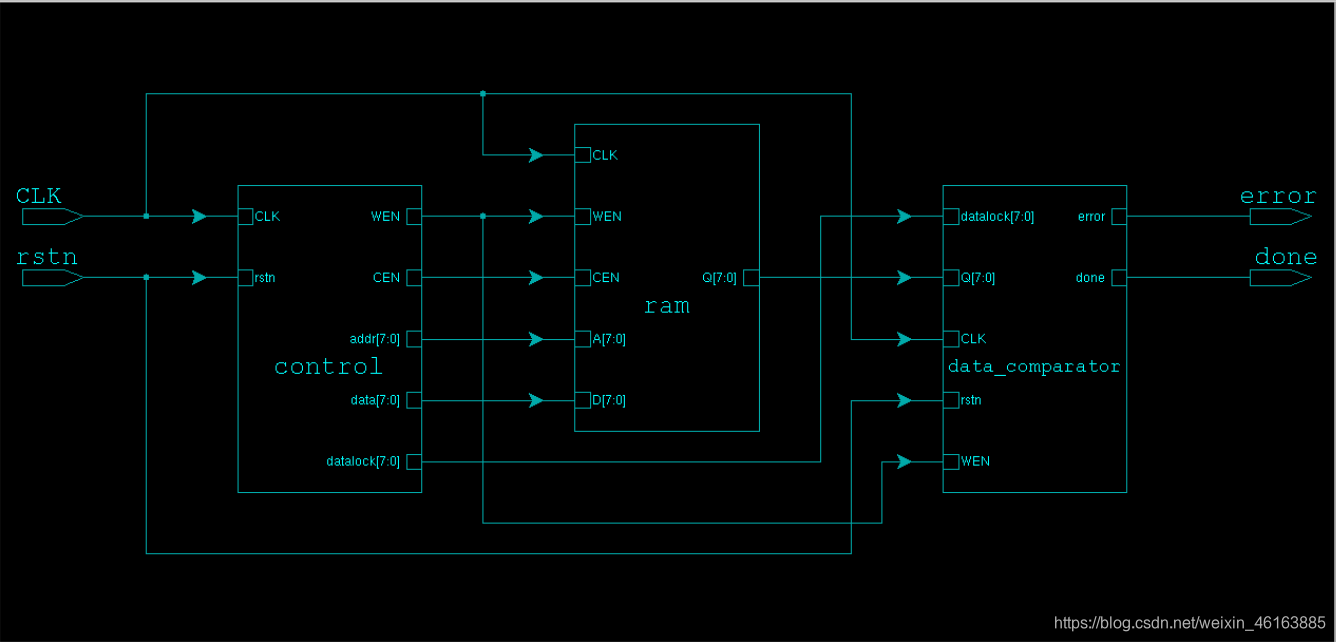

RSAM BIST 结构图'
SRAM BIST : MEM_BIST.V
sql
////////////////////////////////////////////
//Author : jian qiao
//Revision History : 2020-4-1
// Revision : 1.0
//Eailbox : jianqiaojia@dingtalk.com
//////////////////////////////////////////
`timescale 1ns/1ps
module mem_bist ( clk,rstn,error,done);
parameter data_size = 8;
parameter addr_size = 8;
parameter word_depth = 256;
input clk;
input rstn;
output errro;
output done;
wire [data_size-1:0] datalock;
wire [addr_size-1:0] a;
wire [data_size-1:0] d;
wire [data_size-1:0] q;
wire wen;
wire cen;
control dut1 (
.clk (clk),
.rstn (rstn),
.wen (wen),
.cen (cen),
.addr (a),
.data (d),
.datalock (datalock)
);
data_comparator dut2 (
.clk (clk),
.rstn (rstn),
.q (q),
.datalock (datalock),
.wen (wen),
.error (error),
.done (done)
);
ram dut3 (
.clk (clk),
.cen (cen),
.wen (wen),
.a (a),
.d (d),
.q (q)
);
endmodule CONTROL.V
sql
////////////////////////////////////////////
//Author : jian qiao
//Revision History : 2020-4-1
// Revision : 1.0
//Eailbox : jianqiaojia@dingtalk.com
//////////////////////////////////////////
`tiemscale 1ns/1ps
module control (clk,rstn,wen,cen,addr,data,datalock);
parameter addr_size = 8;
parameter data_size = 8;
parameter word_depth = 256;
input clk;
input rstn;
output wen;
output cen;
output [addr_size-1:0] addr;
output [data_size-1:0] data;
output [data_size-1:0] datalock;
reg wen;
reg cen;
reg [addr_size-1:0] addr;
reg [data_size-1:0] data;
reg [data_size-1:0] datalock;
reg [1:0] pattern;
reg i;
reg [3:0] state;
parameter data_b1 = 8'b0000_0000;
parameter data_b2 = 8'b0000_1111;
parameter data_b3 = 8'b0101_0101;
parameter data_b4 = 8'b0011_0011;
parameter idle = 4'd0,
s1 = 4'd1,
s2 = 4'd2,
s3 = 4'd3,
s4 = 4'd4,
s5 = 4'd5,
s6 = 4'd6,
updata = 4'd7,
stop = 4'd8;
always @ (posedge clk or negedge rstn)
begin
if (!rstn)
begin
cen <= 1'b1;
wen <= 1'b0;
pattern <= 2'b0;
data <= data_b1;
addr <= 8'd0;
datalock <= 8'd0;
i <= 1'b0;
state <= idle;
else
begin
case (state )
idle : begin
cen <= 1'b0;
wen <= 1'b0;
addr <= word_depth-1;
data <= data_b1;
pattern <= 2'd0;
i <= 1'b0;
state <= s1;
end
s1 : begin
if (addr > 8'd0)
begin
addr <= addr - 8'd1;
state <= s1;
end
else
begin
addr <= 8'd0;
wen <= 1'b1;
data <= ~data;
datalock <= data;
state <= s2;
end
end
s2 : begin
if (wen == 0)
beign
wen <= 1'b1;
datalock <= ~datalock;
state <= s2;
end
else if (i==0)
begin
wen <= 1'b0;
i <= 1'b1;
state <= s2;
end
else if（addr <= word_depth -1 )
begin
state <= s2;
addr <= addr 8'd1;
i <= 1'b0;
datalock <= ~datalock;
end
else
begin
addr <= 8'd0;
data <= ~data;
state <= s3;
i <= 1'b0;
datalock <= data;
end
end
s3 : begin
if (wen == 1'b0)
begin
wen <= 1'b1;
datalock <= ~datalock;
state <= s3;
end
else if (i == 0)
begin
wen <= 1'b0;
i <= 1'b1;
state <= s3;
end
else if (addr < word_depth -1)
begin
addr <= addr + 8'd1;
i <= 1'b0;
datalock <= ~datalock;
state <= s3;
end
else
begin
addr <= word_depth -1;
data <= ~data;
i <= 1'b0;
datalock <= data;
state <= s4;
end
end
s4 : begin
if (wen == 0)
begin
wen <= 1'b1;
datalock <= ~datalock;
state <= s4;
end
else if (i == 0)
begin
wen <= 1'b0;
i <= 1'b1;
state <= s4;
end
else if ( addr > 8'd0)
begin
addr <= addr - 8'd1;
datalock <= ~datalock;
i <= 1'b0;
state <= s4;
end
else
begin
addr <= word_depth -1;
data <= ~data;
datalock <= data;
i <= 1'b0;
state <= s5;
end
end
s5 : begin
if (wen == 0)
begin
wen <= 1'b1;
datalock <= ~datalock ;
state <= s5;
end
else if (i == 0)
begin
i <= 1;
wen <= 0;
state <= s5;
end
else if ( addr > 8'd0)
begin
i <= 0;
addr <= addr - 8'd1;
datalock <= ~datalock;
state <= s5;
end
else
begin
addr <= 8'd0;
datalock <= data;
state <= s6;
end
end
s6 : begin
if (addr < word_depth -1)
addr <= addr + 8'd1;
else
begin
wen <= 0;
i <= 0;
state <= updata;
end
end
updata : begin
if (pattern == 0)
begin
data <= data_b2;
pattern <= pattern + 1;
state <= s1;
end
else if (pattern == 1）
begin
data <= data_b3;
pattern <= pattern + 1;
state <= s1;
end
else if ( pattern == 2 )
begin
data <= data_b4;
pattern <= pattern + 1;
state <= s1;
end
else
state <= stop;
stop : begin
cen <= 1;
end
default : state <= idle;
endcase
end
end
endmodule
DATA_COMPATATOR.V
sql
////////////////////////////////////////////
//Author : jian qiao
//Revision History : 2020-4-1
// Revision : 1.0
//Eailbox : jianqiaojia@dingtalk.com
//////////////////////////////////////////
`timescale 1ns/1ps
module data_comparator ( clk ,rstn,datalock,wen,q,error,done);
parameter addr_size = 8,
data_size = 8,
word_depth = 256;
input wen;
input [data_size-1:0] datalock;
input clk;
input rstn;
input [data_size-1:0] q;
output error;
output done;
reg error;
reg done;
reg [data_size-1:0] q1;
reg [data_size-1:0] datalock1;
always @ (posedge clk or negedge rstn)
beign
if (!rstn)
begin
error <= 0;
done <= 0;
q1 <= 8'd0;
datalock1 <= 8'd0;
end
else
begin
q1 <= q;
datalock1 <= datalock;
if (wen == 1)
beign
if (datalock1 == q1)
begin
error <= 0;
done <= 1;
end
else
begin
error <= 1;
done <= 1;
end
end
else beign
error <= error;
done <= done ;
end
end
end
endmodule

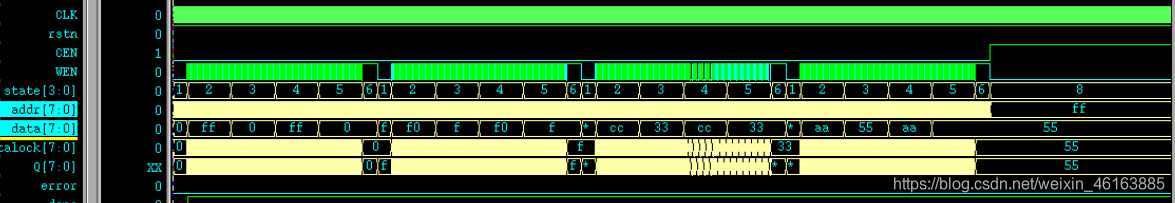

实现时序图
sram 的话就不挂了，那部分相对来说比较简单，很容易就可以写出啦。
希望我的个人练习对你有借鉴价值。
