STM32_6：OLED屏幕开发

1.介绍

OLED即有机发光管(Organic Light-Emitting Diode,OLED)。OLED显示技术具有自发光、广视角、几乎无穷高的对比度、较低功耗、极高反应速度、可用于绕曲性面板、使用温度范围广、构造及制程简单等有点，被认为是下一代的平面显示屏新兴应用技术。

OLED显示和传统的LCD显示不同，其可以自发光，所以不需要背光灯，这使得OLED显示屏相对于LCD显示屏尺寸更薄，同时显示效果更优。

常用的OLED屏幕有蓝色、黄色、白色等几种。屏的大小为0.96寸，像素点为128*64，所以我们称为0.96oled屏或者12864屏。

2.特点

1.模块尺寸：23.7 *23.8mm

2.电源电压：3.3-5.5V

3.驱动芯片：SSD1306

4.测试平台：提供 k60/k10,9s12XS128,51,stm32，stm8等单片机

3.OLED屏幕显存

OLED本身是没有显存的，他的现存是依赖SSD1306提供的，而SSD1306提供一块显存。

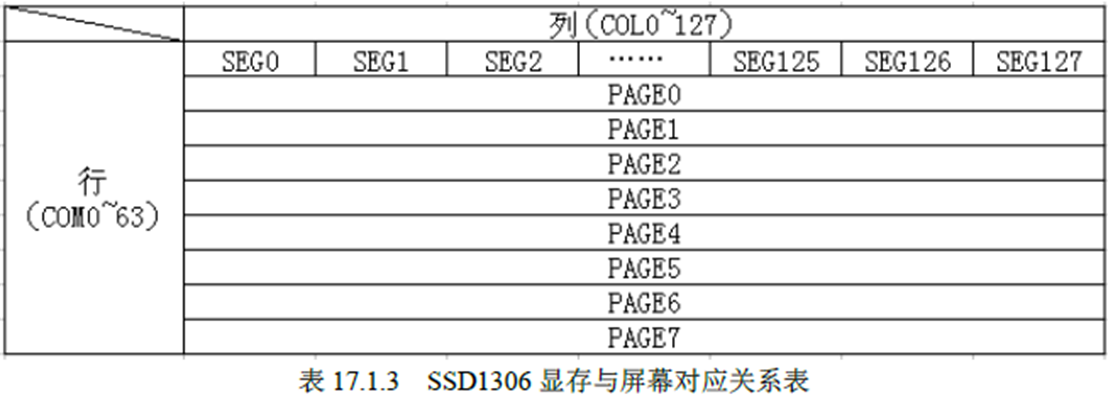

SSD1306显存总共为128×64像素（8192个点），SSD1306将这些显存分成8页，每页对应8行像素。每页包含128列，每列用1个字节（8位）表示该列的8个像素状态，因此每页需要128字节，总显存为1024字节。

4.屏幕原理

STM32内部建立一个缓存(共128*8个字节），每次修改的时候，只是修改STM32上的缓存(实际上就是SRAM)，修改完后一次性把STM32上的缓存数据写入到OLED的GRAM。

这个方法也有坏处，对于SRAM很小的单片机（51系列）就比较麻烦。

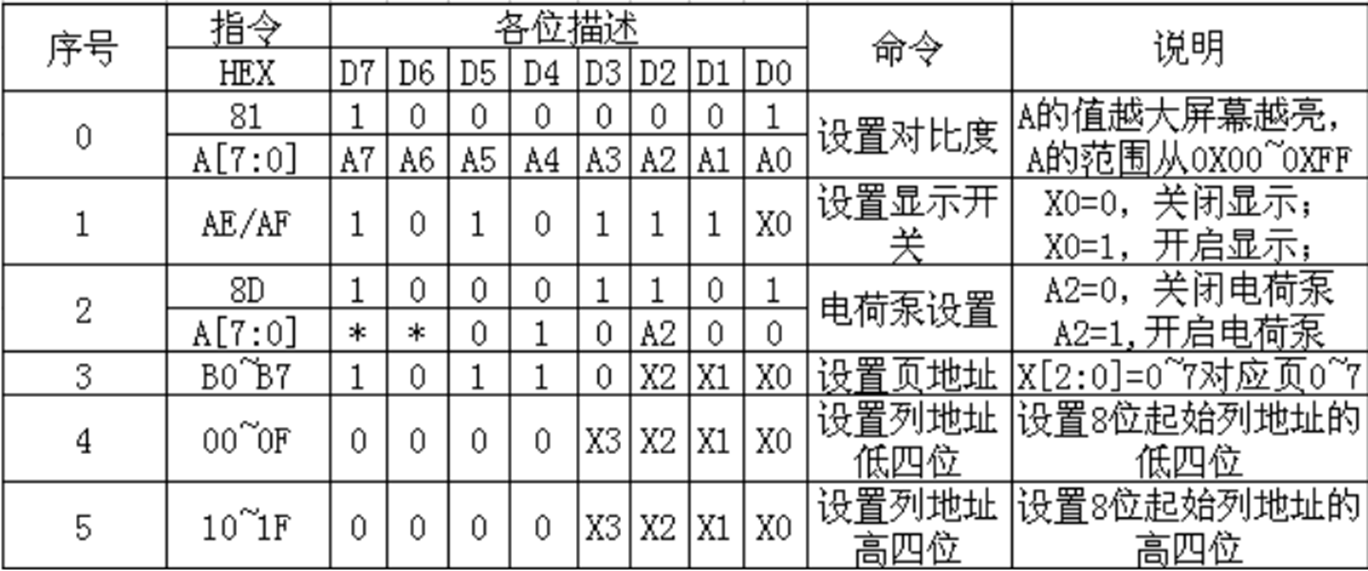

5.OLED屏幕常用指令

命令0X81: 设置对比度。包含两个字节，第一个0X81为命令，随后方法是的一个字节要设置这个对比度，值越大屏幕越亮。

命令0XAE/0XAF: 0XAE为关闭显示命令，0XAF为开启显示命令

0X8D: 包含两个字节，第一个为命令字，第二个为设置值，第二个字节的BIT2表示电荷泵的开关状态，该位为1开启电荷泵，为0则关闭。模块初始化的时候，这个必须要开启，否则看不到屏幕显示。

命令0XB0~B7：用于设置页地址，其低三位的值对应GRAM页地址。

命令0X00~0X0F：用于设置显示时的起始列地址低四位。

命令0X10~0X1F：用于设置显示时的起始列地址高四位。

6.OLED 项目

注：

1.时序图函数

cs 复制代码

void I2C_WriteByte(uint8_t addr,uint8_t data )
{
	while(I2C_GetFlagStatus( I2C1,  I2C_FLAG_BUSY));

	I2C_GenerateSTART(I2C1, ENABLE);
	while( !I2C_CheckEvent( I2C1,  I2C_EVENT_MASTER_MODE_SELECT) );

	I2C_Send7bitAddress(I2C1,  OLED_ADDRESS,  I2C_Direction_Transmitter);
	while( !I2C_CheckEvent( I2C1,  I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED) );

	I2C_SendData(I2C1,addr);
	while( !I2C_CheckEvent(I2C1,I2C_EVENT_MASTER_BYTE_TRANSMITTING));

	I2C_SendData(I2C1,data);
	while( !I2C_CheckEvent(I2C1,I2C_EVENT_MASTER_BYTE_TRANSMITTING));

	I2C_GenerateSTOP(I2C1, ENABLE);

}

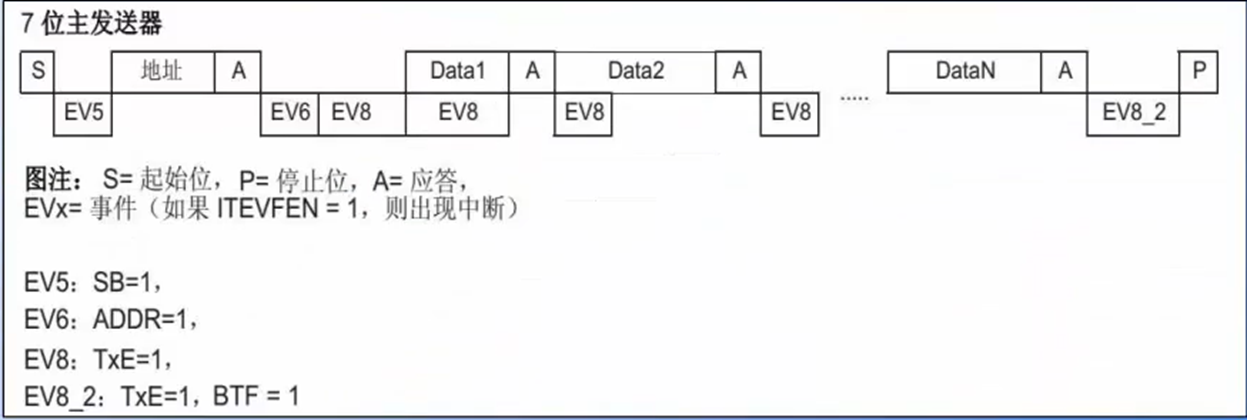

主设备(STM32) 从设备(OLED)

│ │

│───START───────────>│ (1) 发出起始信号

│ │

│──0x78(W)──┬───────>│ (2) 发送OLED地址+写位

│ │<──ACK──┤ OLED回应ACK

│ │ │

│──控制字节─┬───────>│ (3) 发送命令/数据选择位

│ │<──ACK──┤ OLED回应ACK

│ │ │

│──数据字节─┬───────>│ (4) 发送实际数据

│ │<──ACK──┤ OLED回应ACK

│ │ │

│───STOP────────────>│ (5) 发出停止信号
步骤1：检查总线忙

while(I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY));

防止在总线被占用时启动新通信

等待直到 BUSY 标志为0

步骤2：生成起始条件

I2C_GenerateSTART(I2C1, ENABLE);

while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_MODE_SELECT));

I2C_GenerateSTART: 硬件产生START信号

等待事件 EV5: SB=1 (Start Bit)

此时I2C进入主模式

步骤3：发送从设备地址

I2C_Send7bitAddress(I2C1, OLED_ADDRESS, I2C_Direction_Transmitter);

while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED));

OLED_ADDRESS 应为 0x78 (OLED的7位地址+写位=0)

等待事件 EV6: ADDR=1 + TXE=1 + 方向位

表示地址已发送并收到ACK

步骤4：发送控制字节

I2C_SendData(I2C1, addr);

while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING));

addr: OLED的控制字节，决定后续是命令还是数据

0x00: 命令

0x40: 数据

等待事件 EV8_1: TXE=1 + BTF=0

步骤5：发送数据字节

I2C_SendData(I2C1, data);

while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTING));

data: 实际要显示的数据或命令值

同样等待发送完成事件

步骤6：生成停止条件

I2C_GenerateSTOP(I2C1, ENABLE);

硬件产生STOP信号，结束本次传输

无需等待，STOP由硬件自动完成

主设备（STM32的I2C模块） 产生起始信号(S)

主设备 在完成后，给自己（STM32）的 SR1寄存器的SB位置1

主设备 向CPU报告："我完成了起始信号！"（事件EV5）

主设备 发送从设备地址到总线上

从设备 如果存在且正常，会拉低SDA线（发出ACK应答）

主设备 检测到这个ACK后，给自己的 SR1寄存器的ADDR位置1

主设备 再次向CPU报告："地址发送成功且对方答应了！"（事件EV6和EV8）

OLED通常有固定地址：

7位地址：0x3C 或 0x3D

转换到发送地址：

写操作：(0x3C << 1) | 0 = 0x78

读操作：(0x3C << 1) | 1 = 0x79

OLED_ADDRESS 是OLED的从何设备地址

addr 参数是 OLED 的寄存器/命令地址，data 是要写入该寄存器的值。

2.OLED先发送指令，在发送数据

cs 复制代码

void WriteCmd(unsigned char I2C_Command)
{
	I2C_WriteByte(0x00,I2C_Command);
}

void WriteData(unsigned char I2C_Data)
{
	I2C_WriteByte(0x40,I2C_Data);
}

|----------------|--------|------|--------------------------------|
| WriteCmd(命令) | 0x00 | 命令字节 | 向 OLED 发送控制命令（如设置坐标、开关显示等） |
| WriteDat(数据) | 0x40 | 数据字节 | 向 OLED 写入显示数据（像素点数据） |

3.OLED坐标函数

cs 复制代码

void OLED_SetPos(unsigned char x,unsigned char y)
{
	WriteCmd(0xB0 + y);
	WriteCmd(0x00 | (x & 0x0F));
	WriteCmd(0x10 | (x & 0xF0)>>4);
}

x = 列地址 （Column）→ 水平方向（0~127）
y = 页地址 （Page）→ 垂直方向（0~7）

1. WriteCmd(0xb0 + y);

0xB0 ：是SSD1306的**"设置页起始地址"** 命令的基础值。

+ y：页号偏移（0~7），因为128x64的OLED垂直方向分为8页（Page），每页8行像素。

作用：选择要操作的垂直位置（Y坐标所在的页）。

2. WriteCmd(((x & 0xf0) >> 4) | 0x10);

x & 0xF0：取x的高4位。

>> 4：右移4位，得到纯高4位值（0x50→0x05）。

| 0x10 ：与0x10（二进制0001 0000）进行或运算。

0x10是SSD1306的**"设置列地址高4位"**命令码。

作用：设置列地址的高4位（X坐标的[7:4]位）。

3. WriteCmd((x & 0x0f) | 0x00);

x & 0x0F：取x的低4位。

| 0x01 ：这里可能是笔误或特定型号设置。通常应该是| 0x00。

标准SSD1306命令：**0x00是"设置列地址低4位"**的命令码。

有些代码会写成| 0x01，但根据手册应该是0x00。

作用：设置列地址的低4位（X坐标的[3:0]位）。

4.OLED 在写入数据时，列地址是自动递增的

cs 复制代码

void OLED_Fill(unsigned char Fill_Data)
{
	unsigned char n,m;

	for( m = 0;m < 8;m++)
	{
		WriteCmd(0xB0 + m);
		WriteCmd(0x00);
		WriteCmd(0x10);


		for(n = 0;n < 128;n++)
		{
			WriteData(Fill_Data);
		}
	}

}

当你向 OLED 写入一个字节的数据后：

列地址指针会自动加 1（指向下一列）
页地址保持不变
下一个写入的数据会自动出现在下一列

5.OLED 显示字符串函数

cs 复制代码

void OLED_Showstring(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize)
{
	unsigned char i = 0,j = 0,c = 0;

	switch(TextSize)
	{
		case 1 :
		{
			while(ch[j] != '\0')
			{
				if(x > 122)
				{
					x = 0;
					y++;
				}
				OLED_SetPos(x,y);

				c = ch[j] - 32;
				for(i = 0;i < 6;i++)
				{
					WriteData( F6x8[c][i] );
				}
				x += 6;
				j++;
			}
			break;
		}
		case 2:
		{
			while(ch[j] != '\0')
			{
				if(x > 120)
				{
					x = 0;
					y++;
				}
				OLED_SetPos(x,y);

				c = ch[j] - 32;
				for(i = 0;i < 8;i++)
					WriteData(F8X16[c*16+i]);

				OLED_SetPos(x,y+1);
				for(i = 0;i < 8;i++)
					WriteData(F8X16[c*16+i+8]);
				x += 8;
				j++;


			}
		}
		break;
	}
}

case1：

j为遍历数标

c理解为字模库的遍历索引，字模库为n行6列，c代表行数

因为6x8[]，6个像素宽，8个像素高。OLED为64*128，分为8页，8*128，因此每完成一个字符的显示，x要移动6位

因此边界检查 x+6 >128 越界， x <= 122

c = ch[j] - 32; 因为字模库中没有存储 ASCII 前32个控制字符。

case2：

6.F6x8[][6]

1. 一个字符的6字节排列

F6x8[字符索引] = {字节0, 字节1, 字节2, 字节3, 字节4, 字节5}

└列0 ┘└列1 ┘└列2 ┘└列3 ┘└列4 ┘└列5 ┘

2. 字节的位-像素映射

每个字节的 8个位 对应 一列的8个垂直像素 ：

位7 位6 位5 位4 位3 位2 位1 位0

│ │ │ │ │ │ │ │

像素7 像素6 像素5 像素4 像素3 像素2 像素1 像素0

（底部）（顶部）

1 = 像素点亮（白色）
0 = 像素熄灭（黑色）

注意：实际显示时，位0对应顶部像素 ，位7对应底部像素。

例：'H'（索引40）

{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F}

二进制：

列0: 00000000 ← 左边距

列1: 01111111 ← 点亮中间6个像素（位1-6）

列2: 00001000 ← 只点亮第3个像素（位3）

列3: 00001000

列4: 00001000

列5: 01111111

列1：0x7F = 01111111

位7 位6 位5 位4 位3 位2 位1 位0

0 1 1 1 1 1 1 1

│ │ │ │ │ │ │ │

底 ↑ ↑ ↑ ↑ ↑ ↑ 顶

列0 列1 列2 列3 列4 列5

00000000 01111111 00001000 00001000 00001000 01111111

像素映射（●=亮，○=灭）：

列0 列1 列2 列3 列4 列5

○ ● ○ ○ ○ ● ← 像素0(位0) 顶部

○ ● ○ ○ ○ ● ← 像素1(位1)

○ ● ○ ○ ○ ● ← 像素2(位2)

○ ● ● ● ● ● ← 像素3(位3)

○ ● ○ ○ ○ ● ← 像素4(位4)

○ ● ○ ○ ○ ● ← 像素5(位5)

○ ● ○ ○ ○ ● ← 像素6(位6)

○ ○ ○ ○ ○ ○ ← 像素7(位7) 底部（留空）

7.F8x16[]

8X16 表示：它描述的是显示尺寸 ，不是存储格式

宽度：8像素（列）

高度：16像素（行）

字符尺寸：8列宽 × 16行高

存储方式：

分为上下两部分

上半部分：8个字节 → 控制8列，每列8个像素（行0~7）

下半部分：8个字节 → 控制同样的8列，每列8个像素（行8~15）
总共：16字节

8个像素宽，16个像素高，高于一页，所以要用两页来显示，所以y坐标加一。而且是一维数组，要+8。

这里把16个元素看成一组，代表一个字符，前8个位上半字符，后8位为下半字符。

F6x8[][6]（小字体）：

二维数组：F6x8[字符数][6]

每个字符：6字节

直接对应：6列 × 8行（每字节控制一列的8个像素）

F8X16[]（大字体）：

一维数组：F8X16[]

每个字符：16字节（连续存储）

存储方式：前8字节（8列前8行）=上半部分，后8字节（8列后8行）=下半部分

实际尺寸：8列 × 16行

8.像素和比特

像素 = Picture Element（图像元素）
是数字图像的最小单位
一个可寻址、可控制的显示点

在OLED中的像素

对于你的 128×64 OLED：

128像素宽：水平方向128个点

64像素高：垂直方向64个点

总共 8192个像素点

比特 = Binary Digit（二进制位）
信息的最小单位
只能是 0 或 1

在OLED中的意义

在单色OLED中：

1比特控制 1个像素的亮灭

比特值：1 = 像素亮（白色），0 = 像素灭（黑色）

在单色OLED中的关系

1比特 → 控制 → 1像素

数据 ←对应→ 显示

在单色显示中，像素和比特是一一对应的控制关系，但它们是不同层次的概念。

在彩色显示中：

1像素 = 多个比特（如24位真彩色）

1像素 = R(8bit) + G(8bit) + B(8bit) = 24bit

9.OLED显示汉字函数

cs 复制代码

void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N)
{
	unsigned char wn = 0;
	unsigned int addr = 32 * N;

	OLED_SetPos(x,y);
	for(wn = 0;wn < 16;wn++)
	{
		WriteData( F16x16[addr]);
		addr += 1;
	}

	OLED_SetPos(x,y+1);
	for(wn = 0;wn < 16;wn++)
	{
		WriteData( F16x16[addr]);
		addr += 1;
	}
}

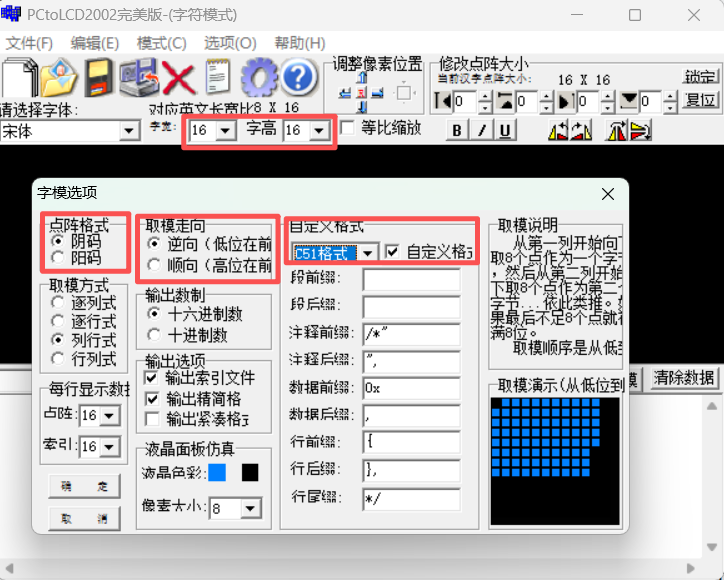

16x16，一个汉字占32个字节，N汉字的索引

注意：一维数组使用遍历数标方便

10.OLED显示图像函数

cs 复制代码

void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
	unsigned char x = 0,y = 0;
	unsigned int j = 0;

	if(y1 % 8 == 0)
		y = y1/8;
	else
		y = y1/8+1;

	for(y = y0;y < y1;y++)
	{
		OLED_SetPos(x0,y);
		for(x = x0;x < x1;x++)
		{
			WriteData(BMP[j++]);
		}
	}


}

x0, y0：位图显示的起始坐标（左上角）

x1, y1：位图显示的结束坐标（右下角+1）

BMP[]：存储位图数据的数组，每个字节代表一个像素块（通常是8个像素垂直排列）

if (y1 % 8 == 0)

y = y1 / 8;

else

y = y1 / 8 + 1;

OLED 屏幕通常按每 8 行一个字节的方式存储像素数据。

这里计算从 y0 到 y1 总共需要多少字节行（不是像素行）。

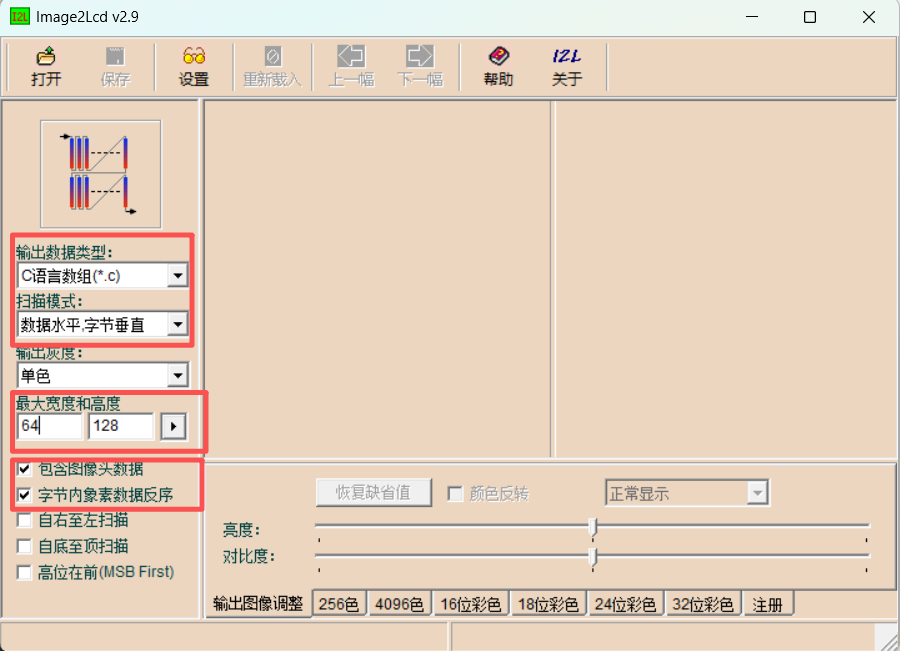

注：图片要BMP格式

完整函数代码

cs 复制代码

//oled.h
#ifndef _OLED_H_
#define _OLED_H_

#define OLED_ADDRESS 0x78

void I2C_Configuration(void);
void I2C_WriteByte(uint8_t addr,uint8_t data );
void WriteCmd(unsigned char I2C_Command);
void WriteData(unsigned char I2C_Data);
void OLED_Init(void);
void OLED_SetPos(unsigned char x,unsigned char y);
void OLED_Fill(unsigned char Fill_Data);
void OLED_Clear(void);
void OLED_Open(void);
void OLED_Close(void);
void OLED_Showstring(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize);
void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N);
void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[]);


#endif

cs 复制代码

//oled.c
#include "stm32f10x.h"
#include "oled.h"
#include "systick.h"
#include "OLED_Codetab.h"

void I2C_Configuration()
{
	GPIO_InitTypeDef GPIO_Initstructure;
	I2C_InitTypeDef  I2C_Initstructure;


	RCC_APB2PeriphClockCmd( RCC_APB2Periph_GPIOB, ENABLE);
	RCC_APB1PeriphClockCmd( RCC_APB1Periph_I2C1, ENABLE);

	//SCL PV6 | SDL PB7
	GPIO_Initstructure.GPIO_Mode = GPIO_Mode_AF_OD;
	GPIO_Initstructure.GPIO_Pin = GPIO_Pin_6 | GPIO_Pin_7;
	GPIO_Initstructure.GPIO_Speed = GPIO_Speed_50MHz;
	GPIO_Init(GPIOB,&GPIO_Initstructure);

	I2C_DeInit(I2C1);
	I2C_Initstructure.I2C_Ack = I2C_Ack_Enable;
	I2C_Initstructure.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit;
	I2C_Initstructure.I2C_ClockSpeed = 400000;
	I2C_Initstructure.I2C_DutyCycle = I2C_DutyCycle_2;
	I2C_Initstructure.I2C_Mode = I2C_Mode_I2C;
	I2C_Initstructure.I2C_OwnAddress1 = 0x30;
	I2C_Init(I2C1,&I2C_Initstructure);
	I2C_Cmd(I2C1,ENABLE);

}

void I2C_WriteByte(uint8_t addr,uint8_t data )
{
	while(I2C_GetFlagStatus( I2C1,  I2C_FLAG_BUSY));

	I2C_GenerateSTART(I2C1, ENABLE);
	while( !I2C_CheckEvent( I2C1,  I2C_EVENT_MASTER_MODE_SELECT) );

	I2C_Send7bitAddress(I2C1,  OLED_ADDRESS,  I2C_Direction_Transmitter);
	while( !I2C_CheckEvent( I2C1,  I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED) );

	I2C_SendData(I2C1,addr);
	while( !I2C_CheckEvent(I2C1,I2C_EVENT_MASTER_BYTE_TRANSMITTING));

	I2C_SendData(I2C1,data);
	while( !I2C_CheckEvent(I2C1,I2C_EVENT_MASTER_BYTE_TRANSMITTING));

	I2C_GenerateSTOP(I2C1, ENABLE);

}


void WriteCmd(unsigned char I2C_Command)
{
	I2C_WriteByte(0x00,I2C_Command);
}

void WriteData(unsigned char I2C_Data)
{
	I2C_WriteByte(0x40,I2C_Data);
}

//OELDÆÁÄ>>³õÊ¼>>¯
void OLED_Init(void)
{
  ms_delay(100);
	WriteCmd(0xAE); //display off
	WriteCmd(0x20);	//Set Memory Addressing Mode
	WriteCmd(0x10);	//00,Horizontal Addressing Mode;01,Vertical Addressing Mode;10,Page Addressing Mode (RESET);11,Invalid
	WriteCmd(0xb0);	//Set Page Start Address for Page Addressing Mode,0-7
	WriteCmd(0xc8);	//Set COM Output Scan Direction
	WriteCmd(0x00); //---set low column address
	WriteCmd(0x10); //---set high column address
	WriteCmd(0x40); //--set start line address
	WriteCmd(0x81); //--set contrast control register
	WriteCmd(0xff); //ÁÁ¶Èµ÷½Ú 0x00~0xff
	WriteCmd(0xa1); //--set segment re-map 0 to 127
	WriteCmd(0xa6); //--set normal display
	WriteCmd(0xa8); //--set multiplex ratio(1 to 64)
	WriteCmd(0x3F); //
	WriteCmd(0xa4); //0xa4,Output follows RAM content;0xa5,Output ignores RAM content
	WriteCmd(0xd3); //-set display offset
	WriteCmd(0x00); //-not offset
	WriteCmd(0xd5); //--set display clock divide ratio/oscillator frequency
	WriteCmd(0xf0); //--set divide ratio
	WriteCmd(0xd9); //--set pre-charge period
	WriteCmd(0x22); //
	WriteCmd(0xda); //--set com pins hardware configuration
	WriteCmd(0x12);
	WriteCmd(0xdb); //--set vcomh
	WriteCmd(0x20); //0x20,0.77xVcc
	WriteCmd(0x8d); //--set DC-DC enable
	WriteCmd(0x14); //
	WriteCmd(0xaf); //--turn on oled panel


}

void OLED_SetPos(unsigned char x,unsigned char y)
{
	WriteCmd(0xB0 + y);
	WriteCmd(0x00 | (x & 0x0F));
	WriteCmd(0x10 | (x & 0xF0)>>4);
}

void OLED_Fill(unsigned char Fill_Data)
{
	unsigned char n,m;

	for( m = 0;m < 8;m++)
	{
		WriteCmd(0xB0 + m);
		WriteCmd(0x00);
		WriteCmd(0x10);


		for(n = 0;n < 128;n++)
		{
			WriteData(Fill_Data);
		}
	}

}

void OLED_Clear(void)
{
	OLED_Fill(0x00);
}

void OLED_Open(void)
{
	WriteCmd(0X8D);
	WriteCmd(0X14);
	WriteCmd(0XAF);
}

void OLED_Close(void)
{
	WriteCmd(0X8D);
	WriteCmd(0X10);
	WriteCmd(0XAE);
}

void OLED_Showstring(unsigned char x,unsigned char y,unsigned char ch[],unsigned char TextSize)
{
	unsigned char i = 0,j = 0,c = 0;

	switch(TextSize)
	{
		case 1 :
		{
			while(ch[j] != '\0')
			{
				if(x > 122)
				{
					x = 0;
					y++;
				}
				OLED_SetPos(x,y);

				c = ch[j] - 32;
				for(i = 0;i < 6;i++)
				{
					WriteData( F6x8[c][i] );
				}
				x += 6;
				j++;
			}
			break;
		}
		case 2:
		{
			while(ch[j] != '\0')
			{
				if(x > 120)
				{
					x = 0;
					y++;
				}
				OLED_SetPos(x,y);

				c = ch[j] - 32;
				for(i = 0;i < 8;i++)
					WriteData(F8X16[c*16+i]);

				OLED_SetPos(x,y+1);
				for(i = 0;i < 8;i++)
					WriteData(F8X16[c*16+i+8]);
				x += 8;
				j++;


			}
		}
		break;
	}
}


void OLED_ShowCN(unsigned char x,unsigned char y,unsigned char N)
{
	unsigned char wn = 0;
	unsigned int addr = 32 * N;

	OLED_SetPos(x,y);
	for(wn = 0;wn < 16;wn++)
	{
		WriteData( F16x16[addr]);
		addr += 1;
	}

	OLED_SetPos(x,y+1);
	for(wn = 0;wn < 16;wn++)
	{
		WriteData( F16x16[addr]);
		addr += 1;
	}
}

void OLED_DrawBMP(unsigned char x0,unsigned char y0,unsigned char x1,unsigned char y1,unsigned char BMP[])
{
	unsigned char x = 0,y = 0;
	unsigned int j = 0;

	if(y1 % 8 == 0)
		y = y1/8;
	else
		y = y1/8+1;

	for(y = y0;y < y1;y++)
	{
		OLED_SetPos(x0,y);
		for(x = x0;x < x1;x++)
		{
			WriteData(BMP[j++]);
		}
	}


}

cs 复制代码

//main.c
#include "stm32f10x.h"
#include "main.h"
#include "led.h"
#include "buzzer.h"
#include "key.h"
#include "Relay.h"
#include "Shake.h"
#include "Exti.h"
#include "usart.h"
#include "stdio.h"
#include "Time.h"
#include "sg90.h"
#include "systick.h"
#include "oled.h"

extern const unsigned char BMP1[];

void delay(uint16_t time)
{
	uint16_t i = 0;
	while(time --)
	{
		i = 12000;
		while(i --);
	}
}

int  main()
{
	unsigned char i = 0;

	I2C_Configuration();
	OLED_Init();
	delay(2000);

	OLED_Open();
	OLED_Fill(0xff);
	delay(2000);

	OLED_Fill(0x00);
	delay(2000);

//	OLED_Showstring(1,3,"Hello World",1);
//	OLED_Showstring(1,5,"Miao Miao",2);


//	for(i = 0;i < 2;i++)
//		 {
//			  	OLED_ShowCN( 22+i*16,0,i);
//		 }

   while(1)
	 {
		 OLED_DrawBMP(  0,  0,  128,  8, ( unsigned char *) BMP1);
	 }



}

cs 复制代码

const unsigned char F16x16[]=
{
	0x00,0x80,0x60,0xF8,0x07,0x40,0x20,0x18,0x0F,0x08,0xC8,0x08,0x08,0x28,0x18,0x00,
	0x01,0x00,0x00,0xFF,0x00,0x10,0x0C,0x03,0x40,0x80,0x7F,0x00,0x01,0x06,0x18,0x00,/*"Äã",0*/

	0x10,0x10,0xF0,0x1F,0x10,0xF0,0x00,0x80,0x82,0x82,0xE2,0x92,0x8A,0x86,0x80,0x00,
	0x40,0x22,0x15,0x08,0x16,0x61,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,/*"ºÃ",1*/
};


const unsigned char F6x8[][6] =
{
	0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
	0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
	0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
	0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
	0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
	0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
	0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
	0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
	0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
	0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
	0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
	0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
	0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
	0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
	0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
	0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
	0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
	0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
	0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
	0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
	0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
	0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
	0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
	0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
	0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
	0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
	0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
	0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
	0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
	0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
	0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
	0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
	0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
	0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
	0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
	0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
	0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
	0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
	0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
	0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
	0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
	0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
	0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
	0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
	0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
	0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
	0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
	0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
	0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
	0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
	0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
	0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
	0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
	0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
	0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
	0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
	0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
	0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
	0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
	0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
	0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
	0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
	0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
	0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
	0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
	0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
	0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
	0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
	0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
	0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
	0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
	0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
	0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
	0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
	0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
	0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
	0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
	0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
	0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
	0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
	0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
	0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
	0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
	0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};



const unsigned char BMP1[] =
{
	0X22,0X01,0X80,0X00,0X40,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,0XF0,0XF0,0X38,0X3C,0X1C,
	0X0C,0X1C,0X1C,0X38,0X38,0XF0,0XF0,0XE0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0XC0,0XE0,0XF0,0X70,0X30,0X30,0X30,0X70,0X30,0X30,0X30,0X30,0X70,0X70,
	0XE0,0XC0,0XC0,0X00,0X00,0X00,0X80,0XC0,0XE0,0XE0,0X70,0X70,0X30,0X30,0X38,0X38,
	0X38,0X38,0X38,0X18,0X1C,0X1C,0X1C,0X18,0X18,0X18,0X18,0X00,0X00,0X00,0X18,0X1C,
	0X1C,0X0C,0X0C,0X0C,0X0C,0X0C,0X0C,0X1C,0X1C,0X39,0X3B,0X13,0X01,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0XFF,0XFF,0XFF,0X38,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XF8,0XFC,0XFC,0X38,0X38,0X70,0X60,
	0X00,0XFF,0XFF,0XFF,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X80,
	0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,0X80,0X80,0X00,0X00,0X00,0X00,0X00,
	0X00,0XE0,0XE0,0XC0,0X86,0X07,0X07,0X03,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0XC0,0XE0,
	0XE0,0X60,0X70,0X30,0X38,0X38,0X18,0X1C,0X1C,0X0F,0X0F,0X1F,0X1F,0X1C,0X08,0X00,
	0X00,0X01,0X01,0X03,0X03,0X07,0X07,0X0E,0X0E,0X0E,0X0C,0X0C,0X0C,0X0C,0X0C,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X06,0X06,0X06,0X84,0X80,0X80,0X80,0X80,0X80,0X81,0XC3,0XFF,0XFF,
	0XFF,0XF1,0XC0,0XC0,0XC0,0XC0,0XE0,0XE0,0X61,0X01,0X01,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X0F,0X0F,0X3F,0XFC,0XF0,0XE0,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X3C,0X7F,0XFF,0XE3,
	0XC1,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X01,0X01,0X01,0X01,0X0F,0X1F,0X1F,0X1F,0X1F,0X1F,
	0X1F,0X0F,0X07,0X03,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X03,0X03,0X03,0X01,0X00,0X30,0X30,0X70,0X70,0X70,0X60,0XE0,
	0XE0,0XC0,0XC0,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X01,0X00,0X00,0X00,0X00,0X0E,0X0E,0X0C,0X0C,0X0C,0X1C,0X1C,0X38,0X38,0X70,0X70,
	0X60,0XE0,0XE0,0XC0,0XC0,0XC0,0X80,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X30,0X30,0X30,
	0X30,0X70,0XE0,0XE0,0XC0,0X80,0X80,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X80,
	0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X80,0X00,0X40,
	0XE0,0XF1,0X7F,0X3F,0X0F,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X01,0X01,0X01,0X03,0X03,0X07,0X07,0X06,0X0E,0X0E,0X0C,0X1C,
	0X1C,0X38,0X38,0X30,0X30,0X30,0X70,0X70,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X80,0X80,0XC0,0XE1,0XE3,0X77,0X27,0X06,0X00,0X00,0X00,0X00,0X00,0X03,0X03,
	0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X03,0X01,0X01,0X01,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X03,0X07,0X07,0X07,0X06,0X07,0X07,0X07,0X07,0X07,0X07,0X07,0X07,
	0X03,0X03,0X03,0X01,0X01,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
	0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,0X00,
};
