【MCP】使用SpringBoot基于Streamable-HTTP构建MCP-Client

【MCP】使用SpringBoot基于Streamable-HTTP构建MCP-Client

• MCP实现原理
• 本文开发环境介绍
• pom核心依赖
• 创建启动类
• 配置文件
• 相关配置类
• Junit单元测试

MCP实现原理

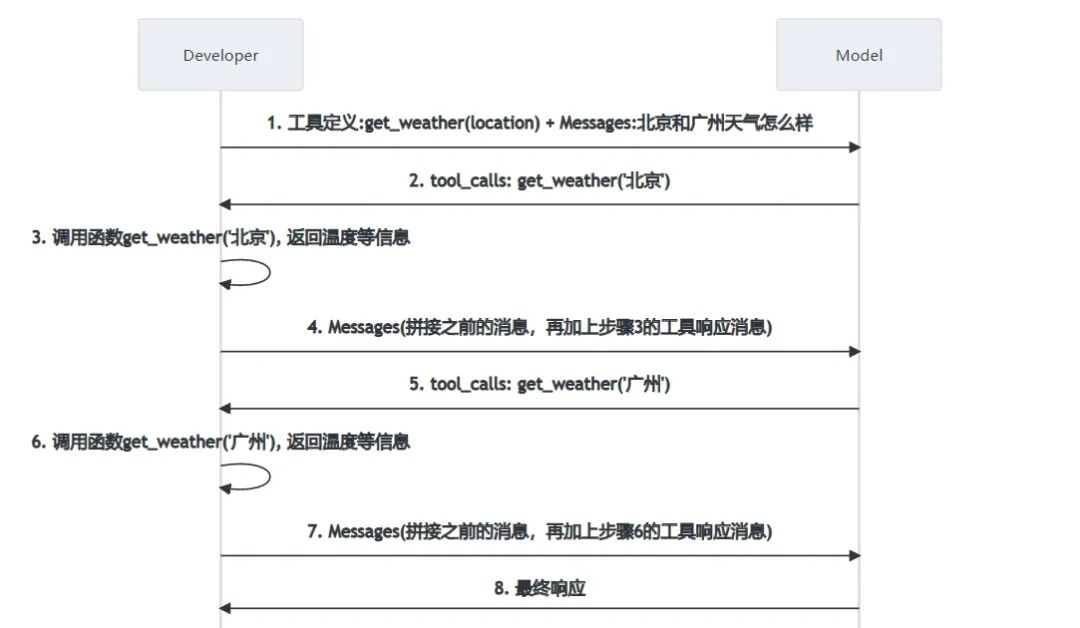

先来看看大语言模型工具调用的时序图

MCP（模型上下文协议，Model Context Protocol），通常更广义地理解为基于上下文的工具使用（Context-based Tool Usage） 或 提示工程中的工具使用（Tool Use via Prompt Engineering）。它的核心原理是将工具的描述、使用说明和示例直接作为上下文（Prompt）的一部分，输入给大模型。模型不"调用"工具，而是根据其通用语言能力，"理解"并"生成"使用工具所需的指令或参数。

与Function Calling不同，MCP模式下，大模型本身并不直接生成可执行的函数调用对象。它更像是一个"聪明的指令遵循者"：你告诉它有哪些工具，每个工具能做什么，以及如何使用它们。当用户提出需求时，模型会根据这些上下文信息，生成一个符合预设格式的文本输出，这个输出指示了外部系统应该如何操作。

MCP的client端和server端通讯的协议也在逐步演进，一开始主流的是SSE协议，随后又诞生了Streamable-HTTP协议，用于取代SSE协议。

本文将介绍如何使用SpringBoot基于Streamable-HTTP构建MCP-Client客户端。

想了解如何构建MCP-Server，可以查看这篇文章:
【MCP】使用SpringBoot基于Streamable-HTTP构建MCP-Server.md

本文开发环境介绍

开发依赖	版本
Spring Boot	4.0.1
spring-ai-bom	2.0.0-M1
spring-ai-starter-mcp-server-webflux	2.0.0-M1

pom核心依赖

<dependencyManagement>
  <dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-bom</artifactId>
    <version>${spring-ai.version}</version>
    <type>pom</type>
    <scope>import</scope>
  </dependency>
</dependencyManagement>

<!--<dependency>-->
<!--  <groupId>org.springframework.ai</groupId>-->
<!--  <artifactId>spring-ai-starter-mcp-client</artifactId>-->
<!--</dependency>-->
<dependency>
  <groupId>org.springframework.ai</groupId>
  <artifactId>spring-ai-starter-mcp-client-webflux</artifactId>
</dependency>
<dependency>
  <groupId>org.springframework.ai</groupId>
  <artifactId>spring-ai-starter-model-anthropic</artifactId>
</dependency>

spring-ai-starter-mcp-client-webflux和spring-ai-starter-mcp-client都可以，一种是响应式架构，一种是非响应式架构，两者只能二选一。

创建启动类

创建Spring Boot应用的启动类

package com.wen3.demo.ai.mcp.client;


import jakarta.annotation.Resource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import tools.jackson.databind.ObjectMapper;

/**
 * @author tangheng
 */
@Slf4j
@SpringBootApplication
public class McpClientApplication{

    @Resource
    private ToolCallbackProvider tools;
    @Resource
    ObjectMapper objectMapper;

    public static void main(String[] args) {
        SpringApplication.run(McpClientApplication.class, args);
    }
}

配置文件

server:
  port: 9091

spring.ai:
  #  openai:
  #    base-url: https://api.scnet.cn/api/llm
  #    api-key: xxx
  #    chat:
  #      options:
  #        model: DeepSeek-R1-Distill-Qwen-7B
  #        #model: DeepSeek-R1-Distill-Qwen-32B
  #        #model: QwQ-32B
  #        temperature: 0.7
  anthropic:
    api-key: xxx

  mcp:
    client:
      enabled: true
      name: demo-mcp-client
      version: 1.0.0
      request-timeout: 30s
      type: ASYNC
      streamable-http:
        connections:
          server1:
            url: http://localhost:9090
          server2:
            url: http://localhost:9090
            endpoint: /mcp
      toolcallback:
        enabled: true

相关配置类

• org.springframework.ai.mcp.client.common.autoconfigure.properties.McpClientCommonProperties 前缀为spring.ai.mcp.client的配置项
• org.springframework.ai.mcp.client.common.autoconfigure.annotations.McpClientAnnotationScannerProperties 前缀为spring.ai.mcp.client.annotation-scanner的配置项，默认为扫描@McpTool注解进行工具的注册
• org.springframework.ai.mcp.client.common.autoconfigure.properties.McpStreamableHttpClientProperties 前缀为spring.ai.mcp.client.streamable-http的配置项，请求端点默认是/mcp

Junit单元测试

• 先单独调用MCP-Server进行测试

package com.wen3.demo.ai.mcp.client.tools;


import com.wen3.demo.ai.mcp.client.McpClientSpringbootTestBase;
import io.modelcontextprotocol.client.McpAsyncClient;
import io.modelcontextprotocol.spec.McpSchema.CallToolRequest;
import io.modelcontextprotocol.spec.McpSchema.CallToolResult;
import io.modelcontextprotocol.spec.McpSchema.ListToolsResult;
import io.modelcontextprotocol.spec.McpSchema.Tool;
import jakarta.annotation.Resource;
import lombok.AccessLevel;
import lombok.SneakyThrows;
import lombok.experimental.FieldDefaults;
import org.junit.jupiter.api.Test;

import java.util.List;
import java.util.Map;

/**
 * @author tangheng
 */
@FieldDefaults(level = AccessLevel.PROTECTED)
public class DemoToolTest extends McpClientSpringbootTestBase {

    @Resource
    List<McpAsyncClient> mcpAsyncClients;

    @SneakyThrows
    @Test
    void mcpClient() {
        log.info("mcpAsyncClients: {}", mcpAsyncClients);
        McpAsyncClient client = mcpAsyncClients.getFirst();

        client.initialize();

        client.ping();

        // List and demonstrate tools
        ListToolsResult toolsList = client.listTools().block();
        System.out.println("Available Tools = " + toolsList);

        for (Tool tool : toolsList.tools()) {
            log.info("{}", objectMapper.writeValueAsString(tool));
        }

        CallToolResult callToolResult = client.callTool(new CallToolRequest("hello", Map.of("city", "北京"))).block();
        log.info("工具调用结果: {}", objectMapper.writeValueAsString(callToolResult.content()));

        CallToolResult callToolResult2 = client.callTool(new CallToolRequest("helloWithName", Map.of("name", "小花"))).block();
        log.info("工具调用结果: {}", objectMapper.writeValueAsString(callToolResult2.content()));

        client.closeGracefully();
    }
}

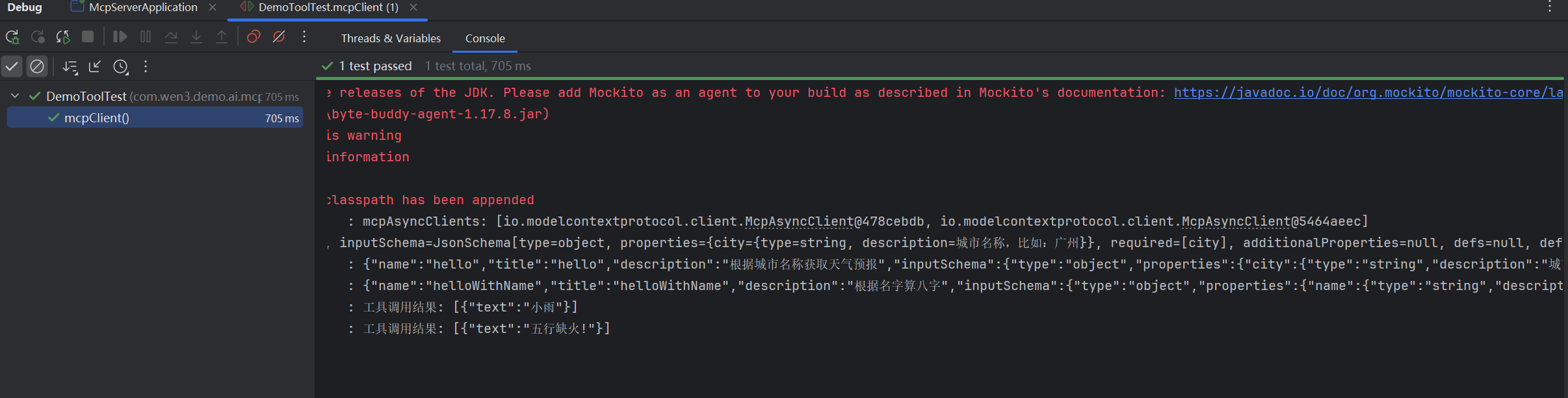

• 单元测试控制台输出截图

• 结合大语言模型进行工具调用测试

package com.wen3.demo.ai.mcp.client.tools;


import com.wen3.demo.ai.mcp.client.McpClientSpringbootTestBase;
import io.modelcontextprotocol.client.McpAsyncClient;
import io.modelcontextprotocol.spec.McpSchema.CallToolRequest;
import io.modelcontextprotocol.spec.McpSchema.CallToolResult;
import io.modelcontextprotocol.spec.McpSchema.ListToolsResult;
import io.modelcontextprotocol.spec.McpSchema.Tool;
import jakarta.annotation.Resource;
import lombok.AccessLevel;
import lombok.SneakyThrows;
import lombok.experimental.FieldDefaults;
import org.junit.jupiter.api.Test;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.context.ConfigurableApplicationContext;

import java.util.List;
import java.util.Map;

/**
 * @author tangheng
 */
@FieldDefaults(level = AccessLevel.PROTECTED)
public class DemoToolTest extends McpClientSpringbootTestBase {

    @Resource
    List<McpAsyncClient> mcpAsyncClients;
    @Resource
    ChatClient.Builder chatClientBuilder;
    @Resource
    ToolCallbackProvider tools;
    @Resource
    ConfigurableApplicationContext context;

    @SneakyThrows
    @Test
    void mcpClient() {
        log.info("mcpAsyncClients: {}", mcpAsyncClients);
        McpAsyncClient client = mcpAsyncClients.getFirst();

        client.initialize();

        client.ping();

        // List and demonstrate tools
        ListToolsResult toolsList = client.listTools().block();
        System.out.println("Available Tools = " + toolsList);

        for (Tool tool : toolsList.tools()) {
            log.info("{}", objectMapper.writeValueAsString(tool));
        }

        CallToolResult callToolResult = client.callTool(new CallToolRequest("hello", Map.of("city", "北京"))).block();
        log.info("工具调用结果: {}", objectMapper.writeValueAsString(callToolResult.content()));

        CallToolResult callToolResult2 = client.callTool(new CallToolRequest("helloWithName", Map.of("name", "小花"))).block();
        log.info("工具调用结果: {}", objectMapper.writeValueAsString(callToolResult2.content()));

        client.closeGracefully();
    }

    @Test
    void chat() {
        var chatClient = chatClientBuilder
                .defaultToolCallbacks(tools)
                .build();

        String userInput = "What tools are available?";

        System.out.println("\n>>> QUESTION: " + userInput);
        System.out.println("\n>>> ASSISTANT: " + chatClient.prompt(userInput).call().content());

        context.close();
    }
}
