使用实际的尺寸作为各个元素的大小及坐标，使用随机生成的方式生成星空背景及各个星空的颜色，使用指定的几何图形生成星河/各个星系/黑洞/恒星等。
源码下载地址： 点击下载

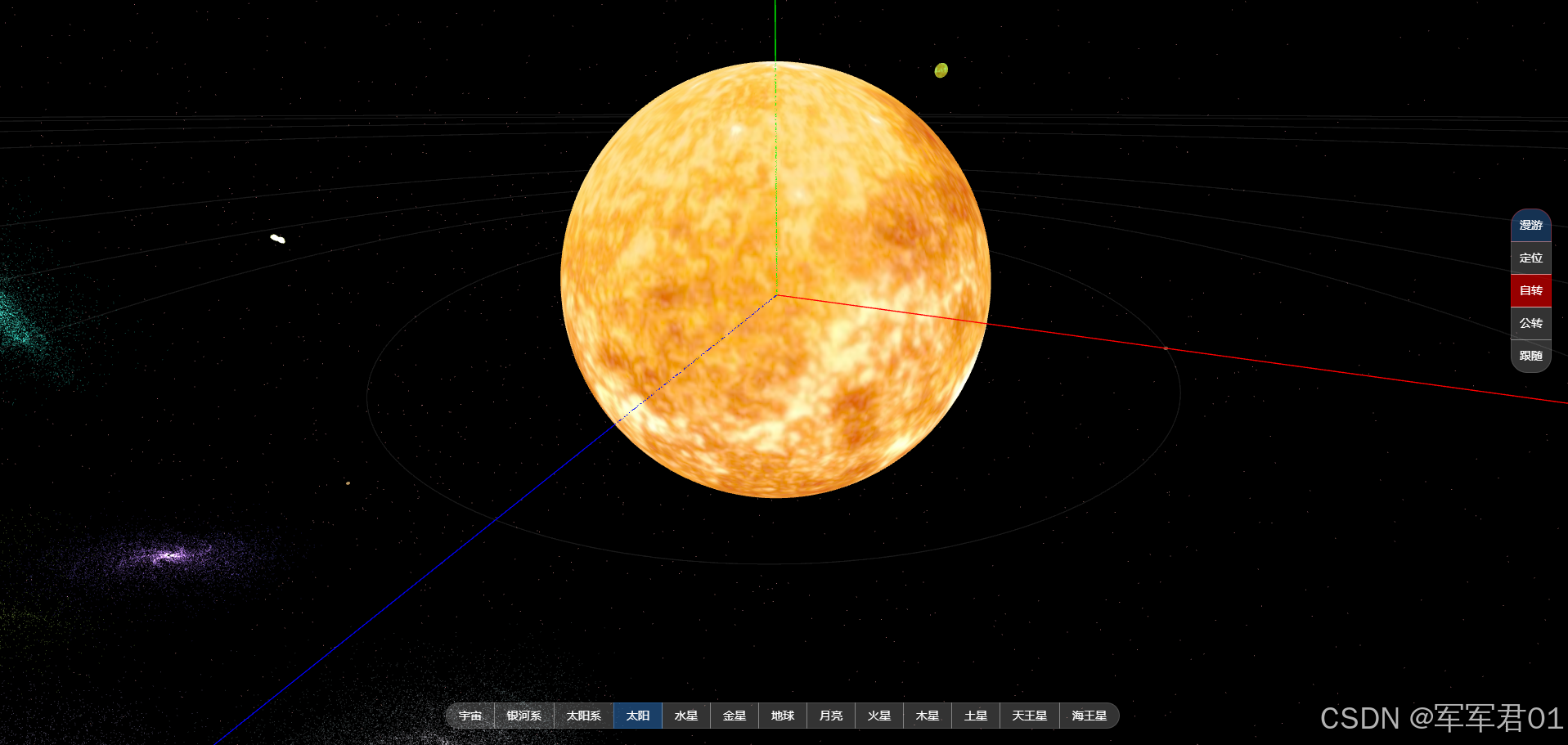

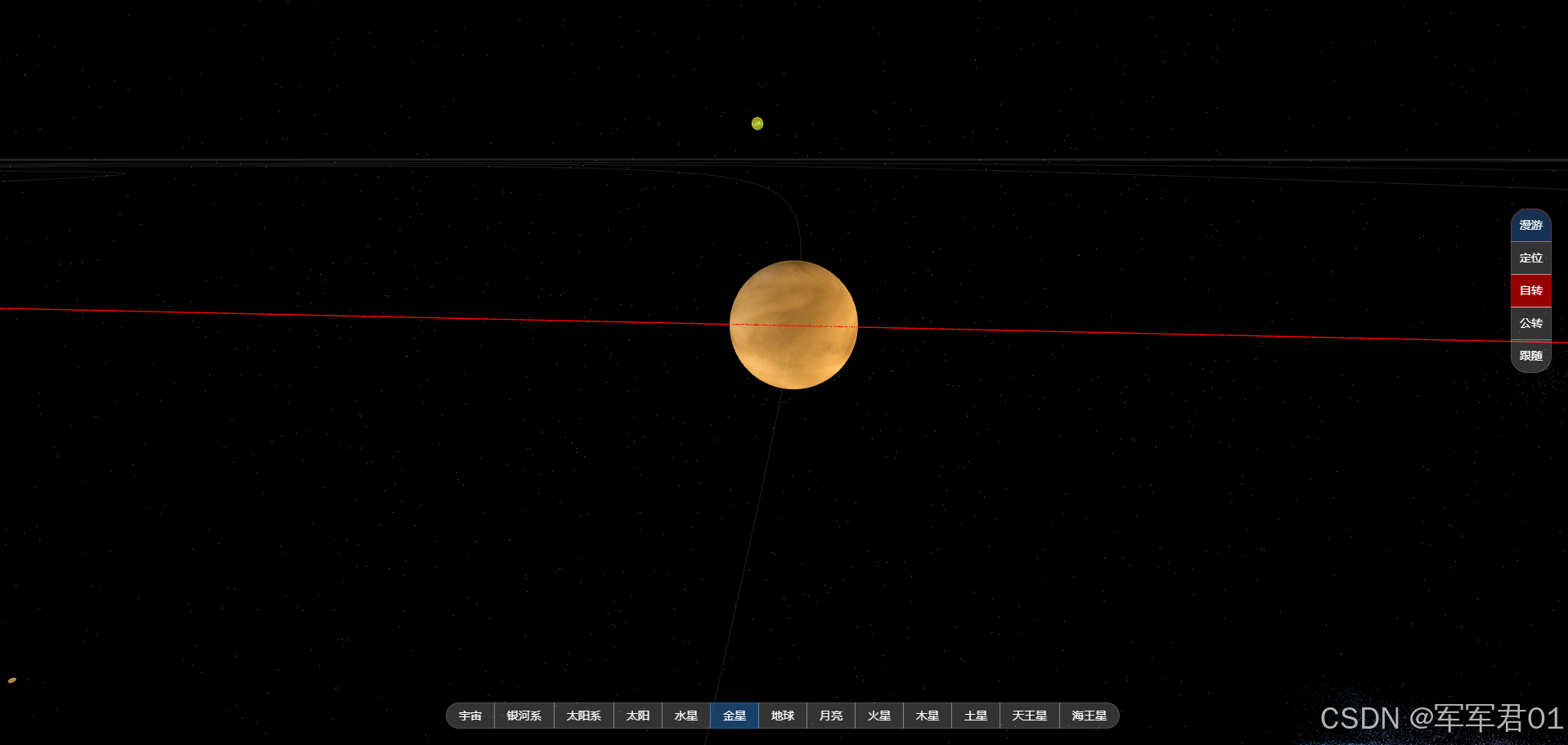

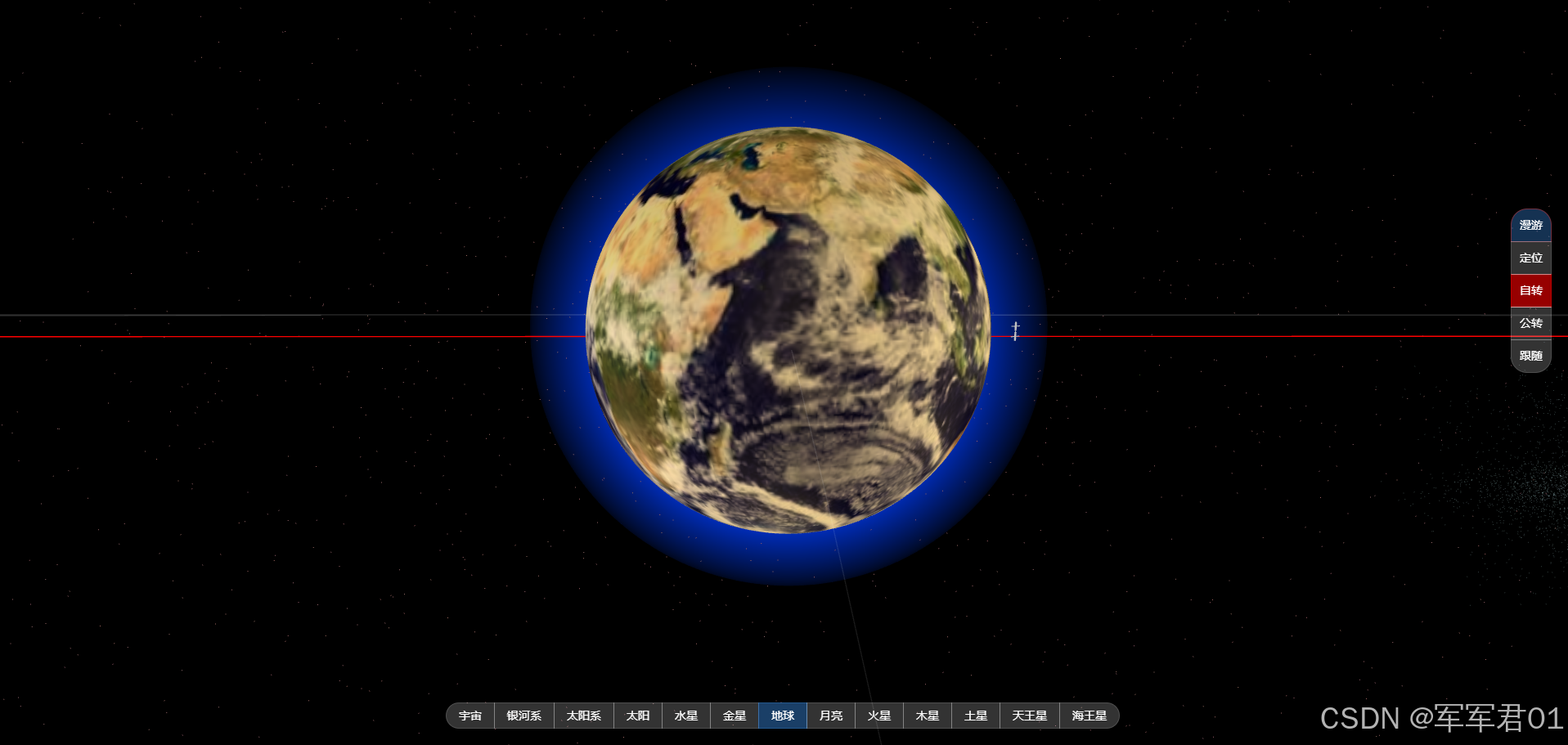

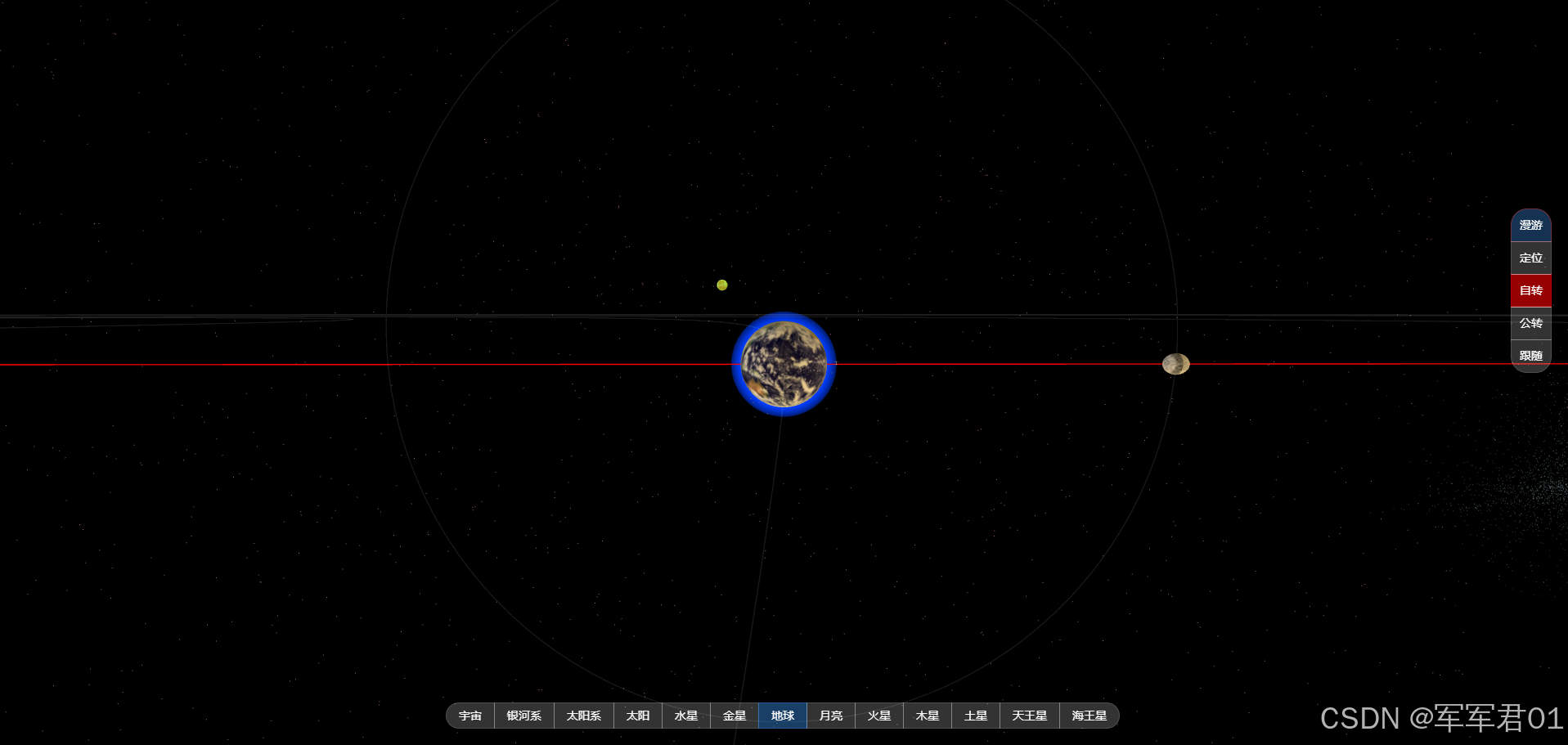

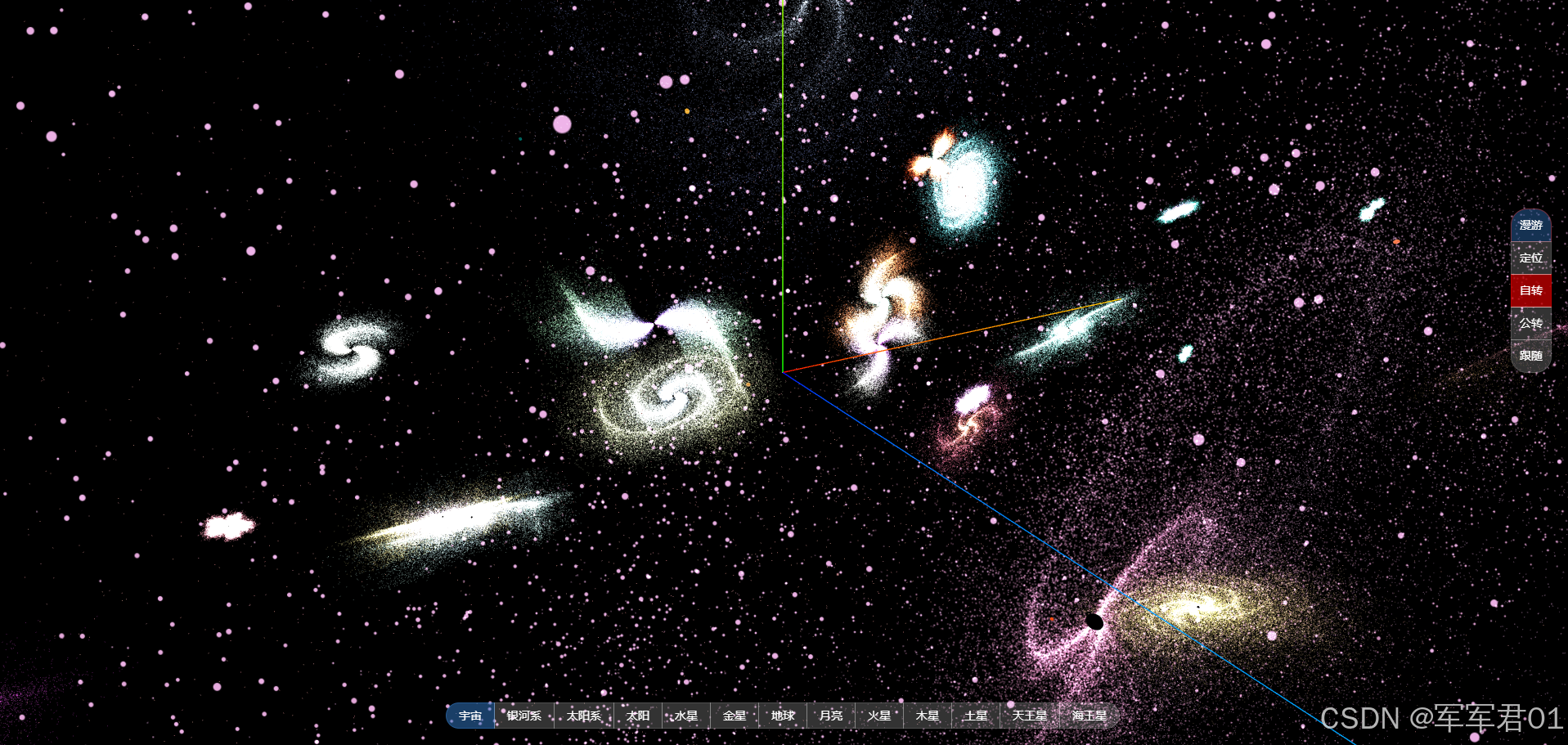

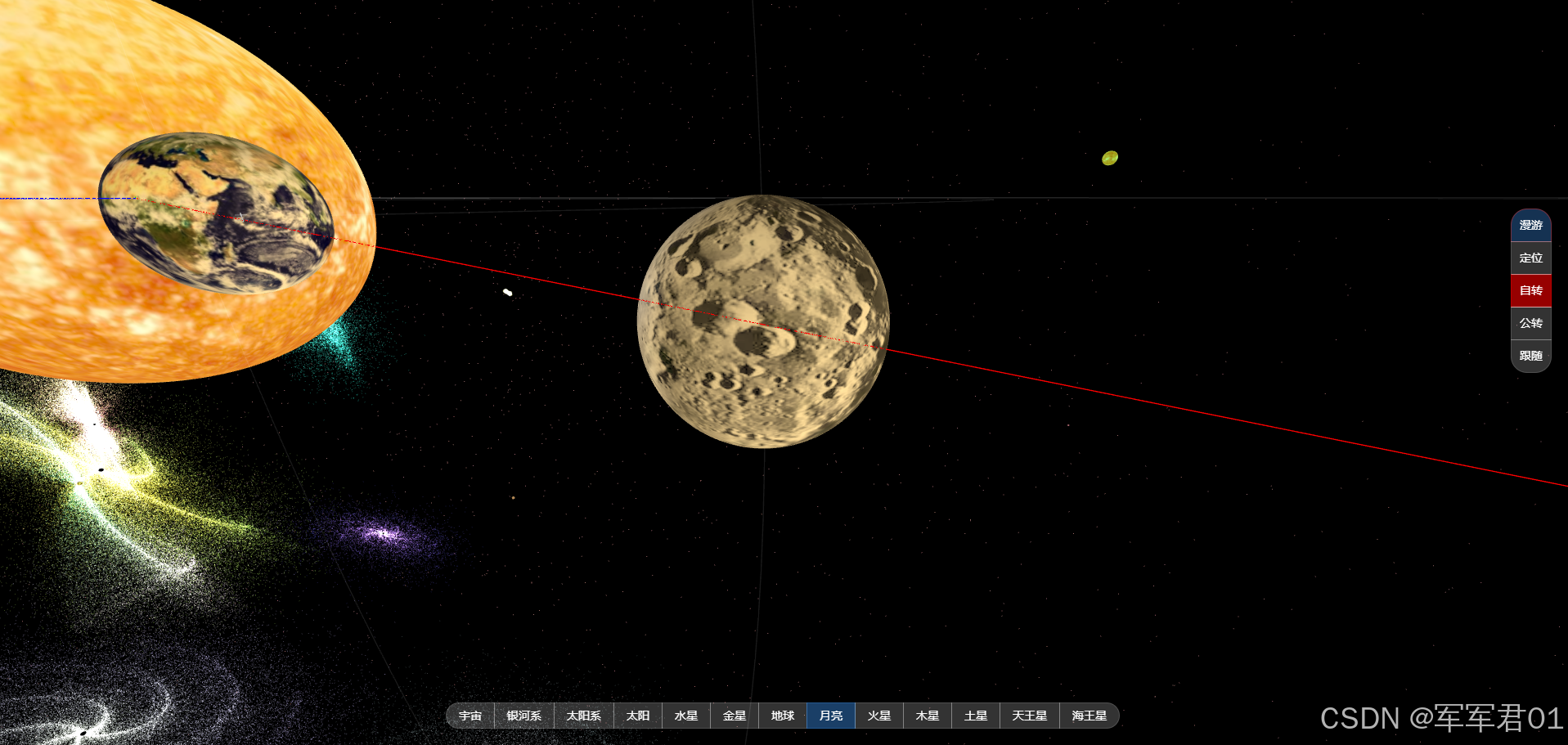

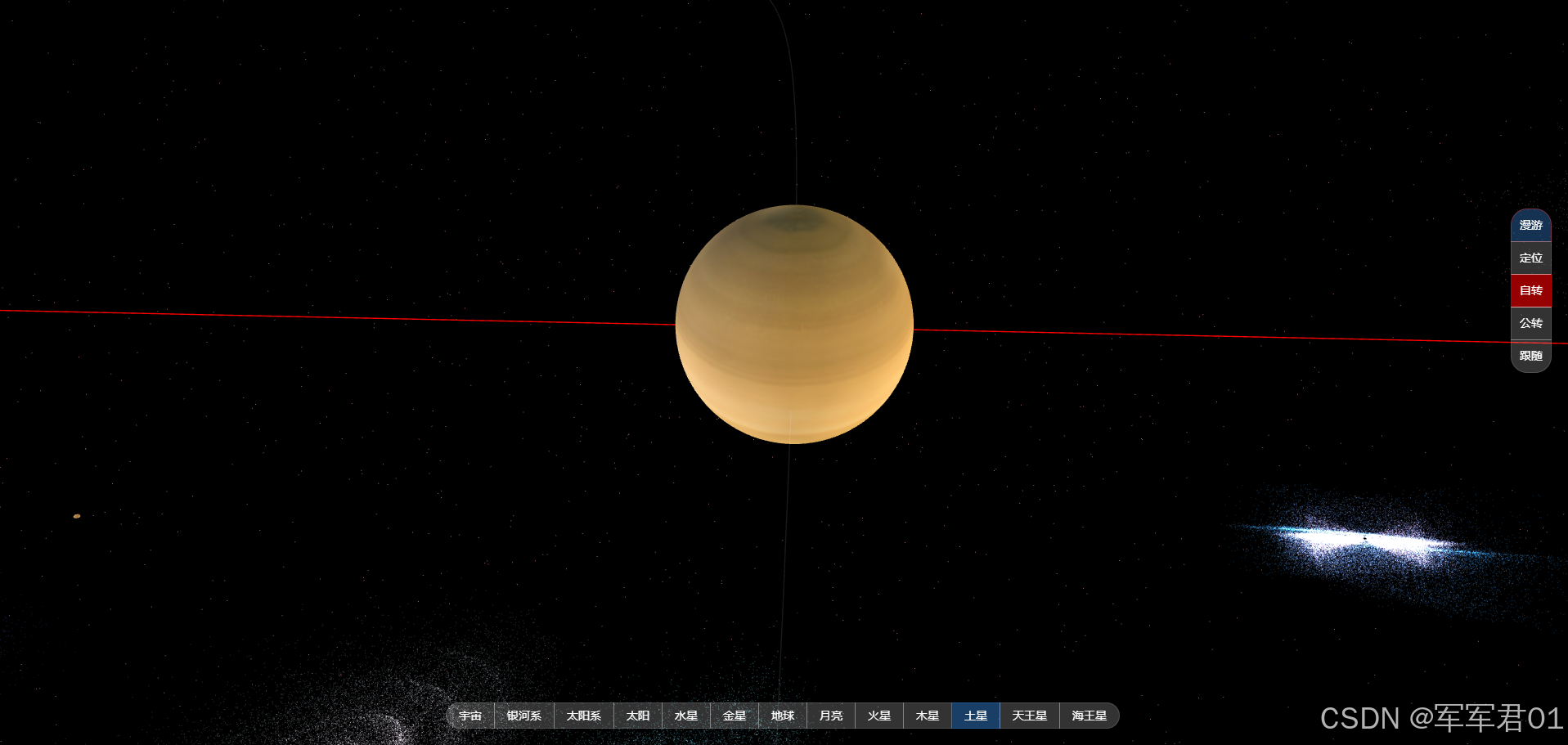

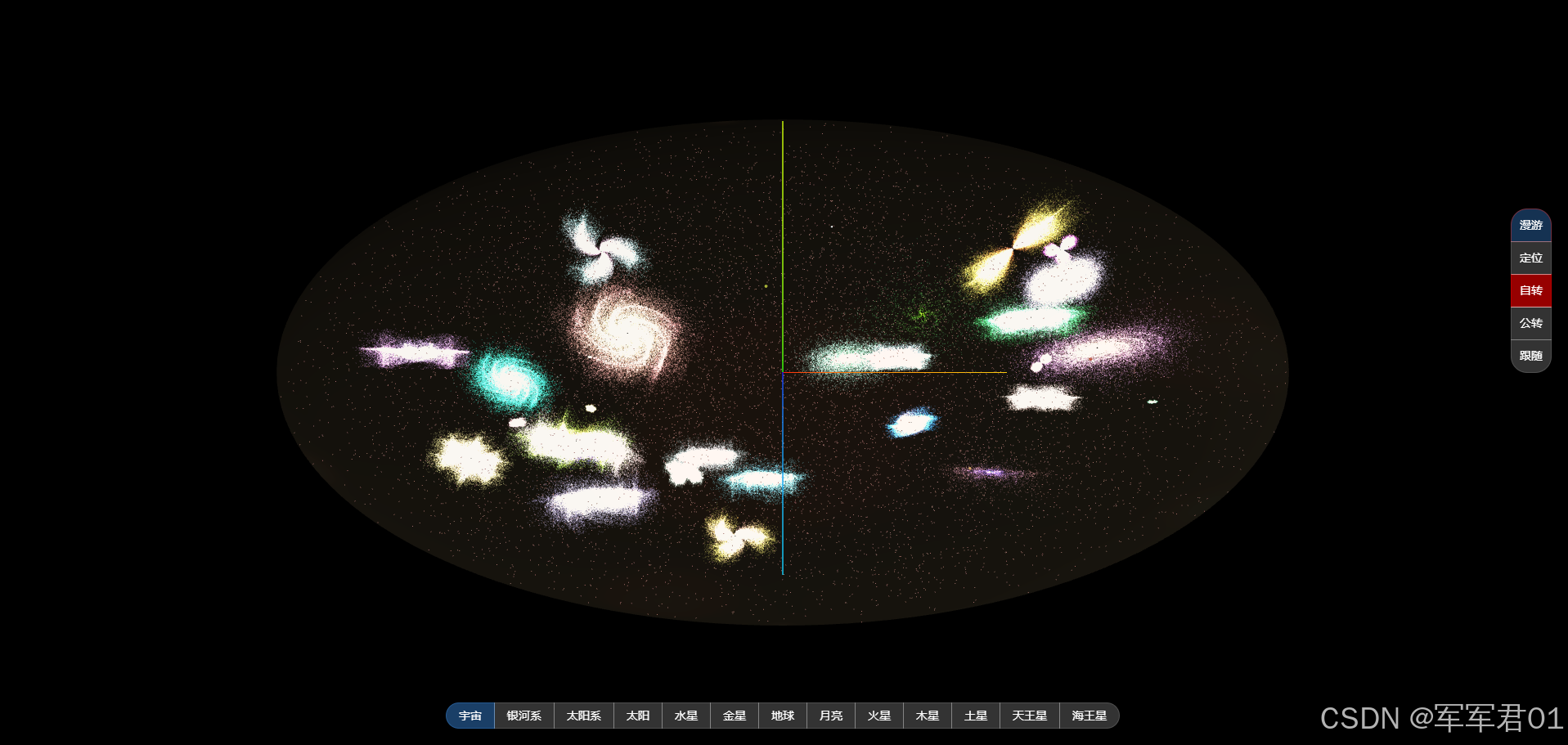

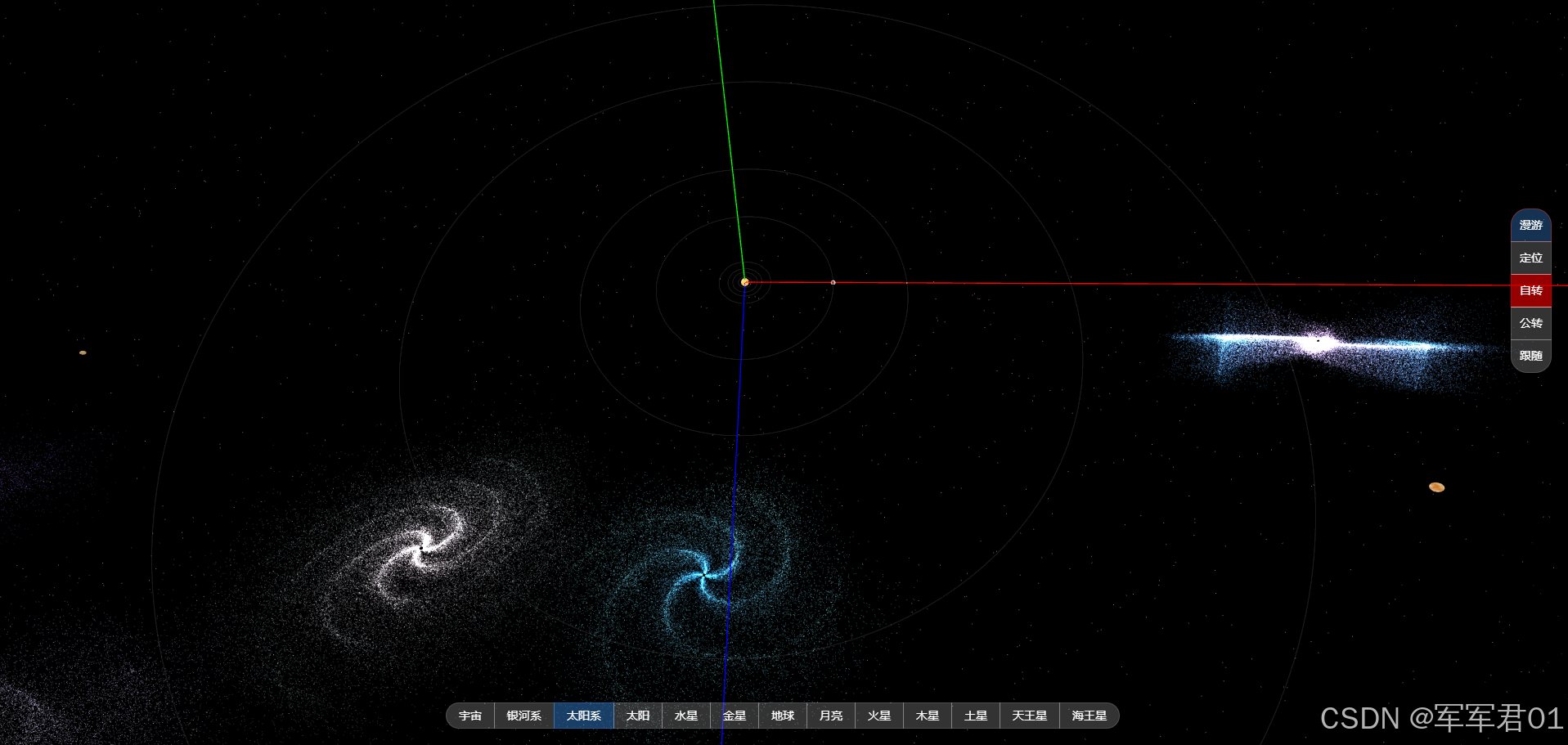

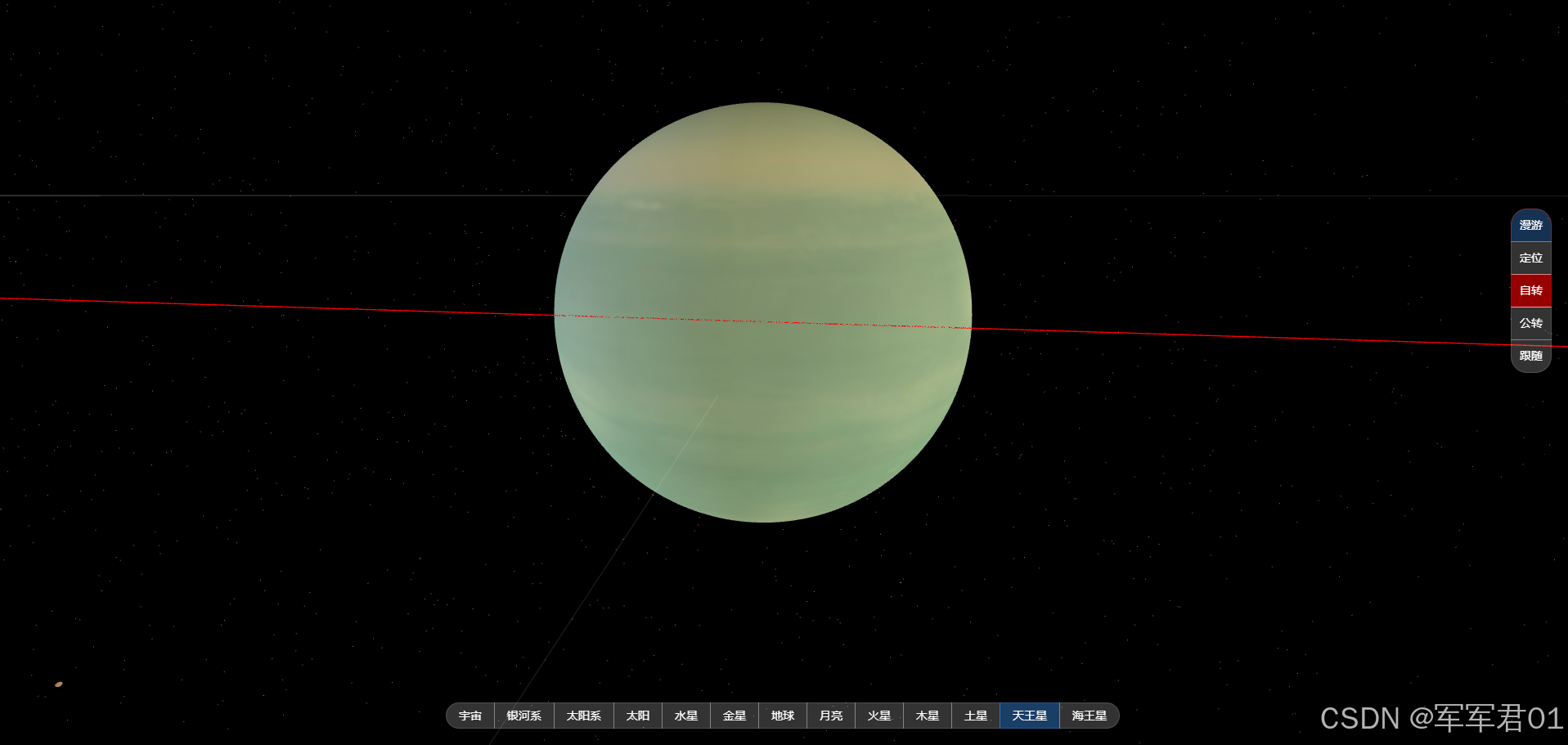

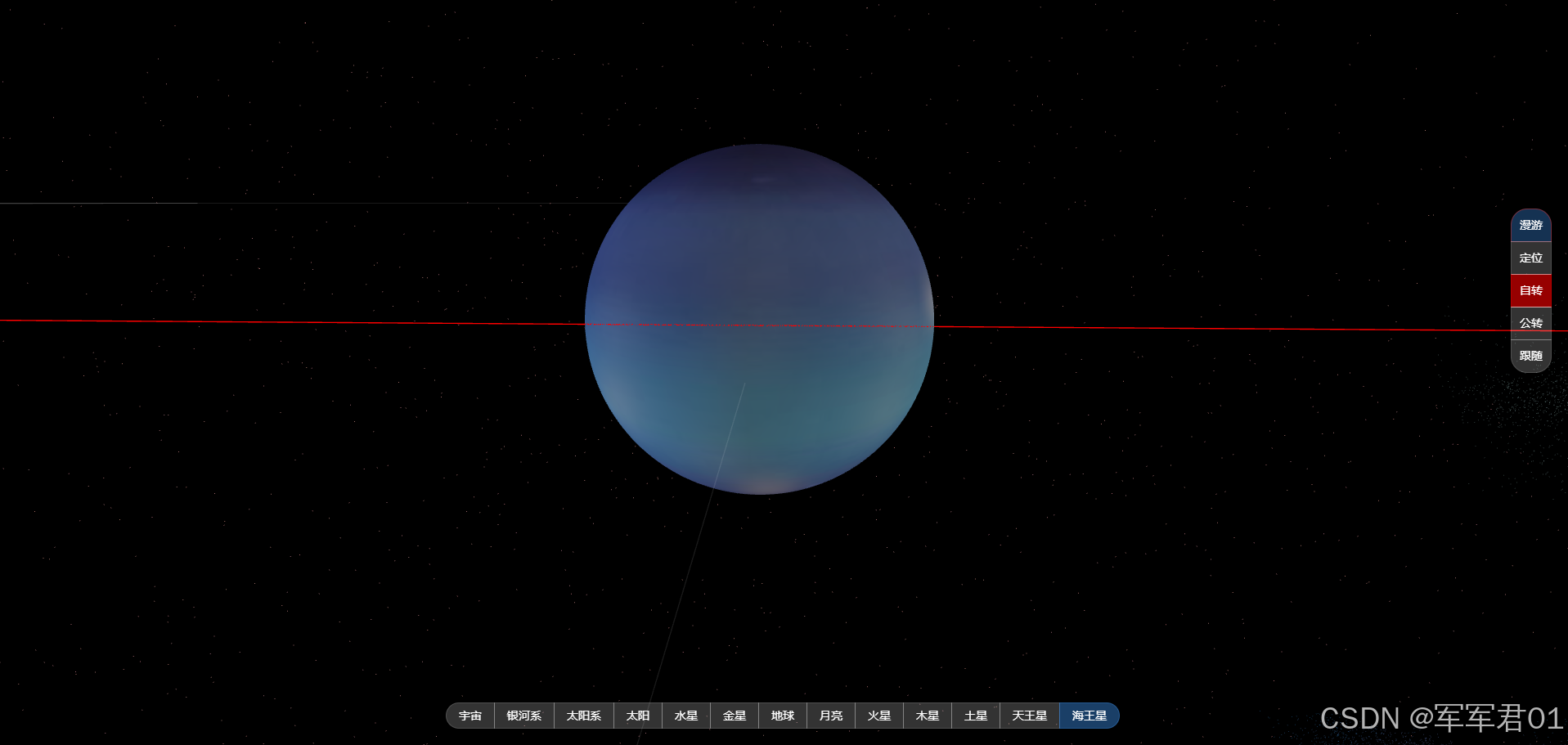

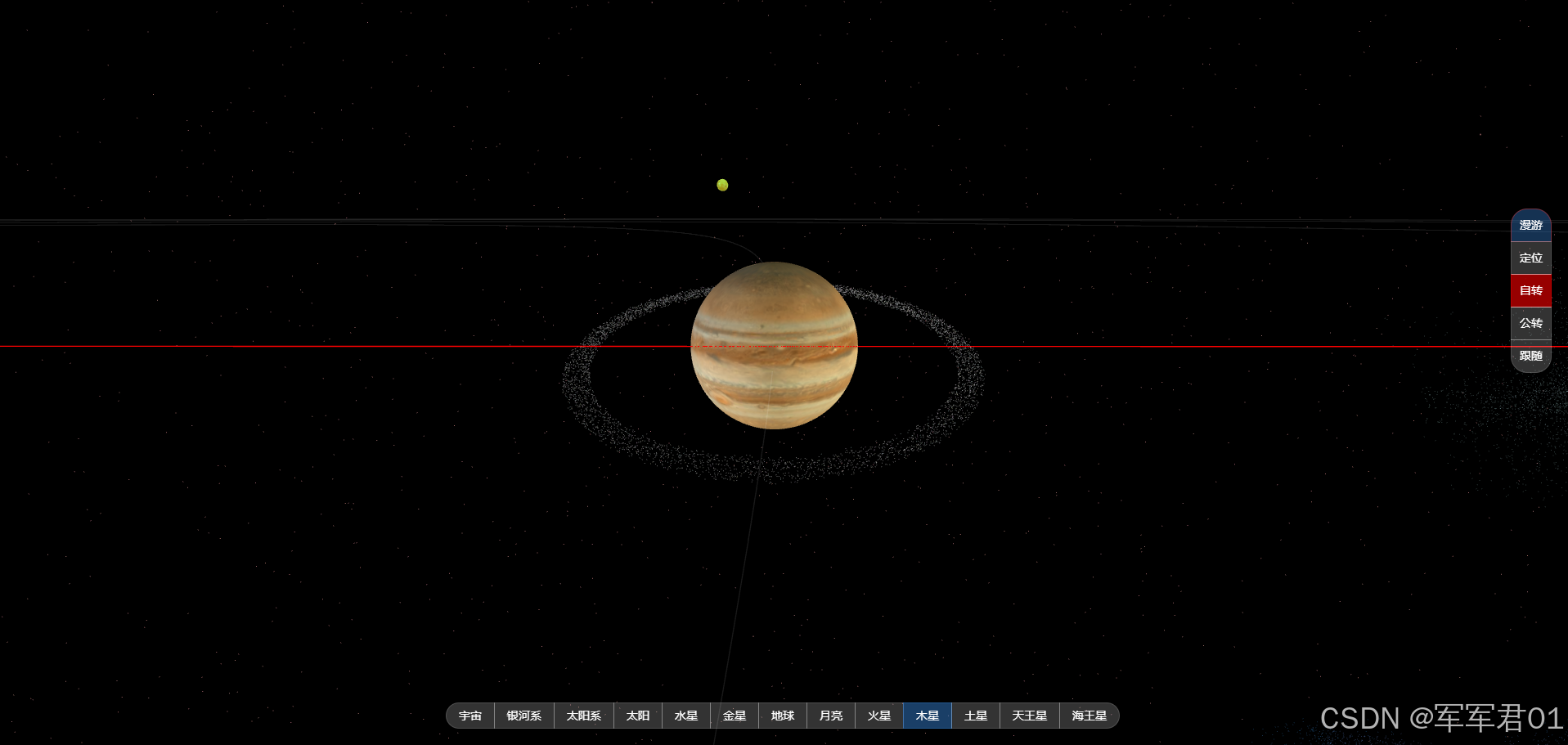

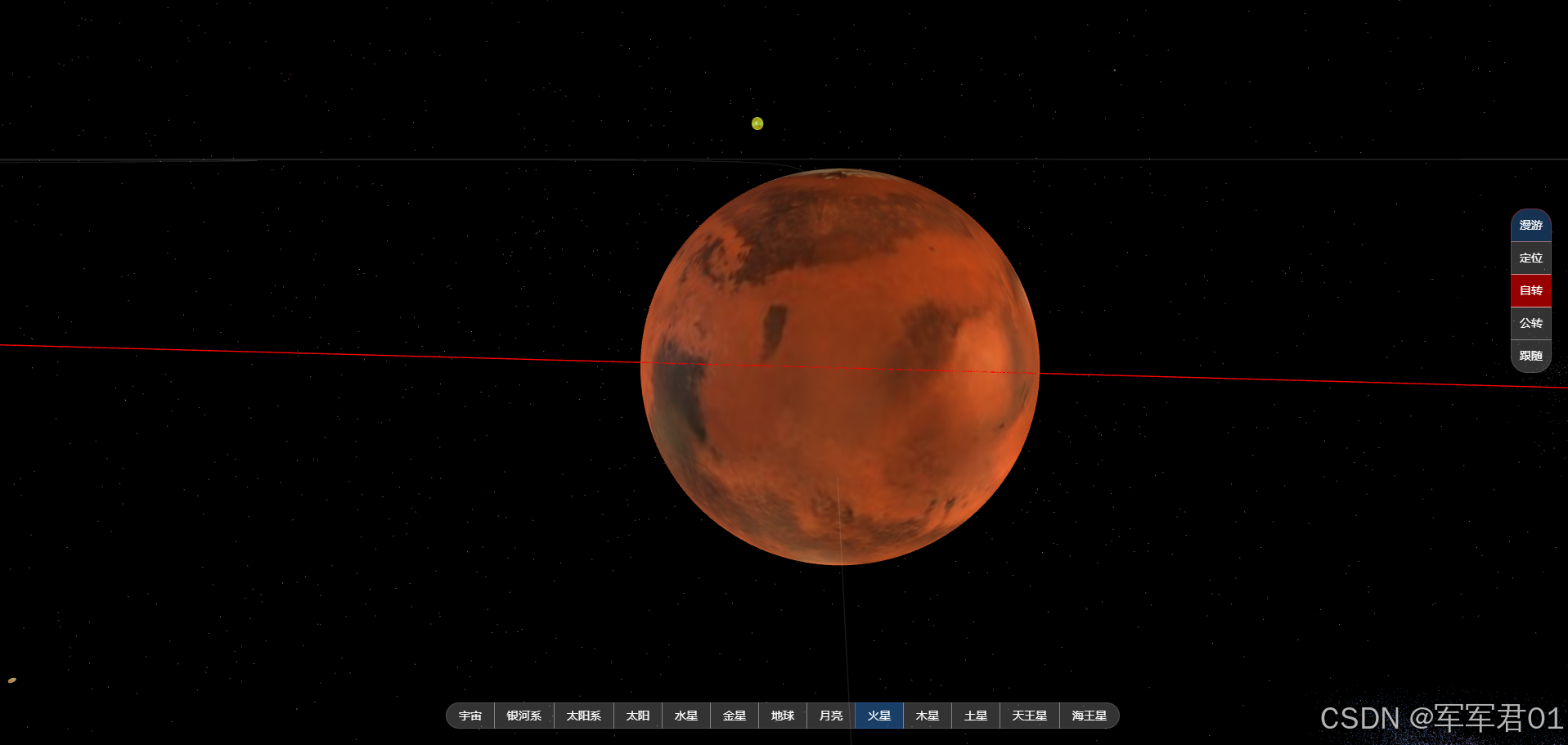

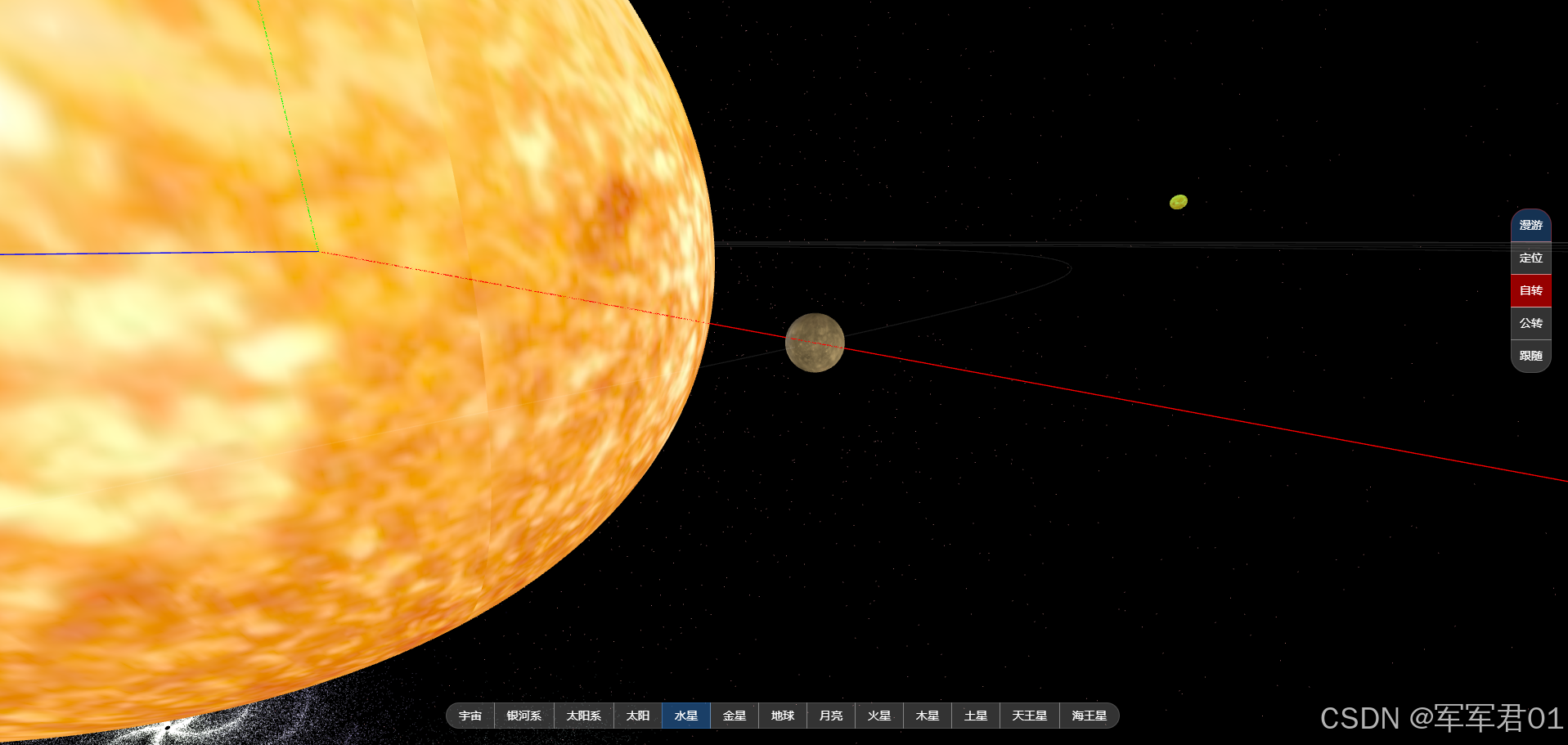

效果演示：
三维-太阳系
一、学习视频
二、项目创建
使用vue3搭建项目框架，引入three.js实现三维效果。
2.1 项目创建
官网： https://cn.vuejs.org/guide/introduction
命令： npm create vue@latest
2.2 三维引入
官网： https://threejs.org/
命令： npm install three
三、项目结构

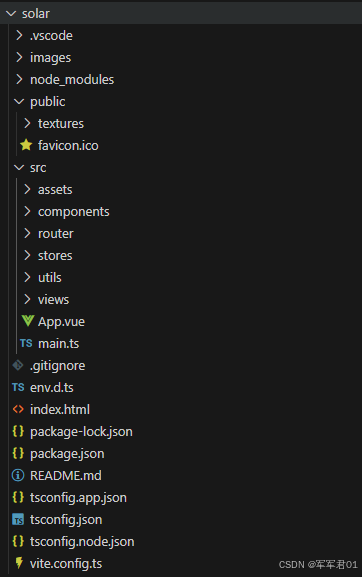

项目结构如下：
四、三维基础框架
4.1 基础框架
- 主页
main.ts
javascript
import { createApp } from 'vue'
import './assets/main.css'
import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'
// 如果您正在使用CDN引入，请删除下面一行。
import * as ElementPlusIconsVue from '@element-plus/icons-vue'
import { createPinia } from 'pinia'
import App from './App.vue'
import router from './router'
const app = createApp(App)
app.use(createPinia())
app.use(ElementPlus)
app.use(router)
for (const [key, component] of Object.entries(ElementPlusIconsVue)) {
app.component(key, component)
}
app.mount('#app')App.vue
javascript
<script setup lang="ts">
import { RouterView } from 'vue-router'
</script>
<template>
<RouterView />
</template>
<style scoped>
</style>HomeView.vue
javascript
<script setup lang="ts">
import { onBeforeUnmount, onMounted, ref } from 'vue'
import INSTANCE from "./assets"
import { config } from '@/utils';
import { useStateStore } from '@/stores/state';
//渲染的根元素
const rootEle = ref()
//当前的视角
const state = useStateStore();
//初始化场景
const init = () => {
INSTANCE.init(rootEle.value);
}
const toPosition= (index:number)=>{
INSTANCE.toPosition(config("views")[index]?.position,config("views")[index]?.lookAt);
state.currentObject = index;
}
//宇宙漫游
const animate= ()=>{
}
//获取当前的位置
const position = ()=>{
console.log('camera',INSTANCE.camera.getCamera().position)
console.log('controls',INSTANCE.controls.getControls().target)
}
//是否开启公转
const revolution = ()=>{
state.revolution = ! state.revolution;
}
//是否开启自转
const autobiography = ()=>{
state.autobiography = ! state.autobiography;
}
//是否开启跟随效果
const follow = ()=>{
state.follow = ! state.follow;
}
onMounted(() => {
init()
})
onBeforeUnmount(()=>{
INSTANCE.dispose();
})
</script>
<template>
<div id="sun" ref="rootEle"></div>
<div class="btns" >
<div class="btns-inner">
<el-button-group >
<el-button @click="toPosition(0)" round :class="[state.currentObject == 0?'selected':'']">宇宙</el-button>
<el-button @click="toPosition(1)" :class="[state.currentObject == 1?'selected':'']">银河系</el-button>
<el-button @click="toPosition(2)" :class="[state.currentObject == 2?'selected':'']">太阳系</el-button>
<el-button @click="toPosition(3)" :class="[state.currentObject == 3?'selected':'']">太阳</el-button>
<el-button @click="toPosition(4)" :class="[state.currentObject == 4?'selected':'']">水星</el-button>
<el-button @click="toPosition(5)" :class="[state.currentObject == 5?'selected':'']">金星</el-button>
<el-button @click="toPosition(6)" :class="[state.currentObject == 6?'selected':'']">地球</el-button>
<el-button @click="toPosition(7)" :class="[state.currentObject == 7?'selected':'']">月亮</el-button>
<el-button @click="toPosition(8)" :class="[state.currentObject == 8?'selected':'']">火星</el-button>
<el-button @click="toPosition(9)" :class="[state.currentObject == 9?'selected':'']">木星</el-button>
<el-button @click="toPosition(10)" :class="[state.currentObject == 10?'selected':'']">土星</el-button>
<el-button @click="toPosition(11)" :class="[state.currentObject == 11?'selected':'']">天王星</el-button>
<el-button @click="toPosition(12)" round :class="[state.currentObject == 12?'selected':'']">海王星</el-button>
</el-button-group>
</div>
</div>
<div class="btn-tools">
<div class="btns-inner">
<el-button-group direction="vertical">
<el-button @click="animate" round disabled>漫游</el-button>
<el-button @click="position" >定位</el-button>
<el-button @click="autobiography" :type="state.autobiography?'danger':''" >自转</el-button>
<el-button @click="revolution" :type="state.revolution?'danger':''">公转</el-button>
<el-button @click="follow" round :type="state.follow?'danger':''">跟随</el-button>
</el-button-group>
</div>
</div>
</template>
<style scoped>
#sun {
width: 100vw;
height: 100vh;
}
.btns{
position: fixed;
bottom: 20px;
left: 0;
width:100%;
}
.btns .btns-inner{
margin: 0 auto;
text-align: center;
}
.btns .btns-inner .el-button{
--el-button-border-color:#ffffff22;
--el-button-bg-color:#ffffff33;
--el-button-text-color:#ffffff;
--el-button-hover-bg-color:rgba(51, 125, 204, 0.404);
--el-button-hover-border-color:rgba(51, 125, 204, 0.504);
}
.btns .btns-inner :deep(.el-button span){
color:#fff
}
.btns .btns-inner .el-button.selected{
--el-button-border-color:rgba(51, 125, 204, 0.404);
--el-button-bg-color:rgba(51, 125, 204, 0.504);
--el-button-text-color:#ffffff;
}
.btn-tools{
position: fixed;
top: calc(50vh - 200px);
right: 20px;
height:100%;
}
.btn-tools .btns-inner{
height:200px;
margin: 0 auto;
text-align: center;
}
.btn-tools .btns-inner .el-button-group{
height: 100%;
}
.btn-tools .btns-inner .el-button{
flex: 1;
width:50px;
--el-button-border-color:#ffffff22;
--el-button-bg-color:#ffffff33;
--el-button-text-color:#ffffff;
--el-button-hover-bg-color:rgba(51, 125, 204, 0.404);
--el-button-hover-border-color:rgba(51, 125, 204, 0.504);
}
.btn-tools .btns-inner :deep(.el-button span){
color:#fff
}
.btn-tools .btns-inner .el-button.selected{
--el-button-border-color:rgba(51, 125, 204, 0.404);
--el-button-bg-color:rgba(204, 51, 51, 0.504);
--el-button-text-color:#ffffff;
}
.btn-tools .btns-inner .el-button--danger{
--el-button-border-color:#c40000c5;
--el-button-bg-color:#c40000c5;
--el-button-text-color:#ffffff;
--el-button-hover-bg-color:rgba(204, 51, 51, 0.404);
--el-button-hover-border-color:rgba(212, 25, 25, 0.504);
}
.btn-tools .btns-inner .is-disabled{
--el-button-disabled-bg-color:rgba(51, 125, 204, 0.404);
--el-button-disabled-border-color:rgba(204, 51, 51, 0.504);
--el-button-disabled-text-color:#ffffff;
}
</style>- 路由
javascript
import { createRouter, createWebHistory } from 'vue-router'
import HomeView from '../views/HomeView.vue'
const router = createRouter({
history: createWebHistory(import.meta.env.BASE_URL),
routes: [
{
path: '/',
name: 'home',
component: HomeView,
},
],
})
export default router- Pinia
state.ts
javascript
import { ref, computed } from 'vue'
import { defineStore } from 'pinia'
/**
* 实时状态的定义
*/
export const useStateStore = defineStore('state', () => {
//当前展示的视角信息
const currentObject = ref(0);
//自转
const autobiography = ref(true);
//公转
const revolution = ref(false);
//跟随
const follow = ref(false);
return { currentObject ,autobiography,revolution,follow}
})config.ts
javascript
import { ref, computed } from 'vue'
import { defineStore } from 'pinia'
import * as THREE from 'three'
/**
* 基础信息的定义
*/
export const useConfigStore = defineStore('config', () => {
//宇宙的半径10^26
const maxSize = 4.4 * 1000000000000000
// 9007199254740991
//缩放的倍数00000000000
const scalePer = 100000000000
//太阳的半径
const sun = {
radius:696300*1000/ 2 / scalePer,
}
//星空的背景
const bgcolor= ref('#000000');
//星星数量
const starCount = 10000;
//恒星的最大半径
const maxStarRadius = 1.1 * 1000000000000;
//星系的半径
const maxGalsxyRadius = 9.461 * 100000000000000;
//黑洞的半径
const maxBlackHoleRadius = 696300*1000/ 2 / scalePer;
//各个行星的速度
let config = {
mercury: {//水星直径约4879公里，质量是地球的0.055倍，密度5.427克/立方厘米。水星：约5791万千米（0.38天文单位）
name:'水星',
x:57910000*10/scalePer,
radius:4879*1000/2/scalePer,
autobiography: 3.0 * 1000,//自转
revolution: 47.9 * 1000,//公转
},
venus: {//金星直径约12104公里，质量是地球的0.815倍，密度5.24克/立方厘米。金星：约1.082亿千米（0.72天文单位）
name:'金星',
x:1.082*100000000*10/scalePer,
radius:12104*1000/2/scalePer,
autobiography: 1.8 * 1000,//自转
revolution: 35 * 1000,//公转
},
mars: {//火星直径约6779公里，质量是地球的0.1074倍，密度3.94克/立方厘米。火星：约2.28亿千米（1.52天文单位）
name:'火星',
x:2.28*100000000*10/scalePer,
radius:6779*1000/2/scalePer,
autobiography: 0.24 * 1000,//自转
revolution: 24.1 * 1000,//公转
},
earth: {//地球：直径约12742公里，质量1，密度5.52克/立方厘米。地球：约1.496亿千米（1天文单位）
name:'地球',
x:1.496*100000000*10/scalePer,
radius:12742*1000/2/scalePer,
autobiography: 0.465 * 1000,//自转
revolution: 29.8 * 1000,//公转
},
jupiter: {//木星直径约142984公里，质量是地球的317.94倍，密度1.33克/立方厘米。木星：约7.78亿千米（5.2天文单位）
name:'木星',
x:7.78*100000000*10/scalePer,
radius:142984*1000/2/scalePer,
autobiography: 7.66 * 1000,//自转
revolution: 9.7 * 1000,//公转
},
saturn: {//土星直径约120536公里，质量是地球的95.18倍，平均密度仅0.7克/立方厘米，是太阳系中唯一密度小于水的行星。土星：约14.29亿千米（9.54天文单位）
name:'土星',
x:14.29*100000000*10/scalePer,
radius:120536*1000/2/scalePer,
autobiography: 6.3 * 1000,//自转
revolution: 9.7 * 1000,//公转
},
uranus: {//天王星直径约51118公里，质量是地球的14.63倍，密度1.24克/立方厘米。天王星：约28.71亿千米（19.18天文单位）
name:'天王星',
x:28.71*100000000*10/scalePer,
radius:51118*1000/2/scalePer,
autobiography: 2.621 * 1000,//自转
revolution: 6.8 * 1000,//公转
},
neptune: {//海王星直径约49528公里，质量是地球的17.22倍，密度1.66克/立方厘米。海王星：约45.04亿千米（30.06天文单位）
name:'海王星',
x:45.04*100000000*10/scalePer,
radius:49528*1000/2/scalePer,
autobiography: 2.707 * 1000,//自转
revolution: 5.4 * 1000,//公转
},
}
//各个预定义的视角信息
const views = [{
position:new THREE.Vector3(0,maxSize * 1.2, maxSize * 1.8),
lookAt:new THREE.Vector3(0,0, 10)
},{
position:new THREE.Vector3(-1000,sun.radius,sun.radius),
lookAt:new THREE.Vector3(0,0,10)
},{
position:new THREE.Vector3(0.034732902744777805,0.3449531271902603,0.26654467884112715),
lookAt:new THREE.Vector3(0.033685450201036304,-0.04967007306636794,0.06401762073895154)
},{
position:new THREE.Vector3(0.0031956114242372644, 0.002872176193311527, 0.007562885263941745),
lookAt:new THREE.Vector3(0.0015854808622436782, 0.0005706336541266402, 0.0036135992057809573)
},{
position:new THREE.Vector3(0.006045906253202582, 0.00008003008369889398, 0.0002988954675529693),
lookAt:new THREE.Vector3(0.006041302768695112, 0.00007825938227635868, 0.0002941797829009809)
},{
position:new THREE.Vector3(0.01084051636669485, 0.0001451239288667867, 0.0004403390861581306),
lookAt:new THREE.Vector3(0.010831524374438522, 0.00008848922367198572, 0.0003118395857784389)
},{
position:new THREE.Vector3(0.014957403019679419, 0.000007337744173961887, 0.00016550172868891148),
lookAt:new THREE.Vector3(0.01495762410132193, 0.0000029601810377091256, 0.00012868069184761798)
},{
position:new THREE.Vector3(0.015584094940632082, 0.000015600820697942422, 0.00004681596071252129),
lookAt:new THREE.Vector3(0.015568968923486144, 0.000006820501494518071, 0.00002771980840764359)
},{
position:new THREE.Vector3( 0.02279670988844571, 0.00003522113585802835, 0.00008276729868475193),
lookAt:new THREE.Vector3(0.022762587282826, -0.0001796949422104101, -0.00040485965302916013)
},{
position:new THREE.Vector3(0.07787499299522975, 0.0010636644906135365, 0.004081489027364495),
lookAt:new THREE.Vector3(0.07785935011131331, -0.00452272528354329, -0.013440072354970871)
},{
position:new THREE.Vector3(0.14291450582676493, 0.001513438251508653, 0.0020417705170365083),
lookAt:new THREE.Vector3(0.14267836092902175, -0.004475123933605497, -0.0046303752197579635)
},{
position:new THREE.Vector3(0.2872005905163468, 0.00015843950020901073, 0.00062313147047773),
lookAt:new THREE.Vector3(0.2868239336951548, -0.0009440884184587143, -0.0023734645190837756)
},{
position:new THREE.Vector3(0.45045140559862284, 0.00017459925595258158, 0.0007134956105158232),
lookAt:new THREE.Vector3(0.45042484067928384, -0.00015143382341868935, -0.0002189835599877074)
}];
return { maxSize,sun,config ,bgcolor,starCount,maxStarRadius,maxGalsxyRadius,maxBlackHoleRadius,views}
})4.2 三维实现
- 基础场景
index.ts
javascript
import * as THREE from 'three'
import { useStateStore } from '@/stores/state';
import animate from "./animate"
import * as renderer from "./renderer"
import * as camera from "./camera"
import * as controls from "./controls"
import * as light from "./light"
import * as scene from "./scene"
//宇宙
import * as universe from "./universe"
//太阳系
import * as solar from "./solarSystem"
import { config } from '@/utils'
import { nextTick } from 'vue';
//初始化
export const init = (rootEle:Element)=>{
renderer.init(rootEle);//初始化渲染器
camera.init();//初始化相机
scene.init();//初始化场景
light.init();//初始化灯光
universe.init();//初始化宇宙背景，包括星系
solar.init();//初始化太阳系
controls.init();//初始化控制器
renderer.renderer.render(scene.scene, camera.camera)//渲染目标
//坐标轴的辅助工具
const axesHelper = new THREE.AxesHelper( config("maxSize") );
scene.add( axesHelper );
//启动动画
requestAnimationFrame(animate)
//当前的视角
nextTick(()=>{
const state = useStateStore();
camera.toPosition(config("views")[state.currentObject].position,config("views")[state.currentObject].lookAt);
//摄像机的辅助工具
// const helper = new THREE.CameraHelper( camera.getCamera() );
// scene.add( helper );
})
}
//销毁
export const dispose = ()=>{
solar.dispose();
universe.dispose();
light.dispose();
controls.dispose();
camera.dispose();
renderer.dispose();
}
//转到对应的位置，摄像机和视角
export const toPosition= (position:THREE.Vector3,lookAt:THREE.Vector3)=>{
camera.toPosition(position,lookAt);
// controls.lookAt(lookAt);
}
export default {
renderer,
animate,
camera,
controls,
light,
scene,
init,
dispose,toPosition
};renderer.ts
javascript
import * as THREE from 'three'
//全局的渲染器
export const renderer: THREE.WebGLRenderer = new THREE.WebGLRenderer({ antialias: true, logarithmicDepthBuffer: true })
//销毁
export const dispose = ()=>{
if(renderer){
renderer.dispose()
}
}
export const init = (rootEle:Element)=>{
renderer.setPixelRatio(window.devicePixelRatio)
renderer.setSize(window.innerWidth, window.innerHeight)
rootEle.appendChild(renderer.domElement)
}
/**
* 初始化渲染器
*/
export default {
renderer,init,dispose
}light.ts
javascript
import * as THREE from 'three'
import INSTANCE from "./index"
//全局的渲染器
export let lights: THREE.PointLight[] = [];
//销毁
export const dispose = ()=>{
if(lights){
lights.forEach(item=>item.dispose())
}
}
export const init = ()=>{
// const ambientLight = new THREE.AmbientLight(0xffffff)
// lights.push(ambientLight)
// INSTANCE.scene.add(ambientLight);
let pointLight = new THREE.PointLight('#ffffff', 1, 0, 0)
pointLight.position.set(0, 0, 0)
lights.push(pointLight)
INSTANCE.scene.add(pointLight);
}
/**
* 初始化渲染器
*/
export default {
lights,init,dispose
} scene.ts
javascript
import { config } from '@/utils'
import * as THREE from 'three'
//场景
export const scene: THREE.Scene = new THREE.Scene()
export const init = () => {
scene.background = new THREE.Color(config('bgcolor'))
}
export const add = (mesh:THREE.Object3D) => {
scene.add(mesh);
}
/**
* 初始化
*/
export default {
init, scene,add
}camera.ts
javascript
import { config, disposeObject } from '@/utils';
import * as THREE from 'three'
import controls, { lookAt } from './controls';
import * as TWEEN from 'three/examples/jsm/libs/tween.module';
//动画的周期
let animationDuration = 2000;
let easingFunction = TWEEN.Easing.Quadratic.Out;
//标记是否在动画当中
let animateing = false;
//摄像机
export let camera: THREE.PerspectiveCamera
//销毁
export const dispose = () => {
if (camera) {
disposeObject(camera);
}
}
//动画
export const animate = (time:number)=>{
// 更新Tween动画
TWEEN.update();
// console.log('camera',camera.position);
}
//初始化
export const init = () => {
camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
0.00000000000001,
config('maxSize') * 2,
)
// camera.zoom = config('maxSize')*2
// camera.position.set(0, config('maxSize') * 1.2, config('maxSize') * 1.8)//宇宙
// camera.position.set(0.034732902744777805,0.3449531271902603,0.26654467884112715);//太阳系
// camera.position.set(0.014957403019679419, 0.000007337744173961887, 0.0001655017286889114);//地球
// camera.position.set(0.006045906253202582, 0.00008003008369889398, 0.0002988954675529693);//水星
// camera.position.set(0.01084051636669485, 0.0001451239288667867, 0.0004403390861581306);//金星
// camera.position.set(0.02279670988844571, 0.00003522113585802835, 0.00008276729868475193);//火星
// camera.position.set(0.07787499299522975, 0.0010636644906135365, 0.004081489027364495);//木星
// camera.position.set(0.14291450582676493, 0.001513438251508653, 0.0020417705170365083);//土星
// camera.position.set(0.2872005905163468, 0.00015843950020901073, 0.00062313147047773);//天王星
// camera.position.set(0.45045140559862284, 0.00017459925595258158, 0.0007134956105158232);//海王星
}
//转到指定的视角
export const toPosition = (targetPosition:THREE.Vector3,targetLookAt:THREE.Vector3)=>{
animateing = true;
// 停止当前所有动画
TWEEN.removeAll();
// 创建位置动画
new TWEEN.Tween(camera.position)
.to(targetPosition, animationDuration)
.easing(easingFunction)
.onComplete(function() {
camera.position.set(targetPosition.x, targetPosition.y, targetPosition.z);
// lookAt(targetLookAt);
})
.start();
new TWEEN.Tween(controls.getControls().target)
.to(targetLookAt, animationDuration)
.easing(easingFunction)
.onComplete(function() {
lookAt(targetLookAt);
animateing = false;
})
.start();
}
//转到指定的视角，不启动动画效果
export const toPositionNoAnimate= (targetPosition:THREE.Vector3,targetLookAt:THREE.Vector3)=>{
if(animateing){
return;
}
camera.position.set(targetPosition.x, targetPosition.y, targetPosition.z);
// lookAt(targetLookAt);
}
export const getCamera = ()=>{
return camera;
}
//初始化
export default {
camera:getCamera, init, dispose,animate,toPosition,getCamera,toPositionNoAnimate
}control.ts
javascript
import * as THREE from 'three'
import { OrbitControls } from 'three/addons/controls/OrbitControls.js'
import { renderer } from "./renderer"
import { camera } from "./camera"
//控制器
export let controls: OrbitControls
//销毁
export const dispose = () => {
if (controls) {
controls.dispose();
}
}
//动画
export const animate = (time:number)=>{
controls.update()
// console.log('controls',controls.target);
}
export const init = () => {
controls = new OrbitControls(camera, renderer.domElement)
controls.enableDamping = true; // 启用阻尼效果
controls.minDistance = -9000000000000000; // 将相机放大多少
// controls.panSpeed = 0.1;
// controls.rotateSpeed = 0.1;
// controls.zoomSpeed = 0.1;
// controls.target.copy(new THREE.Vector3(0.01495762410132193, 0.0000029601810377091256, 0.00012868069184761798))//地球的视角
// controls.target.copy(new THREE.Vector3(0.006041302768695112, 0.00007825938227635868, 0.0002941797829009809))//水星的视角
// controls.target.copy(new THREE.Vector3(0.010831524374438522, 0.00008848922367198572, 0.0003118395857784389))//金星的视角
// controls.target.copy(new THREE.Vector3(0.022762587282826, -0.0001796949422104101, -0.00040485965302916013))//火星的视角
// controls.target.copy(new THREE.Vector3(0.07785935011131331, -0.00452272528354329, -0.013440072354970871))//木星的视角
// controls.target.copy(new THREE.Vector3(0.14267836092902175, -0.004475123933605497, -0.0046303752197579635))//土星的视角
// controls.target.copy(new THREE.Vector3(0.2868239336951548, -0.0009440884184587143, -0.0023734645190837756))//天王星的视角
// controls.target.copy(new THREE.Vector3(0.45042484067928384, -0.00015143382341868935, -0.0002189835599877074))//海王星的视角
controls.update()
}
export const getControls = ()=>{
return controls;
}
//转到指定的视角
export const lookAt = (lookAt:THREE.Vector3)=>{
// 创建目标点动画
controls.target.copy(lookAt);
}
export default {
controls:getControls(), init, dispose,animate,getControls
}anmine.ts
javascript
import { config, resizeRendererToDisplaySize } from '@/utils'
import * as THREE from 'three'
import * as solar from "./solarSystem"
import * as universe from "./universe"
import controls from "./controls"
import {renderer} from "./renderer"
import camera from "./camera"
import {scene} from "./scene"
// let clock = new THREE.Clock();
//初始化
const animate = (time: number) => {
// const delta = clock.getDelta();
// const time = clock.getElapsedTime();
if(camera.camera()){
if (resizeRendererToDisplaySize(renderer)) {
const canvas = renderer.domElement
camera.camera().aspect = canvas.clientWidth / canvas.clientHeight
camera.camera().updateProjectionMatrix()
}
universe.animate(time);
solar.animate(time);
camera.animate(time)
controls.animate(time)
renderer.render(scene, camera.camera())
}
requestAnimationFrame(animate)
}
export default animate;
