之前通过脚本实现了将网络设备批量添加到Netbox上，信息都是一对一的。但是IRF成员组的设备不能按照之前的模板添加，因为IP是唯一性的。所有需要通过修改一下脚本的内容
1、获取IRF设备信息，提供全部网络设备里面，找出哪些配置了IRF设备的管理IP
python
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
import concurrent.futures
import time
import os
from netmiko import ConnectHandler
# 登录信息
USERNAME = "xxxx"
PASSWORD = "xxxxx"
# 文件
INPUT_FILE = "switch.txt" #所有网络设备地址所在信息
OUTPUT_FILE = "IRF_Switch.txt" #将配置有IRF设备的管理地址写入这个文件
# 设备配置 - 关键：禁用主机密钥检查
device_base = {
'device_type': 'hp_comware',
'username': USERNAME,
'password': PASSWORD,
'port': 22,
'timeout': 20,
'banner_timeout': 15,
'auth_timeout': 30,
'blocking_timeout': 20,
# 关键参数：自动接受未知主机密钥
'use_keys': False,
}
def read_ips(file_path):
with open(file_path, 'r') as f:
return [line.strip() for line in f if line.strip() and not line.startswith('#')]
def check_device(ip):
device = device_base.copy()
device['ip'] = ip
try:
print(f"[{ip}] 连接中...")
conn = ConnectHandler(**device)
# 执行命令
output = conn.send_command(
"display irf | include Standby",
read_timeout=10
)
conn.disconnect()
# 检查输出
for line in output.split('\n'):
line = line.strip()
if 'Standby' in line and 'display' not in line and not line.startswith('<'):
print(f"[{ip}] ✓ IRF-Standby")
return ip, True, output
print(f"[{ip}] ✗ 无")
return ip, False, None
except Exception as e:
error_msg = str(e)
print(f"[{ip}] ✗ 失败: {error_msg[:80]}")
return ip, False, error_msg
def main():
ips = read_ips(INPUT_FILE)
print(f"共 {len(ips)} 台，每批30台同时执行\n")
# 清空结果文件
open(OUTPUT_FILE, 'w').close()
irf_list = []
batch_size = 30
for i in range(0, len(ips), batch_size):
batch = ips[i:i + batch_size]
start_ip, end_ip = batch[0], batch[-1]
print(f"--- 批次 {i//batch_size + 1} ({start_ip} ~ {end_ip}) ---")
with concurrent.futures.ThreadPoolExecutor(max_workers=10) as executor:
future_to_ip = {executor.submit(check_device, ip): ip for ip in batch}
for future in concurrent.futures.as_completed(future_to_ip):
ip, is_irf, output = future.result()
if is_irf:
with open(OUTPUT_FILE, 'a') as f:
f.write(f"{ip}\n")
irf_list.append(ip)
# 批次间隔
if i + batch_size < len(ips):
time.sleep(1)
print(f"\n完成，发现 {len(irf_list)} 台IRF设备")
print(f"结果已保存至: {OUTPUT_FILE}")
if __name__ == "__main__":
main()获取会找出整个网络中哪些设备配置了IRF设备，在IRF_Switch.txt里面
二、下面的脚本通过登录有配置IRF交换机获取IRF相信息（SN）
python
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
H3C 并发采集 v11
- sysname 后面加序号 _1、_2、_3......与 SN 顺序对应
- 其余逻辑同 v10
"""
import os
import re
import time
import paramiko
from concurrent.futures import ThreadPoolExecutor, as_completed
# ================= 可改参数 =================
USER = "yangwb"
PASSWORD = "Ywb@zaqwsx"
IP_FILE = "IRF_Switch.txt"
OUT_DIR = "/root/switch_config_folder/IRF_informain"
MAX_WORKER = 50
# ==========================================
os.makedirs(OUT_DIR, exist_ok=True)
# --------------------------------------------------
# 读到提示符或期望行立即返回
# --------------------------------------------------
def read_until_prompt(chan, expect_line=None, max_wait=20):
buf = ""
start = time.time()
while True:
if chan.recv_ready():
chunk = chan.recv(4096).decode(errors="ignore")
buf += chunk
if expect_line and re.search(expect_line, buf):
return buf
if re.search(r'[<>\[\]]\s*$', buf.splitlines()[-1]):
return buf
if time.time() - start > max_wait:
break
time.sleep(0.2)
return buf
# --------------------------------------------------
# 单台采集
# --------------------------------------------------
def get_info(ip: str):
ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())
try:
ssh.connect(ip, username=USER, password=PASSWORD,
look_for_keys=False, allow_agent=False, timeout=10)
except Exception as e:
return ip, [], f"SSH_FAIL_{e}"
chan = ssh.invoke_shell()
# ① 关分页
chan.send("screen-length disable\n")
read_until_prompt(chan)
# ② 取 sysname
chan.send("dis cur | i sysname\n")
out1 = read_until_prompt(chan, expect_line=r"^ sysname\s+", max_wait=20)
# ③ 取 device man
chan.send("dis device man\n")
out2 = read_until_prompt(chan, max_wait=20)
ssh.close()
# ---- 调试落盘 ----
open(f"/tmp/{ip}.debug", "w").write("===sysname===\n" + out1 + "\n===man===\n" + out2)
# 解析
sysname = re.search(r"(?m)^ sysname\s+(.+)", out1)
sysname = sysname.group(1).strip() if sysname else "UNKNOWN"
sn_list = re.findall(r"(?m)^ Slot \d+.*?(^DEVICE_SERIAL_NUMBER\s*:\s*(\S+))", out2, re.DOTALL)
sn_list = [m[1] for m in sn_list]
return ip, sn_list, sysname
# --------------------------------------------------
# 线程池并发
# --------------------------------------------------
def main():
ips = [l.split("#")[0].strip() for l in open(IP_FILE) if l.strip()]
ok_cnt = 0
with ThreadPoolExecutor(max_workers=MAX_WORKER) as pool:
future_map = {pool.submit(get_info, ip): ip for ip in ips}
for fut in as_completed(future_map):
ip, sns, name = fut.result()
if not sns and name.startswith("SSH_FAIL"):
print(f"❌ {ip} 失败: {name}")
continue
with open(f"{OUT_DIR}/{ip}.txt", "w") as f:
for idx, sn in enumerate(sns, start=1): # 从 1 开始
f.write(f"{sn},{name}_{idx}\n")
ok_cnt += 1
print(f"✅ {ip} 完成 {ok_cnt}/{len(ips)}")
print(f"全部完成，成功 {ok_cnt}/{len(ips)}，结果在 {OUT_DIR}")
if __name__ == "__main__":

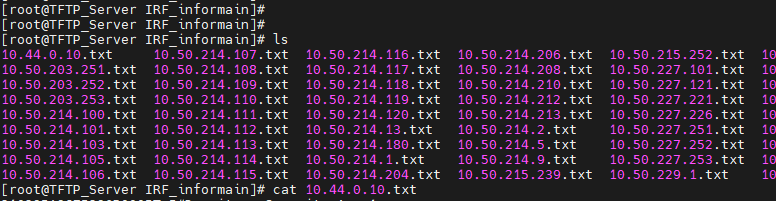

main()1、获取到设备信息如下格式如下
2、设备信息和IP地址进行对应，并且第一台设备的sysname后面加上_1
10.44.0.10.txt 文件名称
210235A3J75236P0005T,5#Dormitory-Security_Agg_1
210235A3J75236P00060,5#Dormitory-Security_Agg_2
将SN和设备名称进行一对应。
3、通过脚本将获取的的IRF设备信息进行整合
整个要求如下
1、将所有的信息提取到new.txt文档里面
2、将设备的信息进行和IP进行对应
脚本如下
python
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
批量处理IP命名的txt文件，将文件名(IP)追加到每行内容后
使用方法: python3 merge_ip_files.py [可选: 输入目录路径，默认为当前目录]
"""
import os
import glob
import sys
from pathlib import Path
def merge_ip_files(input_dir=".", output_file="new.txt"):
"""
读取指定目录下所有以IP地址命名的txt文件，
将IP地址追加到每行内容后，合并到new.txt
"""
input_path = Path(input_dir).resolve()
output_path = input_path / output_file
# 获取所有txt文件
txt_files = list(input_path.glob("*.txt"))
# 排除输出文件本身（如果存在）
txt_files = [f for f in txt_files if f.name != output_file]
if not txt_files:
print(f"❌ 在 {input_path} 目录下未找到任何txt文件")
return
print(f"📁 扫描到 {len(txt_files)} 个txt文件")
print(f"📝 输出文件: {output_path}\n")
total_lines = 0
processed_files = 0
try:
with open(output_path, 'w', encoding='utf-8') as out_f:
for file_path in sorted(txt_files):
# 提取IP地址（去掉.txt后缀）
ip_address = file_path.stem
try:
with open(file_path, 'r', encoding='utf-8') as in_f:
lines = in_f.readlines()
file_lines = 0
for line in lines:
line = line.strip()
if line: # 跳过空行
# 追加IP地址到行尾
new_line = f"{line},{ip_address}\n"
out_f.write(new_line)
file_lines += 1
total_lines += 1
processed_files += 1
print(f"✅ {file_path.name:<20} → {file_lines:>3} 行")
except Exception as e:
print(f"⚠️ 读取 {file_path.name} 失败: {e}")
continue
print(f"\n🎉 完成！处理了 {processed_files} 个文件，共 {total_lines} 行数据")
print(f"💾 结果保存至: {output_path}")
except IOError as e:
print(f"❌ 写入文件失败: {e}")
sys.exit(1)
def validate_ip(filename):
"""
简单验证文件名是否符合IP地址格式（可选使用）
"""
parts = filename.replace('.txt', '').split('.')
if len(parts) != 4:
return False
try:
return all(0 <= int(p) <= 255 for p in parts)
except ValueError:
return False
if __name__ == "__main__":
# 支持命令行参数指定目录，默认为当前目录
directory = sys.argv[1] if len(sys.argv) > 1 else "."
if not os.path.isdir(directory):
print(f"❌ 目录不存在: {directory}")
sys.exit(1)

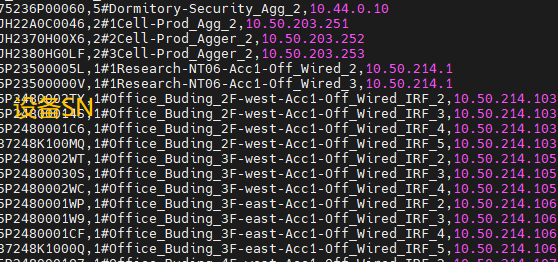

merge_ip_files(directory)整合后效果如下
再将这些信息根据前面的批量导入的方式进行导入
