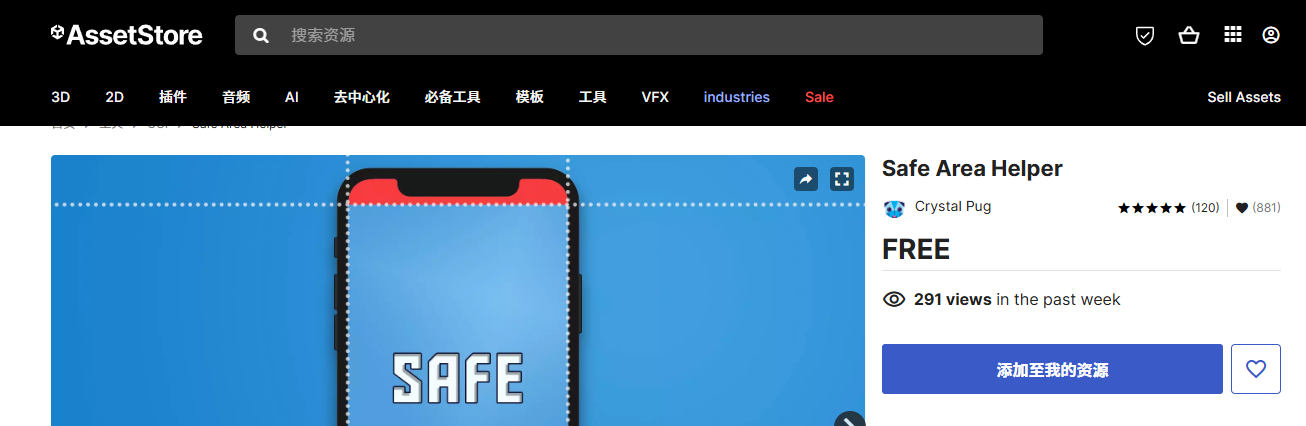

一.导入插件SafeArea Helper
链接：

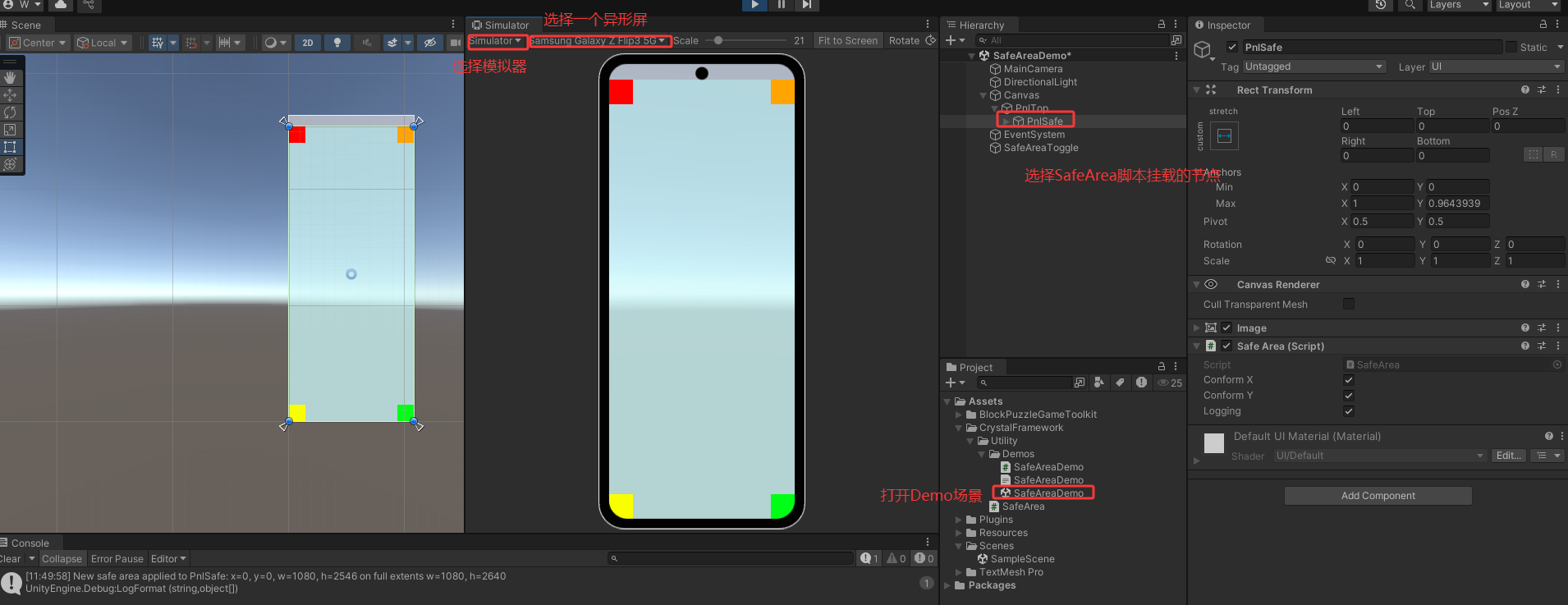

打开SafeAreaDemo场景，打开Simulator视图，切到异形屏机型
二.SafeArea.cs脚本分析
先上代码
cs
using UnityEngine;
namespace Crystal
{
/// <summary>
/// Safe area implementation for notched mobile devices. Usage:
/// (1) Add this component to the top level of any GUI panel.
/// (2) If the panel uses a full screen background image, then create an immediate child and put the component on that instead, with all other elements childed below it.
/// This will allow the background image to stretch to the full extents of the screen behind the notch, which looks nicer.
/// (3) For other cases that use a mixture of full horizontal and vertical background stripes, use the Conform X & Y controls on separate elements as needed.
/// </summary>
public class SafeArea : MonoBehaviour
{
#region Simulations
/// <summary>
/// Simulation device that uses safe area due to a physical notch or software home bar. For use in Editor only.
/// </summary>
public enum SimDevice
{
/// <summary>
/// Don't use a simulated safe area - GUI will be full screen as normal.
/// </summary>
None,
/// <summary>
/// Simulate the iPhone X and Xs (identical safe areas).
/// </summary>
iPhoneX,
/// <summary>
/// Simulate the iPhone Xs Max and XR (identical safe areas).
/// </summary>
iPhoneXsMax,
/// <summary>
/// Simulate the Google Pixel 3 XL using landscape left.
/// </summary>
Pixel3XL_LSL,
/// <summary>
/// Simulate the Google Pixel 3 XL using landscape right.
/// </summary>
Pixel3XL_LSR
}
/// <summary>
/// Simulation mode for use in editor only. This can be edited at runtime to toggle between different safe areas.
/// </summary>
public static SimDevice Sim = SimDevice.None;
/// <summary>
/// Normalised safe areas for iPhone X with Home indicator (ratios are identical to Xs, 11 Pro). Absolute values:
/// PortraitU x=0, y=102, w=1125, h=2202 on full extents w=1125, h=2436;
/// PortraitD x=0, y=102, w=1125, h=2202 on full extents w=1125, h=2436 (not supported, remains in Portrait Up);
/// LandscapeL x=132, y=63, w=2172, h=1062 on full extents w=2436, h=1125;
/// LandscapeR x=132, y=63, w=2172, h=1062 on full extents w=2436, h=1125.
/// Aspect Ratio: ~19.5:9.
/// </summary>
Rect[] NSA_iPhoneX = new Rect[]
{
new Rect (0f, 102f / 2436f, 1f, 2202f / 2436f), // Portrait
new Rect (132f / 2436f, 63f / 1125f, 2172f / 2436f, 1062f / 1125f) // Landscape
};
/// <summary>
/// Normalised safe areas for iPhone Xs Max with Home indicator (ratios are identical to XR, 11, 11 Pro Max). Absolute values:
/// PortraitU x=0, y=102, w=1242, h=2454 on full extents w=1242, h=2688;
/// PortraitD x=0, y=102, w=1242, h=2454 on full extents w=1242, h=2688 (not supported, remains in Portrait Up);
/// LandscapeL x=132, y=63, w=2424, h=1179 on full extents w=2688, h=1242;
/// LandscapeR x=132, y=63, w=2424, h=1179 on full extents w=2688, h=1242.
/// Aspect Ratio: ~19.5:9.
/// </summary>
Rect[] NSA_iPhoneXsMax = new Rect[]
{
new Rect (0f, 102f / 2688f, 1f, 2454f / 2688f), // Portrait
new Rect (132f / 2688f, 63f / 1242f, 2424f / 2688f, 1179f / 1242f) // Landscape
};
/// <summary>
/// Normalised safe areas for Pixel 3 XL using landscape left. Absolute values:
/// PortraitU x=0, y=0, w=1440, h=2789 on full extents w=1440, h=2960;
/// PortraitD x=0, y=0, w=1440, h=2789 on full extents w=1440, h=2960;
/// LandscapeL x=171, y=0, w=2789, h=1440 on full extents w=2960, h=1440;
/// LandscapeR x=0, y=0, w=2789, h=1440 on full extents w=2960, h=1440.
/// Aspect Ratio: 18.5:9.
/// </summary>
Rect[] NSA_Pixel3XL_LSL = new Rect[]
{
new Rect (0f, 0f, 1f, 2789f / 2960f), // Portrait
new Rect (0f, 0f, 2789f / 2960f, 1f) // Landscape
};
/// <summary>
/// Normalised safe areas for Pixel 3 XL using landscape right. Absolute values and aspect ratio same as above.
/// </summary>
Rect[] NSA_Pixel3XL_LSR = new Rect[]
{
new Rect (0f, 0f, 1f, 2789f / 2960f), // Portrait
new Rect (171f / 2960f, 0f, 2789f / 2960f, 1f) // Landscape
};
#endregion
RectTransform Panel;
Rect LastSafeArea = new Rect (0, 0, 0, 0);
Vector2Int LastScreenSize = new Vector2Int (0, 0);
ScreenOrientation LastOrientation = ScreenOrientation.AutoRotation;
[SerializeField] bool ConformX = true; // Conform to screen safe area on X-axis (default true, disable to ignore)
[SerializeField] bool ConformY = true; // Conform to screen safe area on Y-axis (default true, disable to ignore)
[SerializeField] bool Logging = false; // Conform to screen safe area on Y-axis (default true, disable to ignore)
void Awake ()
{
Panel = GetComponent<RectTransform> ();
if (Panel == null)
{
Debug.LogError ("Cannot apply safe area - no RectTransform found on " + name);
Destroy (gameObject);
}
Refresh ();
}
void Update ()
{
Refresh ();
}
void Refresh ()
{
Rect safeArea = GetSafeArea ();
if (safeArea != LastSafeArea
|| Screen.width != LastScreenSize.x
|| Screen.height != LastScreenSize.y
|| Screen.orientation != LastOrientation)
{
// Fix for having auto-rotate off and manually forcing a screen orientation.
// See https://forum.unity.com/threads/569236/#post-4473253 and https://forum.unity.com/threads/569236/page-2#post-5166467
LastScreenSize.x = Screen.width;
LastScreenSize.y = Screen.height;
LastOrientation = Screen.orientation;
ApplySafeArea (safeArea);
}
}
Rect GetSafeArea ()
{
Rect safeArea = Screen.safeArea;
if (Application.isEditor && Sim != SimDevice.None)
{
Rect nsa = new Rect (0, 0, Screen.width, Screen.height);
switch (Sim)
{
case SimDevice.iPhoneX:
if (Screen.height > Screen.width) // Portrait
nsa = NSA_iPhoneX[0];
else // Landscape
nsa = NSA_iPhoneX[1];
break;
case SimDevice.iPhoneXsMax:
if (Screen.height > Screen.width) // Portrait
nsa = NSA_iPhoneXsMax[0];
else // Landscape
nsa = NSA_iPhoneXsMax[1];
break;
case SimDevice.Pixel3XL_LSL:
if (Screen.height > Screen.width) // Portrait
nsa = NSA_Pixel3XL_LSL[0];
else // Landscape
nsa = NSA_Pixel3XL_LSL[1];
break;
case SimDevice.Pixel3XL_LSR:
if (Screen.height > Screen.width) // Portrait
nsa = NSA_Pixel3XL_LSR[0];
else // Landscape
nsa = NSA_Pixel3XL_LSR[1];
break;
default:
break;
}
safeArea = new Rect (Screen.width * nsa.x, Screen.height * nsa.y, Screen.width * nsa.width, Screen.height * nsa.height);
}
return safeArea;
}
void ApplySafeArea (Rect r)
{
LastSafeArea = r;
// Ignore x-axis?
if (!ConformX)
{
r.x = 0;
r.width = Screen.width;
}
// Ignore y-axis?
if (!ConformY)
{
r.y = 0;
r.height = Screen.height;
}
// Check for invalid screen startup state on some Samsung devices (see below)
if (Screen.width > 0 && Screen.height > 0)
{
// Convert safe area rectangle from absolute pixels to normalised anchor coordinates
Vector2 anchorMin = r.position;
Vector2 anchorMax = r.position + r.size;
anchorMin.x /= Screen.width;
anchorMin.y /= Screen.height;
anchorMax.x /= Screen.width;
anchorMax.y /= Screen.height;
// Fix for some Samsung devices (e.g. Note 10+, A71, S20) where Refresh gets called twice and the first time returns NaN anchor coordinates
// See https://forum.unity.com/threads/569236/page-2#post-6199352
if (anchorMin.x >= 0 && anchorMin.y >= 0 && anchorMax.x >= 0 && anchorMax.y >= 0)
{
Panel.anchorMin = anchorMin;
Panel.anchorMax = anchorMax;
}
}
if (Logging)
{
Debug.LogFormat ("New safe area applied to {0}: x={1}, y={2}, w={3}, h={4} on full extents w={5}, h={6}",
name, r.x, r.y, r.width, r.height, Screen.width, Screen.height);
}
}
}

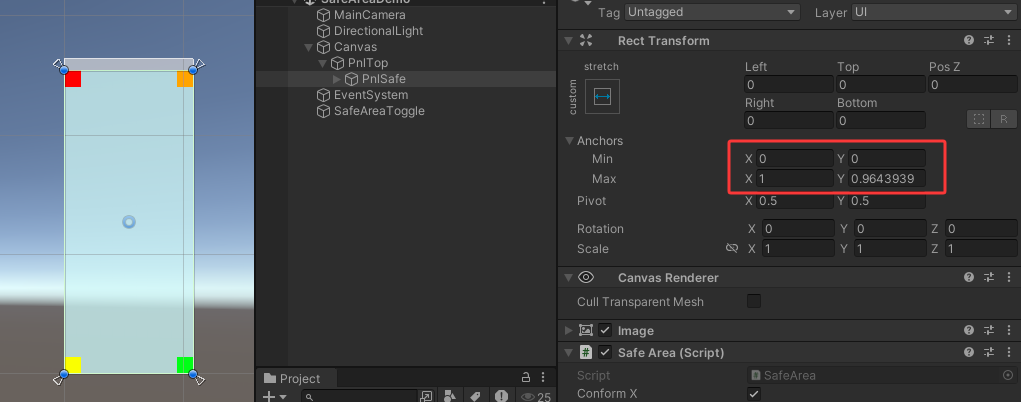

}其核心逻辑是通过Screen.width, Screen.height获取屏幕宽高，通过Screen.safeArea获取安全区，再通过将safeArea的宽高除以Screen.width, Screen.height获取锚点的Min和Max的x,y值，从而最终将gameObject的位置和尺寸设置好。
SafeArea的核心逻辑如下，在实际项目中即使不适用SafeArea Helper插件，自己写SafeArea脚本，这段逻辑基本都会应用
cs
if (Screen.width > 0 && Screen.height > 0)
{
// Convert safe area rectangle from absolute pixels to normalised anchor coordinates
Vector2 anchorMin = r.position;
Vector2 anchorMax = r.position + r.size;
anchorMin.x /= Screen.width;
anchorMin.y /= Screen.height;
anchorMax.x /= Screen.width;
anchorMax.y /= Screen.height;
// Fix for some Samsung devices (e.g. Note 10+, A71, S20) where Refresh gets called twice and the first time returns NaN anchor coordinates
// See https://forum.unity.com/threads/569236/page-2#post-6199352
if (anchorMin.x >= 0 && anchorMin.y >= 0 && anchorMax.x >= 0 && anchorMax.y >= 0)
{
Panel.anchorMin = anchorMin;
Panel.anchorMax = anchorMax;
}
}
