Elasticsearch 三节点集群部署

[1 基础信息](#1 基础信息)

[2 所有节点执行：系统前置优化（root）](#2 所有节点执行：系统前置优化（root）)

[2.1 创建 appuser](#2.1 创建 appuser)

[2.2 关闭防火墙、SELinux、swap](#2.2 关闭防火墙、SELinux、swap)

[2.3 调整 limits.conf](#2.3 调整 limits.conf)

[2.4 修正 nproc 子配置](#2.4 修正 nproc 子配置)

[2.5 内核参数优化](#2.5 内核参数优化)

[3 所有节点执行：安装 ES（root → appuser）](#3 所有节点执行：安装 ES（root → appuser）)

[3.1 下载并解压](#3.1 下载并解压)

[4 所有节点执行：elasticsearch.yml 配置（appuser）](#4 所有节点执行：elasticsearch.yml 配置（appuser）)

[4.1 ES-node01（192.168.36.10）](#4.1 ES-node01（192.168.36.10）)

[4.2 ES-node02（192.168.36.20）](#4.2 ES-node02（192.168.36.20）)

[4.3 ES-node03（192.168.36.30）](#4.3 ES-node03（192.168.36.30）)

[5 所有节点执行：jvm.options 配置（4C4G，其它配置按需修改）](#5 所有节点执行：jvm.options 配置（4C4G，其它配置按需修改）)

[6 主节点（node01）生成 SSL 证书并同步（appuser）](#6 主节点（node01）生成 SSL 证书并同步（appuser）)

[6.1 node02/node03 先创建证书目录（root）](#6.1 node02/node03 先创建证书目录（root）)

[6.2 主节点同步证书（root）](#6.2 主节点同步证书（root）)

[6.3 node02/node03 修正证书权限（root）](#6.3 node02/node03 修正证书权限（root）)

[7 所有节点执行：开启 X-Pack 安全（root）](#7 所有节点执行：开启 X-Pack 安全（root）)

[8 所有节点执行：systemd 服务（root）](#8 所有节点执行：systemd 服务（root）)

[9 所有节点执行：appuser 免密 sudo（root）](#9 所有节点执行：appuser 免密 sudo（root）)

[10 集群启动（appuser）](#10 集群启动（appuser）)

[10.1 先启动 node01](#10.1 先启动 node01)

[10.2 node01 设置密码（仅一次）](#10.2 node01 设置密码（仅一次）)

[10.3 启动 node02、node03](#10.3 启动 node02、node03)

[11 集群验证（node01 appuser）](#11 集群验证（node01 appuser）)

[12 常用运维命令](#12 常用运维命令)

[13 常见报错及快速修复](#13 常见报错及快速修复)

[14 脚本部署](#14 脚本部署)

[14.1 系统优化，所有节点执行 1 次](#14.1 系统优化，所有节点执行 1 次)

[14.2 node01 主节点脚本（192.168.36.10）](#14.2 node01 主节点脚本（192.168.36.10）)

[14.3 node02 脚本（192.168.36.20）](#14.3 node02 脚本（192.168.36.20）)

[14.4 node03 脚本（192.168.36.30）](#14.4 node03 脚本（192.168.36.30）)

[14.5 同步证书](#14.5 同步证书)

[14.6 启动](#14.6 启动)

[14.7 集群验证](#14.7 集群验证)

1 基础信息

节点信息
- ES-node01：192.168.36.10（主节点）
- ES-node02：192.168.36.20
- ES-node03：192.168.36.30
系统：Kylin V10 / CentOS/RHEL
软件版本：elasticsearch-7.17.22-linux-x86_64.tar.gz
运行用户：appuser（禁止 root）
安装目录：/usr/local/elasticsearch
数据目录：/usr/local/elasticsearch/data
日志目录：/usr/local/elasticsearch/logs
证书目录：/usr/local/elasticsearch/config/cert

2 所有节点执行：系统前置优化（root）

2.1 创建 appuser

ES 禁止 root 用户运行，创建单用户 appuser 兼具「运行 ES 进程」和「运维启停服务」权限，简化权限管理

bash 复制代码

groupadd appuser
useradd -g appuser appuser
passwd appuser

2.2 关闭防火墙、SELinux、swap

避免防火墙拦截 ES 节点间 9300 通信端口 / 9200 访问端口，SELinux 限制文件权限，swap 影响 ES 性能

bash 复制代码

systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config
swapoff -a
sed -i '/swap/s/^/#/' /etc/fstab

2.3 调整 limits.conf

ES 运行需要大量文件句柄和进程数，默认系统限制不足，需要调大并给 appuser 解锁内存锁定限制

bash 复制代码

cat >> /etc/security/limits.conf <<EOF
* soft nofile 65535
* hard nofile 65535
* soft nproc 4096
* hard nproc 4096
appuser soft memlock unlimited
appuser hard memlock unlimited
EOF

2.4 修正 nproc 子配置

部分系统存在 20-nproc.conf 子配置，会覆盖 limits.conf 的 nproc 设置，需同步修改

bash 复制代码

if [ -f /etc/security/limits.d/20-nproc.conf ]; then
cat >> /etc/security/limits.d/20-nproc.conf <<EOF
* soft nproc 4096
appuser soft nproc unlimited
EOF
fi

2.5 内核参数优化

调整虚拟内存、网络连接、文件数等内核参数，适配 ES 高性能运行要求

bash 复制代码

cat >> /etc/sysctl.conf <<EOF
vm.max_map_count=262144
net.core.somaxconn=65535
fs.file-max=655350
vm.swappiness=0
EOF
sysctl -p

3 所有节点执行：安装 ES（root → appuser）

3.1 下载并解压

bash 复制代码

cd /usr/local
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.17.22-linux-x86_64.tar.gz
tar -zxvf elasticsearch-7.17.22-linux-x86_64.tar.gz
mv elasticsearch-7.17.22 elasticsearch
mkdir -p /usr/local/elasticsearch/{data,logs}
chown -R appuser:appuser /usr/local/elasticsearch
chmod -R 755 /usr/local/elasticsearch

4 所有节点执行：elasticsearch.yml 配置（appuser）

4.1 ES-node01（192.168.36.10）

配置集群名称、节点信息、网络地址、发现规则等，是 ES 集群组建的核心配置，需按节点修改 node.name 和 network.host

bash 复制代码

cluster.name: es-cluster
node.name: ES-node01
node.master: true
node.data: true
path.data: /usr/local/elasticsearch/data
path.logs: /usr/local/elasticsearch/logs
network.host: 192.168.36.10
http.port: 9200
transport.tcp.port: 9300
discovery.seed_hosts: ["192.168.36.10","192.168.36.20","192.168.36.30"]
cluster.initial_master_nodes: ["ES-node01","ES-node02","ES-node03"]
http.cors.enabled: true
http.cors.allow-origin: "*"
bootstrap.memory_lock: true

4.2 ES-node02（192.168.36.20）

仅修改：

bash 复制代码

node.name: ES-node02
network.host: 192.168.36.20

4.3 ES-node03（192.168.36.30）

仅修改：

bash 复制代码

node.name: ES-node03
network.host: 192.168.36.30

5 所有节点执行：jvm.options 配置（4C4G，其它配置按需修改）

配置 ES 的 JVM 堆内存，堆内存大小直接影响 ES 性能，4G 物理内存按 50% 配置为 2G，且 Xms=Xmx 避免内存抖动

bash 复制代码

-Xms2g
-Xmx2g
-XX:+UseG1GC
-XX:+HeapDumpOnOutOfMemoryError
-XX:HeapDumpPath=/usr/local/elasticsearch/logs/heapdump.hprof

6 主节点（node01）生成 SSL 证书并同步（appuser）

生成 SSL 证书实现 ES 节点间通信加密，提升集群安全性，必须切换至 appuser 用户执行，证书生成需非 root 权限

bash 复制代码

su - appuser
cd /usr/local/elasticsearch
bin/elasticsearch-certutil ca
bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12
mkdir -p config/cert
mv /usr/elasticsearch/config/elastic-*.p12 config/cert/
chown -R appuser:appuser config/cert
chmod 700 config/cert
chmod 600 config/cert/elastic-certificates.p12
exit

6.1 node02/node03 先创建证书目录（root）

bash 复制代码

mkdir -p /usr/local/elasticsearch/config/cert
chown -R appuser:appuser /usr/local/elasticsearch/config/cert
chmod 700 /usr/local/elasticsearch/config/cert

6.2 主节点同步证书（root）

将主节点生成的 SSL 证书同步到 node-2、node-3，实现所有节点证书统一，支持加密通信

bash 复制代码

scp /usr/local/elasticsearch/config/cert/* appuser@192.168.36.20:/usr/local/elasticsearch/config/cert/
scp /usr/local/elasticsearch/config/cert/* appuser@192.168.36.30:/usr/local/elasticsearch/config/cert/

6.3 node02/node03 修正证书权限（root）

同步后的证书目录 / 文件权限会变为 root，需重新授权给 appuser，确保 ES 可读取证书

bash 复制代码

chown -R appuser:appuser /usr/local/elasticsearch/config/cert
chmod 700 /usr/local/elasticsearch/config/cert
chmod 600 /usr/local/elasticsearch/config/cert/elastic-certificates.p12
chmod 700 /usr/local/elasticsearch/config
chmod 770 /usr/local/elasticsearch/data

7 所有节点执行：开启 X-Pack 安全（root）

bash 复制代码

cat >> /usr/local/elasticsearch/config/elasticsearch.yml <<'EOF'
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
EOF
chown appuser:appuser /usr/local/elasticsearch/config/elasticsearch.yml

8 所有节点执行：systemd 服务（root）

将 ES 注册为 systemd 系统服务，支持开机自启、失败自动重启、统一的 systemd 命令运维，固定运行用户为 appuser

bash 复制代码

cat > /etc/systemd/system/elasticsearch.service <<'EOF'
[Unit]
Description=Elasticsearch
Documentation=https://www.elastic.co
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/usr/local/elasticsearch
Environment=ES_PATH_CONF=/usr/local/elasticsearch/config
ExecStart=/usr/local/elasticsearch/bin/elasticsearch
Restart=always
LimitNOFILE=65535
LimitNPROC=4096
LimitMEMLOCK=infinity

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable elasticsearch

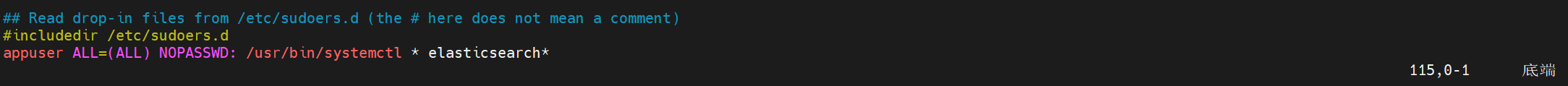

9 所有节点执行：appuser 免密 sudo（root）

bash 复制代码

echo 'appuser ALL=(ALL) NOPASSWD: /usr/bin/systemctl * elasticsearch*' >> /etc/sudoers
visudo -c

10 集群启动（appuser）

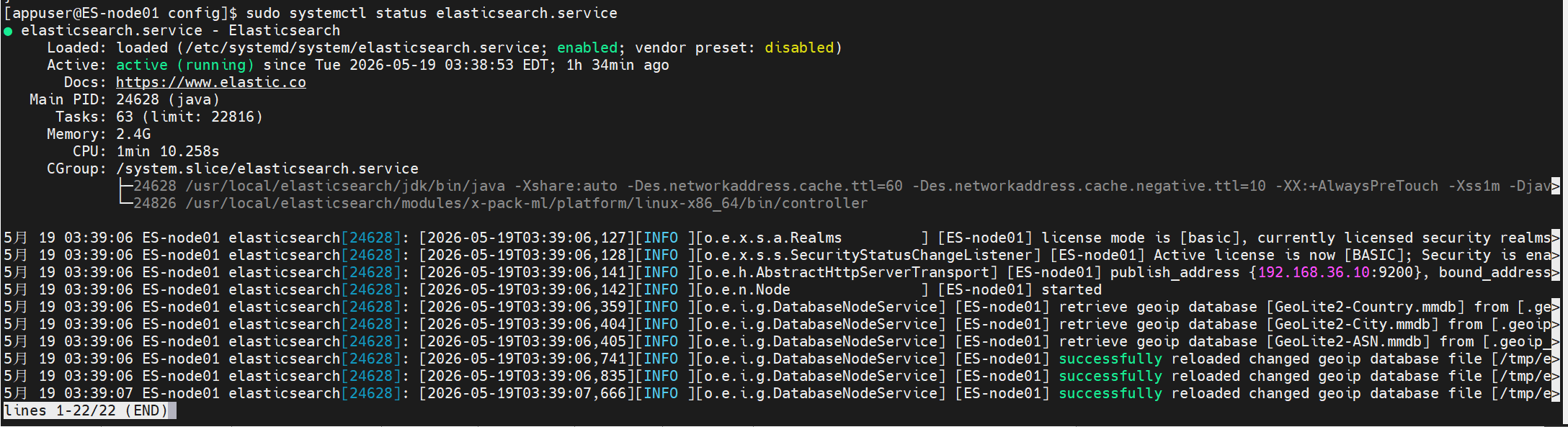

10.1 先启动 node01

bash 复制代码

su - appuser
sudo systemctl start elasticsearch
sudo systemctl status elasticsearch

10.2 node01 设置密码（仅一次）

bash 复制代码

/usr/local/elasticsearch/bin/elasticsearch-setup-passwords interactive

记住 elastic 密码（后续访问会用）

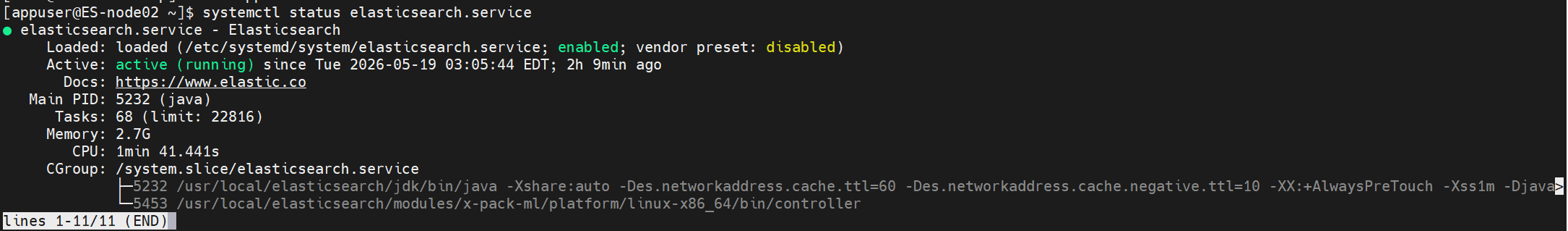

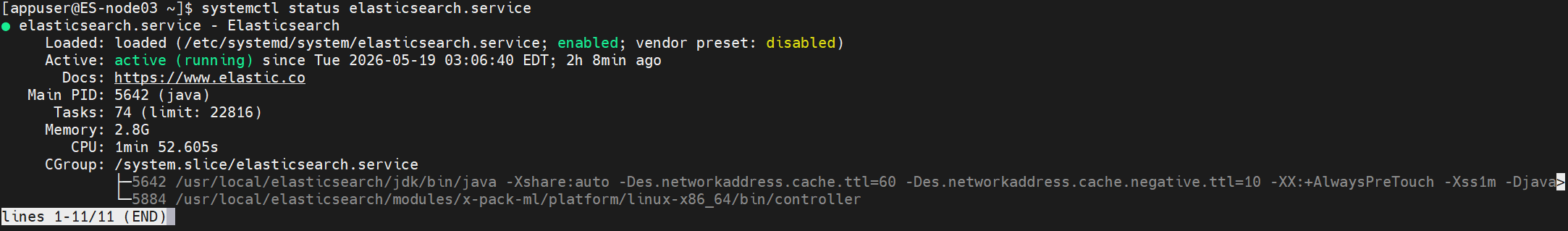

10.3 启动 node02、node03

bash 复制代码

su - appuser
sudo systemctl start elasticsearch
sudo systemctl status elasticsearch

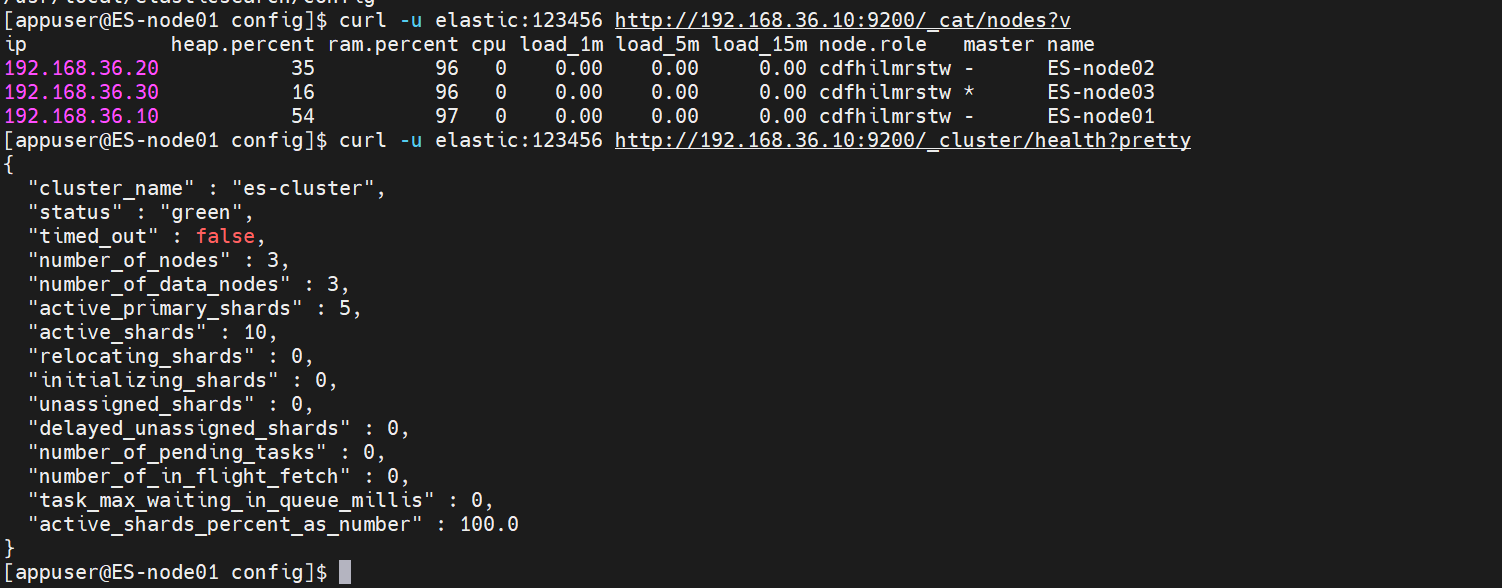

11 集群验证（node01 appuser）

bash 复制代码

curl -u elastic:你的密码 http://192.168.36.10:9200/_cat/nodes?v
curl -u elastic:你的密码 http://192.168.36.10:9200/_cluster/health?pretty

status: green
number_of_nodes: 3
3 个节点均在线

12 常用运维命令

bash 复制代码

# 启动
sudo systemctl start elasticsearch
# 停止
sudo systemctl stop elasticsearch
# 重启
sudo systemctl restart elasticsearch
# 状态
sudo systemctl status elasticsearch
# 集群健康
curl -u elastic:密码 http://IP:9200/_cluster/health?pretty
# 节点列表
curl -u elastic:密码 http://IP:9200/_cat/nodes?v

13 常见报错及快速修复

vm.max_map_count 不足：sysctl -p
memory lock 失败：检查 limits.conf + 重新登录 appuser
权限不足：chown -R appuser:appuser /usr/local/elasticsearch
节点无法加入：关闭防火墙、确认 discovery 列表 IP 正确
证书报错：证书权限 600、目录 700、属主 appuser

14 脚本部署

14.1 系统优化，所有节点执行 1 次

脚本：00_pre_all_node.sh

bash 复制代码

#!/bin/bash
set -e

# 关闭防火墙
systemctl stop firewalld
systemctl disable firewalld

# 关闭 SELinux
setenforce 0
sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config

# 关闭 swap
swapoff -a
sed -i '/swap/s/^/#/' /etc/fstab

# 创建 appuser
groupadd appuser || true
useradd -g appuser appuser || true

# limits.conf
cat >> /etc/security/limits.conf <<EOF
* soft nofile 65535
* hard nofile 65535
* soft nproc 4096
* hard nproc 4096
appuser soft memlock unlimited
appuser hard memlock unlimited
EOF

# 20-nproc.conf
if [ -f /etc/security/limits.d/20-nproc.conf ]; then
cat >> /etc/security/limits.d/20-nproc.conf <<EOF
* soft nproc 4096
appuser soft nproc unlimited
EOF
fi

# sysctl
cat >> /etc/sysctl.conf <<EOF
vm.max_map_count=262144
net.core.somaxconn=65535
fs.file-max=655350
vm.swappiness=0
EOF
sysctl -p

# sudo 免密
echo 'appuser ALL=(ALL) NOPASSWD: /usr/bin/systemctl * elasticsearch*' >> /etc/sudoers
visudo -c

echo "=== 所有节点前置优化完成 ==="

14.2 node01 主节点脚本（192.168.36.10）

脚本：01_deploy_node01.sh

bash 复制代码

#!/bin/bash
set -e

# 下载安装
cd /usr/local
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.17.22-linux-x86_64.tar.gz
tar -zxvf elasticsearch-7.17.22-linux-x86_64.tar.gz
mv elasticsearch-7.17.22 elasticsearch
mkdir -p /usr/local/elasticsearch/{data,logs}
chown -R appuser:appuser /usr/local/elasticsearch
chmod -R 755 /usr/local/elasticsearch

# elasticsearch.yml
cat > /usr/local/elasticsearch/config/elasticsearch.yml <<EOF
cluster.name: es-cluster
node.name: ES-node01
node.master: true
node.data: true
path.data: /usr/local/elasticsearch/data
path.logs: /usr/local/elasticsearch/logs
network.host: 192.168.36.10
http.port: 9200
transport.tcp.port: 9300
discovery.seed_hosts: ["192.168.36.10","192.168.36.20","192.168.36.30"]
cluster.initial_master_nodes: ["ES-node01","ES-node02","ES-node03"]
http.cors.enabled: true
http.cors.allow-origin: "*"
bootstrap.memory_lock: true
EOF

# jvm.options 4C4G 最优
cat > /usr/local/elasticsearch/config/jvm.options <<EOF
-Xms2g
-Xmx2g
-XX:+UseG1GC
-XX:+HeapDumpOnOutOfMemoryError
-XX:HeapDumpPath=/usr/local/elasticsearch/logs/heapdump.hprof
EOF

# 生成证书（appuser）
su - appuser <<EOF
cd /usr/local/elasticsearch
bin/elasticsearch-certutil ca --out config/cert/elastic-stack-ca.p12 --pass ""
bin/elasticsearch-certutil cert --ca config/cert/elastic-stack-ca.p12 --out config/cert/elastic-certificates.p12 --pass ""
mkdir -p config/cert
chmod 700 config/cert
chmod 600 config/cert/elastic-certificates.p12
EOF

# X-Pack
cat >> /usr/local/elasticsearch/config/elasticsearch.yml <<'EOF'
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
EOF
chown appuser:appuser /usr/local/elasticsearch/config/elasticsearch.yml

# systemd
cat > /etc/systemd/system/elasticsearch.service <<'EOF'
[Unit]
Description=Elasticsearch
Documentation=https://www.elastic.co
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/usr/local/elasticsearch
Environment=ES_PATH_CONF=/usr/local/elasticsearch/config
ExecStart=/usr/local/elasticsearch/bin/elasticsearch
Restart=always
LimitNOFILE=65535
LimitNPROC=4096
LimitMEMLOCK=infinity

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable elasticsearch

echo "=== node01 部署完成 ==="
echo "请先启动：su - appuser -c 'sudo systemctl start elasticsearch'"
echo "然后设置密码：su - appuser -c '/usr/local/elasticsearch/bin/elasticsearch-setup-passwords interactive'"

14.3 node02 脚本（192.168.36.20）

脚本：02_deploy_node02.sh

bash 复制代码

#!/bin/bash
set -e

cd /usr/local
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.17.22-linux-x86_64.tar.gz
tar -zxvf elasticsearch-7.17.22-linux-x86_64.tar.gz
mv elasticsearch-7.17.22 elasticsearch
mkdir -p /usr/local/elasticsearch/{data,logs}
chown -R appuser:appuser /usr/local/elasticsearch
chmod -R 755 /usr/local/elasticsearch

# elasticsearch.yml
cat > /usr/local/elasticsearch/config/elasticsearch.yml <<EOF
cluster.name: es-cluster
node.name: ES-node02
node.master: true
node.data: true
path.data: /usr/local/elasticsearch/data
path.logs: /usr/local/elasticsearch/logs
network.host: 192.168.36.20
http.port: 9200
transport.tcp.port: 9300
discovery.seed_hosts: ["192.168.36.10","192.168.36.20","192.168.36.30"]
cluster.initial_master_nodes: ["ES-node01","ES-node02","ES-node03"]
http.cors.enabled: true
http.cors.allow-origin: "*"
bootstrap.memory_lock: true
EOF

# jvm
cat > /usr/local/elasticsearch/config/jvm.options <<EOF
-Xms2g
-Xmx2g
-XX:+UseG1GC
-XX:+HeapDumpOnOutOfMemoryError
-XX:HeapDumpPath=/usr/local/elasticsearch/logs/heapdump.hprof
EOF

# 证书目录
mkdir -p /usr/local/elasticsearch/config/cert
chown -R appuser:appuser /usr/local/elasticsearch/config/cert
chmod 700 /usr/local/elasticsearch/config/cert

# X-Pack
cat >> /usr/local/elasticsearch/config/elasticsearch.yml <<'EOF'
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
EOF
chown appuser:appuser /usr/local/elasticsearch/config/elasticsearch.yml

# systemd
cat > /etc/systemd/system/elasticsearch.service <<'EOF'
[Unit]
Description=Elasticsearch
Documentation=https://www.elastic.co
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/usr/local/elasticsearch
Environment=ES_PATH_CONF=/usr/local/elasticsearch/config
ExecStart=/usr/local/elasticsearch/bin/elasticsearch
Restart=always
LimitNOFILE=65535
LimitNPROC=4096
LimitMEMLOCK=infinity

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable elasticsearch

echo "=== node02 部署完成 ==="
echo "等待 node01 启动后，执行：su - appuser -c 'sudo systemctl start elasticsearch'"

14.4 node03 脚本（192.168.36.30）

脚本：03_deploy_node03.sh

bash 复制代码

#!/bin/bash
set -e

cd /usr/local
wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.17.22-linux-x86_64.tar.gz
tar -zxvf elasticsearch-7.17.22-linux-x86_64.tar.gz
mv elasticsearch-7.17.22 elasticsearch
mkdir -p /usr/local/elasticsearch/{data,logs}
chown -R appuser:appuser /usr/local/elasticsearch
chmod -R 755 /usr/local/elasticsearch

# elasticsearch.yml
cat > /usr/local/elasticsearch/config/elasticsearch.yml <<EOF
cluster.name: es-cluster
node.name: ES-node03
node.master: true
node.data: true
path.data: /usr/local/elasticsearch/data
path.logs: /usr/local/elasticsearch/logs
network.host: 192.168.36.30
http.port: 9200
transport.tcp.port: 9300
discovery.seed_hosts: ["192.168.36.10","192.168.36.20","192.168.36.30"]
cluster.initial_master_nodes: ["ES-node01","ES-node02","ES-node03"]
http.cors.enabled: true
http.cors.allow-origin: "*"
bootstrap.memory_lock: true
EOF

# jvm
cat > /usr/local/elasticsearch/config/jvm.options <<EOF
-Xms2g
-Xmx2g
-XX:+UseG1GC
-XX:+HeapDumpOnOutOfMemoryError
-XX:HeapDumpPath=/usr/local/elasticsearch/logs/heapdump.hprof
EOF

# 证书目录
mkdir -p /usr/local/elasticsearch/config/cert
chown -R appuser:appuser /usr/local/elasticsearch/config/cert
chmod 700 /usr/local/elasticsearch/config/cert

# X-Pack
cat >> /usr/local/elasticsearch/config/elasticsearch.yml <<'EOF'
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/local/elasticsearch/config/cert/elastic-certificates.p12
EOF
chown appuser:appuser /usr/local/elasticsearch/config/elasticsearch.yml

# systemd
cat > /etc/systemd/system/elasticsearch.service <<'EOF'
[Unit]
Description=Elasticsearch
Documentation=https://www.elastic.co
Wants=network-online.target
After=network-online.target

[Service]
Type=simple
User=appuser
Group=appuser
WorkingDirectory=/usr/local/elasticsearch
Environment=ES_PATH_CONF=/usr/local/elasticsearch/config
ExecStart=/usr/local/elasticsearch/bin/elasticsearch
Restart=always
LimitNOFILE=65535
LimitNPROC=4096
LimitMEMLOCK=infinity

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable elasticsearch

echo "=== node03 部署完成 ==="
echo "等待 node01 启动后，执行：su - appuser -c 'sudo systemctl start elasticsearch'"

14.5 同步证书

在 node01 执行

bash 复制代码

scp /usr/local/elasticsearch/config/cert/* appuser@192.168.36.20:/usr/local/elasticsearch/config/cert/
scp /usr/local/elasticsearch/config/cert/* appuser@192.168.36.30:/usr/local/elasticsearch/config/cert/

14.6 启动

1.node01启动

bash 复制代码

su - appuser -c 'sudo systemctl start elasticsearch'

2.node01设置密码（执行一次）

bash 复制代码

su - appuser -c '/usr/local/elasticsearch/bin/elasticsearch-setup-passwords interactive'

3.node02、node03 启动

bash 复制代码

su - appuser -c 'sudo systemctl start elasticsearch'

14.7 集群验证

bash 复制代码

curl -u elastic:你设置的密码 http://192.168.36.10:9200/_cluster/health?pretty

出现 green 、3 个节点 即成功。

Elasticsearch 三节点集群部署

1 基础信息

2 所有节点执行：系统前置优化（root）

2.1 创建 appuser

2.2 关闭防火墙、SELinux、swap

2.3 调整 limits.conf

2.4 修正 nproc 子配置

2.5 内核参数优化

3 所有节点执行：安装 ES（root → appuser）

3.1 下载并解压

4 所有节点执行：elasticsearch.yml 配置（appuser）

4.1 ES-node01（192.168.36.10）

4.2 ES-node02（192.168.36.20）

4.3 ES-node03（192.168.36.30）

5 所有节点执行：jvm.options 配置（4C4G， 其它配置按需修改）

6 主节点（node01）生成 SSL 证书并同步（appuser）

6.1 node02/node03 先创建证书目录（root）

6.2 主节点同步证书（root）

6.3 node02/node03 修正证书权限（root）

7 所有节点执行：开启 X-Pack 安全（root）

8 所有节点执行：systemd 服务（root）

9 所有节点执行：appuser 免密 sudo（root）

10 集群启动（appuser）

10.1 先启动 node01

10.2 node01 设置密码（仅一次）

10.3 启动 node02、node03

11 集群验证（node01 appuser）

12 常用运维命令

13 常见报错及快速修复

14 脚本部署

14.1 系统优化，所有节点执行 1 次

14.2 node01 主节点脚本（192.168.36.10）

14.3 node02 脚本（192.168.36.20）

14.4 node03 脚本（192.168.36.30）

14.5 同步证书

14.6 启动

14.7 集群验证

5 所有节点执行：jvm.options 配置（4C4G，其它配置按需修改）
