随着具身智能和模仿学习（Imitation Learning）的快速发展，越来越多开发者开始尝试在 IsaacLab 中完成机械臂遥操作与数据采集任务。但在实际部署过程中，松灵PiPER 等机械臂通常会面临：
URDF 转 USD 配置复杂
IsaacLab 外部项目结构不清晰
平行夹爪控制逻辑不兼容
遥操作数据难以录制与回放
模仿学习数据格式适配困难
本文基于 IsaacLab 官方框架，从零开始搭建 PiPER / NERO 机械臂的 Stack Task 环境，实现：
PiPER 机械臂 URDF → USD 导入
IsaacLab 外部项目创
键盘遥操作控
方块堆叠任务配置
人类演示数据采集
数据回放与模仿学习支持
Robomimic 训练配置适配
适合希望基于 IsaacLab 进行：
- 具身智能研究
- VLA / Manipulation 训练
- 模仿学习数据采集
- 国产机械臂仿真开发的开发者参考使用。
项目仓库
https://github.com/szyzp/IsaacLab_Data_Collection.git
1、项目配置
1.1 创建 isaaclab 外部项目
1.1.1 创建命令
在 isaaclab 源码路径下执行：
需先安装 isaaclab，并且创建好 conda 虚拟环境 isaaclab
bash
conda activate isaaclab
./isaaclab.sh --new1.1.2 创建步骤
-
选择外部项目：
External -
输入项目路径：
/home/agilex/isaac-cosmos/ -
输入项目名称：
agx_teleop -
选择工作流：
Manager-based | single-agent -
选择RL库：根据个人需求选择
-
选择RL算法：根据个人需求选择
agx_teleop 初始项目结构：
├── pyproject.toml
├── README.md
├── scripts
│ ├── list_envs.py
│ ├── random_agent.py
│ ├── sb3
│ │ ├── play.py
│ │ └── train.py
│ └── zero_agent.py
└── source
└── agx_teleop
├── agx_teleop
│ ├── init.py
│ ├── tasks
│ │ ├── init.py
│ │ └── manager_based
│ │ ├── agx_teleop
│ │ │ ├── agents
│ │ │ │ ├── init.py
│ │ │ │ └── sb3_ppo_cfg.yaml
│ │ │ ├── agx_teleop_env_cfg.py
│ │ │ ├── init.py
│ │ │ └── mdp
│ │ │ ├── init.py
│ │ │ └── rewards.py
│ │ └── init.py
│ └── ui_extension_example.py
├── agx_teleop.egg-info
│ ├── dependency_links.txt
│ ├── not-zip-safe
│ ├── PKG-INFO
│ ├── requires.txt
│ ├── SOURCES.txt
│ └── top_level.txt
├── config
│ └── extension.toml
├── docs
│ └── CHANGELOG.rst
├── pyproject.toml
└── setup.py
1.1.3 安装外部项目
执行以下命令：
bash
cd ../agx_teleop
python -m pip install -e source/agx_teleop1.2 配置 piper 的 usd 文件
1.2.1 获取 piper 的 URDF 文件
- 获取URDF文件
bash
cd agx_teleop
mkdir -p source/agx_teleop/agx_description
cd source/agx_teleop/agx_description
git clone https://github.com/agilexrobotics/agx_arm_urdf.git- 将仓库中的piper_with_gripper_description.xacro和piper_description.urdf文件合并为单个 URDF 文件piper_gripper.urdf。修改合并后的piper_gripper.urdf中的meshes路径格式（原本为ros包的路径格式），修改方法如下：
XML
<link name="base_link">
<inertial>
<origin xyz="-0.00473641164191482 2.56829134630247E-05 0.041451518036016" rpy="0 0 0"/>
<mass value="1.02" />
<inertia ixx="0.00267433" ixy="-0.00000073" ixz="-0.00017389" iyy="0.00282612" iyz="0.0000004" izz="0.00089624"/>
</inertial>
<visual>
<origin xyz="0 0 0" rpy="0 0 0"/>
<geometry>
<mesh filename="../meshes/dae/base_link.dae"/>
</geometry>
</visual>
<collision>
<origin xyz="0 0 0" rpy="0 0 0"/>
<geometry>
<mesh filename="../meshes/base_link.stl"/>
</geometry>
</collision>
</link>- 完整的 piper URDF 文件

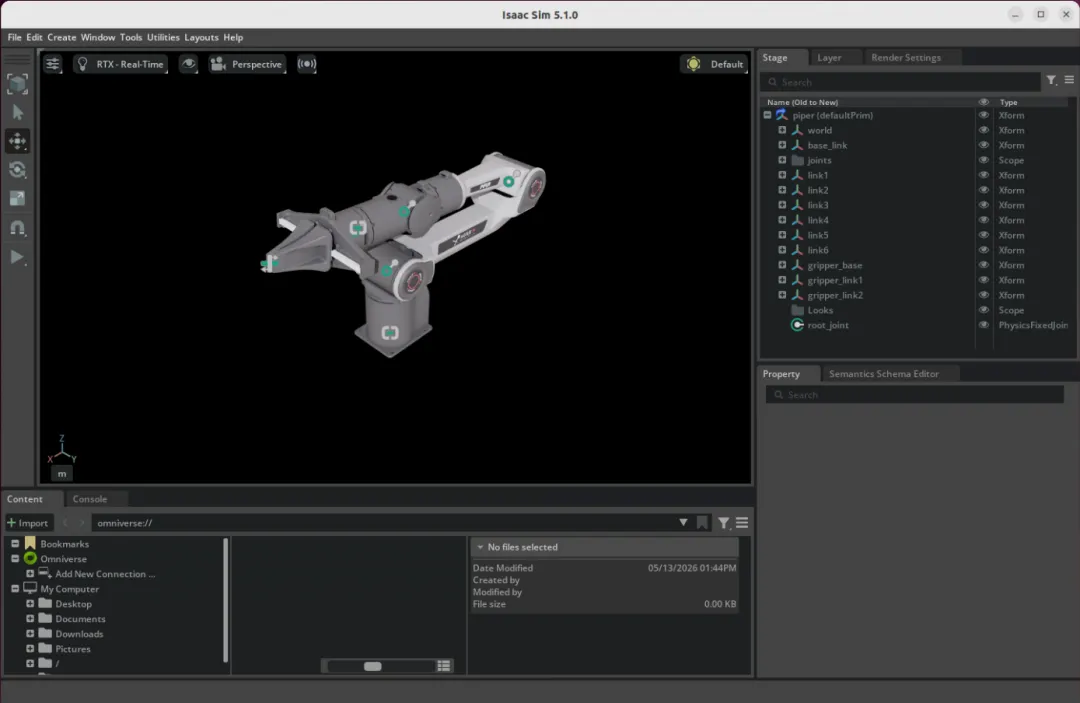

1.2.2 获取 piper 的 USD 文件
- 转换 piper 的 URDF 文件为 USD 文件
使用 isaaclab 自带的转换脚本 scripts/tools/convert_urdf.py，命令如下：
bash
python ../IsaacLab/scripts/tools/convert_urdf.py \
/home/agilex/isaac-cosmos/agx_teleop/source/agx_teleop/agx_description/agx_arm_urdf/piper/urdf/piper_gripper.urdf \
/home/agilex/isaac-cosmos/agx_teleop/source/agx_teleop/agx_description/agx_arm_urdf/piper/usd/piper.usd \
--fix-base
1.2.3 piper 配置文件
bash
cd agx_teleop
mkdir -p source/agx_teleop/agx_teleop/assets- 创建 assets/init.py 文件，内容如下：
python
"""Package containing robot configurations."""
import os
import toml
##
# Configuration for different assets.
##
# Conveniences to other module directories via relative paths
AGX_TELEOP_EXT_DIR = os.path.abspath(os.path.join(os.path.dirname(__file__), "../../"))
"""Path to the source agx_teleop directory."""
AGX_TELEOP_DESCRIPTION_DIR = os.path.join(AGX_TELEOP_EXT_DIR, "agx_description")
"""Path to the agx_description directory."""- 创建 assets/piper.py 文件，内容如下：
python
import isaaclab.sim as sim_utils
from isaaclab.actuators import ImplicitActuatorCfg
from isaaclab.assets.articulation import ArticulationCfg
from agx_teleop.assets import AGX_TELEOP_DESCRIPTION_DIR
PIPER_GRIPPER_CFG = ArticulationCfg(
spawn=sim_utils.UsdFileCfg(
usd_path=f"{AGX_TELEOP_DESCRIPTION_DIR}/agx_arm_urdf/piper/usd/piper.usd",
rigid_props=sim_utils.RigidBodyPropertiesCfg(
disable_gravity=False,
max_depenetration_velocity=5.0,
),
articulation_props=sim_utils.ArticulationRootPropertiesCfg(
enabled_self_collisions=True, solver_position_iteration_count=8, solver_velocity_iteration_count=0
),
),
init_state=ArticulationCfg.InitialStateCfg(
joint_pos={
"joint1": 0.0,
"joint2": 1.57,
"joint3": -1.57,
"joint4": 0.0,
"joint5": 1.22,
"joint6": 0.0,
"gripper_joint1": 0.0,
"gripper_joint2": 0.0,
},
pos=(0.0, 0.0, 0.0)
),
actuators={
"piper_shoulder": ImplicitActuatorCfg(
joint_names_expr=["joint[1-3]"],
effort_limit_sim=100.0,
velocity_limit_sim=5.0,
stiffness=80.0,
damping=20.0,
),
"piper_forearm": ImplicitActuatorCfg(
joint_names_expr=["joint[4-6]"],
effort_limit_sim=100.0,
velocity_limit_sim=5.0,
stiffness=40.0,
damping=10.0,
),
"gripper": ImplicitActuatorCfg( # 参考 https://github.com/smalleha/isaac_so_arm101/blob/main/src/isaac_so_arm101/robots/piper_description/piper.py
joint_names_expr=["gripper_joint1","gripper_joint2"],
effort_limit_sim=22, # Increased from 1.9 to 2.5 for stronger grip
velocity_limit_sim=1.5,
stiffness=800.0, # Increased from 25.0 to 60.0 for more reliable closing
damping=20.0, # Increased from 10.0 to 20.0 for stability
),
},
soft_joint_pos_limit_factor=0.9,
)
"""Configuration for the Piper robot with parallel gripper."""
PIPER_GRIPPER_HIGH_PD_CFG = PIPER_GRIPPER_CFG.copy()
PIPER_GRIPPER_HIGH_PD_CFG.spawn.rigid_props.disable_gravity = True
PIPER_GRIPPER_HIGH_PD_CFG.actuators["piper_shoulder"].stiffness = 400.0
PIPER_GRIPPER_HIGH_PD_CFG.actuators["piper_shoulder"].damping = 80.0
PIPER_GRIPPER_HIGH_PD_CFG.actuators["piper_forearm"].stiffness = 200.0
PIPER_GRIPPER_HIGH_PD_CFG.actuators["piper_forearm"].damping = 40.0
PIPER_GRIPPER_HIGH_PD_CFG.actuators["gripper"].velocity_limit_sim = 0.5
"""Configuration of Piper with gripper robot with stiffer PD control.
This configuration is useful for task-space control using differential IK.
"""2、任务环境配置
2.1 配置项目结构
参考isaaclab官方代码进行修改：isaaclab/source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack
bash
cd agx_teleop
mkdir -p source/agx_teleop/agx_teleop/tasks/manager_based/manipulation/stack/config/piper/agents/robomimic
mkdir -p source/agx_teleop/agx_teleop/tasks/manager_based/manipulation/stack/mdp创建命令：
bash
cd source/agx_teleop/agx_teleop/tasks/manager_based/
touch manipulation/__init__.py \
manipulation/stack/__init__.py \
manipulation/stack/stack_env_cfg.py \
manipulation/stack/mdp/__init__.py \
manipulation/stack/mdp/observations.py \
manipulation/stack/mdp/piper_stack_events.py \
manipulation/stack/mdp/terminations.py \
manipulation/stack/config/__init__.py \
manipulation/stack/config/piper/__init__.py \
manipulation/stack/config/piper/agents/__init__.py \
manipulation/stack/config/piper/agents/robomimic/bc_rnn_low_dim.json \
manipulation/stack/config/piper/piper_stack_ik_rel_env_cfg.py \
manipulation/stack/config/piper/piper_stack_joint_pos_env_cfg.py2.2 修改文件
2.2.1 stack/stack_env_cfg.py 和 stack/mdp/init.py 和 stack/config/piper/agents/robomimic/bc_rnn_low_dim.json
复制isaaclab对应代码到项目中，无需修改
/Isaac/IsaacLab/source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack/stack_env_cfg.py
/Isaac/IsaacLab/source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack/__init__.py
/IsaacLab/source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack/config/franka/agents/robomimic/bc_rnn_low_dim.json2.2.2 stack/mdp/piper_stack_events.py
复制isaaclab对应代码到项目中，无需修改
Isaac/IsaacLab/source/isaaclab_tasks/isaaclab_tasks/manager_based/manipulation/stack/mdp/franka_stack_events.py2.2.3 stack/mdp/observations.py
复制isaaclab对应代码，修改其中gripper_open_val相关的部分。Franka panda 夹爪控制是一个关节值，piper 夹爪控制是两个关节值，需调整以匹配 piper 的夹爪。
下面是完整代码，相关修改在Lines 320-343和Lines 380-407。
python
# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
from __future__ import annotations
from typing import TYPE_CHECKING, Literal
import torch
import isaaclab.utils.math as math_utils
from isaaclab.assets import Articulation, RigidObject, RigidObjectCollection
from isaaclab.managers import SceneEntityCfg
from isaaclab.sensors import FrameTransformer
if TYPE_CHECKING:
from isaaclab.envs import ManagerBasedRLEnv
def cube_positions_in_world_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
) -> torch.Tensor:
"""The position of the cubes in the world frame."""
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
cube_3: RigidObject = env.scene[cube_3_cfg.name]
return torch.cat((cube_1.data.root_pos_w, cube_2.data.root_pos_w, cube_3.data.root_pos_w), dim=1)
def instance_randomize_cube_positions_in_world_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
) -> torch.Tensor:
"""The position of the cubes in the world frame."""
if not hasattr(env, "rigid_objects_in_focus"):
return torch.full((env.num_envs, 9), fill_value=-1)
cube_1: RigidObjectCollection = env.scene[cube_1_cfg.name]
cube_2: RigidObjectCollection = env.scene[cube_2_cfg.name]
cube_3: RigidObjectCollection = env.scene[cube_3_cfg.name]
cube_1_pos_w = []
cube_2_pos_w = []
cube_3_pos_w = []
for env_id in range(env.num_envs):
cube_1_pos_w.append(cube_1.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][0], :3])
cube_2_pos_w.append(cube_2.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][1], :3])
cube_3_pos_w.append(cube_3.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][2], :3])
cube_1_pos_w = torch.stack(cube_1_pos_w)
cube_2_pos_w = torch.stack(cube_2_pos_w)
cube_3_pos_w = torch.stack(cube_3_pos_w)
return torch.cat((cube_1_pos_w, cube_2_pos_w, cube_3_pos_w), dim=1)
def cube_orientations_in_world_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
):
"""The orientation of the cubes in the world frame."""
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
cube_3: RigidObject = env.scene[cube_3_cfg.name]
return torch.cat((cube_1.data.root_quat_w, cube_2.data.root_quat_w, cube_3.data.root_quat_w), dim=1)
def instance_randomize_cube_orientations_in_world_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
) -> torch.Tensor:
"""The orientation of the cubes in the world frame."""
if not hasattr(env, "rigid_objects_in_focus"):
return torch.full((env.num_envs, 9), fill_value=-1)
cube_1: RigidObjectCollection = env.scene[cube_1_cfg.name]
cube_2: RigidObjectCollection = env.scene[cube_2_cfg.name]
cube_3: RigidObjectCollection = env.scene[cube_3_cfg.name]
cube_1_quat_w = []
cube_2_quat_w = []
cube_3_quat_w = []
for env_id in range(env.num_envs):
cube_1_quat_w.append(cube_1.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][0], :4])
cube_2_quat_w.append(cube_2.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][1], :4])
cube_3_quat_w.append(cube_3.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][2], :4])
cube_1_quat_w = torch.stack(cube_1_quat_w)
cube_2_quat_w = torch.stack(cube_2_quat_w)
cube_3_quat_w = torch.stack(cube_3_quat_w)
return torch.cat((cube_1_quat_w, cube_2_quat_w, cube_3_quat_w), dim=1)
def object_obs(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame"),
):
"""
Object observations (in world frame):
cube_1 pos,
cube_1 quat,
cube_2 pos,
cube_2 quat,
cube_3 pos,
cube_3 quat,
gripper to cube_1,
gripper to cube_2,
gripper to cube_3,
cube_1 to cube_2,
cube_2 to cube_3,
cube_1 to cube_3,
"""
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
cube_3: RigidObject = env.scene[cube_3_cfg.name]
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
cube_1_pos_w = cube_1.data.root_pos_w
cube_1_quat_w = cube_1.data.root_quat_w
cube_2_pos_w = cube_2.data.root_pos_w
cube_2_quat_w = cube_2.data.root_quat_w
cube_3_pos_w = cube_3.data.root_pos_w
cube_3_quat_w = cube_3.data.root_quat_w
ee_pos_w = ee_frame.data.target_pos_w[:, 0, :]
gripper_to_cube_1 = cube_1_pos_w - ee_pos_w
gripper_to_cube_2 = cube_2_pos_w - ee_pos_w
gripper_to_cube_3 = cube_3_pos_w - ee_pos_w
cube_1_to_2 = cube_1_pos_w - cube_2_pos_w
cube_2_to_3 = cube_2_pos_w - cube_3_pos_w
cube_1_to_3 = cube_1_pos_w - cube_3_pos_w
return torch.cat(
(
cube_1_pos_w - env.scene.env_origins,
cube_1_quat_w,
cube_2_pos_w - env.scene.env_origins,
cube_2_quat_w,
cube_3_pos_w - env.scene.env_origins,
cube_3_quat_w,
gripper_to_cube_1,
gripper_to_cube_2,
gripper_to_cube_3,
cube_1_to_2,
cube_2_to_3,
cube_1_to_3,
),
dim=1,
)
def instance_randomize_object_obs(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame"),
):
"""
Object observations (in world frame):
cube_1 pos,
cube_1 quat,
cube_2 pos,
cube_2 quat,
cube_3 pos,
cube_3 quat,
gripper to cube_1,
gripper to cube_2,
gripper to cube_3,
cube_1 to cube_2,
cube_2 to cube_3,
cube_1 to cube_3,
"""
if not hasattr(env, "rigid_objects_in_focus"):
return torch.full((env.num_envs, 9), fill_value=-1)
cube_1: RigidObjectCollection = env.scene[cube_1_cfg.name]
cube_2: RigidObjectCollection = env.scene[cube_2_cfg.name]
cube_3: RigidObjectCollection = env.scene[cube_3_cfg.name]
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
cube_1_pos_w = []
cube_2_pos_w = []
cube_3_pos_w = []
cube_1_quat_w = []
cube_2_quat_w = []
cube_3_quat_w = []
for env_id in range(env.num_envs):
cube_1_pos_w.append(cube_1.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][0], :3])
cube_2_pos_w.append(cube_2.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][1], :3])
cube_3_pos_w.append(cube_3.data.object_pos_w[env_id, env.rigid_objects_in_focus[env_id][2], :3])
cube_1_quat_w.append(cube_1.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][0], :4])
cube_2_quat_w.append(cube_2.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][1], :4])
cube_3_quat_w.append(cube_3.data.object_quat_w[env_id, env.rigid_objects_in_focus[env_id][2], :4])
cube_1_pos_w = torch.stack(cube_1_pos_w)
cube_2_pos_w = torch.stack(cube_2_pos_w)
cube_3_pos_w = torch.stack(cube_3_pos_w)
cube_1_quat_w = torch.stack(cube_1_quat_w)
cube_2_quat_w = torch.stack(cube_2_quat_w)
cube_3_quat_w = torch.stack(cube_3_quat_w)
ee_pos_w = ee_frame.data.target_pos_w[:, 0, :]
gripper_to_cube_1 = cube_1_pos_w - ee_pos_w
gripper_to_cube_2 = cube_2_pos_w - ee_pos_w
gripper_to_cube_3 = cube_3_pos_w - ee_pos_w
cube_1_to_2 = cube_1_pos_w - cube_2_pos_w
cube_2_to_3 = cube_2_pos_w - cube_3_pos_w
cube_1_to_3 = cube_1_pos_w - cube_3_pos_w
return torch.cat(
(
cube_1_pos_w - env.scene.env_origins,
cube_1_quat_w,
cube_2_pos_w - env.scene.env_origins,
cube_2_quat_w,
cube_3_pos_w - env.scene.env_origins,
cube_3_quat_w,
gripper_to_cube_1,
gripper_to_cube_2,
gripper_to_cube_3,
cube_1_to_2,
cube_2_to_3,
cube_1_to_3,
),
dim=1,
)
def ee_frame_pos(env: ManagerBasedRLEnv, ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame")) -> torch.Tensor:
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
ee_frame_pos = ee_frame.data.target_pos_w[:, 0, :] - env.scene.env_origins[:, 0:3]
return ee_frame_pos
def ee_frame_quat(env: ManagerBasedRLEnv, ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame")) -> torch.Tensor:
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
ee_frame_quat = ee_frame.data.target_quat_w[:, 0, :]
return ee_frame_quat
def gripper_pos(
env: ManagerBasedRLEnv,
robot_cfg: SceneEntityCfg = SceneEntityCfg("robot"),
) -> torch.Tensor:
"""
Obtain the versatile gripper position of both Gripper and Suction Cup.
"""
robot: Articulation = env.scene[robot_cfg.name]
if hasattr(env.scene, "surface_grippers") and len(env.scene.surface_grippers) > 0:
# Handle multiple surface grippers by concatenating their states
gripper_states = []
for gripper_name, surface_gripper in env.scene.surface_grippers.items():
gripper_states.append(surface_gripper.state.view(-1, 1))
if len(gripper_states) == 1:
return gripper_states[0]
else:
return torch.cat(gripper_states, dim=1)
else:
if hasattr(env.cfg, "gripper_joint_names"):
gripper_joint_ids, _ = robot.find_joints(env.cfg.gripper_joint_names)
assert len(gripper_joint_ids) == 2, "Observation gripper_pos only support parallel gripper for now"
finger_joint_1 = robot.data.joint_pos[:, gripper_joint_ids[0]].clone().unsqueeze(1)
finger_joint_2 = -1 * robot.data.joint_pos[:, gripper_joint_ids[1]].clone().unsqueeze(1)
return torch.cat((finger_joint_1, finger_joint_2), dim=1)
else:
raise NotImplementedError("[Error] Cannot find gripper_joint_names in the environment config")
def object_grasped(
env: ManagerBasedRLEnv,
robot_cfg: SceneEntityCfg,
ee_frame_cfg: SceneEntityCfg,
object_cfg: SceneEntityCfg,
diff_threshold: float = 0.06,
) -> torch.Tensor:
"""Check if an object is grasped by the specified robot."""
robot: Articulation = env.scene[robot_cfg.name]
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
object: RigidObject = env.scene[object_cfg.name]
object_pos = object.data.root_pos_w
end_effector_pos = ee_frame.data.target_pos_w[:, 0, :]
pose_diff = torch.linalg.vector_norm(object_pos - end_effector_pos, dim=1)
if hasattr(env.scene, "surface_grippers") and len(env.scene.surface_grippers) > 0:
surface_gripper = env.scene.surface_grippers["surface_gripper"]
suction_cup_status = surface_gripper.state.view(-1, 1) # 1: closed, 0: closing, -1: open
suction_cup_is_closed = (suction_cup_status == 1).to(torch.float32)
grasped = torch.logical_and(suction_cup_is_closed, pose_diff < diff_threshold)
else:
if hasattr(env.cfg, "gripper_joint_names"):
gripper_joint_ids, _ = robot.find_joints(env.cfg.gripper_joint_names)
assert len(gripper_joint_ids) == 2, "Observations only support parallel gripper for now"
# Support per-joint open values (list/tuple) or single scalar (applied to all joints)
if isinstance(env.cfg.gripper_open_val, (list, tuple)):
open_val_0 = env.cfg.gripper_open_val[0]
open_val_1 = env.cfg.gripper_open_val[1]
else:
open_val_0 = env.cfg.gripper_open_val
open_val_1 = env.cfg.gripper_open_val
grasped = torch.logical_and(
pose_diff < diff_threshold,
torch.abs(
robot.data.joint_pos[:, gripper_joint_ids[0]]
- torch.tensor(open_val_0, dtype=torch.float32).to(env.device)
)
> env.cfg.gripper_threshold,
)
grasped = torch.logical_and(
grasped,
torch.abs(
robot.data.joint_pos[:, gripper_joint_ids[1]]
- torch.tensor(open_val_1, dtype=torch.float32).to(env.device)
)
> env.cfg.gripper_threshold,
)
return grasped
def object_stacked(
env: ManagerBasedRLEnv,
robot_cfg: SceneEntityCfg,
upper_object_cfg: SceneEntityCfg,
lower_object_cfg: SceneEntityCfg,
xy_threshold: float = 0.05,
height_threshold: float = 0.005,
height_diff: float = 0.0468,
) -> torch.Tensor:
"""Check if an object is stacked by the specified robot."""
robot: Articulation = env.scene[robot_cfg.name]
upper_object: RigidObject = env.scene[upper_object_cfg.name]
lower_object: RigidObject = env.scene[lower_object_cfg.name]
pos_diff = upper_object.data.root_pos_w - lower_object.data.root_pos_w
height_dist = torch.linalg.vector_norm(pos_diff[:, 2:], dim=1)
xy_dist = torch.linalg.vector_norm(pos_diff[:, :2], dim=1)
stacked = torch.logical_and(xy_dist < xy_threshold, (height_dist - height_diff) < height_threshold)
if hasattr(env.scene, "surface_grippers") and len(env.scene.surface_grippers) > 0:
surface_gripper = env.scene.surface_grippers["surface_gripper"]
suction_cup_status = surface_gripper.state.view(-1, 1) # 1: closed, 0: closing, -1: open
suction_cup_is_open = (suction_cup_status == -1).to(torch.float32)
stacked = torch.logical_and(suction_cup_is_open, stacked)
else:
if hasattr(env.cfg, "gripper_joint_names"):
gripper_joint_ids, _ = robot.find_joints(env.cfg.gripper_joint_names)
assert len(gripper_joint_ids) == 2, "Observations only support parallel gripper for now"
# Support per-joint open values (list/tuple) or single scalar (applied to all joints)
if isinstance(env.cfg.gripper_open_val, (list, tuple)):
open_val_0 = env.cfg.gripper_open_val[0]
open_val_1 = env.cfg.gripper_open_val[1]
else:
open_val_0 = env.cfg.gripper_open_val
open_val_1 = env.cfg.gripper_open_val
stacked = torch.logical_and(
torch.isclose(
robot.data.joint_pos[:, gripper_joint_ids[0]],
torch.tensor(open_val_0, dtype=torch.float32).to(env.device),
atol=1e-4,
rtol=1e-4,
),
stacked,
)
stacked = torch.logical_and(
torch.isclose(
robot.data.joint_pos[:, gripper_joint_ids[1]],
torch.tensor(open_val_1, dtype=torch.float32).to(env.device),
atol=1e-4,
rtol=1e-4,
),
stacked,
)
else:
raise ValueError("No gripper_joint_names found in environment config")
return stacked
def cube_poses_in_base_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
robot_cfg: SceneEntityCfg = SceneEntityCfg("robot"),
return_key: Literal["pos", "quat", None] = None,
) -> torch.Tensor:
"""The position and orientation of the cubes in the robot base frame."""
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
cube_3: RigidObject = env.scene[cube_3_cfg.name]
pos_cube_1_world = cube_1.data.root_pos_w
pos_cube_2_world = cube_2.data.root_pos_w
pos_cube_3_world = cube_3.data.root_pos_w
quat_cube_1_world = cube_1.data.root_quat_w
quat_cube_2_world = cube_2.data.root_quat_w
quat_cube_3_world = cube_3.data.root_quat_w
robot: Articulation = env.scene[robot_cfg.name]
root_pos_w = robot.data.root_pos_w
root_quat_w = robot.data.root_quat_w
pos_cube_1_base, quat_cube_1_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, pos_cube_1_world, quat_cube_1_world
)
pos_cube_2_base, quat_cube_2_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, pos_cube_2_world, quat_cube_2_world
)
pos_cube_3_base, quat_cube_3_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, pos_cube_3_world, quat_cube_3_world
)
pos_cubes_base = torch.cat((pos_cube_1_base, pos_cube_2_base, pos_cube_3_base), dim=1)
quat_cubes_base = torch.cat((quat_cube_1_base, quat_cube_2_base, quat_cube_3_base), dim=1)
if return_key == "pos":
return pos_cubes_base
elif return_key == "quat":
return quat_cubes_base
else:
return torch.cat((pos_cubes_base, quat_cubes_base), dim=1)
def object_abs_obs_in_base_frame(
env: ManagerBasedRLEnv,
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg = SceneEntityCfg("cube_3"),
ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame"),
robot_cfg: SceneEntityCfg = SceneEntityCfg("robot"),
):
"""
Object Abs observations (in base frame): remove the relative observations,
and add abs gripper pos and quat in robot base frame
cube_1 pos,
cube_1 quat,
cube_2 pos,
cube_2 quat,
cube_3 pos,
cube_3 quat,
gripper pos,
gripper quat,
"""
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
cube_3: RigidObject = env.scene[cube_3_cfg.name]
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
robot: Articulation = env.scene[robot_cfg.name]
root_pos_w = robot.data.root_pos_w
root_quat_w = robot.data.root_quat_w
cube_1_pos_w = cube_1.data.root_pos_w
cube_1_quat_w = cube_1.data.root_quat_w
cube_2_pos_w = cube_2.data.root_pos_w
cube_2_quat_w = cube_2.data.root_quat_w
cube_3_pos_w = cube_3.data.root_pos_w
cube_3_quat_w = cube_3.data.root_quat_w
pos_cube_1_base, quat_cube_1_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, cube_1_pos_w, cube_1_quat_w
)
pos_cube_2_base, quat_cube_2_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, cube_2_pos_w, cube_2_quat_w
)
pos_cube_3_base, quat_cube_3_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, cube_3_pos_w, cube_3_quat_w
)
ee_pos_w = ee_frame.data.target_pos_w[:, 0, :]
ee_quat_w = ee_frame.data.target_quat_w[:, 0, :]
ee_pos_base, ee_quat_base = math_utils.subtract_frame_transforms(root_pos_w, root_quat_w, ee_pos_w, ee_quat_w)
return torch.cat(
(
pos_cube_1_base,
quat_cube_1_base,
pos_cube_2_base,
quat_cube_2_base,
pos_cube_3_base,
quat_cube_3_base,
ee_pos_base,
ee_quat_base,
),
dim=1,
)
def ee_frame_pose_in_base_frame(
env: ManagerBasedRLEnv,
ee_frame_cfg: SceneEntityCfg = SceneEntityCfg("ee_frame"),
robot_cfg: SceneEntityCfg = SceneEntityCfg("robot"),
return_key: Literal["pos", "quat", None] = None,
) -> torch.Tensor:
"""
The end effector pose in the robot base frame.
"""
ee_frame: FrameTransformer = env.scene[ee_frame_cfg.name]
ee_frame_pos_w = ee_frame.data.target_pos_w[:, 0, :]
ee_frame_quat_w = ee_frame.data.target_quat_w[:, 0, :]
robot: Articulation = env.scene[robot_cfg.name]
root_pos_w = robot.data.root_pos_w
root_quat_w = robot.data.root_quat_w
ee_pos_in_base, ee_quat_in_base = math_utils.subtract_frame_transforms(
root_pos_w, root_quat_w, ee_frame_pos_w, ee_frame_quat_w
)
if return_key == "pos":
return ee_pos_in_base
elif return_key == "quat":
return ee_quat_in_base
else:
return torch.cat((ee_pos_in_base, ee_quat_in_base), dim=1)2.2.4 stack/mdp/terminations.py
复制isaaclab对应代码，与 2.2.3 小节一样，修改其中gripper_open_val相关的部分。
下面是完整代码，相关修改在Lines 81-109
python
# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
"""Common functions that can be used to activate certain terminations for the lift task.
The functions can be passed to the :class:`isaaclab.managers.TerminationTermCfg` object to enable
the termination introduced by the function.
"""
from __future__ import annotations
from typing import TYPE_CHECKING
import torch
from isaaclab.assets import Articulation, RigidObject
from isaaclab.managers import SceneEntityCfg
if TYPE_CHECKING:
from isaaclab.envs import ManagerBasedRLEnv
def cubes_stacked(
env: ManagerBasedRLEnv,
robot_cfg: SceneEntityCfg = SceneEntityCfg("robot"),
cube_1_cfg: SceneEntityCfg = SceneEntityCfg("cube_1"),
cube_2_cfg: SceneEntityCfg = SceneEntityCfg("cube_2"),
cube_3_cfg: SceneEntityCfg | None = SceneEntityCfg("cube_3"),
xy_threshold: float = 0.04,
height_threshold: float = 0.005,
height_diff: float = 0.0468,
atol: float = 0.0001,
rtol: float = 0.0001,
) -> torch.Tensor:
robot: Articulation = env.scene[robot_cfg.name]
cube_1: RigidObject = env.scene[cube_1_cfg.name]
cube_2: RigidObject = env.scene[cube_2_cfg.name]
pos_diff_c12 = cube_1.data.root_pos_w - cube_2.data.root_pos_w
# Compute cube position difference in x-y plane
xy_dist_c12 = torch.norm(pos_diff_c12[:, :2], dim=1)
# Compute cube height difference
h_dist_c12 = torch.norm(pos_diff_c12[:, 2:], dim=1)
# Check cube positions
stacked = xy_dist_c12 < xy_threshold
stacked = torch.logical_and(h_dist_c12 - height_diff < height_threshold, stacked)
stacked = torch.logical_and(pos_diff_c12[:, 2] < 0.0, stacked)
if cube_3_cfg is not None:
cube_3: RigidObject = env.scene[cube_3_cfg.name]
pos_diff_c23 = cube_2.data.root_pos_w - cube_3.data.root_pos_w
# Compute cube position difference in x-y plane
xy_dist_c23 = torch.norm(pos_diff_c23[:, :2], dim=1)
# Compute cube height difference
h_dist_c23 = torch.norm(pos_diff_c23[:, 2:], dim=1)
# Check cube positions
stacked = torch.logical_and(xy_dist_c23 < xy_threshold, stacked)
stacked = torch.logical_and(h_dist_c23 - height_diff < height_threshold, stacked)
stacked = torch.logical_and(pos_diff_c23[:, 2] < 0.0, stacked)
# Check gripper positions
if hasattr(env.scene, "surface_grippers") and len(env.scene.surface_grippers) > 0:
surface_gripper = env.scene.surface_grippers["surface_gripper"]
suction_cup_status = surface_gripper.state.view(-1) # 1: closed, 0: closing, -1: open
suction_cup_is_open = (suction_cup_status == -1).to(torch.float32)
stacked = torch.logical_and(suction_cup_is_open, stacked)
else:
if hasattr(env.cfg, "gripper_joint_names"):
gripper_joint_ids, _ = robot.find_joints(env.cfg.gripper_joint_names)
assert len(gripper_joint_ids) == 2, "Terminations only support parallel gripper for now"
# Support per-joint open values (list/tuple) or single scalar (applied to all joints)
if isinstance(env.cfg.gripper_open_val, (list, tuple)):
open_val_0 = env.cfg.gripper_open_val[0]
open_val_1 = env.cfg.gripper_open_val[1]
else:
open_val_0 = env.cfg.gripper_open_val
open_val_1 = env.cfg.gripper_open_val
stacked = torch.logical_and(
torch.isclose(
robot.data.joint_pos[:, gripper_joint_ids[0]],
torch.tensor(open_val_0, dtype=torch.float32).to(env.device),
atol=atol,
rtol=rtol,
),
stacked,
)
stacked = torch.logical_and(
torch.isclose(
robot.data.joint_pos[:, gripper_joint_ids[1]],
torch.tensor(open_val_1, dtype=torch.float32).to(env.device),
atol=atol,
rtol=rtol,
),
stacked,
)
else:
raise ValueError("No gripper_joint_names found in environment config")
return stacked2.2.5 stack/config/piper/piper_stack_joint_pos_env_cfg.py
复制isaaclab对应代码，修改如下内容：
- 修改stack相关和piper配置的导入。
- 修改类、函数和变量的名称。
- 修改 piper 机械臂的默认位姿。
- 修改夹爪部分。
- 修改 ee_frame 设置部分。
完整代码：
python
# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
from isaaclab.assets import RigidObjectCfg
from isaaclab.managers import EventTermCfg as EventTerm
from isaaclab.managers import SceneEntityCfg
from isaaclab.sensors import FrameTransformerCfg
from isaaclab.sensors.frame_transformer.frame_transformer_cfg import OffsetCfg
from isaaclab.sim.schemas.schemas_cfg import RigidBodyPropertiesCfg
from isaaclab.sim.spawners.from_files.from_files_cfg import UsdFileCfg
from isaaclab.utils import configclass
from isaaclab.utils.assets import ISAAC_NUCLEUS_DIR
from agx_teleop.tasks.manager_based.manipulation.stack import mdp
from agx_teleop.tasks.manager_based.manipulation.stack.mdp import piper_stack_events
from agx_teleop.tasks.manager_based.manipulation.stack.stack_env_cfg import StackEnvCfg
##
# Pre-defined configs
##
from isaaclab.markers.config import FRAME_MARKER_CFG # isort: skip
from agx_teleop.assets.piper import PIPER_GRIPPER_CFG # isort: skip
@configclass
class EventCfg:
"""Configuration for events."""
init_piper_arm_pose = EventTerm(
func=piper_stack_events.set_default_joint_pose,
mode="reset",
params={
"default_pose": [0.0, 1.57, -1.57, 0.0, 1.22, 0.0, 0.0, 0.0], # 6机械臂+2夹爪，夹爪关闭
},
)
randomize_piper_joint_state = EventTerm(
func=piper_stack_events.randomize_joint_by_gaussian_offset,
mode="reset",
params={
"mean": 0.0,
"std": 0.02,
"asset_cfg": SceneEntityCfg("robot"),
},
)
randomize_cube_positions = EventTerm(
func=piper_stack_events.randomize_object_pose,
mode="reset",
params={
"pose_range": {"x": (0.3, 0.5), "y": (-0.10, 0.10), "z": (0.0203, 0.0203), "yaw": (-1.0, 1, 0)},
"min_separation": 0.12,
"asset_cfgs": [SceneEntityCfg("cube_1"), SceneEntityCfg("cube_2"), SceneEntityCfg("cube_3")],
},
)
@configclass
class PiperCubeStackEnvCfg(StackEnvCfg):
"""Configuration for the Piper Cube Stack Environment."""
def __post_init__(self):
# post init of parent
super().__post_init__()
# Set events
self.events = EventCfg()
# Set Piper as robot
self.scene.robot = PIPER_GRIPPER_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")
self.scene.robot.spawn.semantic_tags = [("class", "robot")]
# Add semantics to table
self.scene.table.spawn.semantic_tags = [("class", "table")]
# Add semantics to ground
self.scene.plane.semantic_tags = [("class", "ground")]
# Set actions for the specific robot type (piper)
self.actions.arm_action = mdp.JointPositionActionCfg(
asset_name="robot", joint_names=["joint.*"], scale=0.5, use_default_offset=True
)
self.actions.gripper_action = mdp.BinaryJointPositionActionCfg(
asset_name="robot",
joint_names=["gripper_joint.*"],
open_command_expr={
"gripper_joint1": 0.05,
"gripper_joint2": -0.05,
},
close_command_expr={
"gripper_joint1": 0.0,
"gripper_joint2": 0.0,
},
)
# utilities for gripper status check
self.gripper_joint_names = ["gripper_joint.*"]
self.gripper_open_val = [0.05, -0.05]
self.gripper_threshold = 0.005
# Rigid body properties of each cube
cube_properties = RigidBodyPropertiesCfg(
solver_position_iteration_count=16,
solver_velocity_iteration_count=1,
max_angular_velocity=1000.0,
max_linear_velocity=1000.0,
max_depenetration_velocity=5.0,
disable_gravity=False,
)
# Set each stacking cube deterministically
self.scene.cube_1 = RigidObjectCfg(
prim_path="{ENV_REGEX_NS}/Cube_1",
init_state=RigidObjectCfg.InitialStateCfg(pos=[0.4, 0.0, 0.0203], rot=[1, 0, 0, 0]),
spawn=UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/blue_block.usd",
scale=(1.0, 1.0, 1.0),
rigid_props=cube_properties,
semantic_tags=[("class", "cube_1")],
),
)
self.scene.cube_2 = RigidObjectCfg(
prim_path="{ENV_REGEX_NS}/Cube_2",
init_state=RigidObjectCfg.InitialStateCfg(pos=[0.55, 0.05, 0.0203], rot=[1, 0, 0, 0]),
spawn=UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/red_block.usd",
scale=(1.0, 1.0, 1.0),
rigid_props=cube_properties,
semantic_tags=[("class", "cube_2")],
),
)
self.scene.cube_3 = RigidObjectCfg(
prim_path="{ENV_REGEX_NS}/Cube_3",
init_state=RigidObjectCfg.InitialStateCfg(pos=[0.60, -0.1, 0.0203], rot=[1, 0, 0, 0]),
spawn=UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/green_block.usd",
scale=(1.0, 1.0, 1.0),
rigid_props=cube_properties,
semantic_tags=[("class", "cube_3")],
),
)
# Listens to the required transforms
marker_cfg = FRAME_MARKER_CFG.copy()
marker_cfg.markers["frame"].scale = (0.1, 0.1, 0.1)
marker_cfg.prim_path = "/Visuals/FrameTransformer"
self.scene.ee_frame = FrameTransformerCfg(
prim_path="{ENV_REGEX_NS}/Robot/base_link",
debug_vis=False,
visualizer_cfg=marker_cfg,
target_frames=[
FrameTransformerCfg.FrameCfg(
prim_path="{ENV_REGEX_NS}/Robot/gripper_base",
name="end_effector",
offset=OffsetCfg(
pos=[0.0, 0.0, 0.14], # gripper_base 到 TCP 的距离
),
),
FrameTransformerCfg.FrameCfg(
prim_path="{ENV_REGEX_NS}/Robot/gripper_link1",
name="tool_rightfinger",
offset=OffsetCfg(
pos=(0.0, 0.0, 0.0),
),
),
FrameTransformerCfg.FrameCfg(
prim_path="{ENV_REGEX_NS}/Robot/gripper_link2",
name="tool_leftfinger",
offset=OffsetCfg(
pos=(0.0, 0.0, 0.0),
),
),
],
)2.2.6 stack/config/piper/piper_stack_ik_rel_env_cfg.py
复制isaaclab对应代码，修改如下内容：
- 修改导入和命名
- 修改末端执行器的偏移量
完整代码：
python
# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
from isaaclab.controllers.differential_ik_cfg import DifferentialIKControllerCfg
from isaaclab.devices.device_base import DeviceBase, DevicesCfg
from isaaclab.devices.keyboard import Se3KeyboardCfg
from isaaclab.devices.openxr.openxr_device import OpenXRDeviceCfg
from isaaclab.devices.openxr.retargeters.manipulator.gripper_retargeter import GripperRetargeterCfg
from isaaclab.devices.openxr.retargeters.manipulator.se3_rel_retargeter import Se3RelRetargeterCfg
from isaaclab.envs.mdp.actions.actions_cfg import DifferentialInverseKinematicsActionCfg
from isaaclab.managers import SceneEntityCfg
from isaaclab.managers import TerminationTermCfg as DoneTerm
from isaaclab.utils import configclass
from agx_teleop.tasks.manager_based.manipulation.stack.stack_env_cfg import mdp
from . import piper_stack_joint_pos_env_cfg
##
# Pre-defined configs
##
from agx_teleop.assets.piper import PIPER_GRIPPER_HIGH_PD_CFG # isort: skip
@configclass
class PiperCubeStackEnvCfg(piper_stack_joint_pos_env_cfg.PiperCubeStackEnvCfg):
def __post_init__(self):
# post init of parent
super().__post_init__()
# Set Piper as robot
# We switch here to a stiffer PD controller for IK tracking to be better.
self.scene.robot = PIPER_GRIPPER_HIGH_PD_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")
# Set actions for the specific robot type (piper)
self.actions.arm_action = DifferentialInverseKinematicsActionCfg(
asset_name="robot",
joint_names=["joint.*"],
body_name="gripper_base",
controller=DifferentialIKControllerCfg(command_type="pose", use_relative_mode=True, ik_method="dls"),
scale=0.5,
body_offset=DifferentialInverseKinematicsActionCfg.OffsetCfg(pos=[0.0, 0.0, 0.14]),
)
self.teleop_devices = DevicesCfg(
devices={
"handtracking": OpenXRDeviceCfg(
retargeters=[
Se3RelRetargeterCfg(
bound_hand=DeviceBase.TrackingTarget.HAND_RIGHT,
zero_out_xy_rotation=True,
use_wrist_rotation=False,
use_wrist_position=True,
delta_pos_scale_factor=10.0,
delta_rot_scale_factor=10.0,
sim_device=self.sim.device,
),
GripperRetargeterCfg(
bound_hand=DeviceBase.TrackingTarget.HAND_RIGHT, sim_device=self.sim.device
),
],
sim_device=self.sim.device,
xr_cfg=self.xr,
),
"keyboard": Se3KeyboardCfg(
pos_sensitivity=0.05,
rot_sensitivity=0.05,
sim_device=self.sim.device,
),
}
)
@configclass
class PiperCubeStackRedGreenEnvCfg(PiperCubeStackEnvCfg):
def __post_init__(self):
# post init of parent
super().__post_init__()
self.terminations.success = DoneTerm(
func=mdp.cubes_stacked,
params={"cube_1_cfg": SceneEntityCfg("cube_2"), "cube_2_cfg": SceneEntityCfg("cube_3"), "cube_3_cfg": None},
)
@configclass
class PiperCubeStackRedGreenBlueEnvCfg(PiperCubeStackEnvCfg):
def __post_init__(self):
# post init of parent
super().__post_init__()
self.terminations.success = DoneTerm(
func=mdp.cubes_stacked,
params={
"cube_1_cfg": SceneEntityCfg("cube_2"),
"cube_2_cfg": SceneEntityCfg("cube_3"),
"cube_3_cfg": SceneEntityCfg("cube_1"),
},
)
@configclass
class PiperCubeStackBlueGreenEnvCfg(PiperCubeStackEnvCfg):
def __post_init__(self):
# post init of parent
super().__post_init__()
self.terminations.success = DoneTerm(
func=mdp.cubes_stacked,
params={"cube_1_cfg": SceneEntityCfg("cube_1"), "cube_2_cfg": SceneEntityCfg("cube_3"), "cube_3_cfg": None},
)
@configclass
class PiperCubeStackBlueGreenRedEnvCfg(PiperCubeStackEnvCfg):
def __post_init__(self):
# post init of parent
super().__post_init__()
self.terminations.success = DoneTerm(
func=mdp.cubes_stacked,
params={
"cube_1_cfg": SceneEntityCfg("cube_1"),
"cube_2_cfg": SceneEntityCfg("cube_3"),
"cube_3_cfg": SceneEntityCfg("cube_2"),
},
)2.2.7 stack/config/piper/init.py
python
# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
# All rights reserved.
#
# SPDX-License-Identifier: BSD-3-Clause
import gymnasium as gym
# from isaaclab_tasks.manager_based.manipulation.stack.config.franka import agents
from agx_teleop.tasks.manager_based.manipulation.stack.config.piper import agents
##
# Register Gym environments.
##
gym.register(
id="Isaac-Stack-Cube-Piper-IK-Rel-v0",
entry_point="isaaclab.envs:ManagerBasedRLEnv",
kwargs={
"env_cfg_entry_point": f"{__name__}.piper_stack_ik_rel_env_cfg:PiperCubeStackEnvCfg",
"robomimic_bc_cfg_entry_point": f"{agents.__name__}:robomimic/bc_rnn_low_dim.json",
},
disable_env_checker=True,
)3、遥操作收集数据
3.1 遥操作配置
bash
cd agx_teleop
mkdir -p scripts/tools
bash
touch scripts/tools/record_demos.py \
scripts/tools/repaly_demos.py复制isaaclab对应代码，修改tasks的导入；需要的部分如下
python
from isaaclab.envs import DirectRLEnvCfg, ManagerBasedRLEnvCfg
from isaaclab.envs.mdp.recorders.recorders_cfg import ActionStateRecorderManagerCfg
from isaaclab.envs.ui import EmptyWindow
from isaaclab.managers import DatasetExportMode
# import isaaclab_tasks # noqa: F401
import agx_teleop.tasks # noqa: F401
from isaaclab_tasks.utils.parse_cfg import parse_env_cfgscripts/tools/repaly_demos.py:
python
if args_cli.enable_pinocchio:
import isaaclab_tasks.manager_based.locomanipulation.pick_place # noqa: F401
import isaaclab_tasks.manager_based.manipulation.pick_place # noqa: F401
# import isaaclab_tasks # noqa: F401
import agx_teleop.tasks # noqa: F401
from isaaclab_tasks.utils.parse_cfg import parse_env_cfg3.2 遥操作收集演示
bash
# 首先创建数据集文件夹
mkdir -p datasets
# 遥操作收集数据命令，此处为键盘遥操作，可选设备：spacemouse, keyboard, handtracking
python scripts/tools/record_demos.py \
--task Isaac-Stack-Cube-Piper-IK-Rel-v0 \
--device cpu --teleop_device keyboard \
--dataset_file ./datasets/dataset.hdf5 \
--num_demos 10
# 回放收集的数据
python scripts/tools/replay_demos.py \
--task Isaac-Stack-Cube-Piper-IK-Rel-v0 \
--device cpu --dataset_file ./datasets/dataset.hdf5keyboard遥操作方法：
Keyboard Controller for SE(3): Se3Keyboard
Reset all commands: R
Toggle gripper (open/close): K
Move arm along x-axis: W/S
Move arm along y-axis: A/D
Move arm along z-axis: Q/E
Rotate arm along x-axis: Z/X
Rotate arm along y-axis: T/G
Rotate arm along z-axis: C/V
4、参考项目
2、IsaacLab
5、结语
本文完整实现了基于 IsaacLab 的 PiPER 机械臂遥操作与数据采集流程，包括：
IsaacLab 外部项目搭建
PiPER URDF 转 USD
机械臂资产配置
Stack Task 环境构建
平行夹爪控制适配
键盘遥操作
人类演示数据采集
Robomimic 训练配置
相比官方 Franka 示例，本文重点解决了国产机械臂在 IsaacLab 中的兼容问题，尤其是：
双夹爪 joint 控制
gripper_open_val 逻辑适配
Observation 数据结构修改
模仿学习低维状态配置
该方案可进一步扩展至：
VR 遥操作
VLA 数据集构建
多机械臂协同
Sim2Real
Diffusion Policy / ACT 等模型训练
适合作为国产机械臂具身智能开发的基础工程模板。
FAQ
Q1：IsaacLab 中 PiPER 机械臂为什么需要修改 gripper_open_val 逻辑？
因为 Franka Panda 默认采用单夹爪 joint 控制，而 PiPER 使用双平行夹爪 joint。
因此在 observations.py 中需要分别处理：
否则会导致：
grasp 判断异常
stack 状态检测失败
模仿学习数据错误
Q2：PiPER 的 URDF 为什么需要重新合并？
因为官方提供的：
piper_with_gripper_description.xacro
piper_description.urdf
默认是 ROS 工程结构，无法直接被 IsaacLab 使用。
因此需要：
合并为完整 URDF
修改 mesh 路径
转换为 USD
才能正常导入 Isaac Sim / IsaacLab。
Q3：本文方案可以用于模仿学习（Imitation Learning）吗？
可以。
本文已经包含：
遥操作控制
人类演示数据采集
回放
Robomimic 配置
因此可以直接用于：
BC
ACT
Diffusion Policy
VLA
Manipulation Policy
等具身智能训练任务。
