PCL 生成缺角立方体点云

点云侠2025-10-05 9:13

目录

一、算法原理

   使用PCL库生成一个缺角立方体点云。

二、代码实现

版本一

cpp 复制代码
#include <iostream>
#include <stdio.h>      /* printf, NULL */
#include <stdlib.h>     /* srand, rand */
#include "time.h"
#include <boost/thread/thread.hpp>
#include <pcl/common/common_headers.h>
#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>
#include <pcl/visualization/cloud_viewer.h>


int
main(int argc, char* argv[])
{
    pcl::PointCloud<pcl::PointXYZRGBA>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZRGBA>);

    srand(time(NULL));
    for (int i = 0; i <= 800; i++)    // Cube 10K , 40 ------> For more density CUbe 30K , i<= 120     // Or We Can Make the size of the cube 3 times less , the size of the cube is between 0 and 0.3
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 0.00;
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 0.00;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.00;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 0.50;
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.z = 0.50;
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 0.50;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.y = 0.50;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }


    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.50;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.50;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.25 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)    // Cube 10K , 40 ------> For more density CUbe 30K , i<= 120     // Or We Can Make the size of the cube 3 times less , the size of the cube is between 0 and 0.3
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.z = 0.25;
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.y = 0.25;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 400; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.25;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.25)) + 0.25);
        basic_point.r = 255;
        basic_point.g = 255;
        basic_point.b = 255;
        cloud->points.push_back(basic_point);
    }

    cloud->width = (int)cloud->points.size();
    cloud->height = 1;

    // Show the cloud
    pcl::visualization::CloudViewer viewer("Sharp Edge");
    viewer.showCloud(cloud);
    while (!viewer.wasStopped())
    {
    }


    return 0;
}

版本二

cpp 复制代码
#include <iostream>
#include <stdio.h>      /* printf, NULL */
#include <stdlib.h>     /* srand, rand */
#include "time.h"
#include <boost/thread/thread.hpp>
#include <pcl/common/common_headers.h>
#include <pcl/io/pcd_io.h>
#include <pcl/visualization/pcl_visualizer.h>
#include <pcl/visualization/cloud_viewer.h>


int
main(int argc, char* argv[])
{
    pcl::PointCloud<pcl::PointXYZRGBA>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZRGBA>);

    //1. First Cube
    srand(time(NULL));
    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.00;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 0.00;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        cloud->points.push_back(basic_point);
    }


    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 0.50;
        cloud->points.push_back(basic_point);
    }

    // First Cube
    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.50;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 0.50;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 1.00;
        cloud->points.push_back(basic_point);
    }
    // Second Cube
    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.50;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.y = 0.00;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 0.00;
        cloud->points.push_back(basic_point);
    }

    // Second Cube
    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 1.00;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.y = 0.50;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.z = 0.50;
        cloud->points.push_back(basic_point);
    }
    // Third Cube

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.00;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 0.50;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.z = 0.00;
        cloud->points.push_back(basic_point);
    }

    // Third Cube
    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = 0.50;
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = 1.00;
        basic_point.z = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        cloud->points.push_back(basic_point);
    }

    for (int i = 0; i <= 800; i++)
    {
        pcl::PointXYZRGBA basic_point;
        basic_point.x = (((((float)rand()) / (float)RAND_MAX) * (0.50 - 0.00)) + 0.00);
        basic_point.y = (((((float)rand()) / (float)RAND_MAX) * (1.00 - 0.50)) + 0.50);
        basic_point.z = 0.50;
        cloud->points.push_back(basic_point);
    }

    cloud->width = (int)cloud->points.size();
    cloud->height = 1;
    std::cout << "Number of points in the input cloud is:" << cloud->points.size() << std::endl;


    for (size_t i = 0; i < cloud->points.size(); ++i)
    {
        cloud->points[i].r = 255;
        cloud->points[i].g = 255;
        cloud->points[i].b = 255;
    }

    // Show the cloud
    pcl::visualization::CloudViewer viewer("Sharp Edge");
    viewer.showCloud(cloud);
    while (!viewer.wasStopped())
    {
    }


    return 0;
}

三、结果展示

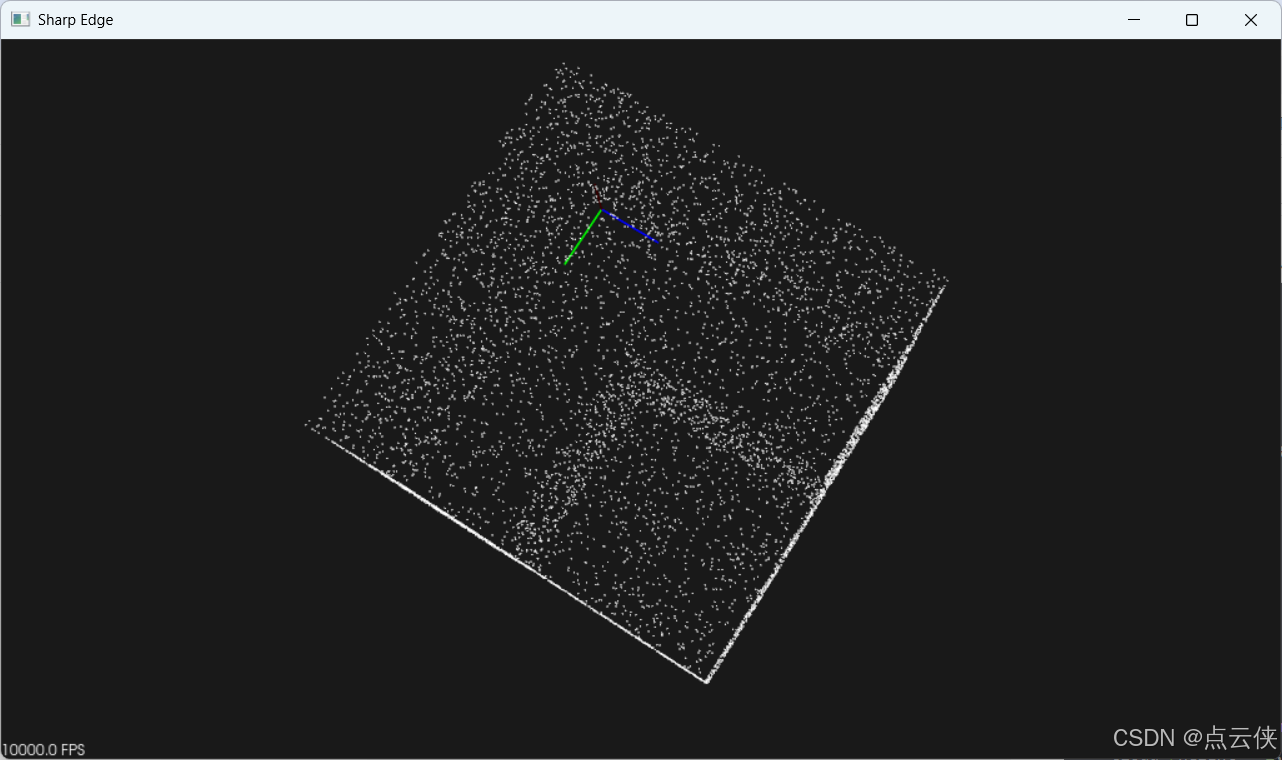

版本一结果

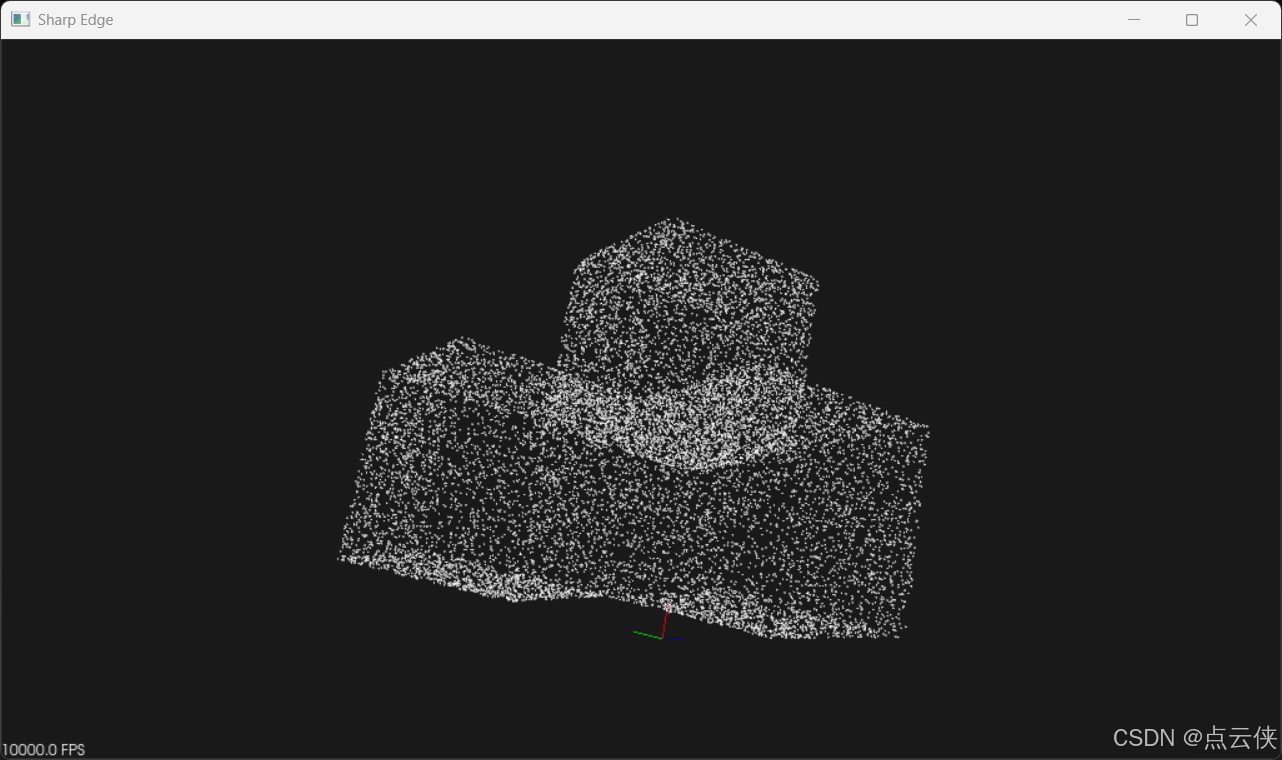

版本二结果

相关推荐
像风一样自由202013 分钟前
20.Milvus常见问题检索不到维度错误和数据一致性
人工智能·大模型·milvus
2601_9620715720 分钟前
【Java报错已解决】org.springframework.beans.factory.BeanCreationException
java·开发语言
现代野蛮人23 分钟前
【深度学习实验】—— 基于 LSTM 与 Optuna 调参的丙型肝炎预测
人工智能·深度学习·lstm
支支დ28 分钟前
VO by Vercel 前端特定优势：为什么它是构建 AI 应用的新范式
前端·人工智能
ZGIAI1 小时前
ZGI 让那些"等你去处理"的事，真正跑起来
人工智能·架构
ZGIAI1 小时前
ZGI：别再做Agent Demo了，先问问它在业务里能不能撑过下周三
人工智能·架构
香芋芋圆1 小时前
AI 冲击内卷之下，普通前端如何破局？WebGIS—— 低门槛突围赛道
前端·javascript·人工智能·学习·职场发展
m0_614523551 小时前
完整教程｜输入一句描述，能不能直接生成一段可以继续剪辑的视频：写结构化描述到生成短样片
人工智能·音视频
淡海水1 小时前
07-04-并发-ConcurrentBag-T-工作窃取WorkStealing算法
开发语言·算法·c#·bag·concurrent·workstealing
stormzhangV2 小时前
AGI 时代终于来了！
人工智能·openai
热门推荐
01国内可直接用、免费额度/永久免费的大模型API清单（含 SiliconFlow、火山、阿里、智谱、百度、Kimi、DeepSeek、DMXAPI 等）02GitHub 镜像站点03ZCode 周末送额度活动开启：3 亿 Token 免费领取04历年考研数学一、数学二、数学三真题试卷及答案PDF05蜘蛛磁力 搜索引擎大全，如何使用蜘蛛磁力查找磁力链接062026 国产 AI 大模型横评：DeepSeek、通义千问、Kimi、文心一言、星火、豆包谁更能打？07微信历史版本含下载地址（ Windows PC | 安卓 | MAC ）及设置微信不更新08VSCode SSH 连接远程服务器后，Codex 插件登录失败09AI 编程 IDE 全景解析 2026：Agent 全面接管开发链路10Agnes AI 免费 API 接入指南：文本、生图、生视频，一套接口全免费
