虚幻引擎5 GAS开发俯视角RPG游戏 P07-11 实现自动运行

AA陈超2025-11-12 18:52

目标:当鼠标左键短暂的按一下地面,角色可以自动的移动到点击位置.

1.在CC_PlayerController.cpp里的AbilityInputTagReleased()函数里:

(1)判断是不是鼠标左键,不是鼠标左键执行技能操作:

cpp 复制代码
/*如果不是鼠标左键*/
	if (!InputTag.MatchesTagExact(CC_GameplayTags::Input_LMB))
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagReleased(InputTag);
		return;
	}

(2)判断点击地点是不是敌人类,如果是敌人类,执行技能:

cpp 复制代码
/*如果是鼠标左键*/
	if (bTargetting)	//是敌人类
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagReleased(InputTag);
		return;
	}

(3)判断是不是长按,如果是长按,就退出:

cpp 复制代码
if(FollowTime > ShortPressThreshold)	return;		//长按,退出

(4)角色不存在,就退出:

cpp 复制代码
APawn* ControlledPawn = GetPawn<APawn>();
	if (ControlledPawn == nullptr) return;

(5)找到路径

a. 构建文件,添加导航系统模块:

Source/CC_Aura/CC_Aura.Build.cs:

cpp 复制代码
PrivateDependencyModuleNames.AddRange(new string[] {
			"GameplayAbilities",
			"GameplayTags",
			"GameplayTasks",
			"NavigationSystem"
		});

b. 同步查找路径位置

cpp 复制代码
/*同步查找路径位置*/
	UNavigationPath* NavPath = UNavigationSystemV1::FindPathToLocationSynchronously(this, ControlledPawn->GetActorLocation(), CachedDestination);
    if (NavPath == nullptr) return;

(6)画样条线:

cpp 复制代码
Spline->ClearSplinePoints(); //清除样条内现有的点
	for(const FVector& PointLoc : NavPath->PathPoints)
	{
		Spline->AddSplinePoint(PointLoc, ESplineCoordinateSpace::World); //将新的位置添加到样条曲线中
		DrawDebugSphere(GetWorld(), PointLoc, 8.f, 8, FColor::Orange, false, 5.f); //点击后debug调试
	}
    //自动寻路将最终目的地设置为导航的终点，方便停止导航
	CachedDestination = NavPath->PathPoints[NavPath->PathPoints.Num() - 1];
	bAutoRunning = true; //设置当前正常自动寻路状态，将在tick中更新位置

2.蓝图地图里,添加导航网格体边界体积:

全图覆盖:按P键查看范围

3.添加障碍物:

确保他有碰撞:

效果:

4.在帧循环实现自动移动:

(1)创建AutoRun()函数,在Tick()里调用:

cpp 复制代码
void ACC_PlayerController::PlayerTick(float DeltaTime)
{
	Super::PlayerTick(DeltaTime);
	CurserTrace();
	AutoRun();
}

(2)AutoRun()方法:

cpp 复制代码
void ACC_PlayerController::AutoRun()
{
	if(!bAutoRunning) return;

	APawn* ControlledPawn = GetPawn();
	if(ControlledPawn == nullptr) return;

	//找到距离样条最近的位置
	const FVector LocationOnSpline = Spline->FindLocationClosestToWorldLocation(ControlledPawn->GetActorLocation(), ESplineCoordinateSpace::World);
	//获取这个位置在样条上的方向
	const FVector Direction = Spline->FindDirectionClosestToWorldLocation(LocationOnSpline, ESplineCoordinateSpace::World);
	ControlledPawn->AddMovementInput(Direction);

	const float DistanceToDestination = (LocationOnSpline - CachedDestination).Length();
	if(DistanceToDestination <= AutoRunAcceptanceRadius)
	{
		bAutoRunning = false;
	}
}

(3)如果需要服务器，我们需要在导航系统设置运行客户端导航，这样，会在所有的客户端生成导航体积。

5.调整一下代码:

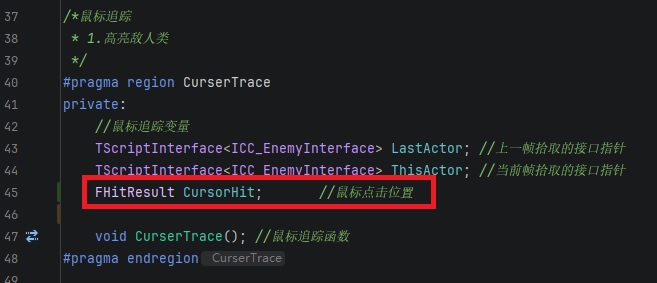

(1)为了提高性能,建立一个鼠标点击地点的缓存,避免总是调用GetHitResultUnderCursor方法

:CC_PlayerController.h:

CC_PlayerController.cpp:

cpp 复制代码
//鼠标位置追踪
void ACC_PlayerController::CurserTrace()
{
	GetHitResultUnderCursor(ECC_Visibility, false, CursorHit);	//获取可视的鼠标命中结果
	if(!CursorHit.bBlockingHit) return; //如果未命中直接返回

	LastActor = ThisActor;
	ThisActor = CursorHit.GetActor();

	if (LastActor != ThisActor)
	{
		if (LastActor) LastActor->UnHighlightActor();
		if (ThisActor) ThisActor->HighlightActor();
	}
}

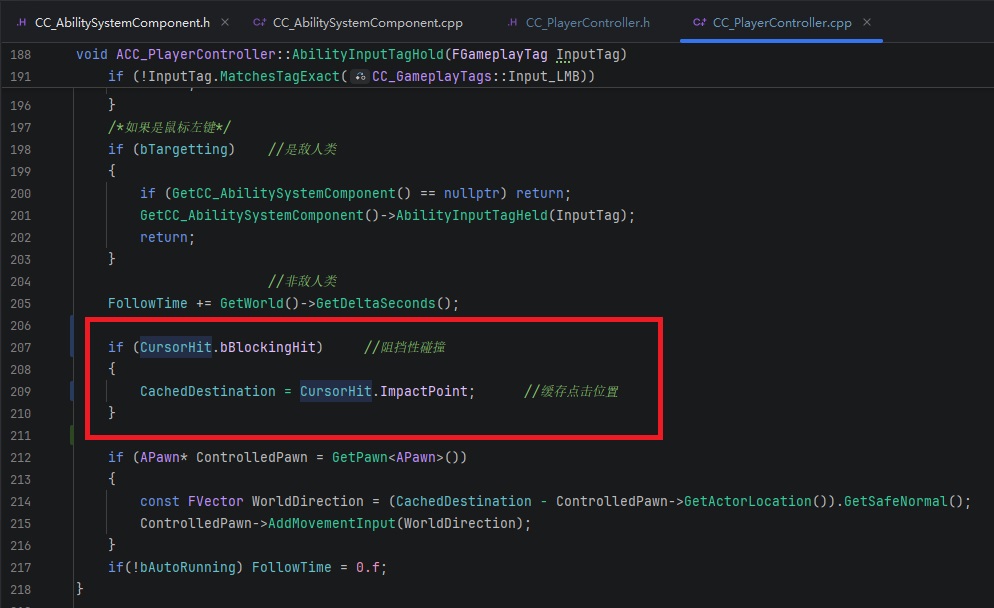

(2)修改鼠标追踪函数:

cpp 复制代码
//鼠标位置追踪
void ACC_PlayerController::CurserTrace()
{
	GetHitResultUnderCursor(ECC_Visibility, false, CursorHit);	//获取可视的鼠标命中结果
	if(!CursorHit.bBlockingHit) return; //如果未命中直接返回

	LastActor = ThisActor;
	ThisActor = CursorHit.GetActor();

	if (LastActor != ThisActor)
	{
		if (LastActor) LastActor->UnHighlightActor();
		if (ThisActor) ThisActor->HighlightActor();
	}
}

源代码:

Source/CC_Aura/Public/Player/CC_PlayerController.h:

cpp 复制代码
// 版权归陈超所有

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/PlayerController.h"
#include "CC_PlayerController.generated.h"

class USplineComponent;
class UCC_AbilitySystemComponent;
struct FGameplayTag;
class UDataAsset_InputConfig;
class ICC_EnemyInterface;
class UInputMappingContext;
class UInputAction;


/**
 *
 */
UCLASS()
class CC_AURA_API ACC_PlayerController : public APlayerController
{
	GENERATED_BODY()

public:
	ACC_PlayerController();
	virtual void PlayerTick(float DeltaTime) override;
protected:
	virtual void BeginPlay() override;

	UPROPERTY()
	TObjectPtr<UCC_AbilitySystemComponent> CC_AbilitySystemComponent;		//能力系统组件

	UCC_AbilitySystemComponent* GetCC_AbilitySystemComponent();

/*鼠标追踪
 * 1.高亮敌人类
 */
#pragma region CurserTrace
private:
	//鼠标追踪变量
	TScriptInterface<ICC_EnemyInterface> LastActor;	//上一帧拾取的接口指针
	TScriptInterface<ICC_EnemyInterface> ThisActor;	//当前帧拾取的接口指针
	FHitResult CursorHit;		//鼠标点击位置

	void CurserTrace();	//鼠标追踪函数
#pragma endregion

/*输入设置
 * 1.移动输入
 * 2.能力输入
 */
#pragma region Inputs
protected:
	virtual void SetupInputComponent() override;
private:
	UPROPERTY(EditAnywhere, Category="CC|Input")
	TObjectPtr<UDataAsset_InputConfig> DataAssetInputConfig;

	void Move(const struct FInputActionValue& InputActionValue);
	void AbilityInputTagPressed(FGameplayTag InputTag);		//按下
	void AbilityInputTagReleased(FGameplayTag InputTag);	//结束
	void AbilityInputTagHold(FGameplayTag InputTag);		//持续
#pragma endregion

/*鼠标点击移动*/
#pragma region ClickToMove

private:
	FVector CachedDestination = FVector::ZeroVector;	//追击的目的地
	float FollowTime = 0.f;		//鼠标按住的时间
	float ShortPressThreshold = 0.5f;		//短按阈值
	bool bAutoRunning =false;		//是否自动追踪
	bool bTargetting = false;		//目标锁定

	UPROPERTY(EditDefaultsOnly, Category="CC|ClickToMove")
	float AutoRunAcceptanceRadius = 50.f;		//自动追踪到达目的地的半径后停止

	UPROPERTY(VisibleAnywhere, Category="CC|ClickToMove")
	TObjectPtr<USplineComponent> Spline;		//样条曲线

	void AutoRun();		//自动寻路
#pragma endregion

};

Source/CC_Aura/Private/Player/CC_PlayerController.cpp

cpp 复制代码
// 版权归陈超所有


#include "Player/CC_PlayerController.h"

#include "AbilitySystemBlueprintLibrary.h"
#include "AbilitySystem/CC_AbilitySystemComponent.h"
#include "CC_GameplayTags.h"
#include "Components/SplineComponent.h"
#include "EnhancedInputSubsystems.h"
#include "EnhancedInputComponent.h"
#include "NavigationPath.h"
#include "NavigationSystem.h"
#include "Input/CC_InputComponent.h"
#include "Interations/CC_EnemyInterface.h"

ACC_PlayerController::ACC_PlayerController()
{
	bReplicates = true;		//确保可复制

	Spline = CreateDefaultSubobject<USplineComponent>("Spline");

}

void ACC_PlayerController::PlayerTick(float DeltaTime)
{
	Super::PlayerTick(DeltaTime);
	CurserTrace();
	AutoRun();
}

void ACC_PlayerController::AutoRun()
{
	if(!bAutoRunning) return;

	APawn* ControlledPawn = GetPawn();
	if(ControlledPawn == nullptr) return;

	//找到距离样条最近的位置
	const FVector LocationOnSpline = Spline->FindLocationClosestToWorldLocation(ControlledPawn->GetActorLocation(), ESplineCoordinateSpace::World);
	//获取这个位置在样条上的方向
	const FVector Direction = Spline->FindDirectionClosestToWorldLocation(LocationOnSpline, ESplineCoordinateSpace::World);
	ControlledPawn->AddMovementInput(Direction);

	const float DistanceToDestination = (LocationOnSpline - CachedDestination).Length();
	if(DistanceToDestination <= AutoRunAcceptanceRadius)
	{
		bAutoRunning = false;
	}
}

//鼠标位置追踪
void ACC_PlayerController::CurserTrace()
{
	GetHitResultUnderCursor(ECC_Visibility, false, CursorHit);	//获取可视的鼠标命中结果
	if(!CursorHit.bBlockingHit) return; //如果未命中直接返回

	LastActor = ThisActor;
	ThisActor = CursorHit.GetActor();

	if (LastActor != ThisActor)
	{
		if (LastActor) LastActor->UnHighlightActor();
		if (ThisActor) ThisActor->HighlightActor();
	}
}


void ACC_PlayerController::BeginPlay()
{
	Super::BeginPlay();

	//设置鼠标光标
	bShowMouseCursor = true; //游戏中是否显示鼠标光标
	DefaultMouseCursor = EMouseCursor::Default; //鼠标光标的样式

	FInputModeGameAndUI InputModeData;
	InputModeData.SetLockMouseToViewportBehavior(EMouseLockMode::DoNotLock); //将鼠标锁定在视口内
	InputModeData.SetHideCursorDuringCapture(false); //鼠标被捕获时是否隐藏
	SetInputMode(InputModeData); //设置给控制器

}

UCC_AbilitySystemComponent* ACC_PlayerController::GetCC_AbilitySystemComponent()
{
	if (CC_AbilitySystemComponent == nullptr)
	{
		UAbilitySystemComponent* AbilitySystemComponent = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(GetPawn<APawn>());
		CC_AbilitySystemComponent = Cast<UCC_AbilitySystemComponent>(AbilitySystemComponent);
	}
	return CC_AbilitySystemComponent;
}

//设置输入组件函数（重载）
void ACC_PlayerController::SetupInputComponent()
{
	Super::SetupInputComponent();

	checkf(DataAssetInputConfig,TEXT("DataAssetInputConfig 指针为空！"));

	UEnhancedInputLocalPlayerSubsystem* Subsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(GetLocalPlayer());
	if(Subsystem == nullptr) return;
	//添加映射上下文
	Subsystem->AddMappingContext(DataAssetInputConfig->DefaultMappingContext, 0);

	UCC_InputComponent* CC_InputComponent = CastChecked<UCC_InputComponent>(InputComponent); //将InputComponent转换成增强输入组件

	CC_InputComponent->BindInputAction(DataAssetInputConfig, CC_GameplayTags::Input_Move, ETriggerEvent::Triggered, this, &ThisClass::Move); //绑定移动事件
	CC_InputComponent->BindAbilityAction(DataAssetInputConfig, this, &ThisClass::AbilityInputTagPressed, &ThisClass::AbilityInputTagReleased, &ThisClass::AbilityInputTagHold);
}

//移动事件的返回函数
void ACC_PlayerController::Move(const struct FInputActionValue& InputActionValue)
{
	const FVector2D InputAxisVector = InputActionValue.Get<FVector2D>(); //获取输入操作的2维向量值
	const FRotator Rotation = GetControlRotation(); //获取控制器旋转
	const FRotator YawRotation(0.f, Rotation.Yaw, 0.f); //通过控制器的垂直朝向创建一个旋转值，忽略上下朝向和左右朝向

	const FVector ForwardDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::X); //获取向前的值(旋转矩阵)
	const FVector RightDirection = FRotationMatrix(YawRotation).GetUnitAxis(EAxis::Y); //获取向右的值，-1到1

	if(APawn* ControlledPawn = GetPawn<APawn>())
	{
		ControlledPawn->AddMovementInput(ForwardDirection, InputAxisVector.Y);
		ControlledPawn->AddMovementInput(RightDirection, InputAxisVector.X);
	}

}

/*开始按下*/
void ACC_PlayerController::AbilityInputTagPressed(FGameplayTag InputTag)
{
	/*如果是鼠标左键*/
	if (InputTag.MatchesTagExact(CC_GameplayTags::Input_LMB))
	{
		bTargetting = ThisActor ? true : false;		//是否有敌人?
		bAutoRunning = false;		//不需要自动追踪
	}
}

/*释放*/
void ACC_PlayerController::AbilityInputTagReleased(FGameplayTag InputTag)
{
	/*如果不是鼠标左键*/
	if (!InputTag.MatchesTagExact(CC_GameplayTags::Input_LMB))
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagReleased(InputTag);
		return;
	}

	/*如果是鼠标左键*/
	if (bTargetting)	//是敌人类
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagReleased(InputTag);
		return;
	}

	if(FollowTime > ShortPressThreshold)	return;		//长按,退出

	/*短按*/
	APawn* ControlledPawn = GetPawn();
	if (ControlledPawn == nullptr) return;

	/*同步查找路径位置*/
	UNavigationPath* NavPath = UNavigationSystemV1::FindPathToLocationSynchronously(this, ControlledPawn->GetActorLocation(), CachedDestination);
	if (NavPath == nullptr) return;

	Spline->ClearSplinePoints(); //清除样条内现有的点
	for(const FVector& PointLoc : NavPath->PathPoints)
	{
		Spline->AddSplinePoint(PointLoc, ESplineCoordinateSpace::World); //将新的位置添加到样条曲线中
		DrawDebugSphere(GetWorld(), PointLoc, 8.f, 8, FColor::Cyan, false, 5.f); //点击后debug调试
	}
	//自动寻路将最终目的地设置为导航的终点，方便停止导航
	if (NavPath->PathPoints.Num() > 0)
	{
		CachedDestination = NavPath->PathPoints[NavPath->PathPoints.Num() - 1];
	}

	bAutoRunning = true; //设置当前正常自动寻路状态，将在tick中更新位置
	FollowTime = 0.f;
	bTargetting = false;
}

/*保持*/
void ACC_PlayerController::AbilityInputTagHold(FGameplayTag InputTag)
{
	/*如果不是鼠标左键*/
	if (!InputTag.MatchesTagExact(CC_GameplayTags::Input_LMB))
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagHeld(InputTag);
		return;
	}
	/*如果是鼠标左键*/
	if (bTargetting)	//是敌人类
	{
		if (GetCC_AbilitySystemComponent() == nullptr) return;
		GetCC_AbilitySystemComponent()->AbilityInputTagHeld(InputTag);
		return;
	}
						//非敌人类
	FollowTime += GetWorld()->GetDeltaSeconds();

	if (CursorHit.bBlockingHit)		//阻挡性碰撞
	{
		CachedDestination = CursorHit.ImpactPoint;		//缓存点击位置
	}

	if (APawn* ControlledPawn = GetPawn<APawn>())
	{
		const FVector WorldDirection = (CachedDestination - ControlledPawn->GetActorLocation()).GetSafeNormal();
		ControlledPawn->AddMovementInput(WorldDirection);
	}
	if(!bAutoRunning) FollowTime = 0.f;
}
相关推荐
DARLING Zero two♡2 小时前
【优选算法】LinkedList-Concatenate：链表的算法之契
数据结构·c++·算法·链表
yolo_guo2 小时前
opencv 学习: 07 使用迭代器 (iterator) 遍历像素
linux·c++·opencv
mjhcsp3 小时前
C++ 高精度计算：突破数据类型限制的实现与应用
开发语言·c++·算法·高精度
lixinnnn.3 小时前
C++: map和set
开发语言·c++
大袁同学3 小时前
【二叉搜索树】：程序的“决策树”，排序数据的基石
数据结构·c++·算法·决策树·stl
郝学胜-神的一滴3 小时前
Qt QPushButton 样式完全指南：从基础到高级实现
linux·开发语言·c++·qt·程序人生
⠀One0ne3 小时前
【C++ 面试题】内存对齐
c++
Elias不吃糖3 小时前
NebulaChat 框架学习笔记：原子变量与左值引用的工程应用
c++·学习
Theliars4 小时前
Ubuntu 上使用 VSCode 调试 C++ (CMake 项目) 指南
c++·vscode·ubuntu·cmake
热门推荐
01GitHub 镜像站点02UV安装并设置国内源03综合整理：pdf预览显示：你尝试预览的文件可能对你的计算机有害。如果你信任此文件以及其来源，请打开此文件以看其内容，如何解决以正常预览文件04Linux下V2Ray安装配置指南05安娜的档案(Anna’s Archive) 镜像网站/国内最新可访问入口（持续更新）06Labelme从安装到标注：零基础完整指南07BongoCat - 跨平台键盘猫动画工具08《大数据技术原理与应用》实验报告三 熟悉HBase常用操作09看了下昨日泄露的苹果 App Store 源码……10NVIDIA显卡驱动、CUDA、cuDNN 和 TensorRT 版本匹配指南
