| 基于Xilinx XCKU115的半高PCIe x8 硬件加速卡 |
| |---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------| | 一、板卡概述 本板卡系我公司自主研发，采用Xilinx公司的XCKU115-3-FLVF1924-E芯片作为主处理器，主要用于FPGA硬件加速。板卡设计满足工业级要求。如下图所示：

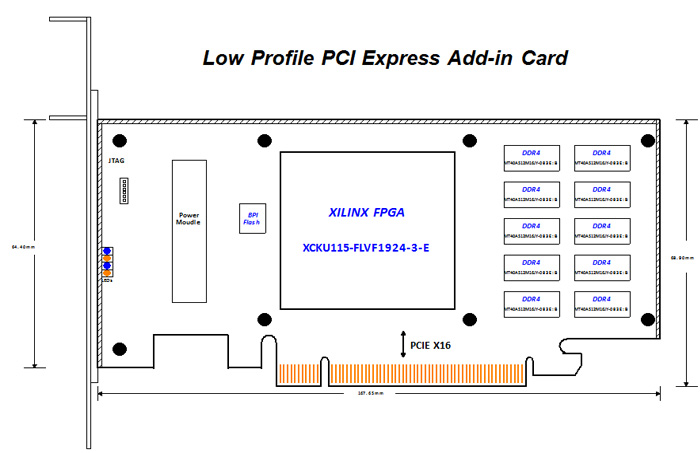

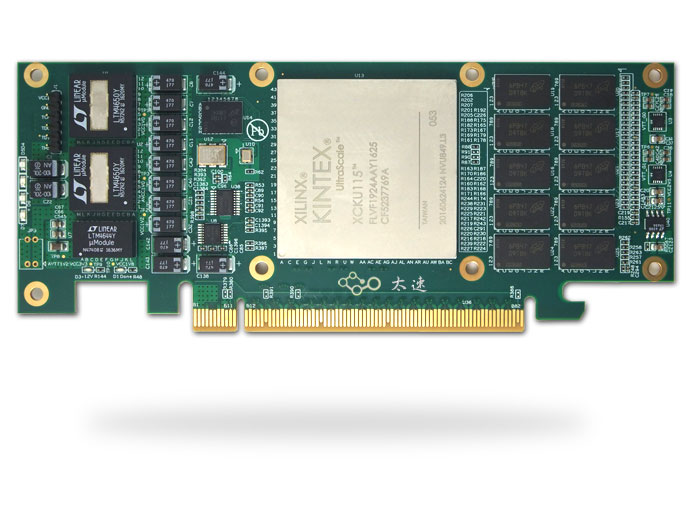

二、功能和技术指标： |---------|-----------------------------------------------------------------------| | 板卡功能 | 参数内容 | | 主处理器 | XCKU115-3-FLVF1924-E | | 板卡标准 | PCI EXPRESS CARD REV. 1.1 | | 电气规范 | 标准PCIe半高、半长卡，符合PCI Express 3.0 规范 | | 板载缓存 | 支持2x72bit（数据位宽64bit+ECC）DDR4存储，数据传输速率 2400Mb/s。 DDR4单簇容量4GB，两组总容量为8GB | | 加载Flash | BPI模式 | | 高速接口 | 无 | | 低速接口 | 无 | | 板卡尺寸 | | | 板卡重量 | （含散热片） | | 板卡供电 | DC +12V，6A | | 板卡功耗 | | | 工作温度 | Industrial -45℃到+80℃ | 三、接口测试软件: |----------|---------------------------------------------| | 板卡功能 | 参数内容 | | 主处理器 | XCKU115-3-FLVF1924-E | | 软件版本 | Vivado 2017.4 | | 编程语言 | Verilog | | 板卡接口测试程序 | DDR测试、PCIe IO模式测试 | | 板卡接口应用程序 | PCIe V3.0 XDMA 测试FPGA程序 Windows 7，Linux驱动程序 | 四、应用领域 FPGA硬件加速 | |
标签: 光纤采集卡, 嵌入式开发平台, 图像处理, 信号计算板, PCIe半高卡, 雷达信号处理
标签: PCIe半高卡, 光纤采集卡, 雷达信号处理,, 嵌入式开发平台, 图像处理, 信号计算板, 硬件加速卡, FPGA硬件加速, XCKU115, XCKU115-3-FLVF1924-E芯片
