源代码：ZGLanguage 解析SQL数据血缘 之 显示 WITH SQL 结构图

SQL代码如下所示 :

WITH TMP_NYBDP AS
(
    SELECT CL.*
	     , AL.*
      FROM NYBDP.O_SS_CL_LOAN_ACCT_STATIS CL
 LEFT JOIN NYBDP.O_CWWS_ACCT_LOAN AL
        ON 1=1
)
SELECT *
  FROM TMP_NYBDP
;

通过 ZGLanguage + Python 将以上SQL转换成 Echarts 的树结构数据：

[
    {
        "name": "test.code",
        "children": [
            {
                "name": "__JUST_SELECT_3__",
                "children": [
                    {
                        "name": "TMP_NYBDP",
                        "children": [
                            {
                                "name": "O_SS_CL_LOAN_ACCT_STATIS",
                                "children": []
                            },
                            {
                                "name": "O_CWWS_ACCT_LOAN",
                                "children": []
                            }
                        ]
                    },
                    {
                        "name": "TMP_NYBDP",
                        "children": []
                    }
                ]
            }
        ]
    }
]

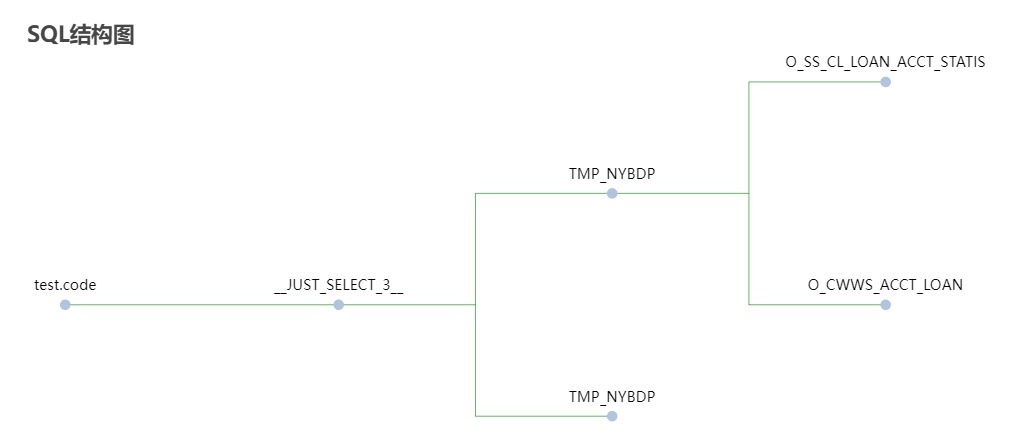

使用 Echarts 的展示 ：
