openpnp2.4 - 导入kicad9.0的封装数据
概述
openpnp2.4中，在封装处，可以新建封装，然后自动导入kicad版本的元件封装文件(.kicad_mod). 这样就不用自己手工编辑元件焊盘数据了。
openpnp2.4只支持旧版的kicad. 我本本上装的是kicad9.0. 导入失败。

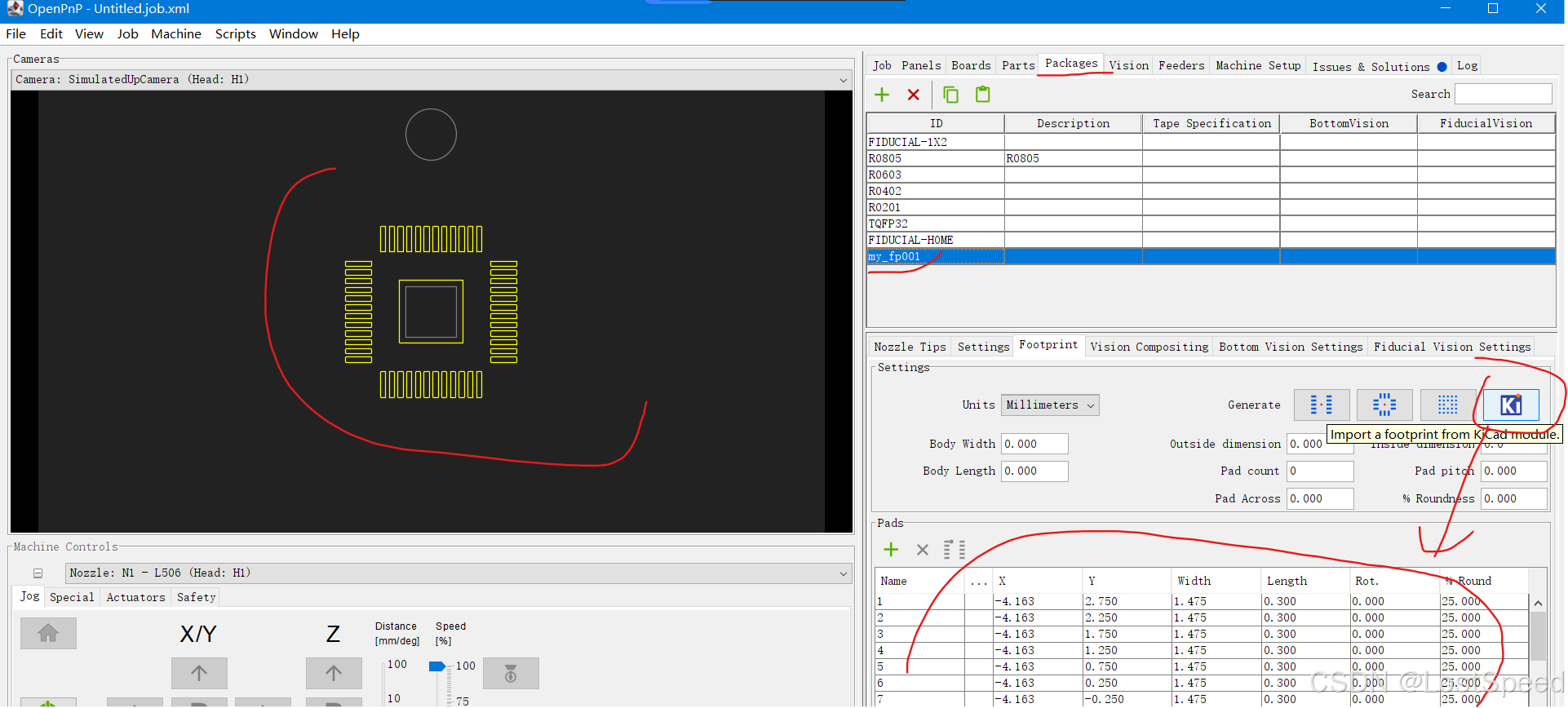

上图是我改过openpnp实现后的效果，改完了，初步测试了一下，好使。
openpnp导入kicad封装时，只能导入贴片焊盘和在铜皮上的焊盘，对于其他焊盘(通孔焊盘，机械孔)是无法导入的，但是对于openpnp贴片来说，导入贴片焊盘就够了(给视觉识别用)。
最近简单看了一下java swing编程，知道了UI界面的动作和动作处理函数之间的关系。剩下的和c++差不多。
如果要改openpnp代码，也容易多了。
上述修改，花了4个小时。
临时的修改，测试也不充分，远不到给openpnp贡献补丁的程度。自己临时用一下。
笔记
只修改了一个实现。
KicadModImporter.java
java
/*
* Copyright (C) 2023 Jason von Nieda <jason@vonnieda.org>
*
* This file is part of OpenPnP.
*
* OpenPnP is free software: you can redistribute it and/or modify it under the terms of the GNU
* General Public License as published by the Free Software Foundation, either version 3 of the
* License, or (at your option) any later version.
*
* OpenPnP is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even
* the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
* Public License for more details.
*
* You should have received a copy of the GNU General Public License along with OpenPnP. If not, see
* <http://www.gnu.org/licenses/>.
*
* For more information about OpenPnP visit http://openpnp.org
*/
package org.openpnp.gui.importer;
import java.awt.FileDialog;
import java.io.BufferedReader;
import java.io.File;
import java.io.FilenameFilter;
import java.io.FileReader;
import java.util.List;
import java.util.regex.Pattern;
import java.util.regex.Matcher;
import org.openpnp.Translations;
import org.openpnp.gui.MainFrame;
import org.openpnp.model.Footprint;
import org.openpnp.model.Footprint.Pad;
import org.pmw.tinylog.Logger;
/**
* @author Jonas Lehmke <jonas@lehmke.xyz>
*
* This module reads a KiCad footprint from file (*.kicad_mod) and
* parses it to a Footprint instance. Rectangular, rounded rectangular,
* circular and oval pad shapes are supported. Trapezoid and custom pad
* shapes are ignored. A FileDialog is openened to select a file once
* this class is instantiated. Imported pads are available as List<Pad>.
*
* This module may become part of an all-in-one KiCad board import one
* day.
*/
public class KicadModImporter {
private boolean useLegacySingleLineParser = true; // default to legacy (single‑line) parser
Footprint footprint = new Footprint();
/**
* Represents a pad in a Kicad footprint.
* <p>
* Example of Kicad 9.0 pad definition:
* <pre>{@code
* (pad "1" smd roundrect
* (at -4.175 -2.8)
* (size 1.5 0.5)
* (layers "F.Cu" "F.Mask" "F.Paste")
* (roundrect_rratio 0.25)
* )
* }</pre>
*/
public class KicadPad {
String padDefinition;
public KicadPad(String definition) {
padDefinition = definition;
}
String getName() {
String regex;
if (useLegacySingleLineParser) {
regex = "^\\(pad\\s\"?(\\w*)\"?\\s(\\w*)\\s(\\w*)";
} else {
regex = "\\s*\\(pad\\s+\"?([^\"\\s]+)\"?\\s+(\\w+)(?:\\s+(\\w+))?";
}
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return m.group(1);
}
return "";
}
String getType() {
String regex;
if (useLegacySingleLineParser) {
regex = "^\\(pad\\s\"?(\\w*)\"?\\s(\\w*)\\s(\\w*)";
} else {
regex = "\\(pad\\s+\"?([^\"\\s]*)\"?\\s+(\\S+)\\s+(\\S+)";
}
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return m.group(2);
}
return "";
}
String getShape() {
String regex;
if (useLegacySingleLineParser) {
regex = "^\\(pad\\s\"?(\\w*)\"?\\s(\\w*)\\s(\\w*)";
} else {
regex = "\\s*\\(pad\\s+\"?(\\w*)\"?\\s+(\\w+)\\s+(\\w+)";
}
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return m.group(3);
}
return "";
}
double getWidth() {
String regex = "\\(size ([\\-0-9.]*) ([\\-0-9\\.]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return Double.parseDouble(m.group(1));
}
return 0.;
}
double getHeight() {
String regex = "\\(size ([\\-0-9\\.]*) ([\\-0-9\\.]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return Double.parseDouble(m.group(2));
}
return 0.;
}
double getX() {
String regex = "\\(at ([\\-0-9.]*) ([\\-0-9.]*)\\s?([^\\)]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return Double.parseDouble(m.group(1));
}
return 0.;
}
double getY() {
String regex = "\\(at ([\\-0-9.]*) ([\\-0-9.]*)\\s?([^\\)]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return Double.parseDouble(m.group(2)) * (-1); // Negative because of different conventions
}
return 0.;
}
double getRotation() {
String regex = "\\(at ([\\-0-9.]*) ([\\-0-9.]*)\\s?([^\\)]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
if (m.group(3).length() > 0) {
return Double.parseDouble(m.group(3));
}
}
return 0.;
}
double getRoundness() {
String regex = "\\(roundrect_rratio ([\\-0-9.]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return Double.parseDouble(m.group(1)) * 100;
}
return 0.;
}
boolean isTopCu() {
String regex = "\\(layers ([^\\)]*)\\)";
Pattern p = Pattern.compile(regex);
Matcher m = p.matcher(padDefinition);
if (m.find()) {
return m.group(1).contains("F.Cu") || m.group(1).contains("*.Cu");
}
return false;
}
}
public KicadModImporter() throws Exception {
try {
FileDialog fileDialog = new FileDialog(MainFrame.get());
fileDialog.setFilenameFilter(new FilenameFilter() {
@Override
public boolean accept(File dir, String name) {
return name.toLowerCase().endsWith(".kicad_mod"); //$NON-NLS-1$
}
});
fileDialog.setVisible(true);
if (fileDialog.getFile() == null) {
return;
}
File file = new File(new File(fileDialog.getDirectory()), fileDialog.getFile());
// --- Detect KiCad version from the file ---
try (BufferedReader versionReader = new BufferedReader(new FileReader(file))) {
// Skip first line (footprint name)
String line;
while ((line = versionReader.readLine()) != null) {
String trimmed = line.trim();
if (trimmed.startsWith("(version ")) {
Pattern versionPattern = Pattern.compile("\\(version\\s+(\\d+)\\)");
Matcher m = versionPattern.matcher(trimmed);
if (m.find()) {
long version = Long.parseLong(m.group(1));
// KiCad 9.0 uses version 20241229 and later → use multiline parser
if (version >= 20241229) {
useLegacySingleLineParser = false;
}
}
break; // version found, no need to read further
}
}
} catch (Exception e) {
// If version detection fails, fall back to legacy parser and print a warning
Logger.error("Failed to detect KiCad version, using legacy parser. error : " + e.getMessage());
}
// --- Parse the footprint according to the detected version ---
if (useLegacySingleLineParser) {
// Legacy parser: assume each pad definition is on a single line
try (BufferedReader reader = new BufferedReader(new FileReader(file))) {
String line;
while ((line = reader.readLine()) != null) {
if (line.trim().startsWith("(pad ")) {
processPadDefinition(line.trim());
}
}
}
} else {
// KiCad 9.0+ parser: pads may span multiple lines
try (BufferedReader reader = new BufferedReader(new FileReader(file))) {
String line;
Logger.debug("Kicad Mod Importer - begin");
while ((line = reader.readLine()) != null) {
String trimmed = line.trim();
if (trimmed.startsWith("(pad ")) {
// Read the complete S‑expression for this pad
StringBuilder padBuilder = new StringBuilder(line);
int balance = countBrackets(line);
while (balance > 0) {
String nextLine = reader.readLine();
if (nextLine == null) {
break; // Unexpected end of file -- pad is incomplete
}
padBuilder.append("\n").append(nextLine);
balance += countBrackets(nextLine);
}
String padDefinition = padBuilder.toString();
processPadDefinition(padDefinition);
}
}
Logger.debug("Kicad Mod Importer - end");
}
}
} catch (Exception e) {
throw new Exception(Translations.getString("KicadModImporter.LoadFile.Fail") + e.getMessage(), e); //$NON-NLS-1$
}
}
/**
* Counts the net parentheses in a line: '(' adds 1, ')' subtracts 1.
*/
private int countBrackets(String line) {
int count = 0;
for (char c : line.toCharArray()) {
if (c == '(')
count++;
else if (c == ')')
count--;
}
return count;
}
/**
* Processes a pad definition string (which may be single‑line or multi‑line)
* and adds the corresponding Pad object to the footprint if it is an SMD pad
* with a supported shape.
*/
private void processPadDefinition(String padDefinition) {
KicadPad kipad = new KicadPad(padDefinition);
if (kipad.getType().equals("smd") && kipad.isTopCu()) {
Pad pad = new Pad();
pad.setName(kipad.getName());
pad.setWidth(kipad.getWidth());
pad.setHeight(kipad.getHeight());
pad.setX(kipad.getX());
pad.setY(kipad.getY());
pad.setRotation(kipad.getRotation());
String Shape = kipad.getShape();
if (Shape.equals("rect")) {
pad.setRoundness(0);
} else if (Shape.equals("circle")) {
pad.setRoundness(100);
} else if (Shape.equals("oval")) {
pad.setRoundness(100);
} else if (Shape.equals("roundrect")) {
pad.setRoundness(kipad.getRoundness());
} else {
Logger.warn("Warning: Unsupported pad type: " + kipad.getShape());
return;
}
footprint.addPad(pad);
} else {
Logger.warn("Warning: [not smd pad] or [pad not on Front Copper], can't import pad [{}]", kipad.getName());
return;
}
}
public List<Pad> getPads() {
return footprint.getPads();
}
}如何快速的找kicad提供的封装文件
kicad9.0安装后，自带封装库。位置 C:\Program Files\KiCad\9.0\share\kicad\footprints
封装文件的后缀为.kicad_mod
封装的命名规则 : https://klc.kicad.org/footprint/
kicad提供的封装很多，有15415个。封装的命名也很复杂。

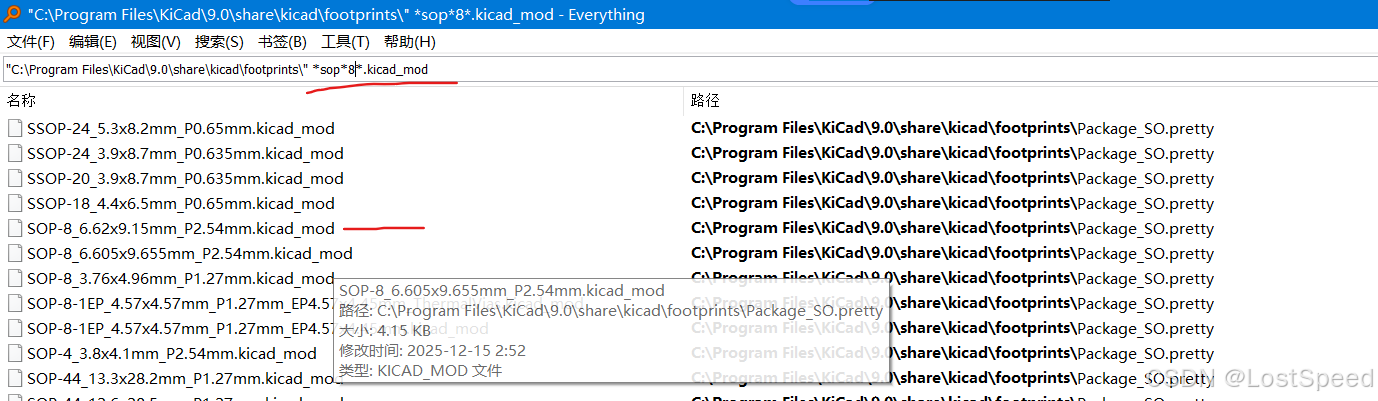

如果按照官方按照功能分的文件夹，很难翻到自己想要的封装。
如果按照关键字，模糊的去搜索，反而能更快的找出来。

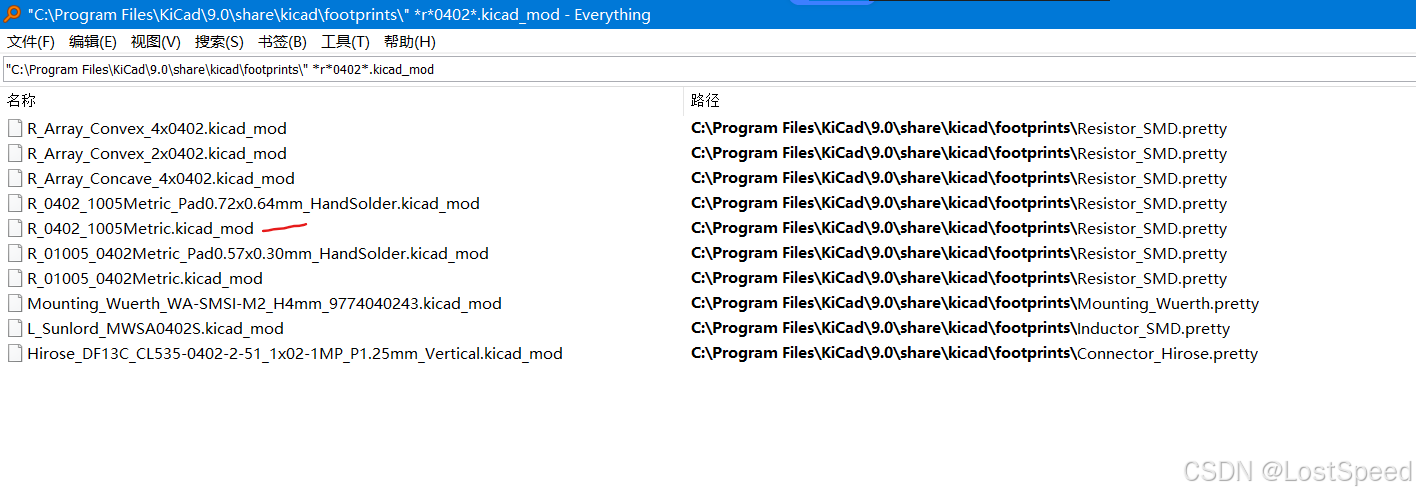

e.g. 0402封装的电阻

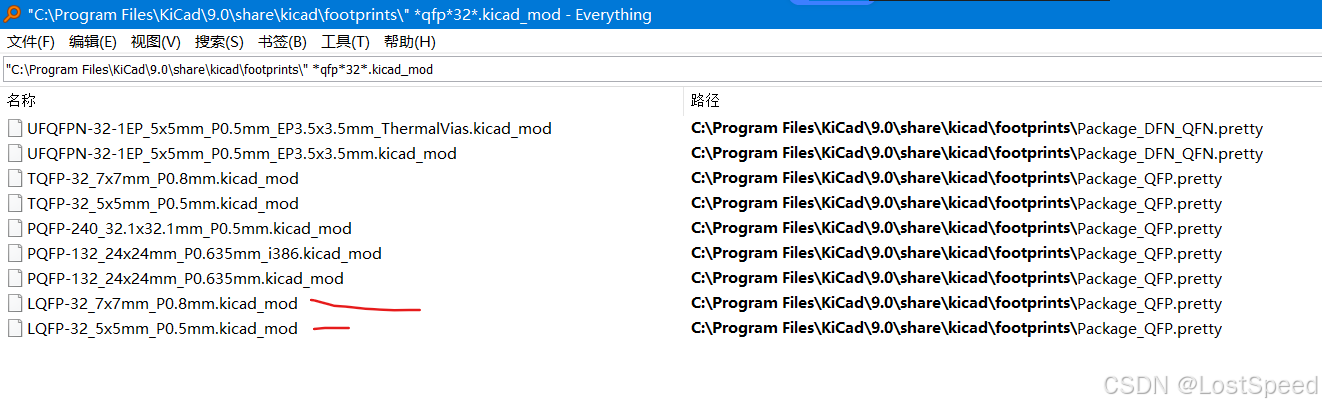

e.g. LQFP32的IC
e.g. SOP-8的IC
kicad中带的封装很全，对于同一类封装，可能有多个尺寸的封装，此时，比对一下自己用的元件数据表，就知道该用哪种封装了。
用kicad查看封装的大概样子
启动kicad后，选择封装编辑器

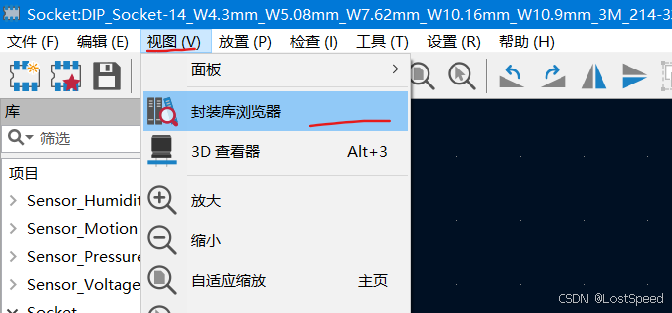

在封装编辑器中启动"封装库浏览器"

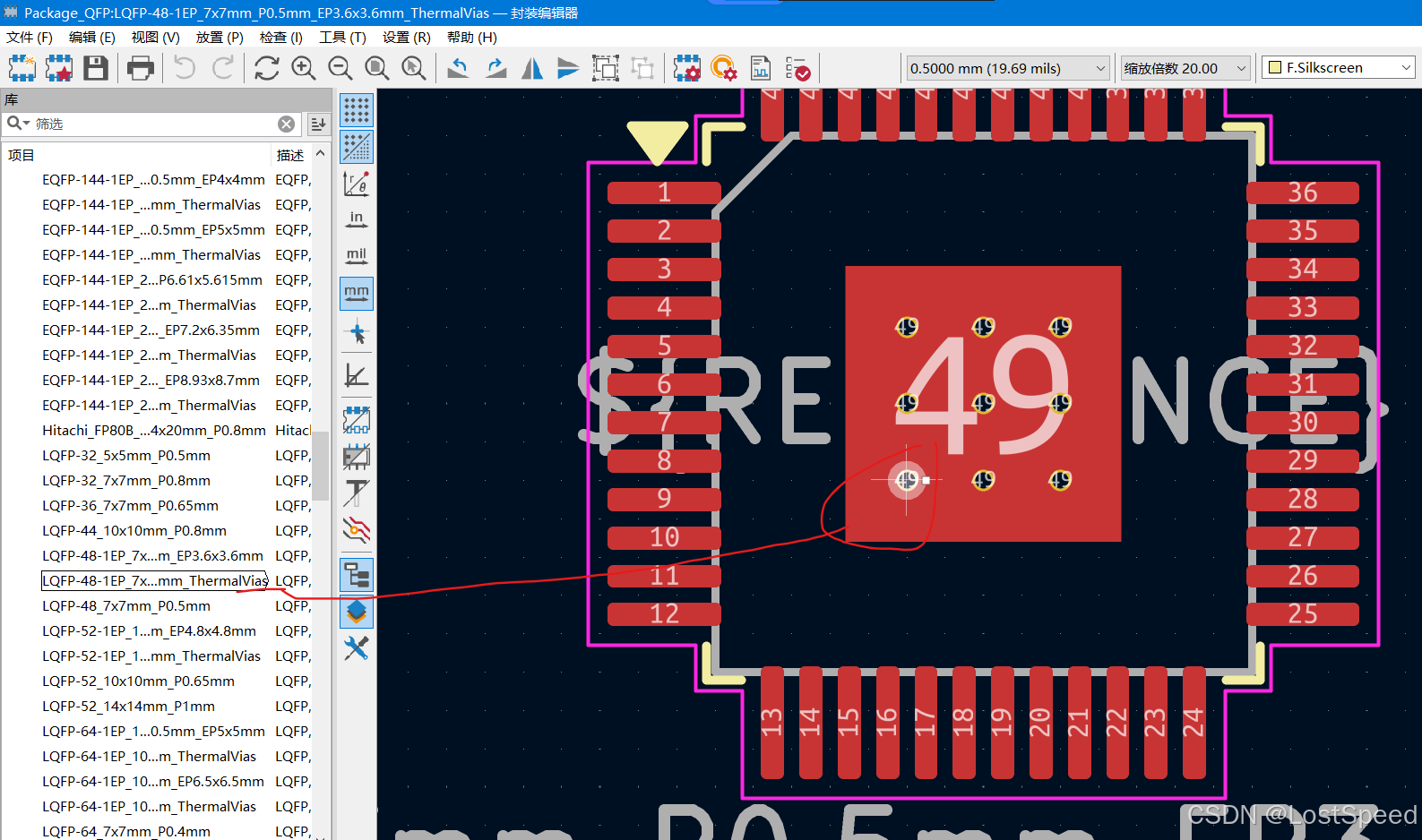

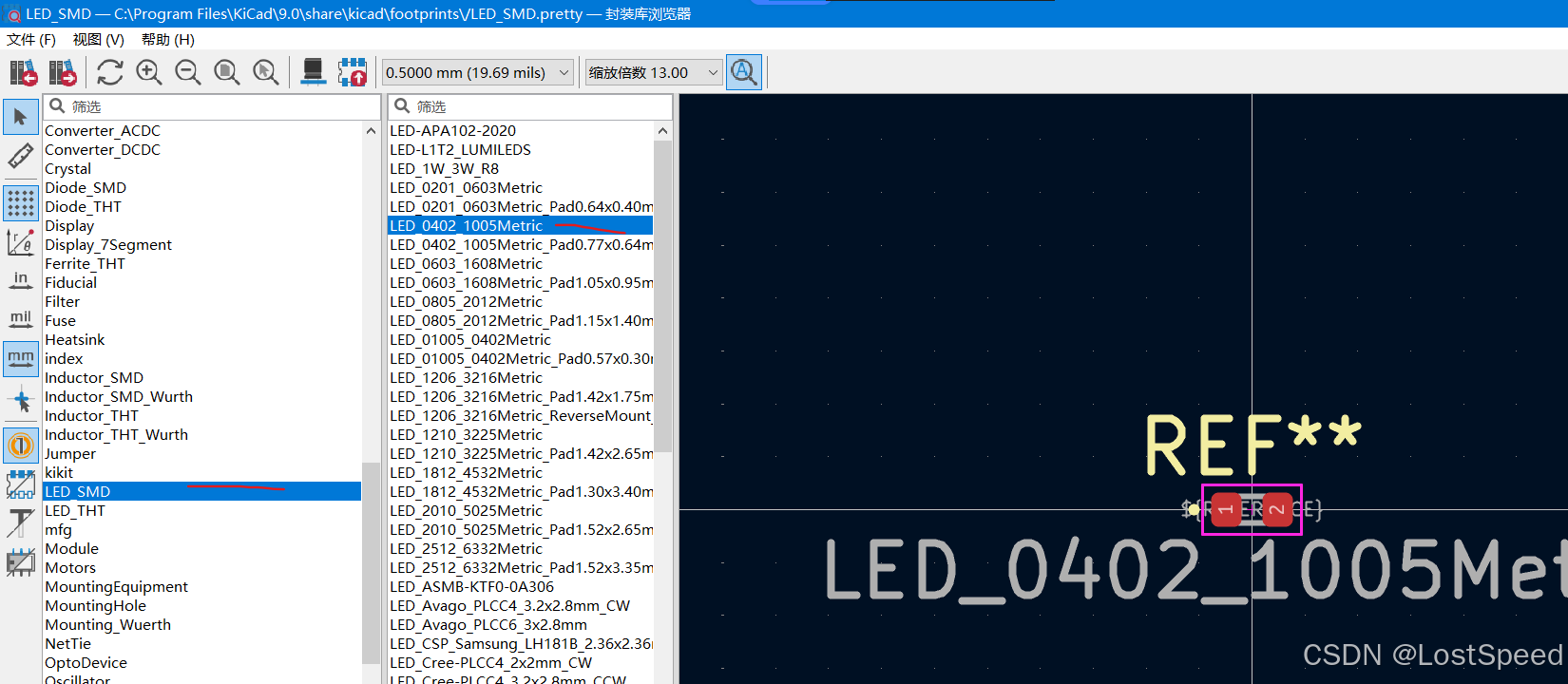

"封装库浏览器"中单击选中元件，就能看到元件封装的样子。
再改openpnp中的kicad封装导入时，如果哪个焊盘数据导入失败，且自己看不太懂.kicad_mod中描述的焊盘信息，对照封装编辑器中的焊盘需要和焊盘数据，就能很快明白了。

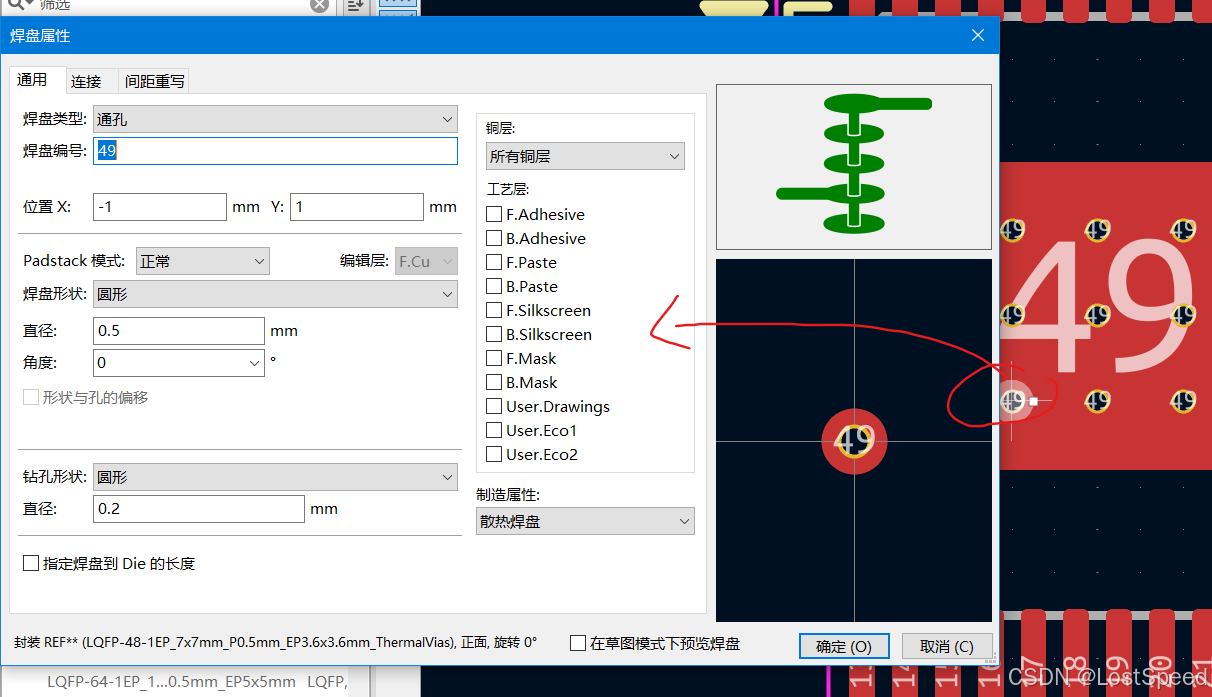

在封装编辑器中，双击焊盘，焊盘的属性就显示出来了，和.kicad_mod中自己不明白的焊盘数据对一下，就很清楚了。
