Ubuntu22.04 + ROS2 Humble + ORB-SLAM3 保存地图格式为.pcd文件

MIXLLRED2026-04-14 13:34

一、建图流程

1. 建图流程

启动相机后，在ORB_SLAM3的ROS2封装包的工作空间下启动建图：

bash 复制代码
ros2 run orbslam3 rgbd   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/rgbd/d435.yaml   --ros-args -r /camera/color/image_raw:=/camera/camera/color/image_raw              -r /camera/depth/image_rect_raw:=/camera/camera/aligned_depth_to_color/image_raw
bash 复制代码

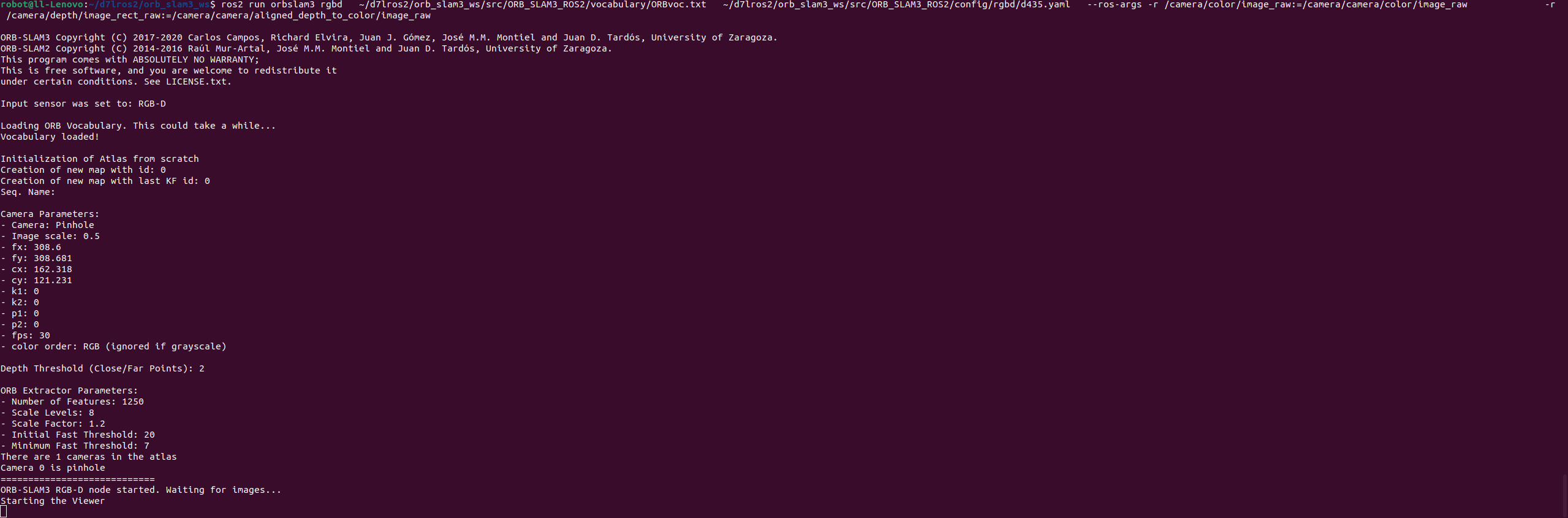

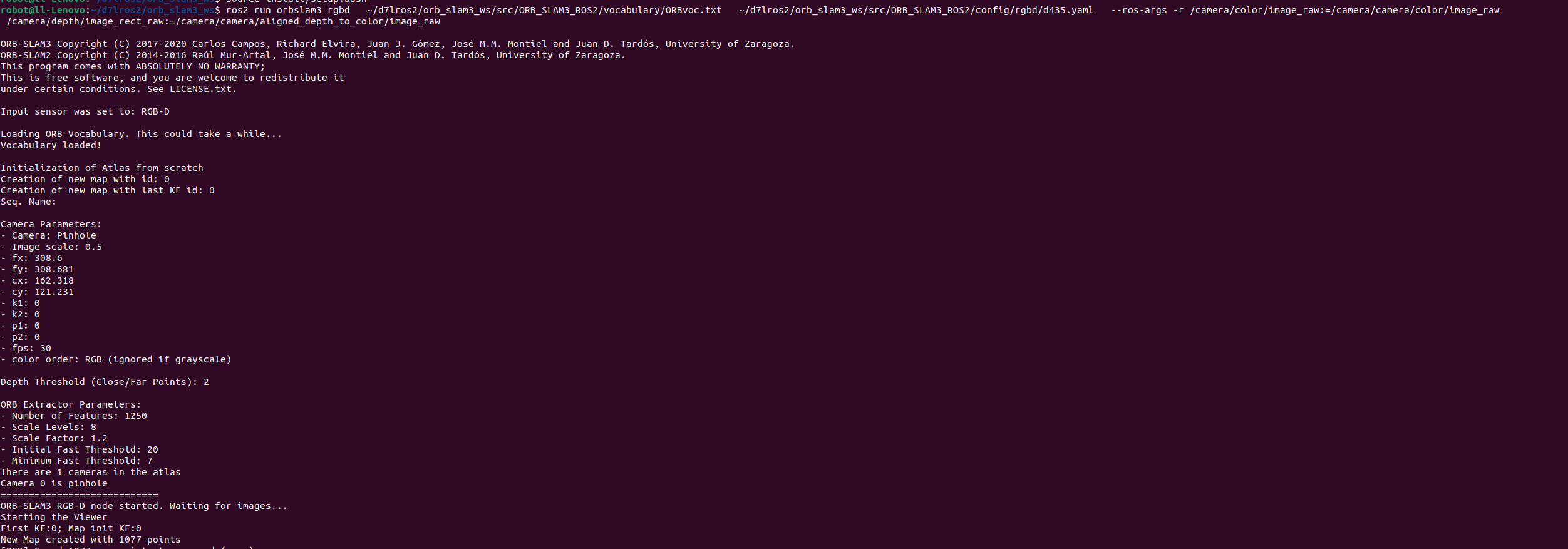

robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$ ros2 run orbslam3 rgbd   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/rgbd/d435.yaml   --ros-args -r /camera/color/image_raw:=/camera/camera/color/image_raw              -r /camera/depth/image_rect_raw:=/camera/camera/aligned_depth_to_color/image_raw

ORB-SLAM3 Copyright (C) 2017-2020 Carlos Campos, Richard Elvira, Juan J. Gómez, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
ORB-SLAM2 Copyright (C) 2014-2016 Raúl Mur-Artal, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
This program comes with ABSOLUTELY NO WARRANTY;
This is free software, and you are welcome to redistribute it
under certain conditions. See LICENSE.txt.

Input sensor was set to: RGB-D

Loading ORB Vocabulary. This could take a while...
Vocabulary loaded!

Initialization of Atlas from scratch
Creation of new map with id: 0
Creation of new map with last KF id: 0
Seq. Name:

Camera Parameters:
- Camera: Pinhole
- Image scale: 0.5
- fx: 308.6
- fy: 308.681
- cx: 162.318
- cy: 121.231
- k1: 0
- k2: 0
- p1: 0
- p2: 0
- fps: 30
- color order: RGB (ignored if grayscale)

Depth Threshold (Close/Far Points): 2

ORB Extractor Parameters:
- Number of Features: 1250
- Scale Levels: 8
- Scale Factor: 1.2
- Initial Fast Threshold: 20
- Minimum Fast Threshold: 7
There are 1 cameras in the atlas
Camera 0 is pinhole
============================
ORB-SLAM3 RGB-D node started. Waiting for images...
Starting the Viewer

成功启动后，你会看到两个窗口：

  • Map Viewer: 显示3D地图点云和相机轨迹的交互式窗口。

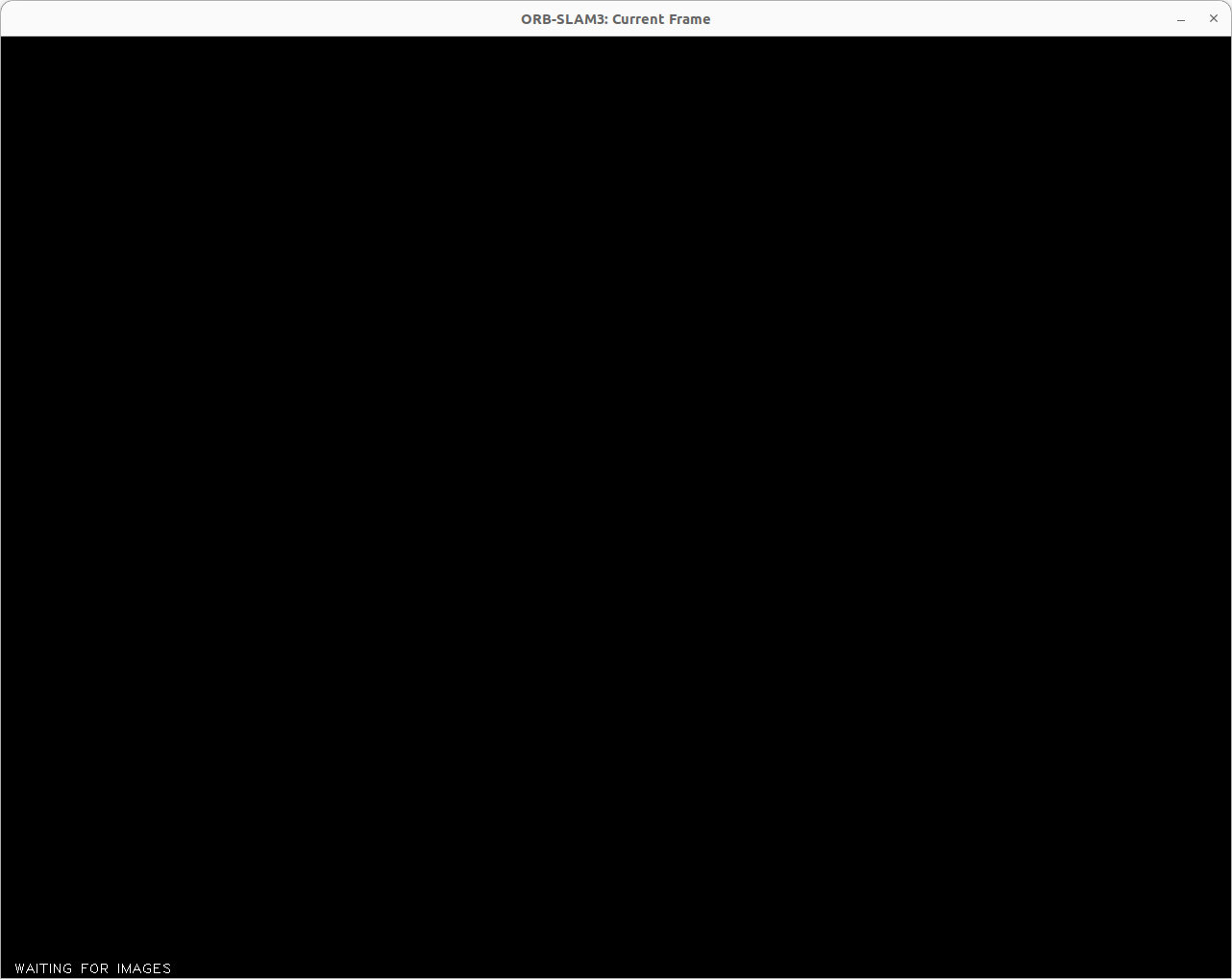

  • Current Frame: 显示当前相机画面及ORB特征点。

缓慢、平稳地移动相机，就像在扫描周围环境。ORB-SLAM3会根据特征点进行实时定位和建图。

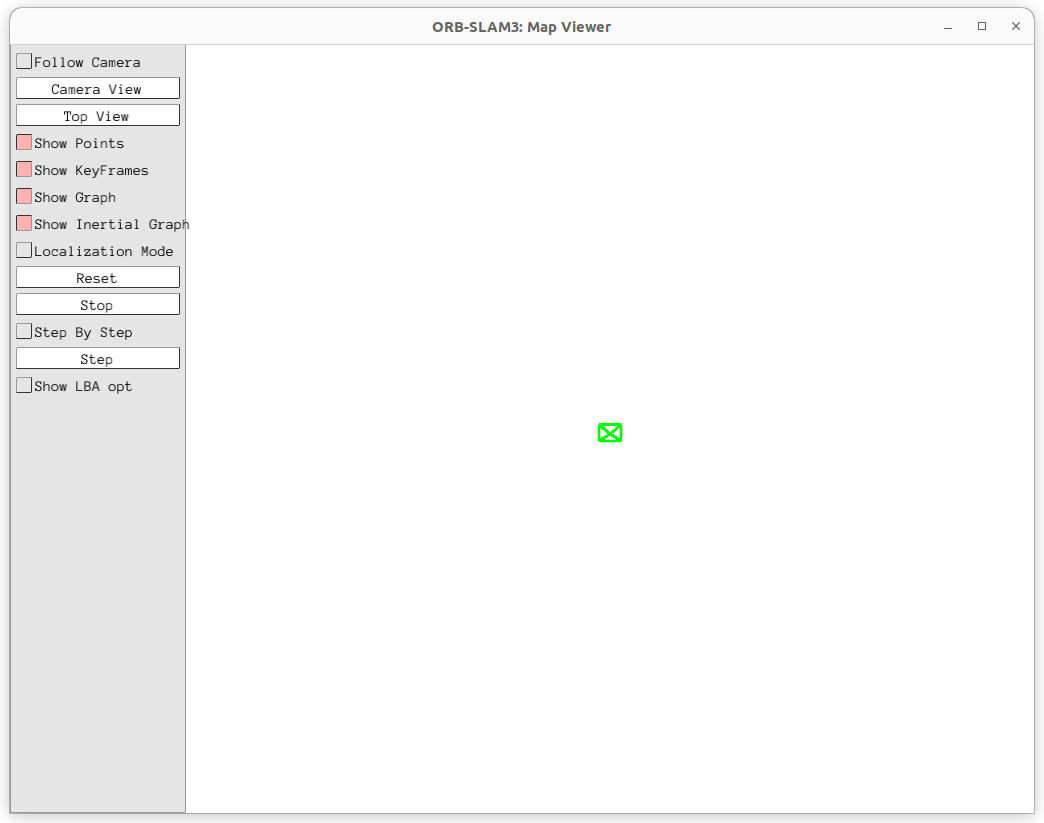

2. 理解并使用Map Viewer控制面板

**Map Viewer**窗口上的控制面板是交互的关键：

按钮/选项 功能说明
Follow Camera 勾选后，视角会自动跟随相机的当前位置，适合实时建图时观察。
Show Points 显示或隐藏地图中的稀疏点云。默认应该开启。
Show KeyFrames 显示或隐藏关键帧（以蓝色相机模型表示）。
Show Graph 显示关键帧之间的共视图（绿色连线），表示它们之间的视觉关联。
Reset 清除当前地图并重新初始化。注意：这会丢失未保存的地图数据。
Stop 停止SLAM线程并保存相机轨迹文件。这在结束建图前需要操作。

使用建议：

  • 建图初期，推荐勾选 Follow Camera，方便了解相机视野。

  • 当想观察已构建地图的全貌时，可以取消 Follow Camera，然后用鼠标拖拽、滚轮来自由查看3D地图。

  • 如果想追踪系统状态，可以观察 Current Frame 窗口顶部的状态栏信息。

二、地图保存

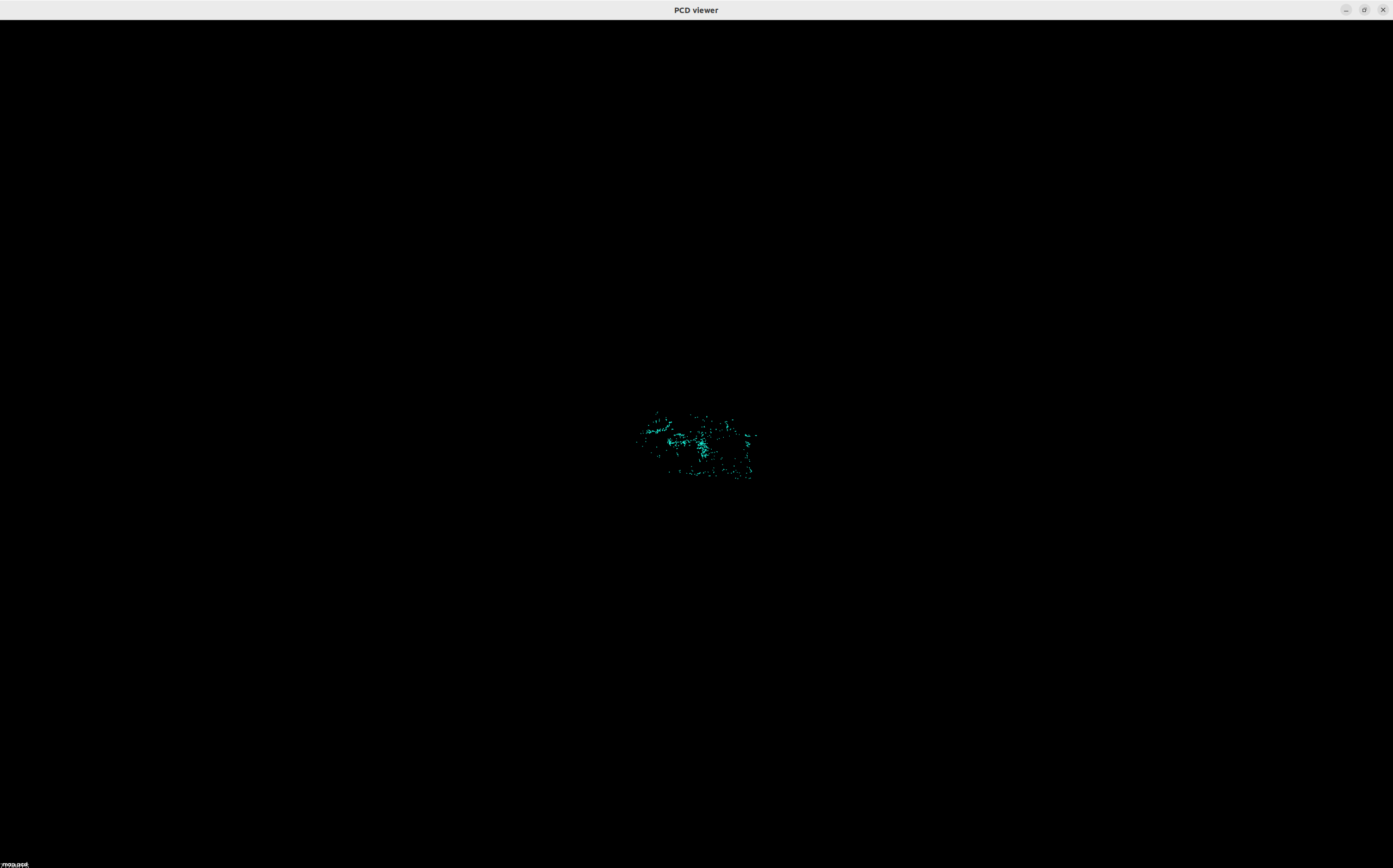

一般我们需要在其他软件（如CloudCompare、PCL库）中分析或使用地图点云，就需要将地图保存为通用的.pcd格式。

1.安装PCL库

打开终端，依次输入：

bash 复制代码
sudo apt update && sudo apt upgrade -y
bash 复制代码
sudo apt-get install libpcl-dev pcl-tools

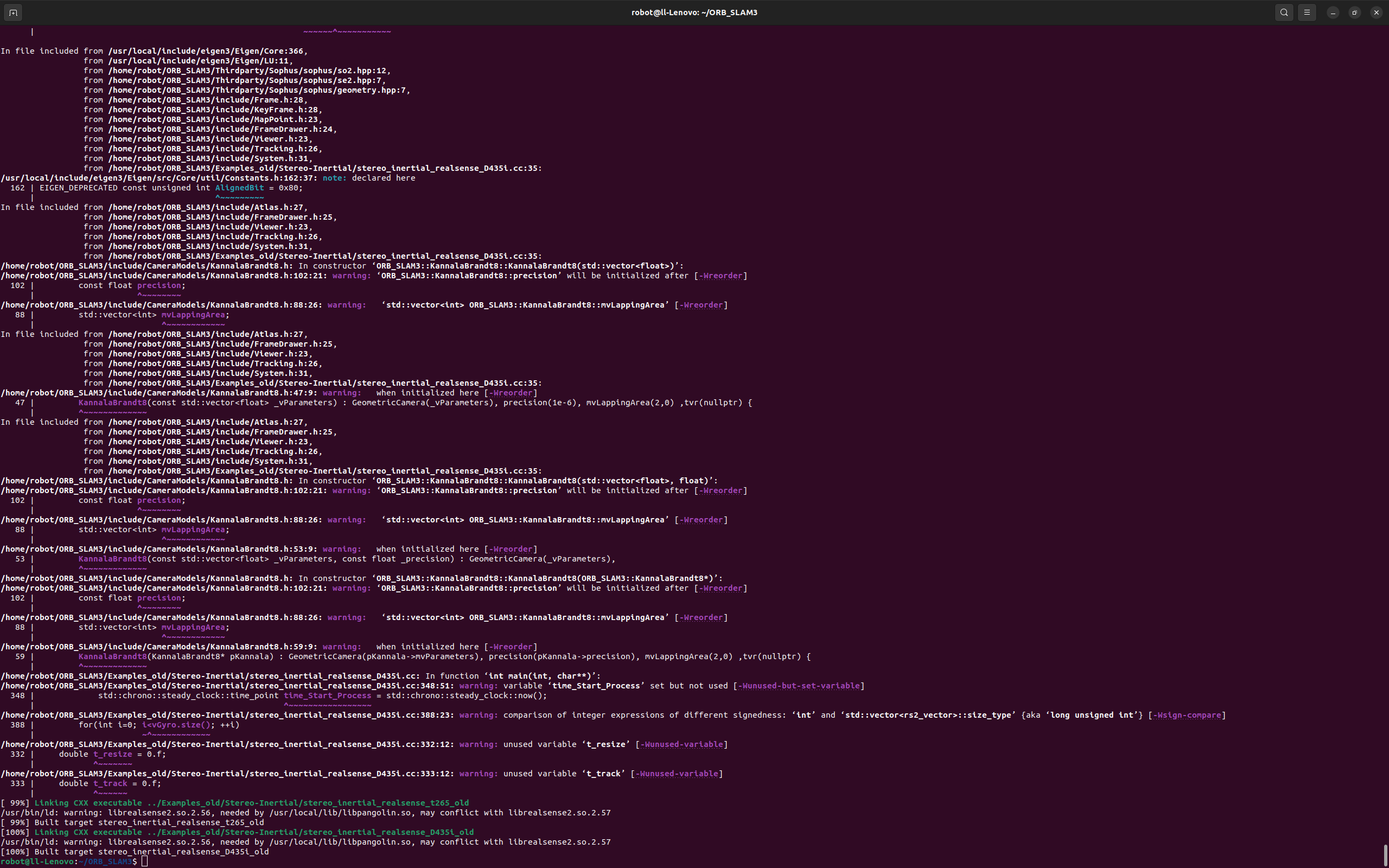

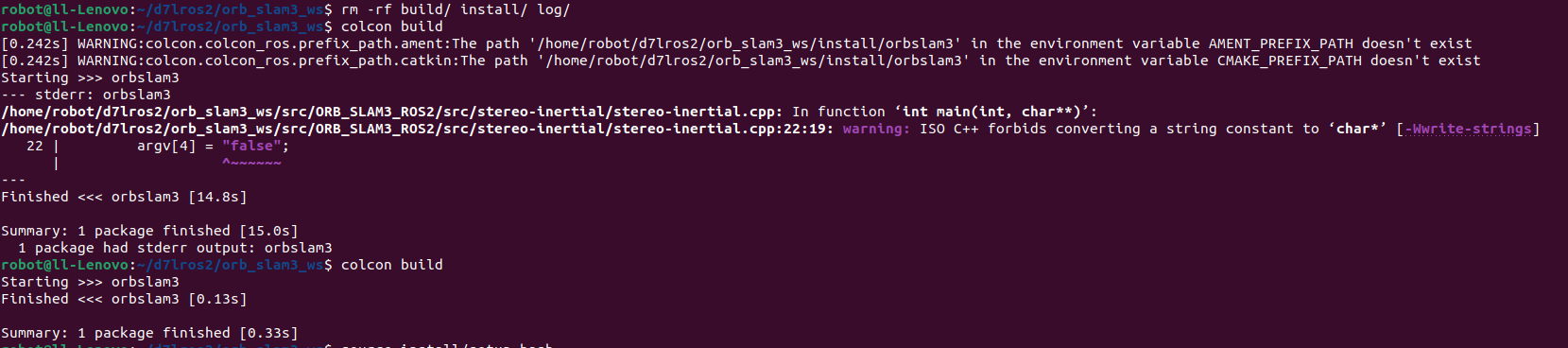

2. 修改源码并重新编译

需要修改ORB-SLAM3源码，将地图点云写入PCD文件。

通常涉及修改两个文件：

  • CMakeLists.txt: 添加PCL库的依赖。

  • src/MapDrawer.cc: 增加保存PCD文件的代码。

（1）修改 CMakeLists.txt

找到 find_package 区域，添加以下行：

bash 复制代码
find_package(PCL REQUIRED)

找到 include_directories 区域，添加 PCL 的头文件路径：

bash 复制代码
include_directories(
    ${PROJECT_SOURCE_DIR}
    ${PROJECT_SOURCE_DIR}/include
    ${PROJECT_SOURCE_DIR}/include/CameraModels
    ${PROJECT_SOURCE_DIR}/Thirdparty/Sophus
    ${EIGEN3_INCLUDE_DIR}
    ${Pangolin_INCLUDE_DIRS}
    ${PCL_INCLUDE_DIRS}  # <--- 添加这一行
)

找到构建 ORB-SLAM3 库的 target_link_libraries 指令，在其中添加：

bash 复制代码
target_link_libraries(${PROJECT_NAME}
    # ... 其他库 ...
    ${Pangolin_LIBRARIES}
    ${PCL_LIBRARIES} # <--- 添加这一行
)

我这里直接给出修改后的完整CMakeLists.txt文件提供参考：

bash 复制代码
cmake_minimum_required(VERSION 2.8)
set(CMAKE_CXX_STANDARD 14)
project(ORB_SLAM3)

IF(NOT CMAKE_BUILD_TYPE)
  SET(CMAKE_BUILD_TYPE Release)
ENDIF()

MESSAGE("Build type: " ${CMAKE_BUILD_TYPE})

set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS}  -Wall   -O3")
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall   -O3")
set(CMAKE_C_FLAGS_RELEASE "${CMAKE_C_FLAGS_RELEASE} -march=native")
set(CMAKE_CXX_FLAGS_RELEASE "${CMAKE_CXX_FLAGS_RELEASE} -march=native")

# Check C++11 or C++0x support
include(CheckCXXCompilerFlag)
CHECK_CXX_COMPILER_FLAG("-std=c++11" COMPILER_SUPPORTS_CXX11)
CHECK_CXX_COMPILER_FLAG("-std=c++0x" COMPILER_SUPPORTS_CXX0X)
if(COMPILER_SUPPORTS_CXX11)
   set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11")
   add_definitions(-DCOMPILEDWITHC11)
   message(STATUS "Using flag -std=c++11.")
elseif(COMPILER_SUPPORTS_CXX0X)
   set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++0x")
   add_definitions(-DCOMPILEDWITHC0X)
   message(STATUS "Using flag -std=c++0x.")
else()
   message(FATAL_ERROR "The compiler ${CMAKE_CXX_COMPILER} has no C++11 support. Please use a different C++ compiler.")
endif()

LIST(APPEND CMAKE_MODULE_PATH ${PROJECT_SOURCE_DIR}/cmake_modules)

find_package(OpenCV 4.4)
   if(NOT OpenCV_FOUND)
      message(FATAL_ERROR "OpenCV > 4.4 not found.")
   endif()

MESSAGE("OPENCV VERSION:")
MESSAGE(${OpenCV_VERSION})

find_package(Eigen3 3.1.0 REQUIRED)
find_package(Pangolin REQUIRED)
find_package(realsense2)
find_package(PCL REQUIRED)

include_directories(
${PROJECT_SOURCE_DIR}
${PROJECT_SOURCE_DIR}/include
${PROJECT_SOURCE_DIR}/include/CameraModels
${PROJECT_SOURCE_DIR}/Thirdparty/Sophus
${EIGEN3_INCLUDE_DIR}
${Pangolin_INCLUDE_DIRS}
${PCL_INCLUDE_DIRS}
)

set(CMAKE_LIBRARY_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/lib)

add_library(${PROJECT_NAME} SHARED
src/System.cc
src/Tracking.cc
src/LocalMapping.cc
src/LoopClosing.cc
src/ORBextractor.cc
src/ORBmatcher.cc
src/FrameDrawer.cc
src/Converter.cc
src/MapPoint.cc
src/KeyFrame.cc
src/Atlas.cc
src/Map.cc
src/MapDrawer.cc
src/Optimizer.cc
src/Frame.cc
src/KeyFrameDatabase.cc
src/Sim3Solver.cc
src/Viewer.cc
src/ImuTypes.cc
src/G2oTypes.cc
src/CameraModels/Pinhole.cpp
src/CameraModels/KannalaBrandt8.cpp
src/OptimizableTypes.cpp
src/MLPnPsolver.cpp
src/GeometricTools.cc
src/TwoViewReconstruction.cc
src/Config.cc
src/Settings.cc
include/System.h
include/Tracking.h
include/LocalMapping.h
include/LoopClosing.h
include/ORBextractor.h
include/ORBmatcher.h
include/FrameDrawer.h
include/Converter.h
include/MapPoint.h
include/KeyFrame.h
include/Atlas.h
include/Map.h
include/MapDrawer.h
include/Optimizer.h
include/Frame.h
include/KeyFrameDatabase.h
include/Sim3Solver.h
include/Viewer.h
include/ImuTypes.h
include/G2oTypes.h
include/CameraModels/GeometricCamera.h
include/CameraModels/Pinhole.h
include/CameraModels/KannalaBrandt8.h
include/OptimizableTypes.h
include/MLPnPsolver.h
include/GeometricTools.h
include/TwoViewReconstruction.h
include/SerializationUtils.h
include/Config.h
include/Settings.h)

add_subdirectory(Thirdparty/g2o)

target_link_libraries(${PROJECT_NAME}
${OpenCV_LIBS}
${EIGEN3_LIBS}
${Pangolin_LIBRARIES}
${PCL_LIBRARIES}
${PROJECT_SOURCE_DIR}/Thirdparty/DBoW2/lib/libDBoW2.so
${PROJECT_SOURCE_DIR}/Thirdparty/g2o/lib/libg2o.so
-lboost_serialization
-lcrypto
)

# If RealSense SDK is found the library is added and its examples compiled
if(realsense2_FOUND)
    include_directories(${PROJECT_NAME}
    ${realsense_INCLUDE_DIR}
    )
    target_link_libraries(${PROJECT_NAME}
    ${realsense2_LIBRARY}
    )
endif()


# Build examples

# RGB-D examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/RGB-D)

add_executable(rgbd_tum
        Examples/RGB-D/rgbd_tum.cc)
target_link_libraries(rgbd_tum ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(rgbd_realsense_D435i
            Examples/RGB-D/rgbd_realsense_D435i.cc)
    target_link_libraries(rgbd_realsense_D435i ${PROJECT_NAME})
endif()


# RGB-D inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/RGB-D-Inertial)

if(realsense2_FOUND)
    add_executable(rgbd_inertial_realsense_D435i
            Examples/RGB-D-Inertial/rgbd_inertial_realsense_D435i.cc)
    target_link_libraries(rgbd_inertial_realsense_D435i ${PROJECT_NAME})
endif()

#Stereo examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Stereo)

add_executable(stereo_kitti
        Examples/Stereo/stereo_kitti.cc)
target_link_libraries(stereo_kitti ${PROJECT_NAME})

add_executable(stereo_euroc
        Examples/Stereo/stereo_euroc.cc)
target_link_libraries(stereo_euroc ${PROJECT_NAME})

add_executable(stereo_tum_vi
        Examples/Stereo/stereo_tum_vi.cc)
target_link_libraries(stereo_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_realsense_t265
            Examples/Stereo/stereo_realsense_t265.cc)
    target_link_libraries(stereo_realsense_t265 ${PROJECT_NAME})

    add_executable(stereo_realsense_D435i
            Examples/Stereo/stereo_realsense_D435i.cc)
    target_link_libraries(stereo_realsense_D435i ${PROJECT_NAME})
endif()

#Monocular examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Monocular)

add_executable(mono_tum
        Examples/Monocular/mono_tum.cc)
target_link_libraries(mono_tum ${PROJECT_NAME})

add_executable(mono_kitti
        Examples/Monocular/mono_kitti.cc)
target_link_libraries(mono_kitti ${PROJECT_NAME})

add_executable(mono_euroc
        Examples/Monocular/mono_euroc.cc)
target_link_libraries(mono_euroc ${PROJECT_NAME})

add_executable(mono_tum_vi
        Examples/Monocular/mono_tum_vi.cc)
target_link_libraries(mono_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_realsense_t265
            Examples/Monocular/mono_realsense_t265.cc)
    target_link_libraries(mono_realsense_t265 ${PROJECT_NAME})

    add_executable(mono_realsense_D435i
            Examples/Monocular/mono_realsense_D435i.cc)
    target_link_libraries(mono_realsense_D435i ${PROJECT_NAME})
endif()

#Monocular inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Monocular-Inertial)

add_executable(mono_inertial_euroc
        Examples/Monocular-Inertial/mono_inertial_euroc.cc)
target_link_libraries(mono_inertial_euroc ${PROJECT_NAME})

add_executable(mono_inertial_tum_vi
        Examples/Monocular-Inertial/mono_inertial_tum_vi.cc)
target_link_libraries(mono_inertial_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_inertial_realsense_t265
            Examples/Monocular-Inertial/mono_inertial_realsense_t265.cc)
    target_link_libraries(mono_inertial_realsense_t265 ${PROJECT_NAME})

    add_executable(mono_inertial_realsense_D435i
            Examples/Monocular-Inertial/mono_inertial_realsense_D435i.cc)
    target_link_libraries(mono_inertial_realsense_D435i ${PROJECT_NAME})
endif()

#Stereo Inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Stereo-Inertial)

add_executable(stereo_inertial_euroc
        Examples/Stereo-Inertial/stereo_inertial_euroc.cc)
target_link_libraries(stereo_inertial_euroc ${PROJECT_NAME})

add_executable(stereo_inertial_tum_vi
        Examples/Stereo-Inertial/stereo_inertial_tum_vi.cc)
target_link_libraries(stereo_inertial_tum_vi ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_inertial_realsense_t265
            Examples/Stereo-Inertial/stereo_inertial_realsense_t265.cc)
    target_link_libraries(stereo_inertial_realsense_t265 ${PROJECT_NAME})

    add_executable(stereo_inertial_realsense_D435i
            Examples/Stereo-Inertial/stereo_inertial_realsense_D435i.cc)
    target_link_libraries(stereo_inertial_realsense_D435i ${PROJECT_NAME})
endif()

set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples/Calibration)
if(realsense2_FOUND)
    add_executable(recorder_realsense_D435i
            Examples/Calibration/recorder_realsense_D435i.cc)
    target_link_libraries(recorder_realsense_D435i ${PROJECT_NAME})

    add_executable(recorder_realsense_T265
            Examples/Calibration/recorder_realsense_T265.cc)
    target_link_libraries(recorder_realsense_T265 ${PROJECT_NAME})
endif()

#Old examples

# RGB-D examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/RGB-D)

add_executable(rgbd_tum_old
        Examples_old/RGB-D/rgbd_tum.cc)
target_link_libraries(rgbd_tum_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(rgbd_realsense_D435i_old
            Examples_old/RGB-D/rgbd_realsense_D435i.cc)
    target_link_libraries(rgbd_realsense_D435i_old ${PROJECT_NAME})
endif()


# RGB-D inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/RGB-D-Inertial)

if(realsense2_FOUND)
    add_executable(rgbd_inertial_realsense_D435i_old
            Examples_old/RGB-D-Inertial/rgbd_inertial_realsense_D435i.cc)
    target_link_libraries(rgbd_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

#Stereo examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Stereo)

add_executable(stereo_kitti_old
        Examples_old/Stereo/stereo_kitti.cc)
target_link_libraries(stereo_kitti_old ${PROJECT_NAME})

add_executable(stereo_euroc_old
        Examples_old/Stereo/stereo_euroc.cc)
target_link_libraries(stereo_euroc_old ${PROJECT_NAME})

add_executable(stereo_tum_vi_old
        Examples_old/Stereo/stereo_tum_vi.cc)
target_link_libraries(stereo_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_realsense_t265_old
            Examples_old/Stereo/stereo_realsense_t265.cc)
    target_link_libraries(stereo_realsense_t265_old ${PROJECT_NAME})

    add_executable(stereo_realsense_D435i_old
            Examples_old/Stereo/stereo_realsense_D435i.cc)
    target_link_libraries(stereo_realsense_D435i_old ${PROJECT_NAME})
endif()

#Monocular examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Monocular)

add_executable(mono_tum_old
        Examples_old/Monocular/mono_tum.cc)
target_link_libraries(mono_tum_old ${PROJECT_NAME})

add_executable(mono_kitti_old
        Examples_old/Monocular/mono_kitti.cc)
target_link_libraries(mono_kitti_old ${PROJECT_NAME})

add_executable(mono_euroc_old
        Examples_old/Monocular/mono_euroc.cc)
target_link_libraries(mono_euroc_old ${PROJECT_NAME})

add_executable(mono_tum_vi_old
        Examples_old/Monocular/mono_tum_vi.cc)
target_link_libraries(mono_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_realsense_t265_old
            Examples_old/Monocular/mono_realsense_t265.cc)
    target_link_libraries(mono_realsense_t265_old ${PROJECT_NAME})

    add_executable(mono_realsense_D435i_old
            Examples_old/Monocular/mono_realsense_D435i.cc)
    target_link_libraries(mono_realsense_D435i_old ${PROJECT_NAME})
endif()

#Monocular inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Monocular-Inertial)

add_executable(mono_inertial_euroc_old
        Examples_old/Monocular-Inertial/mono_inertial_euroc.cc)
target_link_libraries(mono_inertial_euroc_old ${PROJECT_NAME})

add_executable(mono_inertial_tum_vi_old
        Examples_old/Monocular-Inertial/mono_inertial_tum_vi.cc)
target_link_libraries(mono_inertial_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(mono_inertial_realsense_t265_old
            Examples_old/Monocular-Inertial/mono_inertial_realsense_t265.cc)
    target_link_libraries(mono_inertial_realsense_t265_old ${PROJECT_NAME})

    add_executable(mono_inertial_realsense_D435i_old
            Examples_old/Monocular-Inertial/mono_inertial_realsense_D435i.cc)
    target_link_libraries(mono_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

#Stereo Inertial examples
set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${PROJECT_SOURCE_DIR}/Examples_old/Stereo-Inertial)

add_executable(stereo_inertial_euroc_old
        Examples_old/Stereo-Inertial/stereo_inertial_euroc.cc)
target_link_libraries(stereo_inertial_euroc_old ${PROJECT_NAME})

add_executable(stereo_inertial_tum_vi_old
        Examples_old/Stereo-Inertial/stereo_inertial_tum_vi.cc)
target_link_libraries(stereo_inertial_tum_vi_old ${PROJECT_NAME})

if(realsense2_FOUND)
    add_executable(stereo_inertial_realsense_t265_old
            Examples_old/Stereo-Inertial/stereo_inertial_realsense_t265.cc)
    target_link_libraries(stereo_inertial_realsense_t265_old ${PROJECT_NAME})

    add_executable(stereo_inertial_realsense_D435i_old
            Examples_old/Stereo-Inertial/stereo_inertial_realsense_D435i.cc)
    target_link_libraries(stereo_inertial_realsense_D435i_old ${PROJECT_NAME})
endif()

（2）修改 src/MapDrawer.cc

在 MapDrawer.cc 中植入 PCD 保存功能。

在文件开头的 #include 区域，加入 PCL 必要的头文件：

cpp 复制代码
#include <pcl/point_types.h>
#include <pcl/point_cloud.h>
#include <pcl/io/pcd_io.h>

在头文件之后、命名空间 ORB_SLAM3 之前，定义一个全局变量，用于记录上次保存的点云数量，避免重复保存：

cpp 复制代码
extern int pre_num = 0;

找到 MapDrawer::DrawMapPoints() 函数的实现，在函数的末尾，加入以下 PCL 保存逻辑。根据你 MapDrawer.cc 中 DrawMapPoints() 函数的具体实现，将以下代码块插入到函数末尾的合适位置：

cpp 复制代码
// 在 DrawMapPoints() 函数的末尾添加
// 保存地图为PCD文件
const vector<MapPoint*> &vpMPs = mpMap->GetAllMapPoints();
const vector<MapPoint*> &vpRefMPs = mpMap->GetReferenceMapPoints();
set<MapPoint*> spRefMPs(vpRefMPs.begin(), vpRefMPs.end());

if(vpMPs.empty())
    return;

// 只保存一次，当参考地图点数量不再增加时保存
if(spRefMPs.size() <= pre_num)
{
    // 创建点云对象，XYZ 类型
    pcl::PointCloud<pcl::PointXYZ>::Ptr cloud_saved(new pcl::PointCloud<pcl::PointXYZ>);
    cloud_saved->height = 1;
    cloud_saved->is_dense = false;
    cloud_saved->points.resize(vpMPs.size());

    // 遍历所有地图点，填充点云数据
    for(size_t i=0, iend=vpMPs.size(); i<iend; i++)
    {
        if(vpMPs[i]->isBad())
            continue;
        cv::Mat pos = vpMPs[i]->GetWorldPos();
        cloud_saved->points[i].x = pos.at<float>(0);
        cloud_saved->points[i].y = pos.at<float>(1);
        cloud_saved->points[i].z = pos.at<float>(2);
    }
    cloud_saved->width = cloud_saved->points.size();

    // 保存为 PCD 文件
    pcl::io::savePCDFileASCII("map.pcd", *cloud_saved);
    cout << "Saved " << cloud_saved->points.size() << " points to map.pcd" << endl;

    // 重置计数器，防止反复保存
    pre_num = 0;
} else {
    // 更新参考地图点数量，用于判断何时保存
    pre_num = spRefMPs.size();
}

我这里直接给出修改后的完整MapDrawer.cc文件提供参考：

cpp 复制代码
/**
* This file is part of ORB-SLAM3
*
* Copyright (C) 2017-2021 Carlos Campos, Richard Elvira, Juan J. Gómez Rodríguez, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
* Copyright (C) 2014-2016 Raúl Mur-Artal, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
*
* ORB-SLAM3 is free software: you can redistribute it and/or modify it under the terms of the GNU General Public
* License as published by the Free Software Foundation, either version 3 of the License, or
* (at your option) any later version.
*
* ORB-SLAM3 is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even
* the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
* GNU General Public License for more details.
*
* You should have received a copy of the GNU General Public License along with ORB-SLAM3.
* If not, see <http://www.gnu.org/licenses/>.
*/

#include "MapDrawer.h"
#include "MapPoint.h"
#include "KeyFrame.h"
#include <pangolin/pangolin.h>
#include <mutex>

// ===== 添加 PCL 支持 =====
#include <pcl/point_types.h>
#include <pcl/point_cloud.h>
#include <pcl/io/pcd_io.h>

namespace ORB_SLAM3
{

// ===== 全局变量，用于判断何时保存地图 =====
int pre_num = 0;

MapDrawer::MapDrawer(Atlas* pAtlas, const string &strSettingPath, Settings* settings):mpAtlas(pAtlas)
{
    if(settings){
        newParameterLoader(settings);
    }
    else{
        cv::FileStorage fSettings(strSettingPath, cv::FileStorage::READ);
        bool is_correct = ParseViewerParamFile(fSettings);

        if(!is_correct)
        {
            std::cerr << "**ERROR in the config file, the format is not correct**" << std::endl;
            try
            {
                throw -1;
            }
            catch(exception &e)
            {

            }
        }
    }
}

void MapDrawer::newParameterLoader(Settings *settings) {
    mKeyFrameSize = settings->keyFrameSize();
    mKeyFrameLineWidth = settings->keyFrameLineWidth();
    mGraphLineWidth = settings->graphLineWidth();
    mPointSize = settings->pointSize();
    mCameraSize = settings->cameraSize();
    mCameraLineWidth  = settings->cameraLineWidth();
}

bool MapDrawer::ParseViewerParamFile(cv::FileStorage &fSettings)
{
    bool b_miss_params = false;

    cv::FileNode node = fSettings["Viewer.KeyFrameSize"];
    if(!node.empty())
    {
        mKeyFrameSize = node.real();
    }
    else
    {
        std::cerr << "*Viewer.KeyFrameSize parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    node = fSettings["Viewer.KeyFrameLineWidth"];
    if(!node.empty())
    {
        mKeyFrameLineWidth = node.real();
    }
    else
    {
        std::cerr << "*Viewer.KeyFrameLineWidth parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    node = fSettings["Viewer.GraphLineWidth"];
    if(!node.empty())
    {
        mGraphLineWidth = node.real();
    }
    else
    {
        std::cerr << "*Viewer.GraphLineWidth parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    node = fSettings["Viewer.PointSize"];
    if(!node.empty())
    {
        mPointSize = node.real();
    }
    else
    {
        std::cerr << "*Viewer.PointSize parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    node = fSettings["Viewer.CameraSize"];
    if(!node.empty())
    {
        mCameraSize = node.real();
    }
    else
    {
        std::cerr << "*Viewer.CameraSize parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    node = fSettings["Viewer.CameraLineWidth"];
    if(!node.empty())
    {
        mCameraLineWidth = node.real();
    }
    else
    {
        std::cerr << "*Viewer.CameraLineWidth parameter doesn't exist or is not a real number*" << std::endl;
        b_miss_params = true;
    }

    return !b_miss_params;
}

void MapDrawer::DrawMapPoints()
{
    if(!mpAtlas)
        return;

    Map* pActiveMap = mpAtlas->GetCurrentMap();
    if(!pActiveMap)
        return;

    const vector<MapPoint*> &vpMPs = pActiveMap->GetAllMapPoints();
    const vector<MapPoint*> &vpRefMPs = pActiveMap->GetReferenceMapPoints();

    set<MapPoint*> spRefMPs(vpRefMPs.begin(), vpRefMPs.end());

    if(vpMPs.empty())
        return;

    glPointSize(mPointSize);
    glBegin(GL_POINTS);
    glColor3f(0.0,0.0,0.0);

    for(size_t i=0, iend=vpMPs.size(); i<iend;i++)
    {
        if(vpMPs[i]->isBad() || spRefMPs.count(vpMPs[i]))
            continue;
        Eigen::Matrix<float,3,1> pos = vpMPs[i]->GetWorldPos();
        glVertex3f(pos(0),pos(1),pos(2));
    }
    glEnd();

    glPointSize(mPointSize);
    glBegin(GL_POINTS);
    glColor3f(1.0,0.0,0.0);

    for(set<MapPoint*>::iterator sit=spRefMPs.begin(), send=spRefMPs.end(); sit!=send; sit++)
    {
        if((*sit)->isBad())
            continue;
        Eigen::Matrix<float,3,1> pos = (*sit)->GetWorldPos();
        glVertex3f(pos(0),pos(1),pos(2));
    }

    glEnd();

    // ========== 保存地图为 PCD 文件（仅保存一次，稳定后触发） ==========
    static bool bSaved = false;
    if(!bSaved && spRefMPs.size() > 100)
    {
        static int lastRefCount = 0;
        static int stableCount = 0;
        if((int)spRefMPs.size() == lastRefCount)
        {
            stableCount++;
        }
        else
        {
            stableCount = 0;
            lastRefCount = spRefMPs.size();
        }

        if(stableCount >= 5)
        {
            pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new pcl::PointCloud<pcl::PointXYZ>);
            cloud->height = 1;
            cloud->is_dense = false;
            cloud->points.reserve(vpMPs.size());

            for(auto pMP : vpMPs)
            {
                if(pMP->isBad())
                    continue;
                Eigen::Matrix<float,3,1> pos = pMP->GetWorldPos();
                pcl::PointXYZ pt;
                pt.x = pos(0);
                pt.y = pos(1);
                pt.z = pos(2);
                cloud->points.push_back(pt);
            }
            cloud->width = cloud->points.size();

            if(!cloud->empty())
            {
                pcl::io::savePCDFileASCII("map.pcd", *cloud);
                std::cout << "[PCD] Saved " << cloud->points.size()
                          << " map points to map.pcd (once)" << std::endl;
            }
            bSaved = true;
        }
    }
}

void MapDrawer::DrawKeyFrames(const bool bDrawKF, const bool bDrawGraph, const bool bDrawInertialGraph, const bool bDrawOptLba)
{
    const float &w = mKeyFrameSize;
    const float h = w*0.75;
    const float z = w*0.6;

    Map* pActiveMap = mpAtlas->GetCurrentMap();
    // DEBUG LBA
    std::set<long unsigned int> sOptKFs = pActiveMap->msOptKFs;
    std::set<long unsigned int> sFixedKFs = pActiveMap->msFixedKFs;

    if(!pActiveMap)
        return;

    const vector<KeyFrame*> vpKFs = pActiveMap->GetAllKeyFrames();

    if(bDrawKF)
    {
        for(size_t i=0; i<vpKFs.size(); i++)
        {
            KeyFrame* pKF = vpKFs[i];
            Eigen::Matrix4f Twc = pKF->GetPoseInverse().matrix();
            unsigned int index_color = pKF->mnOriginMapId;

            glPushMatrix();

            glMultMatrixf((GLfloat*)Twc.data());

            if(!pKF->GetParent()) // It is the first KF in the map
            {
                glLineWidth(mKeyFrameLineWidth*5);
                glColor3f(1.0f,0.0f,0.0f);
                glBegin(GL_LINES);
            }
            else
            {
                //cout << "Child KF: " << vpKFs[i]->mnId << endl;
                glLineWidth(mKeyFrameLineWidth);
                if (bDrawOptLba) {
                    if(sOptKFs.find(pKF->mnId) != sOptKFs.end())
                    {
                        glColor3f(0.0f,1.0f,0.0f); // Green -> Opt KFs
                    }
                    else if(sFixedKFs.find(pKF->mnId) != sFixedKFs.end())
                    {
                        glColor3f(1.0f,0.0f,0.0f); // Red -> Fixed KFs
                    }
                    else
                    {
                        glColor3f(0.0f,0.0f,1.0f); // Basic color
                    }
                }
                else
                {
                    glColor3f(0.0f,0.0f,1.0f); // Basic color
                }
                glBegin(GL_LINES);
            }

            glVertex3f(0,0,0);
            glVertex3f(w,h,z);
            glVertex3f(0,0,0);
            glVertex3f(w,-h,z);
            glVertex3f(0,0,0);
            glVertex3f(-w,-h,z);
            glVertex3f(0,0,0);
            glVertex3f(-w,h,z);

            glVertex3f(w,h,z);
            glVertex3f(w,-h,z);

            glVertex3f(-w,h,z);
            glVertex3f(-w,-h,z);

            glVertex3f(-w,h,z);
            glVertex3f(w,h,z);

            glVertex3f(-w,-h,z);
            glVertex3f(w,-h,z);
            glEnd();

            glPopMatrix();

            glEnd();
        }
    }

    if(bDrawGraph)
    {
        glLineWidth(mGraphLineWidth);
        glColor4f(0.0f,1.0f,0.0f,0.6f);
        glBegin(GL_LINES);

        // cout << "-----------------Draw graph-----------------" << endl;
        for(size_t i=0; i<vpKFs.size(); i++)
        {
            // Covisibility Graph
            const vector<KeyFrame*> vCovKFs = vpKFs[i]->GetCovisiblesByWeight(100);
            Eigen::Vector3f Ow = vpKFs[i]->GetCameraCenter();
            if(!vCovKFs.empty())
            {
                for(vector<KeyFrame*>::const_iterator vit=vCovKFs.begin(), vend=vCovKFs.end(); vit!=vend; vit++)
                {
                    if((*vit)->mnId<vpKFs[i]->mnId)
                        continue;
                    Eigen::Vector3f Ow2 = (*vit)->GetCameraCenter();
                    glVertex3f(Ow(0),Ow(1),Ow(2));
                    glVertex3f(Ow2(0),Ow2(1),Ow2(2));
                }
            }

            // Spanning tree
            KeyFrame* pParent = vpKFs[i]->GetParent();
            if(pParent)
            {
                Eigen::Vector3f Owp = pParent->GetCameraCenter();
                glVertex3f(Ow(0),Ow(1),Ow(2));
                glVertex3f(Owp(0),Owp(1),Owp(2));
            }

            // Loops
            set<KeyFrame*> sLoopKFs = vpKFs[i]->GetLoopEdges();
            for(set<KeyFrame*>::iterator sit=sLoopKFs.begin(), send=sLoopKFs.end(); sit!=send; sit++)
            {
                if((*sit)->mnId<vpKFs[i]->mnId)
                    continue;
                Eigen::Vector3f Owl = (*sit)->GetCameraCenter();
                glVertex3f(Ow(0),Ow(1),Ow(2));
                glVertex3f(Owl(0),Owl(1),Owl(2));
            }
        }

        glEnd();
    }

    if(bDrawInertialGraph && pActiveMap->isImuInitialized())
    {
        glLineWidth(mGraphLineWidth);
        glColor4f(1.0f,0.0f,0.0f,0.6f);
        glBegin(GL_LINES);

        //Draw inertial links
        for(size_t i=0; i<vpKFs.size(); i++)
        {
            KeyFrame* pKFi = vpKFs[i];
            Eigen::Vector3f Ow = pKFi->GetCameraCenter();
            KeyFrame* pNext = pKFi->mNextKF;
            if(pNext)
            {
                Eigen::Vector3f Owp = pNext->GetCameraCenter();
                glVertex3f(Ow(0),Ow(1),Ow(2));
                glVertex3f(Owp(0),Owp(1),Owp(2));
            }
        }

        glEnd();
    }

    vector<Map*> vpMaps = mpAtlas->GetAllMaps();

    if(bDrawKF)
    {
        for(Map* pMap : vpMaps)
        {
            if(pMap == pActiveMap)
                continue;

            vector<KeyFrame*> vpKFs = pMap->GetAllKeyFrames();

            for(size_t i=0; i<vpKFs.size(); i++)
            {
                KeyFrame* pKF = vpKFs[i];
                Eigen::Matrix4f Twc = pKF->GetPoseInverse().matrix();
                unsigned int index_color = pKF->mnOriginMapId;

                glPushMatrix();

                glMultMatrixf((GLfloat*)Twc.data());

                if(!vpKFs[i]->GetParent()) // It is the first KF in the map
                {
                    glLineWidth(mKeyFrameLineWidth*5);
                    glColor3f(1.0f,0.0f,0.0f);
                    glBegin(GL_LINES);
                }
                else
                {
                    glLineWidth(mKeyFrameLineWidth);
                    glColor3f(mfFrameColors[index_color][0],mfFrameColors[index_color][1],mfFrameColors[index_color][2]);
                    glBegin(GL_LINES);
                }

                glVertex3f(0,0,0);
                glVertex3f(w,h,z);
                glVertex3f(0,0,0);
                glVertex3f(w,-h,z);
                glVertex3f(0,0,0);
                glVertex3f(-w,-h,z);
                glVertex3f(0,0,0);
                glVertex3f(-w,h,z);

                glVertex3f(w,h,z);
                glVertex3f(w,-h,z);

                glVertex3f(-w,h,z);
                glVertex3f(-w,-h,z);

                glVertex3f(-w,h,z);
                glVertex3f(w,h,z);

                glVertex3f(-w,-h,z);
                glVertex3f(w,-h,z);
                glEnd();

                glPopMatrix();
            }
        }
    }
}

void MapDrawer::DrawCurrentCamera(pangolin::OpenGlMatrix &Twc)
{
    const float &w = mCameraSize;
    const float h = w*0.75;
    const float z = w*0.6;

    glPushMatrix();

#ifdef HAVE_GLES
        glMultMatrixf(Twc.m);
#else
        glMultMatrixd(Twc.m);
#endif

    glLineWidth(mCameraLineWidth);
    glColor3f(0.0f,1.0f,0.0f);
    glBegin(GL_LINES);
    glVertex3f(0,0,0);
    glVertex3f(w,h,z);
    glVertex3f(0,0,0);
    glVertex3f(w,-h,z);
    glVertex3f(0,0,0);
    glVertex3f(-w,-h,z);
    glVertex3f(0,0,0);
    glVertex3f(-w,h,z);

    glVertex3f(w,h,z);
    glVertex3f(w,-h,z);

    glVertex3f(-w,h,z);
    glVertex3f(-w,-h,z);

    glVertex3f(-w,h,z);
    glVertex3f(w,h,z);

    glVertex3f(-w,-h,z);
    glVertex3f(w,-h,z);
    glEnd();

    glPopMatrix();
}


void MapDrawer::SetCurrentCameraPose(const Sophus::SE3f &Tcw)
{
    unique_lock<mutex> lock(mMutexCamera);
    mCameraPose = Tcw.inverse();
}

void MapDrawer::GetCurrentOpenGLCameraMatrix(pangolin::OpenGlMatrix &M, pangolin::OpenGlMatrix &MOw)
{
    Eigen::Matrix4f Twc;
    {
        unique_lock<mutex> lock(mMutexCamera);
        Twc = mCameraPose.matrix();
    }

    for (int i = 0; i<4; i++) {
        M.m[4*i] = Twc(0,i);
        M.m[4*i+1] = Twc(1,i);
        M.m[4*i+2] = Twc(2,i);
        M.m[4*i+3] = Twc(3,i);
    }

    MOw.SetIdentity();
    MOw.m[12] = Twc(0,3);
    MOw.m[13] = Twc(1,3);
    MOw.m[14] = Twc(2,3);
}
} //namespace ORB_SLAM

3. 重新编译ORB_SLAM3

打开终端，依次输入：

bash 复制代码
cd ~/ORB_SLAM3
bash 复制代码
rm -rf build lib Thirdparty/DBoW2/build Thirdparty/g2o/build Thirdparty/Sophus/build
bash 复制代码
./build.sh
bash 复制代码
[100%] Built target stereo_inertial_realsense_D435i_old

表示编译完成。

4. 重新编译 ROS 2 工作空间

在ROS 2 工作空间目录下，打开终端，输入：

bash 复制代码
rm -rf build/ install/ log/
bash 复制代码
colcon build --packages-select orbslam3

三、测试验证

1. 建图

启动相机后，在ORB_SLAM3的ROS2封装包的工作空间下启动建图：

bash 复制代码
source install/setup.bash
bash 复制代码
ros2 run orbslam3 rgbd   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/rgbd/d435.yaml   --ros-args -r /camera/color/image_raw:=/camera/camera/color/image_raw              -r /camera/depth/image_rect_raw:=/camera/camera/aligned_depth_to_color/image_raw
bash 复制代码
robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$ ros2 run orbslam3 rgbd   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/vocabulary/ORBvoc.txt   ~/d7lros2/orb_slam3_ws/src/ORB_SLAM3_ROS2/config/rgbd/d435.yaml   --ros-args -r /camera/color/image_raw:=/camera/camera/color/image_raw              -r /camera/depth/image_rect_raw:=/camera/camera/aligned_depth_to_color/image_raw

ORB-SLAM3 Copyright (C) 2017-2020 Carlos Campos, Richard Elvira, Juan J. Gómez, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
ORB-SLAM2 Copyright (C) 2014-2016 Raúl Mur-Artal, José M.M. Montiel and Juan D. Tardós, University of Zaragoza.
This program comes with ABSOLUTELY NO WARRANTY;
This is free software, and you are welcome to redistribute it
under certain conditions. See LICENSE.txt.

Input sensor was set to: RGB-D

Loading ORB Vocabulary. This could take a while...
Vocabulary loaded!

Initialization of Atlas from scratch
Creation of new map with id: 0
Creation of new map with last KF id: 0
Seq. Name:

Camera Parameters:
- Camera: Pinhole
- Image scale: 0.5
- fx: 308.6
- fy: 308.681
- cx: 162.318
- cy: 121.231
- k1: 0
- k2: 0
- p1: 0
- p2: 0
- fps: 30
- color order: RGB (ignored if grayscale)

Depth Threshold (Close/Far Points): 2

ORB Extractor Parameters:
- Number of Features: 1250
- Scale Levels: 8
- Scale Factor: 1.2
- Initial Fast Threshold: 20
- Minimum Fast Threshold: 7
There are 1 cameras in the atlas
Camera 0 is pinhole
============================
ORB-SLAM3 RGB-D node started. Waiting for images...
Starting the Viewer
First KF:0; Map init KF:0
New Map created with 1077 points
[PCD] Saved 1077 map points to map.pcd (once)

移动相机进行建图。建图结束按下 Map Viewer 窗口的 Stop 按钮结束建图，然后Ctrl+C退出程序：

可以看到：

bash 复制代码
[PCD] Saved 1077 map points to map.pcd (once)
Local Mapping STOP
Relocalized!!
Relocalized!!
Local Mapping RELEASE
Shutdown

Saving trajectory to CameraTrajectory.txt ...
There are 1 maps in the atlas
  Map 0 has 116 KFs

End of saving trajectory to CameraTrajectory.txt ...

Saving keyframe trajectory to KeyFrameTrajectory.txt ...

地图已经保存为工作空间下的 map.pcd 。

2. 查看地图

在ROS 2 工作空间目录下，打开终端，输入：

bash 复制代码
pcl_viewer map.pcd

我的结果如下：

bash 复制代码
robot@ll-Lenovo:~/d7lros2/orb_slam3_ws$ pcl_viewer map.pcd
2026-04-11 15:49:43.018 (   0.022s) [        F2EC2880] vtkContextDevice2D.cxx:32    WARN| Error: no override found for 'vtkContextDevice2D'.
The viewer window provides interactive commands; for help, press 'h' or 'H' from within the window.
> Loading map.pcd [PCLVisualizer::setUseVbos] Has no effect when OpenGL version is ≥ 2
[done, 208.561 ms : 16262 points]
Available dimensions: x y z
Segmentation fault (core dumped)

可以进行查看点云地图。

相关推荐
MIXLLRED3 天前
Ubuntu22.04 + ROS2 Humble + ORB-SLAM3 下从环境配置到深度相机d435实时SLAM
ros2·humble·orb_slam3·ubuntu22.04·d435
YQ_016 天前
Ubuntu 22.04 下让 Gazebo / RViz 使用 NVIDIA GPU 渲染
ros2
MIXLLRED6 天前
ROS2 Humble + rtabmap + D435i深度相机实现视觉惯性建图（二）—— 地图保存和查看
d435i·pcd·rtabmap
小手智联老徐7 天前
ROS2：与 Gazebo 版本对应关系解析
机器人·ros2·gazebo
rqtz8 天前
【机器人】ROS2配置solidworks模型转换的URDF文件
ros2·urdf·solidworks
小手智联老徐8 天前
ROS2：Humble 安装详解（Ubuntu 22.04）
ros2·humble·colcon
rqtz8 天前
【机器人】ROS2 功能包创建与 CMake 编译链路探秘
机器人·cmake·ros2
maxmaxma9 天前
ROS2机器人少年创客营：Python第三课
开发语言·python·机器人·ros2
小手智联老徐10 天前
ROS2 ：Node 与 Topic 初探（Python）
ros2
热门推荐
012026年4月技术前沿：AI大模型爆发、智能体革命与量子安全新纪元02GitHub 镜像站点03一周AI热点速览（2026.03.31-04.06）：GPT-6曝光、谷歌开源Gemma 4、资本狂飙与模型军备竞赛04GPT-6核心能力解析及与现有主流大模型对比05基于 Docker 部署 Hermes Agent 并接入飞书机器人的完整指南06免费！不限量！用opencode接入英伟达（NVIDIA）大模型，轻松打造你的 AI 编程助手07从限购到畅通：GLM-5.1 Coding Plan接入攻略08零成本！Ollama本地部署国产大模型全指南（支持Kimi-K2.5/GLM-5/Qwen，新手秒上手）09LLM Wiki：让大模型替你打理知识库的完整指南10CodeBuddy与WorkBuddy深度对比：腾讯两款AI工具差异及实操指南
