关于TSP的sealine算法与角谷猜想（2026-04-25）

云淡风轻~窗明几净2026-04-26 10:07

关于TSP的sealine算法与角谷猜想（2026-04-25）

1）TSP的sealine算法已基本完成代码，测试表明，可能点数越多越趋于精确解，原本来于想法：真空包装，真空包装塑料薄膜，中间抽空气，内陷，被内部质点顶点顶住，这是立体三维，再降维成二维平面时，包装塑料薄膜变换成橡皮筋。实际上，写代码已经最简单实现功能，但达不到模拟模型的理想状态，这是一个可以发展的方向乎，暂称为，量子潮汐涨落模拟－真空包装－塑料薄膜－橡皮筋－海岸线模型猜想，简称sealine算法/猜想，只是实现最简单代码乎。。。

  1. 角谷猜想熵增模拟相似，先连续1称为I，连续0称为O，字母IO代替数字10，然后边界处开始模糊光栅衍射，连续1连续0递减，最后10相邻，即由IO相邻变成10相邻。

2026-04-25今日很不容易，忍住疲劳，终于，修正了原有的sealine算法的bug，测试下，比较满意了。

测试表明，肯定不是最优解，最优解目前只有动态规划或穷举算法，暂无解。

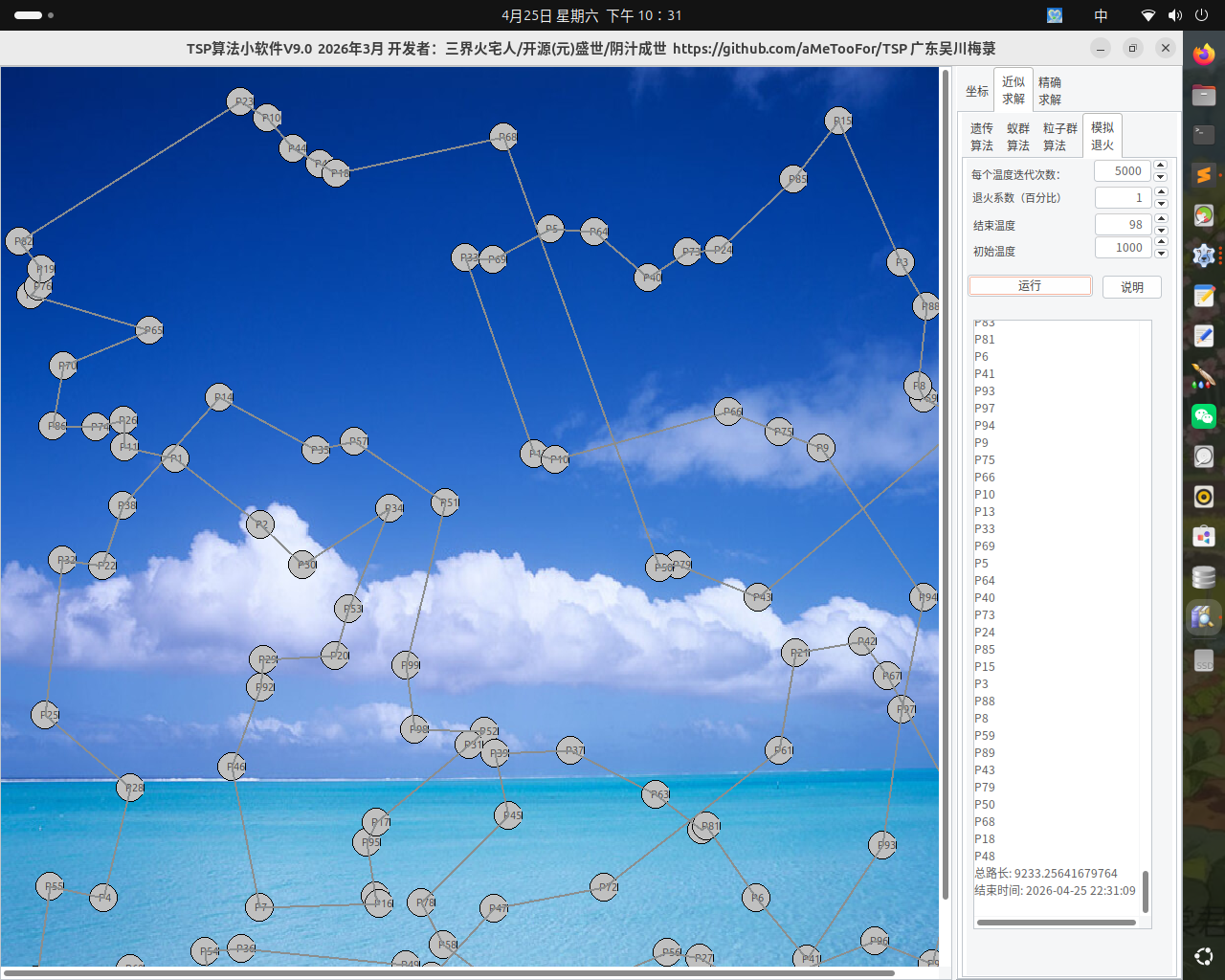

传统近似算法，个人目前认为，可能模拟退火算法是最好的，于是对比。

原本认为，sealine算法，点数少时不及传统近似算法，设想点数越多越趋于最优解，这个估计可以这样认为，当点数越多时，点的分布就会象晶体一样有序，一个紧挨一个，象标准矩形，坐标轴坐标点一样，于是测试。

发现，

1）当坐标点是十分规则的矩形分布坐标轴一样整点时，sealine算法目前不及模拟退火，就算点数从100到500都是一样

SQLQuery1.FieldByName('px').AsInteger := 100 + (100 * (i - 1) mod 1000);

SQLQuery1.FieldByName('py').AsInteger := 100 + 100 * (100 * (i - 1) div 1000);

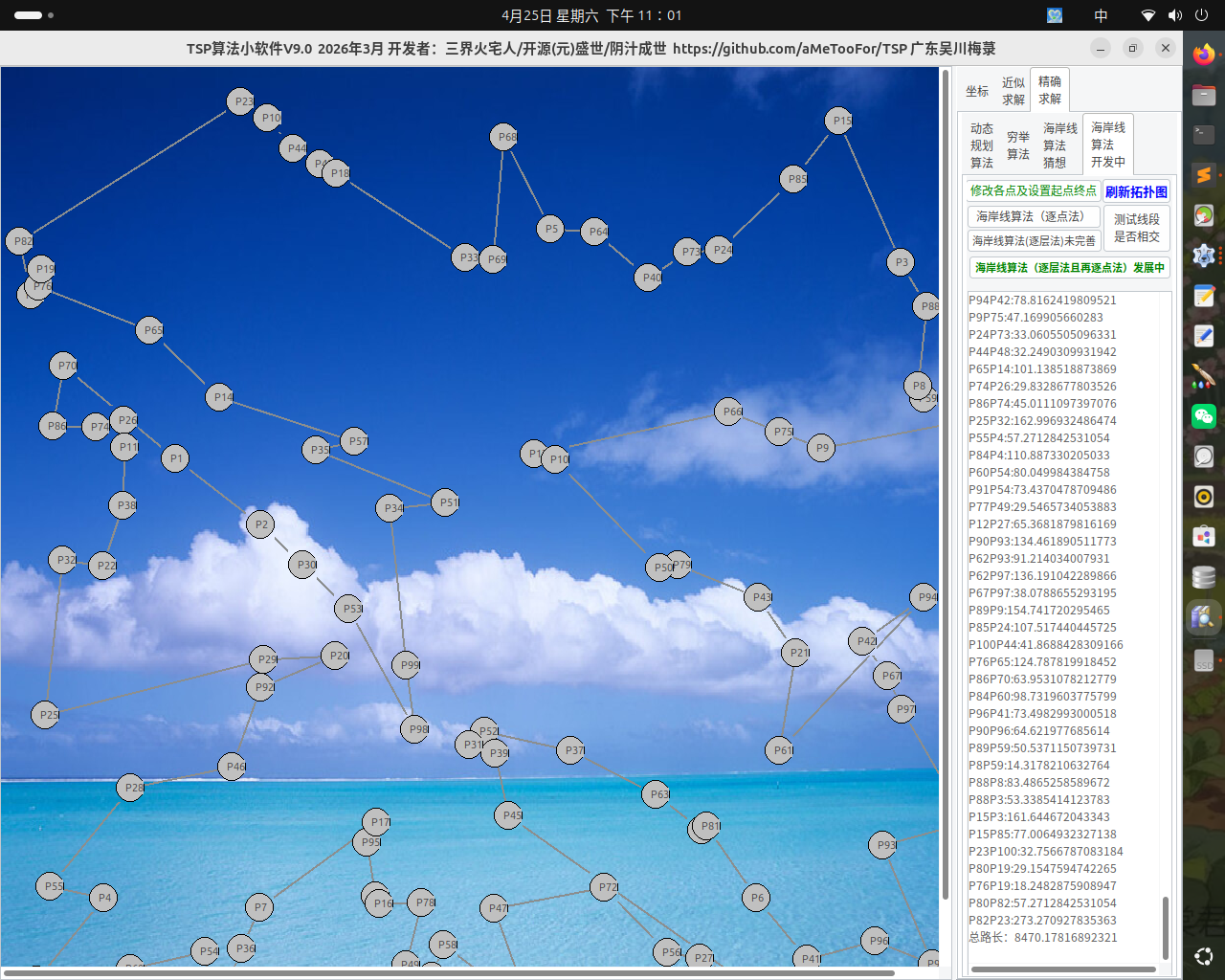

2）当坐标点是随机分布，sealine算法目前自认为确实在100点，到500点，比模拟退火效果要好不少，高于500点时，个人PC电脑硬件问题，不理了。

SQLQuery1.FieldByName('px').AsInteger := Random(1000);//100 + I * 10;

SQLQuery1.FieldByName('py').AsInteger := Random(1000);//100 + I * 10;

3）当坐标点是大体规则矩形加上少量随机分布，sealine算法目前仍然自认为确实在100点，到500点，比模拟退火效果要好不少，高于500点时，个人PC电脑硬件问题，不理了。

SQLQuery1.FieldByName('px').AsInteger :=100 + (100 * (i - 1) mod 1000) + Random(20);

SQLQuery1.FieldByName('py').AsInteger :=100 + 100 * (100 * (i - 1) div 1000) + Random(20);

sealine算法，目前不想理了，暂如是，停鞍稍驻初程，写代码象古代骑马驿站赶路，太急不好，疲劳不好。。。。。。。

sealine算法，目前不想理了，暂如是，停鞍稍驻初程，写代码象古代骑马驿站赶路，太急不好，疲劳不好。。。。。。。

TSP_ubuntu_Lazarus源代码=033=sealine=粗略已处理四正四隅垂直和水平.zip

(1) https://github.com/aMeTooFor/TSP/

(2) https://blog.csdn.net/e271828/article/details/160509634?spm=1011.2124.3001.6209

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SeaLine算法的思考进展

2026-03-31

1）昨天我测试了一下，当sealine算法逐层法只有一层时，测试表明，可能正是最优解，但未获严格证明

2）昨天我又测试一下，将sealine算法选逐层法再逐点法相结合时，如果第二层只有一个点，共只有两层，测试表明，可能也是最优解，但未证明

3）昨天我又设想，将逐点法，由原来的最小距离/最大夹角/最小面积，改成了，最小边长，min(ac+bc-ab),测试表明，结果与原有的模拟退火相近似，也是近似解，但比原来的改进了许多。

4）我又测试下，逐层法后再逐点法，未写代码，三重循环还是二重循环，疲劳分不清，暂不写代码，等不疲劳分清楚再说

5）不写新代码，原有的测试，逐层法后再逐点法，以二层测试，有时相差不远，有时相差远，可能与第二层点的分布有关。可能是一种趋近近似算法。也可能要以改良成精确最优解，只是目前做不到。

6）TSP的穷举法算法复杂度或为O(n!)？今如果转化为sealine逐层法n=L=L0+L1+L2+...+Li+...+Ln，是不是每层都要全排序呢？O(L1!+L2!+...+Li!+L...+Ln!)如果这样，也没甚用了，因为，动态规划法也是仅有O(n*2^n)和O(n^2*2n)。转化为，每层逐点时，要按原来的同心圆的顺序，不可乱来，分顺时针和逆时针，所以，可能sealine逐层且逐点法的复杂度为线性的O(3n+1)，是有可能的。且不断逼近最优解，如果想下就可以了。。。。

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

TSP海岸线SeaLine算法的逐层法/逐点法（续）

三界火宅人 2026-03-26

假设TSP的海岸线sealine算法逐层产生同心圆的线圈所在点集为L0,L1,L2...Li,...Ln,如果用递增方式，由集合前段L0-->L0+L1-->L0+L1+L2-->L0+L1+...Li，这样来求TSP的精确解，会不会有简易算法，比直接全集L的TSP组合算法要简单？

1）若仅一层L=L0，sealine算法是不是最优解呢？

2）若仅两层L=L0+L1，是否存在简易算法，使得由L0-->L0＋L1计算TSP最优解比直接L要简易得多呢？

3）如果上面1）和2）成立，根据数学归纳法，P=NP仍然有可能成立的乎。一生二，二生三，三生万物者，数学归纳法乎。之乎者也，知苦这也。

4）由第一层向第二层推进，再分解分析降解为第一层内部加多一个点乎，这更加简化，算法如何？如果新点近边靠边圈，可能真的局部调下即成乎，如果新点近中心，可能大变， 不是这么简化的？P，线性乎，NP，级数指数乎，仍是未知的。

5）角谷猜想的熵增定律的映像，仍然可能成立乎

6）代数数理（辟支？知乎）与几何直观（声闻？福乎）不可能相差太远乎，自然数平方的倒数和，欧拉用级数解，现代化为几何直观圆，总有几何对应代数乎，素数对应几何上啥呢？

=============================================================

关于TSP的海岸线猜想：SeaLine算法的逐层法（不同于逐点法）

三界火宅人 2026-03-25

经过两天的不充分休息，疲劳暂解，又开始强迫症式地新思想了，忽想到，如果海浪线不是每次一点点地强逼进，不理什么最近距离或最大夹角或最小面积，改用同心圆的方式，一线线地强逼进，最后再连通各个同心圆，这算法可行否？

1）为了一个想法，又开始焦虑不安了，必要调试出个结果才安心也，心无奎碍，无挂疑故，才可以安心休息也。

于是，又是上机调试，又写自定义函数，一个数组下标出错，也找很久，当前下标是curA还是i，自已易搞混，原先正常的函数isCross或ifCross，为啥又出错了，深入内部代码调试一番，这又累呀。一大早起床，啥也不干，就开机，没有报酬的，白干的，就为了一个想法，一个知字乎，为了讨个说法乎？

2）首先得到最外层的围城的围线算法，以前是一个点一个点地推进，现在改了，把围城推倒，相当于重新造一个围墙，把原先围城的点暂时不要。

3）就这递归，叠代，一线一线地推进，产生同心圆，最后连通这些同心圆，可行不？

结果，可行，但是，仍然不是最优解，不过没有细长深长的线了，比较钝角了。

没想到，不许相交，从这点出发的SeaLine算法，的确可行实现了，但离最优解差得远，不及有些相交线的组合算法，就这样，暂时算（蒜子）了，V速退

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

function TMain.sealine000(minx, miny, maxx, maxy: integer): integer;

var

i: integer; //memo_seaLine

curp, curp0: integer;//TPoint;

pline: TlinePoint;

pcode1, pcode2: string;

pcode1Shape, pcode2Shape: tshape;

pcode1Pointer, pcode2Pointer: tpoint;

path, ss: string;

minpx, minpy, maxpx, maxpy: integer;

sortlist, floorLine: TStringList;

begin

sortlist := TStringList.Create;

floorLine := TStringList.Create;

sortlist.Clear;

floorLine.Clear;

//////////////////////////////////////四正 子午卯酉

//minpx,minpy,maxpx,maxpy:integer;

minpx := TPointLine(PointList[minx]).px;

minpy := TPointLine(PointList[miny]).py;

maxpx := TPointLine(PointList[maxx]).px;

maxpy := TPointLine(PointList[maxy]).py;

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

//for i := PointList.Count - 1 downto 0 do

begin

//if TPointLine(PointList[i]).floor<>-123 then

if (TPointLine(PointList[i]).px = TPointLine(PointList[minx]).px) then

// if (TPointLine(PointList[i]).py <TPointLine(PointList[minx]).py) then

begin

// minx:=i;

// TPointLine(PointList[i]).floor:=-123;

//sortlist.add(inttostr(TPointLine(PointList[i]).py)+' '+TPointLine(PointList[i]).pcode);

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

//ss:=sortlist.text;

sortlist.sort;

//ss:=sortlist.text;

//for i := 0 to sortlist.Count - 1 do

for i := sortlist.Count - 1 downto 0 do

floorLine.add(trim(rightstr(sortlist[i], 10)));

//四正：酉正，从酉初到酉末

ss := floorLine.Text;

if sortlist.Count > 0 then

minx := StrToInt(trim(rightstr(sortlist[0], 10))); //酉时末，顶上

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).py = TPointLine(PointList[miny]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

if sortlist.Count > 0 then

miny := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//子时初

application.ProcessMessages;

curp := minx;

curp0 := -1;

path := '';

while curp0 <> curp do

//八极之四隅之亥，从酉末到子初也

begin

//if curp<>-1 then

application.ProcessMessages;

curp0 := curp;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).px > TPointLine(PointList[miny]).px) then

continue;

if (TPointLine(PointList[i]).py > TPointLine(PointList[curp0]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[miny]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[curp0]).py) then

continue;

if (i = curp0) then

begin

//curp := i;

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

floorLine.add(IntToStr(curp0));

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

//linelist.Add(pline);

end;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

//if floorLine.IndexOf(IntToStr(miny)) <= -1 then

// floorLine.add(IntToStr(miny));

// linelist.Add(pline);

// memo_seaLine.Lines.Add('1:' + path);

application.ProcessMessages;

///////////////////////////////////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).py = TPointLine(PointList[miny]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

for i := 0 to sortlist.Count - 1 do

// for i := sortlist.Count - 1 downto 0 do

floorLine.add(trim(rightstr(sortlist[i], 10)));//四正：子正，从子初到子末

// miny := StrToInt(sortlist[0]);

// if floorLine.IndexOf(IntToStr(miny)) <= -1 then

// floorLine.add(IntToStr(miny));

if sortlist.Count > 0 then

miny := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));

//子时末，右侧

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

if sortlist.Count > 0 then

//maxx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//卯时初

maxx := StrToInt(trim(rightstr(sortlist[0], 10)));//卯时初

//////////////////////////////////////

application.ProcessMessages;

curp := miny;

curp0 := -1;

path := '';

while curp0 <> curp do //八极之四隅之寅，从子末到卯初

begin

application.ProcessMessages;

curp0 := curp;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).px < TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py > TPointLine(PointList[maxx]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[curp0]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

floorLine.add(IntToStr(curp0));

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

end;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

// if floorLine.IndexOf(IntToStr(maxx)) <= -1 then

// floorLine.add(IntToStr(maxx));

//path := path + '-->' + pcode2;

// memo_seaLine.Lines.Add('2:' + path);

application.ProcessMessages;

///////////////////////////////////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

for i := 0 to sortlist.Count - 1 do

// for i := sortlist.Count - 1 downto 0 do

floorLine.add(trim(rightstr(sortlist[i], 10)));//四正：卯正，从卯初到卯末

// maxx := StrToInt(sortlist[0]);

// if floorLine.IndexOf(IntToStr(maxx)) <= -1 then

// floorLine.add(IntToStr(maxx));

if sortlist.Count > 0 then

maxx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));

//卯时末，右底

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

ss := sortlist.Text;

if sortlist.Count > 0 then

maxy := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//午时初

//////////////////////////////////////

ss := floorLine.Text;

application.ProcessMessages;

curp := maxx;

curp0 := -1;

path := '';

while curp0 <> curp do//八极之四隅之巳，从卯末到午初

begin

application.ProcessMessages;

curp0 := curp;

//for i := 0 to PointList.Count - 1 do

for i := PointList.Count - 1 downto 0 do

begin

if (TPointLine(PointList[i]).px < TPointLine(PointList[maxy]).px) then

continue;

if (TPointLine(PointList[i]).py < TPointLine(PointList[curp0]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

floorLine.add(IntToStr(curp0));

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

end;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

//if floorLine.IndexOf(IntToStr(maxy)) <= -1 then

// floorLine.add(IntToStr(maxy));

//path := path + '-->' + pcode2;

//memo_seaLine.Lines.Add('3:' + path);

application.ProcessMessages;

//////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

//for i := 0 to sortlist.Count - 1 do

for i := sortlist.Count - 1 downto 0 do

floorLine.add(trim(rightstr(sortlist[i], 10)));//四正之午正（含午初）

// maxy := StrToInt(sortlist[0]);

// if floorLine.IndexOf(IntToStr(maxy)) <= -1 then

// floorLine.add(IntToStr(maxy));

if sortlist.Count > 0 then

maxy := StrToInt(trim(rightstr(sortlist[0], 10)));//午末

ss := floorLine.Text;

application.ProcessMessages;

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if (TPointLine(PointList[i]).px = TPointLine(PointList[minx]).px) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py), 10) +

' ' + IntToStr(i));

application.ProcessMessages;

end;

end;

sortlist.sort;

if sortlist.Count > 0 then

minx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//酉之初

ss := floorLine.Text;

application.ProcessMessages;

//////////////////////////////////////

application.ProcessMessages;

curp := maxy;

curp0 := -1;

path := '';

while curp0 <> curp do//午末与酉初之间的四隅之申

begin

application.ProcessMessages;

curp0 := curp;

//for i := 0 to PointList.Count - 1 do

for i := PointList.Count - 1 downto 0 do

begin

if (TPointLine(PointList[i]).px > TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py < TPointLine(PointList[minx]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[minx]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

floorLine.add(IntToStr(curp0));

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

end;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

floorLine.add(IntToStr(curp));

// if floorLine.IndexOf(IntToStr(minx)) <= -1 then

// floorLine.add(IntToStr(minx));

// memo_seaLine.Lines.Add('4:' + path);

application.ProcessMessages;

//////////////////////////////////////

ss := floorLine.Text;

path := '';

for i := 0 to floorLine.Count - 1 do

begin

TPointLine(PointList[StrToInt(floorLine[i mod floorLine.Count])]).floor := 0;

pline := TlinePoint.Create(nil);

pcode1 := pcodes[StrToInt(floorLine[i mod floorLine.Count])];

pcode2 := pcodes[StrToInt(floorLine[(i + 1) mod floorLine.Count])];

pcode1Shape := getpcode(pcode1);

pcode2Shape := getpcode(pcode2);

pcode1Pointer.x := pcode1Shape.Left + (pcode1Shape.Width div 2);

pcode1Pointer.y := pcode1Shape.top + (pcode1Shape.Height div 2);

pcode2Pointer.x := pcode2Shape.Left + (pcode2Shape.Width div 2);

pcode2Pointer.y := pcode2Shape.top + (pcode2Shape.Height div 2);

//self.Image1.Canvas.Line(pcode1Pointer,pcode2Pointer);

if ResultPathEdgesRed.IndexOf(pcode1 + pcode2) >= 0 then

begin

ScrollBox1.Canvas.pen.color := clHighlight;//clred;

ScrollBox1.Canvas.pen.Width := 4;

end

else

begin

ScrollBox1.Canvas.pen.color := clgrayText;

ScrollBox1.Canvas.pen.Width := 2;

end;

self.ScrollBox1.Canvas.Line(pcode1Pointer, pcode2Pointer); //ok

application.ProcessMessages;

pline.beginPcode := pcode1;

pline.endPcode := pcode2;

pline.beginPoint := pcode1Pointer;

pline.endPoint := pcode2Pointer;

pline.floor := 0; ///想不到，后来修改时，少加这句，就难找不易

linelist.Add(pline);

if pos('-->' + pcode1, path) <= 0 then

path := path + '-->' + pcode1;

if pos('-->' + pcode2, path) <= 0 then

path := path + '-->' + pcode2;

end;

memo_seaLine.Lines.Add(path);

sortlist.Free;

floorLine.Free;

///////////////////////////////////////////////////////////////////

//refreshFromLineList(nil);

end;

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

procedure TMain.btn_seaLineFloorPointClick(Sender: TObject);

var

i, j, k, jj, jjj, ij, ik, lmn: integer; //memo_seaLine

minx0, miny0, maxx0, maxy0: integer;//TPoint;

pline, ppline: TlinePoint;

minH, curminH, onelong, alllong: double;

cc: integer;

ss: string;

tempLineList: TFPList;//TPointerList;//TList; // TlinePoint

storeyLineList: array of TStringList;//TPointerList;//TList; // TlinePoint

function PPLong(a, b: Tpoint): double;

begin

Result := 0.0;

Result := sqrt((a.x - b.x) * (a.x - b.x) + (a.y - b.y) * (a.y - b.y));

end;

function wlog(w: string): integer;

begin

Result := 1;

cc := citycount;

//cc:=9;

//cc:=9;

if (ik > (cc - 2)) then

//if (iii>(7)) then

memo_seaLine.Lines.Add(w);

end;

function sealineLayer(minx, miny, maxx, maxy: integer): integer;

var

i, j, curTOPstorey: integer; //memo_seaLine

curp, curp0, tempnextp: integer;//TPoint;

pline: TlinePoint;

pcode1, pcode2: string;

pcode1Shape, pcode2Shape: tshape;

pcode1Pointer, pcode2Pointer: tpoint;

path, ss: string;

minpx, minpy, maxpx, maxpy: integer;

sortlist, floorLine: TStringList;

begin

sortlist := TStringList.Create;

floorLine := TStringList.Create;

sortlist.Clear;

floorLine.Clear;

////////////////////////////////////// 四正 子午卯酉

//minpx,minpy,maxpx,maxpy:integer;

minpx := TPointLine(PointList[minx]).px;

minpy := TPointLine(PointList[miny]).py;

maxpx := TPointLine(PointList[maxx]).px;

maxpy := TPointLine(PointList[maxy]).py;

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

if TPointLine(PointList[i]).floor = -1 then

break;

minx := i;//TPoint(PointList[0]);

miny := minx;

maxx := minx;

maxy := minx;

for i := 0 to PointList.Count - 1 do

// PointList: TFPList;//TPointerList;//TList; //TPointline

if TPointLine(PointList[i]).floor = -1 then

begin

// ss:= TPointLine(PointList[i]).pcode;

if TPointLine(PointList[i]).pcode = 'P9' then

application.ProcessMessages;

if (TPointLine(PointList[i]).px < TPointLine(PointList[minx]).px) then

minx := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).py < TPointLine(PointList[miny]).py) then

miny := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).px > TPointLine(PointList[maxx]).px) then

maxx := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).py > TPointLine(PointList[maxy]).py) then

maxy := i;// TPoint(PointList[i]);

end;

memo_seaLine.Lines.Add('第' + IntToStr(length(storeyLineList) + 1) +

'层围城线围墙：');

memo_seaLine.Lines.Add('minx=' + pcodes[minx]);

memo_seaLine.Lines.Add('miny=' + pcodes[miny]);

memo_seaLine.Lines.Add('maxx=' + pcodes[maxx]);

memo_seaLine.Lines.Add('maxy=' + pcodes[maxy]);

application.ProcessMessages;

//tempLineList:=TFPList.Create;//TPointerList;//TList; // TlinePoint

curTOPstorey := length(storeyLineList);

setlength(storeyLineList, curTOPstorey + 1);

storeyLineList[curTOPstorey] := TStringList.Create;

////////////////////////////////////// 四正 子午卯酉

//minpx,minpy,maxpx,maxpy:integer;

minpx := TPointLine(PointList[minx]).px;

minpy := TPointLine(PointList[miny]).py;

maxpx := TPointLine(PointList[maxx]).px;

maxpy := TPointLine(PointList[maxy]).py;

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

//for i := PointList.Count - 1 downto 0 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).px = TPointLine(PointList[minx]).px) then

begin

//TPointLine(PointList[i]).floor := curTOPstorey;

//sortlist.add(inttostr(TPointLine(PointList[i]).py)+' '+TPointLine(PointList[i]).pcode);

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py),

    • ' ' + IntToStr(i));

end;

end;

//ss:=sortlist.text;

sortlist.sort;

//ss:=sortlist.text;

//for i := 0 to sortlist.Count - 1 do

for i := sortlist.Count - 1 downto 0 do

begin

floorLine.add(trim(rightstr(sortlist[i], 10)));

//四正：酉正，从酉初到酉末

TPointLine(PointList[StrToInt(trim(rightstr(sortlist[i], 10)))]).floor :=

curTOPstorey;

end;

ss := floorLine.Text;

if sortlist.Count > 0 then

minx := StrToInt(trim(rightstr(sortlist[0], 10))); //酉时末，顶上

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).py = TPointLine(PointList[miny]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

if sortlist.Count > 0 then

miny := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//子时初

application.ProcessMessages;

curp := minx;

curp0 := -1;

path := '';

while curp0 <> curp do //八极之四隅之亥，从酉末到子初也

begin

application.ProcessMessages;

//if curp<>-1 then

curp0 := curp;

for i := 0 to PointList.Count - 1 do

if TPointLine(PointList[i]).floor = -1 then

begin

if (TPointLine(PointList[i]).px > TPointLine(PointList[miny]).px) then

continue;

if (TPointLine(PointList[i]).py > TPointLine(PointList[curp0]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[miny]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[curp0]).py) then

continue;

if (i = curp0) then

begin

//curp := i;

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

begin

floorLine.add(IntToStr(curp0));

TPointLine(pointlist[curp0]).floor := curTOPstorey;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

end;

if miny <> curp then

begin

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

//TPointLine(pointlist[miny]).floor := curTOPstorey;

//memo_seaLine.Lines.Add('1:' + path);

ss := floorLine.Text;

application.ProcessMessages;

///////////////////////////////////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).py = TPointLine(PointList[miny]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

for i := 0 to sortlist.Count - 1 do

// for i := sortlist.Count - 1 downto 0 do

begin

floorLine.add(trim(rightstr(sortlist[i], 10)));

//四正：子正，从子初到子末

TPointLine(PointList[StrToInt(trim(rightstr(sortlist[i], 10)))]).floor :=

curTOPstorey;

end;

// miny := StrToInt(sortlist[0]);

// if floorLine.IndexOf(IntToStr(miny)) <= -1 then

// floorLine.add(IntToStr(miny));

ss := sortlist.Text;

if sortlist.Count > 0 then

miny := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));

//子时末，右侧

///#####################################

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

if sortlist.Count > 0 then

// maxx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//卯时初

maxx := StrToInt(trim(rightstr(sortlist[0], 10)));//卯时初

//////////////////////////////////////

application.ProcessMessages;

curp := miny;

curp0 := -1;

path := '';

while curp0 <> curp do //八极之四隅之寅，从子末到卯初

begin

application.ProcessMessages;

curp0 := curp;

for i := 0 to PointList.Count - 1 do

if TPointLine(PointList[i]).floor = -1 then

begin

if (TPointLine(PointList[i]).px < TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py > TPointLine(PointList[maxx]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[curp0]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

begin

floorLine.add(IntToStr(curp0));

TPointLine(pointlist[curp0]).floor := curTOPstorey;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

end;

if maxx <> curp then

begin

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

// memo_seaLine.Lines.Add('2:' + path);

ss := floorLine.Text;

application.ProcessMessages;

////////////////////////////////////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).px = TPointLine(PointList[maxx]).px) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

for i := 0 to sortlist.Count - 1 do

// for i := sortlist.Count - 1 downto 0 do

begin

floorLine.add(trim(rightstr(sortlist[i], 10)));

//四正：卯正，从卯初到卯末

TPointLine(PointList[StrToInt(trim(rightstr(sortlist[i], 10)))]).floor :=

curTOPstorey;

end;

// maxx := StrToInt(sortlist[0]);

// if floorLine.IndexOf(IntToStr(maxx)) <= -1 then

// floorLine.add(IntToStr(maxx));

if sortlist.Count > 0 then

maxx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));

//卯时末，右底

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

ss := sortlist.Text;

if sortlist.Count > 0 then

maxy := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//午时初

///#####################################

ss := floorLine.Text;

application.ProcessMessages;

curp := maxx;

curp0 := -1;

path := '';

while curp0 <> curp do//八极之四隅之巳，从卯末到午初

begin

application.ProcessMessages;

curp0 := curp;

//for i := 0 to PointList.Count - 1 do

for i := PointList.Count - 1 downto 0 do

if TPointLine(PointList[i]).floor = -1 then

begin

if (TPointLine(PointList[i]).px < TPointLine(PointList[maxy]).px) then

continue;

if (TPointLine(PointList[i]).py < TPointLine(PointList[curp0]).py) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

end;

end

else

curp := i;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

begin

floorLine.add(IntToStr(curp0));

TPointLine(pointlist[curp0]).floor := curTOPstorey;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

ss := floorLine.Text;

end;

end;

if maxy <> curp then

begin

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

// memo_seaLine.Lines.Add('3:' + path);

ss := floorLine.Text;

application.ProcessMessages;

//////////////////////////////////////

sortlist.Clear;

for i := 0 to PointList.Count - 1 do

begin

if TPointLine(PointList[i]).floor = -1 then

if (TPointLine(PointList[i]).py = TPointLine(PointList[maxy]).py) then

begin

sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).px),

    • ' ' + IntToStr(i));

end;

end;

sortlist.sort;

//for i := 0 to sortlist.Count - 1 do

for i := sortlist.Count - 1 downto 0 do

begin

floorLine.add(trim(rightstr(sortlist[i], 10))); //四正之午正（含午初）

TPointLine(PointList[StrToInt(trim(rightstr(sortlist[i], 10)))]).floor :=

curTOPstorey;

end;

if sortlist.Count > 0 then

maxy := StrToInt(trim(rightstr(sortlist[0], 10)));//午末

ss := floorLine.Text;

application.ProcessMessages;

//sortlist.Clear;

//for i := 0 to PointList.Count - 1 do

//begin

// if TPointLine(PointList[i]).floor = -1 then //这里又产生BUG，如果为floor = -1，则没有数据，下标-1报错

// if (TPointLine(PointList[i]).px = TPointLine(PointList[minx]).px) then

// begin

// sortlist.add(rightstr('0000000000' + IntToStr(TPointLine(PointList[i]).py), 10) +

// ' ' + IntToStr(i));

// end;

//end;

//sortlist.sort;

// minx := StrToInt(trim(rightstr(sortlist[sortlist.Count - 1], 10)));//酉之初

minx := StrToInt(floorLine[0]);//酉之初

//////////////////////////////////////

application.ProcessMessages;

curp := maxy;

curp0 := -1;

path := '';

while curp0 <> curp do//午末与酉初之间的四隅之申

begin

application.ProcessMessages;

curp0 := curp;

//for i := 0 to PointList.Count - 1 do

for i := PointList.Count - 1 downto 0 do

if TPointLine(PointList[i]).floor = -1 then

begin

if (TPointLine(PointList[i]).px > TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).px = TPointLine(PointList[curp0]).px) then

continue;

if (TPointLine(PointList[i]).py < TPointLine(PointList[minx]).py) then

continue;

if (TPointLine(PointList[i]).py = TPointLine(PointList[minx]).py) then

continue;

if (i = curp0) then

begin

continue;

end;

if (curp0 <> curp) then

begin

if ((TPointLine(PointList[i]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[i]).px - TPointLine(PointList[curp0]).px)) <

((TPointLine(PointList[curp]).py - TPointLine(PointList[curp0]).py) /

(TPointLine(PointList[curp]).px - TPointLine(PointList[curp0]).px)) then

begin

curp := i;

if TPointLine(PointList[i]).pcode = 'P9' then

application.ProcessMessages;

end;

end

else

begin

curp := i;

end;

end;

if curp0 <> curp then

begin

if floorLine.IndexOf(IntToStr(curp0)) <= -1 then

begin

floorLine.add(IntToStr(curp0));

TPointLine(pointlist[curp0]).floor := curTOPstorey;

end;

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

end;

if minx <> curp then

begin

if floorLine.IndexOf(IntToStr(curp)) <= -1 then

begin

floorLine.add(IntToStr(curp));

TPointLine(pointlist[curp]).floor := curTOPstorey;

end;

end;

// memo_seaLine.Lines.Add('4:' + path);

application.ProcessMessages;

//////////////////////////////////////

TPointLine(pointlist[miny]).floor := curTOPstorey;

TPointLine(pointlist[maxx]).floor := curTOPstorey;

TPointLine(pointlist[maxy]).floor := curTOPstorey;

TPointLine(pointlist[minx]).floor := curTOPstorey;

if storeyLineList[curTOPstorey].Count = 0 then

//这是仅剩下最后一点圆心的情况

begin

//ss := TPointLine(pointlist[minx]).Pcode;

//storeyLineList[curTOPstorey].add(ss);

//storeyLineList[curTOPstorey].add(ss);

end;

///////////////////////////////////////////////////////////////////

ss := floorLine.Text;

path := '';

for i := 0 to floorLine.Count - 1 do

begin

pline := TlinePoint.Create(nil);

pcode1 := pcodes[StrToInt(floorLine[i mod floorLine.Count])];

pcode2 := pcodes[StrToInt(floorLine[(i + 1) mod floorLine.Count])];

pcode1Shape := getpcode(pcode1);

pcode2Shape := getpcode(pcode2);

pcode1Pointer.x := pcode1Shape.Left + (pcode1Shape.Width div 2);

pcode1Pointer.y := pcode1Shape.top + (pcode1Shape.Height div 2);

pcode2Pointer.x := pcode2Shape.Left + (pcode2Shape.Width div 2);

pcode2Pointer.y := pcode2Shape.top + (pcode2Shape.Height div 2);

if ResultPathEdgesRed.IndexOf(pcode1 + pcode2) >= 0 then

begin

ScrollBox1.Canvas.pen.color := clHighlight;//clred;

ScrollBox1.Canvas.pen.Width := 4;

end

else

begin

ScrollBox1.Canvas.pen.color := clgrayText;

ScrollBox1.Canvas.pen.Width := 2;

end;

self.ScrollBox1.Canvas.Line(pcode1Pointer, pcode2Pointer); //ok

pline.beginPcode := pcode1;

pline.endPcode := pcode2;

pline.beginPoint := pcode1Pointer;

pline.endPoint := pcode2Pointer;

pline.floor := curTOPstorey;

///想不到，后来修改时，少加这句，就难找不易

linelist.Add(pline);

if pos('-->' + pcode1, path) <= 0 then

path := path + '-->' + pcode1;

if pos('-->' + pcode2, path) <= 0 then

path := path + '-->' + pcode2;

TPointLine(pointlist[StrToInt(floorLine[i mod floorLine.Count])]).floor :=

curTOPstorey;

if storeyLineList[curTOPstorey].IndexOf(

TPointLine(pointlist[StrToInt(floorLine[i mod floorLine.Count])]).Pcode) <=

-1 then

storeyLineList[curTOPstorey].add(

TPointLine(pointlist[StrToInt(floorLine[i mod floorLine.Count])]).Pcode);

end;

storeyLineList[curTOPstorey].add(

TPointLine(pointlist[StrToInt(floorLine[0])]).Pcode);

memo_seaLine.Lines.Add(path);

sortlist.Free;

floorLine.Free;

///////////////////////////////////////////////////////////////////

//refreshFromLineList(nil);

end;

begin

memo_seaLine.Lines.Clear;

pcodeAndPointLineListFromSQL;

for i := 1 to PointList.Count - 1 do

TPointLine(PointList[i]).floor := -1;

for i := 1 to lineList.Count - 1 do

TLinePoint(lineList[i]).floor := -1;

minx0 := 0;//TPoint(PointList[0]);

miny0 := minx0;

maxx0 := minx0;

maxy0 := minx0;

for i := 1 to PointList.Count - 1 do

// PointList: TFPList;//TPointerList;//TList; //TPointline

begin

if (TPointLine(PointList[i]).px < TPointLine(PointList[minx0]).px) then

minx0 := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).py < TPointLine(PointList[miny0]).py) then

miny0 := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).px > TPointLine(PointList[maxx0]).px) then

maxx0 := i;// TPoint(PointList[i]);

if (TPointLine(PointList[i]).py > TPointLine(PointList[maxy0]).py) then

maxy0 := i;// TPoint(PointList[i]);

end;

memo_seaLine.Lines.Add('minx=' + pcodes[minx0]);

memo_seaLine.Lines.Add('miny=' + pcodes[miny0]);

memo_seaLine.Lines.Add('maxx=' + pcodes[maxx0]);

memo_seaLine.Lines.Add('maxy=' + pcodes[maxy0]);

application.ProcessMessages;

memo_seaLine.Lines.Add('最外层围城线围墙：');

for i := lineList.Count - 1 downto 0 do

begin

try

//if tobject(shapeList.Items[i]) is TlinePoint then

if lineList.Items[i] <> nil then

begin

TlinePoint(lineList.Items[i]).Free;

lineList.Items[i] := nil;

lineList.Count := lineList.Count - 1;

application.ProcessMessages;

end;

except

end;

application.ProcessMessages;

end;

lineList.Clear;

for i := TPsubpPointList.Count - 1 downto 0 do

begin

try

if (TPsubpPointList.Items[i]) <> nil then

begin

TPsubpPoint(TPsubpPointList.Items[i]).Free;

TPsubpPointList.Items[i] := nil;

TPsubpPointList.Count := TPsubpPointList.Count - 1;

application.ProcessMessages;

end;

except

end;

application.ProcessMessages;

end;

TPsubpPointList.Clear;

image1.Refresh;

/////////////////////////////////////////////////////////////////

sealine000(minx0, miny0, maxx0, maxy0); //最外层，另外计算

// exit;

////////////////////////////////////////////////

setlength(storeyLineList, 1);

storeyLineList[0] := TStringList.Create;

for i := 0 to linelist.Count - 1 do

begin

if storeyLineList[0].IndexOf(TlinePoint(linelist[i]).beginPcode) <= -1 then

storeyLineList[0].add(TlinePoint(linelist[i]).beginPcode);

if storeyLineList[0].IndexOf(TlinePoint(linelist[i]).endPcode) <= -1 then

storeyLineList[0].add(TlinePoint(linelist[i]).endPcode);

TlinePoint(linelist[i]).floor := 0;

// TPointLine(pointlist[getPcodeIndex(TlinePoint(linelist[i]).beginPcode)]).floor := 0 ;

// TPointLine(pointlist[getPcodeIndex(TlinePoint(linelist[i]).endPcode)]).floor := 0 ;

end;

// storeyLineList[0].add(tstringlist(storeyLineList[0])[0]);

ss := storeyLineList[0].Text; //第一层，已是首尾相接

for i := 0 to storeyLineList[0].Count - 1 do

begin

ss := (storeyLineList[0][i]);

if ss = 'P1' then

application.ProcessMessages;

j := getPcodeIndex(ss);

TPointLine(pointlist[j]).floor := 0;

end;

TPointLine(pointlist[miny0]).floor := 0;

TPointLine(pointlist[maxx0]).floor := 0;

TPointLine(pointlist[maxy0]).floor := 0;

TPointLine(pointlist[minx0]).floor := 0;

/////////////////////////

i := 1;

while i > 0 do

begin

i := 0;

for j := 0 to pointlist.Count - 1 do

//pointlist所有点集，未分层的全点集

if TPointLine(pointlist[j]).floor = -1 then

I := i + 1;

if i = 1 then

application.ProcessMessages;

if i > 0 then

seaLineLayer(0, 0, 0, 0); //求出所有层

end;

////////////////////////

for i := 0 to length(storeyLineList) - 1 do //每一层点集

memo_seaLine.Lines.Add(IntToStr(i) + '=' + storeyLineList[i].Text);

// exit;

for i := 0 to length(storeyLineList) - 2 do //每一层点集

//for i := 0 to length(storeyLineList) - 3 do //每一层点集 for test

begin

for k := 0 to storeyLineList[i + 1].Count - 2 do

// if (TlinePoint(linelist[j]).floor = (i + 1)) then // j in high j要高层内层，k在低层外层

// if (TlinePoint(linelist[k]).floor = (i)) then // k out lower j要高层内层，k在低层外层

//if (TlinePoint(linelist[k]).floor <>-111) then

begin

for lmn := pointList.Count - 1 downto 0 do

if TPointLine(pointList[lmn]).pcode = ((storeyLineList[i + 1])[k]) then

break;

if TPointLine(pointList[lmn]).floor = -111 then

continue;

ss := ((storeyLineList[i + 1])[k]);

//if k = 3 then break;

//if k = 2 then

application.ProcessMessages;

ss := storeyLineList[i].Text;

minH := 10000000;

ij := -1;

ik := -1;

jjj := -1;

for j := 0 to storeyLineList[i].Count - 2 do

begin

curminH := (PPLong(fromPcodeGetPoint((storeyLineList[i + 1])

k\]), fromPcodeGetPoint((storeyLineList\[i\])\[j\])) + PPLong(fromPcodeGetPoint((storeyLineList\[i + 1\])\[k\]), fromPcodeGetPoint((storeyLineList\[i\])\[(j + 1) mod storeyLineList\[i\].Count\])) - PPLong(fromPcodeGetPoint((storeyLineList\[i\])\[j\]), fromPcodeGetPoint( (storeyLineList\[i\])\[(j + 1) mod storeyLineList\[i\].Count\]))); if curminH \< minH then begin minH := curminH; ij := j; //ii j in high ik := k; //iii k out lower jjj := 1; end; end; ///////////////////////////////////////// if jjj = 1 then begin pline := TlinePoint.Create(nil); pline.beginPcode := ((storeyLineList\[i\])\[ij\]); pline.endPcode := ((storeyLineList\[i + 1\])\[ik\]); pline.beginPoint := fromPcodeGetPoint((storeyLineList\[i\])\[ij\]); pline.endPoint := fromPcodeGetPoint((storeyLineList\[i + 1\])\[ik\]); pline.floor := i; linelist.Add(pline); pline := TlinePoint.Create(nil); pline.beginPcode := ((storeyLineList\[i\])\[(ij + 1) mod storeyLineList\[i\].Count\]); pline.endPcode := ((storeyLineList\[i + 1\])\[ik\]); pline.beginPoint := fromPcodeGetPoint((storeyLineList\[i\]) \[(ij + 1) mod storeyLineList\[i\].Count\]); pline.endPoint := fromPcodeGetPoint((storeyLineList\[i + 1\])\[ik\]); pline.floor := i; linelist.Add(pline); memo_seaLine.Lines.Add(((storeyLineList\[i\])\[ij\]) + ((storeyLineList\[i + 1\])\[ik\]) + '和' + ((storeyLineList\[i\]) \[(ij + 1) mod storeyLineList\[i\].Count\]) + ((storeyLineList\[i + 1\]) \[ik\]) + '替换' + ((storeyLineList\[i\])\[ij\]) + ((storeyLineList\[i\]) \[(ij + 1) mod storeyLineList\[i\].Count\])); for jjj := lineList.Count - 1 downto 0 do begin if (TlinePoint(linelist\[jjj\]).beginPcode + TlinePoint( linelist\[jjj\]).endPcode) = ((storeyLineList\[i\]) \[ij\]) + ((storeyLineList\[i\])\[(ij + 1) mod storeyLineList\[i\].Count\]) then TlinePoint(linelist\[jjj\]).floor := -111; if (TlinePoint(linelist\[jjj\]).endPcode + TlinePoint( linelist\[jjj\]).beginPcode) = ((storeyLineList\[i\]) \[ij\]) + ((storeyLineList\[i\])\[(ij + 1) mod storeyLineList\[i\].Count\]) then TlinePoint(linelist\[jjj\]).floor := -111; end; for jjj := pointList.Count - 1 downto 0 do if TPointLine(pointList\[jjj\]).pcode = ((storeyLineList\[i + 1\])\[ik\]) then TPointLine(pointList\[jjj\]).floor := -111; //tstringlist(storeyLineList\[i\])\[ij+1\].Delete; //tstringlist(storeyLineList\[i\])\[ij\].Delete; TStringList(storeyLineList\[i\]).insert(ij + 1, TStringList(storeyLineList\[i + 1\])\[ik\]); end; //if jjj = 2 then begin end; end; //k /////////////////////////////////////////// // for j := 0 to storeyLineList\[i+1\].Count - 1 do for j := lineList.Count - 1 downto 0 do if TlinePoint(linelist\[j\]).floor = i + 1 then TlinePoint(linelist\[j\]).floor := -111; ss := TStringList(storeyLineList\[i + 1\]).Text; TStringList(storeyLineList\[i + 1\]).Clear; ss := TStringList(storeyLineList\[i\]).Text; for j := 0 to TStringList(storeyLineList\[i\]).Count - 1 do TStringList(storeyLineList\[i + 1\]).add(TStringList(storeyLineList\[i\])\[j\]); TStringList(storeyLineList\[i\]).Clear; // TStringList(storeyLineList\[i + 1\]).Text:=TStringList(storeyLineList\[i\]).text; // TStringList(storeyLineList\[i\]).Clear; end; //i //新线立即加上，原线标记下次删除之，下面的就是互换的代码，替代不能直接删除而已 tempLineList := TFPList.Create; //P91P91:0 P1P1:0 P10P10:0 P100P100:0 如此造成统计点数出错的 for i := lineList.Count - 1 downto 0 do if TlinePoint(linelist\[i\]).floor \<\> -111 then if TlinePoint(linelist\[i\]).beginPcode = TlinePoint(linelist\[i\]).endPcode then TlinePoint(linelist\[i\]).floor := -111; //P91P91:0 P1P1:0 P10P10:0 P100P100:0 如此造成统计点数出错的 for i := lineList.Count - 1 downto 0 do begin try if TlinePoint(linelist\[i\]).floor \<\> -111 then begin pline := TlinePoint.Create(nil); pline.beginPcode := TlinePoint(linelist\[i\]).beginPcode; pline.endPcode := TlinePoint(linelist\[i\]).endPcode; pline.beginPoint := TlinePoint(linelist\[i\]).beginPoint; pline.endPoint := TlinePoint(linelist\[i\]).endPoint; pline.floor := TlinePoint(linelist\[i\]).floor; tempLineList.Add(pline); end; except end; application.ProcessMessages; end; for i := lineList.Count - 1 downto 0 do begin try // if TlinePoint(linelist\[i\]).floor\<\>-111 then if lineList.Items\[i\] \<\> nil then begin TlinePoint(lineList.Items\[i\]).Free; lineList.Items\[i\] := nil; lineList.Count := lineList.Count - 1; application.ProcessMessages; end; except end; application.ProcessMessages; end; lineList.Clear; for i := tempLineList.Count - 1 downto 0 do begin try // if TlinePoint(tempLineList\[i\]).floor\<\>-111 then begin pline := TlinePoint.Create(nil); pline.beginPcode := TlinePoint(tempLineList\[i\]).beginPcode; pline.endPcode := TlinePoint(tempLineList\[i\]).endPcode; pline.beginPoint := TlinePoint(tempLineList\[i\]).beginPoint; pline.endPoint := TlinePoint(tempLineList\[i\]).endPoint; pline.floor := TlinePoint(tempLineList\[i\]).floor; LineList.Add(pline); end; except end; application.ProcessMessages; end; for i := tempLineList.Count - 1 downto 0 do begin try // if TlinePoint(linelist\[i\]).floor\<\>-111 then if tempLineList.Items\[i\] \<\> nil then begin TlinePoint(tempLineList.Items\[i\]).Free; tempLineList.Items\[i\] := nil; tempLineList.Count := lineList.Count - 1; application.ProcessMessages; end; except end; application.ProcessMessages; end; tempLineList.Clear; tempLineList.Free; for i := pointList.Count - 1 downto 0 do TPointLine(pointList\[i\]).floor := -1; onelong := 0.0; alllong := 0.0; //memo_seaLine.Lines.Add('总路径：总点数：' + IntToStr(lineList.Count)); //for i := lineList.Count - 1 downto 0 do //for j := i-1 downto 0 do //if TlinePoint(linelist\[i\]).beginPcode+TlinePoint(linelist\[i\]).endPcode= //TlinePoint(linelist\[j\]).beginPcode+TlinePoint(linelist\[j\]).endPcode then // TlinePoint(linelist\[i\]).floor:=-123; // memo_seaLine.Lines.Add( TlinePoint(linelist\[i\]).beginPcode+TlinePoint(linelist\[i\]).endPcode); memo_seaLine.Lines.Add('总路径：总点数：' + IntToStr(lineList.Count)); //P91P91:0 P1P1:0 P10P10:0 P100P100:0 如此造成统计点数出错的 for i := lineList.Count - 1 downto 0 do begin try onelong := pplong(TlinePoint(linelist\[i\]).beginPoint, TlinePoint( linelist\[i\]).endPoint); memo_seaLine.Lines.Add(TlinePoint(linelist\[i\]).beginPcode + TlinePoint(linelist\[i\]).endPcode + ':' + floattostr(onelong)); alllong := alllong + onelong; TPointLine(pointList\[getpcodeindex(TlinePoint(linelist\[i\]).beginPcode)\]).floor := 1; TPointLine(pointList\[getpcodeindex(TlinePoint(linelist\[i\]).endPcode)\]).floor := 1; except end; application.ProcessMessages; end; memo_seaLine.Lines.Add('总路长：' + floattostr(alllong)); ss := ''; for i := pointList.Count - 1 downto 0 do if TPointLine(pointList\[i\]).floor = -1 then ss := ss + TPointLine(pointList\[i\]).pcode + ','; if ss \<\> '' then ShowMessage(ss + '这些点没有被处理'); //同心圆的中心点暂未处理，因为结果不理想，无兴趣理会 //sleepli(2); //refreshFromLineList(nil); refrash.Click; //refreshClick(sender); end;

相关推荐
谢谢 啊sir2 小时前
L2-060 大语言模型的推理 - java
java·人工智能·语言模型
阿杰学AI2 小时前
AI核心知识140—大语言模型之 推理期算力（简洁且通俗易懂版）
人工智能·语言模型·自然语言处理·思维链·思维树·慢思考·推理期算力
wayz112 小时前
Day 13：朴素贝叶斯分类器
人工智能·算法·机器学习·朴素贝叶斯
前端摸鱼匠2 小时前
【AI大模型春招面试题29】对比学习（Contrastive Learning）在大模型预训练中的应用？
人工智能·学习·算法·面试·大模型·求职招聘
探物 AI2 小时前
【感知·单目测距】单目摄像头测距原理与前向碰撞预警（FCWS）实现
算法·目标检测·计算机视觉
自律小嘉同学2 小时前
【无标题】
人工智能
gloomyfish2 小时前
【洞察微瑕】YOLO11+QWEN-VL实现墙体裂缝检测与文字报告生成
人工智能·opencv·算法·计算机视觉
阿杰学AI2 小时前
AI核心知识139—大语言模型之 合成数据（简洁且通俗易懂版）
人工智能·ai·语言模型·自然语言处理·aigc·合成数据·synthetic data
不知名的老吴2 小时前
大语言模型：有趣的小实验
人工智能·语言模型·自然语言处理
热门推荐
01GitHub 镜像站点022026年4月技术前沿：AI大模型爆发、智能体革命与量子安全新纪元03近期有什么ai的新消息，新动态？ 2026.4月042026年4月AI大事件深度解读：大模型竞争进入“深水区“052026年AI前瞻：量子AI、具身智能与科学发现的新纪元06codex app每次打开重连5次Reconnecting问题解决07AI Weekly | 2026年4月第二周 · GitHub热门项目与AI发展趋势深度解析082026 年 AI 辅助编程工具全景对比：Copilot、Cursor、Claude Code 与 Codex 深度解析09CC-Switch & Claude 基于 Linux 服务器安装使用指南102026 年 AI 编程助手全面对比评测：Cursor vs Copilot vs Claude Code vs GitHub Copilot Free
